I think I see part of the problem, though -- Visual Studio Code seems to be launching a version of python whenever I save, which is manipulating the file on the drive. That resets the autoreload timer.
#circuitpython-dev
stuck elbow
yay for stuff doing things behind your back
half geyser
Anyway, it's been a productive day! My NRF52833 is now sleeping at 340 uA. That's still about 50x more than it should be, but it's coming along nicely.
And USB plug/unplug is reliable now.
old smelt
Thanks @crimson ferry. I only have a single board plugged in when I'm seeing this. Behavior seems to point to the PID/VID recognition issue.
Tried a fresh local build last night and ran across this error:
../../lib/protomatter/core.c:442:13: error: dereferencing 'void *' pointer [-Werror]
*core->addrPortToggle = newBits ^ priorBits;
^~~~~~~~~~~~~~~~~~~~~
../../lib/protomatter/core.c:442:35: error: invalid use of void expression
*core->addrPortToggle = newBits ^ priorBits;
^
cc1: all warnings being treated as errors
make: *** [build-evo_m51/lib/protomatter/core.o] Error 1```@old smelt yeah, it looks like upstream is broken. All of my PRs have been failing with that error.
old smelt
Ok.
half geyser
I thought I saw a bug report about that, but I guess not.
old smelt
Am I able to check out the latest stable release? Say, 5.3.0, and build that?
Guess I'm grabbing the very latest of everything right now
half geyser
That should work, yeah:
git checkout 5.3.0
git submodule update
Thanks.
I'll do that for now. I searched the Issues on github for this error - didn't see anything. Maybe searching for the wrong string? I assume it is already a known issue if things are breaking.
half geyser
I'm guessing it's https://github.com/adafruit/circuitpython/pull/2867
half geyser
@old smelt hooray!
Also, final update for the night: I realized the LRCK and SCK lines were flopping around on I2S which was probably causing the I2S microphone on this board to do odd things. I set those to output, driven low, and now the board is down to about 11 uA. Hooray!
onyx hinge
@half geyser wow that is huge! (or tiny)
@old smelt sorry about the trouble with our master branch, I trusted too much in some automated checks and some bad commits got merged to master branch that shouldn't have 😦
half geyser
@onyx hinge I'm pleasantly surprised!
tulip sleet
@onyx hinge I was going to approve your build fix PR last night, but it was failing on multiple boards. But now it's succeeding. Did you fix something?
onyx hinge
@tulip sleet yes I force-pushed a second change
half geyser
I noticed that the "RTC" on the NRF is actually just a counter. Nothing is retained in case it crashes. I guess the answer there is to not crash...
(And maybe save the time occasionally in flash.)
tulip sleet
@half geyser if the power is still on, then RAM should be the same? So you could just save it in RAM on each tick? Or is that not the use case you are talking about?
half geyser
@tulip sleet That's a good idea, actually. And a candidate for a patch. Place rtc_offset in uninitialized memory.
onyx hinge
if (block_num > 1) {
return 1; // error
}
``` am I overlooking something about this code, or is it nonsense?I mean, that comment's not wrong...
tulip sleet
@onyx hinge I'd look at the blame history
onyx hinge
I think the second check is supposed to be num_blocks, like it is in write
half geyser
I know I asked this before, but I'm almost at a point where I can actually work on it. But: What would be the best way to add an I2S Microphone?
I see I2SOut and PDMIn. The logical solution is to add an I2SIn object.
onyx hinge
Yeah we'd like to see I2SIn added, it just hasn't happened yet. the nrf52 has the hardware for it I think
half geyser
But I2SOut has a lot of generic I2S blocks, it's just specialised for I2SOut.
onyx hinge
refactor as appropriate
not sure if you can get both to work at the same time. I wrote the i2sout but let's just say I'm not sure I'm proud of the code
half geyser
I think you can, but it requires they both be at the same rate. Probably.
That's fine, because we'll need PWMOut, which I've tested works.
Does the build system allow me to have an I2S.c inside common-hal/audiobusio/? Would I need to add an I2SIn.c to every other platform?
onyx hinge
Or, at least, each port which has audiobusio; looks to be just nrf and samd
(huh I thought samd did have i2sin...?)
(but no, I'm just wrong)
half geyser
And does it support adding a common I2S.c file? Or does that have to go elsewhere?
raven canopy
@half geyser you'll need the appropriate files in shared-bindings/audiobusio as well. to gate it to certain ports, you'll likely have to use #ifs.
@tulip sleet re: bootloader & ubuntu 19+: the udev stuff turned out to be a bit of a red herring. but it did kind of point to timing issues. i'm currently testing a bump in the SINGLE_RESET delay to 75: https://github.com/adafruit/uf2-samdx1/blob/master/src/main.c#L113. will keep pushing, and see if i can get some empirical results...
tulip sleet
@raven canopy but does this affect double-reset? BTW, that timeout was lengthened in https://github.com/microsoft/uf2-samdx1/commit/4c2e73e7a0324de02e7aee6bc31430a7028c0934, which we incorporated
half geyser
@raven canopy that's what I thought, but since it's not an actual python class but is just a common library, I thought that was a bit odd. Are there any modules that have support modules that don't expose python types?
tulip sleet
@half geyser, yes, like time, which only has functions. They're all in __init__.c
raven canopy
@tulip sleet double-reset seems to work for me, but we all have different timing. :D
i can move the bump down to the lower !main_b_cdc_enable wait loop (which we do differently it seems): https://github.com/adafruit/uf2-samdx1/blob/master/src/main.c#L317.
does that seem a more appropriate direction?
tulip sleet
we are supposed to be sync'd up with the microsoft repo completely. I am just behind on merges in both directions
I've looked at that loop a few times, and thought it seemed really short
half geyser
Thanks, @tulip sleet !
tulip sleet
@raven canopy the main reason there are even two repos is that MS has some policyt rules that they are not allowed to release binaries, so we have to do that
well, maybe not the main reason (because we still want to submit PR's), but that's a consideration
raven canopy
do you have to go through and cherry pick?.....
ahh. ok. well, i've got interest in getting it working, so feel free to abuse that to get some grunt work assistance. 😄
tulip sleet
I just need to do a merge from upstream and a PR back up; haven't had time yet
did you try building their current master to see if it's any better?
raven canopy
nope. but i can. watching nina's stream...attention stolen
idle owl
@tulip sleet What is an example build without monotonic_ns() or how can I figure that out on my own?
tulip sleet
any build without longints, so if you look in circuitpython/ports/atmel-samd/boards/*/mpconfigboard.mk for LONGINT_IMPL = NONE, those are the ones. E.g. Trinket M0
idle owl
basically I have some code with bits in it designed to work on both in the event of using one that doesn't have monotonic_ns() and I want to make sure that the code works.
Ah. Oi. Ok. 🙂 Thanks.
idle owl
Who can help me with a grep command?
My brain isn't wrapping around the man file for it.
raven canopy
what'ya got?
idle owl
I want to grep for a string in a large directory structure, specifically, I want to search for a string in circuitpython
Very specifically, I'm trying to figure out where _pixelbuf is getting colorwheel or wheel. Because I think it's in the wrong order.
But I can't find it searching files on GitHub. So I need to grep I think.
onyx hinge
shared-bindings/_pixelbuf/__init__.c: { MP_ROM_QSTR(MP_QSTR_wheel), MP_ROM_PTR(&pixelbuf_wheel_obj) },```I use grep -r or, better, the ag (silversearch) command over the whole tree. @raven canopy, ooh, didn't know about git grep
raven canopy
that was @onyx hinge , as much as i would like to take credit. 😄
onyx hinge
git grep only greps files that are tracked by git .. but irritatingly it doesn't go into submodules
idle owl
Duly noted.
onyx hinge
return (uint8_t)(pos * 3) << 16 | (uint8_t)(255 - (pos * 3)) << 8;
vs
return (255 - pos * 3, pos * 3, 0)```I know it's in the wrong order.
I tested it.
It's based on our original wheel code
which was also broken
until I found it and fixed it.
fixing it now.
onyx hinge
oic
idle owl
In theory.
onyx hinge
is the python code in https://learn.adafruit.com/circuitpython-essentials/circuitpython-neopixel the right one?
idle owl
Let me check
It's basically correct, yes. Except we usually wrap them in int() but the math is accurate.
This is for sure correct:
def wheel(pos):
"""Input a value 0 to 255 to get a color value.
The colours are a transition r - g - b - back to r."""
if pos < 0 or pos > 255:
return 0, 0, 0
if pos < 85:
return int(255 - pos * 3), int(pos * 3), 0
if pos < 170:
pos -= 85
return 0, int(255 - pos * 3), int(pos * 3)
pos -= 170
return int(pos * 3), 0, int(255 - (pos * 3))```I'm seeing my pygamer not enumerate with current master 😦
idle owl
pixelbuf is GRB, not RGB.
I'd like to fix it. But this is going to take a little learning I think.
onyx hinge
the C _pixelbuf you mean?
idle owl
Yes.
onyx hinge
oh! is there a reason for that?
idle owl
I believe it was written based on the wheel code before I fixed it
so it's in the wrong order.
wheel(1) and wheel(255) should return red. They currently return green using _pixelbuf wheel.
wheel(85) should be green, it's currently red.
Blue is correct at 170
It means any rainbow code using _pixebuf wheel will have a rainbow starting with green, fading to red, fading to blue, back to green.
Which in theory still covers all the colors, but it's supposed to start with red.
I have the code in front of me, but it's C. so I'm going to have to put some effort into understanding it
raven canopy
@tulip sleet i'm seeing errors on building MS uf2-samdx1:
In file included from lib/samd51/include/samd51j19a.h:546,
from lib/samd51/include/sam.h:38,
from ./inc/uf2.h:7,
from src/main.c:77:
lib/cmsis/CMSIS/Include/core_cmFunc.h: In function 'main':
lib/cmsis/CMSIS/Include/core_cm4.h:85:28: error: listing the stack pointer register 'sp' in a clobber list is deprecated [-Werror=deprecated]
85 | #define __ASM __asm /*!< asm keyword for GNU Compiler */
| ^~~~~
lib/cmsis/CMSIS/Include/core_cmFunc.h:456:3: note: in expansion of macro '__ASM'
456 | __ASM volatile ("MSR msp, %0\n" : : "r" (topOfMainStack) : "sp");
| ^~~~~
lib/cmsis/CMSIS/Include/core_cm4.h:85:28: note: the value of the stack pointer after an 'asm' statement must be the same as it was before the statement
85 | #define __ASM __asm /*!< asm keyword for GNU Compiler */
| ^~~~~
lib/cmsis/CMSIS/Include/core_cmFunc.h:456:3: note: in expansion of macro '__ASM'
456 | __ASM volatile ("MSR msp, %0\n" : : "r" (topOfMainStack) : "sp");
| ^~~~~
looking at their CI run, i'm guess its GCC9 related...
their travis still uses GCC6
tulip sleet
yeah, I fixed that in ours, you can just remove the : "sp"
onyx hinge
@idle owl OK, how's your understanding of bit shifts in C (or Python for that matter)?
idle owl
@onyx hinge terrible. I understood it for about 5 minutes after having it explained, did not use it enough, and it drained from my brain.
onyx hinge
so the first thing to know is that colors are 0xRRGGBB, hex numbers with 6 digits
onyx hinge
each digit is equal to 4 bits, each pair of digits is equal to 8 bits, so it's also 0xRR * 655356 + 0xGG * 256 + 0xBB
idle owl
That got complicated quickly
onyx hinge
haha sorry, let me slow down
If it was decimal it would be 10000 * RR + 100 * GG + BB, because that's how you "move digits over" in decimal
idle owl
ah ok
onyx hinge
to move over in hex, you multiply by powers of 16 instead, OR you use shifts like << which are in powers of 2
(2^16) is 65536, so 0xRR << 16 is 0xRR * 65536
idle owl
ok
onyx hinge
I know I'm not really explaining it in full, but I'm trying to help you recognize what the patterns in the code mean
onyx hinge
^^^^^^^^^^^^^^^^^^^^^^^^^ shifting something by 16
so RR is (pos * 3)
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
shifting something by 8, so GG is (255 - (pos * 3)
yup, now you got ahead of me
idle owl
and unlike in Python, the 0 isn't bothered with, if something is 0, then it's simply ignored
onyx hinge
right
idle owl
I think I get what's going on
onyx hinge
R << 16 | G << 8 | B
but whichever ones are zero are just left out, and there are parens and casts
idle owl
the one that confuses me now is the first bit: if (pos > 255) { pos = pos - ((uint32_t)(pos / 256) * 256); } because it looks nothing like that in the Python colorwheel.
onyx hinge
(uint8_t)(x) is a lot like int(x) except it also restricts x to the range 0 through 255 inclusive
idle owl
ah ok
onyx hinge
I think that makes it so that colorwheel(x + 256) == colorwheel(x), but still not for negative numbers
I'm not sure why it's written that way, however
it's saying pos = pos - int(pos/256) * 256 basically
think that's enough background to let you fix the bug?
idle owl
Might be. I'll give it a try, and see what happens! Can always git stash && git stash drop and start over.
onyx hinge
hm I never thought of doing those commands as a way of discarding my work. interesting.
I'm going to go have lunch, I'll check back later in case you had more questions
idle owl
Alright, thank you so much for your help!
onyx hinge
OK, I think my earlier problem was due to incorrectly updating the tinyusb submodule. phew.
idle owl
🎉
Updated it, built it, fixed it!
@tulip sleet Do I need to do anything else but update the code to create a PR for CircuitPython? e.g. equivalent of running Pylint, Black and Sphinx on the libs. It's a simple fix, swapped two lines of code. No changes in number of characters or anything.
I'm not sure I've ever submitted a code fix to CP.
Docs yes, code, not so sure.
tulip sleet
@idle owl usually there's not much to do. If you changed any message strings, you'd want to run make translate, but not true here. So just go ahead; you already tested it, and it seems like a simple fix
idle owl
No message strings changed. Right on, thanks. Will do.
@tulip sleet "message strings" are not "comments", correct? so if I add a comment, still no issue?
tulip sleet
anything in a translate() is what I mean
idle owl
Ok
ionic elk
@slender iron is there any one-line command for Jlink that'll upload a bin to a specific file, without opening a GDB server? I'm poring over the manual and can't find one
tulip sleet
JFlashExe will do that
no sorry, wrong way, I mean JMem
are you reading or writing flash?
there are commands in the JLinkExe CLI that will do it
ionic elk
I'd like a command that's equivalent to what I have with my other STM32 programmer, texane/stlink: st-flash write firmware.bin 0x8000000. Run and done.
Yeah commander sounded like I had to write and link a configuration file to program it? Which sounds kind of ridiculous, I dunno.
I'm not looking to reinvent the wheel was just wondering if you had something you already use.
It's not that big a deal, most of the time I need GDB open anyway
tulip sleet
looking...
slender iron
@raven canopy that's what I thought, but since it's not an actual python class but is just a common library, I thought that was a bit odd. Are there any modules that have support modules that don't expose python types?
@half geyser We tend to put Python-agnostic supporting code in theperipheralsdirectory within a port.
tulip sleet
@ionic elk it's not too hard to write a JLink script, but there isn't a pre-existing way to do it, as far as I can see. There's the JFlash tool, but that requires a separate license, and it's really meant for production
ionic elk
@tulip sleet yeah I have it, it looks like the STM32 official tools. But it's GUI based too.
well whatever nbd
tulip sleet
@ionic elk JFlash has a command line interface: see this manual, chapter 5: https://www.segger.com/downloads/jlink/um08003
ionic elk
I don't think that works on mac... I don't see a symlink for it
There's one for flashing SDI chips though which is kind of neat, actually
tidal garden
Hey guys. I'm doing some cycle testing on a part, and driving a stepper motor continously using a metro m0 express board. The board constantly sends a pulse train to the motor controller and each pulse cycle is set to 2mS. I am also using an adafruit i2c backpack connected to a display, and writing the cycle count each time one cycle is completed. I am noticing a delay (motor stops) between the end and beginning of each cycle, that seems to be due to writing the value of the cycle counter to the display. Does anyone have a recommendation for how to decrease the time it takes to do this, so that the motor can continue to cycle uninterrupted, while still updating the display? Is there a better way to send a value to the display, without having to encode the counter value as a string first?
prime flower
@crimson ferry did that ESP-IDF transport bug patch get released?
It looks like it's from 2019?
crimson ferry
@prime flower That's weird, the issue thread that references it https://github.com/espressif/esp-idf/issues/5004#issuecomment-625731391 reads like it was fixed after the issue was posted. Still apparently a known DNS blocking. So I guess we just continue to keep an eye on releases for one that's worthwhile for NINA.
manic glacierBOT
onyx hinge
@slender iron is it more natural for sdcardio.SDCard to take a DigitalInOut or a microcontroller.Pin? adafruit_sdcard takes a DigitalInOut but many core things (like, say, busio.SPI) take Pin objects. I coded for Pin.
tulip sleet
busio.SPI is assigning a peripheral to pins, so it would take pins. But busdevice SPI takes an SPI object and a DIgitalInOut,
does it make sense to pass a busio.SPI to sdcardio.SDCard? I would think so. Do you need to control a CS line too?
for that also a DigitalInOut would make sense
onyx hinge
here's a before-and-after: ```- spi = busio.SPI(board.SCK, MOSI=board.MOSI, MISO=board.MISO)
- sd_cs = digitalio.DigitalInOut(board.SD_CS)
- sdcard = adafruit_sdcard.SDCard(spi, sd_cs, baudrate=6000000)
- sdcard = sdcardio.SDCard(board.SPI(), board.SD_CS, baudrate=12000000)
onyx hinge
the baudrate change is .. not relevant, ignore it
weirdly the docs for adafruit_sdcard, seem to be at variance with how it's actually used ... ``` spi = busio.SPI(SCK, MOSI, MISO)
sd = adafruit_sdcard.SDCard(spi, board.SD_CS)
the advantage of passing an object is that you can do duck-typing, and some things might not have pins, but just buses (e.g. blinka stuff)
onyx hinge
yeah the adafruit_sdcard code will work with a bitbangio.SPI or a busio.SPI, but the new thing will only work with busio.SPI
similarly, it won't work with things that duck-type like DigitalInOut
(you don't want to, you'd lose speed)
tulip sleet
i mean it as a general policy; may not make sense in this case. displayio.FourWire takes a busio.SPI, etc.
prime flower
@crimson ferry yep - thanks for keeping me updated!
onyx hinge
@tulip sleet digging at it a bit, I think that the reasons for FourWire to take microcontroller.Pin chip_select are what makes it natural here too
it also is a line of code the user doesn't need to write
tulip sleet
so, for speed, that sounds fine, to avoid the common_hal routines?
onyx hinge
and @slender iron mentioned the possibility of making sdcardio.SDCard survive reset like displays. In that case, you need to construct the digitalinout object "within" the containing non-gc'd object: common_hal_digitalio_digitalinout_construct(&self->chip_select, chip_select);
tulip sleet
that is a good reason
idle owl
@tulip sleet I didn't think I changed anything that would affect translations 😕 https://github.com/adafruit/circuitpython/pull/2870
Maybe the comment I added does?
tulip sleet
korean hallowing build is 4 bytes too big. I'll work on squeezing it
don't merge it yet
idle owl
Noted, I wouldn't have without it passing.
slender iron
@onyx hinge Use pins if you only want to support the microcontrollers pins. Use digitalinout if you want to use other pins indirectly
raven canopy
@tulip sleet ok, here's where i'm at with MSFT uf2/master: went through about 10 physical resets (double-tap->single->repeat) without issue. but, i only get one successful reset via microcontroller.reset() into bootloader and back; the second .reset() locks up the host once it hits bootloader.
the DBL_TAP_MAGIC values match, so maybe its related to the BOD?
rose root
@slender iron what's the info for the weekly Monday CircuitPython meetings?
idle owl
@rose root What info are you looking for?
rose root
Scott's answering it on his broadcast. I was wondering when the meetings were and how I would join. Scott linked me to the Weekly Meeting notes GitHub repo and I found the calendar link there. @idle owl thank you though.
raven canopy
got caught on a phone call: thanks for streaming @slender iron!
and...wrong channel lol
timber mango
Is the CLUE still an alpha?
slender iron
@hollow gazelle @lucid solar @sour lynx just pushed the code from today's stream
hollow gazelle
😋
low sentinel
@slender iron I just saw the shout out in the weekly minutes - thanks ❤️
I'm still working on it. I do indeed have boring rectangles as well as full polygon support planned. Currently I'm polishing and going over use cases to see what works and what needs more effort. I don't have a debugger so it's all printf for now 🧃
At the moment I'm just banging my head against feature parity with "transpose xy" functionality. After that I'll be working through mirror. I don't really want to do hidden or absolute transform support right yet. Around that point I think it'll be ready for alpha testing by others. I've got a few more features on my immediate plate for the project but they're fun & I'm trying to take care of the boring housekeeping stuff first. (I need transpose and mirror too, I figure a lot of people do) Feel free to PM me if you're curious for more details.
manic glacierBOT
simple pulsar
I put in a tiny change to a some code in a learn guide and Travis reports it failing. It's crapping out around some esp8266 bits in build_main_platforms. Is this a known issue? https://github.com/adafruit/Adafruit_Learning_System_Guides/pull/1104#issuecomment-626191315
simple pulsar
@onyx hinge cleaned-up the Travis issue I just mentioned, thanks.
onyx hinge
happy it worked @simple pulsar
@simple pulsar I assume this code is tested by you on the non-magnetometer boards now?
slender iron
@low sentinel sounds good! Thank you!
simple pulsar
@onyx hinge Yep, I've got the code running on a CLUE, on a CPB + Gizmo and on CPB only. I hadn't tested the code path on a button press on the CPB as most of my testing has been done on the CLUE - that's the reason for that fix. The code is funny on the CPB only, I think it's firing all the screen writes pointlessly down those unconnected pins!
onyx hinge
could be
onyx hinge
@simple pulsar I wonder, I see that the Gizmo has a pull down on A3. If you set A3 to GPIO input with pull-up enabled, you shold read .value as True if no gizmo is connected and as False if a Gizmo is connected. The voltages work out at least as long as the pull up is close to the nominal value. But if it's the minimum value of 20k, then the voltage is 0.33 * Vcc and technically you need to get down to 0.3 * Vcc, so this detection method might not work on a small portion of all devices.
simple pulsar
Yeah, this came up in https://forums.adafruit.com/viewtopic.php?f=19&t=165042
The CPB only platform wasn't the main platform and it would change timing a bit so I haven't yet looked at that. Plus I needed to allocate some time to guide writing rather than just coding!
I've just used my standard ploy. I've added that to the Going Further page's Ideas for Areas to Explore 🙂
onyx hinge
hehe
manic glacierBOT
low sentinel
potato vision for the PR ☝️
manic glacierBOT
simple pulsar
Are there any issues with BLE code getting stuck in start_scan()? I developed https://learn.adafruit.com/circuit-playground-bluefruit-quick-draw-duo/quick-draw-duo on a few versions including 5.0.0-beta.2 and it was fine. I just ran it up on 5.3.0 and something is amiss. I have newer libraries too... [added later] turns out 5.2.0 is ok, I put in a ticket for this https://github.com/adafruit/circuitpython/issues/2875
manic glacierBOT
manic glacierBOT
rain parcel
Has a cloud CircuitPython Mu editor been considered, like MicroBit has? When my Makerspace hosts classes so much up-front time is consumed in setting things up, and the Mu editor is problematic on some devices; it would be nice to have an OS-agnostic solution.
manic glacierBOT
ivory yew
@rain parcel I think the new web file API is still in preview, but once that's available that + webserial would make that possible.
This API in particular https://web.dev/native-file-system/
manic glacierBOT
ivory yew
Making steady progress on the USB host feathering. https://twitter.com/theavalkyrie/status/1259570565708316673
simple pulsar
Is address_bytes on an Adresss supposed to be in reverse order here? It's a bit wierd!! ```>>> e.address.address_bytes
b'\xZZ\xZZ\xZZ\xc7R\x04'
e.address
<Address 04:52:c7:ZZ:ZZ:ZZ>
type(e.address)
<class 'Address'>
``` - theZZis a bit of data-masking.
onyx hinge
the docs explain that it is so
simple pulsar
@onyx hinge Which ones? I've found there's a brief mention at the end of here but it's not specifically about the Address class: https://circuitpython.readthedocs.io/projects/ble/en/latest/api.html?highlight=Address#adafruit_ble.BLERadio.address_bytes
simple pulsar
@onyx hinge Oh, I found it., https://circuitpython.readthedocs.io/en/5.0.x/shared-bindings/_bleio/Address.html
ruby atlas
Huh, builds are failing on check formatting... This black thing wants the code to be unreadable 😦
When did black get added to the libraries? I hate it.
I can't even find any settings file for black to make it not make function/method args spread over a million lines.
ivory yew
black doesn't have many settings (by design)
What's the code that's bothering you, @ruby atlas ?
ivory yew
@ruby atlas you can use # fmt: off and # fmt: on to prevent black from formatting something if it does something totally egregious.
ruby atlas
@ivory yew i really really hate how it formats function args and method args. It makes it really hard to read. I also understand it messes with list formatting too.
i'm sure there are many other things I hate about how it formats code. It also makes it much harder to read what actually changed without increasing my git diff -U a fair bit (like -U10)
ivory yew
Hrm, there's a way to make it ignore unchanged files
not sure if we set that up or not
ruby atlas
I saw I can turn it off with # fmt: off, but i'm pretty sure that me doing that for whole files wouldn't be received well.
ivory yew
yeah probably not. 🙂
ruby atlas
I guess I missed the discussion when black was selected as a way to format the libraries. Been way too busy with work.
ivory yew
The whole point of black is to make pickiness about formatting irrelevant.
though you can't ever make everyone happy.
ruby atlas
Black is awful though - it removes the ability to carefully format things for readability. The opinions in PEP8 and similar are pretty darn good, but still leave room for layout.
Anyway, I'm likely not going to contribute to the libraries much with black there. I hate it.
ivory yew
that's really unfortunate to hear, considering most projects adopt black to lower the barrier for new contributors so they don't have to worry about adhering to unwritten styling rules.
ruby atlas
Ugh. I guess python took a really bad direction this year 😦
ivory yew
Is there anything we could do to make it easier for you?
ruby atlas
Have black not want to split everything onto one line.
ivory yew
It might be worth chatting with Łukasz if you feel strongly about this. He's a super reasonable person and a friend of mine.
ruby atlas
Probably. The reason I hate the one-line -per-arg convention is I literally scroll past method and function signatures without seeing them. My brain registers them as ... not sure - I just don't see the code structure anymore with black.
ivory yew
Yeah. I mean, ultimately it comes down to taste.
I think as projects get bigger and bigger with more contributors, it's valuable to have a tool enforce style rather than have the codebase look like it was created by 100 people with 100 different ideas on stuff.
I've definitely seen projects where people just change formatting and then get into arguments about it. 😦
ruby atlas
Right... Pylint and PEP8 have been pretty good at helping. But in my opinion, black takes it just a bit too far. From where I'm looking at this, black is changing a half century worth of code formatting conventions.... And in my case, over 35 years of how I'm used to function and method definitions looking when I scan and navigate code. My brain is used to a pattern we've been using for a very long time, and I don't see myself ever liking black. The code doesn't flow visually.
But my opinion is probably antiquated and irrelevant.
If I have time (hah), maybe I should write an unblack that I can run while I code to layout arguments and large lists in a sane manner, and then rerun black after.
ivory yew
haha
you can write black plugins, I think!
That might be viable. 🙂
Obviously our community will be better for your contributions, but if you don't feel happy when doing it that's understandable.
ruby atlas
Probably not the right place for this, but has anyone done a survey on developer satisfaction with how black formats code?
ivory yew
probably a better question for Lukasz.
though I think in the Go community they consider gofmt to be a significant contributor to their developer satisfaction.
half geyser
Also, just FYI, I have a terrible patch to Circuit Python that adds a .record() function to I2SOut. It seemed easier to do it that way. For now it's mostly testing, and is useful for me understanding all the little undocumented features of this chip, but might be worth adding something similar at some point: https://github.com/simmel-project/circuitpython/commit/07c27d0cf9a02cad6b7c7213e6521252860840b7
slender iron
@ruby atlas The one-line-per-parameter thing is what bugged me most too but it does make diffs easier to read, especially when you include type hints and a default value for each parameter. I've gotten used to it and totally buy the argument of "lets standardize on one thing even if it isn't perfect. Consistency is the most important attribute of formatting.
main meteor
I've been doing it that way for years
manic glacierBOT
ruby atlas
I disagree: readability is the most important attribute of formatting.
I also don't buy the diffs argument. Maybe I would have before tools that do excellent diff highlighting. See my comment about having to increase the number of lines of context now to see what changed.
I'll engage Łukasz at some point, and hopefully find time for an unblack formatter (or black plugin) that I can use when working on black formatted code. Mostly I'm sad I missed the discussion about whether to adopt black as-is on the CircuitPython libraries and wasn't able to voice my concerns.
topaz quest
I realise just sending this for whichever library I was looking at was probably not the best choice — so if anyone has interest in "enforcing" license-tagging of files, I've sent an RFC pull request in https://github.com/adafruit/Adafruit_CircuitPython_ESP32SPI/pull/99 that uses the REUSE tool 🙂
onyx hinge
good morning discord
tulip sleet
@ruby atlas I think you may know this, but the one-line-per-element thing can be controlled. The line length is a command-line parameter. So perhaps your "unblack" for your own purposes can just be black -l <something more than 88>.
also have you read https://black.readthedocs.io/en/stable/index.html (I would assume so also)
simple pulsar
I found something that appears to be a weird 5.3.0-ism yesterday: https://github.com/adafruit/circuitpython/issues/2875
tulip sleet
@simple pulsar I am debugging some BLE code on master (past 5.3.0) and am not seeing this problem, but I will try to reproduce
simple pulsar
I think start_advertising was fine, it was start_scan that was problematic, i.e. some stuff certainly works
idle owl
The CircuitPython Weekly is in a little over an hour. Everyone is encouraged to attend! Please add your status updates and hug reports to the notes doc even if you'll be attending - it's super helpful! Looking forward to chatting soon. Thanks! <@&356864093652516868> https://docs.google.com/document/d/1bzaYoTmWls07acn7JB4z0CX9BiTymQH-22rwZzXIObE/edit#
onyx hinge
where has my morning gone? 😭
lucid solar
@idle owl I'm skipping it today...I feel sick. Have a good meeting!
idle owl
@lucid solar Feel better soon!
ivory yew
@narrow dirge it ran away with mine
onyx hinge
@lucid solar take care of yourself and take care of others by distance
hi @ivory yew 👋
raven canopy
hope you feel better soon @lucid solar 🍜
lucid solar
Thanks @idle owl @onyx hinge @raven canopy. It's not the virus type of sick thankfully 🙂
raven canopy
@solar whale you around? wanted to ask you if you've seen any issues on Ubuntu 20.04 with switching over to the bootloader drive...
solar whale
@raven canopy not sure what "bootloader drive" you are referring to
raven canopy
FEATHERBOOT and the like
solar whale
not that I have noticed.
raven canopy
k. thanks. just trying to vector an issue i'm having... 😣
blissful pollen
I have managed to get my AHRS library I demoed on show and tell last week into a (somewhat) proper library. I know a couple people here had gave me a start to it and were asking to see it... so here it is!
https://github.com/gamblor21/CircuitPython_AHRS
solar whale
just verified taht FEATHERBOOT comes up OK with a feather m4 express
blissful pollen
I have only been able to test it was a LSM9DS1 as that is what I have, but seems to work for the most part
solar whale
@raven canopy what board?
raven canopy
so, far a Metro M4, with bootloader 3.6 and higher. i still need to walk back bootloader versions further. (this is all on an RPi with Ubuntu 19.10+)
solar whale
OK -- my bootloaders may be older -- I'll try updating a metroM4
raven canopy
@solar whale note: i'm seeing total system lockups with this, so make sure you're in a situation where you can suffer through a hard-reset. 😄
solar whale
lockup of the ubuntu Pi?
raven canopy
yep
solar whale
hmm -- I do have an ubuntu pi -- I have to verify the version etc -- been gathering dust. I can experiment with it - no worries.
solar whale
ooh -- my metro m4 is at bootloader 2.0.0 -- time to update....
manic glacierBOT
modern wing
Good afternoon all you wonderful folks -- lurking today [as happily as one can be when putting out fires].
maiden chasm
Hello to All, I'm also lurking
solar whale
@raven canopy as of now my ubuntu pi does not see the metro m4 at all -- CIRCUITPY or METROM4BOOT ... investigating
errant grail
Hello everyone! I'm text only today.
solar whale
Hi text only....
serene warren
Lurking - noted in doc
simple pulsar
Lurking sometimes
sterile bronze
lurking
serene warren
or maybe Kattni is low...
tidal kiln
lurking
inland tusk
lurkinkg this week
old smelt
Lurking
modern wing
....when I said I was putting out fires, that's not what I had in mind 😉
turbid radish
Lurking
If you all have cool stuff for the CircuitPython newsletter out tomorrow, please email them to me at anneb@adafruit.com now. I'm closing the edit phase soon
uncut nexus
lurking today
idle owl
They're testing it now. They claimed they'd only do it once.
turbid radish
And to subscribe to the Python on Hardware newsletter, visit www.adafruitdaily.com
idle owl
Apologies for the delay.
inland tusk
10--4
tiny oriole
wee woo wee woo
ivory yew
I don't have a fire alarm to deal with, but there is an obnoxiously loud bird right outside my window. He is singing the song of his people.
onyx hinge
@blissful pollen are you lurking or will you be speaking in the meeting today?
blissful pollen
lurking
onyx hinge
got it, thanks
raven canopy
@ivory yew maybe its waiting for a Big Honking Button response?
onyx hinge
ivory yew
@raven canopy hehe. I think that would only attract more birds.
onyx hinge
https://www.youtube.com/watch?v=1TniUBJejfY&feature=youtu.be https://www.youtube.com/watch?v=LfUBOF1AWzs
(Scott typically streams at 2PM Pacific time)
solar whale
@raven canopy when you get a chance, can you give me teh contents of your /etc/apt for Ubuntu 19.10 on RPi -- mine is very unhappy.... lots of broken links.
raven canopy
can do
solar whale
no rush
onyx hinge
oh no I just realized I fell out of the list of PR reviewers this week. Bad jeff, no biscuit.
raven canopy
quality > quantity! 😄
manic glacierBOT
old vapor
Hello well I not sure what im doing or did wrong... plugged Feather M0 in double clicked reset got FEATHERBOOT dragged CircuitPython 5.3 on it drive went away and i never see the the drive again what did i do wrong/
manic glacierBOT
ivory yew
~eventually~, @slender iron.
slender iron
🤞
ivory yew
primary goal right now is to just make it easy to use from circuitpython.
slender iron
same api would be good 🙂
onyx hinge
(does the hostess featherwing have a logo? Is it a cupcake?)
tiny oriole
Hello well I not sure what im doing or did wrong... plugged Feather M0 in double clicked reset got FEATHERBOOT dragged CircuitPython 5.3 on it drive went away and i never see the the drive again what did i do wrong/
@old vapor If you double tap the reset button, do you get the FEATHERBOOT?
old vapor
@tiny oriole Yes I did
ivory yew
@onyx hinge I didn't give a separate logo, but this is what i looks like:
old vapor
@tiny oriole Err do
old smelt
I am
ivory yew
Though I really want to do a pink soldermask for the production one. 🙂
ionic elk
@ivory yew where do u get your 3d parts?
tiny oriole
try flashing it again? haha. Secondary, i would say doublecheck to make sure you have the latest drivers (Link incoming, one second)
tulip sleet
@old vapor exactly which board is it and which .uf2 did you load? Also what is the host operating system?
ionic elk
and what is that rendered in?
turbid radish
I don't know who I am
ionic elk
looks great
ivory yew
@ionic elk 3dcontentcentral, mostly.
KiCAD, though the product images you see on <winterbloom.com> are rendered in fusion 360.
tiny oriole
onyx hinge
@ivory yew looks good .. should still find room for a cupcake
raven canopy
@old vapor also, i'd recommend making sure you have the correct firmware file. the names can kind of melt together sometimes.
ionic elk
I should swap to kicad if I can get exports that pretty
ivory yew
@onyx hinge hehe I'll make a note.
slender iron
Hi text only....
@solar whale This is why I thought you were text only
ionic elk
my eagle images are always hideous
tiny oriole
Also yes. double check you have the correct firmware: https://downloads.circuitpython.org/bin/feather_m0_express/en_US/adafruit-circuitpython-feather_m0_express-en_US-5.3.0.uf2
solar whale
Ahh -- that was in response to Cgrovers post ...trying to be funny...
old vapor
@tulip sleet @tiny oriole Downloaded latest Drivers using Win 10 feather M0 all correct files
tulip sleet
Windows 10 does not need drivers, but the installer should not install them anyway
it checks it is windows 10
however Kasperksy and Norton antivirus can prevent CIRCUITPY from appearing
old vapor
Using Neither of those
tulip sleet
are you using another third-party antivirus?
old vapor
Just Windows
tulip sleet
that should be fine.
serene warren
@solar whale have you experienced any power issues with the camera? Maybe indicated by grainy B&W images.
onyx hinge
I haven't been following, did you check what the onboard status led is saying?
tulip sleet
See above and below this: https://learn.adafruit.com/welcome-to-circuitpython/troubleshooting#circuitpy-drive-issues
solar whale
not that I have seen -- using with RPI zero w and a USB "power bank" 2.1 Amp
ivory yew
Ah yes, the telephone game of carrying a bug between implementations
tulip sleet
can you connect to the REPL with Mu or Tera Term?
tidal kiln
@old vapor what was the exact full name of the UF2 file you dragged over?
old vapor
adafruit-circuitpython-feather_m0_express-en_US-5.3.0
raven canopy
welcome to C-land!
ivory yew
"copying files and adding a string" basically sums up my 18 years of programming experience.
tidal kiln
@old vapor ok. seems fine. then what @tulip sleet asked about connecting to REPL.
solar whale
@onyx hinge
modern wing
That feeder is for the birds 🐦
old vapor
I get an error cannot find CP device sorry typing bad just had carpal tunnel surgery
idle owl
@wise spoke Are you lurking?
wise spoke
y e s
slender iron
modern wing
Early bird gets the worm 😉
raven canopy
fights urge to paste... 😉
onyx hinge
more press for scott's great livestreams
modern wing
His streams are very nice deep dives, showing that programming isn't magical, instantaneous coding -- but step by step problem solving, needing patience, persistence, and even more patience 😉
ivory yew

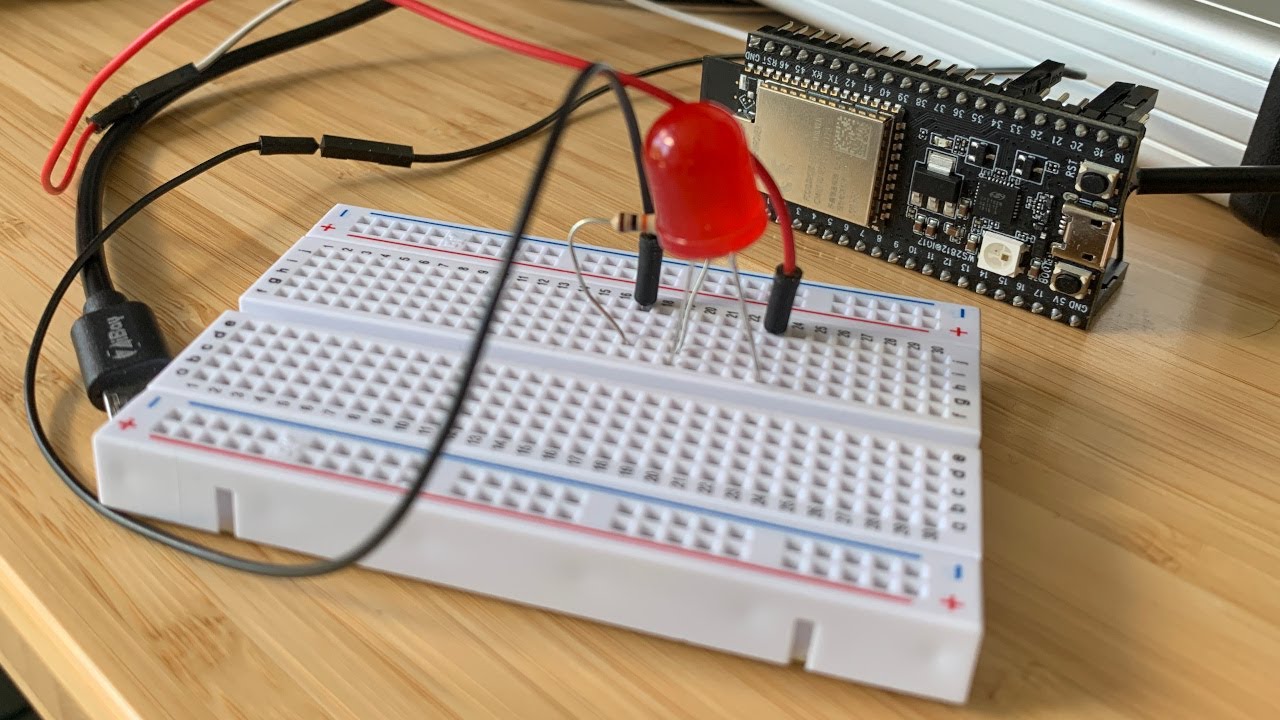

that's a chonky led in the preview
slender iron
I think I had it from a college breadboarding kit 🙂
not even sure of the resistor value
onyx hinge
swoon I'll be sharing that with my woodoworking friends
old vapor
@tulip sleet so when i connect it back to computer i don't see drive start MU i get Could not find an attached Adafruit CircuitPython device. tried it again when i can see bootloader drive same issue
manic glacierBOT
tulip sleet
@old vapor I just want to doublecheck that the bottom of the board says "Feather M0 Express". Did you try copying the .uf2 file again? Does anything unusual happen when you do the copy? Do you see a progress bar that stalls for a while?
as Jeff E. asked, what are you seeing on the RGB led (neopixel)?
old vapor
thats what is wrong thought is was express but is a basic 😦
old vapor
@tulip sleet Thanks and it is back reading is for the mental so i koalafi
lone axle
@tulip sleet is there a github link for the new BLE Services stuff? I am curious to try it out to see if the Android version of the app suffers from any sort of similar issues.
onyx hinge
LSE = low speed oscillator?
onyx hinge
aha
tiny oriole
got another call. See ya all! happy coding!
slender iron
Adafruit CircuitPython 5.2.0-167-gdcb0e50f0-dirty on 2020-04-22; Feather STM32F405 Express with STM32F405RG
tulip sleet
@lone axle you'll need the latest adafruit_ble library
onyx hinge
Adafruit CircuitPython 5.3.0-184-g90bd93180 on 2020-05-11; Feather STM32F405 Express with STM32F405RG
raven canopy
🎉
solar whale
👍
raven canopy
@solar whale so, booted my 20.04 first absent-mindedly. booting 19.10 now... 😄
you want full folder? or just sources.list?
onyx hinge
@idle owl I'll let you wrap up
solar whale
@raven canopy a zip of the folder would be best, I think
ionic elk
big weedy energy
slender iron
@ionic elk did jeff or limor ask you to do more rgb matrix stuff?
ionic elk
jeff did
slender iron
kk
solar whale
when I plug in the board, dmesg looks normal, but it does not mount. i may be missing something.
modern wing
Thanks!
serene warren
@solar whale I've been using a cell phone or other auto adjust camera for so long, I forgot how wonderful adjusting fstop can be.
slender iron
was hoping to see more work on imx too
modern wing
And no fire alarms either!
onyx hinge
@slender iron Limor told me that @ionic elk would be doing other STM parts. I brought the news to him but assumed Limor would have more deets
ionic elk
They are currently simultanious
slender iron
kk, np
ionic elk
i.MX is more weedy and sometimes frustrating so I figured RGB would be a good relaxing thing by comparison
I like physical stuff
onyx hinge
👋
solar whale
@raven canopy oops -- just realized -- I am using 19.04, not 19.10...:-(
raven canopy
oh. hehe
i don't think i have 19.04 readily bootable. i moved my primary (SSD) to 19.10, have one SD on 20.04, and my other SD on raspbian.
solar whale
sorry for the false alarm -- I have not used it in several months and really have no need for it since I now have latest arm tools on raspbian.
raven canopy
fair enough. i avoided raspbian; building from source is too long a wait... 😄
solar whale
but I can say I have not problem mounting metrOM4BOOT on my Ubuntu 20.04 -mac mini
withr 3.9.0 bootloader
raven canopy
that's good enough info really. like i mentioned in status, i'm still working my way through finding where the actual issue is.
although, could you check one thing for me on the mac-mini? is it using xhci, ehci, or something else for the usb driver?
solar whale
If you ever want a "tarball" of the arm tools for raspbian let me know.
where to I check for the usb driver?
raven canopy
dmesg should show, during enumeration
solar whale
[Mon May 11 15:15:24 2020] usb 3-1.4: New USB device found, idVendor=239a, idProduct=0021, bcdDevice=42.01
[Mon May 11 15:15:24 2020] usb 3-1.4: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[Mon May 11 15:15:24 2020] usb 3-1.4: Product: Metro M4 Express
[Mon May 11 15:15:24 2020] usb 3-1.4: Manufacturer: Adafruit Industries
[Mon May 11 15:15:24 2020] usb 3-1.4: SerialNumber: 4632E64B53574E514D202020FF081736
[Mon May 11 15:15:24 2020] cdc_acm 3-1.4:1.0: ttyACM1: USB ACM device
[Mon May 11 15:15:24 2020] usb-storage 3-1.4:1.2: USB Mass Storage device detected
[Mon May 11 15:15:24 2020] scsi host8: usb-storage 3-1.4:1.2
[Mon May 11 15:15:24 2020] hid-generic 0003:239A:0021.0022: hiddev1,hidraw3: USB HID v1.00 Device [Adafruit Industries Metro M4 Express] on usb-0000:00:14.0-1.4/input3
[Mon May 11 15:15:25 2020] scsi 8:0:0:0: Direct-Access Metro M4 Express 1.00 PQ: 0 ANSI: 2
[Mon May 11 15:15:25 2020] sd 8:0:0:0: Attached scsi generic sg3 type 0
[Mon May 11 15:15:25 2020] sd 8:0:0:0: [sdd] 16000 512-byte logical blocks: (8.19 MB/7.81 MiB)
[Mon May 11 15:15:25 2020] sd 8:0:0:0: [sdd] Write Protect is off
[Mon May 11 15:15:25 2020] sd 8:0:0:0: [sdd] Mode Sense: 0f 00 00 00
[Mon May 11 15:15:25 2020] sd 8:0:0:0: [sdd] No Caching mode page found
[Mon May 11 15:15:25 2020] sd 8:0:0:0: [sdd] Assuming drive cache: write through
[Mon May 11 15:15:25 2020] sdd:
[Mon May 11 15:15:25 2020] sd 8:0:0:0: [sdd] Attached SCSI removable disk
xhci_hcd
raven canopy
xhci it is. thanks!
solar whale
👍
unless you want me to keep it for some reason, I thin I will "recycle" the ubuntu pi back to raspbian....
raven canopy
no reason that i see.
solar whale
I forgot I even had it -- but now that it's in front of me , I can think of better uses for it.
raven canopy
haha. that's usually how it goes.
solar whale
I have way too many toys...
raven canopy
that's not a real thing. at least, not in my opinion. 😄
simple pulsar
On BLE front, this is what I was up to at the weekend: https://forums.adafruit.com/viewtopic.php?f=53&t=164851#p811436
idle owl
Here is the notes document for Monday’s CircuitPython Weekly meeting. Everyone is encouraged to attend! Please add your hug reports and status updates even if you’ll be attending the meeting - it’s super helpful! If you are unable to attend but would still like to include updates, feel free to include them in the notes and we’ll read them off during the meeting. Hope to see you there! <@&356864093652516868> https://docs.google.com/document/d/15gBlvCmwW-f26oYTY5LI897XAfc5GpYlNC7httMFFqU/edit
rare geode
language-circuitpython v0.7.0 has been released to APM which brings support for input into the serial monitor (thanks to @timid nimbus!). if anyone wants to give it a shot and let me know of any feedback or issues I'd be grateful. stay safe all!
I know there are some existing issues with the bindings file not been located and I've been working for ages on trying to get that to work but I can't figure out why some people can reproduce it and some cannot
rare geode
oh yeah! whoops! should have clarified, it's the atom plugin I wrote a while back
the serial port library for node is a nightmare for shipping because it uses compiled bindings
slender iron
@trim elm is working on moving our native module docs to Python stubs so editors have a better time: https://github.com/dherrada/circuitpython/commits/master
ya, I bet!
rare geode
oh interesting
slender iron
do you have a blog about it somewhere? we could add it to our weekly newsletter
rare geode
I don't (though I really should start a blog), I wrote it about exactly a year ago and spoke with people here about it. other than that it probably spreads by word of mouth and the search. I'd love for people to be able to use it although the odd serialport errors do worry me a bit, it's not ideal for end users to have to rebuild the bindings
https://github.com/jos-b/language-circuitpython is what I have
slender iron
kk cool! release notes can be a good place to put info about a new release too
slender iron
@ionic elk how is the LSE stuff coming?
ionic elk
It's done I'm just double checking the stack stuff rn
slender iron
thanks @ionic elk, looking now
ruby atlas
@tulip sleet thanks for the tips re black, will check it out.
simple pulsar
How are dict variables laid out in memory? I have one that's gradually growing over time and adding a value to it is eventually giving a MemoryError. I'm wondering if parts of it need contiguous memory?
slender iron
it's a hash table that probably doubles in size every time it grows
simple pulsar
I've had two of them die i different places on additions but the allocation is only 1016. I think I'll puzzle over this tomorrow.
simple pulsar
@slender iron thanks
topaz quest
do comments in .py files count against the ram used by circuitpython on the m0? I'm wondering if I just wrote too much code, or too verbose
tulip sleet
@topaz quest No, comments are removed and are not kept in RAM. If you are getting a memory error on import, you can try compiling the file to .mpy with mpy-cross and using that instead. Remove or rename the .py file, because it will take precedence over the .mpy file.
topaz quest
@tulip sleet ah good — I'll give that a try tomorrow (getting "early in the morning" here) — for the moment I solved it by "hatchetting" the code until it kind of worked, but it's in no way close to a possible pull request 🙂
tulip sleet
what that will do is not use up RAM (temporarily) when compiling, because it will have been done in advance. It won't change the size of the ultimate compiled code. Good luck!
orchid basinBOT
onyx hinge
Thanks for 5.4.0 beta !tannewt!
slender iron
np! all out now
topaz quest
@tulip sleet yeah mpy-cross worked, thanks!
simple pulsar
I think I've had a run-in with GC here: https://forums.adafruit.com/viewtopic.php?f=60&t=165359 would this work ok if there was some compaction going on? Is that ever going to happen in CP (or CP on non-M0 boards)?
tulip sleet
@simple pulsar thanks, maybe this is fragmentation. I think your last example, in the second post, could be telling and I'll open an issue for that (or you can if you want).
manic glacierBOT
manic glacierBOT
simple pulsar
@tulip sleet Thanks for having a look. I have a bit of a dusty clue library but i'm not sure that could explain why it suddently blows up when i go near monotonic_ns().
crimson ferry
@rare geode With the Atom plugin, what assumption is made about which USB is used for serial/REPL (assuming I have multiple CP devices plugged in, and they each have unique volume names)?
rare geode
Right, it doesn't handle that brilliantly, it just iterates through all ports and checks the vendor IDs against the adafruit one (with a JavaScript find, which may or may not be predictable I can't remember) https://github.com/jos-b/language-circuitpython/blob/master/lib/atom-serialport.js#L25-L33
ionic elk
@tulip sleet it's been a while since I touched it, but I just noticed that the SAMD implementation doesn't actually do pin claiming. Do you know why that is?
tulip sleet
@ionic elk samd implementation of what?
ionic elk
pin claiming. There's no array in the samd port that stores what pins are being used by modules
It only protects things like the neopixel. But you could otherwise grab a pin that's being used by an existing module and it wouldn't be able to tell.
Contrasting to the NRF port, which has a table that stores every pin in use, and the STM32 which was based off NRF.
tulip sleet
@ionic elk it does it in a different way, by looking at the pin mux settings: https://github.com/adafruit/circuitpython/blob/master/ports/atmel-samd/common-hal/microcontroller/Pin.c#L191. claim_pin() only special cases things it can't catch by checking that. Otherwise it can figure it out by looking at the registers.
ionic elk
Ah, gotcha, so it uses pin number for everything then
tulip sleet
it uses an integer pin number, but the point is that there's a common register for most pins that says what function that pin has been assigned to (e.g. a particular peripheral function). There's no such common thing in nrf, for instance: each peripheral has a pin mask, and the pin gets assigned to the last peripheral that had the pin chosen in its pin mask.
e.g. see pages 30 ff. in http://ww1.microchip.com/downloads/en/DeviceDoc/SAM_D21_DA1_Family_DataSheet_DS40001882F.pdf
ionic elk
Hmm, interesting. I guess the equivalent for STM would be that each pin has an altfn, but that isn't enough to tell exactly what peripheral you've assigned since a single pin-altfn combination can support multiple peripherals.
anyway I'm just asking because I'm implementing it for i.MX now. I think I'll probably just stick with the claim-pin array
tulip sleet
in STM does the altfn setting getting cleared if the pin is not in use?
ionic elk
spending 8 bytes on a claimed pin array in exchange for not having to do register reads seems like a good tradeoff
I have actually never read altfn stuff out of a pin, the ST hal is pretty one-way
tulip sleet
in samd the pinmux settings are the ground truth, so it's kind of the same thing as having a pin claiming array
ionic elk
I'd have to look up how the actual registers store it and do my own implementation
Yeah ST doesn't have that kind of globally stored information they count on you having a bunch of structures for everything that you either pass around or toss and re-do
tulip sleet
in the atmel world people are a lot more inclined to use the CMSIS direct-register layer when needed, i guess
ionic elk
I could have used it more in STM32, but honestly I just think the HAL is more readable
tulip sleet
the hal layers are often relatively thin. they mostly do higher-level driver stuff which you'd rather not write yourself, like buffer mgmt
ionic elk
Well, actually, no, the big reason to use the HAL in STM32 is because the registers are different between every chip family
lol
so you save yourself a bajillion preprocessor statements.
tulip sleet
also the hal can be pretty incomplete, especially in asf4. There are multiple layers
that makes sense. the samd21/51, and the other related sam<x>11, etc. all have pretty similar peripherals.
the samd51 was a bigger departure than most
ionic elk
So, if you set a pin for a certain peripheral in SAMD, is it actually impossible for it to conflict with another one and get undefined behavior?
Because in STM32, you can totally assign two different clocked peripherals to the same pin and spit out garbage
tulip sleet
yes, impossible, because it's set by the pinmux register. nrf sets the crossbar to the last periph you chose: you can't set it to two periphs simultaneously
ionic elk
neat
tulip sleet
(I did ask that question of Nordic: https://devzone.nordicsemi.com/f/nordic-q-a/37337/same-pin-selected-in-psel-registers-in-multiple-peripherals
manic glacierBOT
slender iron
@ionic elk using register state is better because it can coexist with other code that isn't in circuitpython
an in-memory array can be ignored
in iMX you'll want to look at the IOMUXC peripheral
ionic elk
@slender iron yeah I'm trying to see if it's possible to do in i.MX
I can see the advantages
but so far, I really can't say I'm a fan of the i.mx docs or commenting... this IOMUXC peripheral is inscrutable
slender iron
what are you reading?
ionic elk
I've got the MCUExpresso SDK manual, the 1010 Reference Manual, and the actual IOMUXC macro definitions page open
slender iron
kk, I'm looking at the reference manual
ionic elk
reference manual seems like the best bet, the API manual is basically useless they don't list any of the actual settings or explain very much
slender iron
ya, I tend to stay in the data sheet / reference manual
the samd data sheet has the reset state but I don't see it here
ionic elk
I'm just trying to figure out what the reset state is yeah, so I can implement reset_all_pins
but they don't have a macro for it, and they don't list a define option either
slender iron
usually it's connecting to GPIO without the input and output buffers on
macro for the reset state?
low sentinel
(low-pri) mp_hal_ticks_us is not implemented on the samd port.
Not sure I actually want that though - would love a utility function (or macro, whatever) that returns just an unsigned reference counter that counts micros or nanos or clocks... anything finer than milliseconds from the supervisor ticks. I'm probably missing something and this already exists?
ionic elk
I'm looking for a "set_pin_disable" thing is what I mean
both to use and to know what pins are at startup
slender iron
@low sentinel you now need to start your own timer for high res time-keeping because the monotonic counter is only 32768 ticks a second
see pulsein as an example
ionic elk
in ST hou HAL_GPIO_DeInit
low sentinel
thanks
slender iron
@ionic elk it might be quickest to just read the registers on start up
ionic elk
in ST you've got the HAL_GPIO_DeInit function
@slender iron yeah that's probably a decent idea
slender iron
the "functional description" subsections are usually the most useful
the gpio peripheral has reset bits
ah, IOMUXC has reset value in the memory map
@ionic elk
ionic elk
Hmm, so it's different for different pins I guess
ionic elk
k
idle wharf
This isn't urgent... so just whenever has some time...
I saw in the CP 5.4.0 Beta release notes that the OpenMV H7 board was added, which was a big surprise (I own one). It looks like this was some sort of early support step to enable further development... but I didn't find any tracking issues. What's next for the OpenMV running CP?
slender iron
It should run but it won't have any camera support
idle wharf
I saw Kwabena's comments about making a more universal library for the camera, so I'll watch for that work to happen and come to CP. Thanks Scott!
slender iron
cool cool. we mainly just wanted to be able to test on it
we do want to do camera support at some point but I doubt we'll ever match openmv's support
orchid basinBOT
idle wharf
Love that idea of camera support for CP and ya know a Camera Feather Wing...
And then CP DashCams, CP VanLife\AdvVan Cams, CP Astrophotography... 🙂
slender iron
😄
timber mango
@gilded cradle How about a 12 character display? 😀 I also have 3 of the 7-segment displays to solder. I will do those tomorrow. Now, I have to wire these up. 😀😉
timber mango
They are at addresses 0x70, 0x71, and 0x72
Dang, I am out of jumpers. I should have thought to order more when I got the displays. Oh, well, that will have to wait until next month or after. 😦 😦
tulip sleet
@idle owl I'm getting the dreaded "toctree contains reference to document 'api' that doesn't have a title". You put something here a couple of months ago that said it was due to autodoc_mock_imports being incomplete. I've added everything under the sun to that, and I'm still getting it. As with you, I cannot figure out what is different in this library vs others.
idle owl
@tulip sleet Running locally or it's pushed and running in actions already?
manic glacierBOT
idle owl
I was going to ask to see it, that's why I asked whether it was pushed.
tulip sleet
oh, maybe i haven't pip'd something it needs locally
blissful pollen
@tulip sleet I received that same error working on my library. I noticed api.rst was missing a title line compared to the other RST files. I had to look at it in raw to see it
tulip sleet
but most of our api.rst files don't have titles, and they don't fail :/
idle owl
None of ours have titles. They are auto-generated
Let me see the code @tulip sleet, you may need to automock something oddly to make it work. I've had to I think.
tulip sleet
hold on one sec, I am trying one trick
idle owl
@tulip sleet adafruit_ble isn't automocked.
tulip sleet
@idle owl added it locally (and also made sure it was pip'd); still failing
ionic elk
@slender iron @indigo wedge Could I get a quick sanity check on the chip pin reset? From what I can tell, the mimxrt does not have any functions capable of automatically returning pins to a reset state. Additionally, the individual reset states of each pin register at startup are not consistent - the SW_PAD_CTL_PAD_GPIO registers differ in their pullups.
So I think, given this, I'm going to need to store the reset state information per pin, and then add an array of pointers to every pin I can iterate through in order to correctly set pin to the reset state. Am I missing anything that would make this unnecessary?
idle owl
@tulip sleet I'll take a look. Cloning now
ionic elk
I don't know how critical it is to preserve the pullup information at reset for each pin, but I figure it's important to have the startup state match soft reboot state
indigo wedge
@ionic elk Hmm, I haven't looked into the reset states so I'm not that familiar with them, having a table seems a bit overkill but I guess it makes sense for consistency. We could also agree on a reset state and apply that on reset but then the state might differ before the the sw takes over.
ionic elk
It seems overkill to me too but I've never seen a HAL layer before that literally doesn't have a function for pin reset
indigo wedge
So I'm not sure, maybe @slender iron knows more or can share his thoughts from the viewpoint of CPY
ionic elk
So I'm kind of scrambling here lol
idle owl
@tulip sleet You're going to hate this.
tulip sleet
i made a spelling error
idle owl
Wait, maybe not.
tulip sleet
is that it?
slender iron
I'd default the pinmux to 0x00000005 and then special case the others that don't match like JTAG
tulip sleet
when I run sphinx-build locally I always do -a otherwise it caches bad builds
idle owl
@tulip sleet No I thought it was a whitespace issue, but it had ignored that change and didn't actually rebuild. So it looked like it passed. nm.
raven canopy
@idle owl @tulip sleet intrigued. hopping in too.. 😄
low sentinel
@slender iron Build CI has not yet run on the new build configuration. You sure you want to merge now?
slender iron
you can merge my PR into yours and then yours will run
I won't merge into master until it's green
https://github.com/adafruit/circuitpython/pull/2827 may cause us to need another merge too
translation files are finnicky
countio and vectorio will be good to get in before https://github.com/adafruit/circuitpython/pull/2810
low sentinel
Translations are extremely nice polish. It's only a pain when you have a high rate of change (a healthy project) 😄
low sentinel
I see that. I'll ff my vectorio branch
low sentinel
I was curious anyway; pull --ff-only was clean
slender iron
👍
ionic elk
@slender iron you have any opinion on this reset pin business?
slender iron
I'd default the pinmux to 0x00000005 and then special case the others that don't match like JTAG
slender iron
looks
ionic elk
Basically, a bunch of different pads have different pullup settings
slender iron
@ionic elk just ignore pad
it doesn't really tell you whether someone is using the pin
ionic elk
but it affects the pullup on startup, doesn't it?
Since the default for the MUX is GPIO
slender iron
yes but I'm ok ignoring the pull strength when determining whether something is "in use"
the one thing I don't see is knowing that a pin is being used to read a digital value
there is an input buffer but I don't see what turns it off and on
ionic elk
Sorry, to back up, what I'm trying to do right now is reset all pins
but for reading the MUX to detect pin use, I'm not sure how I could do that either since the GPIO setting for it will be the same when it's used by DigitalIO, so I'll still need a claimed pins table to keep DigitalIO from trying to claim existing pins
slender iron
most pads reset to 0x10a0
ionic elk
yeah I wasn't sure if you wanted the remaining ones accounted for
philosophically, to retain the same known state as startup
if it's nbd than it's nbd
slender iron
you probably should because the pulls could be things like JTAG that need it
my guess is that the pad exceptions match the mux exceptions
you can detect output digitalio by reading GDIR
raven canopy
@tulip sleet @idle owl i've got it past the title error, but now hitting struct errors...
ionic elk
GDIR?
idle owl
@tulip sleet @raven canopy Looking at other ones with packages, the api.rst file needs to have every file listed. What did you do to get past the title error?
ionic elk
I don't see that, only SION and MUX_MODE
slender iron
look in GPIO
ionic elk
oh so I'd have a sub-check within GPIO
raven canopy
@idle owl list each file in api.rst, drop _service from the title in color_sensor.py, and change the autodoc_mock's entry for adafruit_ble_adafruit -> adafruit_ble.
raven canopy
i tried to mock struct but still throwing the error. not surprising since its in the stdlib.
idle owl
Hah I just tried that too.
Should have known you'd try it.
@raven canopy Added adafruit_ble_adafruit back to automock in addition to the rest and it's back to the title failure, but the struct failure is gone.
raven canopy
mocking the library for its own docs seems...weird. 😄
slender iron
@ionic elk so ya, I think you need a bitmask to track in use. since pins default to in
idle owl
@raven canopy Agreed.
simple pulsar
@idle owl I did see a guide that had some pylint stuff in to workaround a mock failure, is that what you're discussing?
idle owl
@simple pulsar I don't believe you saw that - pylint doesn't help with this. Sphinx is failing to build here in a way that is usually resolved by using autodoc_mock_imports properly.
simple pulsar
https://learn.adafruit.com/pulse-oximeter-wireless-data-logger/code-the-pulse-oximeter-logger John Park has a comment in there about BLERadio on lines 54-55
raven canopy
ahh. autodoc is coughing on the const(0xFF) not being an integer...
idle owl
@simple pulsar Yes that is a Pylint issue, not a Sphinx issue.
Without that Pylint would fail, but Sphinx might build successfully.
@raven canopy I leave this in your capable hands, I need to tap out. Newsletter video needs to be done and I probably shouldn't have taken as much time as I already have to try to figure this out.
tulip sleet
@idle owl thanks for trying. the things I have to say about sphinx...
topaz quest
hey folks, after lurking a little bit it feels like I definitely built this one up in the wrong place to actually propose it (https://github.com/adafruit/Adafruit_CircuitPython_ESP32SPI/pull/99)
where should I rather suggest this for discussion? 🙂
timber mango
@topaz quest You can open a new issue on the library or core part you are working with.
topaz quest
this is a bit of a meta-issue pretty much -- I'm suggesting license-tagging the source to match https://reuse.software/ specs (because right now from the docs pages there's no obvious license/copyright info attached to examples)
timber mango
You can suggest anything in an issue. It does not have to be code related.
topaz quest
no that part I guess -- the problem is that this is less library-specific and more "throughout project" kind of suggestion
(or if it's not meant to be a throughout project, then I guess that pull request is fine)
timber mango
It does not have to be library specific or even core specific. It could even be infrastructure related.
Or pretty much anything else.
As long as it relates to Circuitpython in some way.
tulip sleet
@topaz quest we don't put licenses in the example files because it just bulks up those files, and the applicable license is the license file for the repo anyway
topaz quest
@tulip sleet yeah I agree it would bulk up to put license headers everywhere, that's what REUSE is trying to fix by relying on single-line SPDX indentifiers instead
manic glacierBOT
slender iron
@topaz quest for project stuff we usually just have it on adafruit/circuitpython. The weekly meeting is the best place to discuss it
I'll move the issue
ah, it's a PR. I won't move it. 🙂
manic glacierBOT
topaz quest
ah, it's a PR. I won't move it. 🙂
@slender iron yeah sorry, I got overexcited when I was looking at that and didn't think to look up the right way first ^^; I'll open an issue after dinner and reference the pull request as example for implementation 🙂
topaz quest
yep, reuse-tool has a lint mode which integrates with pre-commit and other continuous integrations explicitly for that 🙂
(and that's what I love about it)
twilit geyser
Does CPy have an mDNS library?
slender iron
not that I know of
twilit geyser
darn. I was trying to implement something using one. oh well
couldn't find one, so i should have figured that
slender iron
@prime flower would know for sure
low sentinel
i cant wait for a iMXRT1062 feather
All these m0's making it hard to add stuff https://github.com/adafruit/circuitpython/pull/2873/checks?check_run_id=668477450
slender iron
ya, I feel ya
ionic elk
Are there any naming guidelines for custom circuitpython libraries? I'm writing one for the Dyanmixel servos, and I'm not sure what to name it.
Hierophect_Circuitpython_Dynamixel?
slender iron
ya, that's what I'd suggest
ionic elk
Seems like basically everything in the bundle is Adafruit, but I could have sworn there were some user contributed libraries, is that not the case?
slender iron
there is a community bundle
blissful pollen
@ionic elk https://github.com/adafruit/CircuitPython_Community_Bundle I was just looking at it myself
blissful pollen
forgot it was running actually
ionic elk
you're not posting on adafruit as you idle on Torbjorn? disappointment
that's my pro strat
solar whale
alright - I'm hooked. Python virtual environments are really nice.... old dogs -- new tricks 🐶
raven canopy
they really are
solar whale
I'm done kicking and screaming...
tidal kiln
i finally started using venv some months ago. they do help.
solar whale
I found it hard to leave Wordstar, too 😉
Just ran into a simple case -- the Adafruit_nRF52_Bootloader build Makefile uses "python" -- it works fine with python3 but my newly updated Ubuntu system only has python3 -- at first I edited the Makefile to change "python" to "python3" but that was not very satisfying -- generated a "dirty" build. Creating a python3 venv worked much better.
simple pulsar
@solar whale I was disappointed when edlin disappeared.
solar whale
sigh...
topaz quest
I may or may not have used joe for my first few years as a Linux user because it worked with my muscle memory...
solar whale
we better switch to politics ... 😉
sorry -- did not mean to stifle the conversation....
raven canopy
@solar whale wait till we get you using pyenv to run multiple python interpreters... 😄
lone sandalBOT
crimson ferry
boot.py executes first if it exists, then it seems the run priority is: code.txt, code.py, main.py, main.txt ...or is that order not deterministic? (thinking about ways to do OTA code.py update w/o a custom bootloader)
lime trellis
Anyone know a better way than
del sys.module['MODULE-NAME']
to remove all instances of a module in the heap? I want to be able to dynamically re-import a file already located on the filesystem.
@tulip sleet - any tips 😇?
tulip sleet
basically, no, it's not easy. @marble hornet has been doing this a lot to try to unload and load things to save RAM. But it's painful. are you doing this just for testing purposes or you're writing a big program?
consider restarting the whole thing and deciding what to import based on the next task
marble hornet
And it is quite doable, you just need to be careful about references
tulip sleet
it's not something that people typically do with python
lime trellis
Interesting!
My use case is dynamically updating PORTIONS of a circuitpython script over-the-air by making the code modular and then pushing new .mpy files over RF
tulip sleet
i will leave you two to it, good night, but consider just restarting to avoid leaks and fragmentation
lime trellis
thank you @tulip sleet 🙂 I will take a strong look at that again
@marble hornet can you elaborate a lil more about your references comment?
I'm imagining the other potential references made to the module floating around?
marble hornet
I'd suggest reading about python's import system, more precisely here: https://docs.python.org/3/library/sys.html#sys.modules . May i ask why you need to dynamically re-load portions of code at runtime?
(is it watch based? )
lime trellis
@marble hornet thank you that tabs is open, but I found myself using python3 features in the python3 REPL (like reload()) that wasn't available once I went back to CP.
The goal is basically "hot code swapping" where the VM will do things like:
if X: import everything in /abc/
else: import everything in /def/
if that makes sense
marble hornet
@lime trellis yes? since python is garbage collected you can "reload" a module be delete every reference to it (this includes the ones in sys.modules) then calling gc.collect . then you need to re-import. I find that using the import <name> statement to be a bit clumsy for this and tend to use the __import__('<pathw/dots>') function . if you want to go into more detail we could schedule a time to chat and code together during a non nocturnal hour.
and see if there are better, less-fiddely solutions to your use case
lime trellis
@marble hornet those are excellent points, thank you. I also really appreciate the offer! Let me wrestle with things for a while before I take any more of your time. I'll ping ya when I have a better feel for the limitations of my current approach and see if there's time in your schedule
marble hornet
sounds good, as a hint I'd suggest two things: removing all bust one reference to modules at the time of import and comparing the previous sys.module.keys() vs the one after importing.
raven canopy
@lime trellis also, if you have a trusted source, you could just read the text into a variable and exec() it...
Press any key to enter the REPL. Use CTRL-D to reload.
Adafruit CircuitPython 3.0.0-alpha.1-5657-g99a833bd6-dirty on 2020-05-12; Adafruit Metro M4 Express with samd51j19
>>> import os
>>> os.listdir()
['.fseventsd', '.metadata_never_index', '.Trashes', 'code.py', 'lib', 'boot_out.txt', 'System Volume Information', 'exec_source.txt']
>>> source_text = ""
>>> with open("exec_source.txt") as f:
... source_text = f.read()
...
...
>>> source_text
'print(\'exec_test.txt source read...\')\r\nclass foo():\r\n def __init__(self):\r\n self.msg = "Hello, I\'m foo."\r\n\r\nprint("class \'foo\' created. creating \'bar\' as an instance of \'foo\'...")\r\nbar = foo()\r\nprint("bar has a message for you:", bar.msg)'
>>> exec(source_text)
exec_test.txt source read...
class 'foo' created. creating 'bar' as an instance of 'foo'...
bar has a message for you: Hello, I'm foo.
>>>
@raven canopy holy cow! I never knew about exec ! Thank you 🙂 I have more reading to do now
raven canopy
its handy. but i'll stress it again: use with trusted sources only. exec and eval have no real safety net...
raven canopy
hehe
also, just so you're aware. if you use classes/etc like i did above, you can still run into long-living objects:
>>> globals()
{'bar': <foo object at 200037f0>, 'os': <module 'os'>, 'source_text': 'print(\'exec_test.txt source read...\')\r\nclass foo():\r\n def __init__(self):\r\n self.msg = "Hello, I\'m foo."\r\n\r\nprint("class \'foo\' created. creating \'bar\' as an instance of \'foo\'...")\r\nbar = foo()\r\nprint("bar has a message for you:", bar.msg)', 'f': <io.TextIOWrapper 200032f0>, '__name__': '__main__', 'foo': <class 'foo'>}
I believe it! just compiling byte code all willy-nilly haha
i love it. Thanks for the tips!
raven canopy
happy adventures! 😄
manic glacierBOT
manic glacierBOT
All working and Beta 5.40 on the board as UF2 using make BOARD=feather_f405.
Only small thing is when in bootloader mode board shows as
But fully functioning - many thanks hierophect 👍
slender iron
@lime trellis I highly recommend Dan's suggestion of replacing the mpy and then rerunning the VM. Trying to delete imported modules isn't recommended and I would have no qualms breaking how it works.
manic glacierBOT
prime flower
@twilit geyser I have a pure-python implementation of the arduino dns client (for wiznet5k chips) here: https://github.com/adafruit/Adafruit_CircuitPython_Wiznet5k/blob/master/adafruit_wiznet5k/adafruit_wiznet5k_dns.py. But it doesn't support mDNS afaik.
tulip sleet
@slender iron I have finished with Adafruit Services but it needs a CPy build with the PacketBuffer fixes. 5.4.0-beta.0 has that USB disconnect issue (I see it on nRF) and also runs the services demo programs a lot more slowly possibly due to shutdown/wakeup, even though there are no explicit sleeps in the main loop. Are there some fixes for 5.4.0 that are imminent, or should we think about a 5.3.1? We can discuss at meeting tonight... I still have some guide pages to write before it's ready.
