Platinum — Path Tracing in Metal

[winged veldt]

does indeed look a lot like blue noise

though, i think i have some nans floating about

[timid frigate]

what a "new sampler" is?

[winged veldt]

implementing the sampler from ahmed/wonka https://abdallagafar.com/publications/zsampler/

iirc you sent me that paper

[timid frigate]

oh yeah it is good

[timid frigate]

not published yet?

[winged veldt]

wdym

[timid frigate]

on your github

[winged veldt]

no, i'm working on it

[quick zealot]

so what's this one? the sampler

[timid frigate]

@quick zealot this one

[quick zealot]

oh ye

[timid frigate]

please show compare on 64 spp this new one vs older(it was halton?)

[winged veldt]

so it's sort of working, but doesn't look right, there's a lot of artifacts at 1k spp that makes me think there's some sample correlation

my approach is a little different from the one in the paper, as i generate samples on the fly while they seem to generate all the necessary samples ahead of time (i don't know how that is even remotely practical), but they should be mathematically equivalent so i suspect there's a bug

there's also clearly correlation between samples of the same pixel, because gmon isn't even getting rid of all the fireflies—which means there are repeated outlier samples in the same pixels

[winged veldt]

@timid frigate have you implemented this thing before? i think i have no clue how it actually works

[timid frigate]

no. I just checked how it works in https://github.com/MomentsInGraphics/vulkan_renderer
maybe try to use this github source?

[winged veldt]

i'll check it out, hopefully less weird than the code from the paper

[timid frigate]

can you do 2 images to compare?

w/o usage of gmon. for samplers compare - new and old

[winged veldt]

ye, i'll do that when it's not broken

[winged veldt]

ah, the renderer doesn't implement the sampler, it loads a precomputed noise texture

[timid frigate]

yes. why need to compute? use precomputed

[winged veldt]

...no?

how does a precomputed texture even deal with the high number of samples and unknown number of dimensions needed

in any case even then i'd have to implement the thing offline, which that repo doesn't

[timid frigate]

dont know but works ok

please reread pdf and article about this texture usage https://momentsingraphics.de/ToyRenderer3RenderingBasics.html

[bronze sedge]

btw do you not like the fbx sdk for a specific reason?

[timid frigate]

I like one header libs

[winged veldt]

oh my god i am fucking stupid

so the reason the samples were fucked was because i changed the sampler init to use the proper spp number for the naive kernel and forgot to change the hardcoded 128 for the mis+nee kernel

so it was fine up to 128 samples then it got fucked

i think it works fine now, but i still have a bug where it freezes if the sample count is a power of 4 (they are handled differently at one point, so no surpises there)

it's also a really annoying bug because for some reason when it happens it fucks the driver and i have to restart my mac to unfuck it

at least it restarts in like 10 seconds

[hazy zenith]

That sounds like the average GPU programming experience

[winged veldt]

@timid frigate here's the comparison you asked for and some more: top is the old halton sampler, bottom is the z/sobol sampler

(the image is huge, so open it in a browser window and zoom in)

to be honest, i'm gonna go ahead and call this a fail

i'm not sure my implementation is entirely correct, as it's showing some structured artifacts that shouldn't be there (most visible at 4-16spp), but my code is mathematically equivalent to the implementation provided by the authors and very similar to the pbrt v4 implementation, so it should be fine

though the pbrt version does add owen scrambling on the samples, and i know for a fact that works well because i used it for yart, so i'll add that and see how it compares

at higher sample counts they're close as makes nearly no difference visually, z/sobol is maybe a little cleaner (not sure how much is down to faster convergence or blue noise, hard to tell at that point) but the structured artifacts are still there so it loses for overall image quality

and then there's the part the comparison doesn't show: z/sobol sampler is consistently about 50% slower at the same sample count, and gets worse with more samples, being as much as 67% slower at 4k spp

honestly, i think the main takeaway here is the halton sampler i already had is not so bad after all

[copper halo]

do you happen to have a gltf of your test scene, i wonder how my piece of junk would render it

[winged veldt]

it's about as good iq-wise, much faster so in equal render time it wins by a mile, and is much simpler with 25% of the code by line count (and much more readable code to boot)

so i think i'm going to stick with it, i put it in a class to make sampling more ergonomic and replaced the shitty cpu-side-generated randomness texture with pcg4d in the shader and... it works great

[winged veldt]

ye, here you go

[copper halo]

the only sampling strategy i use is some gpu rng i yoinked from somewhere

i think it's a PCG?

[winged veldt]

ye, pcg is pretty good

but a lds is always better than white noise

[copper halo]

what's an lds

[winged veldt]

low discrepancy sequence

[copper halo]

ah

[winged veldt]

tbh there's nothing about the sobol sequence that's inherently better than halton afaik, aside from some base-2 fractal shenanigans you can exploit to get blue noise characteristics on your entire sample space a good part of the reason it's used is because it's supposedly faster to compute (since it's all in base 2 and thus can use only fast bit ops instead of expensive integer division)

but the rest of this sampler is so complex (even the fast hash-based version) it ends up being way slower anyway

[copper halo]

ok not bad actually

i was expecting it to completely fail

yours is definitely much less noisy tho lmao

[winged veldt]

https://tenor.com/view/fbi-swat-jelleton-gif-14190942

microfacet police

you're losing energy on that metal, time for multi scatter ggx

[copper halo]

oh no

what have i fucked up

[winged veldt]

look at the metal dragon, it's very dark

that is bad

(i am racist)

[copper halo]

both my dragons are missing a lot of GI yeah

[winged veldt]

not a gi issue, it means the bsdf is losing a ton of energy, happens with high roughness ggx

[copper halo]

my dielectric specular is also goofed i think?

[winged veldt]

since it only models single scattering and a good bit of energy for rough materials comes from multiple scattering (light bounces off multiple microfacets)

anyway, materials are hard lol

[copper halo]

yeah

[winged veldt]

i have to fix my layered glossy lobe

and possibly the clearcoat blending

my bsdf code is ass

[copper halo]

oh is the left dragon clearcoat?

[winged veldt]

not clearcoat, it's just dielectric with roughness

which... is functionally a lot like a clearcoat over diffuse

[copper halo]

well yea

compare the horns between our renders, that looks very fucked on mine

and the shadow along the body

[winged veldt]

ye, idk what's going on in there lol

but mine is also borked

specular highlights are not nearly bright enough

[copper halo]

wellllll atleast you have them!

[winged veldt]

tom's render is correct: #1332402779276316695 message

should look like that

basically i gave up trying to get layered right with mis+nee and left it at "good enough" but i'm realizing it's worse than i thought lol

so ima have another go at it

[copper halo]

oh lol the wall and ceiling intersection is also broken on mine

[winged veldt]

oh yep lol

corners look weird

some funky stuff going on there

[copper halo]

i blame it on hwrt apis

[winged veldt]

https://tenor.com/view/nfs-need-for-speed-nfs-carbon-need-for-speed-carbon-cutscene-gif-27586810

(i also have the major skill issue)

[copper halo]

i love deblubbing light transport

[winged veldt]

light transport is fine tbh

the layered bsdf can eat a dick

[copper halo]

is it the bsdf? is it the MIS? is it the shrampling? is it some random pdf somewhere? are your rays just fucked? who knows!

and this is all running on a shitty undebuggable piece of junk called a gpu

i wish nv's realtime shader debugger worked with slang...

[winged veldt]

i wish apple's shader debugger worked

it's so good when it does too

[copper halo]

to be fair i don't know if nv's debugger works

because i've never been able to use it

[winged veldt]

i need to git bisect and figure out where i wrote code that's causing it to segfault

[copper halo]

riir

[winged veldt]

oh and also for some raisin the shader validation layer doesn't like my alpha test intersection function and crashes the shader compiler when it's on

[copper halo]

lol imagine supporting transparents

[winged veldt]

[copper halo]

ray flag opaque my beloved

[winged veldt]

that reminds me i need to set opaque per geometry

[copper halo]

wait, does metal have hw rt now?

[winged veldt]

yeah, has had for a while

iirc, it had the apis before macs even supported it in hw lol

[copper halo]

lol

[winged veldt]

my m3 pro does have hwrt though

it's actually pretty fast

i think it might beat my 2060s for rt perf, or get very close

[copper halo]

tbf the 2060s is like... the slowest RT dGPU

[winged veldt]

it's certainly much closer than you would think on raster, given it's on like 20% the 2060s power budget for the entire soc

[winged veldt]

hey, og 2060 is slower

and the uhh laptop parts

[copper halo]

probably rx 6600 too tbh

maybe 6700 as well

[winged veldt]

meme hw doesn't count

[copper halo]

lol

[winged veldt]

anyway, i tried fast-owen scrambling the z/sobol samples and they suck even harder

[copper halo]

just stick with halton

spend this time improving importance shrampling instead

[winged veldt]

so there's definitely something wrong with the implementation, i might try to fix it at some point but it's so much slower i won't even bother

[winged veldt]

ye, that is the plan

ima commit this so it's in the git history should i want to go back to it, though

[copper halo]

wow my dingus is 1.4 ms per shrample on a 4070 at 1080p

it even manages to have 50% SM utilization somehow!

oh right no textures to murder perf (mip 0 only )

[winged veldt]

neat, idk how long my samples take but definitely way more than that lol

[copper halo]

remember this is a 1440p card running at 1080p running meme code

[winged veldt]

my occupancy is also kinda trash, but trying out wavefront is a problem for later

[winged veldt]

yea i would hope a desktop 4070 runs a few laps around my 25w arm soc

[copper halo]

occupancy, what's that?

[winged veldt]

[copper halo]

how would you impl wavefront with hwrt tho

[winged veldt]

i have no fucking clue

possibly you'd do an intersection pass, store hit info, sort by material, do a shading pass, sort rays, and repeat

but idk if you'd actually gain anything from it

anyway that's far in the future, megakernels are comfy and i'm not that concerned about perf in offline rendering as long as i can get a nice render in the time it takes me to make a cup of tea

i'd much rather implement volumetrics, path guiding, bdpt, restir, etc

and there's always the temptation to go spectral

[copper halo]

ah, so SER

doing it manually isn't worth it at all

and SER is only worth it in very specific cases

[copper halo]

fair

I'm writing this path tracer so I have a ground truth to compare my realtime PT to

and I wanna share as much as poshribble

[winged veldt]

just to close the samplers issue for the time being, i tried out a plain pcg sampler

render times are about 10% faster than with halton, but convergence is definitely a bit worse so i think halton still wins overall

[tropic ibex]

Well said brother, very well said

Everybody likes a good path traced image dont they

[tropic ibex]

I should start doing these too

Assimp is mostly a close your eyes and hope that everything goes okay kind of parser

(I still use it)

[stoic crag]

you would depending on how "hybrid" your rt is, I do that except for the sorting parts and the gains are huge

[winged veldt]

what does hybrid mean in this context?

[stoic crag]

ray march > compact screen space misses > ray gen > reproject hits to last frame screen space > compact off screen hits > shade

i guess that's kinda wavefront'ish

[winged veldt]

oh, you're doing screen space first?

yeah ig that makes sense in realtime

[tropic ibex]

How much faster is this

[hazy zenith]

Isn't the whole point of sobol being faster than Halton since it doesn't use integer division ops?

[timid frigate]

thank you anyway

[timid frigate]

here is interesting approach with blue noise https://www.shadertoy.com/view/wltcRS

[winged veldt]

sadly blue noise relies on sampling a large texture and is only spatial, not temporal (which for offline pt means no blue noise distribution across samples)

[winged veldt]

yes

the expensive part is not the sobol sampling itself, but the fancy "z" part of the sampler that gives it the blue noise distribution

[timid frigate]

I seen spatio-temporal bn tex exists

[winged veldt]

the thing is, without that fancy part a sobol sampler is... kinda crap, because the lds has a lot of structure to it

just look at the pbrt one

[timid frigate]

for me is ok this https://www.shadertoy.com/view/wltcRS

[winged veldt]

yea, 3d texture will do it

but do you really want like a 1k^3 texture for sampling

[timid frigate]

not me 🤣

[winged veldt]

i much prefer being able to generate arbitrary numbers of samples on the fly without sampling anything tbh

(and also ime so far, blue noise distribution isn't nearly as relevant at higher sample counts as you start to converge, so most any lds will give you the convergence benefit over white noise)

[timid frigate]

volkano from drone

as generate samples

[hazy zenith]

Oh, interesting.

[stoic crag]

around half the cost of doing it all in 1 pass, compaction is done with wave intrinsics the sssr way

[hazy zenith]

Why is the z ordering so expensive?

[winged veldt]

if you look at the code or paper you'll probably notice, but basically for each sampled dimension it has to compute permutations for each base-4 digit (pair of bits) of a morton code, which involves log2(N) + log4(M) hashes with N the image resolution rounded up to the next power of two and M the total sample count

the hashes are cheap but they add up

[tropic ibex]

Thats sounds reasonable, Imma try that sometime

[timid frigate]

Did you like result of pcg4d?

[timid frigate]

I find pcg4d with blue noise
https://github.com/zhing2006/hala-pathtracer/blob/a2cbf1aae9bd2ef03cae1defdc059b19d91c723e/shaders/src/common/wltcRS.glsl#L51
Used only for jitter camera rays. For other rays used pcg4d w/o blue noise

[winged veldt]

it's a very good hash, but any lds will converge faster

in my testing it resulted in ~10% faster render times than the halton sampler but slightly slower convergence as well, so halton is probably worth it

[copper halo]

MIS vs no MIS

[winged veldt]

mis is rendering the glossy material as diffuse, something wrong there

i'll have to work on fixing my own bsdf code soon but i'm adding some fun bokeh stuff first

[copper halo]

MIS is left, so it's the other way

my PDFs were big goofed, i think i made them a bit better?

this is with MIS

[winged veldt]

oh

how tf was it adding noise

[copper halo]

my pdfs were very wrong

[winged veldt]

looks better

[copper halo]

the only thing wrong i can see with this is that when i shrample the GGX lobe i don't multiply with n dot l or divide by the pdf

if i do the entire render becomes white

do you do stochastic multiscattering GGX or the filament approximation?

[winged veldt]

hm, idk what the filament approximation is but i use kulla & conty's method

basically storing directional and hemisperical albedo in a lut

added some shrimple bokeh

[timid frigate]

camera.pixelDeltaU, camera.pixelDeltaV can be stored in prenormalized form
and it can be rewriten as
float2 lensPos = samplers::sampleDisk(lensSample);
ray.origin += (lensPos.x * camera.pixelDeltaU + lensPos.y * camera.pixelDeltaV) * camera.apertureRadius;

or length of camera.pixelDeltaU, camera.pixelDeltaV can be stored and
normalize((camera.topLeft
+ filmPos.x * camera.pixelDeltaU
+ filmPos.y * camera.pixelDeltaV
) - ray.origin);
can be
normalize((camera.topLeft
+ (filmPos.x - lensPos.x/length(camera.pixelDeltaU))* camera.pixelDeltaU
+ (filmPos.y - lensPos.y/length(camera.pixelDeltaV)) * camera.pixelDeltaV
) - camera.position);

many optimizations can be applied

if aperture doesnt exists then just
normalize((camera.topLeft
+ filmPos.x* camera.pixelDeltaU
+ filmPos.y * camera.pixelDeltaV
) - camera.position);

1.0 / length(camera.pixelDeltaU) can be precalculated and passed to shader as float

/ is more costly than *

[winged veldt]

cool

i don't care

this thing is a path tracer, the initial ray position is taking up 0.0001% of the shader time, i'm not gonna waste my time micro optimizing it

[timid frigate]

please think. this calculated for every pixel and it is 800x600 for example pixels

[winged veldt]

feel free to make those optimizations and measure performance, i can guarantee there will be exactly zero difference

[timid frigate]

if you do calculations same values which can be calculated and stored it can give you up to 10-15% of speedup

[timid frigate]

try and check

if it can be 5% of speedup it is good thing

try

for optimizations calculate usage of multiplys and divides and usage of sin, cos, tan, pow

x * x * x * x * x calculated faster vs pow(x, 5)

[winged veldt]

yeah, i know

but this is not hot code

[timid frigate]

if cos can be calculated - use sqrt(1 - cos*cos) - it can be faster than sin and cos both

[winged veldt]

anyway

[timid frigate]

for sin and cos of random angle you can use
float cosine = 2 * rand() -1 //for -1..1
float sine = sqrt(1 - cosine*cosine)

[winged veldt]

i have a non deterministic bug in my gltf/texture loading, yay

my favorite

[timid frigate]

show me

[copper halo]

they just increase the energy by reading from a lut parameterized over n dot v and roughness

[winged veldt]

i mean, that's basically what all the lut approaches do

or do they just like

sample the lut and add that

[copper halo]

multiply the end eval with it

sorta

vec3 energyCompensation = 1.0 + f0 * (1.0 / dfg.y - 1.0);
// Scale the specular lobe to account for multiscattering
Fr *= pixel.energyCompensation;

[winged veldt]

that looks kinda like turquin's method?

probably based on it

well uh

apparently the crash is because this gltf has a 16bpc normal map

[copper halo]

yeah i just found and read the paper and was about to link it here

[winged veldt]

yea

i used that in yart

[copper halo]

why'd you switch

turquin says it's better than kulla and conty

[winged veldt]

it's not reciprocal, which will bite me in the ass when i eventually want to add bdpt

it's marginally better, yes

[copper halo]

well they say

However, we believe that this lack of formal reciprocity is unlikely to produce any significant artefacts.

lol

[winged veldt]

yea

i'll have to test it myself later

tbh

they are pretty similar, turquin's is somewhat simpler in implementation

they use the exact same luts so it's trivial to switch

i'm actually using turquin's method for glass, cause i can't figure out how kulla and conty's works

[copper halo]

lol

wow your luts are so beautiful /s

[winged veldt]

i wrote the tool to generate them into my renderer

so i can render like 4k luts if i wanted to for some insane reason

[copper halo]

it's ok, your luts are now my luts

probably not gonna exr them

just gonna dump them into a beautiful binary blob

that i will include_bytes!

[winged veldt]

https://tenor.com/view/meme-our-now-gif-21036569

lmk if you want some other res

[winged veldt]

fixed my texture issue and now i have hopefully much more robust texture handling on import, so that's nice

[winged veldt]

a nice render with some bokeh

trying to work out a way to model realistic looking aperture blade shapes now, so i can have curved blades when stopped down

[fair marsh]

Damn that's pretty

What is the performance like on this?

[fair marsh]

Even the noise looks kinda good, reminds me of film grain at like 400iso

[quick zealot]

What's the material for the paint? It looks cool
Like on the highlight under the right headlight, the brighter spot makes it look pretty cool I think

[quick zealot]

Just changing how random numbers are generated slows down the whole renderer by 50% O_o
That's a big fat slowdown just for random numbers

[old hollow]

😏

Looks hot 🙂

[winged veldt]

not great, not terrible, render took about 4 minutes at 2048spp, 1920x1280

and ye that's a lot of samples lol, everything behind glass is extremely slow to converge because nee fails

i should try implementing mnee or something (don't think bdpt will help in this case, given the light source is an environment map)

[winged veldt]

yeah it's... oof

the thing is samples are being generated all over the place in hot code, so even a small slowdown adds up quick

[winged veldt]

just a medium roughness (~0.45) metallic with clearcoat

that highlight is just from an out of view fill light, and it goes yellow thanks to agx (filmic curve my beloved)

[timid frigate]

pcg4d can be faster. this algo generate 4 uints which used as float. I use pos variable as
on Init pos = 3;
on every rand()
pos++;
if(pos == 4) { pcg4d(); pos = 0; }
return float(seed[pos])/float(uint(~0));

[winged veldt]

yeah it's fast, but slower to converge (more samples) because it's white noise

[timid frigate]

I mean it can be faster vs call pcg4d() on every rand() call

[winged veldt]

yea true, i am wasting samples

[old hollow]

Analytic car paint BRDF when

Pretty sure there’s a paper out for proper car paint with speckles heh

[winged veldt]

worry not i have that tab open somewhere heh

[old hollow]

Haha checks notes 🤔🤔🤔 oh yes tab six hundred and thirty five

😭

[copper halo]

so i fixed ggx and then broke diffuse in the process

[copper halo]

made it less bad... maybe...

multiscatter police have i done well

[winged veldt]

i think it's better? whole image looks underexposed tho

but don't trust your eyes, do a furnace test

[jaunty void]

make the front face (which is currently culled) an area light 😛

[winged veldt]

it's not culled, it just isn't there

[copper halo]

well it is what autoexposure says

and a little bit of compensation based on average lum

[jaunty void]

i know, but, make it happen anyway 🙂

[winged veldt]

added support for non circular bokeh: left is 7 straight blades, right is 7 rounded blades

i'm only roughly approximating the rounded blade shape by lerping between a circle and polygon, but it works pretty well

[jaunty void]

i dont see any difference tbh

both look neat

[winged veldt]

if you look closely at the highlights right is a bit more rounded

[jaunty void]

ah indeed, if you look at the lights in the middle/left of the picture

[winged veldt]

ye, it's a subtle difference

[winged veldt]

so i tried something like this real quick and it's actually slower than the seemingly more inefficient method by a few %

unexpected, i actually did expect it to be a little faster

ig pcg4d is just very fast

[winged veldt]

added an option to control the distribution of light in bokeh, biasing toward the center or the edges

i think that's basically it for now, time to fix my materials

[jaunty void]

car needs the cubes as stinky-tree hanging off of the mirror

then its perfect 🙂

[winged veldt]

you probably wouldn't even be able to see them lol but i'll do that for the interior shots

[jaunty void]

you can replace the textures with some gold metal or brushed aluminium then, their textures are ass for this 🙂

or bismuth

[copper halo]

is there supposed to be a difference between the images

[winged veldt]

thin film interference?

[winged veldt]

ye

look at the out of focus highlights in the background

[copper halo]

ah

how does that work?

[jaunty void]

it do be looking like that, but its probably a different phenomenon, crystal structure vs thin filmism

im not a fisicist

[winged veldt]

different lenses have different optical quirks which give the bokeh balls a different shape, ideally the light distribution would be perfectly even (middle image) or even somewhat biased toward the center for softer bokeh (some super expensive specialized lenses do this)

[copper halo]

you should be

[winged veldt]

on some cheaper lenses it's common for the edges to be a little brighter, which makes the bokeh look kinda crap (those edges interact with each other and make backgrounds look busier)

i'm only very roughly approximating that, but it's enough to get the right sort of look

real lenses do all kinds of crazy stuff especially when stopped down to f/11 or so

[copper halo]

you should model the lens physically

either the fun way or the boring optimized way pbrt does

[winged veldt]

i might at some point, tbh

i didn't care much for it until i found a huge database of lens construction data for actual modern lenses

including the ones i own lol

so that would be pretty fun

[copper halo]

alternatively you can do the fun method

with a saw

[winged veldt]

but if i do that i'm also tempted to go all in and go spectral, because you get even more fun lens effects that way (lateral and longitudinal ca)

[winged veldt]

sure just send me $5k

[copper halo]

ca?

[winged veldt]

chromatic aberration

[copper halo]

ah yeah

spectral on the GPU though

[winged veldt]

i have a very simple lateral ca done in post processing now which is close enough, but you get much better results simulating the lens ofc

and longitudinal (aka color blur) i have no idea if it's even possible without modeling the lens

[copper halo]

anything is possible with a liberal interpretation of reality

[winged veldt]

yea that's my main reason against it besides the asset pipeline becoming much more convoluted

it's likely gonna be a lot slower

[copper halo]

yeah

you should read hg2dc it's very fun

https://hg2dc.com/

[winged veldt]

though actually not sure how much slower, i mean you're mostly doing the same math and the actual tracing doesn't change

[copper halo]

yeah but a lot more multiplications and memory

[winged veldt]

ye

more multiplications because of the spectral response functions being evaluated you mean?

[copper halo]

depends on how you're implementing it

[winged veldt]

texture sampling definitely gets more expensive lol

cause your textures are still gonna be rgb

so for every sample you need to create a spectrum and evaluate it at the ray's wavelength(s)

[copper halo]

i mean, not really

actually idk how you'd even work with rgb textures

[winged veldt]

i've also been wondering if it's viable to maintain rgb and spectral versions of a renderer in the same codebase

without it becoming a complete nightmare lol

[copper halo]

well pbrt3 did

pbrt4 doesn't

[winged veldt]

without it becoming a complete nightmare

[copper halo]

because you'd only ever work with the specific wavelengths of r, g, and b you select for the textures

[copper halo]

hey it's just a nightmare in general

not because of spectral and rgb

[hazy zenith]

pbrt3 was spectral?

[winged veldt]

nah, pbrt describes a method for creating a spectrum from rgb values

you use some uhh curves

iirc you basically add three gaussians centered around the srgb primaries scaled by the components or something like that

[copper halo]

human perception curves?

[winged veldt]

might have been a little more sophisticated

[copper halo]

that's goofy

[winged veldt]

yea

[copper halo]

troy sobotka would get mad

[winged veldt]

the results are ofc not as good as you get with actual spectral materials, but who the fuck puts actual spectral data in a texture

[copper halo]

read hg2dc if you wanna get mad at how that works too

[winged veldt]

sure, will do

[timid frigate]

Optimisations cant be up to 30-40% faster. It up to 5-10% usually

[winged veldt]

good news, reworked my bsdf eval (back to eval everything and blend model) and the specular highlights are no longer broken

bad news, the glossy core fails the furnace test

i genuinely have no idea why—the pdfs are correct as far as i can tell

[quick zealot]

Is it worse with energy conservation disabled? i.e. is energy conservation doing anything here?

What if you set the IOR to 1.0f?
You should only be left with the Lambertian so this should be perfectly conserving. And if it still has energy conservation issues at IOR 1, it may actually be easy to debug

[winged veldt]

hm, low roughness, ior 1

there be bugs

huh it actually happens with the naive integrator as well

[quick zealot]

Yeah so I guess it's the PDF then

Because at IOR 1, the specular layer has literally no effect

So even if Lambert has issues, has to be the PDF blend/whatever of the whole BSDF I guess

[winged veldt]

ye

[copper halo]

my lambert is also fucked similarly

[quick zealot]

not enough bounces?

really looks like that

[copper halo]

thanks

i changed max bounces to 2 to debug something ages ago

never turned it back up

now my specular looks like this

[quick zealot]

roughness from left to right?

[copper halo]

yeah 0 to 1

0.2 intervals

[quick zealot]

My expert eyes can tell that this is fucked

[winged veldt]

i had a similar issue at 0 roughness

make sure you still eval the diffuse part

for nee

even though the specular part is zero

[copper halo]

it's a metal so diffuse is 0 too

[winged veldt]

ah

[winged veldt]

clearcoat is back in and now correct

i have decided to ignore the uhhh issues with energy conservation in dielectrics for now since it's only like <1% in most cases and near invisible in real images and i don't really feel like getting bogged down debugging my bsdf for a week again right now

[dense jacinth]

i need these beautiful images on my hdr screen

[winged veldt]

no hdr output sadly

yet

tbh shouldn't be too hard to implement, just have to figure out how hdr display in macos works

[dense jacinth]

bro get real

[dense jacinth]

do you accept PRs

[winged veldt]

yea, sure

[dense jacinth]

gives me a good reason to get this running on my mac, too

[winged veldt]

👀

anyway yeah hdr output is planned

actually

i might do that next

[dense jacinth]

I can walk you through it

what colorspace are you rendering in right now?

[winged veldt]

linear 709

so linear srgb basically

[dense jacinth]

oh ok so that's somethign you need to do first

[winged veldt]

yea, i'm thinking switch to rendering in rec 2020

[dense jacinth]

you need to support either P3 or 2020

[winged veldt]

i'd have to convert textures on import, ig

[dense jacinth]

ideally both

the last renderer I did used BT 2020 internally, and then converted that to either P3 or 2020

[winged veldt]

wouldn't it make sense to render in 2020, which is wider, and just support p3 as an output color space?

yeah that exactly

[dense jacinth]

yea

actually I think Apple is even quite funny and allows HDR on BT. 709 but let's just not

[winged veldt]

hm, i'd have to modify the tonemappers as well right? i mean, ofc i'll need an hdr tonemapper for hdr, but even when rendering sdr i'd need say agx to support bt.2020 input and p3 output

afaik should be a matter of just swapping the color space conversion matrices

[dense jacinth]

well the tonemapper doesn't care iirc

[winged veldt]

right, you can just give it out of gamut colors

though if they go negative it will probably get funny

[dense jacinth]

can they?

[winged veldt]

sure can if you go out of gamut

[dense jacinth]

how would that happen

[winged veldt]

a tonemapper like, say, agx is meant for bt.709 input, afaik

so if you render in 2020 you'd be converting to 709 before feeding it to the tonemapper

[dense jacinth]

well maybe but I just didn't bother converting it beforehand

[winged veldt]

fair enough lol

honestly agx works in its own color space so

idk if it would even be a problem

actually nvm

the curve is applied in log space

[dense jacinth]

just checked any yea kCGColorSpaceITUR_709_PQ is a thing

but realistically we're only interested in kCGColorSpaceITUR_2020 and kCGColorSpaceITUR_2100_PQ

[winged veldt]

where are these, btw?

[dense jacinth]

don't even need to do P3 explicitly cause I think CG can convert 2020 to P3 implicitly

[dense jacinth]

https://github.com/xybp888/iOS-SDKs/blob/master/iPhoneOS18.2.1.sdk/System/Library/Frameworks/CoreGraphics.framework/Headers/CGColorSpace.h

idk how to use xcode to search for headers in the SDK so I just used that

and clion is too stupid to analyze objc++ files

but yeah perhaps first just get Rec 2020 and/or P3 to work and then HDR

[winged veldt]

yeah that sounds reasonable

[dense jacinth]

but at the end of the day it just boils down to this:

    layer.wantsExtendedDynamicRangeContent = YES;
    layer.colorspaceName = kCGColorSpaceDisplayP3_PQ;

[winged veldt]

hdr shouldn't be an issue once i get proper color management in

[winged veldt]

oh

that's pretty shrimple

i bet imgui is gonna hate it though

[dense jacinth]

oh yes

[winged veldt]

fuck it, i'll just store the coordinates and draw my viewport on top of imgui

[dense jacinth]

do you have autoexposure working?

[winged veldt]

nah just have an exposure slider lol

[dense jacinth]

well fair

[winged veldt]

i might add ae at some point but i'd want to have the slider anyway so it's no big deal

anyway i'm working on some editor stuff rn but once i get that done i'm gonna look into color spaces

btw i suppose i'll have to convert textures as well since those will be srgb, right?

[dense jacinth]

it might sound weird but trust me the colors will instantly pop more

[winged veldt]

oh yea i know

[dense jacinth]

yeah at every texture sample you'll need to convert

[winged veldt]

i switched to p3 for all my photo editing and it looks so much better

[winged veldt]

hm, why not just convert the textures themselves

like on import

[dense jacinth]

you could do that too, but I didn't do it to save memory since all my input images are Rec 709

[winged veldt]

fair enough

yeah i think ima do it on sample

come to think of it i should also not linearize textures when i import gltf lol

i'm probably losing a lot of detail on the darker areas

[dense jacinth]

well you shouldn't just because of how gltf specifies how textures should be sampled

[winged veldt]

yea, though really the gltf spec is going out the window the moment i import because i'm converting to my own scene representation

[winged veldt]

been reading about color management and such, considering integrating ocio to get more flexibility in my tonemapping step

as it stands the agx fit i'm using only works for linear rec 709—it expects input with rec 709 primaries, and outputs rec 709 primaries with a 1/2.2 gamma curve (meaning you actually have to apply the srgb eotf to get linear output, for... whatever reason)

fixing the input should be simple enough, just a matter of replacing the input matrix with one that transforms rec.2020 or acescg to the same color space it uses internally, but the output matrix is kinda cursed: it transforms log-encoded "agx space" color to gamma-encoded rec.709... somehow? i have no idea how a 3x3 matrix multiply (by definition a linear transformation) is getting through not one but two non-linear transfer functions, and it makes me think the whole thing is kinda fucked

[quick zealot]

been reading about color management and such

where? any good sources?

[quick zealot]

wait but that's a general question on Agx right? that's not your-implementation-specific?
so you're saying the Agx pipeline everyone uses has been broken forever because of that mysterious matrix at the end?

[copper halo]

they (like most of us) are probably using that agx fit on shadertoy

which isn't real agx

[quick zealot]

oh and so it's a fit for outputting in rec 709 then ?

[copper halo]

yeah

[quick zealot]

oh okay makes sense then

[winged veldt]

"real agx" also only works with rec.709 input and, far as i can tell, output btw

(if i'm reading the ocio config right, and that's a big if, all the display p3 version does is convert the srgb output to p3 at the end)

[copper halo]

o

[winged veldt]

yeah

i have decided to make my own tonemapper, actually

if nothing else should be a fun side quest/learning experience

(i might still implement ocio as well, idk)

basically i'm just trying to figure out color management

[burnt peak]

by skipping converting optical density into transmittance
it's actually pretty dang clever

I was just writing an explainer about this earlier - at least as best as I can understand it...

After the polynomial response curve, you actually need account for this. So normally, you'd compute transmittance, then apply the sRGB OETF.

As far as I can tell, the minimal AgX implementation just fitted its response such that it just shits out sRGB gamma instead of having to apply two subsequent nonlinearities.

[winged veldt]

the what now

[winged veldt]

but... how? it's a linear transform

or is that built into the polynomial fit

[burnt peak]

so, when mimicking film, you're 'supposed' to go:

• scene-linear to log exposure space
• normalize [0, 1] range

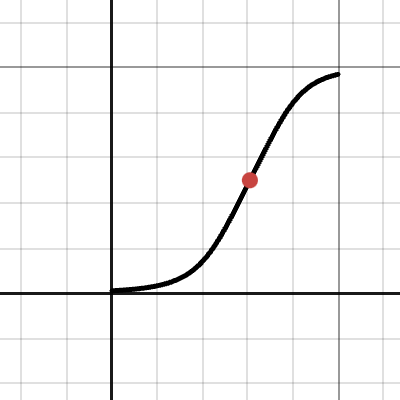

• apply Hurter & Driffield-ish sigmoid curve
• convert optical density into transmittance

going from density space to linear space and then from linear space to sRGB gamma seemingly just about cancel each other out

[burnt peak]

and yeah, I think the polymonial curve has to be fitted to make that work

[winged veldt]

ah

[burnt peak]

I'm guessing but it's the only thing that makes sense to me.

it's hilarious that I was breaking my head over this probably the same day you were, just by coincidence

anyway, you can just compute transmittance/opacity and go the long way

I'm doing it three times, for two passes.

I was about 95% done the other day. Now I'm about 60% done.

I think that's how color stuff works....

by the way - you can empirically fit the same response to any color space you want

or, better yet, just fit it to AP1 gamut and put everything in that

or rec2020 ... it's almost exactly the same thing

they're off by a hair

[burnt peak]

there's probably smarter ways to do it, but I would just target an sRGB-gamut hue/exposure sweep, then have the optimizer find a curve and linear transform where things desaturate about the same

with a few guardrails to keep it monotonic, avoid negative values, etc

[winged veldt]

wait, so you apply the sigmoid in log space, and then?

what is "optical density" and "transmittance" exactly?

sounds like density is logarithmic? so transmittance (actual amount of light that makes it through the film) would be 2^density?

[winged veldt]

yes, the plan is to render in rec.2020 internally, and have the tonemapper output either rec.2020 or a smaller gamut color space (p3 or rec.709)

[burnt peak]

density is log10(Li/Lo) - it's a more perceptually aligned scale, where more density means less light gets through, but I'm not a smart physics guy so beyond that I can only describe with hand gestures

[winged veldt]

hm, right

i guess since you are modeling film response it makes sense the input and output of the curve mean different things, i hadn't thought about that

[winged veldt]

i'm assuming Li/Lo is the ratio of light in vs out?

[burnt peak]

anyway - either because it's somehow intimately linked with the way light actually is or because it's a useful contrivance, it's used all over in photography and radiology apparently

[burnt peak]

yup

this is useful

i stole it from somewhere

[winged veldt]

so transmittance (which is basically your final color, if we're simulating slide film?) would then be 1/that ratio right? since Lo = t * Li -> 1 = t * Li/Lo => t = 1 / (Li/Lo)

[burnt peak]

T = 2 ^ (-R * Dmax) get you the transmittance of a film negative, or the opacity of a film positive

[winged veldt]

so then you have density d = log10(1/t) -> 1/t = 10^d -> t = 1/(10^d) = 10^-d ?

[burnt peak]

R is response Dmax is maximum optical density in the film/medium

and I thnk everything is suppossed to be in log10 but that's really shit for computers, so log2 is used

[winged veldt]

hm

[burnt peak]

but I guess if you want to be scientific

[winged veldt]

very different bases though

[burnt peak]

yeah

[winged veldt]

so hang on then agx is taking a massive shortcut

[burnt peak]

it's taking like a dozen massive shortcuts

and they're all awesome

[winged veldt]

it's basically taking the output of that sigmoid and going "eh, close enough"

[burnt peak]

except I think the gamut and polynomial curves weren't fitted just by eyeballing

so it may well be "close enough"

[winged veldt]

the output of the agx curve is in the 0-1 range

[burnt peak]

yes - you give it normalized input

[winged veldt]

yeah

exactly

[burnt peak]

but then you remap the normalized output to your optical density scale (going the long way)

[winged veldt]

but it also has "normalized" output, and i don't see a step after that to encode a response and max density

unless that is encoded in the ouput matrix

[burnt peak]

R * Dmax is that denormalization

if you do it

AgX does not

[winged veldt]

right

so what's it do instead lol

cause you now have normalized density

[burnt peak]

my honest guess, but I'm ~95% sure: all the back and forth matches the sRGB OETF closely enough that you can just fit the curves to skip the back and forth

[winged veldt]

so here assuming you're modeling slide film the final color is 1-T right?

[burnt peak]

yeah

I'm writing a whole thing right now expanding on what the flim guy explained basically.


[winged veldt]

neat

you have a wip you can share?

[burnt peak]

too much IP

later today maybe

I did a whole algorithm flow chart and it's fucked because I changed everything around

[winged veldt]

i don't see how these are even remotely similar

blue is srgb oetf (well, the cheap gamma 2.2 version) and red is 2^-x

[burnt peak]

2^(-x * maximum-optical-density)
and Dmax is a parameter - as well as the beginning and end of the sensitivity scale

[winged veldt]

yea, this is about as close as i can get them to match with Dmax ~4

[burnt peak]

nothing a little polynomial fuckery can't fix

[winged veldt]

that's not a linear transformation though 🤔

there is literally one matrix between the sigmoid output and the final output

[burnt peak]

well, neither is polynomial curve?

[winged veldt]

so either the sigmoid output doesn't represent density at all

[burnt peak]

right - my thinking is it represents density + whatever bullshit needs to happen to it to approximate the OETF

[winged veldt]

or there is some linear transformation that somehow converts density to something close enough to srgb encoded 709

well you do have a point there, the thing doesn't look quite like a sigmoid...

it doesn't asymptote, for one

[burnt peak]

oh yeah - that thing is completely fucked and fitting it (at least as real coefficients) is a fucking pain in the ass

but it's quite bendy

[winged veldt]

this is the 6th order fit btw

not the actual curve

[burnt peak]

yeah, I'm using the 7th order one

[winged veldt]

but it's pretty close, same rough shape—the point is, that don't look like no sigmoid i've ever seen

now i'm wondering what the heck agx is actually doing

i assume that function is encoding something more than the sigmoid

ig i could just email troy and see if he replies lol

[burnt peak]

You might take a look at the original stuff by Troy James Sobotka and Liam Collod.
https://github.com/sobotka/AgX-S2O3
https://github.com/MrLixm/AgXc
... there's a bit more to it than the minimal one.

[winged veldt]

i was just looking at those repos, lol

[burnt peak]

I haven't looked at it in detail but I gotta say I'm kind of a big fan of turning everything into demoscene shit that defies all logic.

[winged veldt]

it's amazing

but at the same time, fuck you, i want to understand the damn thing

the s2o3 code is what generates the lut/ocio config right? time to read the thing i guess

python

always encouraging to see this kind of comment

[burnt peak]

I did not have a very good time with OCIO. One of the main reasons I made my dumb python color library's specifically because I had such a not good time with OCIO. But I wish you godspeed.

[winged veldt]

it seems uh

difficult

tbh

i'd rather not implement it, if i can figure out how to make agx work with arbitrary color spaces, or just come up with my own tone map that does, i might just do that

iirc flim can be easily made to work with a different color space, but i don't like the results i get off it

[burnt peak]

if you like - let me finish my film thingie and I'll try and give you a hand

I think I know how to do it

[winged veldt]

way too many parameters and no combination of them looks very good

[winged veldt]

sure, in the meantime i'll be looking at agx code and trying to figure out how this shit works

[burnt peak]

that's why god made adam

that's not a biblical thing

i mean the optimizer

[winged veldt]

what optimizer

[burnt peak]

pytorch, gradient descent

no way in shit I'm hand tuning any of those parameters

[winged veldt]

ah

yea, ofc

[burnt peak]

pytorch can barely tune them

[winged veldt]

do you just give it reference images?

[burnt peak]

yes, when I can, with per pixel MSE loss, when I can
that and some regularization... and a few other things to keep it from trashing the curve

the ideal input imo is a hue/exposure sweep... but if you had that you wouldn't need the optimizer

but I think carrying something AgX like over to AP1 gamut or whatever can be done that way

[winged veldt]

you think you'd need an optimizer?

i figured the curve would work regardless of colorspace, but if it's tailor made for srgb that might be the case

but also, the blender fork of agx works in p3, rec.2020 and more

ocio config does use different luts for each, far as i can tell

[burnt peak]

my intuitions are usually wrong, but the if you're not taking it to sRGB gamut for the TMO, my concern is the colors would desaturate badly/unevenly

because e.g. ACEScg luminance isn't exactly sRGB luminance

but I have no idea

maybe the same curve is fine and nothing really needs to be done

I can actually test this though... but I have to run and take care of some stuff first

even if it's complicated - if we can steal the OCIO LUTs intended for various color spaces, then fitting the stuff should be no big deal

or you can just use a proper CMS.... but where's the fun in that

[winged veldt]

hm, i'm looking at the source for the blender version

though it might help to figure out the original first

why do y'all use python for this shit

[copper halo]

jupyter notebook

[burnt peak]

python is friend, conda is foe

[winged veldt]

https://www.desmos.com/calculator/rctyzhx6jf some progress in trying to figure out wtf agx does, plotted the sigmoid curve, now i just need to figure out what the parameters actually mean

[burnt peak]

the polynomial coefficients?

[winged veldt]

it's a pretty neat thing actually, two-part sigmoid curve with a bunch of parameters

seems to be based around a hyperbolic function?

[winged veldt]

no, this is the actual agx curve that's baked in a lut for the original ocio config

[burnt peak]

H&D curve approximation

[winged veldt]

any reading on that?

the wikipedia article is literally one paragraph

[burnt peak]

yeah, I'm sure there is but it probably needs actual research sorry 😦

[winged veldt]

np i'll look into it

[burnt peak]

I think it's getting into actual-photo-scientists territory

[winged veldt]

but i assume it's some kind of measured response curve for photographic film?

though it seems to be from like the late 1800s so i wonder just what kind of film that would be lol

[burnt peak]

it accounts for what physically happens to optical density vs exposure, yeah

as to how, why, what physics govern it - I have no idea

[winged veldt]

time to read a 135 year old paper

[burnt peak]

something something silver halides

[burnt peak]

yyyyyup

my impression is also that a lot of photo science, while "understood" by a specific group of people is under lock and key so far as good, thorough publications

[winged veldt]

oh yea definitely

[burnt peak]

fuji and kodak not keen to share that shit

[winged veldt]

i wanna know what the canon/nikon/fuji guys know

anyway, plotting the actual curve helps to know what the actual parameters to the real agx even are

i feel like i'm one step closer to figuring the thing out, but there's a big gap between what the parameters are and what was the intention behind their actual values

...i could also just ignore that intention and steal whatever the blender config does for rec.2020

also, just an idea i had: what if i just make the input color space, say, cie XYZ with a d65 illuminant?

hm, ig i'd still have to convert to some rgb space for the actual curve

[burnt peak]

I remember reading or hearing somewhere that the intention was to replicate the response of an ARRI ALEXA

[burnt peak]

you can make your working space whatever
I would postprocess stuff in AP1 or rec2020 though

if you want wide gamut

XYZ is a reference that contains color spaces, not so much a (practical) color space in itself

if that makes any sense

most of your chromaticity values are psychophysically impossible colors

they don't mean anything

and that makes certain things weirder than they have to be

[winged veldt]

doesn't arri have their own transform? why not just use that?

[burnt peak]

i have no idea what it does internally

[winged veldt]

yea

[burnt peak]

rather - what's hardware, what's firmware

[winged veldt]

hardware? cmos sensor, probably a sony one

[burnt peak]

what i'm saying is I have back-of-a-cereal box knowledge on how sensors actually work

[winged veldt]

oh yea same here

i have zero clue what the response curve of a sensor looks like

i know it's different for ccd and cmos

and probably not linear

[copper halo]

just test it on your camera sensor

[winged veldt]

the hell is a "vulgar logarithm"

ig the correct formula is fuck^-D

[copper halo]

well i now have an HDR monitor

just in time for this rabbithole

[winged veldt]

apparently vulgar is old timey for base 10

i don't really get it, substituting log10 for a natural log seems like a massive approximation

the relationship between the functions is not even linear

oh, i think it cancels out with another natural log they replace with 10 on the other side of the scale

okay nevermind actually their density scale is entirely arbitrary and made up

[winged veldt]

yo @burnt peak i think i hit something good

i've been reading the h&d paper

the red curve is the exact curve as described in the paper (with certain parameters), blue is agx curve (the real one)

now the interesting bit: green curve?

as you can see it's very close to the red one, meaning the agx curve is a pretty good approximation of the density to the power of 1/2.2

i still need to figure out how it works out with the density -> transparency calculation and the srgb oetf

[winged veldt]

not sure i get this part, though: blue and red still the same, orange curve is the light in the positive image 1-T, dotted black is that same curve with the srgb oetf applied (power 1/2.2)

orange is kinda close to the agx curve, but the black one is nowhere near it—and if the theory is right, these curves should at least somewhat match, indicating the agx curve is an approximation of the h&d density curve + transparency transform + srgb oetf

anyway, i better go eep

though now i'm wondering what a display transform based on the actual h&d curve would look like—then again, it's measuring the response of silver bromide plates from the late 19th century, so not entirely accurate to the 35mm film we want to model, having flexibility/good parameters and getting the sigmoid shape vaguely right is probably better than using the exact equation as described

[charred crescent]

how did you even figure this out

can't find anything claiming so online

[burnt peak]

well you're going to have way too much blue

nice find

[winged veldt]

huh?

[winged veldt]

https://www.shadertoy.com/view/WcXSWn @burnt peak trying out a super basic tonemap with the h&d curve just to see what's possible

[burnt peak]

just a dumb joke, don't worry

[winged veldt]

oh lol

yeah cause of the plot colors ig

[winged veldt]

still trying to figure out wtf agx is doing

as far as i can tell, the agx curve only makes sense if you just output density directly which should be incorrect

[burnt peak]

how do you figure

I mean, the OETF component certainly, but minus that

[winged veldt]

because it looks roughly like the h&d curve, which models exposed particle density, composed with the srgb oetf

otoh, if you use the density to calculate transmission you get something that looks absolutely nothing like the agx curve

[burnt peak]

you're talking about the polynomial fit or the OCIO one?

[winged veldt]

either, they are for all intents and purposes the same curve

fwiw i'm using the original one, though

[burnt peak]

I get AgX-like results with my film sim, but there's a lot more going on than a basic TMO

maybe this is better example

[winged veldt]

yeah i'm just trying to figure out how in tf agx works

cause it inexplicably spits out srgb

[winged veldt]

those look very nice btw

[burnt peak]

I thought you figured it out earlier?

[winged veldt]

what does your process look like?

[winged veldt]

i mean i know what the curve is and found how it relates to h&d, i still don't understand the intent behind it or why it all works out if you just interpret what it spits out as basically srgb

[burnt peak]

I promise I'll put the article out shortly* but tl;dr I'm mapping transmittance, but also using ASC CDL

    def _film_pass(self, val, fit, scale_in, sensitivity_start, sensitivity_end, max_density, slope, offset, power, eps=1e-7):
        exp = torch.clamp(torch.log2(torch.clamp(val * scale_in, min=eps)), sensitivity_start, sensitivity_end) # exposure
        dns = remap01(exp, sensitivity_start, sensitivity_end) # rescaling
        pos = fitted_polynomial_curve_7th_order(dns, fit)  # contrast curve
        cdl = asc_cdl(pos, slope, offset, power)
        res = torch.pow(2, -(torch.clamp(cdl, min=0.) * max_density)) # negative
        return res```
but this is the film pass - apologies

[winged veldt]

i'm looking up everything i can find online about it, but tbh i'm mostly coming up with more specific questions—i might just email troy when i know precisely what to ask, he seems like a cool guy

[burnt peak]

yeah, that's probably a good idea
all we can do is speculate

[winged veldt]

what's your curve look like?

[burnt peak]

like shit

[winged veldt]

[burnt peak]

I mean, it's radically different for every sim

[winged veldt]

that makes sense since it's modeling the film's response right?

but also

isn't optimizing a polynomial fit kind of a nightmare?

[burnt peak]

I get stuff like this usually

[winged veldt]

might want to try parametrizing your curve differently, both agx and flim have parametric sigmoids with pretty nice parameters

[burnt peak]

yes, which is kind of surprising to me because curve fitting is about as fundamental to ML as it gets

but there's certain shortcuts that apply here very well

[winged veldt]

btw, do you do something like flim and do two of these?

one for negative and one for print

[burnt peak]

yup... was going to try chebyshev basis

[winged veldt]

hm, that is a word yes

[burnt peak]

yes, and it gets worse

every dye layer transparency is a triplet

[winged veldt]

oh it's polynomials

i meant ditch the polynomials and try something like agx has with actually meaningful (for the shape of the curve) parameters

[burnt peak]

I might do that yeah... I'm still trying to answer really simple questions, like "should I model the mask and imperfect dyes at all"

[winged veldt]

https://www.desmos.com/calculator/gb0brh6vol like this

(that's basically the equation agx uses for its curve in the ocio lut gen)

also in one of the comments in his website troy states

The AgX experiment was a proof of principle that works with any colourimetrically defined spaces
which is just more confusing to me because it clearly assumes rec.709, does that mean it will happily eat up (and output) out of gamut values?

[burnt peak]

you should definitely email him

[winged veldt]

if so you can just transform rec.2020 to 709 primaries, get some out of gamut bullshit, feed that to agx, get some more out of gamut bullshit, apply the eotf to get linear 709, transform back to your color space of choice and then clip and apply the oetf for whatever?

[burnt peak]

this is valid if you don't truncate negatives

so you can just not clamp and you'll get same colors back

as to what agx will do to that - no clue

well, I'm not so sure about eotf - but I mean going from AP1 gamut to sRGB gamut and back is fine

[winged veldt]

yeah, this is just linear transforms

what i mean is, what the fuck does agx do with out of gamut values?

it does clip in log space, as there's a minimum and maximum exposure it works with

[burnt peak]

it shouldn't work... you should get sRGB gamut colors mapped back to rec2020/ap1/whatever

[winged veldt]

unless it outputs out of gamut

[burnt peak]

negative values should get mapped to zero

[winged veldt]

how so

actually, wait

negative values should break with the log2 function

[burnt peak]

yes
log2(-whatever) is NaN

just email Troy James Sobotka

maybe he meant something different

or maybe we're both completely misunderstanding things

[copper halo]

i assume this means that the way he derived agx should work for any colorspace, not that agx itself would

[winged veldt]

yeah, sounds like that

which is why i want to know how he derived agx

the internal color space is created from rec.709 primaries, so you'd probably at least need to rebuild that color space (actually pretty shrimple) from whatever primaries you want to use as input

[copper halo]

i also need to figure out how to get HDR metadata from a voolkin swapchain

dxgi has a function to do so

vulkan lets you set the metadata your content uses, but doesn't let you query it

i'm gonna have to interface with a dxgi swapchain amn't i

[winged veldt]

at least metal/macos is actually good at color management/hdr so i don't have that to worry about lol

[copper halo]

yeah...

windows just assumes everything is authored for srgb

so it looks goofy

[winged veldt]

yea afaik i should be able to just tell macos "hey this is p3" and it should be fine

ima have to deal with imgui, though

[copper halo]

just map from <insert imgui colorspace> to rec2020 in the PS

ez pz

[winged veldt]

easiest solution is probably just render imgui to an offscreen rt and do a second pass

yea

lol

[copper halo]

i don't think you need to be offscreen?

oh do you use the integrations

[winged veldt]

yes

[copper halo]

just write your own

[winged veldt]

i cba to write an imgui backend on top of everything lmao

[copper halo]

hey mine is like 450 lines of code

[winged veldt]

but even with the included backend

i can either modify it

or just run a compute shader on the drawable after drawing imgui lol

[copper halo]

thought it would be funny to just make an hdr swapchain and treat it the same lol

[winged veldt]

ah yes

[copper halo]

looks quite good if you ask me

[copper halo]

oh fack you can't use an a2rgb10 image for imgui/egui

because they need real alpha

[burnt peak]

this looks right, yeah?

[copper halo]

why is my text fucked up

i might have to do something incredibly cursed

[winged veldt]

got a great response, troy is a cool guy: https://github.com/sobotka/AgX-S2O3/discussions/2

main practical takeaway is agx can be made to work with any reasonable rgb colorspace, "reasonable" being not ACEScg because quote "AP1 is a nonsense encoding, and it will not work"

and as far as i can tell (i've asked to clarify on this, though) the output should be within the input color space, with a 1/2.2 power curve applied to it

i'm not surprised ap1 breaks things because it's a weird colorspace with imaginary non physical primaries, so i'll likely stick to bt.2020 for rendering

anyway, ig the next step is writing a "generalized agx" that can work with any input color space using this information, calculating the internal working space ("inset" as troy called it) should be all it takes

then i can see how bad the gamut clipping is if i try and go bt.2020 -> p3/srgb

[copper halo]

seeing as your source colors (textures and material multipliers) are always gonna be rec709, you're never gonna actually clip

if you do clip, you were gonna clip anyways

[winged veldt]

lighting can quickly bring those colors out of rec. 709 gamut, though

and if i'm rendering in bt.2020 i probably will be feeding it bt.2020 colors from anything that isn't a texture

[copper halo]

yeah but that would clip even if you were rendering in 709

[winged veldt]

oh ye

[copper halo]

basically it's all just barycentric coordinates in a triangle lmao

[winged veldt]

but we're not talking about that kind of clipping

that happens regardless of tonemap

i mean the clipping that happens if the tonemap outputs rec. 2020 and i clip to display p3

[copper halo]

ahhhh

yeah dunno about that

[winged veldt]

we'll see

[copper halo]

I was gonna use different tonemappers for HDR and SDR output

because I already have the SDR tonemappers lol

[burnt peak]

I don't understand why. It's basically just rec2020 primaries

[winged veldt]

it's not

[copper halo]

I'm probably gonna render in rec2020, then steal your agx for HDR tonemap, and clamp to rec709 for SDR tonemap

[burnt peak]

there's a tiny sliver of hypergreen in there at the edge, but that's about all I see

[winged veldt]

image kinda sucks but you can see here the green primary is out of the physically possible colors

that's probably enough to fuck things up

[copper halo]

unfortunately I need to figure out how to render gui nicely first

[burnt peak]

yeah, I posted another of these up above... that's not a lot

[copper halo]

because the alpha blending egui does fucks up if you output anything that isn't rec709

[burnt peak]

like if you displayed ACEScg as Rec 2020 it would be hard to notice anything's wrong

[winged veldt]

oh i'm not doing agx for hdr (yet)

just wider gamut

i'll deal with hdr after

but an "hdr agx" might happen anyway cause i'd like something at least somewhat consistent with my sdr tonemap

[burnt peak]

what exactly is the point of "hdr agx"?

isn't the whole point to crush dynamic range?

[winged veldt]

hdr is not unbounded, you still need a tonemap

[burnt peak]

agx isn't unbounded either

[winged veldt]

true

[burnt peak]

long before you get to +5 exposure everything is white and as white as it'll get

[winged veldt]

i can probably do something simpler than agx

[copper halo]

I might have to convert to rec709 (and store floats so my out-of-gamut values are preserved), then back to rec2020 when blitting to swapchain

[winged veldt]

the point is i'd want to get a similar look on the sdr range, going hdr for the highlights

[copper halo]

the main issue is that rec2020 goes up to 10k nits but your monitor does not

[winged veldt]

anyway, problem for later

[copper halo]

so you need to ask the OS or user for the max brightness and then tonemap to that

[winged veldt]

i think i can go up to 1600nits

it hurts

i'm not going to post flashbang.png here again, but it is very funny

[copper halo]

otherwise you leave it up to your OS or display to tonemap down => clipping

[copper halo]

surely discord doesn't support HDR images

[winged veldt]

wanna bet

[copper halo]

I'm on my phone in the dark so no

[winged veldt]

[copper halo]

my phone can definitely get brighter than my monitor

[winged veldt]

i think discord mobile doesn't, so you're safe

[copper halo]

ah lmao

[winged veldt]

but on desktop it sure does

and it's so bright the spoiler tag does fuck all

[copper halo]

I need to figure out how to take HDR screenshots first

default windows thing fails miserably

I don't think it tonemaps either

[winged veldt]

idk if macos does hdr screenshots actually

[copper halo]

it just reads your 10 bit data and chops the extra bits off

or clamps

your fancy pq oetf is now gamma

[winged veldt]

nope

[copper halo]

time to implement screenshots manually

maybe I should do that too....

[winged veldt]

new side project

the nih is never ending

actually speaking of side projects one has been in the back of my mind for a bit now

i'll probably do it after this whole colorspace/hdr thing since it's also relevant

node based image manipulation with a bunch of fancy effects (maybe even custom shader editor using msl reflection?)

partly intended as a more advanced post processing step for platinum (export exr into this new thing), partly as its own image processing thing

[copper halo]

does anything even support exr lol

I was gonna do ultrahdr in jpeg or something

so it doesn't look like garbo in SDR

[winged veldt]

yes?

it's widely supported as an interchange format

openimageio handles it

[copper halo]

oh I meant image viewers

like windows photos

and discord embedding lmao

[winged veldt]

preview

windows has a major image viewer skill issue

[copper halo]

yeah

[winged veldt]

discord can't even embed avif lmao

lame

the web sucks tbh

[timid frigate]

Twitter cant embed avif also. Did you try to embed avif hdr or in which format?

[winged veldt]

couple tests rendering in rec. 2020 internally, output color space is still srgb for now

left images are rendered with rec. 709 (srgb) primaries, right with rec. 2020

there's definitely some changes to how colors are rendered, the sponza render becomes cooler with slightly more vibrant reds and blues

on the dragon render it seems to get deeper blues and more saturated reds, while the green wall gets more of a yellowish tint

biggest difference is in the metallic orange dragon, it seems to tint the reflections far more when rendering in rec.2020 while it picks up the wall's green color a lot more in 709

the nice thing is i've set it up in such a way it's trivial to swap both working space and output space, so i can add all of this to the ui

anyway, the whole point of rendering in a wider colorspace is to output p3 and such, so that's the next step

(tonemapper is just agx, turns out i don't even need to recalculate the inset matrix since it's relative to the input colorspace anyway)

[dense jacinth]

i was actually able to guess it cause it looks more "realistic"

[winged veldt]

in theory it's closer to spectral

i don't have a spectral renderer to test that theory

[copper halo]

... yet

[burnt peak]

that's a hell of a green shift on the golden gradon reflection

[winged veldt]

yeah, odd thing isn't it

i'm inclined to believe the rec.2020 render is more accurate but not sure what's going on

[copper halo]

how does mitsuba/pbrtv4 render the scene

[timid frigate]

@winged veldt apertureRoundness what used for in your code?

What this parameter do?

[copper halo]

probably blend between an n-gon and circle aperture

[winged veldt]

very rough approximation of rounded blade bokeh, but it's close enough

[timid frigate]

0 is ngon, 1 is rounded?

[winged veldt]

ye

[winged veldt]

added options for output colorspace, now supports display p3 output

just need to support exporting it as well

[winged veldt]

well, shit

oiio doesn't support display p3 as an output space at all

[copper halo]

p3 is not real

rec2020 is the only real colorspace

[winged veldt]

cool, doesn't support that either

(neither do most displays on earth )

so ig now i'm looking for an image io lib that supports proper color management

or, more likely, just do it myself

time to use libpng directly, ig

[copper halo]

well png just assumes rec709 doesn't it

png shit format

[winged veldt]

nope

from what i can see it supports arbitrary colorspace data and hdr

though i can also add avif output at some point (oiio avif support sucks ass, no hdr)

[charred crescent]

Well it’s unclear if any image viewer will actually take that into account

[winged veldt]

that is the image viewer's problem

it's part of the spec, i'm not going to care about non conforming image viewers

[copper halo]

png doesn't support hdr metadata tho

afaik

[winged veldt]

are you on pc

[copper halo]

yes

[charred crescent]

How are you gonna look at it then tho

[copper halo]

ow

[winged veldt]

what's that about png not supporting hdr

[copper halo]

that's just some data that the monitor is tonemapping

ya need correct metadata for hdr images to look good

[winged veldt]

right i gotta read the spec proper

might just abandon png and do avif then

[copper halo]

[winged veldt]

objectively a better format

[copper halo]

agreed

[winged veldt]

but discord doesn't support embedding it sadge

[copper halo]

https://raw.githubusercontent.com/AOMediaCodec/av1-avif/master/testFiles/Netflix/avif/hdr_cosmos01650_cicp9-16-9_yuv420_limited_qp10.avif

discord does

[winged veldt]

eh since when

[copper halo]

i dunno
