[primal shadow]

from unreal 5.0's docs

We achieve this by performing quantization in object space using a user-selectable
power of step size centered around the object origin.
It is crucial that the step size is not normalized to the bounds of the object or in other
ways tied to its dimensions.
From the nanite siggraph presentation

So yeah, feels a bit contradictory

I assume they just choose a step size based on how big the object is, under the assumption that meshes that will be used together should have similar sizes, and therefore the same size-based heuristic should lead to the same quantization factor, and it'll work out fine when the meshes both get used with transforms multiples of the step size

[primal shadow]

memory allocation of 4548506711262943144 bytes failed uh oh

[wicked notch]

imagine failing to allocate 4039 petabytes smh

are you stuck in 2024

[primal shadow]

memory allocation of 4548506711262943144 bytes failed
[Inferior 1 (process 209) exited with code 011]
(gdb) bt
No stack.
(gdb)

wtf

[wispy spear]

how many exa bytes is that

[primal shadow]

idk what went wrong :((

[primal shadow]

oh whoops, wasn't my code's fault

forgot to copy paste some asset writing code into my testing setup

[buoyant summit]

I mean what are you surprised about

it exited

normally

if you were to crash it as like with abort(), then it'd work

[primal shadow]

Nooo, I finished my shaders for decoding, and all it's rendering is points D:

[primal shadow]

hmm, so every vertex has the same position, huh...

oh, LOL

totally forgot to use the vertex_id parameter of my get_meshlet_vertex_position() function 😅

that would explain it

oh god

[fiery bolt]

perfectly shippable

[wicked notch]

looks bunny enough to me

ship it

[frank sail]

it's a buggy

[fiery bolt]

bugs bunny!

[primal shadow]

I tested it on a cube, it's rendering as a 2d plane

heck

[primal shadow]

Bleh I can't figure out how to fix it, as renderdoc seems to be showing my fake values in the debugger :/

[wispy spear]

artifishial paint simulator, i like it. that blue bunny on the right ackchually looks quite cool

i will steal the image and use it as the new server banner : )

[primal shadow]

Ah I have discovered my issue, fml

the bitstream reader I did on the GPU does not account for when the bits of a vertex are split across two different buffer elements :/

[primal shadow]

Spent 3h trying to fix this, broke my brain

didn't figure it out

[wispy spear]

let the brain grow together again

https://tenor.com/view/greys-anatomy-addison-montgomery-well-try-again-try-again-give-it-another-shot-gif-25611967

[primal shadow]

People in #webgpu helped me out, think I got it working

Shading looked a bit off though, I think I'm compressing normals too much

[primal shadow]

I'm not compressing UVs, but so far per-meshlet buffer is not a size savings, at least for the bunny mesh

I guess the triangle compression I can do should improve it more

And streaming will give me memory savings

[wide shadow]

compressing UVs should be safe from f32vec2 -> u32 (packed 2 halfs)

[primal shadow]

I've heard very bad htings about 16bit UVs

[wide shadow]

I mean it depends on the asset

[primal shadow]

Ok yeah, using octahedral encode, and snorm2x16 is too inaccurate

Wait am I supposed to be using snorm, or unorm 🤔

What's the outpout of octahedral encode?

[0,1] or [-1,1]?

[wispy spear]

@wicked notch Mega Lights 2.0 when?

[delicate rain]

Are they rt btw or is it not known?

Must be rt no?

[wispy spear]

i have no idea, only saw the summary at gamesfromscratch

[primal shadow]

It's up on their github. It's RT based, but no ReSTIR surprisingly.

[delicate rain]

Interesting

[primal shadow]

https://xcancel.com/knarkowicz/status/1830232208164175898#m

[delicate rain]

Stochastic light sampling doesn't really say much

But yeah makes sense, thank you!

[primal shadow]

Pray I do not quantize you further

[fiery bolt]

automatic minecraft shader

ship it

[fiery bolt]

but how do they RT properly with nanite meshes

[wicked notch]

fallback repr

[fiery bolt]

that's not 'properly'

that's cringe

incredibly cringe

so cringe that i'm probably gonna do fallback repr myself

[primal shadow]

That's what I want to know

[wicked notch]

it is what unreal does

you might not like it

but unreal doesn't care that you don't like it

[fiery bolt]

but what if I ping the entire epic games developer github org

[wicked notch]

hmm bold strategy

almost as bold as the king's gambit

[fiery bolt]

@primal shadow just fixed another silly mistake in the edge detection, maybe try it now 🙃

[ebon ruin]

Hello Nanite folks

my meshlet generator sometimes creates split meshlets where a meshlet would be in two pieces (that can be quite far from each other). Will this be problematic when implementing the LOD tree?

[wicked notch]

yes

[ebon ruin]

Here's an example:

oops

[ebon ruin]

i see, thanks

[primal shadow]

Will try later tn

[primal shadow]

https://github.com/bevyengine/bevy/pull/15643

[primal shadow]

tomorrow*, ended up getting paged for work

[primal shadow]

Question for people: how are you generating the LOD bounds for the group?

not for individual meshlets

[fiery bolt]

for base groups, merge the bounds of the meshlets (or just calculate it directly)

then merge the group bounds of all meshlets for higher LODs

[primal shadow]

Oops forgot to update it here, I figured it out

Yep that's what I figured out was correct

Except apparently getting a minimal bounding sphere of bounding spheres is a 183 page thesis xD

There's an open source implementation in the cgal library, but it's gpl v3 :/

So guess I'll go with an approximate method

[fiery bolt]

yep i just merge two at a time

[primal shadow]

Did some asset size / quality / perf comparisons between compressed per-meshlet vertex data, and a single set of uncompressed vertex data shared between all meshlets. Sadly asset size is nearly identical. On the upside, quality and perf are also identical, I can implement streaming now, and there's still room to further compress vertex data so more wins in the future hopefully. https://github.com/bevyengine/bevy/pull/15643#issuecomment-2395198350

UVs are completely uncompressed (64 bits), normals can probably be quantized and variable-length encoded similiar to positions rather than the current 32 bits per vertex, and triangle data can be compressed with fancy triangle strip encodings (currently 24 bits per triangle, 8 bits per index * 3)

[faint crane]

Do you have a link handy? Can procrastinate further on occlusion culling give it a shot.

[primal shadow]

https://people.inf.ethz.ch/emo/DoctThesisFiles/fischer05.pdf have fun

[fiery bolt]

oh yeah that reminds me that my culling is a wee bit broken along the bottom and right edges of the screen

[primal shadow]

I'm realizing I have no idea how nanite's error projection is supposed to work

Each cluster needs: bounding sphere of it's group, and of it's parent group

and then, parent group boundign spheres must strictly encompass all of their child bounding spheres

but then how do you mix error into this setup? Where does the error come in during the building and runtime steps?

I suppose the test is group_can_be_rendered = projected_sphere_radius(group.center, group.radius) < group.error_radius

I.e. the group has error_radius deformity from it's children, so if the size of the group on screen is less than that, it's basically equivilant to it's children, so it's ok to render

no, that dosen't seem quite right either

[fiery bolt]

yeah me neither

it's a pain

what i was originally doing was placing a sphere on the closest point of the lod bounds and checking it's projected screenspace radius

(and clamping to the camera)

but that leads to holes for some reason

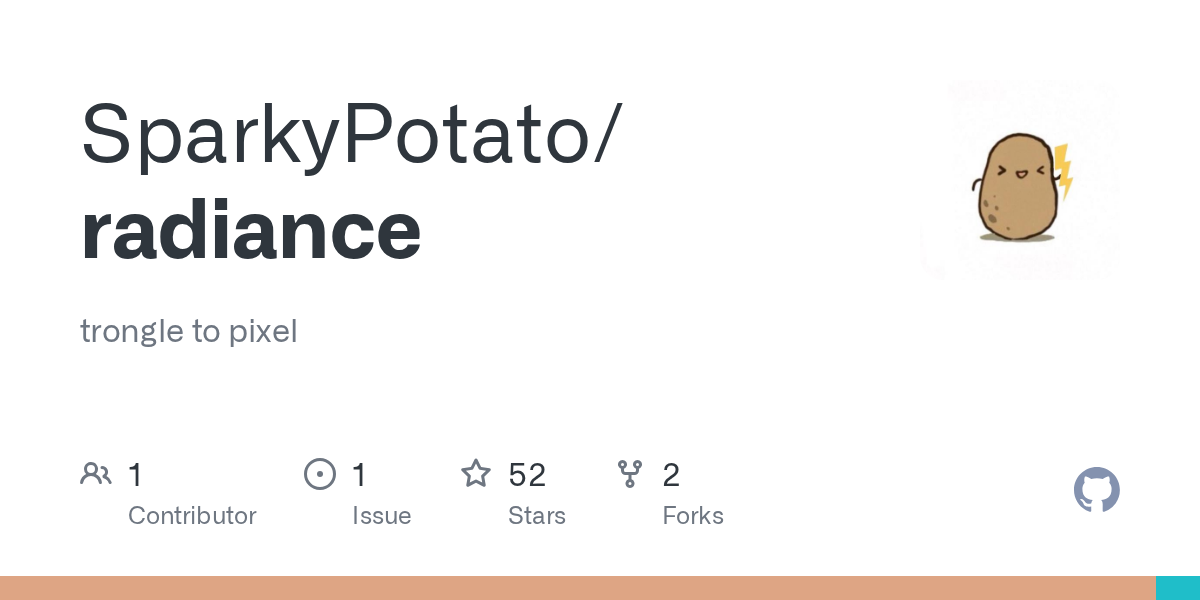

https://github.com/SparkyPotato/radiance/blob/337436d2a0bd57bcb2f558f687fcf98a6a650150/shaders/passes/mesh/cull.slang#L238

now i do this

but i forgot what it's actually doing

and it sometimes leads to double-rendering i think

[fiery bolt]

(the comment is wrong)

(please tell me if you come up with something better)

[primal shadow]

Based on https://vcg.isti.cnr.it/~ponchio/download/ponchio_phd.pdf 3.6.1, it sounds like we should:

For each cluster, store culling bounding sphere, lod bounding sphere, and error

Leaf meshlets (i.e. initial set of starting meshlets): Generate the culling bounding sphere, lod bounding sphere is a copy of the culling bounding sphere, error = 0

And then you group meshlets, simplify the group, and split into new meshlets

And for each new meshlet: compute culling bounding sphere, lod bounding sphere = new sphere encompassing lod bounding sphere of all children in the group, and error = max(simplification_error, child1_error, child2_error, ...)

Ok so that's building, now you have for each cluster: culling sphere, lod sphere, and error

now at runtime you gotta do this

tight bounding sphere = meshlet cluster bounding sphere

...and this runtime part I'm still reading the paper to figure out

but anyways you do this, and also for the parent sphere somehow?

and then you draw if self == good && parent == bad

finding the minimum enclosing ball of points (for leafs) and minimum enclosing ball of balls (for
all other nodes) [35]
Oh hey, they reference fischer's thesis, ok cool so I was on the right track with that

[primal shadow]

it seems like you're supposed to take the cluster's bounding sphere, find the closest point on the surface to the viewport, and then project a new sphere where the center is that point, and the radius is your error

so that tells you whether or not the current cluster has visible error, but what do you do about the parent???

And when you're building a BVH like nanite does, you can't involve the cluster bounding sphere at all, it has to be based solely on group/LOD data

So nanite must be doing something different here

really I think my original idea I've been using for the past year is on track

the cluster bounding sphere dosen't matter

what matter is for the cluster's group, and the cluster's parent group (group with cluster in it before simplifying),

given the LOD bounding sphere (located somewhere), with radius = group error, is the projected size of that group small enough such that the error is invisible?

The problem is, where do you choose to locate that sphere?

that's really the key question

because if you're saying radius = error, and you force error to be monotonic, then the bounding sphere projections will always be monotonic if they're located in the same spot

the issue is if you start moving where the bounding spheres are, then you run into issues

so where the heck do you choose to locate it??

[primal shadow]

I think the way Nanite does this is not neccesairly straightforward sphere projection

You have the group bounding sphere (encompasing all child group bounding spheres), and the group error of the cluster

And then you somehow project that error to the screen using the group sphere bounds

but it's not projecting the sphere itself? Something like that

[primal shadow]

Mayeb it is this

tight bounding sphere = group bounds

and then you find the closest point on the group bounds to the viewport, make a new sphere centered there with radius = error, and then calculate projected size of that sphere?

[fiery bolt]

that is using the saturated sphere (lod bounds) and placing the error sphere on the closest point on that, and then projecting it to the screen

unfortunately it doesn't work if you're inside the lod bound sphere

or it doesn't work with a bvh, idk

didn't work for me when i tried it

[primal shadow]

I think you can probably just force LOD 0 at that point

[fiery bolt]

they get quite large for things high up in the bvh

so there's holes in the mesh when the camera is inside one lod bound but not the other

or something like that

instead i calculate the distance that the error would be less than a pixel and check if the closest point on the lod sphere (or something like that) is closer or farther than that

[primal shadow]

What meshoptimizer's nanite demo is doing is returning infinity when inside the LOD sphere. That way infinity is never <= threshold, and therefore that LOD never gets selected.

Forcing you to pick a finer LOD

Think I'm going to try that with projecting an error-radius sphere on the closest point on the LOD sphere

[primal shadow]

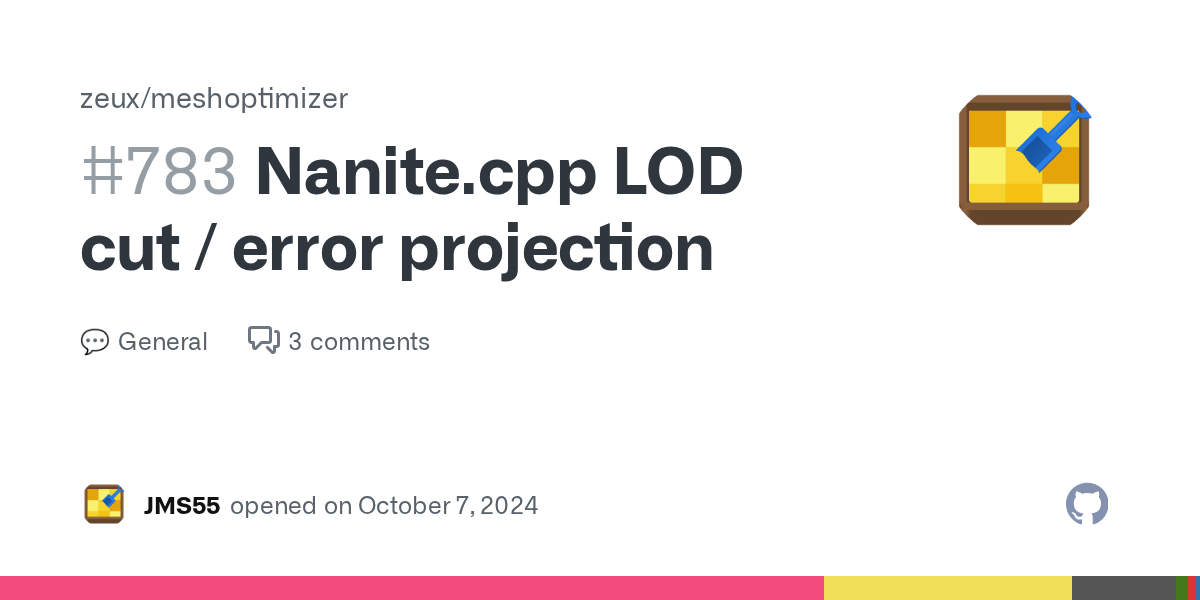

https://github.com/zeux/meshoptimizer/discussions/783

[fiery bolt]

yeah I think I'm doing something similar to what zeux says nanite is doing here

but it's buggy so I might need to revisit that lol

[primal shadow]

https://github.com/bevyengine/bevy/pull/15643#issuecomment-2398801204 big win for memory usage!

[primal shadow]

LZ4 was somehow doing a shit ton of work before considering before/after asset size with LZ4 compression applied is basically the same

But memory usage is nearly halved after

[primal shadow]

Still on my backlog dw. Currently doing some changes to error projection and bounding spheres which should both improve LODs but also allow my converter code to work on larger meshes that it was crashing on before. After that, I'm going to go back to tweaking the builder code, and add the manual edge locking, larger meshlet groups, and probably attribute-aware simplification.

[primal shadow]

Confusing

[primal shadow]

Well this clearly didn't work

Much better, but I think it's vastly over-estimating error 😅

[wispy spear]

you COULD start a side business and sell those as contemporary art installations

[fiery bolt]

I think this is what I was describing that isn't always monotonic?

but which paper is that

[primal shadow]

fn lod_error_is_imperceptible(sphere: MeshletBoundingSphere, error: f32, world_from_local: mat4x4<f32>, world_scale: f32) -> bool {
    let cp_world = world_from_local * vec4(sphere.center, 1.0);
    let r_view = world_scale * sphere.radius;
    let cp_view = (view.view_from_world * vec4(cp_world.xyz, 1.0)).xyz;

    // TODO: Handle view clipping / being inside sphere bounds
    let aabb = project_view_space_sphere_to_screen_space_aabb(cp_view, r_view);
    let screen_size = max(aabb.z - aabb.x, aabb.w - aabb.y);
    let meters_per_pixel = sphere.radius / screen_size;

    return error < meters_per_pixel;
}

Not documented and poorly named atm, but this

Take LOD sphere, project to screen space to get the pixel size

Then you do sphere.radius(?) / pixel_size

I.e. if you sphere has radius 10, and your pixel_size is 4

you get 10/4 = 2.5

E.g. 2.5 meters = 1 pixel on screen

And error is already an object-space distance in meters

So now if e.g. error = 3.2

Well 2.5 megters = 1 pixel

So 3.2 meters on screen is greater than 1 pixel

I.e. visible error

So it's sufficent to check that error < meters_per_pixel

I.e. error needs to be less than 2.5 meters so that it's less than 1 pixel on screen

Since the relation between meters and pixel on screen is linear

I do need to handle clipping when inside the sphere bounds though. The paper covers it.

I'm not quite convinced on some of this though. And it feels really weird to project the LOD sphere and then compare the size to the simplification error, rather than projecting the simplification error directly.

[fiery bolt]

the screenshot you sent above mentions something about comparing error directly with distance * some threshold

this code looks different

[primal shadow]

Yeah I didn't follow it

Because I have no idea how to handle the case where you're inside the sphere for that

The one from the batched multi triangulation paper

I also could not find code or the algorithm description for it at all, I'm giving up on that approach

[fiery bolt]

could you send a link to it?

i can take a look and try to figure out what it is

[primal shadow]

https://d-nb.info/997062789/34#page=48 sections 3.6.1 (specifically figure 3.15), and 4.2.3 on page 60

[fiery bolt]

thanks!

[fiery bolt]

it's not for perspective projections

[primal shadow]

Can you help me understand what zeux is saying here then? https://github.com/zeux/meshoptimizer/discussions/783

UE5 Nanite computation is similar in principle, but mechanically different - it takes into account cases where the sphere is clipped by znear, and it takes camera orientation into account, so the computation is not camera rotation invariant. Conceptually I think it's the same as your reference to fig 3.15, even though I find that specific figure odd as no lines or points there connect to sphere radius 🙂 they compute the projected sphere radius in pixels, invert it (that way they get the length that would project to one pixel, using the same coordinates that the sphere is in), and compare that to the error (which is also in linear units in the same coordinates that the sphere is in).

[fiery bolt]

hmm

from what i understand, it's the same thing you're doing

but the inversion is probably more complex than just a div

it could also be calculating the distance at which the error becomes less than a pixel, and just comparing the closest point on the sphere with that

but the distance for 1px error depends on where the sphere is

so there could be some normalization step to convert from an off-center sphere to a sphere in the center

[primal shadow]

I have no clue

[primal shadow]

Am I insane or does zeux make it sound like it's linear?

[fiery bolt]

he does say that perspective distortion exists

which makes it nonlinear

[primal shadow]

Ok lol so I forgot to multiple 0..1 by the view size 😅 , looks better now

Zeux also left me some more info, so I'm going to take a look at that too

[primal shadow]

Ok I'm just stealing zeux's code

I give up trying to understand this

https://github.com/JMS55/bevy/blob/8b71b243ca51be1a59a7c40d9fbfd7a5083f04e7/crates/bevy_pbr/src/meshlet/cull_clusters.wgsl#L145

Not sure I handled ortho correctly but yeah

[faint crane]

Is orthographic even useful with a Nanite implementation?

I guess reviewers will complain anyway, even if w=1.

[primal shadow]

Shadow maps 🙂

https://github.com/bevyengine/bevy/pull/15846

[faint crane]

If only I could go the internet archive.

[primal shadow]

@fiery bolt what are you using for your error projection? Seems like you're using a method n don't understand based on the projected bounding sphere

[fiery bolt]

i have no idea tbh

i did geometry on paper for it

idk where it went

it's not correct tho

[primal shadow]

Hmm ok. Back to builder improvements.

[fiery bolt]

you should multithread simplification

[primal shadow]

No time for that, bevy release is very soon

Plan is to finish stealing zeux's error projection, steal some of the simplification improvements he had, write a hopefully faster and easy fill cluster buffers improvement, and then maybe fix SW raster if I have time

And then write the blog post for everything I did this cycle and help out with the rest of the release

Oh btw do you have a gltf -> virtual geometry mesh converter?

I'm curious how you're handling materials

[fiery bolt]

as of now, by not

i don't have a renderer

it's just visbuf output and debug

[fiery bolt]

right i forget you have users

[wicked notch]

"forgot you had users" is the most GP thing ever

[fiery bolt]

no no we do it in the rust server too

specifically #games-and-graphics and # lang-dev

no that's not what i wanted discord

[wicked notch]

discord moment

[wicked notch]

I claim ownership of these channels

they now belong to GP inc.

surrender or else 🔫 🐸

[fiery bolt]

for that you must shill rust

[wicked notch]

the first rule I'll implement is ban rust

[fiery bolt]

along with a healthy dose of offtopic cat gifs

[wicked notch]

that is allowed

[fiery bolt]

https://tenor.com/ifnHXihE6QX.gif

[primal shadow]

So focused on the CPU language, you're missing the real issue of the GPU language smh

[fiery bolt]

you're outnumbered here actually

[wicked notch]

I didn't know there was a difference

[fiery bolt]

yes contrib to vcc

make it fully usable

[wicked notch]

mfw this is my own channel and I'm outnumbered

I have been playing with vcc tho

without telling gob

I managed to make a transpiler

from clang to glsl

[fiery bolt]

i should try to re-derive or figure out the error proj math in my code tomorrow

[fiery bolt]

why

why would you

[wicked notch]

because I didn't feel like reading the spirv spec

[fiery bolt]

and figure out why it doesn't work sometimes and only sometimes

the spirv spec is surprisingly good ngl

[wicked notch]

remember this is my first ever compiler

I know but I'm a compiler nub

[fiery bolt]

i'm currently on my like

6th

probably 6th renderer too

but i think i passed my final interview for an internship at e🅱️ic despite my serious lack of braincells and knowledge

just maybe

[wicked notch]

shit

we lost one

[fiery bolt]

nono it's for lang dev not giraffics

[wicked notch]

same thing, your soul will be sucked dry in exchange for monetary compensation

[fiery bolt]

only for 3 months

if i even get the offer that is

[wicked notch]

you will

you have brain

[fiery bolt]

it's been 2 whole days since my interview

they've never taken more than a day to respond

[wicked notch]

terminally online, just like us frfr

[fiery bolt]

fr

60 hour work weeks

[wicked notch]

damn

aren't there work laws or something where you're from

[fiery bolt]

i mean yeah it's biscuits and tea country

so it can't be america levels of bad

in return i will get 30% the pay tho

(there are several banks offering the same pay for software dev interns as tesco shelf stackers)

oh and tesco themselves actually

[wicked notch]

ye but 60hrs work weeks is insane

it's half here

(36)

[faint crane]

Work at NVIDIA at that point and take the comp.

[primal shadow]

Ok error projection finished. TODO:

• Builder improvements from zeux
• SW raster subpixel precision + top left rule
• New fill cluster buffers

[primal shadow]

Alright, manual vertex lock time

[glass sphinx]

Iwant to do some lodding soon. I ll have to catch up here

how do you build the lod hierarchy levels?

[wide shadow]

I can only point you here:
https://jms55.github.io/posts/2024-06-09-virtual-geometry-bevy-0-14/
https://jglrxavpok.github.io/

[fiery bolt]

• split into meshlets
• group meshlets into groups of 8-16
• lock boundary vertices on those groups
• simplify groups
• split groups into meshlets
• pool all meshlets together and repeat

where nanite slides smh

[primal shadow]

• My current code (still making some improvements litterly today): https://github.com/JMS55/bevy/blob/42617d4abc6ec6ac4fba5c24db84d7e1f60666b5/crates/bevy_pbr/src/meshlet/from_mesh.rs#L63
• Meshopt's demo: https://github.com/zeux/meshoptimizer/blob/master/demo/nanite.cpp
• Nanite slides: https://advances.realtimerendering.com/s2021/Karis_Nanite_SIGGRAPH_Advances_2021_final.pdf
• Traverse research: https://blog.traverseresearch.nl/creating-a-directed-acyclic-graph-from-a-mesh-1329e57286e5

[glass sphinx]

do i have to meet some criteria for those 8-16 groups?

[fiery bolt]

meshlets in them should be touching or as close together as possible

[glass sphinx]

I read the nanite slides but i still dont understand the hierarchy building]

[primal shadow]

If you use my blog post, I wouldn't copy the code exactly, make sure to reference mine/meshopt's code for the up-to-date changes. I have a new blog post coming in ~2-3 weeks that will be up to date.

[glass sphinx]

how does the simplify groups step work?

is it N tris to N/2 tris?

[fiery bolt]

https://github.com/SparkyPotato/radiance/blob/main/crates/asset/src/mesh/import.rs
this is my current code

[fiery bolt]

yup

and you keep track of error introduced

and set that as the parent error for the unsimplified group, and self error for the simplified meshlets

which reminds me i should write a blog post on error once i figure it out correctly

[primal shadow]

Take ~8 meshlets, merge them into one big triangle strip, use meshopt to simplify into a new triangle strip, break apart back into new meshlets (if you simplified by ~50%, then hopefully you end up with ~4 meshlets)

[fiery bolt]

and how i did the bvh

[glass sphinx]

how do you guys do the hierarchical culling? With persistent threads?

[fiery bolt]

nah, i use an indirect dispatch chain rn

it's fast enough

nanite uses a dispatch chain on pc too

[glass sphinx]

but didnt they say they dont?

[fiery bolt]

that's on console

[primal shadow]

I just do a brute-force dispatch over every cluster in the scene across all LODs atm. I'm planning to switch to hierchal culling in a bit, once I'm done with my current round of improvements to other areas.

[fiery bolt]

because it's technically UB

[glass sphinx]

yea but who cares

loool

[fiery bolt]

you because you don't wanna debug that shit

if even UE uses indirect dispatches, i will too

i might try persistent threads after i have streaming working

[glass sphinx]

workgraphcs cant come soon enough

[fiery bolt]

or just use workgraphs yeah lol

[glass sphinx]

sad that they have such horrible perf on nvidia

[glass sphinx]

meshoptimizer can build lower poly versions of a mesh?

[fiery bolt]

i wonder if i can abuse DGC to only conditionally insert an indirect dispatch

[glass sphinx]

you can do that with DGC

but you still need barriers i think

[primal shadow]

Yeah.

[glass sphinx]

oh

then this is all i want for now i think

[primal shadow]

Try their demo, they have a bunch of configurable stuff

Or download bevy and play around with it

[fiery bolt]

if i use coherent writes i don't think i'll need barriers?

[glass sphinx]

oh shit what, meshopt has a nanite demo

[fiery bolt]

yeah it's new

[primal shadow]

I linked it above 😛

[glass sphinx]

yee just saw that

[fiery bolt]

or download my shitty code and play around it

i have an editor too

[primal shadow]

True, Bevy dosen't yet

[fiery bolt]

i need add a way to actually spawn meshes though lmao

you can only select and move things rn

oh and undo

[glass sphinx]

hm the demo doesnt seem to have a cmake target

https://meshoptimizer.org/demo/ oh shit im dumb

i cant interact with it

[glass sphinx]

i think i might wanna try the hierarchical lodding at some point

but i definetly dont want the partial streaming part. Streaming full lods is way less headache i think.

i saw some analysis and nanite mesh streaming is a major cause for stutter. Needs much more pcie bandwidth then tex streaming for some reason

[glass sphinx]

is yours c++?

[fiery bolt]

nope

[primal shadow]

The demo isin't interactable. You can have it dump data to an obj and open in blender though.

[glass sphinx]

rustyyy

ok i ll look at both your code's

[fiery bolt]

was it a threat interactive analysis

[wicked notch]

nah that's actually true

but only because UE's streaming code is dogshit

[fiery bolt]

lol

i doub mine will be any better

[glass sphinx]

ue has lots of problems like that causing stutter

kinda a shame. Their shader comp stutter is only getting worse with time too

[fiery bolt]

traversal stutter my beloved

you can make UE compile shaders on start though, can't you

[glass sphinx]

not really, no

they have made it fundamentally kinda impossible with their materials

have to pat the back of cod team on this one. I think cod engine is probably one of the least stuttery engines. Everything is prebuild and static, even the rendergraph.

[fiery bolt]

e🅱️ic should hire us to fix their stutter

[glass sphinx]

they dont care about such things

[wide shadow]

There are also these repos that are worth looking into (C++)
https://github.com/jglrxavpok/Carrot/tree/rendering-improvements
https://github.com/daniilvinn/omniforce-engine/tree/meshlet-lods

[glass sphinx]

their priority is best graphics at 30fps with 700p on consoles

kekw

[wicked notch]

maybe threat interactive was right all along

[fiery bolt]

should i do streaming or restir or should i fix my shitty code first

[wicked notch]

why not all three

at the same time

[fiery bolt]

do i like

write a line of code for each

then repeat

[wicked notch]

no

parallelize

what are you unreal engine that does everything on a single thread?

grow 4 more hands and buy two more keyboards and mice

[fiery bolt]

oh shit never thought of that

lemme try

brb

help this is me now

[wicked notch]

working as intended

keep going

[primal shadow]

Lighting is so much harder, don't start that if you haven't done it before until you finish virtual geoemtry 😅

I also have a partially written blog post on restir I never finished, I should do that...

[frank sail]

Cross platform DGC is a thing now

[glass sphinx]

they dont solve this problem afaik

[frank sail]

Idk what problem you need to solve

I thought you just needed a variable number of indirect dispatches

[glass sphinx]

for hierarchical culling youd ideally just start new threads in the same dispatch

[frank sail]

Ah hierarchy

Rip

[glass sphinx]

ah actuallynow that i think of it

Is it possible to start new dispatches immediately?

i think it has to flush and then do an execute indirect on the shader recorded command buffer

so it will have to run in passes still\

[wicked notch]

with DGC you would figure out the deepest level of the hierarchy and create the DGC commands

[glass sphinx]

how would you figure out the deepest hierarchy level without doing all the work

you only know what meshlets you need after each cull phase

[wicked notch]

no you only need to test the error

which admittedly is a lot of work

actually yeah dgc doesn't solve the issue

[glass sphinx]

it would also be very poorly parallel

[wicked notch]

ye

[glass sphinx]

honestly dgc doesnt really do much at all imo

i dont really see a use for it in my things

[wicked notch]

DGC is really just a budget vkCmdDispatchIndirectCount

[glass sphinx]

omg yes

thats what ive been saying too

give me vkCmdDispatchIndirectCount

ffs

[fiery bolt]

I mean I've done traditional RT before

[frank sail]

Reading the spec for dgc hurt me ngl

[fiery bolt]

same

I tried

and failed

[wicked notch]

why it's not that bad

[frank sail]

It reminded me of work graphs how you have to create a bunch of shit first

[wicked notch]

ye you have indirect token layouts and command tokens

[frank sail]

Or what feels like it from reading

[wicked notch]

which is a bit sad, but the layout only says which commands you're gonna use

and how many of each of them

[glass sphinx]

noone will use it outside of dxvk

hottest take

[wicked notch]

nah

mild take

[wicked notch]

it's still this

only more convoluted

it does have the added benefit of being able to also issue draw commands

and pipeline state changes

[frank sail]

Budget vkCmdDrawIndirectCount

[wicked notch]

maybe this will make UE not issue a drawcall per material

[frank sail]

Press x to doubt

[wispy spear]

vkCmdSetIndirectScissorsCount when

[primal shadow]

Real time though? It is very difficult to not have noise 😅

[primal shadow]

As opposed to?

[wicked notch]

issuing a drawcall per material?

[fiery bolt]

uhhh I'll figure something out maybe it can't be too hard right

[primal shadow]

Hahaha yeah....

[wicked notch]

radiance cache

surely radiance caching is easy

:clueless:

[fiery bolt]

how about you catche deez nuts instead

[primal shadow]

Then you have slow lighting response. Also that's even harder than per pixel fun fact.

[wicked notch]

ye you do the AMD memes

[primal shadow]

Getting your cache to bend around corners and crap sucks

[wicked notch]

with screen space cache and world space cache

[primal shadow]

While not leaking light

[fiery bolt]

just do whatever ReSTIR does

[frank sail]

Speaking of caching gi-related things...

[wicked notch]

shhh

[primal shadow]

RTX DI uses a neural net trained as you do inference in real time as their radiance cache, so hf with that

[wicked notch]

I have this as my alibi

[fiery bolt]

[fiery bolt]

idk what these words mean so they're not a good enough alibi

[frank sail]

I like your funny words, pasta man

[fiery bolt]

I cooked pasta today

did crimes

the spaghet wasn't fitting in my pot so I broke it before putting it in /s

[wicked notch]

don't mind me

I'm not calling in the military

you can stay safe in your house

[frank sail]

https://tenor.com/view/kys-keep-yourself-safe-low-tier-god-gif-24664025

Lvstri after reading that

[wicked notch]

real

[wicked notch]

avoid looking in your walls too

for extra safety

[primal shadow]

Manual vertex locks are a great improvement!
Before:
https://cdn.discordapp.com/attachments/148468683998625792/1294885657310920744/image.png?ex=670ca3be&is=670b523e&hm=c17d3497e0b94cc1eff5ab4344575a13d0383ada496409d2b13e063746aab87a&
After:
https://cdn.discordapp.com/attachments/148468683998625792/1294886356039897128/image.png?ex=670ca465&is=670b52e5&hm=b4e5d06c0fa046596c9933c17a39d89ebea230229b1f62adb38a685a232dc339&

[primal shadow]

Too much triangle cruft at the intersections still. Hopefully retrying stuck clusters in later passes works.

1 bunny = 1 meshlet though!

[fiery bolt]

so i seemed to have fixed my occlusion culling

well, almost

there just seems to be a band of under-culling at the edges for some reason

[fiery bolt]

ok i fixed that but now there's flickering but only for occluded things

wtf

[faint crane]

I fixed an occlusion culling bug today where my bounding spheres were wrong since I referenced i instead of j somewhere in a nested loop or something to that effect.

[craggy shale]

how does that work ? based on shady or what

[wicked notch]

yes

I have been playing with shady a lot in recent times

[craggy shale]

love to hear it

hopefully recent commits didn't fuck your shit up too much

it's been refactor time for a while

[wicked notch]

o I haven't pulled in a while

yea

[craggy shale]

[wicked notch]

welp

[craggy shale]

yeah I'm renaming everything, moving files etc

sowwy

[wicked notch]

is ok

it's also on me for not checking regularly

[craggy shale]

but also having functions with super common name not namespaced whatsoever is a recipe for disaster

i'm prefixing everything with shd_ or _shd_

[wicked notch]

that's v nice

[craggy shale]

and shuffling headers arround

splitting ir.h in smaller more sensible bits

[faint crane]

I have a shader compiler called Slim Shady, but not the real Slim Shady, or death to Slim Shady.

[severe dome]

shid

[craggy shale]

the one who says, is

[severe dome]

is that the european version of "whoever smelt it dealt it"?

[buoyant summit]

I'm gonna

[primal shadow]

Finally figured out why my renderer broke with 1042 instances

I overflowed the 2^25 cluster limit...

That was so awful to debug

[glass sphinx]

is that cause you have all cluster instances always present

?

cause you should lod away most of them right?

or os that 2^25 after culling

[primal shadow]

Yeah :/

It's pre-lod/culling

Ideally this becomes part of the culling/lod pass and we only write out data for the meshlets that we intend to raster...

I need hierachal culling first. Also culling is the bottleneck atm, so for that reason too 🙂

[glass sphinx]

do you take contributions?

[primal shadow]

Sure! I would love help, there's so much to do 😅 . I have a whole github issue on things I need to improve. You're welcome to take up anything. Just talk to me first, so that we're on the same page.

[fiery bolt]

hierarchical culling is great

I spend like a constant 0.4 ms on culling iirc

completely unoptimized

[primal shadow]

What kind of culling? Multiple dispatches? And what are your inputs/outputs?

[fiery bolt]

bvh frustum + occlusion + lod culling

and yeah it's a chain of dispatches

[primal shadow]

What are your inputs/outputs bteween dispatches though? I'm curious how it's set up.

E.g. rn I have:

• Fill cluster buffers: Input list of instances, write out clusters (instance + meshlet IDs)
• Culling/lod: Input list of clusters, write out visible clusters IDs

[fiery bolt]

ah

it's pairs of instance and bvh node IDs yeah

and then instance and meshlet IDs to meshlet cull and output from meshlet cull

[primal shadow]

Gotcha gotcha. Thanks.

[primal shadow]

Sigh, maybe it's finally time to try and fix my occlusion culling

It's gonna suck to debug though

[fiery bolt]

yeah it does

the padding to 64 with granite's HZB seems to work btw

still not perfect though

[faint crane]

I have a theory: occlusion culling is permanently broken.

Or all of us here are cursed with slightly broken occlusion culling forever.

[wide shadow]

Count me in 😔

[loud crag]

my occlusion culling always the issue of culling small but visible triangles

[wide shadow]

mine functions as frustum culling

[fiery bolt]

mine looks like it works but there's a very small border along the bottom and right edges that has less culling for some reason

[faint crane]

Mine is slightly not conservative when I disable Hi-Z.

Surely, we'll encounter enough bugs to converge on something which works?

[glass sphinx]

how do you build the hiz

[glass sphinx]

thats really smart i didnt think of that yet

tho that doesnt scale over 4k

[fiery bolt]

uhh I stole granite's HZB gen

but yeah it almost works but not perfectly

[primal shadow]

What needs padding? Input depth texture? Or output?

I'll have to reference your code

[glass sphinx]

input. I think its single dispatch hiz gen. Single dispatch hoz gen works in two passes of 64 x 64 downsamplings per workgroup

[fiery bolt]

output

[glass sphinx]

damn i did

[fiery bolt]

I wonder if the issue is due to me not passing the input though

[glass sphinx]

how does padding the output help

[fiery bolt]

changes mip dimensions

so you have space to store the extra data generated due to NPOT

[glass sphinx]

but why does that work for 64 padd

why wont it break on the higher levels

those will still have the downrounded div mip sizes

this gave me an idea tho

[fiery bolt]

there's special handling for higher mips

it's goofy

[glass sphinx]

ok

rn i just scale the depth image to pot then downsample single pass

but it feels dirty

[fiery bolt]

yeah

I might just resort to that ngl

[glass sphinx]

it does make everything very simple tho

also same speed, just bandwith limited

[primal shadow]

Idk if that's conservative

[glass sphinx]

it is conservative

why wouldnt it be

in the downsampling to pot each pixel reads 2x2 pixels of the original image. Read is using uvs so it should map as long as the pot image is not less then half the size

now im paranoid

[fiery bolt]

the issue lies in mapping coordinates from the screen to your scaled pot

because the mapping differs for each mip

[glass sphinx]

i dont unserstand

the culling is using the pot image dimensions

i just scale 2560px1440p -> 2048x1024p for example with a 2x2 filter for each pixel and then downsample. The culling then uses the pos image dimensions

the culling doesnt need to use the screens dimensions. The mapping of pot image mips to original image potential mips doesnt matter after its downscaled

[fiery bolt]

how do you map from screen pixel to hzb pixel?

[glass sphinx]

you mean in the downsampling?

[fiery bolt]

no, culling

[glass sphinx]

i dont have to

why would i

[fiery bolt]

how do take NDC AABB and sample from your hzb

[glass sphinx]

the culling uses the hzb dimensions

i calculate a ndc for hzb pot size

[fiery bolt]

oh you're... scaling down NPOT?

[glass sphinx]

?

[fiery bolt]

i just scale 2560px1440p -> 2048x1024p for example with a 2x2 filter for each pixel

this is definitely wrong

[glass sphinx]

what, how?

[glass sphinx]

why would i need to use screen dimensions in culling?

it doesnt matter at all what dim the culling tex has

[fiery bolt]

yeah if your hzb is scaled so that the entire hzb maps to the entire screen

but how you do the mapping seems very wrong

do you have an overdraw debug view?

[glass sphinx]

you seem to have a very flawed image of how i downsample

reading 2x2 doesnt mean there is an offset of 2 pixels for every out pixel

[fiery bolt]

then what does it mean

do you just throw a min sampler and sample from UVs

[glass sphinx]

you calculate the uv in the dst image, then gather in the original image and max/min (depending on depth dir) them all

i have made many debug visualizations and tested many cases and the culling never breaks from what i can tell

[glass sphinx]

i also had a visualization that draws the ndc for each culled object to see if its overculling (as visible ndc would mean if culled something thats actually visible)

but its not much to show as you just see no ndc 😮

this is culling off

[fiery bolt]

hmmmm

[glass sphinx]

highly recommend this btw

was a massive help to fix it initially

[fiery bolt]

that would probably time out for me lmao

[glass sphinx]

xD

[fiery bolt]

I should do some stats though

[glass sphinx]

the debug utils in tido make up like 10-15% of all its code or so. But its so nice to have that stuff

turbo bikeshed

but also sanity

[fiery bolt]

debug utils are insanely helpful

[glass sphinx]

what helps also is drawn meshlet count. If it changes each frame its badbad it its consistent with no cam movement happy

[fiery bolt]

like, one of the most important things when debugging

[glass sphinx]

i ll polish up the debug draws for culling and show them later

[fiery bolt]

yeah I have flickering shit in my overdraw debug view

[glass sphinx]

ooooh

[fiery bolt]

idk why

still tryna fix that

the weird border and flickering are the two bugs left

works great otherwise

oh yeah also sw raster

just a wee bit broken

in that it instacrashes when enabled

[glass sphinx]

i think it took me a few months of random insights to fully fix everything

i had a few vey hard thinking mistakes

im stopping ymself from doing sw raster

too much bikeshed went into the rasterization

its time for cool visuals now

[wicked notch]

usually when something is broken you don't add something else (which also turns out to be broken)

[fiery bolt]

no

i build entire nanite

every component is slightly broken

then i try to debug

oh also i got the e🅱️ic internship

time to slave writing code for money but full time now

[wicked notch]

pog

send some here to finance my stupid decisions (like buying the upcoming intel cpus)

[fiery bolt]

they're gonna burn themselves up

while being slower than the 14900k

[wicked notch]

intel pinky promises that these ones are safe

[fiery bolt]

https://tenor.com/bSx3t.gif

[wicked notch]

I didn't preorder or anything just to be safe

I'll wait for buildzoid to post his usual rants

[fiery bolt]

lol

you should give amd your money instead

[wicked notch]

I considered that

then I looked that they regressed on memory latency

[fiery bolt]

buy zen 4 tho

[wicked notch]

which was already abysmal

[fiery bolt]

zen 5 is just not worth it

[wicked notch]

ye

[fiery bolt]

buy a 7950x3d

[wicked notch]

zen 5 is a mess

[fiery bolt]

or an 8950x3d if it has cache on both ccxs

[wicked notch]

I mean

have you seen the core to core latency

on zen 5 it's sometimes faster to read from ram than from cache (in another ccd)

[fiery bolt]

lmao wtf

is this after the agesa patch they did

[wicked notch]

ye there was a graph somewhere in #hardware that was absolutely funny

[fiery bolt]

i think that was before the patch

[wicked notch]

turns out T_cache + T_fabric >= T_ram

[wicked notch]

perchance

lemme find some info

[primal shadow]

@fiery bolt for the BVH, what do BVH nodes equal? Some kind of grouping of clusters? Or of cluster groups? The nanite slides are vague on how the BVH is setup. Also how they enforce only 8 clusters per node.

[fiery bolt]

so what I do is:

• leaf nodes are cluster groups
• for each lod, build a normal BVH8 using SAH, while also storing max parent error and merged lod bounds
• then build a BVH of the root nodes (no SAH because the AABBs are gonna be the same)

seems to work well enough

might wanna read the code tbh

and ask questions based on that

[primal shadow]

My software raster is broken and idk how to debug it 😭

[fiery bolt]

literally me

but mine crashes the GPU and I have no idea why

[wispy spear]

can you use novideo aftermath?

[fiery bolt]

yeah all it says is 'misaligned read'

and only when I touch groupshared mem

which is

[wispy spear]

did you ask in the more public channels already?

[primal shadow]

#software-rasterization message

[wispy spear]

heh, i meant the metal guy 🙂

but these meshlets look neat and make me jealous

[primal shadow]

Join my project! I need more people 😭

[wispy spear]

i am mentally not capable yet unironically

[fiery bolt]

i have successfully completely broken my error projection

i'm also somehow crashing with an MMU fault when i shrimply index my output storage image with SV_Position.xy

how does that even happen

[wicked notch]

bro is finding bugs not even the hw knew it had

[fiery bolt]

fr

that can't be real

aftermath must be tripping

[primal shadow]

Whooh, fixed my SW rasterizer!

Had to force the HW rasterizer for near-clipped clusters, and add backface culling to the SW rasterizer

[wide shadow]

https://github.com/zeux/meshoptimizer/releases/tag/v0.22

[wicked notch]

zeux massive as usual

[primal shadow]

Hello, I am collecting a list of nanite-related resources for my blog. If I've missed any of your projects, please let me know.

• https://advances.realtimerendering.com/s2021/Karis_Nanite_SIGGRAPH_Advances_2021_final.pdf
• https://github.com/jglrxavpok/Carrot
• https://github.com/LVSTRI/IrisVk
• https://github.com/pettett/multires
• https://github.com/Scthe/nanite-webgpu
• https://github.com/ShawnTSH1229/SimNanite
• https://github.com/SparkyPotato/radiance
• https://github.com/zeux/meshoptimizer/blob/master/demo/nanite.cpp

[faint crane]

This makes it an absolute joy to use on web. Deleted so much WASM ... except for METIS.

[faint crane]

Don't forget https://advances.realtimerendering.com/s2024/index.html#hable from Denver which credited your blog.

[primal shadow]

Oh, I suppose I could. I wanted to link virtual geometry stuff specifically, but I'll see if I can find a section to stick that in...

Probably the roadmap actually, software VRS is something I want to experiment with

[primal shadow]

I updated to meshopt 0.22 and factored normal error into the LOD selection, so much better now!

[wicked notch]

Here's a fun fact from my days as an professor assistant

so I was correcting the practical exams of second year students for DSA

the tasks were

1. Create a graph data structure, load the nodes from file and implement both DFS and BFS visits
2. Write an algorithm to find the longest cycle in the graph
3. Write an algorithm that determines whether there is a Hamiltonian cycle in the graph

now here's the funny part, the third task is NP complete but the professor somehow missed it

most of the students were able to just write the bruteforce algortihm with backtracking, however the our uni's computers are extremely outdated and an n factorial algorithm isn't exactly the fastest

[frank sail]

I was asked multiple times to solve np hard problems in college. A lot of them are easy, you just gotta brute force it

[wicked notch]

real

anyway this wasn't supposed to happen but oh well

[loud crag]

funny words

[fiery bolt]

our uni computers have 7900xs... but the intel kind, and they just upgraded them all from 3080s to 4070 ti supers????

like pls can we get new CPUs too

[minor root]

An exam last year had a question asking to come up with a linear algorithm for something that was equivalent to SAT

(It was an intentional trick question but still lmao)

[wide shadow]

You can throw mine up there 😉

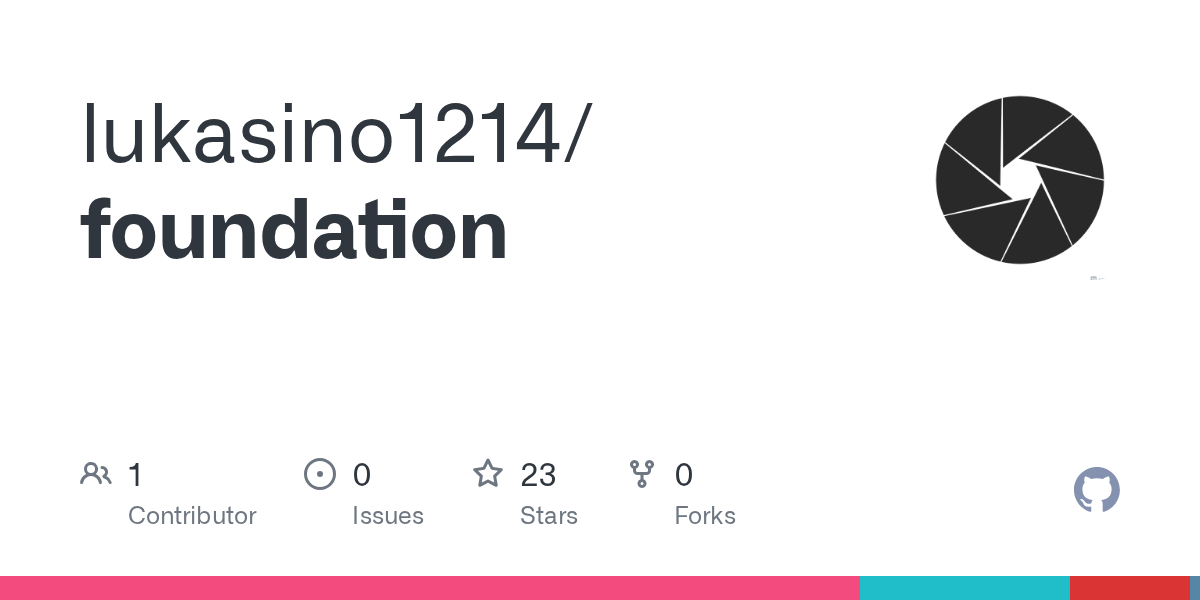

https://github.com/lukasino1214/foundation

[wispy spear]

needs a social preview image 😛 (its in the repo -> settings -> "social preview")

[wide shadow]

https://tenor.com/view/breaking-bad-bryan-cranston-sad-despair-gif-25732605

[loud crag]

[fiery bolt]

i replaced shrimple 1 buffer -> 1 indirect queue with a complex dequeue and that fixed my software rasterizer?

[wispy spear]

nice

time to blog about it : >

https://graphicsprogramming.github.io/blog/

[fiery bolt]

[ebon ruin]

Okay Nanite general

how come Bevy uses sphere bounds for cluster frustum culling?

It already has AABBs that it uses for occlusion culling

is the perf difference that big?

[fiery bolt]

AABBs are usually better than spheres

but you need a sphere for error projection bounds

I use an AABB for frustum and occ cull, and spheres for error

[glass sphinx]

spheres are faster for testing frustum

[fiery bolt]

yes but AABBs usually lead to better culling efficiency

and that's worth it

[glass sphinx]

im not convinced it is

show code, maybe you have some clever way to make it faster than what i did

From what ive seen so far, the culling gains from it do not justify the extra overhead for higher meshlet counts

[delicate rain]

We need obbs

Ups not Tido thread

[fiery bolt]

https://github.com/SparkyPotato/radiance/blob/main/shaders%2Fpasses%2Fmesh%2Fcull.slang#L323

do note that I have BVH culling, not just instance -> meshlet

[wispy spear]

cute pfp : )

[glass sphinx]

@wicked notch i reimplemented prefix sum + binary search now with devshs trick

its much faster than po2 buffers

[wicked notch]

damn

[glass sphinx]

the overhead of many dispatches is massive on nvidia

[wicked notch]

that's op

[glass sphinx]

honestly crazy to me

devsh made the point to me that the draw order is fucked with po2

[wicked notch]

should we report that though

[glass sphinx]

i think thats a big reason

also

[wicked notch]

idk it feels like a driver issue

[glass sphinx]

idk their frontend always was bad

also im not sure but my new binary search is much faster than my old one

idk why i did my old one so badly

now my mesh shaders reach much better occupancy

i have the suspicion that multiple mesh shader dispatches have high overhead and cant share resources well

tyhe isbe memory might be contested between many dispatches

[wicked notch]

huge findings

I'll do binary search too then

[glass sphinx]

i give you the code

https://github.com/Sunset-Flock/Timberdoodle/blob/main/src/shader_lib/gpu_work_expansion.hlsl

https://github.com/Sunset-Flock/Timberdoodle/blob/main/src/shader_shared/gpu_work_expansion.inl

this will make vsms much much faster i think

nuking their overhead

they do 32x16 dispatches atm

that will go down to just 16

but this means that mesh shader with task shaders have much larger overhead for launches

than normal draws

but still way better than compute

kinda a middle child

i can kinda see that the dispatches start after each other

the later buckets are emptier

and with bucket launch the later part is just kinda empty

[primal shadow]

Hello, you all are getting early-access to my virtual geometry blog post for Bevy 0.15. Please read it and give me feedback! TODO: Compression section, perf comparison section, and images for all sections

https://github.com/JMS55/jms55.github.io/blob/meshlet-0.15/content/posts/2024_10_25_virtual_geometry_bevy_0_15/index.md

[fiery bolt]

RenderDoc does not actually show results from the GPU, it's all simulated on the CPU
pretty sure it replays commands, no?

if it was all run on the CPU it would be incredibly slow

and it also dies if i device lost in the capture

[frank sail]

it uses transform feedback to get vs output, for example

I think the only thing it simulates on the cpu is shader debuggin

[fiery bolt]

yeah

and shader debugging kinda sucks as a result

because other waves and workgroup threads are shrimply not simulated

[primal shadow]

Let me remove that part then, thanks. Not sure why my output was changing every time I clicked the dispatch then.

I guess even if it was running on the GPU, renderdoc kept re-simulating it

[fiery bolt]

yeah it probably replays the entire command stream when you go backwards

because making a copy of each buffer for each command would eat up a lot of mem

looks good otherwise though

[frank sail]

there are many things that can trigger renderdoc to replay the frame

[primal shadow]

New text:

Debugging the issue was complicated by the fact that the rewritten fill cluster buffers code is no longer deterministic. Clusters get written in different orders depending on how the scheduler schedules workgroups, and the order of the atomic writes. That meant that every time I clicked on a pass in RenderDoc to check it's output, the output order would completely change as RenderDoc replayed the entire command stream up until that point.

[frank sail]

like clicking on a different event

[fiery bolt]

that's some major improvement with sw raster

what's the test scene?

[primal shadow]

I don't think it's actually all for SW raster. Look at how much better culling got. It's probably 85% due to improving the DAG, and 15% due to SW raster.

[primal shadow]

15^3 stanford bunnies arranged in a cube

[fiery bolt]

ah yeah culling improvements make sense

[fiery bolt]

that's 'only' 236 million tris

you should try the lucy scan

[primal shadow]

Unfortunately v0.14 can't render higher counts due to how I handle allocating some buffers

It runs OOM

So I need a test scene I can use on both

[fiery bolt]

oh rip

[primal shadow]

I'm going to use the megascan cliffs and show perf for that too in 0.15

[fiery bolt]

lucy is also great for testing out import perf and how good your simplifier is

because there's just so many tris

28 million iirc

[primal shadow]

Maybe for 0.16 😛

I don't have it setup

[fiery bolt]

lol

you'll need to multithread generation too

it takes me 18 minutes to import on an (amd) 7900x

with all cores being hammered throughout

[primal shadow]

Ah. I have a 2600...

So I'll try that in 0.16 😛

[fiery bolt]

probably a good idea yeah

[wicked notch]

boys

we did it

time to party

[wide shadow]

Collage is over?

[wicked notch]

college part 1

part 2 is the real stuff

[wide shadow]

Don't say masters

[wicked notch]

yep

[frank sail]

let's go

I think I had a reminder set for this day

where are you doing your masters?

[wide shadow]

How much of free time until you start masters

[wicked notch]

still deciding

[wicked notch]

till sept so plenty of time to catch up with nanitebros

[wide shadow]

Damn that's quite a lot

[wicked notch]

ye I've decided to take some time off to avoid actually dying

[cunning solstice]

year is actually quite short

I blink and it's over

[wide shadow]

Don't ever start on that in 5ish months I have school leaving exams

[glass sphinx]

very cool

you studied agriculture and animal welfare?

[wide shadow]

Computer science

[wide shadow]

Basically first and second semester of collage

You get all the jazz about CPUs, how memory works, electrical engineering, programming, databases and operating systems

[glass sphinx]

i was betting on lvstri to care for my cows

fyck

[fiery bolt]

do it at nanite uni

[wicked notch]

what is the nanite uni

[loud crag]

#bikeshed-😇

[glass sphinx]

lmao

[fiery bolt]

wherever the italian nanite dude is i guess

[primal shadow]

Blog post for bevy 0.15 meshlet stuff is almost done

I kinda wish I scrapped the idea and had just done a blog post or two on some specific parts, instead of everything. It's kinda a big mess of a post, but too late to change now...

I think the memory compression section came out well, but not so much the rest

[primal shadow]

@fiery bolt BVH for nanite = internal nodes point to cluster groups, and use AABBs based on cluster LOD spheres, and then leaf nodes point to clusters? Or is that wrong?

[primal shadow]

Oh I found this. Why do you build a seperate BVH per LOD? I'm trying to think if that accelerates common culling scenarios or something.

[wispy spear]

@wicked notch congratulazzione

[fiery bolt]

leaves are groups, because they must always render together, internal nodes are just a normal SAH-optimized BVH built out of the leaves

[fiery bolt]

I thought that since all LOD groups would be spatially near, if I built a BVH out of everything at once, multiple LODs would be parented by a single group, so max parent error would always be pretty high

so you're gonna be expanding a lot more nodes

[primal shadow]

Ahhhh that makes sense...

then build a BVH of the root nodes (no SAH because the AABBs are gonna be the same)
What does this mean? Litterly just take 8 random nodes, group, and repeat until you have a single root node?

I.e. if you have 16 LODs, pick 2 sets of 8 randomly to group, and then group the two sets once more

[fiery bolt]

yeah pretty sure that's what I do

sorting by error is probably a better idea now that I think about it lol

[primal shadow]

For grouping the LODs? It probably barely matters right, it's only a few nodes

[fiery bolt]

yeah tru

even lucy only has 13 LODs

so we don't really add too many levels

[primal shadow]

I made this diagram to explain how meshopt's LOCK_BORDERS flag works (#2)

And then I realized I have no idea how it works

So guess I'm not using it and just gonna skip explaining it lol

No idea how it preserves the meshlet borders if it's just going off of the topological border

[primal shadow]

Hello, I am once again asking for (this time final) feedback on my meshlet blogpost: https://github.com/JMS55/jms55.github.io/blob/ef1d060e11daf89e9ff68f4fdf3bd80f6b0653f2/content/posts/2024_11_14_virtual_geometry_bevy_0_15/index.md

[primal shadow]

It's up https://jms55.github.io/posts/2024-11-14-virtual-geometry-bevy-0-15

[primal shadow]

I have 0 motivation to do BVH culling after I spent so much time on virtual geoemtry for bevy 0.15 😬

Guess I need to take a break

[primal shadow]

@fiery bolt for your BVH, for interior nodes, what bounding sphere do you use to project the error?

Your leaf nodes are cluster groups, with error = parent group error, and bounding sphere = parent group bounding sphere

And when building an interior node over those leaf nodes, you set error = max error of leaf nodes

But what do you set the bounding sphere to be?

A new bounding sphere enclosing all the leaf node bounding spheres?

(btw it's confusing because you use the DAG parent group LOD data, which is different than the BVH parent lol)

[fiery bolt]

yup

it's just all the child BVH nodes' lod spheres merged

[primal shadow]

Thanks! This shouldn't be too bad to implement then. Just very confusing, because there's both DAG parents and BVH parents 😅

[primal shadow]

struct BvhNode {
    child_start_id: u32, // If meshlet, is meshlet ID, else is pointer to BvhNode
    child_count: u16, // If u16::MAX, then node is a single meshlet, else is BvhNode child count
    error: f16, // If meshlet then is group_error, else if is lod group then is parent_group_error, else is max of child's parent_group_errors
    bounding_sphere: vec4<f32>, // If meshlet then is group_bounding_sphere, else if is lod group is parent_group_bounding_sphere, else if new bounding sphere enclosing all children bounding spheres
}

😅

[fiery bolt]

you should have groups as leaf children, not singular meshlets

what I do is SOAify my BVH into a BVH8, so a u8::max is a single node child, otherwise it's meshlet count

('single node' => actually holds data for 8 nodes)

this also reduces queue memory size by 8x

probably the main reason I did it tbh

[primal shadow]

Right, but I plan to reuse the same type for the meshlets within each leaf

[fiery bolt]

not entirely sure how that would work

[primal shadow]

Each meshlet needs a bounding sphere and error anyways

[fiery bolt]

but also a tight cull sphere and other metadata

[primal shadow]

Because after the lod group check against parent error, you need to check the meshlets self error

[primal shadow]

Yeah I have that seperate

[fiery bolt]

ah ok

if it works, it works lol

[primal shadow]

Mhm

[glass sphinx]

btw what is bvh culling?

isnt the dag alreay a tree that can be used to cull?

[primal shadow]

Yeah so this confused me as well. But dag traversal is a lot more expensive than rearranging it into a bvh with a root per lod level, is why I think it's done.

[glass sphinx]

hm

[fiery bolt]

DAGs aren't really trees

they reconverge

so DAG traversal is more complex, as you have to ensure you don't revisit things

since we can already do LOD selection in parallel, we don't really have to follow the DAG, we can use any structure to accelerate it

thus, the BVH

[wicked notch]

graph is hard to visit

bvh is ez

[fiery bolt]

if it's so ez why don't you have it

[primal shadow]

@fiery bolt are you doing frustum + occlusion culling in the same kernel as the LOD traversal, or do you do hierchal LOD traversal, write all the meshlets to a buffer, and then do culling?

[fiery bolt]

I frustum and occlusion cull BVH nodes too, and also have a separate meshlet cull stage

[glass sphinx]

im confused

you have to visit the dag anyway as you instantiate meshlets, no?

what is the dag for at all if its not used?

[fiery bolt]

the DAG exists during build

but you don't have to visit it, since LOD decision can be localized if you store current and parent error

so now you can just build a BVH out of parent error to accelerate stuff

[glass sphinx]

hmmmm

i see

but arent the parents spawning the childrens work?

[fiery bolt]

yeah, from the BVH

[glass sphinx]

i dont get it

its not a bvh tho its a dag

like what does the dag do then

at build time

[fiery bolt]

you're converting a DAG to a BVH

at build time

[glass sphinx]

is that possible

huh

i dont have intuition for that at all

[fiery bolt]

the DAG isn't really important tbh

it doesn't really 'exist' at build time either

there's no data structure explicitly storing it

[glass sphinx]

i see

[fiery bolt]

it's just implicitly there with how groups relate to each other

but since you only care about the current group and parent group

you can BVH-ify it

[glass sphinx]

ok wait

[primal shadow]

Heck? Do you have a seperate tight culling sphere for every BVH node?

[fiery bolt]

AABB

but yeah

public struct BvhNode {
    public Aabb aabbs[8];
    public f32x4 lod_bounds[8];
    public f32 parent_errors[8];
    public u32 child_offsets[8];
    public u8 child_counts[8];
}

[glass sphinx]

@fiery bolt when a child finds out its parent is instantiated it kills itself?

[fiery bolt]

no

the parent doesn't spawn the child

[primal shadow]

Why do they store 8 values at a time per node?

[fiery bolt]

SOA

[glass sphinx]

but how do you do the lod cut then

[fiery bolt]

so i can have one index in the queue for 8 nodes

[primal shadow]

I see

[fiery bolt]

nanite also does a BVH8 iirc

[primal shadow]

So you basically just build a BVH, and then inline the 8 children into each node?

and then the children start/end become what?

[glass sphinx]

but the parents share children with a dag

[fiery bolt]

it's a single index for BVH nodes, with count == 255

count only matters for meshlets

[fiery bolt]

ok so, firstly, do you understand how it works without a BVH?

if you just expand to all meshlets

[glass sphinx]

no

[fiery bolt]

read jasmine's first blog

then ping me and i'll tell you how the BVH works
