2D sprite in the GUI and 3D model in the hand | Blockbench | Page 1

lavish valley Jun 23, 2024, 2:45 PM

#

I'm making a mace model and I wanted it to be 2D in the GUI and also on the item frame, how do I do this?

spring trenchBOT Jun 23, 2024, 2:45 PM

#

Welcome to the help forum!

Please make sure to read #1029373817119838218 as it may answer your question!

Once your question has been resolved, please mark the post as closed by using the </close:1163944441741049897> command.

twin wagon Jun 23, 2024, 2:52 PM

#

lavish valley I'm making a mace model and I wanted it to be 2D in the GUI and also on the item...

The game has no native way to do this unfortunately.
Best you can do is use weird workarounds with shaders based on the oppacity of the texture like this one:

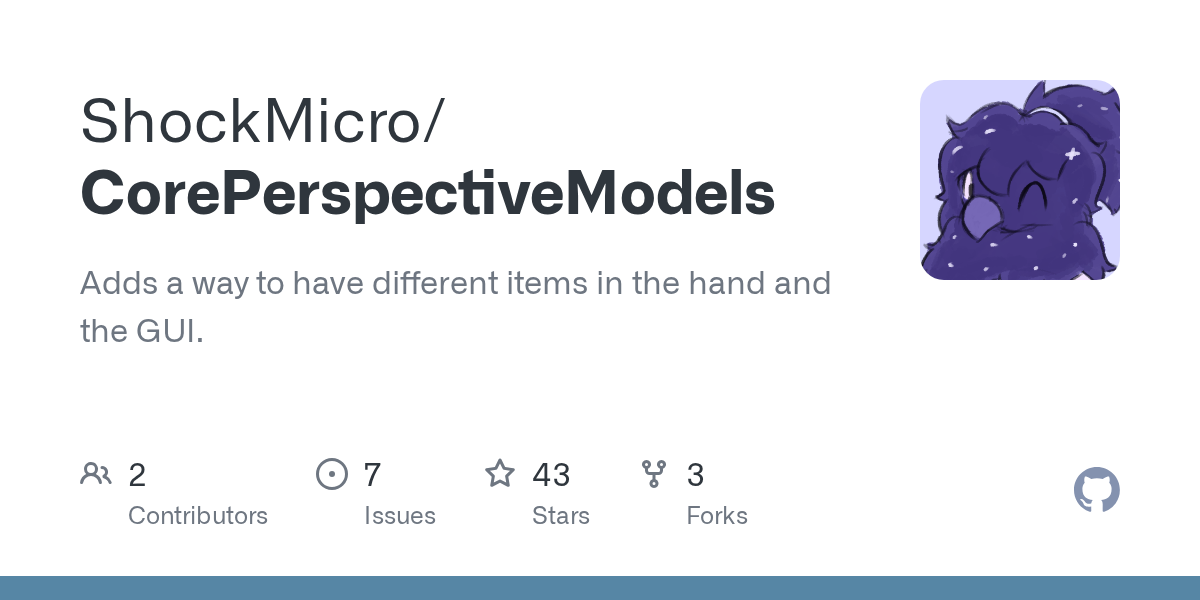

https://github.com/ShockMicro/CorePerspectiveModels/

GitHub

GitHub - ShockMicro/CorePerspectiveModels: Adds a way to have diffe...

Adds a way to have different items in the hand and the GUI. - ShockMicro/CorePerspectiveModels

lavish valley Jun 23, 2024, 2:52 PM

#

the trident did it, and also I've seen some texture packs doing it

#

https://www.planetminecraft.com/texture-pack/windswept-mace-3d-model-2d-sprite/ here's an example

Planet Minecraft

Windswept Mace (3D Model + 2D Sprite) Minecraft Texture Pack

Windswept Swirl The mace's heavy core now swirls with a wind effect when held! 3D Model, 2D Sprite While the mace's held model is now 3D, it...

#

but thanks for the link

#

I'll try it!

twin wagon Jun 23, 2024, 2:55 PM

#

lavish valley the trident did it, and also I've seen some texture packs doing it

the trident is a hardcoded case

lavish valley Jun 23, 2024, 2:56 PM

#

oh, makes sense

twin wagon Jun 23, 2024, 2:56 PM

#

(Possible using the CorePerspectiveModels shader by ShockMicro, which was updated by asdru22)
which is exactly what I linked

lavish valley Jun 23, 2024, 2:56 PM

#

right, I figured

#

thanks

#

err, how do I change an 'alpha value' of the textures?

twin wagon Jun 23, 2024, 3:20 PM

#

rightlcick the texture, click "Enable Layers", then adjust the oppacity to whatever 253/255 is (or 254/255 or whichever value you need)

#

correction, you can just type in 253/255*100 in there if you don't wanna use a calculator

lavish valley Jun 23, 2024, 3:24 PM

#

tysm

lavish valley Jun 23, 2024, 3:54 PM

#

its not working

#

when I put the shaders and changed the opacity, it said resources failed to load

#

I changed the opacity by typing "253/255 * 100" in mace 2d texture layer and "254/255 * 100" in mace 3d textures

twin wagon Jun 23, 2024, 3:57 PM

#

lavish valley when I put the shaders and changed the opacity, it said resources failed to load

what version of Minecraft are you trying to use this on?

#

Not sure if anything shader related changed in 1.21 for example (but that would explain it if you use that version)

lavish valley Jun 23, 2024, 3:58 PM

#

1.21

#

other packs did it on 1.21 so

twin wagon Jun 23, 2024, 3:59 PM

#

hmm, maybe there is a more up-to-date version of that shader pack 🤔?

lavish valley Jun 23, 2024, 4:00 PM

#

lavish valley when I put the shaders and changed the opacity, it said resources failed to load

#

ohh there is

#

i think

#

yep

#

found it

#

https://github.com/asdru22/CorePerspectiveModels

GitHub

GitHub - asdru22/CorePerspectiveModels: Adds a way to have differen...

Adds a way to have different items in the hand and the GUI. - asdru22/CorePerspectiveModels

#

and it works!

twin wagon Jun 23, 2024, 4:03 PM

#

ahh, good to know
thought asdru made a push request to the main respository for that, but maybe ShockMicro is no longer working on it in general 🤷‍♂️ (or didn't have time to look over it yet)

lavish valley Jun 23, 2024, 4:04 PM

#

yeah

#

there are 2 problems though

#

I want it to work on an item frame

#

and

#

it's dark on the GUI for some reason

twin wagon Jun 23, 2024, 4:06 PM

#

lavish valley it's dark on the GUI for some reason

!faq item-dark-in-gui

spring trenchBOT Jun 23, 2024, 4:06 PM

#

twin wagon !faq item-dark-in-gui

FAQ

Java: Item Dark In Gui

To fix this in 1.15 or later:

Go to the Display tab in the top right.
Go to the gui display settings and there should now be a drop down menu at the top saying Side Light.
Change it to Front Light.
PS: If the dropdown menu isn't there, click on ⠇and click Reset, then it should be there.

lavish valley Jun 23, 2024, 4:06 PM

#

#

alr

#

for the item frame I think I made a mistake, give me a sec

lavish valley Jun 23, 2024, 4:33 PM

#

it's not working anymore? huh? all I did was change it to front light, and resize the item frame

#

now it's showing up like this

twin wagon Jun 23, 2024, 4:34 PM

#

did the texture oppacity reset to 100 again somehow 🤔 ?

lavish valley Jun 23, 2024, 4:35 PM

#

no, it looks translucent

#

I can barely see through it

#

maybe something with the shaders?

twin wagon Jun 23, 2024, 5:26 PM

#

lavish valley I can barely see through it

maybe it's too translucent now 🤔 ?
that or the pack was updated to 1.20.X but not 1.21 yet, and it just hasn't crashed yet, but stuff might have changed that broke the intended behaviour?

Though you said you have seen packs that do work in 1.21, correct?

lavish valley Jun 23, 2024, 5:27 PM

#

yea

lavish valley Jun 24, 2024, 4:02 PM

#

heya I'm back at this thread, finally fixed it, is there any way to make it appear 2d when dropped and on an item frame?

#

like the trident

twin wagon Jun 24, 2024, 4:16 PM

#

I don't think so
I think there was a different shader that had more oppacity values for different displays, but I can't remember the name right now and it might not be updated

lavish valley Jun 24, 2024, 4:19 PM

#

awe, rip

twin wagon Jun 24, 2024, 4:20 PM

#

https://cdn.discordapp.com/attachments/157097006500806656/996446571178754189/PerspectiveModelsWithDynamicEmissives_119.zip?ex=667aea2f&is=667998af&hm=3ca3e0d0d45a91cf68f0dbf284043f7a53590f395815675e227a9c7361974290&

This resource pack modifies whether the item will be emssive and where it will be rendered.

(You can make 3d model that is gun with hands. but in thirdperson screen, there's no hands model. Also in GUI, the gun can be 2D item.)

The transparency of the texture can be adjusted to set as below:
255 : Default
254 : GUI O | FirstPerson O | ThirdPerson O | Emissive O
253 : GUI O | FirstPerson O | ThirdPerson X | Emissive X
252 : GUI O | FirstPerson O | ThirdPerson X | Emissive O
251 : GUI O | FirstPerson X | ThirdPerson O | Emissive X
250 : GUI O | FirstPerson X | ThirdPerson O | Emissive O
249 : GUI X | FirstPerson O | ThirdPerson O | Emissive X
248 : GUI X | FirstPerson O | ThirdPerson O | Emissive O
247 : GUI X | FirstPerson O | ThirdPerson X | Emissive X
246 : GUI X | FirstPerson O | ThirdPerson X | Emissive O
245 : GUI X | FirstPerson X | ThirdPerson O | Emissive X
244 : GUI X | FirstPerson X | ThirdPerson O | Emissive O
243 : GUI O | FirstPerson X | ThirdPerson X | Emissive - (only GUI don't need emissive setting)
242 : Emissive for placed block, particle, entity, entity model item, etc

Basic util.glsl code form Shock Micro.

It works on 1.18.2 1.19 1.19.1

(copied from the MinecraftCommands Discord)

#

but yeah, I don't think there is a more up-to date version of that

#

and I guess it only affects ThirdPerson additionally, not all displays
