Optimization tips for my implementation of Brainf*** in Rust

[tranquil nacelle]

Hi, I am an intermediate in Rust and I am trying to write a fast brainf*** interpreter in Rust.

A problem which I've noticed is that the interpreter becomes slow when running mandelbrot.bf from the example/ of my project (took 2m 07 seconds to finish executing on my machine)

Code -> https://github.com/vs-123/bf-rs

I would appreciate any tips to improve the code

[crystal flare]

are you compiling in --release mode?

[tranquil nacelle]

With --release mode, it goes fast in the beginning but gets slower in the middle

It took 1 min 39 seconds

[crystal flare]

that's expected

[tranquil nacelle]

Can it go faster than that?

[crystal flare]

it finishes in 15 seconds on my pc

the code is fine

[tranquil nacelle]

Oh okay

[tranquil nacelle]

So it depends on the computer specs?

[crystal flare]

I guess

[dreamy condor]

If you're asking about microoptimization, note that your Command struct is 16 bytes, assuming you're on 64-bit.

Consider if it'd make sense to split it up and store the loop offsets separately so your could use memory more efficiently

For example, maybe just have a HashSet<usize, usize> to look up the extra loop data for a program counter position, and thus keep Command down to 1 byte.

Looping over chars is also costing you in complexity. Replace it with source.as_bytes().iter().copied().enumerate(), and change the match arms to things like b'+' => output.push(Command::Increment), instead, and your parse should go much faster.

Instead of let mut memory = [0u8; 30_000];, I'd suggest let mut memory = [0u8; u16::MAX as usize];, and change your pointer to u16. Then you can use memory[pointer as usize] and the compiler will remove the bounds checks.

(Your branch predictor is probably making those bounds checks pretty cheap anyway, but you'll save code size which might help)

Other than that, you should make Command be Copy. Anything two usizes or fewer is definitely better copied than worrying about references (and that'll be even more true if you make it just a byte, like I mentioned above).

Other than that, if you want to go faster in something like this you'll need to make the code more complicated to better take advantage of common patterns in the input

For example, >>>>>>>>>> is common, so instead of

            Command::MoveRight => {
                pointer = pointer.saturating_add(1);
            }

you might do

            Command::MoveRight => loop {
                pointer = pointer.saturating_add(1);
                if commands[command_index + 1] != Command::MoveRight { break }
                command_index += 1;
            }

so you only go back to the big match when changing to a different kind of command

[molten hedge]

I am curious... how fast is my bf macro with that bf program

/*u-macro BF*/macro_rules!b{(f$($c:tt)*)=>
{{let mut x=([0u8;1<<15],0,stdout(),stdin(
));use std::io::*;$(b!{x$c};)*}};($f:tt->)
=>{b!($f-);b!($f>)};($f:tt<-)=>{b!($f<);b!
($f-)};($f:tt<<)=>{$f.1-=2};($f:tt>>)=>{$f
.1+=2};($f:tt..)=>{b!($f.);b!($f.)};($f:tt
>)=>{$f.1+=1};($f:tt<)=>{$f.1-=1};($f:tt+)
=>{$f.0[$f.1]+=1};($f:tt-)=>{$f.0[$f.1]-=1
};($f:tt.)=>{$f.2.write(&[$f.0[$f.1]]).and
($f.2.flush()).ok()};($f:tt[$($c:tt)*])=>{
while$f.0[$f.1]>0{$(b!{$f$c};)*}};($f:tt,)
=>{$f.3.read(&mut$f.0[$f.1..=$f.1]).ok()};
($f:tt$x:tt)=>{};}

pub fn main() {b!(f
    ++++++++[>++++[>++>+++>+++>+<<<<-]>+>->+>>+[<]<-]>>.>
    >---.+++++++..+++.>.<<-.>.+++.------.--------.>+.>++.
)}

Could someone run it and see . I don't have a computer to test on right now

[unique vale]

Your macro: about 2.69 microseconds/iteration
Cekofe's impl (pre-parsed): about 2.37microseconds/iteration
Cekofe's impl (parsing + interpreting): about 4.48 microseconds/iteration

I am currently playing minecraft (CPU spikes abound), so take this with a tablespoon of salt.
Here's the zipped benchmark suite if you want to test it on your machine (unzip -> cargo bench)

[molten hedge]

Thanks

[fossil steppe]

JIT compiler when

I'd be quite interested to see a cranelift implementation ^^

[unique vale]

I do have a JIT-like thing for a simple stack-based RPN-like math language with BF-inspired loops; it probably wouldn't be too much work to make actual BF out of it. Well, the . and , would be a bit hard to JIT, but could just call out to prewritten functions for that.
https://github.com/zachs18/Simple-RPN-Math-Compiler-Rust

[dreamy condor]

cranelift is surprisingly nice; probably wouldn't be that hard.

Or go easy mode and translate to WASM, and use one of those runtimes to JIT it

[fossil steppe]

That's too easy lol

[tranquil nacelle]

I was planning on implementing that but then I thought that the main loop would handle them anyways, so I don't have to check whether this command_index refers to the last one and then I should use commands[command_index + 1]

[dreamy condor]

Well, it depends if you want clear code or fast code :)

I agree that the extra loops like this would be uglier, but they might be faster.

[tranquil nacelle]

Hmm I'll try it

[tranquil nacelle]

This one improved the performance a lot

It takes now 47 seconds to execute the mandelbrot

[dreamy condor]

Wow, really? I would have thought that most of the time was in execution, not parsing.

(You're running in --release, right?)

[tranquil nacelle]

Yes with release it is 47 seconds

[dreamy condor]

(Oh, you already said yes above)

[tranquil nacelle]

That's cool

Let me try it real quick

[molten hedge]

From previous testing I know that llvm has a hard time optimizing the Rust code the macro makes

[tranquil nacelle]

It fails to run the mandelbrot brainfuck program

[tranquil nacelle]

I think it does not have addition overflow checking

Or saturating addition/subtraction

[molten hedge]

Run it release

[tranquil nacelle]

I did

[molten hedge]

It may need a bigger memory strip

[tranquil nacelle]

I'll try it again

[molten hedge]

You could try this one

Oh also you may have to offset the starting index into the buffer

Some bf programs use some space before the starting index

[tranquil nacelle]

Ngl tho that's a really cool macro lol

It reminds me the donut C code

Oh now it works

I had overridden the release profile

[molten hedge]

Its the 3rd version, the idea was to make a bf interpreter that fits in a discord message and works with the ?play command

[tranquil nacelle]

Cool

[molten hedge]

Yeah making it work with overflow on debug took more code, so I just force release

[tranquil nacelle]

Do you know a way to improve the compilation speed?

[molten hedge]

Not really

This macro eats rustc and llvm alive with a big enough bf program

[tranquil nacelle]

Ye mandelbrot program is pretty big

[molten hedge]

I have a playground with it running a copy of Conway's game of life https://play.rust-lang.org/?version=stable&mode=release&edition=2021&gist=485b505093c41e369af28b98ed182d0c

Macros are very fun

[tranquil nacelle]

That's very cool

[tranquil nacelle]

I updated the source code, can anyone review it please?

[worthy venture]

you can change let mut loop_stack = Vec::new(); to let mut loop_stack = Vec::with_capacity(source.matches('[').count());

but the slowness is in interpret() and not in parse()

try to write/read to a buffer, once you are done. you display it in one go (instead of displaying/printing line by line)

[tranquil nacelle]

Guys I optimized it alot

It got a huge performance boost

It takes 15 seconds for me to do the mandelbrot

[tranquil nacelle]

I changed the whole structure now

I added support for consecutive commands

which improved the performance a lot

[tranquil nacelle]

I will benchmark with this using the updated one

Also I pushed the updated source

[tranquil nacelle]

Yes I improved it alot now

[dreamy condor]

Ah, I see, doing the consecutive folding in the parsing instead of the interpreting. Makes sense.

[tranquil nacelle]

That reduced the interpretation time a lot

[dreamy condor]

Hmm, you know what that means? You could actually unify the two states.

 #[derive(Debug, Clone, Copy)]
 pub enum Command {
-    Increment(usize),
-    Decrement(usize),
+    Increment(u8),
     MoveLeft(usize),
     MoveRight(usize),

Because Decrement(1) and Increment(u8::MAX) do exactly the same thing, so there's no need for both.

[tranquil nacelle]

Why not i8 for negatives?

[dreamy condor]

Because you're using wrapping_add anyway, so having the same type as you're using for a memory cell will make your life easier.

i8::wrapping_add and u8::wrapping_add are exactly the same operation. LLVM doesn't even have different instructions for them.

I'm personally opposed to signed values unless absolutely forced, but do whatever.

[tranquil nacelle]

Hmmm ok

I'll implement it rn

[tranquil nacelle]

I updated the source code

Can anyone review it please?

The time dropped to 12 seconds for the mandelbrot

[tranquil nacelle]

I used unsafe code to optimize it even more

Guys now it takes less than 10 seconds for me!

[vivid carbon]

[tranquil nacelle]

Yo

I merged the MoveLeft and MoveRight to a single variant

[molten hedge]

That's awesome

[tranquil nacelle]

: )

[vivid carbon]

you could try output buffering like recommended before, but trying to preallocate part of the buffer, since you know how many writes at least you have to do

[dusky mural]

just curious why it's 16 bytes and not 8 since isize and usize are both 8?
Is it storing the variant + alignment?

[vivid carbon]

you could also try compressing consecutive adds and subtracts into one

[dreamy condor]

If it has a usize in it, it has to be at least 8. But it also needs extra bits to store which command, so that means it needs to be bigger than 8.

[dusky mural]

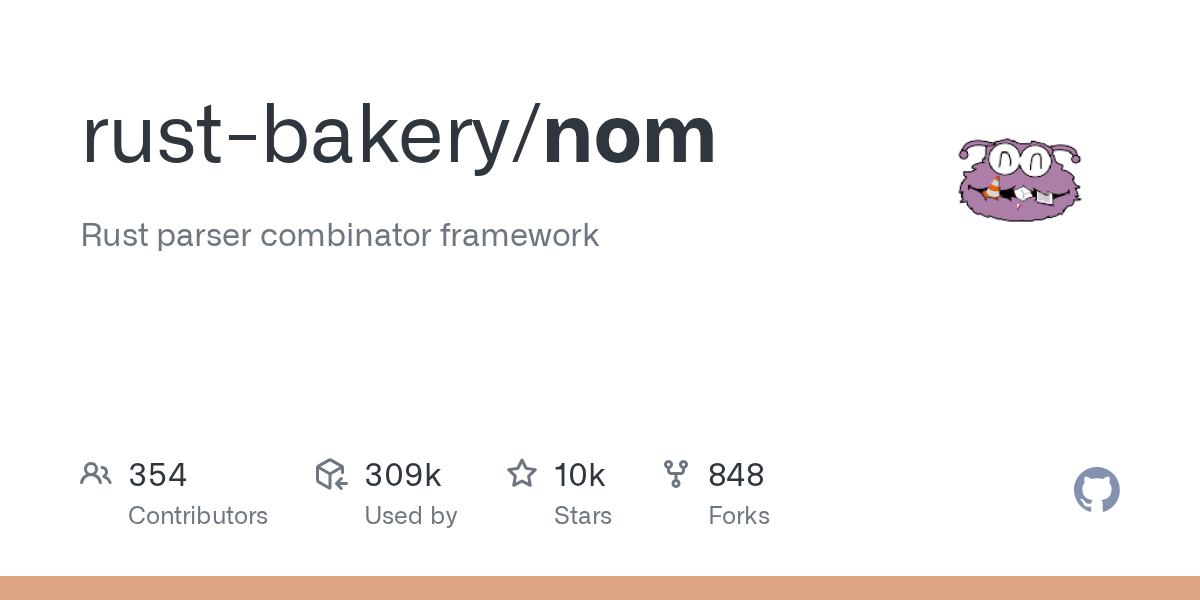

@tranquil nacelle would recommend checking out nom as a parser for this. I've played around it for a bf parser and the code ends up being v elegant where you can parse your input into basically a Vec<Command> and then run it after.
This could make it easier to optimise multiple operations of + - > amd < as mentioned above ^

[dreamy condor]

(Assuming on x64, so that usize is 8 bytes.)

[vivid carbon]

maybe also precompute other things like eliminating loops if you know that it wont be executed

[dusky mural]

I might also recommend making the interpreter a struct, this could allow you for stepping through instructions and debugging the memory during execution

[dusky mural]

just checked and this compresses the mandelbrot code from 11,451 instructions to 4,073 so this could definitely give a performance increase

[vivid carbon]

there are also some bf patterns which can be optimized

for example [-] which sets a cell to zero

https://esolangs.org/wiki/Brainfuck_algorithms
Here are more

if you can detect them you will be able to optimize a lot

[dreamy condor]

Oh, I thought that had already happened as part of unifying them into one operator (#1108776450611486804 message)

[vivid carbon]

no i mean +++---- into - :)

[dreamy condor]

Well collapsing consecutive ones had already turned that into Increment(3)+Decrement(4), so I figured that when it turned to Increment(4)+Increment(252) that had already happened to have it be Increment(255).

Though actually, the only reason for code to have that would be aesthetics, right?

That mandlebrot demo has no +- or -+ sequences at all.

[vivid carbon]

yes

[dusky mural]

no proper code probably wont

[vivid carbon]

yea but is there a cost for collapsing the operators if somebody did that?

[dusky mural]

has 120 instances of [-] so that might be next thing to try

[vivid carbon]

ig we are at that point where we need to detect such complex structures, which may be nested, that we need a parser like nom

[dreamy condor]

Don't need it in the parser, though

This is just a classic "have an IR and optimize it" compiler problem.

Heck, could just turn the whole thing into a classic CFG if you wanted.

Or do it with https://en.wikipedia.org/wiki/Rewriting#Term_rewriting_systems

[vivid carbon]

which may be a good idea. its inherently inefficient to work in the context of a "standart bf vm". if we add new instructions to the vm like loops, ifs etc we could still work on the same array though more efficiently since we can implement some algorithms in rust instead of running it in bf

[dusky mural]

during runtime convert bf code to rust then compile and run it for optimal performance

[vivid carbon]

this:

temp0[-]
temp1[-]
x[temp0+temp1+x-]temp0[x+temp0-]
temp1[
 code
temp1[-]]

could be just optimized into a simple if like that

Command::If(usize) // if cell is 0 skip usize commands

[vivid carbon]

i think @tranquil nacelle wants to run a bf vm and not compile to code, else he would write it as a proc macro

[vivid carbon]

there are a lot more operations which are more expensive if we would execute the commands normally and not detect the pattern and for example replace the expensive computation with several loops with a simple if check in the vm

[tranquil nacelle]

Actually I'm trying to make this without using external crates

[tranquil nacelle]

Hmmm I'll try that

[tranquil nacelle]

I implemented that just now

I updated the source code
