JvmUtils - Extensible Jvm internals access

[elder yarrow]

This is a project I wrote that bypasses Jigsaw in order to achieve opening up all jvm modules and allow for direct access to jvm internals such as the JITCompiler, JDI, JVMTI, direct off-heap memory management, and more.

This requires no jvm flags, no special builds. The bypass does work up through jdk 24, however the api is targetted to jdk 11 internals.

To bypass Jigsaw, we reflect Unsafe and read IMPL_LOOKUP directly from memory using Unsafe::staticFieldBase()/Unsafe::staticFieldOffset() to get its address, then Unsafe::getObject() to read it, avoiding reflection's module access checks. Since Unsafe operates at memory level below module enforcement, it retrieves the privileged IMPL_LOOKUP (which has universal access) from the non-exported java.lang.invoke package that reflection cannot access. And from there, we can use IMPL_LOOKUP (kind of the JVMs master key) to access Module.class and call Module::addOpensToAllUnnamed() on all jvm modules to open up unfettered access to everything.

API Layers Overview

High-Level APIs
├── DirectMemoryManager     (Memory Management)
├── JITCompilerAccess       (Compilation Control)
├── BytecodeAPI            (Code Generation used internally to support reflection)
└── JDI Integration        (Debugging)

Mid-Level APIs
├── WhiteBox               (JVM Testing Interface)
├── SharedSecrets          (Internal Communications)
├── ThreadTracker          (Thread Monitoring)
└── VM Control             (VM Lifecycle)

Low-Level Foundation
├── InternalUnsafe         (Memory Operations)
├── ReflectBuilder         (Enhanced Reflection)
└── Utility Classes        (Support Functions)

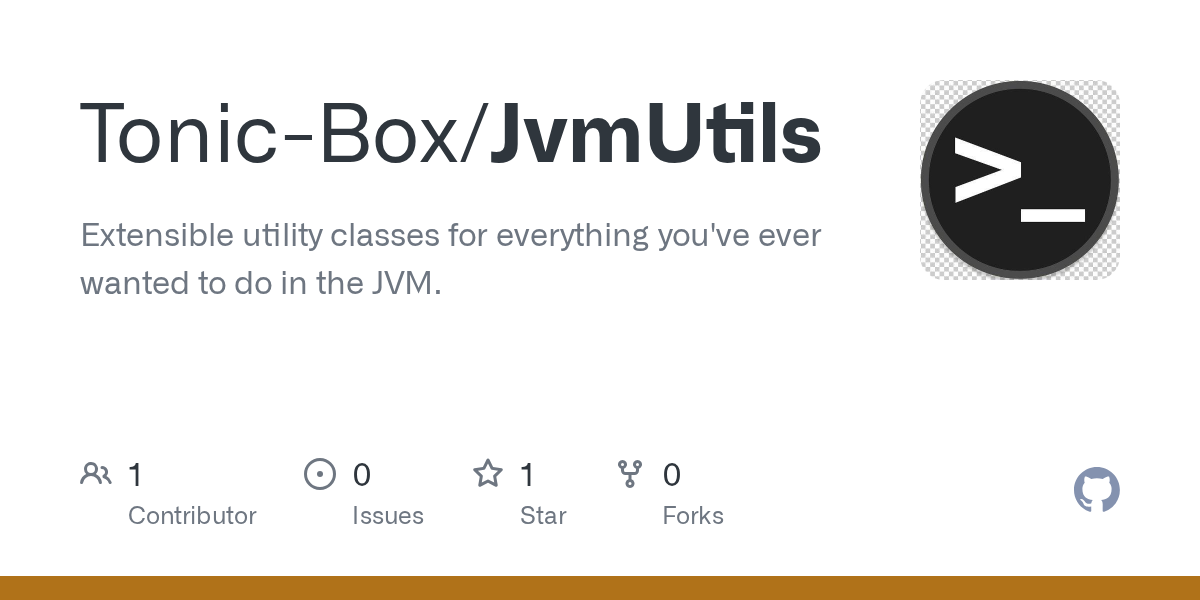

https://github.com/Tonic-Box/JvmUtils

[grim steeple]

Not sure if that's a good idea

[elder yarrow]

If what's a good idea? Kind of a vague statement there. Lol

Not really a good or a bad thing. Just opens up and enables some neat things that are incredibly useful for some more niche things. I mean many large libraries have to bypass jigsaw to a degree (the main reason they've never truely hardened it) such as guice, guava, springboot, RxJava, lombok, and more.

This is just a slightly different and more universal approach to sidestepping it.

With some poc api exposing internal tooling of the jvm

[grim steeple]

It causes 2 problems
First of, using an internal api is never a good idea, try to find other ways to do it
Second, it will become patched at some point

[elder yarrow]

Won't be, given that all these large libraries rely on the same thing. You're entirely missing the point of this lol

Also, find me a 2ndary way to expose programmatic control of jit behavior, I'll wait lol

Even take a library like netty for example. Does nearly the same thing I do here for off heap memory access for it's byte buffer stuff as an optimization. Also requires side stepping jigsaw

Again, it's intentionally not been hardened due to so much of the eco system currently for java being so reliant of being able to bypass it.

I'd love and accept critique on approach, design, code style, and so on. But simply offering "I think this was a mistake" as a critique, especially when so much of the more intrinsic java ecosystem is at complete odds with your position here, isn't really useful. Respectfully.

Jigsaw truely was a solution no one asked for to an issue no one had lol

[tribal sparrow]

I'm happy to see a broad approach to bypassing unneeded encapsulation on a case by case basis. Every tool has its uses.

Does this library only expose access to modules of the JVM that were not exported or does it also wrap things up to an additional API? What would be the difference between using this and compiling your own JVM with additional exports?

[finite mason]

Why not just pass the flags?

"here is a big file with all the add opens" is basically the same thing

[grim steeple]

It will, that's why they did that at the first place

[grim steeple]

It is, oracle has been trying to fight against that for year, trying to find a way to bypass again will make them fix it
Also Unsafe will be removed soon, or at least most of it

[grim steeple]

It's a oracle dev problem
Basically they code something for themselves, people start using it, so they can't modify it
And it causes more and more problems

[elder yarrow]

That's fine, I still enjoyed writing this. If it's an approach that's good enough for googles engineers, then it's good enough for me. 🙂

[elder yarrow]

Why? A drive to understand how things work on a deeper level. My frustration here is that the entire point of this as being just a neat technical POC is completely missed. Lol

[elder yarrow]

Also, you can't expose jit, jdi, jvmti, etc with jvm flags?

Opens some fantastic doors in terms of runtime analysis and reverse engineering on the jvm. Opens nearly every door that ssvm was written as a way to open.

[finite mason]

i think you can

call Module::addOpensToAllUnnamed() on all jvm modules to open up unfettered access to everything.

so all you need to do is programatically get a list of all modules and packages

then make a big file with

--add-opens java.base/java.lang=ALL-UNNAMED
--add-opens java.base/java.util=ALL-UNNAMED

and then just run java @openeverything.txt <rest of args>

argfiles are great for that

which really doesn't seem that bad. You distribute the argfile and then people using your dark magic library stuff just need to add that when they run

[elder yarrow]

Ah fair, this is more a demonstration of the approach just as much though.

Honestly a lot of this stuff should be patched into on a more strict level outside of jigsaw. For example, direct access to jvmti makes the disable attatch mechanism arg fully useless

[finite mason]

Yeah - but I think you got a sizable collection of fart magic here. Might as well be ready for when that hole is patched

Sorry dark magic

No not sorry

Fart magic

[elder yarrow]

Yeah that's more the point, not a production lib, just technically interestinh pocs

[finite mason]

I think that is the point of the module system. To have actual laws of physics level stuff written in Java and know that stuff won't fall apart

And that's why it's annoyig

Because if you change a private field on forkjoinpool you can break virtual threads and get miscompliations and God knows what else now

[elder yarrow]

It's a joke though, and purposefully not locked does, there's several other non unsafe/impl_lookup ways to bypass it

Which is why I can't believe it's in any sense meant as a true security feature

[finite mason]

The plan is to shut it all down

[elder yarrow]

You can cause jvm to default without any of this, idt that's a strong argument here tbh lol

[finite mason]

Default?

[elder yarrow]

*segfault

But I get the point tho

Just being a bit pedantic xd

[elder yarrow]

What's the plan for everything that affects like spring boot or lombok? Gonna break a metric *** ton of core mechanisms in rather prominent libraries

And are they planning on doing this for lts versions like 11 and 17? Or just 25+ etc?

Also this doesn't target oracle, it targets hotspot jvm impls

[finite mason]

Lombok they keep saying they want the Lombok people to make their own launcher

And distribute it literally like any other language that runs on the JVM - with the position that it is not Java, it's a different language

[finite mason]

Lts isn't real from the perspective of jdk maintenance

It doesn't affect spring boot as far as I know

[elder yarrow]

I'll have to look back but I'm p sure it does

[elder yarrow]

Okay yeah it does for the following core mechanisms:

Dependency Injection: Accessing private fields and constructorsAuto-configuration: Dynamically creating beans based on classpath scanningProperty binding: Mapping configuration properties to objectsAOP proxies: Creating dynamic proxies that need deep access

[finite mason]

none of that needs deep access to the jdk

just your code

which is different

[elder yarrow]

Okay yeah dug through and none of it does anything beyond normal reflection.

[west crypt]

While I 100% agree that you shouldn't write any code that relies on any mechanism in this library, there's some cool stuff in there

I just wonder how much of this is still relevant if you target 24 or 25

Like, bytecodeapi we have now as the classfile api

Directmemory are obviously memorysegments

etc

I do like it as a collection of "shit you shouldn't do" 😄

I knew of some of these, some other ones are new to me

[elder yarrow]

Not much of this, it's very tsrgetteted to Hotspot jdk 11 internals

[elder yarrow]

THANKYOU FOR BEING THE FIRST PERSON TO UNDERSTAND

Ik up to 24 the bypass itself works

Not sure in what all internals are still the same tho

[west crypt]

Yeah, just upgrade lol 😄

[elder yarrow]

I'm stuck on 11 for my main projects atm and have been for quite a while lol

[west crypt]

oof, that sucks

MC?

[elder yarrow]

Osrs

[west crypt]

ah

[elder yarrow]

Yee

[elder yarrow]

It's rly not so bad, the actual gsmepack is 6, for injecting I transform it to 11 though. Being 6 made writing my remapper a lot simpler than it would have been if indys were in the mix too, so it's really not so bad

[west crypt]

😄

All of that sounds so cursed

[elder yarrow]

Took kind of a unique approach to remapping too, I do iterative refinement of mappings using tf-idf + call graphs

[elder yarrow]

Maybe, it's fun though

Remapping as in when new revision comes out,matching everything in old jar to it's equivalent in the new jar since everything is shuffeled/renamed, reobfuscated and so on

[elder yarrow]

Tbh I'm a fan of cursed things

My mixin system supports clojre for example lol

[finite mason]

how?

[elder yarrow]

Wdym? You can call stuff between the 2. Clojre support is only for specific pipelines that inject calls to stuff, the more fine grained mixin pipelines are only supported in Java though. Added mostly as a meme for a friend who has an unhealthy obsession with clojrescript lol

[finite mason]

what is clojre

i thought you were just misspelling clojure

oh you were

like i thought mixins were done using annotated class definitions that get shredded apart later

i don't know how you would specify that stuff in clojure

unless you made some wacky ass macros

[elder yarrow]

Kinda, just through functional interfaces, it's very wacky and not very useful lol

Closure still better than kotlin tho 🥲

I mean, Clojure.var() and all that

[finite mason]

yeah i know how to do clojure interop

i might not fully understand mixins i guess

[elder yarrow]

Mixins are abstract classes with class annotation that specify target class in ganepack, then fields/methods in that class with annotations that define what they're fore eg methodhook, field hook, shadow, and so on. Basically just fancy instructions for the injector that takes them and applies them t o the gamepack classes (different bytecode transformations)

[elder yarrow]

Sample mixin class might look like this:

package com.tonic.mixins;

import com.tonic.Logger;
import com.tonic.api.*;
import com.tonic.injector.annotations.*;
import com.tonic.injector.util.ExceptionUtil;
import com.tonic.model.ui.VitaLiteOptionsPanel;

@Mixin("Client")
public abstract class TClientMixin implements TClient
{
    @Shadow("packetWriter")
    private static TPacketWriter packetWriter;

    @Shadow("MouseHandler_instance")
    private static TMouseHandler mouseHandler;

    @Inject
    @Override
    public TPacketWriter getPacketWriter()
    {
        return packetWriter;
    }

    @Inject
    @Override
    public TMouseHandler getMouseHandler()
    {
        return mouseHandler;
    }

    @Override
    @Construct("ClientPacket")
    public abstract TClientPacket newClientPacket(int id, int length);

    @Shadow("getPacketBufferNode")
    public abstract TPacketBufferNode getPacketBufferNode(TClientPacket clientPacket, TIsaacCipher isaacCipher);

    @Shadow("mouseLastPressedTimeMillis")
    private static long clientMouseLastPressedMillis;

    @Inject
    public long getClientMouseLastPressedMillis() {
        return clientMouseLastPressedMillis;
    }

    @Inject
    public void setClientMouseLastPressedMillis(long millis) {
        clientMouseLastPressedMillis = millis;
    }

    @FieldHook("MouseHandler_idleCycles")
    public static boolean onIdleCycleSet(int value) {
        return false;
    }
}

[finite mason]

i guess i meant the mixin mechanics not so much their specification

though i don't understand that either

like how exactly is this shredded apart

and my confusion with clojure was just it felt like harder bytecode to shred

[elder yarrow]

Like are you asking how the injector works? How the bytecodevtransformers work? Or?

Gamepack injection happens in memory prior to the classes being loaded

All the mixins are scanned from their package classpath, then integrated over checking annotations and throwing them down the correct transformer pipelines modifying the gamepack
