free example library of lua for openmw modding

[cobalt token]

hi.
have been making several scripts over the time and thought time ago about making tutorial library out of them and also the ideas from myself and people.
not sure if this is the right place but idk others. making this thread as there's a lot ground to cover in writing and keep the flame up in updating and interaction.

the basic structure shaping up at notion atm https://www.notion.so/220c0a3cd260804f877af4a1185ffa38?v=27ac0a3cd26080bb9799000c1ce4ea10
( atm lot's of empty pages and some scripts ) ( live updates 😅 )

and in the end probably gonna be gitlab https://gitlab.com/sjek/lua_coding/-/tree/main/OpenMW-lua as for a codebase it's kinda the best.

somebody integrating something solid to openmw docs is possible but time will tell of the shape of it.

i'm learning to code at the same time so there's syntax and all
but keeping it relatively simple to use, so for the more advanced this would be more like quick start and basic preference.

current state is that need to start test and copy paste, write and clean the code to notion from computers and gitlab and can make some new ones

i think luckily / by practise the packages are grouped around functionality so keeping that somewhat is the cleanest and most intuitive way.
altho not strickly as the events, local, global shuffling make it's way to gameplay. like raycast have it's usability, and AI and the animations.
grouping with more advanced functionality is possible along the way.

any thoughts .?

knowing tho that there are lot's of mods what to use as a preference when making one

contributions welcome.
this is currently a bit building the framework and discuss / suggest the future and precent content

[cobalt token]

like this one, making actor invisible when under knockout with certain amulet or gear

I.AnimationController.addTextKeyHandler('', function(groupname, key)

    local spell = "Invisibility" -- "chameleon"
    local gear = "common_amulet_05"
    -- might need equipment splot check sometimes for use case

    local equips = types.Actor.getEquipment(self)
    for c, _ in pairs(equips) do
      if equips[c].recordId == gear and groupname == "knockout" then

      types.Actor.activeSpells(self):add({ id = spell, effects = {0}}) --fifth barrier --Invisibility

      print("knockout")

      end
      if anim.isPlaying(self,"knockout") == false then

      types.Actor.activeEffects(self):remove(spell)

      end
    end
end)

which works but

      local spells = types.Actor.activeSpells(self)
      for a, _ in pairs(spells) do
        print(spells[a])
      end

is giving me only nils tho print(types.Actor.activeSpells(self):isSpellActive(spell)) gives true
so need to remove whole effect or it's the needed temporary flag on the spell.

and a note that spell and effect id isn't always the same so maybe other use case

every use case has it's own conditions so can be pointed out for the cancel trigger too
edit: and

     local effects = core.magic.spells.records[spell].effects
       for i=1, #effects do
        types.Actor.activeEffects(self):remove(effects[i].id)
       end

[lost brook]

Your work will help making a lot of funky mods for sure

[cobalt token]

That's the goal xD
Once you get accustomed to whole event / interface / callback system and what can be used to get stuff it's kinda straigforward to do "small" stuff like giving items, change clothing, walls, sounds, animations, summons, stats and such game event's against reading books, activation in general, meeting ghosts, quests triggers, being in specifig area, cells, etc. Like what for mwscript shines but have it's limitations.

Only that there's storage matter about dozen scripts with bigger mods but i think it will be sorted out in some time. (Or stays )

Have been fun to make scripts as going to you can change majority of the game already. And despite implementation details the lua is kinda sane

[oblique magnet]

this sounds really cool, thanks! I look forward to looking through it

[cobalt token]

though about sharing this here too.
oldie goldie and needs some tuning.
implementing is it's own hurdle.

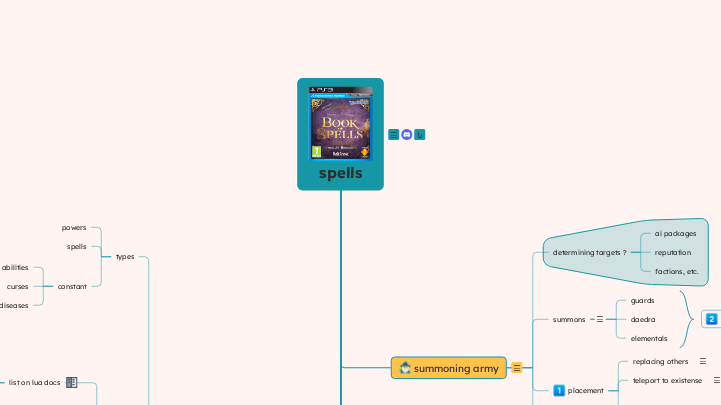

https://www.mindomo.com/mindmap/7905d2d9d78897bdcca59149cf82add6

[cobalt token]

one scenario is to spam hit with fatigue or health loss to nearby actors on animation but it's really brutal and op kinda 😅

[cobalt token]

found out the problem in

      local spells = types.Actor.activeSpells(self)
      for a, _ in pairs(spells) do
        print(spells[a])
      end

you need to do it mapping the list item ie.

      local spells = types.Actor.activeSpells(self)
      for _, b in pairs(spells) do
        print(b)
      end

for some reason the index are nil

[cobalt token]

https://www.notion.so/the-grap-hook-2c6c0a3cd2608008a01cf8e8d05a085e
written the hook open
needs still some commenting and not sure
about is the { ignore = self } mandatory in this case
but with async the player was hit in both cases

and how to hit the terrain in general

..... the logic is off by if result.hitObject == nil then

[cobalt token]

at least was xD
i need to group these along the way for basics and bigger mod use
like changing everybodys clothing upon activating something uses
more of api than simple example

altho this is not so large in the end
https://www.notion.so/changing-clothings-on-activate-2d9c0a3cd26080baaab6d53b510529de

TODO: invent better functionality

using templating is not necessarily needed on this one tho

if not some enchantments or something

[cobalt token]

more of the (un) equipping,
still needs condition shuffle and in build event + writing creating objects elsewhere
https://www.notion.so/un-equipping-2c2c0a3cd26080c5a8b3cc52d3ae009b

[cobalt token]

commenting more on this the purpose have been to randomize the model and underlying template so makes the properties, enchant, etc and model random in every turn. logic to remove the old items in sometime.

[cobalt token]

interesting find,
as the OnHitHandler doesn't seemingly work for spells
it could make the victim invulnerable to any physical attack
or with other conditions like the damage here.
also maybe some proof on the true check

local types = require('openmw.types')
local I = require('openmw.interfaces')

I.Combat.addOnHitHandler(function(attack)
  --if attack.attacker.type == types.Player then

    if attack.weapon then print(attack.weapon.recordId) end
    print(attack.damage.health)

    if attack.damage.health and attack.damage.health < 40 or attack.damage.fatigue < 40 then

        attack.successful = false
    end
   return false
  --end
end)

[lost brook]

Yeah with onHit you can completely turn off weapon attack damage or even registering the attack as far as I remember

[cobalt token]

can register getting an attack but registering delivering attack with other values in same time is complicated.

doing I.Combat.onHit{ attacker = attack.attacker, strenght = 1, damage = { health = 0, fatigue = 0, magicka = 20 } }
result to stackoverflow

or more specifically with

    if attack.damage.health and attack.damage.health > 5 then
      attack.successful = false
      if attack.attacker.recordId == "player" then

      I.Combat.onHit{ attacker = attack.attacker,  strenght = 1,  damage = { health = 10, fatigue = 0, magicka = 0 } }

when { health = 10, value is higher than the checked one...

i reckon that this is intricate and the logic needs to be just right.

ie. getting hit with onhithandler results easily to loop from the victim and log spam.

basically this happens because script is on both attacker and victim. ie. NPC, PLAYER

other way is to modify stats directly ie. event in same script

local function damages()
    types.Actor.stats.dynamic.health(self).current = types.Actor.stats.dynamic.health(self).current - 5
end

return { eventHandlers = { damages = damages }  }

[cobalt token]

.... that I.Combat.onHit{ attacker = attack.attacker
is looping because of attacker = attack.attacker presumably.

the whole addonhithandler triggers at victim end so that
attacker does over the limit health damage back which means that
onhithandler is triggered 😅

.
or well attacker = attack.attacker instakills the attacker
and attacker = self the target because of loop
but onHit kinda cannot's be then used without some safeguards

same happens with attack.attacker:sendEvent('Hit', table)

this syntax can be neat for handlers generally

    if attack.damage.health and attack.damage.health > 6 then

      return true,
            attack.attacker:sendEvent("damages")
      else return false
    end

[limber oyster]

This is very cool, thanks, definitely helps to have a library to at least get some foundation from.

[cobalt token]

thanks, here's so many use cases that all would be kinda impossible
but for adding things there should be structure as these are a bit cryptic without.

like now with this

I.AnimationController.addTextKeyHandler('spellcast', function(groupname, key)

    local spell_id = "night-eye"

    if key.sub(key, #key - 6) == 'release' and types.Actor.getSelectedSpell(self).id == spell_id  then
        print("nightime")

        local cell = self.cell.id

        core.sendGlobalEvent("sjek_add_stuff", { cell = cell, player = self })

          local name_callback = async:registerTimerCallback('arbitary name',
                function()
                    core.sendGlobalEvent("sjek_remove_stuff", { cell = cell, player = self })
                end)

          local effects = core.magic.spells.records[spell_id].effects
          local duration = effects[1].duration

          async:newSimulationTimer( duration , name_callback)

    end
end)

i can shuffle saving the cells in but writing points at least about durations. (and of the cell saving)
and a list about different things to add and vfx

the timer is kinda better than onUpdate state machine.
otherwise sending state with an event to global maybe.

mod makers need to handle the saving, loading so that's kinda important.

.
and is this the best way but got axes turning above actors head while turned tip to sky with this

local function weapon(event)
      table.insert(nearbys, event.nearby_actor)

      local axe = world.createObject("daedric war axe",1)
      axe:teleport(event.nearby_actor.cell,event.nearby_actor.position, axe.rotation * util.transform.rotateX(-46))
                      --*3.14/360
      table.insert(axes, axe)
      jos = 1
end

local function onUpdate()
   if jos == 1 then
     for i, _ in pairs(axes) do
            local tab = nearbys[i]
            if axes[i] then
                axes[i]:teleport(
                          tab.cell,
                          tab.position + util.vector3(0,0,200),
                          axes[i].rotation*util.transform.rotateY(0.1)
                          )
            end
      end
   end
end

or close to tip to sky as that's kinda tested value and idk about those really 😅

[cobalt token]

if wanting to save cells in table this seems to work

local cells

local function cellsave(cell)
    if cells == nil then
       cells = {}
       table.insert(cells,cell)
       print("add first", cell)
    else
      for i = 1, #cells do
        print("already", cells[i])
      end
      if not cells[cell] == true then
        table.insert(cells,cell)
        print("add table", cell)
      end
    end
    return cells
end

cells = cellsave(self.cell.id)

tho there's probably way to use under the hood timer itself, greatly simplifying the code.

[cobalt token]

can be done like this

          local name_callback = async:registerTimerCallback('arbitary name',
                function(data)
                    core.sendGlobalEvent("sjek_remove_stuff", { cell = data.cell })
                    print("remove", data.cell)
                end)

          local effects = core.magic.spells.records[spell_id].effects
          local duration = effects[1].duration

          async:newSimulationTimer( duration , name_callback, {cell = self.cell.id})

ie. you can inject info for timer, for the time of execution. basically info in the time of calling.
data is just a keyword and works just like events but with delay on site.
this should work for any actor.

ie: kinda like this if defining object but needs to choose the object type manually for removal atm.

I.AnimationController.addTextKeyHandler('spellcast', function(groupname, key)

    local spell_id = "night-eye"
    local object_id = "active_bubbles00"

    if key.sub(key, #key - 6) == 'release' and types.Actor.getSelectedSpell(self).id == spell_id  then
        print("nightime")

        core.sendGlobalEvent("sjek_add_stuff", { cell = self.cell.id, object_id = object_id })

          local name_callback = async:registerTimerCallback('arbitary name',
                function(data)
                    core.sendGlobalEvent("sjek_remove_stuff", { cell = data.cell, object_id = data.object_id })
                    print("remove", data.cell)
                end)

          local effects = core.magic.spells.records[spell_id].effects
          local duration = effects[1].duration

          async:newSimulationTimer( duration , name_callback, {cell = self.cell.id, object_id = object_id})
    end
end)

VFX is a bit more complicated for looping and remove, for the start

probably juggling with global events

[cobalt token]

this is on timer and needs better logic for start position but up and down simulation basically

local time = require('openmw_aux.time')
local util = require("openmw.util")
local core = require('openmw.core')

local function sjek_hop(event)
  local timer = 0
  local pos = event.container.position.z
  time.runRepeatedly(function()
    timer = timer + 0.1
    event.container:teleport(event.container.cell,event.container.position + util.vector3(0,0, (10*timer - 4.9*timer^2) ))
    if event.container.position.z < pos then
      timer = 0
    end
  end, 0.1*time.second)
end

return {
    eventHandlers = { sjek_hop = sjek_hop }
}

maybe simplifying still

there's the gaus gun recent code.
https://www.notion.so/placing-VFX-in-circle-2dcc0a3cd26080debec8d25209ed65bd

[elfin prairie]

@wary forge
Remember your dunmer house chore magic idea?
This gif...
It can be done, bedknobs and broomsticks style.

[cobalt token]

i think it's completely possible to make all kind of parametric equation magic but problematic part may be to check collision or if using some way nawmeshes, it could be alleviated xD

[cobalt token]

like. this implements archimede's spiral

    local count = 1 -- start
    local top_amount = 200
    local summon_pace = 0.04 * time.second

      local positio = var.event_origin.position
      local rotatio = util.transform.rotateZ(1)
      local direction = util.transform.rotateZ(var.event_origin.rotation:getYaw())

      local speed = 5
      local angular_speed = 0.1

      -- timer
      stop = time.runRepeatedly(function()

          if count < top_amount then
            count = count + 1

            local summon_obj = world.createObject( summon_obj_id , 1)

            local x = speed * count * math.cos(angular_speed * count)
            local y = speed * count * math.sin(angular_speed * count)
            local z = 1 * count

            local spiral = util.vector3(x,y,z)

            summon_obj:teleport( var.event_origin.cell, positio +
                            direction * spiral,
                            rotatio * direction )

            world.vfx.spawn( vfx_model, positio + direction * spiral)

     end, summon_pace)

https://en.wikipedia.org/wiki/Archimedean_spiral from here

altho this might be more costly than one without so much math

and need to figure out the rotatio for placing tip away from player

[cobalt token]

which seems kinda taunting as i need to get the rotation set before the object is placed which means that presumably need to get the spiral equation into account. probably something simple tho

[cobalt token]

also started this yesterday if there's suggestions.
the table of content is like that by desing.
https://www.notion.so/START-HERE-2dbc0a3cd26080d7bbb4d89c3492b5d9

[cobalt token]

first tutorial like page ^^
feedback welcome.
tho need to write about other things you can do in local and global context at the bottom.

https://www.notion.so/quest-reward-2dfc0a3cd26080b99379cfca0d7ca8ed

[lost brook]

I want to say again thank you for your work

[cobalt token]

thanks. i'm coming from mwscript so have that perspective 😅
tho it's possible that people have to find their way around which package contains what altho wrote some general guidelines and the grouping is kinda by usage.

[lost brook]

Well, the magic is in finding the workarounds to the limited apis 😄

[cobalt token]

yep.

[cobalt token]

some AI help and vector math and worked out.
one lesson is look at what the rotation rotates ie.
the original direction from getYaw was affecting all along so i set it to zero and rotations work

altho i'm not totally undestanding how this works

      local direction = util.transform.rotateZ(0)

      local speed = 5
      local angular_speed = 0.1

      -- timer
      stop = time.runRepeatedly(function()

          if count < top_amount then
            count = count + 1

            local summon_obj = world.createObject( summon_obj_id , 1)

            local x = speed * count * math.cos(angular_speed * count)
            local y = speed * count * math.sin(angular_speed * count)
            local z = 1 * count

        -- spiral
            local spiral = util.vector3(x,y,z)
        -- placement points
            local placement = positio + direction * spiral
        -- angle around player
            local sp = math.atan2(y,x)

        -- directions change math around caster position, how this works even ^^
            local new_x = positio.x * math.cos(sp) - positio.y * math.sin(sp)
            local new_y = positio.x * math.sin(sp) + positio.y * math.cos(sp)

        -- the axe direction
            local new_sp = - math.atan2(new_y,new_x)

        -- doing transform with gotten angle
            local rotation = util.transform.rotateZ( new_sp )

            summon_obj:teleport( var.event_origin.cell, placement , rotation )

            world.vfx.spawn( vfx_model, positio + direction * spiral)

[cobalt token]

maybe something in the line of direction cosines but different form. need to fiddle a bit. trigonometry for sure

and for ball not really much as the screen is 2D but can be done with this.

        local R = 200

        for i= 1 , 50 do

          local theta = math.acos( 1 - 2 * i/50)
          local phi = i

          local x = R * math.sin(theta) * math.cos(phi)
          local y = R * math.sin(theta) * math.sin(phi)
          local z = R * math.cos(theta)


          local pos = self.position + util.vector3(x,y,z)

tho phi value is important for distribution and could do some pattern

[wary forge]

This looks like Dragon Ball's ki blasts

[cobalt token]

apparently there's several by the fandom xD

with cylindrical coordinates

        for i= 1 , 50 do

          local R = 10 + 3*i
          local theta = i

          local x = R * math.cos(theta)
          local y = R * math.sin(theta)
          --local z = self.position.z

          local pos = self.position + util.vector3(x,y,0)

would say a bit easier than editing nifs on simple cases

animating with timers definitely hit the framerates, very probably

[cobalt token]

        local effect = core.magic.effects.records[core.magic.EFFECT_TYPE.FireDamage].areaStatic
        local model = types.Static.records[effect].model

     local t = 0

     local stop = time.runRepeatedly(function()
        t = t + 1
        for i= 1 , 100 do

          local R = 10 + 3*i
          local theta = i + t*15*3.14/360

          local x = R * math.cos(theta)
          local y = R * math.sin(theta)
          local z = theta*i*0.1

          local pos = self.position + util.vector3(x,y,z)

          core.sendGlobalEvent('SpawnVfx', {model = model, position = pos })
        end
        end, 0.2 * time.second)

there's the tornado cylindrical. note tho that this is somewhat expensive

[cobalt token]

first time needed to use functions a bit more for readability and use and worked quite well

ie. for making spell circle on castray hitpos out of vfx spawns.
this could be fine tuned still for using interiors altho getting the land height can be tricky one.
i think the timer runrepeat is the safest way of doning this for many spawns
and somehow.. i haven't figured out why, you can change the the position mid duration.
for shuffling function positions is script the sandboxing is kinda neat.
tho idk about local / global performnce hit.

have to get myself to fine tune also exixting ones
https://www.notion.so/Magic-circle-vfx-and-fatigue-loss-2d9c0a3cd26080a8ad21c6a13c4cc0fe

- 100 knockouts quite fast

for exteriors there's also the check for land height and water surface

         local z
          local land = core.land.getHeightAt(hitpos + rotate, self.cell)
            if land < self.cell.waterLevel then
              z = self.cell.waterLevel
            else
              z = land
            end

[lost brook]

Wow, didnt even know raising the magnitude of damage/drain fatigue actually made a difference to knockout speed 😮

Learning something new with you as always 🙌

[cobalt token]

well, it's simply
types.Actor.stats.dynamic.fatigue(self).current = types.Actor.stats.dynamic.fatigue(self).current - 100 😅
tho there's the point that knockout happens somewhere around 0
but the fatigue goes negative after that and need to raise above to stand up again

probably the damage / drain spells too tho

[lost brook]

No I mean the animation speed, with Devilish Sleep Script its -40 and the anim is like natural of the npc dropping down but in the vid you posted its like 3 times quicker 😄

[cobalt token]

must be camera angle or the video .p
having this with
anim.playQueued(self, 'knockout', { loops = 0, speed = 1 })

[cobalt token]

https://2e.aonprd.com/Spells.aspx?ID=2055

You unleash your qi as a powerful blast that deals 2d6 force damage. If you use 2 actions to cast qi blast, increase the size of the cone to 30 feet and the damage to 3d6. If you use 3 actions to cast qi blast, increase the cone to 60 feet and the damage to 4d6. Each creature in the area must attempt a Fortitude save.

Critical Success The creature is unaffected.
Success The creature takes half damage.
Failure The creature takes full damage and is pushed 5 feet.
Critical Failure The creature takes double damage and is pushed 10 feet.

how about this .?
the cone could be hard to do but knockback and simple vfx are doable. tho the question is how to charge the spell or taking some incredients from inventory... making 3 different spells is kinda clunky.
at least the spells are covered xD

[cobalt token]

and this might be good example shot altho a bit complicated but need timer
https://2e.aonprd.com/Spells.aspx?ID=2298

@lost brook can i mimic your line of sight code .?
i'm kinda loss in vector math on that.

[lost brook]

You are free to use any part of SHOPs code 🤝🙌

[cobalt token]

Thanks, i'll get back to this shortly. Need to write simpler ones and shuffle handlers better.
Got the water detection working altho the logic detecting if let's say only 1 of 8 points hold true flip the state while 7 of 8 doesn't.

things like stealing spells and common detection ways.
Then should handle some settings too.

Spells along the way xD

[cobalt token]

got the code to work.
didn't really understand the cosine so replaced it with this

local function is_in_cone(caster, target,  cone_angle_deg, max_range)

    local toPlayer = caster.position - target.position
    local distance = toPlayer:length()

    if distance > max_range then return false end

    local npcForward = caster.rotation:apply(util.vector3(0, 1, 0))
    local angleToPlayer = npcForward:dot(toPlayer:normalize())

    local cone_angle_rad = math.rad(cone_angle_deg)

    print(angleToPlayer)
    print( -1 + cone_angle_rad/math.pi )

    return angleToPlayer < -1 + cone_angle_rad/math.pi
end

this way you can have any angle from 0 to 360

[lost brook]

Yeah but the code I had was to make it detect only with NPCs eyes, if you know what I mean ^^ thats why there was cone view set to 170deg

First versions did have 360 but it wasn’t what I needed it to do

[cobalt token]

i'll put this as general case if don't mind 😅

preferens to you .?
