nova wasp
#

in C++ you can use if statements to see if something is NOT true to be clear

wary spade
#

did used it but it only gives netwrok context , not whether the execution is from server or client , what i want is if execution is of client then it should execute local functionality and if server then multiplayer (my current logic works good for dedicated and clients not working good for listen server host)

nova wasp
#

you want just do

if (GetNetMode() != NM_Client)
#

you have 3 different situations here though

#

listen servers also need local visual effects

#

you can use... more if statements

#

also keep in mind HasAuthority is not a magic thing that says if it's on a server, it says if you your LOCAL ROLE is authority. A non-replicaetd actor spawned by the client will have local authority

#

what actual object you can that on (and IsLocallyControlled) matters

#

GetNetMode is more "global" to the world itself

#

so you need to detail what the actual object this was called on is... what is this function on?

#

long story short when you have 3 different situations you need to check for two different things. Listen servers need to consider being BOTH a player in the game that visualizes things and the authority so of course they can't just use one check

wary spade
#

the function is inside subsystem though , my current setup is more contstrained to the execution flow , and the listen server host executes on server due to its setup so any replicated variable comes to its path it will be replicated

nova wasp
#

It is absolutely crucial you do not hide information when asking for netcode help...

wary spade
#

world subsytem

nova wasp
#

subsystems don't replicate, it doesn't have a meaningful local role

#

it's a uobject

wary spade
#

i know i do replication inside that passed in pointers for actors

nova wasp
#

that is why I asked "what the actual object this was called on" is

#

which actors are they?

wary spade
#

the main logic is executed from the replicated component from actor that i pass inside subsystem

#

the actor and all the thigs are replicated

nova wasp
#

what actor is that?

wary spade
#

it can be anything a generic actor though

nova wasp
#

a new actor for you game I assume? it can't be locally controlled unless it is a pawn etc

#

well, you can always just GetNetMode

#

listen servers

  • do replication
  • do visual stuff

clients

  • do visual stuff

dedicated server

  • do replication stuff
wary spade
#

wait wait , let me be clear ,
the actor is not controlled and mainly for visual , and the visual nees to be replicated and also be local based on execution flow , if server then replicate if not then execute locally , i pass the actor i want in subsytem

nova wasp
#

why would GetNetMode not tell the execution origin?

#

it says which net mode the world is on

#

"based on execution flow" is not meaningful, what is execution flow?

wary spade
#

if (Actor)
{
ENetMode _NetMode = UHelperFunctions::GetNetMode(Actor);

if (_NetMode == ENetMode::NM_Standalone)

{
ShowActor_Internal(Actor, bShow);
return;
}
}

if (Actor->HasAuthority()) // call multiplayer function only on server , if not server then call local functions
{
    UStateComponent* _ReplicationHandler = Cast<UStateComponent>(Actor->GetComponentByClass(UStateComponent::StaticClass()));

    if (!_ReplicationHandler)
    {
        return;
    }
    _ReplicationHandler->ShowActor(bShow);
}
else
{
        ShowActor_Internal(Actor, bShow);
}

}

this is my current code inside subsytem

nova wasp
#

GetNetMode is from a uworld, you don't need that weird helper thing in a world subsystem

#

it's literally just from the network driver listed on the world...

#

if it's just to save time I guess

wary spade
#

i know i create it so i can use it in bp

nova wasp
#

this function instantly fails if you pass in a locally spawned actor

#

also why not use

UStateComponent* ReplicationHandler = Actor->GetComponentByClass<UStateComponent>();
#

I don't see why you can just check for it being a client netmode and return

wary spade
nova wasp
#

remember that I am not using your computer, only you can see what is on your computer screen

#

great, that isn't the code I showed you

#

look at what I posted

#

it is not the same

#

I am using a template version that does this for you

wary spade
#

sorry , my mistake

nova wasp
#

if you are new to c++ you might want to do some c++ basics before unreal C++
(you seem to have figured out a lot on your own but it will help to know what you are looking at in case templates etc are confusing)

#
if (Actor)
{
    ENetMode NetMode = GetWorld()->GetNetMode();

    if (NetMode == NM_Client || NetMode == NM_Standalone)
    {
       ShowActor_Internal(Actor, bShow);
    }
    else if (NetMode == NM_DedicatedServer || NetMode == NM_ListenServer)
    {
     UStateComponent* ReplicationHandler = Actor->GetComponentByClass<UStateComponent>();
      if (ensure(ReplicationHandler)
      {
        ReplicationHandler->ShowActor(bShow);
      }
    }
}
#

also techncially

#

it's not really entirely insane to run replication code in standalone, because it might be tracked for replay code

#

in which case you would be checking for it being less than NM_Client (the highest enum value)

#

I also added an ensure here because I assume it's bad if this component is missing, if it's okay if it's not there then you can remove that, I don't know what it's really for

shrewd ginkgo
#

how can I create an anchor I dont know at all

nova wasp
meager spade
#

with Iris, if i put actors in exlusion filter for a connection, then allow that connection to begin recieving the replicated actors

#

any actors that dont netupdate, will never get to that connection

#

i cant seem to find a way to force all in that group to netupdate only to that one connection

nova wasp
meager spade
#

thing is, we need actors to only rep at a certain point

#

it cant be too early or things break

#

client needs to be ready for them

#

but i dont want to force all my dormants to replicate to all connections

#

that is the issue, the ones that dont arrive are dormant, but the ones that are not dormant, do arrive

#

the dormant ones i do get, are once where there has been a netupdate

#

which means, its def being removed from filtering, but those actors wont be sent to that connection

#

which is kinda odd

nova wasp
meager spade
#

we have a bunch of actors that must rep first

#

and these do rep just fine

#

our level is procderually generated

#

and these actors must be happen before we recieve others

#

so i split them into two groups

nova wasp
#

I'm trying to see if there's a way to manually mark MustBeMappedExports

#

and then suspend the packet read for them

#

basically iris can async load packages and then actually stall the packets for later

#

I wonder if it can be done for another actor reference showing up

meager spade
#

yeah

#

we use that

#

thing is, its odd that theres not a way to force actors to rep to a connection

#

when adjusting a group

#

cause thats a pretty useful feature of the group filtering, to pretty much say "dont rep these yet, till i need them"

nova wasp
#

It looks like it does dirty some things per-connection for baselines... I don't know which one is the most ideal here

meager spade
#

but they wont rep if they are dormant

#

(if you skip the initial bunch)

nova wasp
#

baselines are certainly per-connection of course but dirty tracking seems to be per system?

meager spade
#

hmm

nova wasp
#

I'm wondering if you can basically pretend a network root is a subobject of another

#

I don't know if that would break some promise the bridge makes

#

otherwise it's engine changes needed for the replication reader

meager spade
#

i dont mind engine changes

#

just not sure what the best approach is here

nova wasp
#

well, to suspend an incoming packet you can basically jury rig your own conditionals on top of the pending async setup but I think this feels more like it requires something baked into the packet

meager spade
#

iris still uses the actor channels right

nova wasp
#

I don't know what the exact indicator here that you are receiving something too early

nova wasp
meager spade
#

i block them entirely

#

ill show you

#
    if (GetWorld()->GetNetMode() < NM_Client && !IsA<ARegionPointActor>())
    {
        UReplicationSystem* const ReplicationSystem = UE::Net::FReplicationSystemUtil::GetReplicationSystem(this);
        if (ReplicationSystem)
        {
            const UEngineReplicationBridge* const ReplicationBridge = UE::Net::FReplicationSystemUtil::GetActorReplicationBridge(this);

            const UE::Net::FNetRefHandle RefHandle = ReplicationBridge->GetReplicatedRefHandle(this);
            UE::Net::FNetObjectGroupHandle Handle = ReplicationSystem->FindGroup("DominanceNetworkMapActors");
            ReplicationSystem->AddToGroup(Handle, RefHandle);
        }
    }```
nova wasp
#

unless you modify the reader directly on clients you can't really block things

meager spade
#

we add these to this group

#
InitIrisFiltersWithRepSystem(UReplicationSystem* ReplicationSystem)
{
    if (!bCreatedFilter)
    {
        /// 1. Create new Group (no name for this test).
        const UE::Net::FNetObjectGroupHandle GroupHandle = ReplicationSystem->CreateGroup("DominanceRegionPoints");
        const UE::Net::FNetObjectGroupHandle GroupHandleWorldMap = ReplicationSystem->CreateGroup("DominanceNetworkMapActors");

        /// 2. Add as ExclusionGr0oup. Will cause all Connections to be disallowed by default.
        ReplicationSystem->AddExclusionFilterGroup(GroupHandle);
        ReplicationSystem->AddExclusionFilterGroup(GroupHandleWorldMap);

        bCreatedFilter = true;
    }
}```
#

we set them to excluded by default

nova wasp
#

I wonder if reliables would be a good way to just cheese this

nova wasp
meager spade
#
    UReplicationSystem* const ReplicationSystem = UE::Net::FReplicationSystemUtil::GetReplicationSystem(this);
    if (ReplicationSystem)
    {
        const UE::Net::FNetObjectGroupHandle GroupHandleWorldMap = ReplicationSystem->FindGroup("DominanceNetworkMapActors");
        const uint32 ConnectionId = GetNetConnection()->GetConnectionHandle().GetParentConnectionId();
        ReplicationSystem->SetGroupFilterStatus(GroupHandleWorldMap, ConnectionId, UE::Net::ENetFilterStatus::Allow);
    }```
#

yeah

#

then the only ones client get are any that do a netupdate :/

nova wasp
#

I am curious about what happens if you update a net condition

meager spade
#

hmm

#

im pretty sure it does nothing

#

just sets the bit

#

then wont rep if the condition is not met

nova wasp
#

SetReplicationConditionConnectionFilter calls InvalidateBaselinesForObjectHierarchy

#

InvalidateBaselinesForObjectHierarchy is per connection

meager spade
#

but this will require me to get all handles

#

for everything in that group

nova wasp
#

but yeah I am mostly familiar with the reading side... I am mostly trying to find per-connection calls in the api

nova wasp
#

not sure if you can get handles out of a filter easily though

meager spade
#
        for (AXX* NetworkedActor : TActorRange<AXX>(GetWorld()))
        {
            if (NetworkedActor && NetworkedActor->GetIsReplicated() && NetworkedActor->NetDormancy > DORM_Awake)
            {
                GetNetConnection()->FlushDormancy(NetworkedActor);
            }
        }``` will see if this works
#

cause its on the netconnection

nova wasp
#

I'm curious if FNetRefHandleManager::GetCreationDependencies could be bodged to include the other netref

#

this way the actual packet would know

#

ah, this won't work because it NEEDS the parent to be there or breaks the packet (or does it, not sure actually... )

meager spade
#

i just need a simple working solution for now i can circle back to this when time is less pressured

#

if the above code works, then its fine for now

nova wasp
#

oh shit, UObjectReplicationBridge::AddDependentObject is public and exported

#

no gaurantees what will happen here I guess

nova wasp
#

you can add new custom root network objects this way that aren't actors

#

it's not really interesting for this unless you can embed more info into the packet somehow

#

as it's only really used for creation/destruction

meager spade
#

ill circle back to it in the future

hoary timber
#

can I somehow increase connection timeout time?

nova wasp
#

it should be possible to modify from the ini

hoary timber
#

yeah

nova wasp
#

in UNetDriver::InitBase it also parses the url for an extra ConnectionTimeout option

hoary timber
#

thanks, let me have a look!

nova wasp
#

there's also InitialConnectTimeout which is in the same place

#

for example

; engine ini:
[/Script/OnlineSubsystemUtils.IpNetDriver]
InitialConnectTimeout=10.0
#

are you seeing people dc from having bad connections?

hoary timber
#

it's not a common issue afaik, but happened to one of our playtesters today, everything points that it was a connection drop yeah

nova wasp
#

did the server log a packet serialization issue? (or the client?)

hoary timber
#

not sure tbh, they will send all the logs later

marble lodge
#

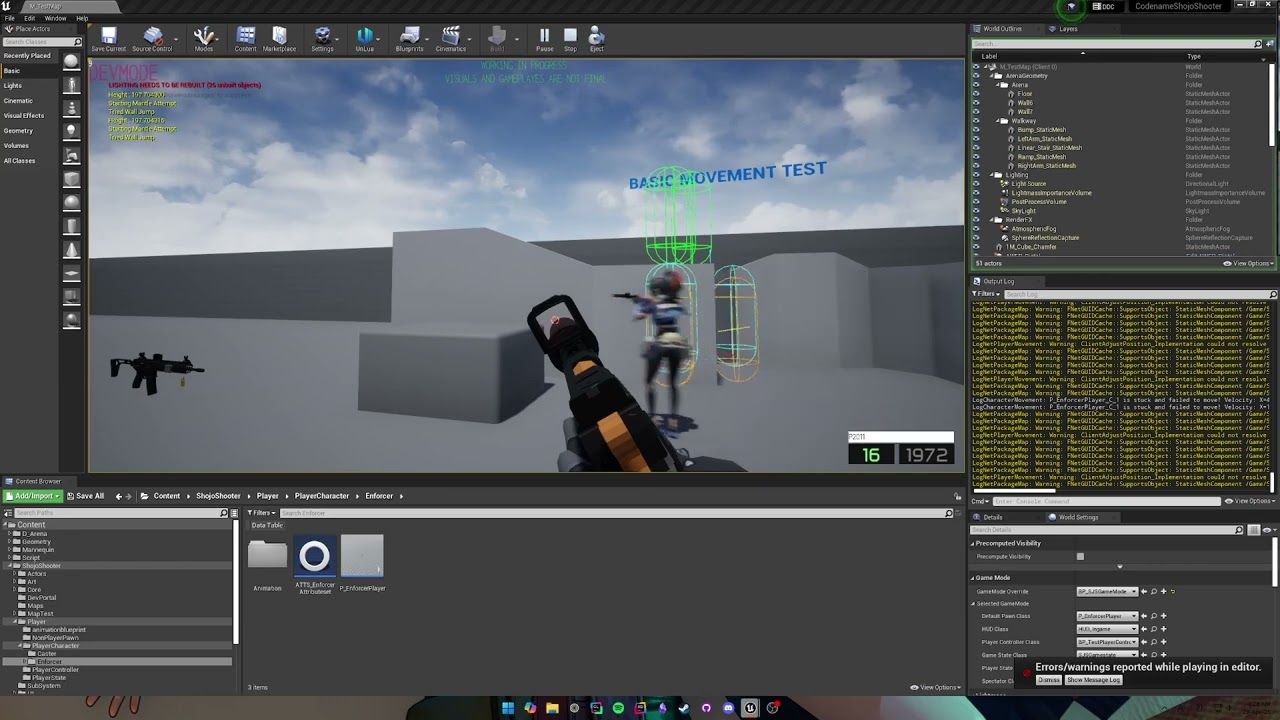

https://youtu.be/mb3QcGDW3LI

I got the problem in mantle logic in CMC prediction, the character root motion won't mantle over the wall, it moves to the hanging position - the blue sphere on the wall but won't make in the top of the wall and keep falling on the orignial position. My assumption is

  1. is that try mantle replicate wrong? and keeps server back to the previous position?
  2. absence of the root motion in animation cause that problem? some of the montage movement won't work with out rootmotion and back to the orignal place. I asked my fren to make the root motion in the mantle animation rn.

I got everything I can do on my cmc but no result, no joy. maybe I am not smart to make that tbh.

YouTube
RamGii
2026 04 29 08 27 45
โ–ถ Play video
#
void USJSCharacterMovementComponent::UpdateCharacterStateBeforeMovement(float DeltaSeconds)
{// Try Mantle
    if (OwnerCharacter->bPressedCustomJump)
    {
        if (TryWallJump())
        {
            OwnerCharacter->Jump();
            DEBUG_SLOG("WallJump")
        }
        else if (TryMantle()) // Mantle successful
        {
            OwnerCharacter->StopJumping();
        }
        else // Regular jump
        {
            OwnerCharacter->bPressedCustomJump = false;
            OwnerCharacter->bPressedJump = true;
            OwnerCharacter->CheckJumpInput(DeltaSeconds);
        }
    }

    if (SafeTransitionFinished)
    {
        if (TransitionName == "Mantle")
        {
            if (IsValid(TransitionQueuedMontage))
            {
                auto FinalRMS = MakeShared<FRootMotionSource_MoveToForce>();
                FinalRMS->AccumulateMode = ERootMotionAccumulateMode::Override;
                FinalRMS->StartLocation  = UpdatedComponent->GetComponentLocation();
                FinalRMS->TargetLocation = MantleFinalTarget;
                FinalRMS->Duration       = FMath::Clamp(FVector::Dist(MantleFinalTarget, FinalRMS->StartLocation) / 500.f, 0.1f, 0.4f);
                FinalRMS_ID = ApplyRootMotionSource(FinalRMS);
                SetMovementMode(MOVE_Flying);
                CharacterOwner->PlayAnimMontage(TransitionQueuedMontage, TransitionQueuedMontageSpeed);
                TransitionQueuedMontageSpeed = 0.f;
                TransitionQueuedMontage      = nullptr;
            }
            else
            {
                SetMovementMode(MOVE_Walking);
            }
        }
        TransitionName         = "";
        SafeTransitionFinished = false;
    }

    Super::UpdateCharacterStateBeforeMovement(DeltaSeconds);

}
#
void USJSCharacterMovementComponent::UpdateCharacterStateAfterMovement(float DeltaSeconds)
{
    Super::UpdateCharacterStateAfterMovement(DeltaSeconds);

    if (GetRootMotionSourceByID(TransitionRMS_ID) && GetRootMotionSourceByID(TransitionRMS_ID)->Status.HasFlag(ERootMotionSourceStatusFlags::Finished))
    {
        RemoveRootMotionSourceByID(TransitionRMS_ID);
        SafeTransitionFinished = true;
    }

    if (FinalRMS_ID >= 0)
    {
        if (auto RMS = GetRootMotionSourceByID(FinalRMS_ID))
        {
            if (RMS->Status.HasFlag(ERootMotionSourceStatusFlags::Finished))
            {
                RemoveRootMotionSourceByID(FinalRMS_ID);
                FinalRMS_ID = -1;
                SetMovementMode(MOVE_Walking);
            }
        }
    }
}

this might be the everything releated on my mantle logic but not sure it is enough.

honest bloom
#

I'm having an issue where join session seems to work, but there a Network Failure : Connection Timeout... ... UniqueId: INVALID before travel shows on screen, so the main menu gets reloaded

This happens only when I check LAN
otherwise, everything works great

Any thoughts where I could dig ?

latent heart
#

Are you trying to connect to your internet ip through lan or something?

honest bloom
#

@fossil spoke

honest bloom
# latent heart Are you trying to connect to your internet ip through lan or something?

Hmmm .. I'm not sure that's the case
this is my code

void UMultiMayhemGameInstance::HandleJoinSessionCompleted(FName SessionName0, EOnJoinSessionCompleteResult::Type Result)
{
    const IOnlineSessionPtr Session = Online::GetSessionInterface(GetWorld());
    if (Result == EOnJoinSessionCompleteResult::Success)
    {
        UE_LOG(LogTemp, Log, TEXT("Joined session."));

        FString JoinAddress;
        Session->GetResolvedConnectString(NAME_GameSession, JoinAddress);
        if (JoinAddress.IsEmpty()) { return; }
        APlayerController* PlayerController = UGameplayStatics::GetPlayerController(GetWorld(), 0);
        PlayerController->ClientTravel(JoinAddress, TRAVEL_Absolute);
    }
    Session->ClearOnJoinSessionCompleteDelegate_Handle(JoinSessionDelegateHandle);
    JoinSessionDelegateHandle.Reset();
}
#

I tried ClientTravel("127.0.0.1:7777", TRAVEL_Absolute);
but it didn't help ๐Ÿ˜„

latent heart
#

Shrug. I'd check which port/ip combo it's listening on.

honest bloom
#

Alright, thanks !
I'll dig down there

spark pilot
ashen plume
#

this is a stretch, but im setting movement values for underwater walking and falling instead of swimming, for a character that doesnt swim

ive handled most of the switchover, like checking off "can swim" for the nav agent properties, and having an underwater flag in my saved moves for the various movement value changes (as good measure even though it seems to work with or without), im still using physics volumes checked as fluid volumes and using that to discern whether to use in-water values or not

before testing, is there anywhere else I need to look at for this? also not sure about in the PhysicsVolumeChanged function, the ai tells itself if it cant swim to call OnUnableToMove

kindred widget
#

@spark pilot@keen geyser There's a no promotions rule, outside of their designated channels as well as a stay on topic rule. You're in a multiplayer channel selling yourselves as artists.

There is an #introductions channel, and an #artist-hangout #1054845177509974107 and #1054845120236757103.

Which both of you know, since you spammed nearly every other channel with your self promotion.

spark pilot
ashen plume
blazing bear
#

Hello, any idea what I can do about the lag when rushing through a door being opened?

The door has a collision, which when disabled allows the player to move through it. Basically what's happening is if the player is trying to run through the door's collision while it's still enabled (the door is still not fully open), then the moment the door finishes opening and so its collision is disabled on the server, the pawn moves through the door but on the client it hasn't moved yet cause the collision is disabled later (no client side prediction) which makes the server correct the client and so cause the lag you see in the video.

Of course none of this happens if the client doesn't try to rush through the door while it's still being opened, as in waits for it to open first, then move.

I think there is nothing that can be done about it but thought I'd ask.. The project isn't PvP or anything like that.
Edit: Probably my best bet is to design interaction in a way that the player can't both rush the door and open it at the same time. Like a button on the side that opens the door, as seen in SOMA

clever hound
#

When I use a shipping, distribution linux dedicated server. The cpu usage can sometimes start peaking at 3GHz to 6GHz and completely make the server stop working.
But when I use development, non distribution build everything works fine, no peaks and usage climes naturally when players join and leave the server.
Whyyyyy.....

#

I meant to just check the issue with the development build logs but it just made the whole peaking issue go away and now it seems like I have to stick with this.

nova wasp
#

or just turn off server corrections altogether

blazing bear
nova wasp
#

you could significantly reduce the chances by having the idea of opening the door be sent a little bit before it actually opens on the client

blazing bear
#

idk if turning off server corrections would result in the client being permanently off the correct position in the server or not. I spent a lot of time making stuff client predicted instead of turning off server corrections

nova wasp
#

it's not a lockstep sim, you would just tell the server where you are

#

you can also turn off corrections for a temporary period

blazing bear
#

oo okay, I'll try that, might be good

nova wasp
#

going full client authoratative requires setting GameNetworkManager to have ClientAuthorativePosition = true

#
;game ini
[/Script/Engine.GameNetworkManager]
ClientAuthorativePosition=true
blazing bear
#

thanks a lot

nova wasp
#

for obvious reasons this means clients choose where they are

#

this gets used in UCharacterMovementComponent::ServerShouldUseAuthoritativePosition

#

note how you can make it a per-cmc field

#

bIgnoreClientMovementErrorChecksAndCorrection etc

#

this does invite the problem of the client saying they are like, inside the door which might make them depenetrate it on the server if it does a partial sim locally still

blazing bear
#

ahh I see

#

well I'm kinda reluctant on doing this cause I already spent a lot of time learning cmc to make stuff lag free, I think I'll leave client authority movement as a last resort

#

might bring more problems than it solves

nova wasp
#

well, you could try embedding the door state into saved moves somehow

#

I forget if you can easily send references in a saved move...

blazing bear
#

hmm I'll look more into it

nova wasp
#

ah, FCharacterNetworkMoveData already includes a reference to the movement base so I imagine a door would not be a big difference

blazing bear
#

Ooh this is awesome! Thanks so much, I'll check it out and give it a good read when I get back to it, you nailed it

#

Seems to be all I needed

nova wasp
#

fwiw I think embedding the door into the move data is a bit zany and might get weird with characters fighting over if the door is open (you would probably need to apply it temporarilly on the server and store the known state?)

#

I'm not super confident on that idea I guess

blazing bear
#

yeah I agree, probably won't do that but the article you linked has some really good stuff, should help and if not, I still got some other ideas I wanna try out

rocky pike
#

Guys what's the max number when hosting using listen server in unreal engine

nova wasp
#

do not use unreal for an mmo, it scales per connection

#

if you plan on having more than a dozen or so players running around you will need to be extremely careful with server perf depending on what it is actually doing

#

there are plenty of commercial unreal games with 60 or so but it is going to require not making mistakes to run at a decent tickrate

#

you can't really control when rpcs arrive so I would expect a listen server with a lot of remote cmcs to be a bit of a struggle

rocky pike
#

Any documentation

#

My target is at least 30-40 if possible

#

Is there a plugin required etc

nova wasp
plucky prawn
rocky pike
#

I had a rumor that max is 10 out of the box

nova wasp
#

the server has to pay the cost of serializing objects that are dirty for each connection

#

and receiving server rpcs

#

this might also mean polling for dirtiness if you are not using pushmodel

plucky prawn
#

So what I'm saying is that for the small price of a data center I could use unreal engine for my MMO

plucky prawn
nova wasp
#

it is designed for sending stuff to each connection

#

and considers them separately

plucky prawn
#

Nah that was /s. I thought that was implied

nova wasp
#

oh, sorry

plucky prawn
#

It's ok just don't make this mistake again||/s||

nova wasp
#

I'm on thin ice.. ๐Ÿ˜›

rocky pike
#

I just want to clarify....out of the box is there a limit...if not...is extra work needed plugins etc...if so which

sinful tree
#

There really isn't.

nova wasp
#

you are not going to find a plugin that magically makes your unreal game faster, you need to be aware of how to not make your game super slow

sinful tree
#

The limit is basically the number of player indicies, which would be like 2.something billion

nova wasp
#

you are making the game

#

you choose what happens

rocky pike
sinful tree
#

Realistically, you're not going to get anywhere close to that number

plucky prawn
nova wasp
#

there isn't a hard limit in regular numbers, the limit is how much you can do each frame

#

if you have to tick 20k things in a frame and it takes so long the game is unplayable, it's not some magic limit

sinful tree
#

Think of it like this... Imagine having 2 billion players on a server. You need to replicate a single bit.... You have to replicate a byte.... That means 2 billion bytes would have be replicated in that one frame ๐Ÿ˜„

nova wasp
#

I'm sure there's some connection limit somewhere but it's completely beside the point to think about, the actual limit is what the server can actually do with the bandwidth and cpu time constraints it has

#

for a listen server the client is running the game AND RENDERING IT

#

so they have to simulate almost everything and then send out new packets at the end of the frame

#

if a dedicated server runs at 30hz it's a bit sad but it's livable... a listen server running at 30hz would be very difficult to justify for example

plucky prawn
#

Another dumb question but dedicated server tickrate is configurable right?

nova wasp
#

yep

#

the only real big weird restriction dedicateds have is that they are mostly hardcoded to run on a single thread

#

because generally speaking server providers give you a core

#

I'm not sure if that is possible to work around, I imagine it's probably a macro somewhere

#

I don't know if they are forced to be a ficed tickrate or not but it's generally going to be in your best interest to not waste server perf

plucky prawn
#

So the lowest tick rate you can play with?

nova wasp
#

for some games the server being slow as hell might not really matter much at all

#

for example many MMOs are mostly simulating movement locally with the server not doing a lot but checking to make sure you aren't speedhacking (and like, spells etc)

#

iirc the original WoW servers were... 2fps

#

that would be brutal with the unreal setup though

sinful tree
#

I know of one Unreal Engine MMO - TERA Online - and I think it was made back in UE3. It also had limited area of relevancy for actors.

I'm pretty sure it's actually custom netcode though, since you seem to transition to between "zones" and people will appear and disappear rather than staying with you through the transitions despite it being seemless for you, suggesting that in the background you're actually connecting to some other server and it has to re-negotiate what is around you, and the world is designed in such a way that enemies normally aren't around those transition points. There was also channels if I remember right, so your character data would belong to a shard, and you would move between different game servers for any specific zone, and if the location was busy, there would be additional channels (read: more servers) that you could switch to.

dark parcel
#

blade and soul also use UE. Ofc custom net code.

nova wasp
#

yeah I suppose it's worth noting you could roll your own

ruby lake
#

to use push model, i need to build with source? cause i need to modify the target with bWithPushModel = true; right?

loud drift
#

Hello is there anyone here that's had success with multiplayer that would potentially be down with assisting me in a VC? I'm currently attempting to use advanced subsystems and steam p2p with no luck

devout dagger
#

Iโ€™m having some replication problems with my Niagara system. AI has told me that a gameplay cue is the right tool to use for VFX replication.
Can anyone confirm that this is best practice when working with GAS?

haughty ingot
exotic wasp
meager spade
#

UE Multi replication server exists now

#

for games that want to have multiple servers with diff zones, etc

#

iirc

#

"Description": "Code to help facilitate connecting multiple UE server processes to each other.",

#

"FriendlyName": "Multi-server Replication",
plugin

#

so you could have diff servers for diff areas

exotic wasp
#

That's what most MMOs do anyway

#

Single server isn't feasible for large player counts

polar cliff
#

I recently started playing ARK Ascended instead of Evolved and I noticed that Ascended now has client authoritative movement, so buggy. :/ Evolved was great in general when it came to movement. I can only imagine someone working there couldn't fix or implement something movement related and so made the whole thing client authoritative to be done with it

exotic wasp
#

Seems ripe for cheating

halcyon ore
polar cliff
#

Evolved doesn't

kindred widget
polar cliff
halcyon ore
#

I never had movemenet issues in either version.
At least in regards to lag.
But, just about everything else is laggy, and can get glitchy.

kindred widget
#

I'll pass. I've already resolved never to support that shithole company again, even if they made the game flawless. They can take their business practices and burn it along with their shit game code.

polar cliff
#

You also can't move when a boat is being driven anymore on Ascended, in Evolved you couldn't jump but that's about it xD

halcyon ore
#

I do that all the time, on ascended, without issue

polar cliff
#

Really? Hasn't been the case for me. Playing with my friend, if I'm driving the boat, he has to stay still if he doesn't wanna get launched off

halcyon ore
#

I do it all the time when spectating, while invisible.
Just walk around, and look at stuff.
Else, the boat just constantly out runs any form of camera mode.

polar cliff
#

You're talking about in multiplayer with someone else driving the boat right?

#

the raft at least

halcyon ore
#

We are on a pretty beefy dedicated machine.
So, maybe thats how/ why it has no issues?

But, yes. Who else would I be spectating? ๐Ÿ˜›

polar cliff
#

Haha but yeah it could be the machine? The server I'm in is quite populated, about 20 online iirc

#

maybe the server itself is slow xD

halcyon ore
#

We have like 50 on the regular.
But, we've run like 4 servers at the same time on the 1 machine, without much issue.

polar cliff
#

I should try the boat thing again maybe it's fixed maybe it was the server lagging at the time idk, if I catch it lagging again I'll clip it

halcyon ore
#

The only real movement annoyance I kind of uniquely run into, is trying to board a moving raft.
But, thats cuz I need to land on the server version, and not the delayed client version I see.

polar cliff
#

How long do server saves take for you?

#

On the server I'm at it takes a solid minute or two

halcyon ore
#

1.86 seconds.
and, we have some crazy like 500k structures placed?

polar cliff
#

am I on the slowest possible server... lol

halcyon ore
#

Sounds like Nitrado. ๐Ÿ˜›

polar cliff
#

they said the server is one of the fastest unofficial servers but hey I got no idea about their specs or hosting provider I should check lol

halcyon ore
#

lol
Found 304528 structures.
Found 183155 items.
Found 693 tamed dinos.

polar cliff
#

Server completely trusts the client's position after a save finishes, I could be 500 meters away from where I was and I can continue just fine heh

#

which comes with a huge jitter lag after a save sometimes where I'd be snapped forwards and backwards for like 30seconds until I can move again

halcyon ore
polar cliff
halcyon ore
#

Oh, yeah.
Thats just a crappy ah server

polar cliff
#

this is very mild compared to what I usually get

halcyon ore
polar cliff
#

either that or the server is just super cramped with stuff, idk how many objects and dinos are on the server tho

polar cliff
#

I imagine it's the same with the vanilla boats?

halcyon ore
#

That is a vanilla raft, just with stuff built on it

polar cliff
#

Oh the Astreos dlc?

halcyon ore
#

No?

polar cliff
#

What boat is that then? As far as I know there is only a wooden raft and a motorboat, and that's not a wooden raft on the video

halcyon ore
#

Its raft with structures built on it.

#

Which ARK has always had

polar cliff
#

Yeah but I've never seen some of these structures, dunno if you're using mods or cosmetics

halcyon ore
#

Oh, yeah the structures are modded.
But, that doesn't mess with like networking of walking on stuff.
Not like the net code is any different for walking on a modded floor

polar cliff
#

Oh yeah that I know for sure, I was just wondering cause it looked way off from vanilla

halcyon ore
#

Oh, yeah.
Thats why.
99% of the stuff on our server is modded to heck

#

The only thing vanilla is the main/ primary resources and stuff. ๐Ÿ˜› (wood, fiber, thatch)

polar cliff
#

cool cool!

halcyon ore
#

You must got that server running on a Raseberry Pi or something goofy.

polar cliff
#

haha no idea it's an unofficial public serv

cinder quartz
#

Hey, I need some serious help

#

I'm trying to access a spawned actor's owner as soon as possible

#

Issue is, I tried to run an initialize logic at all possible stages, even PostNetInit, and NOTHING. The Owner is always null for the client.

short arrow
cinder quartz
short arrow
#

the owner is a reference, if the reference is not replicated to the client for whatever reason then it'll be null

cinder quartz
#

THe issue is

#

The owner eventually IS assigned

#

I check the actor data and the Owner will always be correctly set up...
But not by the time I try to run initialize data.

#

So I'm fighting to find a place where the owner has been reliably established on all players

short arrow
#

I think owner is a variable in unreal engine, I wonder if it has a repnotify connected to it somewhere in c++

but is there any reason you can just keep checking until the owner is valid and then do what you need to do?

cinder quartz
#

I already used:
OnRep_Owner
PostNetInit
PostRepNotifies

cinder quartz
short arrow
#

OnRep_Owner returns a null owner reference but then later becomes valid without the repnotify firing again?

cinder quartz
#

It looks like so.

short arrow
short arrow
#

the server might be sending a reference to the owner that doesn't exist yet on the client

cinder quartz
#

That's not it

#

I thought it was that, but I ran some more debugging with different conditions, using an owner that already existed in client instead

#

The same thing happened, exactly.

#

So my guess is, the actor spawned on server gets its Owner data replicated at a later point for the Client

short arrow
#

That doesn't really make sense to me, I would see if the same issue happens when you try to replicate some other test variable. Doesn't make sense that Owner would mysteriously be delayed like that. I do still double down though on what I said early. A simple timer to continuously check that Owner has been initialized is quite efficient and just fine

#

I'm gonna do some testing on my side too to see if the same issue happens to me

#

It's not uncommon to use timers to wait for something to be valid if the time it arrives can't be gauranteed (which is the case for any replicated variable)

cinder quartz
#

I guess, I'm just worried because this is the weapon equipment

#

Weapons are to spawn and initialize when swapped to

short arrow
#

this shouldn't be a problem, infact I doubt it'll drop your fps by a single frame even if you checked the owner was valid every frame

cinder quartz
#

Yeah but it would still make the weapon inactionable for a duration

short arrow
#

that duration should be resolve in milliseocnds, usually long before the time it would take to finish the gun swap animation

#

unless owner is taking an unusually long time to initialize

cinder quartz
#

Can I make the timer last for a tick on logic rather than a server / client tick?

short arrow
#

I don't think the server would ever need to do that check just the client. It sounds like you're spawning the gun every time the player swaps to the weapon

cinder quartz
#

Yeah that's waht happens

short arrow
#

if that's the case then on beginplay you just need to check every frame if the owner is valid before finishing the initialization

cinder quartz
#

And yes, the server gets the owner no fail

short arrow
#

then most likely the server will never run that loop. Don't worry so much about optimization. Get it working first and see how it feels. You can use stat fps to see if that owner check every frame is causing any problems

#

and if it is (which I know it won't) then you can look into better optimizations

#

you could do this owner check on 1,000 weapons and I bet you still wouldn't see -1 frame lost

#

-# assuming you're using c++

cinder quartz
#

Okay, this is actually bizarre...

#

BeginPlay has all that data???

#

@short arrow It was all on begin play.

#

The last place I would use

#

I have no idea why but, it's the only one that seems reliable.

#

... and now it doesn't work, yeah

short arrow
cinder quartz
#

I use a mix

#

But mostly c++

short arrow
#

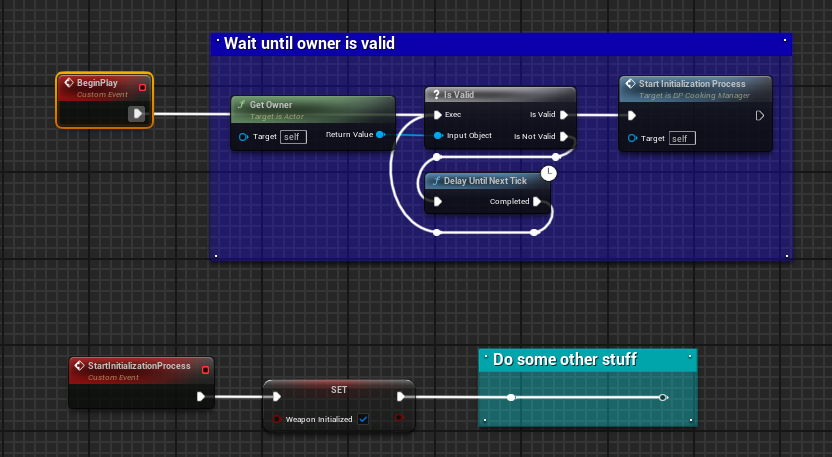

all you have to do is just keep checking until the owner is valid, and then continue with whatever you need to do

#

it should only take a few milliseconds

cinder quartz
#

I did this instead on Initialize

    if (CurrentOwner == nullptr)
    {
        GetWorldTimerManager().SetTimerForNextTick(this, &ADulceWeaponActor::InitializeWeapon);
        return;
    }
short arrow
#

exactly that's perfect

cinder quartz
#

I don't love doing it on delay when this has to be spawned each time...

#

Hmmm... However, outside of player spawn it seems to work

#

And it behaves more as a failsafe.

#

So in normal gameplay the weapon you swap to SHOULD get its owner cleanly.

#

Okay, it works...

#

And most importantly...

#

The delay is only required on loading the level for the first time.

#

And spawning a weapon to an already initialized actor costs no delay

#

So the only performance cost is a few frames on the loading screen...

cinder quartz
#

@short arrow Hey, thanks for tips. It's been massively helpful and I think I figured out a lot, even managed to make a giant step.

verbal ice
cinder quartz
#

I still have issues to iron out with the PlayerState on loading the levle though

verbal ice
#

I would just have the owner notify the weapon when it's available (i.e. beginplay)

#

It'll be a lot more resilient since there's no guaranteed order

cinder quartz
#

So like, spawn actor deferred and run a function?

#

I did a different approach now though

#

I run the initialize on literally every OnRep and net update function that communicates to client that I thought would help

#

And begin play Iguess

#

So it just tries to initialize until all data is there

#

And it works like a charm for most scenarios. Problem is however, the level load side of it.
I need to find a way to make the player pawn spawn in spawning this actor, but THAT early for the client, the Player Pawn cannot be accessed from the player state...

nova wasp
#

if it works it works I guess, better than a single delay

short arrow
nova wasp
#

I would prefer a breakpoint on a watch window showing the onrep_owner is actually invalid

#

there are definitely times when a one-frame delay is just infinitely easier for sure though

slate phoenix
#

I have a BP_CrackOverlay actor with 6 Decal Components (Top, Bottom, Front, Back, Left, Right). I spawn them on top of the block, but only 2 sides appear correctly; the other 4 sides show solid black lines. How should I adjust the Decal rotation values? Decal Size is 50, 50, 50, and the block is 1 cubic meter.

Or is there a better solution?
I'm showing the codes in the video.

halcyon ore
#

Yeah, that just wrong rotation, cuz it just projects the decal at whatever rotation.
If its wrong, then it just draws 1 little slice of the material (thus your lines)

I suggest making the decals visible in the components tab, then just mess with the rotations.
Or, with your setup, you kinda just gotta change rotation, check, change, etc

void acorn
#

Hi, I'm having crash with untouched TPS template project, I use cli to launch dedicated -sever, but on join request from client (-game) [UE5.7.4]
Assertion failed: CurrentApplication.IsValid() [File:Runtime/Slate/Public/Framework/Application/SlateApplication.h] [Line: 321]
can't find any infos, has someone an idea ? thanks

topaz verge
#

I have the following problem:
UE 5.7.4, EOS with OSS, basic creating/ Finding/ joining. with a listen Server!
each of those methods have their delegates, which are being fired.

in createSession I do change to a map with ?listen.
and in the logs I also get LogNet: Name:GameNetDriver Def:GameNetDriver IpNetDriver_27 IpNetDriver listening on port 7777

findSession also finds sessions. (I can also see them in the dev portal)

and Join sessions, at least online in the dev portal, I can see players join

The problem is now with the client travel after join.
I want the second client to join the host on the same map. but it only gets transferred to the default map, in the project settings.

IOnlineSubsystem* const subsystem = Online::GetSubsystem(GetWorld());
const IOnlineSessionPtr sessionInterface = subsystem->GetSessionInterface();
FString connectString;

if (sessionInterface->GetResolvedConnectString(NAME_GameSession, ConnectString))
{
        playerController->ClientTravel(ConnectString, TRAVEL_Absolute);
}

I also printed out the connectionString and it always has a :0 after the IP or the EOS lobbyID.
I think this is the error, since it tries to travel to IP:0/pathToMap

Does anyone have any clues on how to resolve this issue?

edit: FIXED
I now use EOS lobbies
And apparently I used IPNetDriver instead of the EOS ones.

I found out by making the same project in 5.5 and upgrading it to 5.6 and 5.7 to find out.
Basically in DefaultEngine.ini in 5.7.4 writing the following fixes it somehow.
(which I did not had in my other copy in 5.7 which worked... but I will not question it)

[/Script/Engine.Engine]
!NetDriverDefinitions=ClearArray
+NetDriverDefinitions=(DefName="GameNetDriver",DriverClassName="/Script/SocketSubsystemEOS.NetDriverEOS",DriverClassNameFallback="/Script/OnlineSubsystemUtils.IpNetDriver")
+NetDriverDefinitions=(DefName="DemoNetDriver",DriverClassName="/Script/Engine.DemoNetDriver",DriverClassNameFallback="/Script/Engine.DemoNetDriver")

[/Script/Engine.GameEngine]
!NetDriverDefinitions=ClearArray
+NetDriverDefinitions=(DefName="GameNetDriver",DriverClassName="/Script/SocketSubsystemEOS.NetDriverEOS",DriverClassNameFallback="/Script/OnlineSubsystemUtils.IpNetDriver")
+NetDriverDefinitions=(DefName="DemoNetDriver",DriverClassName="/Script/Engine.DemoNetDriver",DriverClassNameFallback="/Script/Engine.DemoNetDriver")[/Script/OnlineSubsystemEOS.NetDriverEOS]
bIsUsingP2PSockets=true
shrewd ginkgo
#

I tried to use a physics constraint between the capsule and the mesh to stop ragdoll bodies from flying away and keep them consistent when I simulate physic in multiplayer, but itโ€™s not working.

slate phoenix
limber gyro
#

is there a way to see position diferences between the client and server when you simulate lag?

nova wasp
limber gyro
#

i assume i cant just do "getActorLocation"

#

or can i?

#

oh nvm, i thi i get what you mean, u just send the raw position in an rpc and draw that, but with packet lag wont that info reach only when the character is already there?

#

also sending every frame is probably gonna mes with the rpc buffer no?

nova wasp
#

when drawn on the dedicated server it sends it to the other clients

#

but for a listen server I guess you can use the other methods I outlined

#

like visual logging etc

nova wasp
tardy fossil
#

anyone use net filters for iris before? i got a really strange issue.. i'm using a custom UNetObjectFilter class to delay spawning actors per client until certain conditions are met.. and it works like its supposed to.. for awhile.. but after like 24 hours of the server running it just stops filtering and the actor spawns go through right away..

my filter function is super simple so im not sure why it stops working after awhile..

{

    if (ConnectionReadyInfos[Params.ConnectionId].bIsReady)
    {
        Params.OutAllowedObjects.SetAllBits();
        return;
    }
    Params.OutAllowedObjects.ClearAllBits();
}```
devout dagger
#

Im trying to make a laser that replicates through GAS. I have the line trace working great. But I canโ€™t figure out how to actually replicate the vfx. Has anyone done this? Or have any advice?

shrewd ginkgo
#

I tried to use a physics constraint between the capsule and the mesh to stop ragdoll bodies from flying away and keep them consistent when I simulate physic in multiplayer, but itโ€™s not working. What did I do wrong?

random wave
#

both works fine on client but player2 cant see the flashlight moving for player 1 what is going on in here?

image.png image.png
exotic wasp
#

Client RPC is only going to execute on the client that has ownership of the actor

#

If you're calling a server rpc that then calls a client RPC, it'll just be whoever called the server RPC

#

If you want others to get the RPC, you need to use a multicast. But I really want to emphasize that's the wrong thing to do here regardless

#

It's best to use a replicated property to communicate changes in state

#

So make a replicated property that is flashlight rotation, call a server RPC to change it

#

There's an option with replicated properties to execute something when they change

#

Do the rotation in that OnRep call it generates

#

Then it'll be like this:

  1. Player rotates flashlight. This calls a server RPC.
  2. Server changes flashlight rotation to what the player sent. This triggers the property to update and replicate to everyone relevant.
  3. Property updates on clients and calls an event. You make this event do the visual rotation you want.
#

Unrelated but I probably wouldn't do it on tick either but you can fix that later once you get the replication working

dark parcel
#

As mention above. Uss replicated property.

#

Client can interp on tick.

#

Actually get base aim rotation is already replicated.

#

Interp that value on tick.

exotic wasp
#

Assuming you want to use mouse rotation yeah

crude finch
#

does anyone know if there is anything that causes client players to get only around 4-5 FPS, while standalone and listen server players are running perfectly smooth? its a full blueprint project, and the client framerate drop happens only about 1-2 seconds after possession is completed. Its also seemingly fine on the network, its just FPS

exotic wasp
crude finch
#

the profiler?

thin stratus
#

We can't look into your project, unless one of us has a crytal ball lying around

crude finch
#

so this?

cinder quartz
#

Well I did it. I fixed the bugs with my system!

#

Though I'm not sure if I should make the InitializePlayableClass server only, or split it into a client only server only set of functions called back to back. What are your thoughts?

#

Atm it just does this

void APlayableClass::InitializePlayableClass()
{
    if (bHasInitializedPlayableClass)
    {
        return;
    }
    if (GetDulcePlayerState()->GetPawn() == nullptr)
    {
        GetDulcePlayerState()->OnPawnSet.AddUniqueDynamic(this, &APlayableClass::CheckPlayerState);
        return;
    }
    APawn* StatePawn = GetDulcePlayerState()->GetPawn();
    bHasInitializedPlayableClass = true;
    OnPlayerReady();
    return;
}

CheckPlayerStare simply verifies the state is all set up, and OnPlayerReady is a blueprint implementable meant to run misc logic like granting GAs or simple stuff like that.

dark parcel
#

@cinder quartz OnRep is only called on clients.

#

Some of your code have incorrecr comment.

#

And the idea of "can i execute it server only" on the on rep.

If you want the client to inform the server on the on rep use server rpc.

sinful tree
cinder quartz
#

Right now I have a Server only set of logic that runs off OnPlayerRead from BP side.

dark parcel
#

Such as ok my player state is ready. Grant me my abilities.

cinder quartz
dark parcel
#

@cinder quartz that "set asc on server " comment really bug me on the OnRep.

#

Its jsut the wrong idea sincs OnRep is called on client.

#

It will only set ASC on the client running the OnRep not the server.

cinder quartz
#

Ohh, I get it now...

#

Thanks for calling it out

#

Is using PossessedBy with IsLocally controlled a good place to run the initialize logic?

#

I assumed it was the best solution to keep it somewhat consistent since the server will know instantly the state and its pawn and hand that out to every other client

dark parcel
#

Sounds like you r not aware what is locally controlled do.

#

OnPossess and filtering with LocallyControlled will only execute on the object that the listen server owns....

cinder quartz
#

It checks if the assigned controller to a pawn matches the controller that exists on the client, or controller 0 for the server?

dark parcel
#

While logically server should initialize every pawn.

dark parcel
#

Meaning if the controller is controlled by the local machine (not remptely controlled by other client).

#

It will also return true on A.I controller so be careful.

cinder quartz
#

Ahhh I see now...

#

And about the Initialize function...

dark parcel
#

If you see the code I gave you earlier. I tell the server to initialize as a client when it recieve the player state.

cinder quartz
dark parcel
#

OnRep_PlayerState-> server_giveMeAbilities-> server_giveMeItems. Etc

cinder quartz
#

That's functionally what I do right now

dark parcel
cinder quartz
#

InitializePlayer runs on client, then sends an RPC with grant abilities, then spawn weapon actors, etc

dark parcel
#

Well as long it send server rpc... i mean i cant read that from here.

#

But the idea is. As client, ok my player state is ready. Imma tell server to grant me my abilities and the like.

cinder quartz
#

Well pretty much this a few times over

#

I just wanted to test it quickly, I should move this to c++ for cleanliness' sake

sinful tree
#

You shouldn't need the client to tell the server that the client is ready to be given an ability.

#

Having an RPC open like this would also potentially allow clients to call that RPC at any time, which I'm not sure how that would function with granting abilities and if that ability is already activated o_o

dark parcel
#

If player state is needed its the only reliable way though.

He tried to spawn a replicated actor(weapon) from GA and the player state is always null on client since he did it onPossess which is too early.

cinder quartz
#

Well it's not that player state is null but that some important data is null on the player state

#

But same thing really

sinful tree
#

PlayerState would already exist on the server without the client telling the server it exists.

dark parcel
#

Yes but wont be on the client.

dark parcel
#

I checked my self and passing PS on OnPossess fail on client.

cinder quartz
#

Yeah I thought I made it run using OnRep on client

sinful tree
#

Race conditions be racing.

dark parcel
#

Not sure what you made run.

But if you want PS to be valid on client, your best bet is letting server knows that your PS is set.

#

Honestly i never come accross such issue my seld cuz i havent need to spawn anything that early.

#

So i run check onPossess out of curiousity and client didnt get the PS.

cinder quartz
#

Yeah all this trouble is to spawn weapons on the player's hand as the level loads...

sinful tree
#

In my opinion, it seems like bad logic. If the GA requires teh playerstate on the client to operate correctly, then there should be code that the GA utilizes to wait for the PlayerState to be valid rather than the client telling the server that its time for it to receive the ability.

dark parcel
#

It aint trouble.

OnRep PS -> server im rdy to get my stuff.

sinful tree
#

My issue with it is that you're allowing the client to dictate things it probably shouldn't be dictating. A client could potentially call it when its not ready. It ends up being extra traffic over the network for no purpose other than working around what the problem actually is, and you're having to code additional safeguards to prevent invalid execution of that RPC.

cinder quartz
#

Well it's not a GA what causes trouble but just spawning a weapon actor

#

I'm learning as I go honestly. I genuinely have been stuck on this for a few days now and just want to sort it out

#

The whole set of logic I run is probably terrible in all capacity.

#

All I know is that the code works when the weapon is just spawned normally like when you manually equip a weapon, but if you spawn with it, it stops working

sinful tree
#

The GA spawns the actor right?

cinder quartz
#

Not a GA, just a function existing on the pawn

sinful tree
#

So the GA ends up calling that function?

cinder quartz
#

No, it's just a function

#

Like literally a function that spawns an actor, running on server

sinful tree
#

Then whats the GA here for?

cinder quartz
#

Called by the pawn, when ready

cinder quartz
#

At the end of that it has that weapon spawn logic.

sinful tree
#

c_c
Ok, the fact still stands, you shouldn't need the client to tell the server to do things like this.
The spawning of a replicated actor on the server should have no impact on the client being ready.
If there is something requiring the client to be ready then you should be coding it in such a way that it can check for that itself without the client telling the server it is ready to receive, otherwise the client can say they are ready to receive at any point in time before they are ready, or any time after they are ready, including after they've already said they are ready.

#

The part on the client where it is failing means you should have something that checks whether it has teh data needed or not, and if not, then wait and bind to the thing that will let it know on the client that it is ready and then proceed with the logic that is needed when the client is ready.

#

You can bind to multiple OnReps or whatever event dispatchers you need, you can validate on the client it has what it needs before proceeding with the logic on the client without it telling the server it has what it needs.

dark parcel
#

Valid take and better in practice.

cinder quartz
#

@sinful tree Okay I'm trying something different now
I'm making functions to fire off delegates. If the initialize ever runs into invalid data, it will bind an event to an update of that data to check

dark parcel
#

@cinder quartz its not rocket science. If you want to do it his way. You can just broadcast an event on PlayerState OnRep.

The replicated actor checks if PS is null on spawn, if it is, listen to the player state on rep and set it when the event get broascasted. Mark the item unusable until the PS is set.

cinder quartz
#

I feel I should wipe clean the code and start from scratch to see if it works...

#

I wanna make sure I got it right

dark parcel
#

Actually you cant do what i suggest it wouldnt know which PS.

#

You can do a timer and wait till PS is set by server.

cinder quartz
#

I don't mean the entire thing like, just the bits responsible for replication

#

And initialization

queen escarp
#

is this execute console command correct

#

the "servertravel(space)"/ ?

cinder quartz
#

So I'm going back to square 1 with my system, and I get "LogAbilitySystem: Warning: Can't activate LocalOnly or LocalPredicted ability %s when not local!" when trying to grant a passive GA to the client.

This is confusing since I followed the logic from tranek's doc to a T

void APlayableClass::PossessedBy(AController* NewController)
{
    Super::PossessedBy(NewController);

    ADulcePlayerState* PS = GetDulcePlayerState();
    if (PS)
    {
        // Set up ASC variable.
        AbilitySystemComponent = UDulceAbilitySystemGlobals::GetAbilitySystemComponentFromActor(PS, false);

        // Init ASC Avatar Actor for server.
        AbilitySystemComponent->InitAbilityActorInfo(PS, this);

        InitializePlayableClass();
    }
}

void APlayableClass::OnRep_PlayerState()
{
    Super::OnRep_PlayerState();

    ADulcePlayerState* PS = GetDulcePlayerState();

    // Set up ASC variable.
    AbilitySystemComponent = UDulceAbilitySystemGlobals::GetAbilitySystemComponentFromActor(PS, false);

    // Init ASC Avatar Actor for clients
    AbilitySystemComponent->InitAbilityActorInfo(PS, this);

    InitializePlayableClass();
}

In this case the InitializePlayableClass is not doing anything particular either, it's just running and doing nothing as I disabled most of it to test the foundation

#

I think it has to do with using GiveAbilityAndActivateOnce

#

Alright I found out why.... The ability was set so only the client could activate it, and I granted it server side.

dark parcel
cinder quartz
#

I accidentally left the ability as only activable client side

steel oracle
#

Hi does anyone know how to handle replicating 100+ ISM/VAT entities in multiplayer?
I am building a multiplayer horde system and need to replicate 100+ enemies simultaneously. To keep rendering cheap, I am using Instanced Static Meshes (ISM) and driving their animations with Vertex Animation Textures (VAT).
For those of you who have tackled massive entity counts in multiplayer with this setup, what does your architecture look like? How do you handle syncing movement and animation states without completely bottlenecking your network bandwidth? Not sure if my approach is the best, would like to hear yaโ€™lls solution

nova wasp
#

for truly large RTS style stuff they tend to run lockstep with a bitwise-deterministic sim but it's not universal, there are a few that just send packed down data for state (planetary annihilation)

#

I would suggest trying a fast array for sending their state as a first try, you should consider carefully what information actually means here and what the actual range of known states are

#

the main bandwidth hog will be stuff like large numerical values for floats etc

#

unreal has a lot of built-in ways to pack them down into quantized vectors (FVector_NetQuantize etc) which reduces the precision slightly while saving a ton of bits on the packet

#

as for the animation state I don't know, how many unique states are there? put them in a byte or something

steel oracle
#

Thatโ€™s kinda what iโ€™m thinking of doing

#

I'm definitely going the Fast Array route and packing the data down hard just like you mentioned. I'll use FVector_NetQuantize100 for the position, and shove the anim states and speeds into int8 bytes.

#

Then dropping the manager's NetUpdateFrequency to like 10-20hz. The server just updates the array on a 0.1s timer, and the client smooths it out with VInterpTo on the ISM transforms so it still looks 60fps locally.

#

for the VAT animations, I'm just doing time-based determinism. I only send the anim state byte and a StartTime once when a state actually changes. The client's material handles the rest (GameTime - StartTime) to drive the VAT frames, so there's no need to spam animation progress over the network.

#

The payload is pretty tiny (prob like 10-14 bytes per entity with the delta updates), but my main concern now is if this whole setup is going to be able to actually handle pushing 1000+ enemies at once

nova wasp
nova wasp
steel oracle
#

mustโ€™ve been a typo ๐Ÿ˜…๐Ÿ˜…๐Ÿ˜…

nova wasp
#

I think you seem to have a pretty strong idea of how to think about what matters in the packet already, you are probably better off just trying stuff in the editor

#

for starters you don't need to hook up anything, just make your fast array and spam change random elements or something and network profile it to see what happens

#

if your game has an idea of "being close to something" it might be possible to prioritize things based on distance if you split them up into other objects

steel oracle
#

Yeah good point, iโ€™m spending too much time theory crafting

thanks for the sanity check

nova wasp
#

asking for direction is 100% fair, I think you have a strong idea of what to do I guess

#

I guess a couple things... first of all the default bandwidth cap might be unrealistic if you need to raise it so I guess don't see it as an iron law... I'm frankly not 100% clear on what realistic bandwidth is for users these days as I mostly just kind of... deal with it

#

generally speaking I have worked on games where we can reduce bandwidth via prioritizing things or custom serializers/filters etc

#

the advantage being that when you split things up per-object unreal gives you more control over how they get sent. For example an object the player is nowhere near isn't interesting to send etc

#

so I guess one thing I was going to ask is if you can kind of get away with sending information that is visible more frequently but tbh I think that's going to change super rapidly in your average rts

#

https://vorixo.github.io/devtricks/network-managers/ a somewhat older now (this is using the old network serializers, if you use Iris (newer much more cpu-friendly netcode backend) you might need to use an iris serializer instead, which this site also has a great guide for)

steel oracle
#

Oh sweet, that Vorixo link is a goldmine, thanks! I was actually just looking into Iris, so that's perfect.

Thanks again for all the help! Gives me a super solid roadmap to actually start building and testing this out.

nova wasp
#

I would say don't bother with a custom serializer until you are certain it will actually help... they are quite tedious (in iris)

#

regular struct serialization is really good already

#

for example if you want you can just write in a uint8 and write a one-liner function to "unpack" it on the other side, that way you save having to write dozens of macros of boilerplate for a serializer

#

obviously there is less control etc but I find it's pretty simple to do that when it fits

#

Iris also supports delta serialization even for TArrays (but it doesn't have callbacks for them, fast arrays are still meaningful)

desert snow
#

Hello

#

I have a multiplayer game and when I test in the editor the fps is solid 60+ fps but when I take a multiplayer build and host it on AWS the fps drops to 15 to 20 does anyone know why that happens. Is there anything I have to change in the project settings, This a VR multiplayer gam

nova wasp
#

if I had to guess my assumption would be your dedicated server is on one thread but you are not going to find a magic project setting without at least trying to reason about what is slow first

stuck wagon
#

I need some adivce on how to handle a specific scenario:
I have an Engine Subsystem that communicates with some backend. This Subsystem will do some save managmenet and may load a new world.
The Engine Subsystem also has some data (uobjects) and a struct referencing those uobjects from the backend, that i want to replicated to clients connecting to the dedicated server.
For this my current idea was to haven an addtional AActor that acts as onther kind of Subsystem that can be replicated.
When the Actor BeginPlay's, i rename the uobjects that first have the engine subsystem as outer, to now have the actor as outer.
The Actor will register the objects as replicated subobjects.
When the world unloads, i rename them back to have the Engine Subsystem as outer.
The Actor has uproperties that replicated and equivalent with the ones from the engine subsystem.
The Engine Subsystem and Actor communicate with each other on the server and client to copy data around (like Actor has an OnReplicate function that copies the replicated props to the Engine Subsystem on the client side).

The Problem,
the Engine Subsystem also has another value it cares about, its an struct that has an array with pointers to the uobjects.
The problem is that it seems like the UObjects get replicated to late, so when the Struct gets replicated, it cannot find the UObjects and fills the array with nullptrs.

Occasional it seems to be in order and work, but most of the time not.

Debugging shows that after some time, the UObjects are there, but the array is still filled with nulltptr.

desert snow
nova wasp
#

what changes?

desert snow
#

It's kind of complicated lol, Basically there are categories of players that can join Host, co host , Av support and attendees we basically create a private room using a python script in AWS and the registered emails get room id and password and join the room using that

nova wasp
#

none of those words describe if it's a listen server, dedicated, etc

desert snow
#

We take a build of a Linux server and host it on AWS and the client build joins it

nova wasp
#

replication order between distinct properties is not going to arrive in order, it can be in completely different packets depending on the situation

stuck wagon
nova wasp
#

there is no magic project setting here, you need to see what is actually happening

nova wasp
#

oh, you mean it's still showing them as null even after?

#

I wonder if the rename is mangling them somehow

stuck wagon
nova wasp
#

if you forcibly mark the object with the pointers net dirty do they still not show up while the actual network object arrives on the client? if they are received as an object they are network addressable afaik

#

If you have multiple clients do all of them see the same result, or only a subset?

stuck wagon
#

multiple clients is not really possible in my setup (without great difficulty)

The thing is that all replicated stuff originates from the same Actor.
That actor has the subobjects, and the properties

nova wasp
#

yeah, just call ForceNetUpdate on it

#

not sure what was unclear about that

#

I guess I should have just said that

stuck wagon
#

i guess the problem is more... when does the server know when to ForceNetUpdate

#

does ForceNetUpdate force all properties to replicate?
Or does it force all properties to check if something changed?

nova wasp
#

the latter which induces the former

#

it marks it dirty in case nothing else does

#

if you are somehow not using pushmodel correctly

#

and even with sometimes it is still helpful...

#

I'll admit I am a bit wary of the whole rename fun setup, I would probably prefer to copy the data out to avoid fun issues with internals breaking from being kept from the old world

#

If it works it works I guess... I would need to debug to see the actual state they are in between

#

I honestly dislike how unreal will just silently accept replicating pointers that can't ever arrive (not necessarily what is happening here, but in general)

#

I assume the idea was that it's possible for the object to suddenly become capable of network addressing so they don't want that to assert

stuck wagon
#

Ah figured it out

kindred widget
#

Depending on the amount of data, and how often it changes, this feels like something where I'd blob all of the data and just make the client recreate it in their own subsystem, using the actor as just an RPC channel.

stuck wagon
#

it does in fact do the replication of all props again, once the uobjects are up to date.
Optimizer did some weird code shenaniganins, combined with some business logic that is not ready for the first set of nullptr
sry for wasting your time

#

thx any way on the adivces ^^

nova wasp
#

I'll admit my caveman "scary thing bad" alarm with the renaming thing but arguably that's kind of how seamless works in some respects

stuck wagon
#

the rename thing works very well actually

#

I'm suprised my self xD

kindred widget
#

You can just serialize it all into a byte array, compress it, and unpack it back into the client's side. It's literally just serializing the subsystem itself, and then each subobject. Put each subobject into an array of structs that has FName/ByteArray. Then on the other side, you look up or create the subobject with the name and seralize the data into it. And serializing the subsystem itself puts your pointers to those objects back.

#

Also on the Rename. Care with that. It'll break if you rename from ActorA to ActorB when both replicate, and then destroy ActorA. Client will lose their objects in ActorB and server won't.

#

Not really an issue in this case, the subsystem isn't the initial replicator. But something to note.

nova wasp
#

spamming a bunch of reliables with zipped data is totally valid, yeah

violet walrus
#

How can I artifically worsen my connection quality? Ping, packet loss, etc?

Better if I can keep this effect for local PC only, so I would prefer not to do huge downloads in background :d

#

(not in editor)

nova wasp
#

or take a commercial airline flight and pay for the on-board wifi

violet walrus
#

clumsy seems promising, thanks ๐Ÿ˜„

halcyon ore
#

I had asked this about spamming variable setting before. (such as changing a float on tick to the same value)

What happens with stuff like MARK_PROPERTY_DIRTY_FROM_NAME for PushBased?
I did the Unreal trace, and saw no evidence of direct networking occuring, but does it still put strain by checking every individual client or something?

pseudo wagon
halcyon ore
#

I was wonder if I constantly send it on the same value, does it do anything.
Like, I just spam it on tick on a variable that doesn't change.
Does it know that the value didn't change, or just constantly does checks, and tries no matter what?

(essentially, should I check if previous == current in my code for every change, or will the internals of the engine handle it for me.)

pseudo wagon
halcyon ore
#

Ok, cool.
Thanks.

modest crater
#

You kind of defeat pushed base advantages if you spam mark it dirty every frame

verbal ice
#

How functional are chaos vehicles with the network physics component?

chrome bay
#

AFAIK they're not. Only modular vehicles works with that system currently, and you must use async physics too.

verbal ice
#

it's annoying

#

because I'd make my own implementation, but enabling physics prediction makes the chaos vehicle component create and setup a network physics component

#

bleh

chrome bay
#

tbh almost everywhere I've been has their own vehicle implementation

verbal ice
#

I guess I can just make my own outside of that yeah

#

Shame though, the networked physics component looked cool

#

Pretty much the kind of system I was going for

chrome bay
#

tbf network physics component isn't bound to anything in particular, it's kind of a catch-all component. Maybe it would work okay with chaos vehicles but AFAIK the only deep integration currently is with modular vehicles (which are better, but have their own problems)

verbal ice
#

I'll do some testing

#

see how good it is because there's defo some integration in chaos vehicles

#

just unsure of how well it performs or if it's even finalized

tardy fossil
#

i was able to use normal chaos vehicles in resim mode and it worked ok.. not perfect but better than not using it

dark edge
#

I still haven't messed with any of the new networked physics stuff at all

#

Just using the same good old unpredicted system from 2014

verbal ice
verbal ice
#

Also, through which mechanism does a locally controlled pawn get the ROLE_AutonomousProxy local role?

#

Trying to find the path

#

Because I need to set it manually on vehicles when the local player is driving it (the player doesn't possess the vehicle)

#

although

#

I might not need to, seems like predictive interpolation works best on actors that are ROLE_SimulatedProxy

verbal ice
#

Hah nvm I forgot we're on 5.6 at work so now I look like an idiot

#

Guess I'll make my own solution

honest bloom
#

Does destroying a replicated component on server, automatically destroys it on clients ?

dark parcel
tardy fossil
#

still 10000x better than having inputs delayed lol

honest bloom
tardy fossil
#

<@&213101288538374145>

placid sparrow
pure lynx
#

quick question on optimization

#

is it a bad idea for a multiplayer game to look through a datatable to find a row for an attack during run time on each character?

#

given the datatable has around 100 ish rows

halcyon ore
#

Data tables are TMap internally.
So, I don't believe so.
TMaps are hashed, so there getting is like near instant.

prisma snow
#

yeah most likely the least of your performance problems

dark parcel
#

@pure lynx quick question, do you have hard reference in your data table?

#

Also networking is irrelevant because accessing the DT is per machine.

#

Theres no actual data to be transfered accrpsd thr network. Maybe only the ptr to the DT at best.

pure lynx
dark parcel
pure lynx
#

I hope that doesnt cause issues

#

also,

#

is using a timeline better than a delay for multiplayer?

quasi tide
#

They're used for different reasons

#

Delays should be seldom used in a MP context

dark parcel
# pure lynx I hope that doesnt cause issues

Any hard ref will be loaded to memory. You need to make use of soft object otherwise everything in the DT is loaded.

Example if you place all inventory info in a dt. Referencing that DT will end up you loading all the entire item in the game when in practice you only need to load the items in your backpack.

#

Soo yeah hard red in DT is red flag but if your project is small scale, you may pay the overhead.

short arrow
#

Best advice i can give people on that topic is to get in the habit of base classes

#

With empty asset references

dark parcel
#

But yeah if cast is needed, cast to native class or class that doesnt have assets in it.

dark edge
limber gyro
#

im trying to find a good way to store collision position data for lag compensation, i tried by accessing the physics asset comp but getting proper data from there is not being easy, so i figured i might try just moving the skeletal mesh itself and setting it in a previous pose, so is that possible at all? position is easy to save but can you even save a pose and set it to the skeletal mesh in runtime?

nova wasp
#

if you tie your callback to apply when the actual arrays are used in post evaluate or similar it should actually use the transforms

limber gyro
nova wasp
#

it depends on when you do so

#

generally speaking the api hides the task-relevant array

#

for example GetEditableComponentSpaceTransforms vs GetComponentSpaceTransforms

#

I'm honestly not sure exactly what will occur when it is written to at a bad time, I am mostly familiar with replacing how this works entirely for speed reasons

#

what I can say though is that everything you do will be replaced if you write before the parallel eval task completes and just paves it over, so you ideally want to write around that

limber gyro
nova wasp
#

it might be possible to make an anim node that asks for the pose from the component, as network reads will be far before anim task evaluation work

verbal fractal
#

I'm checking out the Mover Examples plugin, and was wondering:

The way input handling for actions seems to be as follows: IA sets variable -> On Produce Input triggers, setting (and passing through collection) a Mover Input Command Context struct -> OnPresimulationTick Event (bound to Mover Event of same name), uses Mover Input Cmd Context from collection-> Checks that struct for each input, handling it if so. -> Finally does the Queue Layered Move

WHY? Is this really necessary for getting best multiplayer interpolation/rollback? Is there a simpler option than this logic flow, something like just calling Queue Layered Move in IA? For context, I have tons of things in my game that need to Queue Layered Move (not through IAs, but through combinations of IAs that then spawn actors, that I had just running "Add Impulse" and "Play Montage" on owner). Setting a bool in this struct for 50 moves seems like definitely not the correct choice.

lament flax
dark parcel
#

Scene graph already a thing?

slate phoenix
#

Hi everyone, I'm using Unreal 5.5. Would it be wise to upgrade to 5.7 as a source code?

quasi tide
quasi tide
kindred widget
#

5.8 or go home.

slate phoenix
slate phoenix
#

๐Ÿ’€

kindred widget
#

Not preview. I sync to UE5-Main.

dark parcel
#

If dedicated server is a req then source version is needed. Wat ver depend on feature thay you need. Read the patch note.

Your current plugins may not support the latest version.

slate phoenix
#

all look plugins support

dark parcel
#

Wat does that mean

slate phoenix
#

In short, it supports plugins.

kindred widget
dark parcel
#

Bro double down?

kindred widget
#

They all support plugins.

slate phoenix
#

xd

dark parcel
#

Yeah but your current plugins may break in latest version if they use deprecated stuff.

#

You may have compilation error etc.

#

And its not just deprecated stuff sometime epic move properties around and boom some plugin break.

kindred widget
#

Surprisingly, none of my plugins complained about 5.8 so far.

dark parcel
#

I had to do manual labour on one of the plugin when moving to 5.6.

#

Probably an exclusive experience.

slate phoenix
#

I'm currently running the project in version 5.7, but it's not giving any errors because I downloaded the plugins from version 5.7 and placed them in the source folder.

verbal ice
#

Quick question about the CMC's saved moves, it appears that it doesn't send the moves over and over again, only once, correct?

#

Removes them when ack'd, but if the server doesn't agree somehow it replays them, which makes the client resend them?

#

A little confused reading through the code

verbal ice
#

Like, what happens if SavedMoves contains multiple unack'd moves

#

Where are those unack'd moves resent to the server?

#

It looks like ReplicateMoveToServer sends the oldest unack'd move, the pending move and the new move. Wouldn't there be multiple moves between the oldest unack'd and the pending one in that scenario?

#

Looks like in the event of packet loss, or misordering of the move data, it would just wipe out the oldest move data

#

Like it never happened

#

Am I correct?

#

i.e. if the latest ack'd move by the server is newer than the oldest unack'd move, it'd just get removed even if the server never received it

#

But I suppose movement updates are frequent enough that it wouldn't matter much, maybe? idk

lusty sky
# verbal ice It looks like `ReplicateMoveToServer` sends the oldest unack'd move, the pending...

I think it only resends the oldest unacknowledged move along with the newest/current move to give the server additional context and recovery in case packets were dropped. The saved moves are generally not continuously resent one by one. Instead, SavedMoves mainly exist so the client can locally replay/resimulate movement after receiving a server correction, until those moves are acknowledged and cleared

verbal ice
#

Yeah that's what I thought. But wouldn't that cause issues? What if the oldest unack'd move has a jump input, and the server never receives it & then the client wipes it out locally due to a newer ack'd move

#

Would the client just never have jumped?

grand axle
#

Hello, small bug when teleporting objects from one place to another (Pac man style) clients see the objects breifly interpolate through the middle of the screen. how do I stop that from happening? Tried using Teleport node and set actor location with teleport ticked

dark edge
grand axle
#

Yeah just replicate movement is on, plus predictive interpolation, moving root component, litterally just if X > value set actor location Value with teleport ticked

#

Tried turning off interpolation for a frame and then turning it back on but just made it worse.

lusty sky
chilly blaze
#

Decided to try Iris in 5.8, and I'm hitting this first ensure when a client joins:

ensureMsgf(bSuppressCreateInstanceFailedEnsure, TEXT("Failed to instantiate Handle: %s"), *WantedNetHandle.ToString());

Error        LogIris                   UNetSubObjectFactory::InstantiateReplicatedObjectFromHeader NetRefHandle (Id=140):(RepSystemId=?): Failed to find static or stable name object referenced by SubObject: [NetRefHandle (Id=140):(RepSystemId=?)](NOT_IN_CACHE), Owner: RootObject BP_Ram_C_0 (InternalIndex: 2) (NetRefHandle (Id=84):(RepSystemId=1)) Protocol: (BP_Ram_C), RootObject: /Temp/UEDPIE_1_Untitled_1.Untitled_1:PersistentLevel.BP_Ram_C_0
Warning      LogIris                   RepBridge(1)::CreateNetRefHandleFromRemote: Failed to instantiate SubObject NetHandle: NetRefHandle (Id=140):(RepSystemId=?) of RootObject BP_Ram_C_0 (InternalIndex: 2) (NetRefHandle (Id=84):(RepSystemId=1)) Protocol: (BP_Ram_C) using header:
Warning      LogIris                       FNetStaticSubObjectCreationHeader (ProtocolId:0x997ff41d):
Warning      LogIris                       ObjectReference=NetRefHandle (Id=140):(RepSystemId=?)
Warning      LogIris

Its hard to decipher what is actually causing this.
My first thought was that I might be missing AddReplicatedSubObject for actor components I create with NewObject at runtime, but it did not seem to help.

Any ideas? whycry

#

if its NOT_IN_CACHE, does it mean its not added via AddReplicatedSubObject?

chilly blaze
#

My QuestLogComponent is not found on a receiving end (client), not sure why, probably ordering issues

#

UObject* SubObject = Bridge->ResolveObjectReference(SubObjectHeader->ObjectReference, Context.ResolveContext); resolves to NULL causing the error

lament flax
#

how are you creating this object

#

are you creating it at gameplay time or in CDO ?

chilly blaze
#

I'm creating it on Pawn::OnPlayerStateChanged()
So that only player pawns have it:

void ACCPawn::OnPlayerStateChanged(APlayerState* NewPlayerState, APlayerState* OldPlayerState)
{
    Super::OnPlayerStateChanged(NewPlayerState, OldPlayerState);

    if (NewPlayerState)
    {
        if (!QuestLogComponent)
        {
            QuestLogComponent = NewObject<USSQuestLogComponent>(this, TEXT("QuestLogComponent"));
            // Setting to be NetAddressable allows to pair server version of this component with client's
            // Otherwise clients won't see quests accepted by server or other clients
            QuestLogComponent->SetNetAddressable();
            QuestLogComponent->RegisterComponent();
        }

This setup worked before I enabled Iris, but now it seems client fails to create its own component before replication of subobject happens

#

The only workaround that seems to work right now is removing QuestLogComponent->SetNetAddressable(); and creating component via NewObject on server-side only

#

Which then automatically replicates to client

dark parcel
#

well isn't that how every replicated properties should be created? Only by the server which will then replicate on client.

#

at least with the one spawned at run time.

chrome bay
#

The most likely issue is that it's trying to write replicated properties into the clients' version of that component before it exists client side.

#

Which you can't do, it will just error normally.

#

For NetAddressable to work like that you must garauntee the component exists client side before writing to it

chilly blaze
#

That is what seems to happen, yes

#

OnPlayerStateChanged is now called later than it was before Iris

chrome bay
#

There's no garauntees even in the old system, you probably just got lucky

#

The OnPlayerStateChanged is called via other replicated properties updating IIRC, so it's really a mixed bag when you'll get updates

#

If you add lag/packet loss sim to the non-iris version, you may encounter a similar issue 1/20 times etc.

#

Need to change the approach to make it more reliable

#

Simplest way is to replicate the component

chilly blaze
#

Seems like it is the way, but it complicates delegate registration a little

#

I will need to make a broadcast into blueprints when OnSubObjectCreatedFromReplication happens so that umg widgets have a chance to re-register everything ๐Ÿค” ?

#

Thanks for the help! It looks like I can take it from here

chilly blaze
#

weird now I have a level itself causing issues with Iris, its a level from an asset pack https://www.fab.com/listings/b3d214c2-50fa-4a0e-a780-bee56c1baf8f

LogIris: Warning: FReplicationProtocolManager::CreateReplicationProtocol Id mismatch when creating protocol named LI_chapel_01_C with in ProtocolId:0x3f31d20e Calculated ProtocolId:0xbda7597
LogIris: Warning: Fragments:
index 0/2 named LI_chapel_01_C_LifetimeConditionals identifier (0xc57c3961f011fbd8, 0x535cfd3fdcba02cb) Pointer: 0000024CEEF48C00
index 1/2 named LI_chapel_01_C_State identifier (0xf605a794e6edbd4, 0x9d708325d932622) Pointer: 0000024C8E938400
LogIris: Error: RepBridge(1)::Protocol mismatch prevents binding NetRefHandle (Id=19):(RepSystemId=?) to instanced object Lvl_chapel_01_C_0 (Template: /Temp/Game/Necropolis/Placeables/Structures/LevelInstances/UEDPIE_1_LI_chapel_01_LevelInstance_3d589937988e4cd9_1.Default__LI_chapel_01_C).
LogIris: Error: Printing replication state of CDO Default__LI_chapel_01_C used for Lvl_chapel_01_C_0:
#

Sorry to ping you, but did you figure out the cause by any chance?

chilly blaze
#

level instance LI_chapel_01 had level instance inside of it, but hierarchy of level instances does not seem to cause an issue, could not replicate the problem by creating hierarchy manually

meager spade
#

we just disabled replicating WorldSettings

#

@chilly blaze

#

we didnt need it replicating anyway

#

err sorry

#

levelscript actor also

#
[/Script/IrisCore.ObjectReplicationBridgeConfig]
RequiredNetDriverChannelClassName=/Script/Engine.DataStreamChannel
+PollConfigs=(ClassName=/Script/DominanceGameplay.WorldMapAvatar, PollFrequency=0, bIncludeSubclasses=true)
+PollConfigs=(ClassName=/Script/DominanceGameplay.WorldMapPlayerState, PollFrequency=0, bIncludeSubclasses=true)
DefaultSpatialFilterName=Spatial
!FilterConfigs=ClearArray
+FilterConfigs=(ClassName=/Script/Engine.LevelScriptActor, DynamicFilterName=NotRouted) ; Not needed in DOM
+FilterConfigs=(ClassName=/Script/Engine.Actor, DynamicFilterName=None)
+FilterConfigs=(ClassName=/Script/Engine.Info, DynamicFilterName=None)
+FilterConfigs=(ClassName=/Script/Engine.PlayerState, DynamicFilterName=None)```
#

i think at least haha, was a while bakc

chilly blaze
# meager spade levelscript actor also

Disabling routing just for LevelScriptActor seems enough, thanks!

[/Script/IrisCore.ObjectReplicationBridgeConfig]
!FilterConfigs=ClearArray
+FilterConfigs=(ClassName=/Script/Engine.LevelScriptActor, DynamicFilterName=NotRouted) ; NotRouted means that this type will not be replicated

Still weird that it happens, and there is no mention of this problem existing ๐Ÿค”

#

and in the BaseEngine.ini config this filtering line is commented out

meager spade
#

yeah

#

maybe epic also has it disabled internally

#

but yeah adding that line fixed it for us

queen escarp
#

Hi!

im having this weird issue, my clients cant linetrace without my host(listen server) is looking at them

#

cant even draw debug on clients

#

but if the server/host is looking at the client then it works

#

Ideas! :/?

#

ive checked always releventand turned of f net dormancy

#

its like my clients are not registering on the server if not visible correctly

sinful tree
queen escarp
#

ok sec

#

dont think its that tho, my projectile spawn from an arrow component and its not also updating when host is not looking at him, spawning way of

#

kinda hard to show, since im tracing via montage

#

playing the montage via Rpc then tracing

queen escarp
sinful tree
#

Not sure what I'm supposed to be seeing in those videos. All I can recognize is that there are traces happening in all 3 of those videos.

queen escarp
#

ah wait i sent the wrong one sec

sinful tree
#

That said... If what you're trying to say is that it doesn't appear that the trace is happening and it's being called during the montage in some way (again seeing the actual line trace code would help), then there is a setting on the mesh that is performing the montage you may want to check.

It shouldn't be set to "only tick pose when rendered"

queen escarp
#

client only

queen escarp
halcyon ore
#

Yeah, thats what it is.
The anim tick mode.
Ran into the same issue with my code

hot scroll
#

Question about LocalPlayerSubsystem in editor testing scenarios.
If I'm testing with 2 players, is it making a separate local player subsystem for each player? Or is it just handling one for both client players?

sinful tree
hot scroll
# sinful tree A ULocalPlayerSubsystem should be getting created for each ULocalPlayer.

For multiple client stuff names I'm used to seeing index numbering like "LocalPlayer"_0, "LocalPlayer"_1, etc.

For the Subsystem I'm seeing "MyLocalPlayerSubsystem"_0 for the local variables in both the first and the second init breakpoint.

I'm assuming that numbering is because for each Local Player, it is the only MyLocalPlayerSubsystem that local player knows about, so its indexing at 0 right?

meager spade
#

cause its local

#

there is only 1 and it wont be on the server

#

and you will only see 1 unless your doing splitscreen

nocturne holly
#

hello, im doing a team vs team game online multiplayer and i'd like for the players of a same team to see each others as blue and of the enemy team as red, i have an overlay material that i apply on the character begin play by getting its player state and the player state 0, i compare their team variable (replicated) and apply the blue or red overlay depending if it's equal or not
however it doesn't work properly, some even don't get the overlay at all on the other players (i did a server set overlay -> multicast set overlay in the character BP at begin play)
do you have any idea why ?

tardy fossil
nocturne holly
#

i can't find how to override in BP it but i'll try to work my way around, thanks for the tip :)

dark edge
dark parcel
#

Use OnRep as others suggest.

#

OnRep Team-> if Team == My Team -> create blue color else red color

crude finch
#

is there a way to delay client player's server travel on a full blueprint project? i just want to wait until the level has been fully loaded by the host player before clients travel to that level

fossil spoke
#

Clients wont fully load in the world until the Host has anyway.

quaint viper
#

I have a problem with server corrections on the client. I have disabled all tick events but the client will always be moved when I have 30 to 60 ping. Movement uses default movement component.

dark parcel
quaint viper
#

This is my movement. I have also tested it with the last one where I use a fixed vector and ther still is server correction

image.png image.png image.png
dark parcel
#

Is this happend on flat ground as opposed to moving platform? Do you change any state such as sprinting?

How did the correction happend? Simply by doing add movement input in flat ground?

quaint viper
quaint viper
dark parcel
#

As for jumping you have to use the existing jump function.

quaint viper
#

So when I increase max walk spead

dark parcel
quaint viper
#

I do. I use all the methods from the movement component

quaint viper
dark parcel
#

Tldr you need to pack that info in the movement struct. Its not possible to do server auth movement with bp.

quaint viper
#

Moreover I just tried moving without changing the max walk speed and there are still corrections

dark parcel
#

Not sure what you r not showing but running add movement input alone isnt gonna give you correction.

#

But changing the walk speed is sure way to get correction.

#

Is cpp an option theres a video you can follow.

#

Going pure bp in mp is like having your hand tied.

#

Otherwise just turn off prediction alltogether.

quaint viper
sinful tree
#

Are you spawning the ground in some way on the client?

dark parcel
#

Not server auth anymore, client can cheat and movememt can be desync but at least you dont have to deal with prediction.

dark parcel
quaint viper
sinful tree
#

So just placed in the level?

quaint viper
#

Without it also changing max walk speed works perfectly fine

dark parcel
dark parcel
sinful tree
#

1% packet loss is a lot of packet loss. You will always get corrections with that

dark parcel
#

Even 1 ms already give correction if they fighting cmc framework.

quaint viper
#

Its the average preset from epic games

dark parcel
#

Well if you dont trust me ask others.

sinful tree
#

It's expected that if you have packet loss, you're going to have corrections.

#

Packet Loss = data isn't being transmitted = server doesn't know where the client is supposed to be = client gets moved back to where server thinks it should be.

quaint viper
#

I disabled package loss and still get corrections

dark parcel
dark parcel
sinful tree
#

ya, there is that too, but he said he's not changing it now.

quaint viper
dark parcel
gritty mason
#

Hi guys! I would like to make a voice chat for my multiplayer listen server game. When the players arrived to the lobby, they can hear each other, but after the seamless travel, the clients can not hear the host, but they can hear each other, except only the host not. Anybody has a solution for the host? Thank you the reply.

dark parcel
#

Unless its on rotsting or moving platform.

dark parcel
quaint viper
dark parcel
#

I can only see what you show so ๐Ÿ™†โ€โ™‚๏ธ

quaint viper
dark parcel
#

I would suggest to actually decide wether you want to go with some cpp code or just turn off correction entirely.

quaint viper
dark parcel
quaint viper
#

I change max walk speed and it works with the above conditions

dark parcel
#

Blank project with default tps doesnt result in any correction. Dont add any packet loss btw, even 1% is brutal.

dark parcel
#

Im not arguing btw you can ask others if its possible to change walk speed client side w.o getting correction. Your project is cooked if you fight cmc.

quaint viper
#

Wait a second. I will test it again

quaint viper
#

It only has correction the moment I change the speed

#

But to be on the save side I will take a look at your article

dark parcel
#

Adding input shouldnt be an issue

#

Changing speed without the movement struct is impossible.

#

I mean you can but your game break and literary unplayable no one gonna touch it.

#

And why is the emulation target server only?

#

In real scenario thered latency between client and server.

quaint viper
#

I know. I thought you mean, that the server constantly tries to push the player back when using max walk speed. Not the small correction you see in the video

dark parcel
#

It will, you probably dont apply the correct emulation.

#

Try to emulate the client too.

#

Also i dont see the code for changing the ms.

#

If you add server rpc to change the max walk speed then it may sync at some point after correction but in real scenario even with 10 ms its unplayable.

sinful tree
#

The way character movement component works is:
The client presses an input that adds movement to their character
The client's CMC passes along its intended movement to the server based on the values it has in its CMC.
The server validates where the client should be based on the values it knows about in its own copy of the CMC and ensures that is where the cilent is supposed to be.
If all good, no correction. If it doesn't match, then the server tells the client to move back to its last known good location.

The issue lies in that even sending an RPC to update the move speed it's not going to be in sync with the moves being performed and validated by the server. In other words, the RPC will arrive whenever, and the server won't know when you wanted to increase that movement speed in relation to where the character is moving.

The C++ method of creating sprint introduces a flag that gets sent with the most recent move by the client, and that flag can be used to adjust the CMC move speed on the server, so that when the server validates the move, it knows the player should be moving a bit faster or slower and can accommodate the speed change because it was sent with the movement currently being made.

#

A few other reasons for corrections is if there's something in the way on the server that may not appear on the client's screen (eg. an object that the player may be bumping into slowing them down on either the server or client) or if you're walking on something that isn't necessarily present on either side (eg. spawning an object on the client only and trying to stand on it, or walking through an object that was only spawned on the server) or a moving platform that may not be properly synchronized between the server and client.

quaint viper
sinful tree
#

Yep

quaint viper
#

Alright. It seems to be very straight forward so I gonna try it out

limber gyro
#

theres something artistic about lag compensation

tardy fossil
#

kaleidoscopey

#

has anyone ever done networked physics in a VR game with unreal engine? i wonder if NPP would work.. though I assume it doesn't handle things getting attached/detached to players hands very well

slate phoenix
#

Hi, I'm migrating from UE 5.5 source build to UE 5.7.4 source build. In 5.5, dedicated server packaging included all necessary Steam DLLs automatically. In 5.7, the packaged dedicated server fails to initialize Steam API with Assertion Failed: Failed to load SDL3.dll and [AppId: 0] Game Server API initialized 0.
I have UE_PROJECT_STEAMSHIPPINGID, UE_PROJECT_STEAMPRODUCTNAME, UE_PROJECT_STEAMGAMEDIR, UE_PROJECT_STEAMGAMEDESC defined in my Server Target.cs. DefaultEngine.ini has correct Steam settings with SteamDevAppId=(mygameno).
Is SDL3.dll supposed to be auto-included in server packages? What's the correct way to handle this in 5.7?

topaz verge
#

I currently work on a multiplayer game in unreal 5.7.4 with EOS, I already got EOS lobbies working and want to integrate voice chat.
I got it working to the state that I can get a VoiceChatUser and retrieve information like
num of input/output devices
channel name etc.

But I have problems getting the audio to work.
So that other player can hear me.
The game currently has no audio source, and I couldn't find any information if an audio source is needed.
Its the same in PIE with 2 players, or on 2 different Devices and connecting to the lobby/same map.
I also ensured, that that no one is muted. by iterating over all channels, all players and SetPlayerMuted(name, false)

in the windows settings, the input and output are all enabled as well.

any ideas whats missing or misconfigured?

once again found my issue:
the problem was that even if I call methods to unmute someone, or transmitallchannel
the playervolume was never set.
so VoiceChatUser-> SetPlayerVolume(name,1); and it works

meager aurora
#

I am implementing drop item from inventory, where players mesh item gets simulated and launched. This works smooth as long as running dedicated server for 2 players, but if I select only one player the movement is jittery. Any hint what I should be looking at?

limber gyro
# meager aurora I am implementing drop item from inventory, where players mesh item gets simulat...

if an item drop is being shown on a client and it has latency it will lag, im not sure if ur seeing the lag on the client or the server, but if its the server then something is wrong, if its the client its probably just lag.

As far as i know, unreal doenst have interpolated movement for for actors that simulate physics, u need to run things through the character movement component or the projectile movement component to have interpolated movement and for things to look smooht

limber gyro
#

is the ping the time it takes to send and receive a message or just to send?

#

im trying to figure it out if i should divide it by 2 for lag compensation

latent heart
#

Ping is round trip time.

sharp mason
#

Hi, is there any tutorials about how to create a lobby with private invites using steam friend list ? I only found tutorials about opening a server and people join it, or using plugins

fluid summit
sharp mason
verbal ice
#

Is there a function that's called before a component/actor is replicated from the server to clients?

#

i.e. I want to compute a replicated property only right before it's going to be sent

#

nvm it's called PreReplication

limber gyro
limber gyro
#

im doing lag compensation and its almost working perfectly, the only issue is that when i do "GetServerWorldTimeSeconds()" to get the server time at the shooting time and use my hitboxes are slightly off, is it because the clocks are not in sync? do i have to add/subtract the latency somewhere?

slate phoenix
#

@meager spade Hello Kaos, we talked about this issue before but because of the language barrier I couldnโ€™t fully explain it.

Today I noticed something: Iโ€™m using Gaspโ€™s animation project, and when the character runs I get ServerMove and HISM replication warning messages. Also when jumping, the character gets pushed back.

I think Gaspโ€™s replication system is causing issues. How can we fix this problem?

sinful tree
raven willow
#

Hullo, I'm building a dedicated server type game and I'm wondering what's the industry standard or best practices for saving.

My preferred database is MSSQL or maybe mongo. But I've seen some recommendations towards Postgres SQL or mysql. Can anyone direct me to some industry standard resources so I can get as close to doing this intelligently the first time? I wanna minimize refactoring this part of the system if possible. Save load is somehow so boring to code, yk?

tardy fossil
#

imo unless you are making a mmorpg or something thats gonna have to serve tons of queries, a sql database backend seems a bit overkill.. i'd just use sqlite since UE already has it built in

slate phoenix
meager spade
#

hsims are not replicated

#

and they are spawned in at runtime, and its trying to replicate the movement base

#

and it fails cause its not possible

#

and the server names for the hism's dont match the clients names for the hisms

#

so it just doesnt find it

#

you have a lot of replication issues there

limber gyro
#

does the server and client clocks desync in the editor?

slate phoenix
dark parcel
limber gyro
#

and if that error can screw up my lag compensation

gentle wraith
#

Did you ever find the root cause of this?

neon stone
#

Does Epic Online Services really work with sessions? Does it have NAT punchthrough and all the same stuff for making it easy to host a server like Steam has?

meager spade
#

Yes

slate phoenix
#

The package difference between 5.5.4 and 5.7.4 is causing me Steam-related issues. What settings do I need to change in 5.7.4 so I can package it properly?

neon stone
ripe radish
#

Anyone ever run into an issue where clients canโ€™t move when the build is packaged up on Steam? Works totally fine in the editor (including running a standalone process) but once itโ€™s on Steam the server prevents clients from moving. Inputs are being processed and itโ€™s properly possessed, I can crouch and stuff for instance

slate phoenix
neon stone
#

I understand, I wasn't asking about using Steam.

#

I'm at present working on a free game and don't plan to publish it on Steam, but Epic should work for MP still.

slate phoenix
slate phoenix
neon stone
#

The Advanced Sessions Plugin? You mean FAB?

meager spade
lost marsh
#

guys has someone already worked with Recipes and KnownRecipes for crafting ? => Discover an item => Unlock a recipe for the player
Can we all agree that it is client side only ? every instance has specific known recipes right ?

modest crater
#

Depends on the game - one and done (rogue like) then sure client only if you dont care otherwise, it should 100% be server unlocked and validated

kindred widget
#

Why client only? Should be a simple tag container replicated that the player has unlocked. Client can read the same thing server reads and it can still be server verified.

slate phoenix
tribal pivot
#

when breakpointing in rider/VS, how do you tell if the line was hit on the server or client? Is there some easier way im missing?

#

talking about PIE

nova wasp
#

{,,UnrealEditor-Engine.dll}::GPlayInEditorContextString if you need to specifiy the dll

tribal pivot
nova wasp
#

add it to the watches

#

you are going to need debug symbols, do not ignore downloading those if you have not done that yet

#

you can also obtain this value in code with GetDebugStringForWorld(WorldPtr) (which is not the same memory, but the GPlayInEditorContextString uses this to update what it says)

#

keep in mind client indexes don't always start at 0 in some windows I guess

tribal pivot
# nova wasp

interesting, im not too aware of what expressions can be put in there. It (the .dll one) accurately describes the process when in PIE, thanks! What other useful things could go into the watches area? I've always relied upon what auto-fills there and mouse-hovering any variables in the breakpoint's context.

nova wasp
#

other useful things are like printing the bp callstack which Rider already tries to do for you in the callstack (PrintScriptCallStack)

#

I personally like to put the outer of the current object in there but I am sure there are more

livid jetty
#

Will p.NetPktLag 200 when using this setup? I think all 3 windows will be single process?

nova wasp
livid jetty
formal path
#

in a dedicated multiplayer server enviroment our clients were calling a function that was supposed to be called on server with a if (!HasAuthority()) return; and this somehow passing that check and executing on client? is that possible?

nova wasp
#

you can prevent the editor from reducing performance while tabbed out with a setting iirc but I don't think that applies when you are in one fo the PIE instances

nova wasp
#

it checks if it has local authority

#

you might want to read the pins on what roles actually mean

halcyon ore
nova wasp
#

an actor created locally on the client will be local authority

formal path
#

so many pins

nova wasp
#

if you aren't sure it's a replicated actor that has a meaningful local role for this case you can ask the world what the netmode is

formal path
#

so what do i want to use instead

nova wasp
#

it depends on where and when this is

formal path
#

its an actor in the level that just handles spawning AI so it should be only invoked on the server

nova wasp
#

what kind of actor is being asked about authority?

#

ah, it's on the level... I am not even sure what role those have on clients then if they are net load on client

#

I forget

#

either way getnetmode will work there I suppose

formal path
#

GetNetMode() != NM_client ?

nova wasp
#

yep

#

you can also check creater than/ lesser than

#

for example you might want to consider listen servers/standalone/dedicates differently

formal path
#

i just wanne spawn some AI and make sure it doesn't spawn on clients ๐Ÿ˜ญ

nova wasp
#

GetNetMode() != NM_client is perfectly reasonable here then

livid jetty
#

what is role for listen server? ROLE_Authority and ROLE_AutonomousProxy is ignored?

fossil spoke
#

No? The listen Server will be ROLE_Authority.

livid jetty
#

i am wondering what purpose ROLE_AutonomousProxy is, since it is ignored on listen server

#

i can use IsLocallyControlled instead

fossil spoke
#

ROLE_AutonomousProxy isn't "ignored", its context specific. It refers to the control that a local machine has over an Actor.

dark parcel
#

For character in the server instance that is controllee remotely by a client. In that server instance the role would be autnomous proxy not authority.

sinful tree
livid jetty
#

i guess it could have advantage so prediction + server code wont run together (twice) on listen server? that is only use case that i can think of

dark parcel
# sinful tree

0o is that the case? I thought it would be autonomous on server too for actor that is remotely controlled.

#

Oh wait i got it mixed up with simulated proxy

sinful tree
#

On the server, all local roles would be authority.
If you checked the remote role of any replicated actor, it should be Authority as you're checking what role the server has over the actor. If you checked the local role of any replicated actors on a client, the only one that should be autonomous are the ones you have control of and everything else simulated. Any locally spawned actors would have a local role of authority.

fluid summit
sinful tree
# fluid summit I wonder what is the backstory behind the () on the nick

Many people are using the phrase P2P (peer to peer) when they mean listen server. There is no peer to peer networking in Unreal. Why people adopted calling listen servers P2P when it's a completely different networking paradigm is beyond me, and I think it just can create confusion for people because they'll end up trying to search for P2P networking in Unreal and could end up getting completely wrong information.

fossil spoke
#

It is an important thing to get wrong though.

fluid summit
#

Like bitcoin!

#

/s

sinful tree
#

Someone tried to make that argument with me before <_<;

dark edge
#

Has anyone implemented a P2P networking model on top of Unreal?

#

I can't think of any.

fluid summit
#

if there's no authoritative entity, it's all up for grab

dark edge
