HyperCube Revive

[slender oxide]

60c constantly

[tight timber]

lol

You hoping to get sponsored because of cardboard enclosure?

[slender oxide]

yea

[slender oxide]

alr

today imma try getting din rail mounted on the bottom

[slender oxide]

fuck fuck fuck
i tihnk i melted my motor mounts
they were on for the last 6 hours doing nothing
its polymaker abs
SHIT

im gonna check when i go home

[slender oxide]

blob fucked a lot of stuff up

need to reprint the cowl

[slender oxide]

im sad

i gotta print slow cuz the right cooling duct is non-existant

[slender oxide]

just got the dinrail slots cut out, gonna mount din rail on it tonight and move electronics

need to print out a new psu thing

imma mount the new cowl first tho

[slender oxide]

cowl fully replaced

starting a print for the psu mounts

[slender oxide]

i just hand twisted this CAN cable

[slender oxide]

yeah im replacing the bed magnet

shit cant hold down my pei sheet

(is pei supposed to taco when hot?)

[flat sage]

Seen a video from vez (vzbot guy) testing the magnetic sticker with a field line visualizer (these probably have a proper name).

[slender oxide]

yeah

[slender oxide]

Moving it to the bottom rn

Psu mounted as well as mobo

Gonna mount rpi and wire shit up

I have barely any space down thrre

[slender oxide]

yay

all wired up on the bottom, need to just connect CANbus

[slender oxide]

tmrw morning imma finish up the crimping for the canbus, im lazy rn to do it. need to crimp power and actual can wires and need to remember which is L and H on the connector... the damn schematic says nothing

extender side done

pcb side not done

[slender oxide]

klean

[slender oxide]

alr

just finished electronics

its on

just need to fix up the chamber lights

[slender oxide]

sheesh

not horrible

[slender oxide]

dence

oh yeah

and i added like

11 more LEDs

[quiet jewel]

What speed and accel?

[flat sage]

Too much

[quiet jewel]

no, its not enough

[flat sage]

Only enough if it falls over

[quiet jewel]

nahhh

ratchet strap the printer frfr

[flat sage]

Waiting for moving countermass damping😆

[quiet jewel]

lmaooooo

[slender oxide]

700/25k

[quiet jewel]

Nice nice

[slender oxide]

damn RSCS keeps falling off

im gonna try getting some better tape

[flat sage]

Best tape: Bolts

[slender oxide]

lmao

im gonna print out the pii skirt

https://mods.vorondesign.com/details/SMPmB3yokwtdGs23vUiKQ

gonna see if i can do uh pin thingy

wait can i?

cuz canbus

shit i cant

[abstract atlas]

I've seen ABS warp so much it pulled off the steel sheet from the magnet because it stuck so well to PEO

[abstract atlas]

time to put a paver stone in the bottom

[slender oxide]

lmaoo

imma switch to toothed idlers on the xy joints

these bearings are not working

like

they are

but theyre like concaving ig

[slender oxide]

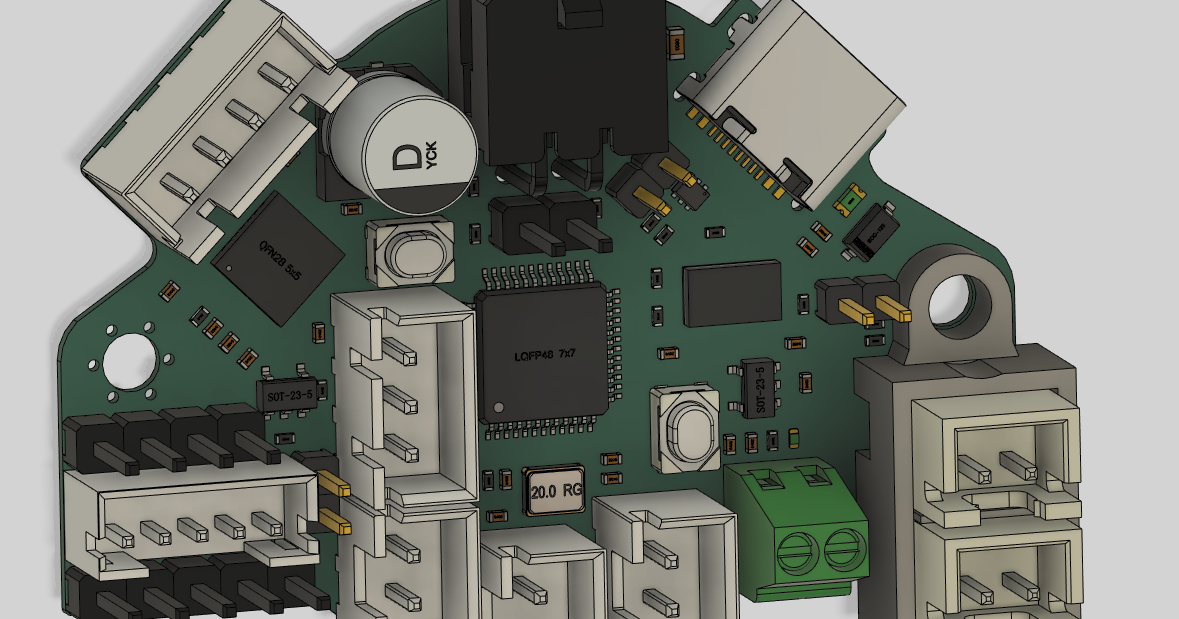

https://www.printables.com/model/694723-ebb36-jst-splitter-for-dual-part-cooling-fans/files

this is gonna save my ass

i love printables

[slender oxide]

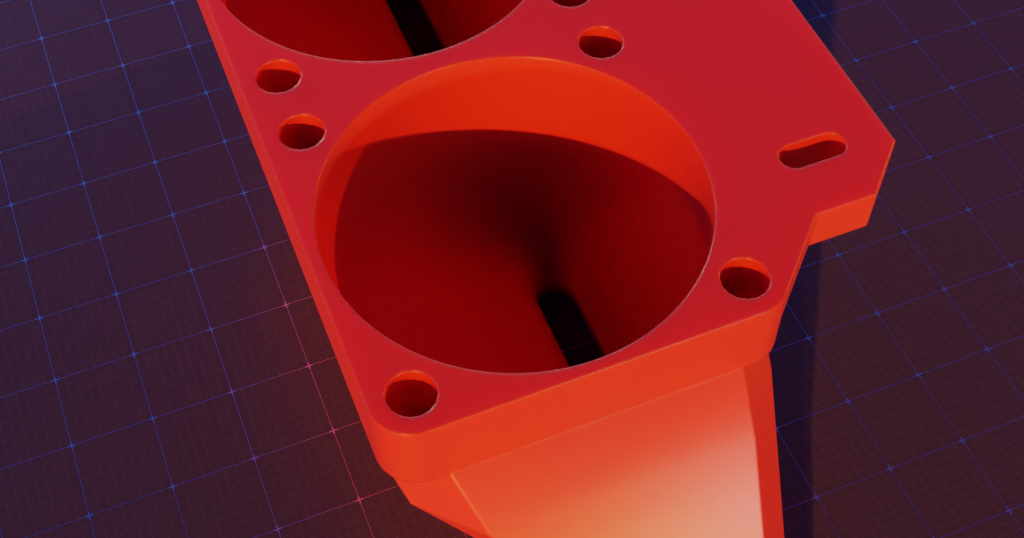

ebb36 cover

https://a360.co/3RzlrJ0

ok

just modeled up the non-scuff versin of the xy joints

gonna make it paramaterized tmrw

for future me

[quiet jewel]

FASTERRRR

MUST GO FASTER

[slender oxide]

what should i change in this?https://a360.co/3RzlrJ0

@velvet escarp any reccomendations?

oh yeah and should i get 16t idlers or 20t idlers?

spot the issue

[quiet jewel]

ohno

[slender oxide]

rahh light weighting

[slender oxide]

oooh

[slender oxide]

SMOOTH_MZV 74.6 for Y

SMOOTH_ZV 56.8 for X

[slender oxide]

any ideas why i have some activity in the 200hz area?

[distant basin]

that noise trigger my "o sh*t my printter is making a noise it shouldn't"

[distant basin]

Resonace?

[slender oxide]

Nah that's normal sounds

[slender oxide]

Idk what thi

Tho

[distant basin]

when a frequency matches a materials natural harmonics

like how sound can break glass or the werid noise your vacum makes somtimes

[distant basin]

guess I am use to my p1s being quite

[slender oxide]

yeah

ik

im guessing its fans

[distant basin]

have you looked into active dampeners?

idk seems like somthing fun to look into adding don't know how to make one or buy one lol

[slender oxide]

wdym?

[distant basin]

sort of like how some printers have it where the print head moves to aborb some movement (forgot the name for it) but instead of the print head compesating you could have another print head (or somthing simliar) move in the opsite direction reducing vibration in the system activly before it can resonate or move throught the system.

so print head move left counter weight moves right ect

[slender oxide]

oh that sounds horrible

[distant basin]

idk I was just following a ideal to see where it went

[slender oxide]

nah the issue with that is you have to match the main toolhead EXACTLY and drive another pair of 5160s running at 1.2 amps and another pair of omc-2004s1s

with that hardware i couldve done AWD

[distant basin]

or to save time to bolt the thing down to a concrete floor I doubt you can shake the entire bulding

[slender oxide]

i dont think my parents will be too happy with me drilling through the second floor

hell i dont ahve a drill

[distant basin]

lol

I had to get a job before I could get a printer

my second pay check went to this expensive trash... they are out of business now lol

[slender oxide]

lmao

[distant basin]

I sold it to a pawn shop and got a ender 3v2 every other print I had to level the thing out but it still printed good when it did

[slender oxide]

nice

[distant basin]

then I said f it and took out a buy n pay later for a p1s since I enjoy making stuff more then fixing stuff (most the time)

[distant basin]

I don't think this thing even had a cooling fan and it used .25kg spools

[slender oxide]

ykw

dual z is easy

i can do it

belts exist

i have 2 rods

(4 if you consider the carbon ones)

[distant basin]

you should try a delta at some point they seem like a fun challenge

[slender oxide]

haha ive worked with deltas before

[distant basin]

yeah I like watching them move around they are fun and natrually high accel

[slender oxide]

real

😭 i would grab these but theyre 10mm off 😭

i need minimum 260

[distant basin]

f well time to buy them anyways I mean one day I might need them

[slender oxide]

i would but im a student so i can't really justify stuff im not gonna use

i mean there is this amzn linking https://www.amazon.ca/Twotrees-MGN9-300C/dp/B08C7DJWM7 from twotrees

[distant basin]

yeah like the 50 benchys?

[slender oxide]

surprisingly i only have 10

over the span of 18 months

[distant basin]

that is sus but ok lol did you try printing any chainmail yet?

torture test the printer

[slender oxide]

nah not yet

i print articulated stuff often tho

dragons and shit

[distant basin]

I could never get my old ender 3 to print chain mail sadly my p1s can though

[slender oxide]

imma use my PG7

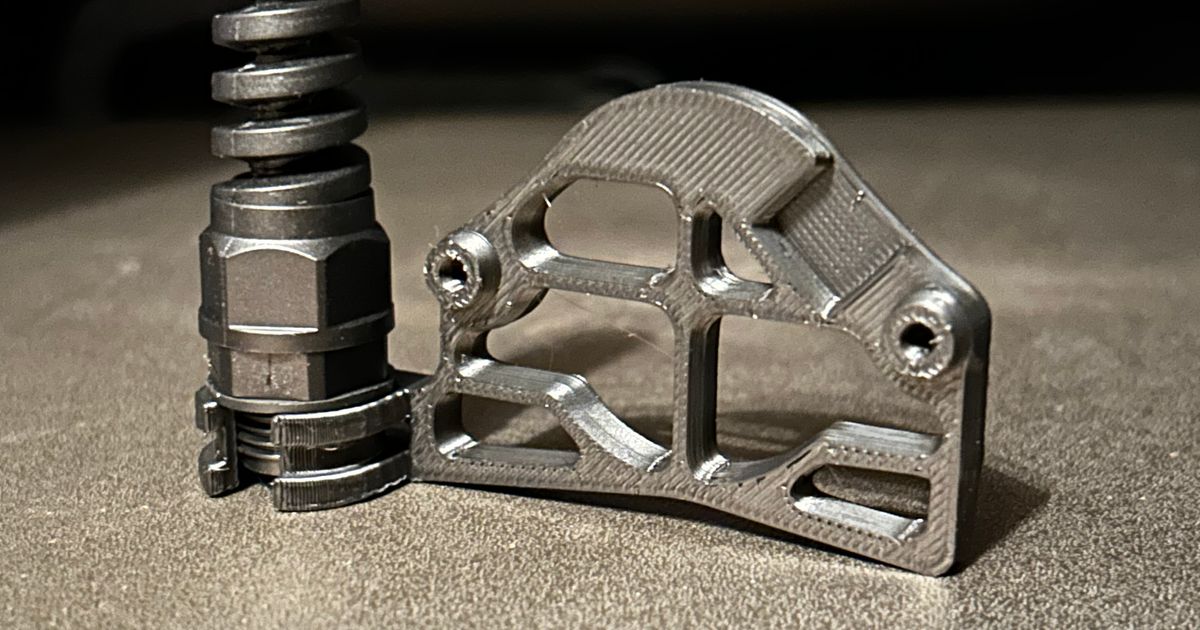

https://www.printables.com/model/579041-ebb36-pg7-mount-behind-nema14-stepper/files

[quiet jewel]

must go zoomier

[slender oxide]

my walls no stick to eachother

its annoying

only happens with ASA

[quiet jewel]

needs hawt chamber

65C

no

80C

[slender oxide]

i have a feeling thats not the issue

[slender oxide]

this part is acc not horrible

much more rigid compared to the other one

[distant basin]

that surface looks rough

[slender oxide]

they're pretty smooth tbh

[distant basin]

I just woke up and thought you bought a glow in the dark ptfe tube

[slender oxide]

Lmao

[slender oxide]

New xy joints printed

Tempting

[slender oxide]

pid for extrduer: #*# [extruder] #*# pid_version = 1 #*# pid_target = 280.00 #*# pid_tolerance = 0.0200 #*# control = pid #*# pid_kp = 21.292 #*# pid_ki = 1.836 #*# pid_kd = 61.748

[slender oxide]

## [heater_bed]
## pid_kp = 55.655
## pid_ki = 1.312
## pid_kd = 590.100

MPC moment

[distant basin]

A rollercoaster of a graph

[quiet jewel]

LMAO

[slender oxide]

i should get one

[quiet jewel]

nah you need to get the canandmotor

and the canandcoder

[slender oxide]

lmaoo

[distant basin]

Why the walls look so scuff?

[slender oxide]

It's an overhang

It was under supported

[slender oxide]

theres negative play

basically no X twist

i need to replace the X rail

theres soo many balls missing

[slender oxide]

yeah my X is fucked

imma start disassembling and tightening eveyrthing

2 more days till i go to india

[slender oxide]

Distance between skirt corner to skirt corner righ/left side: 255mm

Roughly 65mm on each side on the fans

[distant basin]

Can you say fire hazard in faulty connection?

[slender oxide]

what

[distant basin]

I was just saying that those wire really close to the carpet seem like a fire hazard

[slender oxide]

Oh nah it's fine

[slender oxide]

I eat da nozzle

I can finally print abrasive now

[distant basin]

I wish my p1s gave me graphs like this. Would I understand it? No. Would it change anything? No. would it be cool to look at yes

[slender oxide]

alright no more updates on this for the next 2 months

im heading to india

[flat sage]

Have fun

[velvet escarp]

False peaks

4 is real peak

Try eliminate others

[slender oxide]

alr

[quiet jewel]

how would that happen? loose screws?

[slender oxide]

Maybe

Idk

It might be the bearings

For my linear rails

Cuz they're shit

[slender oxide]

@velvet escarp could my false peaks be a shit linear rail?

[velvet escarp]

unlikely

[slender oxide]

i checked my rail just last week and im missing like

9 balls from each side

[velvet escarp]

oh what

[slender oxide]

yeah lmao

[velvet escarp]

mgn12 is like 4 balls out i think

[slender oxide]

i dropped this on the shop floor by accident while milling it

ignore my shitty drawing skills but after pushing all the bearings in, this is how it looks like

[velvet escarp]

very possible if its missing that many

[slender oxide]

alr

ill try getting another block

is it alright if its not the same brand n shit

[velvet escarp]

the preload might be matched

[slender oxide]

I'll see if I can find some rails here in India

[distant basin]

You can find miles of the stuff just lying on the ground if you go to a train track

[slender oxide]

Lmao

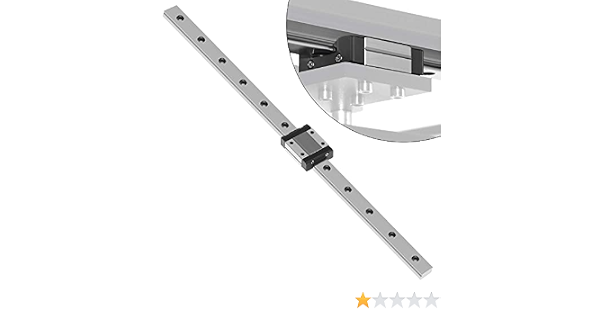

Linear rails with bearings in the mgn form factor

[slender oxide]

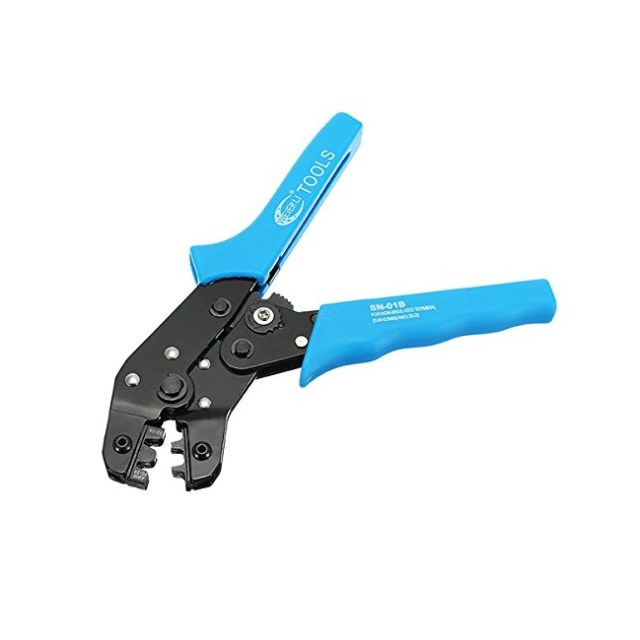

https://roboticsdna.in/product/sn-01b-wire-crimping-tool-20-28awg-0-08-0-5-mm/ should I yoink

[abstract atlas]

nah, get an Engineer PA-21

[slender oxide]

It's like 8x more expensive

Ill see if I can get a good deal on it

[abstract atlas]

those spring loaded crimping tools give you zero control and I snapped about 60% of my crimps in half in them by accident

[distant basin]

I wonder if it would be cheaper to order the part from pcpway and get it metal printed

[slender oxide]

Damn alr

[distant basin]

@slender oxide question now that the cube print doesn't that mean it has already been revived?

[slender oxide]

It always printed

[distant basin]

Ahh

[slender oxide]

Just not fast enough

I want to go a bit faster and fully enclosed

[distant basin]

So not really #1151917309875728504 more like a revamp?

[slender oxide]

No it's a Revive

[distant basin]

But it wasn't dead?

[slender oxide]

Have you seen how slow and shut it used to print

Shit*

I've killed it and revived it so many times

[distant basin]

Ahh ok I was just wondering why the channel was still called revive after I saw the cube print some stuff already

[abstract atlas]

some people here use 'revive' in the sense of 'bringing up to current expectations of 3d printers'

and since the landscape always changes, it's an ever-ongoing process.

[slender oxide]

^

[slender oxide]

Yo

I have a ptc

Well

Peltier

[slender oxide]

I should be able to use this to heat the chamber

12v 5a iirc

Shit that's gonna blow the mosfet

Amd buck

[flat sage]

External mosfet

Wait a peltier?

Mhhh....cool stepper motors with peltiers, dump heat into chamber...🤔

[slender oxide]

nah nah

its for chamber

[flat sage]

Read that

[slender oxide]

i could do stepper cooling too

but peltiers r inefficienct af

its better to just throw a fan onto them

[flat sage]

Yeah kinda

[slender oxide]

ngl i could prolly just get a rlly resistive load

and itll work better

than this peltier

[flat sage]

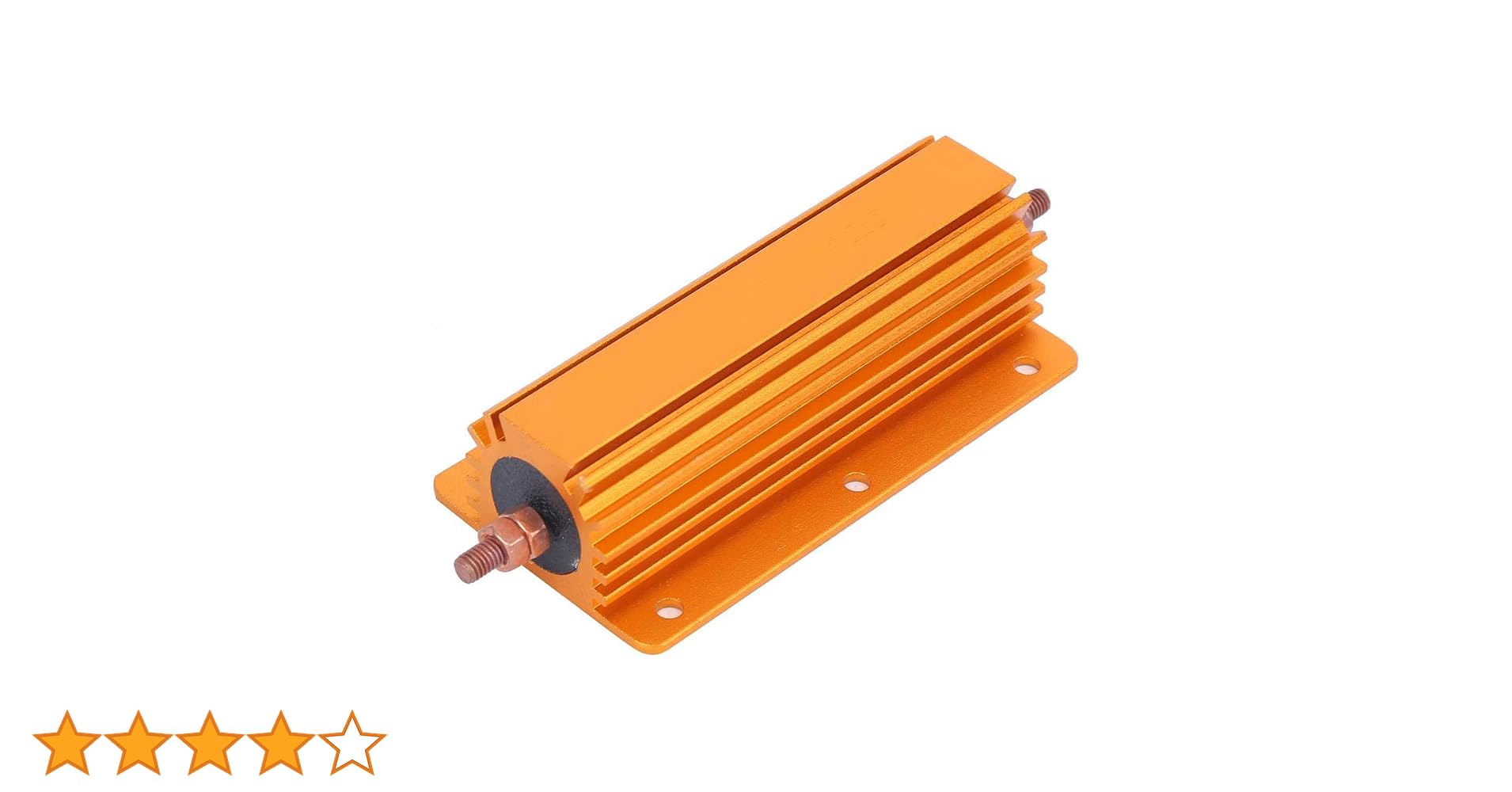

200W Resistor anyone? https://amzn.eu/d/06214MF0

[slender oxide]

Lmao

[slender oxide]

Ooh I got a rpi 4

It's sd card port is blown

And usb c is a bit sketch but works

[slender oxide]

The guy who did it didn't know gpio existed

[slender oxide]

alr

so the pi which i got is 4gb

thats nice

[slender oxide]

So I'm back

Not to canada but yeah

I just got so much stuff for the cube

Again

I got leadscrew couplers, t8 nuts

Basically everything other than rails for the tri z

I also got some 3010 fans and a few 4020s

They look like server fans

Didn't rlly see the size

[slender oxide]

I'll send a Pic of everything igot once I'm home

[slender oxide]

those damn 4028 fans are 0.66 amps each

12v

[slender oxide]

these 4028s

REES52 AVC DB04028B12U 4CM 40mm x 28mm 12V 0.66A Speed: 4800RPM Wind: 102.09CFM 4Wire PWM CPU Cooling Fan

are wild

@velvet escarp is this fact or cap

[velvet escarp]

cap

[slender oxide]

aww

what would the actual cfm be like

[slender oxide]

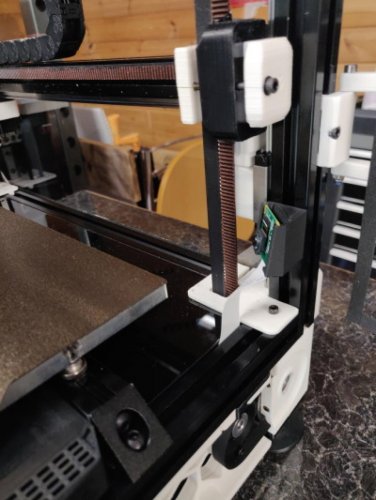

im gonna print this out when im home https://www.teamfdm.com/files/file/331-picam-corner/

[lunar pollen]

OK. I know I just wandered into this thread. I truly do not care. My gosh man, did you know what you were getting into last year??? I've spent the past 15 mins reading this thread. Amazing. I could never have the patience to revive that printer. Amazing.

[slender oxide]

lmao thanks

i kinda did know what i wanted to do from the start

high speed, high temp material printer

im partially there lol

its able to do relatively high speeds and can print ASA, (hoping PC soon!)

didnt know itd take over 400 bucks of upgrades though lol

plus now that i have a somewhat steady "income" from hackclubs onboard program, this shoudl start picking up pace

i might design smtg for this honestly, ive gotten good at PCB designing

[lunar pollen]

How long u think it'll take to finish (if ever)? Another few years?

[slender oxide]

most likely lol

enclosure most likely this year, electronics should be finished once im back

motion system, another good year or so

[lunar pollen]

Wow. Again I'd never have the patience. Also, what's hackclubs?

[slender oxide]

haha check out the website

its too much to say over discord

im gonna try getting tri z finished this year too

major goal this year

[lunar pollen]

Good luck. (You'll need it) 👍

[slender oxide]

lol tahnks

[lunar pollen]

Holy cow just looked up hack club. I'm a teenager. 🤔 I code a lot. I'm building a drone at this moment. sHoUlD i JoIn HaCkClUb?

[lunar pollen]

@slender oxide quick question is hackclub safe? its kinda 3rd party

[slender oxide]

so i plugged in the fan and its pretty powerful

not 102cfm powerful

but decently powerful

[slender oxide]

so uh

i forgot to loosen my belts

and theyve been sitting like that

for

2 months

i have smooth idlers on a few of the idlers where the teeth touch :heavysob:

[abstract atlas]

where the teeth touched

but if two months deform the belt permanently, you've overtensioned anyways

[slender oxide]

ill check once im home

still another 10 days before im home

[slender oxide]

yo

so im back

again

with a brand new idea!

https://www.printables.com/model/861403-eardrum-destroyer-voron-v0-4x-4028-auxiliary-fan

mb

[lunar meadow]

hell yea, go wild

[slender oxide]

alr

bet

[lunar meadow]

i missed the ping in gen lol

sorry

[slender oxide]

imma remove the vslot mounts

and just vhb tape it to the PC

[slender oxide]

okay guys!!!

we are back!!!

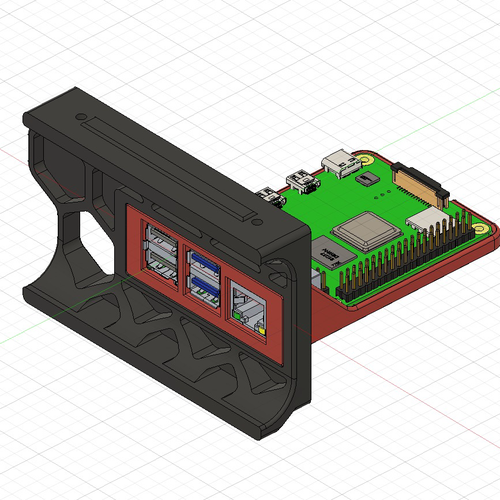

i got pi5 mounted

actual beast

[low ginkgo]

welcome back

[quiet jewel]

Aye!

[flat sage]

[abstract atlas]

https://tenor.com/view/chris-pratt-andy-dwyer-omg-shocked-face-meme-gif-25585329

[slender oxide]

Ty ty

I need to upgrade a shitton of shit on this

[abstract atlas]

Give us reference prints

[slender oxide]

will do, theyre really shit lmao

theres soo much ringing

i need to get the cr 10 fixed up. it works but it can't home

[abstract atlas]

G92 time and manual homing

[slender oxide]

yup lol thats what ive been doing for the last few days now

wanted to try doing adxl_probe but its not wokring

[lunar pollen]

yo blaze idk if u remember me but I found u on Hackclub 😄

[slender oxide]

Oh hey lol

[slender oxide]

befoer i forgoet

ima make a list of shit i need to fix

• replace stepper driver fans with quieter ones
• redo IS with nozzle mount
• tune for quietness over speed
• tune VFA

in that order

[quiet jewel]

Quietness? Booooo!!!!

[slender oxide]

cmon man

[quiet jewel]

Lel

But if you can get good speed on stealthchop I would be impressed

[slender oxide]

imma try
