gloomy field
#

Hi, I just got my JiS 80HE and I was trying my own 4.5u spacebars but the stems and stabilizers don't line up at all. I have 2 diferent 4.5u keycaps from diiferent brands and their stem positions are exactly the same. I tried to do some research on 4.5u bars but i couldn't find anything about different 4.5u stem positions. I'd like to know if wooting is using non-standard 4.5u bars or its just mine that aren't standard.

deft plankBOT
# gloomy field Hi, I just got my JiS 80HE and I was trying my own 4.5u spacebars but the stems ...

Thanks for posting your support request!

Note: #community_support is only for answering general questions and for troubleshooting.
All order-specific and shipment-specific support must be handled via the Wooting Support Wizard or via email to social@wooting.io
(You need to create an account on the Wooting Hub, using the same email address as your purchase. The account is not created for you automatically!)

Troubleshooting your Wooting Keyboard? Try these steps first!
Basic Troubleshooting

Questions about shipping, or what to do if your shipment has a problem?
Possible Problems During Shipping (with Solutions)

Looking for information about your specific order?
You can find that on the Wooting Hub! There you can also add upgrades, update your shipping address, and much more.

Is your order about to ship and you need to pause it for any reason?
Place it on hold via the Wooting Hub!

Do you need to...

All of these types of requests need to be made via the Wooting Support Wizard or by emailing social@wooting.io directly!

gloomy field
#

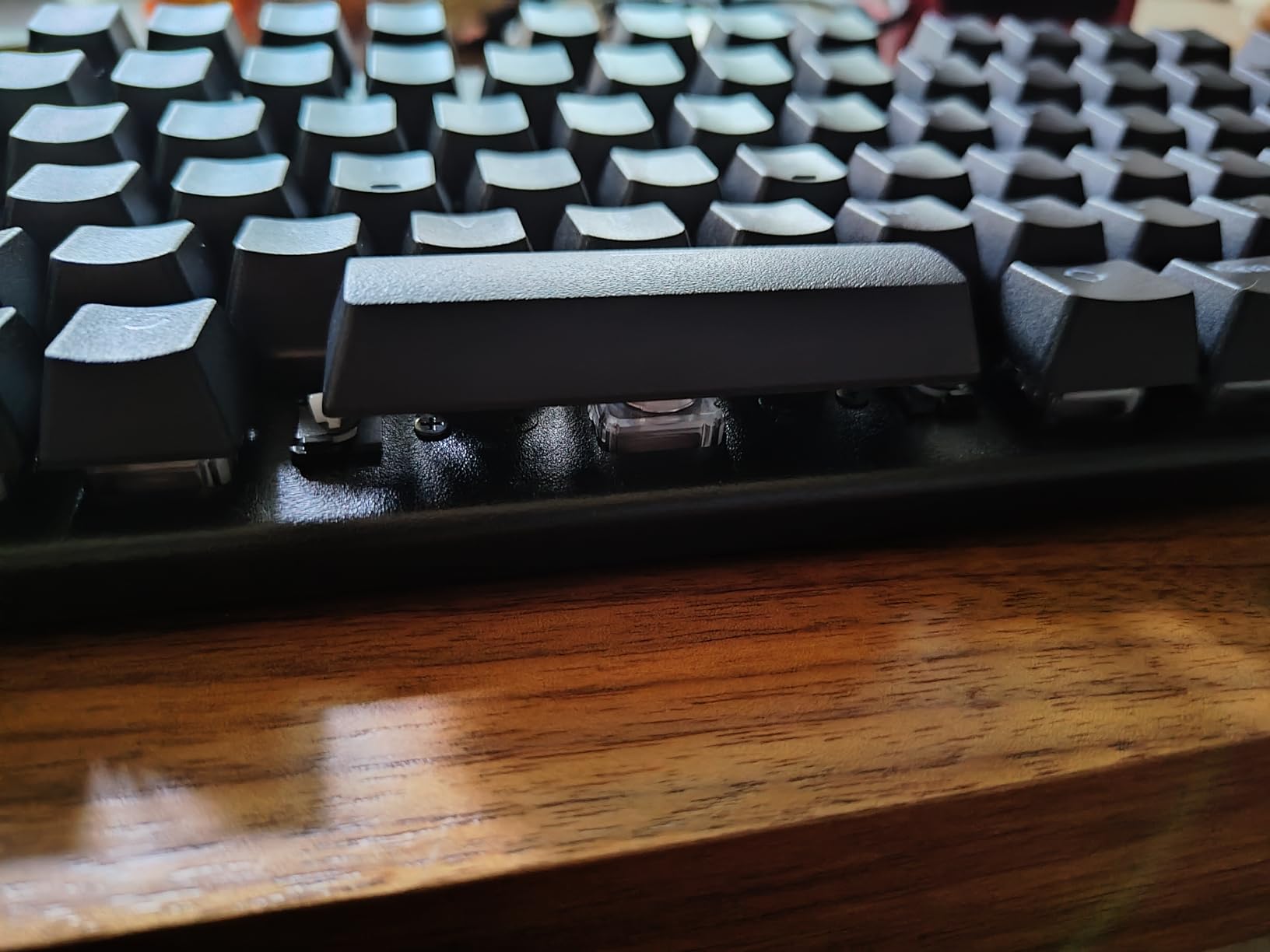

Just some bad pictures to hopefully show the difference. In the right picture, you can kinda see how far off the right stem is if the left stem is alligned with the stabilizer

20240924_044051.jpg 20240924_044158.jpg
fresh sedge
#

it's 2025 but I have similar question - why do I have 3 spacebars in the package (I guess they are very special?) and how to find compatible backlit keycaps with 80HE JIS

#

ok, I found the answer:
https://x.com/WootingKB/status/1852382601866006841

Wooting (@WootingKB) on X

@u_hikarun We developed the JIS layout 4.5u spacebar based on the same standards used for the modifier keys and larger spacebar (6.25u, 7u). These standards include the location of the Stems that sit on the switch.

We realize now, however, that a lot of 3rd party sets follow FILCO, and

X ·
vocal basin
#

You kind of... don't find compatible keycaps.

fresh sedge
#

at all?

#

in that case I need wooting to make a JIS backlit keycaps, seems these don't exist as well :)

fresh sedge
#

Hmmm, it seems I found a keyboard that uses the same layout / space size

#

bottom row has the same key size and seems stabilizers are on the edge of spacebar

#

the only question how do I find these keycaps now

#

also I wonder why they got exactly the same layout, according to pulsar plus various keyboards I used before - "the standard" is 4.25, not 4.5

fresh sedge
#

hm, there is also a chance I don't quite get the problem here.

I though that space is significantly different, that they use the same space for 4.25 and 4.5u spacebars.

But seems it is not the case and:

#

in that case the difference between wooting and filco is less than 5mm, about 2mm probably

#

at least my measurements give me about 67mm

vocal basin
#

The switch and keycap stem sockets are offset.

fresh sedge
#

yes, but the question is "how much", is it something obvious or is it couple of millimeters
if it is couple of millimeters that means whole comparison with gx1 is wrong and I can't determine by the photo if they are the same and share the same spacebar, as result gx1-compatible keycaps I found are not it

#

And it seems the answer is "couple of millimeters" indeed.
