Running Bruce on Esp32-Wroom, ILI9341

[short swallow]

https://youtu.be/kIZoGS_voDo?si=ByFql0hxYU3RMRLT

I used same wiring

[shell pewter]

thank u

[warped sedge]

I have an ST7735 2.8" TFT display, and when I connect it to the ESP32-WROOM-32U according to CYD’s pin configuration, both touch and display work fine, but the SD card does not work. My firmware is CYD-2432S028 (2USB or inverted colors). When I test with an ILI display, the SD card works. How can I fix the "Fail to Mount" error? Also, how do I connect the NRF24 module with the ESP32-WROOM-32U?

[lime scaffold]

@warped sedge before asking, did you read the Wiki? https://github.com/pr3y/Bruce/wiki

[warped sedge]

Help me guys

@short swallow help me

[toxic sleet]

You should not use others forum threads to ask your own question. I suggest opening a new thread to get help there instead.

[short swallow]

Same connection for cc1101

[short swallow]

Yes it works

[short swallow]

Display u can use both 5v or 3v3
Nrf and cc1101 only 3v3
For battery need 5v booster I am using mt3608 booster

[dire cargo]

Hi can anyone help me upload code to esp32-worm-32u?

[prime ridge]

pin 8 unneeded

just follow the guide

the label by the seller is different

[fading wadi]

One question: does the ILI9341 have only a standard SD slot, or can it also be purchased with a microSD slot?

[rocky imp]

If anybody knows how to solve this ,it will be really appreciated

[past widget]

What you have there is a screen calibration problem.

https://github.com/Bodmer/TFT_eSPI/blob/master/examples/Generic/Touch_calibrate/Touch_calibrate.ino

[rocky imp]

Should I add the touch_calibrate() function and call it?

[rocky imp]

It worked 🙂

[rocky imp]

Thank you very much buddy

[copper wing]

does anyone have a case for cyd to put modules in it? e.g ir,rfid

i can use the esp32 s3 and tft screen 2.8cal ili9341?

[rocky imp]

Yes you can

[maiden sorrel]

hi can someone help me fix the tuch screen inverted issue?

also, how can i wire up the IR reciver and transmitter?

i am using a 2.4 ili screen with this fw

do i need to buid from source_

?

i am using a wroom32U, i also have a wroom s3, is it better if i use the s3?

[lyric lion]

Somebody help me with uploading screen calibration code to Bruce pls?

I'm beginner

Touch is inverted

I have ST7789 driver screen and esp32 wroom-32

And flashed this Bruce:

[past widget]

@enstr1x https://github.com/LaZorraTech/ESP32-and-ST7789-135x240-LCD-Display/blob/main/main.cpp

[past widget]

https://github.com/LaZorraTech/ESP32-and-ST7789-135x240-LCD-Display/blob/main/main.cpp

[lyric lion]

Okay but it's not I am asking for

[lyric lion]

.

[past widget]

How do you even have touch with st7789 ?

[long coyote]

is ili9341 needed?

or can i just use a red display like st7735

[past widget]

https://github.com/witnessmenow/ESP32-Cheap-Yellow-Display/blob/main/SETUP.md

[proper harbor]

I'm trying to download cyd-2432S028 to esp 32-u and this happend what should I do guys 😦

[past widget]

Have you selected the port ?

Hold the boot button on board plug in usb and release it

[proper harbor]

yea, and its like going to 60% and then jump up to 100% in 1 sec and give this erro\r

[proper harbor]

I think I'll just try to download it offline with flasher

[proper harbor]

it worked 😎

[past widget]

What method worked ?

[proper harbor]

flashing bin file with flasher

[finite garnet]

Yoo bruh I also want to install bruce

I have esp wroom 32u with 2.8inch ili9341 display

Anyone help me!

[manic light]

i have the esp WROOM-1-N16R8 does this work also for this?

[prime ridge]

if this

https://www.digikey.com/en/products/detail/espressif-systems/ESP32-S3-WROOM-1-N16R8/16162642

yes but again you gotta diy setup

no premade builds

[manic light]

Alright

[manic light]

I was able to make it work , but the touch doesnt work

[manic light]

which version of firmware do i need to modify?

[frank summit]

Hi how do i connect antenne with esp 32 bruce on it?

[prime ridge]

Soldering

And please note it's for nrf24 only

It will not affect WiFi or Bluetooth items

It will only do things under the nrf24 menu

It will not help the ESP-32 WiFi

[frank summit]

Ok nrf24

I have bruce on it

[frank summit]

Pls help me

[prime ridge]

It's a diy build

I don't have support for these

You figure it out yourself

And set it in the code

Please... Don't do DIY builds unless you know how

[frank summit]

I know how

[prime ridge]

Then do it

[frank summit]

You are realy Pleasant

Really

[prime ridge]

Learn electronic basics please...

It's just a spi connection

Define some pins in the code

And wire it up accordingly

[frank summit]

I just start with it dont me angry to me

Bro

[versed bone]

He's not angry, he's telling you truth...

[frank summit]

I know im noob in that

[quaint jungle]

He is not angry he's upset that people come here and except some one else to do the work for them.

It will help you and other if u know electronics and circuitry.

[frank summit]

Sorry i dont mean like that i just not good and i dont know a anythink about electrician i just mean if someone help me that all

[quaint jungle]

No worry's if u look up his message history u will see what I am talking about. He is patient👌

[frank summit]

Sorry

[quaint jungle]

All good no need to feel bad and sorry if I text mean

[dawn mural]

Hey guys, does anyone know the pinout for the CC1101 module with the ESP32?

[dire blaze]

Same has nrf

[devout spruce]

@rough mirage people are trying to make it here

[rough mirage]

Oh so it's still on a development phrase isn't it?

[prime ridge]

It's DIY...

[rough mirage]

Uhh how do I modify the code specially for gpios ? 🥲 And while flashing did as documented but the flash address is invalid is it different according to manufacturers? Mine is esp32 S3 and btw gpio 45 is for onboard neopixel

[lime scaffold]

@rough mirage before asking, did you read the Wiki? https://github.com/pr3y/Bruce/wiki

[rough mirage]

I am kinda new to this hacking stuff and cyber security that's why

But I have great knowledge of robotics

[woven spindle]

hi their i have an esp32 and a ili9341 touch screen display 2.8 inch (the red one) how do i install bruce firmware on it for use. Do i have to change any wiring connections and then install it ( i am using the connections for the marauder firmware as my setup is currently running marauder firmware ) or do i need to make new connections.. If yes can anyone share the exact connections that are correct for running bruce on this particular setup.. it would mean alot.

[manic light]

which esp32 do you have

[woven spindle]

esp32 wroom
i have both the simple one and the one with the 38 pins.

planning to use this one.

[pseudo glade]

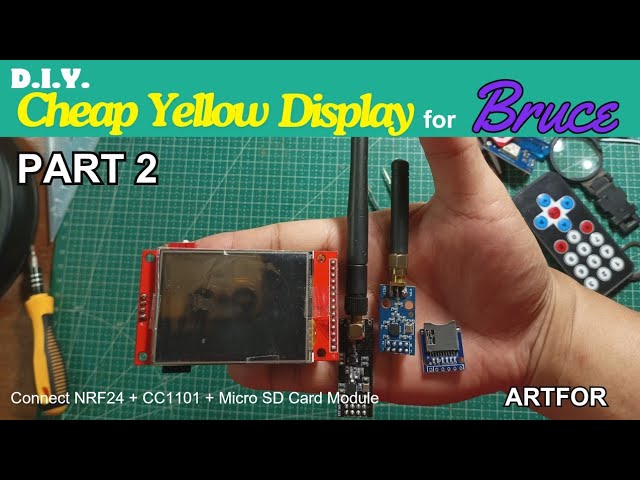

The picture comes from here https://www.youtube.com/watch?v=zXMxBTrUJLE

[woven spindle]

yes thank u i have made the connections and its running now 😄

can u please share how to use all the features of bruce i am unable to find a proper guide..

[rocky imp]

https://youtube.com/@cherry_tomato_1

https://youtube.com/@maninthemayhem

[rocky imp]

You can find many interesting and detailed videos on this channels 🙂

[pseudo glade]

The wiki is your guide https://github.com/pr3y/Bruce/wiki tell me, what specific binary you have used?

[lyric lion]

hi, can someone help me with fixing reversed touch on st7789 2.8 tft screen with esp32 wroom-32 please?

i saw that this topic has been discussed before

but it was not finished

so can someone help me please

[tacit atlas]

Hello everyone. Im new at the esp stuff. I got these components:
Esp32 wroom32 38 pins
Tft lcd 2.4in (ill drop the pins picture)
Two nrf antennas
.
Could anyone please just give me head start of pin connections ?

[tacit atlas]

What if i wanted a 2nd antenna? Where should i add it

[cursive depot]

You cannot without modying the firmware

[torn hamlet]

hello guys i have the same inverted touch issue i read whole chat but the solution was not these please help me to fix i have esp32 devkit v1 and 2.8inch tft touch display

[golden mauve]

I have connected the IR TX & RX according to the schematic but it not working it dont receive signal and not transmitting at all I have checked the connections many time i have installed bruce latest firmware 1.10.2

[pine cloak]

2nd antenna for what?

for wifi just plug one into the ipex port and you're good

[pine cloak]

for nrf24/cc1101 use an sma splitter

[tacit atlas]

For bigger wifi jamming range

I was thinking of doing this idea which im not sure about it:
Overall, one screen and one antenna. After choosing the wifi jam option. It show another option to disable the screen, and enable the other antenna.

[icy barn]

hi guys, is it possible to run bruce on esp32 wroom with 0.96 oled screen and tact buttons?

[golden mauve]

No its not supported i guess. Only TFT Lcd display are supported

[pine cloak]

yes, youll need to modify the code though

[covert swift]

Where yall getting this info

I have an marauder v4 how can i see what i can add and what not?

[pseudo glade]

If you have the Marauder v4, then you can also install GHOSTESP and since recently the official BRUCE firmware (no firmware or HW mods needed) https://github.com/pr3y/Bruce/releases/tag/1.10.2

[old hatch]

@smoky horizon can you tell me if I can make the the LILYGO embedd device using the LCD TFT ILI9341? why is everyone uploading rhe CY program. I have the esp32 s3 is there some place i can change in the LILYGO interface file so I can upload and make a DIY LILYGO instead of the CYD device.

[pine cloak]

how would it make a difference

bruce is bruce

it doesn't matter what decice youre using

its gonna be the same

[old hatch]

Isnt the LCD of the LILIGO device different?

[pine cloak]

the screen doesn't matter

the only thing that changes is the size

e.g. you can put the same cyd firmware on a 1.8 and 2.8 inch screen

runs exactly the same

[old hatch]

right

is there any change in firmware

for this

[pine cloak]

the reason theres multiple firmwares is because the processor and pins are different, e.g. cardputer uses esp32 s3 but cyd uses esp32 wroom32

[old hatch]

@pine cloak right that but the isnt it that the CYD firmware is also made for a specific LCD. on the other hand the liliGo is made for a specific LCD. both have different drivers so need to make some sort of changes to make it relevent of different lcd

@pine cloak Also to upload the firmware using platformio do I need to upload the file from the boards or the file from the src. from the github

[pine cloak]

you compile the src into a bin if you want to build from source

either

[pine cloak]

src has no .bin files in it, so, like i said, you'd need to compile it yourself into a bin

[old hatch]

right

anything to do in the boards?

folder

[old hatch]

The display is inverterd

How to flip it 180 degrees

[cursive depot]

I believe in settingd

On your Bruce device

[old hatch]

No I mean the touch and the display are inverted. They don't match

Either I need to invert the touch or the display in the src

[somber saffron]

experiment with tft.rotation function

not sure if it rotates the touch but you can try

or setRotation whatever it is in the tft espi class

[smoky horizon]

hi everyone

i solved the rotation problem

it is indeed finsihed

[digital juniper]

the inverted touch? pls do tell

[smoky horizon]

look at my past messages

ive gone through the issue

[digital juniper]

ive followed it to the point where you edit the code in interface.cpp for the CYD and then recompile + flash, but I'm unsure what exactly to change in the code and could not find it in your messages

EDIT: i found it, if you are looking for the code Pirata posted it on 2025-01-31 7:25 PM in #bruce-helper
replace snippet in interface.cpp (for cyd) and recompile + flash with platformio
thx for the help rora :))

[smoky horizon]

welcome

[golden mauve]

I want to add push buttons for navigation for this circuit is it possible ??

[cursive depot]

only works with this version, the one above is with touch

[golden mauve]

Yes you are right its touch screen but when i need to name a file or saved a file with a particular name it does not works i i type a particular alphabet it does not type that instead it types other letter works opposite

[tacit atlas]

Latest bruce. When i click nrf jammer. I get this. Does it mean if i can add another nrf 24 !

[hoary cairn]

Hello, does someone have any idea on how to run Bruce on an esp32 wroom?

[rocky imp]

Looks like it has an ILI display
Try flashing the CYD builds

[hoary cairn]

Ok, I will try

[hoary cairn]

Which one?

[hoary cairn]

@rocky imp

[rocky imp]

Simply try all of them ,one by one
And hope you device has been built according to one of the standard CYD schematics

[dense quiver]

Hi

I have finished assembling the hardware part. Normally, there is no problem with the hardware part. Now comes the software part—what exactly do I need to do?
I don’t want to build the project blindly, and I don’t want to just flash the board by installing the whole program without understanding it. I want to understand everything: how it works and why it works. Do you understand?
This is because I will have to make a presentation and present this project to the professor. As I told you, the professor will expect many things: how I built it, the method I followed, and how everything works. He wants to see the code and a complete project.
So I’m asking you to help me step by step: for example, how to upload the code, which libraries I used, and how to set everything up.

Hello sir, I am interested in designing a PCB for this project.

[hard zinc]

You can upload precompiled files for cyd
