Controller support through code

[molten wren]

Quick question, I'm trying to get my controller working through code, if I add an event using the project settings, it just works, if I add it through code it doesn't.

This is my current code (only the important parts (to my knowledge)) (got most from a guide that didn't cover controller support.)

const controls: Dictionary[String, Array] = {
    "walk_left": [KEY_LEFT, KEY_A, JOY_AXIS_LEFT_X],
    "walk_right": [KEY_RIGHT, KEY_D, JOY_AXIS_RIGHT_X],
    "jump": [KEY_UP, KEY_W, KEY_SPACE, JOY_BUTTON_A, JOY_BUTTON_B],
    "ground_pound": [KEY_DOWN, KEY_S, JOY_BUTTON_LEFT_SHOULDER]
    }
var key_to_add
for action in controls:
    if not InputMap.has_action(action):
        InputMap.add_action(action)
    for key in controls[action]:
        key_to_add = InputEventKey.new()
        key_to_add.keycode = key
        #do i have to add something to allow all devices? (Like the button in the project settings)
        InputMap.action_add_event(action, key_to_add)

goal:
var direction: float = Input.get_axis("walk_left", "walk_right")
but working with controllers too and not just wasd

Ps: I'm new to posting questions, if anything is unclear or I did something wrong please let me know. :)
Have a nice day!

It already works with wasd, the code is placed within the correct functions (ready, physics_process and so on)

[covert kiln]

I tried to do smth similar, if you have time you could check this

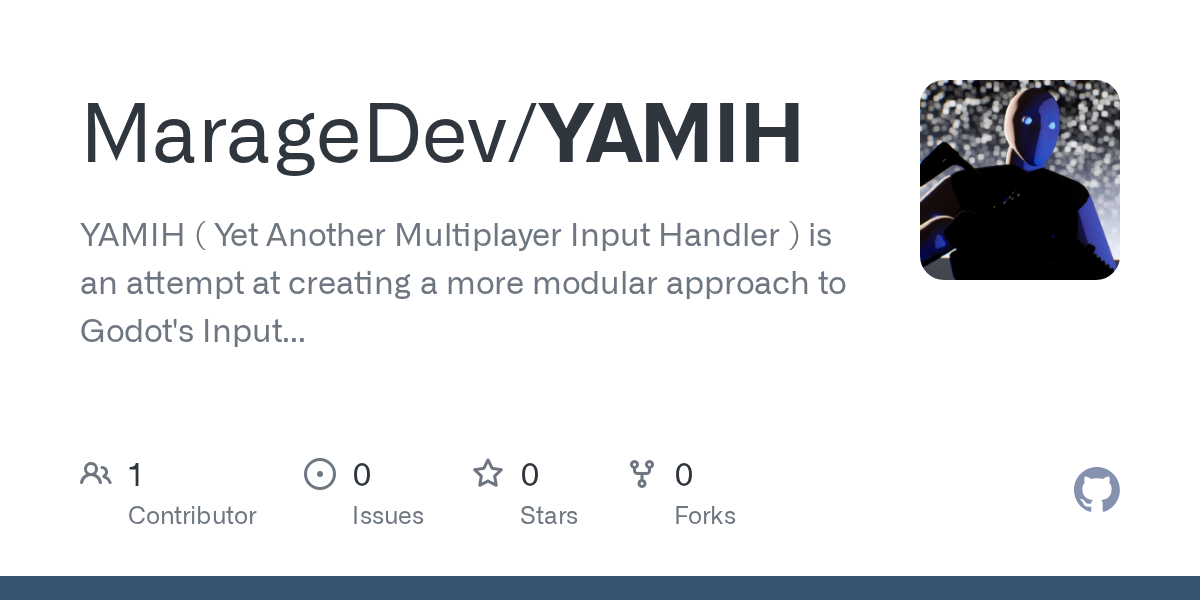

https://github.com/MarageDev/YAMIH
Maybe it can help you ( I can't help more rn because I have an issue too on another project )

[molten wren]

Alr I'll look, ty.

Yeah I don't think I understand github enough to find anything I can make use of there.

[upper turret]

controllers aren’t handled as keys. You’ll likely need InputEventJoypadMotion/Button events

[covert kiln]

you can check the readme ( below the area with files, there are some stuff explained ) and basically it's using resources ( I like resources a lot ) to handle multiple player, without predefined inputs in the project ( but it's mostly obsolete as a whole if you're working on a single player project as I built this for local multiplayer )

[molten wren]

I've looked into those a bit but couldn't really wrap my head around them.

Do you know a good guide that would explain controller support from the ground up in that case?

[molten wren]

Yeah I don't understand it.

[upper turret]

sorry, I’m not aware of anything. You could try search for godot starter projects. Not tutorials, but project templates. Some of them have a lot of settings and menus already set up, so might be doing a similar thing to you

[covert kiln]

yeah it's not the best thing for beginner stuff I guess, but idk any good learning resources, I'm mostly working on the "fuck around and find out method" lol

[molten wren]

same, i just don't know enough basics to be able to do so efficiently

[molten wren]

interesting

ill look into that

[upper turret]

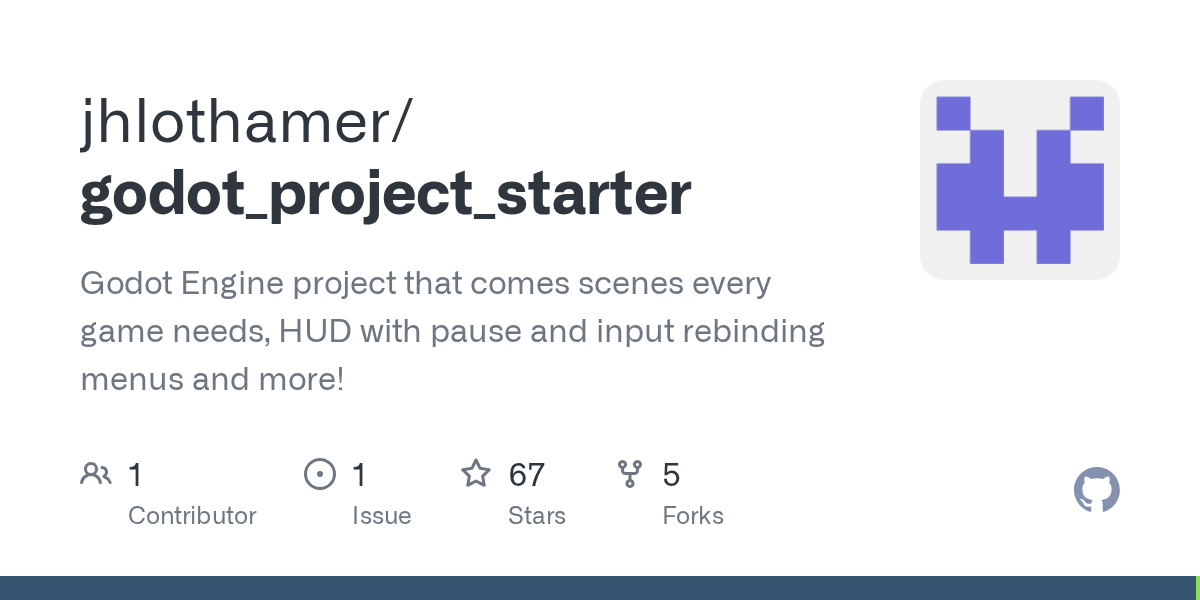

this one has it on the godot4 branch, but it looks way over complicated https://github.com/jhlothamer/godot_project_starter/tree/godot4/game/utils/input_map

I’m sure I’ve seen simpler

[covert kiln]

yes simpler projects must exist

[upper turret]

lots here; https://godotengine.org/asset-library/asset?filter=&category=8&godot_version=&cost=&sort=updated

[molten wren]

going on a break so i wont check back here for a few hours fyi

[sand wyvern]

Once you set a key trough the InputMap, you can check the properties of the event assigned in the project.godot file. That way you can see the class and properties that the controller event produces and how to reproduce it.

You are really better of leaving the default inputs to the editor's InputMap editor. If you want to add rebindable actions, you can just select an action name and wait for the user to press something.

[molten wren]

All right, thank you, I'll check it out.

no way

i think i actually solved it

var test = InputEventJoypadMotion.new()
    test.device = -1
    test.axis = 0
    test.axis_value = -1.0
    InputMap.action_add_event("walk_left", test)

gotta try to map the entire controller

YOO IT WORKS!

I can walk left and right now, using only the script and the joystick

Now I just gotta try to map buttons

and after that Ill mark this as completed

ground_pound got executed when I pressed the home button, all according to the script

ill send the updated script

its a bit longer

but the current version is like this, perhaps I'll optimise it later:

const base_controls: Dictionary[String, Array] = {
    "walk_left": [KEY_LEFT, KEY_A],
    "walk_right": [KEY_RIGHT, KEY_D],
    "jump": [KEY_UP, KEY_W, KEY_SPACE],
    "ground_pound": [KEY_DOWN, KEY_S]
    }

func _ready() -> void:
    _add_keybinds()

func _add_keybinds():
    var key_to_add
    for action in base_controls:
        if not InputMap.has_action(action):
            InputMap.add_action(action)
        for key in base_controls[action]:
            key_to_add = InputEventKey.new()
            key_to_add.keycode = key
            key_to_add.device = -1
            InputMap.action_add_event(action, key_to_add)
    var test = InputEventJoypadMotion.new()
    test.device = -1
    test.axis = 0
    test.axis_value = -1.0
    InputMap.action_add_event("walk_left", test)
    test = InputEventJoypadMotion.new()
    test.device = -1
    test.axis = 0
    test.axis_value = 1.0
    InputMap.action_add_event("walk_right", test)
    test = InputEventJoypadMotion.new()
    test.device = -1
    test.axis = 1
    test.axis_value = -1.0
    InputMap.action_add_event("jump", test)
    test = InputEventJoypadMotion.new()
    test.device = -1
    test.axis = 1
    test.axis_value = 1.0
    InputMap.action_add_event("ground_pound", test)
    test = InputEventJoypadButton.new()
    test.device = -1
    test.button_index = 0
    InputMap.action_add_event("jump", test)
    test = InputEventJoypadButton.new()
    test.device = -1
    test.button_index = 1
    InputMap.action_add_event("jump", test)
    test = InputEventJoypadButton.new()
    test.device = -1
    test.button_index = 5
    InputMap.action_add_event("ground_pound", test)
