I want a Table that look like this:
I got this so far, but I am not sure how to merge cells:
#Table with merged cells
vernal solar
?r
= Sample Table <sample-table>
This document demonstrates a simple table with merged cells and improved formatting.
#figure(
align(
center,
)[#table(
columns: 6,
align: (col, row) => (center, center, center, center, center, center,).at(col),
inset: 6pt,
[],
[],
[deltaX],
[],
[],
[],
[],
[],
[negative],
[zero],
[medium],
[big],
[velocity],
[negative],
[zero],
[positive],
[positive],
[positive],
[],
[zero],
[negative],
[zero],
[zero],
[positive],
[],
[positive],
[negative],
[negative],
[negative],
[zero],
)],
)
cursive bramble
Plain tables can't merge cells (yet), take a look at this:
iron patioBOT

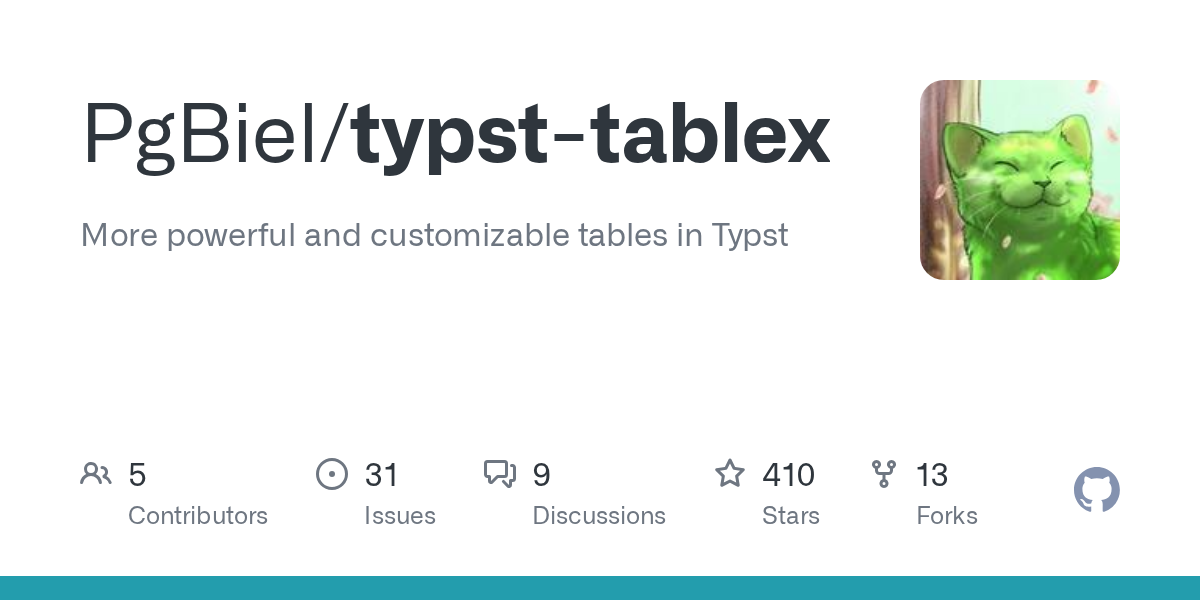

A library providing more table customization features in Typst: https://github.com/PgBiel/typst-tablex
vernal solar
alright I think that will do haha just need to figure out how
vernal solar
?r
#import "@preview/tablex:0.0.8": tablex, hlinex, vlinex, colspanx, rowspanx
#tablex(
columns: 6,
align: center + horizon,
auto-vlines: true,
repeat-header: true,
colspanx(2)[], colspanx(4)[*deltaX*],
colspanx(2)[], [*negative*], [*zero*], [*medium*], [*big*],
rowspanx(3)[#rotate([*velocity*], -90deg)],
[*negative*], [_zero_], [_positive_], [_positive_], [_positiv_],
[*zero*], [_negative_], [_zero_], [_zero_], [_positive_],
[*zero*], [_negative_], [_negative_], [_negative_], [_zero_],
)
vernal solar
any Ideas how to get rid of the double cell top left
inner anchor
?r
#import "@preview/tablex:0.0.8": tablex, hlinex, vlinex, colspanx, rowspanx
#tablex(
columns: 6,
align: center + horizon,
auto-vlines: true,
repeat-header: true,
hlinex(start: 2, end: 6),
vlinex(start: 2, end: 5),
colspanx(2)[], colspanx(4)[*deltaX*],
hlinex(start: 2, end: 6),
colspanx(2)[], [*negative*], [*zero*], [*medium*], [*big*],
rowspanx(3)[#rotate([*velocity*], -90deg)],
[*negative*], [_zero_], [_positive_], [_positive_], [_positiv_],
[*zero*], [_negative_], [_zero_], [_zero_], [_positive_],
[*zero*], [_negative_], [_negative_], [_negative_], [_zero_],
)
vernal solar
uhh thanks
is it render bug that the line right below the empty cell is rendered thiner, or can I do something about it
?r
#import "@preview/tablex:0.0.8": tablex, hlinex, vlinex, colspanx, rowspanx, cellx
#tablex(
columns: 6,
align: center + horizon,
auto-vlines: true,
repeat-header: true,
hlinex(start: 2, end: 6),
vlinex(start: 2, end: 5),
colspanx(2)[], colspanx(4, fill: gray)[*deltaX*],
hlinex(start: 2, end: 6),
colspanx(2)[], cellx(fill: silver)[*negative*], cellx(fill: silver)[*zero*], cellx(fill: silver)[*medium*], cellx(fill: silver)[*big*],
rowspanx(3, fill: gray)[#rotate([*velocity*], -90deg)],
cellx(fill: silver)[*negative*], [_zero_], [_positive_], [_positive_], [_positiv_],
cellx(fill: silver)[*zero*], [_negative_], [_zero_], [_zero_], [_positive_],
cellx(fill: silver)[*positive*], [_negative_], [_negative_], [_negative_], [_zero_],
)
vernal solar
inner anchor
its because the fill is overlapping on the stroke
i dont know if there's an easy fix
incidentally, this issue only happens on the top stroke, which I assume is because the table is drawn from top to bottom, so the top stroke is drawn first, then the fill rectangle, and then the other strokes
cc @brazen gorge (sorry for ping)
brazen gorge
incidentally, this issue only happens on the top stroke, which I assume is becau...
correct
it's a known tablex bug
but either way , it's likely you wont need tablex for that table in the next typst version
but
as a workaround, you can write header-rows: 999
forces your entire table to be drawn at once
btw, theres a note in the tablex README about usage of rotate
i'd suggest taking a look
in particular to make the cell have the correct size
in the next typst version you can fix it with rotate(..., reflow: true), but that's not the case currently
so theres a workaround shared by a community member, dont have the link in hand rn but it's in the readme
vernal solar
How does the Typst release shedule work ? Or when is the next release expected ?
