PBRify - Fast, Ethical Upscaler & PBR Generator!

[quaint shale]

Lemme actually pull up the texture

[vagrant moon]

it's possible that the normal and roughness maps are causing the bad appearance

[quaint shale]

Appears so

[vagrant moon]

oh also, the newest model i'm working on is a lot sharper overall. it may be more to your liking

it'll be released within the next week (hopefully)

[quaint shale]

and by flat texture I mean it's just a single uniform color

and the texture does seem to be a single instance for a whole wall segment

[vagrant moon]

ah yeah, that'll look horrible 😦

[quaint shale]

The whole wall is fine, except for the flat metal strip that runs across the middle

[sweet dagger]

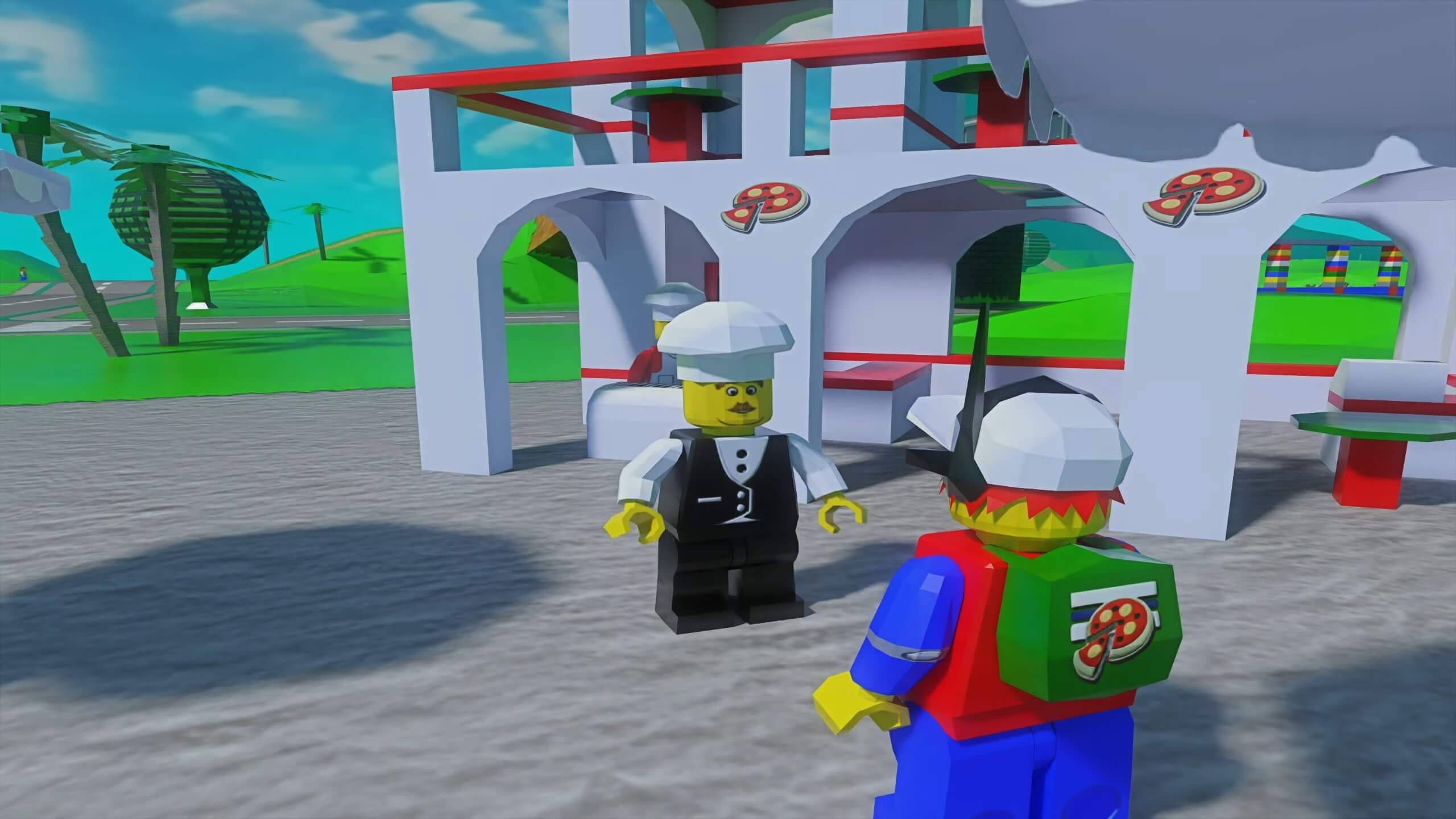

PBRify mentioned in this article! https://www.dsogaming.com/mods/lego-island-2-rtx-remix-path-tracing-mod-available-for-download/

[sterile burrow]

@vagrant moon sorry for the ping but I'm currently having some issues with pbrify. for some reason it makes the alpha part of the texture a much lighter colour and also changes the color grading of the textures

just wondering if there was some kind of fix or smth to fix it

[vagrant moon]

no worries

if you're using the model directly, yes it has issues with color accuracy. the chain i supply with PBRify has wavelet color fix nodes to handle this

you just wanted to upscale the albedo textures, right? no PBR?

[sterile burrow]

yeah thats right

[vagrant moon]

just download the new chain and disable the PBR nodes on the right side (click the toggle in the bottom left of the node), then run the chain. it'll upscale the albedo only and save it in the specified folder

[sterile burrow]

alright ill try that, thanks

[whole shadow]

whats the difference with SIR-M and Latest Span?

i could understand about span but i lack the info of SIR-M

[warm fable]

SIR = SwinIR, the -M is a configuration

[vagrant moon]

the SwinIR-M model is slower but produces better results. SPAN is a lot faster but the results are noticeably worse (less realistic detail, more generic noise)

[whole shadow]

got it

Oopsie

Thats more than i used to know

[vagrant moon]

😢

VRAM hitting limits. i am too

i'll modify the chain for you

[whole shadow]

What will be cons for that?

[whole shadow]

it uses 6gb (+500-700mb shared memory)

[vagrant moon]

i adjusted the tile size. when it upscales, it splits the image into smaller parts to reduce VRAM load

i had it set at 512, which is too much for your GPU. so i lowered it to 256

it'll make it even slower on GPUs with more VRAM, which is why the default is 512 instead

[vagrant moon]

this one should work okay for you

[whole shadow]

im not sure if it will create consequences with the normal one im using

[vagrant moon]

not sure what you mean

[whole shadow]

i mean

The normal one (unmodified 512 tile size) uses fully VRAM and i said if there will be any consequences with it

[flint slate]

Is it like the blender tiling system?

[vagrant moon]

having it too full will cause it to be unnecessarily slow, and can lead to your GPU driver crashing

[vagrant moon]

i'm not familiar with that

[whole shadow]

Well damn

[flint slate]

Where instead of just rendering the whole thing in cycles it takes small portions to render at a time based on tiles

[vagrant moon]

it's kinda like that

[vagrant moon]

for the SPAN model, the old chain is fine. for SwinIR, you'll want the new one i just sent for sure

[whole shadow]

Bad news

[vagrant moon]

you're 100% sure that's the new chain?

[flint slate]

4gb vram

[whole shadow]

yes

it reduced to 300 mb physical memory share tho

[vagrant moon]

on my end it's using under 3 GB VRAM with that setting

[whole shadow]

thats strange for me

im going to restart and i will tell you

[vagrant moon]

actually only 2 GB VRAM

[whole shadow]

how much vram does use on normal one

[vagrant moon]

4.7 GB

[whole shadow]

thats odd

im using SIRM Btw if you need to know

[vagrant moon]

make sure in chaiNNer's settings that FP16 is on

[whole shadow]

its already on

[vagrant moon]

then i have no idea why it'd be maxing out your VRAM

check the utilization in task manager as well

[whole shadow]

are you using with sir-m

[vagrant moon]

yes

[whole shadow]

i checked earlier and it has like 0 vram usage

[vagrant moon]

did you adjust the memory budget limit here?

[vagrant moon]

actually, i was using an even more intensive model by mistake. the default (512) uses only 3.6 GB VRAM, and the new one (256) uses only 1.5 GB

[vagrant moon]

if task manager is showing almost none, then something's wrong with chaiNNer

[whole shadow]

400-700mb total

[vagrant moon]

is it using your iGPU?

[whole shadow]

igpu uses the 500mb

turns out the shared memory comes from igpu

[vagrant moon]

which GPU is being utilized though?

[whole shadow]

most of upscaling efforts are from physical gpu vram (rtx 3060)

[vagrant moon]

not the VRAM

3D utilization

while upscaling

[whole shadow]

rtx 3060

[vagrant moon]

okay

then i have no idea what's wrong. i guess you can just ignore chaiNNer's incorrect VRAM reading

so you could probably use the default chain again without issue

@warm fable seems like chaiNNer may have a conflict with iGPUs for VRAM readings?

[whole shadow]

igpu vram was always used even before upscaling

[warm fable]

that shouldnt be possible because vram readings are taken from CUDA stuff, which iGPUs dont have

[vagrant moon]

well, something's definitely wrong

[vagrant moon]

chaiNNer reports high VRAM utilization, while task manager shows almost none

[warm fable]

thats really odd

[whole shadow]

well it does

[warm fable]

right now there may be a slight issue in how chaiNNer estimates tile sizes, so if you're running into issues maybe try setting a manual smaller one

[vagrant moon]

we did. the problem is that chaiNNer was reporting full VRAM utilization despite that not being the case

so it turns out the original chain was fine

[vagrant moon]

but i'm not sure what you mean by this. to be honest you're not very clear in what you're trying to say

the 3060 is all that matters, ignore the Intel iGPU. when you're upscaling, does the VRAM on the 3060 match what chaiNNer is reporting?

[whole shadow]

im very sure it does

sorry if i made things messed up

[vagrant moon]

yes, that helps a lot

so there's no bug then

but i have no idea why it'd be so VRAM intensive

[whole shadow]

strange

[vagrant moon]

that's from the tiling

[whole shadow]

makes sense

gotta use 256 tile pbrify for now just hopefully the gpu driver wont give me a middle finger for having vram full usage

[whole shadow]

vram did somehow reduced the usage in middle of upscaling process

it reduced to %88.6

[whole shadow]

Thank god upscaling with 6gb vram full usage for hours didnt do anything

[pastel temple]

pov : you just reduced ur gpu lifetime by 2 years

[whole shadow]

God knows how long it will power up

[vagrant moon]

V1.7.0 Update
Download

You need the latest chaiNNer build!

Changelog:

• New upscaling model! This is a drastic improvement over the previous model (which was already a huge improvement). However, it does come with the downside of being more intensive.
• The default chain requires at least 8 GB VRAM to run properly
• I added a custom 6 GB VRAM chain to the new Extras folder for users with lower VRAM GPUs

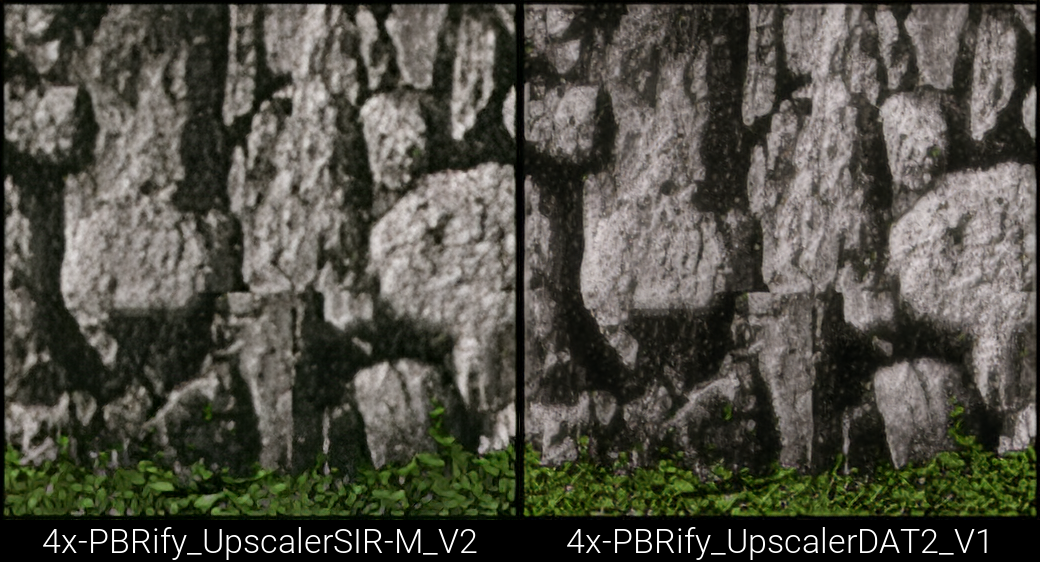

Here are some comparisons: https://slow.pics/c/DCjlXPGb

https://github.com/Kim2091/PBRify_Remix/assets/62084776/4d7a6236-be09-41be-a87d-30954d06bf84

🚀 If you like my work, please support me on Ko-fi! 🚀

[whole shadow]

i dont see an 6gb vram same model (upscaler-SIR-M-V2) on extras model

NVM

[vagrant moon]

yeah, sorry if that wasn't clear enough

the chain is meant to be used with the newest DAT2 model. it should be okay for 6 GB VRAM cards based on my testing

[quaint shale]

https://tenor.com/view/pout-kiss-blowing-a-kiss-suspense-christian-bale-gif-16931550113965916217

[proud yew]

What does this error mean?

[vagrant moon]

an image is corrupted

[warm fable]

I'm guessing that's a DDS? if so that whatever type of DDS it is isn't supported

[proud yew]

Yeah it was dds

It also gave me plenty of great images though

[sterile burrow]

if ur using dds i reccomend using xnconvert to convert it to png -> upscale it -> convert back to dds(or if ur using upkexplorer use the tool created for it called png to dds)
https://www.xnview.com/en/xnconvert/

[vagrant moon]

don't convert it back to DDS using XNConvert. it lacks a lot of important settings

chaiNNer supports almost every common DDS format and compression type, so i usually use that. you can also use this: https://forums.dolphin-emu.org/Thread-custom-texture-tool-ps-v52-5

but yeah preconverting to PNG should help a lot. i'll add that as a tip in the readme. thanks

[proud yew]

Thanks I am using that now

How do I use a height map?

[peak dagger]

Set the texture in the Displacement section of your material in the Toolkit

[proud yew]

I mean with channier. Not sure if the nodes are attached?

[sterile burrow]

they should be...it could be that the node is just disabled

make sure you turn this button on

[proud yew]

Ok thanks 👍

[sterile burrow]

no worries 🙂

[vagrant moon]

only turn it on if you want it to potentially look very bad 😛

but yeah, as long as you set up chaiNNer properly it'll all be connected already

[quaint shale]

the height maps are hilarious

you gotta edit them manually if you want anything good

[limpid flame]

Shameless plug https://discord.com/channels/1028444667789967381/1240463585277251647

[vagrant moon]

you'll be happy to know that's in the main post here now 🙂

[limpid flame]

😮💙

[rare burrow]

for some reason every texture is 512 even tho i set tiling to 1024

[quaint jungle]

PBRify is a 4X upscaler. 512x512 textures become 2048x2048. What resolution are you starting at

[rare burrow]

ohhh oh ohhh ok

ah it turns out the game's textures were 128x128 originally and i just thought that the upscaler wasn't working lol

[quaint jungle]

Lol that's surprisingly low res!

[somber isle]

I have a little question, if my original texture have normal map (256x256), can i upscaler it and help to generator higher quality PBR ?

[quaint shale]

Depends on if the model can recognize and upscale the normal map to match the original texture. Better to just upscale the diffuse and generate the PBR materials after that.

Which is literally what this tool does.

And remix ignores non diffuse textures from games in the capture anyway.

@somber isle

[limpid flame]

don't want to use a traditional upscale on normal maps

[warm fable]

There are some models made specifically for upscaling normal maps

https://openmodeldb.info/models/4x-Normal-RG0 this one for example

It just expects the blue channel to be zero'd out and then recomputed (which can be done via the normalize normal map node in chaiNNer)

There are alternate versions of that model for the compression type of the textures, if they're compressed at all

[vagrant moon]

https://github.com/Kim2091/PBRify_Remix/raw/main/Extras/Alternate_Models/4x-PBRify_UpscalerSPAN_Neutral.pth
this model also works good for upscaling normal maps (someone i talked with testing it said they actually preferred it to the one above)

[somber isle]

oh, thanks

[sterile burrow]

yeah u probably can, I've used it to upscale some normal maps for games and imo it works pretty well

[somber isle]

it's work, original is specular/gloss pbr (512x512) game, i upscale basecolor and spec/glo , use SD convert it to metallic/roughness and separate upscale normal map.

upscaled and converted to PBR while preserving the original style

[vagrant moon]

I just wanted to let you guys know: for the foreseeable future, PBRify development will be stalled

My life is pretty chaotic right now and I need to focus on other things, but also the whole donation program I set up didn't really go as planned & I was counting on that. I just can't contribute any more time to it as a result

The state it's in currently is very good imo, possibly the best it can be right now without being miserably slow and unusable on lower end hardware. Hopefully the current models will be sufficient for you guys. At the very least, it's significantly faster & better than the models provided in the toolkit

The only exception to development being halted is that I will look into making a ComfyUI chain to allow PBRify to function with the REST API that'll be added to the toolkit soon

[warm fable]

FYI in comfyui they're called "workflows" not chains

Also, hope your life stuff works out

[vagrant moon]

there is one more thing i'd appreciate help with in the meantime:

i need some help making a script for Blender or Omniverse Create to automate the following:

• load texture with PBR maps from a folder
• add a light at a random angle to cast shadows
• render
• save

this will allow PBRify to "delight" textures (remove all shadows and lighting from a texture). this should drastically improve output quality, and a lot of textures will look more natural in Remix

[limpid flame]

I already have a script mostly built for that I'll pull it up in a bit

[limpid flame]

Windows start command in cmd

.\blender.exe --background --python "script path" -- "Source Folder Path"

you can change render res at bottom and sunlight intensity is commented, can also change sun direction if desired

This will walk into every folder in source folder and take in the Diffuse, Normal, Height and Roughness, of which can be renamed in script to fit your file names

will place render.png next to other maps it just processed

Default dataset format it expects (mat folders can be named anything)

SourceFolder
|
|-----mat1
| |---diffuse.png
| |---normal.png
| |---roughness.png
| |---height.png
|
|-----mat2
| |---diffuse.png
| |---normal.png
| |---roughness.png
| |---height.png

[vagrant moon]

awesome, thank you

[limpid flame]

np 🙂

[vagrant moon]

i'll see if i can do that today

it'll take a long time to do 1600 textures, but it'll be worth it 😛

[limpid flame]

What res are you rendering at

[vagrant moon]

i'll likely do 512x512, same as you

[limpid flame]

It goes by pretty fast actually less then a couple hrs

[vagrant moon]

i'm using Claude to modify a bunch of things right now:

• added logging
• added randomized sun direction within 145 degrees of the "top"
• changed the way loading is done

hopefully this won't slow things too much

[limpid flame]

Ah, hopefully not, currently it doesn't recreate a scene every time and just replaces brdf on the plane, no idea how much changing sun and stuff takes lol

[vagrant moon]

i just keep getting this 😢

Blender 4.2.0 Alpha (hash b9d136496a94 built 2024-04-23 06:08:34)
Unregistered library

Bforartists quit```

i'll try with base blender now just in case

[vagrant moon]

what blender version are you using?

with blender 4.1, and using your default script... it just doesn't do anything 😢

Blender 4.1.1 (hash e1743a0317bc built 2024-04-15 23:33:30)

Blender quit```

the test folder:

ohh i see. adding a subdirectory lets it run

[limpid flame]

I redownloaded it last night to test so most recent version

Oh

It's by default at least maps need to be in another subfolder under render

Unless you changed that

Wow that was the worst sentence I've constructed ever

[vagrant moon]

lol it's okay

i got it working

there is an unfortunate issue with rendering at 512x512: there's very bad moire patterns on most of them

so i might just have to do 4096, or maybe 2048

[limpid flame]

Oh boi I hope you're ready for 7 days

[vagrant moon]

yeah...

4090 with OptiX renderer speeds things up a lot, but it's still quite slow

at 4096 it takes about 3 minutes per texture

[limpid flame]

Oh that's not bad

4090 is a beast my 3080 would be crying

[vagrant moon]

diffuse | render

sun brightness was 10 here. the same angle you left it at

[vagrant moon]

it sure is. i'm so grateful to have one

btw here's my modification of your script

instead of requiring file names to be exactly diffuse.png, etc. it'll look for _diffuse.png

additionally here's a script to automatically create subdirectories for the texture sets

[limpid flame]

Nice! Glad its working well

[vagrant moon]

thank you a ton for the base script

[vagrant moon]

i am concerned if any current SR arch can handle the differences present here. it's pretty drastic

i suppose the best thing to do would be to do two renders of each texture

one with the sun completely flat on it, no shadows being cast

and a second one with the random sun angles

that way it'd only be removing shadows. there's no way it can handle accurately removing all of the normal, roughness, height, etc. info

in that case: i'll render to 2048 and let it process all of my textures, then i'll do it again with random angles

looks like i'm gonna have to go through the results one by one lol

this render is somehow very very bad

mm a lot of them are like this 😢

[limpid flame]

What were original set of maps for that

[vagrant moon]

it's uploading

[limpid flame]

Hmmm where is that pattern coming from lol

[vagrant moon]

i think it's the roughness

it's too glossy or something

considering i can't figure out how to load it in blender manually... lol. can't tell

[limpid flame]

Dunno if that works but seems like it would

[vagrant moon]

hm, doesn't seem to. at least i couldn't get it to

could've messed something up

i did get all of the maps loaded manually & tried to recreate all of the settings by hand, but it's not reproducing the issue

lol i'm so confused. i got it to open the scene & manually selected the textures (it failed to automatically load them for whatever reason)

this is the render?

@limpid flame sorry, i'm stupid. i think i mistakenly typed strength 100 for the sun which caused that lmao

here it is at 2

and at 10

i'll stick with 2 🙂

it's so intensive lol

😢 something's still wrong

i'll troubleshoot it more later

this is the diffuse for that lol

[limpid flame]

Maybe the height is too aggressive

displacement_node.inputs['Scale'].default_value = 0.1  # Adjust the scale value as needed
        displacement_node.inputs['Midlevel'].default_value = 0.5  # Adjust the midlevel value as needed

[vagrant moon]

that could be

i also noticed that blender loads normal maps in OGL format by default, but mine are DX

that's not good

do you know if Blender has a built in setting for this? or do i need to convert them all by hand

manually converting to OGL fixed a good portion of the issues, however it's still ridiculously reflective

implementing your displacement fix did help a lot

for reference, this is how it's supposed to look

setting normal map strength to 0.5 seems to have done it

                    normal_map = nodes.new('ShaderNodeNormalMap')
                    normal_map.location = -200, 200
                    material.node_tree.links.new(tex_image.outputs['Color'], normal_map.inputs['Color'])

                    # Control the strength of the normal map
                    normal_strength = 0.5  # Set your desired strength here
                    normal_map.inputs['Strength'].default_value = normal_strength

                    material.node_tree.links.new(normal_map.outputs['Normal'], shader.inputs['Normal'])```

yep that seems to be working properly 🙂

[vagrant moon]

still isn't working right

[limpid flame]

:/

[vagrant moon]

no idea what to do unfortunately 😢

[limpid flame]

Why is it white now

??

[vagrant moon]

wish i knew lol

[limpid flame]

Maybe sun is not the way to go, maybe just a point light, I'll look at it after work

[peak dagger]

Can't you simply try to modify the exposure of the output to match the average exposure of the input? Just need the output to be somewhat close and the increase or decrease the exposure

[vagrant moon]

the problem is that there's a lot of lost detail unfortunately

[peak dagger]

Yeah in your render the texture is super overblown but if it's at least close that would work

[peak dagger]

Like this for example

[vagrant moon]

there's also something else very wrong here

(i forgot to fix the normal maps, hang on)

[peak dagger]

if you have a single light source you'll end up with pitch black areas, you probably want a fill light

[vagrant moon]

oh, right. right now we're using a sun placed directly above the plane that the texture is mapped onto

i'll try a fill light 🙂

changing the normal map to OGL fixed the black splotches

i need to adjust the light source now

[vagrant moon]

hm

i can't seem to get it any better than that

[peak dagger]

You probably want to try something like this, directional light (sun) + sphere light for fill (weaker than sun & opposite direction)

[vagrant moon]

why not something maniacal like this, 4 fill lights from each angle?

it turns out this texture is just particularly terrible though. even ambientCG's own website shows it looking like this

right now the goal is to have as flat of a render as possible, with little shadows cast

after that's rendered, i'll be making a version that intentionally has shadows cast

switching to the fill light did help a ton

fill | sun

this looks solid enough that i should be able to use it for the HRs 🙂

[limpid flame]

Whats the script now with new and improved settings

[vagrant moon]

this one doesn't have the randomized sun angles or anything, but it works for the flat rendering

i also enabled both OptiX acceleration & denoising

[vagrant moon]

the difference between albedo and the render is pretty drastic

(the brightness difference doesn't matter with the way i'll be doing this)

[vagrant moon]

800 textures processed in about 5 hours

OptiX nearly doubled the speed

also i'm largely CPU bound here

[limpid flame]

Nice!

[vagrant moon]

it took a total of about 9 hours to finish 🙂

all done now. need to make a script to sort it

[vagrant moon]

hmm

something occurred to me

i've been training my upscaler model on albedo textures, no lighting. most textures that'll be upscaled are diffuse though, with baked lighting

so the upscaler itself may benefit from this as well

also, many of these textures were totally useless with just the albedo, but now that they've been rendered they look like they could be useful for the model

[limpid flame]

That's a good point

What would you make workflow though

Upscale first then delight?

Or should you delight then use current upscale

[vagrant moon]

delight first

also in #asset-creation, we just worked out that all of that rendering time was wasted 😛

because height maps were being applied incorrectly with the default node settings, and so were some of the other PBR maps

left is the original render from last night, right is the new one

[limpid flame]

oh boy my default script had quite a few kinks

well please share new one when its ready haha

[vagrant moon]

• the renderer needs to be changed to experimental
• the plane needs to be subdivided with adaptive subdivision
• height and roughness maps are not being assigned properly
• they need to be loaded as non-color
• height needs to be set to "Displacement and Bump"
• Transparent Shadows needs to be disabled
• all PBR maps need to be assigned from the Color layer, not Alpha
• height map scale needs to be set to 0 for midlevel and 0.05 for scale

this is the full list of what was wrong

[limpid flame]

oh.. wow, i can help

[vagrant moon]

i believe i have it working correctly now. if it's not though, i would definitely like some help 😛

[limpid flame]

alright 🙂

[vagrant moon]

the one thing that is broken for sure is enabling adaptive subdivision

it requires the renderer to be set to experimental first

[scarlet spear]

You could try adding a subdivision surface modifier using a script, or pre-load the subdivided mesh before baking the textures.

[vagrant moon]

i'll be able to post the script in a second. fixing something first

[vagrant moon]

yeah, i was considering the latter

default subdivision does this lmao

@limpid flame

the height map appears to be working though

[limpid flame]

so the only thing youre havign trouble with is the subdivision surface?

[scarlet spear]

You can change to subdivision method to Simple.

[vagrant moon]

and the sun randomization:

• it needs to be randomized on the top half of the plane
• Z axis needs to be contained within a range of 2-5
• it needs to be pointed at the center of the plane

[limpid flame]

||goes and looks up what the heck a subdivision modifier is||

[vagrant moon]

simple wasn't working well enough

Burrito recommended Adaptive, with the experimental renderer

[limpid flame]

@vagrant moon I invited as colab on github project to make this a bit easier

the script is not running for me

nvm

im dumb

but i did just run a test render and got

[vagrant moon]

it looks for files like this:

  - texturefolder
   - {name}_diffuse
   - (name)_roughness
   - {name}_normal
   - (name)_metalness
   - {name}_height```

[vagrant moon]

lemme send you a sample pack just to be sure. that's very odd

gonna take a bit to upload

[vagrant moon]

"C:\Program Files\Blender Foundation\Blender 4.1\blender.exe" --background --python C:\Users\Kim\Projects\Render\render.py -- I:\Dataset\PBR\New_ambientCG\textures

this is the command i'm using

[limpid flame]

yup same command

.\blender.exe --background --python "F:\render_randomized_angle.py" -- "F:\n"

[vagrant moon]

i'll upload my full set of files to that repo

i have a file that lets us preview it in the scene, though it's not fully up to date with the main script

added comments at the top of each one explaining them

@limpid flame https://cloud.kim2091.art/index.php/s/2MRRdFZBYeHHnaF

other than the broken subdivision and sun placement, this script appears to be working properly for height maps

the original render

[limpid flame]

hmm im getting same image on your set

i even redownlaoded script its the same one you posted

:/

[vagrant moon]

try running the random_view script i uploaded (change file path in the script)

it'll open the scene in blender

omit --background from the command

[limpid flame]

hmm that brings me to default cube

[vagrant moon]

what does terminal say?

i'm on blender 4.1 btw

[limpid flame]

PS C:\Program Files\Blender Foundation\Blender 4.1> .\blender.exe --python "F:\render_randomized_angle_view.py" -- "F:\n"
TBBmalloc: skip allocation functions replacement in ucrtbase.dll: unknown prologue for function _msize
Read prefs: "C:\Users\Ben\AppData\Roaming\Blender Foundation\Blender\4.1\config\userpref.blend"
Traceback (most recent call last):
  File "F:\render_randomized_angle_view.py", line 14, in <module>
    for folder_name in os.listdir(source_folder):
                       ^^^^^^^^^^^^^^^^^^^^^^^^^
FileNotFoundError: [WinError 3] The system cannot find the path specified: 'C:\\Users\\Kim\\Projects\\Render\\test'

[vagrant moon]

yeah you need to change the directory in the script itself

i dunno why it's set up like that. sorry

it's at the very top

[limpid flame]

ah i was like i dont see //i was looking at other script

[vagrant moon]

if you get another error, remove these lines:

        # Point the sun light towards the center of the plane
        sun.rotation_euler = (theta, phi, 0)
        sun.data.node_tree.nodes["Emission"].inputs["Strength"].default_value = 2```

i meant to remove them

it's from testing

[limpid flame]

it opend but just blank plane

[vagrant moon]

yes

there should also be an area light and a sun

or just an area light

if you go to the render tab at the top, the texture should preview? hopefully

[limpid flame]

isnt it great

[vagrant moon]

oh, it's Shading

sorry

[limpid flame]

all good

blank plane again

[vagrant moon]

if you click on it and go to the Material settings on the right (orange button), does it have any textures assigned?

[vagrant moon]

yeah, so it's not loading the textures properly on your PC 😦

[limpid flame]

:////

[vagrant moon]

but it did set the scene up properly

even without the textures, you should be able to help with the two things i mentioned. specifically the sun randomization. that'd go a long way

i spent about 30 mins trying to get that working

blender's python API documentation is giving me a headache 😦

[limpid flame]

ok i will try

[vagrant moon]

i get the feeling that adaptive subdivision cannot be enabled through the script at all

i can't find any info in their documentation, and it's still experimental

[limpid flame]

i was about to say the same thing

i cant find it

[vagrant moon]

😢

[limpid flame]

i did just push a new simple subdivision to test

[vagrant moon]

okay

[limpid flame]

oh boi i havent done trig in awhile

ya know this weird render i get is oddly helpful for making sun random

maybe it was meant to be

also i have an idea

since from what i read is Adaptive subdiv is mostly displacement will be more pronounced on closer surfaces.

MAYBE

we could make that effect

[vagrant moon]

wouldn't just having a plane with a looot of tris work?

[limpid flame]

dunno i aint a 3d artist im talking out my bum here haha

I just pushed another update for sun

hopefully thats good

[vagrant moon]

lmao same here. i'm a Blender noob

we're just struggling together i guess. it's a lot easier working together 🙂

[limpid flame]

we can die in this valley of wrong together 🫡

[vagrant moon]

are you proficient enough with python to have this one script work in dual mode?

if --background is omitted from the command, that it'd open the scene in the GUI instead of batch rendering?

i tried to set that up but failed miserably

[limpid flame]

easiest way to do it is make it an arg and paste in both blocks of code

you want to just use the current one that opens or youre trying to update it

[vagrant moon]

the script we've been collaborating on. it'd be good to allow GUI and batch rendering, but separately. it'd make troubleshooting a ton easier, instead of just maintaining two separate scripts

i'm trying to do that right now

[limpid flame]

ok just update current one to open blender, and ill try combining them in

[vagrant moon]

it added two subdivisions for whatever reason

fixed

[limpid flame]

👍

[vagrant moon]

but textures aren't loading right now

great 😢

[limpid flame]

Its not only me!

yay!

so i have spread the blender plaugue?

[vagrant moon]

😢

maybe

roughness and height are loading, but not diffuse or normal

[limpid flame]

was it working in most recent commit?

cuz i dont see that you changed anyhting in this that would affect

as name states dont use new branch lol

[vagrant moon]

it seems to have only broken for a specific texture set

something's very wrong and i've got a migraine now

ugh

[limpid flame]

well i cant test it 😦 i wanna

we pick this up later?

[vagrant moon]

i'll keep doing things and improving things. i'll make a new branch just for testing my stuff so it doesn't break anything just in case

i just fixed roughness maps loading in the wrong way for example

[limpid flame]

ok 🙂

[vagrant moon]

if i manage to fix anything else i'll post here. thank you a bunch for the help

[limpid flame]

ofc!

[vagrant moon]

okay so

adaptive is 100% necessary for this to work apparently

adaptive

no adaptive

lol

[limpid flame]

Uhhh

Jebus

[vagrant moon]

that's exaggerated for effect btw

but yeah it's not gonna look right without adaptive 😦

doing two layers of subdivision actually works

increasing it to 4 on the second one is perfect

no artifacts

[limpid flame]

Viewport 4
Render2

Or

viewport 3
Render4

[vagrant moon]

6/6 then 4/4

[limpid flame]

ok i possibly added 2 passes

[vagrant moon]

i didn't see that in time 😛

i ended up fixing mine and pushing the changes into my branch

[limpid flame]

👍🙂

[vagrant moon]

so no matter what i do, i can't enable displacement + bump by default

https://docs.blender.org/api/current/bpy.types.Material.html#bpy.types.Material.displacement_method

here's the documentation for it

i probably just implemented it wrong

that's the last thing preventing this from working, i think

other than the texture loading issue

🙂

[limpid flame]

try that

i pushed it into your branch

[vagrant moon]

here's the output with it enabled manually

looks great imo

[limpid flame]

it does!

[vagrant moon]

the original for comparison lol. from last night

[vagrant moon]

  File "C:\Users\Kim\Projects\Render\night\render_randomized_angle_view.py", line 80, in <module>
    displacement.inputs['Displacement'].default_value = 'BOTH'
    ~~~~~~~~~~~~~~~~~~~^^^^^^^^^^^^^^^^
KeyError: 'bpy_prop_collection[key]: key "Displacement" not found'```

[limpid flame]

ya know

i didnt test it

i dont know why

haha

[vagrant moon]

it's okay 😛

it's from chatgpt though, right? or similar

because it gave me that exact thing before and it didn't work

[limpid flame]

That should work

[limpid flame]

yeh well Gemini is my fav they were def trained on older docs

new push should do it

[vagrant moon]

nope 😦

Traceback (most recent call last):
File "C:\Users\Kim\Projects\Render\night\render_randomized_angle_view.py", line 80, in <module>
displacement.method = 'BOTH'
^^^^^^^^^^^^^^^^^^^
AttributeError: 'ShaderNodeDisplacement' object has no attribute 'method'

i did fix the typo btw

[limpid flame]

it doesnt error on that for me

odd

something must be severly fd about my blender haha i will reinstall tomorrow

[vagrant moon]

what version are you on again?

[limpid flame]

4.1

[vagrant moon]

i think i got it

material.displacement_method = 'BOTH'

yep that worked!

i fixed Optix denoising as well

now it's about 3x faster!

you know the annoying thing though? Blender keeps changing OptiX acceleration devices to include my CPU, which is why it's so CPU intensive

[limpid flame]

Nice!

And odd

[vagrant moon]

it's also like 5x slower than it has to be because of it

so annoying

looks perfect though!

shadows are working properly

[limpid flame]

is sun doing what you want?

[vagrant moon]

mostly. it's a little bit out of range. it goes down too far and doesn't properly illuminate the texture

if it could be a little bit narrower of a range that'd be good

i'm going to try to fix that

i'm also going to test other texture sets to ensure that works properly now

[limpid flame]

yeh thats just

sun_distance = random.uniform(2, 5)

[vagrant moon]

ya

setting it to 3.5 minimum seems to have worked

with OptiX enabled for denoising + acceleration, it takes only 12 seconds for 2048x2048

[vagrant moon]

never mind 😦

[vagrant moon]

it doesn't seem to be actually limiting the range

i set it to 4, and Z was still under 4

😦

the way the sun randomization works is a bit over my head unfortunately

i tested batch with other textures, it's working properly on my end

so the only thing stopping me from running this now is the sun being too low, and normal maps still being DX format instead of OGL

if you could take one more look at the sun issue that'd be amazing. otherwise it's good to go

fixed the normal map issue 🙂

[scarlet spear]

@vagrant moon I've looked at your code, and all the texture map color spaces should be set to "Non-Color", except for the diffuse texture, which should use the default "sRGB" color space.

The Normal Map is a color texture, but it still needs to be set to "Non Color" to make it look correct, according to the official reference:
https://docs.blender.org/manual/en/latest/render/shader_nodes/vector/normal_map.html

[vagrant moon]

interesting. i thought setting it to non-color would break it

thank you

[limpid flame]

FYI Im not ignoring you I just go to bed early these days, when I get to the office I can look at it in a bit

[vagrant moon]

oh, no worries. i didn't think that was the case 🙂

[limpid flame]

pushed update added min z value

[vagrant moon]

that works!

thank you

[limpid flame]

🙂 yay!

[vagrant moon]

okay

with the OptiX denoiser, it's actually about 1.35x as fast overall for the complete render 🙂

that's pretty great

i believe i started the render at about 2 PM, and it's 8:30 PM now where i'm at. it's 4/5ths done

[limpid flame]

🥳

I reinstalled blender and still have blank render haha

[limpid flame]

hey kim when you run it do you get this as first return line?

TBBmalloc: skip allocation functions replacement in ucrtbase.dll: unknown prologue for function _msize

and are you on windows 10 or 11

also this seems odd

i just installed all vc redists that didnt work

ig i try new gpu drivers now

even tho im only like .5 behind

that wasnt it either

:/

[vagrant moon]

windows 11

no idea what's going on 😦

[vagrant moon]

Blender 4.1.1 (hash e1743a0317bc built 2024-04-15 23:33:30)
Read prefs: "C:\Users\Kim\AppData\Roaming\Blender Foundation\Blender\4.1\config\userpref.blend"
Fra:1 Mem:213.10M (Peak 215.31M) | Time:00:00.26 | Mem:0.00M, Peak:0.00M | Scene, ViewLayer | Synchronizing object | Plane
Fra:1 Mem:539.23M (Peak 635.23M) | Time:00:00.73 | Mem:0.00M, Peak:0.00M | Scene, ViewLayer | Initializing```

doesn't seem like it

[vagrant moon]

left = flat render with only a strong area light

right = randomized sun render with weak area light

thoughts?

[vagrant moon]

the alternative is a sun placed directly above the center of the plane, but that casts shadows on the corners

[limpid flame]

Left seems more like what I would see from an old game

[scarlet spear]

Old games typically used real world photos to create textures. So I think having the sun's light cast shadows from top to bottom is better.

[vagrant moon]

really? i more often see textures like on the right

hm

[vagrant moon]

the direction shouldn't matter for the model actually (it needs to learn for all directions), but that's very good to know. thanks

[limpid flame]

I've only worked with like renegades and m&b my opinion is probably not the one to take

[vagrant moon]

@limpid flame there's one last issue with the script... it's accumulating the cameras lol

haha it's a ton faster now that that's fixed

i'll push the changes soon

[limpid flame]

😮

Haha

... That would make sense

ya know programs are great in the sense they do what you tell it, but also

they DO what you tell it

[vagrant moon]

example pair 🙂

[vagrant moon]

yeah... lol. i really hope to learn more python to prevent oversights like this

i realized it's probably also adding a new area light each loop as well

and it sure does slow down over the duration of the script

trying to fix that now

[limpid flame]

Wow it makes so much more sense now when I ran through the original script on a lot of textures it would start crawling half way through

[vagrant moon]

for reasons i don't understand, with only the area light it only needs 64 samples to look good

i guess there's less shadows? or maybe area lights don't cast shadows?

[vagrant moon]

yeah. i wonder how much faster the randomized sun script would be with this

obviously the sun needs to be in the loop, but the weak area light and camera not so much

i'm not getting the immense slowdown anymore with this fix

i'll push it to the repo

[limpid flame]

Does that mean the random sun was also being redone

[vagrant moon]

it was, but that needs to happen afaik. it was removing the old one each time too so that was fine

aw. the slowdown is happening again

[limpid flame]

Ohh gotcha nah I meant like multiple random suns

[vagrant moon]

2 seconds per texture to 11 seconds 😦

[vagrant moon]

thankfully no 😛

i wonder if there's a memory leak or something going on

okay there's a lot of issues...

it was also doing this in each loop:

• re-adding the plane
• re-defining render settings
• making a new material each time

[limpid flame]

oh no not our flawless python script

[vagrant moon]

Claude AI released a new model btw, and it's amazing

it just rewrote and optimized the whole script. we'll see how it works

[limpid flame]

I have seen it it's p cool

Zero shot coding is better then gpt4

And that is the mid tier model

P impressive

[vagrant moon]

so the new script mostly works, but there's an issue with lighting

this is the output

changing intensity of the area light doesn't do anything

but it's twice as fast as the original script. and i'm betting it won't slow down after processing about 50 textures

only 1 second per 2048x2048 render

[limpid flame]

The plane was being returned but not the fill light and it wasn't deleting the original light. And as such they weren't being initialized in scene.

So intensity didn't work because the light wasn't there, and it was just default light I believe

New test branch has changes

I can't test it tho but that is the main reason

[vagrant moon]

https://github.com/Night1099/Render-PBR-Batch/blob/Test/render_fixed_angle_testing.py
this one, yeah?

sadly that did not fix it

[limpid flame]

Hmmm

Maybe remove .data from

fill_light = bpy.context.object.data

Other initializations only have

bpy.context.object

Well no that's in other scripts and worked

I am not one with the blender force today

OH

kim

It initializes light

Then deletes all lights

:/

Need to move deletion above creation of light

[vagrant moon]

it just does this

stupidly, i think the default cube is in the scene still

but it should be removed by that code block

it's fixed now

[limpid flame]

What was it

[vagrant moon]

another arrangement issue 😛

so this script is anywhere between 1.15x and 1.85x as fast as the original one

i pushed the change to the test branch

[limpid flame]

Oh lol u really just did Ctrl a delete to everything

[vagrant moon]

yeah lol

[limpid flame]

I love it

[vagrant moon]

it's good too, there's been an extra useless camera in the scene 😛

so it's all good now

i'll try to adapt the randomized sun code to this rewrite to improve the speed

[limpid flame]

Good luck, glad its fixed again with new speed

[vagrant moon]

i think it's working!

and since this is entirely overhauled, it might work on your system now too

[limpid flame]

🙂 hopefully

[vagrant moon]

i'll push changes in a sec

https://github.com/Night1099/Render-PBR-Batch/blob/Test/render_randomized_angle_testing.py

results look correct 🙂

i already have the random sun angles rendered, so now i'll do the plain renders again

thank you for all the help. would you mind if i clean up the main branch and make a simple readme for this?

[limpid flame]

Go ahead!

And you're welcome thank you as well

[vagrant moon]

agh sadly it still slows down after like 50 textures

my guess is that it's an issue with blender at this point

[limpid flame]

Thats the other weird thing in task manager nothing is full so idk

[vagrant moon]

for me it goes nuts with CPU usage when it's like this

lol

that could be why

it has a memory leak

thanks blender

i noticed before that it would report uncleared memory. guess it's happening on every texture now

claude fixed it

just from processing 6 textures before, lol

it's on the main branch now. i did an experimental fix for the randomized sun script as well. will test soon

after the fix

working 100% good. low CPU usage, fast rendering

very happy with this

[limpid flame]

Thanks Claude!

[vagrant moon]

it's already about 600 images in after only 10 minutes

~1.5 seconds per texture

[limpid flame]

🥳

[vagrant moon]

🎉

[limpid flame]

Is the current name for repo good or should it be sum else

I didn't put much thought into it

[vagrant moon]

i'm not sure. PBR batch isn't quite accurate, as the main goal is for generating albedo and diffuse pairs

but i can't think of a better name

[vagrant moon]

it finished all 1600 images now

looks like i'm ready to start training 🙂

[limpid flame]

[whole shadow]

sounds nice

[limpid flame]

Nope still broken for me

😦

[limpid flame]

The original script I gave still works so I'm gonna cross reference those and see

[limpid flame]

@vagrant moon i still cant figure this but have an idea could you upload your

%APPDATA%\Blender Foundation\Blender\4.1\config

userperf file

[limpid flame]

still no lol

[vagrant moon]

😦

[limpid flame]

ok i went line by line for 30 min

and found the error

https://github.com/Night1099/Render-PBR-Batch/commit/9899df1a31a9929ac978d83fe0dcd469546d0684

that change fixed it for me

i dont know why it works for you

oh

because

i was still doing my dataset and only changing the

    texture_types = {
        "Base Color": "_diffuse.png",
        "Normal": "_normal.png",
        "Roughness": "_roughness.png",
        "Metallic": "_metalness.png",
        "Height": "_height.png"
    }

To

    texture_types = {
        "Base Color": "diffuse.png",
        "Normal": "normal.png",
        "Roughness": "roughness.png",
        "Metallic": "metalness.png",
        "Height": "height.png"
    }

but that part was hard coded to look for the suffix

thus it wouldnt find the file and attach nothing

lmao

[vagrant moon]

i did give an example to demonstrate this change like 2 days ago btw 😛

[limpid flame]

yeh yeh im stubborn

[vagrant moon]

i'm glad you figured it out now though

hopefully it works without issue now

[limpid flame]

it works great

[craggy sparrow]

4090?

[vagrant moon]

yes

PBRify doesn't have a memory leak to be clear. that was a blender script (which has since been fixed)

[craggy sparrow]

Happy NVIDIA User

[vagrant moon]

if anyone wanted additional info about PBRify, i made a document for it: https://github.com/Kim2091/PBRify_Remix/blob/main/EXTRA_INFO.md

[naive ravine]

Hey, whenever I try to run this on my textures from my Remix project, I keep getting the error "Unimplemented pixel format b'GLI1' ", do you know how to fix this?

[vagrant moon]

that happens either from an unsupported DDS texture, or from a corrupted texture

you could try preconverting your images to PNG with XNConvert. that might help resolve it

[naive ravine]

Okay, ill try that, thank you

So i've just tried to use XNConvert & using a different upscaler model and it doesn't seem to work with ~ 6 thousand out of 8 thousand textures, acting as though they are corrupted, but I haven't touched those textures at all, they're straight from remix with no other software messing with them

[vagrant moon]

could you send one of the "bad" textures?

it could just be an obscure format

[naive ravine]

Sure, one moment

Here's a broken one, I can send a working one as well

[vagrant moon]

yeah... none of my usual tools can open this. very odd

what game was it dumped from?

[naive ravine]

Sonic Adventure DX

CD version

[vagrant moon]

wish i had some advice

they seem actually corrupted

your best bet might be to dump them manually from the game and replace them one by one 😦

probably not worth it

[robust flame]

Vanilla SADX PC textures were reconverted and therefore have a billion compression artifacts, so you should be using the GameCube versions as a base anyways.

Or Dreamcast lol

[vagrant moon]

funny, i was just using that info about this game's port as a base for another project

[naive ravine]

I know the DX version is awful, that's why I'm using the "Dreamcast Conversion" mod for my project

[robust flame]

Wonder if the Mod Loader's replacement function isn't doing something weird with the extracted textures

[naive ravine]

Possibly, I'm going to try and re-capture some textures and see if they come out corrupted again

[naive ravine]

Deleted textures folder, then captured, and it just spits out mostly corrupted files, I'll have to find another way, thank you for your help though

[vagrant moon]

yeah the loader is almost certainly causing that. very interesting

sorry it doesn't work 😦

[severe lichen]

your .dds file is in GLI format and it's esoteric/ancient enough that almost nothing supports it. I'm willing to bet the file is not actually corrupted

[vagrant moon]

ah, did you check the header in a hex editor?

i forgot about that

[severe lichen]

"Unimplemented pixel format b'GLI1' "

I checked in hxd anyways

dxvk-remix has reference code for reading gli files. converting them back to a standard dds is a bit more involved

[vagrant moon]

imagemagick supposedly has support for it

(or maybe i misread)

yeah, misread. oops

[vagrant moon]

Mark said it was inherited from the original dxvk. we tried at a few points now to convert it but failed. mostly because no one really pursued it

i'm going to re-post my update to try to improve visibility. i can't move forward with PBRify until i receive some donations to fund the updated dataset. please no more messages in this channel after this. we can continue this discussion in #game-compatibility

---

Update:
I've hopefully found a way to improve PBRify by retraining the PBR generation models on a new architecture that just released. However, I need a new dataset to do this. I'd like to support the original creators of the textures I'll use for this (and in doing so, I can bulk download them).

This dataset can also be used to improve the main upscaler later on 🙂

If you guys could please donate to my Ko-fi page, I will use the funds to purchase sets of textures from sites like CGBookcase and support other costs related to training (such as the electric bill)

🚀 Ko-fi

[limpid flame]

Easiest route may be using chainner cli and just wrapping it into comfy

https://github.com/chaiNNer-org/chaiNNer/blob/main/docs/cli.md

So really just override input and catch outputs

[vagrant moon]

interesting concept. hadn't considered that

[limpid flame]

@vagrant moon i have made headway in this

[vagrant moon]

that's awesome

so many potential uses for that

[limpid flame]

gotta figure out how i want to catch the outputs but it is working well

after that itd be ready for the RestAPI implementation i believe

[still kelp]

someone had chn file just to generate normal map and roughness ?

nvm did it myself

[still kelp]

takes quiet a long time

yea it's stuck at 0%

[vagrant moon]

it shouldn't be. it's a very lightweight setup

what GPU do you have, and what resolution textures are you trying to upscale?

[still kelp]

only thing that works is converting to Normal and the other 2

3060

[vagrant moon]

6 or 12 GB?

[still kelp]

12 GB

I've MSI VENTUS edition of 3060

[vagrant moon]

don't set custom scale. it just resizes the upscale after doing the full 4x

does the VRAM indicator in the top right look like it's full?

[still kelp]

yes

[vagrant moon]

okay

change tile size from 512 to 256

stop the chain then run it again

it'll work fine after that

[still kelp]

thats i what i want

im trying to use it on source engine

specifically in a mod not RTX Remix

Source doesnt like 8096x8096

[vagrant moon]

alright

[still kelp]

huh

it still wont do nothing

[vagrant moon]

you restarted processing?

[still kelp]

yes

[vagrant moon]

VRAM still full?

put it down to 128 if so. that's oddly low though

[still kelp]

nope

it's CPU now instead

shouldnt it be using the GPU lol

CPU mode is disabled

[vagrant moon]

it's because it's having to split the input texture up into a bunch of smaller images. it's heavy on CPU

haven't really seen this be problematic on lower end hardware before. wonder what the issue is

[still kelp]

wonder if its because its .tga

[vagrant moon]

if you want it to process faster but are willing to lose a bit of quality, you can use the SPAN V4 upscaler model instead of the DAT2 model

it's in the Old Models folder under Extras

that one can do 512 tile size without issue as well

[still kelp]

yea

that one works lol

[vagrant moon]

cool

also you should 100% close intensive programs like photoshop while this is going. they allocate extra VRAM that the upscaler could be using

that might be why the DAT2 model had issues

[still kelp]

whats this one ?

[vagrant moon]

there's a txt file that explains all of the models

or .md rather

https://github.com/Kim2091/PBRify_Remix/blob/main/Extras/README.md

it's best for upscaling existing PBR maps, instead of generating new ones

so if whatever game you're working on already has normal maps, you can upscale them with that model instead. it'll usually look better than the custom generated ones

[still kelp]

bless your upscaler lol

this one actually keeps the Alpha channel

[vagrant moon]

🙂

that's something i made sure of

it actually splits the alpha and RGB portions and upscales them separately to ensure they're correct, then merges them again

i may be able to optimize that though without harming quality. will do so in my next release

[still kelp]

i would appreciate 2x model if that would be possible

using custom scale of 2 just gives an error

[vagrant moon]

sorry, but making a new scale model on top of the original one is just too much. 2x is also not really requested much. i think you're the first person to ask for it

if more people ask i'll consider it

[vagrant moon]

what error?

i'm betting you only turned on custom scale for the RGB upscale and not the alpha upscale

[vagrant moon]

yep

there's a second Upscale Image node in that stack below the Load Model node

[still kelp]

ah sneeky

[vagrant moon]

this will be simplified in the next release with just a single upscale image node for it

[still kelp]

what confuses me it generates two types of files sometimes

or i must've screwd up something

[vagrant moon]

the output of the chain is PNG by default

[still kelp]

yea i changed it to .TGA

[vagrant moon]

it's upscaling normal maps as if they were normal albedo or diffuse textures, then is generating new PBR maps for those

you have PBR maps in your input folder most likely

[vagrant moon]

why?

[still kelp]

alpha channel

[vagrant moon]

PNG supports alpha as well

[still kelp]

ah

can i post results of what the original looks like and the new one

it's amazing lol

[vagrant moon]

sure 🙂

[still kelp]

not sure if its noticable

[vagrant moon]

it is 🙂

[still kelp]

still weirded out why doesnt the default model work

[whole shadow]

i feel like i should use pbrify again

[still kelp]

i see the log

"UserWarning: torch.meshgrid: in an upcoming release, it will be required to pass the indexing argument."

huh

[vagrant moon]

try again but close photoshop this time

photoshop usually hogs VRAM

[peak dagger]

Just a warning, should not affect the performance 😛

[vagrant moon]

forgot to update here. for some reason they ran into this error from Pytorch's side:

[2024-07-31 19:33:56 +0200] [23328] [ERROR] [Worker] return _VF.meshgrid(tensors, **kwargs) # type: ignore[attr-defined]
neither Joey or myself could figure it out

it only happens with the DAT2 model, not the SPAN V4 model

[peak dagger]

The underlying model probably calls torch.meshgrid(y_coordinates, x_coordinates) and not torch.meshgrid(y_coordinates, x_coordinates, indexing="ij")?

[vagrant moon]

that's interesting. this is beyond my expertise unfortunately. maybe @warm fable could use that information (sorry to ping you)

[peak dagger]

To be clear that's the cause for this warning here, I don't know if your worker error is just reporting that warning or not 😛

[warm fable]

I didn't write the model architecture code so I have no idea what to do to fix that, sorry

[vagrant moon]

it's very odd that it's only occurring on their system

[warm fable]

Yeah sounds like it's not an issue with anything on our side tbh

[peak dagger]

That specific error is related to the PyTorch version they're using

[warm fable]

Assuming they set up everything normally in chaiNNer the pytotch version should be the same one the rest of us are using

[still kelp]

its using that one

[viral thistle]

Kim you're famous!

[vagrant moon]

that's awesome. they set up a whole chain for it! i somehow missed that lol

[limpid flame]

#general-remix message

[vagrant moon]

wow

[limpid flame]

I wasn't able to get your DAT upscaler to go although that may have been the vram issue since now we're using two vram hog apps at the same time

[vagrant moon]

most likely 😦

@peak dagger if you could pass on thanks for whoever set this up, that'd be great. if you did it, thank you 😛

[limpid flame]

I did put in a feature request to hopefully alleviate this problem for our tools tho

https://github.com/NVIDIAGameWorks/rtx-remix/issues/577

[peak dagger]

I linked Ashley to your models but she built the actual workflows 😋

[vagrant moon]

PBRify - Fast, Ethical Upscaler & PBR Generator!

[craggy sparrow]

@vagrant moon

Can I use your models for my project pls?

👉 👈

[vagrant moon]

the PBRify models? sure

just please credit me as the author of them 🙂

[fickle pebble]

@vagrant moon How can I select what textures I want to use with comfyui in the toolkit?

[vagrant moon]

i'm sorry, i have no idea. i haven't had time to test out the comfyui implementation. Nvidia set that up themselves, so i'm not familiar with it

hopefully tomorrow i can take a look

[fickle pebble]

ok 👍

[vagrant moon]

@limpid flame there's an issue with the workflow for PBRify apparently. for some reason, they didn't use the upscaler and instead configured it to resize with nearest neighbor to 1024x1024

i'm fixing it now

buut i wonder how many people tried it and ran into that

ah...

i think they're still using diffusion for the upscaling. i'm so lost in comfyui lmao

yeah never mind. i see what happened. it errored the first time and previews got messed up as a result lol

the only issue now is that transparency doesn't work at all, so textures being upscaled that have transparency are now just solid black in the transparent areas

[limpid flame]

They didn't use your upscaler in any example workflow.

Alpha has to be stripped, upscaled and readded manually like in chainner

Idr if merging alpha is in vanilla comfy

[vagrant moon]

yeah. i've added it into the PBRify workflow and will make a PR for it

but i need to fix alpha first

[limpid flame]

how i do it

[vagrant moon]

if only ComfyUI had ease of use in its feature list 😛

thanks

[vagrant moon]

mm. the "Get Textures" node doesn't have a mask output

ah well it's going to image anyway

is Image Resize there a custom node?

[limpid flame]

oh yeh.... i dont think reg comfy has a resize

its comfyui essentials node

[vagrant moon]

horribly named because it lets you downscale too

[limpid flame]

ah nice

probs why i never saw it and went to a node haha

[vagrant moon]

tbj o

iwji;ojadw

i'm really lost... sorry

[vagrant moon]

what's the point of the image resize here?

[limpid flame]

resize alpha to new upscaled size?

unless im dumb and you dont need to do that

[vagrant moon]

ah, the mask output from the load image node is the alpha layer?

[limpid flame]

yeh 🙂

[vagrant moon]

i absolutely hate the naming scheme in Comfy

that's so bad

[limpid flame]

dw it took me 30 min to find that out too

[vagrant moon]

but it won't work here anyway 😦

i'm trying to do it with this, which does not output the alpha layer

i'm not sure if this even sends the textures to comfy with the alpha

[limpid flame]

hmm lemme look at the codeeeeee

[vagrant moon]

nope

😢

so alpha just isn't possible unless you do a hacky workaround for solid black colors

[limpid flame]

they do not grab the alpha

i will attempt a fix rq taking code from load image node

[limpid flame]

@vagrant moon i have fixed

https://github.com/NVIDIAGameWorks/ComfyUI-RTX-Remix/pull/3

added a mask output

[vagrant moon]

awesome, thank you

so i'll make the PR to fix PBRify's upscaler for now, then add this later

[limpid flame]

[vagrant moon]

@limpid flame ooone last thing

how do i save the workflow as png?

[limpid flame]

huh

its not in new version

wuhhhhhhhh

[vagrant moon]

it only does json for me

[limpid flame]

i dont see the button in new versions of comfy is what im sayin

[vagrant moon]

yeah, i understand

i can't find a way to do it 😦

soo i guess i'll just have to do the json version instead?

[limpid flame]

yeh im super confused. no ones brought it up online either...

[vagrant moon]

i don't even have 2.0 btw. i'm on a version from like 2-3 months ago

where's that button normally at?

[limpid flame]

right click

i dont like the new ui

its discord mobile all over again

[vagrant moon]

my older version doesn't even have that

you're sure that's not from an extension or something?

[limpid flame]

mmm didnt think so

ah

it is...

https://github.com/pythongosssss/ComfyUI-Custom-Scripts

[vagrant moon]

Here's the fixed PBRify workflow for use with the toolkit + ComfyUI

[vagrant moon]

thank ya

[vagrant moon]

@fickle pebble sorry it took me so long to get back to you

basically you want to select a texture in the toolkit, then simply switch to comfyui and press "queue prompt". it'll upscale it automatically and put it back in there

[vagrant moon]

use this workflow though. the default one provided in their repository is incorrect

[quaint jungle]

In laymen's terms does this mean PBRify is now being used more directly with Remix

Vs before where it was entirely standalone

[limpid flame]

She integrated the full PBRify workflow into one click toolkit thing, via comfyui remix rest API nodes

#general-remix message

[quaint jungle]

Mfw you literally responded to me back then too

I gotta try that out

[harsh kettle]

I think I've gotten around this by using a control net in my flow

[limpid flame]

A controlnet? Only way I can think of is layer diffusion or rembg. But doesn't matter much cuz we have the original alpha

[peak dagger]

Just pinged internally to try and get those to be merged 🙂 Thanks for the contribution!!!

[vagrant moon]

after that's merged, i'll do a second PR for adding alpha support to the PBRify workflow

[quaint jungle]

when this is easy let me know because I wanna try it 👍

[sweet dagger]

How exciting

[vagrant moon]

just waiting for it to be merged

@quaint jungle it is usable right now btw. just need to use the workflow i pinned here instead of the one on their repo

that's the only change

transparency/alpha is the only thing missing now

[vagrant moon]

i didn't need to do a resize operation at all here, since the alpha is (almost always) the same size as the color portion

[limpid flame]

I'm confused, how are you using say a 512 alpha on a 2k image

[vagrant moon]

i'm actually just upscaling the alpha again lol. using the original alpha on a higher res image can cause a shit ton of issues

i really highly recommend against doing that

at least upscale it with a lightweight model

and thankfully i can report your modification of the node works

[limpid flame]

Like with a non algorithmic model?

[vagrant moon]

i'm not sure what you mean by that. but i mean using at least a compact or SPAN model to produce a higher res texture with smoother edges, while not being computationally heavy

[limpid flame]

Like not just using bilinear or nearest

[vagrant moon]

ah, yes

the xBRZ scaling algorithm could probably work though

[limpid flame]

[quaint jungle]

How do I steal the template

[vagrant moon]

it's all merged now actually

just follow the directions in the official repository

https://github.com/NVIDIAGameWorks/ComfyUI-RTX-Remix

after you install the nodes per their instructions, follow mine for using PBRify: https://github.com/Kim2091/PBRify_Remix?tab=readme-ov-file#comfyui

once you figure it out, it's really quick to use 🙂

this one allows alpha layers to work without issue though

so at the step to load the workflow, just download this image instead and load it

hooray

looked like this before lol

[limpid flame]

Yay!

[vagrant moon]

so i want to use my span v4 model to upscale alphas, but this creates an annoying issue with the way i have my steps set up

i tell the user to just copy the contents of the Models folder from my pbrify zip file to comfyui's upscale_models folder

but the SPAN model is in another folder in the zip

i guess i'll just add an extra step

[limpid flame]

could tell them to copy into root comfy folder and have full paths set up

[vagrant moon]

hm

would you mind walking me through custom paths?

[limpid flame]

where does span go?

[vagrant moon]

the span model is in the Extras\Old_Models folder

[limpid flame]

ohhhh, so i mean change the zip to

root of zip would be drag into comfyUI folder so

ComfyUI > models > upscalemodels

so that it drags into corect dir by itself

did i explain that badly

[vagrant moon]

sorry but yeah lol. i can't understand it

do you just mean that i should set up a separate zip just for comfy?

[limpid flame]

yes

[vagrant moon]

hm

that's too smart lol

[limpid flame]

ig then yeh copy all into upscale models, i was going a step further by saying start root at comfyui folder and have them drag contents there so they wouldnt have to hunt thought the path

but you only need the one folder so

[vagrant moon]

all set up now

thanks

just gotta update github

[limpid flame]

so liike

they drag in ComfyUI and it populates to correct model folder

[vagrant moon]

ya
