Why does `ondrop` take a DragEvent that downcasts to `MouseEvent` instead of `DragEvent`?

[vocal gull]

https://github.com/DioxusLabs/dioxus/blob/9ebcbc6bd9e1b1af9b141d2dd8ed6c816b42607e/packages/html/src/events/drag.rs#L247 defines ondrop through the macro. I am not yet able to follow the macro's logic of converting from web_sys events into dioxus events, but I do know from experimentation that ondrop is getting a dioxus::DragEvent that downcasts to web_sys::MouseEvent, that somehow has files, rather than a web_sys::DragEvent. See code in thread.

This is a problem for me because I am doing things that the current HasFileData does not seem to support, specifically directory handling (webkitdirectory), and I want to loop over the files with their full directory paths. Right now I only get the name of the folder dropped, not the full list of files with paths, as I would expect to be the case per (related but not quite the same): https://developer.mozilla.org/en-US/docs/Web/API/HTMLInputElement/webkitdirectory#understanding_the_results

Perhaps there is some place in dioxus where the directory items are gotten from drops ala https://developer.mozilla.org/en-US/docs/Web/API/HTML_Drag_and_Drop_API/File_drag_and_drop#process_the_drop ?

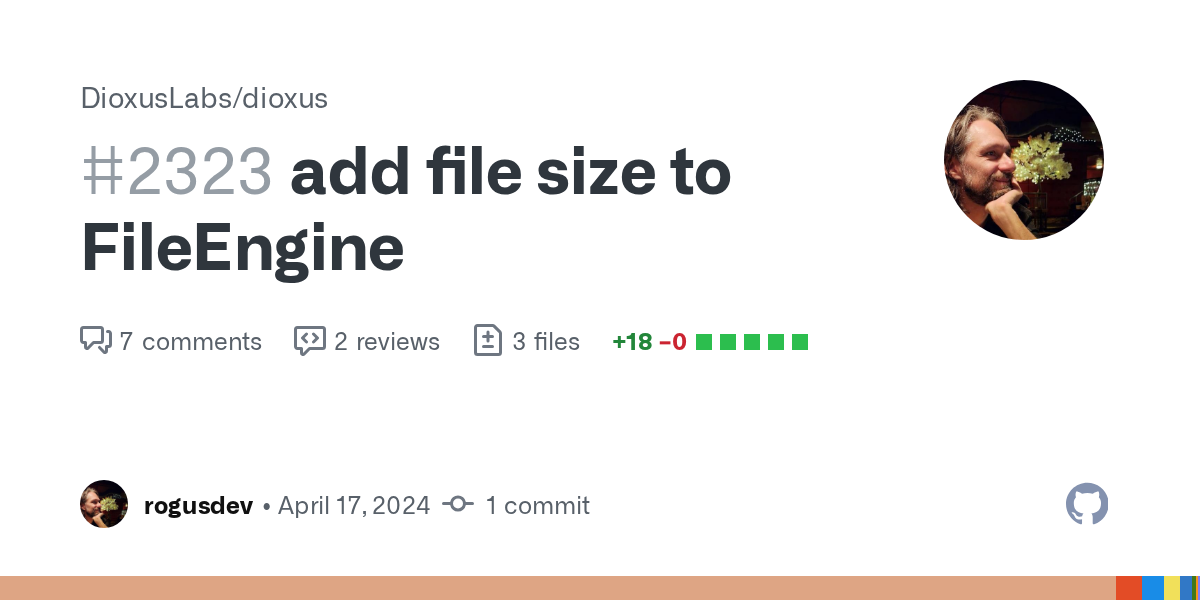

As per previous discussion e.g. by @leaden nebula ala https://github.com/DioxusLabs/dioxus/pull/2323#pullrequestreview-2055565567 this is further evidence that a better file interface needs to be developed, but for now, I'm comfortable figuring out parts of that interface by building it manually for just my application, and then I'll happily migrate it over to dioxus itself.

But I'd still like to know if this is deliberate for some reason or a bug/missed feature, somehow. Perhaps the solution is simply to "fix" drag & drop event files to have the full paths as per the above, or perhaps it is to downcast to DragEvent instead of MouseEvent (tho, perhaps relevantly, DragEvent inherits from MouseEvent per MDN)

Of particular note, ondrop is the only possible place to read the files in drag & drop flow per https://developer.mozilla.org/en-US/docs/Web/API/DataTransfer/files

Demo repro:

#![allow(non_snake_case)]

use dioxus::prelude::*;
use dioxus_logger::tracing::{info, Level};

fn main() {
    // Init logger
    dioxus_logger::init(Level::INFO).expect("failed to init logger");
    info!("starting app");
    launch(App);
}

#[component]
fn App() -> Element {
    rsx! {
        div {
            style: "width: full; height: 40px; background-color: green;",
            ondragover: move |evt: DragEvent| {
                evt.prevent_default();
                evt.stop_propagation();

                if let Some(_) = evt.downcast::<web_sys::DragEvent>() {
                    info!("dragover Drag");
                }
                if let Some(_) = evt.downcast::<web_sys::MouseEvent>() {
                    info!("dragover Mouse");
                }
            },
            ondrop: move |evt: DragEvent| {
                evt.prevent_default();

                if let Some(_) = evt.downcast::<web_sys::DragEvent>() {
                    info!("drop Drag");
                }
                if let Some(_) = evt.downcast::<web_sys::MouseEvent>() {
                    info!("drop Mouse");
                }
            }
        }
    }
}

Note that this requires in Cargo.toml:

dioxus = { path = "../dioxus/packages/dioxus", features = ["web"] }
web-sys = { version = "0.3.70", features = ["DataTransfer", "DragEvent"] }

In the demo/repro, you will only see logs of "dragover Mouse" and "drop Mouse" never "drop/dragover Drag", indicating that only web_sys::MouseEvents are there, and not DragEvents

I tested in both Firefox and Chrome

In particular, I believe something here needs to be incorporated: https://developer.mozilla.org/en-US/docs/Web/API/DataTransferItem 's https://developer.mozilla.org/en-US/docs/Web/API/DataTransferItem/webkitGetAsEntry -- to not just read the files, but also the items as potential directories

But I cannot do that with MouseEvent, I need DragEvent

[leaden nebula]

DragEvent should always downcast to the same type

We have it written down as MouseEvent: https://docs.rs/dioxus-web/0.6.0-alpha.3/dioxus_web/trait.WebEventExt.html#associatedtype.WebEvent-4

But I think it should be a drag event

[vocal gull]

Yes, if that is hard coded as such, it seems wrong to me, per all the drag related events here: https://developer.mozilla.org/en-US/docs/Web/API/HTMLElement/drag_event -- they all have DragEvent

And I expect it has worked so far because the raw event is a dragevent, so you can get files off of it, but also inherits from mouseevent, so you can pass it as such. But it's dropping extra data that way

Bug reported: https://github.com/DioxusLabs/dioxus/issues/3133

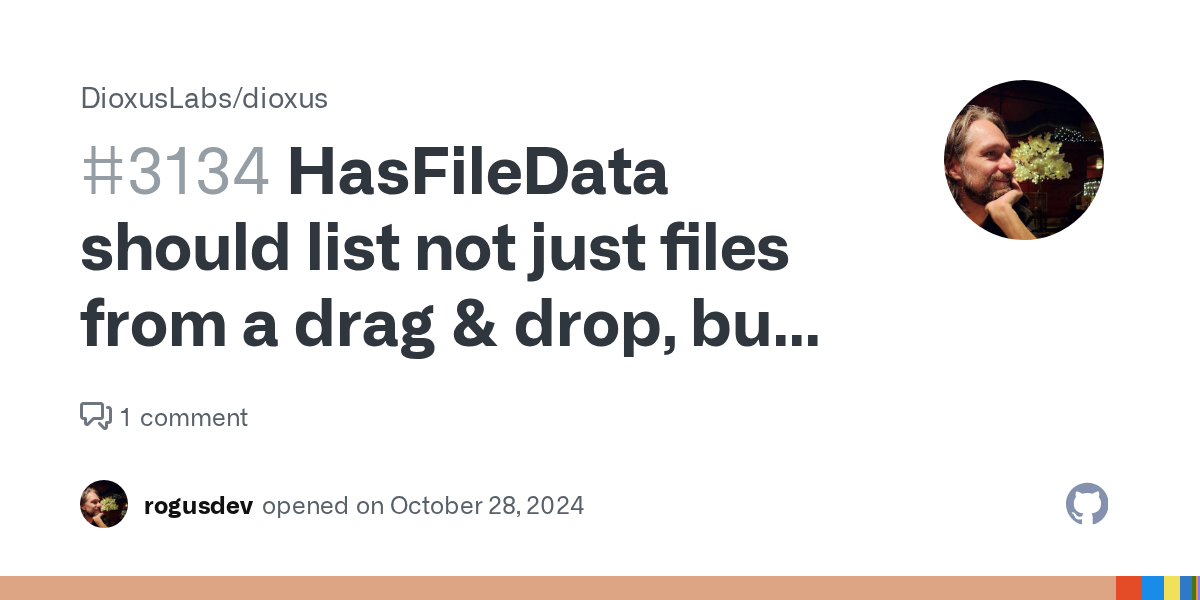

And a related feature request: https://github.com/DioxusLabs/dioxus/issues/3134

Bonus extra bug I discovered when digging still deeper: https://github.com/DioxusLabs/dioxus/issues/3136

I would happily work on all these problems myslf, if I knew where to work on them. I did a lot of digging already but I did not even discover that WebEventExt nor anything that showed me how these file lists were built for actual events. Point me at such things and I'll gladly put up a PR

[leaden nebula]

Most (all?) of the changes should be in this file: https://github.com/DioxusLabs/dioxus/blob/main/packages/web/src/events/drag.rs

[vocal gull]

I put up a pr for what seems like the basics, I'll return for more digging later.
