problem after installed tailscale and nkilpper cannot connect | Mainsail | Page 1

still wyvern Jan 3, 2023, 12:55 PM

#

i tried to install tailscale which works now but klipper cannot connect to the printer due to error because of JSON-RPC Request Error -32 (as stated in moonraker log)

📎 moonraker.log

tawny elm Jan 3, 2023, 1:23 PM

#

Do as a favor, delete the moonraker and Klipper log. Reboot the system and download both files new

#

The log is so big and contains a lot of errors so that is it not clear what of them fresh or old

still wyvern Jan 3, 2023, 1:24 PM

#

I see

#

so how do I delete them ?

tawny elm Jan 3, 2023, 1:24 PM

#

Ssh in the pi

#

ls -l

#

Show me what you see

still wyvern Jan 3, 2023, 1:25 PM

#

one moment

#

total 52
drwxr-xr-x 10 pi pi 4096 Dec 18 22:33 crowsnest
drwxr-xr-x 7 pi pi 4096 Dec 26 22:45 kiauh
drwxr-xr-x 2 pi pi 4096 Dec 26 22:50 kiauh-backups
drwxr-xr-x 11 pi pi 4096 Jan 3 13:45 klipper
drwxr-xr-x 5 pi pi 4096 Jan 3 13:46 klippy-env
drwxr-xr-x 5 pi pi 4096 Dec 18 22:33 mainsail
drwxr-xr-x 3 pi pi 4096 Dec 18 22:33 mainsail-config
drwxr-xr-x 8 pi pi 4096 Jan 3 13:24 moonraker
drwxr-xr-x 5 pi pi 4096 Dec 18 22:29 moonraker-env
drwxr-xr-x 7 pi pi 4096 Dec 18 22:32 moonraker-timelapse
drwxr-xr-x 5 pi pi 4096 Jan 3 13:22 pgcode
drwxr-xr-x 10 pi pi 4096 Jan 3 13:24 printer_data
drwxr-xr-x 8 pi pi 4096 Dec 18 22:35 sonar

tawny elm Jan 3, 2023, 1:28 PM

#

Ok

ls -l ```

still wyvern Jan 3, 2023, 1:28 PM

#

ls -l
total 4964
-rw-r--r-- 1 pi pi 1166091 Jan 3 15:26 crowsnest.log
-rw-r--r-- 1 pi pi 800164 Jan 1 00:00 crowsnest.log.2023-01-01
-rw-r--r-- 1 pi pi 825324 Jan 2 00:00 crowsnest.log.2023-01-02
-rw-r--r-- 1 pi pi 855516 Jan 3 12:58 crowsnest.log.2023-01-03
-rw-r--r-- 1 pi pi 93398 Jan 3 15:04 klippy.log
lrwxrwxrwx 1 root root 34 Dec 18 22:33 mainsail-access.log -> /var/log/nginx/mainsail-access.log
lrwxrwxrwx 1 root root 33 Dec 18 22:33 mainsail-error.log -> /var/log/nginx/mainsail-error.log
-rw-r--r-- 1 pi pi 1011049 Jan 3 15:28 moonraker.log
-rw-r--r-- 1 pi pi 38700 Jan 1 23:49 moonraker.log.2023-01-01
-rw-r--r-- 1 pi pi 265387 Jan 2 20:59 moonraker.log.2023-01-02
lrwxrwxrwx 1 root root 18 Dec 18 22:36 sonar.log -> /var/log/sonar.log

tawny elm Jan 3, 2023, 1:29 PM

#

rm klippy.log
ls -l```

still wyvern Jan 3, 2023, 1:30 PM

#

rm moonraker* it does not do anything

tawny elm Jan 3, 2023, 1:31 PM

#

I am sure it does

#

ls -l

still wyvern Jan 3, 2023, 1:31 PM

#

pi@mainsail:~/printer_data/logs $ ls -l
total 3572
-rw-r--r-- 1 pi pi 1166091 Jan 3 15:26 crowsnest.log
-rw-r--r-- 1 pi pi 800164 Jan 1 00:00 crowsnest.log.2023-01-01
-rw-r--r-- 1 pi pi 825324 Jan 2 00:00 crowsnest.log.2023-01-02
-rw-r--r-- 1 pi pi 855516 Jan 3 12:58 crowsnest.log.2023-01-03
lrwxrwxrwx 1 root root 34 Dec 18 22:33 mainsail-access.log -> /var/log/nginx/mainsail-access.log
lrwxrwxrwx 1 root root 33 Dec 18 22:33 mainsail-error.log -> /var/log/nginx/mainsail-error.log
lrwxrwxrwx 1 root root 18 Dec 18 22:36 sonar.log -> /var/log/sonar.log

tawny elm Jan 3, 2023, 1:31 PM

#

You see logs are gone 😉

still wyvern Jan 3, 2023, 1:31 PM

#

ha

#

nice

tawny elm Jan 3, 2023, 1:32 PM

#

Now reboot and after that download the new logs

still wyvern Jan 3, 2023, 1:32 PM

#

ok, 1 minute

#

📎 klippy_new.log 📎 moonraker_new_.log

tawny elm Jan 3, 2023, 1:36 PM

#

Ok what is there error you seeing

still wyvern Jan 3, 2023, 1:36 PM

#

no error but stuck at Klipper reports: STARTUP

#

and the circle is loading all the time

tawny elm Jan 3, 2023, 1:37 PM

#

Make a screenshot of your browser window

#

Have you klipperscreen installed

still wyvern Jan 3, 2023, 1:42 PM

#

I had but I uninstalled it because I read about that maybe cause this problme

#

but nothing

#


tawny elm Jan 3, 2023, 1:42 PM

#

webhooks client 1972569112: New connection
webhooks client 1972569112: Client info {'program': 'Moonraker', 'version': 'v0.7.1-794-g225ec58'}
TMC stepper_y failed to init: Timeout on wait for 'tmcuart_response' response```

#

That’s your real issue

still wyvern Jan 3, 2023, 1:43 PM

#

with the stepper ?

tawny elm Jan 3, 2023, 1:43 PM

#

Is,it a buster install? Make a picture of the host system section

still wyvern Jan 3, 2023, 1:44 PM

#

buster ?

#

but I have a relay and this also occur when the motherboard is off

tawny elm Jan 3, 2023, 1:44 PM

#

Go to the Maschine tab

still wyvern Jan 3, 2023, 1:44 PM

#

ok

#

what do u mean buster

tawny elm Jan 3, 2023, 1:44 PM

#

If your 24V is off Klipper can not start at all

#

Make me an picture of that

still wyvern Jan 3, 2023, 1:45 PM

#

why?

#

tawny elm Jan 3, 2023, 1:46 PM

#

Becausee Klipper needs both to run, the host PC and the mcu board

#

Ok that’s not the klipperscreen problem

#

Send the Klipper.log again let’s see what happens next

still wyvern Jan 3, 2023, 1:47 PM

#

yes but the always loading problem occured after I instlled klipperscreen and mayb tailscale

tawny elm Jan 3, 2023, 1:47 PM

#

And honestl for the rat rig OS you should ask them

still wyvern Jan 3, 2023, 1:47 PM

#

also when I power on th eprinter, the same again the always loading

tawny elm Jan 3, 2023, 1:47 PM

#

Tailscale has nothing to do with that, you have a Klipper issue

still wyvern Jan 3, 2023, 1:47 PM

#

its the theme of the rat rig

tawny elm Jan 3, 2023, 1:48 PM

#

As said switch on also the 24V of the board

still wyvern Jan 3, 2023, 1:48 PM

#

📎 klippy_5.log

#

its on now

tawny elm Jan 3, 2023, 1:49 PM

#

Do a hard fresh of your browser

#

And do it again you send the old log

still wyvern Jan 3, 2023, 1:49 PM

#

hard fresh u mean f5?

tawny elm Jan 3, 2023, 1:50 PM

#

I do not know what browser you use

still wyvern Jan 3, 2023, 1:50 PM

#

brave, its chrome alternative

#

or I can go via chrome

tawny elm Jan 3, 2023, 1:51 PM

#

No clue what brave needs for many it would be CTRL F5

still wyvern Jan 3, 2023, 1:51 PM

#

so refresh the page u mean

#

📎 klippy_6.log

tawny elm Jan 3, 2023, 1:52 PM

#

There is a refresh and a hard refresh (that also clears the cache)

#

The log does not change

#

And that I do not believe

still wyvern Jan 3, 2023, 1:53 PM

#

its ctrl + f5 also in brave, I checked

#

maybe to do a restart?

#

of the rasbperry

tawny elm Jan 3, 2023, 1:53 PM

#

Yes reboot again wait 5 minutes and send log again

still wyvern Jan 3, 2023, 1:53 PM

#

ok

tawny elm Jan 3, 2023, 1:54 PM

#

I need to complete booting sequence yours stop in the middle. The tmc error will also occur if you start without 24V

still wyvern Jan 3, 2023, 1:55 PM

#

so if I try to restart firmware with 24v on it, u will have the complete boot sequense right?'

tawny elm Jan 3, 2023, 1:56 PM

#

Hopefully 😉

still wyvern Jan 3, 2023, 1:56 PM

#

📎 klippy_7.log

#

letsw see

tawny elm Jan 3, 2023, 1:57 PM

#

b'Got EOF when reading from device'

#

I see that the second time … that’s not good at all

#

That has nothing to do with Tailscale but indicate a serious problem in your system

still wyvern Jan 3, 2023, 1:58 PM

#

shit

tawny elm Jan 3, 2023, 1:59 PM

#

Could be a bad usb cable

still wyvern Jan 3, 2023, 1:59 PM

#

I can try to change the usb

#

but

#

it keeps on loading even if not usb is connected

#

this is the first time I see that

tawny elm Jan 3, 2023, 1:59 PM

#

This time even earlier

#

Ok do you have a spare sd card?

still wyvern Jan 3, 2023, 2:00 PM

#

yes

#

I changed the port of usb and boot agin

tawny elm Jan 3, 2023, 2:01 PM

#

Save your printer.cfg on your PC, make a new MainsailOS SDCard, and only get your printer.cfg on it

#

Let’s see if it boots up than

still wyvern Jan 3, 2023, 2:02 PM

#

I have a already ready with mainsail new one

tawny elm Jan 3, 2023, 2:02 PM

#

If you did changes to your moonraker.conf you need that too

#

Perfect than use that, I suspect it will change but it rules out everything you did install

still wyvern Jan 3, 2023, 2:03 PM

#

ok

#

in 3 minutes it will be up

#

yeap

#

its working hahahah

#

I knew it it was something I did

#

so I will just reinstall mainsail on the other sd for the other printer

#

or u want me to try again the old sd for maybe we fix it ?

#

so the problem was my moonraker cfg because when I put my old moonraker cfg, same problem occur but when I leave the new one, all ok so I just copied my settings to the new one and its working

#

but the 2 of them are exaclty the same

#

anyway, problem solved

#

one more question if u know

#

when I reboot the relay goes off and on in a few seconds and then off (because I put on the cfg of the moonraker to be off when power on) but is there a way not to go off-on and off but just stays off?

tawny elm Jan 3, 2023, 2:35 PM

#

Nope it more time efficient to use a new card

#

Yes you need our new moonraker.conf

still wyvern Jan 3, 2023, 2:35 PM

#

I found it and fixed that, it was something in th emoonraker cfg so its ok now, both sd are working

tawny elm Jan 3, 2023, 2:36 PM

#

That klippy_uds_address: ~/printer_data/comms/klippy.sock has changed

still wyvern Jan 3, 2023, 2:36 PM

#

aaaaah

#

so the problem occured after I update the moonraker 😛

tawny elm Jan 3, 2023, 2:37 PM

#

Every time you use a new shine MainsailOS take care and compare your moonraker.conf to ours. In doubt always use ours

still wyvern Jan 3, 2023, 2:37 PM

#

is there a copy of the stock moonraker.cfg ? because I forgot to download it and now I need again to disasseble and change the sd in order to download it

tawny elm Jan 3, 2023, 2:39 PM

#

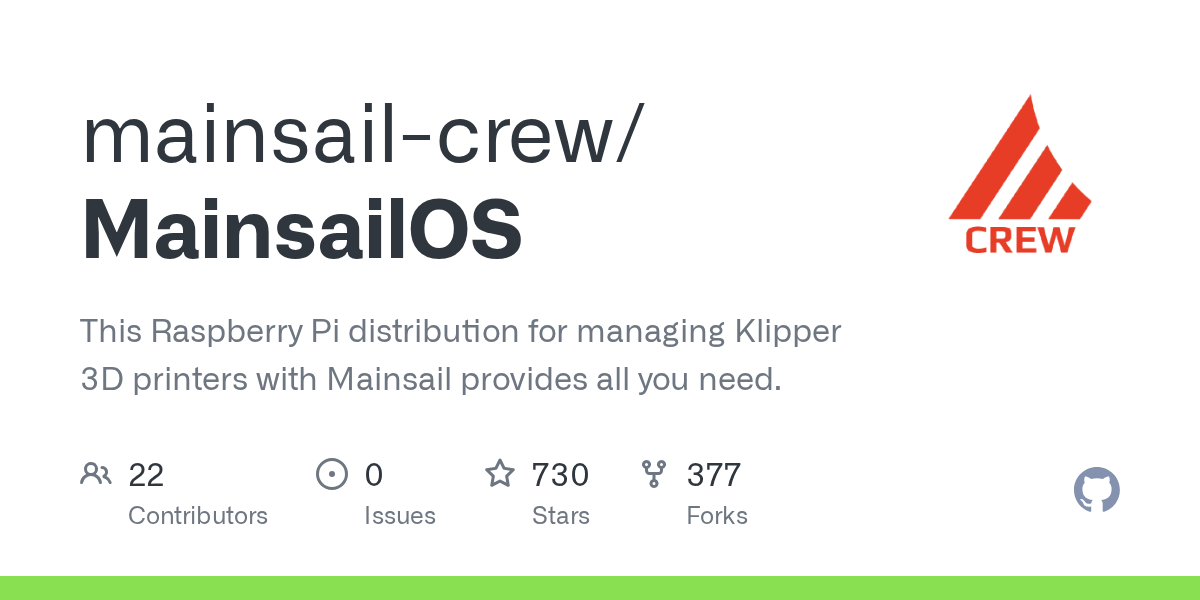

Not a complete one but https://github.com/mainsail-crew/MainsailOS/blob/develop/src/modules/moonraker/filesystem/home/pi/printer_data/config/moonraker.conf

GitHub

MainsailOS/moonraker.conf at develop · mainsail-crew/MainsailOS

This Raspberry Pi distribution for managing Klipper 3D printers with Mainsail provides all you need. - MainsailOS/moonraker.conf at develop · mainsail-crew/MainsailOS

still wyvern Jan 3, 2023, 2:39 PM

#

ok nice,

#

any thoughts about the relay maybe?

tawny elm Jan 3, 2023, 2:39 PM

#

It only misses some Update sections as they are added during the build process

still wyvern Jan 3, 2023, 2:40 PM

#

its ok, I will copy them

tawny elm Jan 3, 2023, 2:40 PM

#

Show me your config

#

There is an initial state for relays

#

I need to understand what you really have there

still wyvern Jan 3, 2023, 2:41 PM

#

[power Printer power]
type: gpio
pin: gpio14
initial_state: off
off_when_shutdown: True
locked_while_printing: True
on_when_job_queued: True
bound_service: klipper
restart_klipper_when_powered: true
restart_delay: 5

#

thats the secion for the relay

#

its off but when I reboot, it turns off-on in a 2 seconds and again off in 10 seconds

tawny elm Jan 3, 2023, 2:43 PM

#

Ok I see it’s a high active relay that means as soon the PI starts booting it’s on and than when moonraker is up and running it goes off

#

So nothing you can do about that

still wyvern Jan 3, 2023, 2:44 PM

#

its a high active yes

#

so I need a low level triger one in order not to do that?

tawny elm Jan 3, 2023, 2:47 PM

#

What you could try is set it in config.txt to set the behavior at boot see https://www.raspberrypi.com/documentation/computers/config_txt.html#gpio-control

still wyvern Jan 3, 2023, 2:48 PM

#

I will read it carefully and try it but

#

if I choose a low level relay for the other printers, it wont behave like that right?

tawny elm Jan 3, 2023, 2:49 PM

#

Should work yes [power psu] type: gpio pin: !gpio14 initial_state: on bound_service: klipper restart_klipper_when_powered: True locked_while_printing: True

#

I have mine on at power up but yes

still wyvern Jan 3, 2023, 2:50 PM

#

ok, great

#

thank u very much

tawny elm Jan 3, 2023, 2:55 PM

#

If we are fine close the post please

#

See #readme message

still wyvern Jan 3, 2023, 2:55 PM

#

I will
