#BTT Manta M8P Cooling fans plate

6 messages · Page 1 of 1 (latest)

pliant rampart Sep 16, 2024, 1:29 PM

#

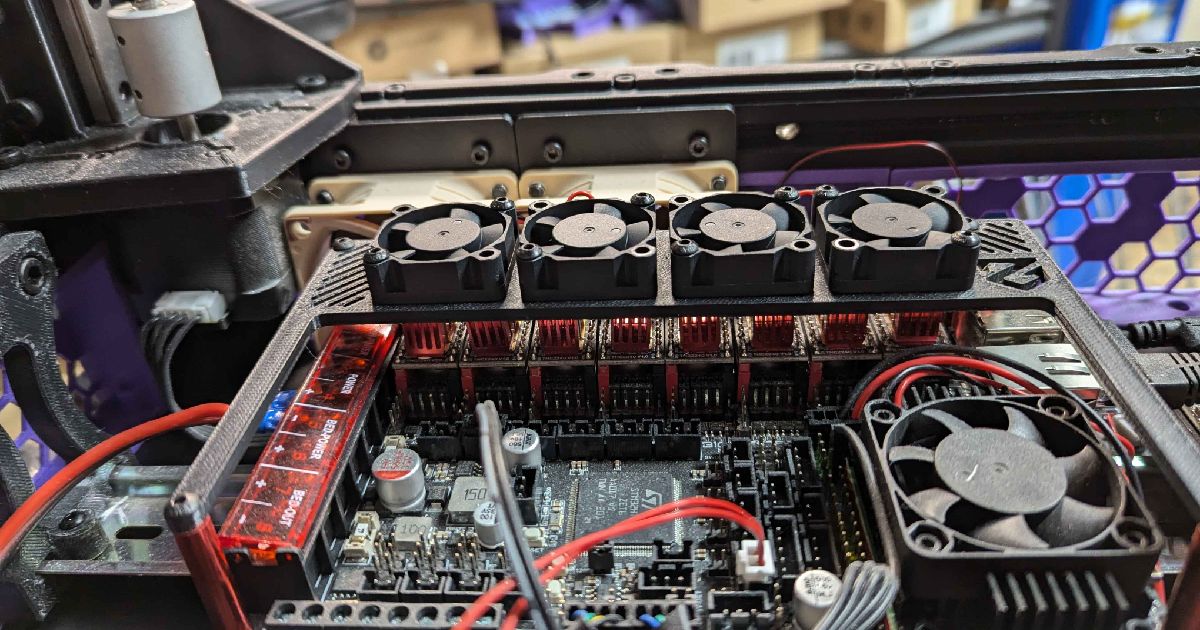

This plate is used to cool your drivers using 3010 fans. You can use the STL to print the plate or get the dxf file you order it cut in aluminium. The screw holes for the fans are 2.6mm in diameter for tapping.

Mini BOM:

M3 Standoff X 4 30mm long: https://www.aliexpress.com/item/1005005552036891.html
M3 X 40mm Bullet Head Screw X 4 (Goes through Standoffs)
M3 X 14mm Bullet HEad Screw X 16 (For the fans)
3010 Fans X 4

#

Manta_M8P_Driver_Fans_Plate.dxf

📎 Manta_M8P_Driver_Fans_Plate.stl

pliant rampart Sep 16, 2024, 5:03 PM

#

Available also in Plain and Voron Logo on printables: https://www.printables.com/model/1009595-btt-manta-m8p-cooling-fan-plate

Printables.com

BTT Manta M8P Cooling Fan Plate by Lorien | Download free STL model...

Plate to hold 3010 fans above the the drivers. | Download free 3D printable STL models

pliant rampart Sep 26, 2024, 10:53 PM

#

Just received the aluminum cut version


dapper elk Mar 25, 2025, 2:07 PM

#

Here's one I did with printed standoffs because I'm impatient. I only did the ZeroG logo one.

📎 Manta_M8P_Cooling_Plate_Printed_Standoffs_ZeroG.stl

pliant rampart Mar 25, 2025, 2:53 PM

#

Why not make the standoff a separate stl? That way people can adjust height in slicer to suit their needs.
