[naive swan]

you do get a % off based on rolls purchased

[vocal terrace]

38

bruh litearlly only white

[mild hinge]

I pretty much only use polymaker red/black

[naive swan]

as of now same

[vocal terrace]

use website

[mild hinge]

same material /colors

[deep vine]

So you pay around 30 dollars

Which is like 25 pounds

[naive swan]

yes for asa

[vocal terrace]

try their store

[naive swan]

and 20-21 for abs

store only gets you 5% off

[vocal terrace]

for u

[deep vine]

Yeah I’ll look

[vocal terrace]

theres no polymaker for amazon canada

[mild hinge]

asa red polymaker 29.99

[deep vine]

Its an American company isn’t it?

[naive swan]

canada always gets the shaft

[vocal terrace]

yea american

[naive swan]

still made in china

[deep vine]

Haha

[vocal terrace]

I recommend u look at 3do or other big EU companies

[mild hinge]

almost everything is made in china

[vocal terrace]

see what filament they sell

[deep vine]

Ahh I didn’t realise they did filament too

[naive swan]

prusa have ASA and ABS?

[deep vine]

Agree

[mild hinge]

kr145.60 3do price

[vocal terrace]

yee but its expensive

[naive swan]

prusamint might be better for you

[deep vine]

Does anyone support Prusa that isn’t a die hard?

[mild hinge]

azurefilm

[naive swan]

i hear its good filament

[deep vine]

Hmm

[naive swan]

but pricey in the states

[mild hinge]

yea

[naive swan]

direct?

[deep vine]

Let’s look

Okay yeah that’s not bad

[vocal terrace]

lol

[naive swan]

not bad

[vocal terrace]

just get that

[deep vine]

Still 40 after taxes and shipping

[vocal terrace]

but buy multiple

less shipping

Also pthats good fialemtn

like polymaker is god ut PRusa is i'm pretty sure top

[deep vine]

Can only order up to 140 before uk taxes again at boarder

[naive swan]

its the special stash here, if you have any

[deep vine]

But yeah can do orders of 4-5

[deep vine]

This looks better deal

[vocal terrace]

idk about their filament

Ask dutch prob

[naive swan]

just check reviews to make sure they are consistent

[deep vine]

Okay, I’ll have a think.
Still tempted just to order polymaker 🙃

[naive swan]

yeah it seems like a regional decision though

[deep vine]

Ahh, they don’t of shipping to uk on their site

[vocal terrace]

I think they did 1 recently

[naive swan]

there are few mods in UK on the Voron Discord

[deep vine]

@naive swan I beg you extrude some of your asa through ethernet to my printer

[naive swan]

like an stl?

[deep vine]

Yeh that will doo

Hah

I have some cfnylon 12 do you think that would to for the hot end?

[naive swan]

no

[deep vine]

It’s 270-280 print temp

[naive swan]

i hear it can flex

[deep vine]

Oh right haha

ASA is more rigid then

[naive swan]

same thing with pure pylon

ASA is just UV resistant ABS

[vocal terrace]

no

[naive swan]

it is supposedly better at heat defelction

[vocal terrace]

uv resistant AS

[vocal terrace]

bruh

its not ABS cause no Acrylonitrile Butadiene Styrene

Burtadiene

[deep vine]

Have you printed any of that red yet?

[naive swan]

it says weather resistant ABS....

[vocal terrace]

acrylonitrile styrene acrylate

they are being simple

[naive swan]

not yet, it just got here

[naive swan]

tell em

[deep vine]

Sounds right

[naive swan]

start the crusade

[deep vine]

I’ll join

[vocal terrace]

noice

[deep vine]

https://tenor.com/view/naruto-seishun-kyousoukyoku-naruto-run-run-neji-gif-22614495

[vocal terrace]

its basically Weather resistant ABS Base.

no

idk how to call it

t has a similar chemical makeup to ABS plastic but offers three improvements: better mechanical properties, superior aesthetics and it's UV resistant.

[deep vine]

Prints slower?

[naive swan]

prints at the same speed

[vocal terrace]

^

[naive swan]

just shiny-er

[vocal terrace]

and easier

people say

[naive swan]

true

it was easier on black

my overhangs curl sometimes on abs, not on asa

[deep vine]

Omg, sounds like heaven

Esun abs+ took me months to get close to right

[naive swan]

when i was having extruder issues, ASA was the only stuff that still printed well

[deep vine]

Smooth like butter

[naive swan]

i still have 6 rolls

[deep vine]

Donate to charity 😂

[vocal terrace]

its so dogshit

[naive swan]

its still good but right know its basically PLA for me

like an easier petg

[deep vine]

I printed my ercf out of it,

It seems to work okay

[vocal terrace]

L

TRADRACK TRADRACk

TRADRACK!

[deep vine]

It doesn’t exist yet

[vocal terrace]

yes it does

u can join betta

[deep vine]

It’s not released

[naive swan]

I just realized how good this came out

[vocal terrace]

There is it existing

[deep vine]

What is it?

[vocal terrace]

a tradrack.

literally the motor adjuster

[deep vine]

It looks like an exotic extruder

[vocal terrace]

i'm in the closed beta that u can join

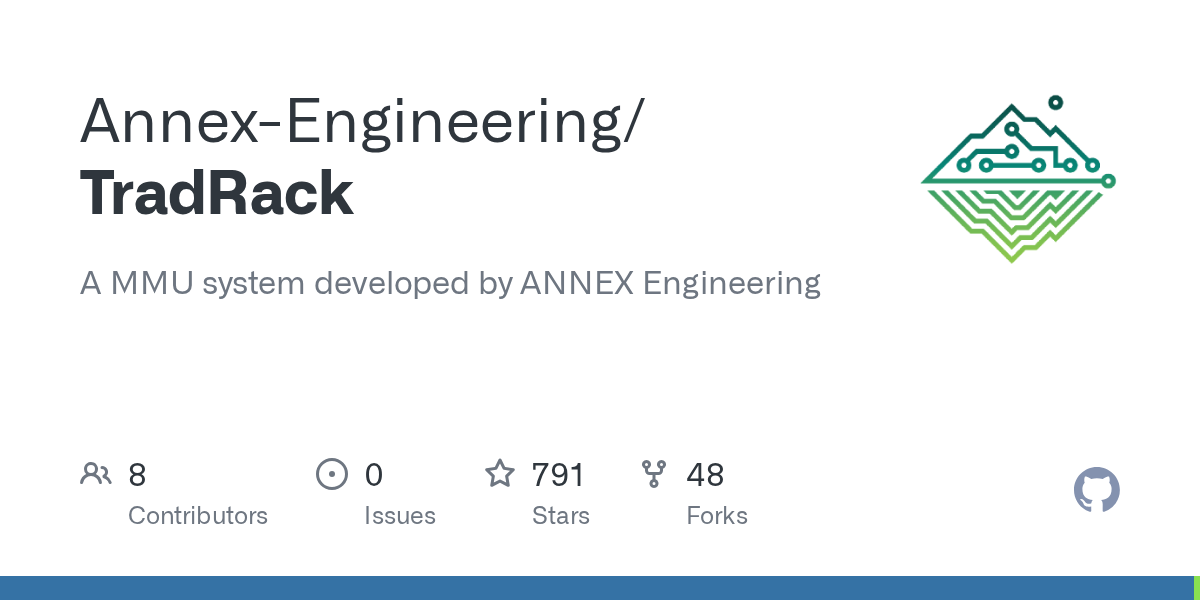

https://github.com/Annex-Engineering/TradRack

[deep vine]

Where do all the filaments go

[vocal terrace]

thats not the whole thing

its just 1 part

[naive swan]

its a wireless MMU?

[deep vine]

Haha, but still, I don’t understand closed beta.
If anyone can sign up

Is it suppose to be more reliable than ercf

[vocal terrace]

mercury 1.1 is an open beta.

its faster and more reliable

also more modular

[deep vine]

Interesting

[naive swan]

It worked!

[deep vine]

I might move the ercf to my ender 3 and build one for the zero g

[deep vine]

Esun?

[vocal terrace]

no

[naive swan]

polylite abs

[deep vine]

Ahh

[naive swan]

i have printed this batch of red 4 times... ucan disconnects from the pi and i cant see it via ssh

[deep vine]

Ngl looks sexy, it looks way less parts than ercf

[naive swan]

i connected it to a powered hub lets hope thats the issue

damn le potato is not worth the hassle sometimes

[deep vine]

Don’t say that I just ordered a Btt cb1 and adapter

[naive swan]

also why is it that mellow is the only company that provided a usb c to a cable with their uto/ucan/w/e they call it????

[vocal terrace]

Cause funny

also most boards are usb c

so u have it already

...

im stupid

[naive swan]

no the others included no cable at all

[vocal terrace]

Idk if Im gonna get a 30x7 fan or 10

for canbus

lol

[deep vine]

Cpap *cough

[naive swan]

i tried a 3010, it was too bulky

[vocal terrace]

3007 is way to go then

[naive swan]

sorry

4010

[vocal terrace]

oh....

[naive swan]

im using a 3010

[vocal terrace]

is it where stealthjburner cable cover is

[naive swan]

no in the back

[vocal terrace]

ah

3010 works for me pog

[mild hinge]

i put a 3007 on my sb

[naive swan]

I use this mount on some 20mm brass stand offs

3007 is kinda pricey compared to 3010 for some reason

[vocal terrace]

cause 3007 was created for V0

[mild hinge]

yea it was a bit pricey

[vocal terrace]

I belive

[naive swan]

damn i cranked my temp to 260 and the abs smell is too stong now....

[vocal terrace]

no nevermore?

[naive swan]

correct, kinda...the 24v version was new because of the mini afterburner

now that the mini SB is out the they changed to the 3010

and no not yet

its my next print apperantly

I’m ready

[vocal terrace]

bruh just ordered fcrom god bless store...

[naive swan]

im bringing my hepa filter back upstairs...screw this

oh damn im an idiot

it was my heat set press

i left it on

[vocal terrace]

kekw

[naive swan]

Test fit

Also testing for warping

dont want it melting while mains is running through it

[naive swan]

so i had to turn fans down to 30% on overhangs and my new print temp is 260c

still getting some slight bubling

/curling

[mild hinge]

@naive swan whatcha think of this part
..voron exhaust housing just finished

[naive swan]

looks good, but you may want to continue tunning your PA

[mild hinge]

@naive swan Yea I saw that

[naive swan]

looks like my ucan issue is resolved, it was the le potato not providing enough power

[mild hinge]

yea

time to finish the exhaust

[naive swan]

I need to start my nevermore

[mild hinge]

I have that done already

with duo

[naive swan]

I’m tempted to do the nevermore max

But I will settle for 2 v5s

[vocal terrace]

bruhn

[naive swan]

Also I think this is my best top layer ever

[mild hinge]

wow that is pretty huge

nevermore max

[naive swan]

yeah lol

but it fits

[mild hinge]

yea

what fans does it use

[naive swan]

6015 or something

[mild hinge]

yea i didnt look at the bom

[naive swan]

DELTA BFB0712HF 65mm GPU fan

[mild hinge]

I need to order some more 60mm fans

[naive swan]

lots of parts

too much work honestly

[mild hinge]

yea

20 bucks a fan

amazon

[vocal terrace]

cap

[naive swan]

i might build one when a kit comes out

[vocal terrace]

thers a 60 dollar fan

[naive swan]

if they can keep it under 50

[vocal terrace]

nevermore max has 1 fan thats like 60 bucks

maybe its 2 of em

[mild hinge]

https://www.amazon.com/BFB0712HF-Cooling-Blower-GTX660TI-Graphics/dp/B095YV8W61

[naive swan]

Sanyo 9TD12P6G001

lol wtf

[vocal terrace]

that fna is why I told u about it

to frick with u

[naive swan]

i have an old evga 670... hmmm

[vocal terrace]

u ready for the marathon tmrw

I wanna know results

[naive swan]

i would rather do 4 v5s

[mild hinge]

i have 1 NM v 5

dual 5015

[naive swan]

yep im fine with 8 5015s, since that is the majority of the cost

[mild hinge]

yep

[naive swan]

2 4-packs should run you 20-30$

and no extra not in my shop parts

2x SGP40 VOC sensors

16 Neopixel ring

DC power jack male (5.5x2.1mm)

DC power jack DC-005 (female 5.5x2.1mm)

sponge cords

actually i have sponge cord

[mild hinge]

Im running 3 voron daybreaks

[naive swan]

i have 2 daylight on a stick that i need to install

[mild hinge]

yea

[naive swan]

should have bought 3

[mild hinge]

thatsa what I did

ordered them from UK

since fabreeko was out

[naive swan]

cheaper from there?

oh

i got mine from west3d

[mild hinge]

i think i paid 40 for all 3

including shipping

[naive swan]

mine cost 10-12 a stick

[mild hinge]

i think i paid 8 stick

[naive swan]

i was buying other stuff and need to make the minimum

[mild hinge]

yep

[naive swan]

i got the can bus cable, a revo voron and the 2 sticks

[mild hinge]

nice

i have dragon HF

[naive swan]

again stuff you cant really get on amazon

[mild hinge]

true

[naive swan]

yeah revo voron is not high flow

its good for 12mm/s

[mild hinge]

i converted 2 SF dragon to HF

[naive swan]

best case

i just needed easy wile i diagnosed my under extrusion

[mild hinge]

yep

release the STL package yet ?

[naive swan]

working on it

[mild hinge]

k

[naive swan]

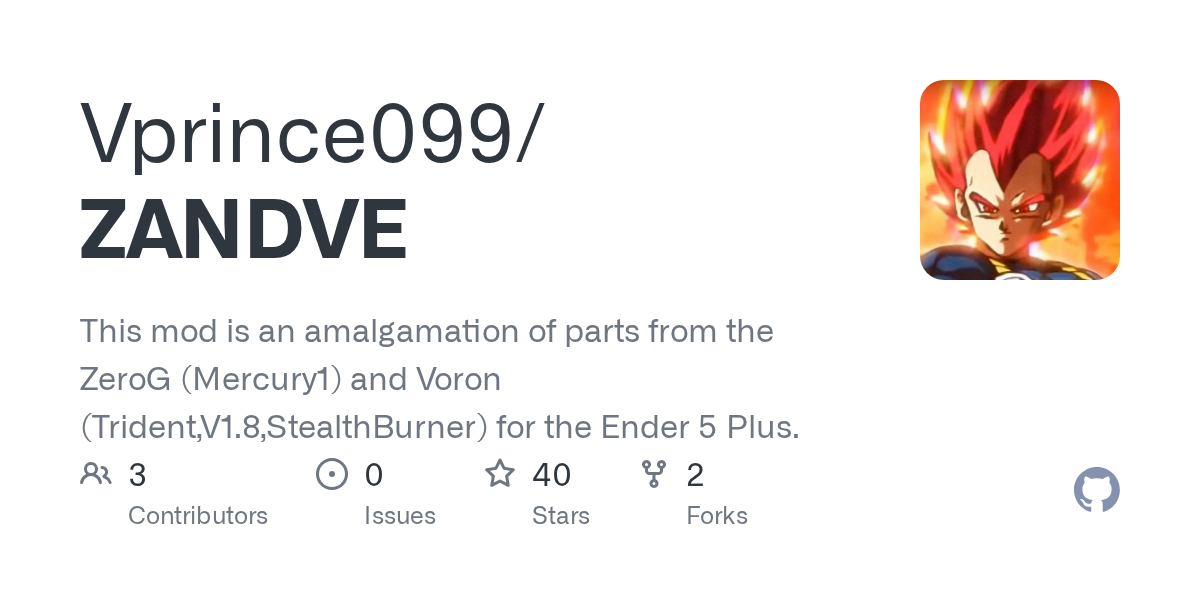

https://github.com/Vprince099/ZANDVE

[mild hinge]

nice

printer has been non-stop all day

since about 9am

lots of parts

just looked at PA = 0

Think I need to look into that

[naive swan]

yeah

go to ellis guide

[mild hinge]

yea

I found it filling out numbers

[vocal terrace]

@naive swan u know how much extr au added to PG7 gland for print

[vocal terrace]

pog

[mild hinge]

@naive swan Now I have PA running

Not sure why it wasn't running

[naive swan]

did you not set it before?

stock is 0

[mild hinge]

@naive swan Yea I did

Its working now

very strange

[vocal terrace]

n oice I want one at some point

[mild hinge]

yea

Im printing a Clear top cover for it

[naive swan]

maybe your sicer is sending it

[mild hinge]

klipper is showing it now

[naive swan]

slice*

yeah but your slicer could be overwritting it

[mild hinge]

i have the PA code in the profile

I'll have to mess with it tomorrow

1str layer look way better

[naive swan]

Mount is on now

Also new part vs old

[mild hinge]

like it

I have sooo much printing to do

printing parts for two printers

[naive swan]

yeah, i have the v0.2 to finish but i have the deadline

[naive swan]

https://github.com/Vprince099/ZANDVE/tree/main/Type-Z

ok i am cleaning up the cad, for 3 hrs

i will start offloading and rotating everything soon

[ionic plaza]

they are very good, I converted using only their brand (they have incredible deals every now and then, 1kg asa for 10$)

[naive swan]

Pug for Scale

[raven widget]

His name is Pug G ?

[deep vine]

That’s a proud pug

[naive swan]

Very

I walked into my office to find her chilling there

[deep vine]

😎

Oh

You’ve change the top trim

[naive swan]

starting to

[deep vine]

The polymaker red is slightly lighter

[naive swan]

the problem is polylite is lighter ... yep

[deep vine]

Actually kinda prefer slightly darker the Esun colour

[naive swan]

Yeah but I am reprinting the SB cover so I have no choice

[deep vine]

Vibrant

Okay fair enough

[naive swan]

the problem with esun fire engine is it burns

[deep vine]

Yeah :/

[naive swan]

In person you can tell it has a dark hue

[naive swan]

I am printing it in ASA I think

Those over hangs

[deep vine]

I will too

[naive swan]

Is that abs+

[deep vine]

Yeah, esun

[naive swan]

I am having curling issues with Polylite abs like bad

[vocal terrace]

YES YES YES YES YES. MHA POG POG OG THEY SHOWED HER

HOLY SHIT THEY SHOWED HER AT THE END OF EPISODE

[naive swan]

wtf

the dub is up now?

[vocal terrace]

Pog episode

No not dub. I watch sub lol

[naive swan]

oh ok

[vocal terrace]

It's fire

[naive swan]

you are like 3 episodes ahead

[vocal terrace]

Lol

I think they will max have 2 more seasons

[naive swan]

thats good

[vocal terrace]

No 1

Depending on now much more fight goes

Cause there isn't much pre final fight stuff.

Next season will be fire. There's witch from mercury. Birdie wing aka golf with gay girls in it.

So much fire

But idk if all will be dubbed

[naive swan]

Finally getting around to the handles

[vocal terrace]

I'mma gonna soonn too

I'm also adding steal wire to my umbilical

[ionic plaza]

you could print him in 1:1 scale 😂

[naive swan]

@vocal terrace its subbed....

[vocal terrace]

Mother Fuckers said dub

[naive swan]

lol

[mild hinge]

@naive swan How's the printer comming along

[naive swan]

Great

Also I am pulling files down from fusion now

Also printed some handles

[vocal terrace]

Vengeful u watch re:zero it's 10/10.

[deep vine]

Show a picture with yousr lid open now you have handles on?

[naive swan]

panel printed parts are loaded on the github

49 parts

ok i figured out how to do it faster now, using visual studio and super slicer for rotation,. the goal is 100 parts tomorrow

today was a lot of fixes to make printing simpler and too many name changes....

also Microsoft power tools is great if you are not using it already

[thorny vine]

Do you mean Power toys?

[naive swan]

yes lol power toys

[thorny vine]

Yeah amazing tool 😄

[naive swan]

i have been up over 24hrs now

[thorny vine]

Get some rest then

[naive swan]

im going to take a nap, be back to to it soon

[thorny vine]

Amazing work btw

Cant wait to get started on my own 🙂

[naive swan]

thanks! let me know if you need any help

[thorny vine]

Need to enclose my printer first to somehow to start printing abs/asa

[naive swan]

Ah ok

Well an easy and cheap way is card board or coroplast

[deep vine]

jeeeeez dude

[deep vine]

would you be able to upload your A and B motor mounts next so i can fix my printer?

[twilit edge]

Hopefully after his nap. 😉

I understand staying up to get a project across the finish line, though.

[deep vine]

24 HOURS THO :0 sound like sleep deprovation they do for navy seal haha

[twilit edge]

😬

[deep vine]

have you design any projects before? you mentioned you know what its like?

[twilit edge]

Yeah, my baby. OmniBox. https://jon-harper.github.io/OmniBox

[deep vine]

Oh that’s cool, I could actually use this for my little printer,

[twilit edge]

Oh awesome! That's why I made it. 🙂

[deep vine]

Yeah 🙂 I put mine in to an enclosure to learn how to print abs, so separated the electronics

[twilit edge]

That's the #1 reason to use them. How's the ABS going?

[deep vine]

ahh, its abit intermitent, sometimes i get really nice prints and other times the print warps off the build plate. and i wont have changed any settings and other times i get areas where its curled on over hangs

most of the time i would say good

[twilit edge]

My general ABS adhesion advice beyond the usual is to keep stuff to the center of the bed (if stock) and check the seal on your enclosure. Glue and brims only go so far. ABS is very finicky about its environment.

[deep vine]

it is possible the door was not fully pressed in

but thanks thats good advice

[twilit edge]

Alternatively: ABS is more forgiving at higher ambient temps. 🙂

[deep vine]

i have a chamber heater, what temps are you talking?

[twilit edge]

You can print ABS without a heated bed at 70C, but for practical purposes, 50C is a good target.

[deep vine]

with just the build plate, the enclosure temps sits around 55 celcius

[twilit edge]

Yooooo

Are you circulating the air at all?

[deep vine]

yeah i have never more duo running 80%

nevermore

should i increase enclosure temp?

[twilit edge]

At that temp you are more likely, IMO, to have intermittent trouble in the heat.

The higher you go, the more stuff like your extruder stepper in particular will have difficulty.

[deep vine]

what is IMO

[twilit edge]

in my opinion

[deep vine]

ahh

okay yeah i am abit concerned about heat tbh

hmm

[twilit edge]

Do you have a thermal fuse on the heater?

[deep vine]

also what do you think

yeah there is a thermal fuse, it couts about 65

[twilit edge]

Nice, good. Glad you got that.

[deep vine]

im using a smooth PEI build plate

i see vengful and alot of others using textured

should i swap to this?

[twilit edge]

I use both, but it can't hurt. I do like it.

[deep vine]

would you say either is better?

[twilit edge]

Yeah, textured is generally better for ABS, though for some reason my smooth bed is doing great lately.

[deep vine]

okay, cool, well cheers for advice, im looking foward to printing ABS on the merc

[deep vine]

did you fit the build plate to you printer yet?

[shell wolf]

burgo with a good take for once 😂

[vocal terrace]

SEASOn 3

[deep vine]

looking good

did you order the fitting kit too

[vocal terrace]

fititng kit?

[raven widget]

what you mean by fitting kit ?

[deep vine]

https://www.aliexpress.com/item/1005005080372004.html?spm=a2g0o.order_list.order_list_main.5.429a18023pltVJ

i mean hardware kit

[vocal terrace]

oh dont get that kit

just get it individual I believe

the magnets are only thing I didn't have

that kit includes oldham but id not trust em

[deep vine]

im struggling to source everything in uk for some reason

[raven widget]

yes but i order spare cable chains

[deep vine]

BREXIT

[vocal terrace]

which stuff?

Even wiht aliexpress

I just use ali

[deep vine]

beds, rails

[vocal terrace]

youmetong is good

[deep vine]

silicon heater

[vocal terrace]

e5 or e5+

[deep vine]

E5=

[vocal terrace]

ok so

[deep vine]

E5+

[vocal terrace]

wait for the fysetc bwed

its gonna be best one

[deep vine]

oh yeah that acctually sounds dreamy

[vocal terrace]

https://www.robotdigg.com/

robotdigg stainless isnt bad

CNA

YOUMETONG

Or the other store that dutch has for merc

but

@deep vine U WANT GOOD PRETENSION

Get Z1 at least

[deep vine]

do you mean buy good rails?

[vocal terrace]

the rail store I just said are all good

U want china rails

but good china rails

[deep vine]

ahh i see

[raven widget]

lynxcnc

[deep vine]

yep

[vocal terrace]

not that store

I've never heard of em

Who uses em other than u?

https://www.aliexpress.com/item/1005001431325586.html?spm=a2g0o.order_list.order_list_main.108.23e81802M0bzSi

[deep vine]

where will the fysetec beds be sold?

[raven widget]

they are in bom list of voron

[vocal terrace]

Fysetc ali store

[vocal terrace]

isn't it CNA

[vocal terrace]

ali store

Turtle and dutch both have tested

@deep vine

[deep vine]

oh damn that looks good, will it come with heater and magnetic sheet etc.

[vocal terrace]

yea

they sell rn a E5 kit

rn aluminum prices are SCREWED

[deep vine]

ahh i did see them

[vocal terrace]

they will be best option

https://www.robotdigg.com/product/962/440C-SUS-MGN9-Linear-Rail-for-PnP-Head

[deep vine]

okay sounds good, but no dowbt will take like 3 months to come haha

[vocal terrace]

3 months prob not

rn ali is super good for shipping

[deep vine]

ill order the rails for now,

[vocal terrace]

yea good idea

youmetong I've heard best results so far

[deep vine]

when is the beds guna bed shipping?

[vocal terrace]

idk

[raven widget]

I never hear youmetong ,who use it ? only you ?

[vocal terrace]

but they recently sent another test one thats got those results

[vocal terrace]

me. dutch. vzbot. voron. fabreeko speedy.

Ratrig community

[deep vine]

nice

[vocal terrace]

People in all communities

[deep vine]

might replace the one on the corexy system, because at certain speeds the make horrible noise

rails

[vocal terrace]

yea these are good ones

Z1 pretension is minimum

[deep vine]

nice one cheers

[vocal terrace]

just order then msg the seller after

I ordered in china time. they responded immediately

[deep vine]

so its the Z1 option on the yometong

[vocal terrace]

u order the rails then msg saying pretension

Copy this msg word for word:

Hi there could I please get these linear rails all with Z1 pretension? Thank you!

[deep vine]

okay, ill do that. is that for every single rail i will use on the printer

[vocal terrace]

they have them all

are u doing hydra?

Or trident.

[deep vine]

hydra

[vocal terrace]

Also Merc too cause u said corexy ones

[deep vine]

yeah

[vocal terrace]

Didu order the lead screws already?

[deep vine]

is hydra better than trident

[vocal terrace]

MGN12C OR MGN12H

[deep vine]

no

[vocal terrace]

Get 12C 500mm rails

3

thats just the stuff from docs

[deep vine]

C okay

[vocal terrace]

C is what u want for linear rails. they are smaller and look better

then if u wanna get for merc get 450mm ones MGN12H

Then MGN9C 100mm

[vocal terrace]

u thinking of getting a tradrack?

idk if ur one the people

cause it uses a rail too

and I have a calculator for rail length

[deep vine]

oh you mentioned that the other day, mabey in the future i will do this

[vocal terrace]

ok

Its cool then

[deep vine]

id probably build 8 or 9 slots

[vocal terrace]

8 u want 150mm MGN9C

[deep vine]

so many parts

lol

[vocal terrace]

yea

but that would future proof u

[deep vine]

true

[raven widget]

hmm I was ordering by afflink from bom. right now when I check there is CNA.

but most of rails I have Hiwin

[vocal terrace]

yes. but thats the sourcing guide. I'm talking about people in the community

Voron says CNA as default

But I've heard more from these people. Vz-bots are speed printers. ratrig are just general good ones. Speedy Has a ratrig and K3 I believe.

[vocal terrace]

booooo. This a joke. I like that Hiwin though I can't justify for the lack of need for linear rails of that caliber for our uses

but its the best ones

[raven widget]

when i have chance order Blurolls kits

[vocal terrace]

someone using their V0.2 Kit just recently got rails that were rusteed

[raven widget]

Meybe I was lucky and order when they have better quality control 🙂

[vocal terrace]

it was really recently. I saw on twter. dude was really liking it but noticed it

[raven widget]

SSteel isnt realy anticorosion, can be easily infected by rust.

[mild hinge]

printing voron neopixel diffusser

so I can mount led"s to ender 5 plus

[naive swan]

top hat is loaded

[naive swan]

im working on this, i want to make some tweeks to make it friendlier to print

@deep vine i have a good solution but it requires about an hr changes to the part

i need to split the part in to two pieces, but i promise this will make it stronger and easier to print

[vocal terrace]

why not make break aways upoorts

spports

[naive swan]

naw the part is flawed when printed in the orientation

[vocal terrace]

oof

[naive swan]

and a pain to print

[vocal terrace]

L + Ratio

[naive swan]

only my v0 could pull it off at 60c chamber and slower speeds

ok this has to be made thicker by 4.25mm

then this

now for attaching it

[vocal terrace]

vengeful when u print stealthburner parts?

[naive swan]

?

[vocal terrace]

2 months ago new aprt

[naive swan]

well the cowl yes

the cw2 hotend bolder last week

and the rail mount almost weekly for 2 months now

[vocal terrace]

what is ur belt tension?

Also pretension on x rail?

[naive swan]

no idea

[vocal terrace]

that could be issu

fabreeko rails have good pretension

[mild hinge]

I use the black coated fabreeko rails

[vocal terrace]

silver is more updateed

[mild hinge]

Black one working just fine

got a few hundred hours one them now

[vocal terrace]

Rev 3 for silver.

[mild hinge]

nice

what rev are the black ones

[vocal terrace]

2

[mild hinge]

what's the diff ?

[vocal terrace]

initial launch, Dry and clean assembly, high preload 440c
Gen 2, ep2 added, new model designation on top high preload
Gen 2.5, preload tweaked to medium-high
Gen 3 introduced Class H quality control, added a 2 stage washing before assembly to avoid unwanted particles, tweaked guide wiper alignment. -Now shipping

[mild hinge]

just got the black ones about 6-8 months

as a core xy kit

[vocal terrace]

they are still good. But they aren't as good

[mild hinge]

ok

maybe when these wear out Ill get the newer ones

just got SB / 3do cam installed and verified it's still working

very tight fit

Voron Design themed Desk Pad pretty cool

[vocal terrace]

I have Northern Lights LTT

[mild hinge]

yea looks cool but how does it hold up

[vocal terrace]

mines lived a year and hald

[mild hinge]

nice

alot of those are neopad's with led sewed on

I need tp find a low profile heatsink for the sb2040

[vocal terrace]

rasp pi ones. or just cut down tmc5160

[mild hinge]

Due to I put a 3007 fan on the SB

how do you cut down the heat sink

i have the orginal sb2040

[vocal terrace]

use wire snips

[mild hinge]

heat sink

wouldn't have thought thought of that

[vocal terrace]

but raspberry pi ones prob cheaper

[mild hinge]

I have the orig sb2040 heat sink

the mouse pad is huge

from linus

[vocal terrace]

its got multiple sizrs

[mild hinge]

yea I watching his video

[naive swan]

@deep vine the rear steppers are loaded with the required fixes. I will start the print tonight to double check it myself, but the new changes make the parts way easier to deal with.

next step is the front tension towers

[naive swan]

Backpack unit added

[naive swan]

Tension Towers added

https://github.com/Vprince099/ZANDVE/tree/main/Type-Z

[naive swan]

Z mounts added

calling it a night, will continue tomorrow

[deep vine]

Awsome thanks dude 😄

[shell wolf]

vengeful when you do hydra stuff can u add wobbleX integration 😂

[naive swan]

What is that?

[shell wolf]

Z artifact isolator

https://github.com/MirageC79/Interfaces-for-WobbleX-integration

[naive swan]

looks good but complicated

[deep vine]

Esun abs+

[naive swan]

careful with that

[deep vine]

Waiting for polymaker to arrive 😄

[naive swan]

abs+ can split but with the modifications i did to the top plate, that will be less likely now

[deep vine]

Oh split when printing, or split over timec

Time?*

[naive swan]

over time

the part gets stressed

[deep vine]

Ahh I did notice other parts doing that and wondered why

[deep vine]

Yeah stress point

[naive swan]

the problem i see is you cant force it at all

i had a part that was ~0.5mms to short that cracked when i tightend it down

i fixed the part and the issue is irrelevent now, but careful with that

[deep vine]

That makes sense, but it’s really hard to get everything to fit together exactly when working with plastic.

[naive swan]

yeah, thats why i wasted 6kgs of plastic on the prototyping

This is my 3rd box

[deep vine]

Ouch!!

Does that not make you want the get a filament recycling kit 😄

[naive swan]

cost of the hobby i guess🤷‍♂️

[twilit edge]

You should see some of the boxes I tossed from developing OmniBox. Each box is about 1kg of plastic and I probably printed 20 developing it. 😬

[naive swan]

jeez, im not surprised though

im about to order my rails for the next 2 projects and i am starting to regret it

[vocal terrace]

Where from

[naive swan]

i will never tell

[vocal terrace]

Oh amzzon

[naive swan]

i found a place

4x450mm and 6x500mm

[vocal terrace]

Why 6 500

[vocal terrace]

How much u pay per rail?

[naive swan]

for X

z

[vocal terrace]

Is it cheaper then Hector rails

[naive swan]

unfortunately way less

25 a rail

i want to give hector the business but its hard to ignore the price differential

[twilit edge]

Ditto. Not like he's short of orders right now, though. 🙂

Unitak3D on Amazon is good

[naive swan]

i mean my current order with him will be around $400

[twilit edge]

Yeah, he's good. He's good. Yep.

[naive swan]

@twilit edge unfortunately Unitak3D doesnt have 450 or 500mm rails

i dont think they do

[twilit edge]

Looks like only up to 400mm

[naive swan]

ok rails are ordered

another package to sneak into my office i guess

So Project list:

1. Finish upload of Type-Z
   2.1 Finish Bom
   2.2 Work on a basic Assembly guide
2. Start Type-V Cad
   3.1 Build Type-V
   3.2 Upload Everything for Type-V
3. Implement Hydra for Type-Z
   4.1 Testing of Hydra
   4.2 Release V1 of Type Z
4. Rebuild my V0.2
5. Implement Trident for Type-V
   6.1 Testing of Trident
   6.2 Release V1 of Type-V

[naive swan]

Ok i just need to load the skirt files then I can load the step and start building the BOM

[deep vine]

good job mate you have done a great job!

looking foward to hydra testing 🙂

[naive swan]

Thanks @deep vine

Step Should be loaded within the hour

[deep vine]

Did you get your coffee 🙃

[naive swan]

i think i did, thanks!

[mild hinge]

@naive swan Alot of filament in the box

[naive swan]

lol yeah

[mild hinge]

@naive swan can't wait to get started on my build

very good looking printer

[naive swan]

STLS and Cad files are loaded!!!
https://github.com/Vprince099/ZANDVE/tree/main/Type-Z

[mild hinge]

take me a long time to print all those parts

but it will be fun

[naive swan]

dang visual studio is haveing a hard time loading the cad

[mild hinge]

yea

[naive swan]

damn step is 179mb

[mild hinge]

yea

how long did it take you to print all those parts....EST of course

[naive swan]

depending on the plate, 5days i think

[mild hinge]

Not to bad

[naive swan]

i can get a better estimate soon

[mild hinge]

I was just curious

since I work 60 hours a week

take me alot longer

[naive swan]

well i need to get the materials cost, so i will tack time as well from the slicer

[mild hinge]

yea

I figured I would need a few more rolls

have 4 black and 2 red left

[naive swan]

that should be enough

[mild hinge]

oh ok

figured it would take a few more of each

[naive swan]

red is like half a roll

[mild hinge]

not too bad

[naive swan]

ok visual studio just shit on me

[mild hinge]

nice

yea trying to find a mount for for the v3d neopixel led diffuser for the voron 2.4r2

[mild hinge]

looking for a way to mount it

[naive swan]

damn that was homers odyssey

step is loaded

[naive swan]

ok project status is updated, my work is cut out for me....

[vocal terrace]

I LIKE YA CUT G

[naive swan]

?

[vocal terrace]

U said cut

[naive swan]

i am too old to understand i think, lol

ah ok

[vocal terrace]

wrong gif

[naive swan]

seriously

[vocal terrace]

....

[naive swan]

lol

[twilit edge]

...

Little hot in here now?

[vocal terrace]

My friend sent me that before

Sry

[twilit edge]

👀

[vocal terrace]

That's the meme

[naive swan]

yeah it was a shitload of work

[vocal terrace]

It's I like ya cut g

I'm waiting for new ldo super power motors now

For AWD

But frame I almost have dime nsions done.

[naive swan]

i want 2 sets of the Fabreeko ldo stepper motors

[vocal terrace]

Hector got new ldos?

I'm gonna do 2040s for Z of frame prob

630mm is the length of the extrusions

[naive swan]

not in stock right now

[vocal terrace]

F

Well ldo is releasing new motors soon

That are supposed to be really good

[naive swan]

well these are new

https://www.fabreeko.com/collections/zero-g/products/ender-5-plus-integrated-lead-screw-motor-by-ldo

[vocal terrace]

No they have been there for months

[naive swan]

first i am seeing them

[vocal terrace]

L

[naive swan]

2 of those plus bed, heater and hydra kit

[vocal terrace]

https://youtu.be/szJ_krWbRaQ

Yea heater gotta wait on

I thought u had the bed already

@naive swan which bed u got?

[naive swan]

585 plus tax...fml

i need it for type v

[vocal terrace]

Type V?

[naive swan]

two printers

[vocal terrace]

Oh

[naive swan]

type V and Z

[vocal terrace]

Bought 12M of gates 6mm

Switchwire will happen at some point

[naive swan]

is it only 6M per printer?

[vocal terrace]

Yea

But It wasn't bad for 6mm more

[naive swan]

i was planning on getting 14M

[vocal terrace]

Lol

Well ur American so it's not bad

I'm planning on going MGN9 now for my e5+

Idk what to name yet

It's not gonna be a merc anymore

[naive swan]

my current belt has stretched so much

[vocal terrace]

Lol

Tuats bad is it gates?

[vocal terrace]

Get gt3 belts not gt2

[naive swan]

nope, no gates yet

[vocal terrace]

It's stronger

Yeah gates has big impact

[naive swan]

thats fine but i cant get any

[vocal terrace]

Gt3 belts are backwards Gen and have better strength

Yea u can just not through fabreeko yet believe

I'm curious if Hector will be getting ill ask

[naive swan]

ok

[vocal terrace]

https://www.royalsupply.com/store/pc/Gates-1164-2MGT-06-PowerGrip-GT3-Synchronous-Belt-9400-1582-p17193.htm

[naive swan]

this canada?

[vocal terrace]

bruh its a closed

nah

[naive swan]

9 a meter?

[vocal terrace]

its closed

[naive swan]

ah

[vocal terrace]

fabreeko prob gest

[naive swan]

a closed 7M would work

[vocal terrace]

they don't sell I believ

[naive swan]

yep

biggest i 1.164M

[vocal terrace]

Also the belts have different stuff cause they fgot MGMT

MGt

idk

but fabreeko speedy talked about GT3 belts recently I was there

theres a place in canada that sells it. But its not gates

https://makerparts.ca/

[naive swan]

https://www.fabreeko.com/collections/zero-g/products/gates-gt2-open-belt-ll-2gt-6-9-12-reinforced?variant=42502629949695

they added high temp

[vocal terrace]

EPDM may be

that price hthought

Wait till he gets back to me

[naive swan]

lol

[vocal terrace]

PowerGrip® GT3 belts are made of a highly advanced combination of materials designed to reduce both initial and operating costs. The entire PowerGrip® GT3 belt range is suited both for new drive designs as for performance upgrades on existing drives. It has two times the rating of competitive RPP™ belts and its predecessors PowerGrip® GT™ and HTD™, with the largest selection of belts and sprockets in the industry. The 2MGT, 3MGT and 5MGT pitches are ideal for compact drives on hand tools, business machines, domestic appliances and high precision servomotor drives. The 8MGT and 14MGT pitches are the optimum choice for high performance drives in the machine tool, paper and textile industries where durability and low maintenance are required or to upgrade existing HTD belt drive applications. At reduced widths, GT3 belts can be used as a direct replacement for most 8mm and 14mm pitch standard rubber RPP and HTD synchronous belts.

hmm

I'm assuming this the tooth amount

like the depth

https://www.gates.com/in/en/search.p.9268-000000-000045.html

Seems like they aren't doing GT2 belts as much. GT3 is what they lead to when search GT2

https://www.aliexpress.com/item/32779856088.html?pdp_npi=2%40dis!CAD!C%24 2.85!C%24 2.71!!!!!%402101f6b216800121074628038e0bf2!67261606984!btf&_t=pvid:832194c8-f946-4e09-815e-4bf0e8067a48&afTraceInfo=32779856088__pc__pcBridgePPC__xxxxxx__1680012107&spm=a2g0o.ppclist.product.mainProduct

Dang even Powge made stuff

Ok insider info. Gt3 are a wait situation rn

If u needa get belts rn then get GT2

[naive swan]

https://west3d.com/products/gates-gt2-open-belt-ll-2gt-6-6mm-wide-voron-v0-v1-v2-switchwire?_pos=1&_psq=belt&_ss=e&_v=1.0

[vocal terrace]

Bruh 100mm not meter

[dawn vapor]

Thats what i got for my build. Looks good.

[naive swan]

5$ a meter

not bad

[vocal terrace]

What it's 10dollars

bruh

Canadian

LOL IM AT 17 BUCKS AND HOUR FOR 1/2 UR COST

[naive swan]

100(.50) * 10 = $5usd

[vocal terrace]

100mm though

[naive swan]

what

[vocal terrace]

It's 1 dollar Cad per meter

They gave me 1dollar price

[naive swan]

lol that sucks

[vocal terrace]

Yea

If only I listened to em crypto bros

[naive swan]

i got in early

[vocal terrace]

Needa drill more holes for vomu coron today but I think can get frame

Finish

[naive swan]

when i got out of college it was all the rage

[naive swan]

ok time to continue the BOM

[naive swan]

https://docs.google.com/spreadsheets/d/1_rfxcacC1YKR7S-sEJu0cIL2j3crcf0YIQrBYNYs7lM/edit?usp=sharing

[deep vine]

my EBB36 came

😄

i see what you mean by them tiny conectors

[naive swan]

lol yeah

they are not as bad as i thought though

i use jst-ph all the time

when i ordered my last round of china parts, i was concerned they were JST-SH now those are uncrimpible

[deep vine]

im just printing tension towers now, do they only need supports on the build plate only?

[naive swan]

just the small section

[naive swan]

im working on a solution for that, i have 4 parts that need them

i want those to be in the stl but i havent set it up yet

[deep vine]

ohh i started printing like this

[naive swan]

so with the supports like that?

[naive swan]

oof

[deep vine]

haha

[naive swan]

that wont work

[deep vine]

rookie mistake?

okay ill cancel

[naive swan]

no my fault

i am back logged

[deep vine]

the internal over hangs looked better that way

im not blaming you lol

[naive swan]

the way i gave the example gives the best quality result

[deep vine]

okay ill redo it

[naive swan]

i just need to add those supports as part of the stl

just make sure you are using the orientation from the stl

[deep vine]

what about the spacers on the stepper mounts, is it the same as the 1.1.1?

Thes is a slight gap on the left pair

[naive swan]

Almost done with my work call

[naive swan]

@deep vine im not getting the same gap

are you using M5x1mm shims or 5mm washers? (sorry i have to confirm)

also did you print in the orientation provided in the stl?

additionally did you get a warped print

is the 5mm pin not able to move all the way up?

looking at the cad it it looks like that was a built in tolerance on the orignal part as well. Both the left and right have it. are you seeing the same issue on the right rear stepper?

[twilit edge]

Hold up. Is that 1.1.5?

If it is, you need a shim between the bearings and that's your issue

[naive swan]

no thats merc 1

[twilit edge]

Ohhhh, my b.

[naive swan]

i can in incorporate it on next revision though, i got something spicy coming....

i just dont want to stay from stock parts though

[deep vine]

yes from 1.1 BOM

[deep vine]

yes

[naive swan]

ok then i think you may have a warped part

how is the right?

[deep vine]

no warps (or very very minimal)

[naive swan]

your pin may not be able to fully travel

[deep vine]

im checking pin now

[vocal terrace]

Just failed a flawless challenge at the very ebnd ): When gonna finish boss./.

[deep vine]

it moves all the way up fine

[vocal terrace]

My printer feels my pain

[deep vine]

im double checking the spacer thickness

[naive swan]

and how is the right? its a mirrored part

[deep vine]

oh wait.

for some reason these two spacers are not correct, the are 0.76 and 0.84 mm wide

[vocal terrace]

yes tghats very common

[deep vine]

sorry so it my bad 🙃

[vocal terrace]

U wanna always calipers check em

[naive swan]

np

[vocal terrace]

its prob maybe more

[deep vine]

how the frick

[naive swan]

you are good

[vocal terrace]

precision shims can be bought

they are alot more expensive

[naive swan]

i was freaking out there

[deep vine]

mabey thats why my previous mounts kept failing

[vocal terrace]

shouldn't be

[deep vine]

fricksake

[naive swan]

my china ones checked out but they took 3months

[vocal terrace]

u got link?

[naive swan]

it will take awhile

but sure

[vocal terrace]

yee

[naive swan]

https://docs.google.com/spreadsheets/d/1_rfxcacC1YKR7S-sEJu0cIL2j3crcf0YIQrBYNYs7lM/edit?usp=sharing

ok bom is almost done

[deep vine]

ive just checked the rest of them and they are all out of tollerance, for now ill build it up, and by the time my polymaker ASA comes hopefully these spacers come too

[vocal terrace]

Use tr8angle labs as gates belts

Rain dew has better bearings for f695 or whatever

[naive swan]

US $2.92 | M3 M4 M5 M6 M7 M8 Stainless steel Flat Washer High precision Ultrathin Adjusting gasket Thickness 0.1 0.2 0.3 0.5 1mm
https://a.aliexpress.com/_mL6qLSI

[deep vine]

sexy!

yeah you should change BOM to this link

[naive swan]

yeah i will

the part count was a B

still have to add extrusions and panels

[raven widget]

guys have you printed hydra parts ? or check it CAD ? I have issue TR rod isnt cocentrict with Motor Shaft on front

[vocal terrace]

Send photo

[naive swan]

i have not printed them yet

i should my printers have been idle for 2 days

problem is if i do print more parts then i will be tempted to take the printer apart then my wife will kill me

[vocal terrace]

wait so whats the issue here?

I don't really see it

[raven widget]

on first photo I already shift it by shivers outside

still missing 0,5mm or 1mm

[vocal terrace]

oh yeah ur leadscrew look in first photo

what pretension are ur rials?

rails

[raven widget]

copling is dancing while move ou

[vocal terrace]

ur leadscrew is bent looks like

I'd suggest oldham couplings

https://www.aliexpress.com/item/1005003817519669.html?spm=a2g0o.order_list.order_list_main.226.58c018026nuJJJ

U want 3

[naive swan]

thats intergrated i think

[vocal terrace]

not that one

[naive swan]

nvm

im an idiot

[vocal terrace]

lol

[naive swan]

i saw from the other side of my office

Or like the ones fabreeko has

[raven widget]

I dont under stand why they dont put some clearense into Nut hole or on engine side to set it.

[naive swan]

The spiral ones

[vocal terrace]

thats probably not yur issue

how did u install?

[naive swan]

It’s not lined up, hmm

[vocal terrace]

are u using MGN9C or H?

[raven widget]

12H on up way

[vocal terrace]

i mean for the other rais

[naive swan]

I assume he is using mgn12h all around

[vocal terrace]

send photo fo the tops of ur setup stuff
