hidden imp Jan 18, 2025, 10:13 PM

#

Did you find this documented somewhere with those defines? I can't find it

#

I assume the flags might be these, 0 to 5th bit: https://www.usb.org/sites/default/files/documents/hut1_12v2.pdf in section 11.1

#

This also implies it is 0 (num lock) through 4 (kana): https://github.com/zmkfirmware/zmk/blob/db2fc2bffdbb44639a012dac006e826d745f74af/app/include/zmk/hid.h#L127-L128

spare frigate Jan 18, 2025, 10:21 PM

#

You mean where capslock_bit doesnt work? If so, https://github.com/zmkfirmware/zmk/pull/1485#issuecomment-1807234456

GitHub

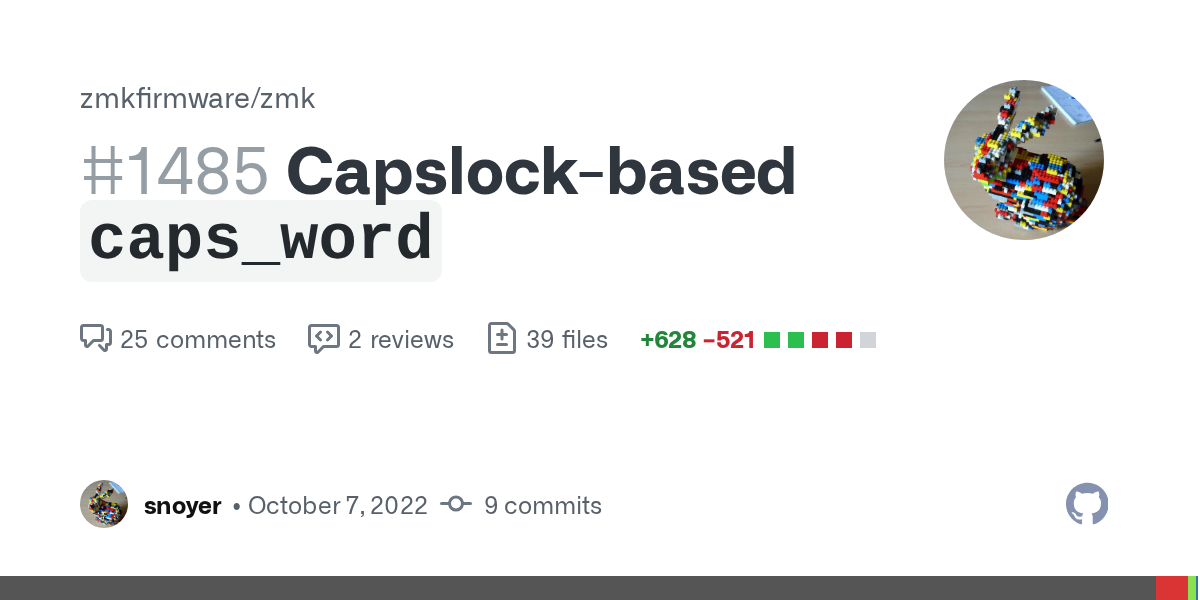

Capslock-based `caps_word` by snoyer · Pull Request #1485 · zmkfirm...

According to the documentation:

The caps word behavior behaves similar to a caps lock, but will automatically deactivate [...]

This implementation of caps_word uses the capslock mechanism instead...

hidden imp Jan 18, 2025, 10:21 PM

#

But I'd print the bitfield and confirm

#

I mean it is likely only missing the #define, I assume the bitfield itself still works

spare frigate Jan 18, 2025, 10:22 PM

#

Oh okay

#

Let me check

hidden imp Jan 18, 2025, 10:24 PM

#

I see other implementations using BIT(1) for the caps lock bit as well

spare frigate Jan 18, 2025, 10:25 PM

#

Just curious, what is kana?

hidden imp Jan 18, 2025, 10:25 PM

#

It is a keyboard mode used in JIS keyboards, I think https://en.wikipedia.org/wiki/Kana

#

Maybe better link: https://en.wikipedia.org/wiki/Language_input_keys

Language input keys

Language input keys, which are usually found on Japanese and Korean keyboards, are keys designed to translate letters using an input method editor (IME). On non-Japanese or Korean keyboard layouts using an IME, these functions can usually be reproduced via hotkeys, though not always directly corresponding to the behavior of these keys.

spare frigate Jan 18, 2025, 10:28 PM

#

So does this not work anymore?

#help message

hidden imp Jan 18, 2025, 10:30 PM

#

I guess the code snippet doesn't work as is, but I don't see how it could ever have worked with the ZMK main branch. The Kconfig flag and the approach should work in general, though

spare frigate Jan 18, 2025, 10:31 PM

#

Ah okay then, I’ll try that method and see if it works. It should be relatively simple.

hidden imp Jan 18, 2025, 10:31 PM

#

Or maybe it was removed at some point, not sure

spare frigate Jan 18, 2025, 10:32 PM

#

Do HID indicators work over bluetooth now? I read somewhere that they worked only over usb.

hidden imp Jan 18, 2025, 10:35 PM

#

I think they are supposed to, but I don't know for sure
