solder less build help | deej | Page 1

main atlas Mar 30, 2024, 2:46 PM

#

I have I st received these parts and I would like some help to wire it

ornate torrent Mar 30, 2024, 3:12 PM

#

#

@main atlas Here's the pinout for the slider. 5V and GND wires can be swapped if you want (it just reverses the slider)

#

I recommend wiring up a single pot to test it out first then expand

main atlas Mar 30, 2024, 3:18 PM

#

right

#

https://tenor.com/view/melissabug-thinking-brain-science-confused-gif-26212921

Tenor

#

so the data/wiper goes to the a0 on the arduino but where dose the +5v and gnd go to the arduino?

fickle flame Mar 30, 2024, 3:36 PM

#

I don't mean to alarm you, but the +5v pin on the slider will go to the 5v pin on the arduino, and the gnd pin on the slider will go to the gnd pin on the arduino

main atlas Mar 30, 2024, 3:37 PM

#

ok don't worry i have not plugged anything in yet

#

i just have the arduino in the bread board

#

It's the 5v one right

fickle flame Mar 30, 2024, 3:43 PM

#

Yep

main atlas Mar 30, 2024, 3:44 PM

#

ok

#

So this is right?


fickle flame Mar 30, 2024, 3:47 PM

#

Yeah looks good!

main atlas Mar 30, 2024, 3:47 PM

#

ok where do i get the software?

#

for a test run

fickle flame Mar 30, 2024, 3:48 PM

#

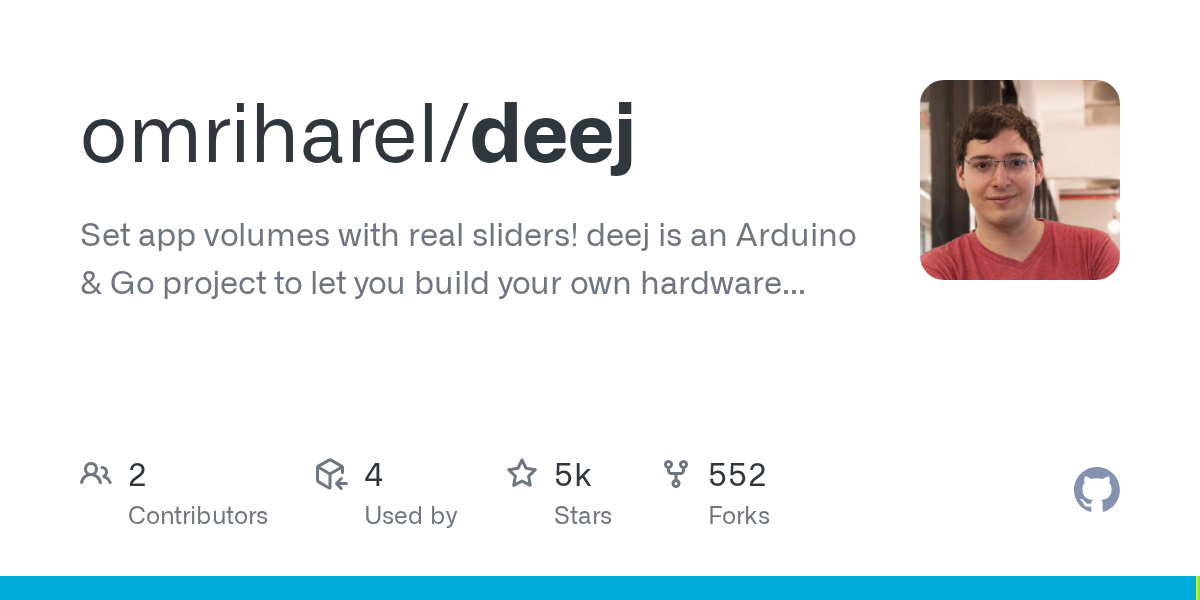

From the deej github!

main atlas Mar 30, 2024, 3:48 PM

#

ok

#

what ones do i need

fickle flame Mar 30, 2024, 3:50 PM

#

deej.exe makes your computer listen, config.yaml tells your computer how to listen, and you'll need the .ino file from the arduino folder to flash to your arduino

#

https://github.com/omriharel/deej/blob/master/docs/faq/faq.md#how-can-i-upload-the-deej-sketch-to-my-board

#

If you're new to arduinos like I was, that link from the FAQ does a good job at getting you introduced to the process

main atlas Mar 30, 2024, 3:51 PM

#

ok

main atlas Mar 30, 2024, 4:11 PM

#

do i need to past this in to the arduino
