Hotpatching Rust code 🔥

[mellow flint]

If you want to explicitly manually hot-patch a non-system, I can provide a snippet 🙂

Just note that it won’t reload when its signature changes

[idle stone]

i didn't test that all of these signatures actually worked in 0.1.3, but they did compile (potentially with _x: Local<()> added)

[idle stone]

i'll lyk if i hit a use case that isn't called from a system

[mellow flint]

Ideally they all should work, I'll try to wrestle the macro

(Time to hit chat GPT )

Could I get a minimal definition for these types?

• ConfigRef
• CurrentRef
• Progress
• ScheduleConfigs
• ScheduleSystem

[idle stone]

ScheduleConfigs and ScheduleSystem are from bevy, Progress is from iyes_progress and used with my_fn.track_progress() which returns a system, CurrentRef is from pyri_state and it's a newtype holding an Option<Res>, and ConfigRef is from my template and it's a struct containing an Option<Res> and a Res<Assets>

btw how do i get the latest version of dioxus CLI to test DX_LINKER? cargo install --rev?

[mellow flint]

cargo install --git should already get you main, I believe

[mellow flint]

Uff, generic params are proving to be quite hard to fix

[raven valley]

@worldly ether so, by adding this to my build.rs I get the first build working, adding it to my path does not help, and any further edits when it tries to hot reload run into the same error!

Oh actually we dont need the /Include one

[mellow flint]

Are you piping the last two?

[idle stone]

the second to last i'm calling .track_progress() which pipes internally, the last i'm calling directly wait_in_screen(0.5) which returns a system

[mellow flint]

OOOh so the last is not a system, but creates a system?

[idle stone]

yep

[mellow flint]

Puh, no clue how to support that

I should be possible

[idle stone]

understandable if it's not supported 😄

[mellow flint]

But not sure how

Can you declare an fn inside the function body and return that?

[idle stone]

maybe a macro on the closure itself?

yeah i could do that and try putting #[hot] on that

[mellow flint]

That would work, if I knew how to parse macros 😄

But I can show you how to hotpatch it manually

[idle stone]

ah in this particular case it's a closure that returns Progress and i call .track_progress() on that internally lol

so double whammy

[mellow flint]

fn create_system(input: f32) -> ScheduleConfigs<ScheduleSystem> {
  |a, b, c| {
    let inner = |some_inputs| { todo!() };
    bevy_simple_subsecond_system::dioxus_devtools::subsecond::HotFn::current(inner).call((a, b, c));
  }
}

something like that could work

Fixed the generic system btw 🙂

Now return values

the tricky thing there is that I have early returns in the macro

[idle stone]

can you do something like Result<ActualReturnValue, ReturnedEarlyFromMacro>?

[mellow flint]

Not sure how that would work with things like Progress tbh

[mellow flint]

Hmmm

[idle stone]

ofc that could just be an Option

[mellow flint]

Then you can't pipe

Because suddenly, the function has another signature

[idle stone]

ic

[mellow flint]

Not sure if I can fix this from a third-party crate

I'll need to think a bit

For context, the early return is needed when using something like Single, that is supposed to be skipped when not matching

Usually, the scheduler does this for you, but when manually calling it from World::run_system, it just panics by default

So I have to bail out of the system if a fallible param requires skipping the system

[idle stone]

interesting. sounds like an upstream bevy issue

[raven valley]

Setting rustflags directly has the same behavior

[idle stone]

run_system already returns a Result, i'd expect "system skipped due to fallible system param" to be in the error case

[raven valley]

I cant figure out how to get the linker to look at my damn paths the second time 😂

[mellow flint]

Yeah fair point

But that wouldn't fix our issue either, I believe

I think piped systems are just not supported for the moment :/

This could potentially look better upstream though

@lone token I think both piped systems and fallible systems should already work with your PR, right?

It's just an issue when wrapping them that we get that unfortunate interaction where we have to choose to support either one or the other

[idle stone]

i updated to dioxus-cli main (ab76) and moved my /usr/bin/ld-real back to /usr/bin/ld, and then:

• dx serve --hot-patch ran but failed to hot patch
• all of DX_LINKER=mold, DX_LINKER=/usr/bin/mold, DX_HOST_LINKER=mold, and DX_HOST_LINKER=/usr/bin/mold as prefix failed to run with error: Failed to generate fat binary: mold: fatal: unknown -m argument: 64
• DX_LINKER=lld as prefix failed to run with error: Failed to generate fat binary: lld is a generic driver. Invoke ld.lld (Unix), ld64.lld (macOS), lld-link (Windows), wasm-ld (WebAssembly) instead

i previously had my ld binary symlinked to mold and it was working

[raven valley]

🤞

I think i got it working on windows by forking dioxus and directly overriding the linker flags lmao

Yes!

Though the linking takes 3 seconds instead of 300 ms lmao

Good enough for me to be able to try to add the ability to add new systems though!

Okay wait wait giga brained idea

Can we have rebuilds happen with cfgs? But the original build not have the cfg flag?

I didn't read francois pr earlier in depth I didn't realize it actually directly handled hotpatches

[idle stone]

also @mellow flint hot patching worked for modifying the code of an observer that was added to an entity inside a system marked #[hot] :)

the observer function is external to the system function

[raven valley]

What we can do is ever better if we can rely on cfgs. We can just cfg app so that way when its rebuilt its actually an entirely different app struct for our rebuild, and then we can read when the main function gets hotpatched and then rerun the main function inside. No need for a macro, no need for these global variables, we can even insert schedule directly and then take it out

[mellow flint]

Ah heck :/ Could you create a bug report for that?

[mellow flint]

@worldly ether you'll be interested in this

[mellow flint]

Yessss! That's lovely!

[idle stone]

i commented on this issue, should i spin that into a separate bug report?

[mellow flint]

yeah, it's not quite the same bug

thanks 🙂

[idle stone]

note that i do have to get the entity to respawn after the hotpatch to pick up the change, just checked

[mellow flint]

fair enough

I guess you'd have to hotpatch a function from inside the observer to not have to do that

[raven valley]

Gonna see if i can add system adding to your crate jan

Because my linker fuckery isn't liked by bevy 0.17 lmao

[mellow flint]

heck ye

[mellow flint]

@idle stone I got exclusive systems running when using a single world param 🙂

Not sure how to handle the case where World and Locals are mixed

So I left it for now

[mellow flint]

I also removed DespawnOnHotPatch in favor of leaving the user to do it manually, because the automatic variant would despawn entities that were outside the hotpatched system, which would be very surprising

@idle stone I just pushed a new release with the new signature support

[idle stone]

confirmed working:

• generics
• &mut World as the only param

confirmed still not working:

• generic plus &mut World as the only param
• &mut World plus more params
• return values

i'm down to only 5 //#[hot] commented out now though 😄

[mellow flint]

-> Result, where Result is the bevy result, should at least work 🙂

[mellow flint]

oh, I didn't consider exclusive + generics

let me see if that's easy to fix

[mellow flint]

Would making T: 'static work for the "World + generics" case?

I mean, it won't compile

But the solution I'm working on has lifetime issues otherwise

Does T: 'static work for you when you remove #[hot], is what I'm asking

[mellow flint]

Oh wait, if T: Component or something like that, it works

only fn foo<T>(world: &World) where T is completely unbound does not work

That's alright I'd say

Published another update for the generics + exclusive 🙂

[idle stone]

probably because trait Component: Send + Sync + 'static

[mellow flint]

aaah got it

[idle stone]

in my case C: Config where Config: Asset where Asset: 'static so i already have the bound

incidentally

[mellow flint]

hehe

[idle stone]

can confirm that my fn foo<C: Config>(world: &mut World) now compiles with #[hot] and triggers a hotpatch when i edit it

[mellow flint]

yay!

[idle stone]

can't confirm that it actually worked because it's a Startup system, but it's probably good

[mellow flint]

#[hot(rerun_on_hot_patch = true)]

[idle stone]

ok let me try that

[mellow flint]

(will spawn stuff again if you spawn in there though)

[idle stone]

can confirm that it reran it. also i'm seeing logs now, is that new?

Hot-patched system ...

[mellow flint]

not that new 😄

I yoinked that logging trick from Francois' PR

[idle stone]

it seems to be logging for systems that i didn't directly edit, is that expected?

[mellow flint]

🤷‍♂️ not entirely, but I'm fairly sure my jumptable-keeping is not that clean

[idle stone]

i wonder if it should be moved to DEBUG logging

[mellow flint]

That's fair

[idle stone]

well i only say that because it's noisy with the false positives

[mellow flint]

yeah I think you're right

Oh btw, the logs also tell you if your system reran

[idle stone]

yeah i saw that as well. could put it earlier in the message so it's more visible though

Hot-patching and re-running system ...

[mellow flint]

good idea

@idle stone done, use 0.1.7 🙂

[idle stone]

lovely, thank you. this is already enormous for productivity even with the limitations

especially while working on a real game, it can be painful to edit the code, close and recompile the game, and get back to where you were in the game to see the changes

that can take like 2 minutes per change depending on what you're doing, now down to 5 seconds

[mellow flint]

I'm happy that it's in a state where you can use it 😄

[mellow flint]

Yeah absolutely, and I don't have the time to add fancy live-editing UIs or fiddle around with bevy_inspector_egui to try and get things right

[mellow flint]

This is also the first time that I've really been able to productively work with bevy_ui beyond clicking around in bevy_inspector_egui and hoping for the best

[idle stone]

i actually think inspectors still have a place here, in particular as actual inspectors instead of ad hoc editors

[mellow flint]

yep, totally

[idle stone]

since hot reloading doesn't give you visibility into your entity hierarchy etc unless you add lines to manually print stuff out

[mellow flint]

But also, being able to hotpatch a little info! call right into my system made me very happy 😄

[idle stone]

don't forget info_once

[mellow flint]

Oh right, I completely forgot about that

that's even better

[idle stone]

also i recommend adding dx serve ... as the default task in .vscode/tasks.json

i kept muscle memorying to my keybinding which runs bevy run

[mellow flint]

Oh yeah good idea, thanks

[idle stone]

i think dioxus-cli is inserting this into my Cargo.toml?

[profile.wasm-dev]
inherits = "dev"
opt-level = 1

[profile.server-dev]
inherits = "dev"

[profile.android-dev]
inherits = "dev"

[viral dust]

Yeah I saw that too

[mellow flint]

Oh, so that's where that came from 😅

[idle stone]

dioxus-cli probably has its reasons for it, so i think an option to disable the behavior would be good enough

[mellow flint]

https://github.com/DioxusLabs/dioxus/issues/4168

[mellow flint]

Does building the CLI from main work for you now, btw?

[viral dust]

Better errors now that I can override the linker with DX_LINKER/DX_HOST_LINKER, but now just other issues similar to Malek with kernel32.lib

[idle stone]

are you on windows? on linux i wasn't able to use DX_LINKER / DX_HOST_LINKER

[viral dust]

Yeah on Windows, and it does work

[idle stone]

but i might be doing it wrong

[viral dust]

Don't know about Linux tho

I suspect not, since I think the env variable was added to fix the Windows issues haha

[idle stone]

interesting, on linux you still have to set up a global symlink from /usr/bin/ld to /usr/bin/mold, so i thought the variable would help with that too c:

[mellow flint]

yeah I think it was supposed to be a 2 in 1 fix PR 😄

[viral dust]

There are definitely some rough edges to the CLI-side of this experience (no hate btw, it looks amazing)

[raven valley]

This isn't working and im losing my mind

😂

[viral dust]

We're in this together

[raven valley]

ITS NOT because its not working its because its not working consistently

I don't understand some intricacies of this hotpatching and I think its biting me

OKAY

YESH

WHAT TBE FUCK

Im gonna record this

[mellow flint]

[raven valley]

GOTTA upload to YouTube

Gonna then link

[elder heart]

it's my turn in a second

we're installing dx on main now right (is it possible to pin to the main branch with cargo install)
edit yes!

[mellow flint]

So far it's working for 1/4 Windows users, haha

[elder heart]

I've got all 3 ready, I'll try Windows first

[mellow flint]

heck yeah!

[raven valley]

💀 youtube is taking 15 minutes to upload the video, don't hold your breath l

[elder heart]

I've since passed

[mellow flint]

Passed away from holding your breath?

[elder heart]

couldn't help myself

still figuring out how to get cmake to work on windows LOL

chocolatey is NOT helping

[languid sable]

BTW @mellow flint you may be able to get access to the system that spawned the entity using the track_locations feature

[mellow flint]

winget install --id=Kitware.CMake -e

[mellow flint]

oh that's clever

I've since shied a bit away from the idea of auto-reloading Startup and OnEnter systems

(We support an explicit opt-in for it, right now)

If we went the opt-out route, this would certainly be helpful though, thanks

[viral dust]

So it's clear the problem I'm having is (for whatever reason) dx just has absolutely no idea where anything is on my machine, despite rustc and cargo having no trouble at all. Like, dx doesn't know where any of my system libraries like kernel32.lib are. If I specify them using $env:LIB, then it seems to not include the directory of the actual build artifact anymore

[mellow flint]

did fall for the old "Just delete C:\System32" trick? /j

[mellow flint]

Could you add that to https://github.com/DioxusLabs/dioxus/issues/4150 ?

[raven valley]

https://youtu.be/aTUIwHBMbz8
Okay look at this video and tell me im going crazy

[mellow flint]

phahahaha I love the truckload of UwU and OwOs in your code

[raven valley]

this is how I code

But yeah you see the problem!!!!

The hotpatching doesn't hotpatch after the first time!

This isn't a problem with hot reloading systems

Those hot reload an unlimited amount of times

[mellow flint]

Oh heck I see

[raven valley]

!!!!! Right?

I am losing it 😂

[mellow flint]

that's super weird yeah

At first I thought it was this: https://github.com/DioxusLabs/dioxus/issues/4165

though maybe

wait, let me test something

[elder heart]

I've brickedi t

ok onto linux

[raven valley]

Okie

[mellow flint]

😄

[elder heart]

that's crazy

"u didnt uppercase"

oh nvm it's an \r problem

LOL

[raven valley]

Doesn't do it with hotfn either

[lyric jetty]

Will he eventually be able to support workspaces?

[raven valley]

Unless I misunderstand how hotfn is supposed to be used

Lemme try using it a different way

[mellow flint]

I think that's part of the roadmap 🤔

[mellow flint]

is your code on GH?

[raven valley]

No

[mellow flint]

How did you get a \n without a \r in there? 😄

[elder heart]

I don't know. wandows

[raven valley]

Ima try something else

Maybe i need to persistently store the hot fn

NO

Doing this doesnt work either

[raven valley]

Don't have wifi access rn

Well, for the laptop

[mellow flint]

ah too bad

[raven valley]

Yea

[mellow flint]

The behavior does seem quite puzzling to me

[trim quest]

ez just compress the code and put it in a QR code 🙃

[mellow flint]

that would actually work with this little code

But how does Malek get a QR code creator without Wi-Fi?

[trim quest]

They have rust! Just write it from scratch

How bad could it be™️

[mellow flint]

If only they had a QR code decoder, we could send them the QR code creator as a QR code

[elder heart]

we're chillin

don't hold your breath

wow right as I say that

just to spite me

[mellow flint]

Oh hey @trim quest had that

[mellow flint]

If I had a nickel...

[elder heart]

I think it's cuz i wanted to see what would happen if I didn't install lld

pretty sure that needs to take place

[mellow flint]

According to Jon it doesn't, but I'm skeptical

[raven valley]

Right???

[mellow flint]

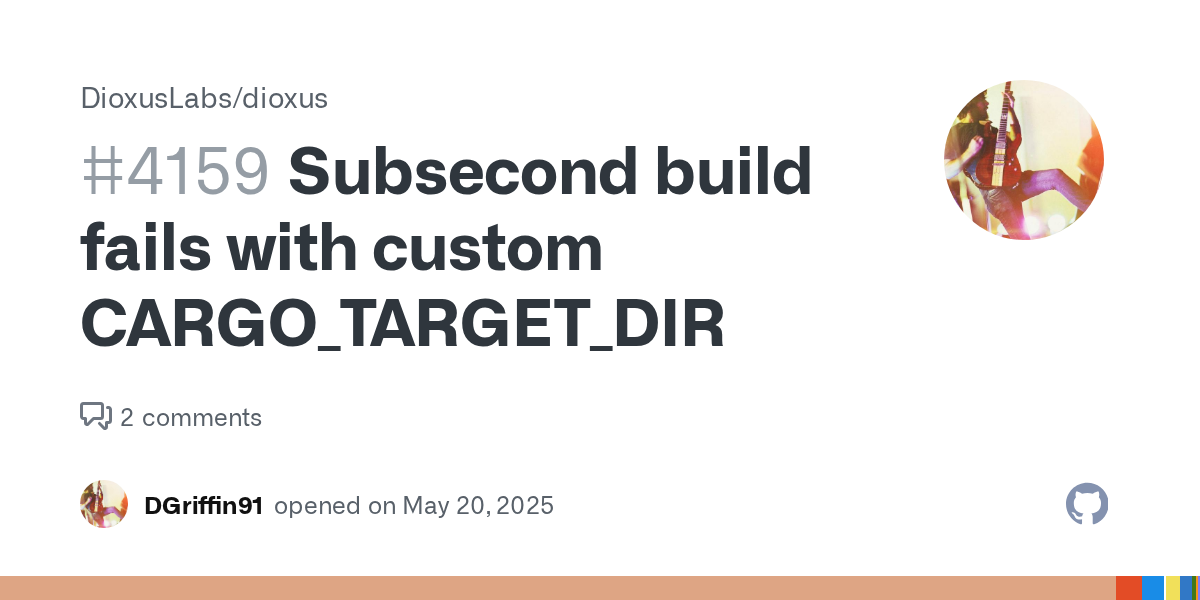

Take a look at https://github.com/DioxusLabs/dioxus/issues/4159

[raven valley]

Wait

Jan

You cant use &mut world as your system param?

[mellow flint]

You can since one or two hours ago

Update your branch 🙂

[raven valley]

Ahhh

Okay!

[elder heart]

https://tenor.com/view/wallace-and-gromit-train-tracks-work-swift-fast-gif-3793283

this is gonna be so sick when it works

[raven valley]

Okay

I got adding/removing systems working with lots of caveats

[mellow flint]

As Malek would say:
OwO

[raven valley]

One of the issues is that people create plugins ( like the winit plugin ) on the assumption they will only be built once, so I cant just extract out all the systems they add without running into issues

This really sucks

[mellow flint]

What do you mean by "extract out"?

[raven valley]

And means we need a special spot to put systems / plugins that dont rely on that idea

[mellow flint]

Ooooh I see

Yeah that sounds hard 😅

[raven valley]

Yeah

[elder heart]

Yeah, this is doomed unfortunately...same issue, not sure really how to fix after trying to run this at the root dir of D:

[raven valley]

I think I have a better solution though it doesnt look like pure bevy

[mellow flint]

I keep reading that path as a smiley

[mellow flint]

remove_resource::<Schedules>()
Never have I seen such a wild line in Bevy user code

[raven valley]

[mellow flint]

I think your C: drive is much happier than your D: drive

That might be the issue here /j

[mellow flint]

Could you add a comment saying that this issue also happens when not using CARGO_TARGET_DIR?

[elder heart]

my thumbs up didn't cut it? ok

but after I try out linux

[raven valley]

Okay so, new idea

[trim quest]

Note:

- EventLoopBuilder::build will now panic when the EventLoop is being created more than once.
https://github.com/rust-windowing/winit/blob/47b938dbe78702d521c2c7a43b6f741a3bb8cb0b/src/event_loop.rs#L62
https://github.com/rust-windowing/winit/blob/47b938dbe78702d521c2c7a43b6f741a3bb8cb0b/src/event_loop.rs#L96

[raven valley]

I think i can pull it off with a closure where you add the new systems u wanna be hot reloaded inside

( this is also a perfectly fine place to put systems and plugins normally too )

But it has the side effect of, when you add new systems or plugins to the app within that closure, then they get added to your running app

Driving home rn gonna try to implement it when I get there

[idle stone]

plugins just need a rework overall anyways

[mellow flint]

I'm going to bed in a few minutes, so in case everything works out neatly on Linux, here is my ~/.cargo/config.toml for extra speedups that are compatible with subsecond 🙂 https://gist.github.com/janhohenheim/5731c11e91736bab5e9ef58c2a982c36

[elder heart]

awesome, thanks

[mellow flint]

also, don't forget to take a look at the Linux instructions for bevy_simple_subsecond_system. You unfortunately have to symlink your machine's ld to mold for it to work 😅

[mellow flint]

If you do end up using these, please let me know how much time a hot-patch and/or an incremental rebuild takes for you before and after 🙂

[viral dust]

Wrote up some comments here around trying to get dx serve --hot-patch working on Windows 10. Very strange honestly; feels like I'm missing some set of environment variables that everyone else has, but which don't affect cargo

[mellow flint]

Griffin's still the only one to get it working on Windows AFAIK, so you’re definitely not alone

[viral dust]

That's crazy, I wonder what they did to get it working

[mellow flint]

They only had to deactivate their build target env var, see their issue on Dioxus

But they also ran into a completely different issue than you

[elder heart]

mold: warning: symbol type mismatch: rayon_core::registry::Registry::in_worker_cold::LOCK_LATCH::_$u7b$$u7b$constant$u7d$$u7d$::_$u7b$$u7b$closure$u7d$$u7d$::VAL::h6c1a7cebcbb48869
>>> defined in /home/adamime/repo/red-room3d/target/dx/red-room3d/debug/linux/app/stub.o as STT_FUNC
>>> defined in /home/adamime/repo/red-room3d/target/x86_64-unknown-linux-gnu/debug/deps/red_room3d-30d5ca6d8a32b76b.6qf93jwpagnd6pzcx2nklx9e9.rcgu.o as STT_TLS
mold: warning: symbol type mismatch: std::sync::mpmc::waker::current_thread_id::DUMMY::_$u7b$$u7b$constant$u7d$$u7d$::_$u7b$$u7b$closure$u7d$$u7d$::VAL::h40d6ba24d35890da
>>> defined in /home/adamime/repo/red-room3d/target/dx/red-room3d/debug/linux/app/stub.o as STT_FUNC
>>> defined in /home/adamime/repo/red-room3d/target/x86_64-unknown-linux-gnu/debug/deps/red_room3d-30d5ca6d8a32b76b.c6jiucc0gjo21hfq5zae0jrzw.rcgu.o as STT_TLS
mold: warning: symbol type mismatch: std::sync::mpmc::context::Context::with::CONTEXT::_$u7b$$u7b$constant$u7d$$u7d$::_$u7b$$u7b$closure$u7d$$u7d$::VAL::h34901b78060da703
23:12:30 [dev] Application [linux] exited with error: signal: 8 (SIGFPE) (core dumped)

been trying to figure this one out for a minute. seems like it's still mpmc. noting to myself this is dx@ab76d90 and 0.1.7. May need to reference this issue, but 💤. AM me will report

[raven valley]

Crap

Realized an issue with what im doing is there will be no way to tell how to remove systems that are removed

Hngggg

Okay

Actually no I can fix this

[elder heart]

I'm surprised you haven't run into any thread issues like I have

are you running without default features?

I must be pulling in something that's using channels

[raven valley]

Hmm yeah no thread issues

No im just running things as is

[somber lily]

elephant in the room here

I feel like @worldly ether should probably think about splitting subsecond into its own repository LOL

i feel its a bit weird to leave all of the subsecond issues on the dixous repo, since they aren't really related to like Rust Web UI

[viral dust]

Maybe when they're more stable, but I think it's easier for their team to work on it in a monorepo at the moment

[somber lily]

gotcha

[elder heart]

does anyone know how I could parse this line?
std::sync::mpmc::waker::current_thread_id::DUMMY::_$u7b$$u7b$constant$u7d$$u7d$::_$u7b$$u7b$closure$u7d$$u7d$::VAL::h40d6ba24d35890da

I can't quite tell what to take away here

I'd like to learn how to fix this

[viral dust]

Once you see the $ that indicates you're looking at a mangled name for starters. Looks like a captured value in a closure inside something related to a std channel

[elder heart]

I'll see if I can run this without mangling

[viral dust]

Mangling will also happen for un-namable things too, like closures

[elder heart]

makes sense, and this appears to be an anonymous function

[viral dust]

It looks like some code inside a const _:() = { /* ... */ }; block

[elder heart]

oh, so this is being spat out from the linker

[viral dust]

Is it from the linker?

[elder heart]

I believe that's the case

makes sense, I think my knowledge of linking is apparent from that comment 😆

[viral dust]

Oh yeah I just scrolled up to your other messages, yeah it's a linker error

Looks like your code was compiled in two different "ways"

[elder heart]

yeah o3 is actually spitting bars for once. Surprised

maybe it's this? https://github.com/DioxusLabs/dioxus/pull/4152/files#diff-743cdaf3cd6f4cc7f5161552a6cdfc7c4488766dfab5cc19a4f53db7f3dc3100R933

[raven valley]

YES

YES OKAY

THIS IS ACTUALLY GONNA BE PRETTY GOOD

[elder heart]

I got it

[raven valley]

Lets see if i can make it betterrfr

[raven valley]

OwO?

[elder heart]

holy fuck

a sick one-liner

that was a bit premature

I have never seen such a horrific error message for what comes after

[elder heart]

Ok

I think I've figured it out. it is NOT a one-liner

do not be fooled !

OH MY GOD

I did it

I dont know how a linker works this code is terrible

he's gonna love this

https://github.com/DioxusLabs/dioxus/pull/4171 goodnight

[raven valley]

Adding new update systems works

I'll polish it up tomorrow but I think the strategy is good enough to be useful for Jan's crate, it feels too jank for actual integration into bevy, at least not until we make App/World send/sync

[elder heart]

for a sec I thought this was wasm

this is nice

keep going and we might get a JIT

[raven valley]

It basically is jit bevy with this, we just need the struct migration and then you can develop a whole bevy game without ever leaving hotreload mode 😤

[viral dust]

You got it working on Windows? A triumph on its own lol

I'm still fighting for my life out here

[raven valley]

Ahah I forked the toool

To get it to work

And it doesnt work on francois pr

Lmao

[viral dust]

What did you have to change?

[raven valley]

Manually added some libs to the linker

[viral dust]

Yeah ok, could you send which ones?

I think I added them using the LIB environment variable, but now it can't like the actual build artifacts lol

[raven valley]

Not at my PC anymore tonight

But I'll send you in the morning yeah

I just found the ones that were missing and added them until it works lol

[viral dust]

Ahh all good, I'm sure I wont have it working by then haha

[raven valley]

Haahahaah

[viral dust]

Holy hell finally

Turns out ONE of the issues was that link.exe just does not work at all for this, so you need to use rust-lld, but dx doesn't support non-link.exe style calling convention, so for it you need to use lld-link.exe and for rustc you need to use rust-lld.exe and make sure they're the same version otherwise it doesn't work

Also libs need to be added to %LIB%, and you must use cmd, PowerShell just doesn't seem to work at all

[mellow flint]

congRATs!

Is the hot-patching part also working? 🙂

[viral dust]

Still working out exactly what fixed it, but here's some cmd commands that does make a fresh cmd window work:

set DX_LINKER=%USERPROFILE%\.rustup\toolchains\stable-x86_64-pc-windows-msvc\lib\rustlib\x86_64-pc-windows-msvc\bin\gcc-ld\lld-link.exe
set DX_HOST_LINKER=%DX_LINKER%
set PATH=%PATH%;%USERPROFILE%\.rustup\toolchains\stable-x86_64-pc-windows-msvc\lib\rustlib\x86_64-pc-windows-msvc\lib
set PATH=%PATH%;%PROGRAMFILES%\Microsoft Visual Studio\2022\Community\VC\Tools\MSVC\14.44.35207\bin\Hostx64\x64
set LIB=%PROGRAMFILES%\Microsoft Visual Studio\2022\Community\VC\Tools\MSVC\14.44.35207\ATLMFC\lib\x64
set LIB=%LIB%;%PROGRAMFILES%\Microsoft Visual Studio\2022\Community\VC\Tools\MSVC\14.44.35207\lib\x64
set LIB=%LIB%;%PROGRAMFILES(x86)%\Windows Kits\NETFXSDK\4.8\lib\um\x64
set LIB=%LIB%;%PROGRAMFILES(x86)%\Windows Kits\10\lib\10.0.26100.0\ucrt\x64
set LIB=%LIB%;%PROGRAMFILES(x86)%\Windows Kits\10\lib\10.0.26100.0\um\x64

[viral dust]

Yep! Was able to change the gravity in the n_body_simulation example

[mellow flint]

Yay!!

[mellow flint]

If you do, would you consider doing a PR with instructions for the bevy crate?

[viral dust]

Hopefully some of these steps can be removed, and others built into dx instead

[mellow flint]

Woah that’s crazy!
Does it also work when the system function was not yet written when the program starts? If so, can the new function be hotpatched? What about the functions called by the new function?

[mellow flint]

Hopefully all steps can be made obsolete upstream 😬

[mellow flint]

Does that mean it works for you now? 😄

[mellow flint]

It’s on his radar, he wants to move it eventually 🙂

[amber grotto]

Nice! If you first run the app and then create a new system (as in "write new code in a file") and add it to Update does this new function also get hot-patched? Cos I had some problems with things like that

[gritty wren]

Super-excited to see all the progress here! At the same time a bit sad I might not be able to use it properly in a while because our project is a big workspace 😆

[worn spear]

What are the current workspace limitations? Is it just being in a workspace, or multiple workspace crates changing at the same time?

[worldly ether]

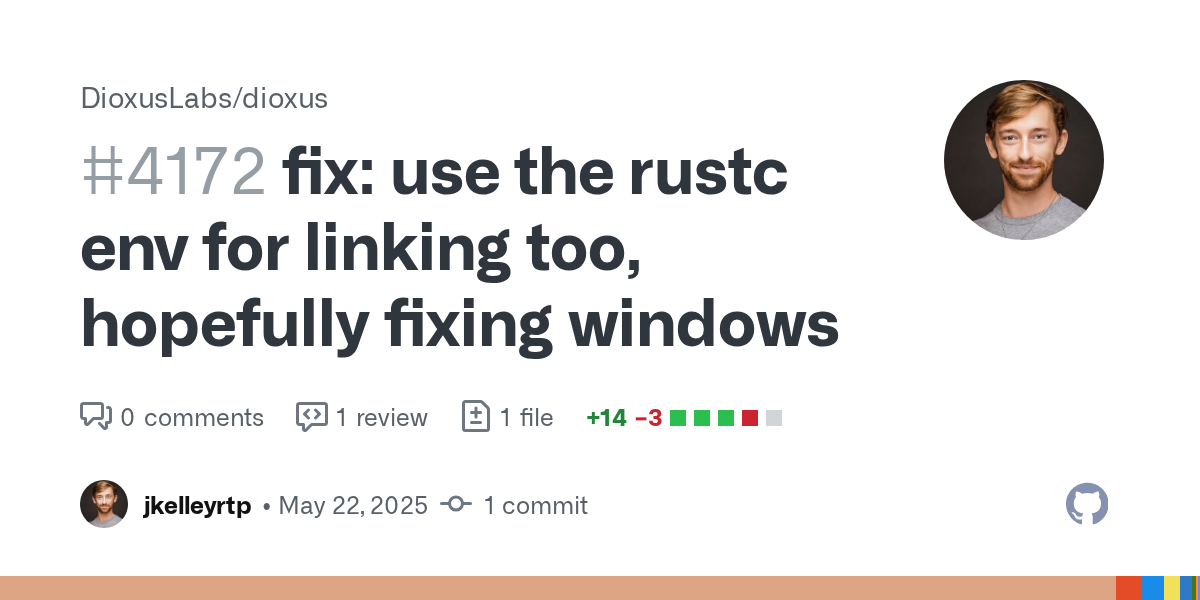

Can you try this PR? We are imitating the env the rust sets when doing thin compiles but not during linking, and this PR imitates it for linking as well

https://github.com/DioxusLabs/dioxus/pull/4172

[viral dust]

I'll give it a try! But I can also help, I've worked out the following batch commands will setup the required environment variables for dx serve --hot-patch to work in a plain cmd window without any other special setup:

set VCToolsVersion=14.44.35207
set WindowsSDKVersion=10.0.26100.0
set VCToolsInstallDir=%PROGRAMFILES%\Microsoft Visual Studio\2022\Community\VC\Tools\MSVC\%VCToolsVersion%
set WindowsSdkDir=%PROGRAMFILES(x86)%\Windows Kits\10\
set LIB=%VCToolsInstallDir%\lib\x64
set LIB=%LIB%;%WindowsSdkDir%\lib\%__WIN_SDK_VER%\ucrt\x64
set LIB=%LIB%;%WindowsSdkDir%\lib\%__WIN_SDK_VER%\um\x64

[worldly ether]

does a regular cargo build work in your prompt?

[viral dust]

Note that only LIB needs to be set, but the other variables mirror how x64 native tools works

[viral dust]

Yes, I think I have a very typical Windows installation

[quartz whale]

I seem to remember them saying above that only the top crate hotpatches, but don't quote me on that 😛

[worldly ether]

in that case cargo or rustc is setting these variables I believe, unless there's something special with the system link.exe

can you run where link.exe - curious where its coming from for you

[viral dust]

So I tried using the MSVC link.exe and it just doesn't work (probably 32bit issues), so I'm using the default linker for both cargo and dx

[worldly ether]

I had issues with the default windows prompt even running cargo build and I tracked that down to running arm64 windows so I have a weird setup

[viral dust]

In the x64 native tools environment:

C:\Program Files\Microsoft Visual Studio\2022\Community\VC\Tools\MSVC\14.44.35207\bin\Hostx64\x64\link.exe
It's otherwise not in my path

[worldly ether]

sadly emulating x86 windows is just too slow

[viral dust]

Ahh that makes sense, I'm on a typical Intel x64 laptop

[worldly ether]

I need some cloud vms... will probably end up building a little product around it

[worldly ether]

hmm if it's not in path then rustc is finding it which is good news for the PR I linked

[viral dust]

Makes sense. I'll checkout that PR now and see what happens, might take a bit though, dx is a slow build haha

[worldly ether]

I need to wire up nightly/uploads from branches, then you could dx self-update --branch jk/blah

[viral dust]

C'mon, two more dependencies surely

[worldly ether]

how did you end up with this particular implementation? it doesn't seem like we're actually bridging the tls address. do you have a particular replication case I can try to use to test against?

There are different types of tls in macho

• __thread_vars
• __thread_data
• __thread_bss

And I assume different approaches on lin/win, etc

Seems like your impl just sets the tls values to zero - curious how that doesn't end up segfaulting

also generally (directed towards others) how should we handle TLS in the patched crate?

I updated dsgallups PR to properly reuse the TLS initializer so you can modify this code

    thread_local! {
        pub static FOO: Cell<f32> = const { Cell::new(1.0) };
    }

    ball_velocity.x = FOO.get() * 200.0 * ball_velocity.x.signum();
    ball_velocity.y = FOO.get() * 200.0 * ball_velocity.y.signum();

and the value of the TLS gets reset on every hotpatch, but I think we dont want TLS to re-run on every patch right, only if it changes?

[viral dust]

Ok that PR definitely works a lot better, thanks! I have noticed I need to run cargo clean before dx serve, as it doesn't seem to handle continuing on from existing artifacts. Might be because cargo doesn't actually build or link?

[worldly ether]

On windows I think the mtime -based hash busting doesn't work if you have the file open. Try adding a blank line to the end of the file and then running again

if you run two cargo builds in succession without changing anything, cargo short circuits and doesn't give us any rustc args the second time. There's a bust_fingerprint method that works on mac/linux but I can't seem to get it working on windows

I have no clue how to solve this properly other than adding some entropy to the env that cargo uses to bust the hash

[viral dust]

Actually that might've just been a fluke, it does seem to work as I'd expect now!

[worldly ether]

yay!

[viral dust]

I'll leave a review on the PR

[worldly ether]

appreciate everyone for testing this thoroughly, it'll be so nice to have this pretty battle tested before releasing

it's scary how many people use windows vs linux/mac, sometimes you forget how big the windows dev community is

[viral dust]

Hey thanks for working on it! We're all very excited to have this for the whole Rust ecosystem tbh

I do think it's worth splitting into it's own CLI tool and repo if possible. Probably makes sense to be a cargo-subsecond style of package

[mellow flint]

Only the tip crate works for now. Notably, this means you're also not allowed to have a lib.rs file in your project

[mellow flint]

I'm just really happy this wizardry works at all. Even with its current limitations, this is an extreme improvement for iteration 😄

[granite kraken]

My implementation is finally above the biggest hurdle

[mellow flint]

My phone does not want to play the video, but I assume you've got rendering support working? 🙂

[granite kraken]

Yep

And we still have the ability to add/remove systems

[mellow flint]

You’re relying on a patched Bevy, right?

[granite kraken]

Yep, but I made the patch thinner yesterday, now I am really just adding an event to bevy and updating the runners to call a single method on app after they run

Let me push the patch to my fork

[mellow flint]

Hmm, if we could somehow get rid of that part, we could use your implementation for people with workspaces 🤔

[granite kraken]

Yeah my implementation also supports workspaces

[mellow flint]

Thought so 😄

[granite kraken]

The patch is also not exactly specific to my implementation

It's generic over an idea

I will explain in a second let me push

[mellow flint]

Huh, I don’t quite understand, sorry 😅

[granite kraken]

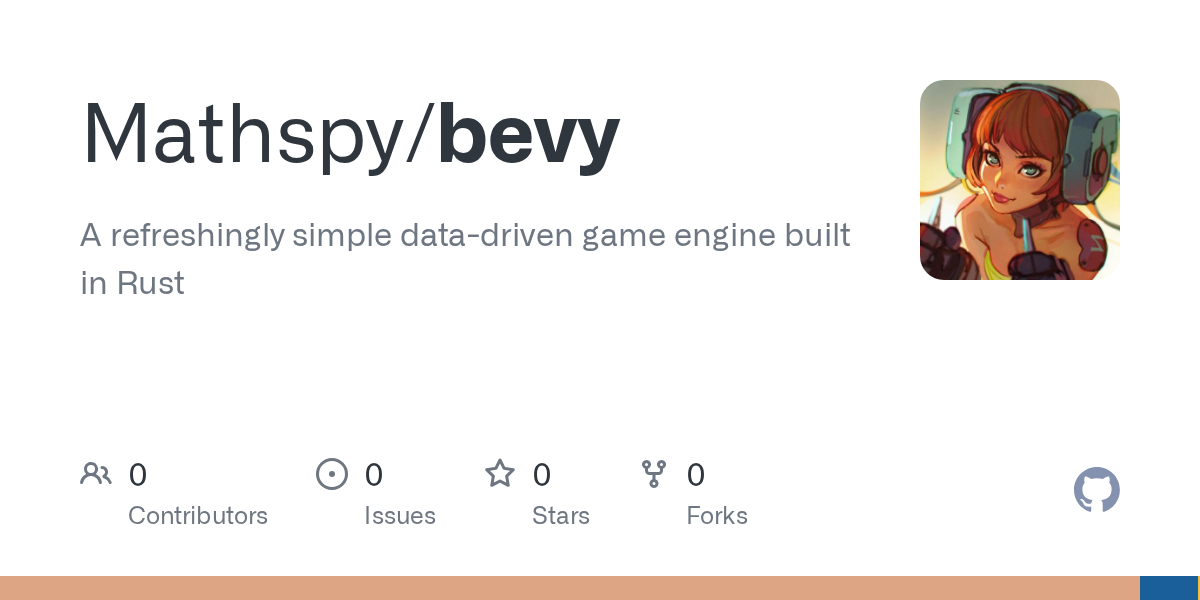

https://github.com/mathspy/bevy/compare/main...app-reload

The diff if you're curious

The basic idea is that plugins can now add a resource to an app that handles reloading and they can emit the event AppReload to ask the runners to reload the app by utilizing that resource

The reload handler has the signature Fn(App) -> App

[worldly ether]

For a patching system to work in practice it needs to not bring in TLS and global statics like tokio twice, otherwise you get segfaults and panics twice - how does your implementation handle that?

[granite kraken]

So the runners need to provide the current app and then they will get back a new app that represents the reloaded app

[granite kraken]

It seems that using Bevy's dynamic linking feature prevents TLS/globals from being recreated, if I understand some of the behavior I encountered correctly

[worldly ether]

If you add tokio as a direct dependency then it’ll be statically linked

[granite kraken]

That's fair, I can see why a build step to do this via dylibs behind the scenes is appealing

Such a build step isn't really impossible with my implementation

[mellow flint]

How does subsecond handle that?

[worldly ether]

That’s the patching part of hot-patching. We manually define override symbols using addresses from the running program

[mellow flint]

Yeah but probably a big ask for users if it doesn’t happen automatically

[mellow flint]

Ooh got it 👍

[granite kraken]

That's interesting, I might be able to borrow the code for that part from subsecond and handle it within the app's own execution

So new TODO list for me

1. Handle doing something like using tokio
2. Deal with Locals
3. Give nice error messages when Resources change

[worldly ether]

I’ll be honest, after having done the R&D for this for a long time, the only approach that can work in this space with all the complexities is real binary patching

You need to operate in the linker/compiler level to fix the statics and TLS issues

https://fasterthanli.me/articles/so-you-want-to-live-reload-rust

[mellow flint]

Thanks for the link, looks like a good read 🙂

[weary vigil]

Take a look at cargo-config2 ! It's maintained by the some person who develops cargo-llvm-cov, cargo-hack, and pin-project, and seems to expose the linker information you want

[worldly ether]

another good read on patching by liveplusplus - they sell their version of subsecond as a paid product to unreal

https://liveplusplus.tech/downloads/THQ_Nordic_Dev_Summit_2023_Live++_Behind_the_Scenes.pptx

[granite kraken]

@mellow flint not to nerdsnipe you but I think the patch I linked to earlier can be utilized with subsecond to handle reloading the plugins/detect new systems

But that’s mostly a guess and I haven’t actually validated it

If that does work then the patch would be useful for either implementations and should have an easier time getting upstreamed

If you wanna work on trying it together feel free to ping me whenever

[mellow flint]

Pinging @raven valley, since they’re doing the system adding stuff 🙂

[granite kraken]

@raven valley fun demo above^

[elder heart]

Indeed, on Linux that is

[mellow flint]

yay!!

[elder heart]

oh wow I was super tired when I finished this. I didn't even see that

so I'm not sure...honestly need to audit my project and find out what's pulling in rayon

but I'll see if I can come up with an MRE for some code on the original commit

[elder heart]

Thanks for fixing this! (also it makes sense TLS isn't changed every patch imo)

[raven valley]

Yes, I dont know but I think so, dunno

[raven valley]

Yee

[raven valley]

Oo

[elder heart]

think I'm gonna start using windows to code for a bit. always been a blindside for me

esp here, definitely want to get this working on this platform

now just to transfer all my keybinds from Zed into VSCode...

[mellow flint]

My main reason for not working on Windows is that it is about 2-3 times slower at compiling Rust for me

[elder heart]

yeah, it's like not even using max cores on my computer either

[mellow flint]

Same story on GH agents, multi-OS test suites always take ages on the Windows runners :/

[elder heart]

keep running into this problem as well...where is my integrated terminal

[mellow flint]

the heck 👀

[mellow flint]

While you're configuring, consider upgrading to PS Core

AKA pwsh.exe

winget install --id Microsoft.PowerShell --source winget

[elder heart]

interesting...gonna see if this breaks everything rq

wait how on earth do I differentiate between this and powershell
edit: 7

[mellow flint]

use pwsh.exe instead of powershell.exe

[mellow flint]

On my Windows, I personally removed all shortcuts and links to the old preinstalled powershell

[elder heart]

nice, yeah it's great. thanks

[foggy zodiac]

random dumb idea, but if you run bevy with hotpatching and have an in-engine(future bevy editor?) code editor you could theoretically hot patch from within the app directly.

[mellow flint]

huh, that would be quite crazy 👀 You could even hot-patch the code editor you're using to edit code

[foggy zodiac]

yep

[elder heart]

literally this was the first thing that came to mind. I feel like if this can be pulled off, this could solve a lot of heartache for @opaque mulch

[elder heart]

specifically for this work

[mellow flint]

off-topic: you can improve rust-analyzer's suggestions for hotpatched code by adding

"rust-analyzer.procMacro.ignored": {
    "bevy_simple_subsecond_system_macros": [
        "hot"
    ]
}

to your VS Code settings

See https://github.com/TheBevyFlock/bevy_simple_subsecond_system/issues/9

[mellow flint]

@idle stone you’ll want to use this

[quartz whale]

I think the way to get RA to work would be to have a fallback, when you can't get the output of the macro to work properly, just output the function as-is

[mellow flint]

Do you have an example of how to do that?

I imagine it it probably pretty easy

But I'm very much a beginner at proc macros

[raven valley]

I'm thinking through how we might want to do things

And I have an idea

Hmm

Not sure

Maybe not actually

Hmm

Okay new idea, yeah, so let's do a StartupReload schedule, which auto-despawns and reruns when hot reloading and edited

For resources we can just have it so when you comment out a resource in the reloadable section it unloads that resource, and when you add it back it loads it again. But if you just edit the resource it doesnt edit it

@mellow flint how far did you get with that entity tracking stuff for systems?

[idle stone]

oh interesting 🤔

[mellow flint]

What exactly?

[raven valley]

Auto-track and despawn entities spawned within startup systems that you reload

[mellow flint]

Not at all. No clue how to track which systems spawned an entity.

[raven valley]

Mkay

[mellow flint]

I just do the manual version right now:

#[derive(Component)]
struct Setup;

#[hot(rerun_on_hot_patch = true)]
fn setup(previous_setup: Query<Entity, With<Setup>>, mut commands: Commands) {
    // Clear all entities that were spawned on `Startup` so that
    // hot-patching does not spawn them again
    for entity in previous_setup.iter() {
        commands.entity(entity).despawn();
    }

    // Actual UI setup goes here
}

[mellow flint]

Note that this is not library code, but consumer code

[karmic current]

on that topic: There was this merged recently: https://github.com/bevyengine/bevy/pull/19047

so 0.17/main only, but perhaps useful

[raven valley]

Oo

[mellow flint]

Oh yeah that looks super relevant

Oh, I forgot, Alice also had an idea

track_location could be used right now, maybe

[idle stone]

this worked for me, although it does add a tiny white squiggle under the # of the annotation saying hot: proc-macro is explicitly disabled

[mellow flint]

I think I just managed to implement @quartz whale's suggestion 🙂

[raven valley]

Hmm so hot reload messages just give us the line number not the span of the function

Hmm

OH jan

I HAVE AN IDEA

[mellow flint]

[raven valley]

In your macro we could add something at the bottom and the top of the function inside, that we could then map to the top position that the hot reload gives us, and so we could have a mapping from the hot reload line number to a span of the hot reload

[mellow flint]

GOOD reactions

[raven valley]

Then we could despawn anything within that span from the location tracking

( if its in a StartupReload schedule instead of a Startup schedule )

Oh I cant wait till im home im gonna cook so hard my development speed is way faster on Linux with my normal setup

We can do this all without having to mess with bevy internals

And it will still look vaguely like bevy

[mellow flint]

Oh yeah that could work

[raven valley]

MHM!

Pog glad you think so

We could also do the same for when components are added

We can look for where they were added and remove them ( if inside a StartupHotReload instead of Startup scheudle )

Inside my reloadable method from the video

[mellow flint]

GH action runners are not responding
I'll just merge, all checks run on my system ™️

[raven valley]

We can also do the same thing with resources

Though we might not need to because I also have another idea for resources that covers this

What we do is, because how my reload code works is it makes a new empty App, passes it through, and then u add ur plugins, and systems to it, you could ALSO add your resources to it

( in the plugin build process )

( like how you do)

THEN

We can extract out all the resources from the app, look at their type ids, and store them in a hash set we keep

And we add the resources to the new app, only if they didn't already exist in the hash set

AND

If something is in the hash set that ISNT in the new app

Then we remove it from our actual app and the hash set

So that way you can remove resources from your plugin build in the reloadable section and it works

[mellow flint]

Alright, version 0.1.8 now should have fully working Rust Analyzer suggestions out of the box without any VS Code settings @idle stone @delicate acorn . Thanks again @quartz whale for the suggestion for how to fix it 🙂

[mellow flint]

I need to go AFK for half an hour right now, but I'll read through your idea when I come back!

[raven valley]

Actually on second thought this is orthogonal to resources added by startup systems so we would need both systems

But yeah!

Okay!

[idle stone]

hmm it seems better now but non-trait suggestions seem to still be missing

[mellow flint]

can you give an example?

[idle stone]

transform.tra gives try_apply, try_as_reflect, and try_as_reflect_mut only

where transform: Mut<Transform>

the good suggestions come back when re-adding the rust-analyzer setting (transform_point, translate_around, translation, etc.)

[granite kraken]

Our solutions might totally be workable together since we have roughly the same signature for how we are handling this

[raven valley]

OWO yeah

[granite kraken]

Did you get a chance to push your code anywhere?

[raven valley]

I did not! I can try to push it somewhere later today

[mellow flint]

You mean you don't see translation?

cannot reproduce

[raven valley]

But I can also just take some pictures lol

[idle stone]

yep i only see those 3 suggestions

also i'm doing #[cfg_attr(feature = "native_dev", hot)] if it matters, with rust-analyzer configured to have native_dev enabled

[granite kraken]

Sweet! I’m going to work on integration between the two solutions and an initial PR with a few use cases later today

[raven valley]

Okie

[languid sable]

FYI I've promoted this work for the upcoming jam

[lone token]

@worldly ether do you think you'll do a new alpha release? anything you would want to see in it where we can help?

[worldly ether]

yes, will be doing a new alpha soon-ish... solved a handful of issues, currently getting the custom linkers wired up. just finished the dynamic linking thing (though that requires updating the subsecond lib, unfortunately, so using it via a new alpha will be best)

• https://github.com/DioxusLabs/dioxus/issues/4154
• https://github.com/DioxusLabs/dioxus/issues/4146
• https://github.com/DioxusLabs/dioxus/pull/4171
• https://github.com/DioxusLabs/dioxus/pull/4172

would like to get workspace support but will probably need to look at other dioxus-y things first

with bevy dynamic linking my iteration time is 150ms haha

[raven valley]

SHEEsh

[mellow flint]

Thanks a bunch!

[lone token]

workspace support would be 🔥 , but yeah from the selfish point of view of Bevy jam it probably can wait, people won't do workspaces for the jam 😄

[mellow flint]

Except when @graceful falcon decides to submit a multiplayer game again 😛

(Still very impressed by that)

[lone token]

well my personal template is a workspace, I'll just change that for this jam 😄

[idle stone]

yeah i changed my lib.rs + src/bin/ to a single main.rs for now

[raven valley]

I really hope I can get the hot reloading startup systems + normal systems added to your crate this weekend jan

It will improve the experience EVEN MOAR

[mellow flint]

Can the Windows people confirm whether the dioxus CLI on main works for them now after https://github.com/DioxusLabs/dioxus/pull/4172 ?

Pinging @raven valley @elder heart

[raven valley]

I dont wanna touch my windows setup for it rn im too invested in the aforementioned code

[mellow flint]

@viral dust did you have to do any setup after this PR to get it working? E.g. setting the linker env var

[mellow flint]

Understandable, same

[worldly ether]

also @lone token I merged your PR so hopefully you can get onto main or a stable commit from main. I had to patch a bunch of stuff in my cargo.toml to get your branch working with my weird PR

[patch.'https://github.com/mockersf/dioxus']
dioxus-cli-config = { path = "../../dioxus/packages/cli-config" }
dioxus-core = { path = "../../dioxus/packages/core" }
dioxus-devtools = { path = "../../dioxus/packages/devtools" }
dioxus-devtools-types = { path = "../../dioxus/packages/devtools-types" }
subsecond = { path = "../../dioxus/packages/subsecond/subsecond" }
subsecond-types = { path = "../../dioxus/packages/subsecond/subsecond-types" }
dioxus-signals = { path = "../../dioxus/packages/signals" }
generational-box = { path = "../../dioxus/packages/generational-box" }

[lone token]

thanks! I'll update my PR to target your main

[mellow flint]

That would be really really cool

[worldly ether]

setting linker env isn't enough I imagine since the linker needs to accept the same types of arguments, we need a flavor or we infer the flavor

[mellow flint]

thanks a bunch 🙂

If anyone can give me a step-by-step of how they got it working on Windows, I can add that to the readme 🙂

[granite kraken]

For what it’s worth my implementation supports workspaces today and I’ll streamline it before the Jam

[mellow flint]

Maybe just make sure to be explicit about TLS and Tokio maybe not working with it

[granite kraken]

Yeah I’ll be and I’m already looking into possible workarounds and/or solutions

[karmic current]

not having workspace support and not having lib.rs support is the same issue right? (clarifying so when I talk about it I can advise people to use a single main.rs or whatnot)

[lone token]

yup

[opaque mulch]

Hmm I could see it possibly being a path to simplifying the "new component" workflow that the editor will have.
And system ordering.
Smoothing out the code/editor barrier to a nicer experience.
It'd take a lot of work and I'm sure we'd be in UB territory... But I do see the potential.

[mellow flint]

We got a PR for struct migration: https://github.com/TheBevyFlock/bevy_simple_subsecond_system/pull/11 👀

[mellow flint]

We're on board with merging this, right? Pinging @viral dust and @raven valley who had discussed this before

Thanks for the PR, @amber grotto 🙂

[raven valley]

MMM

Lemme look at it

Also I'll have a pr for you not too long that just adds the system adding for update systems

[mellow flint]

assigned you as the reviewer

[raven valley]

Mmmm actually I wanna get my pr finished before I run out of stram

After I get my thing written I'll look at this pr

[elder heart]

Still blocked on https://github.com/DioxusLabs/dioxus/issues/4159

unsure how to work around

need to figure out how to undo some implicit target dir

[viral dust]

I re-installed MSVC build tools and the Windows 10 SDK, but I don't think I needed to. Everything else I was able to leave as-is on the newest commit

[raven valley]

LMAO WAIT

YOU DONT EVEN NEED TO HOT ANNOTATE THE SYSTEM INSIDE RELOADABLE

Lmaooo

@mellow flint made the pr

[granite kraken]

Oh sweet I wanna check this one out

[raven valley]

Yeye

[elder heart]

now I wonder...what if you reload a startup system

it probably does nothing

even if the system is updated...hmm

wait

but state transitions...hmmmmmm

[raven valley]

Rn I dont have it do anything, I can add behavior for startup systems

Only 89 loc!

Very happy about that

@worldly ether is it possible for us to get, not only the line number but the span of the reloadable section? Is that possible? If not I think i can do some work arounds but I'm not certain I can get them to work ( compiler intrinsic vs macro shenanigans)

[worldly ether]

only symbol names, but in theory the dwarf tables give you lots of info

[raven valley]

Wait

The hot reload message gives you the file, line, column, and index right?

[worldly ether]

no, that's our macro hot-reload stuff

the subsecond api is just jump table and some addresses of anchors

[raven valley]

Nooo my dastardly plans ruined

Okay wait

I have another idea

But thanks jon that was helpful thats all the questions I have for now

[worldly ether]

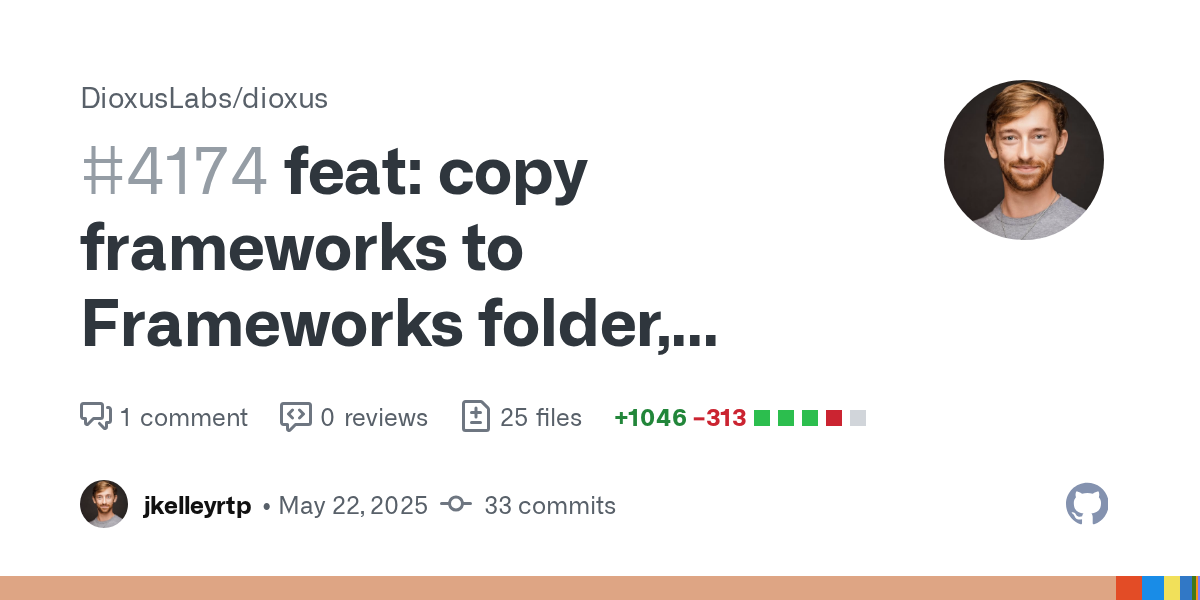

@mellow flint https://github.com/DioxusLabs/dioxus/pull/4174
think this should work, worth giving a spin

dynamic linking, custom linkers, global target dir

unsure if mold will work, there's a difference between "compile driver" and "direct linker" and I don't have mold/sold installed to test

[mellow flint]

I'll try it out in a few mins 🙂

[mellow flint]

Gave you a preliminary review, need to look at it in detail again.
But the closure API is a really good idea 👀

[mellow flint]

@worldly ether does the PR also address this?

[elder heart]

ok I figured out how to make my path extremely short...let's see

forgot about this, it did compile finally, now just seeing..

yes!

perfect, it works

with smol path. no linker adjustments or anything. out of the box, on a big project

[raven valley]

Okay super big brain I've figured out how to get the span out of the macro

For the hot fn

So we can despawn entities within the startup hot functions

UwU

I haven't done that second part

[raven valley]

Okie

[worldly ether]

I’m hoping it does

[mellow flint]

On main or on the linked PR?

As the linked PR is supposed to not require a smol path

[mellow flint]

but congrats 😄

[elder heart]

on main

didn't notice link

[mellow flint]

mind compiling the CLI once more? 😄

[elder heart]

ok one sec making a few images

[mellow flint]

Done 🙂

Looks like a solid idea!

I wonder if we could skip the closure by annotating the function that calls app.add_systems as #[hot_plugin] or something

But that does not need to be part of this PR

[mellow flint]

Like

fn main() {
  App::new()
    .add_plugins(DefaultPlugins)
    .add_plugins(hot_plugin)
    .run();
}

#[hot]
fn hot_plugin(app: &mut App) {
  app.add_systems(Update, foo);
}

I got this idea since your closure already has nearly exactly the signature of a plugin fn

If we need an AppWrapper instead of an App, the proc macro could just silently give you that type instead of an actual App.

Though that may be very surprising if you do things like fetch resources out of the App. Those would suddenly not be around :/

Eh, just throwing these ideas on the table

[mellow flint]

@autumn lark could you maybe take a look at this?

It looks right to me, but I'm veeeery untrained in reflection 😅

[mellow flint]

This PR breaks it for me :/

With no setup, i.e. no symlinking, no config.toml, I get:

01:39:55 [dev] Failed to generate fat binary: rust-lld: error: /home/hhh/git/bevy_simple_subsecond_system/target/x86_64-unknown-linux-gnu/debug/examples/libfatdependencies-8b8cea20-0c14-54a3-b19a-e2cf23a420d4.a: Archive::chcollect2: error: ld returned 1 exit statusive (terminator characters in archive member "H\215" not the correct "`\n" values for the archive member header for �Z)

I am on nightly Linux, where I think the default linker is already rust-lld, but I'm not entirely sure

So I edited my ~/.cargo/config.toml to include only this:

[target.x86_64-unknown-linux-gnu]
linker = "clang"
rustflags = ["-C", "link-arg=-fuse-ld=lld"]

Which gives me:

dx serve panicked at packages/cli/src/build/builder.rs:1254:49
called `Result::unwrap()` on an `Err` value: Os { code: 2, kind: NotFound, message: "No such file or directory" }
   0: dx::cli::serve::ServeArgs::serve::{{closure}}::{{closure}}
   1: std::panicking::rust_panic_with_hook
   2: std::panicking::begin_panic_handler::{{closure}}
   3: std::sys::backtrace::__rust_end_short_backtrace
   4: __rustc::rust_begin_unwind
   5: core::panicking::panic_fmt
   6: core::result::unwrap_failed
   7: dx::build::builder::AppBuilder::open_with_main_exe
   8: dx::build::builder::AppBuilder::open::{{closure}}
   9: dx::serve::runner::AppServer::open_all::{{closure}}
  10: dx::serve::serve_all::{{closure}}
  11: dx::main::{{closure}}
  12: tokio::runtime::park::CachedParkThread::block_on
  13: tokio::runtime::context::runtime::enter_runtime
  14: tokio::runtime::runtime::Runtime::block_on
  15: dx::main
  16: std::sys::backtrace::__rust_begin_short_backtrace
  17: std::rt::lang_start::{{closure}}
  18: std::rt::lang_start_internal
  19: main
  20: __libc_start_call_main
  21: __libc_start_main_impl
  22: _start
 ___rust_try ___rust_try

same with

[target.x86_64-unknown-linux-gnu]
linker = "rust-lld"

and same with

[target.x86_64-unknown-linux-gnu]
linker = "clang"
rustflags = ["-C", "link-arg=-fuse-ld=mold"]

oh wait, I didn't do cargo clean

let me try again

nvm, same error messages even after a cargo clean

to be fair, I didn't run main before, so these errors might not be new

Let me try that real quick

[mellow flint]

Yeah the issue is on main. I get this one there as well.

@worldly ether want me to bisect?

[autumn lark]

Reviewed!

[mellow flint]

We could also set up a CI step for Linux fairly easily that verifies that dx supports various linker setups

[mellow flint]

thanks 🙂

[idle stone]

is it possible that the #[hot] macro is breaking resource change detection?

[mellow flint]

I wouldn't think so, since it desugars to a fairly standard exclusive system

[idle stone]

it's probably just a bug in my code

ok

[mellow flint]

But I can check, if you want

@idle stone regarding the Bevy New 2D PR for hot patching

Do you think I should change the plugin to be a noop for Wasm?

At least until we know how to make that work

[idle stone]

if it doesn't work on wasm, yes. also for release builds would be nice

like inline_tweak compiles out of release builds

[mellow flint]

Alright, will do 🙂

[idle stone]

then it wouldn't have to be an optional dependency at all and i could just do #[hot] everywhere

[mellow flint]

(ah yeah, @worldly ether I forgot to ask you: how should one use subsecond for Wasm?)

[mellow flint]

sounds good!

[granite kraken]

It is possible for it to break change detection if you’re recreating the systems in any way

[elder heart]

I don't think theres a linked PR for the cargo target dir being too long

[mellow flint]

@elder heart ^

[idle stone]

i guess this would still increase compile times if i compile bevy_simple_subsecond_system and its transitive deps in even if it's internally #[cfg]ing itself out of existence

[mellow flint]

Yesn't

In theory, yes. In practice, its deps are already all deps of Bevy

[idle stone]

what about dioxus-devtools

[mellow flint]

Oh snap you're right

(why do I always curse like a weird Christian online )

[idle stone]

i think #[cfg]-ing itself out internally is still correct fwiw, better than accidentally breaking builds

[mellow flint]

Oh shit that's right

[elder heart]

so true, first thing I thought, that jan guy's a weird Christian

[mellow flint]

phahaha

[elder heart]

ah I see, I'll have to figure out how to get this branch to compile

[mellow flint]

compiles out of the box for me

[elder heart]

are you on wandows

[mellow flint]

Lanux

[elder heart]

error[E0425]: cannot find function `dlsym` in crate `libc`
   --> packages\subsecond\subsecond\src\lib.rs:699:15
    |
699 |         libc::dlsym(libc::RTLD_DEFAULT, c"main".as_ptr() as _) as _
    |               ^^^^^ not found in `libc`

for windows compilation on jk/fix-dyn-link-subsecond

[idle stone]

if only bevy_simple_subsecond_system could make all of its deps optional and compile those out of the dep tree in web / release builds as well

but cargo limitations

[mellow flint]

welp

[mellow flint]

Yeah I already looked far and wide for a hack for that

Nope, only thing you can do is have a dev or release feature

[elder heart]

seems like it's just a windows api diff, could use something else I think. I'll just mention in the pr

[idle stone]

i've confirmed that this is the case btw. still not sure what the bug is though :')

[mellow flint]

To be clear, you've confirmed it's not a hotpatching bug?

[idle stone]

i've confirmed this particular instance is not related to hotpatching, because i compiled with hotpatching fully disabled and it still occurs

[mellow flint]

ok, good to know 🙂

I'll now prepare a release that does not break Wasm

I guess I'll just print a WARNING

[worldly ether]

It just works. dx serve —platform web —hotpatch

Well I haven’t tested non Dioxus web setups, if it complains you might have to add Dioxus to your dependency list even if you don’t use it

[mellow flint]

I think connect does not have the same signature on wasm or something like that

let me confirm

[worldly ether]

Oh you can’t use connect on web

[worldly ether]

This our web code for the devtools socket on web

https://github.com/DioxusLabs/dioxus/blob/main/packages/web/src/devtools.rs

[mellow flint]

Oh I see, so I should call make_ws instead of connect?

[worldly ether]

Sad I thought windows had libc. Lemme fix real quick

[mellow flint]

Also, what does dx serve --platform web provide for me? Does it already create an HTML file with a canvas for me, or do I need to create that myself?

Asking because the Bevy CLI prototype is setup so that bevy run web creates all of that for you so that you just "magically" open localhost:4000 and you see your game 🙂

[worldly ether]

It creates an html file, the js glue, bindgen, wasmopt, etc, and then the index.html runs fn main

[mellow flint]

Ah nice 🙂
Any canvas?

[worldly ether]

No canvas, the root is <div id="main></div>

[elder heart]

could hack this with something really simple via websys

[mellow flint]

good idea

[elder heart]

like before app run

[worldly ether]

if you want, you can use dioxus

use dioxus::prelude::*;

fn main() {
    dioxus::launch(|| {
        rsx! {
            canvas { id: "my-canvas" }
        }
    });
}

[elder heart]

omg forgot LOL, yeah!!

[mellow flint]

Hmm, it would need to run before some specific plugin

[worldly ether]

then you get the websocket, patching, etc

[elder heart]

yeah that sounds way better actually

[mellow flint]

Oh that's cool!

Really not sure how the plugin would be able to do that though

[elder heart]

one of the few times your fn plugin(&mut App) won't suffice

[mellow flint]

Correction: not sure how the SimpleSubsecondPlugin would do that

[elder heart]

I'm actually so on board with this, I've got an idea. Will experiment

[worldly ether]

since you can push stuff into the subsecond handler something like

use dioxus::prelude::*;

fn main() {
    dioxus::launch(|| {
        use_effect(|| async move {
           subsecond::register_handler(|| do_bevy_hotpatch_stuff);
           // ... bevy code
        });

        rsx! {
            canvas { id: "my-canvas" }
        }
    });
}

[elder heart]

loved leptos but it's time for dioxus

[mellow flint]

Bevy calls our integration plugin right now, not the other way around

So I don't think that would work

[worldly ether]

is there no way to customize where bevy renders on the web?

[mellow flint]

https://docs.rs/bevy/latest/bevy/prelude/struct.Window.html#structfield.canvas

needs to be a canvas AFAIK

[elder heart]

we can target ids

wait, doesn't it also have the ability to make one when canvas isn't present per the docs?

[mellow flint]

oh wait you're right

Absolutely!

[worldly ether]

yes, just name the canvas something and then in the effect do bevy stuff

[elder heart]

but even so, I think we can still target a specific part of a web page through dioxus before build is called on the default plugin

I'm pretty sure WindowPlugin inserts this at the Plugin::build call

[mellow flint]

That would mean we'd have to sandwich our plugin in-between

[elder heart]

well, we just use those other plugin trait methods there is no before build step

[mellow flint]

Fair enough

Do you think you could do a PR for something like that?

[mellow flint]

ah heck

[elder heart]

yeah I'm gonna work on it rn

[mellow flint]

thx

[worldly ether]

effects run after the element is mounted

[mellow flint]

Give me 5 mins so you don't have a merge conflict 🙂

[worldly ether]

the canvas will be alive when the bevy code runs

we also have onmounted

[elder heart]

interesting...yeah I've been so giddy about trying dioxus

we could even do some really cool things with signals/events

[worldly ether]

lots of goodies recently, inline debugger, sending logs from browser to terminal, hotpatching, interactive tui, etc etc

[elder heart]

@mellow flint could theoretically readd the AppExit result in the template, too

[mellow flint]

@idle stone I think the proc_macro crate does not receive the #[cfg]s

https://github.com/Uriopass/inline_tweak/blob/master/inline_tweak_derive/src/lib.rs

Inline tweak also does not remove their macro expansions on release?

[elder heart]

im gonna go make food, on standby

[mellow flint]

The library file then does the noops I believe: https://github.com/Uriopass/inline_tweak/blob/master/src/lib.rs

[mellow flint]

enjoy 🙂

[elder heart]

meant for ur merge, haven't looked at what's changed

[mellow flint]

I think I'm actually a bit stumped at how to noop away the #[hot] macro on release and Wasm

[elder heart]

wrap it

with a #[cfg_attr]

something like

// in your hot macro
#[cfg_attr(any(not(profile = "release), not(target = "wasm")), hot_inner)]

or something idk the exact syntax, copy everything in hot to hot_inner

[mellow flint]

Oh wait, I can quote! it!

That was the missing piece

[elder heart]

that too
edit: oh I see, didn't understand. back in 30

[idle stone]

it should for #[tweak_fn] hm

maybe the readme is wrong: "In release mode, the tweaking code is disabled and compiled away."

yeah it does, the proc macro generates a derive_tweak! call which is selected by #[cfg]: https://github.com/Uriopass/inline_tweak/blob/master/src/lib.rs

[mellow flint]

ooh I see

I think I got it 🙂 Let me quickly verify

Yep, works https://github.com/TheBevyFlock/bevy_simple_subsecond_system/pull/13

@amber grotto review is done 🙂

@idle stone released v0.1.9 that compiles away on Wasm and on release

@elder heart you can work on it now, my stuff is merged 🙂

[elder heart]

idk if it matters at all, prepending things with :: like ::std or ::bevy

dont quite remember why people do that

[viral dust]

It prevents someone making a module of the same name and breaking macros

[elder heart]

ah

maybe I should make that pr

[viral dust]

As ::foo will only match an external crate named foo

[elder heart]

totally

[viral dust]

I don't think it's a big deal in practice, but it's not too painful to do so might as well

[elder heart]

this is my one update README.md commit

lmao realized that if you alias a crate in Cargo.toml this would break as well, but that seems universal

[viral dust]

Yeah there was a crate that attempted to solve that issue, but it balloons out proc-macro execution time since it needs to parse the Cargo.toml and it's stateful and all sorts of other issues

So I think most people just agree to use the derive macro you need to be "normal", otherwise just implement the trait yourself

[elder heart]

and so that's why you can alias something like use external_crate_thing as crate; because there's always a way to get ::crate

makes sense

[idle stone]

oh dang if your hotpatch has a compilation error it gets logged, nice

i've just been perfect up til now 💅

[elder heart]

I guess this PR really doesnt go the whole way either. this can fail if the user imports individual bevy crates...re-exporting bevy_ecs in bevy_simple_subsecond_system would probably be more correct

[mellow flint]

Should I wait with merging?

[elder heart]

yeah, I was thinking about half-assing this but should probably go the whole length

give me a sec

[mellow flint]

Little POC of adding systems at runtime on @raven valley's PR.
@languid sable, you may want to see this 🙂

[elder heart]

yuk. I think I can do better but want to know what you think

meaning, the reexports module and importing individual bevy crates as opposed to bevy itself

unsure about the latter

[mellow flint]

Move that to the ugly __macros_internal module

Other than that, looks fine to me 🙂

FYI

[elder heart]

oh right

gotta fix that up. that's me!

[mellow flint]

Pah, I refuse to believe you until I see a green checkmark there 😛 /j

[elder heart]

lmao no way 😭

fak gonna take a minute

ok should be fixed now (reexports I mean), and just need to make sure CI is cool. I'm assuming a test would catch if I got an export wrong

[mellow flint]

hmm why is bevy still in there?

I guess because it's a dev dependency?

🤷‍♂️

looks good to me either way 🙂

[elder heart]

oh, dev deps

[mellow flint]

@elder heart you missed an underscore 😉

Merged

[idle stone]

i recommend putting default-features = false on every bevy subcrate :)

good rule of thumb for library authors, to avoid enabling unnecessary features

[mellow flint]

oh what, those have features too? 🙈

[idle stone]

some of them do 😄

example in bevy_ecs

[mellow flint]

TIL

[elder heart]

tial

probably good to include...can't see the lock diff though because of the dev dep

// SAFETY: This is not unsafe, but anything using the updated jump table is.
// The table must be built carefully
unsafe { apply_patch(jumptable).unwrap() };

idk why but I find this so funny

[mellow flint]

Should have hired a carpenter

[elder heart]

LMAO I'm not criticizing just made me giggle

idk how it works

[mellow flint]

Oh I know 😄

[mellow flint]

I just stole that line from Francois 😄

[elder heart]

that's such a rare thing to hear...only in policy debate have I heard someone call out a carping critique

[idle stone]

does the #[hot] macro break Locals?

[elder heart]

thread locals? if that, not anymore

[idle stone]

like Local<u32> as a system param

the answer seems to be yes, it works again with //#[hot]. created issue: https://github.com/TheBevyFlock/bevy_simple_subsecond_system/issues/15

[elder heart]

yep broken, nice

[gentle socket]

Making great progress though, good job birbs

[mellow flint]

TIL what "carping" is
I meant "carpenter" because those sure know how to build a table carefully 😄

[mellow flint]

Fairly sure that's because Locals from SystemStates don't get saved. We'd have to get them as part of your exclusive wrapper function signature

Which should be possible

"just" parse the arguments and look for mentions of Local

And I guess EventReader

[granite kraken]

I am working on a way for both my implementation and subsecond to rehydrate locals from old ones

[mellow flint]

And hope the user has no custom query params that use locals 👀

[mellow flint]

Oh that'd be neat too

[granite kraken]

I think we can do one better here with some smol support from bevy_ecs

[idle stone]

hmm can you use run_system_cached somehow

i'm assuming no but idk how this works internally

[mellow flint]

I ran into some issue with it, but I don't remember what it was

[mellow flint]

Maybe that was a mistake on my part tho

(wasn't supposed to be a reply whoops)

[idle stone]

saving system state is somewhat relevant, it's the difference between run_system_once and run_system_cached

so required for local, eventreader, and any system param wrapping one of those to function, plus things like Query want to save their system state to avoid re-computation every frame

[mellow flint]

This here:

use bevy::prelude::*;
use bevy_simple_subsecond_system::prelude::*;
fn main() {
    App::new()
        .add_plugins(DefaultPlugins)
        .add_plugins(SimpleSubsecondPlugin::default())
        .add_systems(Update, greet)
        .run();
}

#[hot]
fn greet() {
    info_once!("Hello from a hotpatched system! Try changing this string while the app is running!")
}

gets expanded into:

[elder heart]

from pyrious' point: https://docs.rs/bevy_ecs/0.16.0/bevy_ecs/system/struct.SystemState.html#warning

[idle stone]

gist?

[mellow flint]

Ah good idea

[mellow flint]

https://gist.github.com/janhohenheim/d3b55f1d439592a04f66c754b9f0b031

@idle stone I think you should be able to understand it

[idle stone]

it's mostly noisy namespaces heh

[elder heart]

we could wrap the type passed into HotFn::call with a function that will call World::run_system

[mellow flint]

greet is what is registered in the App, __greet_hotpatched is the function with a stable signature that we hot-patch, __greet_original is the system the user actually wrote

[mellow flint]

Wouldn't it make more sense to run run_system in __greet_hotpatched?

[elder heart]

that is right

well not exactly, because consider the system before hotpatching

because the original will not update either

or will it? goodness...need like 30 to find out

[mellow flint]

Oh wait I think I already have it

oookay dx

[idle stone]

maybe it's 1269

[mellow flint]

it was like 600 in the end

[idle stone]

i was close :)

[mellow flint]

nvm using world.run_system_cached the way I did just breaks hot-patching

let's try run_system_once

that works

now let's try locals

[idle stone]

run_system_once should be basically the same as what you were doing before, it initializes the system every time you call it

[elder heart]

https://docs.rs/bevy_ecs/0.16.0/bevy_ecs/world/struct.World.html#method.run_system seems like this comment here also says nay

[mellow flint]

yep, didn't work

@idle stone I think run_system_cached is working too well 😄

Eh, I guess it makes sense

From the ECS' point of view, it's a brand new system

or wait

hmm

actually, I don't know how the caching works

[idle stone]

run_system_cached registers the system once and saves its SystemId in a resource differentiated by the type id of the system function, basically

so there's one "slot" for a system per function type

[mellow flint]

hmm I see

@idle stone if you have an idea, here's the relevant code: https://github.com/TheBevyFlock/bevy_simple_subsecond_system/blob/main/macros/src/lib.rs#L157-L161

[elder heart]

I might have it one sec

or I'm on fire

[idle stone]

can you put the SystemState in a Resource?

recreating it only on hotpatch

like in __HotPatchedSystems maybe

the docs for SystemState give an example of that

[mellow flint]

Uff I need to add the 'static lifetimes to all things in there

[idle stone]

also SystemState impls ExclusiveSystemParam

so you could do fn greet(&mut World, SystemState<()>)

[mellow flint]

That would break when changing signatures at runtime

[idle stone]

ah ok

[mellow flint]

The hack to make that work is to let the hotpatched function have a stable signature

[idle stone]

anything in here useful? https://dev-docs.bevyengine.org/bevy_ecs/system/lifetimeless/index.html

[mellow flint]

potentially 👀

I could try to use ...::SQuery as Query

[idle stone]

i wonder if that would fall apart for custom system params though

[mellow flint]

still needs a lifetime

[elder heart]

wait this is important. are you also implying that the hotpatched function's TypeId is stable

[mellow flint]

yep

That's why __HotPatchedSystems works

The keys are stable, the values are not

[elder heart]

because of the registered closure

makes sense

[idle stone]

btw i think you have a memory leak since you keep registering new systems

maybe not a proper memory leak because the ecs world still holds a reference to the memory, but effectively

[mellow flint]

Oh yeah I believe so

[idle stone]

that might not be a huge deal since this is a dev tool and it only increases memory usage when you hotpatch

[mellow flint]

oh wait no

I don't think so

[elder heart]

yeah it's only registered one time

[idle stone]

ah ok that's a different system you're registering

[mellow flint]

At least not if you mean this line

[idle stone]

yeah

[elder heart]

if I can get the TypeId of the hotpatch fn within itself, it's game on

[mellow flint]

That one should be only registered exactly once per system, as the generated exclusive systems have stable type IDs

[mellow flint]

Should be easy

[elder heart]

that is wild that you can

but i guess it is stable

[mellow flint]

yeah 😄

[mellow flint]

use std::any::Any as _;
let id = #my_function_name.type_id();

@elder heart I'll let you cook on your solution

[elder heart]

wait, I wrote out the macro expansion. so I wrote everything manually. it's hot patching on the hotpatch function changing as well

hmm

not expected

I'd expect it to break. I was not expecting typeid to remain unchanged when the body of the function changes. beautiful

[mellow flint]

If that does not work, we may be able to work with this, as long as we insert 'static after every &

[elder heart]

what is __HotPatchedSystem.system_ptr_update_id used for?

[mellow flint]

that's the system ID of the system that in PreUpdate updates the subsecond HotFn pointers

For every hotpatched system, we also spawn a second system that updates its entry in __HotPatchedSystems

[elder heart]

I think then it just comes down into forcing world to update its the function pointer relationship to SystemId on every call so you can always get that relevant state data

[mellow flint]

yeah that sounds about right

[mellow flint]

I used this roundabout way because there is no world.add_systems(PreUpdate, foo)

But I've since learned that you can get Schedules out of World

And that one does have .add_systems

So we could simplify that part now

[elder heart]

What if we add a field here to cache the system_id of the function the user changes. if the world has it, then we'll change the referencing entity in place

[mellow flint]

what do you mean by "referencing entity"?

[elder heart]

SystemId doesn't expose its inner Entity field, the thing that holds the actual system reference

but I feel like there's gotta be a way to change this

[idle stone]

it does, you can use SystemId::entity() or SystemId::from_entity()
