solemn scaffold
Hi,
After migration to Bevy 0.15. The screenshot image does not contains the egui GUI anymore. In Bevy 0.14 the GUI was in the screenshot image.
I tried to change the system order, making sure the screenshot commands was sent after the UI was draw, and pretty much any system order I could think of. But without success.
Does anyone have idea on what I should try? Or is this a bug? Is this a bevy_egui bug or a Bevy bug?
shell monolith
The screenshot code was rewritten for 0.15; I suspect it's capturing something subtly different
Can you open a Bevy bug?
frozen gorge
can you control the schedule at which screenshot is run?
can it be that the screenshot system runs before bevy_egui?
solemn scaffold
@shell monolith Yes I can.
@frozen gorge Yes I can control the schedule. I tried by sending the command to spawn the screenshot entity after drawing the UI and after some systems internal to bevy_egui but without any luck (yet). Maybe I did not try the correct order, yet. I do not know really how to analize the code do decide after which system I should send the command to spawn the screenshot.
shell monolith
I don't think this is a timing issue
I think that we're capturing a different part of the rendering process
Are you trying to screenshot this for testing purposes BTW?
solemn scaffold
@Alice No, I ported my app to bevy 0.15 and now it behave differently. But I could make a quick application just to test this.
shell monolith
No no that's fine: I'm just curious about use cases for the screenshot functionality 🙂
Wearing my product manager hat
solemn scaffold

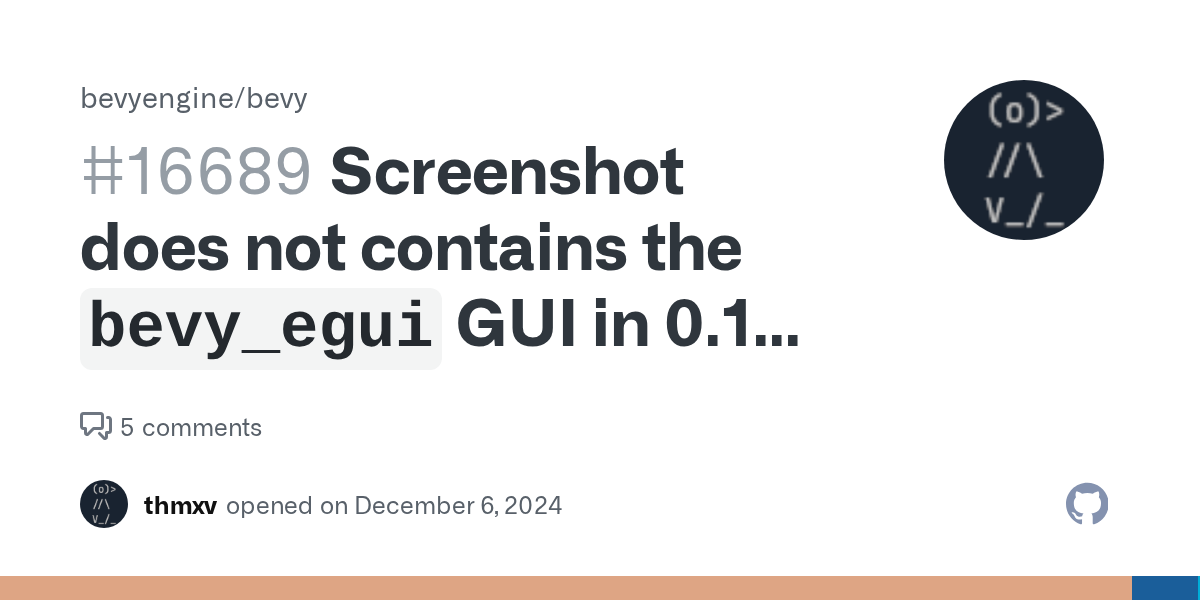

I openned an issue: https://github.com/bevyengine/bevy/issues/16689
Thanks. I am taking any suggestion on what I should look for in the code, or try as a workaround.
shell monolith

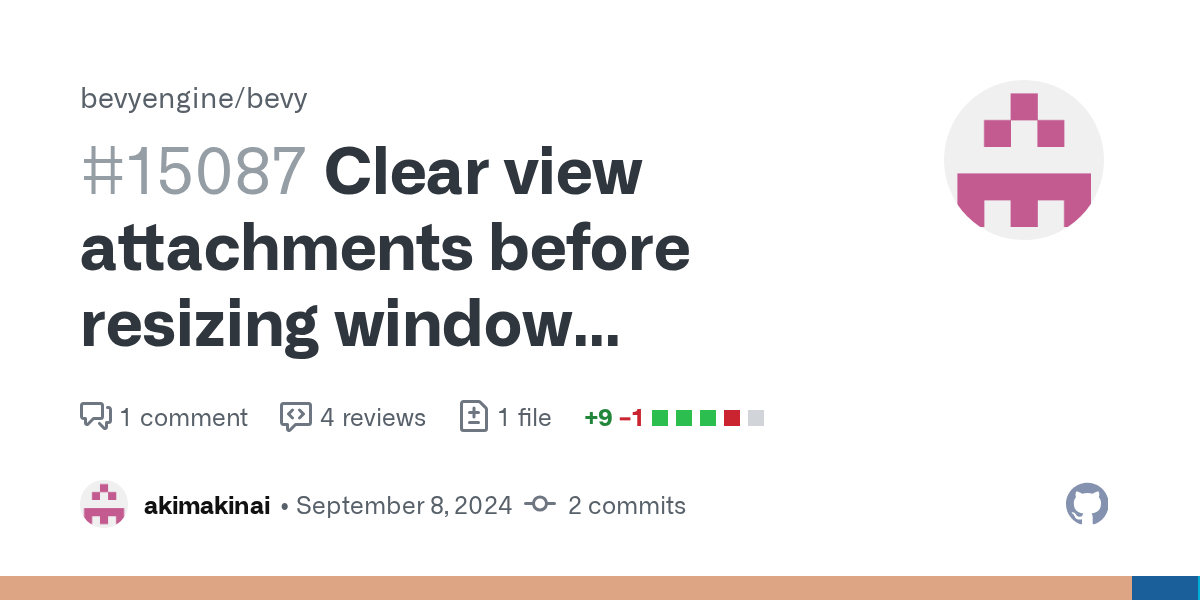

https://github.com/bevyengine/bevy/pull/15087 is a plausible root cause, but so is https://github.com/bevyengine/bevy/pull/14833 by @distant sand
distant sand
i’ll give this a look
solemn scaffold
Thanks. Do you want me to try with different git commit (before and after each merge) to find which pull request introduced the issue?
solemn copper
This is informed by bevy 0.14, but I had a similar problem where the UI was not being captured. It seemed the UI was only drawn to one camera. I could have it in the primary camera or the child camera that was rendered to texture that had the DefaultUICamera component. But not both.
As a workaround, to show the UI on both, I ended up rendering everything to the capture camera and then showing the captured texture in a (100%, 100%) Node in my regular camera. So yeah, not ideal.
