Avian Physics

[cinder summit]

-# Can we have query observers please 🥺

[vestal minnow]

Maybe? Still not 100% sure how we want to handle that split, I think the most correct would be to have a DynamicBody/KinematicBody/StaticBody split, and have them all require a RigidBody marker component. We just need them to be mutually exclusive, so we'd need to do "archetype invariants at home" and have hooks to make sure you always have exactly one of the variants

[cinder summit]

Required components at home is what got us required components early right, so surely archetype invariants at home will get us archetype invariants

But yea having a hook on say DynamicBody that removes KinematicBody and StaticBody OnInsert seems reasonable

Also should we replace normal1 and normal2 with a world_normal like in collisions? 🤔

[vestal minnow]

For shape casts?

[cinder summit]

Yep

Might be on intersections too

[vestal minnow]

For collisions the normal is the outward surface normal on shape 1, but for shape casts you might expect it to be the normal on the shape that was hit by the shape cast

[cinder summit]

Yea I'd expect it to be the normal on what was hit ... Having both normals is very easy to get wrong though since you're always just kinda guessing

[vestal minnow]

But I guess since it's ShapeCastHitData it might already be implied that it's data related to the hit shape

[cinder summit]

+            &mut |hit| {
+                let slope_angle = hit.normal2.angle_between(Vec3::Y);
+                if slope_angle < best_angle {
+                    best_angle = slope_angle;
+                    ground.best_slope = Some(hit.normal2);
+                }
+                if slope_angle < MAX_SLOPE && hit.distance < distance {
+                    ground.closest = Some(hit.entity);
+                    distance = hit.distance;
+                }
+                true
+            },
         );
-        for hit in spatial_query.sphere_hits(ray_cast, ground_cast.radius, false, &filter) {
-            let slope_angle = hit.normal.angle_between(Vec3::Y);
-            if slope_angle < best_angle {
-                best_angle = slope_angle;
-                ground.best_slope = Some(hit.normal);
-            }
-            if slope_angle < MAX_SLOPE && hit.time_of_impact < distance {
-                ground.closest = Some(hit.entity);
-                distance = hit.time_of_impact;
-            }
-        }
```Actually had this diff which got it wrong 🙃

(My old spatial queries only had the normal from the shape that was hit)

[vestal minnow]

Or it's actually called ShapeHitData we should probably rename them as RayCastHit and ShapeCastHit

[cinder summit]

I think ShapeHitData might be used in other places too, but if so that's easy enough to fix

[vestal minnow]

Also we should have a point in world space for collisions, ray casts, and shape casts, it's easy enough to compute but people keep asking about it and it's nice for convenience

[cinder summit]

Guess we should fit some API reworks into that BVH rework then

Cause it's gonna be breaking anyway

[civic wadi]

Actually thats not too different. I missed that when I was looking over #770. Do you think some component to cap this for an entity would be a good idea in conjunction with this then?

[vestal minnow]

The constant acceleration components apply an additional acceleration on top of the body's existing movement. They don't control what the total acceleration including gravity, external forces, collisions, etc. will be. Controlling or limiting a rigid body's acceleration in a reliable way isn't really possible, because the engine operates on velocities, not acceleration.

For example, contacts apply impulses to modify the body's velocity directly and resolve the contact, rather than computing some force and the acceleration caused by that force and then applying that acceleration.

Mathematically speaking, the theoretical contact force for a rigid body is infinite at the time of impact, as the collision would have to happen in zero time with zero deformation (not quite true with non-zero time steps though); if you were to limit the acceleration, high-speed collisions would lead to bodies sinking into each other, as the contact would not be solved instantly but over a longer time with a limit on the contact force.

So I guess to answer the question, you could control the acceleration caused by external forces (gravity, user-applied forces, etc.) but that is largely up to the user to control what external forces they're applying. But limiting the total acceleration, including stuff like contacts, doesn't make sense to me / I don't know what that would look like

[civic wadi]

I figured that was the case for this but wanted to check anyways, thanks!

[vestal minnow]

hah, PartialReflect has an is_dynamic method, so if we made RigidBody a ZST, this still compiles

rigid_body.is_dynamic()

that's a fun one

[visual sparrow]

Maybe leave an is_dynamic implemented that panic!s?

[cinder summit]

• a deprecate if you go that route 🤔

[vestal minnow]

Hmm this does get mildly cursed, let's say someone does this for some reason

commands.spawn((DynamicBody, KinematicBody));

1. DynamicBody::on_addruns -> command to remove KinematicBody is queued
2. KinematicBody::on_addruns -> command to remove DynamicBody is queued
3. KinematicBody is removed
4. DynamicBody is removed
5. oof

I think we can work around this by queuing a custom command that only removes the component if there are other conflicting components left, so that

1. DynamicBody::on_addruns -> command to try remove KinematicBody is queued
2. KinematicBody::on_addruns -> command to try remove DynamicBody is queued
3. KinematicBody is removed
4. Oops, removing DynamicBody would leave no body variant left; skip this
5. DynamicBody is left
   It's somewhat ambiguous which one you would expect to be left in this case, but I think it's better to leave the one listed first, as it's consistent with required component priority behavior

[cinder summit]

Probably emit a warning when that happens too 🤔

[vestal minnow]

Maybe, and slap a #[doc(hidden)] on it so it's not visible in rustdoc?

[cinder summit]

But yea, I think that's just something we'll have to live with and use it as a reason to say "Archetype invariants pls" for the millionth time 🤣

Or we can not remove the other ones, and just emit a warning in the hook if the others are present

[visual sparrow]

and a #[deprecate] for good measure

[cinder summit]

Hmmm, though that warning needs to be delayed too, since you might .insert(DynamicBody).remove::<KinematicBody>() and that would fire the warning if it happens in a hook/observer

[vestal minnow]

WIP branch with a DynamicBody/KinematicBody/StaticBody split
https://github.com/Jondolf/avian/compare/main...rigid-body-split

Migrated pretty much everything and got collisions working like normal, though joints seem partially broken atm

haven't accounted for all the potential edge cases yet

[runic tinsel]

What's the purpose of this change?

[vestal minnow]

This is still very much open to changes and not finished, but mainly the motivations are:

• Way less unnecesary data stored: static bodies don't need mass, velocity, force components, and so on, and kinematic bodies don't need mass either
• Queries can filter by specific types of bodies directly rather than having to e.g. check rb.is_dynamic() in loops, which is both more ergonomic and performant

[runic tinsel]

I guess once we get the opposite of required components, whatever that is called, this would become a lot better too?

[vestal minnow]

If you mean archetype invariants (like an entity with X cannot have Y) then yes, for now I'm doing it manually with hooks

Currently with my implementation, if you .insert(DynamicBody) on a StaticBody, it should currently remove StaticBody automatically to replace it with DynamicBody

because both existing at the same time would be an invariant

From an ECS philosophy standpoint it also feels to me like the different types of rigid bodies should have their own components. They all share RigidBody behavior (non-deformable physics object) but behave in fundamentally different ways, and have different behaviors and systems acting on them based on the type of body

[visual sparrow]

||It removes a third of the code in Avian Pickup /j||

Soooooo many

let Ok(rigid_body) = rigid_bodies.get(trigger.target()) else {
  return;
}
if !rigid_body.is_dynamic() {
  return;
}

[vestal minnow]

I will say that seeing RigidBody::Dynamic or whatever replaced with just DynamicBody in the diff feels strange after seeing RigidBody for so long, but I think it's just a matter of getting used to it

the shorter names are nice, just weird atm lol

[visual sparrow]

Yeah I'll also have to get used to it, looks weird.
But agreed, this is not bad, just my monkey brain going "different, me no like"

[vestal minnow]

The lack of the Rigid prefix feels mildly weird too, but if we look at engines like Box2D, Jolt, or Bepu, they actually just use names likeb2BodyDef or Body or whatever and a separate b2BodyType or EMotionType, the "rigid" prefix is largely redundant in type names

In this case the body is still a RigidBody but the body type is specified via compositional inheritance using the separate components like StaticBody, which feels more ECS-y I think

[vestal minnow]

(side note, "EMotionType" is a funny name to me)

[visual sparrow]

hehe

[calm sundial]

How it will look when Avian has soft body? Imp SoftBody component? Can entity have this KinematicBody and SoftBody component or SoftBody will have it's own sub types?

[sweet sundial]

kinematic softbody? static softbody?

depends on the actual api, but those both sound like a rigid body with a weird collider

[vestal minnow]

I don't think kinematic or static soft bodies are really a thing, it would just be a rigid body then

If it's kinematic or static then it isn't affected by forces so it just doesn't deform like a soft body would

[spring loom]

But we could just provide aliases like type StaticBody = RigidBody::Static something something idk

[cinder summit]

Doesn't work for what we're trying to do, since the goal is to have correct top-level "driver components so the required components can finally make sense (and as a result reduce memory usage with tons of static bodies)

[hoary turret]

completely random question, can things "float" in Avian due to density diffenrence?

they can't right? at least not without putting in some work I guess

[spring loom]

Doesn't that require a Fluid Body/Simulation then?

[runic tinsel]

I don't think air is simulated, only gravity...

[hoary turret]

yep, for accurately simulating it ofc 😅
but you never know what clever hacks hide around

[runic tinsel]

I think you can make your own system for it pretty easily though, assuming you only want to simulate air...

[little maple]

if an entity has a ColliderDensity and a Mass component... does the ColliderDensity do anything?

[runic tinsel]

@vestal minnow Is there a way to get the volume of a collider/physics body?

[vestal minnow]

IIRC the way it works is that ColliderDensity determines what density will be used for computing ColliderMassProperties, and when computing the mass properties of the rigid body, it combines the mass properties of each collider but uses the Mass etc. components instead of ColliderMassProperties if they are present

So yes it affects the mass properties computed for the collider itself, but when computing mass properties for the rigid body, the components like Mass will have higher priority in a sense

[vestal minnow]

You can use collider.mass(1.0) because mass = volume * density and if density = 1 then mass = volume

[vestal minnow]

No but I would like to add an example of buoyancy, so you'd have e.g. a cuboid-shaped sensor collider that acts as a pool of water that bodies can float in

there's a few ways to do it depending on the level of realism desired

Jolt has built-in buoyancy

[spring loom]

If you can simulate air you can also simulate water right? It's just much denser I would assume

[runic tinsel]

Well yes, but then you would have to either deal with the transition between air and water, where osme of the objects volume is in the water, and som is in the air, or have the entire world "be water"

It's easy to simulate a body that is only ever in a single fluid, because you just add a bouyant force to it, based on the bodies volume and the fluids density

[calm sundial]

Reminder that OpenUsd and Gltf physics formats doesn't have explicit separation between static/kinematic/dynamic rigid body and contain bool "Is_kinematic" and static body is considered static if it only has collider without rigid body (IIUC). Doesn't mean we should follow this approach but Avian should be able to parse these formats properly.

At least Unity and Omniverse USD Composer have bool is_kinematic on Rigid body component and static rigid body only has collider without rigid body component in the same way as mentioned formats (IIUC).
https://www.youtube.com/watch?v=Y3xkgpCukow
https://youtu.be/RfD8-X0Zyoc?t=57

[vestal minnow]

Yeah the tricky part with buoyancy is figuring out the submerged volume when bodies are only partially submerged. One super simple approximation is to compute the whole volume of the object, uniformly sample some points inside of it, and use the ratio of how many points are submerged to estimate the submerged volume. Another more sophisticated approach that Jolt uses though is to actually figure out the exact submerged volume; for some shapes like spheres this is pretty trivial, but for general polyhedra it gets more complicated, the Game Programming Gems 6 book describes an algorithm for this

[vestal minnow]

Yeah I think we'd probably just find trees with colliders but no rigid body and add a StaticBody to the root entity in that case

It is worth considering that sort of split in Avian itself too though, where "statics" are separate from rigid bodies; Bepu actually does that too, though it's probably more for optimization reasons

Functionally a StaticBody marker doesn't really do anything and just adds some overhead since you need to attach colliders to that and manage those relationships rather than just making each collider act as its own static thing

The question is more what kind of mental model we want here and what "makes sense"

[calm sundial]

More reasons to have physics_dev channel where we can ask this question.

[vestal minnow]

If we were to copy the model of an "is_kinematic" bool exactly, with an IsKinematic marker component (or just Kinematic), one of the problems I have with that mental model is that turning a dynamic body into a kinematic body fundamentally removes and changes behavior. It effectively forces infinite mass so that it cannot react to any forces, it disables gravity, it should (but doesn't yet) disable collision checks against other non-dynamic bodies, and so on. Components in the ECS should generally be designed to be composable and additive instead, or otherwise they should be treated as mutually exclusive

i.e. adding a component should typically not disable the behavior of another component IMO

unless it is very explicitly for that purpose like Bevy's NoWireframe component, though even that is not overriding a component, it's overriding a global resource's setting for an entity

[vestal minnow]

Worth noting that we do already sort of break this philosophy with Collider and Sensor. A Collider attached to a RigidBody acts as a solid shape that other bodies can bump into, but Sensor kind of "removes" that behavior and makes other bodies pass through it. This might be even weirder as we make sensors a more separate thing with their own intersection graph and broad phase tree and possibly their own events etc.

I've been kind of toying around with the idea of a theoretical split like this

• PhysicsShape: An asset storing a shape used for physics.
• Collider: A component for a Handle<PhysicsShape> that acts as a collision shape that dynamic bodies can collide with.
• Sensor: A component for a Handle<PhysicsShape> that detects when other shapes intersect this one.
• RigidBody: A component for a non-deformable physics object with optional Colliders and Sensors attached to it.
  • DynamicBody: A dynamic RigidBody with non-zero mass that can be moved by velocity and forces.
  • KinematicBody: A kinematic RigidBody with infinite mass that can be moved programmatically with velocity.

In this theoretical split, colliders and sensors would be fully separate concepts, but they would both store a PhysicsShape

Colliders would always be actual colliders, meaning dynamic bodies can collide with them, not pass through them if they're sensors

it feels weird to call something a collider if it doesn't have collisions

but yeah anyway this is all very hypothetical and needs to be thought through and designed properly

I probably won't merge the DynamicBody/KinematicBody/StaticBody split for this release since it feels a bit scary, people aren't sure about it, and IMO there are still some unknowns there

not sure yet

[vestal minnow]

If Alice makes #physics-dev and I can first discuss it there 😉

[visual sparrow]

This this image applies to Alice as well

[vestal minnow]

Also 👀 I think we're using slightly wrong contact points in the solver

Parry returns local_p1 and local_p2 on the surfaces of the two shapes, and then for the solver we just transform those to be in world space relative to the center of mass of each body, but we should be taking the midpoint of those two world space points and making that relative to the centers of mass

So right now the solver is using different two points in world space for the contact point while they should be using the same point, just relative to each body

[little maple]

oh I actually have a question that is probably suited for physics-dev more than here 🤔 about advice on controlling dynamic objects that are flying around

[bold garnet]

we have a physics dev channel

#1397333422401392792

it's right there in the name

[vestal minnow]

let's just start refusing to discuss anything that is not directly related to Avian and then we can send a million examples of why we need #physics-dev to #1397333422401392792

[vestal minnow]

i chose a good name

(I can rename it fyi lol)

[little maple]

a million examples would take forever

like at least a week

[vestal minnow]

true

[little maple]

just imagine how many times the avian api would change by then

||that's a joke pls don't stop improving avian 😭 ||

actually, maybe what I want is to post in #math-and-physics

[vestal minnow]

Does someone have a small body or 3D model that is jittery even when resting on the ground? I'm curious if the contact point bug is the reason for it

I guess I can just make a very small cuboid and maybe stack some of them

nope still seems jittery, hmm

happens with f64 too, which leads me to believe it's not a precision issue but some fundamental bug

[visual sparrow]

I also have an important question for #1397333422401392792

Why does TriMesh look so right, but tri_mesh looks so wrong

[vestal minnow]

I have wondered the same thing

[little maple]

for what it's worth, I did notice just now having one of my items on the ground with high friction made it jittery

[bold garnet]

is it ThreadPool or Threadpool in code? what about threadpool or thread_pool? is it Thread-Pool, Thread-pool or Thread pool or Threadpool in pose?

[vestal minnow]

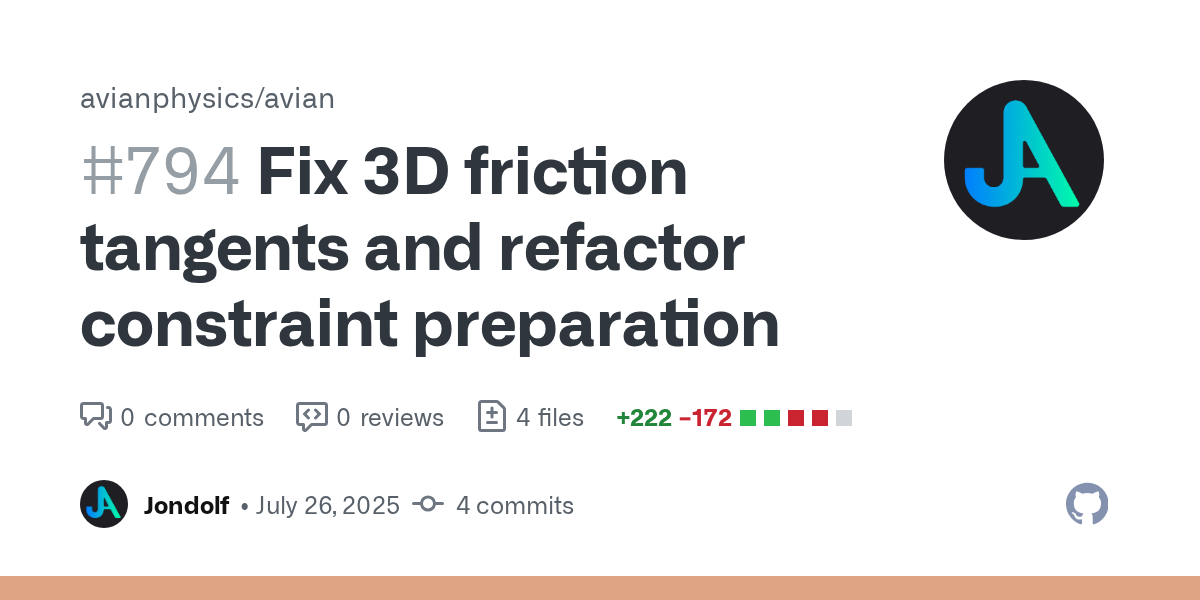

yeah I need to double check and then triple check that the 3D friction implementation is correct

it has had some stability bugs in the past that should be fixed, but it's possible something is still wrong there

[little maple]

it happens with friction 0.0 too 🤷

[vestal minnow]

hmm

Yeah okay Rapier is perfectly stable here with small cubes, so it's an Avian problem. I'm going to prioritize trying to fix this now

Also bevy_rapier seems to have a fun bug where transform scale doesn't seem to be working on the first frame so everything just overlaps and explodes lol

unless I set it up wrong

[little maple]

I'm using Collider::convex_hull_from_mesh for that one

[vestal minnow]

okay Rapier is... strange, how do I even set a fixed time step

• Tries .in_fixed_schedule() -> warning that TimestepMode is set to Variable
• Tries to insert TimestepMode manually (since it's a resource) -> nothing changes
• Finds a with_custom_initialization method for plugin init -> RapierContextInitialization::InitializeDefaultRapierContext (what is this name?) has IntegrationParameters and RapierConfiguration, but neither of them have TimestepMode

Okay you need to insert the TimestepMode resource before you add the RapierPhysicsPlugin, otherwise you get the warning

that's... mildly questionable DX but whatever

I'm annoyed by so many API decisions in bevy_rapier that I kinda want to dedicate a week to fixing them lol

[visual sparrow]

Believe me I'm so happy that I was able to stop using Rapier in favor of Avian, mainly for API and documentation reasons 😄

[little maple]

what have I done

[vestal minnow]

let's make this another "dont normalize twice for no reason" campaign

get 60 different people to keep the chain going

-# please no

[sweet sundial]

component for moving with velocities + component for changing velocities due to forces (et c)?

[cinder summit]

-# Don't calculate AABBs twice for no reason

[thorn solstice]

lol I made the forwarding recursive

[visual sparrow]

pretty good idea

[thorn solstice]

ok so now mine here redirects to yours and yours to mine here, but now it looks like you're spamming #memes, so you could delete the first one and then we'd be left with the cyclical chain without the start

[visual sparrow]

oh that's another great idea

Done

Yesss it works

Take that, LLM scrapping bots >:D

(hope they get stuck lol)

[thorn solstice]

tbh this is another reason we need a #1397333422401392792, making a mess here surely has less visibly

[visual sparrow]

GOOD point!

[summer acorn]

why does ColliderBackendPlugin require ScalableCollider and not just AnyCollider

what even is a detail: u32

why is there a 0.4 here, thats curious. i wouldnt expect a 5^-1 factor in sphere related maths

impl ComputeMassProperties3d for Sphere {
    fn unit_principal_angular_inertia(&self) -> Vec3 {
        Vec3::splat(0.4 * self.radius.squared())
    }
}

lol why is Rotation in a module named position

[sweet sundial]

it deals with transforms, which have scale

[sweet sundial]

where

[sweet sundial]

http://www.hyperphysics.phy-astr.gsu.edu/hbase/isph.html#sph2

[sweet sundial]

isn't anymore on main

[vestal minnow]

I think I copied it from Rapier, some shapes like spheres or capsules don't support proper non-uniform scaling in Parry so you need to use a discretized mesh approximation in those cases

[vestal minnow]

now it's in physics_transform, I'm also going to combine Position and Rotation into a PhysicsTransform soon

[visual sparrow]

Cool resource, thanks 🙂

[cinder summit]

How does avian currently respond if Position and/or Rotation get removed from an entity? 🤔

(Note: there is no SyncPlugin)

[summer acorn]

if i wanted to have a custom transform type and not use Transform, how hard would it be to get avian to play with that

[cinder summit]

On the latest release, just disable SyncPlugin and make your own. On main? things changed so probably hard 🫠

[past escarp]

is there anything besides gravity acting as a force on a body in freefall with no linear damping?

I'm drawing a trajectory arc with the following, and doing a shape cast along each line to find the point of impact. I'm getting really really close, but it's always slightly off and I can't figure out why.

points[0] = point; // Initial firing position

for i in 1..STEPS { // loop through an arbitrary # of steps to draw a line
    velocity += gravity.0 * gravity_scale * TIME_STEP;
    point += velocity * TIME_STEP;
    points[i] = point;
}

// draw a line between each point, etc...

[acoustic spoke]

does the timestep match the fixed post update rate devided by physics substep count?

in this case 64 Hz / 6 assuming default settings i think

[visual sparrow]

There are only a handful of very specific systems that propagate Transformer <-> Position / Rotation. You should be able to easily replicate those. I think on main it’s just 2 systems IIRC.
You’ll also have to do your own interpolation, but that’s also not that hard

[past escarp]

Good question. I will give that a check!

[past escarp]

alright, so I switched to ensuring Im updating with the same time step, and now using avian's integrators, but still running into the same issue with my shapecast being slightly innacurate 🤔 maybe theres some collider margin im not including?

points[0] = initial_translation;
for i in 1..STEPS {
    points[i] = points[i - 1];
    integrate_velocity(
        &mut velocity,
        &mut angular_velocity,
        Vec2::ZERO,
        0f32,
        ComputedMass::new(1.0),
        &ComputedAngularInertia::new(0.0),
        LockedAxes::default(),
        ball_gravity,
        time_resolution,
    );
    integrate_position(
        &mut points[i],
        &mut rotation,
        velocity,
        0f32,
        LockedAxes::default(),
        time_resolution,
    );
}

[torn hinge]

Hi, I would like to integrate Avian into my project in a limited way where I expose just the basic collision detection functionality (and any logic which would help with calculating how to resolve collisions geometrically) but otherwise running all my own logic to resolve things in a kinematic manner for all colliding entities.

Are the any recommendations on how best to do this? I naively assumed I might get away with enabling only the parry-f32 feature and then adding the default plugins but this is not building.

Thanks :)

edit: Now building since I added the "2d" feature. Nonetheless the question stands. Would be interested to know if there are any particular architectural considerations here.

[summer acorn]

its really unfortunate i cant do type Context = Gizmos<'static, 'static>; in AnyCollider

no DerefMut

[crystal cosmos]

What's the best way to debug which colliders might be triggering this? It's happening here in avian2d 3.1

thread 'main' panicked at /Users/choc/.cargo/registry/src/index.crates.io-1949cf8c6b5b557f/avian2d-0.3.1/src/collision/collider/mod.rs:508:9:
assertion failed: b.min.cmple(b.max).all()
note: Some details are omitted, run with `RUST_BACKTRACE=full` for a verbose backtrace.
Encountered a panic in system `avian2d::collision::collider::backend::update_aabb<avian2d::collision::collider::parry::Collider>`!
Encountered a panic in system `avian2d::schedule::run_physics_schedule`!
Encountered a panic in system `bevy_app::main_schedule::FixedMain::run_fixed_main`!
Encountered a panic in system `bevy_time::fixed::run_fixed_main_schedule`!
Encountered a panic in system `bevy_app::main_schedule::Main::run_main`!

[sweet sundial]

can you get more backtrace with the environment variable?

wait, this should only trigger if grow is given a negative vector

do you have a negative collision margin?

[crystal cosmos]

I'm not sure the circumstances that would cause a negative collision margin to exist. I have some colliders that are moving very fast which is the only physics thing happening at the moment. I don't understand the correlation between the speed of collider and collision margin

[sweet sundial]

i'm just looking in update_aabb for the word grow

[crystal cosmos]

well I worked around it by removing the Collider after I no longer need it. It was for picking up coins that moved towards the player mouse after being clicked, they speed up the longer it has been since the click. At high speeds they sometimes trigger that panic 🤷

So I remove the collider as soon as they're clicked and the problem stopped happening.

[sweet sundial]

this was assuming the aabb was already valid, but that'd mean Collider as AnyCollider has some invalid shape when it's calculating the aabb

[crystal cosmos]

They're all just Collider::circle(5.), and I don't touch the collider or scale after creation, only the translation

[vestal minnow]

typically this means your position or rotation is NaN for some reason

[echo parcel]

Are there any video tutorials about avian physics?

[lone glade]

Is there any way to toggle debug rendering at runtime?

[visual sparrow]

Yeah, you can toggle the gizmo config. Check Foxtrot for an example

(Can’t link well because I’m on the phone rn, but it’s in src/dev or something like that)

[vestal minnow]

I don't think so

the main learning material currently is the docs.rs documentation and the examples in the repo

game jam games that use Avian might also be a useful reference for "real-world use"

most of the core features and concepts also tend to be largely the same across different physics engines even outside of Rust, so looking at other engines' docs and resources can also be useful for understanding things

[vestal minnow]

(as for why there are barely any video tutorials, I imagine that's because both Bevy and Avian have rapidly evolving APIs and features, and are quite young)

[vestal minnow]

PR for changing ContactPoint to store a world-space anchor1 and anchor2 relative to the center of mass, and a world-space point, and a normal_speed
https://github.com/Jondolf/avian/pull/792

FYI @visual sparrow, the normal_speed is another way to judge how "strong" a contact is, -normal_speed is equivalent to an "approach speed" indicating how fast the objects are approaching each other at that point

Unlike a normal_impulse, this is not dependent on mass or the time step since it's just a relative velocity

(also cc @cinder summit since you might need to adjust your SDF contacts a little for this lol, it shouldn't be too bad though)

the diff for the built-in Parry contact manifold computation is like this
(the old one might be a bit unclear but it's just passing local_point1 and local_point2 to ContactPoint::new)

[visual sparrow]

Ah thanks!

[willow elbow]

Hello, I just came back from holidays and my app runs now at 60fps whereas it used to run at 120fps. It's not necessarily due to Avian but does anybody have a clue? I cargo updated the project but it was already bevy 0.16.1

[visual sparrow]

Avian should be faster, not slower 👀

[willow elbow]

to be fair I updated after seeing the fps drop hoping that would fix something but it didn't

[visual sparrow]

You could take a look at tracy to profile

[willow elbow]

the thing is that I didn't change a single line of code since. Also, I tried building in release mode and it's still at 60 fps. So I'm not sure tracing would be beneficial at all. Also, if it was about performance, it should probably go lower than 60, but it's like there's a cap that prevents from going up

[vestal minnow]

vsync is enabled by default in Bevy so if you're on a 60 Hz monitor, it caps at 60 fps

[willow elbow]

it was the monitor settings indeed! thanks a lot 🚀

[vestal minnow]

Huge stability improvement! Especially for small objects or objects with low angular inertia ;)
https://github.com/Jondolf/avian/pull/794

Before

After

@little maple @hoary turret I bet this fixes (or significantly reduces) the jitteriness and instability you were seeing

[vestal minnow]

Note that these are 10 cm cubes (i.e. sides have a length of 0.1) at a gravity of 9.81 m/s² with 6 substeps

I can go below 1 cm and the cubes are still not jittery on the ground (though gravity is too high at that point to keep the stack from falling over)

yeah okay below 1 mm is fine too if you lower the gravity

rendering is scuffed though, I need to tweak the camera

[vestal minnow]

Merged already, but do let me know if it causes any new weirdness

[hoary turret]

Brother you're the goat

I'm going to test it straight away

❤️

[visual sparrow]

Did you forget to call time.unpause()?

Jokes aside, that's wayyyyyyyy better. Impressive!

[visual sparrow]

I may be able to stack cans on top of each other again 😉

They were a bit jittery before haha

[hoary turret]

@vestal minnow I'm getting lots of compile errors after updating to the latest commit 🤔

but theoretically it's pointing to bevy 0.16

imma try cargocleaning just in case

(its over, 15 minutes compile time heh)

[vestal minnow]

Running fine for me 🤔 What are the errors about?

[hoary turret]

Mostly related to what seems like a version missmatch with I think is glam?

it was complaining about Vec3s and Scalars

if it's still wrong after cargo clean I'll start giving it a thought

fuk

okay everything is bevy_math

I mean I've got nothing weird going on

[vestal minnow]

Those modules don't even exist on main anymore

sync or position or prepare

Do you have two conflicting versions of Avian? One using main and one using 0.3

maybe through another dependency if you happen to have something else that uses it

you might want to patch the dep
https://doc.rust-lang.org/cargo/reference/overriding-dependencies.html

also make sure the Cargo.lock is updated and not somehow broken

[hoary turret]

Uh wait, maybe this could be the problem?

I'm using bevy_trenchbroom which integrates with Avian

bevy_trenchbroom = { git = "https://github.com/Noxmore/bevy_trenchbroom.git", rev = "a8454bf28292158f5b843cacf44d3023c6260260", features = ["avian"] }

so it is probably pulling the latest release of avian and it cannot work together

this makes me sad big time because I truly want to test that out immediately 🥲

I think Imma temporarily fork bevy_trenchbroom just to test this haha

[oak vigil]

Hey, I have a weird issue where if I raise the time scale (Time<Virtual>), I get really bad FPS, even if I have no rigid bodies in the scene. I've been debugging/profiling and it seems like because time delta is larger, it causes FixedPostUpdate to run more frequently, which increases the time delta, which causes FixedPostUpdate to run more... and so on! Until it stabilizes at an awful frame rate. Is this normal?

What's the correct way of controlling time with avian? I couldn't find any examples

Zoomed in:

I could get around this by using Time<Fixed>::set_timestep, but that makes the movements very choppy. So I'm not sure if that's the correct way

Also, it feels odd to me that Fixed time is derived from Virtual rather than Real time. 🤔
Cause then what's the point of Time<Physics>::set_relative_speed?
If I set Time<Virtual>::set_relative_speed to 2x it would cause physics to update twice. But if I set Time<Physics>::set_relative_speed to 2x as well, wouldn't that cause things to move 4 times as fast?

[sweet sundial]

would you rather Time<Virtual> not effect physics?

[oak vigil]

I'm not sure. I was assuming to control time scale, I would have to set virtual time relative speed and also physics time relative speed to "synchronize" them

But from what I see, that isn't correct

And if virtual time affects the number fixed steps, then also what's the point of SubstepCount?

[sweet sundial]

those are substeps

step count != substep count

[bleak wadi]

how do i increase the timestep hz?

[sweet sundial]

specifically, the physics simulation runs every FixedUpdate, and during that a shorter inner loop repeats SubstepCount times

[bleak wadi]

so i should increase fixedupdate?

[sweet sundial]

https://docs.rs/bevy/latest/bevy/time/struct.Time.html#method.from_hz and a ResMut<Time>

oh wait https://docs.rs/bevy/latest/bevy/time/struct.Time.html#method.set_timestep_hz is better

[bleak wadi]

will that speed everything up so i would have to adjust movement values to match?

[sweet sundial]

no

[oak vigil]

I get that, but I guess I'm confused about what happens during step vs. substep.
Maybe I'm misunderstanding the docs. But in my mind, substep is specifically to handle accuracy in high time delta.
So I was assuming if I increase the relative time speed, for example, I'd have to also increase the substep count to maintain accuracy

For if I increase the virtual relative time speed, the Fixed update will be called more, which WOULD maintain the accuracy

So then why would I ever have SubstepCount not be 1?

[sweet sundial]

substeps are only a little bit of the overall simulation, they don't even do collisions iirc

[oak vigil]

Ah maybe I misunderstood the concept then

[bleak wadi]

oh this is great, thanks.

[sweet sundial]

https://docs.rs/avian3d/latest/avian3d/dynamics/solver/schedule/enum.SubstepSolverSet.html

[bleak wadi]

is there any reason not to set the timestep to multiple hundreds

[sweet sundial]

of?

[bleak wadi]

physics

i guess performance depending on the type of game

[sweet sundial]

hundreds of*?

[bleak wadi]

ah sorry, hz

[sweet sundial]

yeah, performance

[bleak wadi]

for a metroidvania it shouldn't be too much of a bottleneck right? at least in the cpu frametime it seems to have very little effect

[sweet sundial]

i had mine at 144hz for a while, but it turned out to be expensive and unnecessary

currently at 72 hz, dropped it to 24 hz for a while to fix issues in my math that aren't obvious at high time resolutions

[oak vigil]

Doesn't raising it make movement choppy though?

[sweet sundial]

interpolation

[visual sparrow]

@vestal minnow something whacky is going on with the trimesh of a Plane3d

[bleak wadi]

i had a lot of ghost collisions at the default 64hz, i've got it at 256 now and it's really smooth

i might turn it down though

[visual sparrow]

let shape = Plane3d::new(Vec3::Y, Vec2::splat(25.0));
let collider = Collider::from(shape);
let trimesh = collider.shape().as_trimesh().unwrap();
println!("trimesh: {:?}", trimesh.vertices());

[sweet sundial]

PhysicsInterpolationPlugin::interpolate_all + explicitly exclude camera + hermite easing on small objects

[visual sparrow]

Prints

trimesh: [[10000.0, 0.0, -10000.0], [-10000.0, 0.0, -10000.0], [-10000.0, 0.0, 10000.0], [10000.0, 0.0, 10000.0]]

Is it possible that the collider ignores the plane's half size?

Oh lol I see

Is that intentional?

That should be self.half_size instead imo

[sweet sundial]

probably copied from the unsized plane

[visual sparrow]

ooooooh that makes sense

Lemme PR then

[visual sparrow]

Or from Plane2d, which is also unbounded 😛

[sweet sundial]

wow bevy_math's got weird names

[visual sparrow]

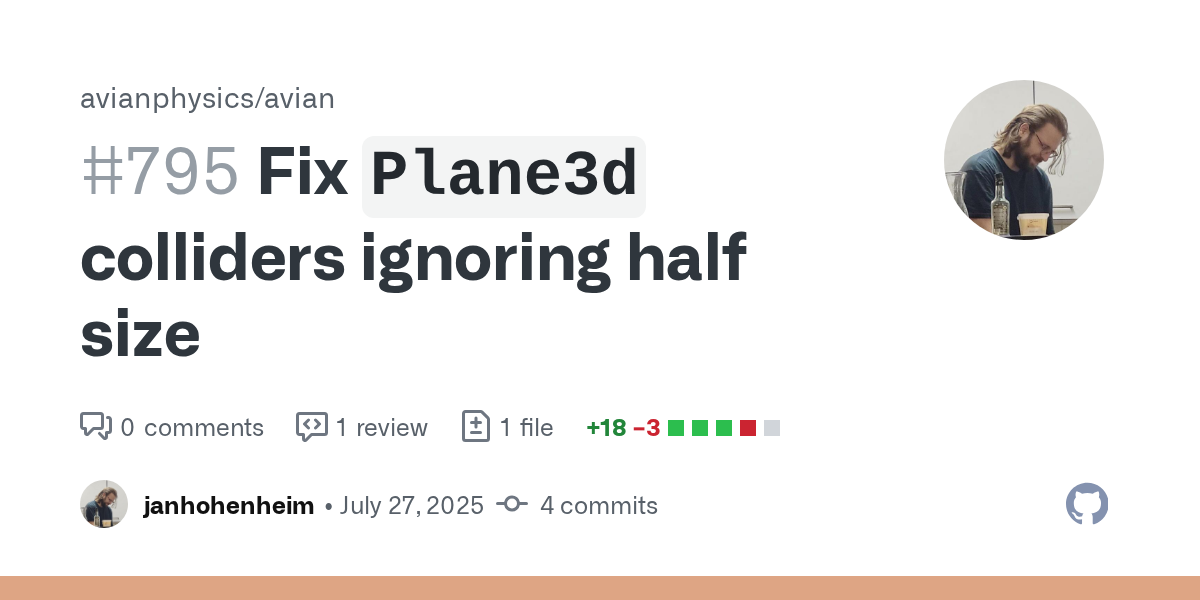

https://github.com/Jondolf/avian/pull/795

Simple as

thx for the hint @sweet sundial

Also added support for InfinitePlane3d using the old behavior while on it

[visual sparrow]

The infinite 3D plane was surprisingly not actually supported yet

[sweet sundial]

if you need a punchline i have a bunch of (Collider, Mesh3d), most of which are just IntoCollider + Into<Mesh>, the lone exception being (Collider::half_space(..), Mesh3d(Mesh::from(Circle{..})))

[visual sparrow]

Relatable, here's my rasterization code:

Also had to just give up for those haha

Hold up, why shouldn't InfinitePlane3d be a half space instead

[sweet sundial]

because things can be on either side

[visual sparrow]

oh, fair enough

[sweet sundial]

could be modeled as two halfspaces with different collision layers i suppose

[sweet sundial]

by the way i made a really big sphere to try and have visible ground to match the atmosphere shader, but as soon as i made it a static body it started jittering constantly

[vestal minnow]

Time::<Physics>::set_relative_speed scales the delta time used by physics, but it does not affect how often physics is updated. This means that with 2x speed, it would take 2x longer steps, unless you also reduce the time step from e.g. 64 Hz to 128 Hz or something. So changing the relative speed of physics affects behavior.

Time<Virtual> is meant to be kind of like a gameplay clock determining how fast the gameplay is. So it makes sense that it also affects schedules like FixedUpdate. However the difference for physics is that the relative speed of virtual time does not change the physics time step, it only affects how frequently physics runs. This keeps behavior consistent and deterministic even if you had some slow-mo effect, unlike when changing the relative speed of physics, at the cost of a lower update rate when in slow-mo (needs interpolation to look smooth) and a higher cost in fast-forward.

[vestal minnow]

I think it just didn't originally exist and I didn't implement it yet when it was added to Bevy

there might be a few more 2D shapes like that

[vestal minnow]

Substeps are only for the solver, a single physics step is roughly like this (simplified)
Broad phase collision detection -> Narrow phase collision detection -> Run solver for N substeps

Constraints such as contacts and joints are solved iteratively, and using substeps helps things converge on the solution better

Increasing the time step Hz can have the same (or better) effect, but you need to pay for the more frequent collision checks, which can be expensive

And oftentimes you might want your gameplay logic and physics to run at the same rate, and might not want a super high update rate for your own logic

So it's a balancing act of stability vs. perf

[bleak wadi]

@vestal minnow did you see my messages? after reading this it seems substeps could be good for my usecase?

[vestal minnow]

Depends on what interactions you have going on, if there is no stacking of rigid bodies or other more complicated collision scenarios then you probably don't need many substeps

Using a higher tick rate (Hz) can be useful if you do need more frequent collision checks for some reason, like to reduce ghost collisions in your case

for ghost collisions you can also try to set the SpeculativeMargin to zero to disable speculative collisions (but you risk tunneling at high speeds or clipping into things slightly), try more rounded shapes, try to manually maintain a small separation from the ground, etc.

or if this is a 3D triangle mesh collider, use TrimeshFlags::FIX_INTERNAL_EDGES, but your game is 2D afaik?

[cinder summit]

Now that this has been reworked, how do we want this to reflect in ShapeHitData? I should probably wrap up that spatial query rework, but I still need to fix the sillyness in those types (especially things like the QueryCollider trait allowing you to return an Entity, which will always be overwritten anyway)

[oak vigil]

Thanks for the explanation. 🙏 In my game, I mainly scale the time up (i.e. speed up). Does this mean I should use TransformExtrapolation instead of TransformInterpolation?

[vestal minnow]

Interpolation and extrapolation are both just ways to ease transforms to make movement appear smooth. Interpolation eases between the previous and current transforms, while extrapolation eases between the current transform and a predicted next transform. It's mostly useful if your fixed update rate is lower than the monitor's refresh rate

In general you should just use transform interpolation

The trade-offs are that interpolation can lag behind a bit since it's using old positions (usually not very noticeable), while extrapolation is more snappy but can cause jarring movement when the prediction is wrong, for example when your movement's trajectory suddenly changes

[oak vigil]

It's mostly useful if your fixed update rate is lower than the monitor's refresh rate
This is currently what I'm doing on higher time scales to help with performance:
fixed.set_timestep(Duration::from_micros(15625 /* 64 Hz */).mul_f32(ratio));

I tried using interpolation last night, but my entities (kinematic, velocity based) would over/under shoot their targets on higher scales

Interpolation seemed to help, but it's still a problem

[vestal minnow]

Hmm, maybe something like this? 🤔

pub struct ShapeCastHit {
    /// The entity of the collider that was hit.
    pub entity: Entity,

    /// How far the shape travelled before the initial hit.
    ///
    /// If negative, the shapes are intersecting, and this represents the penetration depth.
    #[doc(alias = "time_of_impact")]
    pub distance: Scalar,

    /// The hit point in world space.
    ///
    /// If the shapes are penetrating, this will be the midpoint between the closest points
    /// on the surfaces of the two shapes.
    pub point: Vector,

    /// The outward surface normal on the hit shape at the hit point in world space.
    pub normal: Vector,
}

I think it'd be waaayy less confusing and much easier to use than the existing setup

For penetrating cases you can also still figure out the points on the surfaces of the bodies based on the world-space point, penetration depth, and normal, if you needed that for whatever reason

The downside is that a world-space point is subject to precision-loss at large coordinates, but eh idk if it's really a problem. We could still additionally store the points relative to the shapes' positions if we wanted to

[cinder summit]

Yea, that would work 👍

Should help with some of the footguns when using the API, and it makes implementing this trait a lot easier

[vestal minnow]

Yeah Parry's version is a bit less... user-friendly

[cinder summit]

Not that the API in avian 0.3 is particularly great either, especially since it's not consistent with collisions

[vestal minnow]

yeah imo it's nice if the different types of hit results are mostly consistent with each other, do what you'd expect, and are in world-space so you don't need to manually transform things from local space

I'm not sure when a typical user would need local-space values

[little maple]

I'm still getting some slight jitter but idk, it might be partially the collider shape and the size of the entity. I realized the other day that my game's scale might be kinda small.

it's definitely better though

[little maple]

this was before

[visual sparrow]

I experience similar jitter for cans of realistic proportion IIRC

I believe I hacked around it by increasing their mass / density

[little maple]

maybe it's just cans 🤔

[vestal minnow]

is that a Collider::cylinder or a mesh or convex hull?

[visual sparrow]

@vestal minnow said something about Parry not being very accurate for some shape combinations

[little maple]

Collider::convex_hull_from_mesh

I made that one a long time ago and haven't gone back and change it. I think using a cylinder collider would make more sense

[vestal minnow]

yeahh I mean it's kinda hard to tell what is collision detection inaccuracy and what is a simulation bug, for a while I thought the problem with small shapes was a Parry problem but it was more of an Avian thing with the friction bug

a decent way to tell if it's an Avian thing is to try the same with Rapier

[visual sparrow]

Avian Pickup still has weird workaround code in it because Parry's raycasts often falsely return no hits

[vestal minnow]

if they both have the same problem, it might be Parry, or a fundamental simulation limitation

[vestal minnow]

I wonder if rolling resistance would help for this specific problem

I could implement it if y'all have a use for it

(Box2D has it too :P)

or just throw some AngularDamping on it

[little maple]

It's honestly not a big deal for me

for my use case

I mean, I get that "no, it has to be right!" perspective lol

[vestal minnow]

why does bevy_rapier wrap the hit points and normals in a separate ShapeCastHitDetails struct

is using them so unergonomic that they need to be hidden from the API

oh it's if you don't compute the points and normals, right

[visual sparrow]

Does it go away when you increase the density?

[cinder summit]

Okay, changed the API and this actually seems like it makes a lot more sense in my codebase, why did I not do this from the start

And the shape intersection point/normal/penetration I internally have in the trait now actually gets returned ... I'll have to see if that's viable to keep when I add the parry impl though

Never made sense to me how shape intersections don't tell you what they hit, just a boolean

[torn hinge]

is this the correct way to pull per-frame avian logic into FixedUpdate and run my own stuff before/after?

pub struct AvianPlugin;

#[derive(SystemSet, Debug, Clone, PartialEq, Eq, Hash)]
pub struct PrePhysicsSet;

#[derive(SystemSet, Debug, Clone, PartialEq, Eq, Hash)]
pub struct PostPhysicsSet;

impl Plugin for AvianPlugin {
    fn build(&self, app: &mut App) {
        app.add_plugins((
            PhysicsPlugins::new(FixedUpdate),
            avian2d::debug_render::PhysicsDebugPlugin::new(FixedUpdate),
        ))
        .add_systems(FixedUpdate, add_colliders.in_set(PrePhysicsSet))
        .configure_sets(
            FixedUpdate,
            (
                PrePhysicsSet,
                (
                    PhysicsSet::Prepare,
                    PhysicsSet::StepSimulation,
                    PhysicsSet::Sync,
                ),
                PostPhysicsSet,
            )
                .chain(),
        );
    }
}

[little maple]

haven't tried that.. the mass is 10

I thought that... if I am setting the mass then the colliderdensity doesn't get used?

[visual sparrow]

Yep

[cinder summit]

By default it runs in FixedPostUpdate and you'd run your own code in FixedUpdate I think ... That's how I do it in my game (or well I technically use my own schedules called Simulation(Pre/Post)Update)

[visual sparrow]

I was asking about increasing the mass through any means, sorry for the confusing wording 🙂

[visual sparrow]

Why not run your systems that want to be after Avian in FixedPostUpdate, scheduled after avian?
Seems like less of a hassle

[cinder summit]

Yep, if it needs to be after I'd suggest throwing them in FixedPostUpdate with a constraint or FixedLast

[torn hinge]

That works too, how would I shedule it after Avian though? Something similar to the example I posted?

[visual sparrow]

app.add_systems(
  FixedPostUpdate,
  my_system.after(PhysicsSet::Sync)
)

or better

app.configure_sets(
  FixedPostUpdate,
  (
    PhysicsSet::Sync,
    PostPhysicsSet
  ).chain()
)

Note that you don't need to schedule your pre-physics sets if you use them in FixedUpdate 🙂

@vestal minnow what's your take on Vec3A vs Vec3?

[vestal minnow]

(you might want a chain in that second one)

[visual sparrow]

Ha, good catch, thanks

[visual sparrow]

For the navmesh stuff, I just naively used Vec3A everywhere because "Unga bunga SIMD 🐒 "

But when interacting with Bevy API, it consistently requires Vec3

So I have a ton of Vec3::from(some_vec3a) in the Bevy integration

Of course the real answer is "profile and find out", but do you have some rule of thumb or experience to share before that?

Oh btw, the trimesh from mesh stuff was not the problem: #1364848195670114325 message
Thanks for helping me debug that 🙂

[vestal minnow]

Right now Avian just uses Vec3 almost everywhere because we have f64 support and the feature-dependent Vector shenanigans, and I don't want to deal with special-casing f32 just for Vec3/Vec3A conversions everywhere, but if we (or reduce) f64 stuff then we'll probably use Vec3A a bit more

[visual sparrow]

Ah so that's the reason. I was wondering why Avian used Vec3 so ubiquitously

[vestal minnow]

I don't have a specific rule though, if you do a lot of SIMDfiable ops somewhere then it's good to try Vec3A and ideally profile if it's better

I generally wouldn't just default to using it everywhere, but idk I haven't benchmarked it much

[vestal minnow]

Also I'd really like to do this, IMO we should only support f64 for positions and any other world-space values that can have large coordinates

For the solver internals or velocity or material properties or anything like that it doesn't really make sense

[visual sparrow]

I'm more iffy about the API

[vestal minnow]

I guess you can support larger/smaller mass properties with better accuracy but at that point you might hit the solver's limits anyway

[visual sparrow]

Since exposing Vec3A makes it inherently friction-ful (what's the right word?) with Bevy

[visual sparrow]

makes sense

[vestal minnow]

Yeah I would generally just use Vec3 for public APIs (and maybe like impl Into<Vec3A>) but use Vec3A for internals where performance matters and it has an actual benefit

[visual sparrow]

Sounds reasonable. Thanks for the chat 🙂

[cinder summit]

impl Into<Vec3A> ALL the things!

[dreamy viper]

Sync has been split into Prepare and WriteBack?

https://github.com/Jondolf/avian/pull/785 👀

[paper hamlet]

Hello, sorry for the silly question. I think I am missing something conceptually and could use some help. I am making a simple scene where this cylinder is the ground, and generating a collider for it.

    // circular base
    commands.spawn((
        Mesh3d(meshes.add(Circle::new(20.0))),
        MeshMaterial3d(materials.add(Color::WHITE)),
        Transform::from_rotation(Quat::from_rotation_x(-std::f32::consts::FRAC_PI_2)),
        ColliderConstructor::Cylinder { radius: (20.0), height: (0.5) },
        RigidBody::Static,
    ));

Though when I am looking at it with the debug plugin, it appears to orient perpendicular like it isn't getting the Transform rotation for the mesh. What am I missing?
Thank you in advance!!

[vestal minnow]

A circle mesh in Bevy is on the XY plane by default. But cylinders are upright with the circular bases on the XZ plane. So they're perpendicular to each other in your case

You could make either the mesh or the collider a child entity and transform that separately

Or alternatively use a cylinder for the mesh too

[paper hamlet]

That is very good to know. Thank you!!

[vestal minnow]

(also the reason for this is that for 2D shapes like circles you need to have them on the XY plane since the camera is pointing toward -Z, but for 3D shapes like cylinders you kinda expect them to be upright and to rest on the ground by default)

[paper hamlet]

OOHHH! Ok that makes a lot of sense. Does that extend to squares and cubes/rectangular prisms, etc as well

[vestal minnow]

Yeah circles, ellipses, rectangles, polygons, etc. are on the XY plane, and cylinders, capsules, tori/toruses, cones, and so on are upright

[paper hamlet]

Ok great. This intuition I am sure will be useful many times in the future so thanks for that

[viral goblet]

I moved my avian logic to a different crate and now when I try to run the game I get:

I have no idea what changed

Has anybody ever had anything similar?

[drifting marsh]

would it be a good choice to rely on Avian's determinism for a p2p deterministic game? or should I roll my own physics?

[visual sparrow]

Avian is fully deterministic if you enable the enhanced-determinism flag AFAIK, so you can use it.

[drifting marsh]

I'm aware of the flag, my question is more about how well it works. I had some issues with determinism with Avian in the past.

[visual sparrow]

There are tests in place to guarantee determinism. If you run into an issue, it’s a bug and will be fixed.

[echo parcel]

Where to enable it?

[visual sparrow]

It’s a crate feature, enable it in your Cargo.toml 😉

[echo parcel]

Ok, thanks

[dreamy viper]

it works well

[drifting marsh]

Does it also work cross platform?

[echo parcel]

Can I include somewhere in avian things like air resistance, drag coefficient etc?

[vestal minnow]

with enhanced-determinism yes

that feature should really be called cross-platform-determinism or math-determinism or something

Avian is locally deterministic even without that feature, it's just for cross-platform deterministic math via libm

[vestal minnow]

You can use LinearDamping and AngularDamping to slow rigid bodies down over time using exponential decay, which can emulate a basic air resistance-like effect. Aerodynamics and accurate drag are way more complicated and out of scope though, they are heavily dependent on the shapes and orientations of objects

[echo parcel]

Yes, so I want make en as accurate simulation as possible. What parts of the avian can I use. Gravity, some functions to add/modify e.g. angular rotation, and collisions, but is there anything more that would be usefull?

[vestal minnow]

Depends on what you need. The APIs for applying external forces and torques to bodies might be useful (note that these were recently reworked on the main branch), and maybe spatial queries like ray casts

and of course mass properties, but that's handled automatically unless you want to manually configure or compute them

[echo parcel]

How can I extend avian to add my own computations or integrate my own calculations into it in any other way

[vestal minnow]

For aerodynamics stuff I would imagine you just compute a force and torque to apply to the body and then apply them in FixedUpdate like normal gameplay logic

Or you could schedule your own systems directly inside the PhysicsSchedule or even SubstepSchedule, but those are more prone to breakage and changes

[echo parcel]

Does any of the examples showcase this?

[vestal minnow]

Or even replace some of Avian's plugins with your own, but again, you need to know what you're doing there and internal physics logic can easily break or change in a future update

[vestal minnow]

I think there's one for a custom broad phase and one for a custom distance constraint

but like it all depends on what you're trying to do, you need to figure out the scheduling and stuff from the system sets if you're trying to insert your own systems in Avian's internal schedules

I don't know any other engine where you can even insert your own logic like that (and I don't generally recommend it) beyond dedicated hooks for specific things like contact modification, which Avian does have too

[cinder summit]

@vestal minnow what's your opinion on this set of traits and types btw? https://github.com/NiseVoid/avian/blob/generic_spatial_query/src/collision/collider/mod.rs#L345-L470
And do you think these would be easy to implement for parry?

-# (For parry, CastShape and Shape would probably be either Collider, a type like it without scale, or just SharedShape)

[echo parcel]

Can you point which ones are showing this?

[vestal minnow]

the ones called custom_broad_phase and custom_constraint

[echo parcel]

Oh, right...

Could've guessed xD

[vestal minnow]

1. We should probably make AnyCollider reuse the bounding trait instead of both having their own versions of AABB methods
2. We can probably make ColliderAabb a wrapper over Aabb2d/Aabb3d if we only support f32 anyway for the BVH. Then we can return Aabb2d/Aabb3d from shape_aabb (I would maybe call this aabb_with_context)
3. Does QueryCollider need to implement AnyCollider? Or could it be a fully separate thing with its own Context?
4. ray_normal feels strange to me. If you have the normal, then you should typically also have the distance. I would just call these ray_distance and ray_cast or something, where ray_cast returns a QueryRayCastHit
5. shape_hit should just be shape_cast IMO
6. I would rename hits_point to contains_point
7. I would maybe rename shape_intersection to contact? Though I think I would personally just have a method to query for AABB intersections with the BVH, and then users can further do their own contact computations for those shapes, whether that's with contact or contact_manifolds or something else
8. FYI, the intent with the shape intersection methods that just return a bool is that they can be way faster than computing actual contact data. You never need EPA, and a lot of the analytic intersection tests are also more optimized than the contact computations

Also I wonder if there's a way to hide the Context stuff from the API with a ContextShape wrapper or something 🤔

[visual sparrow]

If only the Bread Phase PR landed, this would be much easier to understand

[vestal minnow]

Oh wait ray_normal takes a point and not a ray

[cinder summit]

Yea, ray_normal just computes the remaining info when we know a hit actually needs it

So like, not one that is filtered out for not being the best hit

[cinder summit]

1: That makes a lot of sense actually
2: Yea, ColliderAabb was getting a bit clunky too,
3: I think these are in theory seperate, so we could split them appart
4: see above
5 + 6: Makes sense
7 + 8: Yea, probably makes sense to change that API a bit, my SDF collider impl basically just wraps contact_manifolds, though in theory I could make a slightly faster one that just returns a bool (but ime that's often not enough data)

On 1 specifically .... The weird bounding trait that gets context was originally just a quick hack to get things to actually work, so I never considered the fact that colliders could use it too

Would the non-manifold contact method still be on QueryCollider or just on AnyCollider with a default impl that just does the manifold but then s the manifold data?

[cinder summit]

I'll see if I can cook up something nicer, I hate that Context param on the bounding trait 🤣

If we get rid of that I think we can also just use Bounded2d/Bounded3d directly too ...

[vestal minnow]

Hmm, I think either not have it at all on the traits or have it on QueryCollider

AnyCollider should be scoped to what colliders need to function as colliders, meaning what they need for the broad phase and narrow phase and for rigid body sim

QueryCollider can be for additional geometric queries and spatial queries

[cinder summit]

I mean if we don't have it at all then it would regress shape intersection perf for parry no? 🤔

[vestal minnow]

We already don't have a spatial query for contact computations, we only have shape_intersections which doesn't compute contact data and just returns intersecting entities

[cinder summit]

Also just curious, what data do you actually get if you try to get a boolean contact check, is it just a boolean, or is there something like the penetration depth and direction there? 🤔

[vestal minnow]

Parry supports three levels here

• Intersection test: Just does the minimal work to determine if two shapes intersect. For example, a ball-ball intersection test is literally just center_distance_squared <= sum_radius_squared.
• Contact: Computes a single contact point between two shapes, with a penetration depth and normal, typically just running GJK+EPA for most shape pairs.
• Contact manifold: Computes a whole contact manifold in one shot, often consisting of multiple contact points. Typically uses SAT and/or GJK+EPA and contact clipping.

The middle one with a single contact point is usually the least useful IME unless you're building contact manifolds incrementally or something

[cinder summit]

For a lot of gameplay things just getting that contact can be all you need, but for the actual physics it's not particularly useful 🤔

And of course sometimes intersection test is all you need too, like "Can I place this here or does it overlap anything?"

[vestal minnow]

Or even something like selecting all entities in some selection box or lasso selection tool or something

[cinder summit]

But for cases like "Did this AoE hit an enemy" you might start to care about where the hit was so you can put some vfx there

Gameplay logic gets so annoying when you start adding vfx

[weary hornet]

Hey how do you recon a high detailed mesh would perform on the physics end? Like, instead of using a heightmap for terrain I'm thinking of sculpting it in something like Substance Modeler and converting to meshlet for the rendering side.

I guess I could run it through a decimator if I have to

[cinder summit]

Decimating it + using convex decomp can do a lot compared to using a high poly trimesh

A lot of terrain workflows rely on doing exactly that too

[weary hornet]

Do you have a good strategy on how I could better automate the convex decomposition process?

it would be pretty complex terrain like something out of Star Wars Pod Racer

[vestal minnow]

yeah highly detailed meshes can perform quite poorly for collisions since you can end up with shapes doing collision tests against a ton of triangles at once and have to compute contacts against each of them

this wouldn't be as bad if we had manifold reduction to prune contact points, but we don't have it yet

(neither does Rapier)

[cinder summit]

Avian can do the convex decomposition (or technically parry does I think?), but I don't think we have cool things like using asset preprocessing for it yet like we probably should

[weary hornet]

oh wow ok

And while I'm here, do you guys happen to know if a big meshlet would even work for terrain? Like, does it lower the detail of the entire mesh based on distance, or is it all localized?

[cinder summit]

Legend has it Jan made something for caching at least, but idk if that persists across reboots 🤔

[vestal minnow]

doesn't persist

it's just a hash map with mesh handles IIRC

[weary hornet]

ok so probably a pretty expensive operation eh? I could split the mesh tho

[cinder summit]

Probably worth splitting the mesh in general if it's big

[weary hornet]

ya

ya because the meshlet stuff would eat my ram

as its baking

[cinder summit]

Yea, plus if it's big enough, loading the terrain can be done in chunks that are relevant rather than all at once

[weary hornet]

yeah which may work quite well in my case because I'm making it very canyon-y

[vestal minnow]

hmm, it could be interesting to try and offload convex decomposition done at runtime to some async tasks to avoid blocking the main thread

[weary hornet]

well how involved is it from the user perspective? am I just passing some verts into a function?

if parry does it I could probably help with this if you want

I want to build up a whole terrain strategy/pipeline for bevy

[cinder summit]

We have a thing for that, it's called bevy_asset

[vestal minnow]

the convex decomposition part is just Collider::convex_decomposition or Collider::convex_decomposition_from_mesh

[weary hornet]

ah wtf

so awesome

[vestal minnow]

or if you have a scene then you can use ColliderConstructorHierarchy to generate the colliders automatically

[weary hornet]

awesome

[cinder summit]

Benefit of making the terrain chunks too is that the convex decomp resolution starts to become consistent

[vestal minnow]

But again this can be very slow and expensive for anything remotely detailed

[weary hornet]

so this is the jist of my strategy atm:

• sculpt in blender or whatever
• export into a lossless format, whatever is the smallest
• use meshopt (C++) or baby_shark (Rust) to decimate
• split into regions
• convex decomp
• meshlet

ya I hear you

I can fix that though, happy to contrib

fix by running it async lol

[vestal minnow]

By slow I mean like up to several minutes depending on your PC and the size of the scene

[cinder summit]

Convex decomp being wildly slow, and trimeshes being wildly inefficient is literally how I ended up making SDF collisions after all 🤣

[vestal minnow]

For the Ferris crab model it's a few seconds in debug mode for me

[weary hornet]

it's really not too bad tbh. What matters for speed is being able to preview changes fast with a flycam. Then when it's time to walk or drive around it, you have to run it thru the various processing steps

[vestal minnow]

in release mode it's a little faster

[weary hornet]

Like, baking shit with Nanite can take like 30 minutes on a beast PC so its just the way she goes I guess

[cinder summit]

Yea, if we get an actual asset processing workflow for this one day (probably when we finally have scenes and can translate a gltf file to a set of assets among which a scene), then this would be very doable on premade geometry

[weary hornet]

i'm building a terrain editor 😈

it's in the 10s of millions of verts

...although I have an RTX 5080

[cinder summit]

On procgen games with slightly less detailed meshes it would probably be workable too as long as you tune the parameters and run things in the background

And then you have the cursed usecases like my game:

• Procgen everything
• Nothing is low poly
• The server has a single thread

[weary hornet]

haha

ya.. the problem I'm running into is file sizes

shit is just a lot of data

as soon as you're moving away from heightmaps its like oh shit i have to store the verts

or something

[vestal minnow]

Typically I'm pretty sure static terrains in a lot of open world games just use low detail trimesh colliders

[cinder summit]

A lot of games crank the poly count waaaaaay down, yes

[vestal minnow]

example scene from Horizon Zero Dawn using Jolt

[cinder summit]

I'm sure we've all seen the collision vs visual mismatches 👀

[vestal minnow]

*Horizon Zero Dawn I mean

[weary hornet]

looks like heightmaps for the actual "dirt" tho

but ya

neat to see

[visual sparrow]

Localized 🙂

It’s split into submeshes, those are the titular meshlets. And those submeshes can change detail independently of each other

[vestal minnow]

Simulation islands 👀

(I'm moving the boxes here)

Next step is to wire up the sleeping and waking

[cinder summit]

[Places a little alarm clock in each simulation island]

[runic tinsel]

Idk jondolf, you might have gone a bit insane, because those don't look like islands... just cubes... Maybe it's time to take a break from this programming stuff?

[vestal minnow]

i should take a vacation and go sleep on an island

lies down on a bed of cubes

[cinder summit]

[Hands Jondolf yet another little alarm clock]
For your island

[echo parcel]

commands.spawn((
        RigidBody::Dynamic,
        Transform::from_xyz(0.0, 100.0, 0.0),
        Mesh3d(mesh),
        MeshMaterial3d(material.clone()),
        Collider::cylinder(radius / 2., cylinder_height),
        Mass(100000.),
    ));

No matter how big mass I set the cylinder always behaves the same. Why?

[vestal minnow]

what is it interacting with?

if it's just on static ground or all the other dynamic objects also have that same mass then it shouldn't really change behavior much

[echo parcel]

Its just falling on the static ground, nothing more

But shouldn't the object with the bigger mass fall faster?

[vestal minnow]

no, a 1 kg box will fall just as fast as a 10000 kg box, assuming they have the same shape

[runic tinsel]

Air resistance is not simulated in avian, is it?

[vestal minnow]

it's not

[runic tinsel]

Then any object, with any shape should fall the same speed right?

[vestal minnow]

yes, I just mean in real life the shape would affect things (unless you're in a vacuum)

[runic tinsel]

fair fair

[vestal minnow]

here is a mathematical explanation I wrote a while ago https://discordapp.com/channels/691052431525675048/1124043933886976171/1366470105315410101

also see Galileo's famous experiment
https://en.m.wikipedia.org/wiki/Galileo's_Leaning_Tower_of_Pisa_experiment

[echo parcel]

Btw. Are there a specific units in which avian operates?

[vestal minnow]

SI units are recommended, so meters for distance and length, kilograms for mass, seconds for time, and so on

But it doesn't really matter as long as they're dimensionally consistent, like speed is "distance units divided by time units"

This could be meters per second, or pixels per second, or however you want to interpret values

[visual sparrow]

Note that the 3D renderer assumes SI

[echo parcel]

Bevy assumes SI?

So 1 unit is 1 meter?

[visual sparrow]

The renderer does, yes

[visual sparrow]

yep

[vestal minnow]

Also, if you're not using 1 unit = 1 meter, it's recommended to set the PhysicsLengthUnit. This doesn't scale any of Avian's imputs and outputs, but adjusts some internal thresholds and stuff to improve stability for your expected scale

[visual sparrow]

In 3D*
In 2D, the base assumption is 1 unit = 1 pixel, but you're very free to change that to your needs in 2D

[vestal minnow]

I think the renderer mostly assumes SI for lighting units, like intensity is in lumens and illuminance in lux (which is lumens per square meter)

not sure if it necessarily assumes units elsewhere

[runic tinsel]

Probably also for some of the pbr equations

[vestal minnow]

right

oh and the atmosphere stuff

[runic tinsel]

So takeaway is that renderer is SI, and 2d is whatever you want

[visual sparrow]

Volumetric lighting too I believe, due to the scattering coefficients

[visual sparrow]

For extra fun, try feeding the renderer negative numbers. It often doesn't crash but produces very wild visuals

I really hope I get to have a good reason to use that for a game at some point

[vestal minnow]

for even more unique visuals, consider rendering the world a few dozen kilometers from the origin

[visual sparrow]

StandardMaterial::depth_map is also very trippy when set to random data

[visual sparrow]

hehehe

[runic tinsel]

For even more unique visuals, consider wearing those drunk goggles

[visual sparrow]

For even more unique visuals, consider normalizing twice for no reason

[runic tinsel]

For even more unique visuals, consider also drinking funny water (If your at legal age of course!)

[vestal minnow]

For even more unique visuals, please give us #physics-dev

speaking of visuals, I kinda want to just slap an atmosphere on most of the 3D examples, I'm bored of all of our scenes looking like this lol

or at least change the color scheme

also have some camera controller and maybe the grabber plugin thingy

(maybe not for examples that focus on demonstrating some specific feature, but for more general samples)

[runic tinsel]

I mean a ShowcaseUtilsPlugin could be useful

That just adds a camera, and object picking

[visual sparrow]

an environment light map also makes things way more interesting IME

[vestal minnow]

We have an ExamplesCommonPlugin already, it just doesn't do that much atm

[echo parcel]

SubstepSolverSet runs during SolverSet::Substep, right?

[vestal minnow]

yes

but specifically inside the SubstepSchedule

SolverSet::Substep is where the SubstepSchedule is run

[echo parcel]

IntegrationSet::Velocity will be the best to apply drag/air resistance, right?

[sweet sundial]

there're drag components already, can either check their impls or use them directly

[echo parcel]

Ye, but If I remember corrently, its very simplistic, and doesn't take e.g drag coefficient into account

[vestal minnow]

yeah

[echo parcel]

But, how is it exactly called? I can't seem to find it

[vestal minnow]

LinearDamping and AngularDamping, they're just exponential decay

(or specifically the Padé approximation of exponential decay)

[vestal minnow]

👀

There might still be some small error in the island splitting logic since it sometimes takes a while for it to split things properly, but it's mostly functional now

[little maple]

this looks neat but what does it mean

[vestal minnow]

ah fixed it, much better now

[vestal minnow]

Simulation islands are like collections of bodies connected by constraints, where each island forms a graph-like structure. Islands are fully disjoint from each other and can be simulated independently. Their main purpose though is to allow sleeping and waking; if all bodies in a given island have a low enough velocity for some time, then that island can be set to sleep. And if any body in an island is woken up, the whole island must be woken up.

Here the red boxes are just visualizing which bodies belong to the same island. It's drawn around their combined bounds, but that doesn't really mean anything beyond that

The difference to our current scuffed sleeping is that we only have per-body sleeping, which doesn't allow bodies to sleep when they're interacting with other dynamic bodies, either via colisions or joints

Whereas with simulation islands we can handle sleeping and waking properly, as can be seen with that whole cube stack sleeping when it's resting for a bit

Some engines like Rapier also use islands for solver parallelism, but we use graph coloring, which supports parallelism within islands, not just between islands

So these islands are used only for sleeping and waking, and persisted across time steps, doing incremental updates to minimize overhead, and deferring splitting (the expensive part) so that only one island is split per time step, the sleepiest one

[little maple]

is this new? I thought you had some island-like thing implemented before? if not I think I maybe just heard about it here at some point

I mean, it looks great, especially that second one and I can see how useful it is

[vestal minnow]

It's new, I haven't had any island stuff before, though graph coloring has some conceptual similarities (a graph where bodies are nodes and constraints are edges)

I have been talking about wanting simulation islands for a very long time tho

[sweet sundial]

livin' the dream

[little maple]

that island life

[vestal minnow]

we're moving into the big boi league now with these simulation islands, graph coloring, the BVH broad phase (Soon™) etc.

[hard helm]

I’ve had islands for a long time, because I needed to track them anyway for CSG. I didn’t run them in parallel though since Bevy makes that difficult. I also use a BVH for the broad phase. I’ll probably do graph coloring if I implement AVBD. I’m not sure any of this counts as the big leagues after seeing the latest SIGGRAPH demos.

One thing I use islands for is to force conservation of energy to help with stability.

Identifying islands is the union-find algorithm once you have an intersection graph.

[vestal minnow]

By "big leagues" (half-joking) I mean having implemented a lot of the fundamental optimizations and getting close to (or exceeding) the performance of existing popular game physics engines like Box2D, Jolt, or Rapier

I do not really consider any GPU-based implementation (that I have seen) for rigid body dynamics to be in the "big leagues" for game physics, as I consider that to be a totally different category. For a general-purpose game physics engine, running on the GPU tends to be a non-goal IME

[little maple]

every time I show my game off people tell me how great the physics are and I'm like "thank you Jondolf 🙏 "

[vestal minnow]

As for AVBD specifically, I'm still fairly unconvinced based on the results I've seen or even replicated, but I'm interested to see how it develops

[hard helm]

Maybe, but I think the algorithms will converge as GPUs become more powerful and CPU cores more numerous (I have a machine with 80 cores now.)

[hard helm]

I like it on principle. I’m not happy with primal or dual solvers, and they both have clear weaknesses, so it seems like a good idea. The fact that it makes parallelism easier is a bonus.

If AVBD doesn’t work right away, it might be worth fixing.

[vestal minnow]

Yeah it has some really nice characteristics, like handling both high stiffness ratios and high mass ratios well, and allowing vertex coloring. But from what I've seen and heard (both with my implementation and their own 2D demos) it's just way too unstable for collisions, requires a ton of tuning to behave well, breaks Newton's third law, and doesn't seem like it'd work as nicely with wide SIMD

They recently updated their 2D demo to use post-stabilization, which removes the need for tuning the alpha parameter, and should prevent adding extra energy to the system, but it made contacts even less stable and more jittery :/

[hard helm]

Like I said, we’re getting more CPU cores, but not wider SIMD. Physics laws are more like guidelines in games 🙂 Stability is nice though.

[drifting marsh]

I'm really struggling to get avian to run on a custom schedule.

  app.add_plugins((
            avian2d::PhysicsPlugins::new(CustomPhysicsSchedule).with_length_unit(50.0),
            PhysicsDiagnosticsUiPlugin,
            PhysicsDiagnosticsPlugin,
        ))
        .add_schedule(Schedule::new(CustomPhysicsSchedule))
        .add_systems(GgrsSchedule, (move_players, step_physics).chain())
        .add_systems(CustomPhysicsSchedule, foo) // this prints "foo" and that shows up in the output

I modified avian/src/schedule/mod.rs a bit to debug:

 println!("schedule: {:?}", self.schedule); // this prints CustomPhysicsSchedule

        app.add_systems(
            schedule,
            run_physics_schedule.in_set(PhysicsSet::StepSimulation),
        );

        app.add_systems(schedule, foo2); // this system doesn't print anything??

I genuinely cannot figure out the difference between foo and foo2. It's the same schedule so why does only foo run?

[regal parrot]

Guys, I am migrating to the new Forces. I have modified my old projectile spawning command to look somewhat like this:

fn spawn_projectile(
    In(config): In<SpawnProjectile>,
    mut commands: Commands,
    mut force_query: Query<Forces>,
) {
    let entity_id = commands.spawn((
        Projectile { [...] },
        config.transform,
        RigidBody::Dynamic,
        // ExternalImpulse::new(config.force),
    )).id();

    if let Ok(mut forces) = force_query.get_mut(entity_id) {
        forces.apply_linear_impulse(config.force);
    } else {
        info!("NO FORCES");
    }
}

There is no Forces querydata ready for the entity when this runs. Do I need to add an observer here and then add the impulse in the observer after a sync point?

[sweet sundial]

can't you just have a Velocity in the bundle?

[regal parrot]

I'm reading the implementation of apply_linear_impulse & yep, it looks like I could just add the velocity on spawn. The new component is LinearVelocity for anyone who stumbles across this in future 🙂

[sweet sundial]

if you really needed to use an impulse it'd have to be after mass is calculated, which is probably an observer; either queue it separately (Commands), put it after a sync point, or figure out observer ordering

if it's a schedule system rather than an observer then you'd need to do something persistent

[echo parcel]

Which queries should I use in order to impact the velocity, end rotation?

[vestal minnow]

inside the solver you need to use SolverBody, it has linear and angular velocity

[scenic violet]

What is the best way to create a shockwave that will push rigidbodies along with it, a sensor that gets velocity and gives velocity upon collision, or is there a way to do it with some kind of spatialQuery?

[vestal minnow]

There's SpatialQuery::shape_intersections for getting all the collider entities intersecting the given shape

a sensor could also work if you want it to persist for several frames or to automatically move with some velocity

[vestal minnow]

Are you running your CustomPhysicsSchedule anywhere?

[echo parcel]

I've came up with something like this rn, it compiles but I'm not sure if this is correct:

let substeps =  app.get_schedule_mut(SubstepSchedule).expect("add SubstepSchedule first");
        substeps.add_systems(
            air_resistance_substep.in_set(IntegrationSet::Velocity)
        );

[vestal minnow]

The schedule you give to PhysicsPlugins::new determines what schedule the PhysicsSchedule is run in, but it doesn't run your schedule for you

oh right you said that the first foo system still prints something, hmm

[echo parcel]

According to the example, I should rather work with some draits dedicated to the velocity, right?

https://github.com/Jondolf/avian/blob/main/crates/avian3d/examples/custom_constraint.rs

substeps.add_systems(
        solve_xpbd_joint::<CenterDistanceConstraint>.in_set(SubstepSolverSet::SolveUserConstraints),
    );

    // Run the app
    app.run();
}

/// A constraint that keeps the distance between the centers of two bodies at `rest_distance`.
#[derive(Component)]
struct CenterDistanceConstraint {
    entity1: Entity,
    entity2: Entity,
    rest_distance: Scalar,
    /// The relative dominance of the bodies.
    ///
    /// If the relative dominance is positive, the first body is dominant
    /// and is considered to have infinite mass.
    relative_dominance: i16,
    compliance: Scalar,
    /// Data stored from before the solver step.
    pre_step: PreStepData,
}

impl PositionConstraint for CenterDistanceConstraint {}
impl AngularConstraint for CenterDistanceConstraint {}

impl EntityConstraint<2> for CenterDistanceConstraint {
    fn entities(&self) -> [Entity; 2] {
        [self.entity1, self.entity2]
    }
}

impl XpbdConstraint<2> for CenterDistanceConstraint {
    fn solve(
        &mut self,
        bodies: [&mut SolverBody; 2],
        inertias: [&SolverBodyInertia; 2],
        dt: Scalar,
    ) {

Some kind of equivalent of this code

[vestal minnow]

I'm not sure if I'd model air resistance as a constraint

You're just applying a force, no? I'm not sure if there's really a specific constraint that it'd need to satisfy

but I haven't looked much into how realistic air resistance tends to be implemented

I guess you could model drag as some sort of damping constraint that aims to dampen velocities rather than explicitly using forces, but idk seems more complicated

[echo parcel]

I didn't mean constrain

Some equivalent of this code for the velocity

AngularVelocity, PositionVelocity traits, I'm not sure if such things exists

[echo parcel]

Yes. Force, and rotation

[echo parcel]

Ok, I think I found the best example

https://github.com/Jondolf/avian/blob/c15549d6f752ca27c83ace3745e9eaa2b314d674/src/dynamics/integrator/mod.rs#L82

[oak vigil]

Hey, is there a method to get a random position inside a collider?

[summer acorn]

iirc some bevy_math primitives have volume sampling methods

[oak vigil]

I see bevy primitives. Are you suggesting converting the collider into a bevy primitive and using that?

If that's the case, I might just implement the function to work directly on collider

[summer acorn]

i think theres a way to go from bevy primitive to collider

but that may be unreleased peck stuff

[echo parcel]

I can't import it

[vestal minnow]

Are you on 0.3? There you can just use LinearVelocity and AngularVelocity inside the solver, but on the main branch things are quite different

[echo parcel]

I'm at 0.3.1

[vestal minnow]

yep solver bodies don't exist there yet, they're new (or added like over a month ago, but not released on crates.io)

[echo parcel]

I've been bamboozled!

What can I do about it?

[vestal minnow]

just use the velocity components for now ^

or use the main branch or some specific commit

this is what I meant about the internal schedules being very prone to changes here, and (generally) recommending to just use the built-in stuff and running logic in FixedUpdate :p

[echo parcel]

How can I do this

[vestal minnow]

in Cargo.toml do

avian3d = { git = "https://github.com/Jondolf/avian" }

if you want to lock to a specific commit, you can use rev = something where you replace something with a commit hash or whatever it's called

[echo parcel]

Thanks, I didn't know about this

Hmm

[vestal minnow]

you need to update Rust, it's a feature that was stabilized in a new release a few weeks ago

[cinder summit]

Whoa, we can do that now? Neat

[vestal minnow]

Or I don't remember that specific syntax 🤔 but let-chains were stabilized at least

with &&

[cinder summit]

let chains were stabilized???? 👀👀👀

[mossy brook]

I was thinking of making different physics "worlds" like the different surfaces in Factorio. Would this make that possible? Also, I assume this will make proper integration with Big Space a reality?

[vestal minnow]

Yeah that was at the end of June
https://blog.rust-lang.org/2025/06/26/Rust-1.88.0/

[vestal minnow]

This is a different feature, for multiple physics worlds/contexts we mostly need each world to have its own broad phase and BVHs so that the bodies cannot interact with each other

Or if we wanted to go further with this and allow simulating each world fully independently, like advancing one world but not others, we would need first-party query-by-value functionality in Bevy, or to rework our internals to rely on the ECS less

I had a prototype for multi-world support implemented already using bushrat's index query PR, but the work on that stalled on Bevy's side

[echo parcel]

Why?

[vestal minnow]

a hack to support two mutually exclusive dimensions in a single code base, same as what Rapier and Parry do

[echo parcel]

Do I have to add SolverBody manully into my entity? The breakpoint doesn't hit

[vestal minnow]

have you added MaxLinearSpeed to the entity?

[echo parcel]

No

[vestal minnow]

SolverBody is added automatically for dynamic and kinematic bodies, MaxLinearSpeed is not

(might change that though, we probably want to have some default bounds on linear velocity and especially angular velocity for stability reasons)

[mossy brook]

Could it be done with relationships instead? Each physics context would be a one-to-many to physics objects in the world, then you query the relationship and loop over them to do the simulation once for each group?

[vestal minnow]

Yeah it probably could be a relationship, I need to see what the performance of query.iter_many(entities) is compared to query.iter() though

With index queries we can split archetypes based on the world that each body is assigned to, and theoretically have ideal iteration perf that way, but idk how much worse iter_many is

[mossy brook]

This is interestingly a rare case where I think many-to-many is actually a bad fit too, I think as a design principle you only ever want a physics object in a single context. It saves on performance and you don't need to wait for the Bevy implementation of many-to-many.

[mossy brook]

Whatever the performance impact is I think is probably an engineering trade-off that would be acceptable if contexts are opt-in.

[vestal minnow]

I'm not sure how I'd make it opt-in without duplicating the systems to have both a "contextful" and "contextless" variant

it'd need two different queries and to do the iteration in two different ways depending on whether you're simulating a specific context/world or not

[drifting marsh]

I used bevy_mod_debugdump and foo is the only thing in the schedule. Is there any way I can check the schedule of the run_physics_schedule system?

digraph "" {
    "compound"="true";
    "splines"="spline";
    "rankdir"="LR";
    "bgcolor"="#0d1117";
    "fontname"="Helvetica";
    "nodesep"="0.15";
    edge ["penwidth"="2"];
    node ["shape"="box", "style"="filled"];
    "node_System(0)" ["label"="foo", "tooltip"="rounds::game::physics::foo"]
}

Here's the entire file if it's helpful

[vestal minnow]

I'm on mobile rn so I can't really read it :/

We have this test that creates a custom schedule to make sure we don't have scheduling ambiguities, that one should work at least
https://github.com/Jondolf/avian/blob/main/src%2Ftests%2Fmod.rs#L187

I'm not really sure why your case wouldn't work

run_physics_schedule should run in the schedule that you give to PhysicsPlugins::new

[drifting marsh]

my only guess is that Interned schedules don't work properly but I assume someone would have already come across that

[mossy brook]

Yeah, probably just starting with seeing if there is much impact at all if iter_many is used directly, then perhaps conditional compilation on a Cargo feature could keep the code unified if there needs to be a divergent system?

[drifting marsh]

Well, and the default schedule is also interned so that wouldn't be the issue. I'm very lost

I didn't think this mattered but apparently I have to add the schedule before I add the avian plugin

Ah, add_schedule says it overwrites the previous schedule with that label

[vestal minnow]

yeah you might want edit_schedule instead

[drifting marsh]

I don't even need add_schedule lol. I just copy pasted that from an older project

[vestal minnow]

that's definitely a nasty footgun though

[drifting marsh]

The docs for with_length_unit make it sound like it I shouldn't have to adjust stuff like gravity. But the default gravity doesn't even move my character at all.

For reference, I set the length unit to 50.0 and my character is 50x50 pixels

[vestal minnow]

I mean it does say "Note that this is not used to scale forces or any other user-facing inputs or outputs." and that it only adjusts some internal tolerances and stuff for stability

[drifting marsh]

Hmm, it says "the physics engine will interpret 100 pixels as 1 meter for internal thresholds" so I guess I interpreted that as my character would count as 1 meter in size so the default gravity would be fine

but I guess I glossed over the "internal thresholds" part

[echo parcel]

When adding to solver_body.linear_velocity, should I include delta time into account?

[vestal minnow]

#physics-dev 🎉

[sweet sundial]

probably, unless the other value is already a velocity

[echo parcel]

I've been bamboozled again :<

[finite blaze]

@echo parcel I'm also interested in creating a flight dynamics plugin for Avian, though I have barely looked at it besides reading some game dev books. The new changes in avian main sound promising.
I wonder if a thread on #physics-dev for general FDM approaches would be useful

[echo parcel]

We can stay in touch then

[marble cradle]

in my editor how can i dynamically turn on and off this ?

.add_plugins(PhysicsDebugPlugin::default() )

it seems like i cant like .. enable or diasable that... ?

[pulsar bone]

app.add_systems(
    Update,
    (|mut gizmo_configs: ResMut<GizmoConfigStore>| {
        gizmo_configs.config_mut::<PhysicsGizmos>().0.enabled ^= true;
    })
    .run_if(run_once.or(input_just_pressed(KeyCode::F1))),
);

This toggles the gizmos on pressing F1, and it will be off by default (because of the run_once)

[runic tinsel]

Using lambdas as systems... Why did I never think of that...

Rust is just cool like this I guess

[marble cradle]

love it !!!

thank you

yay now my editor shows physics colliders 😄

[heady oasis]

Hello, need some help with applying forces to already spawned rigidbodies

all the documentation shows how to spawn a rigidbody with a force aswell, but no way to add a force to something already spawned (unless it's hidden somewhere I haven't found yet)

let mut force = ExternalForce::default();
// calculate force
force.apply_force_at_point(calculated_force, cool_place, mass_center);
// typical example in docs
commands.spawn((Stuffs, force));

// but I wanna apply at runtime
item.apply_force(force)  //this sort of thing kinda

[sweet sundial]

required component or insert with commands

[heady oasis]

at runtime

[sweet sundial]

commands is runtime

[heady oasis]

so like add a lifting force for car

[sweet sundial]

you could also swap to main and use the new force api

[heady oasis]

how do you add a force to an existing rigidbody with the new api?

[sweet sundial]

Query<Forces>

[heady oasis]

so I just query the force and then .apply_force onto it?

[vestal minnow]

Yeah with the new API you would do this

fn apply_forces(mut query: Query<Forces, With<Car>>) {
    // Apply a force to every car
    for mut forces in &mut query {
        forces.apply_force(my_force);
    }
}

You can also use the current/old API in 0.3 and query for ExternalForce and modify it, but that old API is a lot more limited and footgunny than the new one

With the old ExternalForce API, all forces are persisted across frames by default, so you need to manually clear them, or alternatively configure the forces to be non-persistent (and you couldn't apply both persistent and non-persistent forces at the same time)

With the new API you can just use Forces to apply forces or impulses that are cleared automatically, like what you'd see in most game engines, and there's a separate component-based API with components like ConstantForce if you want persistent forces

[heady oasis]

do you use unstable branch for it or?

so like avian3d = "unstable"

[vestal minnow]

It's on the main branch

you can also lock to a specific commit if you want

[heady oasis]

so I can just use normal 0.3.1?

or like how to query for "main" in toml file

do you just to avain3d = "main"

[vestal minnow]

If you want the new API then you need to use main

[dependencies]
# optionally also specify rev = "the SHA of some commit"
avian3d = { git = "https://github.com/Jondolf/avian", branch = "main" }

[heady oasis]

thx

kinda new to avian & bevy as a whole, but noticed lack of docs on avian3d

https://thebevyflock.github.io/bevy-quickstart-book/2-basics/actual-physics.html this was a really good resource for me

[vestal minnow]

Note that if you have other dependencies that also use Avian, you might get a version conflict and need to patch or fork things to get it working

[heady oasis]

I noticed that there are like no tutorials out there that show how to query for rigidbody

bcs you cant query rigidbody directly for some reason

[vestal minnow]

The docs.rs documentation should generally be alright, but some more "book-like" content and tutorials and better examples would be nice

[heady oasis]

owm to making a car game tutorial

w avian3d

using very very valet general car game (they coded it in unity) tutorial as basis

[vestal minnow]

Query what specifically? Like the RigidBody component or things like velocity etc.

[heady oasis]

specifically Angularvelocity and linearvelocity (i think) but querying them as is (as the tutorial did) works

[sweet sundial]

components don't directly impl QueryData, only references to them

[heady oasis]

but then you have to ang.0 +lin.cross(position) to find velocity_at_point

[vestal minnow]

The docs for RigidBody do briefly show an example of querying for velocity to move bodies

[heady oasis]

that specific example is what throws erropr

when also getting transform

so
let rb = Query<stuff from there>
let car = Query<Transform, with car>

[vestal minnow]

Yeah it would be nice to have a helper for that, it's just a bit awkward since the components are separate, it we had a combined Velocity component then we could just have a method on that

[heady oasis]

mut car_stuff : Query< ( &Transform , &mut AngularVelocity , &mut LinearVelocity ) , With<car>

this is what ended up working

[vestal minnow]

Like @sweet sundial said, you can't query for components without & or &mut

since just the component by itself doesn't implement QueryData

that's more of a Bevy thing and not something that necessarily belongs in Avian docs

[heady oasis]

mut car_stuff : Query< &mut Transform  , With<car> >,
    mut rb : Query<RigidBodyQuery>,

here is old stuff

[vestal minnow]

that should work yeah

[heady oasis]

throws incomprehensive error

because they can be both

[vestal minnow]

what's the error?

(if you still have it)

[heady oasis]

1 sec

[sweet sundial]

probably aliasing between two &mut Transforms

[heady oasis]

it was a panic

[vestal minnow]

I don't think RigidBodyQuery has a Transform

[heady oasis]

{ git = "https://github.com/Jondolf/avian", branch = "main" } throws errors on all let statements

[heady oasis]

you can do rb.position

[vestal minnow]

that's not a Transform

[heady oasis]

thread 'main' panicked at /home/gobbe/.cargo/registry/src/index.crates.io-1949cf8c6b5b557f/bevy_ecs-0.16.1/src/system/system_param.rs:409:5:
error[B0001]: Query<RigidBodyQuery, ()> in system brumm::bil::fjäder accesses component(s) Position, Rotation in a way that conflicts with a previous system parameter. Consider using Without<T> to create disjoint Queries or merging conflicting Queries into a ParamSet. See: https://bevyengine.org/learn/errors/b0001
note: run with RUST_BACKTRACE=1 environment variable to display a backtrace
Encountered a panic in system bevy_app::main_schedule::FixedMain::run_fixed_main!
Encountered a panic in system bevy_time::fixed::run_fixed_main_schedule!
Encountered a panic in system bevy_app::main_schedule::Main::run_main!

got error

(that's the old error)

[vestal minnow]

do you have other queries in that system? beyond the two you showed

[heady oasis]

fn fjäder(
    kö : SpatialQuery,
    mut bil : Query< &mut Transform  , With<brumm> >,
    mut rb : Query<RigidBodyQuery>,
    tid : Res<Time>
) {
    let HJULEN : Vec<Vec3> = vec![ Vec3::new(4.0 , 0.0 , 7.0) , Vec3::new(4.0 , 0.0 , -7.0) , Vec3::new(-4.0 , 0.0 , -7.0) , Vec3::new(-4.0 , 0.0 , 7.0) ];

    for däck in HJULEN {
        let bilen = rb.single_mut().unwrap();

        let pos = **bilen.position + däck; // däcken roterar inte, de sitter fast längs axlarna
        let hjulet : Transform = Transform::from_translation(pos);

        if let Some(träff) = kö.cast_ray(pos , Dir3::NEG_Y , 100.0 , true , &SpatialQueryFilter::default() ) {
            ...
        }
    }
}

what I can tell its just that bil and rb are same

components of car:```
Transform::from_xyz(0.0 , -3.0 , 0.0),
//mesh stuff
//collider stuff
RigidBody::Dynamic,
brumm

[sweet sundial]

https://docs.rs/avian3d/latest/src/avian3d/spatial_query/system_param.rs.html#59-74

[heady oasis]

because it has both transform and rb

[vestal minnow]

Right SpatialQuery is currently internally querying for Position and Rotation (components for the physics transform, mostly intended for internals) and some other things, and RigidBodyQuery is also querying for them mutably. You can't have multiple queries mutably accessing the same components in the same system unless you explicitly make the queries disjoint using Without<T> filters

Here I would recommend just not using RigidBodyQuery

I'm probably going to remove it soon too since it's not really intended for users, it was originally more to clean up internal logic

[heady oasis]

oh

[vestal minnow]

(and it's big and slow and somewhat footgunny)

[heady oasis]

thought it was transform n rb on same object :P

[visual sparrow]

Is trimeshing a big world of colliders something expensive?

Obviously it becomes expensive if you have millions of colliders lol

[vestal minnow]

Like, rasterizing a lot of primitive shapes into trimeshes?

[visual sparrow]

yep

But for something like Chainboom's level that is made of a bunch of convex hulls and convex decomps

My current design for rerecast doesn't neatly allow offloading that onto its own thread

And I'm worried about hiccups

But I think something like that shouldn't be too expensive, right?

[vestal minnow]

Probably not too expensive, the methods are pretty straightforward. You can check them here
https://github.com/dimforge/parry/blob/master/src/transformation/to_trimesh/convex_polyhedron_to_trimesh.rs

[visual sparrow]

thx

Hmm, I suppose I could turn the backend into an async task

then we just shift the problem from "rasterize everything this frame" to "copy all colliders into a separate task this frame"

would be so much easier if we had first-party colliders ;-;

[visual sparrow]

Oh, convex hulls and decomps and whatnot all use the same function under the hood for rasterization?

[visual sparrow]

that indeed looks trivial, nice

[vestal minnow]

Every 3D convex hull is just a ConvexPolyhedron and a convex decomposition outputs a Compound of ConvexPolyhedron shapes

[visual sparrow]

aaah that's good to know, thanks 🙂

[bleak wadi]

is there a good way to do one way collision platforms?

[visual sparrow]

@vestal minnow how come the feature is called debug-plugin and not debug_plugin?

Asking because I'm also doing a gizmo plugin for rerecast and checking prior art

Also, you don't use any retained gizmos, right?

[vestal minnow]

most of our features that aren't named after a dependency use a hyphen

and I think I did that because I was originally copying Rapier for it

[visual sparrow]

hmm I'll stick to _ then

simply for the parity with bevy

[vestal minnow]

I would probably accept a PR renaming them to use _ consistently, though Bevy is also inconsistent

[visual sparrow]

lol

[vestal minnow]

not yet, but I'd like to change stuff like colliders to use them for perf

[vestal minnow]

via CollisionHooks, the one_way_platform_2d example showcases a way to do it

[visual sparrow]

I'm currently struggling with how to design an API around them

[echo parcel]

I've noticed that ExternalForce is no longer available in the newest commits. What should I use instead to apply force to an entity

[sweet sundial]

Forces or ConstantForce

[echo parcel]

What is the difference between them? Source code doesn't clarify it unfortunately

[little maple]

https://github.com/Jondolf/avian/pull/770

[echo parcel]

Thanks

[vestal minnow]

Draft PR for a JointGraph and a JointCollisionDisabled component to disable collisions between bodies attached by a joint
https://github.com/Jondolf/avian/pull/799

[echo parcel]

I have such code. My problem is that the velocity goes up to the infinity in about 20 iterations. I'm not sure if I have a problem with calculations, or if I just misunderstand how forces in avian work

pub fn apply_air_resistance_forces(query: Query<(&SolverBody, &Transform, &mut ConstantLocalForce)>,) {
    for (solver_body, transform, mut local_force) in query {
        let rotation = transform.rotation;

        let tilt = tilt_angle(rotation);
        let area = calculate_reference_area(tilt, 2.0, 0.1);
        let drag_coefficient = get_drag_coefficient(tilt);

        let drag = calculate_air_resistance(drag_coefficient, 1.2, area, solver_body.linear_velocity.length().abs());

        local_force.y = -drag;

        println!("Drag: {}, Vel: {}", drag, solver_body.linear_velocity);
    }
}

fn calculate_air_resistance(drag_coefficient: f32, air_density: f32, area: f32, velocity: f32) -> f32 {
    let result = 0.5 * drag_coefficient * air_density * area * velocity.powi(2);

    result
}

[foggy storm]

Was just playing around with Foxtrot a bit and thought the physics was working perfectly but then I noticed objects don't always go to sleep. Is this because of the incline here or something else? Just curious why this happens.

[vestal minnow]

It's jittering too much to start sleeping, likely due to contact instability. My current guess for where it's coming from is this https://discordapp.com/channels/691052431525675048/1400203671077130448/1400532313179291862

You can tune the SleepingThreshold to make it easier for bodies to fall asleep

[foggy storm]

I see, interesting. Have you looked into if this happens in other engines?

[vestal minnow]

I haven't yet, but I should try with Rapier at least since it also uses Parry

that should help confirm that the problem is what I think it is

[foggy storm]

I can see now it even happens on the flat ground. I would say that doesn't happen with other engines but it might be a different sleep threshold value as you said.

I'm guessing this degrades performance quite a lot in bigger scenes?

I find this seriously impressive 😆 (sorry about bad recordings, have two screens with different resolutions and OBS doesn't seem to like that)

[vestal minnow]

From what I've seen it's mostly convex polyhedra and triangle meshes that have multiple faces in contact at once, but yes potentially

[visual sparrow]

hehe that's satisfying

[golden python]

Hello, sorry if this is a common question, but how would one have cumulative forces from different systems applied to a rigidbody ?
Is there a built-in way to do it, or should a query for an existing external force and if it exists, add to it or otherwise insert a new one ?

[heady oasis]

assuming that you are using avian, this might help

// using ExternalForce, avian 0.3.1 and below (main branch has a better force method)
fn setup (
  mut commands : Commands
) {
  commands.spawn((/*other stuff*/,ExternalForce::defualt.with_persistence(false); // set to true if you want the force to never stop
}
fn cumulative_stuffs (
  mut cumulative_force_query : Query<&mut ExternalForce>
  // query for some force here
) {
  let Ok((force)) = cumulative_force_query
  else {
    return // no force was found
  }
  // handle the other force query
  force.apply_force_at_point(/*the force here*/ , /*point*/ , /*center of mass or pivot*/);
}

[golden python]

oh, forgot ExternalForce::apply_force is a thing, thanks a lot

[heady oasis]

no worries

[golden python]

So in every system i'm forced to check if there is an existing force, if there is add to it and otherwise insert it ?

[sweet sundial]

easier if you make it a required component for something

alternatively, commands.entity(e).entry().or_insert(_).and_modify(|_|{})

[golden python]

Thanks, i'm facing another issue now

impl Plugin for CharacterController3dPlugin {
    fn build(&self, app: &mut App) {
        app.add_systems(Update, handle_hover);
    }
}

/*
Character controller is spawned with:
pub fn character_controller_bundle() -> (
    RigidBody,
    CharacterController3d,
    Collider,
    RayCaster,
    ExternalForce,
) {
    let capsule_height = 1.0;
    (
        RigidBody::Dynamic,
        CharacterController3d {
            hover_height: 1.0,
            move_speed: 1.0,
            drag_multiplier: 1.0,
        },
        Collider::capsule(0.1, capsule_height),
        RayCaster::new(
            Vec3::new(0.0, -capsule_height / 2.0, 0.0),
            Dir3::new(-Vec3::Y).unwrap(),
        ),
        ExternalForce::new(Vec3::ZERO).with_persistence(false),
    )
}
*/

fn handle_hover(
    time: Res<Time>,
    mut commands: Commands,
    mut controllers: Query<(
        Entity,
        &LinearVelocity,
        &RayHits,
        &CharacterController3d,
        Option<&mut ExternalForce>,
    )>,
) {    for (entity, linear_velocity, hits, controller, maybe_external_force) in controllers.iter_mut()
    {
        //stuff
        let total_force = (damp_force + bounce_force) * time.delta_secs();
        if let Some(mut external_force) = maybe_external_force {
            println!("external: {:?}", external_force);
            println!("total_force: {:?}", total_force);

            external_force.apply_force(total_force);
        }
    }
}

This logs:

external: Mut(ExternalForce { force: Vec3(0.0, 0.0, 0.0), persistent: false, torque: Vec3(0.0, 0.0, 0.0) })
total_force: Vec3(0.0, 66.86302, 0.0)
external: Mut(ExternalForce { force: Vec3(0.0, 66.86302, 0.0), persistent: false, torque: Vec3(0.0, 0.0, 0.0) })
total_force: Vec3(0.0, 48.842857, 0.0)

I'm very confused as to why there is still some external force on the second frame when the persistence is off ?
Can anyone help ?

[vestal minnow]

you're running that in Update instead of FixedUpdate, so if Time<Fixed> uses a lower rate than your refresh rate, you might apply the force multiple times per physics tick

[heady oasis]

nonono , just add a resource with all the forces and add them together in one system

#[derive(Resource)]
struct forces {
  // force 1
  // force 2
}

then you just query in the systems with a force you want to add to the sum

mut forces_query : ResMut<forces>

[vestal minnow]

note that on the main branch it's much nicer, and you can just use the Forces API without having to worry about components or configuring persistence or anything like that

[heady oasis]

yup

[golden python]

thanks, I always preferred having physics stuff in update, even if it means they are only applied on fixed intervals, as it makes sure inputs work fine (no skipping) and it also gives more precision to the input (sub physics tick movement).
But I understand there are drawbacks as well

[heady oasis]

you could do

fn input_Update() {
  // handle input and store it
}
fn physics_stuff_FixedPostUpdate(){
  // fetch input from where you stored it, and act on it
}

[vestal minnow]

Yeah, wish we had input timestamps in Bevy so inputs in FixedUpdate would work more nicely :/

[golden python]

yes there are workarounds but I wished it worked more nicely out of the box as other games engines do

[heady oasis]

depends on type of game you are making, but an input que/buffer is still usually just a workaround :/

[golden python]

What i'm describing wouldn't have anything to do with a queue.
You apply forces to the rigidbody every real frame, and every fixed update, the sum of these forces gets applied and stuff actually moves

[heady oasis]

what are you making ? :P

[golden python]

A 3d character controller, why ?

[heady oasis]

so like fps or

[golden python]

yes

[heady oasis]

jump buffer is cool polish

coyote time and the other thing

[golden python]

yes, but it is an entirely different subject in my opinion, it should be implemented as a feature on top of a robust engine

[heady oasis]

what forces are we talking about, like forces from ground n stuffs?

[golden python]

mostly outside sources, like inputs, force fields, etc.., collisions and stuff would probably still be on fixed

[heady oasis]

force fields !??

cool

[echo parcel]

Polish is cool by default

[hoary turret]

Im testing this just now

and I'm not seeing great improvements out of the box, I'm going to test it for a bit

first Imma replicate your test scene

with simple cubes stacked

[bleak wadi]

with my ldtk level i have thousands of staticbody squares, im looking into optimising that on the ldtk side (most of them are oob) but also none of those squares are actually asleep, possibly because they're all touching each other? if i could send them to sleep i think it would be a lot better

[hoary turret]

The reason you cannot put them to sleep is because they're in contact

with how things are right now if you want sleeping behavior you have to make them not be in contact or hack around it

Dynamic islands will fix that, or at least that's what Jondolf said couple weeks ago

Quite crazy what this small difference in size makes @vestal minnow

the cubes on the first stack are lets call them 1x1, the towers on the right are 1x2, and the middle tower is 4x4

[paper maple]

I've read thru some stuff here regarding Disabled. I guess Avian RigidBodies don't respect Disabled due to some peculiarities of Observers or something ?

[visual sparrow]

They should on main

[patent depot]

Hello, I have a question related to future Avian development. You'll eventually replace parry by peck. What will be used for the BVH?

[bleak wadi]

@vestal minnow is there a reason why static bodies can collide with each other? it doesn't seem very useful

[vestal minnow]

They can't

How are your bodies set up?

Or there might currently be an edge case where if they are originally not RigidBody::Static when the contact pair is created, and you then change them to static bodies, the contact pair won't automatically be removed until they stop overlapping

[bleak wadi]

#[derive(Component, Default)]
#[require(
    CollisionLayers::new(
        PhysicsLayers::Ground,
        [
            PhysicsLayers::Enemy,
            PhysicsLayers::Player,
            PhysicsLayers::PlayerHitbox,
            PhysicsLayers::EnemyHitbox,
        ],
    ),
    RigidBody::Static,
    Collider::rectangle(128.0, 128.0),
)]
struct Wall;

idk if they're actually colliding; the issue is that they're not going to sleep

which i assume is because they are colliding

[vestal minnow]

Static bodies do not have sleeping because they can't move to begin with

They're not simulated anyway

Sleeping is for deactivating active bodies when they're resting

[bleak wadi]

i am having a performance hit, i guess i should just optimise it on the ldtk side to try and reduce the amount of entities it creates

[bleak wadi]

ah

[vestal minnow]

You could use the PhysicsDiagnosticsPlugin and PhysicsDiagnosticsUiPlugin to see where time is being spent

requires the diagnostic_ui feature

it will also show you if you do have collisions, and how many

[bleak wadi]

cool

[vestal minnow]

OBVHS

we're using it for the upcoming broad phase and spatial query rework too, even before peck

[vestal minnow]

Hmm, I'm thinking of doing a "joint rework lite" for 0.4

• Support JointAnchor enum with Local, FromGlobal, and Auto variants for easier and less error-prone initialization of joint anchors
• Expose way to set reference orientations or angles for FixedJoint, PrismaticJoint, RevoluteJoint, and SphericalJoint
• Expose joint forces and torques with a unified JointForces component
• Move all solver related data into separate types or components like RevoluteJointSolverData, making the user-facing joint components purely descriptions of joints and making them more solver-agnostic (or even engine-agnostic)
• Make joint components immutable (useful for making simulation islands and the anchor stuff more robust)

I feel bad delaying it every release because the new joint solver stuff still isn't ready, but I could probably get a lot of the important API improvements done before that

[scenic violet]

Is it better to use LinearVelocity with LinearDamping or the new Forces api to move stuff in a system for a 2d game

[past escarp]

Depends on what you're looking for, but I think LV with damping is probably easier to control for something like a character since you can specify the exact speed, and forces would be useful for stuff like interacting with physics events (wind/explosions/etc.) but someone correct if this is inaccurate

[scenic violet]

The end result should be the same it’s just a matter of approach and ease of use no?

For my player I am using LV with damping rn, but wanted to try the new forces api for pushing enemies away and knockbacks

[valid zenith]

forces would make sense for any impulse based mechanics too, like air dashes, where you dont really want to override the velocity just nudge it

[hoary turret]

Increasing/decreasing Time<Physics> alter the speed of time in physics (On retrospective given the name I guess it makes sense lol). How can I increase the rate at which physics are simulated without altering the speed of them?

Because Increasing Time<Physics> and decreasing Time doesn't seem like a good idea hahah

[sweet sundial]

Time<Fixed>

[hoary turret]

that would also change the non-physics aspect of the app

is it inherently coupled?

[sweet sundial]

Time<Virtual> -> Time<Fixed> -> Time<Physics>

[hoary turret]

okay so that means Avian runs its simulation in sync with how many times bevy systems run

[sweet sundial]

there's an extension trait for Time<Physics>, but it's just relative speed & pausing

[sweet sundial]

if they're in FixedUpdate

[hoary turret]

yeah

kk

[sweet sundial]

you can improve accuracy a little by increasing the SubstepCount

[summer acorn]

jondoooooooooolf

😭 why does returning f32::INFINITY from ComputeMassProperties3d::mass make a collider not collide with anything

this should make it immovable

or at the very least the mass should not be taken into account on RigidBody::Static colliders

[visual sparrow]

lol vero over here testing Avian's limit

[summer acorn]

this is just standard physics engine stuff though

infinite mass means it cant move

[visual sparrow]

oh really?

[summer acorn]

its usually specified in terms of inverse mass

[visual sparrow]

aaaaah that makes sense

[summer acorn]

so you can say 0 mass to mean immovable

[visual sparrow]

never thought of it that way, but makes total sense. Thanks!

Now do negative infinity next!

[summer acorn]

lmao

negative mass is a funny thing that is actually possible in real life theoretically

well, negative mass density

mass shouldnt be used in calculations when a rigidbody is static

im trying to figure out why avian does this

[little maple]

hmm, running into this when I despawn a sensor collider

thread 'Compute Task Pool (1)' panicked at forks/avian/crates/avian3d/../../src/dynamics/solver/mod.rs:478:21:
Contact pair not found in graph: ContactId(667)

I am despawning in PostUpdate after TransformSystem::TransformPropagate 🤔

[little maple]

oh, I think it's because the sensor was missing the Visibility component

nope, that's not it 🤔

[summer acorn]

is it reasonable to want a "wide simd" AnyCollider option

like i wanna be given 4 or more collider pairs at a time to process

preferrably lined up so that collider 1 is the same on all of them and the other 4 are different or smth like that

[viral goblet]

From what I understand, ShapeCaster updates every PhysicsSchedule which happens about every FixedUpdate, so once every few frames. Is there a way to make it check hits every frame instead?

[visual sparrow]

Why do you want that?

[viral goblet]

I have an entity that's being moved by a tween (it shouldn't react to physics things other than certain collisions) and I'm trying to clamp its movement to that collision

Since the clamping happens once every few frames, it jitters

I'm currently considering using regular raycast instead

[visual sparrow]

Aah interesting, makes sense! Don’t know either how to fix it, was just curious 🙂

[vestal minnow]

Yesn't, Bepu uses wide SIMD for its narrow phase (because of course it does), but it'd require some heavy refactoring and definitely wouldn't be compatible with Parry

I'm not sure how exactly it works in Bepu, but you need to batch by shape pairs and spit out wide contact manifolds

[vestal minnow]

yeah that should work lemme test

[sly badger]

probably only meaningful for box/box tests

or other simple ones like spheres

anything using gjk or similar is not going to work

too much divergence

[vestal minnow]

no Bepu uses wide SIMD for pretty much all shape pairs, including convex hulls

[sly badger]

different number of vertices, different number of required iterations etc, different size of simplices

[vestal minnow]

it uses Tootbird search for its depth refiner to find the minimum depth between convex bodies

[sly badger]

not saying that its impossible, but seems like it might not be worth it

ok

[vestal minnow]

https://github.com/bepu/bepuphysics2/blob/4f257d4c6c07f561055438cb8974d5ecd71096f6/BepuPhysics/CollisionDetection/DepthRefiner.cs

very vectorized
