Avian Physics

[calm sundial]

They started implementing these extensions approximately in 2023.

[vestal minnow]

yeah I remember aaronfranke was also here asking about opinions on glTF physics and what would work for Bevy back then

(starting here #math-and-physics message)

[calm sundial]

There are two physics proposals in Gltf repo. This is another one https://github.com/KhronosGroup/glTF/pull/2258 . But it seems the one I mentioned earlier is going to be merged (repo link was mentioned in the video ).

[valid fog]

Hell yeah

Yeah rn its really hard to support the current extension for physics ( omi ) just because of how bevy's asset loading works rn with gltf

It makes it hard to do it for a 3rd party crate ( like avian ) it would be fine for bevy but bevy doesn't have the physics structs upstreamed and the gltf loader doesn't have a good way for us to hook into it and apply our own transformations

If we had some base physics structs upstreamed representing things like colliders, static vs dynamic vs kinematic, etc, that could then be used by both rapier and avian that would be awesome

I had a pr for avian at one point that added omi physics support predicated on another pr to bevy that never got merged that made the gltf loading more extendable

[calm sundial]

It seems the extension schema https://github.com/eoineoineoin/glTF_Physics/tree/master/extensions/2.0/Khronos/KHR_physics_rigid_bodies will not have type static, dynamic, kinematic and will instead have bool isKinematic (false meaning dynamic?). See comment https://github.com/eoineoineoin/glTF_Physics/issues/4#issuecomment-1900631052 and one below it. Quesiton.. wIll Avian be able to fully parse this extension without explicit "static" and infer it using isKinematic and remaining fields?

[vestal minnow]

I guess we would just insert RigidBody::Static for nodes that aren't rigid bodies but have (child) colliders

since the spec says that colliders of nodes that don't have motion properties should be treated as static geometry

[valid fog]

bruh the omi extension was way better

what is this ****

they put a lot of work into the omi extension it was also basically a 1-1 mapping with avian, entirely coquencidentially

this sucks fr

[calm sundial]

They are asking for feedback. Leave comments if something is missing 🙂

[valid fog]

my feedback: upstream omi_physics as is 😂

[valid fog]

there were some big arguments between the microsoft people and the omi people over how the physic extension should be, i'm certain the feedback will not be met 😔

it looks like the msft people won 😔

I need to look closely at both of them so i can remember what's going on, i don't actually remember at this point it's been too long

[vestal minnow]

the choice of no explicit static bodies is definitely interesting... I know Unity and some scene formats are like that, but at least every physics engine I know definitely has static objects as a separate thing and concept

i.e. Avian, Rapier, Box2D, Jolt, Bepu...

[valid fog]

As the implementer of the premier physics engine for rust i would def comment maybe you could convince them!

[vestal minnow]

Wait... you can't even have static compound colliders?

[valid fog]

[vestal minnow]

or no am I reading that wrong

I might be

[calm sundial]

How it will look can be tested using blender extension. We can add rigid body (blenders component under physics tab) to object in Blender. Now how to make this object static, dynamic or kinematic using blender physics panel and additional one?

[vestal minnow]

I assume they mean that if you have multiple collider nodes as descendants of a node without motion properties (i.e. a static body), it would be treated as a compound collider. However for us it's currently important to distinguish between child colliders (every collider is its own entity) and actual compound colliders (Collider::compound on a single entity) which isn't really covered by the spec afaik

same goes for bevy_rapier I think

[calm sundial]

If something is missing we can use gltf custom properties to extend the extension as last option.

[royal helm]

are there any KCC impls for avian yet?

or well, move and slide kinds of methods

I made my own a while back with some issues

I know some others were working on their own versions

[calm sundial]

They also implemented importer for Godot https://github.com/eoineoineoin/glTF_Physics_Godot_Importer and https://github.com/eoineoineoin/glTF_Physics_Babylon

[vestal minnow]

there's at least the one by UB, in the draft PR or in vidar

also completely unrelated to Bevy or Avian, but Box2D recently got some character controller (or well, "character mover") features if y'all haven't seen it
https://github.com/erincatto/box2d/pull/881

namely, what it calls a cast mover, collide mover, plane solver, and velocity clipper

[vestal minnow]

Made the PR for the contact constraint generation optimization stuff, somehow it actually removes more code than it adds
https://github.com/Jondolf/avian/pull/699

I think that might be the final PR for major optimizations this cycle... I'll probably start working more on release prep and minor QoL things now

Maybe I'll take a crack at those observable collision events too 🤔

oh and I was supposed to finish the no_std branch now that my PR landed in Parry

[sleek thicket]

bump @vestal minnow 😭

[vestal minnow]

I'm not sure if there's a good way to do that 🤔 I guess you could pause Time<Physics> so that actual physics doesn't run, but manually run FixedPostUpdate, which is where the systems that update physics transforms currently live? Assuming you don't have game logic there that you don't want to run

hmmm though that doesn't update collider AABBs since that happens inside the PhysicsSchedule

if the goal is to update the colliders such that you can do spatial queries on them then I think that should actually be fine with the current setup

[sleek thicket]

i don't think i have anything running there, but it might become a footgun
and i do the spatial query on them 🥲
i was thinking of just disabling window resizing, but i just realized that it might come up again once i start working on VR

[vestal minnow]

Yeah I haven't tried this but it might work?

1. time.pause() (where time is ResMut<Time<Physics>>)
2. world.run_schedule(FixedPostUpdate)
3. spatial_query.update_pipeline() (where spatial_query is SpatialQuery)

and then unpause later

feels somewhat hacky though

[sleek thicket]

ty, gonna try in a bit
and i'll just comment that it's a placeholder until something better comes up

@valid fog there's no way VR won't need pausing that requires physics to run, right? maybe you can figure something out

[sleek thicket]

yep, that worked, tyvm 😄

pub(super) fn update_physics_while_paused
(   world: &mut World,
        p: &mut bevy::ecs::system::SystemState<SpatialQuery>)
{   world.run_schedule(FixedPostUpdate);
    {   p.get_mut(world).update_pipeline(); }
}

[vestal minnow]

@surreal rune So I have no_std Avian compiling, except with thumbv6m-none-eabi, because Parry uses downcast-rs with the sync feature, and synchronization primitives aren't available there :/

How important would it be to support targets without synchronization primitives?

like is no-atomic support only needed for very low-level embedded stuff or something, or is it also necessary for retro consoles like the GBA?

[surreal rune]

Yeah necessary for basically anything retro or embedded sadly. But that's ok, getting no_std is like 99% of the battle. It looks like Parry only uses the sync feature for two traits (Shape and WorkspaceData). I might try playing with Parry and see if they really need DowncastSync over Downcast

[valid fog]

Yeah

[vestal minnow]

Cool, I have the Avian PR here if you're curious
https://github.com/Jondolf/avian/pull/703

[surreal rune]

Since DowncastSync requires DowncastSend, which itself requires Downcast, I suspect you could just replace DowncastSync with Downcast and everything would be fine (maybe)

[sleek thicket]

well, ping me if you find out a better way 😄

[vestal minnow]

Also I had to add this thing, or alternatively handle Commands and ParallelCommands separately in half a dozen ugly cases... could be nice to have in Bevy itself, just making ParallelCommands a thin wrapper over Commands in no_std environments

[visual sparrow]

Sounds like something worth PRing imo

[vestal minnow]

observable collision events are working :D just need to do some documentation work and I'll probably make a PR

It does probably add a small amount of overhead, but it should be pretty minimal, especially since collision events are opt-in and this is only for started/ended collisions. I doubt people would have tens of thousands of collisions starting or ending every frame anyway :P

[sleek thicket]

it's not unrealistic to expect that in ecs engine though...

[runic tinsel]

I want to have a setup where I have a dynamic RigidBody that starts as a single small cube, and then I want to add cubes onto it dynamically. I'm assuming that I can just add colliders as children of the original cube, and the mass stuff will be figured out automatically, at least that's how I understood it from the docs, however what about something like impulses and forces? If I apply it to a child, will it be applied properly to the entire 'construction'? Also should I add the other cubes to the cube as children, or with joints?

[vestal minnow]

So you can't currently apply external forces or impulses to colliders or child entities, you can only apply them to the rigid body entity. But you can apply forces at an offset, so you can kind of emulate applying forces to the child entities that way

If you want the cubes to be fixed together with perfectly rigid attachments then you want to use child colliders. Joints only try to constrain positions, they are not perfectly rigid and can be prone to instability in more complex scenarios, plus they are likely more expensive

And yeah mass should get updated automatically when you add or remove colliders, unless you add the NoAutoMass component to the rigid body

[vestal minnow]

👀

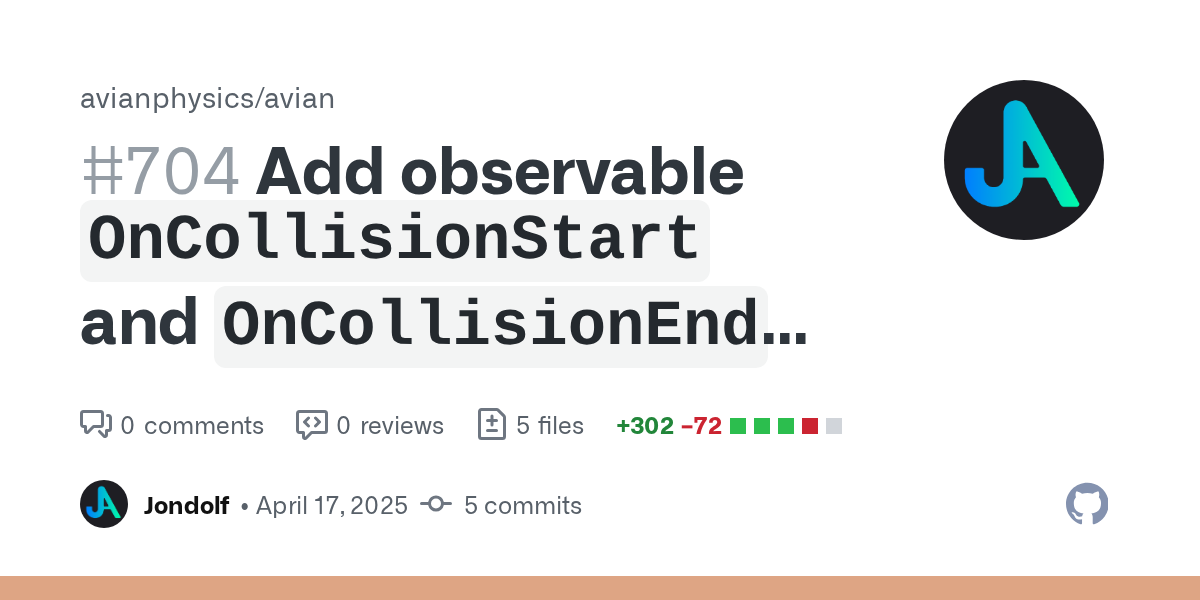

https://github.com/Jondolf/avian/pull/704

[runic tinsel]

Ok thank you so much, I'll see what I can do with that info ❤️

[surreal rune]

Yeah for 0.17 I want to go through and smooth over the public API as much as possible. I've already got an alternative to bevy_utils::Parallel which is no_alloc and no_std which should open the door for this too

Just waiting for https://github.com/bevyengine/bevy/pull/18822 to merge before going too crazy, as that'll have some awesome ramifications for feature configuration across Bevy and ecosystem crates too

[visual sparrow]

I just skimmed through it, and congrats on that API! It all reads really cleanly and idiomatic, this is some fantastic work 🙂

[vestal minnow]

Damn, I really want to land the SolverBody stuff...
Left: Before reworked contact pair management or solver bodies
Right: After both reworked contact pair management and solver bodies

Hmm I can probably get it working before the joint rework too, just need to store a bit of extra data that wouldn't be necessary if joints didn't use XPBD

lemme see if I can get something like that working

[calm sundial]

I checked upcoming Blender Gltf physics addon.
As mentioned earlier Gltf physics schema is not going to have explicit type: static, dynamic, kinematic and will have bool isKinematic. it's similar situation with Openusd format that has PhysicsRigidBodyAPI:kinematicEnabled https://openusd.org/release/wp_rigid_body_physics.html#kinematic-bodies. Gltf maintainers also mentioned in the road map video that they try to make Gltf compatible with Openusd.

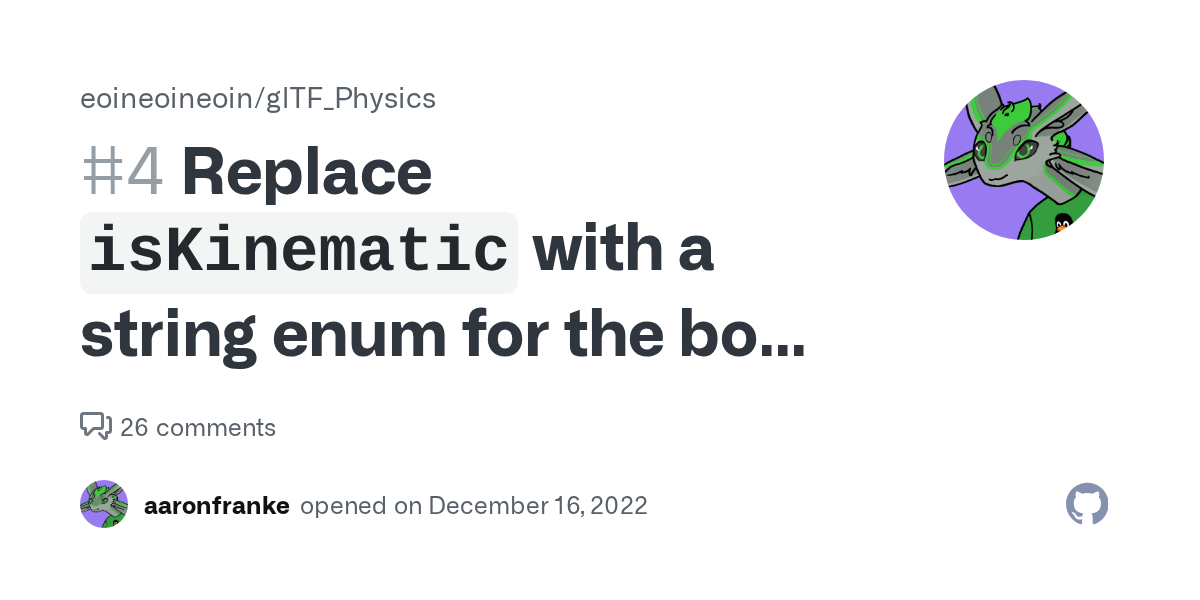

Part of comment from https://github.com/eoineoineoin/glTF_Physics/issues/4 that explains Gltf schema :
"... There's three types; static bodies (colliders who do not have a parent with a rigidBody property), dynamic bodies (nodes with a rigidBody), and kinematic (nodes with a rigidBody whose isKinematic=true) ..."
So it seems Avian will have enough information to parse the type correctly.

But how to export static rigid body from Blender?? In Blender you can only specify collider shape after rigid body is added to an object. And it seems Gltf addon https://github.com/eoineoineoin/glTF_Physics_Blender_Exporter additional physics panel doesn't cover this.

[calm sundial]

Full compatibility with Openusd/Gltf seems important if Avian is going to be upstreamed. Maybe we should take into account compatibility while Avian is in active development and it's easier to change stuff. There is also one more upcoming Gltf extension "Interactivity" that has some physics related fields (iirc).

[sleek thicket]

i wonder if it'd be difficult to upstream colliders themselves, we're already halfway there with primitive shapes and colliders seem like the next step but i'm assuming orphan rules are getting in the way

[calm sundial]

Seems like a good idea. Gltf divided rigid body and colliders into two different extensions KHR_implicit_shapes and KHR_physics_rigid_bodies.

"KHR_collision_shapes is deliberately separated from KHR_physics_rigid_bodies to enable the geometries to be used by any number of future extensions, not necessarily limited to the domain of rigid body simulation. For example, node selection or 3D UI components, etc."

KHR_implicit_shapes importer can be implemented in Bevy even without physics.

[vestal minnow]

oh no... I indeed got a spherical joint working with the SolverBody stuff

I have to implement it fully now, don't I

geez louise this will be such a large PR again

And possibly controversial? 🤔 It does mean that users can't (easily) access up-to-date body data inside the solver, unless they're willing to use SolverBodys and stuff

but honestly I don't care too much about that, since having user systems deep in the internals like that is kinda sketchy anyway, and not worth losing a 3x perf boost for

[keen light]

which approach are you guys using right now to generate colliders?

Collider::trimesh_from_mesh(mesh) for each loaded mesh or is there something better

[visual sparrow]

If you spawn a SceneRoot, you can just add a ColliderConstructorHierarchy::new(ColliderConstructor::TrimeshFromMesh) to it for the same effect; no need to iterate over the meshes 🙂

In general, convex hulls a bit more well-behaved and faster to compute with, so I prefer ColliderConstructorHierarchy::new(ColliderConstructor::ConvexHullFromMesh)

[keen light]

yup works even better thanks

but my fps does tank quite a bit after adding colliders to everything, is this normal?

[kind moss]

trimesh_from_mesh doesn't do any simplification for you so if your meshes are dense you may end up with very expensive colliders.

You might have better luck with https://docs.rs/avian3d/latest/avian3d/collision/collider/struct.Collider.html#method.convex_decomposition

[keen light]

Yeah I was thinking something similar so i also tried with cylinder but again <1 fps

Could it be because everything is always colliding with each other? I only have a couple dozen objects

[kind moss]

Yeah, a dozen objects shouldn't be that slow unless maybe they have ridiculously complex colliders.

[kind moss]

Did you maybe set SubStepCount to something large? Or tweak other settings off their defaults.

[keen light]

Nope everything default, just loading gltf and adding colliders

[kind moss]

Huh, and it's slow even if you only give each object one simple cylinder collider? That's weird. Can you share the code?

[keen light]

use bevy::{
    dev_tools::fps_overlay::{FpsOverlayConfig, FpsOverlayPlugin},
    prelude::*,
    text::FontSmoothing,
};

use bevy::{prelude::*};
use avian3d::prelude::*;

fn main() {
    App::new()
        .add_plugins(DefaultPlugins)
        .add_plugins( PhysicsPlugins::default())
        .add_plugins(  FpsOverlayPlugin {
            config: FpsOverlayConfig {
                text_config: TextFont {
                    // Here we define size of our overlay
                    font_size: 42.0,
                    // If we want, we can use a custom font
                    font: default(),
                    // We could also disable font smoothing,
                    font_smoothing: FontSmoothing::default(),
                },
                text_color: Default::default(),
                enabled: true,
            },
        },
        )
        .add_systems(Startup, setup)
        .run();
}
#[derive(Component)]
struct ColliderInserted;

/// set up a simple 3D scene
fn setup(
    mut commands: Commands,
    asset_server: Res<AssetServer>
) {
    commands.spawn((
        SceneRoot(asset_server.load(
            GltfAssetLabel::Scene(0).from_asset("glTF-Sample-Models-main/glTF-Sample-Models-main/2.0/ABeautifulGame/glTF/ABeautifulGame.gltf"),
        )),
        ColliderConstructorHierarchy::new(ColliderConstructor::Cylinder{radius: 0.5, height: 1.0}),
    )
    );
    commands.spawn((
        Camera3d::default(),
        Transform::from_xyz(-2.5, 4.5, 9.0).looking_at(Vec3::ZERO, Vec3::Y),
    ));
}

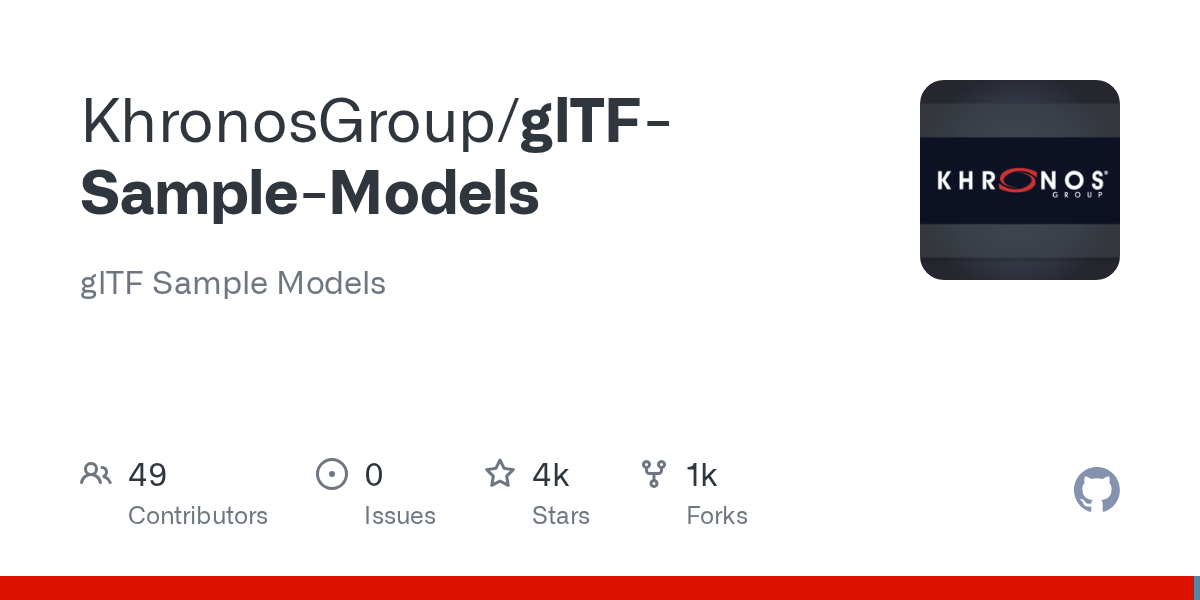

i got the scene from https://github.com/KhronosGroup/glTF-Sample-Models/tree/main/2.0/ABeautifulGame/glTF

[visual sparrow]

@keen light low hanging fruit: does your Cargo.toml contain the standard Bevy optimization stuff?

[keen light]

Nope, but my fps is going from 140 to <1 after colliders are added, does the optimization help that much?

[visual sparrow]

It does when dealing with glTFs, yes

[vestal minnow]

running in release mode or with debug optimizations can be like over a 100x perf improvement

[visual sparrow]

[dependencies]
# Compile low-severity logs out of native builds for performance.
log = { version = "0.4", features = [
    "max_level_debug",
    "release_max_level_warn",
] }
# Compile low-severity logs out of web builds for performance.
tracing = { version = "0.1", features = [
    "max_level_debug",
    "release_max_level_warn",
] }

# Enable a small amount of optimization in the dev profile.
[profile.dev]
opt-level = 1

# Enable a large amount of optimization in the dev profile for dependencies.
[profile.dev.package."*"]
opt-level = 3

# Remove expensive debug assertions due to <https://github.com/bevyengine/bevy/issues/14291>
[profile.dev.package.wgpu-types]
debug-assertions = false

@keen light add this

source: bevy_new_2d

[visual sparrow]

Also, FYI, you may be missing rigid bodies 😉

[kind moss]

Oh, wow. I had no idea it was that significant. I've always just defaulted to the recommend optimizations.

[keen light]

i was thinking of just loading the environment as gltf, because its easy to import. I wouldn't need rigid bodies for that or?

[visual sparrow]

Depends on what you want to achieve. I assume you want physics objects to not pass through the scene?

Then you need to add a RigidBody::Static to the SceneRoot entity

[keen light]

i want other objects to not pass through the enviroment

[visual sparrow]

Yep, RigidBody::Static it is then 🙂

[keen light]

and that would apply to all child objects of scene?

[visual sparrow]

A rigid body can have any colliders

If you have a setup like this:

spawn((
  SceneRoot(foo),
  ColliderConstructorHierarchy(...),
  RigidBody::Static
))

Then you end up with one rigid body that has n child colliders

Does that make sense?

[keen light]

but what would adding the rigidbody component change in this scenario

or is it necessary for collisions to work

[visual sparrow]

If you have no rigidbody, they your colliders will just report the collision, but not act on it

[keen light]

ah okay makes sense

[visual sparrow]

Like e.g. an invisible trigger area that tells you "the player is now in here"

A rigid body is the piece that dictates how a collision is handled

RigidBody::Static -> never move this entity, just make sure other things don't phase through it

RigidBody::Dynamic -> move this entity out of other rigid bodies

RigidBody::Dynamic is also the one you want to use for physical forces like gravity

[keen light]

well the optimisations took it up to 3 fps

i also added rigidbody::static and now its full speed 🚀

[vestal minnow]

ah

[keen light]

maybe self-collisions somehow messed it up?

[vestal minnow]

yeah that's probably because when they're colliders that aren't attached to a rigid body, they're computing contacts against each other, but if they're attached to the same body, it filters out self-collisions

[vestal minnow]

I'm thinking that we should prooobably change it so that a Collider on its own just does nothing by default, and emits some warning like "Collider must be attached to a RigidBody or have the Sensor component". It's weird that a Collider without a body is basically the exact same as a Sensor and that there's two ways to do things

Semantically, Collider should be just a shape, and then the RigidBody or Sensor defines how it's used

[visual sparrow]

Completely agreed

I think we had chat about this same thing like a year ago

Because I was definitely running into confusion about that back then

once you know the avian model of rigid bodies and colliders it's fairly simple, but getting there is very unintuitive

[kind moss]

This is how I've always assumed it worked. Never occurred to me that a naked collider would do anything.

[keen light]

I dont think I saw examples of physics systems, maybe it could help to have some?

or did i miss them

[vestal minnow]

What kind of physics systems? There are some Avian examples for 2D and 3D, though not nearly as many as we should have

[keen light]

I was only looking at the bevy examples

[vestal minnow]

Yeah agreed, I think the ideal solution would be

• Collider on its own does nothing, it just emits a warning.
• Collider attached to a RigidBody (on the entity or as a descendant) is part of the ContactGraph. If it is not a Sensor, it computes ContactPairs for collisions against other rigid bodies.
• Collider that is a Sensor is also a part of the ContactGraph (or something like an IntersectionGraph if we want to split it) but does not compute ContactPairs, it only detects intersections, sends events, and updates CollidingEntities, if it exists.

I think really the only remaining open question I have in terms of UX is whether collision events for rigid bodies and sensors should be separate or not

[visual sparrow]

that sounds clean, agreed

[vestal minnow]

Some engines like Box2D have separate events like b2ContactBeginTouchEvent and b2SensorBeginTouchEvent, but I'm unsure if that's useful or just prone to causing more confusion

I feel like for sensors you might often want special behavior, in which case using observers may be the play, and if you're targeting the sensor entity then it'd make sense to only have one event since you know you're dealing with a sensor anyway

Purely in terms of efficiency, it would probably be better to have separate event types to minimize reading unnecessary events, but I'm just worried people might try to read CollisionStarted events for sensors and be confused why it's not working

Hmm there are also some weird edge cases there 🤔 If we had separate events, and you removed the Sensor component while another collider was overlapping it, should that fire an event for the sensor intersection stopping and a contact beginning? If we had just one event type, it probably shouldn't fire an event at all until they actually stop overlapping

[sleek thicket]

if you're removing the sensor then couldn't you just check overlap/contacts manually right there if you need it?

[sleek thicket]

in oUSD/gltf (and physx) collider without a rb means infinite mass with no velocity, so turning it into a marker would probably suck long-term

[cinder summit]

The asset thing could handle differences like that, no need to make component behavior magic to match it

[sleek thicket]

even when saving to it?

[vestal minnow]

Mm actually if we still include colliders on their own in the spatial query pipeline, it probably shouldn't emit a warning

I feel like it should be possible to have shapes that are only used for spatial queries, not for contacts or sensor scenarios, so that's probably something we should still support

[cinder summit]

Worth considering if we want sensors to get hit by spatial queries, I remember that causing many bugs for rapier users 🤔

[vestal minnow]

So the updated approach would be

1. Collider on its own is just a shape in the world, and participates in spatial queries.
2. Attaching a Collider to a RigidBody makes it also compute ContactPairs for collisions against other rigid bodies.
3. Making a Collider a Sensor overrides (2) and makes it simply detect intersections and send events (and still participate in spatial queries unless you filter them out)

[cinder summit]

At least if it's all colliders it makes some sense they'd be in there though, unlike if it's just RigidBody and Sensor

[sleek thicket]

you can already do that by just using a layer mask/filter
collider that doesn't collide with anything by default just doesn't make sense from the user perspective 🫠

[sleek thicket]

and for that too
if you're really worried about it then inserting a different default layer for sensors would be a better solution

[vestal minnow]

From my POV, a Collider is just a shape optimized for geometric queries. We could even rename it to Shape if we wanted to, like how Box2D has b2Shape. It really only has three purposes:

1. Physics (detect and compute contacts for rigid bodies)
2. Sensors (detect when entities overlap a "trigger area")
3. Spatial queries (ray casts, shape casts, point queries, etc.)

A RigidBody associates a Collider with (1), unless a Sensor associates it with (2). But a lot of games might not need any collision pipelines or physics, and just want (3). Imo you shouldn't need rigid bodies or sensors to perform spatial queries; fundamentally, you're just querying a tree of shapes for geometric information, which shouldn't need any connection to physics

Ex: Maybe for efficient picking support you want to use simpler primitive shapes rather than rendering Meshes. You attach Collider/Shape to those meshes. But they shouldn't otherwise have any physics or overlap detection

[sleek thicket]

yeah i'm worried about games that don't need collision pipelines or physics too, but i think making a collision library would be a better solution for them

[vestal minnow]

Yes well ideally we could maybe have colliders and spatial queries in a separate crate that people can use, and then have Avian integrate with that, providing physics on top of it in some way

The broad phase and narrow phase are pretty heavily tied to physics if we want to keep it fast, so splitting that out from Avian would be pretty difficult. But I think we could technically split out colliders and some of the core spatial query pipeline stuff, providing a thin wrapper for physics-specific APIs in Avian, assuming that physics is still allowed to drive stuff like when and how the BVH is updated

[sleek thicket]

is there a way to split out and upstream colliders to bevy without getting orphan rule issues?

[sleek thicket]

^

[vestal minnow]

We could upstream some collider type, but like, Rapier still uses Parry, so you wouldn't be able to use it there, unless it internally converted it to Parry shapes. Bevy also doesn't have convex polyhedra, non-rendering trimeshes, heightfields, etc.

[sleek thicket]

which ones do oUSD/gltf have though

[vestal minnow]

it was some super limited set of shapes, lemme find it

[sleek thicket]

oUSD: we suggest the support of UsdGeomCapsule, UsdGeomCone, UsdGeomCube, UsdGeomCylinder, UsdGeomSphere and UsdGeomMesh, though the precise set of supported geoms might be implementation specific

[vestal minnow]

I think glTF is just sphere, box, cylinder, capsule, convex hull

[sleek thicket]

i can't even find hull from a quick glance

[vestal minnow]

it's in the rigid body README's geometry section

not an implicit shape

[vestal minnow]

I think once we release Peck, and have the spatial query pipeline rework Nise is working on, and have reworked the broad phase to reuse the same BVH, I might try if I can do this split

It'd basically be a Bevy-native collider and spatial query crate then

[sleek thicket]

yeah i was just about to say that

[vestal minnow]

One part of Peck I've been dreading implementing is convex decomposition, but maybe the rational short-term solution there would be to just directly port Parry's VHACD algorithm to Glam and release that as its own crate 🤔

rather than spending ages implementing that or CoACD from scratch (though CoACD would be nice eventually)

[calm sundial]

It seems the filed "node" is type "mesh"
https://github.com/eoineoineoin/glTF_Physics/tree/master/extensions/2.0/Khronos/KHR_physics_rigid_bodies

"Exactly one of shape or node should be provided."

6 types?
If there is "shape". Use one of 4 shapes from KHR_implicit_shapes.
If there is "node". Use mesh.
If there is "node" and convexHull = true. Use convex hull.

[calm sundial]

Extension "KHR_Interactivity" with physics related fields:
rigid_body/applyImpulse
rigid_body/applyPointImpulse
rigid_body/rayCast
event/rigid_body_triggerEntered
event/rigid_body_triggerExited

[vestal minnow]

These nodes are used to apply impulses to a dynamic rigid body, useful when the mass or inertia of a motion is not known in advance.
that's not how impulses work, not in real life or in physics engines

an impulse is a change in momentum, which considers mass

In other news, I have all joints working with the SolverBody stuff, so I technically have an MVP ready... I need to do a ton of clean-up and documentation work and testing though

This requires computing and storing initial anchors and other positional data for joints before the substepping loop since the solver only has access to position and rotation deltas now... It's a fairly intrusive change :P

[vestal minnow]

yeah this will be at least a 4k line PR once I'm done with this 😂 current progress, missing a ton of docs and clean-up

the branch is here if someone wants to try it for whatever reason... heavily WIP

[visual sparrow]

@vestal minnow off-topic: is there an easy way to get a rigid body's center of mass?

[vestal minnow]

ComputedCenterOfMass

[visual sparrow]

heck yeah!

thanks!

[vestal minnow]

This branch is kind of weird since some of the design decisions were partially made with future optimizations in mind (SIMD-friendly body state) that we might not get full immediate benefits from, but I'm hoping that it'll make it easier to actually implement those optimizations later

I'm also sort of trying my own thing with how I store mass properties for the solver 🤔 Box2D stores the mass and angular inertia of each body in each constraint, but I feel like that'd result in too much memory usage in our case with 3D and support for locked axes, so I instead store them in a separate Vec with a SolverBodyInertia for each SolverBody. I figured out a way to make it just 16 bytes in 2D and 32 bytes in 3D, which I'm hoping will make it good for memory locality and fast access

or right now it's 44 bytes in 3D, but it will be 32 bytes once I implement a custom SymmetricMat3 type 🙃

I think I actually have an old branch with that already

[visual sparrow]

@vestal minnow just ran into a maybe weird use-case: is it possible to create a convex hull from an already existing collider?

Is the best way to rasterize the collider and then feed the points to Collider::convex_hull?

[vestal minnow]

I think that's the way to go, yeah 🤔

[visual sparrow]

Bummer, I'll just go with the AABB then

Is there a quick way to get a rigid body AABB?

I could build a compound shape of the collider AABBs and then compute the AABB of that

[vestal minnow]

I guess you'd iterate over the ColliderAabbs of the attached colliders and use the merged method

[visual sparrow]

oooh I didn't know about merged, that simplifies things! Thanks

[cinder summit]

And here I thought my WIP stuff for spatial queries was bad
13 files changed, 992 insertions(+), 991 deletions(-)

[vestal minnow]

Yeah I mean this touches the whole solver and all constraints, and involves some extra bookkeeping and writeback, so it's pretty big

The perf gains are pretty huge, but tbh I might just leave this for Avian 0.4, since I'm not sure if I'd be comfortable merging this so late in the cycle without extensive testing and getting some feedback first (if I even get this "ready" before 0.16 releases)

We have so many things halfway done that 0.4 might end up being a crazy release lol

0.3 is mostly just improvements to collision detection and related features, it's a bit smaller than average in terms of shipped things

[vestal minnow]

damn, with the SolverBody stuff we have ~60 fps with 20k-30k contacts in 2D

the solver isn't even that big of a bottleneck there, the narrow phase, broad phase and BVH updates start to get kinda costly

should get a bit better with the BVH broad phase and other related improvements

"Store Impulses" being 1 ms is interesting

[vestal minnow]

Hmm I guess I'm making another modified version of petgraph's undirected graph, this is probably the third version now 😂

I basically need a mix of UnGraph and StableUnGraph, where the edge connectivity list keeps stable indices, but edge weights are stored separately and can be swap-removed to get rid of contact pairs

StableUnGraph keeps vacant edges around, which means the narrow phase would need to also unnecessarily iterate over non-existent contacts, so I can't use that. And UnGraph doesn't maintain a stable order at all for removal of nodes or edges

So I guess I'll split out edge connectivity data and edge weights and maintain a contact ID pool or something 🤔

[vestal minnow]

wow it works I think
https://github.com/Jondolf/avian/compare/main...stable-contact-ids

fixes some scuffed handling of contact removal too

[vestal minnow]

nice it actually optimizes things too (left is old, right is new)

[vestal minnow]

hmm right we should also have separate active and sleeping contacts to avoid unnecessarily iterating through contact pairs for sleeping bodies in the narrow phase

Box2D has solver sets which also achieves this

god there's so much optimization work we can do 😂 I'm addicted to optimizing rn

[vestal minnow]

huh, Rapier doesn't have this either, it just has a TODO to not iterate over all contacts 🤔 there's definitely a lot of room to optimize things in Rapier too

[sleek thicket]

norbo 2

[earnest iris]

I need to support dragging tokens using the mouse. My tokens are RigidBody::Dynamic so to collide against walls. I remember from my days using chipmunk that to properly implement dragging a dynamic entity, I had to spawn an adhoc kinematic entity and create a pivot joint with my dynamic entity.
Will the equivalent in Avian be a RevoluteJoint?

[vestal minnow]

PR
https://github.com/Jondolf/avian/pull/706

[vestal minnow]

I would probably use a DistanceJoint, but a RevoluteJoint works too, yeah

I have a very old version of a grabber thing like that here
https://gist.github.com/Jondolf/166ca879fa2994ba42b5e08a8807885c

it's using an old Bevy version and bevy_xpbd (the predecessor of Avian), but it should be fairly simple to get it working with a few small changes

[earnest iris]

Thank you! That's going to be useful to learn from.

[earnest iris]

Is there a way to ensure the dynamic entity never breaks through a static collider even if its joint compliance value is near zero?

[earnest iris]

(My current workaround is to clamp the kinematic target entity distance from the dynamic entity, thus reducing the amount of 'force' applied by the joint)

[vestal minnow]

Not currently, no. That might change when we do the fabled joint rework (move them from XPBD to be impulse-based) but I'm not 100% sure

A partial workaround is to limit the distance like you're doing, or to scale compliance based on distance (might cause other problems?). We could/should also add an option to limit the maximum force directly

[vestal minnow]

To expand on this: With XPBD, the joints are changing the positions of the constrained bodies directly. With a large enough positional correction, it can make bodies just go through other objects, or at the very least make them overlap. But if we made joints impulse-based like contacts already are, it would instead change the velocity; if we solved joints first and contacts after, the contacts could probably react to that change in velocity, and apply an impulse to counteract it before the body has been moved

But that being said, contacts also have some softness to them (which can be configured), so it might not perfectly ensure that joints never break bodies through other objects

[vestal minnow]

whyyy does this break determinism

[visual sparrow]

Are you accidentally assuming order in a hashset / map?

Maybe by iterating over something?

(I say that because I see a few iter calls in that PR, but I'm on mobile, so I can’t easily verify the involved types)

[earnest iris]

Limiting the distance seems to be working well enough - but I'm struggling with eliminating the spring effect of the joint. Perhaps I should write a custom joint with a different linear damping profile? (Have a higher damping value but make it apply non-linearly)

[cinder summit]

It was a lot of merge conflicts
I have it compiling after rebasing it though (or at least avian2d, there are some missing trait impls for 3D types I need to sort out)
https://github.com/NiseVoid/avian/commit/ee4e8902ff179ba754f7352741c25c7ff56cccc8
Still need to implement a couple more of the spatial query functions, apply translation/rotations correctly, and then see if this trait is actually implementable as is
Also gonna need to sort out the issue where I use ColliderAabb to fill the BVH, but those are just left in whatever state they were for the broad phase

[vestal minnow]

Nope it's just using vecs, except for some pair lookups where order doesn't matter... The initial behavior in the determinism_2d example is deterministic when single-threaded, but it's different after resetting the scene (i.e. respawning everything), and not at all deterministic when multi-threaded

I'm guessing the graph edges or their IDs are somehow not getting cleared or updated correctly, since edge removal now marks them as vacant (None) rather than actually removing them, and maybe that messes it up somehow? But I don't see why multi-threading would affect anything since it only adds or removes pairs serially, and the order for that should be stable

[earnest iris]

I (mostly) fixed this by making the dragging entity distance limit apply only when the main entity is already colliding with something and then increased the compliance, as well as the linear damping enough to prevent most of the bounciness.

[distant creek]

hey guys, quick Q, how does one apply physics after a delay to an object. I want to lock axis until the terrain is generated then unlock the player. However, both unlock transform x,y,z and adding the rigid body and other components after the world has spawned to the entity seems to stop physics affecting them entirely

[knotty thicket]

the new observer collision events are quite nice

[vestal minnow]

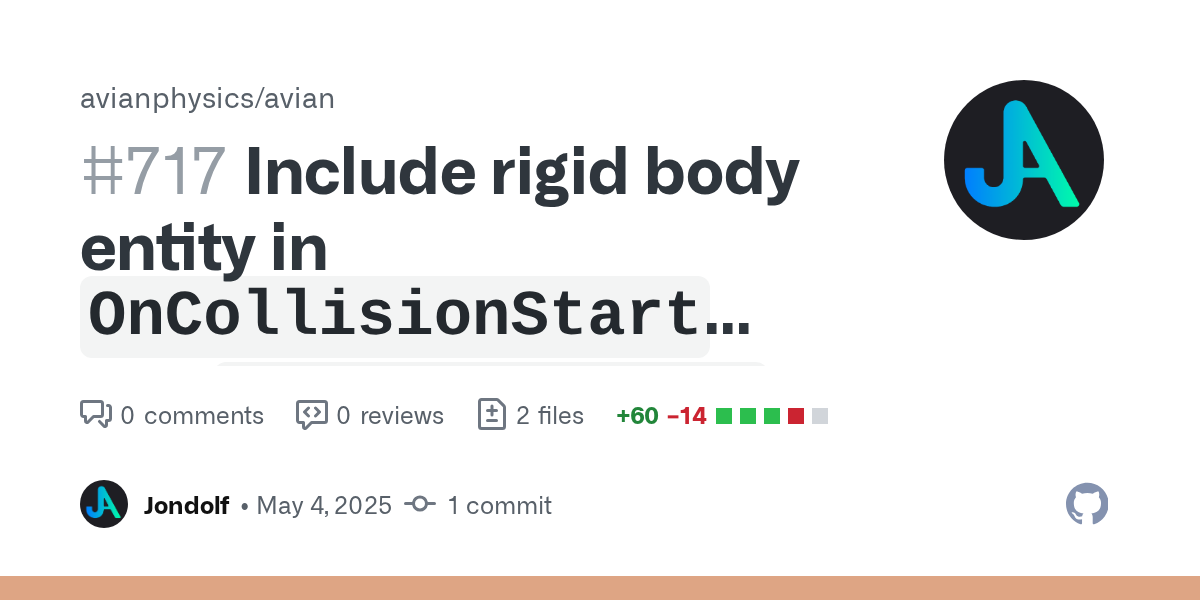

I was thinking that it might be nice to add the rigid body entity to them too and to use named fields

[vestal minnow]

Hmm that sounds like it should work 🤔 just spawning it with a delay or keeping axes locked until the terrain has been generated

I'd double-check (maybe by logging values) that when the player should be able to move, it has

1. RigidBody::Dynamic or RigidBody::Kinematic
2. If it is dynamic, a non-zero ComputedMass and ComputedAngularInertia
3. No locked axes

(also the general stuff like make sure you actually have PhysicsPlugins and that physics works in the general case where you're not doing anything weird, just spawning a rigid body normally)

[distant creek]

It was me being dumb

just an odd camera angle, and no mass

[royal bridge]

I'm trying to use Avian without any of the collision detection stuff, just the spatial queries and dynamics
Right now I only add these plugins and spatial queries appear to work well and the performance is decent:

PhysicsSchedulePlugin::default(),
PhysicsTypeRegistrationPlugin,
PreparePlugin::default(),
MassPropertyPlugin::default(),
ColliderHierarchyPlugin,
IntegratorPlugin::default(),
SpatialQueryPlugin,
SyncPlugin::default(),

But none of the velocity components (for example) appear to work. I'm not sure what I'm missing (probably something obvious 😅)

For context, I have tens of thousands of entities and I only really want spatial queries against them (adding the default plugins outright crashes it)
I considered a custom solution using OBVHS but Avian has some nice convenient features and I'm not sure if OBVHS has existing support for non-ray based queries.

Not a big deal if those components won't work. Easy enough to do manually, but thought it work asking.

[cinder summit]

From my experience trying to get OBVHS into avian, I can tell you it doesn't come with queries other than raycasts and AABB intersections, they are pretty simple to build

Wrapping things up into a nice and performant API is still a lot of work though, which is exactly why I'm reworking avian rather than building my own SpatialQuery API for my SDF collisions again

[royal bridge]

Oh neat! That sounds great, I look forward to it

[clear dew]

does anyone have on hand their commit revision for running crate examples on rc5?

I've gone back two to no avail (which is totally fine :D) but was wondering if there's a revision with working examples atm? nw if not

ah! my fault! run in crate root!

[valid zenith]

Just wondering, does avian have any support for hierarchal collisions?

by that i mean, say i want to create mesh accurate collisions but i dont want to incur the cost of a trimesh, could i simply define a series of increasingly small sphere colliders and have avian only emit a collision event for the "smallest" (or deepest) collider hit, or is that the kind of thing you have to implement yourself

nvm answered it myself (i shouldve just googled) bounding volumes are supported because of parry

[visual sparrow]

TIL

[valid zenith]

mightve spoken too soon on that, went back to avian docs and not finding anything for bounding volume stuff
I know bvh is used under the hood for optimisation, so maybe if you just add a bunch of sphere colliders to a mesh for coverage itl "generate" the bounding volumes for you, but i wouldnt want to just assume itl do that

[runic tinsel]

I'm pretty sure you can just keep adding children to a rigidbody, and then have those children have colliders. If they collide, I'm pretty sure it's the child collider that 'detects' it. I think this is along the lines of what you were asking for?

[valid zenith]

yeah if only the child emits then its probably acting like a BVH

with a BVH youd do something like have one big sphere collider for the entire entity, then two smaller colliders for their top and bottom half, then smaller colliders inside those, and keep getting smaller until you have the resolution you want.

So to check if the left pinky on that model got hit you only have to check, 20 colliders, instead of 2000 for that model (to use an extreme example) because most of them got filtered out in the earlier layers of the heirarchy so dont even get checked by the solver

[runic tinsel]

Jondolf is online if you want the expert opinion :)

[valid zenith]

I would ping him but its not THAT serious

[runic tinsel]

I'm pretty sure they don't mind, I see people pinging them quite often

[valid zenith]

but yeah if it is emitting from the "youngest" child with a collider on it, then it is probably acting like a bvh, because it would be a bit silly to have behaviour for relationships like that and not take the free optimisation of just not checking the children of children that didnt collide ykyk

[runic tinsel]

You could always just do a simple test

[valid zenith]

screw it
@vestal minnow you able to confirm on that?

[vestal minnow]

So first off, every Collider has its own AABB to accelerate broad phase collision detection and spatial queries. Spatial queries indeed use a BVH for this, with each collider as a leaf node. But broad phase collision detection is currently using a different algorithm (sweep and prune), though I do plan on switching it to also use a BVH.

If a potential intersection is found between e.g. just two spheres, that contact is computed directly. But for composite shapes, such as trimeshes or colliders built using convex decomposition, Parry stores a separate BVH just for that shape to accelerate queries against it. So yes this optimization is kind of done automatically for some shapes

But there is currently no acceleration like that for actual child colliders in the entity hierarchy; every Collider is treated as its own shape in the BVH

[valid zenith]

Ah gotcha, is there a way to define a structure like that manually?

Or better yet is it even really necessary to do (not sure how fast primitive shape colliders resolve in the solver), like say i want to have a bunch of humanoid entities and i want to do zoned collisions on them, so each entity is lugging around 6+ colliders where realistically only one of them is relevant at any one time, could i instead do 3 layers of bounded volumes, one for the whole entity, one for upper limbs + head, one for lower limbs

[vestal minnow]

There's not really a way to do it that manually, no. With a BVH, if you have a collider for each of those 6+ shapes, it already computes larger bounding boxes around them sort of hierarchically based on what the heuristic thinks is (close to) optimal for traversal speed; that's kinda the point of a BVH

And if you did a ton of nested BVHs, that'd probably just have way more overhead since you'd need to update and traverse each of them separately, possibly losing parallelism in the process. Unless of course the "sub-BVHs" or whatever remain static like meshes often do, in which case it's useful since you don't need to rebuild those

(by nested BVHs here I mean multiple layers of BVH filtering at different granularities)

[valid zenith]

Ah gotcha so if im understanding right.

if i chucked a bunch of colliders on a model, currently i could check if say a bullet passed through an armpit using a raycast and it would use bvh, because its a spatial query

but for the actual physics solving its not doing that (yet)

effectively just looking to get close to the footprint of a trimesh, but without the huge cost of a trimesh ykyk few spheres to get coverage on an arm vs all those vertexes

[vestal minnow]

Yeah pretty much, the broad phase for collision detection is currently just using a simple sweep and prune algorithm like the one described here
https://leanrada.com/notes/sweep-and-prune/

and I intend to try changing it to use the OBVHS crate (I have some WIP prototypes)

But like I mentioned, collisions against e.g. meshes do still also use a BVH for filtering individual triangles after sweep and prune has found an intersection with the whole mesh's bounding box

since Parry stores that BVH in the trimesh itself and uses it automatically

[valid zenith]

Ah sick sick
is there anything id need to do on my end to help the broad pass do its job like compound the colliders or something?

[vestal minnow]

I wouldn't worry too much about that in 99% of cases unless you notice from profiling that you're bottlenecked on it for whatever reason

[valid zenith]

Fair

[calm sundial]

Blender is working on physics geometry nodes https://projects.blender.org/blender/blender/pulls/124093 . Currently the feature can be enabled as experimental feature. Maybe this will help exporting physics to gltf. There is "Collision shape" node (see screen), separated from rigid body.

[dusty pagoda]

hello. given that bevy is an ecs engine i thought it would be appropriate to have an old school rts-style deterministic lockstep netcode library that would scale well with huge numbers of entities. i couldn't find one already built so i started writing my own. i'm pretty new to this but making good progress. the problem i have run into now is that the determinism across clients is proving difficult to achieve when running a physics simulation.

my netcode strategy is this:

1. client sends commands to server but does not implement gameplay effects yet
2. server broadcasts new simulation ticks with all commands for that tick. this way everyone executes the same commands every tick.
3. clients receive all commands for each tick and then implement the commands' gameplay effects locally.
4. part of this involves stepping the physics sim by the same duration as the server's sim tick. it's not quite the same on the clients due to packet jitter, which is why i step everything manually

to this end, i start with the physics sim paused

.add_systems(
    Startup,
    |mut time: ResMut<Time<Physics>>| {
        time.pause();
    })

i send a command from a client to apply a force to a unit.
all clients receive this command which implements this

unit.apply_force(force_cmd.force);

immediately after this system i step the physics sim

fn step_physics(
    world: &mut World
) {
    world
        .resource_mut::<Time<Physics>>()
        .advance_by(SIM_TICK_INTERVAL);
    world.run_schedule(PhysicsSchedule);
}

unfortunately this is not enough to prevent desyncs across clients. small changes in position after collisions eventually lead to different states across clients. I have enabled the enhanced-determinism feature for avian, but it doesn't appear to make any difference. does anyone have any suggestions for how i can make this deterministic?

[cinder summit]

@vestal minnow I threw your example into the repo, started working on making it work with SpatialQuery stuff, when suddenly OBVHS panics

obvhs-0.2.0/src/bvh2/mod.rs:406:13:
assertion `left == right` failed
  left: 10002
 right: 10000
```<https://github.com/NiseVoid/avian/tree/generic_spatial_query> example `spatial_query` in case @thorn solstice wants to see what's going on (also Griffin might like the awful mess I made in `src/spatial_query/bvh_ext.rs`)

Took me a while to get the ambiguity detection to stop crashing the app too, and not just from my changes, but also existing ambiguities when multiple collider type plugins are registered ... Do we have a way to handle those currently? 🤔

[vestal minnow]

ambiguous_with_all

or maybe preferably ambiguous_with, putting just the relevant conflicting systems in some system set... but I don't think we do that rn

[vestal minnow]

I have gotten OBVHS kind of working (i.e. not crashing and detecting AABB intersections) in the past, and I think I might've run into similar issues at some point, but I don't remember what it was

[rocky seal]

i see that SyncPlugin and PreparePlugin (i'm not sure which is relevant here) run their systems in FixedPostUpdate. is there something else that happens w/ Position and/or Transform in one of the other schedules? i have two different systems that both sometimes manually set the Transform::translation of an entity. the one in FixedUpdate works, but the one in FixedLast doesn't (i.e. the entity's translation doesn't change)

[rocky seal]

i just tested moving the latter into FixedUpdate and it works

so maybe there is something between FixedLast and FixedUpdate that overwrites the translation set in FixedLast?

[rocky seal]

setting the Position instead of the translation in FixedLast works as expected

[thorn solstice]

Interesting, this maybe does sound familiar. Can you try it with BvhBuildParams::fastest_build() to eliminate some variables?

[thorn solstice]

If you haven't yet, take a look at the physics example in the insertion_removal branch when you get a chance. Curious to hear your thoughts. I'm pretty much done with the impl but might play with how things are structured/named a bit.

[cinder summit]

Crash seems to be gone with fastest_build ... So one of the features medium has causes the list to grow by 2 for seemingly no reason 🤔

[vestal minnow]

Yeah I vaguely recall seeing that as well

[thorn solstice]

Yeah sounds familiar, maybe in this context there needed to be 1 prim per leaf or something?

[vestal minnow]

Yup I saw this, I haven't had time to go through the example or implementation in too much detail yet, but I started initial work on getting the insertion and removal stuff working in Avian

that is still currently very WIP and not yet working properly, but I'll let you know how it goes when I have a chance to work on it again (probably next month)

[golden shoal]

@vestal minnow I have a question about the documentation and behavior of CollisionLayers.
The documentation states:

Two colliders A and B can interact if and only if:
1. The memberships of A contain a layer that is also in the filters of B
2. The memberships of B contain a layer that is also in the filters of A

but it doesn't say whether collision happens IFOIF one is true, or IFOIF both conditions are true.

this is making things hard to debug because I'm not sure whether or not I should be expecting objects to interact

[vestal minnow]

it's AND behavior, both must be able to interact with each other

[golden shoal]

alright

that's a big difference

[vestal minnow]

but yeah agreed, that should be made clearer in the docs

[golden shoal]

is there an easy way to suggest documentation changes, or would I have to pull the source, make a pull request, etc?

[vestal minnow]

Pull request is fastest, or make an issue (or just remind me here if I forget) and I can change it when I have a chance

[willow gyro]

My goal is to identify the selectable object nearest to the player, in order to highlight it and/or know which object to interact with when interaction input happens.

To this end, I setup CollisionLayers on all the relevant colliders and implemented a shape_intersections. That works, which is great, however, when the player is near multiple selectable objects, they will all intersect. The result of shape intersections only returns Vec<Entity> so either I need to then further calculate distance to player of intersecting colliders to figure out which is nearest, or -- and the reason I'm asking here -- is that there's a better way to achieve this.

[sweet sundial]

maybe https://docs.rs/avian3d/latest/avian3d/spatial_query/struct.SpatialQuery.html#method.aabb_intersections_with_aabb
and a Query<&Transform, With<Highlight>> plus cutoff? might be more efficient than a proper collider test

[willow gyro]

Seems like that also returns Vec<Entity> whereas I want just the nearest of those intersections.

[sweet sundial]

that's what the query's for

aabbs.iter().filter_map(|&e|highlight_q.get(e)).min(|Transform{position,..}|(player_pos - position).length())

[willow gyro]

Ah yeah, that's what I meant by "calculate distance to player". That's a more succinct way, and probably something like that is what I'll go with if there's not a clearer built-in tool. You mentioned that AABB intersection is more efficient than shape intersection, why is that?

[sweet sundial]

aabbs and bounding spheres are usually the first test when determining collisions, since they're easier to calculate, so it's likely that a shape intersection would have an aabb intersection involved when there's more than one possible other shape

[sharp dew]

hey, dumb question, am i wrong in assuming that the "name" of a mesh you use in ColliderConstructorHierarchy::without_constructor_for_name is the same as the object name in blender when exporting to gltf?

i haven't been able to skip colliders for certain meshes

    commands.spawn((
        SceneRoot(scene),
        ColliderConstructorHierarchy::new(ColliderConstructor::ConvexHullFromMesh)
            .without_constructor_for_name("fakeWall"),
        RigidBody::Static,
    ));

inspecting the exported gltf data i can find the mesh name, though i don't know if it's relevant or not

[knotty thicket]

that's the name of the object entity that is a parent to the entity with the mesh, not the mesh entity. hit the little arrow next to the orange triangle

[sharp dew]

oooooooohhhhh, yup. that works. could swear i tried that too..

thanks!

[cinder summit]

@vestal minnow It does something now!
-# the video compression is not happy though

[vestal minnow]

Ooh nice! Probably a bit early to benchmark, but have you tested how the BVH build times here compare to the old Parry version?

Also I wonder if the lack of proper 2D support has any meaningful effect on it 🤔

[cinder summit]

Probably, the whole thing is 3D now and there's conversions everywhere so that probably has an impact 😂

[vestal minnow]

Mm at some point I should try how bad it'd be to add 2D support to Bvh2

[cinder summit]

I had 2D support in ploc-bvh, but that was because bounding volumes were entirely a trait

I assume @thorn solstice had some reason for not doing that. Building on the bevy_math bounding traits makes extensibility so much easier after all

[vestal minnow]

For Cwbvh I assume the specific AABB representation is very important and can't easily be made generic, but I would think that for Bvh2 you should be able to traitify things more

[cinder summit]

Also I'd imagine if we really want to optimize the BVH stuff for avian, we're probably gonna need to make it use more Vec3A where possible

[thorn solstice]

I didn't have any use for 2d so it wasn't even a consideration until talks re Avian started. OBVHS cares mostly about being fast, trying to give a somewhat reasonable rust alternative to some of the functionality in Embree (and in a lot of places Embree is still a lot faster). I've had some cases where traits were non-zero cost due to breaking inlining which had a somewhat surprising perf impact. I'd want to be careful to not regress perf or readability if we move to something more generic.

[vestal minnow]

Yeah, definitely needs proper profiling to make sure it wouldn't regress things

[cinder summit]

Yea, though if it does perform well it could maybe be nice to have the ability to have an OBB BVH ... Last time I tested bounding sphere BVHs are a very bad idea though 😂

OBBs actually being worth it at the BVH level is somewhat niche though (and I have no clue how an efficient "merge" would work), but sometimes the intersection tests already treat AABBs as basically OBBs and it could be worth it

[thorn solstice]

The stuff I've seen on OBB seemed to rarely be worth it, but maybe there are cases where it works really well. TLAS/BLAS on the other hand has a lot of benefits, one of which is that the BLAS is in the local space of the object (so OBB like). This is already doable with OBVHS and there are examples.

[maiden charm]

I'm strongly considering tableflipping and switching my studio's project over from Rapier to Avian. Is Avian mature enough that I won't have a bad time?

[cinder summit]

Unless you're doing something relatively obscure it should be

I know some joint types are still a bit weird, and the perf at very high entity counts can be less than ideal, though Jondolf has also been working on that a lot recently

[vestal minnow]

Yeah joints are still missing a lot of features, and perf is likely worse than Rapier in heavier cases. Improving those is my main priority for the next release cycle though

[visual sparrow]

You may want to read this issue: https://github.com/Jondolf/avian/issues/441

[vestal minnow]

Hmm... needs more design work, but I got an interesting idea for component-driven collision layers

Collision detection and spatial queries use bitmasks stored in CollisionLayers to filter colliders. This needs to use bitmasks and not e.g. queries for perf reasons.

But in an ECS engine, the natural way to tag and filter entities is to use components, and it has always bothered me that we don't take advantage of this. For such a core feature, I feel like bitmasks should ideally be just an implementation detail, and the user-facing API should use a more component-driven approach.

Instead of forcing users to explicitly specify the CollisionLayers, what if we had a way to register components as physics layers:

// We could support tuples to make this less verbose.
// Mayyybe we could also do this automatically at runtime?
// Note: There is a limit of 32 layers! (but we could bump it up to 64)
app.register_physics_layer::<Character>();
app.register_physics_layer::<Enemy>();
app.register_physics_layer::<Terrain>();

This would automatically assign a number to each component for the corresponding physics layer.

Then, you could add a component like InteractsWith to specify which layers an entity can interact with:

commands.spawn((
    // Belongs to `Character` layer
    Character,
    // Interacts with `Enemy` and `Terrain` layers
    // TODO: How do we support "interact with everything *except* X, Y, Z"?
    InteractsWith::new::<(Enemy, Terrain)>(),
    // ...
));

Internally, there would still be a CollisionLayers component with bitmasks, but the component-driven API would automatically toggle the membership bits based on the existence of the layer components and the filter bits based on InteractsWith, using hooks or observers.

We get several pretty convincing benefits:

• The collision filtering API can be fully component-driven. You can query for collision layers, attach observers, respond to layers being added or removed, or do anything else you typically do with components. Even define bundles of layers or insert layers as required components!
• No need to have separate marker components and layer definitions; the marker is the layer.
• No need to think about bitmasks, layer numbers, or conflicting layers at all (unless you directly mess with the bitmasks). Collision layers are guaranteed to be non-overlapping at the type-level.
• External plugins can define their own layers without risking conflict with user-defined layers.

I'm not 100% sure yet how InteractsWith would be best implemented, but I'm sure it should be doable in some way

[sleek thicket]

idk if scattering the code like that is a good idea

[vestal minnow]

Scattering how?

The ideal workflow for this is (1) just define a marker component, which you typically already have anyway, and (2) use InteractsWith/CollisionMask/whatever to filter which layers an entity can interact with

doesn't even need to be a marker component

Right another cool idea: You could specify some visibility component as a physics layer, and then you're automatically able to filter collisions based on the visibility of an entity (assuming visibility is controlled by the component's existence)

[sleek thicket]

e.g. right now i have 1 place where i have all layers, filters and masks
i can easily find everything that uses them, and if i add a new functionality that requires updating layers i don't have to search for everything spawned that uses it

[vestal minnow]

You could still do that with this approach if you wanted to, just have all the layer components in that 1 place, maybe define bundles to group and compose them

And CollisionLayers would also still exist for people who do want to use it directly, the component approach would be optional (but probably the encouraged API if we implemented it)

[sleek thicket]

that sounds 10 times more complicated than it needs to be, if i needed the components that match layers i'd rather have it the other way around

something like required components, but for layers 🤔

[vestal minnow]

I guess I don't really understand what practical use cases wouldn't work fine/better with this. I would imagine that the vast majority of uses for collision layers is tagging entities based on "what kind of entity is this?", e.g. Character, Terrain, Water, Prop, Interactable, Enemy... In all of these cases, it would make sense to have a marker component on that entity anyway, and especially for dynamic behavior where you might change layers, e.g. a powerup that makes you Invincible, you'd almost definitely need to add/remove components to reflect that change in behavior

[cinder summit]

wdym, all my game logic like this does things without adding/removing any components

[vestal minnow]

Not to mention this would probably work better with Blender/Blenvy, you could just tag meshes with components and then filter collisions or spatial queries based on that

[sleek thicket]

yeah, i'm erring on the side of caution to avoid moves too

[vestal minnow]

How do you mark an entity as invincible without a marker component (unless you use a bool or an enum for toggling it I guess)

or do you do status effects as entities

[sleek thicket]

probably visibility component watching for changes

[vestal minnow]

ah sry I meant invinsible, as in enemies can't hurt you or touch you

[sleek thicket]

oh, invincible?

[vestal minnow]

right yeah with a c 😂

[sleek thicket]

i have a toggle for that in the damageable component, nothing needs to query for that

[cinder summit]

This, the status effect entity sets a bool to disable taking damage or remove relevant layers

[sleek thicket]

but it's a common mechanic in my case, i can see it being useful in ultra-rare cases, but in that case there's no way i'd put it on layers

[cinder summit]

Usually I don't actually modify things like layers though, because not having counters tends to introduce subtle bugs

If I did need to I guess I could have a "removed layers counter" component that's just always there

[sleek thicket]

adding a required component if it's missing when layer is toggled on would be really neat though

but i also have a tag enum doing the exact same thing so idk

the entire thing definitely needs a cleanup, but that proposal sounds like it'd just add more to the mess

[vestal minnow]

I just feel like it's a pretty big missed opportunity to not support efficiently filtering spatial queries or collisions based on components in an ECS engine, but idk maybe in real games directly using bitmasks is better 🤷‍♂️

[sleek thicket]

it is, but you're looking at it from wrong angle

in some cases i'm already getting layers in query and checking which layer i actually hit, you could just streamline that instead

[vestal minnow]

that's not filtering by components

[maiden epoch]

I have an issue with bitmasks, I need to filter out collisions of a car with its wheels, but not for different cars

[sleek thicket]

you can exclude entity

[maiden epoch]

I feel like filtering collision events directly will be slower

[vestal minnow]

not for collisions unless you make a custom collision hook for it

[sleek thicket]

ah

i didn't touch collisions directly but it's definitely counter-intuitive if they happen between entities that filter each other out

[maiden epoch]

I also have an issue with objects with high angular speed(wheels) getting buried in the ground

Collision events looks correct, and increasing amount of solver substeps help a bit

[vestal minnow]

On the main branch you could ignore collisions against specific entities with a collision hook roughly like this:

fn main() {
    App::new()
        .add_plugins((
            DefaultPlugins,
            PhysicsPlugins::default().with_collision_hooks::<PhysicsHooks>(),
        ))
        .run();
}

#[derive(Component)]
#[require(ActiveCollisionHooks::FILTER_PAIRS)]
struct IgnoredCollisions(EntityHashSet);

// Define a `SystemParam` for the collision hooks.
#[derive(SystemParam)]
struct PhysicsHooks<'w, 's> {
    query: Query<'w, 's, &'static IgnoredCollisions>,
}

// Implement the `CollisionHooks`.
impl CollisionHooks for PhysicsHooks<'_, '_> {
    fn filter_pairs(&self, entity1: Entity, entity2: Entity, _commands: &mut Commands) -> bool {
        if let Ok(ignored1) = self.query.get(entity1) {
            if ignored1.contains(entity2) {
                return false;
            }
        }
        if let Ok(ignored2) = self.query.get(entity2) {
            if ignored2.contains(entity1) {
                return false;
            }
        }
        true
    }
}

[sleek thicket]

@vestal minnow do you think it's possible to register components in a similar way to required components, but 2-way with layers?
e.g. register<Damageable>(10);
if i have layers that include layer 10, but component wasn't added = add default
if i have component, but layers don't include 10 = toggle it on

when i look at it from perspective of catching bugs then it makes total sense to do it, but i'm really not sure if that should be the main way to deal with layers

[vestal minnow]

If we make CollisionLayers an immutable component, then we could handle the 2-way synchronization via hooks or observers

But I don't want to do full table scans every frame to detect all CollisionLayers components that may or may not have changed

[sleek thicket]

that's why i said from perspective of catching bugs, only call checks when something is spawned instead of changed

i can totally see myself being an airhead and forgetting one or the other, then spending an hour hunting down the bug

[vestal minnow]

This would also require all registered layer components to implement Default, unless we really over-engineer this and support custom constructors require-style

[sleek thicket]

i don't see defaults being a problem when it's only 31 components at most

[vestal minnow]

It's mainly a problem if for whatever reason you wanted to register some external component that you don't own, and that doesn't implement Default. But yeah that seems so niche that it shouldn't really be a problem

[vestal minnow]

(also we might want to make CollisionLayers an immutable component regardless, since we need change detection on it to handle collision stuff)

[sleek thicket]

registering link between component and layer is basically 1 step towards your proposal, but much smaller and everyone will have more time to test it and decide if that should be the main way to deal with layers

[zenith river]

For my spaceship building game, I'm interested in implementing a localized physics system where entities inside a moving ship behave as if the ship itself isn't moving - essentially creating a self-contained reference frame. Is this approach feasible, and how might I implement it?

[calm sundial]

About collision filtering. Avian should be compatible with open usd/ gltf.
Upcoming gltf specs mentions this :

[sleek thicket]

what about ousd?

[knotty thicket]

state of the art for the collisionlayers blender use cases is

• custom component hook/observer to set CollisionLayers from custom Marker/enum-data Components. afaik "entity tagging" like you mentioned (Terrain, etc) is what I've seen used the most (An enum with a list of tags makes a nice UI), but that's partially motivated by usability.
• presets (write only)

It seems like InteractsWith would still require a user-written hook/observer since it theoretically requires a new() call? I think the type arguments mean different types in the reflection data (and thus different options in blender) so default impls for them might work depending on what the underlying value looked like

[willow gyro]

For context, I just implemented collision layers this week. What you describe about having to use the bit mask and such did feel odd when I went through the docs. FWIW as someone who is still relatively new to Bevy and Avian, I like the look of this direction. It appears more idiomatic. My only comment would be if it still continues to be simple to use layers in spatial queries, but overall looks great.

[sleek thicket]

bitmask is super simple, but docs doesn't explain them well
if you replace mask with a single bool it makes more sense

are you using PhysicsLayer or actual bitmask?

[calm sundial]

https://openusd.org/release/wp_rigid_body_physics.html#collision-filtering

open usd filtering examples: https://openusd.org/release/wp_rigid_body_physics.html#group-filtering

[vestal minnow]

It seems like InteractsWith would still require a user-written hook/observer since it theoretically requires a new() call?
So here I purposefully did InteractsWith::new::<Foo>() rather than InteractsWith::<Foo>::new(). My idea here was that maybe we could make InteractsWith fully type-erased, and the methods would turn the given bundle into a set of TypeIds (or ComponentIds? but I think that requires World access) for each component, and then we could store that. Then a hook would run, mapping those types to bits based on the global physics layer registration, and boom, we have a mapping between components and layer filters

But I have very non-existent knowledge on reflection stuff so I don't really know for sure if it'd work until I try it

[knotty thicket]

definitely curious to see if you can get it to work

[vestal minnow]

It's simple if you're used to them, but I don't think this is necessarily true for people starting out. I remember struggling to understand them when I was originally learning bevy_rapier, only really understood them better when I implemented collision layers myself :P

[knotty thicket]

the blender interface would just be the InteractsWith type then? so basically a marker from Blender's perspective?

not sure where Foo would come from

[vestal minnow]

Hmmm yeah the blender interface for that would be tricky

[visual sparrow]

Can confirm, that enum variant is what I have used for usability

Off-topic: @vestal minnow mind pinging me when you release a 0.16 compatible Avian? So that I can bump avian_pickup 🙂

[sleek thicket]

rapier didn't do a good explanation either though :p

[vestal minnow]

I feel like layers like this in general are just hard to make work nicely with Blender without a designated UI

[sleek thicket]

the only reason i understand them is because there was a good explanation for unity somewhere

[visual sparrow]

exactly the same here 😄

[sleek thicket]

and part of the reason why it was good is that unity's objects can only have 1 layer, which simplified explanation

which basically means it was just a bool

[vestal minnow]

Sure, might take until at least the end of next week though... lots of Wappu stuff (May Day? it's a big thing for universities in Finland) and events next week, and I have to do lots of release prep still

[sleek thicket]

if both membership and filter are true = collide, else dont 🤷‍♂️
but rapier and avian's multiple membership really complicate everything

[visual sparrow]

Yeah no worries at all, the list of projects that need updating for me to actually use 0.16 is long enough that you have no chance of being the bottleneck, haha

[knotty thicket]

(I'm just using the git commit on main right now 😅 )

[visual sparrow]

Out of curiosity, what does your university do then? We don't really have special days for universities in CH, I think

[visual sparrow]

yeah same, I just can't publish a package with a git dependency 😄

[vestal minnow]

Pretty much every day of April has several (fully voluntary) student events leading up to Vappu (or Wappu as we call it), which is a Finnish holiday (May Day elsewhere in Europe) and for university students it kinda marks the end of the school year and the start of summer

[visual sparrow]

Oh wow, that sounds cool 😄

[vestal minnow]

though I still have one exam after it on the 8th of May but anyway

there's a lot of student culture associated with Wappu, especially where I live

[visual sparrow]

The only "event" around summer we get are smaller queues at the cafeteria because more people are on vacation 😅

[vestal minnow]

Yeah I don't know if other countries really have the same thing, in Finland may day is fairly big

[zenith river]

Anyone who could have an answer? 😅

[vestal minnow]

This seems difficult to do in an actually stable way, but I imagine you'd probably want two fully separate simulation instances, one for outside of the ship and one for its interior. They're not allowed to interact in any way. Like you suggested, all physics positions and velocities in the interior of the ship would be relative to the ship's frame of reference, and you'd then have some custom sync plugin to convert those local physics positions into world-space transforms

But this approach would likely require support for multiple physics worlds on Avian's side, which isn't there yet :/ I had a prototype using bushRAT's index queries, but that stalled so I haven't worked on it more yet

[vestal minnow]

The same memberships + filters approach is in e.g. Box2D and Chipmunk2D too, and in many other engines it's even more complicated I'm pretty sure

I think PhysX's approach here is "lol implement it yourself in a custom GPU shader"
https://nvidia-omniverse.github.io/PhysX/physx/5.1.0/docs/RigidBodyCollision.html#collision-filtering

[zenith river]

Thanks a lot for telling me

[vestal minnow]

Jolt also has group + mask, but it also has custom "object layer filters" and filter tables and stuff... I'm not exactly sure how it works as a whole

[sleek thicket]

you make interior separate from the ship, bury it somewhere inside a giant asteroid or a planet, and make a cubemap outside

[zenith river]

Even for 2D game?

[sleek thicket]

for 2d game it's even simpler, you don't need a cubemap 😄

you basically just make a portal that shows the interior, and rotate it however you want

[zenith river]

I mean, considering that I use big_space, I could put it extremely far away

[sleek thicket]

and everything on the interior uses a collision layer that doesn't include the collider that collides with exterior

[zenith river]

Seems like a good solution 😄

[torn fiber]

Is PBMPM a future plan for Avian?
Considering it as well started from XPBD

[sweet sundial]

for the layers thing: have a resource with an Any/DynHash-to-layer table, so you can mark a component as a collision layer or group of collision layers but still keep the ability to convert (newtype'd) custom ids to collision layers

based on my interpretation of the use cases:

• static, this type of object does/doesn't collide with that type of object (component hook to add CollidesWith, typeid-only layer registration)
• unique, this object does not collide with these objects (some struct with an entity or other id in it)
• dynamic, this entity does not collide with the blue team (the team marker struct, maybe struct Team(usize))

[trail sparrow]

I've been away from Bevy/XPBD for about 10 months. Wild how much has changed

[vestal minnow]

Not in the near future at least, and if we did implement it, then it'd probably be it's own thing that just has two-way coupling with Avian.

And if I was to add some form of MPM support, I'd probably first look into integrating Avian with dimforge's wgsparkl and collaborating there rather than making my own thing from scratch

Afaik it uses MLS-MPM with CPIC for two-way rigid body coupling

[torn fiber]

Yep that's it, there's also a repo using bevy showcasing MPM usage
https://github.com/robkau/mlsmpm-particles-rs

I'll be making my own PBMPM in the meantime, thanks still

[vestal minnow]

Ah cool, I don't think I've seen that one before! Looks like it's CPU-only though, while wgsparkl runs on the GPU

Interested to see how your PBMPM implementation progresses. I saw your earlier MPM post in #project-collaboration, looks really cool

[torn fiber]

I'll be sharing an update once it's done, if that could pick any interest who knows!

[half ruin]

Hey guys, who already used Avian with multiplayer (Authoritarian dedicated server and many clients, like MMO)?

Please share you experience, what did you use, lightyear ?

@cinder summit @dreamy viper

[cinder summit]

I use bevy_replicon + bevy_rewind. Works pretty well overall now. There were a couple times when updates broke determinism, but Jondolf tends to fix those fairly quickly and provide workarounds.
-# Also, it's authoritative, not authoritarian

[spiral nymph]

wtf ?

It's really declared as a component though

[vestal minnow]

like the error says, you have conflicting Bevy versions

[pulsar osprey]

Hello everyone, I'm testing out Avian but when I uses it in conjunction with bevy_inspector_egui::WorldInspectorPlugin Im getting the above error, and unable to register Collider type due to it not implementing GetTypeRegistration.

I tried a quick search over documentations, but doesn't seem to have an answer bubbles up. Does anyone encounter this situation yet?

[spiral nymph]

Sorry to bother again, but I took your kinematic example code and I would like to prevent the character from jumping when there is penetration in a slope, is there a way to just snap my character to the ground ?

[half ruin]

@vestal minnow am I right by default in Avian there is not any BVH, AABB etc spatial hashing optimizations ?
And I need to implement it by myself ?

[cinder summit]

Avian has a BVH for spatial queries and uses some optimizations for the boardphase, though the broadphase doesn't use a BVH yet

[half ruin]

I was just curious why when I use 20k invisible (w/o mesh/material) fixed colliders, FPS is 100-120, but when I use 30k colliders it drops FPS to 3-4

[pulsar osprey]

What is the order of the CollidingEntities component? If multiple Entities are within my collider?

I'm assuming its the add order of entities? as in the order they enters the collider ?

[vestal minnow]

It currently stores an EntityHashSet. I believe the iteration order for that is arbitrary since it's basically just a HashSet

We might want to change that to just a Vec though 🤔

or maybe a UniqueEntityVec in Bevy 0.16

[pulsar osprey]

Ahh I see, in that case, idk, is it going to be a performance concern? Switching to a Vec?
Since the usefulness of ColldingEntities might require futher processing like calculating distance, ranking by health, ... That it doesn't really matter, as long as the collision detection is performant?

[vestal minnow]

Avian itself doesn't use CollidingEntities at all, it exists just to allow users to efficiently query for which entities a collider is touching. Switching to a Vec should make iterating over the entities in user code a bit faster and make the iteration order stable, but make get or contains lookups and removing entities from CollidingEntities slightly slower. Either way the difference there should be pretty minimal

[vague pebble]

For an mmo I used lightyear due to the it is pre-featured room management

[vestal minnow]

Whoa, we passed 2k stars! 🌟

[vestal minnow]

We can't properly derive Reflect for it since the stored SharedShape from Parry doesn't implement Reflect. But I guess we could use #[reflect(ignore)] on those so that the type is at least partially reflected and can be registered etc.

it just wouldn't be very useful since you still wouldn't get access to any of the actual shape's data

[half ruin]

do you have demo/example ? Or its private repo

[vestal minnow]

oh noo it wasn't just this PR that breaks determinism, the constraint generation optimization PR also broke multi-threaded parallelism

and CI apparently doesn't use the parallel feature so it didn't catch it

mm now can I fix this somehow or do I have to revert that PR

I think it should be fixable in theory

Oh right the fine print for ThreadLocal::iter_mut says "Returns a mutable iterator over the local values of all threads in unspecified order."

I guess I need to sort that somehow

[vague pebble]

Private

But I think there is a few videos of it in this server

[half ruin]

why did you choose to use lightyear and not just "bevy_replicon + bevy_rewind" ?

[cinder summit]

bevy_rewind hasn't had an official release yet so that's definitely a big factor 😂

[vague pebble]

Hmm because replicon didnt have rewind back them

But tbh my sincere opinion is lightyear has more features and is newbee friendly. Although it does lack a little on stability and perfomance

[cinder summit]

I think the main thing here is going to be the different networking approaches either way. Lightyear is more FPS-style, while bevy_rewind is inspired by Rocket League

[vague pebble]

There is also the factor that they have different prediction styles

[cinder summit]

The rocket league approach is notably more expensive, but also necessary for doing crazy things with physics (most games don't want this when online though)

[half ruin]

what do you think, for my 3rd person MMORPG case, lightyear will be better choice?

since I dont need that rocket league crazy physics

[cinder summit]

Lightyear approach might work, might also be possible to build some of your own stuff on bevy_replicon ... Your concern will probably be performance for a real MMORPG so it's probably worth looking at it from that angle too

[vestal minnow]

well it works if I just ditch the thread-local buffers for contact constraints 🥲 I'd really prefer not to do that tho

[severe urchin]

are you going to do a release of rewind once everything is on 0.16?

[cinder summit]

Yes

I was already on 0.16.0-rc, so it shouldn't be too hard, but it is slightly behind on replicon updates iirc. And I'll have to retest my approach to replicating avian in specific 🤔

[formal gorge]

Just wanted to chime in that cylinders jitter like crazy. using Collider::trimesh_from_mesh(&Cylinder::new(...).into()) instead of Collider::cylinder changed things from a jittery mess no matter how high I increased angular and linear damping, to being completely stable even with entities piled on top of each other with no damping.

[vestal minnow]

I'm getting some "okay" behavior but occasional jittering/jumping with some cylinder stacks

What dimensions are your cylinders using?

[formal gorge]

1.0 tall, 0.2 radius

they randomly gain significant velocity every half second or so, enough that they basically can't be stood on end

doesn't matter what they're on top of

even static cuboids

like just a single one is completely unstable and will never sleep

tried fixed and not fixed schedule, 60fps 120fps, changing density, damping from 0 to like 10 or 20

if this is just me, I can share a repo, but from searching old messages, it looks like this is probably a general issue? I'm not doing anything odd I don't think

[vestal minnow]

It feels like more of a Parry issue (the collision detection lib that both Avian and Rapier currently use) if it's a specific shape, in this case a cylinder

I wonder if a thin long shape like a cylinder is just kind of a pathological case for GJK 🤔

[cinder summit]

Iirc parry always had open issues for cylinders 🥲

[vestal minnow]

I vaguely recall cylinders in general being challenging for robust collision detection

[formal gorge]

that makes sense tbh

I don't have the energy to investigate further atm, but if this is common, it could be worth adding a note to the Collider::cylinder function? or even just having it use a tri mesh internally? I even noticed issues with cubes on a very wide, very flat cylinder disk

like at the time I just thought avian had very jittery physics

but now everything is almost surreally stable

[vestal minnow]

hmm maybe this in rapier is also related
https://github.com/dimforge/rapier/issues/305

(because of Parry)

[formal gorge]

that looks extremely similar to what I was seeing

like random little hops every few moments

not enough to topple more stable shapes, just enough to keep them from sleeping, but enough to topple something 1.0 tall, 0.4 wide

well now I can't seem to replicate the little jumps but instead they're doing this:

anyway I'm gonna go back to trimeshes, but yeah, I guess parry's cylinders have some issues

[vestal minnow]

You could also try a convex hull instead of a trimesh, it should be faster and more robust against clipping into things since trimeshes are hollow

[vestal minnow]

Made a fix for this... Non-deterministic constraint order -> just sort them afterwards lol
https://github.com/Jondolf/avian/pull/712

Not the ideal solution I would've liked, but works well enough for now

[formal gorge]

Thanks! I'll give that a shot

[clear dew]

Hey, I read into main's docs...this has probably been asked 10x, but I was wondering if there's some easy way to calculate, for an object, what the next object it is most likely to collide with. Constraints are: no rotation, perfectly elastic collisions, no friction, perfectly linear movement, no gravity

I couldn't really find much about this other than the new triggers (which are awesome btw). Pong in other words hahaha

[vestal minnow]

You could do a shape cast from the current position to the next position predicted based on velocity

[clear dew]

Cool, I'll follow the lead. Thanks!

[vestal minnow]

🔥

(not equivalent to merged PRs, especially in early bevy_xpbd days I did more commits directly on main)

[clear dew]

this is so fire holy sht

been missing out

[eternal anvil]

I've been working on this asteroids shooter prototype lately and decided to port it from rapier to avian, but i'm getting lower performance. Is this to be expected and is there anything that I can do to improve this? I'm already using circle colliders for the fragments so i'm not quite sure how else I can optimize it.

[sleek thicket]

it's expected, but it's slowly getting better

[vestal minnow]

I'm hoping that 0.4 will be a huge perf upgrade with all of the SolverBody stuff and hopefully many other optimizations (simulation islands please) landing

[cinder summit]

Yes, simulation islands please 🙏

[vestal minnow]

I'll have a lot more time to work on it too since I'll have a long break from uni starting mid-May

[cinder summit]

Also Jondolf you accidentally unearthed a major problem with my rollback crate by not re-adding the pointless PartialEq derive on ContactGraph (it was on Collisions) 🤣

[vestal minnow]

oh lol, yeah I thought it feels dumb to compare two entire contact graphs for equality

[cinder summit]

Yea, I don't actually need to do that, Rust is just trolling me with the lack of negative traits and specialization

This trait bound makes no sense, but I have no idea how I can figure out "Is there a function to compare this type" without the trait bound 🤔

    fn register_predicted_resource<T: Resource + Clone + Debug + PartialEq>(
        &mut self,
    ) -> &mut Self;

[half ruin]

hi, have any thoughts about why 20k cuboid colliders vs 30k ones is 120fps vs 4fps ?
No meshes, no materials, just fixed colliders

[cinder summit]

"Fixed" as in all RigidBody::Static?

[half ruin]

yes, sorry, misstyped

I spawn them by this:

for _ in 0..20_000 {
    let dimensions = [
        rng.random_range(1.0..3.0),
        rng.random_range(1.0..3.0),
        rng.random_range(1.0..3.0),
    ];

    commands.spawn((
        RigidBody::Static,
        Collider::cuboid(dimensions[0], dimensions[1], dimensions[2]),
        Transform::from_xyz(
            rng.random_range(-180.0..180.0),
            0.5,
            rng.random_range(-180.0..180.0),
        ),
    ));
}

[vestal minnow]

Not sure why the difference would be so drastic, other than if a fixed timestep takes longer than 15.6 ms with the default rate of 64 Hz, perf might dip pretty significantly as it then needs to try and run multiple physics ticks per frame to keep up

What if you run physics in e.g. PostUpdate? (for a variable timestep)

PhysicsPlugins::new(PostUpdate)

[half ruin]

will try now. Btw, should I change these 2 too?

TnuaControllerPlugin::new(FixedUpdate),
TnuaAvian3dPlugin::new(FixedUpdate),

[vestal minnow]

I think so

[half ruin]

longer than 15.6 ms
hm, makes sense, with 20k colliders its ~14ms

[vestal minnow]

Also Avian by default runs in FixedPostUpdate, so those should probably normally be in FixedPostUpdate too

[half ruin]

nice, with just changing PhysicsPlugins::new(PostUpdate) now I have 45 FPS with 30k colliders

[vestal minnow]

Are you using 0.2 or the main branch?

[half ruin]

0.2.1
Should I try main branch?

[vestal minnow]

On the main branch there's a PhysicsDiagnosticsUiPlugin (requires diagnostic_ui feature) that shows you how long different parts of the physics step are taking, I was just curious about some profiling info there

I can probably roughly reproduce it locally with your setup though

[cinder summit]

Watch it be all BVH build times 😔

[vestal minnow]

Oof

[cinder summit]

The broadphase? But we early out on static - static right?

[half ruin]

what is broadphase ?

[cinder summit]

The broadphase is the part where shapes that could overlap are checked based on bounding boxes, it's an optimization to reduce the number of more precise collision checks necessary

[cinder summit]

Wait, if it's just on the innerloop that could be a 30k * 30k loop of early exits still

[half ruin]

maybe the issue that I spawn static colliders and half of them spawn partly inside other colliders?

[cinder summit]

I don't think we even get to the step of checking the AABBs, because static - static collisions can always be discarded

We found that out the hard way when I accidentally made all my colliders spawn at 0, 0, 0 and the FPS went from good to seconds per frame 😂

[half ruin]

I mean this

[vestal minnow]

The inner loop starts at outer_index + 1, and also the inner loop can break if aabb2.min.x > aabb1.max.x (since the AABBs are sorted along x) so it's not quite that many, but yeah it's still a ton

[cinder summit]

Oh right ... But that does stop us from just doing if rb1 == RigidBody::Static { continue; } in the outer loop right?

[vestal minnow]

And it tests overlap along y and z before the static-static early out

We can't do that in the outer loop since the inner loop could still have active bodies

[cinder summit]

More reasons for a BVH broadphase

[vestal minnow]

Or hmm yeah if we don't break in the inner loop then I think we could do that, but then we'd need to check for duplicates for dynamic-dynamic collisions I think?

and we'd probably get more iteration overall

[cinder summit]

Yea, we'd be trading "everything is static" perf for "everything is dynamic" perf

[vestal minnow]

Yeah BVHs should eliminate this overhead pretty much entirely, especially if we have dynamic and static trees separate

Build overhead would be zero for the static tree when it doesn't have changes, and if there are no active bodies, we don't need to do any collision tests

[cinder summit]

-# If only there was a branch somewhere that starts using OBVHS in avian already

Actually I guess there are 2 branches that use OBVHS out there

[vestal minnow]

I have an old branch somewhere

iirc that one old demo with full rebuilds was like 95% functional, but the newer one doing it "correctly" with incremental updates and enlarged AABBs and "moved proxies" etc. is still very WIP and broken

(the idea with moved proxies is that the broad phase only needs to traverse the BVH for colliders whose tight bounding box moved past the enlarged bounding box, meaning we can completely skip broad phase tests for dynamic bodies that aren't moving much)

[visual sparrow]

Nice beats 🎵

[eternal anvil]

Awesome, I'll keep that in mind and I'll consider making a donation

[abstract tendon]

is EventReader<Collision> changed for bevy 0.16?

because it says cannot find type Collision in the scope

[vestal minnow]

It was removed since it had some overhead and duplicates a lot of data, I suggest just using Collisions and iterating over that

[abstract tendon]

ah i see, thank you

[clear dew]

Sorry to poke again! Is there any way to get around using the physics calculations on collision, or even like momentum/inertia/rotation in general, but still get access to the SpatialQuery::cast_shape? or are those tightly integrated? Ideally all I would want is to use Colliders for querying...I was reading through the plugin list, but I haven't yet found a working combination

[abstract tendon]

i found a pretty interesting bug. my crosshair have sensor collider, and ball have disabled rigidbody. when player shoots and two colliders touch eachother, game logs out "nice" (you can see on the vscode terminal) and ball gain his rigidbody and starts jumping. for some reason when they touch eachother from left side, no collision event happens

[cinder summit]

If you just want spatial queries, not giving anything RigidBody should cause the rest to at the very least do basically no work I think 🤔

[abstract tendon]

sorry for the minecraft music btw

[cinder summit]

I did actually encounter a couple crashes when not loading the physicsy bits but still loading SpatialQueryPlugin, so it's probably just a bug

[clear dew]

oh wow, good idea! thanks!

[half ruin]

how to add collider to gltf model (like ground) in proper way?

[formal gorge]

lmao, didn't even notice that captured my pc audio

[formal gorge]

You can just add it to the entity with the scene root

if you need it to be based on the mesh in the model, you can extract the mesh and use the collider::from_mesh constructors

[visual sparrow]

There's ColliderConstructorHierarchy for doing this automatically, FYI 🙂

[formal gorge]

that's super useful, I was using asset labels and extracting stuff manually

[visual sparrow]

commands.spawn((
  SceneRoot(assets.load("character.gltf")),
  ColliderConstructorHierarchy(ColliderConstructor::ConvexHullFromMesh)
));

[wary jolt]

My player just stick to the wall at the first collision

fn move_player(
    input: Res<ButtonInput<KeyCode>>,
    mut query: Query<&mut LinearVelocity, With<Player>>,
) {
    let mut velocity = query.single_mut();
    let mut input_vec = Vec2::ZERO;
    if input.pressed(KeyCode::KeyW) {
        input_vec.y += 1.0;
    }
    if input.pressed(KeyCode::KeyA) {
        input_vec.x -= 1.0;
    }
    if input.pressed(KeyCode::KeyS) {
        input_vec.y -= 1.0;
    }
    if input.pressed(KeyCode::KeyD) {
        input_vec.x += 1.0;
    }
    velocity.0 = input_vec.normalize() * 200.0;
}

commands.spawn_empty()
    .insert(Name::new("Player"))
    .insert(Transform::from_xyz(0.0, 0.0, 0.0).with_scale(Vec3::splat(8.0)))
    .insert(player_image)
    .insert(AnimationTimer::from_fps(4))
    .insert(GameMarker)
    .insert(RigidBody::Dynamic)
    .insert(Collider::rectangle(8.0, 8.0))
    .insert(Player)
    ;

    commands.spawn_empty()
    .insert(GameMarker)
    .insert(RigidBody::Static)
    .insert(Collider::rectangle(1000.0, 8.0))
    .insert(Transform::from_xyz(000.0, -500.0, 0.0))
    ;

.add_systems(PhysicsSchedule, move_player.before(PhysicsStepSet::First).run_if(in_state(GameStates::InGame)))

[cinder summit]

Huh ... I wonder if insert chaining like this would mess with any of avian's logic 🤔

Any reason you don't do uh ...

commands.spawn((
    Name::new("Player"),
    Transform::from_xyz(0.0, 0.0, 0.0)
        .with_scale(Vec3::splat(8.0)),
    player_image,
    AnimationTimer::from_fps(4),
    GameMarker,
    RigidBody::Dynamic,
    Collider::rectangle(8.0, 8.0),
    Player,
));

[wary jolt]

Not really but changing it doesnt fix the problem

[formal gorge]

try running move_player in Update, just to see if it changes something?

[wary jolt]

doesnt change anything

[formal gorge]

might be an issue with some other part of your code then? what you posted looks pretty similar to stuff I'm doing

[wary jolt]

Tried loging the linear velocity, its like it is getting stuck in the wall and cant move after

[formal gorge]

gravity?

[cinder summit]

Well those NaN values are definitely bad at least 😂

[formal gorge]

nvm not gravity, the velocity is pretty close to 200 until it breaks

oh!

you need to call normalize_or_zero or whatever it's called

(0,0).normalize results in NaN IIRC

NaN velocities would cause issues I'd imagine?

https://docs.rs/bevy/latest/bevy/math/struct.Vec2.html#method.normalize

[cinder summit]

Yes, NaN +/- anything is NaN

[wary jolt]

Yes that was it, thank you 🥳

[formal gorge]

heck yeah, np, I've almost done the same thing lol

theres also a clamp_length function that's useful for gamepad input

[sleek thicket]

clamp_length_max*

[formal gorge]

Lol can you tell I type 'c' 'l' 'tab' to autocomplete

[formal gorge]

Any reason why setting an entities Transform would just not work? I suspect it's something to do with syncing or something like that

I remove the RigidBody component and then insert the new transform in a command

ok yeah nvm, removing Position and Rotation fixed it

I'm a little confused why another part of my code does work even though I don't do that

does syncing differ between children of static and dynamic bodies?

[formal gorge]

Ok, so there are still some parts I don't understand, but it seems like some part of avian does something to entities that have e.g. position/rotation and maybe velocity if they have either a RigidBody OR a Collider. The docs mention avian treating entities with RigidBodies as being in a flat hierarchy, but there seems to be at least some behaviors that are predicated on colliders even in the absence of a RigidBody

admittedly this is on entities that had a RigidBody and I removed it

[coral kite]

What are simulation islands? 😮

[vestal minnow]

https://box2d.org/posts/2023/10/simulation-islands/

required for proper sleeping and basic constraint solver parallelism

[cinder summit]

Proper sleeping that doesn't make my prediction cry

[vestal minnow]

I snatched the avian.rs domain now 😛

I was originally thinking of avianphysics.org, but saw that avian.rs was available and it looks nice

might start working on a website for Avian at some point, it'd have the news/announcements + web demos + maybe a getting started guide

[green adder]

Is there any plans on making avian have Fixed-point (instead of floating point) mode for determinism by any chance? I know that it currently relies on other crates like parry and therefore that might not be something that can even be considered now.

[cinder summit]

Unless you need position independence, I don't think fixed point should be necessary

[vestal minnow]

fixed point doesn't really have anything to do with determinism beyond making behavior the same at different positions in the world

afaik in general it can be much more expensive than floating point math, and I don't know how well SIMD would work with it

so no, fixed point math isn't really in the plans at the moment since I haven't really seen any convincing reasons for it

floating point math is fine for cross-platform determinism (provided you use e.g. libm for non-deterministic operations), and for far-from-origin scenarios we'd ideally have support for big_space

[wary jolt]

is there a way to offset a collider without spawning another entity?

[vestal minnow]

You could use Collider::compound with a single shape with the given offset, but in general I'd recommend just using a child entity

[cinder summit]

Some collider types can also encode an offset, like capsules

[vestal minnow]

I still really like the idea of Translated, Rotated, Scaled, and Transformed wrappers so you can just do shape.translated(my_translation), I started writing up a proper design doc for it a while back

It'd remove the need for all the _local versions of methods, and could theoretically get rid of some unnecessary transformations while also making things more generic over the coordinate system

I'd also like to try if we could fully support non-uniform scaling with stuff like shearing without making discretized approximations via meshes, I think technically GJK+EPA should work with it?

there's a reason I'm making peck, I want to experiment with these sorts of things :P (and get rid of Nalgebra / use bevy_math)

[little maple]

in the process of updating to 0.16 and using latest avian... did something change with the collision events? My EventReader<CollisionStarted> seems to not be reporting anything 🤔

ah I should have searched

[vestal minnow]

Yup collision events are now opt-in via the CollisionEventsEnabled component

[little maple]

sorry Jondolf lol

[vestal minnow]

np haha

[crimson crest]

I'm once again working on a KCC slowly but surely, keep running into that annoying issue where a combined pass gravity and movement causes nasty ghost collisions but having gravity on a separate pass makes managing gravity properly painful

You have any thoughts Jondolf? How does avian internally deal with gravity? Do you join it in the velocity or is it kept separate?

The ghost collisions in particular are showing themselves as sort of trapping the player, not quite inside the mesh but they can't overcome gravity to continue moving along the plane.

Having a skin width doesn't really solve this issue, since I think it's a math problem I'm approaching in the wrong way. You're not inside the floor, but you're definitely failing to move because of rejecting gravity along the plane of collision

[vestal minnow]

Gravity is just added during velocity integration in the substepping loop, same as external forces

[crimson crest]

Also wrt using linearvelocity for KCC (something you mentioned wanting a while back), it'd probably mean doing the KCC steps during the integration phase too

Since otherwise it's getting applied twice since Avian will still move a kinematic body according to linearvelocity causing you to clip through stuff

[visual sparrow]

Avian is now a Serbian project, confirmed 🇷🇸

[severe urchin]

where should i get the manifolds/collision normals from with the new CollisionStarted event stuff on main?

[vestal minnow]

The Collisions system parameter

[severe urchin]

thanks

[vestal minnow]

docs of course aren't on docs.rs yet, but... see docs here I guess lol
https://github.com/Jondolf/avian/blob/main/src/collision/contact_types/system_param.rs

[fallow pike]

Hrlo everyone

Tried someone create car suspense?

Any car suspense

[sleek thicket]

very very valet

[crimson crest]

Update: a larger skin width was the answer

[visual sparrow]

@fallow pike you may also want to look into bevy_tnua

[crimson crest]

Seems 0.125 resolves the issue mostly

Discovered it while investigating some other engines KCC impls

[little maple]

this is what I followed.. I keep feeling like it got me 85% of the way there and I keep finding scenarios that are weird and am unsure if it's that the video was missing some information

to be clear, it is an excellent video

[sleek thicket]

describe your issues in detail then, it might not be a niche problem

[little maple]

one that's getting me right now is that at high speeds it seems like the steering forces cause the car to suddenly spin out and go flying (even without attempting to turn)

I think it's stuff like that though.. as I start pushing some limits, I need to add more logic to handle stuff.. like... something that scales turning at low speeds vs turning at high speeds.

[sleek thicket]

what are you using for ground, and are your wheels ray or sphere casts?

[little maple]

wheels are ray, and the ground varies but most of the time it's a plane.

[fallow pike]

What joint i will need to use?

Soo manu joints

What to pick

[little maple]

I didn't use any joints

[little maple]

I will say that what I have right now works well enough at the speeds I'm running. I probably will dig into it more when I get further along with my game

[sleek thicket]

plane as in trimesh collider?

[little maple]

yeah, I'm using trimesh_from_mesh

[sleek thicket]

then that's probably the main culprit 😅

try box or half-space, i had a bug where instead of slowing down i sped up to mach-10 and it worked fine (on half-space collider)

[little maple]

ah, I'm creating a world mesh in blender and importing it and creating the collider from it.. does that work for concave meshes?

[sleek thicket]

#1351602963352911963

convex meshes seem to be problematic in every physics engine

[little maple]

yeaaaah after I get 0.16 working I was going to start using that

[little maple]

how is this commonly handled? Like, a simplified collision "map" that is made of many non-trimesh colliders?

[sleek thicket]

convex decomposition, or ideally using primitives

if you pay attention to it, you can easily notice convex decomposition in most games

modular kits are usually primitives where it's possible

[little maple]

like, where it feels like there's a bit of an invisible barrier around things?

[sleek thicket]

just invisible barrier could be primitive, but generally yeah, e.g. bucket that you can't put anything into

[fallow pike]

Why mass not works?

I set like 10000 density and same results with 1

Mass, or bundles

Not working

[abstract tendon]

@vestal minnow

[vestal minnow]

Why is the crosshair a sensor collider? This looks like something I'd do with a ray cast

if you're just shooting at a target

[abstract tendon]

i would use raycast if it was 3d

but i didnt think i can raycast for 2d

but

hm

yeah no, i have no idea how to raycast for this situation

[vestal minnow]

you can use SpatialQuery::point_intersections

[fallow pike]

Can someone help? Only properties it have its rigid body dynamic and mass 10000000.0

[vestal minnow]

but yeah that sensor problem still looks a bit strange, I'd maybe log CollisionStarted events to see when the intersection gets detected

(or CollidingEntities)

[vestal minnow]

What components does your rigid body have?

[fallow pike]

Rigidbody::Dynamic and mass 100000

Oh sory i also forgot

It has collider

Rectangle 50 : 30

[vestal minnow]

Make sure you have PhysicsPlugins added, and you might also want the body to have a Transform, though I think that's technically optional

[fallow pike]

Ehen i running its just ignores mass

And falls very very slowly

[vestal minnow]

your dynamic body is 30 units tall but gravity is -9.81 by default

use .insert_resource(Gravity(Vec2::new(0.0, -98.1))) or whatever feels good

probably even higher

[fallow pike]

Is it normal?

Like i want more realistic physic

Or also why that happends

Any mass what i insert gravity eat

[vestal minnow]

9.81 m/s^2 is the average magnitude of the gravitational acceleration near Earth's surface. This means that the linear velocity is increasing downwards by 9.81 m/s every second. In your case, the dynamic body is 30 units tall, which is like a 30 meter tall building, so an acceleration of 9.81 m/s^2 looks tiny for it when zoomed out like this.

[cinder vapor]

Are Avian Sphere colliders filled or hollow?

[vestal minnow]

filled

[cinder vapor]

Is there a way to do a hollow sphere?

I want to make a gatcha ball with something inside

like this

[cinder summit]

Ah yes, the hollow sphere ... The non-trivial thing to implement that is somehow easy with SDF collisions #off-topic message

[vestal minnow]

You can either scale down the shapes so that their sizes are closer to real-world values, e.g. a character might be 1 or 2 meters tall, and then change the scale of the 2D camera's projection to zoom it in a bit. Or if you want to use pixels as units like you're currently doing, you can scale the gravity and any other forces you might apply to match the scale of your objects

For "realistic physics" it's generally easier to work in SI units (meters, kilograms, Newtons)

In which case you'd scale the camera in 2D (since Bevy's 2D camera defaults to 1 px = 1 unit)

[vestal minnow]

A trimesh, or some compound shape of convex shapes that approximately match the boundary of the sphere

[cinder vapor]

Sounds complicated 😬

[vestal minnow]

collision detection algorithms generally don't like concave shapes (excluding Nise's SDF colliders)

[cinder vapor]

I haven't looked into those SDF colliders. Do they integrate with the rest of Avian?

[vestal minnow]

No (or not yet at least :P) it's just something Nise has for their own game

[cinder vapor]

Trimesh it is then 🙂

[cinder summit]

It does integrate with avian, and this example lives outside of my game, but it is definitely not ready yet 😂

For one the new version is largely untested, so I'm pretty sure there are flipped normals and points everywhere ... But then also it's missing impls between types of colliders, and there are currently no spatial queries at all

[sleek thicket]

you could use a spring/distance joint and limit distance 🤔

[cinder vapor]

That should work for my case

[fallow pike]

I tried increase gravity but mass still dont works

[cinder summit]

They fall at the same rate ... That's how gravity is supposed to work, right? right?????

[vestal minnow]

yes

[fallow pike]

I also tried different forms

[vestal minnow]

what are you expecting to happen here?

[cinder vapor]

It sounds like you want air resistance (aka drag)

[visual sparrow]

That’s how it works 😄 https://en.m.wikipedia.org/wiki/Galileo's_Leaning_Tower_of_Pisa_experiment

[spiral nymph]

Oh man, OBS exist, you don't need to film with your phone XD

[fallow pike]

Ok

But why

[visual sparrow]

I think all OS now have a record function in their default screenshot app 🤔

[visual sparrow]

Because that’s how real-life gravity works

[fallow pike]

Bruh

Ok i just go sleep

[visual sparrow]

You can have drag however, which is when air stops certain shapes from falling (e.g. a feather)

[vestal minnow]

If you want a proof, then according to Newton's law of universal gravitation, the gravitational force acting between two objects is

F = G * (m1 * m2) / r^2

where m1 and m2 are masses, r is the distance between the centers of the masses, and G is the gravitational constant.

If m1 is the Earth and m2 is your object, based on Newton's second law we get

m2 * a2 = G * (m1 * m2) / r^2

Now we divide both sides by m2, and we get the acceleration caused by gravity for our object

a2 = G * m1 / r^2

Therefore the acceleration of the object only depends on the mass of the Earth and the distance between the center of mass of the object and the center of mass of the Earth. These are approximately constant for all objects near the surface of the Earth, and the mass of the object itself has no effect.

And yes the object also pulls the Earth towards itself, and this force is larger the greater the mass of the object is. But still the acceleration for that object is the same in that point in time, and unless you're doing orbit simulations or something, the force pulling Earth is insignificant enough that you don't need to take it into account

[spiral nymph]

Did you just erase m2 left and m2 / r^2 right ?

[vestal minnow]

both sides have m2 as a factor so we can just cancel those out

[spiral nymph]

Ok I'm dumb, I was thinking like it was addition, so dumb of me

[half ruin]

hi, interesting perf issue. What do you think? Or is it normal because of ton of debug gismos ?
I use ColliderConstructorHierarchy for my gltf model

[vestal minnow]

that looks like way too much detail for the collider

[half ruin]

probably I dont need to use ColliderConstructorHierarchy for original gltf model and I need to add some simpler layer to it

I mean CollisionLayers

[vestal minnow]

you should have a simplified version of the mesh for the collider with waaay less triangles

[half ruin]

can I do it inside the same gltf? Or I need to add a separate entity as a parent for real gltf one?

btw, even with such level of detail for the collider, its still 120fps w/o debug gismos hehe

[sweet sundial]

what ColliderConstructorHierarchy mode are you using

[half ruin]

ColliderConstructorHierarchy::new(ColliderConstructor::TrimeshFromMeshWithConfig(
    TrimeshFlags::MERGE_DUPLICATE_VERTICES
        | TrimeshFlags::DELETE_BAD_TOPOLOGY_TRIANGLES
        | TrimeshFlags::DELETE_DEGENERATE_TRIANGLES,
)),

[sweet sundial]

mesh detail doesn't matter if there's nothing in the aabb

[vestal minnow]

you could try a convex hull instead of the trimesh unless your meshes in that glTF have a lot of concavity

[vestal minnow]

The gizmo perf probably sucks since we're still using Bevy's immediate-mode gizmos, 0.16 got retained gizmos which should perform much better but we haven't switched yet

[half ruin]

why? Whats the diff?

[sweet sundial]

solid, fewer polys

[visual sparrow]

Trimesh is the exact mesh, convex hull is like a simplified convex blanket around the mesh

[visual sparrow]

You can use Blender to place an invisible simpler model in the gltf alongside the mesh

Then only provide a collider for that simple mesh

[half ruin]

yeah I thought about it, Also I remember you used bevy_trenchbroom in Foxtrot game and probably did the same (invisible simpler model) there?

[visual sparrow]

Nope, but good guess!

[visual sparrow]

The level itself is already just cubes, so those are just convex hulls. For most props, convex hulls are enough as well. The chairs are heavily concave, so I use trimeshes for those.
The chair meshes as still fairly simple detail-wise, so I didn’t bother with creating simpler ones for performance. But if I noticed a dip in performance when placing too many chairs, I would have created those simpler proxies 🙂

[tulip crystal]

Has anyone seen something like this before? When viewing the rectangular collider on the player models left arm while the playeris running, the collider is lagging behind the arm's mesh (you can barely see the mesh it's like 0.4 alpha base material but that is in the correct position.) I'm wondering if it's just the physics debugger's visualization that's lagging or the actual collider?

Some sample code...

commands.entity(entity_leftarm_with_mesh).insert((
    ColliderConstructor::ConvexHullFromMesh,
    CollisionLayers::NONE,
    Sensor,
));

[half ruin]

Am I right that convex hulls works only for cuboid models?
And if I need any other, I have to add invisible simple model and use trimeshes?

this is convex hull for my ground model
Not very good solution)

[tulip crystal]

From what I've been reading I thought you should use a Trimesh from Mesh for something like a static ground/terrain mesh.

@half ruin

[half ruin]

yes, buy not for real model and for simpler invisible version?

@vestal minnow btw, just saw this issue, is it my mistakes in controller setup, right?

[tulip crystal]

I don't think you need a simpler invisble version when you're working with a static body and trimesh collider. I mean it's still a little bit heavy but it's not a dynamic geometry which means it's a low cost compared to something that is recomputing new geometry on all the vertices every iteration of the engine.

I'm sure you would still see a little less load though if you were able to create an invisible version that has simpler geometry but I don't think it's necessary - atleast from how I've been understanding it.

[visual sparrow]

It works for models that can afford the inaccuracy. For example, if you have a mug, you probably don’t need to have collisions inside of it. Or for a bookshelf, you probably don’t need to have collisions inside of for each book in detail.
Just decide what is and isn’t important to reflect in you collider 🙂

[visual sparrow]

Yeah there you will probably want a simpler proxy collider mesh

Though again, depends on your scene

For the group itself, trimesh is probably alright, doesn’t look like that many triangles

It’s just that building really that is a problem

[half ruin]

yes, there definitely needs to be a simplified proxy

ground with trimesh. I think its ok

[vestal minnow]

The problem is mainly with dense geometry. Let's say you had a very detailed area with a hundred triangles under the player's feet; you'd be computing intersections with potentially all of those triangles and getting hundreds of contact points for the solver deal with, when really you only needed a few. A manifold reduction scheme could be used to group triangles with similar normals together and reduce the number of contact points (e.g. Jolt has this), but we don't have that yet.

[visual sparrow]

Ah yes that looks nice 🙂

[tulip crystal]

@vestal minnow I feel like I'm dealing with something similar here in a way. i created a simplified geometry to add coliders to a players mesh for their arms for specific collision events there. The difference in that case is that the collider is moving around with the parent(/sibling?) every iteration and recomputing the whole whole player mesh as a physics object every iteration is highly expensive and not recommended.

There's just a lag issue in my case though it seems to be creating correctly.

[vestal minnow]

That doesn't look like perf lag, more like either the collider itself or the gizmo is lagging behind

It's possible there's a one frame delay somewhere

[hard helm]

This would apply to SDF collisions as well, which would correspond to solving a bunch of inequalities. In other words, an efficient solution to non-convex collisions would also solve a lot of other optimization problems.

[half ruin]

what do you think about these repulsions?
Looks like my tnua builtin walk has a bad config?

controller.basis(TnuaBuiltinWalk {
    // The `desired_velocity` determines how the character will move.
    desired_velocity: direction * 1.2,
    desired_forward: Dir3::try_from(direction).ok(),
    // The `float_height` must be greater (even if by little) from the distance between the
    // character's center and the lowest point of its collider.
    float_height: PLAYER_FLOAT_HEIGHT,
    // Restrict the max slope so that the player cannot walk up slightly angled chairs.
    max_slope: TAU / 6.0,
    acceleration: 50.0,
    air_acceleration: 30.0,
    spring_strength: 3000.0,
    spring_dampening: 1.2,
    ..default()
});

@visual sparrow

hm, I changed spring_strength to 300 and now there is not repulsions issue

[vestal minnow]

Yeah I believe some SDF collision algorithms use gradient descent to find intersection regions and to estimate contact points and normals

[half ruin]

but now when i step off a low platform the collider very slowly flows down to the floor as if gravity is not 9.8 but 1.0

[vestal minnow]

for example this paper
https://dlpf.github.io/sdf-collision.github.io/static/resouces/Real_Time_CD_between_SDFs.pdf

[cinder summit]

The function version actually just uses an octree that is only traversed for the nodes that have a possibility of being relevant contact points

[visual sparrow]

Yeah, tweak that value for what feels correct 🙂

[tulip crystal]

@Jondolf would that just be visually for the gizmo?

[formal gorge]

What actually triggers ColliderOf to be added?

I have an entity that's missing those and I'm trying to figure out why

[formal gorge]

just fyi ColliderOf seems to only update when RigidBodys are added or removed or when children are added or removed, so adding a collider to an existing child entity doesn't trigger adding a ColliderOf to that entity

the comments in the hierarchy plugin make me think this is the intended behavior

but it was surprising to me

e.g.

/// Updates [`ColliderOf`] components for colliders when their ancestors change
/// or when a rigid body is added to the hierarchy.

I think it would make more sense to also trigger it when colliders are added to the hierarchy? if not, It would be nice to have a note somewhere in ColliderOf (or if there is a note, make it more prominent, I spent a while trying to figure out what was happening 😅 )

[formal gorge]

actually, the more I test stuff, the more I think this might be a bug. I think the behavior is inconsistent between whether the components are added in a system or in a hook?

Here's a main.rs with behavior that seems wrong to me. I'm using bevy 0.16 and the main branch of avian3d on git:

Let me know I've just done something incorrectly, or what. I think I'm done with this for the night

[vestal minnow]

Yeah this should work, but it's possible there was a regression when I reworked some of the logic there to use relationships. I'll take a look when I have some time

[little maple]

I accidentally posted this in general and meant to post it here.. I'm running into this warning/error on main branch

Encountered an error in command <bevy_ecs::system::commands::entity_command::remove<avian3d::sync::ancestor_marker::AncestorMarker<avian3d::collision::collider::backend::ColliderMarker>>::{{closure}} as bevy_ecs::error::command_handling::CommandWithEntity<core::result::Result<(), bevy_ecs::world::error::EntityMutableFetchError>>>::with_entity::{{closure}}: The entity with ID 727v1 was despawned by forks/bevy/crates/bevy_scene/src/scene.rs:112:46

it seems similar to this...
https://github.com/Jondolf/avian/pull/677

I actually just realized I was looking for the wrong component... this seems to be complaining about .remove<AncestorMarker<ColliderMarker>>

I also have one complaining about .remove<AncestorMarker<RigidBody>>

gonna look some more..

I'm guessing it's related to remove_ancestor_markers

https://github.com/Jondolf/avian/blob/9511076d933fdc56015c93665f37b1804a2b08bd/src/sync/ancestor_marker.rs#L118

guess I'll try try_remove here

[vestal minnow]

Yeah that should be using try_remove... It does check if the entity exists there, but EntityCommands is also deferred so it could be despawned by the time it runs 🙃

[little maple]

that fixed it. I suspect it's because it queues a command instantly

yeah

I can make an issue + pr if it's helpful

I sometimes get a little conflicted with tiny fixes like this.. the amount of overhead of an issue and PR vs just fixing it with another change. But, it might be worth having the error documented as an issue if someone else stumbles on it before it's fixed 🤔

[vestal minnow]

PR would be nice, though I can also make one later

(not today tho)

[little maple]

I made #714

[valid zenith]

is there a 0.16 compatible 3d build out yet?

[vestal minnow]

Not a release yet, but the GitHub repo's main branch supports 0.16

[valid zenith]

Sick ill switch over to targeting the repo instead of crates.io for now then

[tulip crystal]

Hey sup y'all I'm still testing this collider from yesterday a little bit and honestly I wasn't expecting this result. The collider on the arm is triggering before either the arm or gizmo are in contact with the wall ( the black wall is on the left.) Is this due to the predictive algos you were mentioning yesterday @vestal minnow ? the system I used for detecting the collision

.add_systems(Update, debug_collisons)

fn debug_collisons(mut collision_event_reader: EventReader<Collision>, names: Query<&Name>) {
    for Collision(contacts) in collision_event_reader.read() {
        let Ok(entity1) = names.get(contacts.entity1) else { return };
        let Ok(entity2) = names.get(contacts.entity2) else { return; };
        if (entity1.to_string() == "wall" || entity1.to_string() == "left-arm") && (entity2.to_string() == "wall" || entity2.to_string() == "left-arm") {
            dbg!("wall and arm are in contact");
        }
    }
}

I was able to get the debug gizmo to appear correctly when adding:

app ...
.insert_resource(Time::<Fixed>::from_hz(240.0))

But I'm not really sure what other consequences this line has. Does it effect all the systems in the app?

I haven't gotten into configuring Time for my app until I saw this on an official bevy thread https://github.com/bevyengine/bevy/discussions/12005 where the gizmo was also having a 1 frame delay (not using avian) but they were able to add their gizmo system to PostUpdate schedule and that did the trick for them.

Adding the PhysicsDebugPlugin to the PostUpdate Schedule did not work just the Time snippet above was able to fix the display.

@vestal minnow thank you for these plugins and all the work you've put into this as well as the help from the other 65 or so contributors.

[tulip crystal]

Here is a better video with .add_systems(FixedPostUpdate, debug_collisions)

[visual sparrow]

@vestal minnow FYI, I'm porting Foxtrot to 0.16 and use Avian's main branch, and now I get a ton of these when going from the gameplay back to the menu, which despawns most entities

This could be my bad or a fault in one of my patched plugins, just letting you know

Sec, here is the same with track_location on

From just a cursory glance, it seems like a situation where remove should be replaced with try_remove

[calm sundial]

Try cargo update. There was pr recently that may solve the issue.

[visual sparrow]

Indeed it did! Thanks!

[urban flume]

wen

[willow elbow]

@vestal minnow I updated my code to 0.16 and avian main and EventReader<CollisionEnded> doesn't work anymore. collision_events.read() doesn't read any events. Is this a known issue?

[cinder summit]

Yea, there is a marker to enable events now

[willow elbow]

thanks for your reply. Could you point me to where I can understand more about the change and how to update the code?

[cinder summit]

See #1124043933886976171 message

[crimson crest]

I just came to a super important realization when it comes to the KCC. Gravity should be processed separately if you're not on a steep slope, but joined with the characters velocity if you're on one

Since I always do grounding checks before the collide and slide I have the floor angle already for this purpose

It's an obvious thing in hindsight but

So depending on floor angle you either have gravity as a move and collide on its own then add that result to the KCC's velocity, or put both in a single pass

[paper jasper]

did you build your own collide-slide-kcc? is it publicly available?

[crimson crest]

It's not good enough for use by games yet. Once I've it to a more stable and reliable implementation I'm probably going to form bevy-tnua to be the base of it

Actually hm... @vestal minnow couldn't I run my KCC processing during narrow phase and do collision events and such the same way Avian does internally?

[little maple]

I'm using the 0.16 branch and am running into this behavior and am curious if anyone else has seen it. It's like my frame rate just drops for a few frames with these long calls to "avian3d::sync::propagate_transforms_physics" even when I have physics time paused.

ah, realized I can't make a thread here so I made one here
#off-topic message

[pulsar osprey]

Is it possible to create a cone/pizza slice shaped collider? Or do I have to apply an angle filter on CollidingEntities?

I want to detect collision with defined radius and angle from object's X or Y.

Anyone knows good examples on adding custom colliders like doughnut shapes, ...?

[sleek thicket]

doughnut is a torus, it's concave so not a very good collision shape

cone does have a primitive that you can convert to mesh, no idea about pizza slice, you'll probably need to hop into blender to make it

[severe urchin]

Encountered an error in system avian2d::picking::update_hits: Parameter Res<RayMap> failed validation: Resource does not exist

get this when trying to run with MinimalPlugins. i don't have the bevy_picking feature enabled for avian2d, since i'm trying to run headless. do i need to disable picking some otherway in headless mode?

on main btw

[severe urchin]

ah for some reason i was manually adding PhysicsPickingPlugin, that explains it..

[sweet sundial]

could manually make one triangle

[crimson crest]

Oh huh box2d got some KCC related features

I might take a look at those

Wait hold on

This geometric solver (they're calling it) is very similar to the solution I was reaching on my own

Wait no this is... exactly what conclusion I reached in my latest impl attempt, just better executed.... hmm....

Lets see, CastMover appears to tell you how far you move along your velocity until you hit a collision? Returns the fraction, which I believe is 0->1 of how far you managed to move?

[half ruin]

Omg I spend 5 hours and still cant setup my physics correctly with Avian and Tnua controller

1. Why a player slides down very slow from low profile box?
   If I set spring_strength to 3000, it slides fast (As I need, because its a normal fall down, not something special)
   But with that 3000 option, there is another issue - the player begins to be pushed away strongly from inclined planes

2. Why player jumps very high if I jump from inclined planes ?

3. Why player sinks a little into the ground and then sort of floats back up every time he lands after a jump?

4. Why player starts shaking if he trips over a corner

all the issues are in the videos

1 video - spring_strength is 3000
https://youtu.be/pD3N8p7I_zE

2 video - 400
https://youtu.be/Ho2w2seSvdk

[urban flume]

I'm honestly not a fan of tnua for some of these reasons

it's great for a chaotic/arcadey game

[sweet sundial]

to me that looks like the collider is way too big

[golden shoal]

I'm having a bit of trouble figuring out the best method for implementing RayCasters and child rigidbodies. I'm making a top-down 2D game, and the intent was that characters have independently-rotating child "head" entities that cast rays in the direction they're looking at.
I haven't been able to implement this at all though. If I just have minimal "head" child entities with nothing other than a transform and a raycaster component, it doesn't work. The rays don't rotate with the head.
If I add a Kinematic Rigidbody to the head child, when the main body moves the child just gets left behind.
How can I have a head attached to a body that can rotate with raycasts that spin with it? I really just want a head that can look around.

[little maple]

is there an easy way to visualize shape casts other than trying to construct a gizmo where you think the shape is?

[knotty thicket]

doesn't the physicsdebugplugin place gizmos and such for you?

[half ruin]

what do you use then instead? You write collide-and-slide algorythm for KCC from scratch?

[half ruin]

what do you mean? Too big in comparison with what?

here is my settings:

collider: Collider::capsule(0.5, 0.7),
sensor_shape: TnuaAvian3dSensorShape(Collider::cylinder(0.49, 0.0)),

and walk basis:

desired_velocity: direction * 1.2,
desired_forward: Dir3::try_from(direction).ok(),
float_height: PLAYER_FLOAT_HEIGHT,
max_slope: TAU / 6.0,
acceleration: 50.0,
air_acceleration: 30.0,
spring_strength: 400.0,
coyote_time: 0.1,

[sweet sundial]

i did something similar, with weapons that float in-place relative to the camera
ended up needing to just make them a separate body, then give them velocity to move them toward the target position
if you don't need the heads to have colliders, though, there's probably an easier way

[sweet sundial]

my tnua: Capsule3d::new(0.5, 1.0), controllable::Walking { walk: 10.0, jump: 4.0, height: 1.5,}
and ```rust
fn apply(
intent: Single<&crate::player::Intent, With<Inhabitor>>,
mut habit_query: Query<(&mut TnuaController, &Walking), With<Inhabited>>,
forward: Single<&ForwardFromCamera, With<Inhabitor>>,
) {
let Ok((mut controller, opts)) = habit_query.get_single_mut() else {
return;
};

controller.basis(TnuaBuiltinWalk {
    desired_velocity: intent.direction * opts.walk,
    float_height: opts.height,
    desired_forward: Some(forward.forward()),
    ..Default::default()
});

if intent.jump {
    controller.action(TnuaBuiltinJump {
        height: opts.jump,
        ..Default::default()
    });
}

}```

oh and a TnuaAvian3dSensorShape(Collider::cylinder(0.49, 0.0))

[half ruin]

and you dont have such issues?

[sweet sundial]

there's a little adjustment when stepping on and off of ledges, but it seems natural enough for my purposes

i think Rule 1 of tnua is "don't touch the ground directly"

[little maple]

it does show colliders, but I don't think it was showing raycasts/shapecasts.. maybe there's a setting I missed

[half ruin]

what does it mean?

[sweet sundial]

it's an entire system designed to work around how incredibly inconvenient it is to slide a capsule around on the ground

so probably just, don't put the capsule on the ground

even on slopes

[sleek thicket]

look at very very valet character controller tutorial to understand how tnua works

[knotty thicket]

Was just working with a ShapeCaster in a new project and figured I'd check. Seems to visualize for me.

[vestal minnow]

I'm guessing they're using SpatialQuery methods, not the component

(also I'm probably still busy today but I'll be back soon!)

[little maple]

yeah, like Jondolf said I was using the SpatialQuery, but that's good to know. Might use that instead for debugging purposes and then switch back

[golden shoal]

I don't need them to have colliders. I don't even need them to have rigidbodies, rigidbodies just seem to be needed for the raycasters to work.

[vestal minnow]

oooh nice this is hype
https://github.com/dimforge/parry/pull/336

[royal helm]

Ooooo

That'll be nice

[royal helm]

do you have triplanar mapping for your debug textures?

[vagrant jolt]

Are there any plans for an official kinematic character controller for Avian?
I've been trying to write one the last few weeks, and it's been a frustrating experience for a physics noob like me. There are still so many bugs in my implementation that I don't know how to fix, and information on this, to my knowledge, is pretty sparse.

[calm sundial]

It would be nice to have built-in adjustable/extendable character controller(s) with clear docs. It probably should not be included in Avian default plugin and should be added as separate plugin (like avian debug plugin).

[vagrant jolt]

There are a couple of floating character controllers compatible with Avian, like bevy_tnua (which is great), but there a couple of issues with the approach that would be circumvented by using collide and slide, but there aren't any solutions out there for Avian. Having a solid, well-tested (bare-bones) implementation of a kinematic character controller in Avian (which is also great) would be really awesome for prototyping and as a learning resource.

[knotty thicket]

Yes

[royal helm]

is that a separate crate or did you implement it yourself? been meaning to make something like that for my own test environment

[knotty thicket]

I implemented it myself, I can publish it later if it's something you're interested in. Just afk right now.

[royal helm]

Ya I'd be interested whenever you get around to it 🙂

[weary hornet]

Hey, so I'm not sure how "official" worthy it is, but I have a pretty rock solid approach that has worked pretty well for me in the past, in other engines too. I did just notice a flaw with my Bevy version right now (moves a bit faster when sliding against walls) but I can fix that by comparing to my Godot version.

I took the idea from Quake 1. Essentially you loop up to 4 times, shape-casting each time. The moment you dont hit anything, you break out of the loop.

The reason you do up to 4 times is, you may hit a wall, slide along it, then penetrate another wall, so you need to check that next wall, and so on.

I've seen this question pop up a few times now and I'd love to build out a proper example. I've done one in the past but it had a bunch of multiplayer stuff in it too, can strip all that out and keep it scoped.

@green adder is also working on one, but I don't think he's open sourcing it, but maybe willing to share techniques, especially surrounding stairs.

And, this approach is solid for first/third person games, but I don't think you'd want to have thousands of units using it, so it wouldn't be good for an RTS. That's just gut feeling without trying it.

This approach is also great for multiplayer, because you can design it in such a way that you can rollback just the character you want, instead of needing to have full rollback. This is important because not every game needs full rollback.

What I can do is fix my Bevy implementation, and invite you to the repo (github) if you want

Or I just open it up I guess

[barren elbow]

I'd be curious to see this as well

[weary hornet]

ok actually so I'm looking at your code now, what are some of the problems you're getting? I see you're doing the looping thing too.

The big difference i see is you're using a par_iter. I think that may cause problems, you want it to be sequential

oh nvm

Ok you have the exact same issue as me, you're using remaining motion instead of remaining time

Hmm maybe its worth creating a temporary Discord server to figure this out?

[barren elbow]

Hey, is there a way for kinematic rigid bodies to opt out of automatically moving the entity using the LinearVelocity? I'm making a character controller and the movement is handled by me, I don't want to define my own velocity since then I would need to special case characters in systems. My solution for now is to just not have a RigidBody on my characters but that's biting me in my butt because now I don't get collision events for free anymore.

[barren elbow]

what issue is you having?

[weary hornet]

Oh I just mean for the general problem of having a rock solid character controller. I just feel like if we really dive into it, it would pollute this thread

[barren elbow]

oh yeah, I'd definetly join that.

[vestal minnow]

there's like four or more people with KCCs for Avian at this point, could be nice to gather requirements and ideas in some way

at least UB, aceeri, BrianH, Philipp, Luk, kinda me as well...

[weary hornet]

Yeah, and part of the problem is once you get into things like how it climbs stairs and ledges, it starts to become a game-feel thing. Phillip for example has some different ideas than I for that

[green adder]

Hey there, yes I will be doing work in this area in the next few days/weeks. I would love to share thoughts etc.
It's been a bit but I did some high level planning for some features a while ago and I'm currently planning again.
A small example of the old work:

[weary hornet]

https://discord.gg/ppk9bjKm

[vestal minnow]

@crimson crest fyi ^

[snow urchin]

finally

@vestal minnow Will avian get a physx backend in the future?

[visual sparrow]

I highly doubt it

[vestal minnow]

No, Avian is a physics engine, if it used PhysX then it wouldn't really be Avian anymore. But a direction I'd like to explore for an official bevy_physics is to have it be mostly just an API layer, and then other crates can provide physics backends for that API, like Avian, Rapier, Box2D, Jolt, PhysX, and so on

[little maple]

forgive me for being annoying while I bump this 👀

[clear dew]

Seems like I might've gotten it twisted. For ShapeCastConfig.target_distance, I assumed that the shape would travel Scalar units before detecting collisions. Am I wrong about this? just want to make sure it's my fault because I'm going a little crazy 😅

(implying in this picture, that the log distance would be >= 100). The other param settings compute_contact_on_penetration and ignore_origin_penetration appear to have no effect...ig I'll just need to cast the ray after recomputing the direction 200 units ahead haha

[vestal minnow]

See the docs of the property
https://docs.rs/avian3d/latest/avian3d/spatial_query/struct.ShapeCastConfig.html#structfield.target_distance

The separation distance at which the shapes will be considered as impacting.
Meaning that in your case, when the distance between the cast shape and the other shape is 100.0, they will be considered as impacting and the shape cast will terminate at that distance

so if the distance is already less than or equal to 100.0, the distance traveled by the shape is 0.0

[clear dew]

I totally misconstrued that. Makes sense! I interpreted it as minimum distance between cast shape and other shape.

[vestal minnow]

mmm the determinism problem in #706 is so annoying

It's not really a determinism bug, since the behavior is consistent across runs. But the PR results in different behavior when restarting a scene without fully clearing the contact graph, because the free/vacant graph edges affect the contact pair insertion order

Now should we accept that behavior (if you don't clear the graph) for the perf win or not... I'm pretty sure it shouldn't be a problem for 99% of cases, it's mainly just weird for users that past contacts would affect a "fresh" scene, and it feels like something that people shouldn't need to worry about

[cinder summit]

How would this behave with rollback? Like let's say we got an update, roll back to what the state was the tick before (which was incorrect), then apply the updates from the server, and resimulate ... Would this result in different contacts than the server?

Similar cases would happen with things like reversible time more immediate rewinds, or even snapshot systems

[vestal minnow]

If you roll back the contact graph too, including its vacant edges, then you should get the same behavior I think

But yeah I'm not 100% sure how it'd work for stuff like that

For now I think I'll just keep the current/old approach until optimizing this is more relevant

Box2D uses a contact ID pool that I believe would have the same problem of past contact pairs affecting the insertion order of new pairs (I tried an ID pool too), but I'd need to run some tests with it to double-check if it has the problem

[cinder summit]

Ultimately the order of IDs doesn't matter if it doesn't affect the outcome

[vestal minnow]

Yay or nay? Rigid body entity in OnCollisionStart and OnCollisionEnd events
https://github.com/Jondolf/avian/pull/717

You can query for the rigid body entity via ColliderOf, but that is still an extra query and more verbose

Internally it needs to do a query here anyway to check if the entity has collision events enabled, so this doesn't really add any overhead beyond storing the extra entity

[visual sparrow]

This is what I need in 99% of cases, so it seems like an ergonomics win

Bit unfortunate that it needs to be behind an Option

[cinder summit]

I think this is optimized for Entity and trigger.rigidbody.unwrap_or(trigger.entity()) or whatever should be fairly efficient 🤔

[visual sparrow]

So I still have the whole let Ok(rb) = trigger.rigid_body else { return; } song and dance
