I'm just happy I got to spawn a GLTF scene without any window popping up 😄

Anyways, the regression test works at least locally

If the CI agrees, my PR is ready again 🎉

relevant commit

[vestal minnow]

Nice, it should be good to go then 😄 I'll give it a final final look tomorrow when I'm not as tired, and get it merged

[visual sparrow]

Sounds good! good night then 💤

[vestal minnow]

Merged! 🎉

[visual sparrow]

Yay 🎉

[sleek thicket]

is there a way to set collisionlayers for all objects spawned from gltf scene?

[vestal minnow]

Alrighty, here is finally the initial solver rework PR:
https://github.com/Jondolf/bevy_xpbd/pull/385

I might still add things to the description if I have energy for that 😅

[vestal minnow]

Right now, I don't think so 🤔

@visual sparrow Maybe we should change default_constructor to default_config, and add with_default_layers and with_default_density or something?

Or just add default_layers and default_density as their own properties

[visual sparrow]

That would make sense, yeah

Btw, collision layers are not inherited, right?

[vestal minnow]

They're not

[visual sparrow]

Would that maybe make sense? When I add a collision layer on a rigid body with nested children, it would probably be useful

(at least in my own project, I manually cascade them after placing them on the rigid body)

[vestal minnow]

If they were, there would need to be a separate mechanism to opt-out of inheritance

[visual sparrow]

You could just take whichever CollisionLayers is closes to you in the hierarchy

[vestal minnow]

Also I don't think e.g. Godot or Unity have layer inheritance(?)

[visual sparrow]

So if your collider has an own CollisionLayers, that one wins

[visual sparrow]

Ah, that's probably a good precedent then

[vestal minnow]

I'll try to make a PR today then

[visual sparrow]

Ping me if you want a review 🙂

[visual sparrow]

I'll try to take a look at this tomorrow, but it's probably wayyyy over my head haha

[vestal minnow]

yeah I don't expect anyone to review that lol

[sleek thicket]

inheritance doesn't always make sense, you might have parent having "human" layer, you wouldn't want the "gun" child object to be human too
default layers is good though

also, do all colliders have layers automatically added? adding access to it without getting it from query would be nice
that's basically what unity does, and with each object having multiple layers it'd be even better

[vestal minnow]

no CollisionLayers isn't added automatically for colliders

[sleek thicket]

is there any good reason not to?

[vestal minnow]

It's not really required for collision detection, and not having it at all is equivalent to having CollisionLayers::default()

[sleek thicket]

it's always used by shape/raycasts filter, is it possible to add layers to shapehitdata?

[vestal minnow]

If you wanted to get the layers, you could query for them using the entities in the hit data

[sleek thicket]

yeah, that's what i'm already doing, i'm just asking if it's a bad idea to streamline it

in unity you get it with collision.collider.layer or hit.collider.layer and that's it

[vestal minnow]

You could make an argument for adding a ton of data to the hits, like the GlobalTransform, ColliderParent, or even Name, but I don't see much value in cloning data like this unless there is a very high usability gain involved. These things can be queried for, but the hit data should mostly contain what you can't query for (i.e. the actual data related to the hit geometry and the entities involved)

It might be a bit more annoying than in Unity, but with Rust and the ECS I don't think we can reasonably do what Unity does there

[sleek thicket]

ok that's a fair point, but i use layers every time with ray/shape casts 😅 it's not that big of an issue though, i was just wondering if it'd be easy to get rid of the boilerplate

[vestal minnow]

Okay wearing my 🧪 hat;

Currently, you might do something like this:

fn ray_cast(
    query: Query<(&GlobalTransform, &CollisionLayers), With<Player>>,
    spatial: SpatialQuery,
) {
    for hit in spatial.ray_hits(...) {
        if let Ok((global_transform, layers)) = query.get(hit.entity) {
            // ...
        }
    }
}

I think I've had a similar idea some time before, but we could embrace the idea of spatial queries just being a special case of Query, and have something like this:

fn ray_cast(query: SpatialQuery<(&GlobalTransform, &CollisionLayers), With<Player>>) {
    for (hit, (global_transform, layers)) in query.ray_hits(...) {
        // ...
    }
}

Internally it would be very similar to the existing approach, just abstracted away. And maybe we could figure out some optimizations too

If we wanted to go into even more 🧪 territory, we could make this agnostic to the spatial query backend, so you could even do ray casts on meshes like bevy_mod_raycast by just using a Mesh backend

I don't think this would even require breaking changes since SpatialQuery without components or filters would just return the spatial query results like it currently does

[sleek thicket]

i never understood how spatialquery works, it just looks like magic to me 🤷‍♂️

[vestal minnow]

Internally there's a SpatialQueryPipeline resource that maintains a bounding volume hierarchy for the world's colliders, SpatialQuery is just a system parameter that calls methods to query that BVH

[sleek thicket]

i think you'd need to write a whole blog post to properly explain it 😅

[vestal minnow]

Less magic to me than Physics.Raycast in Unity :P

[sleek thicket]

maybe it's worth doing actually, trying to explain it could make something click for the 🧪 stuff

[vestal minnow]

although basically equivalent

[sleek thicket]

yeah unity source is closed so everything is magic there

idk about nvidia physx though

[vestal minnow]

Spatial queries pretty much always have a BVH, that's what you have even in graphics for ray-tracing

[sleek thicket]

i don't think unity's approach would work that well though, it just gives mutable access to a lot of stuff even without GetComponent

whole collider, the parent collider, tag, layer, transform, rigidbody... easier to just link you the doc

[vestal minnow]

yeah this
https://docs.unity3d.com/ScriptReference/RaycastHit.html

[sleek thicket]

you access the collider through it, and it gives access to a bunch more stuff

https://docs.unity3d.com/ScriptReference/Physics.Raycast.html
->
https://docs.unity3d.com/ScriptReference/RaycastHit.html
->
https://docs.unity3d.com/ScriptReference/Collider.html

[vestal minnow]

With this you could easily do that, but only get the components you actually need, and optionally have query filters on there too

[sleek thicket]

if it doesn't cause any borrow checker headache then it sounds good

DIYcast

[vestal minnow]

Well it'd have the same limitations as Query does, i.e. you can't have other queries with mutable access to the same components unless the queries are disjoint

Same as the current SpatialQuery, just with Query functionality baked in to reduce the boilerplate

[sleek thicket]

ah, the current one doesn't have any problems because it uses only physics pos+rot?

[vestal minnow]

I can get rid of even that issue, just haven't had time for it yet

[sleek thicket]

and entity/collisionlayers don't cause any conflicts because i never mutated them?

[vestal minnow]

The SpatialQueryPipeline basically has a copy of the world's colliders and some other necessary components, and it's updated automatically, so SpatialQuery doesn't actually require World access at all (or currently it does, but I can get rid of it)

So it shouldn't cause any conflicts

[sleek thicket]

then it sounds really good

i have no idea who needs stuff like this, but i think you'd eventually have to figure out something for the edge cases like that anyway

although nvm, i guess you could do that with query boilerplate too

[vestal minnow]

yeah

I would also imagine that you can get that if you just have the Mesh and hit point

Dunno if we have a helper on Mesh for it though

[sleek thicket]

just working on anything that needs to access uv/texture sounds like a much bigger headache than just getting that point

i've seen access to material being used for matching footstep sounds and decals though

[vestal minnow]

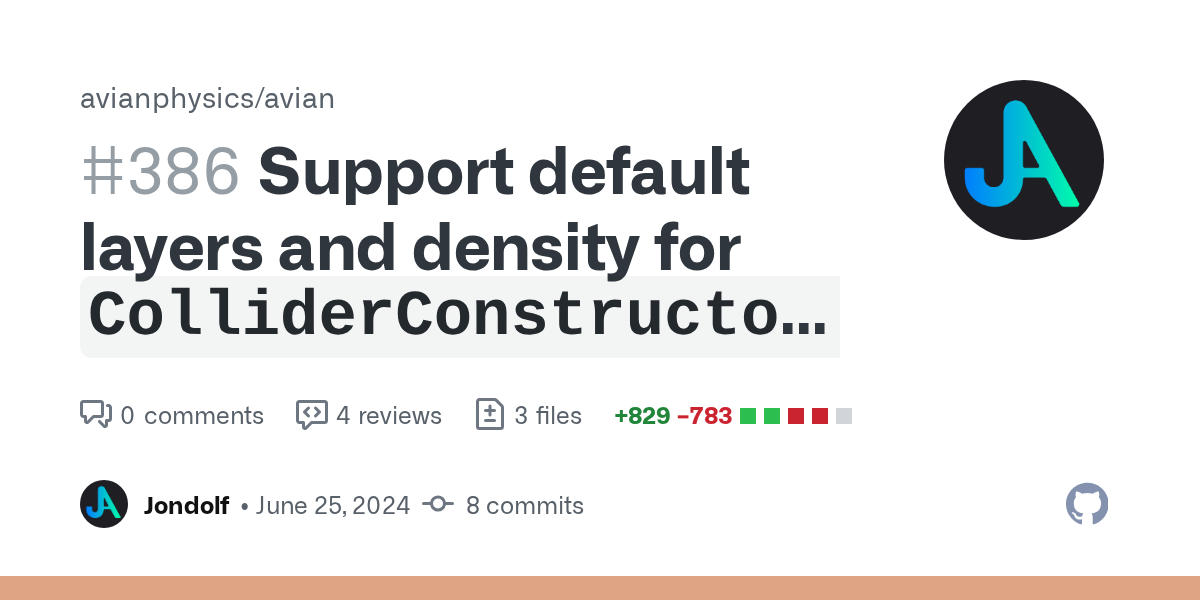

PR here if you wanna take a look, no hurry though
https://github.com/Jondolf/bevy_xpbd/pull/386

[junior flower]

I've used this once to allow clicking through transparent things: RaycastAll from the click and check to make sure that you're actually hitting a visible pixel

[vestal minnow]

A lil branding for the docs

Still not 100% sure what I should do for the small icon

[carmine sluice]

I think the feather in water scaled down 40% over the current small logo would look nice

[vestal minnow]

Initially I had this but it's a bit hard to see the details

especially for the favicon

[vestal minnow]

Might be better without the background color? Although there's less contrast

(I also simplified the ripples a bit for the icon)

[vapid monolith]

gosh the logo is so awesome

[true hearth]

in this case it's better without BG color imo

[vestal minnow]

for light theme I currently just have a drop shadow to make it somewhat legible

[true hearth]

think the border circle somehow clashes with the ripples (talking about the small logo with dark background color)

[vestal minnow]

Tweaked a little so the icon is larger and the ripples are a bit thicker, I think this is probably good enough

kinda yes

it looks weird if it's just flat

The ripples trace the outlines of actual ellipses

Does this look better then?

I'd have to redo the lines at least since they look disconnected and are partially hidden if I do that

[sleek thicket]

and now it's a half-sphere collider

[vestal minnow]

if only we had half-spheres as a collider shape

[vestal minnow]

still feels a bit off

this has zero tilt at least

[edgy light]

I for one prefered the logo before, having the feather centered makes it have too much negative space, and the tilt made it more dynamic

[vestal minnow]

same

[edgy light]

tilt is for dynamic, not centered is for negative space 🙂

[edgy light]

if we look at other physics engine, https://www.havok.com/wp-content/uploads/2020/06/havok-logo-flat.png is going all in on "dynamic" and zero on physics, https://developer-blogs.nvidia.com/wp-content/uploads/2018/12/PhysX.png is "hey we're nvidia, need anything else?", https://box2d.org/images/logo.svg is "look, we do boxes, ok?"

[vestal minnow]

I feel like this could maybe work for the icon, but for this banner logo imo it loses a part of the idea and cohesion

[sleek thicket]

you could remove the ripples temporarily and add them when you have something that just clicks

[vestal minnow]

Like the "Physics" text is blue to match the water as if it's underwater, for example

that looked like garbage

#art-audio-animation message

the current logo already went through a ton of designshedding(?)

[visual sparrow]

Gut-reaction wise, I like this one the most 🙂 But the ones right before and after it are pretty much equally as good

[carmine sluice]

This one 🔥

But I like the current one a lot too

[thin hare]

Here is a (hopefully not too strange) question

I'm currently working on adding some unit tests to my game and i'm testing a query that relies on &ShapeHits being on an entity

I don't add the full PhysicsPlugin to the world for this test, so I'm wondering if there is a way to add ShapeHits to an entity manually since the fields are private and it doesn't impl Default

[vestal minnow]

hmm I should probably add a way to construct that manually, but I think you need SpatialQueryPlugin and PhysicsSetupPlugin for now

then it'll add it automatically for entities with ShapeCaster

(in Avian, there's a PhysicsSchedulePlugin which you could use instead of PhysicsSetupPlugin)

ah wait you might need PreparePlugin actually, since IIRC it adds some system sets used by SpatialQueryPlugin

I should really reduce the plugin dependencies here 🤔 you shouldn't need so many plugins for this

[thin hare]

Huzzah!

yeah adding SpatialQueryPlugin, PhysicsSetupPlugin, and PreparePlugin did it

[vestal minnow]

nice, I think I should be able to get it down to requiring just SpatialQueryPlugin though

or maybe not even that since I could just add ShapeHits with a lifecycle hook

[vestal minnow]

@sleek thicket A slightly more refined version of the idea

Might need to tweak the sizes a bit more 🤔

[thin hare]

As far as the rebrand goes, will the high level API remain fairly consistent?

[vestal minnow]

yes

module structure and system ordering will change but if you use the prelude and don't rely on too many internal system sets then not too much should be different API-wise

tilt in what way?

Are we not looking at it straight from the top? The feather isn't perfectly straight but that doesn't say much about the viewpoint

[carmine sluice]

It'll vary based on the type of feather

[vestal minnow]

(image source: Reddit lol)

idk what I like more anymore

[visual sparrow]

They're both gorgeous 🙂
Bottom one looks less boring

[vestal minnow]

I like the original one since the color is more evenly distributed and the text and water match better, which was one of the reasons it was designed like that

[vestal minnow]

and it's maybe more dynamic and not just a feather floating on water, which implies fluid simulation stronger (though I guess both kinda do)

the feather is also larger and more emphasized in the original one, and I consider the feather more important here

[visual sparrow]

I like that the colors of white on top, blue on bottom match

[vestal minnow]

I kinda have that lol

no 3D ripples tho

[visual sparrow]

make the 'i' in Avian blue and it will start looking like the Finnish flag 🇫🇮 /j

[vestal minnow]

(ignore the instability at the end)

[vestal minnow]

nah this is clearly better #art-audio-animation message

10 kg feathers vs. 10 kg weight

[visual sparrow]

heheehehe

[thin hare]

Is there an easy way to build a LayerMask from an enum that derives PhysicsLayer?

[vestal minnow]

I think you can just do LayerMask::from(my_enum)

[thin hare]

eyy, doing that and a bitwise or on the masks works, thanks!

[fickle ivy]

i agree to keep the original, even with the tilted plane for the ripples

like you said: the symmetry between the text + ripple color is more important, followed by center balance + alignment of ripple + feather as the icon

if anyone asks why the water is not flat, tell them it's fluid dynamics and the feather is actually hitting a wave 🌊

the top down view looks like you're looking through a scope and about to snipe a feather, all you need is the red dot

[vestal minnow]

The logo and Bevy itself are pretty fitting for me considering the Finnish form of my first name originates from a Hebrew word meaning "dove" (the bird) and my last name in Finnish means "wave"

literally bird + wave

[fickle ivy]

what an awesome origin story, your life's calling! only the beginning

[sleek thicket]

were there any particular reasons for feather and water in the first place?

[vestal minnow]

feather because it fits "avian" and physics, and the ripples because it looked boring with just the feather

initially I tried wind lines and stuff but the ripple was unique and looked nice

[sleek thicket]

you could have a bird in water and it'd still fit avian

[vestal minnow]

masterfully crafted by Nise #art-audio-animation message

[vestal minnow]

a bird in water wouldn't have a physics association for me, and it'd just look like a modified Bevy logo

[sleek thicket]

https://tenor.com/view/birb-lol-gif-20042444

[vestal minnow]

it'd also be hard to make in a way where it'd work in icon form, the feather is already not ideal even though it's pretty simple

[sleek thicket]

feather is more of a byproduct of avian, it's not the first thing you'd think about when hearing it

it looks fine though, i'm just not sure why you're so fixated on it

and the ripples that cause so much headache

if you don't add the plane of reference then the feather can be in any orientation without any problems

[vestal minnow]

people clearly preferred the ripples over the other variants I tried at least

like the wind ones

and with just the feather it looks super generic and boring

[sleek thicket]

i don't even know what you can do with a feather to make it interesting

[vestal minnow]

it doesn't have to be a feather either, but I do want something that fits both Bevy/birds and physics in some way, and the main viable options there imo are a feather or a wing

"Avian gives you wings" hehe

[sleek thicket]

why not bird? you could make something like firefox but waterbird

hugging a sphere collider

[vestal minnow]

If I do a full bird then it just looks like a clone or weird variant of the Bevy logo, and again it's hard to get a meaningful physics association there, especially if you want it to be visible as a 64x64 or even 32x32 pixel icon

Also my art skills would not be good enough to make a good-looking logo of a bird hugging a collider lol

I also want to keep it relatively minimalistic like Bevy's logo and Bevy itself, and a bird doing X action would be kinda hard to do in a minimalistic style

[sleek thicket]

enjoy my mspaint skills

[cinder summit]

Why are you killing birds with blue marbles?

[sleek thicket]

it's not dead

and it can be anything. invisible or outline of a collider. or water.

[cinder summit]

It will be once it hits the ground and gets crushed by the oversized marble that knocked it out of the air

[sleek thicket]

it's static so it won't 🙂

[vestal minnow]

If there were wind lines on the right side it'd looks like the bird is getting sniped by a (friendly :D) cannon ball

[sleek thicket]

reverse angry bird?

[vestal minnow]

an AI is playing angry birds, but you need to build structures and stop birds midair to protect the pigs

ngl that's a pretty good idea lol

[sleek thicket]

animal cruelty^2

and it's more than a good idea, it's actually worth making it

although it sounds like a flash/mobile game that might already exist

[carmine sluice]

Yeah frankly this sounds genuinely good

[vestal minnow]

we even have a logo already

Hangry Flocks, coming soon™

[fickle ivy]

did someone say flash/mobile game that might already exist? 😈

that's kinda our thing at Cult, Inc.

[sleek thicket]

angry AT birds™

[visual sparrow]

@vestal minnow I've left a review on the ColliderConstructor PR and a small code quality pass on the solver rework.

[vestal minnow]

Thanks! I'll try to address them later today 🙂

Already added some benchmark results

(I don't have much experience with proper benchmarking though so they're pretty basic)

[visual sparrow]

is the +- one standard deviation?

or minimum/maximum?

[vestal minnow]

number after +/- is standard deviation I think

I'm using critcmp for this

[visual sparrow]

Pretty good numbers then 😄

[visual sparrow]

Feel free to disagree on many of them, a lot of them are "I personally like to track TODO comments with corresponding issues" and I know that is personal preference 🙂

[vapid monolith]

Any ideas how these improvements came to be?

[vestal minnow]

Yeah some of them could definitely have issues, although it might be a bit weird to have issues for things that aren't even merged

but of course you can just mention that in the issue

[visual sparrow]

I agree, but given that this PR will definitely get merged soon, I think it's fine

[visual sparrow]

The PR has a good writeup about the performance!

[vapid monolith]

alr ty :)

[visual sparrow]

Link: https://github.com/Jondolf/bevy_xpbd/pull/385

[vestal minnow]

Moving the narrow phase outside of the substepping loop is a big one, and the main reason why performance doesn't degrade quite as quickly as the number of substeps is increased

Otherwise it's a bit harder to say, but I managed to remove a bunch of unnecessary allocations, and also use more par_iter in some places

[vapid monolith]

Ah okay, that makes sense. How do you keep track of collisions after each solve then though?

[visual sparrow]

BTW @vestal minnow for my own project, I need to create a quake-style first person controller and HL2-style picking up objects. I've nearly started work on that today, but decided that maybe it would be best to wait until the Avian stuff is merged so I don't have to change things again. I'll definitely put these two into their own crates for other people to reuse, but I wanted to ask if that is something you'd be interested in upstreaming. My own guess is probably not, since these things are tend to be fairly specific to a given game, but then again rapier comes with a builtin character controller, so idk

[vestal minnow]

See "Collision Detection Refactor" section in the PR, and the TGS section in the Solver2D post

you can just store contact data in local space and approximate the current data at each substep based on the current poses of the bodies

[vestal minnow]

I would probably be interested in potentially adding a kinematic character controller of some kind, with a collide-and-slide style algorithm along with the usual slope snapping, stair climbing etc., something like what Rapier has (although I really dislike some of its design choices)

Either way I'd probably start in a separate crate

I'm not entirely sure if it makes sense living in the physics engine itself anyway, even if there was an "official" solution

[visual sparrow]

Yeah, agreed

[vestal minnow]

Oh and also in these benches the old and new version were both using the same number of substeps to make it comparable, but for the new solver, I've cut the old default substep count of 12 in half to just 6 since its enough for stability for like 95% of cases. So if we're looking at default performance, the difference is even bigger

[vapid monolith]

hmm thats nice

[vestal minnow]

IIRC Box2D V3 (which has a very similar solver) has just 4 substeps by default, so we could probably reduce it even further

[sleek thicket]

quake-style with diagonal bug and weird acceleration?

[visual sparrow]

Diagonal bug not, but weird acceleration is kind of a feature of this style of character controller, haha

[sleek thicket]

i guess you could just make a toggle for max speed/acceleration

[visual sparrow]

I'll iterate and see what feels best 🙂

[sleek thicket]

i basically had that in unity but decided to focus on other stuff so i don't burn out and start procrastinating

still ended up procrastinating

[visual sparrow]

Yeah, I’ve wasted ages on character controllers as well

There's soooooo much to tweak

[sleek thicket]

i wanted to finish making anti-gravity that feels good, instead i came with realization of why it felt bad but got stuck with solution

i basically expect that moving doesn't move camera on right/up axis, only forward...
and that given same input and no manual camera rotation, you'd end up in same place and same rotation...

and i keep breaking either one or the other

[quartz heart]

How do you best handle moving platforms with them?

[sleek thicket]

@quartz heart if you use spring+hovering collider (which i recommend if there's no good argument against it), you just get underlying platform's acceleration/speed and add it to character

i think very very valet video even covered that

[quartz heart]

Yeah that’s what I did, but was wondering if there are smarter/better ways to handle it? (Some suggest parenting, but I’m not in favor of that)

[sleek thicket]

parenting fucked me over so many times that i learned to avoid it entirely

[carmine sluice]

Can I quote you on that? 😉

[sleek thicket]

edited it a bit to make it even better out of context 👍 now you can

anyways, thinking with plain logic is probably the best thing to approach most problems, and turning player into platform's child is basically welding player to it

or even worse, if you rescale the platform then you also rescale player/decals, so you probably don't wanna touch scale either way

[burnt jolt]

hey @vestal minnow how's going?

I just wanna say that XPBD is fantastic and really easy to use, which i really love!

But could've be possible to add the point where the ray hits to RayHitData, in form of a Vec2 (or Vec3 if you're using 3D)?

Mostly because i'm using a raycast to check if the player touched the ground with spatial_query.ray_hits(...) (spawning a small ray pointing at negative Y), but i want to use that raycast to snap the player to where the raycast hit.

I tried to use time_of_impact for that, but its not enough info, and it only works great at 60fps, so its not framerate independant.

[sleek thicket]

let end = pos + (dir * hit.time_of_impact);

[burnt jolt]

ooo let me give it a try hold on

[burnt jolt]

i managed to make it work, but the raycast's size has to be the size of the player + 0.1, but yea, thank you for the workaround :D, i'll use it for now

still, adding a point: Vec2/Vec3 to RayHitData could've be a nice feature to add

[sleek thicket]

it's not a workaround, it's boilerplate

[burnt jolt]

for the stuff that i want to do, it is a workaround

[sleek thicket]

spherecast would account for player radius but might have weird side-effects with slopes/stairs

for raycast you can just subtract it let end = pos + (dir * (hit.time_of_impact - player_radius - 0.1));

[burnt jolt]

yeah, that's why i was planning to use 3 raycasts

one in the middle, one on the left, and the last one on the right of the player

[sleek thicket]

once i tried hovering collider approach i liked it so much that now i'd attempt to use it even if it's a bad idea

[burnt jolt]

if it works, it ain't a bad idea lmao

[sleek thicket]

for 2d with sprites it'd probably cause some headache though

[burnt jolt]

yeah, but probably because there's not a lot of stuff in xpbd yet

[sleek thicket]

unrelated

[burnt jolt]

i mean, you could fix some issues by freezing rotations

[sleek thicket]

https://www.youtube.com/watch?v=qdskE8PJy6Q
^ this is what i'm talking about, just for context

TNUA also ended up using it, no idea if it has anything for 2d+sprite

[burnt jolt]

you could fix some issues in 2d if you have rotation axis freeze on the rigidbodies afaik

[sleek thicket]

rotation isn't the issue

you just do it exactly the same as you'd do it without the floating collider

[burnt jolt]

oooooh i see what u mean

i thought you were talking about rotation, sorry ;_;

[sleek thicket]

the issue is matching sprites, not impossible but might kill the good part of the controller

you could have a few sprites for landing, but then you'd have to match the offset

[burnt jolt]

yeah, that was one of the ideas i had to fix this issue in particular, but i discarded it

[sleek thicket]

i messed around with sidescroller and without sprites it felt really good though, so i'm just wondering how it'd be with them (if done properly)

[burnt jolt]

yeah, it could've be a cool experiment lmao

[sleek thicket]

if let Some(hit) = physics.cast_ray(DIY)
{   player.falling_duration = 0.0; // == player.grounded = true;

    if hit.normal.dot(up) > 0.95
    {   let offset = ground_rest_distance - hit.time_of_impact;
        let upward_velocity = lv.0.dot(up);
        let force = (offset * strength) - (upward_velocity * damping);
        lv.0 += up * force;
}   }
else
{   player.falling_duration += time_delta; // == player.grounded = false;
    lv.0 -= 10.0 * time_delta; // gravity
}

that's basically the main chunk of code + slope check + grounded/coyote time
play around with it and see how it feels

[burnt jolt]

YOOOO THANK YOU SO MUCH!

sure, i'll give it a try!

[sleek thicket]

watch the very very valet devs' videos to actually understand it and good luck

[burnt jolt]

sure sure, thank you for all of this info man, appreciate it :D

[last panther]

did some math and it apparently is bullshit

[hexed veldt]

Just saw xpbd is rebranding into avain. I'm currently using xpbd for collision detection in my game. I wonder if the new avain package would change a lot on how collision API looks like? I don't care much about the underlying solver logic. I'm mostly concerned from API perspective. Thanks

[vestal minnow]

Which parts of the API are you using? The contact data types have a few changed and added properties, and the narrow phase's systems have changed a bit

The narrow phase also runs in PhysicsSchedule instead of SubstepSchedule

[hexed veldt]

I'm using RigidBody::Kinematic to mark an entity to detect collision events. I'm not using anything like force, friction, but directly modify the object's LinearVelocity for movement. I'm also using PhysicsLayer, CollisionLayer to filter different types of collisions

[vestal minnow]

Yeah there shouldn't really be any breaking changes for that in terms of collision detection

I did realize though that I should probably move generate_constraints back to the solver for now so that the narrow phase and solver wouldn't be coupled... I'd just like to merge it into the narrow phase eventually since it'd be much more efficient, but I can't do that yet since it'd kinda break PostProcessCollisions

[wanton scaffold]

I'm a beginner, and I encountered a problem shown in a video while learning about FixedJoint in avian3d. I created two Cuboids and connected them with a FixedJoint, then placed them on the ground. They suddenly exploded and flew away. What's causing this problem?

commands.spawn((
        PbrBundle {
            mesh: meshes.add(Cuboid::new(20., 0.5, 20.)),
            material: materials.add(Color::Srgba(ORANGE)),
            transform: Transform::from_xyz(0., -0.25, 0.),
            ..default()
        },
        RigidBody::Static,
        Collider::cuboid(20., 0.5, 20.),
        Name::new("Ground"),
    ));

    let cuboid_mesh_handle = meshes.add(Cuboid::default());
    let cuboid_collider = Collider::cuboid(1., 1., 1.);

    let red_cuboid = commands
        .spawn((
            PbrBundle {
                mesh: cuboid_mesh_handle.clone(),
                material: materials.add(Color::Srgba(RED)),
                transform: Transform::from_xyz(-1.5, 0.5, 0.),
                ..default()
            },
            RigidBody::Dynamic,
            cuboid_collider.clone(),
            RedCuboid,
            Name::new("Red Cuboid"),
        ))
        .id();

    let blue_cuboid = commands
        .spawn((
            PbrBundle {
                mesh: cuboid_mesh_handle,
                material: materials.add(Color::Srgba(BLUE)),
                transform: Transform::from_xyz(1.5, 0.5, 0.),
                ..default()
            },
            RigidBody::Dynamic,
            cuboid_collider,
            BlueCuboid,
            Name::new("Blue Cuboid"),
        ))
        .id();

    commands.spawn(
        FixedJoint::new(red_cuboid, blue_cuboid)
            .with_local_anchor_1(Vec3::X * 1.5)
            .with_local_anchor_2(Vec3::NEG_X * 1.5)
    );```

[vestal minnow]

Hmm, this seems to be an issue with how the collision and joint interact 🤔 it works better if you drop the boxes from higher, but it's still a bit explosive on the initial contact. I'll investigate

Btw what branch or version are you testing this on? bevy_xpbd 0.4, the repository's solver-rework branch, or something else?

[wanton scaffold]

Throwing a cuboid from a high place also causes it to explode, but it only explodes at the beginning. After exploding and falling down, it returns to normal. I'm using the avian branch of bevy_xpbd.

[vestal minnow]

Okay that's "good" in the sense that it's not a regression with the new solver at least, since the avian branch still has the old solver for now. Of course this needs to get fixed though

Does it only explode when the boxes land perfectly flat? Like, if you rotate them slightly, is it better?

[wanton scaffold]

After rotating the cuboid, it also immediately explodes and flies away. It doesn't seem to improve the situation.

[wanton scaffold]

If you increase the compliance value, the intensity of the explosion decreases. However, there's a chance that it will fold up. This means two cuboids rotate 90 degrees along the anchor point and stick together, similar to how paper folds.

[vestal minnow]

There's also this issue with a near-identical scenario
https://github.com/Jondolf/bevy_xpbd/issues/229

There, a small rotation fixed it, at least with a rotation about the X axis

It's really weird though, since it seems to only be an issue for the initial angular correction when something affects the bodies the first time (collision, another joint, etc.)

Almost makes it seem like there's some singularity or the correction sign is somehow flipped, but I don't understand what could be causing it, the angular correction is computed exactly like the XPBD rigid body simulation paper suggests

doesn't seem like a rotation normalization issue either

The revolute joint is fine, even with angle limits set to zero, but the fixed joint and prismatic joint both have this issue since they use the same angular correction

wait what

[wanton scaffold]

I tried the solver-rework branch of bevy_xpbd and encountered the same issues. The cuboids still explode and fly away, and increasing compliance results in folding.

[vestal minnow]

HUH??? Okay so the angular correction seems to be flipped, negating it makes things work perfectly fine I think

but how tf did it work at all after the initial explosiveness if the correction was opposite from what it's supposed to be???

Either way I'm pretty sure I fixed it, but I need to test more though since I'm very confused

[vestal minnow]

This should fix it
https://github.com/Jondolf/bevy_xpbd/pull/388

The PR targets main but I'll add it to avian as well

[vestal minnow]

@visual sparrow comments for the collider constructor hierarchy PR should be addressed
https://github.com/Jondolf/bevy_xpbd/pull/386

[visual sparrow]

Sweet! I'm right in the middle of finishing the first draft of the June edition of This Month in Rust GameDev, so I'll check it out in an hour or so 🙂

[visual sparrow]

Done. LGTM, I'd just add a test for it 👍

[vestal minnow]

Thanks! Yeah, I'll add a test or two

[visual sparrow]

I'll also try to do some more review work on the contact solver PR tomorrow

[vestal minnow]

added a test

[visual sparrow]

Don't worry, crabs can regrow lost limbs!
Brilliant 😄

Shouldn't that test also check the generated densities?

[vestal minnow]

The test above it checks densities

[visual sparrow]

Ah yeah right, whoops

[vestal minnow]

I could technically also combine the tests

[visual sparrow]

That would probably be good

I approved the PR 🙂

[vestal minnow]

Okay I'll combine them real quick

I think there is one edge case where you could do

.with_density_for_name("my_mesh", 2.0)
.without_constructor_for_name("my_mesh")
.with_constructor_for_name("my_mesh", CONSTRUCTOR)

and it wouldn't have the specified density since the config was reset, but I'm not sure if there's a good solution to that, and idk why someone would first remove the constructor and add it back again

[visual sparrow]

Can we just rename it to without_config_for_name?

(tbh I'd drop the _for_name from all calls while we're on it)

[visual sparrow]

hmm but that sounds like "use default config"

how about just skip?

[vestal minnow]

I can do this in a follow-up probably

[vestal minnow]

Maybe, not sure though... I'm trying to think of a similar Bevy API to use as reference

I was considering insert_constructor and remove like how you insert and remove components, resources, etc. but I'm not sure if it really works here

although internally it does use a HashMap which has insert and remove

HMM interesting

only when running on Windows, and it happened twice in a row so probably not spurious

[cinder summit]

Why does your physics library need graphics in CI?

[vestal minnow]

Checks that colliders are generated correctly for glTF scenes

which requires way too many plugins for some reason

[cinder summit]

Ah, yea the gltf stuff is a mess

They holds meshes, which are in bevy_render and lights which as a in bevy_pbr so I guess you'd end up with graphics ... If it's only a runtime issue you could at least just not add the plugins for rendering

[visual sparrow]

[vestal minnow]

updated the test and CI somehow works again, maybe CI can't load the scene multiple times during the same run or something

merging :P

[hexed veldt]

Cross-posting here: https://discord.com/channels/691052431525675048/1256845212823846983 Need some help. Thanks

[vestal minnow]

(responded ^)

hhh time to manually port the changes on main to avian I guess, can't just do a merge because of the module structure changes etc.

nvm git seems to be smarter than I thought, although I do need to fix some things manually

[vestal minnow]

Hmm, I'm wondering if I should keep the bevy-0.14 branch without breaking changes (mainly the collider hierarchy stuff) and leave them for Avian even though they're currently on main

The plan was kinda that the bevy_xpbd release would be just a 0.14 upgrade (and maybe some fixes) and Avian would have the new stuff, so maybe I should leave the collider hierarchy stuff out of the bevy_xpbd release as well

[visual sparrow]

Makes sense to me to leave it out

[silk mauve]

Hello. I am currently trying to use bevy_xpbd colliders as sensors for my AI agents. Basically, each monster has a child sphere collider with the following components/config:
Collider, CollisionLayers (memberships: [Layer::Ability], filters: [Layer::Character]), Sensor, TransformBundle

... and a couple of my own components to identify / use the sensors for finding the player and directing the monsters. As you can see, these sensors cannot collide with each other because of my layers. I would expect ECS to be able to handle a fairly large number of entities like this, but with even a hundred or so monsters with sensors in this configuration, the game slows to a crawl. When I check the profiler it's all physics steps. Can you recommend any best-practices I may be missing for making this more performant?

[sleek thicket]

i think it's still a bit too early for best practices, xpbd/avian is far from being finished (but afaik avian has improved performance a lot compared to xpbd)

[vestal minnow]

Do you happen to have the names of the systems which are causing performance issues in the profile?

There was that one demo of about 15k projectiles being simulated at 60 fps even without the colliders being sensors, so a hundred should definitely be fine. Make sure you're running in release mode or with debug mode optimizations

As for best practices, you could reduce the SubstepCount since you probably don't need many if you're just using sensors

[silk mauve]

I expect that I should be able to get this kind of performance. I'll let you know the exact system tomorrow and see if I can't figure out whats wrong

[wanton scaffold]

While using the solver-rework branch of bevy_xpbd, I've discovered an issue with joints. Entities with anchor values of Vec3::NEG_X * 1.5, Vec3::NEG_Z, and Vec3::ZERO experience a sinking phenomenon. I've tested anchor values along the positive and negative X and Z axes, as well as Vec3::ZERO, and this sinking occurs with all joints. However, the issue doesn't appear when joints are not used.

However, when I control the movement of the red Cuboid, no sinking occurs. It seems that sinking only happens when the objects are in a resting state. Interestingly, when I removed my control system, the objects didn't sink even when at rest.

fn move_red_cuboid(
    mut red_cuboid_linear_velocity: Query<&mut LinearVelocity, With<RedCuboid>>,
    keyboard: Res<ButtonInput<KeyCode>>,
    time: Res<Time>,
) {
    let speed = 10.0_f32 * time.delta_seconds();
    let mut linear_velocity = Vec3::ZERO;

    if keyboard.pressed(KeyCode::ArrowUp) {
        linear_velocity.z -= speed;
    }

    if keyboard.pressed(KeyCode::ArrowDown) {
        linear_velocity.z += speed;
    }

    if keyboard.pressed(KeyCode::ArrowLeft) {
        linear_velocity.x -= speed;
    }

    if keyboard.pressed(KeyCode::ArrowRight) {
        linear_velocity.x += speed;
    }

    if keyboard.pressed(KeyCode::KeyQ) {
        linear_velocity.y += speed * 6.;
    }

    if keyboard.pressed(KeyCode::KeyE) {
        linear_velocity.y -= speed * 6.;
    }

    linear_velocity =
        linear_velocity.clamp(Vec3::new(-200., -600., -200.), Vec3::new(200., 600., 200.));

    if let Ok(mut red_cuboid_linear_velocity) = red_cuboid_linear_velocity.get_single_mut() {
        red_cuboid_linear_velocity.0 += linear_velocity;
    }
}

The same code works without issues in both the avian branch of bevy_xpbd and in bevy_rapier.

[vestal minnow]

Yeah this seems to be a sleeping issue with joints not waking up bodies correctly, so the blue cube is sleeping but the red one isn't, which causes weird issues

fixing it now

@wanton scaffold I pushed a fix to solver-rework, so it should hopefully work now

I just made it so that bodies that are jointed together can't sleep, for now. We'll rework sleeping once we have simulation islands, which should fix these issues the "proper" way

[silk mauve]

I'm playing around with it but I'm not getting anywhere. Here's a cap of the profiler. I'm spawning one monster every frame to avoid spiking the CPU, and you can see when they start spawning lol

Worth noting that every frame looks like this too

This bundle is the only thing on the collider. Nothing crazy. I've disabled all of my physics related systems to make sure I'm not the problem

Setting the size of the collider to something small, like 2.0, causes the problem to go away because they no longer collide

I am compiling to release mode

Here you can see my colliders. I suppose it may be possible that the custom collider for my terrain is slow to collide with?

Lol yeah that was it.

I think it has something to do with the concavity of my mesh but I don't understand enough about mesh generation to make an efficient mesh

😦

[wooden beacon]

Are the colliders supposed to be that big? It looks like they're all overlapping

[silk mauve]

They are sensors for the ai agents, so they have to be large enough for the agents to see

[vestal minnow]

Okay phew, managed to fix a pretty nasty stability bug introduced by the solver rework, that was a stressful one 😅

I had accidentally made rotations ignore the center of mass again, which basically reverted this PR's fix

I only noticed it as bodies sometimes just sinking through the ground when they have offset child colliders with large densities, and I thought I had some big error in the actual solver... glad that's not the case lol

making an issue to add a test for the rotation behavior ASAP, I don't want to encounter this again

oh nice, this also fixes a stability regression for the collider_constructors example

[vestal minnow]

@visual sparrow I addressed almost all of the feedback on the solver rework PR (except the tracking issue ones, I'll open a bunch of issues after the release though) and fixed a bunch of bugs I found testing individual features more thoroughly.

I believe it should be good now, so I think I'll merge it to avian now . We're kinda getting low on time here and there's still a couple of PRs I'd like to get in :P

[visual sparrow]

Sure 🙂

[vestal minnow]

quick joint cleanup PR
https://github.com/Jondolf/bevy_xpbd/pull/390

(I'll merge in a bit)

[visual sparrow]

Nice changes 🙂

I like the renames

[shrewd wharf]

where is SubstepSet::SolveUserConstraints in the avian branch?

[vestal minnow]

SubstepSolverSet::SolveUserConstraints

SolverSet and SubstepSolverSet are separate because parts of the solver are not in the substepping loop anymore

[shrewd wharf]

thanks

i'm refactoring my project to run on 0.14 so i need some help with finding missing stuff from bevy xpbd to avian

[vestal minnow]

This PR has a changelog and migration guide for the solver rework, although they're not entirely comprehensive since there's so much stuff

[vestal minnow]

That field doesn't exist anymore since collision detection is no longer substepped for performance reasons, what are you using it for?

[shrewd wharf]

just for solving collisions myself

for kinematic bodies

i took it from an example code...

so i just remove this line?

[vestal minnow]

You can most likely just remove the if statement

[shrewd wharf]

alright

[vestal minnow]

The kinematic_character_3d (and 2D) examples have also been updated if you were using that collision logic, it's a bit difficult to handle without stability issues

The new implementation of the collision logic is here

I struggled with porting it properly for quite a while

(note: I also haven't tested too many cases with it, mainly the demo scenes in the examples)

[vestal minnow]

Here's another juicy PR: Swept CCD!
https://github.com/Jondolf/bevy_xpbd/pull/391

Tomorrow I will merge that, make one more feature PR (a slightly smaller one), and focus on release prep and docs for the rest of the day

Originally I said that I'd try getting a bunch of joint improvements in, but I don't think that's reasonable at this point unfortunately. While I technically do have some more joint things implemented locally, I think they need more time to bake and it wouldn't make sense pushing them in as last minute changes

I'll have to really speedrun my release prep though if 0.14 really releases in like 20 hours

[sleek thicket]

if it's a new feature then yeah, but improvements and bugfixes are worth it

[vestal minnow]

Almost all of my joint changes are either (1) new features, (2) stability improvements that have other weird issues that need investigating, or (3) large refactors to structure things better

And for Avian 0.2 I'd like to implement simulation islands, which will probably require joints to be reworked in other ways

so I'd prefer waiting for that

[carmine sluice]

Don't worry, rendering on web broke again

[vestal minnow]

Okay good for me I guess 😅

[sleek thicket]

does that mean multi-threading?

[vestal minnow]

Yeah with parallel islands you could solve constraints for disjoint sets of bodies in parallel

Rapier has that, for example

The other main use of islands is proper sleeping

[sleek thicket]

sleep is for the weak

[vestal minnow]

Our per-body sleeping is cursed and buggy, which is why I've limited it only to bodies that aren't interacting with other dynamic bodies

[sleek thicket]

thankfully i don't even need that

[vestal minnow]

Box2D and Bepu use islands only for sleeping and have graph coloring for multithreading

that would be the next big step after islands in terms of parallelism

Rapier also used to have graph coloring but struggled to make it worth the overhead, but afaik Seb plans on trying again at some point

[sleek thicket]

it probably depends on the game more than anything

[vestal minnow]

Box2D V3 and Bepu have definitely made it work really well at least

[sleek thicket]

does any of them have a native integration with an ecs engine though

[vestal minnow]

no

I've been designing some parts of the new solver with the mindset that it could maybe be decoupled from the ECS in the future, although it's still very ECS-focused at the moment of course

[sleek thicket]

wouldn't a separate engine be better for that

or is there enough overlap to make it worth it

[vestal minnow]

Might not be worth it in practice, but just from an experimentation standpoint it could be interesting

and an alternative for Rapier that the rest of the ecosystem can also benefit from would be nice, although maybe unrealistic while maintaining "ECS-nativeness"

But in theory, the ECS mostly just handles system ordering and acts as a storage for the physics data, so I think it could maybe be possible to abstract things so that the data backend and solver are generic and can live without the ECS

(of course the APIs wouldn't translate over, but you could have a Rapier-like API that is independent of Bevy as an option)

But like, the contact solving system/function for example is just this

fn solve_contacts(
    bodies: &mut Query<RigidBodyQuery>,
    constraints: &mut [ContactConstraint],
    delta_secs: Scalar,
    iterations: usize,
    use_bias: bool,
    max_overlap_solve_speed: Scalar,
) {
    for _ in 0..iterations {
        for constraint in &mut *constraints {
            let Ok([mut body1, mut body2]) =
                bodies.get_many_mut([constraint.entity1, constraint.entity2])
            else {
                continue;
            };

            constraint.solve(
                &mut body1,
                &mut body2,
                delta_secs,
                use_bias,
                max_overlap_solve_speed,
            );
        }
    }
}

the engine would just need the constraint to take a generic AnyRigidBody type, and the place where you get the rigid body can be a Query/Arena/whatever, no ECS is inherently needed

the same applies to a lot of places, although of course some things are currently a lot trickier and more coupled with the ECS

[junior flower]

Seeing code like that makes me yearn for the day Bevy becomes an industry standard. C++ is such a drag in comparison.

[royal helm]

There are better more human numbers you can add like a damping ratio instead of coefficient

but requires a bit more effort to make it work

[sleek thicket]

the only thing that players see is what works 😉

[royal helm]

I mean that's a bit reductive though because by using damping and strength coefficients directly you'll run into not working far easier

it also makes maintaining/adjusting it hard as fuck

[sleek thicket]

it's just 2 lines of code that can be easily replaced, what are you talking about

[royal helm]

have you messed with strength and damping coefficients

they arent exactly stable

[sleek thicket]

i just got the result i wanted within a minute and moved on to work on other stuff

once it breaks i'll revisit it, you can link to better stuff if you have something

[visual sparrow]

Could you elaborate on which parameters one should tweak instead? I'm interested 🙂

[royal helm]

well the most important part I've found is just the damping ratio which is just ratio = c / 2sqrt(mk) so you can solve that out to c = 2r / sqrt(mk) and plug it into the original dampened spring formula

or at least the easiest one to implement

m = mass, k = strength coefficient, c = damping coefficient

though honestly I think ideally we'd leave all this to the physics simulation and just use a spring joint or something

I just think the inputs are better as a damping ratio and angular frequency or some form of frequency

damping ratio just means 0..1 => very bouncy and will overshoot the target, 1 => just reaches the target with no overshooting, 1.. => reaches the target without overshooting but slower

[vestal minnow]

A natural frequency and damping ratio like aceeri mentioned. This is one of the reasons why soft constraints are so nice, they're stable and intuitive to tune. I added a write-up on how they work in the solver rework lol
https://github.com/Jondolf/bevy_xpbd/blob/avian/src%2Fdynamics%2Fsolver%2Fsoftness_parameters%2FREADME.md

see also the references at the end, mostly Erin's slides on soft constraints

and yeah it's based on the harmonic oscillator, you can also find the formulae for the frequency and damping ratio there

[visual sparrow]

Oh, I remember this from a transistor course I took 😄 Didn't know I could use it for springs, but yeah, makes sense when you consider them harmonic oscillators. Thanks @royal helm and @vestal minnow 🙂

[vestal minnow]

What's a good name for a component that adds artificial thickness to colliders, ContactSkin, CollisionMargin, or something else? Rapier uses ContactSkin, and Bullet/Godot uses collision margin

Box2D V2 used polygon skin for polygon shapes

Although Box2D removed polygon skins for V3 since they no longer need it to prevent tunneling and improve stacking, but in our case (and Rapier) we also support 3D, and contact skins can be good for trimesh collisions for performance and stability

[visual sparrow]

@vestal minnow I'm trying to setup a RevoluteJoint and running into some problems: https://github.com/janhohenheim/avian_playground/blob/main/src/bin/joint.rs

First one is that the simulation behaves differently when I have the with_children blocks compared to when I leave them in.

The difference in hierarchy is this:

• RigidBody + Collider
  • No children
    vs
• RigidBody + Collider
  • PbrBundle

Should these two behave differently?

If so, my bad

[vestal minnow]

No, they shouldn't

I'll test in a bit

[visual sparrow]

Thanks

Just remove the two with_children calls and you'll hopefully see what I mean

(this is uses your avian branch)

[vestal minnow]

okay so even just the existence of children makes it break, it can even be an entity with no components

probably something in either init_transforms or some propagation system

[visual sparrow]

Thanks for looking into it 🙂 The other issue I had is that when I remove the children and make both objects RigidBody::Dynamic, it behaves a bit explosively. Is that because an impulse is generated when the two "ends" of the joint "snap" together? Sorry, I don't have the right terminology, haha

Maybe for context, at the end of the day what I want is a trash container like this

You can see that the lid can be "flipped" open. I assume that's what a RevoluteJoint is for.

Problem is, when I spawn these guys in my game, they all do some explosive thing first before settling down

[vestal minnow]

Yeah if I remove the transforms completely and just use Position and Rotation, it works... just need to trace down what exactly causes the issue

[vestal minnow]

You can see the initial configuration is like this

That red line is the separation between the anchors

The anchors should match

So it snaps them together

[visual sparrow]

So if I line everything up on spawn neatly, there won't be any explosive behavior?

[vestal minnow]

Hopefully yes

[visual sparrow]

I'll try, thanks!

[vestal minnow]

(after I fix the transform issue)

[visual sparrow]

Only issue with that is that I spawn these objects based on a GLTF and it will be hard to perfectly line them up there. I guess I'll have to change their Transform after spawning to align the anchors.

[vestal minnow]

Eventually I'd like to make it so that you can just configure one anchor, and the other one will be configured to match automatically

IIRC Godot doesn't even have configurable anchors really, you just position the bodies and the joint frames are set accordingly (although it means you can't nicely offset the anchors afaik)

[visual sparrow]

What are joint frames?

[vestal minnow]

anchor + reference orientation

in Rapier and PhysX for example

[visual sparrow]

Wait, so how would Godot know that I want the lid attached to that part of the body? Would I need to set the origins accordingly?

[vestal minnow]

I think so, yes, it doesn't really have an anchor thing

Unless the transform acts as the joint frame? idk

[sleek thicket]

only adds, or can subtract too?

[vestal minnow]

The intended use is that it adds, but I guess technically it could subtract too

[sleek thicket]

then margin makes more sense

[visual sparrow]

Margin is more intuitive to me than skin

[vestal minnow]

One concern with CollisionMargin is that it could be confused with SpeculativeMargin which is different

[sleek thicket]

just add it to docs

[visual sparrow]

I think the names are clear enough in this case

NotColliderMargin /s

[sleek thicket]

it's not like it's something cursed like CollisionMargin and ColliderMargin

unity collision.collider PTSD

[vestal minnow]

wait it has that?

[sleek thicket]

kinda, if you use collision then it points to parent rigidbody object, collision.collider is the object that actually got hit

[vestal minnow]

yeah in bevy_xpbd it's the opposite, the returned entity is the actual collider and the body can be queried for separately

[sleek thicket]

idk how much physx API influenced the decisions but it might be the reason

[vestal minnow]

wait what

using an empty with_children call affects it

.with_children(|parent| {})

this is some cursed shit right here

[visual sparrow]

that is cursed indeed 👀

Is there for the Avian logo yet? 😛

[vestal minnow]

Not yet, I need to make that

:avien:

I think with_children just initializes Children for the parent even if there are actually no children

that kinda feels like a bug to me

[visual sparrow]

If it does, that definitely sounds like a bug since the rest of the Bevy API around moving children and parents is documented to automatically remove Children from a parent that has no children as a result of said operation

[vestal minnow]

It runs the PushChildren command which calls push_children on the parent, checks if it has Children, and if not, inserts it

no checks of whether the child list is empty from what I can see

[visual sparrow]

Yeah I call bug

[edgy light]

easy fix if someone want to PR that soon

[visual sparrow]

On it

@edgy light done: https://github.com/bevyengine/bevy/pull/14109

[shrewd wharf]

well uhmmm theres something wrong with the player physics on my game lol

it could be related to the custom system i made for the player physics and collision detection

[visual sparrow]

Nice flight mechanics! 😄

[shrewd wharf]

i'm not even using avian here, its just the 0.14 branch of bevy xpbd

but i'm guessing the physics of kinematic bodies got changed?

[vestal minnow]

no, I don't think anything changed there

[shrewd wharf]

huh

[vestal minnow]

the main changes on the bevy-0.14 branch are related to transform propagation stuff and (obviously) migrating to 0.14

and sensors not contributing to mass properties

[shrewd wharf]

this is really weird

ok i think i discovered whats happening

the speed became too fast for some reason

perhaps i should use delta time?

[vestal minnow]

maybe, I'm not sure what your code looks like so it's hard to say

[shrewd wharf]

i mean i wasnt using it before...

[vestal minnow]

sigh this seems to be a regression between main and bevy-0.14

need to go through the commits I guess, probably related to transform propagation or system ordering changes

[shrewd wharf]

i suspect this player physics bug is ocurring due to some change in bevy systems

[vestal minnow]

I guess this could maybe be related to your issue too @shrewd wharf 🤔

[shrewd wharf]

yep

[visual sparrow]

Hmm? I thought it didn’t happen on bevy-0.14, which is what @shrewd wharf is using

[vestal minnow]

it does

[visual sparrow]

Ah, I misread then

[vestal minnow]

doesn't need the joint either

just a rigid body that has a collider, and a non-physics child

[shrewd wharf]

the collision solver system is in the defined set and schedule from xpbd

as how it was shown in some example ive seen some time ago

solve collisions is just this:

fn solve_collisions(
    collisions: Res<Collisions>,
    mut player_query: Query<(&mut Position, &mut LinearVelocity), With<Player>>
) {
    for contacts in collisions.iter() {
        if !contacts.during_current_substep {
            continue;
        }

        let is_first: bool;
        let (mut position, mut linear_velocity) =
            if let Ok(player) = player_query.get_mut(contacts.entity1) {
                is_first = true;
                player
            } else if let Ok(player) = player_query.get_mut(contacts.entity2) {
                is_first = false;
                player
            } else {
                continue;
            };

        for manifold in contacts.manifolds.iter() {
            let normal = if is_first {
                -manifold.global_normal1(&Rotation::ZERO)
            } else {
                -manifold.global_normal2(&Rotation::ZERO)
            };

            for contact in manifold.contacts.iter().filter(|c| c.penetration > 0.0) {
                position.0 += normal * contact.penetration;
                if normal.y != 0.0 {
                    linear_velocity.y = 0.0;
                }
                if normal.x != 0.0 {
                    linear_velocity.x = 0.0;
                }
            }
        }
    }
}

two things i noticed so far: the velocity is going too fast, so i multiplied by delta on the player input system, while commenting out the collision solver

but when i bring the collision solver back, the player goes all crazy again

[visual sparrow]

FYI this can be simplified by using CollidingEntities, like seen here: https://github.com/janhohenheim/foxtrot/blob/main/src/world_interaction/interaction_ui.rs#L37

[shrewd wharf]

huh

[visual sparrow]

Don’t need to find out which of the two collision entities is player that way 🙂

[shrewd wharf]

what is InteractionOpportunity?

[visual sparrow]

That's a tag I add to objects to mean "you can press e to interact with this entity and bring up a Yarn Spinner dialog". Don’t think that is relevant to your use case.

[shrewd wharf]

ah yes

i'm trying to understand how exactly that works

[visual sparrow]

The idea is as follows

• check collisions between the player and something else
• the "something else"s might be an interaction opportunity or a descendant of one. If yes, proceed
• validate that the player is facing the right direction. If yes, proceed
• show the interaction prompt on screen

Only the first part there should be relevant to you

[shrewd wharf]

so when it checks collisions you stop the player velocity, right?

[visual sparrow]

Nope, I let all collisions be handled by XPBD alone

[shrewd wharf]

huh

because i remember kinematic bodies on xpbd doesnt have any collision

it has to be done manually

[visual sparrow]

The player character and NPCs are dynamic rigid bodies using the Tnua character controller

[shrewd wharf]

ah...

[visual sparrow]

I would advise you to also use that one to save yourself quite some time, as character controllers can be quite a rabbit hole. Except of course if you want to manually do it because you’re curious 🙂

[shrewd wharf]

i prefer to make my existing system to work again

it was working nicely before

[visual sparrow]

I assume you know about collide and slide?

[shrewd wharf]

wdym

[visual sparrow]

That is the name of the algorithm that one would commonly use when implementing your style of character controller by hand

Let me fetch you a video

[shrewd wharf]

eh... idk

[vestal minnow]

https://youtu.be/YR6Q7dUz2uk?si=MLL1xDNy9b1Fi8ng

[shrewd wharf]

it was working before so why bother

and my game doesnt have any slopes

(at least yet)

[visual sparrow]

Exactly that one 😄

[vestal minnow]

(this implementation isn't perfect though afaik, but decent)

[visual sparrow]

Hey, you do you, but I find that learning from well-known sources is often more conductive to my own understanding 🙂

[shrewd wharf]

yeah i get it

thanks for it anyway

[vestal minnow]

My hand-rolled collision logic for the character controller on the avian branch is kind of a hybrid between the old "naive" approach, collide and slide, and speculative collision

[visual sparrow]

Yeah, the part where he re-normalizes and scales after the collision to regain magnitude is wonky

[shrewd wharf]

but perhaps

i could use that tutorial to write another collision system and figure out where it goes wrong

[vestal minnow]

Okay I can confirm the regression was caused by #380, the rigid body transform propagation speed-up PR

now tracking down the exact issue...

[shrewd wharf]

so it is truly related to my issue?

[vestal minnow]

Does your character have child entities?

[shrewd wharf]

only a sprite bundle

but the player also has a shape caster

but thats only for making the player able to jump

[vestal minnow]

try removing the child and maybe enable debug rendering so you still see the player

[shrewd wharf]

hmmm

if i remove it, code will panic everywhere

i will just enable the debug rendering

[shrewd wharf]

btw this shape caster is a component, not a child

i noticed that the player velocity is too slippery

i cant just abrutbly stop it by setting velocity to 0

this is weird

[vestal minnow]

The regression is related specifically to child entities on rigid bodies so if you have an entity with a sprite bundle as a child then it is likely that it could be related

[shrewd wharf]

hmmm

thats weird

this child is only for rendering

as you can see here

the child is for being able to "rotate" the player but the hitbox doesnt actually rotate

[vestal minnow]

yes I know it's weird 😅 it doesn't matter what components the child has, the bug causes issues as long as there is some child

I'm debugging it rn

[shrewd wharf]

now that you said it... it actually makes sense

the player was flying like its constantly colliding with something on the same space as the player

which explains why it doesnt stop by setting velocity to 0

[visual sparrow]

Good thing we found the bug in a relatively isolated example. This would be really weird to even discover otherwise.

[vestal minnow]

yeah we definitely can't ship with this

nasty to track down the exact problem though

[shrewd wharf]

well... ping me when you finish solving it

also if you need any more information

[vestal minnow]

Okay fingers crossed I fixed it 🤞 I'll test a bit more and make a PR

I believe the issue is that my propagate_transforms_physics system (which updates the GlobalTransforms of physics entities and their descendants) only iterates through entities that are marked as ancestors of physics entities. This is the intended design, but it means that it skips updating GlobalTransform for entities that have children that are all non-physics entities.

The sync_simple_transform_physics system just needs to be changed to update the transforms of physics entities that are not ancestors of other physics entities, not just those that have no children at all

@shrewd wharf could you try the fix-transform-update-bug branch?

[shrewd wharf]

okay

wait i'm compiling here

well nvm

i thought that was because the rust compiling cache got bugged out

but i think you bugged something on your project @vestal minnow

[vestal minnow]

I've gotten that error tons of times randomly on long compiles

I don't think it's something in the project itself

I'm not getting it rn at least, and CI passes fine

[shrewd wharf]

its saying that multiple defined symbols has been found

well let me try to compile it outside of rustrover

fatal error LNK1169

[vestal minnow]

could probably try to cargo clean or remove target if you haven't already

[shrewd wharf]

yeah its what i did before

i will compile again everything but outside of rustrover... idk if its related

perhaps theres something wrong on my cargo.toml?

[vestal minnow]

looks fine

[visual sparrow]

FYI cargo clean -p <name_of_your_binary> is enough for these kinds of issues

That will save you a ton of time 😅

[visual sparrow]

how does your config.toml look?

If you have one

[shrewd wharf]

i dont have one

[visual sparrow]

Also not a global one?

[shrewd wharf]

idk

i never touched that file

[vestal minnow]

Ah nice thanks, I've just been yeeting the whole target all this time 😂

[visual sparrow]

@shrewd wharf it would be in "C:\Users\<your name>\.cargo\config.toml"

Does that file exist?

[shrewd wharf]

lemme see

nope, theres just these files

[visual sparrow]

huh, then I'm also out of ideas

You could switch to LLD and try again

LLD is faster than the default linker anyways

[shrewd wharf]

hmmm

[visual sparrow]

Hold up, are you on nightly?

[shrewd wharf]

nope

[visual sparrow]

ah heck

Then I can't really say much other than "nightly + my own personal config works", sorry :/

[shrewd wharf]

i guess changing to LLD might work

but first i'm compiling it again

[visual sparrow]

If you want to try that, here's the relevant entry for your global config.toml:

[build]
rustc-wrapper = "C:/Users/<your_name>/.cargo/bin/sccache.exe"

[target.x86_64-pc-windows-msvc]
linker = "rust-lld.exe" # Use LLD Linker
rustdocflags = ["-Clinker=rust-lld.exe"] # Rustdoc does not use the same linker as the compiler by default.
rustflags = [
    "-Zshare-generics=n", # (Nightly) Needs to be disabled when using dynamic linking.
    "-Zthreads=0", # (Nightly) Use improved multithreading with the recommended amount of threads.
]

Then run these

rustup default nightly
cargo install -f cargo-binutils
rustup component add llvm-tools-preview
cargo install -f sccache --locked

sccache won't help with your issue, but it's good to have anyways because it will cache your build artefacts

[visual sparrow]

You probably also want to use features = "dynamic_linking" on your Bevy dependency

[shrewd wharf]

perhaps

it resulted on the same error again yipee

[shrewd wharf]

lld is only available for nightly?

[visual sparrow]

Nope, but nightly will generally help with compile times

[shrewd wharf]

wait a second...

nvm

it says it needs a library called bevy_dylib

[visual sparrow]

That's from the feature dynamic_linking

[shrewd wharf]

but uhhh

i guess i have to add it manually

[visual sparrow]

Can you copy-paste your entire cargo.toml?

[shrewd wharf]

wait

i'm doing it

lets see if it works now

[vestal minnow]

In the meanwhile I'm merging the fix PR anyways and also adding it to avian, I'm pretty sure it should fix at least the issue in the avian_playground

and if not, I'll just make another PR 😛

[shrewd wharf]

FINALLY it worked

@vestal minnow the bug is fixed!!!

i can confirm

[vestal minnow]

Nice! Thanks for testing 🙂

And thanks @visual sparrow for discovering this and for the good test case

[shrewd wharf]

will you merge this branch into the 0.14 one?

[vestal minnow]

It's merged there already

I'm adding it to the avian branch as well now

[shrewd wharf]

ah right

btw i have another unrelated question: since the beginning of the game ive been using a separated Collider entity for each block in the world, do you think thats an unoptimized approach? and is there a way of making a custom mesh collider or something?

[vestal minnow]

It's not ideal, but if performance isn't too bad then it's probably alright

[shrewd wharf]

doesnt seems to affect perfomance because i once tried to figure out the lag spikes when loading chunks and deactivated the collision generation to see if thats causing it, but apparently its not, lol

[vestal minnow]

Could optimize it by merging colliders in some way, and by only having colliders for the surface if you don't need them underground

[shrewd wharf]

greedy meshing perhaps...

[vestal minnow]

yup something like that maybe

but again, if it's not causing any issues, then it might not be worth it to optimize prematurely (unless you want to of course)

[shrewd wharf]

true

i did one simple optimization though

before, i was literally despawning and spawning all collider entities again every time you placed/destroyed a block

but now it will only spawn/despawn a collider entity when necessary

only when it detects that there is a collider entity for a block that doesnt exist anymore, or if there is a block with no collider

i dont know how expensive it is to be spawning/despawning entities but this should help

[vestal minnow]

Last proper PR for Avian 0.1, collision margins:
https://github.com/Jondolf/bevy_xpbd/pull/393

Now doc improvements and release notes

[visual sparrow]

reviewing now

[visual sparrow]

reviewed 🙂

[visual sparrow]

Finally managed to punch open the trash containers with a RevoluteJoint, yay! 🎉

[vestal minnow]

Whoa, nice!

[visual sparrow]

Bonus: punching crates around

Very happy with how it's working. Thanks for making Avian exist @vestal minnow 😄

[vestal minnow]

Secret footage of a man beating up Box2D with Avian (jk Box2D is amazing)

[vestal minnow]

I really love this inconsistency, just fell for it myself 🙃

Cylinder::new(radius, height)
Collider::cylinder(height, radius)

my colliders existed before Bevy's primitive shapes

[visual sparrow]

That's what you get for not upstreaming them /s

[vestal minnow]

changing the argument order would be a wonderfully implicit and extremely breaking change... though of course we could technically start embracing Collider::from conversions more and most of the constructors

[edgy light]

do one release with a breaking change where you newtype all the f32 to Radius(f32) and the like, then a breaking change when you change the order 😄

[visual sparrow]

I'd go ahead and change it for avian. Having people change their literal crate dependency is about as big of a signifier of "there be breaking changes here" as it gets.

And by change it, I mean go ahead and remove the constructors in favor of Collider:from

or at least deprecate them

Or, secret sneaky third variant: deprecate Collider::cylinder and change the argument order, tell the user about it in the deprecation message

[vestal minnow]

That's somewhat sketchy because we can't do that for half-spaces, heightfields, trimeshes, convex polyhedra, convex hulls, compound shapes etc. without copying the types and doing some (potentially expensive) conversion to the parry equivalents. And then there are constructors like capsule_endpoints

and round_rectangle/round_cuboid

[visual sparrow]

Yeah, I meant just removing the constructors that can be expressed in terms of Bevy primitives

Hmm, I kinda wish the primitives looked like ColliderConstructor, then it would be only a single From

And we could add variant ColliderConstructor::BevyPrimitive(...) to the ColliderConstructor and remove all of its redundancy as well

[vestal minnow]

Even Segment2d/Segment3d don't work as Collider::segment because it still doesn't use an endpoint representation

(even though I've complained about it like 4 times... I need to make a PR for it lol)

I feel like the API would end up being too patchy and inconsistent if we removed/deprecated the constructors right now

About half of the constructors would still need to exist, and some shapes would end up having both the From impl and a similar constructor anyway (like the line segment)

[visual sparrow]

Hmm I see. Fair enough, you're right 👍

But you gotta change that cylinder constructor at least 😄

[vestal minnow]

Yeah I'll clean up all the inconsistencies with Bevy, I think capsules are similarly inconsistent

ah and of course we should add support for like six more shapes added in 0.14 that'll be for Avian 0.2 though, there's no time for that lol

[royal helm]

your game looks great right now haha

[visual sparrow]

Aww thanks ❤️

I swear I'm so happy that I can punch these fellas around haha

[vestal minnow]

PR: https://github.com/Jondolf/bevy_xpbd/pull/394

I'm deliberating if I really want to do this it'll break basically every character controller's collider lol

[visual sparrow]

I feel like this is something you have to do at some point, and I don't think you'll get a better opportunity than the Avian release. Maybe proactively do some PRs to character controllers using XPBD? TBH I only know of Tnua, the rest off the top of my head use rapier.

The only sneaky thing I can think of is adding #[deprecated("hey, this is not really deprecated, just wanted to let you know that the params for this method flipped. Carry on!")

[royal helm]

yeah, doing this earlier than later is better

[visual sparrow]

Or deprecate new() in favor of new_for_real_for_real and then replace the old new with the new one in a future update

[royal helm]

wanderlust has a branch that uses xpbd but I'm lazy and never finished it

[visual sparrow]

Off-topic: Oh my gosh your GitHub profile pic is so cute haha

[royal helm]

ty hehe, its tiki from an instagram account I follow

birds looking into mirrors is a favorite of mine

oh wait

github profile pic

thats from false knees comics, the lucky birb one

[visual sparrow]

Oh, your Discord pic is also a bird? I thought it was a big ol' caterpillar 😅

[royal helm]

https://falseknees.com/comics/331.html

honestly, the more I've dealt with character controllers (specifically wanderlust), the more I'm convinced a library isn't going to work for it

I think just providing methods for basic tasks like the collide & slide stuff is a better idea

with controllers you have to basically have everything configurable

collide & slide, a basic grounded detection method, the rest are kind of iffy and too specific

[vestal minnow]

I think ideally I'd like to have some type of collide and slide for kinematic bodies built-in, and have the rest be fully optional and/or 3rd party

[royal helm]

yeah

I definitely think we should add a collide & slide to xpbd, since I don't really see much variance happening there

plus its useful even for things outside of controllers imo

but ya, @vestal minnow I think this is a good change to make now

just put it somewhere with a warning in release notes so people see it and can change their code

[vestal minnow]

yeah it'll be in the migration guide and release notes

(which I have not had time to really even start yet, I'm screwed lmao)

I'll copy some stuff from PR descriptions and other write-ups I've done

[royal helm]

I'd say don't worry too much about releasing it as soon as 0.14 comes out, this seems to be a pretty big release for xpbd/avian

[vestal minnow]

Merging

[royal helm]

if you need any proofreading through stuff feel free to ping me, I'm not sure I'd be much help with other stuff lol

[visual sparrow]

Your write-ups and PR descriptions were really in-depth and understandable. I think you should be good by just frankensteining the release notes together 😉

[visual sparrow]

Yeah same, feel free to ping me for editing

[royal helm]

I've been really wanting to look into the new solver stuff though, I checked out that box2d solver stuff a while ago, but I got distracted

[visual sparrow]

(Also for adding it to next month's issue of This Month in Rust GameDev, wink wink nudge nudge)

[vestal minnow]

I'll probably do the bevy_xpbd 0.5 release (for easy 0.14 migration and to mark things as deprecated) pretty much immediately, and maybe prep a bit longer for Avian unless I manage to speedrun the release notes tomorrow

I should have everything code-wise ready now though, just need to do the migration guide and release notes and stuff

also some kind of demonstration videos and updated benchmarks probably

[vestal minnow]

Merging

[vestal minnow]

Another quick cleanup PR, adding #[reflect(Serialize, Deserialize)] for types, and adding other missing derives and type registrations
https://github.com/Jondolf/bevy_xpbd/pull/395

hmmm I wonder what I should do with the release tags on GitHub

I guess I could rename them to something like v0.4.0-legacy, as long as GitHub doesn't count renames as new releases lol

testing on another repo

[true hearth]

maybe xpbd-v0.4.0 is more intuitive?

[vestal minnow]

yeah, that'd probably be good

Okay it looks like I can't rename tags on GitHub so I'll just have to create new ones, but I can swap tags for releases without it counting as a new release

I think I can live with that

no but I think the tags are the actual timestamps to the code base at the time they were made.. so all the xpbd-vx.y.z releases would have the same code

[cinder summit]

I'm pretty sure you can remove tags tho 🤔

[vestal minnow]

you can yes

[vestal minnow]

nvm ignore this, you can just set whatever commit you want as the target of the tag

no you can't GitHub requires it to be a "recent commit" for whatever reason??

Do I need to create branches for all the old releases to be able to make new tags for them? That feels very dumb

[visual sparrow]

Isn't GitHub Tags just a frontend for actual Git tags? Surely you can retarget those

[vestal minnow]

mm probably, I haven't used them outside of GitHub

I can try

[visual sparrow]

Adding some more reflect stuff to it as review comments

[visual sparrow]

@vestal minnow done. Whew, that took longer than I thought 😅

welp

I probably should have just done a PR on your PR instead, haha

[vestal minnow]

Thanks, I'll go over it in a bit, currently struggling with renaming git tags #off-topic message

[vestal minnow]

I think we broke GitHub

it duplicated some things and failed to auto-resolve some conversations

fixing things now

[visual sparrow]

Hehe. But why didn't you just click on "accept suggestion" instead?

[vestal minnow]

I batch accepted them and tried to commit everything at once

[visual sparrow]

You can do that? 👀

[vestal minnow]

There's "Add suggestion to batch"

when in the file changes view

I'm not committing like 60 suggestions individually 😂

[visual sparrow]

Yeah fair enough 😅

[visual sparrow]

TIL, thanks!

[vestal minnow]

Phew, I finally managed to rename all the tags without breaking things

[vestal minnow]

Drafts for release notes and migration guides for both bevy_xpbd 0.5 and Avian 0.1 are now largely ready in terms of what I'll put on GitHub

Now I need to make the more complete release notes / blog post for Avian though (which will take a while...)

[visual sparrow]

@vestal minnow I'm currently writing a plugin for Avian and am thinking about which schedule to run it in. Since I'm reacting to user code that happens in Update, I think I should run in PostUpdate. But since Avian can have its schedule configured by the user, it seems like it would make even more sense to just use whatever schedule Avian uses. So I thought I could just take PhysicsSetupPlugin while building my plugin and check which schedule it uses, but that field is private. Is there a way to find out which schedule the user configured for Avian? Or should I just not try to be smart and let the user fully handle the schedule manually? I feel like that might be a footgun since it would not make sense to run the Avian schedule before a plugin that does Avian stuff.

Oh wait, I think you already wrote about this: https://docs.rs/bevy_xpbd_3d/latest/bevy_xpbd_3d/plugins/struct.PhysicsPlugins.html#custom-plugins

[vestal minnow]

I could still make the schedule fields public if that's useful

[visual sparrow]

Probably best to have only one way of doing things

[vestal minnow]

That section is about making plugins and adding systems into physics schedules, but that's slightly different from adding systems to the schedule that the PhysicsSchedule is run in

(i.e. PostUpdate by default)

[visual sparrow]

Hmm, fair enough

[vestal minnow]

But yeah if it's a plugin for Avian then you can probably add that in the PhysicsSchedule unless you need stuff to run before PhysicsSet::Prepare

[visual sparrow]

I'm just adding some forces and doing spatial queries, so I think I should be good 🙂

Any recommendations on where to put it SystemSet-wise?

[vestal minnow]

There's now PhysicsStepSet::First which is empty by default to make it easier to run stuff before physics logic

probably doesn't matter too much where it is though, as long as it's before the solver (or specifically SolverSet::Substep) if you run in PhysicsSchedule

[visual sparrow]

Do you think I should place it inside First or before it?

Inside, right?

Just want to form a good precedent for other plugins so that users that have multiple Avian-based plugins don't get a headache when ordering them.

[vestal minnow]

Probably inside it, but maybe have your own public system set there so users can order relative to it if there are issues

although yeah other 3rd party plugins could have conflicts I guess

It's kinda hard to say where exactly third party plugins should place their logic or to predict what orderings users are going to use

If you want the most niche place to apply forces in the PhysicsSchedule, that'd probably be SolverSet::PreSubstep (or I guess some collision detection system set but those would make no semantic sense)

[visual sparrow]

If others place it into First and also expose their sets, it should be easy for the user to order them.

Simply do app.configure_sets(PhysicsSet, (AvianPluginOne::First, AvianPluginTwo::First).chain())

[quartz heart]

Sorry to say but this looks like trash (containers) 🤣.

Jokes aside, I wanna see more of this!

Any devlog to follow along?

[visual sparrow]

hehehe

Thanks :> I didn't publish anything yet because I'm still prototyping systems, so everything looks pretty meh.
I know it doesn't matter for a technical audience, but there's this part in me that says "noooo don't show others the ugly greyboxing levels", haha

[quartz heart]

I understand, just don’t fall into the trap like we did, being now close to release and didn’t do any devlog 🤣

[visual sparrow]

When do write a devlog, make sure to add it to This Month in Rust GameDev 😉

[quartz heart]

Well the current project is still done in unity 😓. VR support is not there yet in bevy….

[visual sparrow]

Heck!

[quartz heart]

At least we use ecs 😅, unity’s has many problems tough, especially their physics implementation is very problematic when it comes to performance and sync points.

[visual sparrow]

Really? I would have expected such a mature ecosystem to have that under control 👀

[quartz heart]

We had to do horrible things to our implementation to achieve required framerate, and most performance is used by unity (physics, netcode serialization + graphics on the CPU)

[valid fog]

Let us know the issues you have! We want to fix them!

[quartz heart]

I will, but the project started a longer time ago, so the current vr support wasn't even available.

also we need a fully production ready networking library which works with physics... and lightyear (or xpbd) didn't exist when we started

[valid fog]

ah misunderstood, yeah makes complete sense

[vestal minnow]

okay nice, I can at least go sleep since 0.14 seems to be at least 15 hours away still

I was about to pull an all-nighter lol

currently at 31k characters (including white space) for Avian release notes and still a lot left...

I also need to update my website since I'm not sure if it even supports some things I want to add

[quartz heart]

Get some sleep!

But we all are looking forward to the release ☺️, but take the time it needs, many crates aren’t ready yet!

[true hearth]

the ci indicator thing is broken on avian branch readme

[vestal minnow]

Yup, that's because it points to https://github.com/Jondolf/avian/actions/workflows/ci.yml/badge.svg?branch=main which doesn't exist yet. It should automatically get fixed once I rename the repo

[true hearth]

ah, alright 👍

[visual sparrow]

Is it more efficient to call cast_ray_predicate over cast_ray and filtering later?

Second question: if I don't really care about the solid parameter, what's a better default? true or false? It only has an effect when the ray origin is inside a collider, right?

[vestal minnow]

cast_ray gets the closest hit, so if you filtered it afterwards, you'd have to call it many times in cases where the hit doesn't satisfy the filter (assuming you want to find the closest valid hit), and update the query filter each time to exclude the entity from the previous filtered hit.

cast_ray_predicate gets the closest hit that satisfies the predicate. Its more efficient than potentially calling cast_ray multiple times, since the filtering is integrated into the traversal of the acceleration structure and it only needs to traverse once

[visual sparrow]

Oh, that makes sense. My confusion came from the fact that I was working with shape_intersections, which returns a Vec, so I got a few wires crossed and thought cast_ray also returned a Vec

But yeah, considering that cast_ray only returns one entity, this makes sense 🙂

[vestal minnow]

Yeah, it only has an effect when the ray origin is inside a collider. Setting solid to true can be a bit more efficient since the algo can just return a hit with a zero time of impact when it detects that the origin is inside of the shape. With false, it would need to do an extra step to find the hit on the boundary of the shape

[visual sparrow]

perfect, thanks!

[vestal minnow]

(The way it finds the hit on the boundary for non-solid cases is actually by shifting the origin outside of the shape in the direction of the ray, and performing a second ray cast in the opposite direction. So it's two casts instead of one, at least for some shapes)

[vestal minnow]

bevy_xpbd 0.5 released #crates message

[vapid monolith]

wat

no avian 0.1

😭

[vestal minnow]

see the release message :P

[vapid monolith]

(im joking)

[vestal minnow]

I have the release notes "done" but I need to do a quality pass and port them to my website (I wrote the notes in Obsidian)

[valid fog]

very excited for avian

i tried it out with a demo occurus had made ( not in vr ) and it felt awesome

[vapid monolith]

avg obsidian chad, fk em notion guys 😂

[vestal minnow]

Yeah I'm happy that people seem to be having a good experience with the new solver so far, it's pretty scary to just throw all of that away in favor of a completely different approach 😅

[valid fog]

the old solver had issues with small things just

falling through other objects

( not even that small of objects )

[visual sparrow]

@vestal minnow do you mind quickly bumping the avian branch to bevy 0.14.0?

That way, I can already update the plugin I'm working on 🙂

ah wait, 0.14.0-rc is compatible with 0.14.0 ofc

ignore me 😄

[thin hare]

Which component would i need to query to update the shape and TOI for a shape caster at runtime?

[vestal minnow]

my website is saying that the post is a 30 min read and it's still not even entirely done yet

I'll release Avian some time tomorrow (or technically today, it's 2 AM), I want to polish things a bit more and actually be awake for the release

[vestal minnow]

I'm not entirely sure if I understood what you mean, but ShapeCaster holds the shape, and ShapeHits holds the hits, which are updated every frame. Do you want to actually recompute the hits immediately in a system without a frame delay?

[thin hare]

Sorry yeah I figured it out hahah, I was thinking back to my unit test where ShapeHits had to be inserted by one of the setup systems

[vestal minnow]

Ah okay, np 👍

[vestal minnow]

@visual sparrow Not sure how to best share this, but does this look fine for the collider constructor section? No idea if this is readable 😂

probably should've done two screenshots

[visual sparrow]

I was literally just going to turn off my PC to go to bed 😂

lemme check

Looks great! Only note I'd add is that ColliderConstructorHierarchy still waits for a scene to load if you place it on one 🙂

Very excited to see this in action with the revamped Blender workflow 😄

[vestal minnow]

Thanks, I'll add that 🙂

Excited to release tomorrow, I'd say the release notes are about 95% ready now

I have quite a few assets for this one lol

[little maple]

is there any way to add a collider and set its center of mass to be a specific value? I tried with the component but it seems to get overwritten 🤔

[vestal minnow]

Not 100% sure, but I think you need to manually give the body a non-zero Mass as well

If you have colliders with non-zero density, they will also contribute to the center of mass

oh wait "add a collider"

[little maple]

did that question make sense? I have a truck that I want the center of mass to be near the wheels rather than like.. the center of the truck

[vestal minnow]

Okay so we should probably make this more straightforward in some way, but I think this works

// Replace with your collider
let collider = Collider::cuboid(1.0, 1.0, 1.0);
let mass_properties = MassPropertiesBundle {
    center_of_mass: CenterOfMass(my_center_of_mass),
    ..MassPropertiesBundle::new_computed(&collider, 1.0)
};

commands.spawn((
    RigidBody::Dynamic,
    collider,
    // Remove collider's effect on mass props since we're adding them manually
    ColliderDensity::ZERO,
    mass_properties,
    // ...
));

If it's multiple colliders for one body, it's probably a bit trickier, but you can shift the center of mass a bit if you just give the body some Mass manually and set its CenterOfMass

(I need to go to bed now)

[edgy nacelle]

Hey all -- is there a way to rotate a cylinder collider so its axis points along the X axis instead of the Y axis, without having to put it into a child & applying a rotation Transform to the child?

Right now I have to create an entity containing Collider::cylinder(width, radius) and a Transform that does the rotation, and add it as a child of a RigidBody with no colliders, and I'm wondering if the collider could go on the parent RigidBody directly instead

[cinder summit]

You could rotate the parent, without a child~~, or if it still exists capsule_endpoints can sort of do that too iirc~~ nvm that's for capsules, you said cylinder

[edgy nacelle]

Hmm I don't think I can rotate the parent. So I'm trying to add cylinder wheels to the sides of a flat cuboid plank (i.e. a skateboard). The wheels and plank are both root entities (no parent). To attach them with a RevoluteJoint I'd need to use the same aligned_axis for both, but the cuboid's +X goes to its right, while the wheel's rotation axis is +Y. I want to preserve the cuboid's frame so that +X means "local right", so I think I need to change the wheel so that its rotation axis is on +X instead.

[edgy nacelle]

Maybe I should just do a capsule with 1e-3 radius and use capsule_endpoints ah nah that would give me a long stick

[cinder summit]

Don't the joints allow an already existing rotation? 🤔

[cinder summit]

That would just be a very thing capsule tho, basically a line

[edgy nacelle]

Hmm let me check. I remember trying this a few days ago and it exploded instead (presumably trying to align the axes that the joint thought were offset by 90º)

[cinder summit]

You could also make a compound collider to make it extra cursed 🤔

[edgy nacelle]

That might work 🤔

Oh cool, it worked! Now I just have to do the same thing with the meshes

[visual sparrow]

@vestal minnow when I'm looking at an entity holding a RigidBody, is there any way of iterating over its colliders other than manually traversing the descendants? There isn't anything analogous to ColliderParent like RigidBodyColliders, right?

[vestal minnow]

Not currently

[visual sparrow]

If I have to do this by hand, I imagine it can be optimized by only looking at branches with AncestorMarker<Collider>. Is there anything convenient exposed for that?

[vestal minnow]

There's no specialized traversal API for that, no

[visual sparrow]

Alright, I'll roll my own for the moment then

thanks for the quick reply though 🙂

[vestal minnow]

You could probably implement a RigidBodyColliders component with OnAdd observers

[visual sparrow]

By having on_add hooks on Collider and then inserting them into their ColliderParent?

(and probably also on_remove)

[vestal minnow]

Add initial colliders when the rigid body is added by traversing descendants, and then later colliders can be added when OnAdd is triggered for ColliderParent

(I need to go for like an hour)

[viral tulip]

Two noob questions:

1. This is an alternative to Rapier, right?
2. Is there a compatible fluid solver for bevy_xpbd? (alt. in Dimforge is Salva)

(Jondolf I know your answer to 2 hehe)

[vestal minnow]

1. This is an alternative to Rapier's Bevy plugin bevy_rapier specifically. It currently can't be used outside of Bevy. Unlike Rapier, this is built specifically for Bevy with its ECS, which makes it more native in a way.
2. Not currently and I don't have immediate plans for a proper integration. I did manage to get a proof of concept for a Salva integration working a while ago though

Also, I'm releasing a large rework of bevy_xpbd today, which includes a rebranding to Avian :)

There will be a pretty in-depth blog post about it

[viral tulip]

Thank you for the response. Do you happen to have the proof of concept in (2) handy e.g. github?

Is coupling fluid sim decidedly not part of this project or is there just a lack of interest?

[vestal minnow]

Not on GitHub, but here's a quick video #off-topic message. It was mostly just a weekend project for fun :P

Fluid simulation is something that would most likely be better as a third party plugin. I don't think there's anything that inherently requires it to be a part of the core engine, and there are a lot of different ways to do fluid simulation depending on what quality and performance is needed. And then rendering fluids is its own can of worms.

I'd definitely be interested in having a third party fluid simulation plugin with an integration for bevy_xpbd/Avian, but it's not something I can personally prioritize working on any time soon. There are so many other important things to work on, and fluid simulation is still relatively niche in terms of game development, especially since accurate fluids are very difficult to pull off in real time at large scales, especially in 3D.

[sleek thicket]

i don't think i've ever seen water simulation out of particles actually being used in games, it's usually just height+vector field and erosion

i guess terraria could count though

[visual sparrow]

Noita 😄

[sleek thicket]

noita is a special case, it simulates everything

[visual sparrow]

https://www.youtube.com/watch?v=prXuyMCgbTc

The implementation is actually pretty simple

@vestal minnow Noita is Finnish, so you could just go over and ask the devs directly to implement that for Avian 😛

[sleek thicket]

he's totally right about design though, it's hard to actually make it into a fun game

meanwhile height fields and erosion are actually useful for simulation games or making the terrain for any other genre

[visual sparrow]

Currently building the Avian docs locally to find this out, but is there something like cast_aabb?

I'm trying to port a piece of code that uses Source engine's TraceHull

[vestal minnow]

There's aabb_intersections_with_aabb but no actual AABB casts/sweeps

I'm pretty sure Parry doesn't have shape casting for AABBs

[visual sparrow]

I'll do a cuboid shape cast then, close enough I suppose

[visual sparrow]

barry when 👀

[vestal minnow]

Ideally I'd like to upstream all the generally useful algorithms and things for Bevy itself, and only leave the more niche stuff to a third party lib

Generally useful things would include geometric queries (ray casts, shape casts, intersection tests, point queries...), support mapping, Quickhull, earclipping, etc.

Niche things would include trimesh colliders, convex polyhedra, heightfields, compound shapes, mass property computation, EPA, SAT stuff, and convex decomposition

We also need a good BVH for the spatial queries (and maybe a better broad phase), and for that I'm looking at integrating Griffin's OBVHS once it supports 2D and more query types

[visual sparrow]

Fair enough, that makes sense

[visual sparrow]

Yeah mass property probably doesn't mean much without physics in place, does it?

[vestal minnow]

yup

I have bevy_heavy for it

👀

[valid fog]

yooo

[vestal minnow]

honestly expected a bigger diff, although some other things were merged earlier already, and the solver was also rewritten multiple times before the "final" version

like originally I just had basic Sequential Impulses instead of TGS Soft

[cinder summit]

I just realized something interesting about the BVHs ... My BVH used to be ~5x slower to build than parry. ~450ms where parry got 90ms. But after optimization that's about 3x now ... Looking at the tray racing benchmarks, OBVHS also has a 3x slower build on medium, which matches roughly my construction parameters ... I wonder if we can make a wrapper around OBVHS that adds the nice ergonomics of ploc-bvh (having a bevy_math based API), while getting all of the features I never built like multi threading and actual construction parameters 🤔

[visual sparrow]

@vestal minnow FYI some stuff on main is still pointing to the RC, e.g. https://github.com/Jondolf/avian/blob/main/crates/avian2d/Cargo.toml#L52

congrats on the Avian merge though 🎉

[vestal minnow]

huh, thanks, I'll fix that

would've been embarassing to release with that lol

I did fix it on main iirc, but I guess it changed back when I merged

[visual sparrow]

Just noticed because I'm patching my avian fork to bevy 0.14.0-dev to use https://github.com/bevyengine/bevy/pull/14159 in my plugin, haha

[vestal minnow]

we have competition (they have stopped maintenance ages ago tho)

gotta claim the #1 spot on GitHub lmao

wait how are we just a bit over a hundred stars away from bevy_rapier 👀

[visual sparrow]

hehehehehe

[visual sparrow]

Whoop whoop 🎉 I thought we were way behind 😄

[little maple]

also, I can't believe I haven't starred this yet 🤦‍♂️

[vestal minnow]

oops gotta change that link

[valid fog]

@vestal minnow

Support for custom joints and other constraints using XPBD

still on your readme

[vestal minnow]

That's not an error, joints still use XPBD for now since reworking them would've delayed things way too much

[valid fog]

ohhh

okay

[vestal minnow]

I'll probably rework them in the future tho

[cinder summit]

Whats this the rename happened? Now the channel just needs to be renamed

[vestal minnow]

Well the crate isn't live yet :P

or 0.0.0 is

it has a function calledadd which might be useful for some people
