#Hexa grid ground effect implementation

1 messages · Page 1 of 1 (latest)

alpine prawn
#

Could anyone guide me on how I should approach this effect:
I want to walk on a grid (hexagon preferably) and I want hexagons to appear from below under my legs when I walk.

I made version where depending on distance it smoothly goes up towards camera when i move, but I want the smoothness to keep hexagon shape and not sphere.

https://youtu.be/CnM4-Fzd7OM?t=11
I want to make it similar to this, but way more simplified version for now.

Or I should just give up on shader graph and do it with tons of hexagon game objects?

Screenshot_2025-09-02_173803.png image.png image.png image.png
YouTube
Fredchuckdave

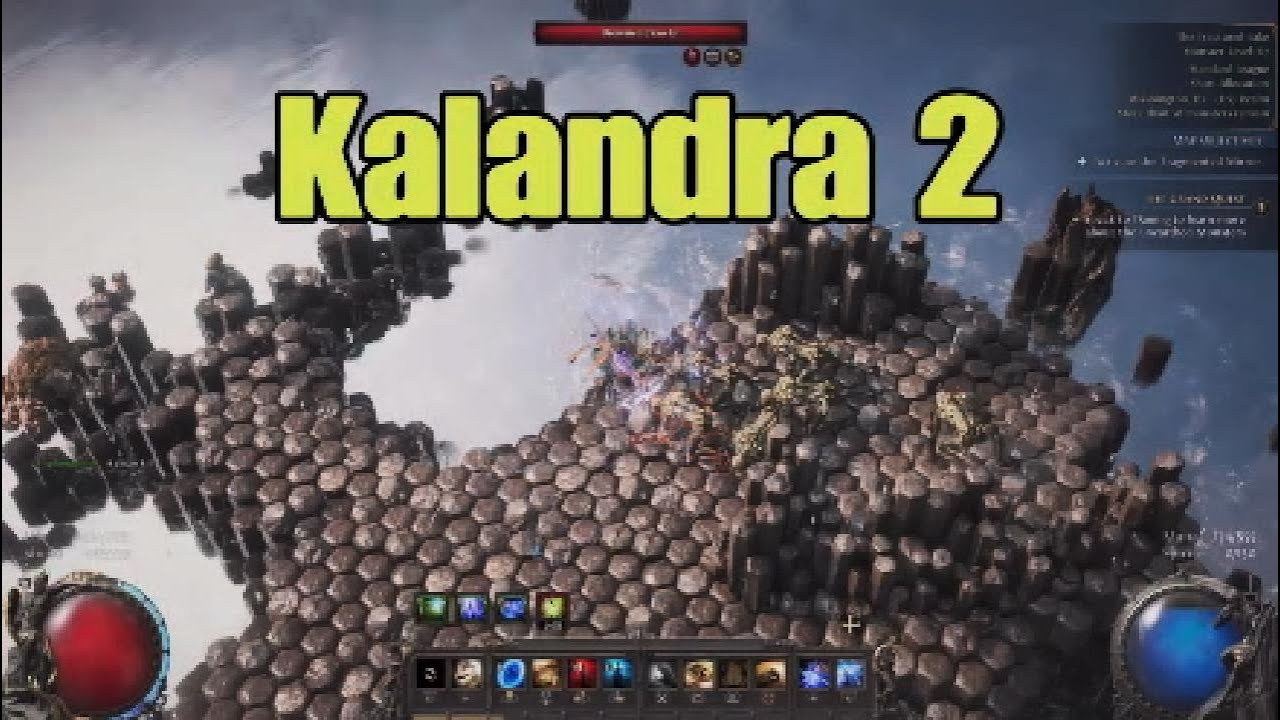

Path of Exile 2 The Fractured Lake New Unique Map Kalandra Sequel B...

Ominous terrain to be sure as far as the health of the league is concerned. There's 4 of this base type total in standard and I have at least 2 more of these to do if I feel like it; granted it's probably just get lucky with a fracture and then spam 400,000 chaos then eventually do omen crafting to make a good one of them which is probably only ...

▶ Play video
#

This how it looks now:

gleaming pine
#

The ground needs to be made from hexagon meshes
looks like it's a plane?

#

The pillars need to be individual objects so that they can rise individually, or at least be individual geometry with their own center point stored in a vertex stream

#

You could start with a floor made of individual hex pillars for the rising effect, and worry about combining them later since that'd just be for optimization

#

Then you apply the offset per-mesh

#

Doing it by distance to player works, but if you want it to be persistent like it's in PoE, that information needs to be stored in an array which a shader alone can't do

alpine prawn
#

Thank you a lot for your knowledge! So it seems separate meshes will be the way to go. Will abandon the shader idea for now.

surreal sonnet
#

Well, you can use a texture to denote the areas that extend towards the camera if not an array

#

The tricky part however is editing another texture to specify that an area was already raised

#

So, two textures. One specifies the max it raises, and the other would be the progress

gleaming pine
#

For the persistence part I think PoE is using an RT texture that's being "painted on"
The processing of that texture can take care of the animation progress as well, if the "paint" accumulates

#

They probably have a parallel CPU representation of the texture/array to make it easier for monsters to also rise with the platforms and for water effects to appear with the rising pillars

#

Both techniques have been used together by Fog of War implementations for a long time
