Read this first:

Finished your build and have an accelerometer?

You’re in the right place.

How to get help here – follow these steps

Step 1 – Prepare your print

Print a VORON cube with (no white Filament):

• 3 bottom layers / perimeters
• 0 top layers
• 0 infill
• Your current print settings

Step 2 – Take clear pictures

Please include all of the following:

• The four printed cube sides
• Front of the machine (good lighting)
• Front of the machine, showing the whole printer
• Front idlers
• XY joints
• X & Y Input shaper + belt measurement graphs
  • Shaketune result preferred
  • https://github.com/Frix-x/klippain-shaketune](https://github.com/Frix-x/klippain-shaketune

Step 3 – Share your settings

• Slicer screenshots
  • Speed
  • Acceleration

Step 4 – List your hardware

• All relevant mods and options on the gantry

  • e.g. TAP, Beacon, 9mm belts, pin mod, etc.

• Printer family and size

  • e.g. V2.4 350, Trident 300 cube

• Where is the ADXL mounted? (Toolhead board, Cartographer/Beacon etc.)

• What is your current belt tension, and how are you measuring it

  • by feel
  • app
  • tension tool (please name it)

Step 5 – Optional but helpful

Feel free to include:

• Extra pictures
• Additional printer details
• Steps you already tried

More information = better help.

Good examples – please check before posting

For inspiration on how to post here, see:
#1348739505997217845 message
#1348771102343692359 message

[mental rain]

Sample posting:

Voron Trident 300
Plastic TAP R8
EBB36 ADXL345
Galvanic Umbilical holder thingy
CL CNC front idlers
48V xy motors
24V all other motors

Question: why can't I get better acceleration in y?

[mental rain]

Note: for now till more testing can be done please run all belts, input shaper, etc using a sweeping_period=0.
This includes standard klipper test and shaketune.
please use this config with your probe points at the middle of the bed. (change them if not 350)

accel_chip: adxl345
probe_points:
     175, 175, 20
accel_per_hz: 100
sweeping_accel: 400
sweeping_period: 0```

[mental rain]

https://github.com/Frix-x/klippain-shaketune

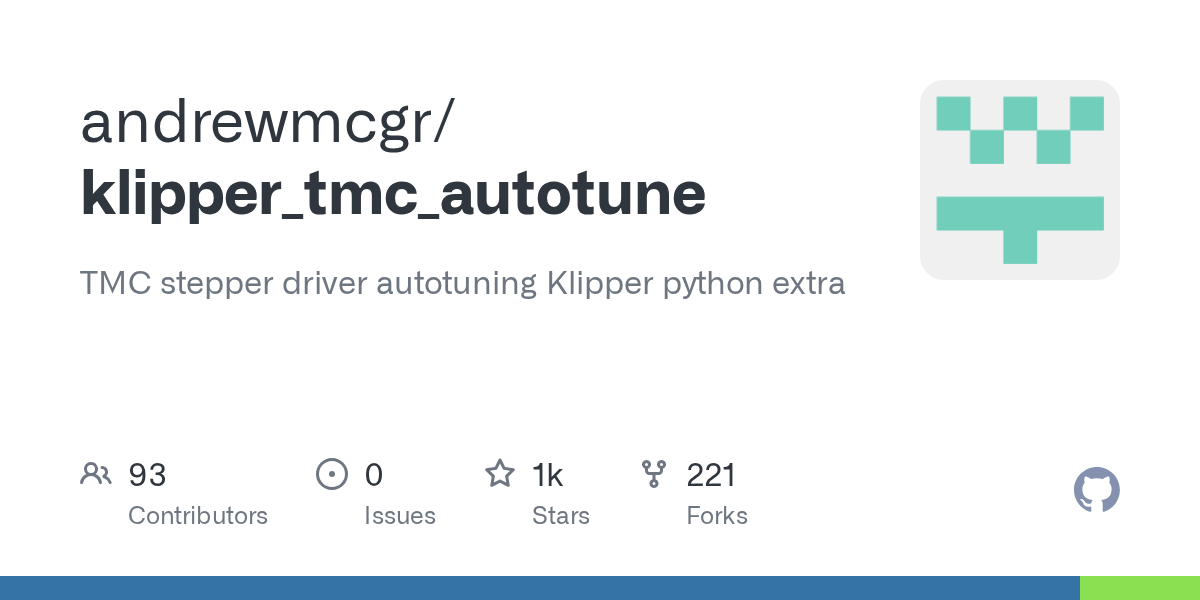

https://github.com/andrewmcgr/klipper_tmc_autotune

[mental rain]

Note:
for anything over a V0 size printer please do not install a light wieght, ultra light, gantry style, etc x-axis
If you want speed go AWD

[mental rain]

https://www.printables.com/model/978123-voron-bowden-ptfe-tube-guide-arm-and-canbus-cable

[mental rain]

For reference https://www.filastruder.com/blogs/news/gates-belt-tensioning-phone-app-vs-sonic-tension-meter

[mental rain]

If you have questions on your umbilical please see this video
https://youtu.be/IzYNO515-M0?si=5ovHpkifzHJj5ot8
