lofty summit
#

It's probably not something we'll be getting soon, but I would also love to be able to make a different lovelace interface per user or permissions for cards or something.

mild veldt
#

@lofty summit all in due time 😉

tepid moth
#

I am using input_boolean to hide/reveal groups, these are entity-buttons. Does anyone know why the icon isn't updateing color as all the lamps are? From blue to yellow when === on. See code below for one of the input_booleans_

#
  • type: entity-button
    entity: input_boolean.show_g1
    name: Utelampor
    tap_action: toggle
raw brook
#

I dont think Input boolean's change color on state change

mild veldt
#

@tepid moth if you have a group of lights you want to control with one toggle you should put them in a light group

tepid moth
#

Yeah, that isn't what I want, I am using the boolean to toogle group visibility with monster card. I've tried this as well, without any luck in customize:

#

input_boolean.show_g1:
templates:
icon_color: "if (state === 'on') return [255, 0, 0]; else return [10, 20, 30];"

#

Boolean G1 is used to active this:

kind shellBOT
dreamy flint
raw brook
#

You are or you arent?

dreamy flint
#

Thanks for being helpful with the typo

tepid moth
quick gulch
#

@mild veldt I asked them to open up via email for HA integration and they said they were working on something - perhaps if a few more people email them they’ll hurry up!

dim jolt
#

hi folks, was thermostat (white background) not fixed in 81.4?

raw brook
#

It will be in 0.82 as I added a new card to that PR

dim jolt
#

ah - balls, only reason i updated to 81.4 lol thanks for the update

raw brook
#

Sorry. That was my bad. I needed to make it a single PR for the hotfix but then got carried away

dim jolt
#

no its all good - have PLENTY of other stuff to be getting on with 😉 appreciate the work you put in!

raw brook
#

What folder does a image need to be in for Picture glance card?

#
- type: picture-glance
  title: Test card
  image: www/living-room-intro.jpg
#

This is working for me

dim jolt
#

config/www/

#

ah but i think its /local/ when you reference it

#

2 secs i'll confirm

raw brook
#

it was the extra slash

#

I forgot it. Thank you @dim jolt

hollow otter
raw brook
#

Fixed in 0.82

#

It just hasnt been released

hollow otter
#

Good to know! 😄

tough quiver
#

Hi!

dim jolt
#

howdy

tough quiver
#

I'm using lovelace and happen to have tradfri remotes which report battery levels

#

I'd like to know two things

  1. How can I line break in the "title"
  2. Can i make the gauge smaller?
dim jolt
#

good questions, i dont use gauge card - but i imagine if you put a few on a row and use horizontal-stack they should resize?

#

also not sure about whether you can line break - but you could title the stack Battery and then reducing the text to just 'Ben's Remote' should fit?

#

probably not the official answers you were hoping for though

tough quiver
#

I'll try that, that's was going to be my next question if I can Stick them in a stack. I'll do that in a minute.

Yes it think a stack named battery and just calling it "X Remote" :)

dim jolt
#

oh and not sure whether it effected gauge but there were some issues with stacks in 81.0 -81.2 that were fixed in 81.4 i believe

tough quiver
#

Eh I have 81.4 now

#

I did a docker pull and remade the container

dim jolt
#

cool - then you should be ok

tough quiver
#

By now I meant like 3 hours ago

#

Somewhat unrelated to Lovelace HASS randomly stops picking up Tradfri status changes?

#

Restarting hass fixes it

dim jolt
tough quiver
#

I'll head there in a minute :)

dim jolt
#

looking on the community - looks like the gateway is the issue @tough quiver

#

although i cant comment beyond that as not used them

tough quiver
#

Ah ok

#

hmrph @dim jolt do you know if it's possible to auto-generate gauge (or other card types) by using an entity such like sensor.*_remote

#

ofc sensor.*_remote doesn't work but is there a way?

#

so i essentialls need

  - type: custom:monster-card
    card:
      type: entities
      title: Battery Status
    filter:
      include:
        - attributes:
            device_class: battery```
#

but rather than device_class: battery i need it to find all devices that have a battery_level attribute

#

hmm

dim jolt
#

ah i see - so not sure how to do that in lovelace. you mean populate a section of the page with all batteries. Not sure that would be widely used, as It may pick up devices like zwave that have batteries also.

tough quiver
#

correct

#

well; they're not batteries they're devices with battery_levels

dim jolt
#

i use a template.sensor in a similar way - but that will just show you a result of any devices (with battery_level) below say 15% rather than populate a card.

#

i've not tried monster card but looks like you can do that. i'll have a go here

tough quiver
#

okay i've managed something

#
    cards:
      - type: custom:monster-card
        card:
          type: entities
          title: Battery Statuses
        filter:
          include:
            - attributes:
                battery_level: 87```
#

is showing me all remotes with battery at 87%

#

i just need wildcard

#

@dim jolt yay got it

#
    cards:
      - type: custom:monster-card
        card:
          type: entities
          title: Battery Statuses
        filter:
          include:
            - entity_id: "sensor.*_remote"```
dim jolt
#

nice!

tough quiver
#

the only other thing is super petty

#

it shows an eye

#

i want the battery logo 😂

dim jolt
#

so that should be there if the sensor is device_class: battery

#

did you build the sensor yourself, or is it created from the ikea component?

tough quiver
#

its literally an ikea remote

polar kelp
#

Just change the icon:

tough quiver
#

@polar kelp thanks, the docs dont say that

dim jolt
#

@polar kelp will that be dynamic though?

tough quiver
#

setting icon: does nothing

polar kelp
#

The docs for the entities card shows how to set the icon of an entity, the docs for the monster-card shows how to add options to matches.

tough quiver
#

fwiw

#

oh shit options:

polar kelp
#

yep

tough quiver
#

Sorry

#

welp

#

kinda worked

#

nvm i got icon name wrong

#

for anyone reading in future

    cards:
      - type: custom:monster-card
        card:
          type: entities
          title: Battery Statuses
        filter:
          include:
            - entity_id: "sensor.*_remote"
              options:
                icon: mdi:battery```
is the final function battery-symbol goodness one
dim jolt
#

so out of curiosity is the battery dynamic or does it always show the full battery mdi icon?

polar kelp
#

With this approach, always full. Normally, I'm not sure...?

tough quiver
#

always shows full

#

im not sure about the ability to do dynamic; im sure it's possible

#

with some code and rounding it off

dim jolt
#

its built into HA

#

check the sensor.remote has 'device_class: battery' added

tough quiver
#

it doesn't?

#

oh i can overwrite it

dim jolt
#
- platform: template
  sensors:
    zwave_battery_back_door_sensor:
      entity_id: zwave.back_door_sensor
      value_template: "{{ state_attr('zwave.back_door_sensor', 'battery_level')|default(75) }}"
      device_class: battery
tough quiver
#

yay dynamic

dim jolt
#

jackpot

tough quiver
#

i just went to config then to customization found my remote and overwrite device class to battery

#

woop nice and dynamic

polar kelp
#

Huh. Did not know about that... updating my config...

prime umbra
#

was wondering on picture elements card the LABEL WITH STATE TEXT
prefix:

anyway we could add like chareters also?

#

ex:

- type: state-label
            prefix: H
            entity: sensor.humidade_sala

if i do this will show as ex H70%

#

what if i wanted to show H: 70%

dim jolt
#

possibly add
name:

prime umbra
#

that wont work as a perfix before the value of a sensor

dim jolt
#

oh sorry jsutr read the doc - gotcha

#

so could you change prefix to
````prefix: "H: "```

polar kelp
#

Does prefix: "H: " work

#

Too late

tough quiver
#

lol

prime umbra
#

hehe let me try

#

that does the job i guess didnt try that option sense wasnt refering in the docs

#

ty

foggy tendon
#

Is the custom button card still enabled or is it substituted by entity-button?

raw brook
#

You can still use the custom button if you have the files downloaded

foggy tendon
#

ok and there are differences between the two regardin options?

raw brook
#

Yes. Read the docs on both

prisma mango
#

Quick question regarding Hold_Action, I think its awesome but is there a way to set a global setting that a default action for hold_action is more-info for example

stark tendon
#

Just update Hass.io to 0.81.4 and Lovelace switches don't update their status unless you hit refresh...anyone else with this issue?

tough quiver
#

Anyone else find that when you add new custom cards (js files) in config/www they hardly ever work straight away

#

despite going to the url works fine and its in your lovelace includes

#

oh shit nvm

#

i had type: js when it needs type: module

elfin basin
#

Same here. 0.81.4 and Lovelace switches not updating status unless hitting refresh

tough quiver
#

How can i set units in the weather card?

#

They're km/h for wind speed

#

but in my darksky source I have it set units to uk2 which should be mph

#

Okay, looks like it's displaying the mph value but it says km/h

split granite
#

Yeah, there's an open issue somewhere

tough quiver
#

Good to know its logged as an issue

#

I'm using the custom monster-card with some filters; but i'm hitting a little roadblock

Here is my definition:

  - title: TVs
    id: tvTab
    cards:
      - type: custom:monster-card
        card:
          type: media-control
        filter:
          include:
            - entity_id: "media_player.*tv"
          exclude:
            - entity_id: "media_player.*emby*"```
#

I'm getting hit with a Uncaught Error: No entity specified

#

these are the three media_player entities which have tv in the name

 media_player.conservatorytv
 media_player.emby__dlna__loungetv
 media_player.loungetv```
#

in theory media_player.conservatorytv and media_player.loungetv should be included

#

but not the emby__dlna__loungetv one

Anyone got any ideas?

vapid field
#

Hi everyone! Is there already a way to use the Shopping List with lovelace?
It seems, there is no official card for it, yet, but maybe there is an in-official solution out there?

tough quiver
#

Can't you use the entities card?

#

my bad it seems to be a intent not an ent

vapid field
#

Yeah, and also I would like to be able add/remove entries from the list. I don't think this is possible with the entities card...

polar kelp
#

@prisma mango No, there's not. The default hold_action is nothing.

#

There's a shopping list card in the works.

mild veldt
polar kelp
#

Heh. Did I revive the all-the-things meme?

vapid field
#

@mild veldt thx!

mild veldt
#

@polar kelp yes. GJ

polar kelp
sturdy bough
#

I was using long-press custom item but i saw it is now unsupported because is integrated in 0.81
But i cant find the syntax to do the same thing i was doing before.
I want to show, in a picture-element, a state-icon showing a binary-sensor (movement from a camera). When i do a long press (hold_action) i want to show the camera video.

What to put in hold_action ?

ionic thunder
#

Hey, all -- I'm just starting to play with lovelace, and I'm seeing things about incompatibility with the kindle fire tablets. I think it's "custom components" that don't work with the outdated webview? What are some examples of those? I'm pretty ignorant when it comes to lovelace.

raw brook
#

Anything that you have to download and place in your WWW folder and there fore add custom:. Anything in the HA Lovelace Docs will work for you

ionic thunder
#

Gotcha. I'm mostly aiming for a straight panel of switches, so theoretically I'll be ok.

#

Thanks :)

mild veldt
#

@sturdy bough
hold_action: more-info
Should work

thorny verge
#

Media players are not updating without a screen refresh, is this a known issue, with the latest updates, I know it was working earlier?
As and entitty, or using custom: mini-media-player, both don't update, although it reacts to controls, just doesn't update them or update info.
type: media-control does update.

sterile hinge
tough quiver
#

I've not seen any docs for that

somber tiger
#

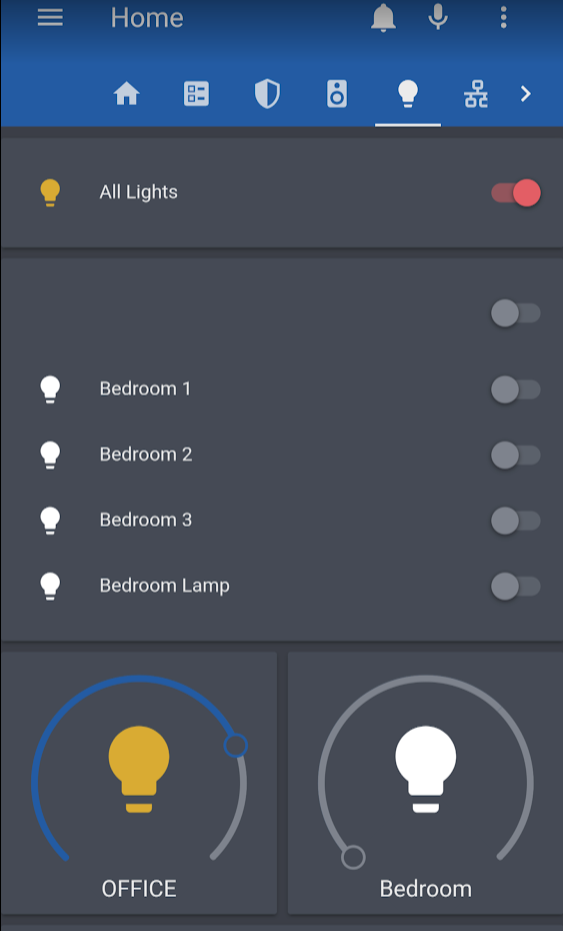

Is there a way to make a light control card show both a toggle switch and a dimmer bar at the same time?

#

ideally it would also have a tiny color changer bar there too if it's an rgb light.

tough quiver
#

@sterile hinge Unless you mean hold_action?

raw brook
#

Longpress is in the docs. Its called Hold action

#

@somber tiger What is that card?

somber tiger
#

It's from another app, just using it as an example

raw brook
#

ohh. Well there is a new card in Beta 😃 that does that

somber tiger
#

Hooray!

sterile hinge
#

hold_action - cheers, ill have a look

thorny verge
#

In picture-element, how can I show a picture from a template sensor?
If I have a template sensor for {{ states.media_player.name.attributes.entity_picture }}

sturdy bough
#

@mild veldt more-info gives the history, being a binary and not a camera entity.

#

@mild veldt this is an example of what i was doing with long-press

- type: custom:long-press

entity: camera.cam_ingresso

child:

type: state-icon

entity: binary_sensor.cam_ingresso_movimento

style:

top: 94%

left: 25%

polar kelp
#

That would open more-info on hold

#

The new way to do the same thing is~~```yaml

  • type: state-icon
    entity: binary_sensor.cam_ingresso_movimento
    hold_action: more-info
    style:
    top: 94%
    left: 45%```~~
    Edit: Hurr durr I can't read
elfin basin
#

@stark tendon Fixed in 0.81.5

raw brook
#

@polar kelp A binary sensor would show up with the history not the camera entity that he wants. Its not possible to pull a different entity up from hold or tap action @sturdy bough

polar kelp
#

But nor was it before.

raw brook
#

Looks like the custom: long-press did

polar kelp
#

Oh wait. darn

#

It was

sturdy bough
raw brook
#

I didnt realize Thomas did the custom

polar kelp
#

You're right. It's not possible in the official version.

raw brook
#

Doesn't seem like its Official Version material though

polar kelp
#

No. It was more an unfortunate side-effect, really.

#

What you could do, @sturdy bough , is to overlay the state-icon with an image which brings up the camera. Then you style that image with opacity: 0.

#

You'll lose the ability to open more-info for the sensor, but that might be ok?

sturdy bough
#

uhm, better than nothing, but long-press was perfect 😦

tough quiver
#
      - type: glance
        title: Motion Events
        entities:
          - binary_sensor.porchmotion
              icon: mdi:run-fast
          - binary_sensor.frontmotion
              icon: mdi:run-fast
          - binary_sensor.backmotion
              icon: mdi:run-fast```
Apparently this is mapping values not allowed?
#

only occurs when the icon: are added, im clearly doing smth wrong

split granite
#

Your spacing and formatting are a mess

sturdy bough
#

you are 2 spaces away in every icon line

split granite
#
- type: glance
  title: Better names
  entities:
    - entity: binary_sensor.movement_backyard
      name: Movement?```
tough quiver
#

Yeah i read that.

split granite
#

Note the entity: part 😉

tough quiver
#

oh shit the -

sturdy bough
#

the point is

split granite
#

It's not enough to skim the docs, you've got to look at the config examples when you get an error, and compare your config to see where you went wrong 😉

sturdy bough
#

if you want to add icon: you have to transform the object in entity

tough quiver
#

I did; guess im blind lmao

sturdy bough
#
  • type: glance
    title: Motion Events
    entities:
    - entity: binary_sensor.porchmotion
    icon: mdi:run-fast
tough quiver
#

yep thats done it

split granite
#

~format @sturdy bough 😉

kind shellBOT
#
:information_source:
Format Code:

@sturdy bough To format your text as code, enter three backticks on the first line, press Enter for a new line, paste your code, press Enter again for another new line, and lastly three more backticks. Here's an example:

```
code here
```

Click on the link to learn how to format: https://raw.githubusercontent.com/skalavala/HassBot/master/format.gif

tough quiver
#

maybe a dumb question; can you dynamically set the icon?

split granite
#

Set the device class

tough quiver
#

so it would be mdi:run when its not active but mdi:run-fast when it is

sturdy bough
#

sorry was too lazy 😃

split granite
tough quiver
#

i always forget about class ffs

split granite
#

If that's a binary sensor, and you set the device class to motion that's what you'll get

gusty coral
#

if I want to toggle my garage door with entity-button, how shoudl I approach that?

tough quiver
#

i know the answer to this i think

gusty coral
#

go for it

tough quiver
#
            - type: entity-button
              entity: light.bens_light
              name: "Ben's Light"
              tap_action: toggle```
#

this is a toggle button for my light

#

presumably you can set entity: garage.door.thing

gusty coral
#

mines a cover though. For my garage ddoor.

#

but yours is right!

tough quiver
#

a cover?

raw brook
#

Tap Action can be set to call service

tough quiver
#

ah right okay

#

Yeah, use call service

gusty coral
#

call service cover_open cover

tough quiver
#

and personally id call a script that has conditions

raw brook
#

You will probably want to call a script

tough quiver
#

so if its open then close if its closed then open and just call said script on tap

gusty coral
#
      - id: 1235
        type: entity-button
        name: Garage Door
        entity: cover.garage_door
        tap-action: call-service
        service: cover.open_cover
        service_data: cover.garage_door

Still opens the status box

tough quiver
#

@split granite I set the class to "motion" but it doesn't use run or run-fast indicators I presume i somehow need to set that?

raw brook
#

tap_action

gusty coral
#

good call @raw brook

split granite
#

@tough quiver Is it a binary_sensor?

tough quiver
#

yes

#

okay weird, after refreshing 4 times it's changed.

#

nevermind its just gone back to a check mark in a box

raw brook
#

cache

tough quiver
#

im going to set it in customization: instead

gusty coral
#

still can't get it to work right:

      - id: 1235
        type: entity-button
        name: Open Garage Door
        entity: cover.garage_door
        tap_action: call_service
        service: cover.open_cover
      - id: 1236
        type: entity-button
        name: Close Garage door
        entity: cover.garage_door
        tap_action: call_service
        service: cover.close_cover
#

I would like both buttons to be in one row

raw brook
gusty coral
#

call_service is supposed to be call-service

raw brook
#

Yes

gusty coral
#

Got it

tough quiver
#

Docs refer to themes.yaml alot, i dont have one should that have been with hass or is that a user made thing? and if so where do i get one for dark themes

raw brook
#

User made. Under config

tough quiver
#

ah okay, thanks

rain belfry
#

Looks like the weather forecast card uses GMT instead of what is in the config.yaml... Am I doing something wrong?

lavish current
#

Hey Chaps! When adding a new image into /www for the picture-entity card, do you have to do a restart before it will show up?

split granite
#

If www/ already existed, no

lavish current
#

Hmmm, ok

#

not sure what i''m doing wrong then

raw brook
#

Add / before local

lavish current
#

thanks @raw brook and @split granite

split granite
#

Next time though, please share code as text, it's much easier to work with at this end 😉

lavish current
#

yep, that seems like a way smarter idea!

tawny cipher
#

Has anyone got any cool Lovelace configurations I can take a look at for inspiration / to copy? 😁 currently got this and I'm not the biggest fan of it: https://i.imgur.com/UGY50jl.jpg

raw brook
#

Check the pins

gusty coral
#

doing a sensor card and getting the error: cannot read property 'states' of undefined

raw brook
#

Upgrade to .81.5

#

@gusty coral

gusty coral
#

Will that allow them in a stack?

raw brook
#

yep

gusty coral
#

Okay, not a huge deal right now. Thanks for the heads up.

next rivet
#

Hm, on the 'picture-elements' card, can you have a state image for off, and a "camera" url for "on"?

#

i.e if the device is off, show static image, if its on.. live camera feed? 😃 The source would be a mpeg camera url

#

Hm, doesnt seem like you can annoyingly

tawny cipher
chilly storm
#

@raw brook is the alarm card (arm_custom_bypass: blank button) slated to be fixed in 0.82?

raw brook
#

Should be in the latest Hotfix but not sure. We are still working on that one a bit

chilly storm
#

thx for the update.

plush tulip
#

hey there

#

anyone able to help me tonight?

#

I'm trying to get custom cards working in lovelace, but none of them seem to load

#

I have no idea what I'm doing wrong

#

for example, I'm trying to use a slider entity

#

so I include: - url: /local/custom_ui/slider-entity-row.js?v=1
type: js

#

in my lovelace_ui.yaml

#

and I call - entity: light.livingroom
name: Livingroom
type: custom:slider-entity-row

#

But all I get is: "Custom Element doesn't exist: slider-entity-row"

#

though the file is there

mossy otter
#

@plush tulip where have you put the js files?

plush tulip
mossy otter
#

and where have you put them exactly?

plush tulip
#

in config/www/custom_ui/

mossy otter
#

could be that the problem is just with the path of the file

#

try getting rid of ?v=1

#

I'm using slider-entity-row and have the following:

resources:
  - url: /local/custom_ui/kiosk.js
    type: js
  - url: /local/custom_ui/slider-entity-row.js
    type: js
plush tulip
#

I tried with and without

mossy otter
#

have you ever had them working?

plush tulip
#

nope

#

just starting on the custom_ui

#

now maybe a permission issue?

mossy otter
#

potentially

plush tulip
#

what permissions do I need on the files?

mossy otter
#

I don't know enough about that unfortunately

#

are you running hassio or something else?

plush tulip
#

hassio

mossy otter
#

same here

#

could be a version problem. My lovelace stopped working completely in between versions

#

what version of hassio are you on?

plush tulip
#

just updated to 81.2 last night

#

just saw that 81.5 is out

#

but going to get this working first I think

mossy otter
#

is anything in your lovelace working?

plush tulip
#

yeah the normal cards are

#

but I've tried multiple tutorials on custom cards and can't get them to work

mossy otter
#

and can you open up the javascript file and see what's inside?

plush tulip
#

yup

mossy otter
#

it's all the correct js? not html?

plush tulip
#

correct

#

I've also tried the animated weather card

mossy otter
#

hmmm...trying to troubleshoot using all the steps (or missteps I made)

#

yeah I ha d a hard time getting the weather card to work originally, I think I gave up in the end actually (but that was the first one I tried too)

plush tulip
#

lol

mossy otter
#

can you paste a few lines of your resources

#

you can use ` 3 times to indent it to look like your yaml

#

`

plush tulip
#

'''

#

one sec

mossy otter
#

just curious what other lovelace cards you might be trying to use

kind shellBOT
plush tulip
#

that whole first page works fine

#

except for the slider-entity-row

mossy otter
#

and you said you've tried this code:

  - url: /local/custom_ui/slider-entity-row.js
    type: js
plush tulip
#

following?

#

if I try to go to https://<mydomain>/custom_ui/slider-entity-row.js I get a 404 error

mossy otter
#

as do I, I don't know if that's related to the problem

#

it could be a permissions thing

#

you should try speaking to @polar kelp when he's around. He's much more knowledgeable than I am and created those wonderful widgets you're trying to use.

#

I can't see what you're doing that's different in any way to what I'm doing

#

though I must admit I haven't tried slider entity in my current set up, I did test it a while back to see if I wanted to use it

plush tulip
#

thanks for trying:)

mossy otter
#

good luck 😃

#

It'll get there eventually and then you'll be able to play with all the wonderful lovelace tools people have created 😄

plush tulip
#

when adding a custom ui card, did you need to include it in configuration.yaml?

raw brook
#

No

plush tulip
#

didnt think so

raw brook
#

Is this the first custom you have used?

#

If so Restart HA since you just created the new folder

plush tulip
#

already restarted a few times

raw brook
plush tulip
#

trying that

#
  • type: custom:slider-entity-row
    entity: light.livingroom
    name: Livingroom
#

but then I'm getting a red box

#

"Custom element doesn't exsist"

raw brook
#

Can you send the whole card you are using it in?

#

~format

kind shellBOT
#
:information_source:
Format Code:

To format your text as code, enter three backticks on the first line, press Enter for a new line, paste your code, press Enter again for another new line, and lastly three more backticks. Here's an example:

```
code here
```

Click on the link to learn how to format: https://raw.githubusercontent.com/skalavala/HassBot/master/format.gif

plush tulip
#

lol

#

or just have the bot do it for me

raw brook
plush tulip
#

I've had it multiple ways

#

including :

#

'''

#
      - type: entities
        entities:
        - entity: light.livingroom
          name: A dimmable lamp
          type: custom:slider-entity-row
#

under it's own entitity

#

which is also not working

raw brook
#

Any errors in your console?

#

The way you sent it in the PAstebin will not work

plush tulip
#

when I look at it via the website, I get "Custom element doesn't exist: slider-entity-row."

#

big red box

raw brook
#

Right... Are you on chrome?

plush tulip
#

yup

raw brook
#

Right click and inspect

plush tulip
#

and I ctrl-shift-r

raw brook
#

And see if you have errors in the console

#

or Ctrl+Shift+I

plush tulip
#

gotcha

#

I do

raw brook
#

And they are...

plush tulip
#
Uncaught SyntaxError: Unexpected token <      https://<mydomain>:8123/local/custom_ui/slider-entity-row.js:7
#

is the one that comes to mind

raw brook
#

aha

#

Follow that

plush tulip
#

still seeing the same issue

#

Uncaught SyntaxError: Unexpected token <

raw brook
#

Add the ?v=1

plush tulip
#

no dice still

raw brook
#

The issue is that you have a bad download cached. the token error: < means you downloaded the wrong version, aka not the raw version. Once you have the correct version downloaded and increment ?v=* it should try to fetch that file again and grab the correct file.

plush tulip
#

so when I click on your link

#

and save the file as

#

then save it to my network directory

raw brook
#

Or you can read the third line of the Slider-Entity-Row on Thomas's Github

No support given - if you don't know how to get this to work, that is probably a good thing for now.
plush tulip
#

lol

#

yeah I saw that

#

I just figured, this was the most basic custom lovelace addon and to try and start somewhere

raw brook
#

Thats not true. Most basic would be a card of some kind. Row Types are not popular therfore have not had must testing/support

plush tulip
#

ok, just got it working

#

redownloaded it, refreshed cache, and added v2

#

thank you Zac!

#

I just wanted sliders on all my dimming lights

#

and now I can:)

sinful scarab
#

Hi, I just converted my old ui to lovelace. I have made some customization, I have hided some lamps, and now they are not hidden. I wonder is this a normal behaviour that Lovelace doesn’t take custome entries for hidden ui? And how do I hide them?

raw brook
#

Take them out of your Lovelace File

#

Lovelace display what it is given.

sinful scarab
#

So it doesn’t use the customization made from config?

raw brook
#

Correct

#

Well it uses some things but not hidden

sinful scarab
#

Ok, that’s good to know, thanx for your help

dim jolt
#

in lovelace there seems to be a higher usage of entity: than entity_id: is there a plan to align (either way) or is it deliberately kept different?

raw brook
#

Yeah. We will be moving everything to use entity. Where are you seeing entity_id

dim jolt
#

in HA proper (and in a custom card)

olive lynx
#

what's the structure for the section entity

      - id: 8f280c19b6d94b7b93498e0cea3a4f64  # Automatically created id
        type: entities
        title: Battery Levels
        show_header_toggle: false
        entities:
          - type: section
            name: August Lock
            entities:
              - sensor.aug_lock_battery

doesn't seem to be working, and example not available

#

how do I list the entities within each section "entities:" doesn't seem to work

#

and yes i've updated name to label, which is in the doco

civic sedge
#

maybe its lovelace?
Somebody using the manual Alarm Control Panel with the Lovelace alarm card?
https://www.home-assistant.io/components/alarm_control_panel.manual/
https://community.home-assistant.io/t/lovelace-alarm-card/59831
I have my very basic issues to get it armed I think I undersood there something wrong.
From my understanding the lovlace end calls the state - disarmed or armed_home & so on
https://hastebin.com/axaxapekar.coffeescript
or do I have to use
arm_home to get -> armed_home
I dont get it armed..

gusty coral
#

@civic sedge why is there 3 lines of spacing between cards and your alarm control panel card?

civic sedge
#

One is lovelace the other one a configuation

gusty coral
#

Right, the first set of code is your alarm control panel config, the one below is lovelace..but in the hastebin you have three lines of spacing (24-26)

#

This is my lovelace config

  - id: 1
    title: Alarm panel
    tab_icon: mdi:alarm-light
    cards:
      - id: 1234  # Automatically created id
        type: alarm-panel
        entity: alarm_control_panel.ha_alarm
prime umbra
#

@civic sedge did you see that now alarm panel makes part of HA?

#
- type: alarm-panel
#

you using custom

#
- type: custom:alarm_control_panel-card
gusty coral
#

Are you guys using pictures for cards? If so, what's the photo size and file size?

civic sedge
#

Nope Did'nt saw it at all - Changing now - - The spacing is just there

#

Still dont get it to aktivate.. What the hell I miss?

gusty coral
#

what's your alarm-panel code now that you've changed it?

civic sedge
#

still 0000 - Its just for getting basic functionalaty

gloomy raven
#

mabe an incredible dumb question, but how can i give an mqtt tasmato entity a picture instead of an icon?
entity_picture: "/local/test.png"
is not working in the configuration.yaml

haughty dragon
#

Is it possible to show a card only during specific hours (like morning traffic to work only from 7 - 9 am and evening traffic to home from 17- 19 pm)

raw brook
#

@gloomy raven Look up customization

homeassistant:
  customize:
    light.office:
      entity_picture: /local/test.png
#

@haughty dragon Look into a conditional Card.

haughty dragon
#

Ok thanks , I get it now. So just make hidden switches and have node red turn those off and on and that would make the card(s) visible or not.

gloomy raven
#

@raw brook Txh for the help

tough quiver
#

Can i make tap action be nothing?

#

I have a glance card on my dashboard and want it to do nothing

#

except be a viewing thing

#

oof i got it

#
tap_action: none```
#

Anyone know of any tools to format yaml properly

#

my lovelace config is all kidns of broken spacing i think

dim jolt
mossy otter
#

is there a way to stack multiple cards in one card to try and minimise clutter and make things a bit smaller"?

dim jolt
#

@mossy otter you can create say a vertical-stack, and within that groups of horizontal-stacks to keep things tidy

mossy otter
#

gotcha

dim jolt
#

@raw brook am i losing my mind or did i see there a light with slider button card on the horizon?

mossy otter
raw brook
#

No not the custom row. there is a new card in beta

dim jolt
#

thanks @mossy otter this was a button with a bulb in the middle with a slider round the outside

mossy otter
#

ahhhh that sounds cool!

dim jolt
#

ah - ok was just checking - will hold off on doing anything with the light's currently them

#

*then

mossy otter
tough quiver
#

almost definitely that exact product lmao

rocky kettle
#

Sure thanks and sorry

tough quiver
#

eh don't be sorry

#

i meant more like those guys are more likely to know

tough quiver
#

Is there a page somewhere detailing all the custom cards and such for lovelace

split granite
#

Not all, but Share the love in the pins has many

tough quiver
#

not sure what you mean about share the love

split granite
#

Look in the pinned messages

tough quiver
#

have been

split granite
#

Hmmm, somebody took Share the love out

tough quiver
#

looks like it

split granite
#

even

tough quiver
#

sick

split granite
#

There's also the awesome HA stuff

tough quiver
#

Thanks

#

yeah i;ve seen awesome-ha

split granite
#

(which I suspect has a link to Sahre the love)

tough quiver
#

not much in the way of lovelace on ther

#

heh, yeah it does

split granite
#

The forum is the other good source

tough quiver
#

I guess so

#

seems a little odd to search the forum but yea

split granite
#

Well, the only way to have an up to date comprehensive list somewhere is for somebody to take it upon themselves to create that list, and keep it updated all the time

#

Folks try, but there's only so much time in everybody's day, so 🤷

tough quiver
#

Yeah, fair.

#

The other question i had was, is it possible to resize the height of any card?

split granite
#

I think there's been some talk of that for specific cards, but in general no

tough quiver
#

ah okay

mild veldt
tough quiver
#

seen that too 😃

#

its got quite bit of nice stuff

mild veldt
#

As for a full listing of custom cards. That would be quite hard to maintain and those listed already are the closest I have seen

tough quiver
#

fair enough

mossy otter
#

leading on from @tough quiver 's question. Is there a way to manipulate the lovelace code to make certain cards smaller? My picture entities are massive

split granite
#

Reduce the height of the underlying image

mossy otter
#

so it's stretching because the image itself is "big"?

#

pretty sure it's stretching the original image

halcyon mantle
#

I'm looking for a switch with "verification" - I recall there was a custom-ui before lovelace that had such an option - Is there something similar in lovelace? E.g. If I by accident tap on my garage door opener, it will ask for verification, or require long press? This will mostly be called from picture-elements card or more-info dialog

mossy otter
halcyon mantle
#

@mossy otter Thankz - Used to use that one, it has now been integrated into lovelace from my understanding

split granite
#

@mossy otter I found that the images were scaled to fit the width, but keeping the ratio - tall images resulted in tall cards

mild veldt
mortal cape
#

I haven't messed with my lovelace config since these ids were added, really. Do I make my own ids for new cards added?

fleet condor
#

@halcyon mantle I'm using the one iantrich posted for the switch that opens the garage door. It needs two clicks to activate. If you press only once after x seconds returns to locked status. I've seen another option with a numeric code (alarm panel) but decided for the double click one.

timid burrow
#

@mortal cape they rolled back the mandatory id's so you don't need them at the moment. When they roll them back out I guess it will auto create them. Having said that I did add an ID manually when I made a change....

fathom tree
#

Is there a way to have png overlays re-scale with different screen sizes?

#

Something in “style” maybe?

steel dune
#

Hey, @fathom tree ,, this is probably the property that you want, but I haven't tried in Lovelace myself, yet.

olive lynx
raw brook
#

Can you share your Yaml that you are using it in?

#

~share

kind shellBOT
olive lynx
#

Yes Sorry will when I have access, thought it may have been a common syntax mistake

#

Anyone else notice the Unsued Entities panels no longer displays on Android Chrome, been that way for the last few minor releases. Or just me?

forest mica
#

how can i make like a glance card with a single button that will turn 2 lights on and off for example?

mild veldt
#

@forest mica I'd probably use an input_booelan that triggered a script to toggle the lights

forest mica
#

i was able to just use group.xx as entity and it worked

mild veldt
#

light group would probably be better

forest mica
#

what do you mean?

#

its a group of lights technincally lol

mild veldt
forest mica
#

so this will replace my groups.yaml file somehow?

#

or parts of it

raw brook
#

Yes.

forest mica
#

hmm well crud.

#

its seems like some had been made from when i migrated hue.. but it didnt set it them up like this

#

i wish i could just delete all of the groups that got imported with hue anyway

forest mica
#

my ui-lovelace.yaml file seems to be deleting it self?

mild veldt
#

what version of HA are you running?

forest mica
#

just clicked update to 81.6

#

is it because im using the migration addon?

civic sedge
#

Morning! _ Just prepping the Home Alarm Panel. I'd like to have just a button to aktivate the Alarm
so I thourght on a call- service

  "entity_id": "alarm_control_panel.home_alarm",  "code": "6000"
}```
now - somebody a idea how I pass the code 6000  in the last line?

  - type: glance
    show_header_toggle: false
    entities:
      - entity: alarm_control_panel.home_alarm
        name: alarm_arm_home
        tap_action: call-service
        service: alarm_control_panel.alarm_arm_home
        service_data:
          code: "6000" ```

Works !

polar kelp
#

service_data

civic sedge
#

Niiice - did work - Thanks a lot

#

Just pending

lofty kiln
#

Hi 😃 .. Does anyone know if it is possible to get the events used in the custom calendar-card component (upcomming 5-7 events) into sensors so that I will be able to display these other places than in Lovelace UI? .. and how can this be done?

civic sedge
#

Ah other places

#

Nope

lofty kiln
#

@civic sedge Yes, that is exactly the component I refer to .. but this does not "throw" in sensors so that I could use it in example TileBoard

civic sedge
#

you could check out the .js anyway- there must be a way to create this events

#

Dhats defenetly shit over my knowledge

lofty kiln
#

@civic sedge Yes, but I have looked at that but my developer skills are not that good, and so I have not found how they have been found from Google 😰

civic sedge
#

I would say youre screwed.. The state attributes from json are youre best chance - But in there is only one or the next appointment.
the calendar card pulls the data of the google servers by itself it seems

#

I cant code at all

modest cliff
#

Hey everyone, is there anyone else who hass issues with the hold action not working in lovelace for Entity Button Card?

#

the tab actions works fine

#

but the h

#

hold just doesn't seem to be picked up

lofty kiln
#

@civic sedge Yes, but it is strange that noone have ever had this issue .. I need it for my daugther who is autistic, Need to display the next 5-7 events she should do so that she is prepared for them, but also be able to do some automation that reminds her about it.

civic sedge
#

Just saw this in the docks - Share

lofty kiln
#

@civic sedge I will see if I can make some out of that, but might need to brush up quite a bit on JS 😰 😅

civic sedge
#

Tile Board is very niche - I started wit version 5.6 or so While this time you only could used google calendars as trigger for an automation - I look at it right now I only see a way to pull out the first entry out of the state machine calendar.week_numbers on description: friendly_name: Week Numbers message: Kalenderwoche 45 2018 end_time: 2018-11-06 00:00:00 location: start_time: 2018-11-05 00:00:00 offset_reached: false all_day: true

#

This is no problem to get the data out

#

But when I look for more.. Hard to find something

lofty kiln
#

Yes .. it only pulls first event

civic sedge
#

Would say a coustom gcal sensor is what youre looking for

lofty kiln
#

Exactly .. problem is to make one 😰

civic sedge
#

maybe a post on reddit ? - as said I cant code at all

lofty kiln
#

Yes, that might be an idea .. maybe someone there could help 😉 .. Well thanks for pushing me in this direction, hopefully that might help 😃

civic sedge
#

Fingers crossed here I bet someone with expirience and a look at the calendar card makes this in under an hour

#

@modest cliff got it?

modest cliff
#

@civic sedge no not at all ... realy weird

civic sedge
#

Maybe this helps?

        title: Schlafzimmer
        show_header_toggle: true
        entities:
          - entity: light.sz_innr
            name: "Main Lamp"
          - entity: light.sz_lightstrip_plus
            name: "Lightstrip"
          - entity: light.nachttisch
            tap_action: toggle
            hold_action: more-info
#

Works here as expected

#

In wich type you like to put the hold acton?

modest cliff
#

Entity button

civic sedge
#

press ctl +shift + R

#

Maybe it is this only

#

Tap action works?

modest cliff
#

tap actions works fine

civic sedge
#

Share more of the config - maybe spacing issue

modest cliff
lofty kiln
#

@civic sedge I hope so 🙏 .. Thanks 😃

civic sedge
#

Mhmm - Looks good here - But we got a very diffrent lovelace configuration
When you go under services - and then choose light.toogle entity light.bedroom_light_group - Does it toggle?

modest cliff
#

yes, because when i had toggle a tab action it also toggled

civic sedge
#

Ok.. Not the light group ? Maybe an old version - I just found out today that there is a hold action

#

So it must be afer 0.79

modest cliff
#

i'm on 0.81.6

#

it's realy bizar

civic sedge
#

also.. deam xD Then maybe you found a bug? 😄 - I make an entity-button myself to check

#

mhmm..

entity:  light.bedroom_light_group```
#

see the extra space there?

modest cliff
#

just after "entity:" ?

civic sedge
#

jup - delete it and maybe you good to go

#
          - entity:  light.bedroom_light_group
            tap_action: more-info
            hold_action: toggle
            name: "Bedroom Lights"

Otherwise check out if this works

olive lynx
#

@grim willow below code is giving me "http://192.168.1.2:8123/local/card-modder.js:61:74 Uncaught TypeError: Cannot read property 'getCardSize' of undefined" any ideas

resources:
  - url: /local/vertical-stack-in-card.js?v=0.0.8
    type: js  # USE WITH  type: custom:vertical-stack-in-card
  - url: /local/card-modder.js
    type: js  # https://github.com/thomasloven/lovelace-card-modder# USE WITH  type: custom:card-modder
  - url: /local/slider-entity-row.js
    type: js      #https://github.com/thomasloven/lovelace-slider-entity-row# USER WITH type: custom:slider-entity-row
  - url: /local/button-card.js
    type: module  # https://github.com/kuuji/button-card

title: Home
views:


  # PAGE 1 - HOME
  - id: 0  # Automatically created id
    title: Home
    icon: mdi:home-assistant
    #panel: true
    cards:

      - id: 962ec322b18b407396abeebe9879d7bd  # Automatically created id
        #type: vertical-stack
        #cards:
        type: custom:card-modder
        #style:
        #  --paper-card-background-color: rgba(0, 100, 0, 0.2)
        #  --paper-item-icon-color: white
        #  border-radius: 5px
        #  color: rgb(0, 0, 100)
        card:
          - type: entities
            entities:
            - entity: light.bedroom1
              name: Downlights
              #show_value: true
              type: custom:slider-entity-row
            - entity: cover.roller_shutter_b1
              name: Shutter
            - entity: cover.blind_b3_sheer
              name: Blind (Sheer)
            - entity: cover.blind_b3_sheer
              name: Blind (Blockout)
modest cliff
#

just deleting it didn't work 😒

wheat current
#

~rule6 @olive lynx

kind shellBOT
#

@olive lynx Rule #6: Spam will not be tolerated, including but not limited to: self-promotion, flooding, codewalls (longer than 15 lines) and unapproved bots.

Please take the time now to review all of the rules and references in #rules.

olive lynx
#

brought down the 🔨 wouldn't be more that 15 if it wasn't for that damn yaml formatting 😛

wheat current
#

well... use hastebin or similar services to share...

#

~share @olive lynx

kind shellBOT
olive lynx
#

🤝

olive lynx
#

ok so here's what I found, custom:card-modder can't be within a vertical-stack, the user of card/cards is required depending on quantity of cards within, and spacing, always double check spacing

lofty summit
#

anyone else getting spacing issues with conditional cards? it seems to add some empty space when you have a conditional card that's not showing

polar kelp
#

Version?

lofty summit
#

0.81.6

polar kelp
#

That's odd... I fixed that for 0.80...

#

Or is there nothing below the card in the same column?

olive lynx
#

Hi @polar kelp - just want to say Thanks for all your efforts and sharing all the custom goodies!

polar kelp
#

Glad you like it!

modest cliff
#

Is there anyone who can tell me if there is something wrong with this lovelace config?

#

The tap actions works fine but i'm unable to make the hold action to work

lofty summit
#

i'll have a look at the html code

polar kelp
#

No need. I can tell from the card code that it's broken again.

#

@modest cliff Home-assistant version? Are you on android?

civic sedge
#

Mhmm.. Can I mix a glance with conditional?

kind shellBOT
polar kelp
#

Well... you can... but...

#

No, wait. Glance... then no.

#

Maybe entity-filter or monster-card?

civic sedge
#

Monster card is already in use - Lets check
oh no - Group card.. Deam

modest cliff
#

@polar kelp i'm on 0.81.6 and, i've tried on the ios app and in chrome

civic sedge
polar kelp
#

When in doubt, you might as well make it a module. You will get errors in the browser log if you pick wrong either way.

#

@lofty summit I can't reproduce that problem on 0.81.6. Perhaps you could look at the html anyway?

#

@olive lynx Card modder should work fine in stacks. What's your problem?

#

If it's the code sample you pasted above, card: shouldn't be a list. Remove the - before type: entities.

olive lynx
#

yeah I do now realise that, typically changed a few things before testing

#

all working now, playing with your folding-entity-row currently, Great concept, but i'm thinking it won't do what i'm try to get it to

polar kelp
#

Which is?

lofty summit
#

@polar kelp <hui-conditional-card></hui-conditional-card>

modest cliff
#

@polar kelp was that a response to me ? "I can't reproduce that problem on 0.81.6. Perhaps you could look at the html anyway?"

polar kelp
#

No, that was for Gluwc.

olive lynx
#
 entities:
            - type: custom:fold-entity-row
              head: light.bedroom1
              items:
                - light.bedroom1
                  name: Downlights
                  show_value: false
                  type: custom:slider-entity-row
#

something like that, more a folding a whole card rather than simple entities

#

items looks to only work with " - light.bedroom1" rather than with the modifiers

#

awesome for what it is currently though!

polar kelp
#

The items should be formated the same way as entity rows, so if you add modifiers, you must have entity: light.bedroom1.

olive lynx
#

oh so it does! then the only thing is the header text rather than an entity, is that possible?? (I see the section, type can be used, which the styling could be overridden to make it look like a main header

#

head: Master Bedroom or
head:
type: titlle
label: Master Bedroom

#

anything like that work?

polar kelp
#

Afraid not. A section is your best bet. It will look a bit better after 0.82.

olive lynx
#

oh can't wait, love your work!

polar kelp
#

If you feel like your life is too easy you can do yaml head: type: custom:card-modder style: ... card: type: markdown ...

#

And then play around with the styling. Remove border and shadows and stuff...

#

But expect that to break any time.

olive lynx
#

ah interesting... i'll have a play.

#

that's half the fun for me, not so much the wife 😛

polar kelp
#

@modest cliff The configuration you posted works for me. Do you get any messages in your browser console when holding?

modest cliff
#

no the console is completely empty

polar kelp
#

@lofty summit Your conditionals are inside a vertical-stack?

lofty summit
#

yes

lunar trench
#

Trying to figure out what the css name is for the background of the guage in the thermostat.
Anyone know?
Does not seem to be:
paper-card-background-color
primary-background-color
secondary-background-color

raw brook
#

ITs fixed in the next release

#

Currently nothing will change the background

lunar trench
#

Ah

raw brook
#

Correct

lunar trench
#

tried to att that to my www dir and importing it as a resource did not work.

#

*add

raw brook
#

Not going to work that way

lunar trench
#

Figures 😛

broken mango
#

Hello everyone. Is it possible to add transparent area to picture-elements via card-moder?

mild veldt
#

@broken mango what are you trying to do exactly?

broken mango
#

Trying to emulate picture-glance card appearance

#

Want to add cover to card beside sensors

mild veldt
#

cover as in an icon for something in the cover domain?

broken mango
#

Yes. For my roller shutters.

#

I'd like to have something similar to @subtle rune temp-glance card

#

Plus cover icon

mild veldt
#

So you're trying to recreate the shadow box at the bottom?

civic sedge
#

Ah.. Another try.. I just playing around with the manual alarm panel - And I dont want to many struggles to activate it So I have 2 buttons for Arm home&away
Now I saw that Aktivating the alarm sends it tnto pending again -_- So the buttons coming back up - brain.exe stopped working
Ideas?
https://hastebin.com/okarayeguf.css

broken mango
#

@mild veldt yes

mild veldt
#

what's wrong with the solution given by teachingbirds?

#

screenshot of empty glance

#

as background

broken mango
#

Can't create empty glance

mild veldt
#

emptyish

#

then

#

or place an image that is a css gradient where you want it

#

I think toast did that a lot on sharethelove

broken mango
#

Will try

halcyon mantle
polar kelp
#

Just use that one.

halcyon mantle
#

Hmmmm.. So the syntax will be something like this - type: image entity: cover.garage_door_right type: custom:toggle-lock-entity-row image: /local/images/floorplan/garage_closed.png state_image: open: /local/images/floorplan/garage_open.png state_filter: open: brightness(80%) saturate(0.8) closed: brightness(80%) saturate(0.8) style: top: 94% left: 95% width: 5%

polar kelp
#

That’s an awful lot of type entries...

#

You can use type: custom:toggle-lock-entity-row as an element. If you set the name to ” ” and the icon to one that doesn’t exist that leaves you with just a locked toggle...

#

It’s a good idea to make something real, though. I’ll add it to my list.

mild veldt
#

how long is that list these days 😃

polar kelp
#

Not too long, actually. I’m planing a new version of column-card with more detailed control, but that’s it, really.

halcyon mantle
#

@polar kelp Thx! As Always, much appreciated. long-press was extremely useful, and this on picture elements will be awesome to gaurd against accidently opening a garage or gate... Will hold for the 'real' solution

polar kelp
#

Though I should probably add dates to the time input entity row too...

halcyon mantle
#

@polar kelp Just a follow up question, will it be possible to manipulate the more-info card? e.g. the more info for a cover entity, locking the opening/closing buttons

polar kelp
#

Not in the near future. It’s probably up for a redesign sometime, but for now it can’t really be modified.

#

Oh. That gives me a great idea...

silver crescent
mild veldt
#

@polar kelp I'm really looking forward to us reworking more-info. e.g. Clicking a TV icon brings up my remote picture-elements card in a dialog

silver crescent
polar kelp
#

A horizontal stack is as wide as the room a single card would normally have (about 300-500 pixels). Look up panel: true

silver crescent
#

thanks mate... Had the panel in the wrong section 😃

tough quiver
#

Can you do !include in the lovelace config

split granite
#

No

#

But see the pinned messages for a merge tool to allow you to effectively do it

tough quiver
#

cool

#

agh; driving myself crazy rn

#

im sure i saw a lovelace plugin yesterday that lets you specify the default lovelace view on mobile vs desktop

tough quiver
#

@polar kelp Hate pinging but I have a question about lovelace-gen

Can you use !include folderName/filename.yaml?

#

folderName being /config/lovelace/folderName

polar kelp
#

Yes

tough quiver
#

cool, thanks

polar kelp
#

Note that if you wish to include folderName/filename2.yaml inside folderName/filename.yaml you still need to specify folderName.

tough quiver
#

okay, fair enough

#

thanks

winter wasp
#

@raw brook any plans to support up/down buttons for setpoint on the thermostat card?

vapid field
#

Hey, earlier today i run the lovelace hassio upgrade addon. Now i get this error, any chance to recover from this?

winter wasp
#

click & drag sucks on mobile...

raw brook
#

🤷 Eventually

winter wasp
#

especially since your finger covers the setpoint number as you’re trying to change it

tough quiver
#

erm

#

Weird.

kind shellBOT
tough quiver
#

Anyway; that's a config I have as an !include in my lovelace-gen stuff it is only putting side room into the generated config

#

as proven by generated output being

- cards:
  - {entity: camera.side_room, name: Side Room, show_state: false, type: picture-entity}
  id: cameraTab
  title: Cameras```
brittle kindle
#

Can a Lovelace view have both an icon and a title?

tough quiver
#

Can't see why not?

brittle kindle
#

When I declare both

#

Only an icon appears.

#
  - title: Alarm Panel
    icon: mdi:shield
tough quiver
#

Nope, doesn't look like it only the icon loads up

brittle kindle
#

Wonder if there's any way to override that.

raw brook
#

No. Icon takes precedent here. Currently no way to override

tough quiver
#

"If you define an icon the title will be the tooltip"

#

Update on my problem with lovelace-gen only putting one of my camera picture-entitys in. it only puts in whatever the last one in the config is.

#

so if i comment out the sideroom one the back camera shows

#

Update again; putting them into a vertical-stack makes em all show up

#

Alright, fully sorted.
the view has this:

cards: !include cards/camera_layout.yaml```
instead of:

cards:

  • !include cards/camera_layout.yaml```
#

and the layout just has the - type:s instead of type: and its all fine

#

😃

ocean skiff
#

Hi! suddenly after updating to the newest version on my hassbian I get Unexpected error occurred
any reason why?

tough quiver
#

any more logs than that?

#

and its a lovelace thing , right?

ocean skiff
#

reload does nothing

tough quiver
#

go to info and see if anything is in the log?

raw brook
#

Try Ctrl+shift+R

tough quiver
#

also that

#

@raw brook He sent me the log for whatever reason in dm

#

this seems to be the key part.

found duplicate key "type" with value "glance" (original value: "entity-filter")
  in "/home/homeassistant/.homeassistant/ui-lovelace.yaml", line 24, column 9```
#

@ocean skiff I'd go into your lovelace config and look around line 24 to see if you have type written twice

raw brook
#

Seems like one of your cards has a duplicate type variable

ocean skiff
#

Ok I will look, it was all ok before the update..

halcyon mantle
#

I have an intresting idea, but don't think it will be possible... Will it be possible to implement a swipe-right swipe-left option to navigate the UI? @polar kelp This might just be right in your skillset if possible...

ocean skiff
#

Line 24 looks all ok

tough quiver
#

@halcyon mantle haha, I was literally just trying to swipe between pages on my phone

halcyon mantle
#

If possible, I think it will be an awesome feature to have - It has become the 'natural' way of navigating through stuff

tough quiver
#

yep

raw brook
#

I think there is something out there custom that someone built for that. You have to add it to each view though. I also can't remember what it's called 🤷

vapid field
#

any idea where to "promote` my awesome flex-table-card ? any list of custom lovelace cards, where it might be added ?

#

uh link ...

tough quiver
#

How do I add home assistant to my home screen on android? I'm using Chrome and get no prompt to. If I click the three dots menu in chrome and add to home screen it adds it but when I click 8t it opens in chrome not a separate window

raw brook
#

There is a current issue for that. But none of us can recreate it and no one can give us any debugging

tough quiver
#

Heh weird

raw brook
#

Im on Android 9 with the latest chrome

tough quiver
#

Ooh I'm also on 9

raw brook
#

I can't recreate it on my phone 🤷

#

Make sure to upgrade to the latest chrome

tough quiver
raw brook
#

🤷

tough quiver
#

@raw brook

#

This actually works

#
  1. Load page
  2. Airplane mode
  3. Reload page
  4. While it trys to load hit the add to home screen button from chrome
  5. Do it
  6. ???
  7. It works
raw brook
#

Yea. Thats in the Github issue too. Not sure why it works

#

It may be a chrome issue

tough quiver
#

Probably

sharp lagoon
#

I am new and struggling hardcore getting this set up. I've spent the whole day watching YouTube and reading stuff online. Can someone help get me started?

mild veldt
#

Really user dependent.

vapid field
#

feel free to be more precise, I'll try my best 😉

mild veldt
#

What you have, what you want, etc

sharp lagoon
#

so I'm trying to make a "Living Room" group and a "Kids Room" group.

mild veldt
#

Have you read through the official docs?

sharp lagoon
#

In the Living Room, show the media player and then the kids room show the humdity/temp sensor.

#

Yes, and I keep getting errors that says "duplicated mapping key"

mild veldt
#

Scale it all back and just create two views

raw brook
#

Dont duplicate your mapping key

#

🤔

mild veldt
#

Also coping configs from others can get you in trouble with formatting and you won't really know what you just did

#

Use a good IDE as well, I recommend vscode

#

Will help you with indentation

sharp lagoon
#

yeah, that's what I think it part of the issue, is that copying is not actually learning what is going on.

#

I'm using Visual Studio Code, is that ok

mild veldt
#

That is vscode

sharp lagoon
#

can you look at something and see if I"m even on the right track?

vapid field
#

sorry to be so direct, but: just go for it, don't ask if you may ask 😄

sharp lagoon
#

understood, thanks.

vapid field
#

I'll happily would have looked onto it already 😉

#

but it's not there ^^^

sharp lagoon
#

'title: Our House
id: Our House
views:
title: Living Room
cards:
type: media-control
entity: media_player.living_room
title: Kids Room
cards:
type: sensor
entity: '

#

I get "duplicated mapping key at line 8, column 5: title Kids Room"

raw brook
#

~format

kind shellBOT
#
:information_source:
Format Code:

To format your text as code, enter three backticks on the first line, press Enter for a new line, paste your code, press Enter again for another new line, and lastly three more backticks. Here's an example:

```
code here
```

Click on the link to learn how to format: https://raw.githubusercontent.com/skalavala/HassBot/master/format.gif

sharp lagoon
#
title: Our House
id: Our House
views:
    title: Living Room
    cards:
        type: media-control
        entity: media_player.living_room
    title: Kids Room
    cards:
        type: sensor
        entity: sensor.aeotec_zw100_multisensor_6_relative_humidity
vapid field
#
title: Our House
id: Our House
views:
    - title: Living Room
       cards:
          type: media-control
          entity: media_player.living_room
    - title: Kids Room
      cards:
          type: sensor
          entity: sensor.aeotec_zw100_multisensor_6_relative_humidity
#

might do the job

#

the duplicated mapping key is title

#

both are in the same indentation and this is a duplicate from yaml pov, the you have to tell yaml that you would like a list, which is denoted by a dash

raw brook
#

@vapid field Thats it.

#

the - matters

sharp lagoon
#

Wow! Ok, I was trying to be very careful with the spacing, but missed the -

#

so I got the media player to show up now, but the Kids Room still doesn't show

vapid field
#

@mild veldt nobody saw it 😄

mild veldt
#

Shhhh

vapid field
#

@sharp lagoon I messed up the indet, the 2nd card is in the same indent level as title but must be below

#

urgs... indend ...

sharp lagoon
#

thanks, I fixed it when I put it in HA

sharp lagoon
#

getting ready to be done for the night and do a restart, when I did the config validation, I get this:

#

extra keys not allowed @ data['customize']['title']

mild veldt
sharp lagoon
#

understood, thanks. I got my titles to show up in lovelace, but the media player isn't there and the sensors aren't showing, but the titles are there so making some sort of progress. Thanks for the help.

undone egret
#

there is nothing in core that has customize

mild veldt
#

customize is handled on the backend is it not?

undone egret
#

no not customize

mild veldt
#

TIL

vapid field
#

@sharp lagoon for me a similar part looks like this:

#
    cards:
    - type: custom:flex-table-card
      title: Trash Collection Dates
      entities:
        include: variable.muell_list
      columns:
        - attr_as_list: date
          name: Date
        - attr_as_list: what
          name: Which
#

keep in mind that cards implicitly mean "multiple", thus type shall be a list not a mapping

undone egret
#

@mild veldt there is customize but nothing with tiltle

vapid field
#

mind the dash 😉

mild veldt
#

@undone egret I saw customize and my brain just jumped straight to that without much consideration

undone egret
#

np

plush tulip
#

Hey hey

#

anyone help with getting a custom card working?

#

I've got the mini-player loading

#

for each component that I want

#

but now I want to group them

#
      - type: custom:mini-media-player
        entity: media_player.samsung_tv
      - type: entities
         title: Music Players
         entities:
            - entity: media_player.bedroom_speaker
              type: custom:mini-media-player
              group: true
            - entity: media_player.living_room_speaker
              type: custom:mini-media-player
              group: true
            - entity: media_player.kitchen_speaker
              type: custom:mini-media-player
              group: true
#

I try this per the instructions

#

but I'm getting: mapping values are not allowed here in "/config/ui-lovelace.yaml", line 112, column 15

#

which is the "title: Music Players"

mild veldt
#

Your indentation looks off

#

On mobile so can't test to be sure though 🤷

plush tulip
#

ding ding ding

#

thanks @mild veldt

mild veldt
#

Errors?

cunning violet
#

Looks like its something to do with my CSS changes. Ill figure it out. Cheers

cunning violet
#

Is anyone aware how to re populate # Automatically created id?

steel dune
#

I just manually renamed mine, but if you just delete the id line, will it just repopulate or put the same one back in?

timid burrow
#

they rolled back the change so if you delete the id line it won't come back

#

i believe it's coming back but a lot of people got pissed that their files were edited

#

so they backed the change out

cunning violet
#

Ahh gotcha, I had deleted a few and now realise they are needed to use the new UI config.

timid burrow
#

yes that is why they were introduced

#

they will be created again I guess when they are needed... they are random and never had any meaning so don't worry about them. In 0.81.1 I deleted a few and they just came back with different ID's

cunning violet
#

@timid burrow thanks, not in any rush still prefer notepad++ for yaml.

timid burrow
#

i use editpad+ but notepad++ is good for showing spacing

vapid field
#

I always wondered why there is no nice yaml editor showing yaml as a tree, what it actually is, show as tree, include minimal structure meta data and changing yaml would never end in "where did I not indent correctly", "is this a list or a mapping" ...

steel dune
#

Not to get too off topic, but for that reason I love Franks IDE ass-on in hass.io as it allows me to collapse all the levels and make it a lot neater. It's also for that reason, that although I appreciate the ids are needed, I give them unique names of my own as they are the only line that shows up once the branch/level is collapsed. That or I move the title line above the ID

polar kelp
#

*immature giggling

#

Franks IDE ahem .. anyway....

olive lynx
#

tried every option @polar kelp to get a plain group header on for the Head config of the Fold-entity-row - nothing works other than a plain weblink, the card-modder won't render anything

#

and it looks like the styling i'm trying to apply to the a within the #head class won't apply to the shadowdom

olive lynx
polar kelp
#

Fun fact: the section row actually came to be because I wanted a label to put in fold-entity-row, then balloob steered me towards a dividing section.

#

I could make the bar on top of the section hidden if the fold is the first element in a card... that might look ok...

olive lynx
#

is styling of the section possible? I kind of like the weblink with the icon I just want to remove the text decoration and color

polar kelp
#

No, it's not.

polar kelp
mild veldt
#

The crazy sob did it. @polar kelp I need answers!!! 😀

subtle rune
#

I demand answers!

radiant drum
#

Hi! What do i use to show state of entity instead of icon on a picture?

subtle rune
#

@radiant drum Are you talking about the picture glance card?

radiant drum
#

yeah.. sorry

subtle rune
#

You can't at this time. You'll need to use picture elements card for that

radiant drum
#

ok will test how it works. Thanks!

#

Is it possible to change color on text for picture elements card?

lunar trench
#

think it will accept css

#
          - type: state-label
            entity: sensor.temperatur_pannvatten
            style:
              top: 15%
              left: 92%
              color: white
              --ha-label-badge-font-size: 1em
#

Anyone know if this issue with the thermostat card is known:

#

After a while the animated part goes away and leaves a square.

mild veldt
#

@lunar trench I haven't heard of such an issue. What version are you on and what browser?

atomic citrus
#

is it possible to use a picture-entity as a jump off point to another tab?

#

like setting a navigation_path as tap_action?

grim cairn
#

how do I add an automation override control to lovelace?

mild veldt
#

@atomic citrus not for picture-entity

#

that one is on my list to convert to TypeScript/LitElement and will likely add that functionality though as it is via a common method

#

@grim cairn like a toggle to turn it off?

grim cairn
#

yes I have an entitiy card but not sure what to add for entity?

atomic citrus
#

@mild veldt so right now there is no way alt all?

#

or the otherway round... add an entity information to a picture card?

#

😃

mild veldt
#

@grim cairn did you try just adding the automation in question? Or do you want them for all automations?

#

@atomic citrus picture-elements is your work-around, for now

#

or just wait a few weeks

#

no hard promises on timeline

grim cairn
#

entities:
- automation.bedroom_light_alarm_morning

#

thats what I tried

#
        entities:
          - automation.bedroom_light_alarm_morning
#

Get No card type configured.

polar kelp
#

Sounds like the rest of the card configuration is missing...

grim cairn
#

ops had an id before card fixed thanks!

#

😃

lunar trench
#

@mild veldt 0.81.1 Safari chrome and the iOS app. Same issue with all of them.

mild veldt
#

"After a while" @lunar trench . What is your rough guess as to how long that took to happen?

#

Would also recommend upgrading to newest release as a lot of bugs have been squashed

lunar trench
#

I seem to be able to force it to happend if i switch view a couple of times.

#

Gonna upgrade and check soon.

whole eagle
#

Speaking of the thermostat card, first off I love it, secondly, it does not seem to scale correctly when in a horizontal stack on mobile. The font is slightly too large and the bottom edge of the card is too high. The symbols for cold, hot, off, etc. get cut off half way. Even with this it is usable, just not quite perfect.

polar kelp
#

Nothing scales correctly in horizontal stacks on anything. You should avoid using them as far as possible.

raw brook
#

Yea.. Its hard to fit everything in that space. Im slowly getting better at making things more dynamic will try to fix in a futre update

#

But Thomas is right. Horizontal stacks screw up a lot of our dynamic cards like that

whole eagle
#

So, and this may simply be ignorance on my part, why not offer a 1:1 scale option? Just one setting that says, I give permission to scale everything relative to the available width based on the original dimensions. Most of these cards are being designed with a square base in mind to start right? If the setting is enable, some font may be too small or other things could happen but it may allow the stacks to work better for some people with marginal card specific changes.

#

Kind of a lesser of two evils approach.

raw brook
#

Its not as easy as adding an option. Lots of dynamic css styling for each element would need to be added for that to happen. If it were that easy I would do that. But that is the goal. We are just trying to find the most efficient way to do that with out gunking up the code

whole eagle
#

Understood, thanks for humoring me.

#

'''

polar kelp
#

🎉

mild veldt
#

@polar kelp this is so cool

faint echo
#

@polar kelp Does the custom:card-modder no longer work with the custom:monster-card in 0.81.6 ? I am using the monster-card in 2 places and neither is working now with the card-modder .

polar kelp
#

It works for me

dark tartan
#

2018-11-05 11:05:42 ERROR (SyncWorker_5) [homeassistant.components.lovelace] YAML error in /config/ui-lovelace.yaml: while parsing a block mapping
in "/config/ui-lovelace.yaml", line 59, column 9
expected <block end>, but found '-'
in "/config/ui-lovelace.yaml", line 85, column 9

anyone tell me what this means?

raw brook
#

Bad yaml

#

~share

kind shellBOT
raw brook
#

Share your yaml

faint echo
#

@polar kelp hmmm, I use the same settings on all my cards but the monster card is the only one not working for some reason . . . .odd

dark tartan
#

@raw brook all of it or just the relevant section?

raw brook
#

Relevant

dark tartan
#

how do i use this hastebin thing?

#

i think thats it

#

i think its talking about hte second horizontal stack entry

raw brook
#
  1. You should look into the integrated Gauge card
#
  1. What line is 59
dark tartan
#
  • type: vertical-stack
#

line 85 is the second horizontal stack

raw brook
#

It could be something above this view thats messing with it

lofty kiln
#

Hi .. Can anyone point me towards some documentation on how to style a specific Lovelace Card? .. I am making a specific ID page with a single card in it that I load using an iframe, but I need to be able to change the CSS for that specific card .. I am not able to find any documentation on this .. anyone who can help please?

#

It does not matter if that specific cards layout will be percistant, but it would be nice if I could seperate the styles from the page ids

raw brook
#

Look into Themes

#

You can theme some of the cards per card but you can also theme on a per view basis

lofty kiln
#

@raw brook Aha .. Okay .. I thought theme was global for the HA

raw brook
#

You can also look into the Card Modder

lofty kiln
#

@raw brook Nice .. thats just what I am looking for! .. Great! Thank you 😃

fresh bone
#

Anyone having the iframe card option 'aspect_ratio:' still functioning OK? Since HA 0.81.x it seems it does not work at all anymore. Whatever value being given, no change in how the card is rendered.

Even both 'Height-Width' example configs on the HAGallery page are broken (i.e. the same rendering with different values). See: https://home-assistant-lovelace-gallery.netlify.com/#demo-hui-iframe-card

lofty kiln
#

@fresh bone I have just used the iframe card using Firefox, and aspect ratio works fine in there, atleast for height using latest HA version .. I have specified 40

#

@fresh bone 40% that is

#

@fresh bone But you are correct, the examples on that page does not work using the given %, but in my server they do

mild veldt
#

@lofty kiln what are you trying to do to the iframe with css? You won't have access to any css in the actual iframe
There are issues with the gallery @fresh bone , but it should be working for your installation. What browser are you using/OS?

lofty kiln
#

@mild veldt I just need to style the card, then load it using kiosk from another panel (TileBoard)

mild veldt
#

@lofty kiln ech

lofty kiln
#

@mild veldt 😎

fresh bone
#

@lofty kiln Good to know it works for you. I tried both in Chrome and IE on different computers, clearing cache etc. I have been using different values, ranging between 30% and 310% (which worked OK before).
Will install Firefox for testing purposes.

@mild veldt I tried Chrome Version 70.0.3538.77 (W10 Edu 64b / W10 home 64b on laptop) and Microsoft Edge 42.17134.1.0. Also tried in Incognito Mode etc. On Android 9 phone same issue with Chome browser (v 70.0.3538.80)

I use Hass.io on a n Intel NUC with Ubuntu Server 18.04 LTS and Docker.

iPad app still works OK, I just tried to verify.

lofty kiln
#

@fresh bone Have you tried Private mode on Chrome .. if it does not work at first in FF then try the Privacy .. works for me .. have not yet testet it on my iPad

mild veldt
#

@fresh bone you're adding % to the end of your value?

fresh bone
#

@lofty kiln Yes, tried in Incognito Mode. Same issue. Also Firefox displays incorrect (v. 63.0.1 64b), just installed and tested.
[edit: Firefox started displaying correctly somehow after a couple of refreshes of the page.]
Only in my iPad Home Assistant app my iframe cards display correct.

I use a theme, but when I set it back to default theme and clear cache same issue. Very strange behavior...

mild veldt
#

Share config and I'll see if I can replicate

fresh bone
#

@mild veldt Yes, I use the % and the same code worked OK before HA v 0.8x.x.
This code displays two identical iframe cards:

  - title: iframe
    cards:
      - type: iframe
        url: https://embed.windy.com/embed2.html
        aspect_ratio: 50%
      - type: iframe
        url: https://embed.windy.com/embed2.html
        aspect_ratio: 100%
mild veldt
#

@fresh bone it seems as though it is applying the first aspect_ratio to both...

thorny verge
#

For a plex media player, the playing media is in {{ states.media_player.name.attributes.picture_entitity }}, so I have a template sensor with the location of the picture.
Any way to display a picture in lovelace with the state of a sensor?

raw brook
#

@mild veldt Does the Iframe not run in its own ShadowDom after going to Typescript?

fresh bone
mild veldt
#

@raw brook no, iframe is just a standard HTML element, right?

#

or do you mean the hui-iframe? That does have its own shadowdom which should self-contain any styling

raw brook
#

The dynamic CSS is not working

fresh bone
#

I searched Discord, Community forum and HA Github for possible others with this issue, could not find anyone else having this behavior.

raw brook
#

IT works if I add the style directly to the #root element

mild veldt
fresh bone
raw brook
glass oak
#

i guess i missed when they announced the new light cards

#

those look perfect for room specific remotes

raw brook
#

Beta
