#circuitpython-dev
tulip sleet

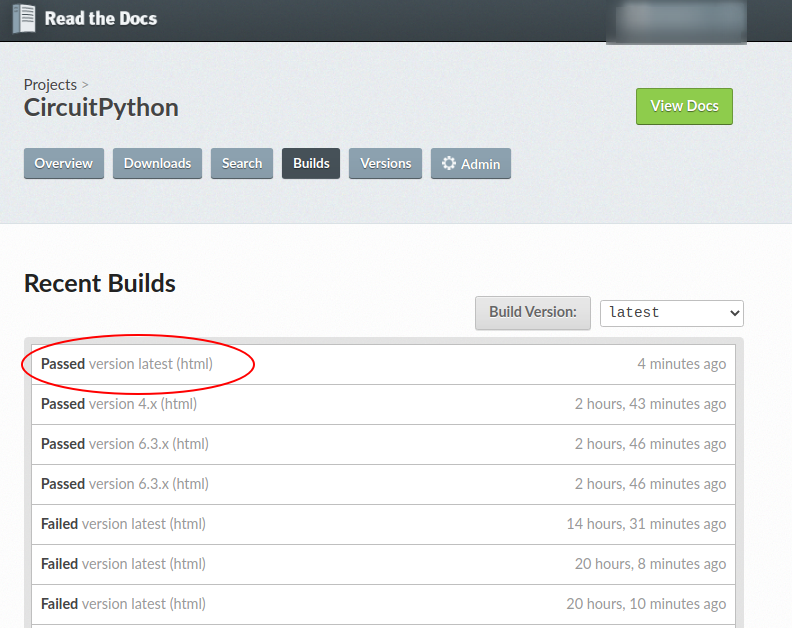

@idle owl we are all set with RTD now
onyx hinge
oops that was on the wrong pull!
onyx hinge
I think we've been keeping up with these? but maybe there's an API way to help. https://github.blog/changelog/2021-05-06-github-actions-beta-api-to-approve-actions-from-forks/ -- though you'd also need a way to list the ones requiring approval, hm
lapis hemlock
@onyx hinge Thanks, Jeff! Here is the new tag: https://github.com/v923z/micropython-ulab/releases/tag/3.0.0
orchid basin
ornate breach
Is there a way to make it so the default download for my CP Sapling Revb is the 6.3.0 release and now the 7.0 Alpha?
I may have did something wrong on my copy for the revb
tulip sleet
Is there a way to make it so the default download for my CP Sapling Revb is the ...
your revb was added as a new board after 6.3.0 was finalized, so there is no 6.3.0 build for it. if/when we do a 6.3.1, we could add it
ornate breach
ah, okay that makes sense
solar whale
@onyx hinge to run your parallel capture on the kaluga with an ov7670 -- did you add pullups to the ov7670? Your note i the code says it was unmodified. Or did you just add pullups to the SCL/SDA pins externlly.
onyx hinge
<@!426200547024961539> to run your parallel capture on the kaluga with an ov7670...
I didn't add pulls. I think there's another i2c device with pull ups on the board
solar whale
I got it working with pullups
having some issue with the display
the image is split and does not use the whole screen - I wonder if I have a different version of the display board.
Are you using the one that came with the Kaluga?
manic glacierBOT
@jepler I tried this code with the updated ov7670 library on my Kaluga 1.3 -- It "works" but the display is a bit confused.
I wonder if my simply board is the same as yours
Here is the funky image
onyx hinge
The pull ups are on the audio board which is originally between the main board and the LCD board so if you remove that from the stack you will have to add your own
There are at least two versions of the LCD screen, probably you have the other
Though I may also have messed up the init code while preparing the example in the pr, I originally had it in a separate file
solar whale
ah - good to know about the audio board -- I'll put it back in. My display seem to have a different screen size -- I'm looking for some docs...
Still -- off to a great start!
Thanks for getting this going.
onyx hinge
Thank you for testing, it can be so helpful
solar whale
My pleasure -- I learn a lot from doing this.
Cool! it does work with the audio board and no pullups!
onyx hinge
Good to know
manic glacierBOT
hmm -- If I swap the height/width setting , then I get a normal image, but the camera size is reduced to 160 x 120 -- progress
Adafruit CircuitPython 7.0.0-alpha.3-55-g2cbdd18a2 on 2021-06-10; Kaluga 1 with ESP32S2
>>>
>>>
>>> import ov7670_test
240 320 160 120
fps 6.25582
ionic elk
@slender iron @tulip sleet who's the best person to talk to about the set-next-file stuff? I've finished reading all the context and I'm merging the PR with all the changes from main, but I have some questions/comments about how it's going to interact with deep sleep and what's acceptable in terms of non-volatile data storage
tulip sleet
since Scott is out for a while, you can talk to me. I have thought about it a little.
ionic elk
The particular thing I'm mulling over is the storage of stuff in sleep memory, because that's a feature that actually involves per-port hardware and is not always easy to implement - for instance, the RP2040 does not have sleep memory at the moment and I really don't know how I'm going to go about implementing it
Even in the case where we do use sleep memory, it becomes a case where Circuitpython starts absorbing resources that are normally user accessible. I could treat the storage of critical variables like next-file and exception-reason as a sort of mini-heap, that extends from the end of the sleep memory and reduces the available size?
But if a port doesn't have sleep memory implemented, or doesn't have sleep at all, is next-file a feature that could afford to have port-level not-implemented errors?
or do we really want to stress that it's universal, and make sure it's available at least through the heap methods no matter what?
tulip sleet
you can use the "storage_allocation" mechanism to reserve blocks of memory before the heap is allocated. It can reposition this memory in some cases, if that's necessary. I don't think it's a good idea to write to flash. You might look at the mechanism I used for boot.py to allow some variable-sized storage to live between VM instantiations. I save space on the stack, copy from the first VM up to stack array, and then back down to the next VM
I think sleep stuff is orthogonal to run-next. There are uses for it that have nothing to do with sleep, such as just switching between several main programs. E.g. start a menu program, choose what to run, and restart.
ionic elk
Thinking about it, I think my primary worry here is mostly just the RP2040, which should probably just get reworked to not actually reset on deep_sleep. It's causing a lot of problems and I think the justifications for it is fuzzy
idle owl
Is this something that can be turned into a list comprehension somehow? py for p in ports: if p.pid is not None: print("Port:", p.device, "-", hex(p.pid), end="\t") if p.pid == 0x8101: rotary_trinkey_port = p print("Found rotary trinkey!") break else: print()
tulip sleet
Is this something that can be turned into a list comprehension somehow? ```py
fo...
not with all the print()'s no, that code looks fine as is
idle owl
Thanks.
tulip sleet
you could just do if p.pid: without checking for None explicitly, but for a beginner, maybe that check is better
ionic elk
@tulip sleet I would not be using flash regardless, the ESP32 and STM32 sleep memory is just low power ram that doesn't get erased by sleeping. But the relevance of sleep is that when a "sub-program" wakes up from deep sleep, you probably don't want it to return to the menu - you'd want it to restart the same program. But that can't be done with deep sleep unless set-next is stored either in nvm or the sleep memory sector.
idle owl
you could just do `if p.pid:` without checking for None explicitly, but for a be...
Oh hmm. Ok. Fair enough.
ionic elk
Having programs that deep sleep force a return to a menu strikes me as possibly being a really big inconvenience to people - it basically would mean that sub-programs can't autonomously deep sleep at all.
tulip sleet
@idle owl also you are doing a break once you find the thing, so a comprehension is not a good choice, since you can't break out of a comprehension.
idle owl
<@!330227457296957440> also you are doing a break once you find the thing, so a ...
Oh good to know. It's not my code, so I was working mostly with the if not None part, and it felt comprehensionable. So I asked. Thank you.
tulip sleet
if you could store 32-64 bytes for the filename, that's good enough (maybe less)
ionic elk
I don't think I can guarantee 64 bytes of scratch register access across ports.
tulip sleet
the user might need to use some different mechanism them, like managing the restart themselves. So they do restart to the main program, and choose the menu item based on one byte in sleep memory, and then restart that immediately.
ionic elk
One option I haven't seen discussed is whether a set-next file could simply be stored as an index
tulip sleet
it could be some kind of index into the filesystem, but if the filesystem changes out from under you, bad things will happen. It would have to be cleared on any write
ionic elk
Is there a reason it needs to be stored as a string? Can't we just search the directory, sort it in a reliable way, and store the index of the file? Same with exceptions, just store an enum
tulip sleet
it could be anywhere in a tree of directories, not just at the top level. It's a pathname, not a filename
ionic elk
point taken. That could be a lot of repeated searches.
if you do it every time the fs is updated
tulip sleet
more likely, you could store some filesystem internal index into the directory metadata
you could just give up if the filesystem changes.
maybe you can just say that you can't use run-next across deep sleep, though i guess that might have been a strong motivation for this
ionic elk
But that still assumes storing it on the filesystem. The index approach would be to try and get the next-file to fit in a scratch register bank
tulip sleet
no, i mean like look in directory block nnn, and then look at an offset in there. It requires understanding the FAT structure
ionic elk
It's sort of the other way, you're saying that you can't use deep sleep in run-next programs, which doesn't sound great to me
manic glacierBOT
ionic elk
It sets the precedent that programs called by run-next actually lose functionality
tulip sleet
so which chips don't actually support a meaningful amount of deep-sleep sleep memory now?
i.e., which ones can't preserve a small chunk of RAM?
special RAM or regular
ionic elk
STM32 and RP2040. STM32 just because I didn't get to it, but it should be easy. RP2040 because we decided to reset the chip with the watchdog after deep sleep, and it doesn't have a protected ram section for deep sleep because it expects all ram to be protected in deep sleep and we're deliberately sidestepping that.
Reminder that the the RP2040 deep sleep decision was because allowing the RAM to persist across deep sleep would require the enter_deep_sleep function to return, which is an API change with possible compilation consequences.
tulip sleet
RP2040 had lousy power consumption anyway on deep sleep?
ionic elk
No, it's pretty good?
Timealarm isn't great, like 5mA. But PinAlarms are 1.4mA of draw with the Pico, and maybe lower with a power-optimized PCB
lone sandalBOT
ionic elk
I say "pretty good" in that it reduces power from the runtime state pretty well compared to NRF, which isn't performing very well in my tests.
thorny dove
Today put my first repository on GitHub: msfs2020_gps_rx. A CircuitPython project with a RPi Pico. See: https://github.com/PaulskPt/msfs2020_gps_rx
ionic elk
@tulip sleet based on datasheet power it should end up around 180uA when using PinAlarm in dormant mode
tulip sleet
does it maintain RAM in that case?
ionic elk
It always maintains ram, there's no RAM off option at all
tulip sleet
and does a reset really clear RAM?
ionic elk
there is an even lower ram power state, which I don't use at the moment, and this reminds me I have to go back and do that
@tulip sleet yes
a watchdog reset fully resets the ram
idle owl
Ok, anyone have any idea where to begin troubleshooting this? It's CPython, but still. I feel like I'm missing something obvious. ```Traceback (most recent call last):
File "/Users/kattni/.virtualenvs/slidertrinkey/lib/python3.9/site-packages/serial/serialposix.py", line 322, in open
self.fd = os.open(self.portstr, os.O_RDWR | os.O_NOCTTY | os.O_NONBLOCK)
FileNotFoundError: [Errno 2] No such file or directory: 'cu.usbmodem14241401'
During handling of the above exception, another exception occurred:
Traceback (most recent call last):
File "/Users/kattni/AdafruitDev/Slider Trinkey Code/ST_huebrightness.py", line 23, in <module>
trinkey = serial.Serial(p.name)
File "/Users/kattni/.virtualenvs/slidertrinkey/lib/python3.9/site-packages/serial/serialutil.py", line 244, in init
self.open()
File "/Users/kattni/.virtualenvs/slidertrinkey/lib/python3.9/site-packages/serial/serialposix.py", line 325, in open
raise SerialException(msg.errno, "could not open port {}: {}".format(self._port, msg))
serial.serialutil.SerialException: [Errno 2] could not open port cu.usbmodem14241401: [Errno 2] No such file or directory: 'cu.usbmodem14241401'```
It's code that uses pyserial to talk to a Slider Trinkey. Should there be code running on the Trinkey or something? I wasn't given any associated code.py.
ionic elk
along with everything else on the chip except the scratch registers, and maybe even those because I still can't seem to get them to relay the wakeup cause properly
tulip sleet
@idle owl no /dev/ as a prefix to tty name?
idle owl
@solar whale Wrong channel.
idle owl
<@!330227457296957440> no `/dev/` as a prefix to tty name?
I have no idea how to add it? It sees it earlier in the code....
onyx hinge
@solar whale [responding to your message from another channel, probably there by mistake]
@Jeff E. (he/they) In Monday's meeting it sounded like you were all set to abandon the OV7670. Has it been given a new lease o life or is this just a temporary revival?
I was having trouble with the OV2640 so getting the OV7670 back out was a way to remove an unknown variable
idle owl
This is printed immediately before it @tulip sleet Port: /dev/cu.usbmodem14241401 - 0x8102 Found rotary trinkey!
onyx hinge
I was simultaneously trying to get the OV2640 register configuration AND the esp32-s2 parallel capture going
idle owl
And I can screen to that address and it works.
solar whale
@onyx hinge thanks -- sorry about the channel confusion
tulip sleet
isntead of p.name, there is another attribute you can use that's the complete pathname
hold on a minute, i'll look it up in a minute
ionic elk
I wish Discord had a bookmark function for stuff you want to remember
idle owl
That's what it's printing earlier, so I tried it.
Now onto another failure ๐
Thanks Dan!
ionic elk
so I could pin tech suggestions
onyx hinge
@solar whale getting back to configuring the OV2640 is probably next
lone sandalBOT
tulip sleet
@ionic elk the reason for a full reset is to get everything in a known state, is that right? Could we do that "manually"?
i'm not so worried about the NORETURN thing. That could be conditional compilation or something. I think we could figure that out.
ionic elk
@tulip sleet Yeah, I guess so. I don't know why it would be that urgent for deep sleep to get things into more of a "known state" than a regular reload or even fake deep sleep would do
tulip sleet
i think mostly reset pins and peripherals
ionic elk
that's done anyway, though, by the usual functions on reload
When you fake deep sleep, it still runs port_reset() and all that stuff
tulip sleet
yeah, so it's the NORETURN thing. I have to be afk for a while, but I think rethinking that issue is where to go
idle owl
It's the point of NORETURN.
ionic elk
All good you've been very helpful in thinking this through, I appreciate it
idle owl
Well it made me laugh. ๐
tulip sleet
you win discord for today ๐
tulip sleet
it is a perfect interjection
idle owl
Now can someone please go hit the button on my Hue bridge? It has to be pressed within 30 seconds of running the code, and unless I inherited something from Flash Gordon, there's literally no way for me to make it back from the basement in 30 seconds.
onyx hinge
can your cats help out?
idle owl
Hilariously, when you register it in the app, it shows a cat paw pressing the button in the app.
But no, they are not interested.
Brian will be home eventually. I'm being impatient.
ionic elk
program a Circuitpython to poke it
idle owl
lol. Overengineering 101.
onyx hinge
do you have a laptop you could take down to the basement instead?
ionic elk
Honestly having a generic thing-booper around the house would probably be handy
ionic elk
give it a little enclosure, have some offsets that could put it at angles, pair with a ziplock of Command strips...
onyx hinge
or can you temporarily move the hub to the area where you're working?
idle owl
Hmm not sure if it's portbound. We have a.... fancy setup.
idle owl
Honestly having a generic thing-booper around the house would probably be handy
Hah right?
I guess I could de-couple the laptop from its life support system. I feel like that's more annoying than waiting though. So I guess waiting wins out.
onyx hinge
maybe if you put the thing inside this, and modify the claw to be the thing-poker?
idle owl
Home-claw-game for when you want to waste time not getting the thing you want in your own home.
ionic elk
I'm imagining a ESP32-S2 thing booper product now, give it a little silicon finger, WiFi access, rechargeable battery, time or trigger options...
onyx hinge
and paperclip attachment for those hard-to-poke buttons
idle owl
It being a finger seems a little uncanny valley, except in a dismembered sort of way.
But it's absolutely getting called the Thing Booper though.
onyx hinge
https://www.adafruit.com/product/3529 I wonder if these kinds of arms are rigid enough plus one of these https://www.adafruit.com/product/2776
idle owl
You can buy the material used in those arms separately. There were folks DIYing that setup.
onyx hinge
yeah under names like "loc-line" I think
idle owl
yeah under names like "loc-line" I think
This is the same concept and would handle a solenoid bounce. https://www.quadhands.com/collections/all/products/quadhands-magnetic-arm-200
(I have a quadhands setup at all my workstations)
onyx hinge
ooh
solar whale
@onyx hinge thanks for all the work on the kaluga! Mine has sat on my shelf until now. Iโm looking forward to using it. I did the sdk demos when I got it, but was not very excited about it. Using it with CP will be fun!
onyx hinge
@solar whale you should figure out how to upload the camera photos as a bmp over the wifi
to make a ... combination photo booth & doorbell?
idle owl
@candid sun Hey! FYI, the Learning System Guides repo has moved to main. Easiest option is to delete your local clone and your remote fork and start fresh. Here is how to do that: https://learn.adafruit.com/contribute-to-circuitpython-with-git-and-github/starting-over-fresh That guide also has how to do it manually if you really want to. Let me, Dylan or Anne know if you have any questions.
candid sun
<@!347203168121126912> Hey! FYI, the Learning System Guides repo has moved to ma...
Thank you! Coincidentally I was just moving my personal repos to main today ๐ธ
idle owl
Thank you! Coincidentally I was just moving my personal repos to main today ๐ธ
Nice! You're welcome. Let me know if the guide is unclear in any way as well - it's a new page I did up this morning, so feedback is welcome.
candid sun
Nice! You're welcome. Let me know if the guide is unclear in any way as well - i...
Will do!
idle owl
To everyone who contributes to the Community Bundle, there is a PR into cookiecutter to add a CircuitPython Community Code of Conduct. Please take a look at https://github.com/adafruit/cookiecutter-adafruit-circuitpython/pull/144 and provide any feedback as to what you would like to see. It is currently a barely-modified version of the Adafruit Community CoC, and will need some changes to work as a Community CoC, and I would appreciate any input you might have. Thanks!
candid sun
Nice! You're welcome. Let me know if the guide is unclear in any way as well - i...
followed along with the page for the Learn repo. great addition! very clear
manic glacierBOT
lone sandalBOT
manic glacierBOT
onyx hinge
@solar whale I was trying to avoid using a displayio rotation, which is why I modified the MADCTL register, but evidently it doesn't work everywhere or my copypaste version of the script messed up. 65535 is just my mistake, I guess.
it might prevent "the whitest white" from showing properly
onyx hinge
(avoiding displayio rotation is PROBABLY superstition, except when using OnDiskBitmaps where it can affect performance extremely negatively)
idle owl
Anyone have a Slider Trinkey and a Windows machine, want to test a script for me? I'm on a Mac and apparently it's not supported by the Python library this script uses. It's designed to use the Slider Trinkey to change your monitor brightness. Involves both CircuitPython and Python.
tulip sleet
Anyone have a Slider Trinkey and a Windows machine, want to test a script for me...
i could do that
idle owl
i could do that
Ok, thanks. Here's the two files.
For the Slider Trinkey
To run from your computer.
@tulip sleet Actually try this one.
Because the value the Trinkey is returning is 0-100 already.
This is going to be annoying to troubleshoot if it fails for you. It failed in my VM.
But I have 0 knowledge of the state of the Python situation in that VM. pip worked and so did python so there's something. But the code fails on import.
tulip sleet
i have to install python on my laptop ๐
idle owl
Ah fair enough.
tulip sleet
@idle owl it works! of course had to do:
pip3 install screen-brightness-control pyserial first
tulip sleet
I am using the python.org python installer, not the MS store installer. If I remember right, one installs as python3 and the other as python. Not sure about pip vs pip3
idle owl
I pip installed screen-brightness-control and it installed pyserial in my VM. But I won't trust that to work.
Ok
I usually say "pip, or maybe you need pip3"
or some such.
tulip sleet
python.org installed as python, not as python3.
idle owl
Right. Thanks!
tulip sleet
anyway it works fine once all the pre-reqs are there. screen-brightness-installer did not bring in pyserial when i installed it
idle owl
Heh, yeah
still zephyr
Looking for suggestions to replace the word master for I2C, is Controller ok?
tulip sleet
we have been using "main"
see several paragraphs down here, for instance: https://learn.adafruit.com/circuitpython-basics-i2c-and-spi/i2c-devices?view=all#i2c-protocol-2837704-1
main and peripheral
still zephyr
Thanks Danh, is to correct another learning guide (y)
crude blaze
I'm back trying to start a port for bcm2711, I thought the mpy port would be a good start but quickly realized that CPY differs hugely in terms of api and how the ports are setup. So I'm now trying to build a makefile from scratch to get the bare minimum working. The cpy makefiles seem to call a bunch of python scripts and I'm currently getting the following error, feeling like some variable might not be set correctly but not sure how to debug this.
make: *** No rule to make target '=', needed by 'build-PI4/genhdr/qstr.split'. Stop.
Full log: https://pastebin.com/j0rC0FNJ
onyx hinge
py/mkrules.mk:$(HEADER_BUILD)/qstr.split: $(SRC_QSTR) $(SRC_QSTR_PREPROCESSOR) $(QSTR_GLOBAL_DEPENDENCIES) | $(HEADER_BUILD)/mpversion.h $(PY_SRC)/genlast.py you have an incorrect value in one of these variables that qstr.split depends on. If you've added this in your Makefile, you can make print-SRC_QSTR to see the value in the SRC_QSTR variable, for instance: ```make
Print out the value of a make variable.
https://stackoverflow.com/questions/16467718/how-to-print-out-a-variable-in-makefile
print-%:
@echo $* = $($*)
from there you can hopefully trace what is going on. If I had to make a totally random guess, you have multiline variables like ```make
A =
B
C
X =
Y
Z
(you can either leave the \ off the last line, or you can insert a blank line. Some favor having the blank line so that every line in a multiline variable assignment consistently has a backslash at the end, and when MODIFYING makefiles to add something to the end you don't need to also add the backslash to the previous line. This is a matter of preference, but if there's a prevailing style in CircuitPython we'd appreciate if you tried to follow it)
@crude blaze ^
onyx hinge
There are other ways it could occur but that's my best guess
crude blaze
looking at my makefile it seems to be all ok regarding multiline statements, both a blank line and no \ at the end of the last line in all cases
given that it is looking for a target named "=" that sounds like something doesn't get passed to that makefile maybe
anyway to find out what variable that could be that tells mkrules.mk to build target "="?
my knowledge with cmake is pretty basic unfortunately
like what is the command that is actually calling this makefile, the higher verbosity output is not really giving any clue about that. I'm guessing it must be somewhere in makemoduledefs.py?
all the variables used in the qstr.split target at least not empty, which is somewhat weird
onyx hinge
@crude blaze pastebin the full output of make -n -p and I'll look to see what I can see.
crude blaze
oh thats useful, was not aware you could do that ๐
crude blaze
UGH, yes, thank you! ๐
onyx hinge
I'll leave all the hard parts to you ๐ you're welcome!
it's a fun project you've taken on
crude blaze
definitely! I hope
I will find enough time to see it through
at the very least I will learn a lot more about the cpy core
crude blaze
now I have the issue that it doesn't seem to link correctly against my cross compile toolchain. Complaining about standard headers like <stdint.h>. In this case being included in ../../py/mpstate.h so can't be an issue with code from the port.
Have I maybe missed something in the toolchain setup? I don't think I ever told it to look there for includes, the only thing being defined is the location of the toolchains bin/ directory set in path and the prefix for the compiler binaries
onyx hinge
I don't know.
seems like https://github.com/isometimes/rpi4-osdev never includes a "standard" header file at all
crude blaze
ah yea no, this is from CPY not code related to the bcm2711
manic glacierBOT
manic glacierBOT
manic glacierBOT
manic glacierBOT
hearty tapir
Hi @analog bridge, I hope youโre doing great! I saw your enhancements on the Wi-Fi authmodes, but as per my understanding those also removed the ability to detect if a SSID has WPA-Enterprise or WPA3. Why would it be an enhancement to remove this detection capability?
manic glacierBOT
manic glacierBOT
I have something that needs more investigation still but wanted to post what I did find. I got a Saleae and was trying to capture the glitch. I finally managed to get a few instances where an entire line was blank. I noticed that the timing between the column select command and the data was ~36 microseconds.
analog bridge
Hi <@747673663419187281>, I hope youโre doing great! I saw your enhancements on ...
Hi @hearty tapir, the ability to detect WPA3 and ENTERPRISE wasn't removed...
esp32s2 does not support those authmodes when acting as an ap so that's where the removal took place.
this function handles detection: https://github.com/adafruit/circuitpython/blob/main/ports/esp32s2/common-hal/wifi/Network.c#L57-L96
and this handles ap initialization: https://github.com/adafruit/circuitpython/blob/main/ports/esp32s2/common-hal/wifi/Radio.c#L166-L196
scenic jetty
is there a porting guide or template port directory for adding a new architecture/board?
I am working on a port for the FPGA implementation of PyFive
I saw the litex port but was wondering if there is a base port template
ember iris
is there a porting guide or template port directory for adding a new architectur...
Would this be what you're looking for? https://learn.adafruit.com/how-to-add-a-new-board-to-circuitpython
scenic jetty
lemme see
well it is close but makes the assumption that your board is based on the samd series of processors
my target risc-v based and is closest to the litex port so I guess I can extrapolate
ember iris
So I don't see a guide for it in circuit python (and if someone finds one please correct me, I'm curious now) but this might help outline how to help do it via micropython: https://forum.micropython.org/viewtopic.php?t=5795
And these: https://learn.adafruit.com/building-circuitpython
https://learn.adafruit.com/debugging-the-samd21-with-gdb
might help extrapolate to circuit python from there
scenic jetty
yeah micropython has a minimal port which is a good starting point
pretty sure that was the starting point for the lofive implementation of micropython
hearty tapir
Hi <@!586300798980587537>, the ability to detect `WPA3` and `ENTERPRISE` wasn't ...
Thank you, I looked at the wrong change then. ๐
crude blaze
@scenic jetty there is the porting guide but no template unfortunately https://circuitpython.readthedocs.io/en/latest/docs/porting.html
turbid radish
?serverinfo
digital shoreBOT
adafruit
scenic jetty
Thanks @crude blaze
idle owl
@tulip sleet Can Bluetooth 4.0 talk to CircuitPython? There's a thermometer I am thinking of getting that doesn't say BLE, but it says Bluetooth 4.0, which the internet indicates includes BLE, but I don't know how that works.
tulip sleet
we don't speak "Classic" Bluetooth. Could you give a link and maybe I could interpret the specs?
idle owl
Yeah give me a minute and I'll link you.
tulip sleet
4.0 includes both, yes, it's not a very useful name
idle owl
@tulip sleet https://www.thermoworks.com/wand-blue
tulip sleet
I have corresponded with Thermoworks about their thermometers. They require exchanging proprietary keys with their Bluetooth-enabled devices. It is BLE but we don't have access to it without signing an NDA.
tulip sleet
when I was looking for devices we could talk to they were on the list, but we had to give up because of that
idle owl
Yeah I sort of remembered that and wasn't sure why you didn't follow through.
Makes sense.
Now I want to go sign an NDA just so I can talk to it ๐
tulip sleet
they were more worried about cloning than about their own app. With an NDA they were happy to have you write an app, etc.
idle owl
Hmm. Wait, cloning what?
tulip sleet
that their thermometers would be counterfeited
tulip sleet
yeah, they already had a lot of trouble with unauthorized resellers, and maybe some counterfeting, I can't remember. They don't authorize sales through Amazon, for instance.
idle owl
Yeah I think I knew that. At least their shipping is quite quick though directly.
solar whale
hmmm -- just stumbled across an issue -- CircuitPythons print function does not recognize the argument flush. This causes some errors in the Fingerprint library example -- easy to fix and I've opened an issue, but should flush be accepted. I ran into this on a CLUE (nRF52840) have not tried other builds. yet...
onyx hinge
weird, it looks like it should work (in 7.0 at least) @solar whale
MicroPython 7.0.0-alpha.2-563-g35ee4add6-dirty on 2021-05-13; linux version
Use Ctrl-D to exit, Ctrl-E for paste mode
>>> print("hi", flush=True)
hi
mine is on 7.0.0 alpha-2
>>> print("hi",flush=True)
hi
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
OSError: [Errno 22] Invalid argument
>>>
I can try latest
onyx hinge
hmmmm!
yeah file an issue
I assumed the problem was print() not knowing flush=, but it DOES, only the extra action it tries to perform doesn't work
onyx hinge
@solar whale yeah by coincidence I had a clue in front of me as well .. so it's only SOME but we don't know the pattern yet. interesting
tough flax
Is there a weekly meeting today? If so when?
tulip sleet
2pm et
tough flax
Thanks
idle owl
Hello, all! CircuitPython Weekly meeting is in ~1.5 hours - 11amPT/2pmET. If you'd like to participate, please remember to add your hug reports and status updates to the notes document (linked). Hope to see everyone there! <@&356864093652516868> https://docs.google.com/document/d/10z3OQ1_Pc-cmG-CodmMsbFaebYaV81JSUGb8Tl-ql5o/edit#
idle owl
Is there a weekly meeting today? If so when?
I was a minute too late ๐
idle owl
@onyx hinge Do you have time to test my setup?
onyx hinge
sure I can jump in the voice channel @idle owl
errant grail
Thanks!
old smelt
Lurking
modern wing
Lurking as well ๐
tough flax
Listening - no need to talk
turbid radish
Welcome Bill!
tough flax
Thanks @turbid radish - will be listening while driving shortly - just want to catch up... Unofficial Hugs to @tulip sleet for all the USB work he's doing!
thorny jay
listening...
thorny jay
๐
onyx hinge
errant grail
50 -- that's not old....
The clock traveled the globe as the family moved. The last move it was damaged to the point that only the whistles and gong were salvageable. It's had a difficult 50-year life.
solar whale
Sounds like a labor of love -- good luck!
errant grail
Thanks! It's been working for about a year now, but the whistle bellows are beginning to leak.
lone axle
@idle owl i'm dending the HID consumer codes from this example: https://github.com/adafruit/Adafruit_CircuitPython_HID/blob/main/examples/hid_consumer_control_brightness.py
errant grail
onyx hinge
there are at least 2 or 3 different displays that they ship with the kaluga. there
's no clear way to tell the difference without trying different init code
I've seen intermittent read errors on stm32 with sdioio but pretended I didn't notice it.
solar whale
Good to know -- they're back....
onyx hinge
update-learn and breaking-change sound good to me
still zephyr
will do
thorny jay
Previous topic and the list of PR: "Adafruit_CircuitPython_HID" is there a "standard" way to replace the US Keyboard by something else. I think there are two tentative, one German and one French, but this will never catchup if there is no "infrastructure" or "indication" on the acceptable way to do that.
solar whale
We need a flag for "unintended consequences" ๐
modern wing
Thanks everyone! Another meeting in the bag ๐
thorny jay
Looking forward for the video... to find the timestamp of my demo. ๐
onyx hinge
@thorny jay we can't add all the world keyboards to the single adafruit_hid package, because it would be too large. I think it would be possible for other keymaps to live in the community bundle, so that they were separately installable according to need. There is sure to have been previous discussion of this, so if I'm contradicting something previously said then I am wrong ๐
gilded cradle
Thanks
still zephyr
Thanks
thorny jay
Great!
thorny jay
<@!681528999520108564> we can't add all the world keyboards to the single adafru...
Then maybe the US keyboard could be optional and out of the HID library. And each and everyone would have to import the layout he need?
onyx hinge
@thorny jay I see where you are coming from with that statement, but probably the US keyboard will remain where it is.
thorny jay
Well, the US keyboard take space too, if you are not using it. ๐ except if one can inherit from it to make another mapping more "light". Or I don't know, Adafruit could create the EN_UK keyboard and say: "This is how we believe internationalisation should be done..." and other can just copy cat and adjust the keys in separate library.
tulip sleet
the keycode names are chauvinistic in the USB spec and are based on the names of the keys on a US keyboard. that was part of my original motivation for including KeyboardLayoutUS in HID.
thorny jay
(I don't know how many difference there are between US and UK QWERTY keyboard.)
turbid radish
About a pound
thorny jay
About a pound
Sound like a joke, but I feel it is maybe right. (thinking about it, I wonder if they ever included the โฌ symbole... now it might be too late).
tulip sleet
we could factor out KeyboardLayout... and put it in a separate library. That's fine with me, but we need to think then about what to do about having a layout frozen in (or not) on the boards that do freeze an HID library
thorny jay
Well today, I switched to English keyboard for my code to work, because it does : emoji_code :
onyx hinge
keyboards are weird, sometimes you want to think of them as reporting the location of the keyswitches that are pressed (for instance, so that those particular 4 keys under your left hand move your character within a game -- americans call those keys WASD after their legends, but what's written on the keys is unimportant) and other times by the effect they should have in "standard programs" (such as inserting the letter written on the keycap itself if the key has "W" written on it)...
there's a related fallacy that maybe there are just a small number of different sets of legends that are ever written on the keys, and you might make a list of all of them as a short-hand
Here is the notes document for Mondayโs CircuitPython Weekly meeting. It is at the normal time of 11am Pacific / 2pm Eastern here on Discord. Everyone is encouraged to attend! Please add your hug reports and status updates even if youโll be attending the meeting - itโs super helpful! If you are unable to attend but would still like to include updates, feel free to include them in the notes and weโll read them off during the meeting. Hope to see you there! <@&356864093652516868> https://docs.google.com/document/d/1YXO2yPKADI2fiEFZTl9ZOgK5pbE890KLIKCZVHq6GIc/edit?usp=sharing
idle owl
@tulip sleet I don't have time to try to figure this out on my own. Use make V=1, make V=2 or set BUILD_VERBOSE similarly in your environment to increase build verbosity. FREEZE ../../frozen/Adafruit_CircuitPython_SimpleMath ../../frozen/Adafruit_CircuitPython_NeoPixel ../../frozen/Adafruit_CircuitPython_HID QSTR updated Traceback (most recent call last): File "/Volumes/circuitpython.git/circuitpython/ports/atmel-samd/../../tools/mpy-tool.py", line 1037, in <module> main() File "/Volumes/circuitpython.git/circuitpython/ports/atmel-samd/../../tools/mpy-tool.py", line 1022, in main raw_codes = [read_mpy(file) for file in args.files] File "/Volumes/circuitpython.git/circuitpython/ports/atmel-samd/../../tools/mpy-tool.py", line 1022, in <listcomp> raw_codes = [read_mpy(file) for file in args.files] File "/Volumes/circuitpython.git/circuitpython/ports/atmel-samd/../../tools/mpy-tool.py", line 776, in read_mpy raise Exception("not a valid CircuitPython .mpy file") Exception: not a valid CircuitPython .mpy file make: *** [build-adafruit_slide_trinkey_m0/frozen_mpy.c] Error 1 make: *** Deleting file `build-adafruit_slide_trinkey_m0/frozen_mpy.c'
Can you please help?
Was I supposed to update make or something?
Or mpy-cross?
tulip sleet
rebuild mpy-cross
it doesn't get rebuilt automatically
cd ..../mpy-cross; make clean;make
idle owl
Oh I didn't do make clean first just now.
tulip sleet
make clean may not be necessary, but sounds like it is
idle owl
@tulip sleet It worked without the clean. ๐คทโโ๏ธ
tulip sleet
@idle owl I can fix up the formatting if you are too busy
idle owl
@tulip sleet I pushed it already?
tulip sleet
i was expecting a message here, for some reason, never mind
tulip sleet
yeah, just my fuzzy headedness, np
ember iris
mind if I ask why you requested newlines between the aliased pins? Style guide adherence?
tulip sleet
that style is in my head
idle owl
Some boards have a bunch of aliases, etc. This board is a simple example, where, yeah there's only 4 things in there, so it's not bad. But to match what we do elsewhere, it should be the same.
tulip sleet
it's easier to double-check that aliased pins are truly the same
ember iris
I completely missed the file the edit was on, that makes a lot of sense now, thank you!
tulip sleet
i have made dozens of board pin defs, and have to triple-check them against the schematic. Anything that helps to catch copy/paste errors is good.
idle owl
You're welcome! Thank you for asking.
blissful pollen
Does someone offhand remember the function to sleep a few microseconds? Trying to debug something and want to introduce a delay on purpose
Ah its okay I found it (common_hal_mcu_delay_us(1)) for anyone else ever looking
steel granite
Hi everyone, I am porting circuitpython to SAML21, but I am problem with clock configuration and USB, apparently the clocks work but I can't get the USB to work, anyone have any experience with this?, thanks
tulip sleet
Hi everyone, I am porting circuitpython to SAML21, but I am problem with clock c...
not on SAML21. If you can try a TinyUSB example (without CircuitPython) on SAML21 and get it to work, you may be able to compare what it is doing with what the atmel-samd port is doing.
steel granite
not on SAML21. If you can try a TinyUSB example (without CircuitPython) on SAML2...
oh, thank, I trying with tinyusb
fluid moss
Hey @tulip sleet I have an easy one for review: https://github.com/adafruit/circuitpython/pull/4887
The previous PR (that you merged) missed a spot.
(The TinyS2's SDI and SCK were the wrong way around)
fluid moss
Thanks ๐
blissful pollen
Funny I just ran into that error too! But didn't have a chance to look into why
manic glacierBOT
onyx hinge
wahoo, just got the first capture to work from an OV2640 to a Raspberry Pi Pico running CircuitPython! https://gist.github.com/1ba336028cb718138901f0f72dd302a0
steel granite
not on SAML21. If you can try a TinyUSB example (without CircuitPython) on SAML2...
Hi, TinyUSB working with SAML21 and examples, I'm going to check the configuration of clocks that tinyusb use
manic glacierBOT
hollow token
@tulip sleet iirc, there is a standard absolute pointer tablet device that VM stacks have been using for yonks
supported natively by everything
as in KVM, VirtualBox, ESXI, etc have been using forever
manic glacierBOT
tulip sleet
<@!329766224093249548> iirc, there is a standard absolute pointer tablet device ...
Is the one I posted the standard? If not, could you point to it as a comment in that issue? Thanks.
@solar whale Your MICROPY_PY_IO comment is well taken; I think you deleted it but I'm not sure why. Yes, it is all a micropythonism, which until now I did not bother to figure out. It provides the io module, whose code also seems to provide extra functionality for stdin/stdout (maybe...)
solar whale
@tulip sleet thanks. I deleted it because I realized I was still confused about the connection to UJSON vs JSON and wanted to understand it better.
tulip sleet
I think it's just that the json module depends on the functionality provided. I should have mentioned the reason for io in my own comment. So feel free to put it back.
solar whale
Will do.
main furnace
I used cookiecutter to bootstrap my new widget for displayio-layout. Trying to merge an update but the CI fails:
Collecting Adafruit-Blinka
Downloading Adafruit-Blinka-6.10.2.tar.gz (136 kB)
ERROR: Could not find a version that satisfies the requirement adafruit-displayio-layout (from versions: none)
ERROR: No matching distribution found for adafruit-displayio-layout
https://github.com/rsbohn/Dexter_CircuitPython_Slider/pull/1/checks?check_run_id=2839218046
Do I need to change something in the CI configuration?
main furnace
(Guess I should run pre-commit locally first.)
tulip sleet
yes, do pre-commit install in your repo to have it run automatically
main furnace
Had an error in my requirements.txt -- fixed it and passed all the CI checks. (Should have been "adafruit-circuitpython-displayio-layout").
idle owl
@tulip sleet Am I understanding how supervisor.reload() works in that there is no chance of it causing filesystem corruption if it's called in your code.py because it's happening at the CircuitPython level, not the microcontroller level?
tulip sleet
that should be ok. Interestingly I hadn't thought about this at all as a way to restart code.py -- maybe I forgot it existed.
(I saw the discussion in the other channel)
onyx hinge
ah ... pylint gives different results locally than on github, because I have python3.9.
is there any convenient way to get older python versions on debian?
tulip sleet
ah ... pylint gives different results locally than on github, because I have pyt...
you can use the Ubuntu deadsnakes ppa: https://unix.stackexchange.com/questions/188741/install-newer-older-versions-of-python-on-debian
one person says it's fine, the other says it's not ๐
jaunty juniper
I think pyenv was simple enough, once setup with the versions you want, you can pyenv local <version> in the directory to setup with that version
idle owl
is there any convenient way to get older python versions on debian?
I second pyenv. I use it on MacOS but I'm pretty sure it works on Linux as well. Also, is that why Pylint is returning different results locally? I ran into that on Monday and didn't have the time or energy to look into why. I simply fixed the issues.
I'm also using Python 3.9.
idle owl
@tulip sleet I know this has been asked and answered many times, but I'm asking it again (sorry). How are we referring to I2C parts in CircuitPython? I think one is peripheral, but I'm not remembering the other (can only think of central being associated, but I think that's specific to Bluetooth).
idle owl
I second `pyenv`. I use it on MacOS but I'm pretty sure it works on Linux as wel...
Pylint passed remotely, but locally failed on a bunch of stuff. I thought it might be a difference between my setup and the Learn repo.
tulip sleet
<@!329766224093249548> I know this has been asked and answered many times, but I...
If you look in the Learn Guides, you see "I2C Main" and "Secondary", but I like "Peripheral better". Sparkfun uses "Controller" and "Peripheral" e.g. https://learn.sparkfun.com/tutorials/i2c/all
idle owl
If you look in the Learn Guides, you see "I2C Main" and "Secondary", but I like ...
Hmm ok. I'm doing up the I2C template. So I can kinda call it what I want here and it'll end up in all the board guides eventually. I don't know why we didn't go with controller and peripheral. It makes way more sense than main and secondary. I get that main and secondary maintain the first letters, but it's not necessary like it was for MOSI and MISO. No one says "I2CM" and "I2CS" so those letters aren't really crucial.
tulip sleet
the guides that have Main and Secondary are older Tony guides and maybe they were changed very early in all this
I like Controller and Peripheral too. Sounds like a 6pm mtg q
idle owl
Good call. I was going to make an executive decision, but I suppose it's worth discussing.
Looks like Zephyr never came to a conclusion either.
onyx hinge
@idle owl in my particular case, it was time.monotonic_ns being recognized locally but not in CI.
idle owl
<@!330227457296957440> in my particular case, it was `time.monotonic_ns` being r...
Oh mine was not like that. Mine was ... one was using sys.exit(), one was an else/break issue, and .. something else I'm forgetting. This was on Python code. So maybe the Learn repo isn't setup to deal with Python code so much.
Learn passed it, local did not.
onyx hinge
yeah the ways that pylint runs are subtly different --- library, library example, and learn all are a bit different, mostly on purpose
like the way we deal with the duplicate code check in examples .. which I'm a bit surprised hasn't affected learn?
idle owl
Yeah....
I think we pinned it on Learn.
Or we disabled it.
Pinned Pylint I mean.
And disabled the dupe check.
onyx hinge
okay
idle owl
Not sure though.
But that would make sense.
Because I have personally duplicated a ton of code. So I know other folks have as well.
@onyx hinge pylint==1.9.2. Oi. Yeah we pinned it.
duplicate-code is in the disable in .pylintrc as well though.
Which I can't remember if that ever worked like that. But eh.
onyx hinge
we've tried pinning it and not pinning it and they both make us unhappy.
so in libraries we do both !? -- repo: https://github.com/pycqa/pylint is pinned at 2.7.1, while the repo: local one uses whatever you have, or (in CI) what was installed by pip install --force-reinstall pylint Sphinx sphinx-rtd-theme pre-commit
tulip sleet
@idle owl there's more precedent in the Learn Guides for controller/peripheral and controller/device than main/secondary or main/peripheral: https://www.google.com/search?q=site%3Alearn.adafruit.com+"i2c+controller"
the "I2C main" terminology should probably be cleaned up: https://www.google.com/search?q=site%3Alearn.adafruit.com+"i2c+controller"
idle owl
<@!330227457296957440> there's more precedent in the Learn Guides for controller...
Perfect.
idle owl
the "I2C main" terminology should probably be cleaned up: <https://www.google.co...
Seems so. I'll bring it up.
hollow token
one person says it's fine, the other says it's not ๐
Yeah mixing packages from another distro or from a newer or older version of debian isn't a good idea.
Its nicknamed frankendebian, https://wiki.debian.org/DontBreakDebian/
its better to use pyenv because you're not modifying the system to do so and everything is available to you as a non-privileged user.
manic glacierBOT
solar whale
@tulip sleet FYI regarding Issue 4894, when it was originally reported as 4886, I was unable to reproduce it. All versions worked for me.
They got hung up trying to update the bootloader bu tI had no issues with any of the version of CP they reported.
tulip sleet
<@!329766224093249548> FYI regarding Issue 4894, when it was originally reported...
thanks, I have not tried it yet
solar whale
I did have a newer bootloader than the as-shipped boards and I updated mine to the current release. Not that the issue should be related to tthe bootloader anyway...
tulip sleet
i don't think so, but ... I will put this on the 7.0.0 list
manic glacierBOT
you dont need to update the bootloader, but you should be using the latest releases. did you try 7.0.0 alpha?
I copied adafruit-circuitpython-itsybitsy_nrf52840_express-en_US-7.0.0-alpha.3.uf2
to my ItsyBitsy NRF52840 Express and got the same result as with any other version above CP 6.0.1
Sorry for my German "device manager output" but I think you can see what ...
ember iris
@tulip sleet This is an odd shot in the dark, and since it's more likely to be misleading than helpful I figured I'd ask here: Was circuit python 6.1 around the time that the german translation was having a lot of trouble fitting on some boards? Would there be a similar cause here?
tulip sleet
<@!329766224093249548> This is an odd shot in the dark, and since it's more like...
well, a build either fits or it doesn't, so I don't think it has to do with that, and todbot probably didn't test the German translation. an overflowing build causes the build to fail, and does not generate bad code
but that is the kind of good thinking that is helpful when debugging: "what is different here?", so I appreciate your thoughts
ember iris
Good to know, thank you!
tulip sleet
this shows you are good at debugging ๐
ember iris
Haha the compression of the translations and error strings is the way I want to try to contribute to the core code, so it was a forward thought in my mind
manic glacierBOT
Good news under Linux !
The ItsyBitsy NRF52840 Express shows up as /dev/ttyACM0
And works with CP 6.0.1:
And also with CP 7.0.0-alpha.3
...
manic glacierBOT
Additional info:
This is how the ItsyBitsy NRF52840 Express shows up running CP 6.0.1:
And this is running CP 7.0.0-alpha.3:
And this in UF2 BOOTLOADER mode:
onyx hinge
huh we use the sdk libm on nrf, not the micropython libm. not sure it matters, but the micropython libm is probably smaller
tulip sleet
huh we use the sdk libm on nrf, not the micropython libm. not sure it matters, ...
that is a mistake, we should probably use the micropython one to consistent results (even if they are less accurate or whatever)
onyx hinge
I was just noticing that the CI builds PDF documentation. Do we use PDF documentation for CircuitPython?
https://circuitpython.readthedocs.io/_/downloads/en/6.3.x/pdf/ I guess readthedocs makes it available, so it's probably good to test it as well
OK, merge 1.16 got through the "test" build this time, yays.
manic glacierBOT
manic glacierBOT
manic glacierBOT
manic glacierBOT
onyx hinge
@tulip sleet so much for my recollection, maybe it was Scott..
tulip sleet
I remember saying something about using flag bits to indicate what follows. But I don't remember either of us suggesting the pointers to separate blocks thing.
I think you may have come up with that yourself, or it seemed obvious to you when we were discussing it
onyx hinge
It's still all one block, the "flexible array member" is present in memory right after the initial fields of the object
tulip sleet
oh, I thought it was a pointer, due to the double curly-braces. I didn't look closely
it is a pointer?
i need to read the code ๐
onyx hinge
struct _mp_obj_type_ext ext[]; The "ext" field is a flexible array. A short type has no items in ext[], while a full type gets 1
tulip sleet
i thought there were multiple such things, because,say, parts A,B,C, were all optional, so you might have just A, A and C, B and C, etc. But it is just there or not? In that case, I did suggest that, sort of
onyx hinge
Yeah there are just two kinds of type structure with my change, the full and the short; the short becomes the default, because it was a great way to make sure everything that needed to be changed became a compile error.
tulip sleet
the stuff I had seen in the past was exactly that. There was a flag of what was optional, and then it was all mashed together, and unpacked sequentially. This was when PDP-10's had 256k words of RAM, so we were always thinking about saving space
ok, then, I claim a little credit ๐
onyx hinge
anyway, it works, but I think we (I) need to find the best syntax and one that accomodates implementations that prefer NOT to split the type objects .. and then we should probably at least get upstream to say they're interested in taking something like this before we dive in and do it ourselves.
having two type structs with matching initial fields may be better than the optional fields; it would make the changes for namedtuples (which follow the type object with their own additional fields) a little less unnatural.
tulip sleet
i agree, maybe it's just a (slightly horrible) macro
onyx hinge
I had fun on a saturday and that's what counts. ๐
tulip sleet
i notice you did not try the awful "pointer masquerading as an integer" thing
onyx hinge
I'm not sure how it would have applied here
if you're being serious you should tell me more
tulip sleet
i was awake at 3am Sat morning thinking about this, so I just write it down, and then the bug gets transferred to your ear from mine
my thing was only about how to encode variable-length proxies, nothing about variable-length type objects
onyx hinge
properties?
tulip sleet
the .proxy object: getter/setter/deleter
onyx hinge
ok yeah we're talking about the same thing then
onyx hinge
I'll let you do that one .. hmm .. The property type did end up being a small type, interestingly enough
saving about 32 bytes for each of those two new types
tulip sleet
so the +244 or whatever for the original multiple property types was not all code; the new types were a significant chunk of that
onyx hinge
yes if I said code I probably meant flash
tulip sleet
anyway what i said is way less general that what you did, and is more pervasive and better. you just said firmware size
onyx hinge
having just one property/proxy type would be very nice also because it speeds up the "check if it is a property" path which is probably a hot path
tulip sleet
yes, I was thinking of that too. I could just try 1. from the comment above and see what savings there are on small builds (which is where it's critical). 2. would be twice that minus some extra code
anyway my reason for all this was to try to get the keypad code back in at least some of the SAMD21 builds
onyx hinge
it's like going through the couch hoping to find enough change that you can see a movie
(which is probably a thing that does not occur anymore)
probably you shold introduce a macro for producing these objects, so it is easier to try out alternatives
onyx hinge
the raw number of declarations you have to tangle with is pretty small when your "target" is trinket_m0 (say)
I actually did own some crypto but I 100% divested back in April. I'm confident I don't own any now.
it's not how I support my lavish lifestyle ๐คฃ
stuck elbow
I just thought that was the equivalent of the couch search these days
sooner or later the samd21 will have to be left behind
tulip sleet
yes, limor says that
not that it's not useful, but that it simply cannot have the functionality we would like it to have
stuck elbow
I wonder if it would make sense to drop the translations for it at some point
onyx hinge
or even use the new no-error-messages build setting
turbid radish
?serverinfo
digital shoreBOT
adafruit
ornate breach
Ohh getting close to 30k ๐
timber mango
Hi I'm using an UM feather S2 togehter with a Adafruit RFM95W LoRa Radio Transceiver Breakout - 868 or 915 MHz - RadioFruit for my lora project and deep sleep (with circuitpython) because I'm using lipo batteries. This works fine. My preferred solution would be to use circuitpython/deepsleep with my Adafruit Feather M0 with RFM95 LoRa Radio - 900MHz - RadioFruit feathers. Is there a technical reason, why this feathers doesn't support circuitpython deepsleep? Using C as to my knowledge here deepsleep is supported, but my whole solution GW etc. is bsed on python, so I don't want to change all this stuff to C.
stuck elbow
The reason is that this hasn't been finished yet.
timber mango
So I think in the near future the feathers will support it. This is important for me, because I have a bunch of this feathers and using it, I would be able to reduce the form factor of my sensors. Any ideas when it is supported?
tulip sleet
Someone is actively working on sleep on ports other than ESP32S2. But we don't do schedule promises, because too many things can go wrong.
One other important thing is that the SAMD21 ("M0") ports are very space constrained, particularly the non-Express boards like the Feather RFM boards. So it's quite possible sleep will NOT be supported on those boards for space reasons.
The nrf and ESP32S2 board have the best sleep implementations right now
timber mango
mmh ok I understand, my thx
tulip sleet
doing anything of size on the integrated RFM board is unfortunately a very tight squeeze, as you may have discovered already
timber mango
ok so I think I will go on with my UM feathersS2 ๐
tulip sleet
@ionic elk thanks for that draft sleep power consumption page. We can talk about whether to wait for further work on the RP2040 (changing the reset behavior) before doing sleep. If we release something that doesn't really save power, I think we will get a a lot of support blowback, so my inclination is to wait.
tulip sleet
ah, I see the comment above. I thought it was not really sleeping at all
ionic elk
@tulip sleet it reduces power from 27mA to 1.4
Oh, no, I guess I got that across wrong. Basically the RP2040 is annoying because it enters low power modes but has special RAM that doesn't lose power even when in the uA range
Even when you "power down" the RAM, which I'm not even presently doing, it still doesn't lose data
tulip sleet
so what we -really- need is a new board with an external RTC clock, then you could really get it down to uA
tulip sleet
I wonder if an RTC featherwing would provide the signal we need
how slow can it be?
1 sec?
ionic elk
1Hz
yeah
I wasn't sure if we wanted to put in a weird API thing to support it though
tulip sleet
if we have to, we have to. It could be an optional arg or some chip-specific addition to alarm
ionic elk
Yeah I have a bunch of those laying around. I could try it
ionic elk
When you use TimeAlarm as it's implemented now, it's 5mA
which is real good for light sleep, but pretty mediocre for deep sleep
tulip sleet
maybe ExternalTimeAlarm ๐
though that sounds like PinAlarm
i think maybe an extra required pin arg or something
ionic elk
I mean if you're using the DS3231 you might as well just program it with an alarm and use PinAlarm
that's what I do for my alarm clock
idle owl
<@&356864093652516868> Meeting in ~15 minutes! Please include notes in the notes doc if you plan to participate, or want to include notes if you're not making the meeting. See everyone there! https://docs.google.com/document/d/1YXO2yPKADI2fiEFZTl9ZOgK5pbE890KLIKCZVHq6GIc/edit
blissful pollen
lurking (2nd shot day +1, no major symptoms but didn't get to updating the doc)
idle owl
lurking (2nd shot day +1, no major symptoms but didn't get to updating the doc)
Congrats! Hope it continues that way.
modern wing
Congrats on the shot, the finish line for being fully vaccinated and maxinated is just a short distance away ๐
old smelt
Lurking.
fossil gorge
Lurking and listening in, enjoying the company while trying to get sqrt(-1) things done
manic glacierBOT
supple gale
Listening. ๐
fossil gorge
Pretty sure that means Kattni's now the Git Rebase de facto expert! ๐
manic glacierBOT
thorny jay
Problem with rebase... is that even if you succeed once, you are not sure you will succeed again (at least that is the case for me). ๐
fossil gorge
Congrats on the PyOhio talk!
idle owl
Thanks!
@trim elm Add your name to your In the Weeds topic, if that was you. That way we can turn it over to you when we get to it.
trim elm
<@!362023826105827340> Add your name to your In the Weeds topic, if that was you...
Oh, thanks. Didn't know to do that but that makes sense
idle owl
@errant grail I'm now picturing you having decade-themed sections in your house.
ionic elk
@slender iron API for your review: sleep_memory_reserve_for_system will grab memory starting from the end of the sleep memory block. It will shrink the size of the memory reported by get_length. If this conflicts with user reserved memory, a runtime error will be reported. If the user later attempts to reserve system memory, a different runtime error will be reported, which notes the system reserved some extra memory. Also would add set, get, and free routines for this "system block".
fossil gorge
And thanks to that comment, I can't get the image of a new-wave neon blacklight decorated bathroom out of my head. ๐จ
errant grail
<@!339922377746022402> I'm now picturing you having decade-themed sections in yo...
Yes. We decided to celebrate it rather than make it boringly uniform. Itโs a museum now.
trim elm
Ooh that's really cool
slender iron
<@!252717193496756235> API for your review: `sleep_memory_reserve_for_system` wi...
why not just always reserve a fixed amount? that way the sleep memory size is fixed across runs
idle owl
CircuitPython Day 8/6/2021!
fossil gorge
2021/08/06
ionic elk
@slender iron We could, but that means we have to set an actual limit on the amount of memory to reserve. If it's dynamic, we can support next file strings of any length.
thorny jay
Maybe we can celebrate twice!!!
idle owl
You're always welcome to celebrate CircuitPython!
fossil gorge
How do you send a PR to a calendar?
ionic elk
Not that next file strings are probably going to be that long, so it's not a big deal if we do it statically. But we'd need to decide on how long they should be.
slender iron
I wonder if you code store a file number instead of name
does FAT have a consistent file number?
I guess that'd be tough to make stable
ionic elk
@slender iron I pitched that, but the issue with indexes is that the sub-programs could be nested
silver tapir
Not sure if I'll be able to organize the latinamerican version of
-day because of the house thing, but I'll try to find someone who can and help as much as I can.
ionic elk
@tulip sleet had comments to the effect that it would be pretty dangerous
slender iron
kk. I think 64 or 128 characters would be plenty
silver tapir
Not sure if I'll be able to organize the latinamerican version of <:blinka:34238...
(Maybe I'll ask @lapis pivot ...)
slender iron
I'd bias towards over reserving the space in case we want to use it for something else
ionic elk
@slender iron I think that's fine, at least on STM32 the sleep memory is like 4k so 128 of that is not a really big impact
idle owl
(Maybe I'll ask <@!360269534978113536> ...)
Keep me posted!
modern wing
Another meeting in the bag! Thanks y'all!
silver tapir
Keep me posted!
will do.
slender iron
I may do 512b then
thorny jay
Is the the shortest meeting since a long time?
slender iron
ya, probably. I think our meetings get shorter during the summer when folks are gone
ionic elk
@slender iron at that point it does feel like it's cutting into user memory quite a bit for a feature that could be kind of rare...
slender iron
using sleep memory is rare too
ionic elk
Yeah it's hard for me to judge that
gilded cradle
Thanks
errant grail
Thanks!
thorny jay
So far I have used 1 byte of sleep memory...
And there is a guide that does that for the MagTag.
This is the only project I know using this: https://learn.adafruit.com/adafruit-magtag-project-selector
onyx hinge
4096 bytes used, 4096 bytes free in 'RTC Slow Memory' out of 8192 bytes (8.0kB).
alarm.sleep_memory[0] = selected # ... so the first byte
onyx hinge
"You aren't gonna need it"[1][2] (YAGNI)[3] is a principle of extreme programming (XP) that states a programmer should not add functionality until deemed necessary.[4] XP co-founder Ron Jeffries has written: "Always implement things when you actually need them, never when you just foresee that you need them."[5] Other forms of the phrase include "You aren't going to need it"[6][7] and "You ain't gonna need it".[8]
I'm going to sign off and get the meeting video uploaded & stuff. ๐
thorny jay
Is this "in the weed"?
onyx hinge
This is post-meeting
onyx hinge
ah a good time of year
last week I saw BEL do very well in a game against RUS, but I haven't followed since then...
was that last week? anyhow, last time I was watching soccer that was the game
idle owl
@onyx hinge I deleted the transcoding section - we've all been skipping that and it's been fine. Thanks for thinking about the notes.
blissful pollen
was that last week? anyhow, last time I was watching soccer that was the game
Finland is playing Belgium right now, it's made good background noise while at home
onyx hinge
Here is the notes document for Mondayโs CircuitPython Weekly meeting. It is at the normal time of 11am Pacific / 2pm Eastern here on Discord. Everyone is encouraged to attend! Please add your hug reports and status updates even if youโll be attending the meeting - itโs super helpful! If you are unable to attend but would still like to include updates, feel free to include them in the notes and weโll read them off during the meeting. Hope to see you there! <@&356864093652516868> https://docs.google.com/document/d/16nG56rv4MQlL4aoAd1B1IGLTNUuWtWuGYIobBSX9Vag/edit?usp=sharing
@idle owl I also added a step to say to make the old notes document view-only, which I've been trying to do. there was a concern that bots would come by and vandalize them all someday, otherwise ..
idle owl
<@!330227457296957440> I also added a step to say to make the old notes document...
Correct, thanks. I typically do it, but good to have it in the instructions.
@silver tapir I disconnected you from the voice channel to avoid any surprises.
idle owl
@still zephyr We can find a time this week to discuss PRs if that works for you. I'm considering who else to involve, so I don't want to set an exact time yet, but I wanted to check in.
still zephyr
Yes let me know I will be available @idle owl
manic glacierBOT
ionic elk
@tulip sleet @slender iron should I put the new sleep and next file related stuff I'm working on into the existing PRs we have, or make new ones/one big new one? If I put sleep memory API changes into the existing RP2040 alarm PR and next file PR, it'll scatter them around... maybe it'd be better to have all the "next file deep sleep compatibility" stuff in a single, new PR?
And just merge the current RP2040 alarm and next-file PRs as they are, since they both work, they just ignore this particular feature combination.
Or I could append it all to the current next-file PR, and just put off merging the RP2040 until next-file is finished and merged.
The todo list is the sleep memory API changes + integration, STM32 sleep memory, and RP2040 sleep memory.
slender iron
@ionic elk I think another PR is the better option
manic glacierBOT
fluid moss
Hey @slender iron I saw you just merged this one: https://github.com/adafruit/Adafruit_CircuitPython_ST7735R/pull/22
I looked into it further and I don't think my proposed (and merged) fix is correct.
The default init seq is in bgr mode, and the bgr argument was previously setting "not bgr mode".
But by me changing it to set bgr mode, as the argument name suggests, now there is no way to unset bgr mode (ie. rgb mode)
I think the proper fix is to rename the arg to rgb, and put the value back as it was.
By default you get bgr, and if you pass in rgb=true, you get rgb mode.
slender iron
@fluid moss ah, feel free to make another PR. does anyone use the existing bgr arg?
fluid moss
I think I should. I have a few different TFTs to dust off and test with. Both newer IPS and older active matrix (white plastic shell).
None of the Adafruit branded ones though.
I'll make a PR, and add some more tests and photos
slender iron
๐ thanks! we can also revert that one if you like
lone axle
looks like the pypi upload of stubs succeeded in an actions run this morning! We can now install the stubs much easier than before ๐
pip install circuitpython-stubs --pre
Once the next release is made the --pre won't be needed unless you want dev builds.
It's working great with PyCharm. If any VSCode users have a chance to give it a try I'm interested to know if it's working in that app as well.
onyx hinge
@lone axle that is great news! I may have some refinements, I'll tag you to look at them if I get it ready.
manic glacierBOT
still zephyr
looks like the pypi upload of stubs succeeded in an actions run this morning! We...
Successfully installed circuitpython-stubs-7.0.0a4.dev97 Thanks!!
idle owl
@lone axle Where do you install the stubs? I run everything through virtual environments, but I'm not sure I want to have to start PyCharm out of a venv every time. Do you simply install them on your system?
lone axle
Thus far all of my testing has been inside of a virtual environment. But for longer term usuage I will likely install it into my main python instance.
idle owl
But to use it with a virtualenv you would have to start PyCharm out of that virtualenv, right?
Or how does that even work
lone axle
Inside of pycharm you can select your python interpreter on a per-project basis. and I believe it saves the selection inside of the .idea folder so that it can load the same way next time.
idle owl
Ohhhh.
That makes more sense.
Thanks! I'm eager to test this out, but don't want to bork my system etc.
But it sounds like we've got it in a state where I could add it globally and be ok
lone axle
inside File -> Settings and then select your project on the left. Then into Python Interpreter:
idle owl
Right, got it.
lone axle
I do think it should work fine globally. The only possible gotcha that I know of is that circuitpython uses lots of different names (one for each of the modules that exist). I don't know whether there are any conflicts with existing python libraries but if so it may not like having both installed at once.
lone axle
like if there were a different unrelated library named digitalio or something.
onyx hinge
@lone axle @idle owl related to that, we avoid shipping stubs for modules that are also in desktop python (like time) so if you get hints about time.monotonic it is about the "standard" time module rather than the CircuitPython one.
idle owl
Oh. Nice.
onyx hinge
I think users are going to love this, but also will notice places where it is not 100%. For instance, it does not know what board.D1 is...
(because there's just one set of stubs, but whether or not there's a board.D1 is specific to each board)
(I guess we could publish 200 circuitpython-stubs-<boardname> packages on pypi ...
)
lone axle
I think users are going to love this, but also will notice places where it is no...
I was thinking about the stubs for board a bit as well actually. I wonder if it would be possible / make sense to try to include all possible pin names inside the stubs for board It wouldn't get any data associated with those pins so it wouldn't know anything about them other than that they exist. I think that would be nice though because it would allow the IDE to realize that it does exist.
perhaps other things that get attached to board as well like board.DISPLAY
onyx hinge
You may also be able to write an "I know what I'm doing" type annotation in your code, d1 : microcontroller.Pin = board.D1 to guide it
and yeah it's true we could have a "superset of all boards" board/__init__.pyi. Right now it gets SPI(), I2C() and UART()
slender iron
looks like the pypi upload of stubs succeeded in an actions run this morning! We...
Awesome! Thanks for getting it going!
slender iron
@fluid moss looks like the ST7735R was fixed by melissa: https://github.com/adafruit/Adafruit_CircuitPython_ST7735R/pull/24
