@tulip sleet I would just put it into master and we can do another beta
#circuitpython-dev
tulip sleet
@slender iron it is already in master, so it works, it's just slower (and the USB connection drops after a while)
slender iron
the usb thing is waiting on tinyusb right?
tulip sleet
i think so tinyusb #396 or something like that
slender iron
kk
I'd be happy to see a beta.1 soon
it'd be nice to get docs swapped over to stubs
tulip sleet
right https://github.com/hathach/tinyusb/pull/396 and thach says he'll test it soon
stubs would be nice. i had a q about mock stuff too, i feel like #pylint: disable=no-member is getting out of hand in some cases. Do we just need to add more more complete native module stubs to blinka to fix that? I ran into it on microcontroller.cpu.temperature, for example.
slender iron
ya, adding more info to blinka would fix it too
crimson ferry
How is the support matrix generated? It has modules that aren't in the build, and vice versa (e.g., PyPortal)
raven canopy
@tulip sleet another option for things not stubbed out in Blinka is to update the .pylintrc config file to ignore them at the module level.
@crimson ferry support matrix is built with this: https://github.com/adafruit/circuitpython/blob/master/docs/shared_bindings_matrix.py
tulip sleet
@raven canopy that's an interesting idea, but I like having pylint catch typos as well. It would be a significant job to add stubs for all the native modules in blinka, but it would also make it clear what's not in blinka and what could be
raven canopy
as an example, board is already ignored by pylint for every lib. https://github.com/adafruit/Adafruit_CircuitPython_BLE_Adafruit/blob/master/.pylintrc#L159
simple pulsar
I'm just puzzling over some of the BLE CP code.
I've noticed something strange about AdafruitColor. If I make one then I can make its bytes() representation larger by calling dir() on it. Is this an intentional/desirable side-effect? ```>>> from adafruit_ble.advertising.adafruit import AdafruitColor
ca = AdafruitColor()
ca.color = 0x112233
ca
Advertisement(data=b"\x0a\xff\x22\x08\x06\x00\x00\x33\x22\x11\x00")
bytes(ca)
bytearray(b'\n\xff"\x08\x06\x00\x003"\x11\x00')
ca
Advertisement(data=b"\x0a\xff\x22\x08\x06\x00\x00\x33\x22\x11\x00")
dir(ca)
['bytes', 'class', 'dict', 'init', 'len', 'module', 'qualname', 'repr', 'str', 'address', 'connectable', 'matches', 'rssi', 'scan_response', 'tx_power', 'complete_name', 'from_entry', 'prefix', 'data_dict', 'flags', 'mutable', 'short_name', 'appearance', '_rssi', 'manufacturer_data', 'color']
ca
Advertisement(data=b"\x02\x01\x00\x0a\xff\x22\x08\x06\x00\x00\x33\x22\x11\x00")
bytes(ca)
bytearray(b'\x02\x01\x00\n\xff"\x08\x06\x00\x003"\x11\x00')
020100 gets prefixed on which I think is flags=00 in BLE lingo. It looks legal to my untrained eye but it's very odd the way it appears after a dir(). There is some stuff about lazy instanitation in the code but I would have thought that would all have happened if bytes() was called?
slender iron
@tulip sleet the stub work we're doing for docs may make it easy to add stubs to blinka
I wonder if pylint can use the .pyi directly
raven canopy
i did a brief search. it doesn't look like it can...
transforms seem the allowable route: http://pylint.pycqa.org/en/stable/how_tos/transform_plugins.html
slender iron
@prime flower @pastel panther I started a doc for ideas doable for the mentored sprints
prime flower
@slender iron thanks, I added two ideas. Will add more as I think about it.
@solar whale I was browsing thru the RFM9x guide on Learn. It mentions that the circuitpython library " does not support advanced RadioHead features like guaranteed delivery or its internal node addressing scheme.". You added these recently, right?
Are you interested in writing a guide which uses the node addressing scheme with guaranteed delivery? We could also update https://learn.adafruit.com/multi-device-lora-temperature-network.
@pastel panther @slender iron Drivers could use some updates. looking at WRT reorganizing Internet, IoT, Radio (https://github.com/adafruit/Adafruit_CircuitPython_Bundle/pull/234). May be do-able as a quick sprint
slender iron
๐
solar whale
@prime flower yes that was added โ I can update the guide if you want. As much as I hate guide writing, I will work on one for the updates. Should I just add it to the existing RFM9x guide? Same for RFM69. Which guide were you looking at? Would you prefer a new independent guide?
timber mango
@gilded cradle I want to add the UDOO BOLT to Blinka, but I am a little lost going through the PlatformIO tutorial. Help please?
prime flower
@solar whale I'll message you in authors
gilded cradle
@timber mango I don't use platformio at all. Check out https://learn.adafruit.com/adding-a-single-board-computer-to-platformdetect-for-blinka and https://learn.adafruit.com/adding-a-single-board-computer-to-blinka
timber mango
That tutorial refers one to the PlatformIO tutorial.
@gilded cradle I meant PlatformDetect, not PlatformIO. ๐
gilded cradle
Ah, gotcha. I'm in a meeting at the moment, but after I can help out.
timber mango
OK.
ivory yew
Got my production Big Honking Button and Sol boards from MacroFab today. ๐ฏ
Now to just program, test, and attach a button and panel to 149 more of these...
gilded cradle
@timber mango what are you stuck on? Also, does the udoo bolt run linux?
timber mango
I do not know what information I should use for detection.
I have a UDOO BOLT now. ๐ With 32GB RAM and 1TB SSD. ๐
gilded cradle
Nice. What do you get when you type cat /proc/cpuinfo?
Well, basically you want to look for something that it returned that identifies the board as the UDOO bolt. If you look at __init__.py, each of the functions looks at different files. You can go down one by one until you find something unique., but I usually find something in the first or second file.
timber mango
vendor_id : AuthenticAMD
cpu family : 23
model : 17
model name : AMD Ryzen Embedded V1605B with Radeon Vega Gfx
stepping : 0
microcode : 0x810100b
cpu MHz : 1486.465
cache size : 512 KB
physical id : 0
siblings : 8
core id : 0
cpu cores : 4
apicid : 0
initial apicid : 0
fpu : yes
fpu_exception : yes
cpuid level : 13
wp : yes
flags : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ht syscall nx mmxext fxsr_opt pdpe1gb rdtscp lm constant_tsc rep_good nopl nonstop_tsc cpuid extd_apicid aperfmperf pni pclmulqdq monitor ssse3 fma cx16 sse4_1 sse4_2 movbe popcnt aes xsave avx f16c rdrand lahf_lm cmp_legacy svm extapic cr8_legacy abm sse4a misalignsse 3dnowprefetch osvw skinit wdt tce topoext perfctr_core perfctr_nb bpext perfctr_llc mwaitx cpb hw_pstate sme ssbd sev ibpb vmmcall fsgsbase bmi1 avx2 smep bmi2 rdseed adx smap clflushopt sha_ni xsaveopt xsavec xgetbv1 xsaves clzero irperf xsaveerptr arat npt lbrv svm_lock nrip_save tsc_scale vmcb_clean flushbyasid decodeassists pausefilter pfthreshold avic v_vmsave_vmload vgif overflow_recov succor smca
bugs : sysret_ss_attrs null_seg spectre_v1 spectre_v2 spec_store_bypass
bogomips : 3992.76
TLB size : 2560 4K pages
clflush size : 64
cache_alignment : 64
address sizes : 43 bits physical, 48 bits virtual
power management: ts ttp tm hwpstate eff_freq_ro [13] [14]
processor : 1
vendor_id : AuthenticAMD
c```ok, what about with cat /proc/device-tree/compatible?
timber mango
I do not have that.
gilded cradle
/proc/device-tree/model
timber mango
I do not have that either.
gilded cradle
Ok, which distro of linux are you running?
timber mango
Ubuntu MATE 18.04
gilded cradle
That's tough. It doesn't really give you anything useful in the first and the others are missing. I'll have to get back to you on that. Want to make an issue on https://github.com/adafruit/Adafruit_Python_PlatformDetect ?
timber mango
Well, the first was over 200 lines. I just posted the first 30.
gilded cradle
Oh gotcha. can you put it in a text file and upload?
timber mango
There it is.
gilded cradle
Yeah, nothing else really useful. The problem with trying to just check for something general like an AMD Ryzen proc is that it will probably produce false positives.
timber mango
Probably.
gilded cradle
What was the actual message you received when you typed: cat /proc/device-tree/compatible
gilded cradle
Yeah that will work for the processor. For the board, unless that proc is used on no other boards, we need something more specific to be sure the board is unique.
gilded cradle
yeah
timber mango
Bummer
gilded cradle
You may just need to poke around and see if you can find something.
timber mango
OK.
tulip sleet
what does uname -a show?
timber mango
Linux bolt 5.3.0-51-generic #44~18.04.2-Ubuntu SMP Thu Apr 23 14:27:18 UTC 2020 x86_64 x86_64 x86_64 GNU/Linux
gilded cradle
That might be workable
timber mango
How so?
gilded cradle
We we can narrow down the processor with /proc/cpuinfo and then "bolt" is in the uname.
timber mango
"bolt" seems to be the only unique item there.
gilded cradle
Yeah, the combination may be enough
gilded cradle
Right, cpuinfo returns "Ryzen Embedded V1605B"
gilded cradle
Then there's probably no other boards with that proc called a bolt
timber mango
I am betting on that.
gilded cradle
Try using os.uname() to find bolt
timber mango
posix.uname_result(sysname='Linux', nodename='bolt', release='5.3.0-51-generic', version='#44~18.04.2-Ubuntu SMP Thu Apr 23 14:27:18 UTC 2020', machine='x86_64')
gilded cradle
Maybe something like if "nodename='bolt'" in os.uname():
gilded cradle
for the constant, you should probably use UDOO_BOLT = "UDOO_BOLT"
timber mango
OK, but where does the other go?
gilded cradle
if "nodename='bolt'" in os.uname(): would be in your board detection code.
timber mango
I do not know where to put that, or have I not got that far yet?
Further down in the tutorials?
gilded cradle
Sounds like you haven't got that far yet
timber mango
OK, let me go see if I can figure it out on my own then. ๐
tulip sleet
nodename is just the hostname, and can be changed, so unfortunately that may not be great
timber mango
Thanks for the pointers.
gilded cradle
Thanks dan, that won't work then
timber mango
Durn.
gilded cradle
yw @timber mango. Seems to be a challenging board.
tulip sleet
@timber mango how about the output of sudo lshw ?
I have this on my old Dell workstation:
salmonx
description: Space-saving Computer
product: OptiPlex 7010 (OptiPlex 7010)
vendor: Dell Inc.
version: 01
serial: [redacted by Dan]
width: 64 bits
capabilities: smbios-2.7 dmi-2.7 smp vsyscall32
configuration: boot=normal chassis=space-saving sku=OptiPlex 7010 uuid=44454C4C-5200-1043-804B-B7C04F485831
*-core
description: Motherboard
product: 0WR7PY
vendor: Dell Inc.
physical id: 0
version: A01
serial: /[redacted]
*-firmware
description: BIOS
vendor: Dell Inc.
physical id: 0
version: A29
date: 06/28/2018
size: 64KiB
capacity: 12MiB
These lines are right at the beginning
unfortunately you need the sudo to get a lot of these details
timber mango
I know. I do not see anything useful there. I posted a query on the UDOO forums to see what I can find out.
I am itchy to install Ubuntu on the Bolt's SSD, but I think I need to install Windows first or it will not be happy.
timber mango
I posted on the UDOO forums that I am trying to get the UDOO BOLT added to Blinka and what that is and that I do not work for Adafruit.
onyx hinge
@timber mango @gilded cradle apologies if this is retreading old ground, but for x86/amd64 PC-style devices the files in /sys/class/dmi/id may be useful. some are only readable by root, but others can generally identify motherboard part number or such. The "uevent" line gathers up the most useful bits into a single string for searching. For instance, two of my devices say MODALIAS=dmi:bvnLENOVO:bvrG4ET90WW(2.50):bd12/20/2012:svnLENOVO:pn2359CTO:pvrThinkPadT530:rvnLENOVO:rn2359CTO:rvrNotDefined:cvnLENOVO:ct10:cvrNotAvailable: and MODALIAS=dmi:bvnAmericanMegatrendsInc.:bvrP1.90:bd07/27/2015:svnToBeFilledByO.E.M.:pnToBeFilledByO.E.M.:pvrToBeFilledByO.E.M.:rvnASRock:rnH97Pro4:rvr:cvnToBeFilledByO.E.M.:ct3:cvrToBeFilledByO.E.M.:
as you can see the info is often not filled or not available
oh interesting, did they basically stick an Arduino on the motherboard next to a whole PC? Not sure how well that'll fit blinka's way of thinking of HW. A challenge for sure.
for the other bits (the i2c bus and gpio; spi doesn't seem to get a mention?), the interfacing is via a proprietary static link library https://www.udoo.org/docs-bolt/BIOS_UEFI_and_Tools/EAPI.html
./BIN/linux_64/libEAPI.a
@onyx hinge Thank you! I am looking at those files now. Is the product_uuid unique just for a product or for each board?
Yes, somewhere on the UDOO BOLT there is something that is compatible with an Arduino Leonardo. I have not looked closer to see what it actually is though, because I will not likely be using that feature.
I do not see anything in uevent that would be useful. ๐ฆ
Most of the things that could be useful are not even filled in and just contain "Default string," which is not helpful at all.
The board_asset_tag might be useful. My BOLT has "SC40-2000-0000-C0|C" there. I do not know if that is unique per board type or individual board though. I have three Raspberry Pi 3 boards here, so I will check that value on each of them and see if it is the same or different.
timber mango
@gilded cradle I think I am getting a handle on how board detection works in Blinka now. ๐ I am going to play with a bit of Python to see if I can grab the board_asset_tag. Is there a function that already handles that?
timber mango
Has anyone else seen this combination BLE and WiFi module? https://www.dialog-semiconductor.com/products/da16600-modules It looks interesting.
onyx hinge
I think "asset tag"s are probably intended to be unique identifiers, though who knows... for sure the thing dmi calls board_uuid should be a unique identifier for that particular piece of hardware, like a VIN
onyx hinge
@idle owl thanks for the python weekly video! I think it got us contributors on Weblate which is awesome.
onyx hinge
@raven canopy those lists of contributors in the weekly meeting notes, are those generated by an adabot script? can you point me at it? With weblate, we have contributors who are listed as the author of individual commits but are NOT the creators of the PR to include the changes. I think it would be good if we can recognize them in the same way as other code contributors.
raven canopy
@onyx hinge https://github.com/adafruit/adabot/blob/master/adabot/lib/circuitpython_library_validators.py#L828
need to add an api request to the /pulls/<number>/commits endpoint, then cycle through the entries.
raven canopy
note: unless you gate it with if repo["name"] == "circuitpython": it will run for all the libraries as well. not saying it isn't beneficial for everything involved, just mentioning it.
gilded cradle
@timber mango I don't think there is a function for that, though it would be a nice one to add.
Thanks @onyx hinge. Anything like that is helpful.
onyx hinge
@raven canopy thanks, that was enough to point me in the right direction. adabot was pleasant to hack on.
marble hornet
do nrf52840 devices need the 32Khz crystal for bluetooth to work?
tulip sleet
@marble hornet no, as long there's a 32MHz crystal, it can work. It divides it down. You can't make a crystalless board that can do Bluetooth, because the internal RC clocks aren't accurate enough for the timing. The radio won't even work without specifying a crystal clock, I think.
the CPB, CLUE, and Feather Sense have only a 32MHz crystal. The RayTac etc. modules come with a 32MHz crystal inside>
The Feather nRF52840 has both 32kHZ and 32MHz
marble hornet
Okay, then the has_crystal definition in the board config is for to say if there is a 32Khz and is not taking about the 32Mhz?
tulip sleet
the #define is BOARD_HAS_32KHZ_XTAL to make it clear.
are you seeing a different #define name?
e.g. from mpconfigboard.h for the CLUE:
// No 32kHz crystal. THere's a 32MHz crystal in the nRF module.
#define BOARD_HAS_32KHZ_XTAL (0)
ah, thank you!
timber mango
I don't think there is a function for that, though it would be a nice one to add.
@gilded cradle Would I need to add that new function to Blinka itself? I will poke at PlatformDetect and see what I can find. ๐
gilded cradle
@timber mango, you can add it to __init__.py in in PlatformDetect. If it helps, just remember that PlatformDetect should work independent of Blinka since Blinka depends on PlatformDetect.
gilded cradle
Exactly
timber mango
Oh, I added a comment to issue #74 for the HT16K33 library. I believe I can add multi-display support completely transparent to users. It will continue to work exactly as is now unless somebody activates the multi-display support. ๐
gilded cradle
That sounds good
timber mango
It took me a bit of thinking to work it out, but I think I have it locked into my brain now.
And, I have notes in my last comment. ๐ ๐
ionic elk
@slender iron @indigo wedge I'm having some trouble with the 1010 evk not halting properly when code is reloaded over SWD. I can't run mon flash erase either. Have either of you had any issues with that?
ionic elk
The one that's built in, right? What's your toolchain for connecting gdb to it?
nvm it's just localhost 2331
no I do still need a gdb server application, durr. @indigo wedge what are you using for the gdb server?
tulip sleet
@ionic elk did you upload upgrade all the j-link sw? (Is there J-link on the board? if so, did you try an external j-link?)
if you are using jumpers, make sure RESET is connected (but I am speaking about issues I had with SAMD51)
ionic elk
I'm using an external Jlink with JLinkGUIServerExe (though I'm using the command line interface). Specifically, it seems to be having trouble interacting with flash memory after the chip has crashed - it's unable to halt the processor. I'm not currently using the on-board CMSIS-DAP programmer because I don't know how to run GDB with it (I've put the power jumper on USB-OTG so it shouldn't even be powered)
In order to get around the failure I have to switch over to the CMSIS-DAP and use the drag-and-drop programming, which puts the chip back in a state that I can program it with the Jlink once I swap back.
tulip sleet
sorry I mean "upgrade" not "upload"
tulip sleet
they are always fixing LOTS of bugs; if you're having trouble you can file an issue with them, but it would be good to test with the latest
ionic elk
JLinkARM.dll V6.60d (DLL compiled Jan 9 2020 17:43:40)
ionic elk
I'll give it a shot but this strikes me as something that might have to do with hardware settings, I had similar issues with STM32 boards that were flaky about power.
now, how to update it....
to the 1000 page manual!
why can't everyone just use brew ๐ฉ
timber mango
@tulip sleet Does the super inexpensive J-Link do everything the EDU J-Link does? I am guessing the EDU does a lot more because of the size of it.
tulip sleet
they say it is the same: https://www.segger.com/products/debug-probes/j-link/models/j-link-edu-mini/ the bigger one has bigger connectors, so it needs a bigger box
ionic elk
dang it how do I update this software they don't tell you ANYWHERE
raven canopy
that's how i understand it as well. the different versions are only different in packaging, connector, and most importantly licensed usage. i use my edu-mini for much less than most around here, but i've yet to hit any limitations.
tulip sleet
@ionic elk which software? The firmware is updated automatically when you start it. The others have installation packages for the specific os
ionic elk
So do I have to manually go in and delete my software pack and reinstall>?
tulip sleet
what os are you on?
ionic elk
mac
tulip sleet
it's a pkg file, doesn't that install if you double-click?
ionic elk
I'll see whether it does a clean replacement
tulip sleet
it does on windows and linux for me
ionic elk
I'm just used to most mac apps having a self-update
or being on brew, which updates them
It's pretty rare to have to re-download, hence my confusion
yep it installed a duplicate hmmm guess it installs a duplicate, then symlinks the most recent
tulip sleet
so you could clean up the old ones as you wish
raven canopy
its always duped on Win10 for me, as well. though, i'm a little behind obvs. ๐
tulip sleet
The .deb's do a nice job of cleaning up
ionic elk
well, seems a little better so far
tulip sleet
they still do symoblic links
halbert@salmonx:~$ ls -l /usr/bin/JFlashLite
lrwxrwxrwx 1 root root 36 Apr 28 04:57 /usr/bin/JFlashLite -> /opt/SEGGER/JLink_V672/JFlashLiteExe
halbert@salmonx:~$ cd /opt/SEGGER/
halbert@salmonx:/opt/SEGGER$ ls
JLink JLink_V672 ozone
nope nevermind still no dice
can't read big blocks of memory, or halt the processor
too bad
tulip sleet
are you writing to internal or qspi?
ionic elk
It's the i.MX so I assume it's a mix
I don't 100% grok the process, so I guess that's what I should work on now
tulip sleet
i looked on their forum but don't see anything obvious. However, that is not the official support fourm https://forum.segger.com/index.php/Thread/5826-SOLVED-Unable-to-flash-QSPI-flash-connected-to-IMXRT1052. They do respond to tickets
ionic elk
I guess I'll shoot them a ticket! But still, I'd assume that Scott or Arturo have gotten GDB up and running properly at some point..
tulip sleet
ping scott about it, sure
simple pulsar
FYI, I've just starting looking at some BLE stuff and put in a few tickets for things I spotted in the code, some rather minor: https://github.com/adafruit/Adafruit_CircuitPython_BLE_BroadcastNet/issues/7 | https://github.com/adafruit/Adafruit_CircuitPython_BLE_Eddystone/issues/7 | https://github.com/adafruit/Adafruit_CircuitPython_BLE/issues/83
tulip sleet
@simple pulsar also see https://github.com/adafruit/Adafruit_CircuitPython_BLE_Adafruit which I am just about to announce; I have to finish a couple of guide pages
that is connection-based sensor stuff, as opposed to advertising
simple pulsar
Thanks, I'll have a look.
tulip sleet
needs 5.4.0-beta.0 or later to work for some of the services
simple pulsar
You have a 0 byte https://github.com/adafruit/Adafruit_CircuitPython_BLE_Adafruit/blob/master/adafruit_ble_adafruit/__init__.py ? I think somehing either chokes or used to choke on that? Maybe!
tulip sleet
i thought we could omit it, but some things want to see __init__.py to have it as a package. I don't think an empty one will break things. I looked in the bundle and there are a number of empty __init__.py files
simple pulsar
Oh, maybe that's what I'm remembering, perhaps the 0 byte was needed.
tulip sleet
yes, long ago I thought it could be omitted in python 3 (vs 2), but that's not the case
slender iron
@ionic elk just to my desk now
ya, it does work for me
I had to add a mon halt before mon reset
the imx is different than what we're used to because the flash is only external
ionic elk
even with the halt, I still get ERROR: Timeout while preparing target, core does not stop. (PC = 0x20200630, XPSR = 0x61000003, SP = 0x20201D68)!
idle owl
@onyx hinge That's great to hear!
slender iron
@ionic elk unplug everything and start fresh
ionic elk
@slender iron do you use jlink directly, or are you using the DAP?
slender iron
jlink iirc
simple pulsar
@tulip sleet Ah, this is what I was remembering: https://github.com/adafruit/circuitpython-build-tools/issues/29
ionic elk
should be off off on off, for QSPI, right?
ionic elk
yeah that's what I've got
slender iron
the flash stores it's own config
ionic elk
what's a bootstrapping problem?
slender iron
if you did manage to erase the whole flash it won't be able to boot to the flash
have you gotten it to run at all yet?
ionic elk
No, I'm getting this:
Program received signal SIGTRAP, Trace/breakpoint trap.
0x860c0000 in ?? ()
(gdb) where
#0 0x860c0000 in ?? ()
#1 <signal handler called>
#2 0x860c0000 in ?? ()
#3 <signal handler called>
#4 0x600233c2 in Reset_Handler () at supervisor/port.c:240
I wasn't sure what to make of it, since I was getting so many erase and write errors before, but now I've gotten at least one "clean" program and it's still happening
port.c:240 is the // Clear OCRAM bss section
slender iron
hrm, do you hit a breakpoint on main?
ionic elk
I don't remember this happening before my current branch but I don't see how my pin resets would have borked it
tulip sleet
@simple pulsar i see, it was a problem the other way!
ionic elk
is the QSPI on the GPIO pins?
tulip sleet
@simple pulsar pages just published:
https://learn.adafruit.com/bluefruit-playground-app/circuitpython
https://learn.adafruit.com/bluefruit-dashboard-web-bluetooth-chrome/circuitpython
also there is a simple example (TemperatureService only) in the examples that has both client and server sides
ionic elk
I noticed that USB was not on GPIO, so I guess the idea that the chip's core memory could be on resettable pins didn't even cross my mind
tidal kiln
what options do I have on a PyPortal for the equivalent to this?
https://circuitpython.readthedocs.io/en/latest/docs/library/binascii.html#binascii.b2a_base64
simple pulsar
I found these BLE related docs by a search: https://circuitpython.readthedocs.io/en/latest/shared-bindings/_bleio/Adapter.html - it describes start_advertising() but this is not the same as the adafruit_ble library one. Is it worth having a note in the text at the top to mention most users should be using adafruit_ble or whatever guidelines are for selection one or t'other?
tulip sleet
@simple pulsar there is already a note to use dafruit_ble here: https://circuitpython.readthedocs.io/en/latest/shared-bindings/_bleio/__init__.html
manic glacierBOT
simple pulsar
@tulip sleet Thanks, my search ended up directly on the Adapter page so I didn't see that. Search engines risk bringing people in to deeper pages...
tulip sleet
yes, i find readthedocs not the best for finding things, since there are so many cross references
simple pulsar
In a different world we used to mark the top and bottom of each page when there was an important note. Both ends was an attempt to reduce risk from the other pitfall of anchors bringing in users half way through a long page.
tulip sleet
we need more BLE guides, and there is too much of a disconnect between Learn Guides and readthedocs. But these are long-term problems not immediately solvable
ionic elk
@tulip sleet what's the kosher place to put never_reset_pin reservations for JTAG and stuff? The ST port has them in peripherals/gpio but I don't think that's the right spot for them.
tulip sleet
those pins are mostly hardwired, so they don't need to be reserved because they're not part of the pool. On Metro M0 I think one of the SWD pins might be reused for something like the NeoPixel
on most of these chips they are dedicated
ionic elk
Trying to understand properly what you mean. On STM and i.MX they're a part of the GPIO peripheral and can be reassigned to other purposes. Or do you mean they're left out of the pin definitions completely for NRF and Atmel? I need to exclude them from the automatic turnoff in reset_all_pins at least
tulip sleet
@ionic elk they are dedicated for SWD use on most boards, except on Metro M0 where PA30 is reused for the NeoPixel. But see atmel-samd/common-hal/microcontroller/Pin.c: reset_all_pins(), which does not reset the USB or the SWD pins. Those are hard-coded, and don't need to be in never_reset_pins()
ionic elk
So the mistake that Arturo and I made was to even include them in our pin tables, basically?
inland tusk
@slender iron when is the deep dive this week?
tulip sleet
they are in our pin tables, but it was easy to hardcode them in reset_all_pins(). That may be harder in STM-land if they wander around
i meant they are most not in boards/*/pins.c; they are not available to circuitpython
ionic elk
Or in the __init__.c of Microcontroller, too, for most ports I would assume?
daring ridge
Hello ... I'm new to discord and all that, so please tell me to get lost if I'm doing it wrong. ๐ I found what I think might be a bug in the latest 5.4.0 RC. Should I report that here or open an issue?
tulip sleet
Please open an issue, unless you're unsure. But an issue is fine.
it's better to record it for posterity
daring ridge
10-4. Basically, 'microcontroller.cpu.voltage' hangs - at least on an M4 board I'm working on. Worked fine with 5.3.
And I don't have time to attach a debugger and trace it.
tulip sleet
that sounds like a real bug; thanks for finding it
ionic elk
what's the particular board? or is it custom
daring ridge
Custom. With at SAMD51N20A
tulip sleet
we expect there to be a numbero of issues with the beta, because of the new lower_power stuff
daring ridge
Ok. I'll go ahead and open and issue. microcontroller.cpu.temperature and ....frequency work.
ionic elk
Also, is it allowed for me to be slightly annoyed at the decision to name only SAMD51s "M4"s? Like, almost every board we work with is an M4. STM32s are M4s. NRFs are M4s. Drives me nuts
daring ridge
Haha, agree. Mine has _m4 in the name. Maybe I should change it just to be different.
ionic elk
I'd definitely dig a move in that direction! I guess m4 was picked because for the very early hobby boards it was one of the only m4s that was consumer facing.
tulip sleet
@ionic elk, no, the SWD pins are in __init__.c. They are just mostly not available to circuitpython, and the reset code special-cases them
ionic elk
But my buddy in my makerspace is always asking questions about "M4s" and I'm always confused for a minute before prying out of him what M4 he actually means
@tulip sleet so if you were determined, you could brick your own board with Microcontroller ๐
tulip sleet
historically, we were only concerned with Atmel chips, so it was SAMD21 vs SAMD51. In retrospect calling the boards M4 was not the best distinguisher. It was originally AVR vs M0, still all in the Atmel line. e.g. classic Arduino vs Zero.
ionic elk
I getcha but man, SAMD51 isn't that hard to say
Metro_51 has a cool enough ring to it
Oh well lol
tulip sleet
really, the circumscribed world at that time was all Atmel. The other chip mfrs were extremely uninterested in hobby stuff, it appeared.
inland tusk
๏ฟผI think that M4 is the reference to the ARM ip.
Atmel was the main user of that core early on along with the M0.
tulip sleet
i am not trying to excuse it, just explain the circumstances
ionic elk
Yeah totally. I'm not actually irritated, it was a historic shift to ARM, but it's definitely a really interesting case study of how a brand name can impact people's understanding of the underlying technology
naming stuff in expanding fields is tricky
daring ridge
I was going to post the issue number, but there it is!
ionic elk
@daring ridge thanks for reporting!
tulip sleet
@daring ridge thanks, the ADC on the SAMD51 is kind of a mess, unfortunately
raven canopy
i was looking through things yesterday on an unrelated quest, and saw that samd-peripherals is still using SysTick for all of that.
daring ridge
Yep. Thank you guys! CircuitPython rocks!
tulip sleet
this one has lots of errata
ionic elk
oof
tulip sleet
external references are broken, doing the temp measurement is painful, the voltage measurement has to be done oppositely from the obvious way (measuring reference vs VDD as opposed to the opposite) because it hangs otherwise, ugh, in gneral
manic glacierBOT
ionic elk
@tulip sleet how many years ago was that Atmel/M4 decision? The first Metro?
just curious
tulip sleet
i think I would look at the first M0, rather than the first M4.
in the adafruit store, check the product listings and intro dates for Metro M0 Express and Feather M0 Express, and then Metro M4 Express. The dates on the videos are helpful
slender iron
@inland tusk normal time. 2pm pacific on friday
crimson ferry
Oldest Adafruit product "M0" refs I could find were Adafruit Feather M0 Basic Proto #2772, video is 12/2/2015 & Adafruit Feather M0 WiFi - ATSAMD21 + ATWINC1500 #2598 (may have been released earlier, I ordered one in Jan 2016).
ionic elk
@crimson ferry neat. I'll try and remember that - it's nice to give people a timeline when I'm chatting about microcontroller industry context
ionic elk
@slender iron should the flexSPI protections never_reset_pin go into board.c? is that going to be early enough?
should be, since it's before port_reset
Since it's flex, they could theoretically be different per board, right? So putting direct checks in reset_all_pins is probably not a good idea
onyx hinge
looks like there's a python version? https://pypi.org/project/circuitpython-base64/
argh I was looking at old messages
@tidal kiln but maybe nobody else answered, not sure if it's still relevant โ๏ธ
tidal kiln
thanks. nope. you're the first. will take a look.
raven canopy
i think someone did a base64 lib and put it in the community bundle. may not do bin->ascii though. wonder if there was a reason we turned off the built-in...
slender iron
@ionic elk ya, board.c would work!
tidal kiln
it's still built in, just only on some boards, the wifi ones i think?
raven canopy
yeah, its in extmod/ so could just be a matter of receiving some shared-bindings/ treatment.
haha. two issues for just that thing: https://github.com/adafruit/circuitpython/issues?q=is%3Aissue+is%3Aopen+binascii
tidal kiln
ha! thanks. i didn't even think to look through the issues.
raven canopy
me neither, until i typed "wonder why its gone" out loud. ๐
simple pulsar
@ionic elk The M4/SAMD51/etc naming thing is very important for end users to select the right product. It's messy in the Arduino world too, you see people talking about X doesn't work on the Zero/Due.
timber mango
@ionic elk Did Tindie cancel your order for the Toasty board? They cancelled my order. ๐ฆ ๐ฆ
simple pulsar
For BLE, I get an _bleio.BluetoothError: Unknown soft device error: 0007 error if I set an advertising interval of 0.020 but 0.0201 is fine. I'd imagine this is an FP issue? If I'm reading it correctly apple recommend a 20ms initial burst so this is legit ?
onyx hinge
@simple pulsar yeah it looks like for "0.020" the value actually stored is a little lower
manic glacierBOT
low sentinel
@tannewt I think this is not sticking and I'm not sure why. I'll look at it when I get to a computer
simple pulsar
@onyx hinge Should I file that as an issue?
onyx hinge
the basic behavior of floating point numbers in circuitpython? no, probably not, it's not going to change anytime soon.
simple pulsar
No, an interface that will confuse anyone who tries to set an interval value to a recommended value.
half geyser
Hmm... I feel like this is a silly question, but are bytearray() objects not just mutable bytes() objects?
half geyser
Yeah, I got a bytearray() back from the Bluetooth stack, and I'm slicing it using an array, but the aesio functions don't accept that slice because it's a bytearray and not bytes (which are apparently also strings)
slender iron
bytes shouldn't be strings
half geyser
I would have thought that a bytearray would coerce into a bytes, but maybe that's not how things go.
slender iron
there is a specific way to get the array out of a "buffer" object
which includes both
half geyser
@slender iron but all byte functions are handled with mp_obj_str_* functions, it looks like that takes both bytes and strs depending on how you call it.
slender iron
ya, internally they are
in python2 strs were literally bytes
strings are utf-8 interpreted bytes
half geyser
How do I go from a bytearray to a bytes? Doesn't saying bytes(bytearray(n)) cause an allocation?
slender iron
why do you need bytes from bytearray?
half geyser
Or should mp_obj_str_get_data() accept bytearray objects?
half geyser
This is for contact tracing stuff. The _bleio returns a bytearray() as part of Characteristics.value, which I need to slice up and pass to aesio.
half geyser
Ah, will that accept bytes and bytearrays?
half geyser
That's good. Because bytearray looks like it should be immutable.
half geyser
Right. Except there's no implicit conversion from bytearray to bytes, unless you use a buffer object.
Thanks for clearing this up.
half geyser
It's definitely a bug in the aesio stuff caused by me not understanding this.
slender iron
sorry I didn't catch that in review
half geyser
I'll write up a patch. It's always a learning process!
slender iron
๐ should be easy and quick to get in
half geyser
By the way, I have been able to use the AES stuff with an explicit conversion to decode TraceTogether packets in Circuit Python! So it's definitely working mostly.
slender iron
๐
slender iron
@half geyser in encrypt_into the get_buffer for the destination should be write
same for decrypt into
half geyser
You're right. I wonder why it worked?
slender iron
maybe because you gave it a byte array?
once it's in C land it doesn't verify mutability
half geyser
Could be! I'll fix that, too. Thanks for catching that.
slender iron
np, got me thinking about it ๐
half geyser
Added a second patch to that PR
slender iron
kk
half geyser
Hmm... though now it doesn't actually work.
TypeError: object with buffer protocol required
slender iron
and you're passing in bytes?
half geyser
Yeah. Let me break there and see if it's what I think it is.
Yes, the type at least has a .make_new of bytes_make_new
Yeah, you can't write into a string. mp_obj_str_get_buffer() returns NULL.
And bytes are strings, so you can't write into a bytes using bufinfo.
Oh weird. You can write to a bytearray. So I guess I got it backwards: bytearray is mutable, bytes is immutable. Well I'm glad it's caught now.
timber mango
@gilded cradle I now have code that can read the value from /sys/class/dmi/id/board_asset_tag
I just have to look at __init__.py in PlatformDetect to see how I can use that to detect the UDOO Bolt. ๐ ๐
half geyser
Somewhat-related question: How can I do a json decode of a bytearray? It looks like cpython has a .decode() to turn a bytearray into a str, but that doesn't exist here. And if I do str() then linefeeds get turned into \n which the json parser doesn't like.
And json.load() says stream operation not supported if I feed it a bytearray object.
Or do I need to wrap decode_into in some sort of stream-like object?
half geyser
That does it. Thanks!
slender iron
๐
timber mango
@slender iron No .decode for strings? Why?
slender iron
it's enabled by a setting that is used to save space
well, disabled to save code space
timber mango
Couldn't it be enabled for all M4 and later?
slender iron
the nrf52833 is limited flash space iirc
timber mango
OK. Can .decode be enabled per build?
timber mango
OK, so it could be enabled for other M4 and later boards.
slender iron
ya, it should be
timber mango
Is that being done now?
slender iron
it should already be enabled. it's just not for the board xobs is on
timber mango
Oh, OK, got it! I was getting worried! ๐
slender iron
np
timber mango
It looks like we will not be getting any Toasty boards. ๐ฆ Tindie cancelled my order because they had not shipped and refunded my money.
half geyser
It's hidden behind CIRCUITPY_FULL_BUILD, which is enabled on my board.
bytes() does have a .decode() function, but bytearray() does not.
It looks like micropython's bytearray() doesn't implement .decode(), whereas its bytes() does.
slender iron
ah, interesting
is that a CPython thing? can you call .decode() on a bytearray in CPython?
half geyser
You can, I just checked to make sure.
timber mango
I have used it that way.
ivory yew
Yeah it's annoying that bytearray doesn't have decode.
I've been meaning to fix that myself but I keep forgetting about it.
timber mango
It is a useful function. ๐
ivory yew
Speaking of mp, do we have any plans to pull in from upstream at any point? There's been a lot of changes.
slender iron
@ivory yew I'd like to but it's a huge task
ivory yew
& lots of improvements to the native decorator.
Yeah it's a big undertaking.
Do we have any documentation on how we did it last time?
slender iron
dan did it last time
and its just a big git merge
at least when we've done it before
ivory yew
Oh god he did a proper git merge and resolved all the conflicts? God bless.
slender iron
yup
took a couple weeks iirc
I did one before that
the string compression is the thing that worries me most at this point
ivory yew
Why's that?
slender iron
micropython does it differently than we do and doesn't do translations
ivory yew
Ah.
half geyser
They're not interested in adopting your approach?
slender iron
they were inspired by it but got better compression than my approach
so we could probably benefit from it but it's not likely worth it
timber mango
Could it be worth it for mcus like the M0 which are memory constrained?
slender iron
probably not. it's not hugely different and it's a lot of work to switch
timber mango
Ah, OK.
slender iron
M0s are basically frozen now
timber mango
I have a CLUE board now, so I can fiddle with BLE stuff. That is not a priority right now though. I want to add the UDOO Bolt to Blinka first, then do the multi-display support for HT16K33.
slender iron
@onyx hinge we could likely speed up our builds with this: https://help.github.com/en/actions/configuring-and-managing-workflows/caching-dependencies-to-speed-up-workflows
raven canopy
is that one new? i remember early in the switch reading that caches couldn't traverse a matrix. at any rate, glad there's a way. ๐
slender iron
probably? this is the first I've seen it
time for me to get off the computer ๐
night all!
raven canopy
๐
slender iron
(got esp32s2 building in actions: https://github.com/tannewt/circuitpython/runs/676840679?check_suite_focus=true )
timber mango
He has to get his beauty sleep so he can stream tomorrow. ๐
slender iron
๐ฏ
ivory yew
btw a workaround for the bytearray.decode missing is to do bytes(bytearray).decode
though I'm about to send a PR to add it
timber mango
@ivory yew Yay!
I have a computer I could stream from now, but I need to get a good webcam.
OK, I am out. Back tomorrow or if I can not sleep (likely).
ivory yew
there we go, I can be less grumpy about that. ๐
timber mango
Please could someone help me change the threshold value on MPR121_simpletest.py? I'm very near giving up!!
lucid solar
@timber mango I'm looking into it...it seems that you're not meant to change the threshold...but there should be a way...
ah...I see...give me a moment.
timber mango
Thank you! I'm new to python and am struggling a bit! There seems to be threshold and threshold.setter functions in the mpr121_channel class but I'm really struggling to access it
lucid solar
My only issue is that I don't have the device to test ๐
timber mango
to date, I've added: mpr121_channel = adafruit_mpr121.MPR121_Channel(i2c, channel) to the example code. This didn't like channel being undefined so I changed to "mpr121_channel = adafruit_mpr121.MPR121_Channel(i2c, 1)" Now if I try "print(mpr121_channel.theshold) I get "i2c has no attribute 'read_register_bytes'". It doesn't have an issue reading values from the general mpr121 class...
lucid solar
I'm writing some code for you to test...
timber mango
Amazing, thank you
lucid solar
Note: I don't know what the values should be...I guess you do?
Threshold settings are dependant on the touch/release signal strength, system sensitivity and noise immunity requirements. In a typical touch detection application, threshold is typically in the range 0x04~0x10. The touch threshold is several counts larger than the release threshold.
Seems the default is 12 and 6(release)
timber mango
I'm almost there. Sorry - just trying to copy this across to the pi
lucid solar
no problem ๐
basicallly, the MPR121 class has a method getitem(self, i), this means you can use mpr121[i] to access the item that it's returning, which is a MPR121_Channel object.
@timber mango I realised I made a mistake...I added a comment with // instead of #
timber mango
Just noticed that too and edited it!
lucid solar
I'm normally a C developer
timber mango
This looks like it works perfectly!
Thanks so much, I'll get everythign hooked up and I'll need to determine the threshold values experimentally
lucid solar
No problem! Glad I could help
timber mango
@gilded cradle How are the board constants in PlatformDetect boards.py created? Do they come from a specific place? I need to make one for the UDOO Bolt.
onyx hinge
@slender iron it does feel like time to look into it, we're over an hour wall time lately
timber mango
e-lessons
manic glacierBOT
timber mango
:(
half geyser
Hmm... this problem has cropped up again, so I'll ask here again: How can I diagnose OSError: [Errno 5] Input/output error when saving code.py over USB MSC?
It feels like there's a buffer that's not getting flushed somewhere, because if I go into the repl, frequently running import io; print(io.open("/code.py").read()) and then exiting will cause it to work.
When I dump the internal FAT filesystem, it looks sane, or at least fsck.vfat has no qualms.
timber mango
..
simple pulsar
@timber mango @lucid solar Do they not self calibrate once when code first runs? That's mentioned in https://learn.adafruit.com/adafruit-mpr121-12-key-capacitive-touch-sensor-breakout-tutorial/python-circuitpython#circuitpython-and-python-usage-5-14 - a relative tweak of the value after calibration is a typical approach if sensitivity needs to be changed. There's an example of a relative tweak on another device here: https://forums.adafruit.com/viewtopic.php?f=58&t=143210
timber mango
ok
ionic elk
@timber mango yeah they did cancel my Toasty!
ivory yew
@half geyser what OS?
I've seen this before when copying a lot of files to a board from WSL.
half geyser
@ivory yew Windows, not inside WSL currently. I'm tracing the FAT filesystem. It looks like it's f_read that's failing, possibly returning FR_INT_ERR.
half geyser
Hmm... that's not it. Good suggestion, though. The weird bit is that if I read the file in the Circuit Python REPL and then exit, it works. Which means it's there, just not accessible to the auto-reload process.
ivory yew
Hrm.
I would see if there's some way for you to monitor the writes that windows does to the drive.
half geyser
Interestingly, the issue appears to be in f_seek, with get_fat() returning 0xffffffff, which means it couldn't find the FAT. I think?
half geyser
Hmm... I'm using Process Monitor to look at the writes, and there are none. Yet when I save this file it says "Errno 5", and exactly 30 seconds after that it reloads successfully.
Hmm... This could be a USB thing...
Actually, that's looking more promising.
If I inspect _mscd_buf after it saves, then it contains my file. During that time, circuit python reports "Errno 5".
A short time later, it successfully runs, and _mscd_buf becomes what looks to be a FAT table.
timber mango
yeah they did cancel my Toasty!
@ionic elk Bummer. I checked and they show 2 in stock.
ionic elk
what's the deal with that, I wonder?
did they take ours and put them back on the store?
timber mango
what's the deal with that, I wonder?
@ionic elk I do not know. I know you ordered 1 and I ordered 2, so maybe that is why they cancelled our orders. I really wanted some of those too!
half geyser
Alright, given the timing and the fact that it fixes itself shortly after a call to tud_msc_write10_cb, and that my file is still in the buffer, I'm going to guess this is a USB issue that I'm running into. Unfortunately my USB Beagle is still not working so well. I'll have to fix that, then I can take a closer look.
ionic elk
I sent them a tindie message to see what's up
might also be a COVID related shipping issue
lucid solar
@ionic elk It's from the UK, they're on quite a strict lockdown, so postal services are affected a lot. It's weird if they just cancel the order without saying something though.
low sentinel
@half geyser I had that with an m4 express feather on windows. I resolved it by making my own deployment tool that (among other things) forces an fsync after copying each file.
Robocopy also works but I didn't want to use it
simple pulsar
@ionic elk @lucid solar Which company are you referring to? I've noticed a (non-electronics) shop near me have changed the way they do inventory due to the massive shift towards mail order.
gilded cradle
@timber mango for the constants, they just need to be unique and easy enough to read to identify the processor/board. So for the board, you might do something like UDOO_BOLT = "UDOO_BOLT" and for the processor, something like RYZEN_V1605B = "RYZEN_V1605B".
simple pulsar
Oh is this https://www.tindie.com/stores/webtronics/ ?
ionic elk
@simple pulsar it's not a company it's just some guy who made a nice looking H7 devboard I'd like to add support for.
yeah
I mean it's not a big deal if they're having shipping issues, just double checking to see if they might have some way around it - I think it'd be a nice board to have in the H7 port
simple pulsar
There's probably an innocent explanation. The shop near me (in London) had this huge pallet of flatpack cardboard boxes turn up and they're now getting worried as they've chewed through those in two weeks and are struggling to get the next delivery.
tulip sleet
@half geyser Windows can delay writing to a FAT12 drive for up to 90 seconds, so it's import to flush/eject whatever. However, this should not cause errors on the host side, as you see, because the host side sees a consistent FAT12 filesystem, it just hasn't been flushed yet.
topaz quest
@tulip sleet I have a feeling we share the ideal that the more things can be addressed automatically without asking a human to notice them, the better โ so hopefully the pre-commit.com stuff I've sent over is going to help ๐
timber mango
@gilded cradle OK, will do! I already added the function get_board_asset_tag(). Also, I believe there may be at least one bug in other functions that are supposed to return True when nothing is found. Some will never return True.
gilded cradle
Ok, yeah it's definitely possible there' a bug somewhere in there. ๐
timber mango
I will fix them. ๐
gilded cradle
thanks
solar whale
@slender iron @onyx hinge I was just playing with a Teensy4.1 -- loaded CP and it seems to be working fine. No issues. Next I need to put headers on and I'll try some I2C/ and SPI devices. I was curious if i should expect to be able to access the SDCard at this time or does that interface require a new QSPI driver. On a side note, I hope to run some tests with the sdcardio PR soon. Again, any point in trying it on the Teensy 4.1?
onyx hinge
@solar whale I think I heard that it's "SDIO" which is not compatible with our current SD card driver which assumes SPI. However, I'm not sure.
solar whale
yes, that is what it says SDIO -- no problem ... just wanted to make sure I was not missing an opportunity.
onyx hinge
Implementing SDIO is on my short list, though I've been asked to start with STM32 feather.
solar whale
No pressure from me!! I'm just poking and prodding...
timber mango
@simple pulsar This is the board https://www.tindie.com/products/webtronics/toasty-480mhz-stm32-usb-development-board/
ionic elk
@indigo wedge what's the difference between the Feather M7 1011 and the Feather mimxrt1011?
Also could I get the schematic? Need to double check which pins to protect from reset - USB, SWD, flash, etc
in case you used different ones than the EVKs
onyx hinge
@tulip sleet @slender iron looking at the sdcardio PR, I wonder what we'll do when SDIO goes in. Is one sdcardio.SDCard object going to accept a bus of either kind, like displayio? Or will we have SDCard_SPI and SDCard_SDIO types within one module? A twist is that SPI needs a cs= argument but sdio would not. SDCard(*, bus, spi_chip_select=None) as signature, even if it's less compatible with adafruit_sdcard?
It seems that for a number of reasons a FourWire bus couldn't be used, even though that would help with the chip select aspect.
slender iron
is the command protocol the same?
I do like the idea of accepting a bus but for spi it could be a bus device
to encapsulate chip select
onyx hinge
we need to avoid dipping back into Python, so I think an adafruit_bus_device is right out
unless we bring that into the core too
the command protocol looks almost the same, except maybe some bits about detection. I haven't gotten far enough in writing sdio to know
onyx hinge
given that Limor's asked me to look at SDIO next do you want to just hold off on this until both kinds are ready to go in at once ? Just to avoid unneeded backtracking on the API, so we have a design that encompasses both right from the start ?
slender iron
maybe just commit it as _sdcardio for now?
onyx hinge
OK, if that's what you like will you write me a note on the PR? I am fine with that.
slender iron
yup, I can add that
onyx hinge
thank you
low sentinel
@slender iron I have checked that box no less than 10 times on 2 devices. ๐ง
timber mango
I tried to install Zephr, but it requires gcc-10, and I only have gcc-8. Unable to install gcc-10. Ubuntu MATE 18.04.
solar whale
hmm -- I installed it a few weeks ago and my system had gcc-9
timber mango
What OS?
solar whale
Ubuntu 20.04
ionic elk
I've got gcc 9 and have no problems either on Mac OSX
timber mango
That is why I can not install gcc-10. I am only on 18.04 here.
timber mango
I will check that out. Zephr is not that important to me right now, so I can do without it.
timber mango
Crap. Now apt is broken on my system. ๐ฆ
I need to stay on 18.04 because some nVidia stuff for Jetson has not been upgraded to need 20.04 yet.
timber mango
It looks like I get to reinstall Ubuntu MATE today. ๐ฆ ๐ฆ
tulip sleet
@onyx hinge I saw a desktop notification go by from you with a whole paragraph about sdcardio naming, I thought, but I can't find it now.
did you delete a discord post or something like that?
tulip sleet
ok, got it, thanks, i was in the channel but afk and somehow didn't get a red notification number circle
indigo wedge
@ionic elk the Feather M7 1011 was designed for Adafruit, it has a Stemma QT connector, microsd but no ESP32
ionic elk
Ok, neato
indigo wedge
for usb and swd pins i thinking there's only one choice
for flash i use the bank A pins which i think is same as the evk
blissful pollen

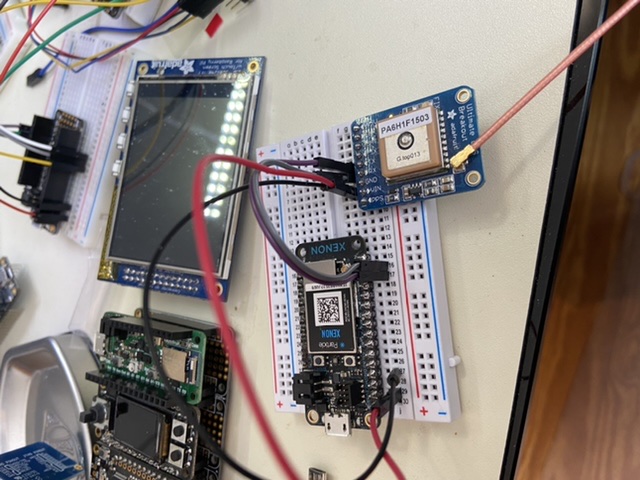

Question someone can maybe help me out with. I demoed my sensor fusion / ahrs code on show and tell a couple weeks ago and I got some hints on how to make it into an actual circuitpython library. I've followed all I could find on making a library and was wondering is there anything else I should be doing to contribute it to the available libraries?
idle owl
@blissful pollen Have you considered submitting it to the Community Bundle?
manic glacierBOT
idle owl
I presume you mean you followed the Creating and Sharing a CircuitPython Library guide?
blissful pollen
Yup that guide, and the assorted coding standards ones i found
And I hadn't really considered what the next step was, I could submit it to that bundle
idle owl
Basically if it's not a product we sell and support, it should be submitted to the community bundle. If it's included in the main bundle, the expectation is that we will be supporting it.
blissful pollen
That makes sense, I'll take a look at submitting it there. I did write up a quick "how to" and some references back to the Ardunio only learn guide adafruit has for sensor fusion
ionic elk
I'm actually also interested in this, because I've been working on a library that is NOT sold or supported and I was wondering whether there's any way to register it to some non-supported list or someething
idle owl
That's what the Community Bundle is ๐
onyx hinge
@idle owl do things ever move back or forth?
idle owl
@blissful pollen Oooh. How to's are good.
onyx hinge
hears kattni's eyes light up at the idea of how-tos
blissful pollen
@idle owl thanks for the advice
onyx hinge
@blissful pollen it's sure to be good material for the Python on Hardware newsletter and/or the Adafruit blog, so keep us posted
blissful pollen
@onyx hinge will do! This has been a good learning experience with python, git and just how everything fits together
solar whale
Do we have a guide for writing a how-to ๐
ivory yew
I would definitely like adafruit_bus_device to be pulled into core.
orchid basinBOT
simple pulsar
I think this is written down somewhere but in terms of memory efficiency, for .mpy files what's the most efficient format for CP for storing strings of bytes and 16bit ints?
tulip sleet
bytes()
as opposed to tuples, etc, is that what you're asking?
note that for readability, you can have consecutive b'...' strings that get concatenated at compile time, e.g. (from the HID library:)
ASCII_TO_KEYCODE = (
b"\x00" # NUL
b"\x00" # SOH
b"\x00" # STX
b"\x00" # ETX
b"\x00" # EOT
b"\x00" # ENQ
b"\x00" # ACK
...
Ah, just looking back to Feb that was when I last asked this, I was looking for PROGMEM style things in CP
tulip sleet
for regular .mpy's (not frozen), all the data will still get loaded into RAM. I kind of remember that, perhaps if they are large you could read them from a binary file, which will keep them out of RAM if they don't need to be present all at once
simple pulsar
Thanks, I'll have a play and see how much memory I chew through
orchid basinBOT
fathom trellis
Heya, we're doing round 2 of this live Q&A now -- this time with hopefully less technical glitches! https://twitter.com/nnja/status/1260967179236728832
Twitter
The live stream will be at: https://www.twitch.tv/mbcrump
slender iron
@tulip sleet the CI is built on a merge commit
tulip sleet
oh, I was looking at the wrong commit in the actions log
@slender iron what else was merged in recently that would be so much bigger?
slender iron
ยฏ_(ใ)_/ยฏ
tulip sleet
@slender iron pixelbuf was turned ON in the CPX crickit build
slender iron
ah ya
tulip sleet
was that deliberate?
tulip sleet
oh yeah, got it, no room to freeze pypixelbuf
slender iron
there was something I was going to turn off
rotaryio?
want to update the neopixel frozen library too?
idle owl
bitbangio also. If it's not already off.
tulip sleet
it's off
idle owl
Was worth a try.
timber mango
@gilded cradle I had to reinstall Ubuntu 18.04 on my system. I lost a bit of work, but I can easily recreate what I did. ๐
half geyser
Thanks @tulip sleet , @low sentinel , and @ivory yew , I think I understand more about what's going on. Do others see similar issues?
Rather, how often do they see this issue? I ask because I can actually see the whole file sitting in the MSC buffer on Circuit Python, it just hasn't been flushed.
timber mango
@gilded cradle I want to call my new get_board_asset_tag() function in chip.py, but am having some difficulty. How do I do this when the function is in __init__.py? Do I need to move it to chip.py?
craggy galleon
Question RE usb_hid. How hard would it be to make it output a Joystick axis? Does the library have anything that can do that at the moment?
Edit: I can see Gamepad now. I guess you could spin up many Gamepads. Or hack it to one axis
tulip sleet
@half geyser are you seeing the filesystem flush problem on 5.3.0 or only later? If the latter, this is likely to be a CircuitPython flush problem brought on by not running a background task promptly. The internal flushes were done on a timed bassis before, but the new lower power code may not be triggering the flush timer properly.
@craggy galleon right, there is gamepad. It was very hard to find a particular gamepad definition (descriptor) that would work across MacOS, Windows, and Linux. If I remember right, it does not currently work on Linux. Our long-term goal is to allow user-defined HID descriptors at run-time (set in boot.py)
see for instance the XAC descriptor for its gamepad, which right now is a compile-time flag
grep for XAC
craggy galleon
Here's a bit of background... I want to make a Flight Simulator Throttle console using CircuitPython to send back out the values. So I need probably 6-axes of control.
tulip sleet
do you have an existing device you want to emulate?
tulip sleet
is it to work with a specific game? Do you own one of those?
tulip sleet
so the q is what kind of HID device descriptor is FSX expecting.
craggy galleon
Flight Simulator X lets you configure the individual axis control for each engine
right...
So does there need to be some kind of driver (for example in Windows) running on the other side that understand what the device is doing... rather than it just spitting out commands?
tulip sleet
there are USB standards for Flight Simulator Devices (https://www.usb.org/sites/default/files/documents/hut1_12v2.pdf#page=37), but it could be that FSX is not expecting that but some proprietary thing. E.g. Xbox controllers use some proprietary HID descriptor
craggy galleon
Ohh - I know FSX works with any controller
I have a generic joystick that shows up as such in Windows
tulip sleet
is there a settings window where you can map various joystick ranges to various functions
tulip sleet
but that Logitech thing above could be doing various different things... I'll see if someone has published its HID descriptor
craggy galleon
on sec, I'll plug in my joystick now
tulip sleet
this would be useful: https://www.thesycon.de/eng/usb_descriptordumper.shtml
craggy galleon
I don't have any experience playing with this sort of thing. Just thought I would ask the question.
tulip sleet
that report is incomplete; it doesn't include the HID report descriptor
looking to see if there's a way to get it....
craggy galleon
@tulip sleet you sure it does not include the descriptor you are looking for?
What should it look like?
tulip sleet
it has the HID descriptor, but not the HID report descriptor
example of a report descriptor: https://github.com/adafruit/circuitpython/blob/master/tools/hid_report_descriptors.py#L50
i did tons of work on this a couple of years ago, trying to find the tools I used then. You can use wireshark, but I think there are easier tools
joystick example is at line 177 in that link
craggy galleon
wireshark can work. Do I need any add-ons?
tulip sleet
you need to install the optional usb pcap stuff. Hold on, let me find some references
craggy galleon
I think I've got that already
tulip sleet
also if you have a linux box i think you can use usbhid-dump
i was doing this over and over, I just can't remember how i did this
i was mostly doing it on linux, not windows
this is very handy: I think I got hex dumps from wireshark and then used this to parse them: http://eleccelerator.com/usbdescreqparser/
do you have linux?
craggy galleon
Not at the moment. It's on a seperate SSD
I think I've got what we are looking for though. Give me a sec
I can send that packet if that's it
tulip sleet
that's the actual report; but the hid report descriptor is sent when it's plugged in. So start a capture, then plug in the controller and wait a few seconds, then stop the capture. If you send me that pcap file I can tell you where to look
craggy galleon
I can go back. give me a sec
tulip sleet
i.e. the device describes to the host the structure of the data it is sending
tulip sleet
those are other kinds of descriptors. but if you upload the capture file I'll find it
craggy galleon
There you go ๐ The mouse is sending loads of spam.
tulip sleet
look at frame 939
craggy galleon
yep
tulip sleet
you can add a filter usb.src=="3.24.0"
craggy galleon
How do you know that is for the Joystick and not something else?
tulip sleet
In the display for frame 939, right click on HID Report, and choose Copy -> Copy Bytes as Hex Dump. Then paste that into http://eleccelerator.com/usbdescreqparser/ and press the "USB HID Report Descriptor" button
you'd only see that kind of frame when the device is enumerated, when you first plug it in, so it should be your joystick, as opposed to the mouse that's already plugged in, etc.
craggy galleon
Right...
tulip sleet
usually I sort the trace based on the Info colum and just look for the right name of the Response
or you could add a filter
craggy galleon
Does this make a CircuitPython easier to work with?
tulip sleet
actually that dump has numbers at the left, should be removed
copy as Hex Stream instead of Hex Dump
craggy galleon
Ahh, yes - removing the numbers makes it look better
craggy galleon
Like to create a 6-axes joystick ๐
tulip sleet
i was just using it to figure out what existing joysticks that worked were doing
craggy galleon
Not sure if this helps either:
That one is 3-axis and 2 buttons.
tulip sleet
i did this kind of thing extensively when debugging HID and USB support, not just for joysticks. Then I took the output from that tool and turned it into some python code that generated a bytestring that was the descriptor (e.g. the link into circuitpython above)
there were joysticks that worked and ones that didn't; sometimes it was something like 8-bit vs 16-bit axes, or signed vs unsigned ranges. it was painful. ideally the drivers on the OS side should be flexible, but sometimes they are not
or i'd take an existing descriptor and modify it to see if I could get it to work. There was a lot of trial and error
so if you have one that works, you can get its descriptor, and then use the same descriptor in a custom build of CircuitPython. We'd like to make that easier so you don't need a custom build, but it's not as high priority as other stuff right now
craggy galleon
Cool. When I look at this again, I will do that.
Thank you for your lesson in USB HID. I feel I learned a lot ๐
tulip sleet
you're welcome! it is pretty arcane. If you can get people to give you dumps of their working controllers, that is helpful. Wireshark is powerful but it's a lot of work. As I mentioned, there are linux tools that get the same thing
timber mango
@tulip sleet I think I eventually want to do something similar when I start working on my wireless robot controller. I hope to use RFM69 radios to send and receive short bursts of data. Right now, I want to experiment with using my PyGamer as a controller because it is easy to add on to.
I wish there were a module of some kind that I could add to a PyGamer that has the latest Bluetooth and Wifi. It might be interesting to use a PyGamer to use one of the new Bluefruit devices as an I2C (or maybe SPI) slave. Then, I could add WiFi and RFM69 to the Bluefruit device which would do most of the data analysis and processing. I already know I can run at least two SPI devices from an ItsyBitsy M4, and see no reason why I could not add a third if I have a pin available for CS. I need to get a Feather nRF52 Bluefruit board and a Feather Airlif WiFi featherwing. OR, I could figure out a way to connect my Bluefruit LE SPI Friend and one of my RFM69 radio breakouts to my PyGamer.
I think one or two Feather Prototype wings would work for that. ๐
tulip sleet
there is a co-processor protocol called "HCI" that is implemented for various Bluetooth SoC's, analogous to the "NINA" SPI protocol for the airlifts. But we would need to implement a _bleio equivalent that uses HCI
tulip sleet
HCI is available on nRF via Zephyr
timber mango
Is Zephyr running on the new nRF52 boards now?
tulip sleet
yes, Nordic sees it as the long-term future, instead of the SoftDevice model
timber mango
I tried to install Zephyr on my system, but I only have GCC 8.x and I got everything all messed up. I had to reinstall Ubuntu.
Do you think it would be difficult to use HCI from a PyGamer to communicate through a Bluefruit LE SPI Friend to a newer nRF52 board?
tulip sleet
@timber mango the Bluefruit LE SPI Friend has its own protocol; you wouldn't use HCI. You could use the existing library https://github.com/adafruit/Adafruit_CircuitPython_BluefruitSPI
i wouldn't try to install the HCI firmware on a Friend.
It should work, it's all Bluetooth
timber mango
OK. I already have my SPI Friend and an RFM69 radio connected to an ItsyBitsy M4, so that can take the place of the PyGamer for the purpose of testing communications. I also recently got a CLUE board, so that would work for the nRF52 side. ๐
tulip sleet
you have to decide what you're going to transmit over Bluetooth. You could use the Nordic UART protocol and make up an ad hoc protocol on that, or you could define some services. It's probably easiest to use the UART protocol for now, though it's not really the best way to use Bluetooth, given its capabilities
timber mango
I know, but it would be a good way to ease into using Bluetooth between two devices. ๐
tulip sleet
it's by far the simplest ๐
timber mango
Simple is good when starting out with something complex like Bluetooth. ๐
OK, I think I am overwhelmed enough now that I can go off and play for awhile. ๐
Thank you much for the tutoring!
tulip sleet
yw!
topaz quest
@tulip sleet since I saw you talking about HID ๐ https://github.com/Flameeyes/usbmon-tools is a bunch of tools I wrote in the past months and has a "chatter" exporter for HID traffic from pcap files (Linux and Windows) โ it doesn't extract/parse the reports yet but I should probably get to that soonish as I still have a mouse config protocol to reverse ๐
(and as you can tell, I hadn't gotten through that with reuse yet, which is why I did that before sharing because it's the kind of "light dusting" you do before inviting someone home, to me ๐ )
tulip sleet
@topaz quest that would have been useful! bookmarked!
raven canopy
i actually stumbled upon usbmon-tools this week (and saw it was yours) as i continued to debug my RPi/CP bootloader issue. it was one of those odd coincidences. ๐
topaz quest
heh small world of hardware hacking after all ๐
slender iron
Anyone around and want to help with mentored sprints?
slender iron
gilded cradle
@timber mango you should be able to keep it in init.py, but make sure it's a member function of Detector. Then just call self.detector.get_board_asset_tag(). Maybe look at how the other functions that live in there are being called.
timber mango
@gilded cradle Ah, OK, got it! ๐ ๐
timber mango
@slender iron is TinyUSB the same as LUFA?
This is my first try at this kind of a change.
@slender iron i think i understand the difference. TinyUSB is a driver for builtin USB Hardware an LUFA an old USB Software Stack
@gilded cradle I made it past PyLint with just four commits this time. ๐ Now, I have to read about how to test this. I pushed everything to git because I had already lost all my work when I messed my computer up. I did not want that to happen again.
low sentinel
I don't think I'm going to bother making display DMA run in parallel like I was considering yesterday.
Various sized update timings from Display.c:
refresh: 16.97ms fill: 13.31ms send: 0.12ms buffers: 19
refresh: 2.93ms fill: 1.71ms send: 0.24ms buffers: 5
refresh: 2.69ms fill: 1.83ms send: 0.12ms buffers: 5
refresh: 2.93ms fill: 1.95ms send: 0.12ms buffers: 6
refresh: 15.01ms fill: 10.99ms send: 0.12ms buffers: 18
refresh: 295.29ms fill: 274.66ms send: 0.12ms buffers: 100
Blocking DMA transfers are fast enough that pixel fill is the long pole. Perfectly parallelizing 0.12 milliseconds per refresh won't really do much, and it looks like at best we'd see 10% improvement on the smallest updates (which aren't a problem anyway)
manic glacierBOT
modest flint
hey, Mu-Editor doesn't give me the option of using Adafruit as a Mode. What can I do to change that pls?
manic glacierBOT
orchid basinBOT
It looks roughly like this:
There are other widgets we could choose instead:
https://hosted.weblate.org/widgets/circuitpython/
simple pulsar
Is there a ticket in GitHub to register demand for the "libraries with native/compiled bits". I think this topic was mentioned in Discord about a week ago and I'm about to try and find that discussion...
simple pulsar
Ah, I believe this is what I seek: https://github.com/adafruit/circuitpython/issues/2825
manic glacierBOT
low sentinel
File "adafruit_display_text/label.py", line 103, in __init__
File "adafruit_display_text/label.py", line 119, in _update_text
MemoryError: memory allocation failed, allocating 64 bytes
:expressive_sigh:
it is too easy to exhaust a samd51 feather
timber mango
@low sentinel I said that about the SAMD21, but so far I have not exhausted the SAMD51.
ivory yew
Yeah that's surprising
Sol has a SAMD51 and a lot of library code and I've yet to make it run out of memory.
low sentinel
I made vectorio to claw back dozens of kilobytes and simplify my code - but that only got me a little further.
You couldn't have convinced me before that making a basic frontend for a 3d printer would be this tough with circuitpython on a 160kb samd51! I mean, I made a pretty involved 60fps animated instrument cluster for my car with a 128kb flash and 128kb ram m3 no sweat (particle photon, didn't ever bother enabling the sram) ๐
maybe I type too much? But I've resorted to .mpy for everything at this point
low sentinel
2340 SLOC in this project. It's really frustrating; sorry for venting.
In case you're curious, this is one way to bend a samd51 to its knees. (it's a heavy construction zone atm)
https://github.com/WarriorOfWire/rrfui
timber mango
@gilded cradle I am starting to think that the UDOO Bolt qualifies as a special case as far as detection goes. I believe the board_asset_tag allows detection without detecting the chip. I have been having a heck of a time trying to detect the chip. Has it ever been this difficult to get a new board detected?
timber mango
@gilded cradle I have the chip and board correctly detected now! ๐ ๐ Now, I can move on to the next phase with Blinka. I sure am learning a lot! ๐ Pushed to Git and passed PyLint.
tulip sleet
@modest flint answered you in #help-with-circuitpython
onyx hinge
wow amazing progress on the Swedish translation
at 80% translated it's now the second most complete translation
there are also a lot of suggestions made, which is great, but those have to be reviewed and accepted. I can do a half-job of it in French and a quarter job of it in English. But if you read another language (even if it's less than fluently) this is a great way you can still contribute, by giving it a sniff test, fixing any errors (there's a lot of "% d" instead of "%d" for instance), and saving the translation
modest flint
hey, Mu-Editor doesn't give me the option of using Adafruit as a Mode. What can I do to change that pls?
#circuitpython-dev
#help-with-circuitpython
cobalt grail
wow amazing progress on the Swedish translation
@onyx hinge I'm now done. 100%.
But thanks! ๐
onyx hinge
@cobalt grail thank you !
raven canopy
@onyx hinge did you see my review on your adabot-include-weblate PR? i can go ahead and merge it in so the reports start including it; the question isn't that important up-front... ๐
raven canopy
hehe. all good. afk for a few
onyx hinge
responded now
actions is having a rough day with another of my PRs, trying to keep smiling ๐ฌ ๐
onyx hinge
I have no idea what a 'traslador' is in English.
crimson ferry
I don't know what a portkey is in English. It is apparently a Harry Potter thing.
Transitive Property of AI translations?
onyx hinge
yeah I was on to the harry potter angle, but it doesn't really matter. I was trying to figure out if a Swedish translation for something about "unicode escapes" was wildly wrong, or mostly right, but that's hard to do when I don't speak any of it.
Flyttnycklar nรคmns fรถrsta gรฅngen i Harry Potter och den flammande bรคgaren
โ
Moving keys are mentioned for the first time in Harry Potter and the flaming beaker
machine translation is so weird
well now we've all learned something I hope
cobalt grail
if a Swedish translation for something about "unicode escapes" was wildly wrong
@onyx hinge It is totally untranslateble. :-)
But I did check where in the code base it is used, and it's nothing that normal users would encounter.
onyx hinge
I think I've tamed the wild beast of autotranslation that was making suggestions for every string in every possible language on weblate. If actual translators want it back, I can reverse course.
timber mango
@gilded cradle Are Pin mappings from the actual MCU to the pins on the board? So python PA1 = Pin(1)would mean that MCU pin PA1 maps to pin 1 on the board.
timber mango
@gilded cradle In looking at what little technical data I can find on the UDOO Bolt, I see stuff like Pin EC Pad 8 I2C08_SCL 10 I2C08_SDA 34 UART0_RX 36 UART0_TX 38 UART0_RTS# 40 UART0_CTS#Are the EC PADs possibly the CPU pin numbers?
raven canopy
put my circa-1998 HTML skills to task. success. ๐คฃ
ivory yew
@raven canopy beautiful.
Happy to help give that a prettier look if you want some help.
raven canopy
hehe. i appreciate it. still trying to decide if i want to implelment a full server+CDN, or stick with the Azure Function w/ jinja and inline CSS (as above).
eternal parcel
I'm having another stupid moment. I'm trying to trigger a relay from circuit python. It should be the most basic thing, wire the control pin to a pad on the playground, set the pins up like a led, and then set the value true or false. Is the 3v out from the python not enough to trigger a relay? I'm feeding it vcc from the python vcc. So it should be
eternal parcel
so i'm doing
switch = DigitalInOut(board.A6) # For Circuit Playground Express
switch.direction = Direction.INPUT
switch.pull = Pull.UP
ignitionRelay = DigitalInOut(board.A2)
ignitionRelay.direction = Direction.OUTPUT
ignitionRelay.value = False
while True:
print (switch.value)
if switch.value:
led.value = False
ignitionRelay.value = False
else:
led.value = True
ignitionRelay.value = True
orchid basinBOT
I like the bar graphs, one of these:
, because it will be apparent to someone with a particular language skill what's needed.
I think that in combination with one of the "big" status badges conveys a lot of information.
eternal parcel
It's the most basic example and I'm not able to get the 5v relay to fire off
crude blaze
@eternal parcel thats a question probably better suited for #help-with-circuitpython ๐
simple pulsar
@raven canopy There's always https://11points.com/11-best-old-school-animated-gifs/ to raid for HTML page inspiration
lunar crown
@eternal parcel I don't think you have a chance of driving a relay without a hardware relay driver in between the CPE and the relay. How much current does it take to drive the relay? 20 or 40 mA for a sensitive one. The maximum current out of a CPE pin is going to be 3 or 5 mA. I would start by substituting an LED and series resistor that will light at 2 mA and check out your software and logic. Then build/buy a little hardware drive.
eternal parcel
Oh, that's a good idea. I knew it was something wierd like that.
I'm at the cabin, I did bring my tool box. I wonder if could use a transistor and get the current up to the right level
I will have to see if i can get the relay spec shet. they look like super generic ones, all the ones I have are the same source
simple pulsar
@eternal parcel @lunar crown Perhaps obvious and already in the plan, but I think you'll need a reverse diode across the relay's coil to protect against back emf too. I looked this up recently for the nRF52840-based boards like the CLUE and nordic put them in the microcontroller on the GPIO but they are inevitably going to be tiny. [added later] this look inspirational: https://learn.adafruit.com/adafruit-power-relay-featherwing/downloads
