@ionic elk heya import math also fails 😄
#circuitpython-dev
ivory yew
Who needs math? It's a waste of flash.
raven canopy
@swift arrow @ivory yew welcome to the
ista's!
ionic elk
@meager fog it shouldn't... that's weird.
ionic elk
Whoops, looks like I didn't have master merged at the time of the original build I gave you
(had an old master version for the branch)
Try the new CI autobuild
It passed this time
@meager fog
meager fog
oki!
granite crow
Hi yall, when plugging a circuitpython board to my pc via USB, the contents of the drive are the contents of the on board flash chip?
granite crow
Cool, thanks @idle owl, it will help me in a project I have in mind, last question, is the flash memory formatted by the mcu so I can access it from my pc or the mcu does some kind of translation of the data format ?
If this is off-topic I can keep asking on the proper channel you tell me
idle owl
This is entirely on-topic! You're in the right place.
It's formatted to be accessible by your PC, there isn't a translation happening. It's FAT, FAT12 I believe specifically.
There are others who would be able to explain it better than I can, but that's the general answer to your question.
granite crow
Thanks for the reply @idle owl, I think I can jump on the code and try to understand how does it works
idle owl
@granite crow Excellent! Feel free to post any questions you have along the way!
solar whale
@slender iron finally managed to build CP under catalina -- it took some patience....first had to install brew (it was not on this system) and for that, I had to go into bash shell for the install script to work. Getting the symlinks for gettext also took some extra effort due to a permissions issue. ONce I had that everything installed OK -- when I tried to build, MacOS objected to executing every parot of arm-none-eabi.... since it was not from an approved developer. I had to cancel the build -- go into security settings and allow the program, then restart the build and "open" the program. This had to be done for several of the steps in the build, but only once. I have successfully built pyportal and CPX, CPB and feather_nrf52840_express. -- just finished build of all BSPs for "en_US"
ionic elk
@meager fog let me know if you get a chance to run those library tests on the latest build, I want to make sure I've wrapped that up
hexed pawn
@idle owl I created the pull request for the MCP9600 CircuitPython driver and Travis is happy. I will do more testing when the MCP9600 is in stock.
solar whale
Yay! Just verified that the ft232h and "blinka" work with MacOS Catalina!
swift arrow
Just a procedural question.. Once a PR for CP libs has been accepted and merged.. Does that mean it should show up in the next release of the libs?
tidal kiln
yes - but only once a release is done on the repo
swift arrow
as long as the build date is > merge date?
hmm guess I need to learn what a release is on a repo
tidal kiln
nope. it's a manual step. it can only be done by repo owners.
in short, not something you would need to worry about
ivory yew
definitely worth being aware of if you want other people to be able to use the code you contributed.
You can always file a bug asking for the repo maintainers to make a new release.
tidal kiln
yep. or can also respond in the PR thread or something like that.
sometimes there are reasons to hold off on a release, but it shouldn't be a huge amount of time, so if you see that happening, can bring it up somewhere/how
swift arrow
ah so that lib has a release of 19 hours ago.. so on the circuitpython.org website under libs.. It should be in there as long as that date is later than the release on the lib that @tidal kiln referenced
tidal kiln
there is a set of tools that are run nightly that check for new releases and update the bundle
idle owl
And we have checks to tell us when a lib has changes and needs to be released, and a list is generated daily.
swift arrow
So any bundle that is created tomorrow or later will have it
idle owl
We're a little behind at the moment I think. I did a massive sweep about a week and a half ago.
Yes.
swift arrow
cool, not a complaint in any way.. just figuring out the process
idle owl
That's what it seemed like. 🙂 No worries
The more involved you get, the more you'll want to know and understand. We're happy to answer and explain everything you want to know.
swift arrow
I really like how our libs have an example directory.. VERY helpful for people new to the libs or CP.
tidal kiln
@swift arrow wanna close this?
https://github.com/adafruit/Adafruit_CircuitPython_FancyLED/issues/11
idle owl
That was the intention. And the base example is typically included in the docs, so there's a visual on what things do.
idle owl
@trim elm Ok. Feel free to take a look at working up a simpletest example for the GFX library. Consider PRing early in the process while it's still a WIP so we can provide feedback as you work on it. You can always PR a WIP for feedback purposes, we don't mind a ton of commits on a PR.
trim elm
Ok. That's what I'll do. I'm getting the pyportal to see about writing a simpletest for the ili9341 on that. I think it would make more sense to have a few simpletests, one for each of the major screens that still use gfx
idle owl
@trim elm The other option is to have commented out init lines for each display and use the same code in one file.
Depends on whether they use the same code really.
If there are some that do, consider doing that.
trim elm
Yeah. That sounds like a better option assuming the code isn't too different screen to screen
solar whale
@swift arrow if the PR is still open you can just push a new commit and it will be include in it.
swift arrow
@solar whale are you talking about the one we were discussing
Fix for Issue #24 #26 ?
solar whale
@swift arrow yes, and just a general comment that you can add changes easily to an open PR.
swift arrow
would you like it resubmitted with the pass made into a continue? but the rest left as is
solar whale
That was my suggestion -- as long as it still works 😉 but that was just my suggestion not a request.
swift arrow
🙂
it's interesting.. when I get my phone to actually connect using the bluefruit app.. I can not get that example to crash.. I did get John's Solderless Tie example from the blog to crash.. and fixed it by using the try around the packet getting. His example is basically the ble_color_picker with some extras in there..
the code seems sensitive to more commands coming in with the code making it too busy to get back and grab the next pack soon enough
solar whale
I'll give it a try --- take few minutes to find it...
swift arrow
I put a PR against John's code and he added the try.. so you will need to pull it out to get the failure
but he noted that he also saw the failure
solar whale
do you have a link handy ?
swift arrow
sure, one sec
naturally a simple tweak to use the CPX neopixels and not external ones
swift arrow
heheh SORRY!!!
idle owl
Of course you delete the evidence 😄
swift arrow
too bad I didn;t have a hot mic.. you would have heard a cool "eeeeeeeekkkkkkk"
idle owl
Anyway, I feel like Limor had them communicating 70ft apart at some point, so it's possible that the signal strength indicator in the app has a larger range than whatever the CPB has, but it's still fine.
swift arrow
I was trying to figure out if maybe I had a bad phone or damaged CPXBFLE
solar whale
@swift arrow OK -- have it running without the try -- how do you make it crash?
also -- I see 1-2 bars about a foot away
swift arrow
go thru different animations really fast.. pretend you are really angry at it and want it to crash..
I used the arrow keys to slow it way down.. then changed the animation style.. then more arrow keys.. more number keys..
solar whale
yup killed it
swift arrow
then it froze..
solar whale
I was able to control-C then reboot
swift arrow
we need a crash or freeze emoji
swift arrow
@solar whale , right that was my experience.. so when I saw @idle owl's issue with the ble example.. I figured I could kill two birds with one stone so to speak with the try fix.
solar whale
I have it running a string of 30 neopixels via a "gizmo"
swift arrow
but excellent questions around should we silent error, or print "Hey we got a bad checksum" kind of thing..
also should the library catch the error.. so the user never has to worry about such things?
lol.. I found myself with more questions after than I did before 🙂
solar whale
That's usually the way it goes! In the example, I think errors should be reported. It can be dangerous to hide too much in the library.
swift arrow
So use the try but add a message saying it got an error?
and leave the lib the way it is
or are you saying let it error out?
solar whale
I think the library is OK -- the example can do the try/except and handle it.
again -- just my opinion, I am by no means a python expert.
swift arrow
That is my preference as well. If people are like me they go to the examples and use that as a starting point for projects. I like the idea of them seeing how it should/could be done to catch it and move on.
I am a total Python newbie.. so I like hearing all opinions
solar whale
and if a lib fix is eventually implemented, no harm done...
slender iron
@solar whale yup, I got it going yesterday by jumping through the security and open hoops
solar whale
it was painful, but done!
slender iron
and..... more hoops 🙂
solar whale
so far no deal-breakers with Catalina
swift arrow
@solar whale I guess the question now is what errors to catch.. and what message to print
solar whale
I tried mu and it works -- as did Arduino...
idle owl
@slender iron So you took the big stick approach? Or you actually managed to get it working properly?
solar whale
@swift arrow have you seen more than ValueError?
slender iron
@idle owl I figured out how to add security exceptions for each binary
swift arrow
I myself have only seen the valueerror with a bad checksum
idle owl
Fair enough.
solar whale
no reason to add more -- unless they become a problem. better to see the errors!
swift arrow
@idle owl saw a "OSError: Failed to read CCCD value, err 0x3002".. but maybe we should leave that alone.. and just go after the bad packet for now
that could be something more serious
idle owl
Like I said, Dan wanted to fix it properly.
swift arrow
maybe I will open my own issue for the bad packet.. and my simple fix PR to fix it. Keep Kattni's separate.
slender iron
I do want to add better errors for BLEIO
will likely wait until after I land my current changes though
solar whale
another good reason to handle it in the example -- the libraries are going through a lot of development and it is great to flag this kind of issue in an example. Perhaps it will go away wiht future library updates. It really depends how often the issue occurs. the "bad checksum" is pretty easy to trigger. Not sure about the OSError.
swift arrow
@solar whale The question on my mind is it's easy to trigger.. but not easy to trigger in the example I opened a Issue against.
in John's code it is easy to trigger.. and John's code is a modified ble_color_picker .. so in a way it makes sense to fix it.. but in another.. sigh..
I think it only happens because it can not pull in packets as fast as they are issued from the phone app when you add complicated animations.. in the example I can not trigger the error because it can process them faster than I can issue them from the phone
but that's just my opinion
solar whale
The issue is real as your example shows - your PR can be seen as a "workaround" not a fix. Perhaps the issue should remain until it is fixed in the lib or deemed liveable,
swift arrow
perhaps the way to look at this is.. the fix hurts nothing.. and is instructional in it's use
solar whale
that was fun to play with -- I have to go offline for awhile. Thanks!
swift arrow
thanks for talking me thru this
raven canopy
tfw you read your own conditional wrong, and place code in the wrong place... 🤦
orchid basinBOT
orchid basinBOT
manic glacierBOT
slender iron
@tulip sleet any idea if scan response events happen right after the corresponding advertisement?
tulip sleet
@slender iron the scanner should ask for the scan response quite soon, assuming it's interested in the advertisement
rotund basin
Hey all, my apologies but I forgot this .. I have the m0 adalogger and need a second uart , how do I do this ? My current version of circuit python is 2.x
ionic elk
@tulip sleet I think the Stm32 uart HAL may have actually been written by satan
to torment mortals
raven canopy
👺
tulip sleet
Considering upgrading from 2.x: there have been many improvements since then, including big speed improvemetns
orchid basinBOT
rotund basin
@tulip sleet thank you kindly for reminding me, I wonder how much of my code will break from the upgrade? Is the upgrade stable ? 😃
tulip sleet
@rotund basin Yup, it's stable! Go to 4.1.0. You can always revert, but I think you'll like the improved perfomance and bug fixes. 2.x hasn't been supported since 4.x came out.
rotund basin
Thanks @tulip sleet will do it!!
slender iron
@tulip sleet ok, will try it. I'm wondering if I should merge the scan response into the original scan entry
manic glacierBOT
tulip sleet
@slender iron right now the scanner doesn't do "active" scanning, so it never actually gets scan responses. I'd look maybe at how iOS or Android do scan responses for inspiration
slender iron
yup, I plumbed it through
my guess is that it's all callback based
if one event is right after the other then the payloads can be merged
I added a filter to the scan so it'd be good if they were merged
marble hornet
@tulip sleet mind if i ask some questions about the nrf port? about turning on some micropython features?
tulip sleet
sure
marble hornet
So I'm looking at a project where I want tighter control of the power consumption / hardware. and I prefer I really like the bluetooth abstraction you made. I'm looking to control sleep / not sleep modes, cpu frequency, and the inline assembler. where would i look for some of the config toggles?
tulip sleet
All that is not really available from CircuitPython right now. We use SysTick as the fundamental timekeeper, and it requires the CPU to be going all the time (not sleeping). We have ideas about how to rework this, and it's on my list of things to do (there's at least one issue), but is not the absolute next thing to do, though it's not far down the list.
The inline assembler stuff might work, but you're not going to get very far with that in terms of controlling sleep because of the other issues above.
also we'll have to be really careful in the nrf port to use the nRF SoftDevice sleep/low-power API, because the bluetooth code depends on being awake to maintain BLE connections, etc.
marble hornet
Thank you for the prompt and detailed response! i have two more questions: is SysTick use as the timekeeping method (no pun inteneded) in just cirpy or micropy too? and what if it was fine for the entire system to sleep for a some amount of time w/out running python?
tulip sleet
MicroPython mostly uses the RTC of whatever chip it's running on. That is what we want to head toward. The RTC peripherals are designed to work at very low power, so that timekeeping proceeds no matter what.
If you are willing to turn off power completely (no BLE state is being maintained), then you could just turn off power to the board and restart, using something like one of these: https://www.adafruit.com/?q=tpl
this stuff really is on our radar, it's just that a lot of other things are too. But having BLE raises the priority, because there are a lot of applications people have in mind that require good power managment (and you are one of those people).
sly falcon
@prime flower @crimson ferry @solar whale just caught up on the chat about all the nina-fw changes... I was one of those 800k+ affected by The Great California Power Shutdown of 2019 😜 but I'm back now.
I still need to read all the github email I have, but great idea bout doing the binary releases on GitHub....I feel dumb I didn't think of that...oh well.
I'm out this weekend, and no clue what next week will look like at work given the data center issues I had to work on this week due to the power nonsense...so yeah...please don't count on me for a week or so. Hopefully next weekend (Oct 19/20) I can get back to things....sorry I haven't been around more or made more progress!
radiant juniper
im having a dumb and cant find it anyplace else, on the metro M4, did you use an external crystal? and if so at what frequency?
marble hornet
thank you @tulip sleet ! this was very helpful and illuminating !
sly falcon
@radiant juniper I don't know off the top of my head, but I bet the answer lies in the schematics: https://learn.adafruit.com/adafruit-metro-m4-express-featuring-atsamd51/downloads
radiant juniper
thankyou
sly falcon
you're welcome
radiant juniper
huh. The answer is "maybe?" there is a crysal on the schematics, but... Its not connected where I would expect.
crimson ferry
@sly falcon I may have a window of time this weekend where I can get immersed. If you're not in the middle of the NINA stuff, would you mind if I took a stab at it, if that window doesn't close? I'm sure I'll need some help on data structures and build. Or if it closes, it will still be there when you are 🙂
sly falcon
@crimson ferry heh...nope - I say go for it! From my perspective, you taking a shot and learning something new is worth it. I haven't started coding anything...when I left off, I was getting v3.3 of the IDF setup and doing some rough ideas of what I wanted to do...so yeah...no chance of duplication of work at this point
ivory yew
@radiant juniper it's in PA00 and PA01 which is the normal place iirc?
radiant juniper
AFAICT from the datasheet, the external Xtal for XISCO go on PA14 and PA15.
OXOSCO
Page 37 from the SAM D5x/E5x data sheet
ivory yew
It's XOSC32K
radiant juniper
'To guarantee the XOSC32K behavior in crystal mode, PC00 must be static.'
now you have got me all confused.
ivory yew
well the good news is that PC00 isn't even on the usual QFP/QFN64 package.
radiant juniper
right.
alright, I found my confusion. I missread an arrow on the block diagram. I thaught XOSC32K was fed from OSCCTRL... not the otherway around. PA01 and PA00 are correct for a 32.~~~ mhz crystal. the other pins are what one would use for other crystal frequncies.
marble hornet
Hey @tulip sleet , I’m getting about a 20 mA draw even while using the radio with the NRF52840. Does that sound right to what you see?
Have seen**
solar whale
@idle owl for using neopixels on a raspberry pi, the guide explains that you have to install the neopixel library as "sudo" and run code as "sudo" Is it also necessary to have installed "blinka" as sudo as well? I think I ran into issues if I did not but just wanted to check and see if it was necessary. If so, you may want to add a note to the guide. It gets confusing having two installations (user and sudo...)
solar whale
@idle owl ah -- never-mind -- I just removed my "sudo" installation of blinka but then just installed sudo pip3 install rpi_ws281x adafruit-circuitpython-neopixel and it works just fine -- as in the guide 😉 it automatically installs adafruit-blinka for root as part of this. Still have two installations, but a bit less confusing when you just do what the guide says....
idle owl
@solar whale I ran into a situation yesterday where I needed to just read the guide... I get it 😄
raven canopy
hopefully soon, i'll be testing Blinka on a RPi running Ubuntu 19.04... assuming it survives my frustration. 😄
idle owl
@raven canopy Wait, wat?
raven canopy
Back to working on RosiePi. Using Ubuntu Server 19.04 since it comes with the correct version of gcc-arm-none-eabi to build circuitpython. but...now that i got the Ansible playbooks to run correctly, i've discovered that the way i structured everything doesn't work. #status-update 🤣
solar whale
@raven canopy interesting -- never thought of trying Ubuntu on a pi for that reason 🤔
raven canopy
they have distro an image for it too...no muss, no fuss.
idle owl
I was more @.@ about Ubuntu on a Pi in the first place.
raven canopy
its just Debian, really. Like Raspbian.
idle owl
I suppose so. But I know it better than Raspbian 😄
Though I guess I mostly ssh into my Pis, so who cares?
idle owl
Sounds attractive if I'm ever using it with the GUI though.
Disco Dingo 😆 Didn't know we'd gotten that far.
raven canopy
well, the GUI is probably better with Raspbian.
idle owl
Fair enough.
solar whale
did you use the 64bit (last one) for the Pi3?
raven canopy
yep. ubuntu-19.04-preinstalled-server-arm64+raspi3.img.xz. just did a clean one this morning.
solar whale
cool! something new to play with!
raven canopy
here's some [very confusing/unorganized] reading material: https://wiki.ubuntu.com/ARM/RaspberryPi
idle owl
hah!
solar whale
When you first boot after install - what is the device name? equiv to raspberrypi.local?
raven canopy
ubuntu
raven canopy
the cloud-init system may give you fits. are you ssh'ing in? or direct?
solar whale
was going to try ssh -- by direct do you mean UART?
raven canopy
direct keyboard/monitor.
solar whale
oh -- I can do that as well if ssh does not work
raven canopy
yeah, if it stays non-responsive beyond a few minutes, its probably hanging on cloud-init due to connectivity problems. (ran into that with a non-dual-pair ethernet cable)
building your own CI-like service teaches many things. most are painful. 🤣
raven canopy
oh. i misunderstood you. give me an easy command to find what you're looking for. (i go straight IP)
solar whale
ah -- just need to know its IP address... hooking up monitor/keyboard
Amazing -- it's alive!
and working via ssh -- now that I have its IP address - very cool
there goes the rest of today ...;-)
raven canopy
hehe. sorry. kind of. 😜
solar whale
not sorry..
solar whale
@raven canopy hope you don't mind a few more questions... where did you get the arm-non-eabi distro from -- I could not install the ppa (no release) -- same issue for the raspi2 ppa -- did you bother to install it and if so, how?
I may try 18.04
slender iron
Hi all, the meeting is at our normal time, 11am Pacific / 2 pm Eastern, on Monday here in our Discord voice chat. All are welcome to attend. Details on the meeting are in the notes doc here: https://docs.google.com/document/d/1LVztWEsQVUZIOpSC36iRl72r09S51LjRymuYSv9TjtQ/edit?usp=sharing Feel free to add your notes in early as well. <@&356864093652516868>
raven canopy
@solar whale its available from the ubuntu disco source: https://packages.ubuntu.com/disco/gcc-arm-none-eabi
no ppa necessary..
solar whale
so you built from source -- ok
raven canopy
didn't build it. just apt install gcc-arm-none-eabi would be required.
raven canopy
haven't tried. i'm using ethernet. but i will say: netplan is annoying as all get out.
solar whale
looks like it -- wired for now
raven canopy
ipv6 is largely broken too, for netplan. i've got a disable resource if you need it.
solar whale
OK -- will ping you if I get that far
raven canopy
@solar whale i loathe plain text passwords, but look at the WIFI examples on netplan: https://netplan.io/examples
solar whale
thanks!
@raven canopy hmmm -- all installed OK but when IT try to make mpy-crooss I get ```make: Entering directory '/home/ubuntu/circuitpython/mpy-cross'
Use make V=1, make V=2 or set BUILD_VERBOSE similarly in your environment to increase build verbosity.
GEN build/genhdr/moduledefs.h
In file included from ../py/mpstate.h:34,
from ../py/runtime.h:29,
from ../py/gc.c:32:
../py/nlr.h:63: error: "MICROPY_NLR_SETJMP" redefined [-Werror]
#define MICROPY_NLR_SETJMP (1)
../py/nlr.h:39: note: this is the location of the previous definition
#define MICROPY_NLR_SETJMP (0)
had same issue with 18.04 -- did I miss something?
looks like nlr.h is not detecting the achitecture
raven canopy
hmm. might need to work some dpkg magic. i honestly haven't gotten that far yet..
solar whale
ah -- ok -- no problem -- I'll let you know if I figure it out.
raven canopy
i appreciate it @solar whale!
raven canopy
@solar whale stumbled upon this, but the last comment doesn't really answer definitively. https://github.com/micropython/micropython/issues/4666
ahh. just looked at the log. building unix port.
solar whale
hmm - could have used a bit more info at the end ...
solar whale
@raven canopy hmm -- it appears to only impact mpy-cross --- I was able to build feather_m0_express ```buntu@ubuntu:~/circuitpython/ports/atmel-samd$ make BOARD=feather_m0_express
Use make V=1, make V=2 or set BUILD_VERBOSE similarly in your environment to increase build verbosity.
GEN build-feather_m0_express/genhdr/moduledefs.h
QSTR updated
6812 bytes free in flash out of 253696 bytes ( 247.75 kb ).
24868 bytes free in ram for stack out of 32768 bytes ( 32.0 kb ).
Converting to uf2, output size: 494080, start address: 0x2000
Wrote 494080 bytes to build-feather_m0_express/firmware.uf2.
yeah, i might be able to get away with that for my purpose. i don't currently plan on sending a CPX or the like through a Rosie test.
solar whale
still should be fixable -- will keep looking
raven canopy
but the allure of reading the contents of things like libc/arch-aarch64/include/machine/setjmp.h is high 😄
solar whale
the board build set CFLAG -mthumb so I think that keeps it happy
the mpy-cross may need a new config for RPi
raven canopy
yeah. i'm tempted to just plug in an #if defined(__aarch64__) if i can narrow down what the values should be.
solar whale
sigh -- have to stop playing for now -- will get back to it later this evening or tomorrow. So much fun -- so little time.
raven canopy
right? thanks again for climbing down this hole with me!
solar whale
my pleasure - thanks for showing me the hole !
solar whale
@raven canopy got a few more minutes to play -- if it is OK to use MICROPY_NLR_SETJMP instead of something specific to the architecture then this change allows mpy-cross to compile and I am able to build circuitpython_express ```ubuntu@ubuntu:~/circuitpython$ git diff
diff --git a/py/nlr.h b/py/nlr.h
index 802f5f39a..769994eb8 100644
--- a/py/nlr.h
+++ b/py/nlr.h
@@ -36,7 +36,6 @@
// If MICROPY_NLR_SETJMP is not enabled then auto-detect the machine arch
#if !defined(MICROPY_NLR_SETJMP) || !MICROPY_NLR_SETJMP
-#define MICROPY_NLR_SETJMP (0)
// A lot of nlr-related things need different treatment on Windows
#if defined(_WIN32) || defined(CYGWIN)
#define MICROPY_NLR_OS_WINDOWS 1
@@ -64,7 +63,9 @@
//#warning "No native NLR support for this arch, using setjmp implementation"
#endif
#endif
+#if !defined(MICROPY_NLR_SETJMP) || !MICROPY_NLR_SETJMP
+#define MICROPY_NLR_SETJMP (0)
+#endif
#if MICROPY_NLR_SETJMP
#include <setjmp.h>
#endif
ubuntu@ubuntu:~/circuitpython$
i was digging in the same direction. aarch64/arm64 has setjmp, so in theory it should work... should
solar whale
make: Entering directory '/home/ubuntu/circuitpython/mpy-cross'
Use make V=1, make V=2 or set BUILD_VERBOSE similarly in your environment to increase build verbosity.
text data bss dec hex filename
268038 20144 904 289086 4693e mpy-cross
make: Leaving directory '/home/ubuntu/circuitpython/mpy-cross'
ubuntu@ubuntu:~/circuitpython$ cd ports/atmel-samd/
ubuntu@ubuntu:~/circuitpython/ports/atmel-samd$ make BOARD=circuitplayground_express clean
Use make V=1, make V=2 or set BUILD_VERBOSE similarly in your environment to increase build verbosity.
rm -rf build-circuitplayground_express
ubuntu@ubuntu:~/circuitpython/ports/atmel-samd$ make BOARD=circuitplayground_express
Use make V=1, make V=2 or set BUILD_VERBOSE similarly in your environment to increase build verbosity.
GEN build-circuitplayground_express/genhdr/moduledefs.h
QSTR updated
FREEZE ../../frozen/Adafruit_CircuitPython_BusDevice ../../frozen/Adafruit_CircuitPython_CircuitPlayground ../../frozen/Adafruit_CircuitPython_HID ../../frozen/Adafruit_CircuitPython_LIS3DH ../../frozen/Adafruit_CircuitPython_NeoPixel ../../frozen/Adafruit_CircuitPython_Thermistor
6072 bytes free in flash out of 253440 bytes ( 247.5 kb ).
25748 bytes free in ram for stack out of 32768 bytes ( 32.0 kb ).
Converting to uf2, output size: 495104, start address: 0x2000
Wrote 495104 bytes to build-circuitplayground_express/firmware.uf2.
I'll do some real tests with it later or tomorrow.
raven canopy
wipes sweat from brow
finally back to a workable state, and on the target device to boot.
rosie@ubuntu:~/rosie_pi$ rosiepi metro_m4_express f510fbeb0f197c2568c0ca59ae312f741c1bba71
========================= RosiePi ==========================
Initiating rosiepi...
------------------------------------------------------------
- Date/Time: 12-Oct-2019,22:13:41
- Test commit: f510fbeb0f197c2568c0ca59ae312f741c1bba71
- Test board: metro_m4_express
============================================================
Connecting to: metro_m4_express
------------------------------------------------------------
Failed to connect to: metro_m4_express
Can't find USB device: idVendor=0x239a, idProduct=0x8021
============================================================
Closing RosiePi
rosie@ubuntu:~/rosie_pi$
now to test triggering from the web...
solar whale
@raven canopy @tulip sleet FYI -- I just ran through the Linux install steps in https://learn.adafruit.com/building-circuitpython/introduction on a Raspberry Pi 4 (Buster) with one change. Instead of using the ppa for installing the arm tools I just did sudo apt install gcc-arm-none-eabi which installed the same toolchain we are using gcc version 7.3.1 20180622 (release) [ARM/embedded-7-branch revision 261907] (15:7-2018-q2-6) and it all works very well.
@raven canopy with Ubuntu 19.04 on the RPi - with the one change to py/nlr.h from yesterday, it also builds fine -- I was able to execute a build on the cpx and use some of the frozen modules so mpy-cross is fine. I then tried to install "blinka" on the Ubuntou19.04. system and ran into another issue due to the aarch64 architecture setting -- rpi-ws281 fails to build when installing via pip3. Looking at the code, it is due to the aarch64 architecture setting. Still investigating how to workaround it. Note: I also found that I had to manually mount the CPX (either CPLAYBOOT or CIRCUITPY) not a problem, but took a few mintes to figure out... progress
solar whale
@raven canopy and wifi is working!! just followed these steps https://raspberrypi.stackexchange.com/questions/98598/how-to-setup-the-raspberry-pi-3-onboard-wifi-for-ubuntu-server-18-04-with-netpla
raven canopy
@solar whale oh yeah; buster came out right after i switched to using disco and i forgot all about it. did the buster version require that change to nlr.h? I am planning on getting a Pi4 at some point; 4GB RAM and faster USB would allow for some things like running a Redis server and booting from a drive...SD cards come with too much risk. 😄
i also imagine raspbian buster is a tad more performant than ubuntu disco.
raven canopy
ahh.
i might have to make that switch then. the only other platforms i can think of that would show up as aarch64/arm64 are maybe things like a Chromebook running Linux, the upcoming Surfaces (i think they switched to ARM), and maybe some CI services. might not be worth it to change micro/circuitpython for that...
opens Ruby docs to work on the webserver; why am i sticking with GitHubs template vs using Flask/Django? 📚
solar whale
I think the change I made is harmless if it is useful.
raven canopy
i didn't narrow it down to the root, but i think its just a matter of setting -DMICROPY_NLR_SETJMP for mpy-cross, like the unix port does: https://github.com/adafruit/circuitpython/blob/master/ports/unix/Makefile#L245
that way nlr.h doesn't set it to 0
solar whale
Interesting. Still seems like nlr.h should not set it twice. My change just avoids that.
But it could be handled in the Makefile that way as well
May be simpler
solar whale
@raven canopy aha! it look like it has been changed upstream on micropython to avoid the issue - the initail setting to 0 is gone. https://github.com/micropython/micropython/blob/master/py/nlr.h#L46
raven canopy
well looky there. i could've swore i peeked at it yesterday. good find @solar whale!
solar whale
hmm - looking with "blame" the initial set to 0 was added by @tulip sleet last year .... the plot thickens https://github.com/adafruit/circuitpython/blob/master/py/nlr.h#L39
tulip sleet
@solar whale that was part of a merge from upstream https://github.com/adafruit/circuitpython/pull/1068
raven canopy
tips hat to @tulip sleet for upstream merges yet again. those must be sooo painful.
solar whale
@tulip sleet ah -- ok -- I may put in a PR for discussion then, as we found it can lead to errors as written, but I think a simple reordering fixes it.
tulip sleet
I can't remember about that at all. I may have put it in to get it to work in some situation. I don't see it upstream.
solar whale
the problem is it set is there -- but also tries to set to again if the architecture is not found, which is an error
tulip sleet
So I think probably I wanted to make sure it was set one way or the other, and thought "arch not found" should maybe indeed cause an error so it could be fixed?
solar whale
I think this avoids it with no impact ```ubuntu@ubuntu:~/circuitpython$ git diff
diff --git a/py/nlr.h b/py/nlr.h
index 802f5f39a..769994eb8 100644
--- a/py/nlr.h
+++ b/py/nlr.h
@@ -36,7 +36,6 @@
// If MICROPY_NLR_SETJMP is not enabled then auto-detect the machine arch
#if !defined(MICROPY_NLR_SETJMP) || !MICROPY_NLR_SETJMP
-#define MICROPY_NLR_SETJMP (0)
// A lot of nlr-related things need different treatment on Windows
#if defined(_WIN32) || defined(CYGWIN)
#define MICROPY_NLR_OS_WINDOWS 1
@@ -64,7 +63,9 @@
//#warning "No native NLR support for this arch, using setjmp implementation"
#endif
#endif
+#if !defined(MICROPY_NLR_SETJMP) || !MICROPY_NLR_SETJMP
+#define MICROPY_NLR_SETJMP (0)
+#endif
#if MICROPY_NLR_SETJMP
#include <setjmp.h>
#endif
ubuntu@ubuntu:~/circuitpython$ ```
unless you want it to fail
tulip sleet
we have stricter warnings, and want #if SOMETHING to throw an error if SOMETHING is not defined.
solar whale
it still gets defined, just a bit later
tulip sleet
so please go ahead and restruture to have it make sense in the "don't know this arch" case
at the time there were probably no unknown architectures
solar whale
ok -- I'll put a PR in later today. Then we can discuss if it is they way to go.
tulip sleet
so it didn't fail
raven canopy
another approach could be to handle aarch64/arm64 so that its known. again, i think this is a small vector. biggest would be if github actions starts running on ARM servers, probably.
solar whale
I have go -- 🐶 needs a walk -- back later .... thanks!
crimson ferry
@prime flower I have a working digitalRead NINA + digitalRead adafruit_esp32spi.py ...I assume NINA version number I'll leave alone and it will get changed when the PR gets accepted and someone with access (probably you?) does an official build? Also, what is the significance of 1.4.0-dirty?
solar whale
@crimson ferry the -dirty implies you have made changes to the repo since the last tag.
exotic pumice
hey @slender iron can I pick your brain about the spi flash filesystem?
slender iron
@exotic pumice sure. I'm not around for very long though. have brunch soon
exotic pumice
I'm writing a qspi flash driver in Rust, and the fat library I'm using either needs an MBR or the lba_start address and block size of the filesystem
do you happen to know where I can find the lba start address?
oh and another question I had was if there was any way to detect size of the flash chip
slender iron
we hard code the partition table in circuitpython
the flash size my be detectable but we don't go that far because there are other aspects you may need to know like qspi support variants
newer chips have more complex id registers but we don't use them
we read the older one and map it to static info we build in
exotic pumice
yeah I'm not sure if I want to start building a database of flash chips like you guys have but it might be unavoidable
could you show me where the partition table info is?
slender iron
why not have the user supply the info about the chip?
exotic pumice
that's a good idea
slender iron
you probably want to use a real mbr though
it's only good to stub it if you want to lock it down
exotic pumice
is there a way I can get direct access to the flash chip over usb to write an mbr?
slender iron
ya, usb is all block level below the fs
exotic pumice
because I had circuitpython installed and tried reformatting and stuff and it didn't like it
slender iron
yup, that is because we hard code the partition table
exotic pumice
so what do I do? some low-level usb shenanigans?
slender iron
to do what?
exotic pumice
direct access to the flash chip to write an mbr
slender iron
in circuitpython?
slender iron
usb just reads and writes blocks. just don't intercept the block 0 read like we do
exotic pumice
so I need a usb fs driver
slender iron
yes
slender iron
12
slender iron
the chips are too small for fat16
pastel panther
hey @slender iron or @tulip sleet , how far out is BLE HID from being ready for testing?
tulip sleet
@pastel panther It already works in the current alpha.4 release, but is a little rough around the edges. @slender iron is doing a rewrite, so the API will change. Also, since we don't have bonding yet, you may have to re-pair each time.
pastel panther
@tulip sleet ok, great. Thanks for the update
manic glacierBOT
onyx hinge
@slender iron for the meeting:: hug reports to everyone, I've missed you. Status update: Flying back to USA today, will look at my issues and pick something to get started on once jet lag has passed. Will miss today's meeting
Actually I might be between flights in MSP when the meeting is going on...
raven canopy
hmm. GitHub Apps & GitHub Actions seem to be quite intertwined due to the fact that both exist in the "check suite". finally got to test the RosiePi app...and it received 80+ (* 2, for push & PR) requests. one for each check created by the GitHub Actions. hooray! 😬
manic glacierBOT
plucky flint
morning... I have dad taxi duty (again) at time of meeting. I've added stuff to the agenda doc. TL;DR -- lots of painful Mu things & hugs to @slender iron for upcoming radio fun.
Q: would folks like to see the circup functionality wrapped in some way within Mu..?
prime flower
@plucky flint I would
prime flower
@plucky flint sweet, tag me and I'll gladly test
meager fog
@tidal kiln hihi how is the neopixel guide goin
tidal kiln
@meager fog oops. haven't really started it. somehow missed your response in basecamp that mini=ok. i'll go ahead and crank it out today.
gilded cradle
@plucky flint, only if it means the Catalina fix won't be slowed down 🙂 .
rotund basin
Hey all, I upgraded my adalogger m0 to 4.1 and I think its sending out an SOS for help 😂 , how to fix? https://www.dropbox.com/s/wqp34f8od8tk9ej/2019-10-14 12.53.57.mp4?dl=0
slender iron
@rotund basin are you looking at the serial output?
rotund basin
Hi @slender iron I can't seem to find the m0 in either my windows device manager or ubuntu system 🤔
slender iron
did you try a different usb cable?
blinking the red led looks like a perpetual reset
rotund basin
It seems like it's just connecting and disconnecting on every flash set
slender iron
what is it connected to?
rotund basin
Windows box
slender iron
all of the jumper wires
rotund basin
I think the reset is confirmed
They are all disconnected
So, is it bricked now? 🤔
slender iron
can you double click to get the bootloader?
rotund basin
Tried that, a G? Appaeard briefly but , no joy otherwise
ruby atlas
you know you've been flashing a board too much when you write shell and python scripts to build Circuit python, reset the board into the bootloader and then wait for the bootloader volume, copy it, then start the serial monitor 🙂
onyx hinge
whee, hello from MSP! It's good to be back in the states. A couple hours waiting for our connecting flight back home to LNK.
idle owl
@onyx hinge Hey! Welcome back!
ionic elk
@slender iron can't make the meeting today but I'll post some updates later tonight on UART hopefully. Notes are in the doc
slender iron
@ionic elk when will you be around? we can do a voice sync on it
ionic elk
Had some moving stuff bleed into the early afternoon but I'll be at my desk in an hour or so to do evening work.
How would 3:30 work?
slender iron
should be fine
rotund basin
@slender iron confirm its bricked? Would a swd programmer fix?
old smelt
lurking
swift arrow
lurking
onyx hinge
hi kattni
tulip sleet
@rotund basin what .uf2 did you use?
tidal kiln
lurking working on a guide 🙂
gilded cradle
I wanted to makesure upgrading to MacOS Cataclysm didn't break discord
onyx hinge
now you know you need a second mac
tulip sleet
@rotund basin it's not bricked - you should just be able to get FEATHERBOOT and reload it
turbid radish
Lurking but here for questions/comments
river quest
yah, we have not moved to catalina on our day to day machines or our broadcast machine(s) yet
turbid radish
Some people on Twitter are likening Catalina to Vista
swift arrow
ouch
raven canopy
is that better than a comparison to 8.1? 😜
swift arrow
🙂
tidal kiln
yay! clicky keyboards! just like old times!
onyx hinge
you'll get there
errant grail
... lurking today ...
ivory yew
Is there a link to the notes doc?
slender iron
ivory yew
Thanks. 🙂 The pinned one is for last week's.
old smelt
"Reasonable Backtrace" would make an excellent name for a rock band.
raven canopy
good. i wasn't the only one who thought that. :phew:
neat folio
phil us in
pearl notch
Hi all. Just listening today, I think.
turbid radish
Philler material
ruby atlas
🤦🏻
turbid radish
Phillosophical notes
errant grail
in-phil support
raven canopy
gets ready to add Master Punner roles
rotund basin
@tulip sleet it keep resetting itself, won't go into boot loader mode either 😞
river quest
It's OPEN HARDWARE MONTH, we are doing a post a day!
https://blog.adafruit.com/?s=%23OHM2019
tulip sleet
@rotund basin will circle back after meeting
river quest

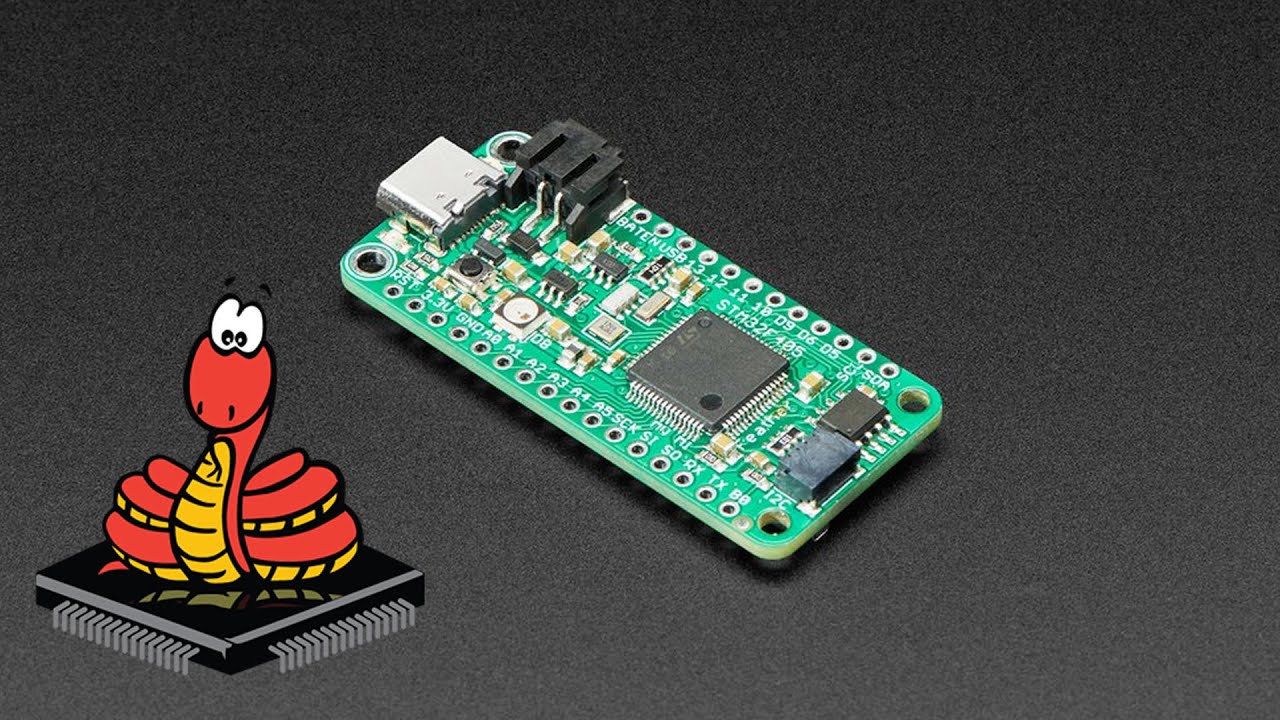

MicroPython slithers its way to Feather!
https://youtu.be/ssz5SNH0QDY
Scanning and advertising - BLE with CircuitPython update
https://youtu.be/iHfd31qDTmw
timber mango
The philament that binds us
river quest
Supercon – Supercharge Your Hardware (Old and New) with CircuitPython
https://hackaday.com/2019/10/11/latest-dose-of-hardware-talks-headed-to-supercon/
PyConDE in Berlin photos / PyLadies at the event!
https://twitter.com/PyLadiesHH/status/1183056425456680961
Interactive CircuitPython Poster from CodeNSolder
https://twitter.com/iAyanPahwa/status/1183017937591947264
onyx hinge
circuitpython encircles the world
river quest
Sponsor arturo182 on GitHub
https://github.com/users/arturo182/sponsorship
String car.. VID/PID, we have'em!
https://github.com/adafruit/circuitpython/issues/2215
Thea Flowers made a CircuitPython driver for the Analog Devices AD5689 16-bit DAC - GitHub. https://github.com/theacodes/Winterbloom_AD5689
Does Mu work with Catalina? Yep!
"...the update to OSX Catalina breaks Mu in dark and high-contrast modes (text remains black, so can't be seen). It's still fine for "day" mode, although code colouration might not work properly. I tested things this morning and it's down to the version of Qt packaged with the 1.0.2 version being old. I hope to release a new alpha version early next week that fixes the issue. BTW, the only reason it's called "alpha" is because the new features may not be finished or finalised. Alpha versions of Mu still have to pass all the tests and things we do for a regular release. Just letting you know in case you get folks on your forums or support channels asking."
https://codewith.mu/
PyCon US 2020 is opening applications for Financial Aid, they are accepting them through January 31, 2020. To apply, first set up an account on the site, and then you will be able to fill out the application through your dashboard. The financial aid program aims to bring many folks to PyCon by limiting the maximum grant amount per person; this way PyCon can offer support to more people based on individual need. The financial aid program reimburses direct travel costs including transportation, hotel, and childcare, as well as offering discounted or waived registration tickets. For complete details, see our FAQ, and contact pycon-aid@python.org with further questions - PyCon blog.
https://pycon.blogspot.com/2019/10/financial-aid-launches-for-pycon-us-2020.html
now off to FILL UP MY COFFEE CUP
gilded cradle
@idle owl, my sound stopped working
river quest
YAY @ivory yew !
raven canopy
no new labels were assigned. i think there are about 9 or so issues with the Hacktoberfest label.
i could probably dis-ambiguate that text... 😄
slender iron
no worries
gilded cradle
Ok, sounds is back after a restart
idle owl
🦃
swift arrow
yea @ivory yew !
ivory yew
😊
prime flower
welcome back charles!
turbid radish
Group hug
prime flower
https://docs.aws.amazon.com/iot/latest/developerguide/iot-moisture-raspi-setup.html re: tannewt/aws blinka
raven canopy
@ivory yew (and YouTube land 👋), are you aware of the Community Bundle of community-contributed libraries? Let us know if you want to get your library(ies) into the bundle.
https://github.com/adafruit/CircuitPython_Community_Bundle
ivory yew
Yep!
prime flower
@solar whale Speaking of NTP, after the meeting, did you happen to test if the NTP "error" still occurs on nina-fw 1.4.0?
solar whale
@prime flower yes -- it does but I no longer have as many failures to find my SSID when I first connect. It still needs some time to find a valid NTP time.
manic glacierBOT
ivory yew
@raven canopy hi, I used to work on pip and python packaging, feel free to ping me for help with that stuff. 🙂
raven canopy
i defintely might take you up on that @ivory yew! thanks in advance.
idle owl
ruby atlas
(whee, adafruit package right in the middle of the cp weekly!)
onyx hinge
I am also available for geektrapping on this stuff @ruby atlas
ionic elk
@slender iron ready whenever you are
onyx hinge
bye!
slender iron
@ionic elk will be available in 5
ionic elk
Oh yeah I see you guys are still going
ruby atlas
@onyx hinge thanks! 🙂
tulip sleet
@rotund basin back from meeting, are you still unable to get the bootloader going on the board? Did you have the UF2 bootloader installed on the Adalogger?
prime flower
@solar whale You may want to open a descriptive issue on nina-fw regarding get-time taking a while, so we at least have it documented somewhere. Long-term, I should look into debugging the SNTP code within nina-fw to figure this out... https://github.com/espressif/esp-idf/tree/master/examples/protocols/sntp#working-with-time
solar whale
@prime flower will do - may have to wait until next weekend if I can't get to it today. traveling the rest of the week .. 😦
prime flower
no rush
slender iron
ok, @ionic elk
raven canopy
fridge update: kiddo wasn't wrong. water filter somehow was impeding the flow. uninstall, reinstall, and all is right in the world.
rotund basin
@tulip sleet I had to use the bin file with bossa as in the adafruit pages. The boot loader didn't show before , but it all worked well on 2x
tulip sleet
did you use the same bossac as before for 4.x? The new bossac has different default arguments, and can overwrite the bootloader if it's not protected
if you double-click the reset button, do you get a pulsing red led?
i will dig out an adalogger
rotund basin
I used the latest bossac 1.9.1 with the 0x2000 offset like on the adafruit pages
tulip sleet
ok, that's good
rotund basin
Double click still gets me to continual reset
tulip sleet
ok, i have an adalogger with the Arduino bootloader. Will try.
rotund basin
Ok
tulip sleet
@rotund basin where di you get bossac 1.9.1 from?
and did you use adafruit-circuitpython-feather_m0_adalogger-en_US-4.1.0.bin ?
rotund basin
Github, and yes
idle owl
@slender iron Uploading the vid to YouTube. I need a link to the notes doc. Here is the vid link once it's processed: https://youtu.be/sGLswv_yHxk
swift arrow
The contributing page is pretty cool.
@idle owl Is https://circuitpython.org/libraries/contributing where those labels are going to go to point out good issues for first timers? Hacktoberfest or something
slender iron
@idle owl notes doc will be at: https://github.com/adafruit/adafruit-circuitpython-weekly-meeting/blob/master/2019/2019-10-14.md
doing it now
idle owl
@slender iron Thanks! Vid processing now.
slender iron
thanks!
idle owl
@swift arrow Once we get it updated, yes. But right now you can't filter by label.
swift arrow
ah ok. I thought it was done and I was looking in the wrong place 🙂
idle owl
Nope, the data is available, we haven't updated the UI yet.
idle owl
@slender iron Video is uploaded.
@swift arrow I think so as well. I'm looking forward to it. Not so much looking forward to the huge sweep to label everything 😄
slender iron
👍 wrapping up newsletter now
ruby atlas
@slender iron so, uh, if i change obj.c or objtype.c is there a test suite? 🙂
slender iron
ya, the tests/ directory
ruby atlas
thanks!
ruby atlas
that's good to know (coverage)
tulip sleet
@rotund basin
C:\Program Files (x86)\BOSSA>bossac.exe -e -w -v -R --offset=0x02000 -p COM8 \Users\Dan\Downloads\adafruit-circuitpython-feather_m0_adalogger-en_US-4.1.0.bin
Erase flash
Done in 0.744 seconds
Write 183248 bytes to flash (2864 pages)
[==============================] 100% (2864/2864 pages)
Done in 2.303 seconds
Verify 183248 bytes of flash
[==============================] 100% (2864/2864 pages)
Verify successful
Done in 22.614 seconds
It came up with CPy, and also double-clicking reset is getting me a pulsing red LED, as expected.
rotund basin
Bossa told me it was successful as well , but didn't work after. I used the bossa gui as well
tulip sleet
do you mean you tried it twice?
rotund basin
No
manic glacierBOT
tulip sleet
so just bossa GUI?
rotund basin
Yes
tulip sleet
ok, will try that, hold on...
@rotund basin did you select "Erase all" in the Write Options?
tulip sleet
did you put in the offset the very first time, and as 0x2000?
rotund basin
Yes , it fails without it
tulip sleet
ok, it's working for me with the GUI too. So, when it's plugged in, and you double-click the reset button, what shows up in "Ports" in the Device Manager?
rotund basin
Windows device manager continually refreshes because the device is resetting
Wonder if it's a 2x to 4x thing? 🤔
tulip sleet
if you double-click, you should be going into the Arduino bootloader, and so what was flashed should not matter. It sounds like maybe the double-click isn't working??
have you tried another USB cable?
rotund basin
I had to double click for bossa to work
tulip sleet
right, that's what I'd expect
rotund basin
But now it's broken 🤔
tulip sleet
if you plug it into a USB power supply (not Windows) and double-click, you should also get a pulsing red LED. Did you try this on other than Windows? (I forget.)
rotund basin
@tulip sleet still doesnt work, red flashes the same as my video
2 bright red, 1 dim red , 1 off repeat
Maybe its 3 bright red
When I double click, I get a red glowing effect then back to the above pattern
tulip sleet
i get similar for single-click. But double-click gets a pulsing. Try simulating a double-click by plugging a jumper into RST and then inserting and removing into GND twice quickly. Also unplug other stuff and remove the SD card
tulip sleet
@rotund basin iDid you check any of the other checkboxes in BOSSA when you flashed? It's possible you somehow set the watchdog timer fuses, but that would be hard to do. How long does the reset loop take, as seen by Windows?
do you have a J-Link or similar programmer?
slender iron
someone want to hop in the audio channel so I can test?
tulip sleet
are you familiar with Atmel Studio? You could hook up the JAGATAGICE3 to the SWDIO and SWCLK pads on the bottom, check the fuses, and reprogram the bootloader.
rotund basin
@danh I am going to try that , hoping that perpetual reboot doesnt interfere. Just to confirm which bootloader should be loaded ?
tulip sleet
first just check the fuses, since they may be the only things you need to fix. I'll find the bootloader
slender iron
@idle owl had to launch from command line because obs doesn't trigger mic permissions correctly. also updated ishowu though I'm not sure I needed to
tulip sleet
@rotund basin the hex file for the bootloader is in the file list here: https://github.com/adafruit/Adafruit-Feather-M0-Basic-Proto-PCB
crimson ferry
File "code.py", line 1169, in <module>
File "code.py", line 259, in load_font
File "code.py", line 248, in load_font
File "/home/travis/build/adafruit/Adafruit_CircuitPython_Bundle/libraries/helpers/bitmap-font/adafruit_bitmap_font/bitmap_font.py", line 51, in load_font
OSError: [Errno 2] No such file/directory```Never seen a Travis path in an error before. This was spurious (I may have done something funny on an analog pin), not to be too concerned about I think, but a curious result.I have seen travis paths a couple times lately.. think in the _ble stuff
manic glacierBOT
raven canopy
@crimson ferry @swift arrow yeah. i need to drill down on that. are these happening with raw .py files or .mpy?
or both..
crimson ferry
.mpy but clearly something was corrupted in the processor, I have no refs like that in my code, and there's none in the .py of that lib
raven canopy
the only reason i can think of it happening has to do with how the script that builds the bundles is getting...confused.
crimson ferry
the path must be in the .mpy, but it should never get accessed by code
swift arrow
@raven canopy I think it was the mpy
raven canopy
basically, the script creates a temp file, and copies over the original, going line-by-line so it can update __version__ info before it all gets zipped. i'm wondering if its replacing something like __file__ or __name__ with the path. which would explain the Travis/...since its run on Travis.
crimson ferry
makes sense
raven canopy
@crimson ferry @swift arrow issue created. i'll dig into this week. https://github.com/adafruit/circuitpython-build-tools/issues/51
raven canopy
bingo! now to find out why...
though i realized it could also be a mpy-cross issue as well.
rotund basin
@tulip sleet so the chip is resetting too fast or the ice3 can't read it. It reads a low voltage about 1V and can't read the chip or erase it
When the ice3 is connected and I double click, it stops resetting but... I still can't read the chip
slender iron
@rotund basin sounds like a physical problem with the chip
meager fog
@tidal kiln ok yay guide done, whatcha wanna do nex?
tidal kiln
got something?
meager fog
well, theres a few library tags you did
if ya wanted to poke at those
was also maybe trying the recorder project with bluefruit CPlay
or...maybe something else? have ideas? 🙂
tidal kiln
yah, i was going to get caught up on weekend forum postings and then checkout those github things
i did try the recorder thing with the CPB, and it did sort of work better
meager fog
@tidal kiln maybe worth a guide showin how you can do basic frequency 'detection'
it did sorta follow the trail of notes when i tried some squawking
could also display the frequencey detected on TFT Gizmo
tidal kiln
that's what i was thinking. the underlying method is kind of cool.
tidal kiln
it's not solid enough to like tune a guitar, but it still sort of works
meager fog
ok we'll add FFT eventually 🙂
maybe thats a @onyx hinge project
its audio related
plz do version without TFT (using neopixels) and also a page with TFT gizmo
tidal kiln
the cool thing about the zero crossing is that it is fairly easy to explain and groc
meager fog
yeh!
rotund basin
@slender iron I respectfully disagree, it worked fine on 2x before the upgrade to 4x
slender iron
why would the voltage be 1v?
tulip sleet
@rotund basin have you also connected GND and VREF (and perhaps also RESET) to the ICE3?
do you need to tell Atmel Studio it's SWD (as opposed to JTAG, etc.)?
swift arrow
7.3.1
meager fog
@tidal kiln hey i have an idea!
tidal kiln
👂
meager fog
jp's gona write a guide on the 'beam images to cpbluefruit' this week
but next week, maybe he can do a guide on running turtle on the tftgizmo
the CPX can't run turtle, but the CPB can
do you wanna do a team up, maybe in the next week or so, write a few turtle scripts that make fun holiday / winter -fall themed graphics
and jp can do the writeup/explain them
sirpinski snowflake i think we even have, can do a dreidle, xmas tree in green, maybe some baubles on it
snowman
tidal kiln
okie doke
meager fog
dunno if you did logo as a kid, i kinda find it relaxing + nostalgic 😄
tidal kiln
a little...wayyyyyy back
meager fog
🐢
tidal kiln
so, yah, would be fun to play with it again, haven't even used turtle yet
meager fog
@tidal kiln its built into mu!
tidal kiln
yep
meager fog
@tidal kiln feel free to bump mcp and close the two issues
tidal kiln
hmm. that one's still not really solved.
rotund basin
@danh you are a genius, I definky forgot those pins. Atmel studio jtag sees the m0 just fine now. Which bootloader should i load on the m0 after i erase it ?
meager fog
robo, what exact board do you hav?
rotund basin
Hey @meager fog I have the adalogger m0 😁
I think I found it on the uf2-samdx1 github
But I dont see adalogger in releases , is it the same as the feather m0?
rotund basin
And it doesnt show via USB, probably have to burn it via the swd connection
rotund basin
Any documentation on how to put the bootloader on it via atmel studio ? I'm not sure which fuses to set
rotund basin
Yep, of course there is https://learn.adafruit.com/how-to-program-samd-bootloaders/programming-the-bootloader-with-atmel-studio 😁
But the bootprot says this
What is the 07 equivalent?
rotund basin
So I did the 8k one after I flashed the bootloader and I have recreated the perpetual resets
After a double click and disconnecting the jtag
tulip sleet
@slender iron I had to update tinyusb manually even after merging from upstream for the deleting unused ports PR. Also I had to update submodules inside the tinyusb submodule
I thought I was doing that recursively already.
rotund basin
I tried going back to 2.00 bootloader , still no luck. The device just resets as soon as its loaded , what is the original bootloader version that shipped for adalogger I wonder?
tulip sleet
@rotund basin do you mean the 2.0 version of CircuitPython? That's not a bootloader. Use the .hex file from the link I posted earlier.
rotund basin
No the bootloader @tulip sleet
I went down from 3.7 all the way incrementally to 2.0.0
tulip sleet
@rotund basin the original bootloader was an Arduino bootloader, not a UF2 bootloader. The original Arduino bootloader is here: https://github.com/adafruit/Adafruit-Feather-M0-Basic-Proto-PCB/blob/master/featherm0bootloader_151101.hex
which UF2 bootloader are you trying to load, and how are you loading it? You'll need to load it at 0x0000, and maybe undo the BOOTPROT fuse temporarily so it can write. So are you succesfully flashing with Atmel Studio?
rotund basin
@danh I've tried eac, one from 3.7 to 2.0.0.afafruit6 , the avr studio defaults to 0x0000 , after bootloader is written, the m0 resets perpetually... I can find no shorts across the pins and the jtag reports 3.7V on the chip. Does OpenOcD have to be used to program the bootloader instead? Not sure why that would matter ?
trim elm
@idle owl it appears the ili9341 (the same screen on the pyportal from what I can gather) is already supported on displayio. Should I continue working on a simpletest for it with the gfx library?
Or what I could do is work on some simpletests for the displayio library for various displays as I can't seem to find any online
lone sandal
meager fog
@ionic elk hiya - you're working on a GPS demo?
manic glacierBOT
tidal kiln
@umbral dagger any reason to limit the turtle lib to only boards with built in displays?
meager fog
@slender iron @ionic elk ok lets chat about attack plans
usually it is!
im also often wrong
ionic elk
I had a chance to chat with Scott yesterday but we can talk again if you want
idle owl
@trim elm I would say find a display that uses GFX, and write a simpletest for it. There are at least a few for sure. There should be a number of guides using displayio already. We can think about writing up more examples for displayio though.
meager fog
i wasnt there 🙂 so now we can catch up in text
@ionic elk at this time you have basic character reading but its not buffered?
ionic elk
That's right
it works for most things, including returning raw GPS data, but it won't work for the GPS sketch in full
Gets stuck on fixing
(compared to control)
ionic elk
My Feather M4 express will fix on my "warmed up" battery-backup in about 4 tries, the STM32 one never does, it just returns the "attempting fix" forever
ionic elk
I would guess dropped characters, when it's working in high speed asynchronous format, caused by a lack of buffering and not requesting data at the correct times
I do see what appears to be complete data when I read the raw data
meager fog
do you know that for sure or are you guessing? 🙂
ionic elk
I'm not totally sure, since I don't have great python debugging chops - but with the current system, if you do receive anything when a read isn't actively in progress, you will lose characters. Even before I started Scott figured that would pretty much disable the GPS from working
meager fog
you can drag files here
slender iron
@ionic elk you can modify the gps library to print out what it's reading from serial
ionic elk
meager fog
@ionic elk ok back in a few - have to finish a tester
ionic elk
Raw data sample, I don't know if this is useful:
$GPGGA,170915.000,4222.8886,N,07106.2939,W,1,07,1.08,18.6,M,-33.7,M,,*67
$GPRMC,170915.000,A,4222.8886,N,07106.2939,W,0.34,91.59,151019,,,A*40
$GPRMC,170914.000,A,4222.8885,N,07106.2940,W,0.44,94.06
Ok, I'd guess that's based off common_hal_busio_uart_rx_characters_available
meager fog
yes please implement it
ionic elk
Since there's no input buffer, should it just be 1?
meager fog
sure
the library assumes that data is bufferd
so it wont work really without that
if self._uart.in_waiting < 32:
return None
it doesnt read a GPS sentence until there are 32 bytes
slender iron
ah, that'll break it
slender iron
there is an interrupt based HAL api
meager fog
there is no way to get a callback when a byte is received over UART?
ionic elk
Basically the issue is the IRQ API is inflexible by default. You can't specify your own callback, you have to use theirs, and you can't pass in context pointers, so everything you use in it has to be global.
(as given in examples, anyway)
meager fog
thats ok there's no more than 3 UARTS
ionic elk
So I'm looking at how Micropython does it, which turns out to be how I was planning to do it but thought it'd be too clumsy, which is to have a file with all these global interrupt registrations and then call custom interrupts out of there
meager fog
you could allocate 128byte buffers for each uart
you are definitely able to get data fast enough, if i disable the 32-byte buffer read check the data comes thru
it just isnt getting there right now 🙂
ionic elk
Ok gotcha
I've got a system that's almost completely done I just need to sort out the IRQ management
slender iron
globals are totally ok
I just wouldn't do a global buffers. Allocate the buffers on the micropython heap. That way they only take up space when in use
ionic elk
Let me pull up a link
The issue is I need to get the buffer into the IRQ/callback. And the IRQs don't take context pointers
that's my key problem
meager fog
@ionic elk can you tell what triggered the IRQ?
ionic elk
All STM32 device interrupts are mapped to one of these functions: https://github.com/micropython/micropython/blob/master/ports/stm32/stm32_it.c
slender iron
right, there are separate functions per uart
when there isn't you can check the interrupt bit on each peripheral to know if it triggered
ionic elk
Ok, I think I see the key element
scott, do you know what this does? pyb_uart_obj_t *self = MP_STATE_PORT(pyb_uart_obj_all)[uart_id - 1];
slender iron
they all call the same handler but pass in the index
MP_STATE_PORT is global state so it must map to the uart for the given index
ionic elk
I think that line fetches the mp object for the UART based on the UART index, which is what I need to get the buffer into the callback
right, can I still do that in Circuitpython?
slender iron
ya, I'd just store it globally myself
ionic elk
the buffer?
slender iron
the pointers to the native object
ionic elk
Ok, so every time you create a native object for a given UART, it puts itself in a global pointer table?
slender iron
ya
slender iron
it's probably best to put it in MP_STATE_PORT
you need to make sure the pointers go somewhere that the garbage collector looks
slender iron
otherwise it'll free it out from under you potentially
ionic elk
@slender iron Can you give me a once sentence description of what it actually is? I see it refers to a structure called MP_state_vm
I think it's accessing the root pointers, right? Which I would need to define, since we don't currently have any
slender iron
its a big struct of global state where part of it is automatically collected during garbage collection
ivory yew
So MP_STATE_PORT is basically just a bunch of global variables used by a specific port/board?
(I'm lurking and very interested in this discussion)
slender iron
yes
ionic elk
@slender iron so I'd add root pointers for the UARTS to mpconfigport.h, and then I'd have access to them via MP_STATE_PORT, right?
slender iron
what do you mean by root pointers?
ionic elk
In micropython, the array of UART objects, pyb_uart_obj_all, is not specified in the actual MP state vm object, but in mpconfigport.h under MICROPY_PORT_ROOT_POINTERS, which then get included in the actual object
slender iron
right
root pointer means it's the first pointer collected during gc
- one of the first
the collection process recurses into it to find other referenced pointers
ionic elk
What's the advantage to this vs just storing the pointers in an static global array in the UART module, again? Will the array of pointers prevetn the uart modules from being garbage collected?
slender iron
right, if it's a plain global the gc won't realize you still have a reference and re-allocate the memory
ionic elk
sorry, it's my first time dealing with gc in this kind of context
slender iron
assuming the user stopped using it
ionic elk
Will that matter? We don't need the UART to persist past user use even if it's still referenced
which it shouldn't be, because when the object is de-inited, that pointer should be set to null
slender iron
it will because your interrupt handler will still try to use it
objects aren't always deinit
deinit is a convenience for folks to get back resources immediately
python is very handwavy when an object is actually freed
ionic elk
I see. So the threat is that an object goes away, the IRQs are still going because there was no concrete common_hal event to signify that, and they start attempting to read/write from memory that's already been reallocated
do I have that right?
slender iron
yup, exactly
you can test by:
uart = busio.UART()
del uart
gc.collect()```the del will delete the python reference but not the internal one
ionic elk
I guess I'll start by trying to get the root pointer array in, and then I'll get the IRQ linking set up
slender iron
and the collect will free the memory
ionic elk
Is there a big array of specific IRQ functions for Atmel and NRF? If so, where did you put them? Micropython has the stm32_it but I'd rather follow circuitpython convention if it exists.
slender iron
we don't have it in one file because the global names are enough
the big array is an arm thing
ionic elk
I mean where do I put this stuff:
void UART5_IRQHandler(void) {
IRQ_ENTER(UART5_IRQn);
uart_irq_handler(5);
IRQ_EXIT(UART5_IRQn);
}
Should I just have it in my uart.c function, or port.c, or what?
slender iron
we do something similar here: https://github.com/adafruit/samd-peripherals/blob/master/samd/timers.c#L105
ionic elk
per file then, you'd say?
slender iron
ya, I'd put all of the uart ones together
ionic elk
👈 you got it 👈
slender iron
This is where the names are established: https://github.com/adafruit/asf4/blob/039b5f3bbc3f4ba4421e581db290560d59fef625/samd51/gcc/gcc/startup_samd51.c#L317
arms have an array of exception (aka interrupt) handlers
ionic elk
I was considering editing that but didn't want to break it too badly.
Wasn't sure how the HAL would take to it
slender iron
nah, the functions there are declared weak so if you create one of the same name it'll win
ionic elk
I mean the actual assembly file
slender iron
it's assembly for stm?
slender iron
you probably want to do it through the hal still
ionic elk
Yes, it will be, in this case. The array of root pointers will allow me to access the ring buffer without the use of a context pointer, just by using the index of the UART, so I'll be able to continue using the HAL functions without modification
slender iron
or not since it expects you to know how much
ionic elk
If it continues having issues I can reduce down to direct register pulls like Micropython does, which probably wouldn't be awful in the case of uART
slender iron
I find registers easier than HALs but it can get tricky when using both
tidal kiln
@slender iron is there an easy answer for what to do about older examples that use refresh_soon() and wait_for_frame()?
tidal kiln
and things will generally be ok if running in 4.x?
slender iron
4.1.0 at least
tidal kiln
well, that is easy then. thanks.
rotund basin
Well. I couldn't get my adalogger working , so I bought 10 more 😁
meager fog
@ionic elk hiya was in a meetin' - sounds like you have a path?
tidal kiln
@idle owl what needs to be done here?
https://github.com/adafruit/Adafruit_CircuitPython_turtle/issues/7
if it's simple, i can fix
idle owl
@tidal kiln Oh hmm. I think the current iteration of it on RTD needed to be deleted and it needed to be added like normal. I have this open in a tab somewhere.
Let me look
That appears to have been resolved. Looking into it.
@tidal kiln It's not simple. I think it needs to be deleted and redone.
tidal kiln
oof
tidal kiln
only for boiler plate text in a release
idle owl
Oh right. Yeah leave it as is in the release text. It'll get fixed
tidal kiln
ok. thanks.
ionic elk
@meager fog yep I think I'm pretty close. I was pretty close before but my approach would have given me problems with the garbage collector, so I'm super thankful Scott helped me understand the circuitpython root pointer stuff
ionic elk
It's definitely nice to get his help, especially on the micropython arcanery
Hug report next week lol 🙂
@meager fog also, sent you an email about this, but I've been thinking of putting together some of my own CPy boards and was wondering if I could get access to the Adafruit eagle parts library
meager fog
lol ok @ionic elk dont forget to implement available_bytes
orwhatever its called
@ionic elk oh yahh its undergoing a refactor
ionic elk
Yep!!! Good to know it's essential
meager fog
can you 'recycle' existing boards
thats the best way to use our parts
copy n paste from the sch 🙂
ionic elk
Gotchaa yeah I think eagle has the reverse library build thing, I was just wondering if you had a big sharable database
I'm just looking for connector bits mostly, the old Sparkfun and Adafruit libs don't even have USB C and the managed libraries are a bit of a mess
Plus your parts are so much prettier
(and more informative)
but if it's WIP I can use the reverse thing
meager fog
@ionic elk yeah its something im working on but its kinda a mess right now 😦
so you can use exp-lbr
or copy-paste from a schematic into yours
ionic elk
I'll do that! I assume the copy paste drags along the brd layout too?
meager fog
@ionic elk no, you have to relayout
if you want to include both you need to import the design you want to copy
raven canopy
incremental progress! now to fix the actual test so it doesn't fail.
and also handle fails more gracefully. even after closing that PR...the check is still "running". 😄
pastel panther
hey <@&356864093652516868> if someone could test the msa301 or another driver that uses adafruit_bus_device with a current bundle and 5.0 alpha 4 build? if you're seeing what I'm seeing it'll be obvious.
I have to run out for a bit but @vernal fern if you can, thanks!
gilded cradle
I tested the RA8875 yesterday and it seemed fine @pastel panther
tidal kiln
@pastel panther can do. i'll do itsy m4 + msa301. one sec....
errant grail
@pastel panther I have one in-hand and could test it later tonight if that would help.
ivory yew
Any other driver? I'm using bus device for the AD5689 driver, I can try that out.
pastel panther
I'm seeing an issue across the board with anything using bus device on calling the constructor. Driving now, bbiab
tidal kiln
@pastel panther seems to work fine.
Adafruit CircuitPython 5.0.0-alpha.4 on 2019-09-15; Adafruit ItsyBitsy M4 Express with samd51g19
>>> import board
>>> import adafruit_msa301
>>> msa = adafruit_msa301.MSA301(board.I2C())
>>> msa.acceleration
(0.0766094, 0.809186, 11.6973)
>>>
Ok thanks @tidal kiln I must have lost my mind
idle owl
Hmm. Now to find out if register works with an already existing non-register driver.
idle owl
Welp the driver I wrote sight-unseen doesn't work. Surprise. 🙄 Getting OSError: [Errno 5] Input/output error.
idle owl
!! My driver did work!
idle owl
Needed to set frequency on I2C init.
ivory yew
ah nice
idle owl
The rest of it worked. I wrote that in June without having the board.
Probably the 3rd driver I ever wrote I guess?
ivory yew
2 more than me. 🙂
idle owl
You have a far deeper knowledge of this stuff than I do, or at least it seems so based on the assistance you're providing to others here 🙂
ivory yew
😊 I'm mostly just good at research.
raven canopy
@idle owl 🎉
ivory yew
What's the new driver?
idle owl
MCP9600. But a community member has since submitted the basic bits of the driver and we're using that. I am supposed to go through and add all the extra features I implemented in the original one I wrote in June.
