import is definitely safer, and i think its probably better namespace-wise.
#circuitpython-dev
raven canopy
tough flax
Yeah, I don't like any of this... but I like running out of memory randomly even less
raven canopy
definitely. also, it doesn't help per se, but wrapping the read in a try...except and catching the MemoryError is an option.
tough flax
#This is a section for AAC Device Scanning
#It sends keycodes for 1-4 & Backspace and lights up blue
mode1 = Mode("Scanning", "#0000ff")
mode1.keyPress(1, "1")
mode1.keyPress(2, "2")
mode1.keyPress(3, "3")
mode1.keyPress(4, "4")
mode1.keyPress(5, Keycode.BACKSPACE)
mode1.modeChange((1,2),"Windows",2.0)
I could make a "config file" like that
The tuple in the last command means "switch 1 & 2 together"
The 2.0 means "for 2 seconds"
All of the methods could take that style - first is integer or tuple, then action, then duration of hold
Might be simple enough?
That would waste no memory on string management - it would all by done by the runtime at import time.
raven canopy
i don't consider it much more dificult than reading INI style, when putting my i've never seen either of these things goggles. documentation and support...those usually make up for confusion.
tough flax
Well, one nice thing is that the comments in this file won't hurt me... I found that parsing the COMMENTS in the .INI file blew through memory
Just allocation/fragmentation
So I could comment the hell out of it
raven canopy
there might still be a hit as a raw .py though. still needs to be parsed in RAM.
raven canopy
๐ค hmm. i couldn't be sure without running it through the gc paces.
holy moly. its 10-to-2... i should go to bed. ๐
tough flax
Yeah 10-to-3 here ... me too
manic glacierBOT
simple pulsar
@tough flax I've found import order makes a large difference but is very unpredictable as to the effect. Have you tried this order at the top? ```import board
from digitalio import DigitalInOut,Direction,Pull
from time import sleep, monotonic
Also try swapping these two around
import adafruit_dotstar
import SettingsParser```
I tend to do the built-in libraries, then frozen libraries, then adafruit, then mine by default now
You can save a few bytes with brightness=1.0 too to avoid the second buffer that library makes for non-1.0 values. This is a bit insignificant when you only have 1 pixel but it sounds like you are desperate to save some bytes.
simple pulsar
You'll get a more predictable/well-timed file close and cleanup using a with statement for the file.open() but i'm not sure if that will ultimately make any difference.
onyx hinge
Can anyone check if this gives a weird error and puts their board in safe mode? ```>>> print(time.time())
Assertion 'MP_OBJ_IS_TYPE(self_in, &mp_type_tuple)' failed, at file ../../py/objtuple.c:254
slender iron
@tulip sleet @meager fog @raven canopy GitHub got back to me and said their plan is a 60 job concurrency limit per org ๐
raven canopy
ahh, in relation to this, i assume: https://github.blog/2019-08-08-github-actions-now-supports-ci-cd/
i need to watch the blog more closely.
slender iron
yup, exactly
@exotic pumice for now reproducing the busio.I2C module impl in rust would be interesting
onyx hinge
nice! let me know if I can help with the CI switch, I kid myself into thinking that sort of thing is fun
slender iron
I think once we had an example we'd potentially use it more
raven canopy
interesting. i imagine its backend is Azure. No doubt it will get further integration in the future.
slender iron
@onyx hinge I won't be able to take a crack at it until next week since I'm traveling
I do think it's worth doing sooner rather than later
onyx hinge
@slender iron no worries
raven canopy
yeah, i'm on board too. (as if that was a question. automation seems to be my jam). ๐
simple pulsar
@onyx hinge Any board? I've got Metro M4 plugged in.
slender iron
๐ well, if either of you do start it, then post here so we can build off of it
onyx hinge
@simple pulsar I was on a particle xenon, not sure if it's general or not -- might be tied to not having an rtc implementation come to think of it
@simple pulsar knowing it worked on a samd board would be great too
simple pulsar
>>> import time
>>> print(time.time())
946684946
>>> print(time.time())
946684951
oh, we can set max parallel too: https://github.com/actions/starter-workflows/blob/master/ci/python-package.yml#L10
raven canopy
or even trigger builds on other CI providers, like CircleCI. nice! could even split up things across CI. e.g. build boards in Actions, run unix/docs/etc in Travis.
onyx hinge
@simple pulsar that is a good data point, thanks! I'll do a bit more testing here, but kinda suspecting it is specific to nrf
onyx hinge
yeah a metro m4 express with 5.0.0-alpha on it doesn't have the problem, so it's nrf specific, or samd51 anti-specific
exotic pumice
trololo I ran rust-bindgen on shared-bindings/busio/I2C.h and got back a 105908 line file. I think it generated bindings for all of circuitpython XD
manic glacierBOT
raven canopy
just realized this morning that audacity can create samples to test with mixervoice, so i can rule out downsampling noise quantization. ๐คฆ
exotic pumice
is this the pinmux macro used in common_hal/busio/i2c? #define PINMUX(pin, mux) ((((uint32_t) pin) << 16) | (mux))
convert to u32, shift left 16, or with the mux?
onyx hinge
@exotic pumice that's how I read it
exotic pumice
where is gpio_set_pin_function and friends defined?
it looked like ports/atmel-samd/asf4/samd21/hal/include/hal_gpio.h but there's too many levels of indirection
and my trail ended with an empty inline function in the hpl
I'm just gonna try to extern it based on the definition I found and hope the linker can figure it out later
onyx hinge
@exotic pumice I assume at ports/atmel-samd/asf4/samd51/hpl/port/hpl_gpio_base.h (or /samd21/) in a static inline void function
(so nothing that would end up with extern linkage, frustratingly for your use-case)
onyx hinge
hmph, looks like I'll have to wait to play with the gitlab CI, because I had not signed up for the actions beta and now I'm in what I'm sure is a lengthy queue to get enabled ๐ฆ
@exotic pumice "static inline" means it's intended for the C compiler to put a copy of the function body at each site where it's used, and so there's no copy available for linking to
onyx hinge
so yeah you could hypothetically modify asf4 to move the implementation to a source file and change it to be a "regular extern function" type as a first step. That's pretty offensive if you have to do it for all those low level APIs
I can see why they would do it for efficiency, though most circuitpython ports currently link with lto, so there would be the opportunity for that function body to be inlined whether or not the definition is in the header file or not
exotic pumice
yeah I'll figure it out later lol
tough flax
Looking at a fun project for the new Digital Pot boards ... early days, but I got a brain-dump into Eagle so I thought I'd share it
https://github.com/ATMakersOrg/ATMakers-Hardware/tree/master/JoystickWing
sudden coral
This needs some tidying up and corner case handling before it'll be PR-ready, but some time hopefully tonight (or tomorrow) I'll be submitting a PR for... PEP-498 (f-string) support in CircuitPython! ๐ (also cc @slender iron so you know you can ignore my dms from earlier... lol)
print(f'hi')
print('hi'.format())
x = 1
print(f'{x}')
def foo():
return 'CircuitPython is fun'
print(f'{foo()}')
print(f'{this_var_does_not_exist}')
hi
hi
1
CircuitPython is fun
Traceback (most recent call last):
File "../../tests/basics/string_pep498_playground.py", line 10, in <module>
NameError: name 'this_var_does_not_exist' is not defined
swift arrow
is adafruit_sdcard being rewritten from a c library? https://github.com/adafruit/circuitpython/issues/1947#issuecomment-502416941
@tulip sleet made the comment "We have a C-based library we are planning to use instead of the python-based SD library."on June 15.
I ask because I have been playing around trying to figure out the issues against the CP adafruit_sdcard lib.. and I fixed the issue with the Samsung SD cards issue #13 / and #15. I'm just waiting on my pull request to be accepted / merged.
Well until it's accepted and merged I "think" I fixed it ๐
tulip sleet
The SD part of the SDFat library. Away from desktop until Monday, but sounds good!
swift arrow
so not "adafruit_sdcard"
I was going to look at the large write hangs.. but it would not be much point if the python library is going away.
Though what I learned about Samsung SD cards may prove helpful regardless.. Samsung SDcards seem to check command CRC values when they shouldn;t be.. ie the default is not to check.. but they default to checking.. So once I added valid CRC codes it started working for Samsung cards.
I had read somewhere they did it because it added reliability/stability to large cards.. which got me to thinking about our large write issue.. what if we try turning on CRC command codes.. So I am going to try that and see what happens.
tough flax
Anyone know of an Eagle library that has one of these in it? https://www.adafruit.com/product/1734
cerulean sparrow
Is there a good way to measure how long board.DISPLAY.refresh_soon() is taking on circuit python? I want to benchmark some code changes, but it appears it will take some C code to complete. Currently I am using this code, but I am getting very high resolution:
board.DISPLAY.refresh_soon()
millisStart = int(round(time.time() * 1000))
print("Start Refresh:")
board.DISPLAY.wait_for_frame()
millisEnd = int(round(time.time() * 1000))
print("End Refresh:", millisEnd - millisStart)
main meteor
@tough flax I don't know of one, but I could make a part like that fairly quickly if you don't want to.
onyx hinge
huh a new message I don't recall seeing while trying to build the docs โ otoh, I'm not sure this laptop is set up right for doc building anyway. Seems like sphix shouldn't be looking at these files! /home/jepler/src/circuitpython/ports/nrf/drivers/bluetooth/s132_nrf52_2.0.1/s132_nrf52_2.0.1_API/include/ble.h:document isn't included in any toctree
sphinx is 1.8.5
oh is it a super old circuitpython source tree, and that's no longer where the nrf sdk stuff comes from?
manic glacierBOT
orchid basin
tough flax
@main meteor no, I was just hoping there was a more up to date eagle library I was missing. The newest I can find is 2015
main meteor
It looks like there hasn't been a commit since then on github. I just realized I hadn't pushed any updates to my library in 3 years, so I just did.
manic glacierBOT
manic glacierBOT
onyx hinge
What's the philosophy of freezing modules into the nrf ports? Right now it feels like they have plenty o' flash storage space (at least, this particle xenon does; are they all the same at 1MB?) I have validated that adafruit_hid works and created a PR. I've also just validated that neopixel works, but haven't PR'd it yet.
idle owl
@onyx hinge We only freeze modules in when absolutely necessary. The nRF boards should have enough space to not warrant frozen modules.
onyx hinge
@idle owl maybe a comment to that effect on #2051 is warrented so it doesn't get merged blindly
idle owl
<@&356864093652516868> Here is the notes doc for the CircuitPython Weekly for 12 August 2019. Everyone is welcome to attend! Please include your hug reports and status updates in the notes even if you'll be attending the meeting - it's super helpful! If you're going to miss the meeting, feel free to include hug reports and status updates in the notes and we'll read them off during the meeting. Hope to see you there! https://docs.google.com/document/d/1LjcLPbieUa4qvX4jyJJLf6Q4G6UuA5m4NjUX93gs3rk/edit?usp=sharing
strange cargo
I'm confused about when to use DISPLAY.wait_for_frame() vs. DISPLAY.refresh_soon()
and if either of them will help me ... I'm trying to do a side-scrolling thing and it's coming out slower than I expected.
I have the latest CircuitPython (4.1.0)
the function sceneCycle(...) has several calls to wait_for_frame() and refresh_soon(), but I'm not sure if I've ordered or arranged those in the best way
manic glacierBOT
stuck elbow
@strange cargo scrolling right now requires redrawing the whole screen, so it's slow
@strange cargo maybe you could instead scroll in steps or whole screens
strange cargo
@stuck elbow , yes if I leave the background static and just move the characters it is very fast. I was hoping some clever use of wait_for_frame() and refresh_soon() could speed up the background scrolling, but when I shuffle those calls around it ends up tearing the screen more and not really going faster.
stuck elbow
the pixels can be sent to the screen only so fast
one thing you could try is play with the hardware scrolling of the display itself โ that doesn't require sending new data, except for the narrow strip of the new content โ but that is not currently supported by displayio, so you would have to hack it yourself by sending commands to the display yourself
and of course then it would only work with the one display you use
by the way, wait_for_frame and refresh_soon are going to be removed in 5.x and replaced with a simple refresh
strange cargo
does MakeCode have some tricks/optimizations that CircuitPython hasn't applied? I look at the scrolling in this J.P. demo and it seems faster than what we can do with CP now.
stuck elbow
that'c C code, no?
it's much faster
actually I don't know how they implemented scrolling
onyx hinge
Maybe this is something for "in the weeds" today: What if a UF2 of circuitpython plus "the initial filesystem image" for each supported board was a build artifact of circuitpython? The benefits are (A) once done, it's easy for anyone with git to find out "what was shipped with board BB in release RR", (B) by scripting it, it is repeatable and (C) by providing a "fully reinitialize" option, it might help some users. On the other hand, (X) some users will accidentally use "fully reinitialize" and lose their own code, (Y) this doubles the number of build artifacts again, and (Z) it's a fair bit of work to do this for each supported board (source the file(s), add to git, etc)
To that end, I've written an alpha-quality "mkfatimg" program in C which uses oofatfs to produce a filesystem image containing the usual circuitpython meta-files like .fseventsd. https://github.com/jepler/mkfatimg
.. I did go ahead and throw a brain dump about this into "in the weeds"
idle owl
@onyx hinge Looks good! I'll turn it over to you when we get to In the Weeds and let you talk through it and start the discussion.
idle owl
@pastel panther or @gilded cradle Do either of you have a minute to test OBS with me?
gilded cradle
I do
pastel panther
sure
idle owl
Right on. Can you jump into the CircuitPython audio chat?
gilded cradle
Sure
modern wing
Good afternoon all you wonderful folks! I'll be on the call today, lurking happily ๐
onyx hinge
is there a keystroke to mute/unmute my mic in discord?
stuck elbow
you can set one
ruby atlas
Lurking only - no mic, meetings at any time
stuck elbow
you can set it to "push to talk"
modern wing
Can you ever have too many epaper screens?
stuck elbow
do you have any round ones?
slender iron
@stuck elbow no, have you seen some?
onyx hinge
@slender iron are you damaging the screens in your testing/coding?
stuck elbow
I've seen round oleds and memory displays, but I woulnd't be surprised with epaper ones
raven canopy
Lurking
slender iron
@onyx hinge I don't know of a hotkey. no, not damaging, just different driver ics
tidal kiln
lurking
timber mango
lurking
turbid radish
not lurking ๐
slender iron
๐
silver tapir
Lurking.
slender iron
@stuck elbow I think we got some sample round ones
river quest
yah, will post some photos soon of the round displays
stuck elbow
\o/
river quest
they are super-cool
stuck elbow
are the pixels addressed in a spiral? ;-)
slender iron
round tft iirc
river quest
CircuitPython day celebrations!
CircuitPython Day 2019 | Code + Community = CircuitPython <3
https://www.codensolder.com/blog/circuitpython-day-2019-codecommunitycircuitpython-lt3
modern wing
I hope development on the round epaper doesn't have you going in circles.....
slender iron
welcome @nimble narwhal are you listening in (aka lurking)?
river quest

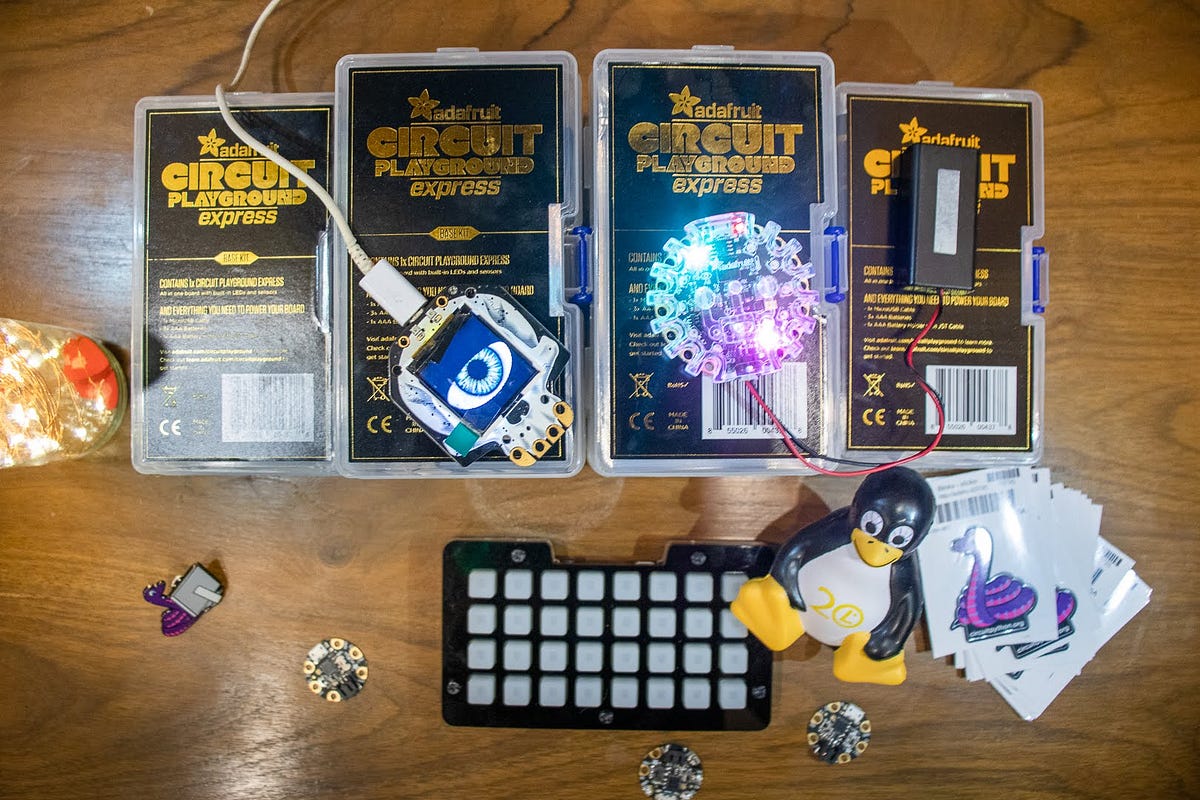

Circuit Python Dayโ19: Blinking the Blinka: The official CircuitPython mascot!
https://medium.com/@ruchikabgosain/circuit-python-day19-c887a090a08b
CircuitPythonDay 2019 - Cake
https://youtu.be/_7WDHR-sW3w
slender iron
otherwise we'll call on you later
river quest
stuck elbow
mmm, licorice
river quest

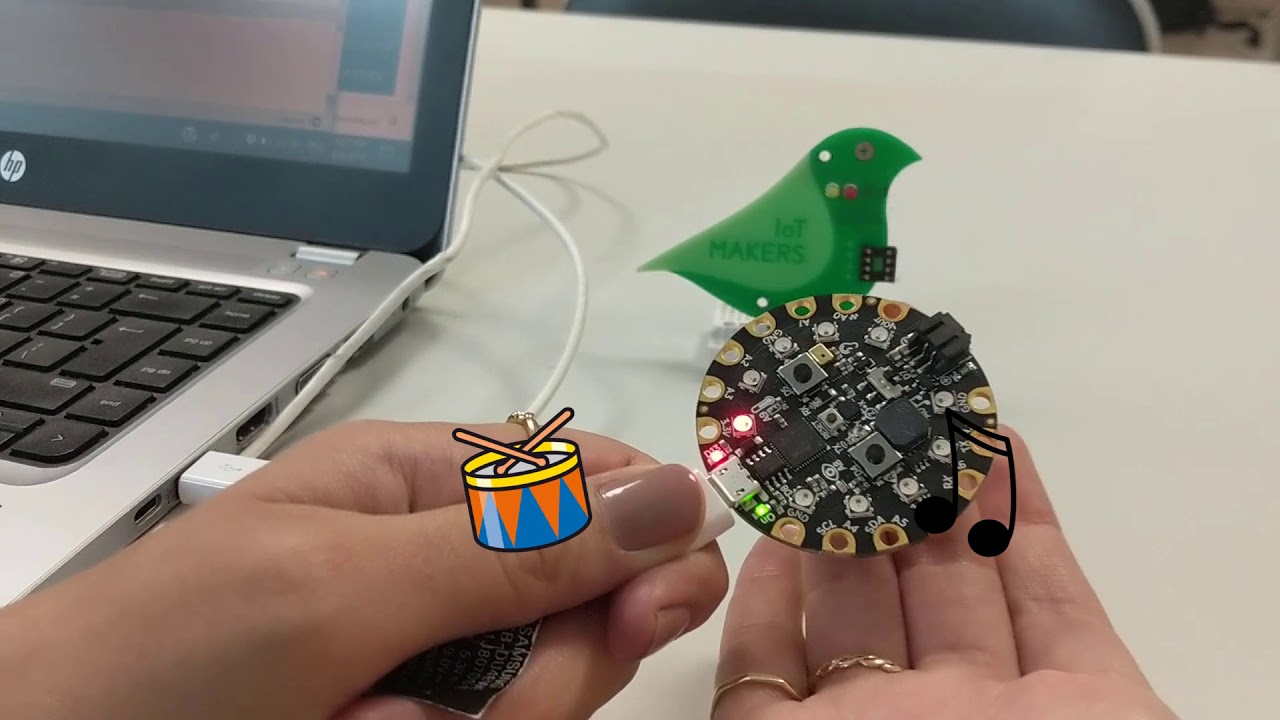

IoT Makers Israel CircuitPython Workshop
https://youtu.be/pAwB3frQSYo
Smart Badge
https://medium.com/@urish/the-smart-conference-badge-we-almost-failed-shipping-edb2b1ae85b6
ASK AN ENGINEER with Scott and Ladyada
https://youtu.be/rAx3TNdPD9g
History of CircuitPython
https://youtu.be/SwNQdTU9m8s
Changing Lives through Open Source, Passion and Mentoring
https://youtu.be/kgTApb8f2L0
PyperCard - Easy GUIs for All
https://pypercard.readthedocs.io/en/latest/
FEATHER takes flight with the Wio Lite W600 from Seeed Studio
https://blog.adafruit.com/2019/08/06/feather-takes-flight-with-the-wio-lite-w600-from-seeed-studio-seeedstudio-adafruit-feather/
R is for Robot - Make Robot Friend
https://youtu.be/jeuAZO1kll0
Show and tell is now powered by streamyard.com
slender iron
๐ฏ hug report for @swift arrow
onyx hinge
that's a mouthful
turbid radish
Please subscribe to our weekly CircuitPython newsletter
https://www.adafruitdaily.com/
old smelt
Lurking. Late. Mobile. Dying battery...
gilded cradle
@turbid radish will that also work with breakouts with displayio drivers?
turbid radish
@gilded cradle it should but I don't go over that in the guide. I do point out as long as you have a board.DISPLAY object set up, it should just work
gilded cradle
Ok, it's not board.DISPLAY on the breakouts, but you do have an equivalent object.
turbid radish
It might be good, as time allows to update it for general displayio wiring and use
gilded cradle
Yeah
turbid radish
yes, the equiv object should work
slender iron
looks
onyx hinge
I really appreciate the degree to which you minimized that reproducer program
simple pulsar
I've just noticed a REPL peculiarity on 4.1.0-rc.1 whilst discussing something unrelated with a fellow midi user. Note how the stack trace on exception accumulates: ```
Press any key to enter the REPL. Use CTRL-D to reload.
Adafruit CircuitPython 4.1.0-rc.1 on 2019-07-19; Adafruit Metro M4 Express with samd51j19
from adafruit_midi.program_change import ProgramChange
ProgramChange(200) ### intentional illegal value
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
File "adafruit_midi/program_change.py", line 56, in init
ValueError: Out of range
ProgramChange(200) ### intentional illegal value
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
File "adafruit_midi/program_change.py", line 56, in init
File "<stdin>", line 1, in <module>
File "adafruit_midi/program_change.py", line 56, in init
ValueError: Out of range
ProgramChange(200) ### intentional illegal value
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
File "adafruit_midi/program_change.py", line 56, in init
File "<stdin>", line 1, in <module>
File "adafruit_midi/program_change.py", line 56, in init
File "<stdin>", line 1, in <module>
File "adafruit_midi/program_change.py", line 56, in init
ValueError: Out of range
I can check against the pukka 4.1.0 and then log as a bug if that does it?
slender iron
what do you mean by pukka?
onyx hinge
I have to step away. thanks all, talk to you later!
pastel panther
bye @onyx hinge ๐ Thanks for stopping by
raven canopy
Yeah, the timers/periphs and the VM re-entrance are the biggest things imo. Aside from USB of course.
Yeah, definitely where I'd start. Sleep = loop ends.
RSTDBY and ONDMD flags...so confusing. ๐
solar whale
sorry I have to miss this -- will listen to the recording -- have a good week all ๐
raven canopy
But, more complicated/convoluted will start to limit small boards, which I imagine are the target boards.
Happy day did it last year
But CPython only stops script execution with time.sleep(). I don't see that as equivalent to setting a PC in sleep mode.
silver tapir
Are both ways or doing this, compatible with a wakeup from GPIO?
stuck elbow
no
simple pulsar
@slender iron I assumed Jamie Oliver's favourite word had propagated over to the US: https://www.collinsdictionary.com/dictionary/english/pukka
stuck elbow
so pukka is like echt?
slender iron
raven canopy
Thanks everyone!!
silver tapir
Thanks for hosting @idle owl .
errant grail
Thanks everyone! Mondays, Wednesdays, and Thursdays highlight my week.
modern wing
I'll agree @errant grail -- as I'm recovering from an injury, these fun meetings give me something to look forward to, takes my mind off of things.
raven canopy
๐ later
errant grail
@modern wing Hope you recover quickly!
manic glacierBOT
modern wing
@slender iron Thanks!
onyx hinge
Back at the office. On the drive, what came to mind is: the build artifact to start with is not a FAT binary image or a UF2 file .. it's a .zip file. Also, all the tooling is already done if you want to make zip files ๐ฒ
silver tapir
@gilded cradle To repac, you where helping me with porting stuff to riscv, PlatformDetect was done, and I'm in the middle of adding code to blinka.
onyx hinge
thanks tannewt
gilded cradle
Yep
silver tapir
I'm a bit loss with was is missing. Can I send a PR and you can help by pointing out what's next?
gilded cradle
Sure
silver tapir
Thanks a lot, I'll reviews the pins and send it.
gilded cradle
Sounds good. I'll keep an eye out for it.
simple pulsar
@stuck elbow echt is a new one to me!
manic glacierBOT

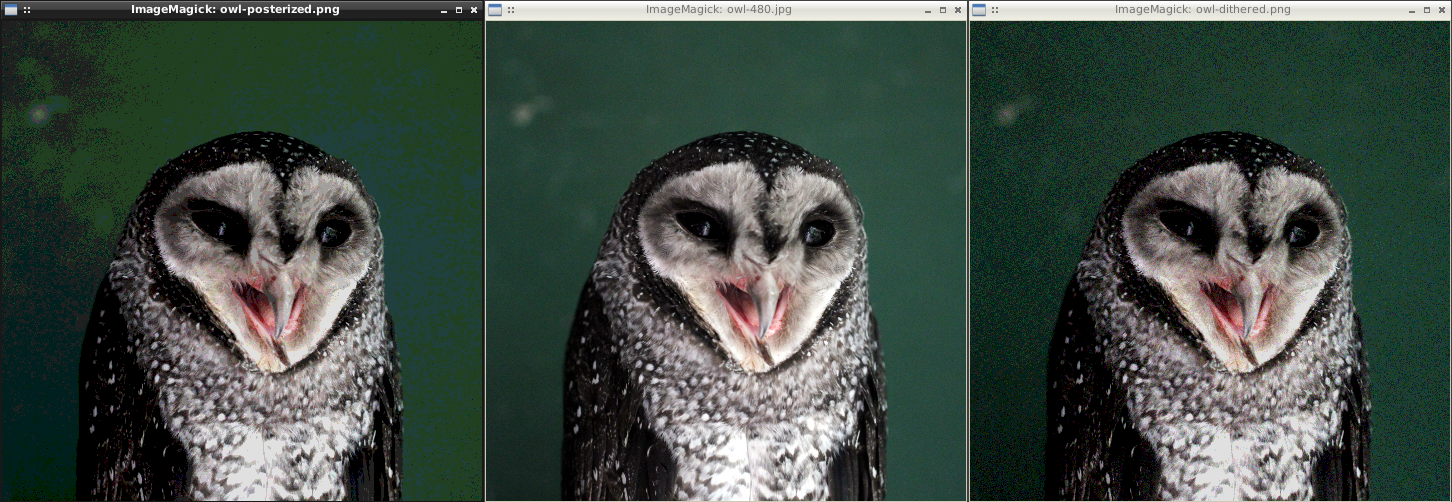

I was curious how this looked, so I transcribed the algorithm into pure python and ran it on my desktop to create several output images. "posterized" is truncated to 3 bits per primary, "dithered" is using what I think is the current version of the algorithm, more or less.
This is how it looks on the PyPortal Screen:
manic glacierBOT
manic glacierBOT
manic glacierBOT
manic glacierBOT
obsidian compass
Hi does "rotaryio' library works with CircuitPlayground express board ?
solar whale
@obsidian compass it does appera to be "builtin" to the CPX ```Auto-reload is on. Simply save files over USB to run them or enter REPL to disable.
Press any key to enter the REPL. Use CTRL-D to reload.
Adafruit CircuitPython 5.0.0-alpha.0-45-gd99d3bd47 on 2019-07-28; Adafruit CircuitPlayground Express with samd21g18
help('modules')
main adafruit_hid/keyboard_layout_us busio random
_os adafruit_hid/keycode collections re
_pixelbuf adafruit_hid/mouse digitalio rotaryio
_time adafruit_lis3dh errno rtc
adafruit_bus_device/init adafruit_thermistor gamepad storage
adafruit_bus_device/i2c_device analogio gc struct
adafruit_bus_device/spi_device array math supervisor
adafruit_circuitplayground/express audiobusio microcontroller sys
adafruit_hid/init audiocore micropython time
adafruit_hid/consumer_control audioio neopixel touchio
adafruit_hid/consumer_control_code bitbangio neopixel_write usb_hid
adafruit_hid/gamepad board os usb_midi
adafruit_hid/keyboard builtins pulseio
Plus any modules on the filesystemimport rotaryio
dir(rotaryio)
['class', 'name', 'IncrementalEncoder']
@solar whale thanks, seems like somehow it's not working for me . Let me re-flash
solar whale
what versin of CP are you using -- this was 5.0 -- I'll check 4.1.0
obsidian compass
I am on 4.1
solar whale
it is there ```Auto-reload is on. Simply save files over USB to run them or enter REPL to disable.
Press any key to enter the REPL. Use CTRL-D to reload.
Adafruit CircuitPython 4.1.0 on 2019-08-02; Adafruit CircuitPlayground Express with samd21g18
help('modules')
main adafruit_hid/keyboard_layout_us collections re
_os adafruit_hid/keycode digitalio rotaryio
_pixelbuf adafruit_hid/mouse errno rtc
_time adafruit_lis3dh gamepad storage
adafruit_bus_device/init adafruit_thermistor gc struct
adafruit_bus_device/i2c_device analogio math supervisor
adafruit_bus_device/spi_device array microcontroller sys
adafruit_circuitplayground/express audiobusio micropython time
adafruit_hid/init audioio neopixel touchio
adafruit_hid/consumer_control bitbangio neopixel_write usb_hid
adafruit_hid/consumer_control_code board os usb_midi
adafruit_hid/gamepad builtins pulseio
adafruit_hid/keyboard busio random
Plus any modules on the filesystem
type help('modules') at the REPL and see if it is the same as what I see.
obsidian compass
I reflashed the same version and now I see it ๐ weird
solar whale
sigh... good luck !
solar whale
Great!
obsidian compass
:+1 Thanks for the awesome guide @idle owl ๐
manic glacierBOT
onyx hinge
Is there a way to search PRs for ones where I've been requested as a reviewer? I feel like there is an outstanding PR which I was requested to review but I can't find it
aha review-requested:jepler
tulip sleet
@onyx hinge Also just by clicking:
obsidian compass
How can we check which all modules/libs are baked in to default .uf2 for a specific board ?
Without actually flashing it
stuck elbow
look at the board definition
tulip sleet
@obsidian compass we are working automating this table right now: https://circuitpython.readthedocs.io/en/latest/shared-bindings/support_matrix.html. It may not be accurate right now, and it's hard to read, but that would be the place to look
obsidian compass
@tulip sleet awesome :D. Is there a build script where modules names to be packaged are mentioned which I can refer?
for a particular board(say)
@stuck elbow thanks Gotchya ๐
tulip sleet
@obsidian compass it's somewhat complicated: there are categories of boards, and then for some boards some specific modules are enabled/disabled: CIRCUITPY_SMALL_BUILD, CIRCUITPY_FULL_BUILD, and also varies by port (atmel-samd vs nrf, in mpconfigport.h), and then you look in mpconfigboard.h
that's why we're trying to automate figuring it out
obsidian compass
@tulip sleet sounds fun, let me see where I could help ๐
tulip sleet
@obsidian compass https://github.com/adafruit/circuitpython/pull/1985
manic glacierBOT
For your new issues: table looks nice informationally but doesn't wrap;
slender iron
@gilded cradle which library are you using?
gilded cradle
Adafruit_CircuitPython_SSD1351
it works with CP 4.1.0 Beta 0 and stops working after that
slender iron
and which device?
gilded cradle
Feather M4 Express
solar whale
Have to go make some pita -- back when dough is rising....๐ฅ
slender iron
@gilded cradle try lowering the baudrate
gilded cradle
Ok, I'll give that a try
gilded cradle
Thanks for the suggestion
slender iron
gilded cradle
@slender iron, adding the baudrate fixed it. Thanks for the suggestion.
old smelt
@gilded cradle - I made the requested change to Adafruit_CircuitPython_Display_Button. I am unfamiliar with how Travis works. What is it using for the automated lint checks? Also - is the creation of the .mpy automated, as well?
gilded cradle
Thanks Jason, I'll take a look.
slender iron
@old smelt the lint is done with pylint. the mpy creation is automated
manic glacierBOT
old smelt
Thanks Scott.
subtle sun
Playing around with BLE on the Particle Xenon (haven't managed to get my hands on an nrf52840 feather yet).
The samples are running nicely but i can't get the mac address. Is this supposed to work or it is still in progress?
Adafruit CircuitPython 4.1.0 on 2019-08-03; Particle Xenon with nRF52840
>>> import bleio
>>> bleio.adapter.address
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
TypeError: extra keyword arguments given
@subtle sun It looks like that will be added in 5.0 -- I am using a build from @tulip sleet repo and it does work ```Auto-reload is on. Simply save files over USB to run them or enter REPL to disable.
Press any key to enter the REPL. Use CTRL-D to reload.
Adafruit CircuitPython 5.0.0-alpha.0-161-g1570ef2dd on 2019-08-13; Particle Xenon with nRF52840
import bleio
bleio.adapter.address
<Address e2:04:d5:fa:50:cb>
@solar whale Thanks. Ill take a look
solar whale
@subtle sun I was using this branch https://github.com/dhalbert/circuitpython/tree/ble-pairing
idle owl
Ok I'm missing something here. What do you do when you want to use two I2C devices at the same time?
I thought you specified the address and as long as they're different, it's happy, but I'm not seeing an address kwarg.
manic glacierBOT
solar whale
@idle owl It may depend on the device -- some are addressable some are fixed addresses - what are you using?
idle owl
@solar whale DS3231 RTC FeatherWing and OLED FeatherWing.
subtle sun
@solar whale Compiled and flashed and it works as expected. Thanks again.
idle owl
@solar whale I think I'm straight up missing something on what I should be doing for the code. Start by assuming I'm simply doing it wrong.
I thought to use board.I2C for the i2c object in both initialisation lines, and at least now I'm getting a new error.
solar whale
I don't see that the ds3231 has addressing options
solar whale
yes it is hardcoded to 0x68 -- should be fine with OLED
idle owl
oh you mean to assign it an address
solar whale
what error are you getting?
idle owl
oled is 0x3C or 0x3D apparently. (according to master I2C address list)
I was getting SCL in use. I am now getting: Auto-reload is on. Simply save files over USB to run them or enter REPL to disable. code.py output: Traceback (most recent call last): File "code.py", line 9, in <module> File "adafruit_ds3231.py", line 97, in __init__ File "adafruit_bus_device/i2c_device.py", line 66, in __init__ AttributeError: 'function' object has no attribute 'try_lock'
solar whale
can you post the code?
idle owl
import time
import board
import busio
import displayio
import adafruit_ds3231
# i2c = busio.I2C(board.SCL, board.SDA)
rtc = adafruit_ds3231.DS3231(board.I2C)
oled = displayio.I2CDisplay(board.I2C, device_address=0x3C)```now I get SDA in use
crimson ferry
may need hard reset
solar whale
do you have () for both?
idle owl
rtc = adafruit_ds3231.DS3231(board.I2C())
oled = displayio.I2CDisplay(board.I2C(), device_address=0x3C)```hhm try ```i2c = busio.I2C(board.SCL, board.SDA)
rtc = adafruit_ds3231.DS3231(i2c)
oled = displayio.I2CDisplay(i2c, device_address=0x3C)
or i2c=board.I2c()
idle owl
SDA in use.
solar whale
ยฏ_(ใ)_/ยฏ
idle owl
Fair enough
crimson ferry
I was having same issue with 5.0 and displayio OLED (also using other RTC wing and airlift), I think Scott was going to look at the code
idle owl
OH.
omg.
You're right.
He said there was an I2C bug, but never clarified what it was.
solar whale
cool ! You found it!
idle owl
Let me try it with only that line though.
solar whale
Sorry - I have to run -- good luck!
idle owl
Thanks @solar whale as always!
Yes. Even though it fails on the rtc line, it doesn't fail with the RTC alone. It does fail on the I2C alone.
@crimson ferry Thank you so much. I even said "So if something happens, don't assume it's me." and Scott said "Yes." And I did it anyway.
@slender iron I found your displayio I2C bug.
crimson ferry
idle owl
I'll comment for all the good it will do
onyx hinge
@tulip sleet re your comment nearly 4 hours ago .. I don't have those links (created/assigned/mentioned/review requests) on the pull requests page. Is it a feature you've opted in to or something?
tulip sleet
@onyx hinge maybe it's because I'm a member of the "adafruit" organization
btw, I'm testing the nRF PWMAudioOut, using the tip of master, and getting playback artifacts on the second part of a wav file. Should I open a new issue or add to the impl one?
onyx hinge
@tulip sleet Thanks for testing! Open new issues, I think, unless the original implementation one is still open.
tulip sleet
@onyx hinge ok, not your issue- turns out the file got corrupted while copying to CIRCUITPY. Recopying and it's fine. This is with a potentially flaky nRF52840 that was having trouble, that I got from a user
tidal kiln
what's a good way to get file size in bytes? os.stat seems to work, just wondering if there's something "better"?
>>> import os
>>> os.stat('font5x8.bin')[6]
1282
@tidal kiln in cpython, even, what you did is the "recommended" (just with named access instead of index). https://stackoverflow.com/a/2104107
if os.path.getsize exists that works (apparently in CPython it's an alias for... exactly what you wrote)
tidal kiln
@sudden coral thanks. doesn't look like CP has os.path and the os.stat return is just a simple tuple in CP (thus the index)
onyx hinge
@tulip sleet noted, thanks for checking further
onyx hinge
As expected, I did not reproduce the i2c in use error after soft reboot with particle xenon + oled featherwing
@raven canopy want to talk audio mixer?
raven canopy
sure. give me a sec; finishing up a PR review.
onyx hinge
of course
raven canopy
k. done. let me push current code to github. prob need to do a couple commits first.
manic glacierBOT

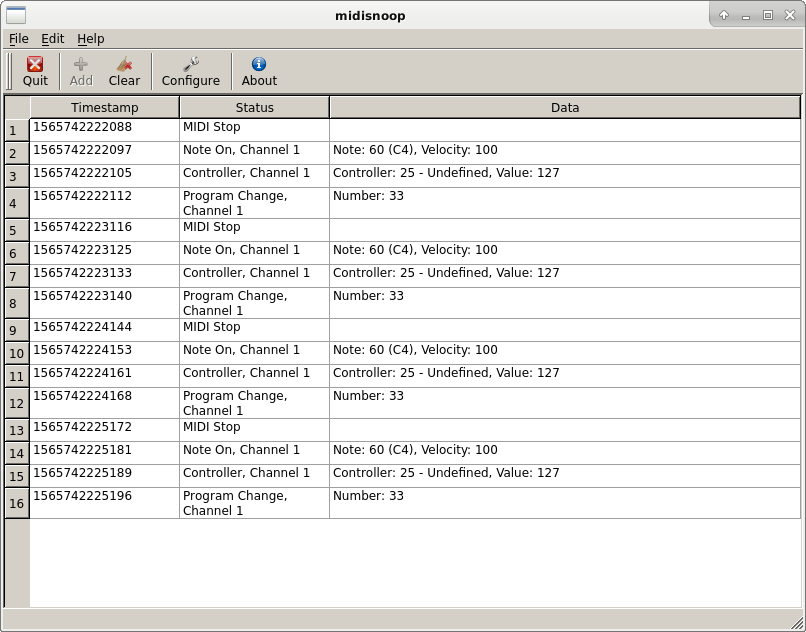

Interestingly, on Linux I get ...
so it'll be tough for me to test any fixes.
raven canopy
@onyx hinge ready when you are. CirPy voice channel? (any other attendees are fine with me)
onyx hinge
@raven canopy yes let me transfer to where I can do voice
raven canopy
onyx hinge
../../shared-module/audiocore/Mixer.c|192 col 5| error: asm operand 1 probably doesn't match constraints [-Werror]
gcc version 7.3.1 20180622 (release) [ARM/embedded-7-branch revision 261907] (15:7-2018-q2-6)
#define SHIFT 0
asm volatile("smulwb %0, %1, %2" : "=r" (lo) : "r" (mul), "r" (val));
asm volatile("smulwt %0, %1, %2" : "=r" (hi) : "r" (mul), "r" (val));
asm volatile("ssat %0, %1, %2, asr %3" : "=r" (lo) : "I" (BITS), "r" (lo), "I" (SHIFT));
asm volatile("ssat %0, %1, %2, asr %3" : "=r" (hi) : "I" (BITS), "r" (hi), "I" (SHIFT));
asm volatile("pkhbt %0, %1, %2, lsl #8" : "=r" (val) : "r" (lo), "r" (hi)); // pack
dangit I was doing that "have to have the last word thing", sorry!
have a good remainder of your evening
onyx hinge
for those who weren't listening in, I got it building on nrf but the audio levels seem weirdly low. I tried to convince sommersoft to just submit the PR without the asm stuff and leave the chance to optimize it as a gift to future generations
I plan to investigate the (probably nrf / pwmaudio specific) audio level problem soon, but maybe not super-soon
afk
old smelt
It looks like once a button is created with fill=None, the selected_fill setting is ignored and won't show if the button is touched. I've been looking at code for quite a while, and I
...am a bit stumped.
Snooping around led me to this question: Once make_transparent() has been called for a given button's palette index, will it accept being set to a color at a later time?
Or do you have to call make_opaque() first?
...something that I tried in a locally modified copy of roundrect.py, but no luck
onyx hinge
ooops, while trying to get my metro m4's filesystem to include "tetros" (boot sector tetris) it looks like I corrupted the filesystem.
I was just thinking, what a great easter-egg it would be to have a bootable PC game on there
is the first sector of the disk fake or something?
ah, yes, it is
oh well, it won't work out
manic glacierBOT
tough flax
Switched from trying to parse a .INI style file to just putting the settings in a .py file ... saved 8K (on a Trinket M0) ๐
manic glacierBOT
manic glacierBOT
onyx hinge
Thinking about MixerVoice makes me even more sure that "something" comprehensive needs to be done about memory allocation for audio. Suppose you wanted to mix 8 wavs, you should be able to do it without allocating full memory for all 8 of them. Putting the audio consumer in charge would be a big improvement there too
indigo wedge
So I understand that the ESP32 circuitpython port is not prioritized cause there's no native USB, does that mean that now with the ESP32-S2 close, the port can get redemption?
raven canopy
@tough flax awesome!!!
old smelt
Anyone interested in a low-level discussion about how make_transparent() and make_opaque() work in displayio? Seems like they may be intended to work dynamically, but I can't create a demo which shows that is possible. On the other hand, I think I can show that they do not work that way. But if the transparency/opaqueness of a shape is NOT supposed to be changed after initialization, I may be barking up the wrong tree.
manic glacierBOT
exotic pumice
what is NO_PIN defined to for samd21? I see 84 for samd51 and 0xff for nrf and stm
oh nevermind
samd51 is 118 samd21 is 84?
but the section that defines NO_PIN to PORT_BITS is only in the samd51 peripherals
tidal kiln
@tough flax for that .INI parse thing - could you switch to using a native Python data structure (ex: dictionary) to hold the info? if it's a requirement that the old .INI file still be supported, a simple translation program could probably be written
also - i have an Eagle part for the 5mm NeoPixels, but it's not the best - the hole spacing is pretty tight
tough flax
@tidal kiln thatโs what we did: and I like the python settings file. It was just nice that new users would have a safer ini experience and their computer would open the text editor for them
We made the eagle part, but thanks!
tidal kiln
cool. sorry for lag. been deep in other necks of the woods.
manic glacierBOT
vivid temple
Hi everyone i try to flash the makerdiary mini usb dongle with circuit python but geting the following error message: TypeError: 'NoneType' object is not iterable - Full error Log: https://pastebin.com/8WgebWV2 - i would appreciate some help please ๐
vivid temple
2019-08-15 01:33:39,150 Using board at serial port: /dev/ttyACM0
2019-08-15 01:33:39,157 Sending Application image.
2019-08-15 01:33:42,798 No trigger interface found for device with serial number: D3E3CF822FFA, Product ID: 0xCAFE and Vendor ID: 0x1915
2019-08-15 01:33:42,799 Serial: Waiting 500 ms for device to enter bootloader 1/10 time
2019-08-15 01:33:43,304 Serial: Waiting 500 ms for device to enter bootloader 2/10 time
2019-08-15 01:33:43,815 Serial: Waiting 500 ms for device to enter bootloader 3/10 time
2019-08-15 01:33:44,326 Serial: Waiting 500 ms for device to enter bootloader 4/10 time
2019-08-15 01:33:44,837 Serial: Waiting 500 ms for device to enter bootloader 5/10 time
2019-08-15 01:33:45,347 Serial: Waiting 500 ms for device to enter bootloader 6/10 time
2019-08-15 01:33:45,858 Serial: Waiting 500 ms for device to enter bootloader 7/10 time
2019-08-15 01:33:46,368 Serial: Waiting 500 ms for device to enter bootloader 8/10 time
2019-08-15 01:33:46,879 Serial: Waiting 500 ms for device to enter bootloader 9/10 time
2019-08-15 01:33:47,394 Serial: Waiting 500 ms for device to enter bootloader 10/10 time
2019-08-15 01:33:47,906 Serial: Device is either not in bootloader mode, or using an unsupported bootloader.
2019-08-15 01:33:47,908 Serial: Set Packet Receipt Notification 0
2019-08-15 01:33:47,908 SLIP: --> [2, 0, 0]
2019-08-15 01:33:48,910 SLIP: --> [7]
vivid temple
got it working now - nvm ๐
subtle sun
@indigo wedge have they released the ESP32-S2?
indigo wedge
I guess so? hard to say https://twitter.com/EspressifSystem/status/1161622747467792385
subtle sun
@indigo wedge I can't see it in the Espressif Taobao store so i guess they haven't released yet. Hopefully the tweet means the release is near
indigo wedge
let me know if it appears ๐
i know beta silicon was sent out to some members of the community
but that one didn't have usb working i heard
subtle sun
I also saw those reviews but they were very tight on the details
I would love to see eventually a version with BLE + WIFI + USB on the same chip
solar whale
@vivid temple for the benefit of others, can you describe what you had to do to make it work? I put the UF2 bootloader on mine so I don't use nrfutil.
indigo wedge
@subtle sun I'm sure it will come eventually
stuck elbow
@indigo wedge yes
idle owl
@slender iron Any idea when you'll have a chance to look at the I2C OLED displayio bug? I know you have your priorities. I'm blocked on it and wanted to know if you had any idea when you might get to it so I can try to plan.
slender iron
@indigo wedge we have beta hardware but usb doesn't work. we'll get to it when it's more readily available and we have cycles
@old smelt it should be possible to undo but there may be a bug where setting it doesn't cause a redraw
@idle owl which bug number is it? I can try to look this week
old smelt
@slender iron - thanks for confirming the intent. I think there is a bug there, but I don't know where to file the issue. I'm guessing it is for displayio?
I created a short program that I think tests the behavior and shows the failures.
It fails the other way, too. That is, if you create a shape with a fill color and then later try to set the fill to None, it does not go transparent.
Very repeatable.
The original place I saw this symptom was when I noticed that the select_fill color is ignored for a button if the original fill color is None.
idle owl
lunar crown
In yesterday's Adafruit Daily, there was a snippit about Bryan and a APDS-9500 Gesture sensor. Clicking thru takes me to new products, but no APDS-9500. Was this just a new product pre-announcement OOPS ?
slender iron
@pastel panther would know @lunar crown
@old smelt if you can replicate it with just displayio apis then it should be filed on the core
old smelt
Ok. I probably can do that. I'm using either the Button or one of the shape objects to make it happen - but it really comes down to the fill() setter in the shape class, which is calling the displayio API function. Hopefully I'm making sense.
slender iron
@idle owl working on it now
idle owl
๐
I can test things if needed.
@tulip sleet Doing the intro to linting guide. Worth creating a venv to install Pylint into? Mine's in one. Is it ok to simply provide the command to create the venv without getting into the details of it?
slender iron
@idle owl which feather are you using?
idle owl
M4 Express.
idle owl
Yeah I saw that! Thought it was an illusion
tulip sleet
@idle owl I never use a venv; I just install pylint and be done with it
idle owl
@tulip sleet Good to know, thanks.
manic glacierBOT
tulip sleet
a venv is useful if what you're going to install is going to conflict with existing stuff, or you need to maintain multiple python environments. But I think for most people, they just need one
idle owl
@slender iron I'm not even getting CIRCUITPY with this firmware... screen says hallowing m4 express for board type.
Also says 4.x
idle owl
Ooh I have stuff on the OLED. But SCL in use.
slender iron
switches to metro
idle owl
Yep. Still getting the same behavior. Ok on first load, SCL in use on soft reboot.
prime flower
been fixing MiniMQTT this week - the server and client now properly sync with the keepalive provided to the server. Previous network errors are now handled by the library, for both issues with the ESP module and the socket. Here's an old screenshot showing disconnection from a server due to lack of synchronization , or the network module not communicating.
And here's a screenshot showing the updated MiniMQTT library...
no red !!! disconnects ๐
pastel panther
heya @lunar crown I missed that that made it in there! The APDS-9500 and the other sensors there are still in development; The TLV493D that @idle owl did and the ICM-20948 that ladyada did will be out a bit sooner because they're adaptations of existing boards, however the APDS-9500 that I'm working on is new to us so it's development cycle will be a bit longer
slender iron
@idle owl try this:
lunar crown
@pastel panther If you need an alpha tester for the APDS-9500, I'll volunteer. I am interested in the part.
slender iron
idle owl
@slender iron I'm still getting SCL in use.
pastel panther
@lunar crown I'll keep you in mind if I need some help. I normally do most of the testing myself but if I see a place where you could help out I'll let you know
slender iron
hrm, what is your test code?
idle owl
checking now
lunar crown
@pastel panther Ok.
slender iron
import board
import displayio
import adafruit_displayio_ssd1306
displayio.release_displays()
i2c = board.I2C()
display_bus = displayio.I2CDisplay(i2c, device_address=0x3c)
display = adafruit_displayio_ssd1306.SSD1306(display_bus, width=128, height=32)
this is mine
pastel panther
@lunar crown what specifically did you think you could help with testing?
idle owl
I don't have the release
slender iron
k, lemme try that
idle owl
get SDA in use with board.I2C().
slender iron
yup, I see that too
lunar crown
@pastel panther I am interested in finding a better gesture sensor that could be used to replace knobs on a radio. So some knob replacement oriented application testing, general debugging of the drivers.
pastel panther
@lunar crown Ok, great, I'll let you know if something comes up
idle owl
@slender iron is the displayio.release_displays() required?
slender iron
@idle owl you should have the release
idle owl
Because it seems like it's trying to work with that line.
lunar crown
@pastel panther Ok.
slender iron
otherwise you'll make multiple displays over the same one
idle owl
hmm ok
Ok, looks like it's working then. Though I have no idea how to do anything with it. Obviously doesn't work like the original OLED driver.
idle owl
@slender iron Want me to review?
slender iron
sure
tame tiger
Have you guys seen this?
https://youtu.be/EMnx_EZYM1Y
slender iron
manic glacierBOT
onyx hinge
interesting findings @tulip sleet
tulip sleet
i'm looking at the source tar file now
onyx hinge
good luck! There was a lot of stuff there
onyx hinge
@tulip sleet I noticed that in build-toolchain.sh there is a block for "is_ppa_release" which sets ENV_CFLAGS to hold -O2. By changing to non-ppa releases, did they introduce this performance regression?
tulip sleet
what line number is that? I was kdiff3'ing the gcc7 and gcc8 source releases. The website (not ppa) release for gcc7 and gcc8 has this size difference @onyx hinge
onyx hinge
okay, hmm
tulip sleet
i am building the latest release to see what the cc1 size will be
onyx hinge
line 186 of build-toolchain.sh in gcc-arm-none-eabi-8-2019-q3-update
tulip sleet
is that what you mean? no diff there between 7 and 8
cc1 is 31MB in my build (after strip)
onyx hinge
errr line 168
what I was suggesting is, adding -O2 to some cflags is gated by is_ppa_release. I thought maybe that was the change, not any revision to the building scripts
but since you were comparing the binary size of two non-ppa releases that seems like a bad hypothesis
tulip sleet
yah, that's possible, though looking at teh compile lines fly by, I am seeing -O2 on most of them
i don't use arch, I was just trying to find another build that was a size comparison
I can try the build again and set that flag or disable the check. I have to go out but will be back around lunchtime
there is a diff invovling the addition of CXXFLAGS in that script, though I don't see anything wrong with the changes
I'm hoping someone on the build team will take a look at my comment ๐
will check with you when I'm back
manic glacierBOT
onyx hinge
-DBASEVER="\"8.3.1\"" -DDATESTAMP="\" 20190703\"" \
-DREVISION="\" [gcc-8-branch revision 273027]\"" \ -DDEVPHASE="\" (release)\"" -DPKGVERSION="\"(GNU Tools for Arm Embedded Processors 8-2019-q3-update) \"" \
-DBUGURL="\"<https://gcc.gnu.org/bugs/>\"" -o build/version.o /home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc/version.c ``` I don't see any -O when it comes to building gcc proper+make -j$JOBS CXXFLAGS="${CXXFLAGS:-}" CXXFLAGS_FOR_TARGET="-g -Os -ffunction-sections -fdata-sections -fno-exceptions" ```+make -j$JOBS CXXFLAGS="${CXXFLAGS:-}" all-gcc ```I think these have the effect of clearing out optimizer flags, but for C++ files only. Most of gcc proper is compiled as C++ these days, I think
onyx hinge
looks like circuitpython doesn't yet have a general audio resampling algorithm in it?
I wonder if libsamplerate is even slightly amenable for inclusion in CP. It's two-clause bsd license. i386 libsamplerate.so has 14kB in its "text" segment, but 1.5MB in its "rodata" segment(!!)
3 sets of resampling coefficients, from 2464 to 340239(!!)
looks like it would need some banging on to create a "libtinysamplerate" that has a more reasonable footprint
onyx hinge
cool, current libsamplerate includes octave scripts to generate filters, s possibly a smaller but adequate filter could be generated
tulip sleet
@onyx hinge you saw this, right? https://github.com/adafruit/circuitpython/blob/485dd8a67375a3b10a0cc8163c447ab6bb68d333/ports/atmel-samd/common-hal/audiobusio/PDMIn.c#L311. The filter coefficients were generated form some filter generator, and we optimized the speed to be adequate for M0. The filter shape is not great, but is good enough. I have some graphs somewhere.
onyx hinge
@tulip sleet yes, I did see it
tulip sleet
I experimented with different cutoffs, # of coefficients, etc.
onyx hinge
Some part of me figured, better to put this off onto a library than to code it ourselvs -- avoiding NIH
but taking it from the samd build is probably more practical
tulip sleet
i did do some looking and there were surprisingly few helpful libraries or sample code.
onyx hinge
libsamplerate seems on a sound footing, it has a small API surface, but the coefficients are way too elaborate, even before you consider that we only have 32-bit FP math
tulip sleet
unfortunately I can't seem to find our discussions. I think they were in hipchat and are gone
onyx hinge
argh filled up my ssd trying to build arm sdks
OK but I'm looking at a random object file in build-native/gcc-final/gcc (web.o) and yes it looks like an optimization-disabled build. This trivial leaf function (rhs_regno(rtx_def const *)) has redundant manipulation of the stack that -O2 eliminates
install-native/cc1 is 30-ish megs stripped
tulip sleet
@onyx hinge did you try forcing the ppa release setting?
line 168 is -O2 for libs, it looks like
onyx hinge
@tulip sleet no, my next try is manually putting "-O2" on the line CXXFLAGS= (line 152)
tulip sleet
build-toolchain.sh --build_type=ppa and other choices. See around line 52
i'm trying to see how to do a clean without unpacking and re-fetching again
onyx hinge
x86_64-linux-gnu-g++ -fno-PIE -c -DIN_GCC -DCROSS_DIRECTORY_STRUCTURE -fno-exceptions -fno-rtti -fasynchronous-unwind-tables -W -Wall -Wno-narrowing -Wwrite-strings -Wcast-qual -Wmissing-format-attribute -Woverloaded-virtual -pedantic -Wno-long-long -Wno-variadic-macros -Wno-overlength-strings -DHAVE_CONFIG_H -I. -I. -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc/. -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc/../include -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc/../libcpp/include -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/build-native/host-libs/usr/include -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/build-native/host-libs/usr/include -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/build-native/host-libs/usr/include -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc/../libdecnumber -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc/../libdecnumber/dpd -I../libdecnumber -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc/../libbacktrace -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/build-native/host-libs/usr/include -o web.o -MT web.o -MMD -MP -MF ./.deps/web.TPo /home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc/web.c
this file no optimization
the mingw build does pick up optimization though, interesting.
tulip sleet
bleh
onyx hinge
i686-w64-mingw32-g++ -fno-PIE -c -g -O2 -DIN_GCC -DCROSS_DIRECTORY_STRUCTURE -fno-exceptions -fno-rtti -fasynchronous-unwind-tables -W -Wall -Wno-narrowing -Wwrite-strings -Wcast-qual -Wmissing-format-attribute -Woverloaded-virtual -pedantic -Wno-long-long -Wno-variadic-macros -Wno-overlength-strings -DHAVE_CONFIG_H -I. -I. -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc/. -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc/../include -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc/../libcpp/include -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/build-mingw/host-libs/usr/include -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/build-mingw/host-libs/usr/include -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/build-mingw/host-libs/usr/include -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc/../libdecnumber -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc/../libdecnumber/dpd -I../libdecnumber -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc/../libbacktrace -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/build-mingw/host-libs/usr/include -I/home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/build-mingw/host-libs/usr/include -o web.o -MT web.o -MMD -MP -MF ./.deps/web.TPo /home/jepler/eabi8/gcc-arm-none-eabi-8-2019-q3-update/src/gcc/gcc/web.c
anyway, as far as building again, can you just remove the build* and install* directories?
er except don't remove build-* because that removes the scripts oops
raven canopy
@onyx hinge in my now lost PDMIn, I was using the samd filter as a basis. Since nrfx uses different buffer sizes, I played with the number/amplitudes of coefficients. All I ever got was clipped tones in the end though...
tulip sleet
yeah, I did that ๐ unpacking again
i didn't install all the mingw stuff, so the build-prerequisites failed early, but it didn't affect the linux build
i will try a ppa build
onyx hinge
+++ ./build-toolchain.sh 2019-08-15 11:22:41.081622816 -0500
@@ -149,7 +149,7 @@
done
fi
-CXXFLAGS=
+CXXFLAGS="-O2 -g"
if [ "x$BUILD" == "xx86_64-apple-darwin10" ] || [ "x$is_ppa_release" == "xyes" ]; then
skip_mingw32=yes
skip_mingw32_gdb_with_python=yes```this is what I'm trying
and now I can see that web.o got built with "-O2 -g" flags, yay
afk
tulip sleet
@onyx hinge ppa build is failing for some reason, maybe requirements in wrong place. Anyway, once you can find cc1 in the build output, you could stop and check its size. Do you want to reply to my post in that ARM comminity thread or shall I?
slender iron
nice investigation @tulip sleet and @onyx hinge . it'd be nice to have a modern gcc deb for bionic which github ci supports
I was thinking we may want to zip all of our deps up together and simply unzip them in the CI
tulip sleet
what's amazing to me is that this issue has lasted through two release cycles with ARM builds
slender iron
ya, I think fewer and fewer folks use their release
I'd love to port the arch build script to homebrew and use that
onyx hinge
People just expect software to get slower over time. And, not sure what's used more, but I bet the windows builds weren't affected
Looks like I get a tarball as a build artifact, not debs
tulip sleet
can you just find . -name cc1 -ls and strip that to check the size?
onyx hinge
When I get back to my desk I'll do that
meager fog
@umbral dagger hihi
umbral dagger
@meager fog hey
meager fog
@umbral dagger ok so for the bitmap stuffs, is there more you can do with the PR to get it shipshape
umbral dagger
Yes, scott had a suggestion. I'm looking at that now.
umbral dagger
I do not
tulip sleet
ok, let's report it, do you want to register and post in that thread, or shall I cite you (by name or anonymously)? Someone else opened a support case but we cannot view it. I'll ask that person if they got a reply eyt.
onyx hinge
@tulip sleet feel free to name me, do you want me to provide some circuit python build times too?
tulip sleet
not needed, other people have said it's 3 times slower
onyx hinge
I don't want an account with arm,I think I've avoided that so far
tulip sleet
I can cite your github id or just your name
tulip sleet
I'll say you confimed it and changed CXXFLAGS to have -O2, and it fixed it. Whoever made that change can figure out what they really want.
onyx hinge
Yes please include or at least describe that diff
tulip sleet
definitely
meager fog
@umbral dagger please grab one each and also a 1.3" OLED https://www.adafruit.com/product/938
meager fog
@umbral dagger plz order now cause we only have one of the lil displays in stock ๐
onyx hinge
@slender iron I can do that, like I did for the xtensa toolchain once
umbral dagger
@meager fog Ordered.
meager fog
@umbral dagger ok next few projects will use those - please keep workin on the PR with scott till then ๐
@umbral dagger do you have a pi 4?
umbral dagger
@meager fog Not yet
meager fog
@umbral dagger ok is there a place you can order one
@umbral dagger looks like seeed has some https://www.seeedstudio.com/Raspberry-Pi-4-Computer-Model-B-4GB-p-4077.html
also get a camera if you don't have one yet
umbral dagger
@meager fog I have a couple Pi cameras kicking around
meager fog
ok you'll want the 8mp one
umbral dagger
@meager fog That's what I have
meager fog
ok gr8! thanx
onyx hinge
@tulip sleet https://emergent.unpythonic.net/files/sandbox/gcc-arm-none-eabi-8-2019-q3-update-linux.tar.bz2 has the -O2 mod (built on debian stretch, dunno if it would work in the current build env)
tulip sleet
Thanks. I think we will wait for a fix, unless we want to host this somewhere for people to download. We are currently recommending the gcc 7 release; the gcc 8 one doesn't do much better on optimization. We do want to make it easy for people to duplicate our build environment.
tulip sleet
i did download that, for future reference. it takes a long time to build the whole thing ๐
onyx hinge
it makes me smile to be your co-worker fwiw
afk though, I need to concentrate on other stuff
tulip sleet
i also have more on my list ๐ฅ
slender iron
@tulip sleet have you tried gcc 9?
I wonder if we compile gcc -O3 we'd speed up linking
tulip sleet
nope, not yet. Damien is trying it, and there are some issues with the nlr mechanism: https://github.com/micropython/micropython/pull/5008
gcc -O3 would be interesting, though it might be I/O bound. Your idea of making one job per board is interesting, to allow more than 5 jobs but let others squeeze in. I wonder though if they will all get queued at once and still be a monolithic block of stuff in the Travis queue.
umbral dagger
@meager fog You have me curious. Everything should be her on or before Monday.
meager fog
@umbral dagger gr8
strange cargo
I noticed the MonsterMask is in the store now(!) but also in the product writeup it says no CircuitPython yet. Does anyone know when a MonsterMask uf2 (even a slow one) will show up on circuitpython.org downloads?
... also, I was wondering how it will work to have 2 displays accessible to CP. Will there be board.DISPLAY0 and board.DISPLAY1 or in a list like board.DISPLAY[0]?
meager fog
yeah we have not done a mask board definition
so its only in arduino for now
we'll work up a cicuitpy def but...you can't do more than dispayio stuff, like, the eyeball code will not run, its wayyy too optimized
strange cargo
I've been using displayio for text and tilegrids with the other devices and it's great for my purposes. This MonsterMask looks really cool. I just ordered 2. can't wait to play with it. ๐
ruby lake
with 3 jobs shipping out over the next week, I might actually get to return to some cp
meager fog
yay
manic glacierBOT
onyx hinge
@slender iron It looks like I need a way to separately enable audiobusio i2s and pdm. Do you want to see what I come up with, or suggest an approach to me?
or I could just stub it out at the same time, the hardware is there and I'm sure we'll want to support it eventually
slender iron
@strange cargo I picked one up too to get cp going on it
@onyx hinge stubbed out and raising a not implemented error is fine. you may find that after doing pdm that i2s is easy
onyx hinge
@slender iron will do
raven canopy
is still fuming over discovering that he nuked his PDMIn work... if nothing else, i could've saved you some time.
magic wing
Is this the right place to ask about the CP libraries source?
I'm trying to find the .py versions of a couple of files and when I went to https://github.com/adafruit/Adafruit_CircuitPython_Bundle/releases/tag/20190815 and downloaded the source code, there's a lot of folders but no files in them
raven canopy
@magic wing the Source code zip files don't contain the bundle. they are a GitHub release artifact, as i understand it. the adafruit-circuitpython-bundle-py-20190815.zip will contain all of the libraries in pure .py format.
lone sandalBOT
magic wing
Aha, thank you
One last basic question -- how do I paste a chunk of code or output in Discord and get it to format it as code?
raven canopy
surround it with three backticks:
```
code
```
code
you can even use some pretty printing formatting
```python
>>> foo = "bar"
```
>>> foo = "bar"
hehe. oops.
magic wing
nice, thank you
manic glacierBOT
tulip sleet
@raven canopy Did you ever push the PDMIn work to your fork? (I guess not, but I have an old clone of your fork.)
slender iron
@tulip sleet added a test job as a prereq: https://github.com/adafruit/circuitpython/runs/194823378
slender iron
finished and pushed 11 minutes ago
@raven canopy @onyx hinge obviously I'm working on the github ci stuff. looking very promising
slender iron
interesting discussion about backporting features from another mp port back into mainline: https://github.com/loboris/MicroPython_ESP32_psRAM_LoBo/issues/304
https://github.com/adafruit/circuitpython/runs/194841441 no board builds if tests fail
raven canopy
@tulip sleet i think it was a combination of overzealous stashing while changing branches, and deleting branches. its proper nuked. though, if you have a copy of a branch with I2SOut.c/h...that should be at least close to the most recent.
gotta run to the store real quick
manic glacierBOT
onyx hinge
@slender iron I saw, am excited
lone sandalBOT
onyx hinge
got my pdm mic breakouts today but didn't play with that, beyond soldering headers on. Instead, I got reasonably far on stubbing out pdm and i2s, and think I follow a lot of the datasheet things in the pdm section better than before
I wonder why they made the way DMA works so different than PWM, it was confusing at first coming from that
also have one of these printing at the moment https://www.thingiverse.com/thing:3457290
'night all!
exotic pumice
ben heck's working on a samd51 board https://twitter.com/benheck/status/1162196510701961216
circuitpython when? lol
tough flax
Hey @idle owl Should the RFM Bonnet be being initialized in every iteration of the main loop in this example? https://learn.adafruit.com/adafruit-radio-bonnets/rfm69-raspberry-pi-setup
slender iron
manic glacierBOT
solar whale
@tough flax That definitely looks like an error . It works but is unnecessary to repeat. It should be done outside the loop. It's the same in the rfm9x_check as well. @prime flower - do you agree? https://github.com/adafruit/Adafruit_Learning_System_Guides/blob/master/pi_radio/rfm69_check.py#L52 https://github.com/adafruit/Adafruit_Learning_System_Guides/blob/master/pi_radio/rfm9x_check.py#L51
tulip sleet
@slender iron This is interesting; I think it would save RAM, but did you already change how the qstr pool grows? https://github.com/micropython/micropython/pull/3962. tools/mpy-tool: Set sane initial dynamic qstr pool size with frozen mods #3962 This was committed after our last merge from micropython. It's an easy change to mpy-tool.
tulip sleet
@slender iron mpy-tool change above appears to save 180-200 bytes in RAM after importing part of HID on CPX
idle owl
@tough flax No idea! LoRa is @prime flower's domain. He should be able to let you know.
manic glacierBOT
prime flower
@tough flax @solar whale Yup, looks like an error. Initialization of the RFM9x object should occur outside the loop.
and only happen once
tidal kiln
just a history check - looks like encode was enabled for M0 boards at some point? it used to not be in there
for strings
swift arrow
@slender iron I am still looking thru those sdcard issues.. While my sdcard fix does fix the issue with Samsung cards, I do not see where Arduino is doing that.. So why does theirs just work? I am still digging into it.
Maybe I can make some progress on the other sdcard issues as well.. I seem to be learning a lot about sdcards, might as well put it to good use eh? ๐
slender iron
@swift arrow I haven't looked at the arduino impl recently
I really appreciate your work on it. you've been making good progress
<@&356864093652516868> how can we better track prs with no responses. here's another that's been open 5 days with no response: https://github.com/adafruit/Adafruit_CircuitPython_CircuitPlayground/pull/66
(I'm looking now)
ruby atlas
@slender iron git webhooks and a lambda in AWS that posts to a google sheet?
Or something
slender iron
or maybe just ping this channel with them?
exotic pumice
hey @slender iron I had a question that never got answered and it seems maybe you're not knee-deep in code at the moment. Can I repost?
slender iron
ya, or link me to it @exotic pumice
exotic pumice
idle owl
@slender iron Or I need to do a sweep weekly but that could leave things unanswered for a week if the timing failed. Could add it to Tuesday/Thursdays as well. So Monday/Tuesday/Thursday I sweep.
slender iron
I feel like we should track time to reply on issues and prs
exotic pumice
the context is busio/i2c uses a pound-def called NO_PIN and idk what it's value is
idle owl
Or MWF would probably work better for tracking purposes.
exotic pumice
and it seems odd that it's only defined in samd51 peripherals not samd21
slender iron
@idle owl ideally it's more than you just doing it
idle owl
@slender iron Fair enough but I think I need to take the lead on it regardless. I can start it and start coordinating others as well.
exotic pumice
yeah ok, but if you look at the 3rd ripgrep result there, it's in samd51 peripherals, and not in samd21 peripherals, how does that work?
ruby atlas
I'd volunteer to do a sweep but I just can't predict my free time well right now.
slender iron
@exotic pumice I see it in both: ```
ports/atmel-samd/peripherals/samd/samd21/pins.h
40:#define NO_PIN PORT_BITS
ports/atmel-samd/peripherals/samd/samd51/pins.h
41:#define NO_PIN PORT_BITS
@slender iron Do your observations on PR tracking extend to libraries? I put https://github.com/adafruit/Adafruit_CircuitPython_PyPortal/pull/39 in a while ago
slender iron
but it doesn't really matter as long as it's an invalid pin number
@simple pulsar yup
exotic pumice
thanks
idle owl
@simple pulsar @slender iron I'll take a look at it.
tidal kiln
@idle owl @slender iron wasn't this suppose to sorta provide an overview of issue/PR status?
https://github.com/adafruit/circuitpython/issues/1246
and thought there was some adabot work done to highlight number of days?
slender iron
afaik we only track days with the gap between last unreleased commit and now
idle owl
@tidal kiln It was moved to circuitpython.org/libraries/contributing . But it runs once/week at the moment, we need it more often.
And yeah the days thing is only for releases.
tidal kiln
ah, ok.
idle owl
GitHub was failing to update that issue anyway. Ran into nothing but issues with it.
tidal kiln
issues with an issue? you should open an issue.
so maybe just some tweaks to that webpage? run more often and (if possible) add better visibility for numbers of days?
@idle owl should that issue be closed and sticky removed? leave a comment to check webpage instead?
idle owl
I did open an issue. ๐
I'll talk to Sommersoft about updating adabot to do better PR/issue tracking
And I thought I did those things, I'll go do them in a bit here. Yes to both questions.
slender iron
thanks all!
tidal kiln
i'm updating a README in a CP library
OK to delete the "Building locally" section while I'm in there? We removed that, right?
quasi tendon
@simple pulsar I'm trying to work on this JSON issue. Got a minute?
exotic pumice
@slender iron do you have a suggestion on how I should handle the static inline void gpio_set_* functions I can't extern?
I could maybe steal some stuff out of atsamd-hal idk
manic glacierBOT
slender iron
@exotic pumice ya, you can just reimplement against the registers directly
exotic pumice
okie dokie
it's actually kind of hard to figure out how to write directly to a register with all the hal indirection we both have XD
like, the address to write to
tulip sleet
@slender iron itโs very satisfying to test BLE when it works. Probably same for display stuff. Three different devices chugging away here: two talking to each other, one talking to phone
slender iron
nice!
tulip sleet
@slender iron done with CurrentTimeClient review fixes I did manage to cause it to crash by doing an auto-reload while testing. That's what alphas are for. ๐
slender iron
๐ yup
slender iron
@tulip sleet merged. going heads down into eink now
slender iron
I was caught up on email but I'm probably behind already
river quest
river quest
vivid temple
@solar whale jerrynLast Thursday at 2:54 AM @iXiiON#3390 for the benefit of others, can you describe what you had to do to make it work? I put the UF2 bootloader on mine so I don't use nrfutil. -- i'm not aware about an uf2 bootlader for the makerdiary usb dongle. So i used the *.hex file, to make it work you have to unplug the stick, press and hold the button and then plug it back into the usb port then the device seems be be ready to be flashed. nrfutils can then write the *.hex file on the device and ciruitpython runs.
keen ocean
Greetings <@&356864093652516868> Has anyone successfully connected their #circuitpython-dev devices and scripts onto AWS? Other public clouds? Thanks in advance...๐
tough flax
Amazing how little code is needed to get those Digital Pots working... thanks @idle owl @prime flower and everyone on the CP team https://www.youtube.com/watch?v=wt8LbnfXiRM&feature=youtu.be
manic glacierBOT
manic glacierBOT
onyx hinge
Goal for the day: dma something from the pdm device into memory on nrf. I think the data comes out as signed 16 bits at 16kHz...
raven canopy
tip: you need to create an event handler in PDMIn.c to handle the buffer pointers from nrfx. ๐
onyx hinge
I wonder, whether it's feasible to generate test waveforms for pdm... Or if I have to rely on the mic
Should I be using nrfx "high level" APIs, vs low level register operations? I did the latter for PWM audio out
raven canopy
i'd say that's up to you. as long as the cake comes out, it doesn't matter? ๐
onyx hinge
If there is a general preference among the developers I'll try to follow it
Unless nrfx is regarded as buggy, probably better to use it...
pastel panther
@keen ocean @prime flower Would be a good person to ask
crimson ferry
Is there any reason why bootloader mode would draw more current than CIRCUITPY mode? iOS 13 iPhone can see CIRCUITPY, but throws a dialog about requiring too much power for bootloader mode.
manic glacierBOT
raven canopy
@crimson ferry only thing i can think of is a difference in the USB descriptors passed in by both modes. iOS may be expecting a descriptor that isn't passed in during bootloader mode, or a descriptor has a value that triggers that "warning".
crimson ferry
@raven canopy Thanks, hadn't thought of that. I have a powered connector coming, I'll see if that helps. I'm trying to see if I can update UF2 from my phone ๐
raven canopy
that'll be interesting. and, downright awesome.
idle owl
We need to remember to do a 5.x lib bundle when we release 5.0.0.
idle owl
And update circuitpython.org/libraries page to include it.
raven canopy
and maybe drop 2.x bundles? ๐
idle owl
@raven canopy I know ๐
timber mango
Hello.
I want to know about esp32 with micropython.
I'm trying to use ble on esp32 with micropython.
I found esp32--bluetooth.bin in Firmware for ESP32 boards`(http://micropython.org/download#esp32)
And esp32 succeeded bluetooth.
However it's CLASSIC Bluetooth.
I want BLE(Bluetooth Low Energy)
Should I??
onyx hinge
@timber mango I know that the micropython supports the esp chips, while circuitpython doesn't (circuitpython has chosen to support only devices with native USB support). I don't know whether BLE is technically possible on ESP32.
hm, interesting -- remember when we discussed signed vs unsigned audio samples? It seems like pdmin is set up to only permit unsigned 16-bit samples, hm.
ValueError: destination buffer must be an array of type 'H' for bit_depth = 16
timber mango
@onyx hinge I'm sorry, question about micropython is not good.
onyx hinge
It's OK, we might just not be able to give the most accurate information about it
onyx hinge
status: I can VERY FAINTLY hear my shouting over a lot of background noise
(when recorded via pdm and then played back on the speaker)
I would have expected full silence (unchanging PDM values) if I hooked DATA to GND or +3v3, but that's not what I get.
yeah, my signal is definitely there but there's a lot that is NOT my signal. I guess I could /should run this same code on my cpx and see how the quality is, for comparison.
@idle owl There are a lot of modules that need fixing for audiocore too, though we could also still decide to alias audioio.WaveFile et al from audiocore just for 5.x .. (I know, scott disagrees with that)
idle owl
@onyx hinge It's still worth discussing. Will you be around Monday?
onyx hinge
@idle owl I think so, but I haven't checked my work meeting schedule. If I don't have something at that time, I will "take lunch" and join the meeting
idle owl
@onyx hinge Ok. We can also have a chat outside the meeting.
onyx hinge
I should also go ahead and make a PR, just to make sure it's as simple and light on memory as I think it is
idle owl
We like them early and often. ๐
onyx hinge
I hope I got the dimensions right on this bezel. It should look pretty sharp in two colors once it's 3d printed
onyx hinge
slender iron
@onyx hinge To test audio in I play a tone with my phone next to the mic
then you can play it back and capture with a scope or saleae
manic glacierBOT
onyx hinge
hi @meager fog !
onyx hinge
I'll head back down to the python cave
onyx hinge
I can do at least 40 minutes right now if it's a good time for you
ok, which part of this whole thing do you want to start with?
meager fog
yah
ok so first up, lets check the clk freq
on your scope/logic - whats the mhz of the squarewave on clk
onyx hinge
I know it in general terms, the DATA pin is going to be asserted by the mic according to the edges of CLK and the intensity of the measured sound
meager fog
yah and you oversample
since its only 1 bit
you need to collect lots o bits
1MHz = 16KHz x 64 bit oversampling
onyx hinge
I think in the nrf the hardware is doing that part
onyx hinge
there is a register for 64x or 80x oversampling
meager fog
64 is plenty for now
ok so thats good
when you look at the DAT line
and you blow into the mic, you see it moving more?
onyx hinge
nrf_pdm->PDMCLKCTRL = PDM_PDMCLKCTRL_FREQ_Default; // For Ratio64
nrf_pdm->RATIO = PDM_RATIO_RATIO_Ratio64;
