ruby lake
#

@meager fog thanks heh

#

I need to make a small feather to atmel 328P adapter to test a few existing modules with cp

#

I just need to make sre to remove 5v pullups

mental marsh
#

Hi everyone, how do i control/address individual daisy chained pixels in cp code, i want to make each pixel do a different color, tia

๐Ÿ“Ž video.mov
simple pulsar
timber birch
meager fog
#

nice!

old plover
meager fog
#

th eplastic casing version has a single voltage out

#

just use the 'essentials' analog readings examples!

#

super easy ๐Ÿ˜ƒ

old plover
#

Thanks ill take a look. Im trying to get my fishtank to refill itself

meager fog
#

shoudl work easily

old plover
#

One thing that wasnt super clear was do I need a resistor wired into this contraption? In the example video the sensor was wired directly into the Arduino

#

But the Non-Shielded one seemed to come with a 550ohm resistor

scarlet fjord
#

i just plugged my Feather M0 Express in for the first time in a week and its not recognised by my computer and its flashing different colours on the neopixel
what do

#

i get a GREEN, then ORANGE, then four BLUE

#

it used to do this before and it would work once i unplugged it and plugged it back in again, but now that doesnt fix it ๐Ÿ˜ข

#

i re-flashed the .uf2 after double-clicking the reset button and its working now
was a little scary for a second there

scarlet fjord
#

ok im lost
im trying eval() and i cannot figure it out:

  File "<string>", line 1
SyntaxError: invalid syntax
#

how do eval()
everything i try is SyntaxError ๐Ÿ˜ญ

tulip sleet
#

@scarlet fjord Are you literally typing eval()? You give it a string to eval, like eval("print(2)")

scarlet fjord
#

im giving it stuff to do, and i can get it to print, but i cant get it to do anything else
if i try:

#
 f = open("/codes.txt", "r")
for line in f:
        code = eval(line)
        print(code)

it gives that error

#

but if i try just

print(code)

without code = eval(line), it works fine

#

ok i dumbed it all down to this:

from time import sleep

while True:
    f = open("file.txt", "r")
    for line in f:
        code = eval(line)
        print(code)
        sleep(0.5)

and file.txt contains:

print("frick")
print("this")

and that works, but...
if i change file.txt to:

from adafruit_hid.keycode import Keycode

keys = [
    Keycode.W,
    Keycode.A,
    Keycode.S,
    Keycode.D
    ]

then it errors out
idk what im doing, but how tf do i do the thing ๐Ÿ˜ข

#

ok idk what the tutorial i was following was trying to do, but this worked:

from time import sleep
from adafruit_hid.keycode import Keycode
from adafruit_hid.keyboard import Keyboard

kbd = Keyboard()

while True:
    f = open("mainjoy1.txt", "r")
    for line in f:
        kbd.press(eval(line))
        kbd.release(eval(line))
        sleep(0.3)

mainjoy1.txt:

Keycode.T
Keycode.F
Keycode.G
Keycode.H

gives output: tfgh etc
so...
๐Ÿคท ๐Ÿ˜…

meager fog
#

eval is tricky, good work ๐Ÿ˜ƒ

scarlet fjord
#

aw yiss:

from time import sleep
from adafruit_hid.keycode import Keycode
from adafruit_hid.keyboard import Keyboard

kbd = Keyboard()
keys = []

macros = ["mainjoy.txt", "mainjoy1.txt"]
macro = macros[1]  # changing this to 0 or 1 will change the key outputs!

f = open(macro, "r")
for line in f:
    keys.append(line)

while True:
    print(keys)
    sleep(0.3)

mainjoy.txt:

Keycode.W
Keycode.A
Keycode.S
Keycode.D

mainjoy1.txt:

Keycode.T
Keycode.F
Keycode.G
Keycode.H

๐Ÿ˜ ๐Ÿ˜ ๐Ÿ˜ ๐Ÿ˜

manic glacierBOT
manic glacierBOT
scarlet fjord
#

so... I'm not sure if I'm doing anything too weirdly, but I've gotten to the point where I can watch the feather m0 run through my pin array and check each button for a press. like, if I press a key, I can see the key take a second to register, then when I release it I can see the key remain pressed until the for loop gets back to the current key index to check it if 8ts been pressed...
8s there any way around this?
I saw in passing mention something about 'interupt's and that sounds like something that would work better... is there anywhere I can read up on that?

#

unless... the lag I'm experiencing is related to the eval() stuff that I'm doing, but I only do that at the start, not during while True...

torpid goblet
#

shout out to! @katti I appreciate how your question are increasing the usability of circuit python. In many developer communities simple question are met with gruff "RTFM". In the CircuitPython community there appears to be a genuine desire modify the software to reduce barriers to entry to new users.

tulip sleet
idle owl
#

@tulip sleet I'll take a look in when I'm at my computer - probably about an hour and a half.

tulip sleet
#

Tnx!

idle owl
#

@tulip sleet You missed a word in there, I requested changes. One is a missing word, the other two are simply suggestions. If you get it sorted in the next 20 minutes, I can merge it. Otherwise feel free to merge over my change request once you get it sorted.

tulip sleet
#

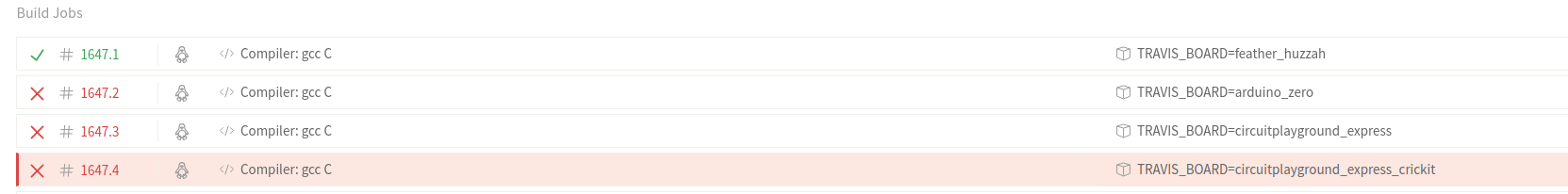

@idle owl good points all. fixed up and passed travis

idle owl
#

Already on it, not showing passed yet for me.

#

There it goes

#

You are good to go!

tulip sleet
#

woot! thank you! now I can paste some links into the guide

tulip sleet
mental marsh
#

Hi, Can smart breadboard ready RGB neopixels in-line on one pin be addressed individually? Using circuitpyhton on express m4

bronze geyser
#

@tulip sleet THANK YOU. Very kind of you.

small cypress
#

As I've already got a LoPy4, do you figure the differences between MicroPython and CircuitPython are likely to be meaningful enough that I don't try to learn the former if I figure I'll end up with the latter?

cunning crypt
#

On one hand, CircuitPython is a fork of MicroPython, so it originated in the same place.

#

On the other, CP has had significant divergence.

#

I don't think learning MicroPython would necessarily get in the way of CircuitPython, but there are things that are done differently in each, so transitioning from one to the other could be annoying.

#

I can't give you any examples because I've only ever used CP and never MP

scarlet fjord
#

at the moment on my feather m0 im just running a for loop checking all of the pins for a button press - is there a faster way of checking for a button press?
is circuitpython any slower than running an arduino sketch for this?

tough ridge
#

oof that might just be examples for timers though, there might be stuff out there with some more digging

main meteor
#

An Arduino sketch will generally perform better than CircuitPython code. If you're trying to do something in a hurry (like check a bunch of pins), you might want to do it that way.

manic glacierBOT
rigid path
#

I'm looking for a way to schedule when an M0 Feather powers up or down. Any ideas?

manic glacierBOT
meager fog
#

@rigid path we dont have sleep mode yet in circuytpy

#

we have sleep for arduino only

rigid path
#

Is there a breakout board I can add to my project?

meager fog
#

TPL5110?

#

connect it to the EN pin

rigid path
#

@meager fog - Than k you.

manic glacierBOT
#
larryfast
[adafruit/circuitpython] Issue opened: #998 Suggestion: Documentation for "Navigating the sources"

Hi Adafruit,
Great job on your documentation. Very thorough. And the quality is really high! You've clearly got some great standards. However like any documentation it gets stale and the cost of maintenance just keeps getting bigger. So what do you do about stale documentation that's too expensive to keep up to date? Reference the source tree!

Two examples then a suggestion.

Example 1: I went through 4 different wiki pages on your site and others trying to find the appropriate magic ...

mental marsh
#

Hi everyone, trying again to get an answer to my earlier question: Hi, Can smart breadboard ready RGB neopixels in-line on one pin be addressed individually? Using circuitpyhton on express m4. Thank you in advance!

#

Ive read the uberguide and couldnt find any answers..

manic glacierBOT
meager fog
#

@mental marsh yes, use the neopixel library

mental marsh
#

@meager fog to address each one and control it separately? Thanks for getting back to me

meager fog
#

yes just connect DI frome one to DO of the other

#

in a chain

mental marsh
#

How are they addressed .01 etc?

meager fog
#

yeah

#

like this

#

you're making your own strip

#

just copy that image

mental marsh
#

Yes thank you! You are the best @meager fog

meager fog
manic glacierBOT
onyx hinge
#

Oh my, getting near big 1000!

manic glacierBOT
manic glacierBOT
#
uoo
[adafruit/circuitpython] New comment on issue #998: Suggestion: Documentation for "Navigating the sources"

I've been thinking along similar lines, after spinning my wheels for a while trying to figure out how to change the memory map (I wanted to use part of the FRAM in an MSP430FR as additional non-volatile RAM instead of ROM). There are little pieces of code scattered all over that implements this, and finding them from a standing start is time-consuming. I wonder what is the best place to put information like this. I'm guessing just continue git style, and add some MarkDown pages to the sour...

manic glacierBOT
manic glacierBOT
#
dhalbert
[adafruit/circuitpython] New comment on issue #1001: float \_\_eq\_\_ handling differs between CircuitPython and CPython

This is a limitation of MicroPython and therefore of CircuitPython. MicroPython does not normally try to reverse the operands if the left operand does not successfully perform the comparison operator. In CPython, the first attempt returns NotImplemented, a special value, and then the interpreter swaps the operands and tries the appropriate reverse operator (which for __eq__ is the same).

This limitation does not seem to be documented in http://docs.micropython.org/en/latest/pyboard/gen...

manic glacierBOT
meager fog
#

if anyone here is using esp8266

manic glacierBOT
solar whale
#

@meager fog tried the ampy PR, but it did not work on my linux system -- added details to PR. I just pullled th PR then installed sudo python setup.py install -- did I miss something? Reverted back to ampy master and it works normally. Just curious if anyone else has tried it?

manic glacierBOT
#
notro
[adafruit/circuitpython] New comment on issue #980: How do you test your CircuitPython library?

Thanks @tannewt, that was a helpful example.
It helped me realise/decide that I have to upload the test modules/files to the board, instead of uploading and running the individual test functions over the repl.
(and I learned that there's a tool called ampy)

I have tried to avoid uploading files, because in my experience scripted upload over usb hasn't been that stable. Stability improved when I turned off automounting, but I believe it will be a hassle to support this reliably on linux/m...

mental marsh
#

Hey everyone, im trying to change the color of neopixel #3 in a row, im trying to use the neopixel.NeoPixel. Function to select and activate the third pixel but it doesnt work.. anyone can write the correct syntax here? Thanks.

raven canopy
#

@mental marsh should be neopixel[2] = (color). if you have auto_write turned off, you'll need a subsequent neopixel.show().

stark wolf
#

I've got a strange little problem. This resets my esp8266 feather: a_pin = DigitalInOut(board.GPIO16) If that line is in uploaded code then the feather will reset loop and if put into REPL it resets once.

#

I see on the pinout that GPIO16 is also a 'wake' pin but I don't understand what that meens.

#

Oh, also doesn't matter if it is connected to anything or not.

raven canopy
#

@stark wolf what version of the firmware are you using? GPIO16 was recently "fixed". (quotes, because I may have not written error-free code. ๐Ÿ˜„ )

stark wolf
#

@raven canopy It's running 2.3.1 currently.

raven canopy
#

it may not have made it into 2.x. let me check...

stark wolf
#

I saw that there was a 3.x beta about but wasn't sure if I wanted to jump into it. I'm really not the most experianced programmer.

raven canopy
#

@stark wolf yeah, i didn't put it into 2.x. i probably should have. 3.x is pretty stable, and not much has been done with ESP8266 other than bug fixes, and unused MicroPython cleanup.

@slender iron or @tulip sleet, if you'd like me to get ESP8266 GPIO16 fix into 2.x, just say the word.

stark wolf
#

Unfortunately, I'm kind of stuck using gpio16 as I'm trying to get a kit I bought at Penguiconn to run cp and it's oled display dc pin is wired to gpio16.

#

If 3.x for ESP8266 is stable then I'll give it a try. Where does it live?

raven canopy
#

give 3.x a try. i know it's a bit of a pain to update on esp. native usb spoils me on the SAMD boards. ๐Ÿ˜„

stark wolf
#

I actually don't have any SAMD boards. Just a few ESP8266. Been looking at the new M4 boards but have no clue what I would use them for.

tulip sleet
#

@stark wolf @raven canopy 3.0.0 final should be immiment. We'll have rc.2 and that should turn into 3.0.0 final - we don't know of outstanding issues. So please try 3.0.0-rc.1 -- no reason for a 2.3.2.

stark wolf
#

@tulip sleet I noticed that there is a daily for huzzah that was 3 days newer. Still use rc.1 or that daily?

tulip sleet
#

that will turn into rc.2 -- you can test with that, sure.

stark wolf
#

@tulip sleet @raven canopy Great. Thank you both for the help.

raven canopy
#

you're very welcome! good luck on getting that kit running!

mental marsh
#

@raven canopy Thank you very much, it worked. My next issue is triggering a sound via digital io on the soundboard fx.. any idea on which pins to connect and how to trigger sounds through circuitpython? Any help is greatly appreciated ๐Ÿ˜ƒ

raven canopy
#

well, since the GPIO on the SoundFX boards are triggered by pulling them to ground, I would try it the hard way because I don't know any better: figure out how to use it with the UART control (no library exists yet).

i'm sure there is a way to use the GPIO on a MCU to trigger it, but i am not confident enough to give you an answer on that front. i don't like frying other people's electronics. ๐Ÿ˜„

tulip sleet
#

@mental marsh just pick any old pins on the CPy board, and set them to ground (False) for at least 125 msecs. That's all.

mental marsh
#

@raven canopy thanks, my only option is to trigger from a separate mcu ๐Ÿ˜ฆ

tulip sleet
mental marsh
#

But i need to send from itsybitsy m4 to soundboard fx triggers 1-7

tulip sleet
#

just pick 7 pins on the itsybitsy

mental marsh
#

Im watching a video by Tony D, I hope it will help

raven canopy
#

@tulip sleet ahhh...so DigitalInOut set as OUTPUT, constantly set to TRUE. Then to trigger, set it to FALSE?

tulip sleet
#

yes

#

sleep for 0.15 seconds while it's false (>125 msecs)

#

then bring it back up

raven canopy
#

i was thinking the other way (INPUT), and was worried about current sink.

mental marsh
#

Awesome guys let me try that

#

Thats what Tony D is talking about in the video right now.. gonna try everything ๐Ÿ˜ƒ

tulip sleet
#

you can use drivemode OPEN_DRAIN to not worry about fighting the external pullups

#
d7 = digitalio.DigitalInOut(board.D7)
# switch to output and start high, so you don't trigger by accident
d7.switch_to_output(value=True, drive_mode=digitalio.DriveMode.OPEN_DRAIN)
...
# trigger
d7.value = False
# trigger must be at least 125 msecs
time.sleep(0.150)
d7.value = True
manic glacierBOT
mental marsh
#

@tulip sleet its aliveeee! Thank you so much. Thanks goes to @raven canopy as well. You guys are awesome!

manic glacierBOT
meager fog
#

@mental marsh cool! post up a video or blog post somewhere, we'd love to see it ๐Ÿ˜ƒ

mental marsh
#

Is there a limit on the length of videos here?

meager fog
#

depends on how much you want to explain

#

youtube vids can be pretty long. 1-3 minutes is always a good length to show something off

mental marsh
#

Ok, i will have a short demo soon.. all still on breadboard. ๐Ÿ˜ƒ

raven canopy
#

@mental marsh sweet!!! ๐ŸŽ‰ you did all the actual work... i'm pretty stoked to see the action.

mental marsh
#

Couldnt have done it without you guys and ladyada ๐Ÿ˜ƒ

stark wolf
#

Ok, so I've got CP3 beta on the ESP8266 and the GPIO16 bug is handled. Yay. But now I'm having problems with the OLED display. It is ssd1331 based and I tried using the CP ssd1306 OLED lib and it didn't work. Will the CP RGB display ssd1331 lib work with OLEDs?

#

BTW, I completely understand if people prefer if I didn't ask about non-adafruit hardware here. I feel rather awkward about it myself. I'm just trying to get CP to work on anything with a supported chip.

mental marsh
stark wolf
#

@mental marsh That looks great! I look forward to seeing where you go with this.

manic glacierBOT
mental marsh
#

Dont forget to turn audio on my video ๐Ÿ˜ƒ may not be on by default.

stark wolf
#

Are those all clipped from the movies?

#

Also how the hell are you voice activating that? somthing running on another computer that the board is talking to over usb?

mental marsh
#

Just the small Jarvis voice clips.. all are only a few seconds each so i dont believe there is an copyright issue if that's what you are thinking @stark wolf

#

Tony's voice is me..

#

For now its scripted and triggered from itsybitsy M4 to soundboard fx 16mb with the 3W speakers.

#

I want to add a microphone later

stark wolf
#

Oh, not at all. Was more curious if it was the movie voice actor or if you made other recordings. I figured it was you talking. Took a look at a few other pics on your instagram, great cosplay btw.

mental marsh
#

Thanks @stark wolf

stark wolf
#

It would be interesting to get some form of AI assistant running on a RPi0 to handle the voice control and pass off commands to the itsybitsy.

#

If I may ask, why go for the itsybitsy format instead of a feather for the M4?

mental marsh
#

Itsibitsy was in stock, feather were out when i was ready to purchase ๐Ÿ˜ƒ

stark wolf
#

Yeah, I get that.

mental marsh
#

Im not sure but i think m4 had more pins available than the feather and i have a lot of clips to control and servos

stark wolf
#

Best of luck with the project. Looks like a great start. Have a good night, @mental marsh

mental marsh
#

Thanks and good night to you sir

raven canopy
#

@mental marsh excellent work!

@stark wolf it doesn't look like the ssd1306 will work. the two screens have different resolutions (and possibly more differences). there is an older micropython library that @stuck elbow wrote. you might be able to port it over (using the ssd1306 as a template). or you could put in a issue on the circuitpython github to request the library. here is the micropython library:
https://github.com/adafruit/micropython-adafruit-rgb-display

GitHub
adafruit/micropython-adafruit-rgb-display

micropython-adafruit-rgb-display - MicroPython library for RGB pixel displays.

mental marsh
#

Thanks @raven canopy

manic glacierBOT
#
cefn
[adafruit/circuitpython] New comment on issue #980: How do you test your CircuitPython library?

For reference, the original commentary on the interactive testing (originally targeting very low resource ESP8266 Micropython boards) is at https://github.com/cefn/Adafruit_Micropython_Blinka/blob/master/examples/index.md

However, YMMV as the changes in this repo diverge from the Micropython-specific testing arrangements of https://github.com/cefn/Adafruit_Micropython_Blinka and the tests have never been run on RPi at all.

@notro I'm guessing you're running on much more beefy platforms ...

manic glacierBOT
#
notro
[adafruit/circuitpython] New comment on issue #980: How do you test your CircuitPython library?

My main take away after skimming those tests, was that I should be able to support running tests on the blinka compatibility layer, at least make decisions that don't make it hard futher down the line.

If your word platform refer to microcontroller/board, I'm doing this on a Feather M0 Express.

My pytest plugin will upload the test files to the board, but the test runner will run on the host not the board. The runner executes the test functions and fixtures (setup/teardwon) through th...

brisk cairn
#

I've used BLE and they Bluefruit Connect app on my phone running Arduino programs uploaded by the Arduino IDE but I've never done Circuit Python BLE. I wasn't sure it was even supported so I went looking around the following guide. It says that you can't do BLE on Windows. I do it all the time under Arduino IDE and C++. Is there some reason you can't do it in the Circuit Python or is this guide out of date?
https://learn.adafruit.com/bluefruit-le-python-library/overview

Bluefruit LE Python Library

Talk to a Bluefruit LE from a Raspberry Pi, Linux, or Mac OSX machine.

#

Actually now that I think about it, I'm not sure I have done Windows. What I really want to do is to really connect to an iOS device. It doesn't mention that capability. But anyway my plan is to emulate a Bluetooth keyboard which I would think would work on any device including Android, iOS, Windows,

prime flower
#

@brisk cairn the Adafruit Bluefruit app is a good place to start

manic glacierBOT
onyx hinge
#

@slender iron probably won't be around for the meeting today, but I just want to report that pfalcon made major progress on the uzlib crash fixes this weekend, reworking my proposed changes for minimum code size impact. Once the fixes make it to his master branch I'll make a PR to update circuitpython to use the fixed version. Let me know if you want that in 3.0, otherwise I'll target master only.

slender iron
#

@onyx hinge Thanks! master is my preference

cunning crypt
#

I've got some things to do and may or may not be back in time for the meeting.

idle owl
#

@slender iron I'm going to wait to update until Phil's done

#

So ignore the PR for now.

slender iron
#

<@&356864093652516868> meeting in 45 minutes

fluid helm
#

Nooooo I'm gonna miss it. At school ๐Ÿ˜ @slender iron

cunning crypt
#

School is important

ruby atlas
#

I won't be able to make it today, conflicting meeting. Hugs: Group hug. Status update: no progress last week.

indigo wedge
#

I'm gonna have to skip but working on nRF as usual, want to do #994 and #995 this week.

#

Hugs all around, especially to hathach for working on the nRF bootloader ๐Ÿ˜ƒ

idle owl
#

Thanks for letting us know @fluid helm @ruby atlas and @indigo wedge.

fluid helm
#

Current view

idle owl
#

Neat!

slender iron
idle owl
#

@slender iron Awwwww.....

#

(I'm kidding. I don't mind at all. ๐Ÿ˜ƒ )

slender iron
#

(everyone can follow along)

idle owl
#

What anonymous animal am I this time?

slender iron
#

I'll be fast enough at some point

#

giraffe ๐Ÿ˜ƒ

solar whale
#

@indigo wedge just a heads up - the current master (with many new nrf things) is causing some problems with my STMPE610 via SPI on a feather52832 -- still woking on details and will post an issue as soon as I can get a clean example. Same code runs OK on feather_m0_express.

idle owl
#

๐Ÿ˜„ nice

solar whale
#

@indigo wedge may well be issues with the driver that only show up on the 52832 now that you have improved it.

indigo wedge
#

Thanks @solar whale please provide details when ready and I'll try to fix, I don't have a STMPE610 board to test with.

plucky flint
#

Hi folks, Mu 1.0.0-beta.17 is out.... details here: https://madewith.mu/mu/releases/2018/07/09/beta-17.html (all feedback most welcome!)

Made With Mu
Announcing Mu 1.0.0-beta.17

Weโ€™re pleased to announce the availability of Mu 1.0.0-beta.17, a Python code editor for beginner programmers! This is the final beta version before a release candidate later this week and the final 1.0 release sometime next week. This version is feature complete for 1.0. A...

stuck elbow
#

@plucky flint are you staying for the meeting?

plucky flint
#

afraid not... I'm about to step out for regular dad-taxi duty

#

the meeting coincides with my son's Tae-Kwon-Do. ๐Ÿฅ‹

#

-> ๐Ÿ‘ด ๐Ÿš•

#

๐Ÿ‘‹

stuck elbow
#

take care

idle owl
#

have a good one, @plucky flint ๐Ÿ˜ƒ

plucky flint
#

ta!

#

Once school term finishes, I may be able to actually make one of the meetings! In any case... I'm afk for the rest of the evening.

turbid radish
#

Survive the political issues plz

raven canopy
#

They asked me to do a survey on season 2...

#

Me too.

slender iron
#

<@&356864093652516868> 1 minute!

raven canopy
#

Alison Brie has a sursprisingly amazing Russian accent.

cunning crypt
#

Sit down at exactly 2:00, seems good to me

umbral dagger
#

on my way

cunning crypt
#

@slender iron Is that a-mu-sing that everyone is telling you?

turbid radish
#

๐Ÿฎ

stuck elbow
#

there should be invisible keyboards

turbid radish
#

Lurking mostly today

cunning crypt
#

@stuck elbow A projection keyboard, but where it doesn't actually project.

turbid radish
#

very busy with boxes being mailed soon . . .

#

meow

torpid goblet
#

@slender iron I am just lurking. first meeting.

cunning crypt
#

Lurking is great! You learn a lot.

prime flower
#

ah @cunning crypt is here, I lose my #2 alphabetical spot

cunning crypt
#

Hug Report: Not related to CircuitPython, but @hidden ibex has been helping a lot of people in Discord. And as always, a group hug because you all are awesome

errant grail
#

Hugs to the CPy team for the thoroughness of the ReadTheDocs collection. Been using it a lot lately! Big thanks to @split ocean and @ruby lake for musical synth advice, guidance, and examples. JPโ€™s Trellis synth project was the tipping point that started me on my current tangent. OldCrowโ€™s brilliant Modular Playground design broke through a couple of conceptual barriers as I tried to learn about analog trigger and control voltages.

turbid radish
#

This IS my retirement job

ruby lake
#

@errant grail My next project will push that even harder. ๐Ÿ˜‰

turbid radish
#

nope

cunning crypt
#

@slender iron Is your trash can still standing?

wraith tiger
#

Group hug plus kudos to Google for adding Android support to Chrome OS and to the creators of no-root-linux-on-android apps.

raven canopy
#

@arturo182 & @hathach for the flurry of nRF work. @mrmcwethy for diving into the pypi stuff. Group hug for any I've missed.

stuck elbow
#

I have to drop, nothing to report for status.

manic glacierBOT
slender iron
cunning crypt
#

Status update: Preparing for BronyCon in a few weeks, prepping up DigiBadges. I have 30-ish 328Ps to solder, 38 1.8" TFTs to solder, and 36 buttons to replace. And then I have to upload the programming for 50 of them. It'll give me about 75 to sell at the convention. And then I have an EL Wire project I'm working on, too, but that's a "Secret Project" with an artist friend of mine, so no leeks (yet).

prime flower
#

i.e: "I want IO to have ____ because it'd (make my life better/project run smoother/I WANT IT)", let me know and we'll add it into io.adafruit

errant grail
#

Current: Finished the Blues Playground Learning Guide (originally in 2.3.1, converted to 3.0.0 -- works great!). The two versions of the CPy-powered DSP musical synth (Feather M0 Express and Trinket M0) are working with MIDI and now include modular-synth CV/Gate inputs and outputs. (See/hear earlier video post.) These will act as gateways into the analog modular synthesizer world for me, one that has beckoned to me for many, many years.
Next: Enclosure and rack -ize the DSP synths and start buying some foundational modular synth gear. Another expensive hobby to add to the list. Wrap up the Lissajous galvanometer project. Also on the list is a heirloom Black Forest cuckoo clock upgrade (CPy and Feather M4 -- maybe Crickit -- operating the original whistles and gong) and a CV/Gate and MIDI-compatible Trellis + rotary encoder bank (CPy and ItsyBitsy M4).
Interrupters: yardwork, eating, sleeping, yardwork.

idle owl
#

@errant grail Thanks ๐Ÿ˜ƒ

wraith tiger
#

do it for the vine....

#

Is it a blue canary?

errant grail
#

Really liked that night light project!

turbid radish
#

oh no!

prime flower
#

pro. guide maker dave!

turbid radish
#

Maybe Alistair Allan would work with them on such a book

prime flower
#

@umbral dagger IO works v well with the huzzah ๐Ÿ˜‰

umbral dagger
#

@prime flower Good to hear... that's what I'll be working with.

raven canopy
#

Thanks for reminding me, @idle owl. It was a wierd week...and I forgot. ๐Ÿ˜„

wraith tiger
raven canopy
#

FrequencyIn Module: still no real fix to M4 readings. Refactored the "fail gracefully" code to not rely on calling for the value. That approach works for a blocking loop, but would lead to lockup otherwise. New approach turns off capture in the interrupt handler, but doesn't raise the exception until the value is requested.

Little Leslie amp: no movement.

General: waited a week or so for DigiKey to get the nRF52840DK back in stock; they're now scheduled to restock at the end of the month. :sadface: Broke down and got one from Mouser, plus a Microchip MGC3030 gesture controller sensor to play with in the future. Gotta keep the stable ready for the chance that I ever finish anything. ๐Ÿ˜†

CoC In Libraries: git patch/am is a possible route. Still looking into how to further automate, but might just hand jam it locally.

tidal kiln
#
while not self._conversion_complete():
    pass
cunning crypt
#

Looks (Sounds) like my internet quality is dropping out, can't understand half of what's being said so I'm going to duck out.

idle owl
#

@cunning crypt Thanks for coming by!

slender iron
#

still ok for me

manic glacierBOT
drowsy geyser
#

Oh <badwords>, I missed the meeting again. Need to put a calendar item in place....

solar whale
#

@drowsy geyser still going -- join in

drowsy geyser
#

Can't talk (I'm in a team room) but I'll listen!

solar whale
#

๐Ÿ‘

raven canopy
#

๐Ÿ‘

tidal kiln
drowsy geyser
#

Sweet! Better solder up my M4 Feathers.... ๐Ÿ˜ƒ

onyx hinge
#

was that a joke? "people won't be using 2.0 anymore"

umbral dagger
#

Yeah, let's not to what Python did!

drowsy geyser
#

Right? I mean, nobody uses Python 2.7 anymore!

raven canopy
#

Windows 3.1 works fine for me. Why would I update? ๐Ÿ˜†

onyx hinge
#

exactly, if it's running don't mess with it

#

but the moment at which Adafruit won't ship 2.0 on any new CP boards, that is wonderful to consider

ruby lake
#

Is it too early in the week to request timer interrupt w/callback? ๐Ÿ˜‰

manic glacierBOT
errant grail
#

Time to head back out to the vineyards. Later!

onyx hinge
#

hardware SPI right?

solar whale
#

@onyx hinge yes

onyx hinge
#

looks like NRF spi frequency is from a set menu of 9 (?) rates from 125kbit/s to 32Mbit/s with a power on value of 250kbit/s, assuming I found the right bit of this datasheet . I think I heard 100kHz in the chat, so the lowest rate of 125kbit/s would be too fast.

slender iron
#

ah

wraith tiger
#

๐Ÿ‘‹

solar whale
#

@onyx hinge great! sounds good.

raven canopy
#

Thanks everyone! Good meeting and discussions!

tidal kiln
#

๐ŸŽ it up!

raven canopy
#

3โƒฃ

drowsy geyser
#

Thanks everyone!

torpid goblet
#

sounded good:)

#

as the last steps in provisioning it does a test board build to verify that everything is set up correctly

tulip sleet
#

@torpid goblet I will take a lookg and maybe add a vagrant page to the Building CircuitPython guide. THanks!

idle owl
#

@slender iron Let me know when you merge Mike's PR into the newsletter. I'm going to close my current PR and start over once everyone updates instead of trying to rebase it on GitHub.

raven canopy
#

I'm off. Chat atchyalls in a while. (Yes. Its a word.)

solar whale
#

@tulip sleet just build/loaded master on nrf52 DK boarrd -- REPL still works

manic glacierBOT
#
jerryneedell
[adafruit/circuitpython] Issue opened: #1003 nrf52832 does respond to control\-C \- sometimes

While testing the SPI and I2C interfaces to the STMPE610 Touch screen copntroller, I found that once I start my program running, I cannot use control-C to break out. This occurs with pot the I2C and SPI versions of the driver.

Control-C does work under the REPL -- have not tried other sensors yet.

Revetring to 3.x -- control C works properly running the same code.

No exeption handling in the program.

import board
import digitalio
from adafruit_stmpe610 import Adafruit_STMPE6...
stark wolf
#

@raven canopy Do you or anyone else know what the difference between the uP-adafruit-rgb-display and the CP-adafruit-rgb-display libraries other then uP vs CP comparability? I'm trying to get a ssd1331 oled display to work with CP.

manic glacierBOT
#
hathach
[adafruit/circuitpython] Pull request opened: #1004 Nrf52840 usbboot

this PR add uf2 bootloader, also up-gradable via CDC with nrfutil and OTA. It also add the MSC with internal flash + CDC as serial for circuitpython. To go into uf2 mode, press button0 (on pca10056) while reset (double reset won't work for nrf series).

There is still (at least) some known bugs.

  1. On Linux the very first time we connect to cp with minicom, there is ~10 seconds delay. Afterwards (welcome prompt is printed) the terminal can disconnect/reconnect and work normally. On window...
#
jerryneedell
[adafruit/circuitpython] Issue opened: #1005 SPI baudrate of 100000 does not work reliably

Using the current master, I found that I was getting confusing data for the STPME610 touch screen driver on a feather52832. No errors reported, but data was clearly getting garbled.
The default baud rate for this device is 100000 (100K). I tried raising the baudrate to 1000000 (1M) and it works normally. @jepler pointed out that this may be a know "feature" for the nrf52 and 100000 is just too slow.

The workaround is simple, I just wanted to alter folks and see how/if you wanted to deal ...

raven canopy
#

@stark wolf I haven't done anything with the rgb/graphics stuff, really. @stuck elbow is the person I would ask about most of that (also the author of the lib I linked last night). I would have to sit down and compare the code, which I'm happy to do. But, would likely take longer...

stuck elbow
#

@stark wolf the CP libraries were written by @timber lion based on the ยตP ones, but the ยตP ones later had some changes

manic glacierBOT
stuck elbow
#

@stark wolf some of those changes later got backported

stark wolf
#

@stuck elbow @raven canopy thank you.

idle owl
#

Wait... Does DigitalInOut not work on the A pins on the M0?

#

It worked on the ItsyM4, but A1 on the M4 is different.

ruby lake
#

they worked on my feather m0x

idle owl
#

I'm trying to put a button switch on the A pins and it's acting like it's pressed, even if I don't bother wiring anything to the pin. So it doesn't pay attention to the button at all.

#

I'm on Itsy M0 though at the moment.

#

Does the same thing on D2 on the Itsy.

tidal kiln
#

@idle owl pull up/down resistors?

idle owl
#

I thought they were built in for this.

tidal kiln
#

could be, but still need to turn them on?

ruby lake
#

is there a default .pull?

idle owl
#

digitalio.Pull.UP

tidal kiln
#

to the docs....

ruby lake
#

I use things like A5.pull.UP

idle owl
#

It worked on the M4. but the code doesn't work the same now.

#

Which means if I update it for the M0, it won't work on the M4.

tidal kiln
#

but you can just query it

#

print(whatever_your_pin.pull)

idle owl
#

It's not working.

bronze geyser
#

At the risk of being a bother (I truly apologize), I seem obsessed to reach my goal of waking up from standby mode within a circuitpython script. I got this to work within the Arduino IDE on the itsy bitsy by "stealing" code from attachInterrupt. I ported this to my c module...and everything looks like it should work..but...and this is sad...it doesn't. I posted all the code I wrote and explained the steps I took to set the registers (why/what worked based on working on the Arduino IDE)...I was hoping someone could take a look. I would VERY much appreciate any advice. Thank you. https://github.com/BitKnitting/wakey_circuitpython/wiki/Circuit-Python-and-m0-Standby-mode

GitHub
BitKnitting/wakey_circuitpython

Contribute to wakey_circuitpython development by creating an account on GitHub.

tidal kiln
#

@idle owl what's the hw? itsy m0?

idle owl
#

Yes at the moment.

tidal kiln
#

and button on what pin? (i'll test also)

idle owl
#

Right now, D2. I wanted it on A1. But that appears to be out.

#

Also there's a difference with if button.value and if not button.value being how to use it, so on A1 on the M4 it defaults to False when not pressed, it's opposite on other pins on the M0... bleh.

#

I was just able to get it to print button.pull which apparently = None. I don't think that's right.

tidal kiln
#

what version CP?

idle owl
#

I updated 10 minutes ago, so 3.0rc1.

tidal kiln
#

oh...wait. None is valid

idle owl
#

Here's the current iteration of the code. ```python
import time
import audioio
import board
import array
import math
import digitalio

button = digitalio.DigitalInOut(board.D2)
button.direction = digitalio.Direction.INPUT
button.pull = digitalio.Pull.UP

length = 8000 // 440
tone_volume = 0.1 # Increase this to increase the volume of the tone.
sine_wave = array.array("H", [0] * length)
for i in range(length):
sine_wave[i] = int((1 + math.sin(math.pi * 2 * i / 18)) * tone_volume * (2 ** 15))

audio = audioio.AudioOut(board.A0)
sine_wave = audioio.RawSample(sine_wave)
print(button.pull)
while True:
if button.value:
print(button.value)
audio.play(sine_wave, loop=True)
time.sleep(1)
audio.stop()

#

This is what worked on the ItsyM4: ```python
import time
import audioio
import board
import array
import math
import digitalio

button = digitalio.DigitalInOut(board.A1)
button.direction = digitalio.Direction.INPUT
button.pull = digitalio.Pull.UP

length = 8000 // 440
tone_volume = 0.1 # Increase this to increase the volume of the tone.
sine_wave = array.array("H", [0] * length)
for i in range(length):
sine_wave[i] = int((1 + math.sin(math.pi * 2 * i / 18)) * tone_volume * (2 ** 15))

audio = audioio.AudioOut(board.A0)
sine_wave = audioio.RawSample(sine_wave)
while True:
if not button.value:
audio.play(sine_wave, loop=True)
time.sleep(1)
audio.stop()

tidal kiln
#

which means it's doing neither

idle owl
#

well bugger.

tidal kiln
#

but you're setting it.....hmmmmm

idle owl
#

Yah, see?

#

I am confuse. And also frustrate.

#

Tried this too python button = digitalio.DigitalInOut(board.D2) button.switch_to_input(pull=digitalio.Pull.UP)

#

No change to the way it's acting.

ruby lake
#

I will test these when I get to the home office

idle owl
umbral dagger
#

@idle owl So... reading the button is the problem (quickly skimmed the above) ?

tidal kiln
#

hmmmmm.....

Adafruit CircuitPython 3.0.0-rc.1 on 2018-07-03; Adafruit ItsyBitsy M0 Express with samd21g18
>>> import board
>>> import digitalio
>>> button = digitalio.DigitalInOut(board.D2)
>>> button.direction = digitalio.Direction.INPUT
>>> button.pull = digitalio.Pull.UP
>>> print(button.pull)
None
>>> button.pull = digitalio.Pull.DOWN
>>> print(button.pull)
None
>>>
idle owl
#

@umbral dagger It's reading it differently or ignoring it completely on the M0 on the same pin as the M4. M0 vs. M4.

umbral dagger
#

Yeah, there's some differences. Different chip after all.

#

Add an exterla pull up/down. See if that changes things.

#

I had a situation last week where I did that and suddenly it worked.

#

10K is good

#

That was on an ItsyBitsy M4

#

D7 & D9 in my case

tidal kiln
#

@idle owl something's up with 3.x

Adafruit CircuitPython 2.3.1 on 2018-05-07; Adafruit Itsy Bitsy M0 Express with samd21g18
>>> import board
>>> import digitalio
>>> button = digitalio.DigitalInOut(board.D2)
>>> button.direction = digitalio.Direction.INPUT
>>> button.pull = digitalio.Pull.UP
>>> print(button.pull)
digitalio.Pull.UP
>>> button.pull = digitalio.Pull.DOWN
>>> print(button.pull)
digitalio.Pull.DOWN
>>>
idle owl
#

Hah!

#

@tulip sleet ^^

umbral dagger
#

Oh interesting. That would explain what I saw as well.

idle owl
#

@umbral dagger I'm not sure there's a point to that in this particular case because it won't go into the guide with the external pull.

#

So I have to figure out a way to make it work with code across the boards. That's what made the essentials guide so difficult in the first place.

umbral dagger
#

Input was floating with button.pull set

#

I.e. maybe pull wasn't getiing set.

tidal kiln
#

@umbral dagger would appear likely. were you also using 3.x?

idle owl
#

M4, must have been.

#

@tulip sleet Pull isn't getting set in 3.x for some reason with digitalio. Or that's what it looks like.

#

(โ•ฏยฐโ–กยฐ๏ผ‰โ•ฏ๏ธต โ”ปโ”โ”ป

#

Now it's reading both true and false constantly on D5.

#

if button.value: and if not button.value: both work without me pressing the button.

tidal kiln
#

without pull up/downs engaged, you're just reading noise

idle owl
#

Ok

manic glacierBOT
tidal kiln
#

hmmmmm'ing intensifies.... (fresh out of bag, M4 and 3.0 beta 0):

Adafruit CircuitPython 3.0.0-beta.0 on 2018-05-23; ItsyBitsy M4 Express with samd51g19
>>> import board
>>> import digitalio
>>> button = digitalio.DigitalInOut(board.D2)
>>> button.direction = digitalio.Direction.INPUT
>>> button.pull = digitalio.Pull.UP
>>> print(button.pull)
digitalio.Pull.UP
>>> button.pull = digitalio.Pull.DOWN
>>> print(button.pull)
digitalio.Pull.DOWN
>>>
idle owl
#

Hmm indeed.

#

now it's just printing the variable.

#

Try doing it like this button.switch_to_input(pull=digitalio.Pull.UP)

tidal kiln
#

i'm going back the M0 and will try sweeping through the CP versions

idle owl
#

See whether it still prints at all.

tulip sleet
#

this could well be a bug

#

just got off the phone, will take a look at the code

#

I did change some aspects of this recently to fix switch_to_input

umbral dagger
#

Yes, latest 3.0 release

idle owl
#

Hooray!

#

(It's not me.)

umbral dagger
#

@idle owl Adding an external pull up/down would confirm that the internal one wasn't getting set. (if it worked)

idle owl
#

just put a resistor in-line?

manic glacierBOT
tidal kiln
#

@tulip sleet works up through RC 0, broken in RC 1

#

@idle owl ^^

manic glacierBOT
tidal kiln
#

@idle owl something like a 10k between D2 and 3.3V

idle owl
#

works!

#

With the same code as the M4 except for the pin.

#

Works on A1 on the M0 with the pull up resistor.

#

So with the resistor, it works as it should.

#

Or rather works exactly the same as the M4.

#

I'm not sure how the M4 worked. ๐Ÿ˜„

tulip sleet
#

i can give you a test build right now with a fix; which board?

tidal kiln
#

@idle owl both M0 and M4 have internal pull up / downs (just checked datasheet to make sure), it's a CP issue, not an M0 vs M4 issue

idle owl
#

Itsy M0

#

That's what's hooked up right now @tulip sleet

tulip sleet
#

i fixed the problem. I changed the order of pull setting and direction to avoid glitches on the pins, but it doesn't work

#

setting the pin direction with the ASF4 routines clears the pulls

#

simple fix

idle owl
#

Nice!

tidal kiln
#

@tulip sleet if you wanna also toss out an itsy M4 build, i'll test that

idle owl
#

I'd like to test on the Itsy M4... yeah that

tulip sleet
#

this is why we need some regression tests on hw

raven canopy
#

@bronze geyser reading your latest iteration. came across this question you had, and figured i'd answer it real quick:

Q: The only thing missing is setting the priority. (also - why is eic_channel passed in?)

A: The functions in 'peripherals/samd' are designed to be standard API across both the SAMD21 and SAMD51. The SAMD21 only has a single EIC_IRQn, whereas the SAMD51 has one IRQ per EIC channel (EIC_0_IRQn, EIC_1_IRQn, ...).
tulip sleet
idle owl
#

Seems to be working!

tulip sleet
#

without the extra pullup?

idle owl
#

Yes, though I forgot to remove it the first press

#

Now setting up M4

tulip sleet
idle owl
#

Yep!

#

Working

tidal kiln
#

m4 looks good also:

Adafruit CircuitPython 3.0.0-rc.1-3-g8bb363f7c on 2018-07-09; Adafruit ItsyBitsy M4 Express with samd51g19
>>> import board, digitalio
>>> button = digitalio.DigitalInOut(board.D2)
>>> button.direction = digitalio.Direction.INPUT
>>> button.pull = digitalio.Pull.UP
>>> print(button.pull)
digitalio.Pull.UP
>>> button.pull = digitalio.Pull.DOWN
>>> print(button.pull)
digitalio.Pull.DOWN
>>>
idle owl
#

@tulip sleet Looks like it works ๐Ÿ˜ƒ

tulip sleet
#

PR all ready to go.

idle owl
#

@tulip sleet Link? I don't see it.

manic glacierBOT
idle owl
#

nm. Got it. ๐Ÿ˜„

tulip sleet
#

wait 20 mins or more for travis

idle owl
#

Right.

onyx hinge
#

(talking about SPI again) The nrf documentation shows those 9 specific values for the FREQUENCY register .. but they also look just like the values you'd use for DDS synthesis of those rates from a 16MHz clock... someone with hardware and a scope could try the value of 0x1999999 for 100kHz

tidal kiln
#

@idle owl nice find @tulip sleet nice fix

tulip sleet
#

so do ya think this should be rc.2 and not final?

idle owl
#

Mmm... There will always be one more thing. I think it's still worth doing final.

manic glacierBOT
ruby lake
#

looks like the pull sense got fixed

solar whale
#

@indigo wedge have you ever tried hooking up an am2320 temperature sensor to an nrf52? I can't get i2c to see it. Even on 3.x.

manic glacierBOT
raven canopy
#

@tulip sleet @idle owl do either of you know how the adabot GitHub account works, wrt PRs specifically? Or does she simply do commits on the parent repos? I'm trying to piece together an approach for the ability to automate git patch across all of the libraries (with the future in mind, not just the CoC).

manic glacierBOT
tulip sleet
#

@raven canopy do you mean when doing a release, etc. on a library/

raven canopy
#

no, it's more along the lines of doing actual repo changes. current case is updating all of the CODEOFCONDUCT.md files.

idle owl
#

@tulip sleet Merged.

tulip sleet
#

tnx!!

manic glacierBOT
tulip sleet
#

@raven canopy there is a github tool which I need to refind which will basically do a foreach across a bunch of repos. Another easy way to do that might be to use the bundle repo with all its submodules.

raven canopy
#

yeah, i've been reading the adabot repo. just not sure where a patch updater could fit, or how to test it "offsite" so that I don't break every single repo... ๐Ÿ˜„

turbid radish
#

Is anyone here not subscribed to the Adafruit Python newsletter?

raven canopy
#

hangs head low in shame...

turbid radish
#

oh!

onyx hinge
#

me either

raven canopy
#

i rarely look at my email, outside of work. ๐Ÿ˜„

turbid radish
#

If you want to (not reqd), you can subscribe - info https://blog.adafruit.com/2018/07/09/sign-up-for-the-weekly-python-on-micrcontrollers-newsletter-adafruit-circuitpython/

Adafruit Industries - Makers, hackers, artists, designers and engineers!
Sign up for the weekly Python on micrcontrollers newsletter @adafr...

Each week we publish the Adafruit Daily newsletter โ€œPython for microcontrollersโ€ We have news, projects and peeks of upcoming hardware. Sign up today to receive this useful, spam free, once a week โ€ฆ

#

I'm not pushing this (as we don't do that), but it's available and useful if anyone decided to check it out

#

ok, past my dinner time, chow ๐Ÿ˜ƒ

stark wolf
#

@ @turbid radish Thank you for the heads up. I knew about adafruit newsletters but forgot about that specific one.

onyx hinge
#

the more specific a newsletter the better !

raven canopy
#

@tulip sleet i think i've hooked onto what i was looking for. didn't understand/never used the sh python library. looks like that is how adabot is accessing git commands. appreciate the voice of reason to go back and look! ๐Ÿ˜„

tulip sleet
#

@slender iron you can see above and in your email a bug for DigitalInOut Pull setting was found and fixed. I am getting the release ready. Do you feel we can proceed with 3.0.0 final or should it be rc.2 now?

slender iron
#

either is fine with me

tulip sleet
#

i think i'll go with final. Like kattni said, there'll always be one more thing.

#

i'll also add 3.x mpy-cross builds as I do them

slender iron
#

kk sounds good!

idle owl
#

I'll wait on continuing testing then so I don't have to build master for every board. ๐Ÿ˜„

manic glacierBOT
#
dhalbert
[adafruit/circuitpython] New tag created: 3\.0\.0
tulip sleet
#

now will build with correct tag and upload builds, so in half an hour or so

idle owl
#

Np, thank for doing it!

ruby atlas
#

i wonder how long 'till 3.0.1 ๐Ÿ˜ƒ

slender iron
bronze geyser
#

@raven canopy thank you for explaining why eic_channel.

slender iron
raven canopy
#

Warning: incoming PowerPoint. Known to cause unexpected reactions... ๐Ÿ˜„

#

the circuitpython_bundle.py or.. can just as easily be broken out to a separate .py. just have to steal some functions for generating the repo lists, etc.

#

and yes...i misspelled CircuitPython at the top. ๐Ÿคฃ

raven canopy
#

@slender iron i'll grab that forum post. seems to me they can skip the remap_range and just use static green and red, then conditional it...

slender iron
#

thanks!

manic glacierBOT
manic glacierBOT
manic glacierBOT
manic glacierBOT
tulip sleet
tidal kiln
#

what? no BeOS build? ๐Ÿ˜ƒ

cunning crypt
#

I want a Tandy Color Computer build.

tidal kiln
#

I or II?

cunning crypt
#

I, of course.

manic glacierBOT
manic glacierBOT
indigo wedge
#

Woah, 3.0 was released!? Where's the release cake, and champagne and fireworks? ๐Ÿ˜„ ๐ŸŽ‰

manic glacierBOT
#
arturo182
[adafruit/circuitpython] Issue opened: #1012 Use clang\-format to enforce code conventions

As @tannewt mentioned in another issue, this would make sure that all code is uniformly formatted.
So let's have a discussion about how to implement this and which code style to use.

For the implementation we should run it as a part of the Travis CI for each PR for sure, but is there a way to run it also on users' computers before they commit. It can be done with pre-commit git hooks but those need to be setup manually by each user which is not great.

As for the code style, we can eith...

manic glacierBOT
manic glacierBOT
manic glacierBOT
#
dhalbert
[adafruit/circuitpython] New comment on issue #1012: Use clang\-format to enforce code conventions

My major worry is making sure it's easy to continue to merge upstream micropython/micropython. It might be necessary to clang-format the upstream code before the merge; up to now our coding style has matched upstream and we haven't had to do something like that.

My major requirements are four-space indents, an opening curly brace does not stand alone, and always use curly braces in control structures. These are already what we do. For everything else I don't care very much, and don't act...

manic glacierBOT
tough ridge
#

is it possible to do something like PDMIn on an analog pin?

indigo wedge
#

@tulip sleet do you want me to add you to new PRs I make?

tulip sleet
#

sure -- scott and I will split the reviewing somehow

#

@tough ridge could you give an example of what you want to do?

tough ridge
#

@tulip sleet trying to read audio directly from an audio jack, but by using repeated calls to AnalogIn I can only sample at so high a frequency

tulip sleet
#

ok, I am being redundant. you already mentioned pdmin

tough ridge
#

yeah haha I saw the message about 3.x and was wondering if anything changed

#

I can put a high pass filter on it in the meantime to handle anything above the nyquist limit but I'll have to find the right resistors first

tulip sleet
#

i don't think a CPy loop is going to sample fast enough for you but you'll see.

manic glacierBOT
agile plover
#

I keep on missing one of those circuitpython sessions on the voice channel.

#

When it starts, it is 2AM for me.

manic glacierBOT
umbral dagger
#

I'm doing some work for the first time with the Feather HUZZAH and CP. Any experts in the house?

solar whale
#

@umbral dagger I've used it quite a lot -- whats the problem?

umbral dagger
#

ampy is giving me ```>:ampy --port /dev/ttyUSB1 -d1 put ~/Projects/Adafruit/micropython-lib/umqtt.robust/umqtt/robust.py /lib/umqtt/robust.py
b'#6 ets_task(40100394, 3, 3fff83f0, 4)\r\nboot.py output:\r\ncode.py output:\r\nTraceback (most recent call last):\r\n File "code.py", line 26, in <module>\r\n File "/lib/umqtt/robust.py", line 2, in <module>\r\n File "/lib/umqtt/simple.py", line 1, in <module>\r\nKeyboardInterrupt: \r\n\r\n\r\nPress any key to enter the REPL. Use CTRL-D to soft reset.\r\n'
Traceback (most recent call last):
File "/usr/local/bin/ampy", line 11, in <module>
sys.exit(cli())
File "/usr/local/lib/python3.6/dist-packages/click/core.py", line 722, in call
return self.main(*args, **kwargs)
File "/usr/local/lib/python3.6/dist-packages/click/core.py", line 697, in main
rv = self.invoke(ctx)
File "/usr/local/lib/python3.6/dist-packages/click/core.py", line 1066, in invoke
return _process_result(sub_ctx.command.invoke(sub_ctx))
File "/usr/local/lib/python3.6/dist-packages/click/core.py", line 895, in invoke
return ctx.invoke(self.callback, **ctx.params)
File "/usr/local/lib/python3.6/dist-packages/click/core.py", line 535, in invoke
return callback(*args, **kwargs)
File "/usr/local/lib/python3.6/dist-packages/ampy/cli.py", line 228, in put
board_files.put(remote, infile.read())
File "/usr/local/lib/python3.6/dist-packages/ampy/files.py", line 157, in put
self._pyboard.enter_raw_repl()
File "/usr/local/lib/python3.6/dist-packages/ampy/pyboard.py", line 212, in enter_raw_repl
raise PyboardError('could not enter raw repl')
ampy.pyboard.PyboardError: could not enter raw repl

#

Hmm.. even doing an ls via ampy is failing now.

solar whale
#

a few things -- for Linux, you should not need the -d1 - probably won't hurt - do you have a main.py running?

umbral dagger
#

I have

solar whale
#

It may cause problems - best to rename it to something before using ampy

umbral dagger
#

stepping back to 3.0 rc1

#

Things started acting weird this morning

solar whale
#

This keeps cropping up as an issue -- thought it had been resolved, but apparently not -- are you using the latest version of ampy 1.0.5?

umbral dagger
#

yes

#

Same behaviour with rc1 now

#

Now ampy is faling like that on everything & anything

#

including stuff that was workign yesterday

stuck elbow
#

anything in dmesg?

umbral dagger
#

nothing resulting from the ampy commands

manic glacierBOT
umbral dagger
#

I can connect to the REPL using screen just fine

#

And ... it's in raw REPL

solar whale
manic glacierBOT
umbral dagger
#

@solar whale I have to use ampy for that, yes?

#

ls still doesn't work, so how do I know if I've removed it?

#

Also, got that failure trying to rm it

solar whale
#

no import os os.rename('main.py','notmain.py')

#

in REPL

#

or os.remove('main.py')

umbral dagger
#

ok.. that did it

manic glacierBOT
#
arturo182
[adafruit/circuitpython] New comment on pull request #1004: Nrf52840 usbboot

Hmm, that's really strange.

Use make V=1, make V=2 or set BUILD_VERBOSE similarly in your environment to increase build verbosity.
make: Entering directory `/home/travis/build/adafruit/circuitpython/ports/atmel-samd'
make: *** No rule to make target `peripherals/samd/clocks.c', needed by `build-arduino_zero/genhdr/qstr.i.last'.  Stop.
make: Leaving directory `/home/travis/build/adafruit/circuitpython/ports/atmel-samd'
fatal: No names found, cannot describe anything.
umbral dagger
#

@solar whale OK. Thanks. Now to the point of getting connection errors ๐Ÿ˜ƒ

#

(Wifi)

solar whale
#

@umbral dagger glad it's working -- good luck - I always get rid of main.py

stuck elbow
#

@umbral dagger what version of ampy do you have? I remember there were such problems with older versions

umbral dagger
#

@stuck elbow 1.0.5

prime flower
#

raw_Repl, the enemy of the esp/ampy

solar whale
#

BTW - I like the new .ampy file supported by ampy 1.0.5 -- I have different versions for diffeertent boards (e.g. nrf52 needs a delay) - nice feature.

solar whale
#

I recall some mention of a chart that helps identify the possible SERCOM pin assignments. Does anyone know where is is?

meager fog
#

but theres so many options, only the DS is really helpful

solar whale
#

Thanks! On to the Data sheets

raven canopy
#

Have we narrowed down what is causing ampy to fail when main.py is present? False positives on raw_repl entered?

umbral dagger
solar whale
#

bad karma ๐Ÿ˜‰

raven canopy
#

I almost asked if code.py also caused it. Thanks. @umbral dagger

idle owl
#

Ok, sanity check: momentary buttons are not directional, correct? As long as you wire and ground the separate pins (as in not on the same pin), it doesn't matter which is which, right?

stuck elbow
#

right

idle owl
#

Ok.

#

ยฏ_(ใƒ„)_/ยฏ

stuck elbow
#

unless you have several buttons in one device, with a common pin

#

like a d-pad or something

idle owl
#

One button, one pin. And it worked one way and not the other.

#

I don't know.

stuck elbow
#

does it have 4 pins?

raven canopy
#

Seems an accurate description. I like @tulip sleet's "use diagonal pins to never worry about pin orientation".

idle owl
#

Yeah but I did opposite corners to ensure the right thing.

#

That's what I did @raven canopy ๐Ÿ˜ƒ

stuck elbow
#

some buttons have two actual switches in them

#

but if it works one way, then I would blame the connections

raven canopy
#

Great minds remember the same great advice? ๐Ÿ˜†

idle owl
#

Ok.

torpid goblet
#

@katti time to get out out the DVMand verify ๐Ÿ˜ƒ

tidal kiln
#

@idle owl what were the two ways? the one that worked and the one that didnt?

idle owl
#

One diagonal vs the other.

#

With ground and the pin on the same side each time. (As themselves I mean.)

raven canopy
#

Breadboarded? Those pins can be thin sometimes...

tidal kiln
#

do you have these in a breadboard?

wraith tiger
#

Data sheet says they're SPST.

tidal kiln
#

what @raven canopy just said

idle owl
#

Breadboard.

raven canopy
#

Give it a jiggle. May correct the experiment. <-- actual science terminology

tidal kiln
idle owl
#

I actually did kinda do that already ๐Ÿ˜„

#

Ooh I've never ordered those.

tidal kiln
manic glacierBOT
#
dhalbert
[adafruit/circuitpython] New comment on pull request #1004: Nrf52840 usbboot

Can anyone tell me what I did wrong that cause the Travis build failed for most test, only the first one is ever succeeded

This appears to be a submodules issue for ports/atmel-samd. The error is that the atmel-samd/peripherals submodule is not present. Do this:

cd ports/atmel-samd
git submodule add https://github.com/adafruit/samd-peripherals.git peripherals
make clean BOARD=feather_m0_express
make BOARD=feather_m0_express

It should now build.

idle owl
#

I mean it works now, but I wanted to make sure I wasn't missing something entirely.

raven canopy
#

You can also build up some solder layer on the pins, to thicken them a little. My salvage momens tend to work better since the left over solder makes em thicker.

idle owl
#

Understood

#

Thanks!

raven canopy
#

Back to the salt mines. Lunch break over. ๐Ÿ˜ฆ

manic glacierBOT
#
dhalbert
[adafruit/circuitpython] New comment on pull request #1004: Nrf52840 usbboot

@arturo182 and @hathach At what point do you think this is ready to try to merge to master and then have that as a PR? Do you want to make more cleanup changes? I can try the merge or one of you can. Due to all the nrf changes in master, I think this may need to be a careful merge with some manual checking of diffs after any automatically merged files.

tulip sleet
idle owl
#

@tulip sleet Thanks! I apparently understand them. But when it acted weird, I wanted to make sure my understanding was correct, because when things go wrong, I usually assume it's me.

manic glacierBOT
tidal kiln
#

don't forget to read the Conclusion section at the very end!

manic glacierBOT
#
dhalbert
[adafruit/circuitpython] New comment on pull request #1004: Nrf52840 usbboot

I'm sorry -- I didn't realize this was a merge to master already: for some reason I thought it was a merge to the branch. The merges don't look like they'd be a problem. I don't mind non-squashed commits: it reflects the history of the work, which is fine.

@hathach Can we stop checking in .hex bootloaders and build them in a submodule? I haven't looked into whether that's feasible. I would rather not keep adding large binary files every time the bootloader changes.

idle owl
#

@tulip sleet @slender iron No audioio in Trinket build of 3.x?

manic glacierBOT
#
dhalbert
[adafruit/circuitpython] New comment on pull request #1004: Nrf52840 usbboot

Let's get this merged into master, and then you can work in master instead of a branch, and submit PR's more often. Then we can keep up with each other's work. We try to have each PR add a particular feature or solve a particular bug, as opposed to adding multiple things that have been in the works for weeks.. It's fine to have multiple PR's and it makes it easier to review each set of changes.

idle owl
#

Or Gemma.

manic glacierBOT
#
dhalbert
[adafruit/circuitpython] New comment on pull request #1004: Nrf52840 usbboot

In other words: fork your own hathach/circuitpython. Keep it up to date with adafruit/circuitpython. Work in a feature or bugfix branch. When you're ready to merge, submit a PR for that branch, after bringing the branch up to date if necessary with master. After the PR is accepted, you update your fork from master, then delete the branch, and start a new branch for the next thing.

This workflow is covered in detail in @kattni's new Guide: https://learn.adafruit.com/contribute-to-circui...

tidal kiln
#

dult

#

@idle owl ^^

idle owl
#

Hooray! Code works on every board it's supposed to.

solar whale
#

I am finally trying to understand how some of the SERCOM pins are assigned and the first example I am looking at has me very confused. Can anyone explain why the Metro M4 uses PB02 and PB03 for SDA/SCL even though they are not explicitly identified as I2C pins in the Datasheet. The ItsyBitsy M4 uses PA12/PA13 which are identified as I2C pins. What am I missing?

idle owl
#

@tidal kiln Thanks

manic glacierBOT
idle owl
#

@tulip sleet I don't want to add another voice to an already very active PR conversation, but I would reiterate checking out the guide and that Thach can message any of us with questions about the process along the way. I'm absolutely willing to help as well.

manic glacierBOT
#
dhalbert
[adafruit/circuitpython] New comment on pull request #1004: Nrf52840 usbboot

@arturo182 Yes, we're fine with many commits. It represents a lot of work and the individual commits can be helpful when bisecting or just looking back. We used to try to keep a cleaner commit chain, doing rebases more often, etc., and it just caused more issues and was harder to explain. Now we're fine with merge commits, etc. The history is already huge and a few more commits doesn't matter.

idle owl
#

Owait forgot to check the Metros. I thought I was done too quickly...

manic glacierBOT
idle owl
raven canopy
#

@solar whale with that particular case, I would say 2 other factors may have contributed. 1) physical pin locations and PCB traces. 2) other peripheral requirements, say I2S for instance. This is all of course external, "not in the know" conjecture. ๐Ÿ˜„

solar whale
#

@raven canopy Thanks -- What does it mean for some of the pin (PA12/13) to be designated as I2C and others not? Does it impact performance?

#

I am referring to section 6.2.6 of the SAMD51 Data sheet

tulip sleet
#

@solar whale where are PA12/13 designated as I2C in the datasheet? PB03/02 are SERCOM5 pad 0 and 1.

raven canopy
#

From what I've read in the sheets, performance shouldn't be an issue. Except for limitations on the peripheral itself (look in the electrical characteristics section [15.x iirc])

solar whale
#
The SAM D5x/E5x has up to eight instances of the serial communication interface (SERCOM) peripheral.
All instances support USART, including RS485 and ISO7816, SPI and IยฒC protocols. The following table
lists the IยฒC pins location.
Table 6-8. SERCOM IยฒC Pinout
Package Pin Count Supply I/O pins with IยฒC Support
for the 64 pin package
64 VDDIO PA12, PA13, PA16, PA17, PA22,
PA23
idle owl
#

Ah bugger, I should have done the direction and input like this : button.switch_to_input(pull=digitalio.Pull.UP) Reduces another line of code.

solar whale
#

did not format well

#

I see that PB02 and PB03 are SERCOM5 - just confused by the I2C reference for the other pins

tulip sleet
#

@solar whale I have no idea what they mean by that. I was seeing if those pins have some other common function like CAN, and it's a typo.

solar whale
#

@tulip sleet Well, now I don't feel so bad not understanding it ๐Ÿ˜‰

rigid path
#

Just picked up an M4 Feather Express. Are there any setup docs or should I use the M0 feather files/docs?

idle owl
#

You can use the M0 setup docs for now. The guide is on the way, but the install and so on is the same.

#

@rigid path Make sure you download the right UF2 to install, but the rest of the process should be the same.

rigid path
#

@idle owl - Thanks. Is there an M4 UF2 file?

idle owl
#

@tulip sleet Limor weighed in on the monotonic() vs sleep() question. I pushed a couple of syntactic changes, otherwise I think the PR is ready now. Travis passed again already.

tulip sleet
#

@rigid path Note that D4 exists on the Feather M4 but is a GND pin on Feather M0 (next RX to TX pins)

idle owl
#

@rigid path Yeah like Dan said, the pinouts are different on the M4 than the M0. So the wiring diagrams and so on may not match if you get into the Essentials section of the M0 guide.

#

There will soon be M4 diagrams in that section as well.

manic glacierBOT
rigid path
#

Thank you all. I will keep this in mind.

tulip sleet
#

@solar whale in the SAMD21 datasheet, the corresponding section says "Pins support I2C Hs mode". In the samd51 datasheet, the first paragraph in 6.2.6 contradicts the table.

#

@rigid path

#

I believe the D4 pin is the only pin difference, aside from Aref being tied to 3.3V (there's a bug in the chip).

idle owl
#

@rigid path Please let us know if you run into any issues. It's all new so any issues may turn out to be bugs.

rigid path
#

Will do.

manic glacierBOT
indigo wedge
#

@slender iron you removed yourself from #1011?

slender iron
#

ya. @tulip sleet will review it

manic glacierBOT
tidal kiln
stuck elbow
#

@tidal kiln looking

#

approved

manic glacierBOT
tidal kiln
#

@stuck elbow cool. thanks!

idle owl
#

@slender iron With audioio.RawSample am I right in thinking you change the frequency by changing the second number in length in the sine_wave generation block? As follows: python tone_volume = 0.1 # Increase this to increase the volume of the tone. frequency = 440 length = 8000 // frequency sine_wave = array.array("H", [0] * length) for i in range(length): sine_wave[i] = int((1 + math.sin(math.pi * 2 * i / 18)) * tone_volume * (2 ** 15))

#

Or is there some other way you're supposed to do that?

#

I mean it works the way I did it above, but I'm not certain it's correct.

slender iron
#

the frequency variable should change it

idle owl
#

ok it does, I wanted to make sure I was on the right track there. Thanks

slender iron
#

k. why is it confusing?

idle owl
#

It's not. But I've done things like this where I think the simple answer makes sense and it turned out to be entirely the wrong way to do it. So I figured I'd ask.

#

Or even where the simple answer works, but it's not the right way etc.

slender iron
#

ok. they've ruined you then ๐Ÿ˜ƒ

idle owl
#

For all I know you could have built in some fancy way to do it and I missed it in RTD. ๐Ÿ˜„

#

You know I still assume I'm wrong. I'm getting better at not thinking that though ๐Ÿ˜ƒ

manic glacierBOT
slender iron
#

you are usually right ๐Ÿ˜ƒ

timber birch
#

@idle owl you need to trust yourself, and go with it. Even if it is the best way(no the wrong way) and it works Go with it, and if it is not the best way and you find out a better way acknowledge the learning an move on. (this is something I am still dealing with, and I fixed computers for over 30 years), trust Your gut and just do and smile and say I dit it yaa me

#

@idle owl the more you do this and accept it the better. Some one always knows a better way, but appreciate the learning (and journey)you have done and go with it believe in you. We all do here

idle owl
#

Yeah, I'm still very new to a lot of this, relatively speaking, so the not trusting myself as much as I should comes from what I perceive as a lack of experience. But the fact is I learned an unbelievable amount in an extraordinarily short period of time, and I'm incredibly proud of that. Still means it's hard to not assume that the issue is me. But I'm getting better ๐Ÿ˜„

main meteor
#

The frequency is changed by how fast the sine wave angle changes: that i / 18 is what drives that.

indigo wedge
#

You know, one thing that has been quite confusing since I joined the project is figuring out what are people's positions and experience. What I mean by that is who works for Adafruit and who is just a open source helper, who has been in the project for a long time, who is just getting started. I knew that Scott was the admin and he worked for Adafruit but that was kind of it. I think it even made some discussions difficult because I don't want to step on boundaries with people's expertise, but it's hard without knowing what it is. Like I'm still unsure if hathach is part of Adafruit or just helping and how he ended up with working on the bootloader, same with microbuilder and such. Is there a page where I could read about this? ๐Ÿ˜„ ๐Ÿ“

timber birch
#

@idle owl yes thats it and it comes in time, we often when we are learning things doubt, but we forget failure is an important step in learning, and realising you dont know everything a going ahead is the best way to conquire the fear

main meteor
#

The git history will show who worked on what, but I don't think it shows why. Theoretically anyone could work on the bootloader.

cunning crypt
#

When I first hopped in, I thought some people were in some positions and it turned out I was way wrong.

idle owl
#

@indigo wedge Not exactly but we can explain if it would help ๐Ÿ˜ƒ

indigo wedge
#

I think it would, I want to help with the project so it's good who I'm working with ๐Ÿ˜‰

ruby lake
#

I just generally pester people for things. ๐Ÿ˜‰

indigo wedge
#

I'm trying to respect people's boundaries ๐Ÿ˜„

torpid goblet
#

@smoky swallow I am going through the same process. Just lurking on discord and I listened to a couple of older weekly circuitpython meeting..

#

slowly getting the lay of the land

timber birch
#

don't over think it, jump in, make mistakes, learn, move adapt grow, and appreciate all that are here to help ๐Ÿ˜ƒ

slender iron
#

I can hop in voice chat and explain. my typing is too slow atm

timber birch
#

I am always humbed how much people help in these groups on Adafruit

indigo wedge
#

Oh no, not make mistakes ๐Ÿ˜ฑ

idle owl
#

@slender iron I got it.

indigo wedge
#

@idle owl has provided me with some info ๐Ÿ˜ƒ

slender iron
#

k

idle owl
#

@torpid goblet Welcome! Feel free to ask any questions you have, and don't feel like you have to lurk to figure it all out yourself. We were glad to have you at the last meeting!

torpid goblet
#

@idle owl I am having a good time just listening and learning. My first attempted contribution is going to be 3 vargrant based build systems for circuitpython on atmel, esp8266, and nfc.

solar whale
#

Has onyone gottern mu-betat17 to run under linux? It insatlles, but then I get ```erryneedell@Ubuntu-Macmini:~/projects/adafruit_github/ampy$ mu-editor
Traceback (most recent call last):
File "/usr/local/bin/mu-editor", line 7, in <module>
from mu.app import run
File "/usr/local/lib/python3.5/dist-packages/mu/app.py", line 29, in <module>
from PyQt5.QtCore import QTimer, Qt
ImportError: /usr/local/lib/python3.5/dist-packages/PyQt5/QtCore.so: undefined symbol: PySlice_AdjustIndices

stuck elbow
#

looks like your QT is too old?

#

(just guessing, I didn't try it)

solar whale
#

too old or too new

idle owl
#

@torpid goblet Nice! Well, you're welcome to lurk as long as you like. We'll be here ๐Ÿ˜ƒ

drowsy geyser
#

Some of us just here more than others. Ahem, @idle owl ๐Ÿ˜‰

#

(That came out wrong - complaining about MY lack of presence, not Kattni's, since she's pretty much always here. ๐Ÿ˜ƒ )

idle owl
#

The M0 boards only support mono wave files because one output right? So the M4s support stereo? But CP now supports both.

prime flower
#

iirc m0 is m0no

#

(thats how I remembered it at least)

#

idk about m4

idle owl
#

I know the M0 is mono, but I was verifying the why.

#

Because CP supports stereo now, and I assume it's not because you can do stereo on a single output.

#

I assume it's due to the M4 having two outputs.

manic glacierBOT
raven canopy
#

@idle owl super delayed answer (if it can be called that), but i think your "M4 having two outputs" is correct. M0 only has one DAC output, whereas M4 has 2 DAC outputs.

idle owl
#

It definitely has two DACs.

#

Basically I'm trying to make sure you can't do stereo out of a single audio output.

#

I think I understand it correctly, I was simply trying to verify.

errant grail
#

@idle owl I'm interested in the answer, too. It's simple to mathematically merge the two into one, but I haven't confirmed that it operates that way.

manic glacierBOT
raven canopy
#

i can't see how a single DAC channel could output a split voltage signal to accommodate stereo output. how does the left channel know what the analog level is vs the right channel? i can't seem to google an answer, and i don't have a qualified answer in my noggin. ๐Ÿ˜„

#

wait a second! i diverged from the actual question....

mighty fiber
#

Hey guys

#

So I've got a program to take inputs from momentary switches (wired for normally open) to send IR commands

#

However, my code is continuously sending "Right", "Left", and "Up" commands in that order

#

I've triple checked all my wiring, and everything looks good on that end

#

Everything is going where it's supposed to, no shorting or anything

#

The IO pads used for that are A3, A4, A5

#

I also have A1, A2, and A6 connected, but those don't seem to be triggering for whatever reason

umbral dagger
#

I've been spoiled by the fast dev cycle time of CircuitPython... working in C on the Feather HUZZAH... deploying code is so slow!

errant grail
#

@raven canopy Within the audio frequency spectrum, it's difficult (impossible?) to accurately combine stereo analog signals into a single mono channel then separate them downstream. I'm more interested in mono compatibility when the board has a single DAC output that combines the two stereo data streams into a reasonable mono output.

mighty fiber
floral dagger
#

when you say continuously, do you mean even with no input?

mighty fiber
#

Yeah, as soon as I start the code it goes on and on

#

Without any input

tulip sleet
#

@mighty fiber what the A3,A4,A5 connected to? RIght now they are set as inputs, but they have no pull-up or pull-down set, so the inputs are floating until the switch or button is closed. so they'll read random values, possibly high

snow thunder
#

You beat me to it

mighty fiber
#

Directly to momentary switches

snow thunder
#

What are the switches wired to?

tulip sleet
#

and what's on the other side of the momentary switches, ground or +3.3v?

mighty fiber
#

Ground

tulip sleet
#

jaswope feel free to keep going

snow thunder
#

Sorry, to step on your toes. ๐Ÿ˜„ Go ahead. We both know the answer here. ๐Ÿ˜„

tulip sleet
#

set the .pull for each pin to digitalio.Pull.UP. That will make them normally high. Then check for not switchopen.value because they are normally high, so they would normally be True, so you need to check for False.

snow thunder
#

You can also replace your .direction() calls with .switch_to_input(pull=digitalio.Pull.UP)

#

That will take care of the pull and the direction in one line.

tulip sleet
#

(which sets .pull and .direction separately)

mighty fiber
#

switchcw.switch_to_input(pull=digitalio.Pull.UP) = Direction.INPUT

#

Like this?

#

Sorry if I understood that wrong

tulip sleet
#
switchopen = DigitalInOut(board.A1)  # Opens arms
switchopen.direction = Direction.INPUT
switchopen.pull = Pull.UP

or

switchopen = DigitalInOut(board.A1)  # Opens arms
switchopen.switch_to_input(pull=Pull.UP)
#

and then change your if from:

    if switchopen.value:
        IR_Command(Open)             # Button A1 opens arms

to

    if not switchopen.value:
        IR_Command(Open)             # Button A1 opens arms
mighty fiber
#

Thank you so much!

#

It works perfectly

#

I knew I was missing something, and I figured it had something to do with that since I saw it in all the examples

#

Now to figure out why A3 isn't doing anything...

tulip sleet
#

Great! and thanks @jaswope also

snow thunder
#

To demystify it a tiny bit: When you wire up a simple switch, you can do it one of two ways. Either completing the circuit between the pin and ground, or between the pin and +V (+3.3V in this case). It doesn't really matter unless you're doing something else with the circuit too, however it changes how you set up the wiring.

tulip sleet
#

you have if switchcw: but you mean if not switchcw.value: (you forgot the .value just on that if)

mighty fiber
#

Yep that solves that hahaha

snow thunder
#

So let's pretend you have the switch set up to connect the pin to ground when it is pressed. That means, when you press it, the pin will go "low"...as in it will read 0 volts.

#

But if that's all you did, when it's not pressed, you would want it to read "high" (or 3.3v). However, there's nothing in your circuit to do supply that voltage!

#

When working with less friendly hardware, you would need to use what's called a pull-up or pull-down resistor circuit. The job of that circuit is to "pull" the voltage high or low when nothing else is acting on it.

#

The microcontroller you're using is able to do this for you though, but you need to tell it how it needs to behave, hence the need for the code indicating the "pull" direction (up or down).

mighty fiber
#

So the pull tells it what it should be first?

snow thunder
#

The pull tells it what the circuit should read when it is open (meaning your button isn't pressed)

#

When you wire a switch to ground, that means that OPEN (unpressed) should read as HIGH (or true for your uses), and CLOSED (pressed) should read as LOW (or false).

#

And because of that, you need to pull the circuit UP to HIGH.

mighty fiber
#

Yeah that's what I meant ๐Ÿ˜ƒ

#

That makes sense

snow thunder
#

If you wired the switch to 3.3v it would be the opposite.

#

And you would need to pull DOWN to LOW (ground)

mighty fiber
#

So if I was wiring the other end to 3.3v I would pull down

#

Oh whoops

snow thunder
#

Yep, you got it!

#

If you don't do it, then the pin is what is called "floating" when it is disconnected from everything (like when your switch is unpressed)

raven canopy
#

@errant grail yep. that's what i realized after i typed. helps to focus on the question being asked, instead of whatever your brain told you it thinks you should answer. ๐Ÿ˜„

snow thunder
#

It isn't being pulled to 3.3V or Ground, so it just sorta hangs out wherever the EM radiation wants it to be (please correct me on the source of the randomness EE folks)

#

And so that could be read as HIGH or LOW when it isn't really either.

mighty fiber
#

Thanks for that ๐Ÿ˜ƒ

snow thunder
#

No problem.

errant grail
#

@raven canopy yeah, but I do enjoy going down tangential paths once in a while. Maybe too often... ๐Ÿ˜‰

raven canopy
#

For some reason, I decided to start working adabot patching at like 12:30. But, at least it reminded me how much I enjoy the simplicity of working with REST API. Verified that the adabot/patches directory idea is workable, from a discovery standpoint at least. I should quit while I'm ahead though. ๐Ÿ˜ช

scarlet fjord
#

just got my itsy bitsy m4, is it supposed to not have a main.py?

#

can i just make a main.py and it will run, or are there other things that need setting up?

scarlet fjord
#

aw yiss the M4 has enough ram for my buttons and analog stick gamepad emulation! woohoo

manic glacierBOT
manic glacierBOT
wraith tiger
manic glacierBOT
manic glacierBOT
tulip sleet
#

@wraith tiger removed that ๐Ÿ˜ƒ thanks!

manic glacierBOT
manic glacierBOT
manic glacierBOT
#
dhalbert
[adafruit/circuitpython] New comment on pull request #1014: nrf: Split the ble module into a shared part and the port implementation

This is very clean. I am thinking that maybe we want to make a class that lives under ble, like ble.Bluetooth, ble.Device, or ble.BLE. Better suggestions welcomed. Then we have a singleton instance that is the device. We can then use properties, which we can't do with a regular module. So

if ble.bluetooth.enabled:
    ...
ble.bluetooth.enabled = False
print(ble.bluetooth.address)

etc.

Later there could be other things that live under ble, maybe message classes?? ...

manic glacierBOT
#
arturo182
[adafruit/circuitpython] New comment on pull request #1014: nrf: Split the ble module into a shared part and the port implementation

Yes, I wanted to use a property for enabled and address but had two hesitations: 1. would need a class, 2. would break the current API.

Regarding having a class, I think best name would be Adapter, pretty common terminology in the BT world. We could keep all other classes like Central, Peripheral, Service, Characteristic inside a bleio module as well, but that would break compatibility with bluepy.

manic glacierBOT
slender iron
#

@idle owl m0 is mono for DAC output but i2s can do stereo

idle owl
#

And can M4 do stereo?

slender iron
#

yup, stereo DAC and i2s

idle owl
#

Thanks

slender iron
idle owl
#

@tidal kiln are you up for scrutinising something for me?

tidal kiln
#

sure

idle owl
#

Can you look at the wiring diagram and make sure I covered everything in the steps next to it?

#

There's a lot going on and I already almost missed one.

slender iron
#

@bronze geyser ping me when you are around and I can answer EIC questions

solar whale
#

@slender iron @tulip sleet I recently tried installing the build toolchains under Ubuntu 18.04 and had not problems -- the guide says arm tools are not yet avaialble. Alos have you updated the latest ppa for the arm toolchains - released in June 2018

idle owl
#

Another question @tidal kiln .. Are you seeing the embedded code after "Copy and paste the following code into code.py using your favorite editor, and save the file."? There should be two embedded code elements on the page.

solar whale
#

gcc version 7.3.1 20180622 (release) [ARM/embedded-7-branch revision 261907] (GNU Tools for Arm Embedded Processors 7-2018-q3-update)

tulip sleet
#

@solar whale yes, they came out two days ago - someone's post in the forums just caused me to look. I did a simple check with the new toolchain and it semed OK. I plan on doing a better check today or in a few days. It fixes the -flto-type-mismatch compile warnings, and gains maybe 100 bytes on compile, if I remember right

#

@slender iron I'm working on the merge from MicroPython, using the suggested commit Damien sent. Not too bad so far except for the test running script.

slender iron
#

ok awesome!

manic glacierBOT
tulip sleet
#

@slender iron do you have any issue with moving to the 2018q2 toolchain if it seems OK? do you have to wait for it to show up in brew, or did you install manually anyway?

solar whale
#

@tulip sleet I also did some test builds without incident.

#

@tulip sleet 2018q3 - correct?

#

hmmm -- mix of q2 and q3 here ```jerryneedell@Ubuntu-Macmini:~$ arm-none-eabi-gcc -v
Using built-in specs.
COLLECT_GCC=arm-none-eabi-gcc
COLLECT_LTO_WRAPPER=/usr/bin/../lib/gcc/arm-none-eabi/7.3.1/lto-wrapper
Target: arm-none-eabi
Configured with: /build/gcc-arm-none-eabi-fqNcqu/gcc-arm-none-eabi-7-2018q2/src/gcc/configure --target=arm-none-eabi --prefix=/build/gcc-arm-none-eabi-fqNcqu/gcc-arm-none-eabi-7-2018q2/install-native --libexecdir=/build/gcc-arm-none-eabi-fqNcqu/gcc-arm-none-eabi-7-2018q2/install-native/lib --infodir=/build/gcc-arm-none-eabi-fqNcqu/gcc-arm-none-eabi-7-2018q2/install-native/share/doc/gcc-arm-none-eabi/info --mandir=/build/gcc-arm-none-eabi-fqNcqu/gcc-arm-none-eabi-7-2018q2/install-native/share/doc/gcc-arm-none-eabi/man --htmldir=/build/gcc-arm-none-eabi-fqNcqu/gcc-arm-none-eabi-7-2018q2/install-native/share/doc/gcc-arm-none-eabi/html --pdfdir=/build/gcc-arm-none-eabi-fqNcqu/gcc-arm-none-eabi-7-2018q2/install-native/share/doc/gcc-arm-none-eabi/pdf --enable-languages=c,c++ --enable-plugins --disable-decimal-float --disable-libffi --disable-libgomp --disable-libmudflap --disable-libquadmath --disable-libssp --disable-libstdcxx-pch --disable-nls --disable-shared --disable-threads --disable-tls --with-gnu-as --with-gnu-ld --with-newlib --with-headers=yes --with-python-dir=share/gcc-arm-none-eabi --with-sysroot=/build/gcc-arm-none-eabi-fqNcqu/gcc-arm-none-eabi-7-2018q2/install-native/arm-none-eabi --with-host-libstdcxx='-static-libgcc -Wl,-Bstatic,-lstdc++,-Bdynamic -lm' --with-pkgversion='GNU Tools for Arm Embedded Processors 7-2018-q3-update' --with-multilib-list=rmprofile
Thread model: single
gcc version 7.3.1 20180622 (release) [ARM/embedded-7-branch revision 261907] (GNU Tools for Arm Embedded Processors 7-2018-q3-update)

tulip sleet
slender iron
#

@tulip sleet switch is fine with me. I actually use the arch version now

manic glacierBOT
stark wolf
#

Is there a library bundle for the 3.0.0 release other then then beta bundle made on july 4th?

idle owl
#

@slender iron I got my O-Droid Go. It doesn't start up. I know it needs an SD card with particular things on it, but it's supposed to at least start up to a fail screen without it. I haven't done much troubleshooting yet. I need to reseat the LCD cable for one, but I did that twice when putting it together in the first place. I'm charging it now to see if that's the issue.

#

We need to change the lib bundle name. That's the correct bundle.

stark wolf
#

@idle owl Ok, thanks. Just wanted to make sure I wasn't missing something.

idle owl
#

The bundle itself isn't beta. We name it for the CP version, we simply haven't updated it because we just released final.

#

Nope, you're not missing anything! @stark wolf ๐Ÿ˜ƒ

stark wolf
#

Btw, Thank you all for your amazing work on CP. I'm really enjoying using it.

indigo wedge
#

@slender iron I saw that there is a 4.0 milestone, any date on that? ๐Ÿ˜„

idle owl
#

@stark wolf You're welcome! Thank you for using it! Everything you do helps us make it better. The community is a huge part of what makes CircuitPython great.

slender iron
#

@indigo wedge when you finish it. ๐Ÿ˜›

indigo wedge
#

ah, next week then

#

๐Ÿ˜‚

slender iron
#

๐Ÿ˜ƒ

idle owl
#

@slender iron @tulip sleet How do we change the name of the 3.0 bundle to remove the beta?

slender iron
#

and

#

then release

idle owl
#

ok

manic glacierBOT
idle owl
#

@slender iron @tulip sleet Release done.

tulip sleet
#

great!

manic glacierBOT
slender iron
#

cool! we can rerun travis for the bundle once its in pypi

manic glacierBOT
indigo wedge
#

I'm even more excited for the ble changes now :)

idle owl
#

As for the Odroid-Go: Reseated the display cable, no change. The red LED that was on when I plugged it into a charger went off, so I assume it's charged.

slender iron
#

great!

indigo wedge
#

Also, Travis doesn't archive artifacts, right? So I can't see the docs generated from my PR until the merge?

#

Or I guess I could build locally, need to install some packages

slender iron
#

@idle owl does the backlight come on?

idle owl
#

@slender iron Nope

slender iron
#

@indigo wedge it doesn't

#

@idle owl post a pic

idle owl
#

@indigo wedge Are you talking about Sphinx docs?

#

@slender iron on it

indigo wedge
#

Yes, I added some comments for the new ble module and want to see if they look nice

idle owl
#

Ok, yeah, you can build locally if you install the right things.

manic glacierBOT
idle owl
#

I put them into a venv. I think you need sphinx, sphinx-autobuild and recommonmark. I think the other packages install with those three. autobuild might install with sphinx so install that first to make sure you still have to do autobuild separately. pip install them

#

@slender iron ^^

#

I took the back off to take the picture. It's been partially attached otherwise.

slender iron
#

right. looks ok to me

idle owl
#

Yeah that's what I figured. ๐Ÿ˜•

#

There's very little on google for troubleshooting it. Nothing about the screen not working at all that I could find.

stuck elbow
#

@idle owl what's wrong with it?

idle owl
#

It does nothing when I power it on.

stuck elbow
#

does the usb device appear?

idle owl
#

I plugged it into a charger and there was a red LED for a while and then it went off, so presumably it charged.

#

I did not check that.

slender iron
#

I'd probably poke around with a multimeter to check for power

idle owl
#

@stuck elbow I'm not even sure how to check that.

#

@slender iron Ok I'll try that too

stuck elbow
#

@idle owl well, on linux you would look into dmesg and/or check for /dev/ttyUSB0

idle owl
#

Ah ok

stuck elbow
#

also lsusb

#

not sure with mac

main meteor
#

With mac, click on the Apple symbol, then "About this Mac", then "System Report", then click on "USB".

manic glacierBOT
stuck elbow
#

@idle owl does the backlight come on?

idle owl
#

I don't think it's showing up. It should be /dev/tty etc on Mac as well.

#

No

stuck elbow
#

then probably power problems

idle owl
#

Literally does nothing when I power it on.

stuck elbow
#

broken switch :)

#

but no smoke? anything getting hot?

idle owl
#

No, and I charged it for a while earlier.

stuck elbow
#

charging is independent of the switch

#

I would say it's either the switch or the voltage regulator

tidal kiln
#

lots of test points on the back. is schematic available?

slender iron
idle owl
#

Ok so the battery pins show ~4V, and the pins that I assume are connected when the switch is in the on position are also showing the same number.

slender iron
idle owl
#

If that means anything.

manic glacierBOT
stuck elbow
#

@idle owl can you see a big black part with 3 wide pins close to the display connector?

manic glacierBOT
idle owl
#

Two on one side and one on the other?

tidal kiln
#

Q1?

stuck elbow
#

yes

idle owl
#

Ok yes

stuck elbow
#

wait, there is a schematic, we can look at it

#

we want U4

idle owl
#

Well...yeah I can look at it... translating it to much useful is getting outside my wheelhouse.

tidal kiln
#

@idle owl voltage at TP18 = VBAT = ?

idle owl
#

Um... looking

#

Is VBAT the + on the battery?

tidal kiln
#

yep. do you see the test point pads? they are labeled TPx with x = some number.

idle owl
#

yah I found TP18

#

So put the ground lead on TP18 then? And the other one on the + pin on the battery connector?

tidal kiln
#

ground on ground, red on TP18

idle owl
#

ok

#

Yah 4+ volts

#

same

tidal kiln
#

now measure TP14 and TP12

idle owl
#

0.5 and 0.4 respectively

#

if I'm doing it right anyway. I kept going back to 18 to make sure I still had ground contact correctly

stuck elbow
#

how about the pins of the power switch? is there any power on them?

idle owl
#

Yah, same as the battery.

stuck elbow
#

there is a big coil in the center of the pcb, looks like a large black cap

tidal kiln
#

those voltages seem low

stuck elbow
#

can you measure the voltage on its pins?

idle owl
#

L1?

stuck elbow
#

yes

idle owl
#

Measure both leads on it? Or one on ground and one on it?

stuck elbow
#

one ground
