[wispy spear]

deccer cubes should be present in there too when vsm is going

[wispy spear]

did you push the latest tbb fix? 😛

[wicked notch]

it should be good now

[wispy spear]

[cmake] Cannot find source file:
[cmake]
[cmake] /home/deccer/Code/External/Retina/Dependencies/cgltf/Implementation.c

smh : ) elias mentioned it earlier

[wicked notch]

what in tarnation

I swear I fixed that

[wicked notch]

incredible

[wispy spear]

let me reclone this mf

[wicked notch]

I pushed the fix another time

just in case

I deleted and recreated the dir

[frank sail]

I think the issue is caused by not using fastgltf

[wicked notch]

fastgltf issue

[wispy spear]

indeed, why are you not using fastgltf already

[pale horizon]

Git is goofy ah when changing case sensitivity on Windows

[wispy spear]

it do be, indeed

[wicked notch]

maybe I should wipe my windows drive

[wispy spear]

you have to rewrite history to fix it

ill check later i gtg dodo

🇬🇳

[wicked notch]

🇬🇳

[wheat haven]

yeah windows tends to have trouble when you tell it to rename a file with only case differences

[wispy spear]

you need to remove CGLTF completely and add cgltf again

otherwise theres a git config for casing but i wouldnt fiddle with it

[frank sail]

@wicked notch how do you abstract vkCmdPushConstants?

[wicked notch]

with the byte array thingy

template <typename... Args>
auto CCommandBuffer::PushConstants(Args&&... args) noexcept -> CCommandBuffer& {
  RETINA_PROFILE_SCOPED();
  return PushConstants(0_u32, std::span<const uint8>(Core::MakeByteArray(std::forward<Args>(args)...)));
}
auto CCommandBuffer::PushConstants(uint32 offset, std::span<const uint8> values) noexcept -> CCommandBuffer& {
  RETINA_PROFILE_SCOPED();
  const auto& currentPipeline = *_currentState.Pipeline;
  const auto& layout = currentPipeline.GetLayout();
  vkCmdPushConstants(_handle, layout.Handle, AsEnumCounterpart(layout.PushConstant.Stages), offset, values.size_bytes(), values.data());
  return *this;
}```

[frank sail]

damn I need a current pipeline thingy

actually I don't

actually I do for the stage flags

unless

oh man, I'm based
.stageFlags = VK_SHADER_STAGE_ALL,

[wicked notch]

valid strategy

[frank sail]

I have that in my global pipeline layout

honestly quite incredible

btw I have this handy thing

  class TriviallyCopyableByteSpan : public std::span<const std::byte>
  {
  public:
    template<typename T>
      requires std::is_trivially_copyable_v<T>
    TriviallyCopyableByteSpan(const T& t) : std::span<const std::byte>(std::as_bytes(std::span{&t, static_cast<size_t>(1)}))
    {
    }

    template<typename T>
      requires std::is_trivially_copyable_v<T>
    TriviallyCopyableByteSpan(std::span<const T> t) : std::span<const std::byte>(std::as_bytes(t))
    {
    }

    template<typename T>
      requires std::is_trivially_copyable_v<T>
    TriviallyCopyableByteSpan(std::span<T> t) : std::span<const std::byte>(std::as_bytes(t))
    {
    }
  };

[wispy spear]

AsEnumCounterpart : )

had too much calzone?

[frank sail]

lvstrium

[frank sail]

@wicked notch would you be interested in collaborating on a d3d12 renderer when you have time?

for d3d12 learning

since you mentioned an interest

[wicked notch]

damn you want to go to the dark side

[wispy spear]

maybe i should too : >

im currently pissed about lunix

its ok if you just want to go with lvstri : )

[frank sail]

Just a possible future thing, no pressure

[wispy spear]

so D3D13 then

[frank sail]

I have no goals except to learn d3d12 gooder so I'd be willing to work on any part of it and let you do what you want

@wispy spear you could join the fun too

[delicate rain]

I smell collaboration in the air

Or perhaps a competition

[frank sail]

daxa competition

jk

[delicate rain]

Unless 👀

[frank sail]

timberdoodle and $unnamed-thingy will actually be bf and gf

[wispy spear]

mor like grumpy-aunt and alcoholic-uncle

[frank sail]

(babafroggy and gooeyfroggy)

[delicate rain]

The future is bright

[wispy spear]

hehe maybe we pick a new pet

[wicked notch]

nothing like some awesome shadows

there is nothing wrong in this image btw

it's just your imagination

[pale horizon]

Just add some bias, lmao, ez fix, bro

[wispy spear]

and tell Mr Moiree to piss off

[wicked notch]

I just realized that log scaling in PSSM is really just whatever we were doing with VSM at the beginning

which is POT scaling

[frank sail]

budget vsm

more like Walmart vsm

[wicked notch]

real

but I still have faith in SD(S?)VSM

the thing where you reduce your depth buffer and do magic

[frank sail]

I don't see how but perhaps

[primal shadow]

I switched from an actual index buffer to a buffer of triangle IDs for meshlets. No perf improvement, but 1/3 memory usage per triangle, and it opens up the possibility of bigger meshlet sizes.

[wheat haven]

how does that work? doesn't that remove your vertex cache?

[wicked notch]

you already give up your vertex cache if you do SW meshlets innit

[wheat haven]

I didn't

you still get vertex cache if you generate an index buffer

[primal shadow]

The indices weren't real indices, they were just an index into a different buffer anyways.

I wansn't using a real vertex buffer

But I'm not really familiar with the hardware vertex cache stuff so idk

[wheat haven]

I'm not using a real vertex buffer either, but I'm still using a real index buffer

[wicked notch]

regardless of that the perf implications are minimal

[primal shadow]

Regardless, didn't seem to be much of any perf difference on an RTX 3080 on windows

[wicked notch]

potrick already tested

[primal shadow]

Yeah

[wheat haven]

seriously? that's surprising to me

[primal shadow]

¯_(ツ)_/¯

[wicked notch]

I suppose the vertex cache doesn't help much when you're super limited by registers and memory

[wheat haven]

so you just do

uint triangleId = gl_VertexID / 3;
uint vertexId = gl_VertexID % 3;

?

[primal shadow]

Anyways roadmap is currently:

• Finish LODs
• Software raster
• Experiment with meshlet sizing
• Single pass depth pyramid generation (overhead/barriers between passes is sloooow)

[wicked notch]

the opposite innit

but yeah

[wheat haven]

it wouldn't be the opposite because % 3 can only ever be 0 1 2

[wicked notch]

uhh

[primal shadow]

Basically, let me find the commit
https://github.com/bevyengine/bevy/pull/10164/commits/8ac2e942b3e9cc5679eb1abf5c56b9328b1a479f visibility_buffer_raster.wgsl

    let packed_ids = draw_index_buffer[vertex_index / 3u];
    let cluster_id = packed_ids >> 8u;
    let triangle_id = extractBits(packed_ids, 0u, 8u);
    let index_id = (triangle_id * 3u) + (vertex_index % 3u);

[wheat haven]

huh, maybe I'll give that a try

[primal shadow]

I'm still allocating worst case triangle buffer size though

After everything else is finished, I want to experiment with dynamically allocating it based on some heuristics and maybe buffer readback, and probbaly just spill over into software raster if I run out of room

[wicked notch]

I was just about to say

the solution to that is fixed budget + readback from gpu

dynamic size is not practical

[primal shadow]

Yeah. I want to do LODs + software raster first, since that'll greatly change how much I actually need

Also I'm limited to 2gb max, which is uhh

[wicked notch]

storage buffer moment

[primal shadow]

4 bytes per triangle

[wicked notch]

imagine 🅱️ointers

[primal shadow]

2e+9/4 triangles

~500 million triangles (I forget if GPUs use GB or GiB)

[wicked notch]

city sample is 35 billion

[primal shadow]

LODs and software raster means I should never hit that limit idt, that feels like more than enough now

[wicked notch]

gotta crank those numbers up

[primal shadow]

per frame? Or total in the scene without culling/LODs

[wicked notch]

raw scene

also that's the "small" version

[primal shadow]

ok yeah, the 2gb limit just affects the actual amount I can render at once

[wicked notch]

I can't export the big version :(

[primal shadow]

Well technically, in each of the two passes

[wheat haven]

35 billion triangles...ah yes, a classic 391GB index buffer

[wicked notch]

@delicate rain where's daxa's imgui port

[delicate rain]

https://github.com/Ipotrick/Daxa/blob/master/src/utils/impl_imgui.cpp

behold cope

[wicked notch]

how much cope we talkin

[delicate rain]

It's fine actually

I was just memin

also how are you already futher along in porting VSMs than me??

[wicked notch]

are the layout colors already fixed for sRGB brain damage

[delicate rain]

oh there I do some cope

[wicked notch]

cope is all we can do

[delicate rain]

I precompile two shaders, one for sRGB and one for UNORM, so one does manual gamma correction and one does not

these are the arrays here https://github.com/Ipotrick/Daxa/blob/master/src/utils/impl_imgui_spv.hpp

and here is the shader https://github.com/Ipotrick/Daxa/blob/41bf1dde5b5232ce93371fbec678ec5e153a83dc/src/utils/impl_imgui.cpp#L507

I then decide on these based on the swapchain format iirc

[glass sphinx]

only on very big gpus

like 4080

and you still get a little perf from index buffer but remember i calculated in the index buffer generation

the draw is still faster but on 4080 just unindexed was nearly the same

1080ti was a much bugger siff

[wicked notch]

I just realized the ImageCount refers to frames in flights in imgui

actually insane

[primal shadow]

Alright, time to sit down and figure out why my LOD builder is not working

[primal shadow]

Assertion failed: v < vertex_count, file vendor/src/simplifier.cpp, line 63 wuh

https://github.com/zeux/meshoptimizer/blob/master/src/simplifier.cpp#L63

oh wait

hmmmmm

[primal shadow]

I built an entire seperate vertex buffer, and it's still not working???

wtf

[wispy spear]

fetchcontent is unable to fetch fmtlib : (

[wicked notch]

it does happen sometimes

I have no idea why

[wispy spear]

ye because you tag random commits

which dont exist anymore

[wicked notch]

can commit history change at random

[wispy spear]

yes

when you rewrite history because you are a rebase elitist for instance

[wicked notch]

so commit hashes that are valid are rendered invalid by a rebase?

[wispy spear]

if possible find actually tagged commits

it depends

some can also just disappear

because orphaned

[wicked notch]

tagged commits are releases?

[wispy spear]

yes

well

its 2 things

a release happens on a tag

tags can exist without having a release hehe

but yeah

and CGLTF is also still there, but i guess i have to reclone

[wicked notch]

I made sure CGLTF is now upper case everywhere

ok you can reclone now

I fixed fmtlib's commit hashes

I'll fix the other's as well

[wispy spear]

also cgltf needs replacement

or else i will tell sean

[wicked notch]

[wispy spear]

hehe i also just found some weird function

unrelated to Regtina

[wicked notch]

which func

also I fixed the tags now

[wispy spear]

glMultiDrawArraysIndirectBindlessCountNV

[wicked notch]

what is that.meme

[wispy spear]

https://registry.khronos.org/OpenGL/extensions/NV/NV_bindless_multi_draw_indirect_count.txt

yeah

from 2015

anywho

fails to configure

bunch of macro/templateism

(freshly cloned)

[wicked notch]

ahh yeah

missing include

typical

[wispy spear]

and with clang

[wicked notch]

bruh

[wispy spear]

no rush : )

[wicked notch]

one of these days I'll consider other langs

C++ makes me cry

[primal shadow]

So uhh yeah these are 4 clusters that metis chose to group ???

[wicked notch]

remember

metis has no spatial info

it only has topology info

you must set weights yourself

[primal shadow]

Right, I was thinking that's the problem

But like what do I do? Multiply the shared edge count weight by the spatial distance?

[wicked notch]

whatever you want

you can compute a centroid for each meshlet

and multiply that by the greatest of the edges

you can do what you said as well

just find a good function, maybe with the help of desmos

I didn't care about maximum number of shared edges

I just used distance

[primal shadow]

ughh ok, thanks

Ok turns out none of my meshlets have shared edges

So uhhh yeah

@wicked notch you use the u8 meshlet index/vertex things to identify shared edges yes?

[wicked notch]

I use the full index

meshletIndices[offset + meshletPrimitives[offset + id]]

I think

let me check

yes the full index

[primal shadow]

ok yes so I'm doing that

but then nothing has any shared edges

wtf??

[primal shadow]

Also not working, wtf

let meshopt_meshlet = meshlets.meshlets[meshlet_id];
for triangle_id in 0..meshopt_meshlet.triangle_count {
    let index_id1 = meshopt_meshlet.triangle_offset + (triangle_id * 3);
    let index_id2 = index_id1 + 1;
    let index_id3 = index_id2 + 1;
    let index1 = meshlets.triangles[index_id1 as usize] as u32;
    let index2 = meshlets.triangles[index_id2 as usize] as u32;
    let index3 = meshlets.triangles[index_id3 as usize] as u32;
    let vertex_id1 = meshopt_meshlet.vertex_offset + index1;
    let vertex_id2 = meshopt_meshlet.vertex_offset + index2;
    let vertex_id3 = meshopt_meshlet.vertex_offset + index3;
    let v0 = meshlets.vertices[vertex_id1 as usize];
    let v1 = meshlets.vertices[vertex_id2 as usize];
    let v2 = meshlets.vertices[vertex_id3 as usize];
    meshlet_triangle_edges.insert((v0.min(v1), v0.max(v1)));
    meshlet_triangle_edges.insert((v0.min(v2), v0.max(v2)));
    meshlet_triangle_edges.insert((v1.min(v2), v1.max(v2)));
}

[wicked notch]

these are vertices tho innit

oh wait nvm

[wicked notch]

regarding this btw, it appears gcc has had a bug about C++'s grammar for a decade and that clang doesn't support expected on linux yet with libstdc++

actually incredible

[wispy spear]

fuck me

[wicked notch]

no

fuck c++ :)

[wispy spear]

: D

[wicked notch]

it's actually my fault, if I weren't using c++23 this wouldn't have happened probably

[wispy spear]

do they not have unit tests or something?

i use c++23 too

: (

[wheat haven]

terrible git practices

[wispy spear]

yeah

[wheat haven]

even if you're rebasing to merge a PR it shouldn't affect history though

so wtf are they doing

[wispy spear]

squash should also kill commits

[wheat haven]

yeah that's a rebase

but you wouldn't put a PR's commit hash into fetchcontent

you can't, unless you clone the PR author's repo instead

[wispy spear]

yeh whatever that commit is or was

in case of fetchcontent it should be a tag

[wicked notch]

gpus are scary sometimes

I was wondering why my loading times were very slow and it turns out I was processing and generating meshlets for every gltf primitive 4 times over

but then I realized the rendering took basically the same time (100us difference in pure raster)

[wispy spear]

oopsi

[primal shadow]

Ok I think the suzanne head is just dumb and has unique vertices for every single triangle

Progress, kinda works

Some meshlets have those really teeny triangles in weird formations that can't be simplified though

LOD 0 meshlets without any adjacent meshlets

[primal shadow]

@wicked notch when you're back online: Blender seems to be weird and when you export meshes with tangents it duplicates vertices and seperates the mesh into parts, which ruins the LOD generation code. How are you dealing with this? Are you somehow deduplicating/hashing vertices?

You know what I'll go figure out how to calculate tangents during the visbuffer resolve in the shader

[wicked notch]

ye, I did mention already I was running the entire meshoptimizer's optimization pipeline before anything and for each new lod level

always reoptimize your meshlets, METIS breaks down hard if you don't optimize

[wicked notch]

yes that is the problem with meshopt, it has a really lax heuristic on connection

in short, it does not care about whether a meshlet is fully spatially connected or not

that's why using meshoptimizer to generate meshlets doesn't work

[wicked notch]

I wonder, why imgui decides to reupload buffers instead of just using device_local | host_visible memory

[wispy spear]

the peeps might lack the knowledge of how one should do shit efficiently according to x, which might not have been ideal n months ago

[wicked notch]

I realized it's just for backwards compat

we didn't have device_local | host_visible mem until recently

[wispy spear]

my talking out of my ass was correct lol

[wicked notch]

void main() {
  const SVertexFormat vertex = g_VertexBuffer.Data[gl_VertexIndex];
  const vec4 linearColor = vec4(RetinaToLinearFromNonLinear(vertex.Color.rgb), vertex.Color.a);
  o_Uv = vertex.Uv;
  o_Color = linearColor;
  gl_Position = vec4(vertex.Position * u_Scale + u_Translate, 0.0, 1.0);
}
``` epic cope

[wispy spear]

4 naming schemes : >

is this the pixelshader for imgui? 🙂

[wicked notch]

vert ye

[wispy spear]

oops lol

i dont know why i dont do the srgbisms there too

i have a convoluted logic in my code which schwitzes FRAMEBUFFER_SRGB on or off

lustri you are a genius

[wicked notch]

no this is just imgui brain damage, there's nothing genius about this but copium

[wispy spear]

shut up and take the compliment 😄

[pale horizon]

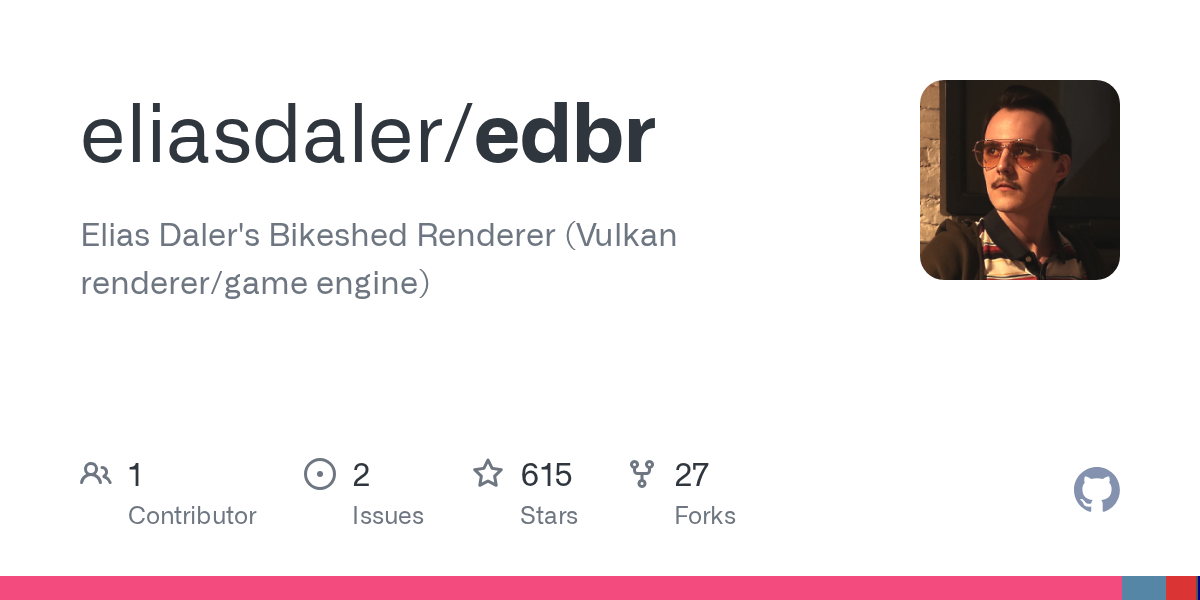

https://github.com/eliasdaler/edbr/blob/c10ff72b2d3c68471397d86f965da8c66ef2997d/src/Graphics/Swapchain.cpp#L42
Ez

[wicked notch]

blending dies you know

[wispy spear]

man i hate it when github just picks a random commit for this stuff

[pale horizon]

I copied permalink specifically 😅

[wispy spear]

ye default is the same

and not whatever branch you were looking on

[wicked notch]

also if you display textures in imgui they'll look wrong

[pale horizon]

Lies

[pale horizon]

Ok, this one might bite me

[wicked notch]

bro look at the green lol

you're interpolating non linear colors

and blending nonlinearly too

you can't just ignore srgb and hope it works lol

we've had this discussion already a few days ago in #questions

#questions message

[pale horizon]

Fuk

[pale horizon]

Also which green and where

[wispy spear]

you will receive mail from my lawyer

[wicked notch]

nevermind that, it's just discord artifacts

[pale horizon]

But yeah, displaying textures might reveal the badness of this method and I’ll resort to cope

[pale horizon]

it's joever

[wicked notch]

time to write custom imgui backend

[pale horizon]

I guess you could pass RGB8 image view to it too, but you need VK_IMAGE_CREATE_MUTABLE_FORMAT and this is becoming giga-copium and might be slow

Actually custom ImGui backend doesn't sound like that bad of a deal

Especially if you don't need multiple viewport/window support

[pale horizon]

But also you can do bindless textures there and no AddTexture copium

Because calling ImGui_ImplVulkan_AddTexture beforehand sure sounds like extra work, when you can just
ImGui::Image(bindlessId);

[wicked notch]

real

this is partly why I did custom backend

behold

#include <Retina/Retina.glsl>
#include <Retina/Utility.glsl>

layout (location = 0) in vec4 i_Color;
layout (location = 1) in vec2 i_Uv;

layout (location = 0) out vec4 o_Pixel;

RetinaDeclarePushConstant() {
  uint u_VertexBufferId;
  uint u_SamplerId;
  uint u_TextureId;
  vec2 u_Scale;
  vec2 u_Translate;
};

#define g_Texture RetinaGetSampledImage(Texture2D, u_TextureId)
#define g_Sampler RetinaGetSampler(u_SamplerId)

void main() {
  if (RetinaIsHandleValid(u_TextureId)) {
    o_Pixel = i_Color * texture(sampler2D(g_Texture, g_Sampler), i_Uv);
  } else {
    o_Pixel = i_Color;
  }
}

[pale horizon]

Nice. 👍
Adding this to bikeshed.md

Bindlets can't even comprehend our power

[wicked notch]

btw you don't need to do this lol

you can go the copium way and convert all your style colors to linear

this is lossy but it werks and you don't need to write a backend

[pale horizon]

As pat has said, it doesn't work for color pickers

• I really want to be able to just ImGui::Image(bindlessId) 😄

[wicked notch]

ye that's why it's copium

but tbh it's copium whatever you do because imgui sucks

[pale horizon]

Just write your own ImGui(tm)

[wicked notch]

I was wondering why my texture upload wasn't working, turns out I'm a dumbass and I didn't have the alpha channel on in renderdoc

[pale horizon]

Using RGBA8 for that... cringe...

(I know it's ImGui)

[wispy spear]

custom backend is bae

[faint crane]

CopiumGUI

[wheat haven]

imgui also supports just single-channel (which I use)

[wicked notch]

Retina.GUI's first ever test run is complete

I promise the text isn't fucked like it is in the image

idk why it is fucked up

[wispy spear]

stock imgui do be looking like that

why is that not intel zpoonza?

[wicked notch]

because this is faster to load

[wispy spear]

: >

[wicked notch]

I still have to integrate all the naniteisms

Retina.Mesh coming soon™️

[wispy spear]

shame that the floor is just a quad in oldsponza

would look much cooler with the usa states pattern

[wicked notch]

now I have to hook up the events

and the WSI

[wheat haven]

now make imgui purple and you're set

[wispy spear]

i second that

[wicked notch]

give theme

[pale horizon]

Make tlottes theme plz

[wispy spear]

is that that one white one?

[wheat haven]

https://github.com/Eearslya/Luna/blob/dev/Luna/Source/Renderer/UIManager.cpp#L221 (these colors are srgb)

[wicked notch]

good

just like ocornut intended

[wheat haven]

or wait is it the other way around

what are imgui's default colors

[wicked notch]

srgb

sadly

[wispy spear]

CIE1337

[wheat haven]

then these are linear

[wicked notch]

shit

[wheat haven]

because I output imgui onto srgb

[wicked notch]

it's joever

[wispy spear]

banned

[wheat haven]

I decided to properly convert all the colors instead of just coping with unorm target 😄

[wicked notch]

I went for converting into vertex shader

[wheat haven]

also fair

I just ran a quick script to convert and re-output a C++ array

especially when you consider color pickers, converting in the shader won't always work

[wicked notch]

I will just make my own color picker

[primal shadow]

Ugh getting METIS to respect the meshlet vertex/triangle size maximums is gonna suckkkkk though

[wicked notch]

it's not that bad

[wicked notch]

man

it feels so incredibly good to just write ImGui::Image(handle)

_imGuiContext->Render(*_tonemap.MainImage, commandBuffer, [&] noexcept {
  ImGui::Begin("Hello, world!");
  ImGui::Image(GUI::AsTextureHandle(_visbuffer.DepthImage.GetHandle()), { 1280, 720 });
  ImGui::End();
});```

look at this

it's glorious

[pale horizon]

I’m gonna still your backend
Nothing personnel, kid

[wicked notch]

absolutely magnificent

https://github.com/LVSTRI/Retina/blob/master/src/Retina/GUI/ImGuiContext.cpp

it's all yours

[pale horizon]

Mine will probably be 10x longer because I don’t have so many magic abstractions

[wicked notch]

nah

the rendering is barely 100 lines

[wispy spear]

imgooey backend is rather trivial methinks

its just populating vbo/ebo and providing two simple shaders

[wicked notch]

it do be

I made it extra shrimple by not worrying about resizing buffers

[wispy spear]

populating by iterating over imgooeys cmdists and thats all

hehe i support resizing 😉

but thats just another 3 lines or so

[wicked notch]

ye I just allocated 1 million vertices and indices and that's it

[pale horizon]

“Just don’t draw too much UI” tactic?

[wispy spear]

yeah that should last for a while

[wicked notch]

if GUI has to draw more than 1 million vertices it's joever for other reasons

[pale horizon]

Simplest editor

[wicked notch]

I won't have an editor btw

Retina is C++ only (maybe C# in the future)

[wispy spear]

i think i have 64k default size

[pale horizon]

Good. Otherwise you’d be stuck in Cherno engine hell

Plz no C#, sorry, deccer

(It’s another bikeshed hell, adding “scripting”)

[wicked notch]

scripting is rather necessary though innit

[pale horizon]

Depends. You can do a lot with just C++

[wispy spear]

c# is the only sane choice for an editor, the tooling is world class, unironically

[wicked notch]

lua is another choice as well

factorio uses it

[pale horizon]

I linked spelunky psp in my thread, it has some good and sane C++ gameplay code

Lua is not bad, but no typing is awful. Not sure how good luau’s typing is

[faint crane]

What if we made another language, use some Rust mannerisms, and remove operator precedence? Call it WGSL or something.

[wispy spear]

and call it Rust (with a capital R)

[pale horizon]

But basically you can get very far with just C++ and then start moving stuff to scripts

It’s not like you’ll have a team of people who need to iterate quickly and suck at C++

[wicked notch]

what if I suck at C++

[wispy spear]

you dont

1:21:21.212

[pale horizon]

But yeah, I was a fan of Lua, but doing more gameplay programming in Go, I understand how much typing helps and how your APIs became less copium

[wispy spear]

yeah we will support luigi either way

[wheat haven]

I like making an editor simply because playing with sliders and buttons during runtime is fun

[wicked notch]

damn

I don't even have the rg yet

[wicked notch]

anyone with windows, clang and time to waste want to try this?

linux is broken until gcc can figure shit out

[wheat haven]

eh why not

[wicked notch]

I kinda hate the fact that I basically require the latest bleeding edge shit to compile my stuff lol

[wheat haven]

what working dir

[wicked notch]

src/Retina/Entry

[wicked notch]

ignore the linker warns

lunarg can't figure out absolute paths

[wheat haven]

the asserts tho

[wicked notch]

oh wait shit

wait the working dir is wrong

my bad

working dir is wherever the exe is at

[wheat haven]

I don't think it likes the separate build dir

[wicked notch]

hm

wait did you change the model path

I load bistro on startup iirc

in this commit

[wheat haven]

I didn't do nothin

[wicked notch]

ye, you should probably put something inside the Models folder

[wheat haven]

cmake -S . -B Build -DCMAKE_C_COMPILER=clang -DCMAKE_CXX_COMPILER=clang++
cmake --build Build --parallel 8

[wicked notch]

it's i src/Retina/Sandbox/Assets

but I didn't upload a default model, silly me

also change the path to the model in src/Retina/Sandbox/SandboxApplication.cpp

skill issue on my part indeed

[wheat haven]

imgui beeg

[wicked notch]

I should figure out a way of making font size scale with resolution

but idk how

[wheat haven]

tons of hazards tho

[wicked notch]

it's actually the same two hazards if you limit duplicated messages

but they are fake

it's just syncval being unable to cope with bindless resources being bound at the same time, even when never dynamically used

[frank sail]

Delete this

[pale horizon]

Submit the bug NOW if real

[wispy spear]

imguiio has a fontscale thingy, mayhaps it helps

[faint crane]

https://jglrxavpok.github.io/2024/03/12/recreating-nanite-faster-lod-generation.html

[wispy spear]

@wicked notch where did you just post that gtc talk?

i cant find it anymore ;C

[wicked notch]

which one?

[wispy spear]

that work graph thing

or was that potrick who posted it

was a red name : >

#general message

found it

[primal shadow]

@wicked notch what the heck is the error metric meshopt ismplify gives you? I can't find any documentation on it

[wicked notch]

just quadric innit

[primal shadow]

wdym?

Like I have no clue what the value actually means

[wicked notch]

it's the average of the quadric error metric for all vertices after simplification iirc

https://github.com/zeux/meshoptimizer/blob/master/src/simplifier.cpp#L23-L29

[primal shadow]

Hmm, so how do you select what LOD to use? Is there some formula for calculating the acceptable amount of error at a given distance/

[wicked notch]

there isn't, it's up to you

you can project the error to the sphere bounds and get a screen size estimate of the error

then pick LOD based on that estimate

you can also do it super naively and scale the error by the distance

as long as your error function is monotonic it's no problem

[primal shadow]

Like take the meshlet bounding sphere, and scale the radius by the error?

[wicked notch]

no

project sphere, scale error by the area of the circle*

[primal shadow]

So you have your screen-space AABB you use for culling

So area of that, or use the sphere exactly?

And then i guess your heuristic is < 1 pixel worth of error

[wicked notch]

sure, area of the bounding rect is fine too

[primal shadow]

awesome, ty

Also more questions but you don' have to ansrwer these yet: How do I size the dispatches for persistent threads? 1 single workgroup of 64x1x1? Somthing else/

And is 1 thread per node, or 1 wg or?

[wicked notch]

that I have no idea

I was planning to do LOD selection on the CPU

as a temporary cope

then maybe I'll just do the naive BVH trasversal thing in compute

or use an octree or something, idk

but I don't think I'll be doing persistent threads

[primal shadow]

Nanite does some kind of angle-based error projection, but dosen't explain it 😦

Also @wicked notch I will continue to annoy you with questions (let me know if you mind). Do you have any tips for forcing the error to be monotic over node depth? Maybe walk the tree backwards and make bounding sphere size * error be the max of child,parent for each node?

[wicked notch]

I mean you can shrimply do that when building the dag

[dull oyster]

From what I remember, meshoptimizer outputs an error which represents the error in terms of relative mesh extents

That is, from what I understand, if the error is 0.01,then it represents a displacement of 1% of the mesh size.

What I chose to do is to project a sphere of radius error*mesh scale and another of radius parentError * mesh scale, compute the projected radius and use those projected radiuses for determining whether a given cluster is visible.
I can link to the code if you want.

[wicked notch]

I do realize just now yesterday night I linked just a comment

incredible

[wicked notch]

anti taa freaks about to lose their collective minds

[pale horizon]

Now compare MSAA and TAA plz

[glass sphinx]

you have taa??

[wicked notch]

I can't because I don't support inferior rasterization techniques like forward

[pale horizon]

Forward made a comeback, you fool

(looks good, though, I'm not a TAA hater, I'm just lazy )

[primal shadow]

I talked to someone else that did a nanite kinda thing, and they actually suggested using 0.5 * longest_view_axis_in_pixels * sqrt(error), then that gives you the length of a line that you can project to find the depth where it would be < 1 pixel, and then you can compare that depth to the meshlets bounding sphere depth in view space.

Which I don't quite understand, but they said it works better than the projected aabb size

[dull oyster]

Not sure I understand what longest_view_axis_in_pixels is supposed to represent, is it the distance (in screen/view space) between the two furthest visible points of the mesh?

Just in case : Small note about meshoptimizer, the returned simplification error is already the square root of the error computed by meshoptimizer's simplification.

[primal shadow]

Oh good to know, I'll have to remove the manual sqrt 😅, thank you

It's max of your texture dimensions of your viewport

So like 1920x1080 it's 1920.0

So you form a line of length 1920.0 * 0.5 * error, and then find the depth where it's less than a pixel

And then compare the meshlet bounding sphere depth

[wheat haven]

is that to determine which lod to load?

[dull oyster]

Sounds more efficient than what I do

[wispy spear]

oh god

i read "i have to remove the manual squirt"

[wheat haven]

anyone who doesn't instinctively read sqrt as "squirt" is lying

[primal shadow]

Yes

I'm starting on LODs

I have to go write a dag traversal shader :p

[wicked notch]

did you fix your meshlet generation problems yet

traversing a dag isn't really key to lod selection btw

you can use any datastructure you want, even a simple list of clusters (with parent id)

all you need to select a lod is the current error and the parent's error

[primal shadow]

Kinda. I found out it was blenders tangent exporter that was splitting the mesh and causing issues. Decided to just fix the mesh manually and move on, as I eventually want to get rid of precalculated vertex tangents.

[primal shadow]

Yeah that's what I have now, just a flat list. I'm not entirely convinced it works though... Hold on brb

[wicked notch]

suzanne is indeed fucked

you should still optimize your meshes with meshopt anyways

[primal shadow]

It happened with the Stanford bunny too

[primal shadow]

Yeah it's on my list to go figure out all the meshopt index buffer remappers and whatever

I'm not convinced about the single dag cut

Like dosent it depends not just on the error, but also the bounding spheres of each meshlet?

And the perspective you view it at etc

[wicked notch]

you make the parent use a very conservative bounding sphere

and you also make its error strictly greater than all of its children

you can probably account for perspective distorsion by doing some projective magic

but to be honest, it should be good enough if you're very conservative with the error

although that might result in higher lods than necessary but our gpus are big and strong

[faint crane]

I think my single brain cell is strong enough to try my hand at this now that everyone else has figured out and explained the hard parts.

[wicked notch]

I should rename this thread to nanite HQ

[primal shadow]

Ok @wicked notch let's say you have 4 nodes a, b, c, d

D is a child of C is a child of b is a child of a

If you evaluate the meshlets as a flat list to render

D has low enough error to render

And so does C

But A and B does not

Hmmm ok I see nvm

Only d would render

[wicked notch]

each node should have a parent id as well

otherwise you can't do the checking properly

[primal shadow]

Yes but

Hmmm

Ok yeah I understand

If A has too high error, but b, c, and d have low enough

Than a wouldn't render

B would render

C wouldn't not render because it's parent error is too low

And same for d

Right? So you end up with only 1 cluster, B

Which is the cheapest to render

[wicked notch]

in that case yes

[primal shadow]

While still maintaining little enough error

Ok I understand how this works to ensure a single cut then

I've internalized it

Before I didn't trust it

Also @wicked notch I had a thought

Rn I'm doing 1 thread per wg to cull cluster, then a separate dispatch to write the triangle buffer at 1 workgroup per cluster (1 thread per triangle)

Doing 1 thread per cluster to cull and then write all 64 triangles was too expensive

But what if I did 1 workgroup per cluster, but combined both the culling and triangle id writing passes into 1.

[wicked notch]

you had this before didn't you

this is (probably, though extensively tested) not going to be faster because only one thread will be doing the culling, stalling the other threads in the workgroup

[primal shadow]

Did I? Actually idr if I tested that. I know 1 thread per cluster, writing all 64 triangles was too slow.

It gets annoying with two pass and lods

[primal shadow]

@dull oyster oh hey, just realized you're the one writing the nanite blog, thanks! It was a useful reference at several points for me

Wait a minute I;m getting confused. Which nodes are the parents? The original meshlets, or the simplified versions?

should be the simplified versions

But then how do oyu have 1 parent for each node?

Lets say you have 4 clusters, you merge them, and split into 2.

Nodes have more than 1 parent

Is the parent you store for LOD selection supposed to be the parent with the highest error?

[primal shadow]

Ok, I think I need to use meshopt_computeClusterBounds() to make a new bounding sphere for the whole group
which is used for LOD, seperate from the meshlet bounding spheres

Lod 0 (bottom of the DAG):
self_error = 0
self_bounds = computed from meshlets
parent_error = error of simplified group this meshlet is in when building lod 1
parent_bounds = computed simplified group when building lod 1

Lod 1 (parent of lod 0):
self_error = computed when simplifying groups of lod 0 meshlets
self_bounds = computed from meshlets from simplified group
parent_error = error of simplified group this meshlet is in when building lod 2
parent_bounds = computed simplified group when building lod 2
and so on

so the error in each group feeds to the next one

but the bounds for self are always claculated on the exact meshlet, while the parent bounds are calculated on the group as a whole

[wicked notch]

no, you need both parents

[primal shadow]

what, how do you do the runtime LOD checking then if you have multiple parents??

[wicked notch]

you select either the parent(s) or the children

you can't just select one parent and one child

you must choose between either the parent(s) or the children

[primal shadow]

Sorry, you've lost me 😬

For each cluster, you only render it if the parent error is too high, and the self error is low enough

But which parent, if you have multiple?

[wicked notch]

the error is one

the parents are multiple

[wicked notch]

you calculate the error in the merge and simplify step

in the split step you simply copy the error over

[primal shadow]

Yes, but you also need a bounding sphere for the parent

So, which parent's bounding sphere?

[wicked notch]

again, there is only one bounding sphere

the one you calculate in the merge & simplify step

[primal shadow]

a bounding sphere over the entire simplified group, before splitting, yes?

[wicked notch]

yep

[primal shadow]

Yeah that's what I figured out last night lol, ok good

Each meshlet has a bounding sphere, but you also make a seperate bounding sphere for the gropu before splitting, which is what gets used as the parent bounds

[wicked notch]

I believe you should make a bounding sphere for the child group as well

but I'm not sure on that one

[primal shadow]

the child group, ?

[wicked notch]

if you look at this example

suppose the dag on the right is your whole mesh

there are no more parents or children

at draw time, you either choose to draw the two parent clusters or the four child clusters

there are no more valid states

[primal shadow]

ok agreed so far

[wicked notch]

therefore, isn't it more practical to treat the whole dag as a tree with two nodes?

you either have the parent "group" or the "child" group

[primal shadow]

hmm, I'm not sure that scales to a whole DAG though

[wicked notch]

I'm not sure either tbh

just an idea floating in my mind

[primal shadow]

yeah, it's an interesting idea

[primal shadow]

Ok, done with adding the parent info to the LOD system

Next is rip out my culling shader and make it choose LODs

Going to rip out the 2pass culling for now

[primal shadow]

@wicked notch turns out I've not been accounting for perspective warping when projecting the bounding sphere for the meshlet to do culling

regardless of LODs

welp

[wicked notch]

rip

[primal shadow]

Doing the local->world->view space conversions on the center point, and then adding the radius is not correct 😅

[faint crane]

I think I have a similar problem.

And I've mostly been taking note from your struggle.

[wicked notch]

things would be so easy if y'all just used bounding boxes instead of spheres

[faint crane]

We need some Deccer Spheres.

For when I move onto physics.

[primal shadow]

https://vkguide.dev/docs/gpudriven/compute_culling/

Vkguide lied to me

I took my occlusion culling code mostly from them, and they didn't account for the warped perspective:P

[wispy spear]

re fisiks

@faint crane can you coerce someone into taking intel spoonza and turn it into some stylized "wood block" model

where you can pull out the columns and then the shit starts to collapse

or you throw your stick into the wall et al

something like sis

[faint crane]

Definitely stealing that idea.

[wispy spear]

mayhaps in 2 or 3 versions, one with bigger blocks, smoller ones and even smoller ones or something like that

[loud crag]

hmm

how dare you

[wheat haven]

https://tenor.com/b1WsP.gif

[wispy spear]

luigi?

is that you?

https://www.youtube.com/watch?v=v9x9RgYP8vw

trying to pretend to be a calzone, when you really are a blob of cheddar

(it made me smile when i saw the link to gibhut in the video description, i know its not you :D)

[wicked notch]

his cat is exactly like mine

wtf

[wispy spear]

https://tenor.com/view/exposed-neckbeard-point-pointing-glasses-gif-2319665249924228600

[wispy spear]

success?!?

[primal shadow]

I think so!

[wispy spear]

[wicked notch]

https://tenor.com/view/mugik-gif-24179122

me rn:

I'm jealous

[faint crane]

This guy must have more than one brain cell.

[glass sphinx]

nice

[primal shadow]

You're further than I am though no xD?

[wicked notch]

for certain definitions of further

I still didn't finish the vertex welder

[buoyant summit]

how do we motivate you lustri

[wicked notch]

I'll go to a pond tomorrow

and see frogs

that'll me my fuel

[primal shadow]

I haven't started lol. My LOD builder defeinitly is very mediocre.

[faint crane]

Deccer Cubes actually crashed my engine as per #926896734284689428.

[wheat haven]

well you were warned 😄

[primal shadow]

oh no 😭

Oh ok nvm it was a dumb mistake

There's some subtle flickering now though, might need TAA

oh wait no, I was dumjb again ahh

[primal shadow]

yeah still have this problem, ugh

how the heck do I debug this 🤔

[frank sail]

why would this require TAA

[primal shadow]

Blend subpixel error

Not sure that's what it is though

I have no idea why no clusters are rendering

I guess there's no possible cluster where error < 1 is possible

[frank sail]

shouldn't the vertices be welded or something

so the lods are continuous

[primal shadow]

wait hold on, that makes no sense

[frank sail]

idk what I'm talking about btw

[primal shadow]

lod 0 has error = 0

[primal shadow]

I don't think it's neccesary, but i haven't implemented it yet no

[frank sail]

what I mean is that it doesn't seem right for there to be tiny subpixel error that causes pixel-wide holes or whatever

[primal shadow]

ignroe the flickering

that was a bugged thing

the real issue is that it's sometimes rendering nothing

which, shouldn't ever be possible??

LOD 0 should always be able to render

The only time it chooses not to, is if LOD 1 has < 1 pixel of error

[frank sail]

I can't answer that

[primal shadow]

in which case LOD 1+ would render instead...

[primal shadow]

it seems to happen right at the transition between LODs

[primal shadow]

Ok I did some debugging

This is right during the transition between two nodes, where it glitches out and renders nothing:

For parent cluster:
lod_is_ok = false
parent_lod_is_ok = false
For child cluster:
lod_is_ok = true
parent_lod_is_ok = true

it renders if lod_is_ok && !parent_lod_is_ok

this is confusing af though

child_parent_lod = parent_lod

so how is it false for one, but true for the other

@wicked notch ok I'm stuck, help please 😅 . Have you seen anything where no clusters render for a chunk at all, right on the boundary where if you move slightly further or closer it renders either the child or parent? Like right at the boundary between LOD changes, sometimes it renders nothing if you can get the distance just right.

[primal shadow]

ok so parent and child errors are not the same, ???

parent error in the child shader is 0.00013

self error in the parent shader is 0.00039

...suspicioully 1/3 as much? 🤔

[primal shadow]

man this sucks, I have no idea why they're different -_-

Ok other question, do you use the same bounding sphere that you use for culling as you use for determining whether the current cluster is at the right lod?

I feel like I'm messing up somewhere here

[primal shadow]

Did you use meshopt_simplifyScale at all?

Also I think I should be adding the error across LODs...

[dull oyster]

How do you calculate them?
You must ensure that the error is always increasing.

After simplifying a group, I take the max of the parents' errors, and add it to the current error, to make sure I don't have multiple lod with the same error. I'm not entirely sure it doesn't accumulate too much error, but it looks fine.

And finally I set the parents' parentError to the value I just computed

[dull oyster]

Not parents' error actually, I mean the errors of the previous lod that was used to generate the simplified cluster.

[wicked notch]

I haven't gotten to the rendering stage yet due to heavy thesis writing

[primal shadow]

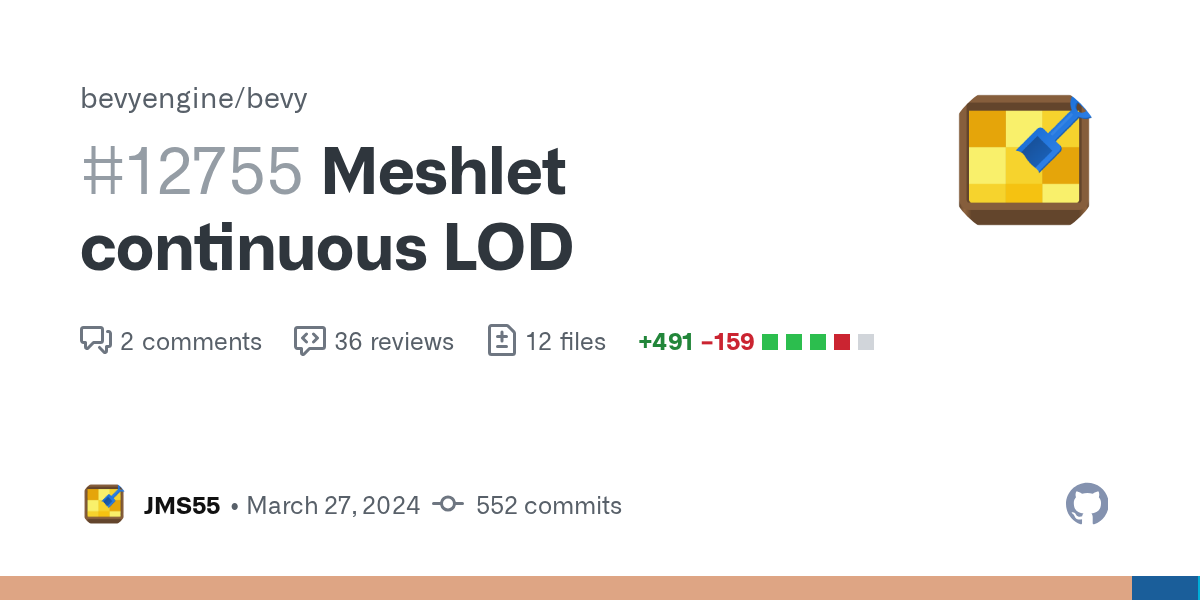

https://github.com/JMS55/bevy/blob/meshlet-lods/crates/bevy_pbr/src/meshlet/from_mesh.rs

Tbh the error seems so nebulous

Idk how to check if the error is subpixel, when it's a made up value -_-

[primal shadow]

#graphics-techniques message

[primal shadow]

@wicked notch my cluster builder is not ever able to get to 1 cluster. It seems to get stuck somewhere around 1000 left. Do I need to start welding vertices? Or remap the vertices and optimize them?

Or should I be able to get to 1 cluster even without them?

[wicked notch]

both

[primal shadow]

I need both?

Sadge

[wicked notch]

optimizing vertices is really a necessity for metis to work properly

you need zero duplicated vertices

it's really easy

vertex welding tho...

[wispy spear]

https://tenor.com/view/excelentetrabajo-soldador-corte-autogena-acccidente-gif-17354797

[primal shadow]

Which functions did you use again? Like the reorder for vertex cache or overdraw or whatever ones probably don't make sense right, because that's not applicable

[wicked notch]

yeah you just remap and hash the vertices

no need for reordering them

[primal shadow]

Hash?

[wicked notch]

just look here https://github.com/zeux/meshoptimizer?tab=readme-ov-file#indexing

you need only that

super shrimple

[primal shadow]

Gotcha. Will try when I'm home.

[dull oyster]

https://github.com/JMS55/bevy/blob/meshlet-lods/crates/bevy_pbr/src/meshlet/from_mesh.rs#L73-L75
You take the max of the simplified group and the child errors here.
If a parent is not simplified much, its error will be small, therefore its error will be <= child errors, so the resulting error for the parent will be equal to the child errors. And clusters with parentError == selfError will never be rendered.

Also, simplification is done iteratively, so the error of the parent is relative to the children. The error stored inside the meshlets must be somewhat "global", ie the error of a parent must no longer depend from the child.

To solve this issue, I personally add the child errors to the parent's error to make it increase. Not sure if that's the correct way to do it, but works fine for me.
https://github.com/jglrxavpok/Carrot/blob/a9319a15a195d6e24eafe657e15da486a47e7e45/asset_tools/fertilizer/models/ModelProcessing.cpp#L842-L852

[primal shadow]

Sure, but there's another issue. The final error calculations also depend on bounding spheres...

And it's unclear how the fuck to even project the error

Like theoretically, it should be add all error along the subtree so you get the total error, which is what you do

In world space

And then divide by the original mesh's diameter? Or something?

Not even sure if that makes sense

[dull oyster]

the Nanite presentation is (perhaps intentionally) vague about this

[primal shadow]

Yes, I was thinking of emailing Brian Karis and asking for advice lol

[dull oyster]

I use only the position of the bounding sphere, not its size.
But! I multiply the error returned by meshoptimizer with the result of meshopt_simplifyScale on the vertices of the meshlet group.

To select the LOD, for each cluster I project two spheres:
XYZ of bounding sphere and Radius of meshlet error
XYZ of parent bounding sphere and Radius of parentError

I compute the projected radius in pixels, and check them against my threshold (max 1 pixel of error)

[primal shadow]

Why does error become radius? What's the logic behind that?

[dull oyster]

It comes from the way I understand the error returned by meshoptimizer, which to me must match the interpretation of target_error:
target_error represents the error relative to mesh extents that can be tolerated, e.g. 0.01 = 1% deformation; value range [0..1]

I understand it as how much the shape of the mesh has been modified, as in how much smaller/bigger the mesh got in terms of its size. Of course not all parts of the mesh may shrink/grow that much so the actual bounding sphere may not change, but some parts may have "shrinked" by at most error%

[wispy spear]

lustri when he finished exams

[wicked notch]

I ate a pizza yesterday

it was good

[frank sail]

Same

[wispy spear]

hmm now i want some pizza too : >

[primal shadow]

I think it makes sense not to use the bounding sphere of the meshlet to do lod selection

But use a new bounding sphere based on the group

In addition to the parent bounding sphere also being from a group

[loud crag]

I finished 2 back to back just a few hours ago

[primal shadow]

After spending more time looking at LOD selection/error, I'm even more confused

I've scoured several github projects and nothing makes sense anymore -_-

[primal shadow]

I'm convinced there's no actual way to calculate the amount of error introduced by simplification in screenspace to determine the LOD

in any consistent way

[primal shadow]

Actually I think my impl is mostly right, but I made two mistakes:
Error needs to be converted to be monotonic with respect to object size, and the easiest way to do that is precalculate lod_error = (object_space_simplification_error) / (bounding_sphere_diameter) (I think this makes sense...?)
For calculating LOD, I always need to use the group bounding spheres, and never the per-meshlet tighter culling spheres. So each meshlet actually needs 3 bounding spheres: self culling, self lod, and parent lod

[dull oyster]

Meshlets of a same group need to make the same LOD decision, so you indeed need to use the group bounding sphere for LOD selection.

[delicate rain]

@wicked notch Mister LVSTRI how do you compress bistro with gltf pack/ do you have compressed version that you could share? I suspect the normal textures are compressed wrong, could that be the case? Do they need any specific treatment?

[wicked notch]

you're in luck, if you wait about 10 minutes you'll have a proper version of gltfpack

I was just working on that lol

https://github.com/LVSTRI/meshoptimizer @delicate rain

there you go

[delicate rain]

What did you change, if you don't mind me being curious?

[wicked notch]

just 5 lines lol

https://github.com/LVSTRI/meshoptimizer/commit/084c774e2db01937a9121cb132b7091f7cb26221

[delicate rain]

Oh lmao

Nice, thank you

Is this also the version that doesn't destroy the scene hierarchy?

[wicked notch]

you can just use the -kn flag for that I think

the version I had that made gltfpack leave the hierarchy untouched was kinda dumb because it was a time where I didn't use meshletisms

I can add it easily tho

[delicate rain]

Aha I see, well the flag worked well enough the last time, I think it should be fine for now

[delicate rain]

What do I set MESHOPT_BASISU_PATH to? 👀 found it

[loud crag]

i just looked at the dlss commit on retina for fun and saw you're adding RETINA_INLINE on a templated constexpr function... why?

[wicked notch]

gcc doesn't inline some functions when they're not called from a constexpr context

idk why, I dumped the inlining heuristic cost and it looked like they should've been inlined

[loud crag]

oh is inline gnu::always_inline? nvm then

[glass sphinx]

what does that do

can someone explain ktx ? its still all fuzzy to me

[loud crag]

@wicked notch unrelated but btw ImGui::Combo is the "old" api and the code for the quality preset is making me feel weird with those lambdas

[wicked notch]

it's basically a simple swizzle from RG to RA

BC5 expects one channel in the R component and another in the A component

[glass sphinx]

do you mean RG?

RA?

[wicked notch]

yes RA

[glass sphinx]

oh lol weird

[wicked notch]

indeed

[loud crag]

ktx can contain basisu textures which can quickly be transformed into BC textures or ASTC textures, so you can target mobile & desktop

[glass sphinx]

yes this is the exact problem we have

[glass sphinx]

can you tell me more about basisu?

[loud crag]

https://github.com/BinomialLLC/basis_universal

not really

[glass sphinx]

found this https://github.com/KhronosGroup/glTF/tree/main/extensions/2.0/Khronos/KHR_texture_basisu

[loud crag]

yeah thats the gltf extension which allows ktx textures

to use them you need the library i linked

[glass sphinx]

ah so basis u is used by ktx and gltf has an extension that allows for ktx/basis u textures

[loud crag]

ye

and its meant as a thing that can be run everywhere

whereas if you'd only use DDS with a BC7 image for example that will only run on desktop hardware

and this is like a middle ground

[wicked notch]

basisu is just a supercompression scheme yes

ktx supports basisu for compressed textures which you then transcode at runtime to BCn

[primal shadow]

Big W, got proper LOD selection working!!

Lod selection changing is slightly noticeable, it's not completely imperceptible sadly. But it's fairly good.

And no more glitches!

[wispy spear]

make sure to document it, maybe even blog about it

[primal shadow]

Mhm I'm not confident yet, but once I finish it all I plan to do either a mini-blog on specifically the LOD building, or a bigger one on the entire renderer 🙂

[wispy spear]

no excuses, ill have my eyes on you hehe

[primal shadow]

Subscribe to my RSS feed 😛 https://jms55.github.io/

[wicked notch]

but does it work with disconnected meshes :p

[primal shadow]

Fs no lol

I have a bunch of stuff to improve on the LOD builder

[wicked notch]

ye that's the truly cancerous part

[primal shadow]

I can't actually get to 1 node, I just stop after 10 levels atm

[wicked notch]

building a graph of meshlets was hard enough

but making it work on all sorts of meshes is truly horrible

[wicked notch]

ye, the solution is vertex welding but that's hard too

[primal shadow]

Mhmm I'll work on it in the future

I'm actually going to have to take a 3 week break I've just realized, I'm going to be traveling and won't have my desktop

[wicked notch]

rip

I'll replace you then, time to work on my own version

[primal shadow]

I probably need a break anyways

I'm just happy I got LODs working

[wicked notch]

ye that's epic

[primal shadow]

and tm the initial meshlet stuff (everything before LODs) will be merged into bevy main finally 🙂

[primal shadow]

Please let me know what you do for error metrics and projection!

[wicked notch]

I actually want to try suslik's method

but who knows

[primal shadow]

Theortically, there's more than just position error

It's not just a matter of pixels rendered

There's also things like BSDF error etc

[wicked notch]

yeah

but that's hard to account for

[primal shadow]

https://developer.nvidia.com/blog/nvidia-research-appearance-driven-automatic-3d-model-simplification/

[faint crane]

Today I just ended an involuntary 3 week break and will try my hand at this.

Couldn’t do anything on my Mac.

[wispy spear]

so you bought a pc? 🙂

[faint crane]

My PC has been waiting to render some Suzannes and Sponzas. Mac crashed on Deccer Cubes.

[primal shadow]

Good luck lol. My code is open source if you need a reference.

[wispy spear]

make sure to credit all the frogs, jasmine

[primal shadow]

frogs?

[frank sail]

the ones living in your head

[primal shadow]

@dull oyster I'm not sure projecting the error and checking < 1% even makes any sense

The error is relative to the previous meshlet, theoretically

So it's not even a function of deformation from the original mesh

[dull oyster]

That's why I add the error from the meshlets used to generate the simplified ones

[primal shadow]

Mhm I was thinking about that. But then you would want to scale it by the original mesh's bounding sphere, probably.

To get deformity from the original mesh

then use that percentage to scale the projected size of the LOD bounding sphere

so if a higher LOD group is 10% deformed from the original mesh (after dividing by the original LOD 0 bounding sphere diameter)

Then you project the higher LOD's bounding sphere to the screen, and multipky by 0.1

I haven't thought over if that makes sense or not, but something along those lines, probably?

[dull oyster]

I multiply all my errors by the group scale (meshopt_simplifyScale) to have all errors in world units instead of being relative.

[dull oyster]

I think it could work.

[dull oyster]

By the way, it is not projecting and checking if <1% but checking if <1 pixel

[primal shadow]

Yeah

But idk not convinced about anything

[wicked notch]

A nice side effect of TAA is that shadows get automagically nicer even without filtering

anyways, the framework for nanite is complete

now it's time to work on the graph algorithms

first: imma make my own graph partitioner, I've found all sorts of bugs (read: segfaults ) when specifying edge weights in METIS, the docs don't say anything specific about edge weights valid values but even if I limit the range in the [0, 2^16-1] range or [1, 2^16-1] ranges it sometimes crashes

second: it follows from the first that I need a half edge structure, this is actually good because I can start doing some preprocessing and mesh validation here already

I'll make my own data structures as well just to minimize the amount of obscure, abandoned libraries I need

also I gotta figure out a good format to store my DAG in gltf (and not break the existing data)

[buoyant summit]

write graph partitioner in rust :frog_crab:

[primal shadow]

@wicked notch do you have a collection of meshes to test LOD building edge cases?

Also I'm curious, what do you set as your target_error to meshoptimizer's simplify

[wicked notch]

#1090390868449558618 message

once you can simplify this to one cluster, you're good to go

[wicked notch]

I haven't found a good value yet

[primal shadow]

Wtf is wrong with it? 😅 . Your renderer can manage it though?

And what should it end up looking like, a flat plane?

[wicked notch]

no of course I can't

[primal shadow]

There's no way I'll manage then 😛

[wicked notch]

I have zero clue, but ideally it should be <128 triangles

the thing the model tests is how well you can weld vertices

because if you try to simplify that model with meshopt_simplify, you'll never get anywhere

[primal shadow]

Hmm ok, thanks

[wicked notch]

plus you need to watch out for UV error

[primal shadow]

Yeah I don't have any way of dealing with UV seams

[wicked notch]

#1168692074447642664 message

[frank sail]

@wicked notch if you're still awake, I have a question for u (related to what I posted in #vulkan)

does your renderer run under renderdoc?

[wicked notch]

if I remove DLSS yes

one sec

[frank sail]

have you been able to use edit-and-continue on your original source code (by emitting debug info)

[wicked notch]

lemme checc

I need a toggle to easily delete DLSS

huh

if I edit it dumps every include in one single file

I can still debug just fine tho

[delicate rain]

LVSTRI do you cull VSMs?

you do right?

[wicked notch]

as of right now I don't

I removed the thing to test something else

but I'll integrate it back tomorrow

[frank sail]

hmm renderdoc is happy to show me the source if there are no includes

maybe my glslang includer is fooked

[wicked notch]

mfw tomorrow I'll have to sing the national hymn and I don't remember it

why does our hymn last for 4 fucking minutes

[frank sail]

wu

t

[pale horizon]

New LVSTRI character arc dropped

[frank sail]

tbf Americans have to recite our "pledge of allegiance" every morning in grade 1-12

it's technically optional but socially you're pressured to do it anyways

[frank sail]

ye I just reverted to using my scuffed stb_include fork and now it "works" (it shows the mostly unmolested source)

[wicked notch]

GLSL is now dead

I am at peace

[primal shadow]

wgsl 🦀

[wicked notch]

if you add bindless I will stop considering webgpu a meme

even opegl has bindless cmon

[primal shadow]

We have it, but it's not very good

But you can use wgsl with vulkan if you want

It's a nice shader language regardless

[wicked notch]

do you have pointers/templates

can you alias descriptors/buffers

[primal shadow]

We have limited forms of pointers, idk what you mean by templates or descriptor aliasung

[frank sail]

pointers = buffer pointers (not logical pointers)
templates = generics
descriptor aliasing = reinterpret memory through different descriptor declarations on the same binding

[primal shadow]

nope to all 3, I think

[buoyant summit]

[wicked notch]

-force-glsl-scalar-layout -fvk-use-entrypoint-name -emit-spirv-directly -matrix-layout-column-major -O0 -lang slang

[glass sphinx]

yes

this is the magic spell

[wicked notch]

I am going insane

this dogshit IR thinks SV_PrimitiveID is a global param which is good

except it doesn't store any references to any parent type

so

struct PerPrimitive {
  uint PrimitiveID : SV_PrimitiveID;
};``` the struct is lost in translation

incredible

so I literally have to check whether the current stage is mesh shader

[frank sail]

hey @wicked notch what's that cope technique for splitting cascades called again

the intel one

where you analyze the depth buffer

[wicked notch]

SDSM

[frank sail]

that's right, thanks

[wicked notch]

ah yes

good code™️

very good to work with

[wicked notch]

I eep

[faint crane]

https://vxtwitter.com/MikoPiotr/status/1775197157466734980

[severe dome]

thats me :)

hello im necroposting bc I've not looked at this thread in a while and i like feeling useful 😌

[pale horizon]

Since then I wrote my own backend which uses some unholy hacks from DiligentEngine to achieve proper alpha blending, color pickers and I also support putting non-linear colors into ImGui's color pickers (which are converted to RGB and back)

[severe dome]

hell yea

[wispy spear]

you can do that, just keep the actual textureid around, which you need anyway for getting the handle in the firstplace

[severe dome]

I was replying to the srgb stuff and my mention 😌

[wispy spear]

ah, i blame elias for not properly separating messages then : >

[loud crag]

can someone please recap what exactly the issues are with current implementations besides that imgui uses srgb for everything?

and for me Image::Image(imageView) works perfectly without needing to change anything

[pale horizon]

That’s the only issue. But a pretty big one
Try to display _SRGB texture via ImGui::Image call, for example

[pale horizon]

Hmm, I thought it took descriptor set

[wicked notch]

it does

[frank sail]

Oh ye I think I just make a unorm view and then send it off to imgui

[pale horizon]

Requires mutable format for all textures though. Kinda cringe

[frank sail]

Is it though

[wicked notch]

yes

by the power given to me by John Khronos himself, I hereby declare you cringe

[primal shadow]

PR ready for initial meshlet LODs. Didn't do vertex hashing yet, just the basics. https://github.com/bevyengine/bevy/pull/12755

[wispy spear]

lvstri is missing as a refererence

[primal shadow]

I have nothing to link to lol, otherwise I would

[frank sail]

He has a github with the same name

[wispy spear]

or a simple mention 🙂

as he figured all out for you

[primal shadow]

Ah sure, I'll add him (and others) in a bit to a credits section. The references is intended to help reviewers, I wasn't thinking about credit yet.

There will also be a blog post when bevy 0.14 releases in a few months, and I'll credit people more.throroughly at that point

[wicked notch]

(it's fine you don't have to add me, I did nothing in particular lol)

[primal shadow]

Nah you helped a lot! You answered my many questions lol. I do want to give people credit

[frank sail]

Lvstri unknowingly improving the rust ecosystem

[wispy spear]

lustri you raised your voice at the right time in the right levels 🙂

[frank sail]

Luigi was always my favorite of the bros

(don't tell Mario I said that)

[wicked notch]

das a lot of todos

me: hmm this PerPrimitiveEXT decoration is missing

literally every possible tool in the Graphics Programming stack breaks

NV Driver: broken
spirv-val: broken
slang: would you believe it, broken

[wispy spear]

why not come back to the holy land of (G)ood (L)uck

[wicked notch]

ah yes, making my life harder for no reason

[wispy spear]

heh i tried

[wicked notch]

I'll fix this broken ecosystem, together with Potrick

and make GP great once again

[wispy spear]

potti mentioned that the slang ppl fix shit in a timely fashion

[glass sphinx]

its really cool tho that slang is nv

cause they can ping the driver peeps
