random static constexpr be like
#Fwog and co.
heavy cipher
long robin
hey man static constexpr is actually considered helpful
or maybe it was inline constexpr
but still
heavy cipher
no doubt it has an effect, but i wonder why that single declaration merits it, but not the rest
long robin
ah
probably copied it from my examples which have a similar construct in the global namespace
putting the static bit in a function is a bit quirky fr
tired sandal
Fwog is love
Fwog is live
modern saffron
fiery sorrel
probably copied it from my examples which have a similar construct in the global...
I did but now I realize when I moved it into a function, I should have just made it a regular auto instead.
Thanks for spotting the mistake.
The current version of 01_hello_triangle.cpp doesn't have it too https://github.com/JuanDiegoMontoya/Fwog/blob/9215996c3ca1e7bc855abba6f53f3a48264c4f84/example/01_hello_triangle.cpp#L79
I am looking through the history of that file to see if I did get it from there
Yea i don't know where it came from. it has no reason to be an static constexpr: https://github.com/JuanDiegoMontoya/Fwog/blob/6a5d37a97bd50117914458a585186df297e94c13/example/01_hello_triangle.cpp#L79
fiery sorrel
random `static constexpr` be like
In the original its just an auto inside a static function. I will fix the mistake.
golden schooner
thats exactly how i pictured you for a long time
: >
this kind of glasses hehe
golden schooner
@fiery sorrel i did click it, but the dark theme looks better
fiery sorrel
I think I could set if I want it to be Dark or Light as default. I prefer light and find it more professional. Maybe there's a way to set it to system default or something even from a website?
fiery sorrel
Yea. There are for native apps. Not sure if there is from javascript tho or if thats a security thing. Maybe id look into it as a form of curiousity
anyways my Sunday is nearly out so it was nice to chat on the Discord
ive been more productive without bein on the cord. I DM @long robin sometimes with the side stuff i work on
golden schooner
jaker should install office hours and charge for it too 🙂
fiery sorrel
I dont ask him for help!
Unless you meant office hours like a therapist type of deal
fiery sorrel
:p
anyways point is even tho im less active, im actually "more active" when it comes to coding and GP stuff in general.
Been spending my newfound free time freed up by less Discording with studying and stuff
mayb id become more active in a year or two once I have the skill level to slack off, but now I feel more inspired to catch up to the big guys ig haha
point is, just becos i ain't here doesn't mean I gave up on GP and all the stuff I learned here u know
long robin
mostly
fiery sorrel
I let myself come on Sunday
but I also notice that when I have it i end up way more distracted n get last done
I guess for now its like a 'reminder' why i have such a personal goal.
dapper gorge
I wish I had your will
I don't know how I got through this years exam session
I'm stuck in endless self-destructive procrastination
but at least I have traced sponza
fiery sorrel
you got this! If you start studying as soon as you can its a lot easier. You seem to have the work ethic since you do work on your projects often, so its just a matter of prioritization for you. I believe you can do it :)
long robin
not yet. I haven't thought of a good way to do it
well, I haven't tried too hard either
heavy cipher
i don't think it is too bad as long as you don't use glsl to align
aka let glsl layout and then match the host to that
long robin
hmm
heavy cipher
anyways, i wuz thinking - it would not be terribly difficult to have a lil' bit of cheeky cmake build part that would dump layouts of the shared structs for both glsl and ZE HOST and then verify if they match
long robin
I could imagine doing shared headers if I had a compatibility header, like what we use in FidelityFX
long robin
anyways, i wuz thinking - it would not be terribly difficult to have a lil' bit ...
how do you propose dumping the struct layout
heavy cipher
which one?
long robin
either one
heavy cipher
glsl via glslang
long robin
now how do I match the structs between the two
heavy cipher
with the power of baba and booey
long robin
or is that where the shared header part comes in
heavy cipher
well yeah
you just match the fields
if they are at the same offset
the contract is correct
long robin
I think it would be better to make matching the layouts easier in the first place, rather than offering a way to check that they match
ya feel?
I could ask potrick how he does it for daxa (I think with macros)
heavy cipher
i do not feel
long robin
making a struct-layout-checker feels equivalent to a sanitizer, when those bugs could (ideally) be impossible to make by construction
heavy cipher
@snow sun reveal thine secrets
long robin
custom types with alignas should be able to match std430 without too much difficulty I think
could gate those types with a define in a header, then include that in headers where I define shared structs
heavy cipher
you would need a macro to introduce the type name i guess - not the end of the world i suppose
but still, what you get is not superbly C++
heavy cipher
its scalar only
heavy cipher
naw, won't save you
long robin
also don't use std140
heavy cipher
ah
long robin
heavy cipher
also thats just scalar with extra steps
long robin
exshrimpactly
heavy cipher
this word has permanently damaged my anterior cingulate cortex
i'd still like to know the impact of scalar on the various hw and buffer types
long robin
on AMD, you get at worst unnecessarily small loads (in my testing, though it seems the SC has gotten better since), which can cause extra cache misses
dapper gorge
I'd much rather study the impact of scalar on my brain
long robin
idk about NV and idc since they won't let me see ISA very easily
clamclusion: always use scalar block layout
long robin
mao le
heavy cipher
but yes
long robin
AMD should be perfectly capable of doing it for UBOs and SSBOs
heavy cipher
what do you base this on
long robin
my own tests and interpretation of the ISA
long robin
I have benched the perf impact of scalar block layout on AMD
heavy cipher
but coalescing is independent of the isa
long robin
then clarify what you mean
long robin
ah, I thought you meant turning small loads into big loads in the ISA
heavy cipher
thats one thing
long robin
I do not have any idea about the hw coalescing
valid oriole
looks at author
god he's everywhere
heavy cipher
yeah
long robin
I guess the question is (pardon my jargon) how does unaligned mem access affect hw schtuff
heavy cipher
ig this is what devsh is sayin
you still do 430 alignemenets, the compiler doesn't generate shittier code with scalar
long robin
that's boring
heavy cipher
maybe we can send pixel into the aco mines
long robin
can you unroll that abbreviation for me
heavy cipher
P pixelduck
I ig its pixelduck
X x gon give it to ya (it == pixelduck)
E eeeey its pixelduck
L life is going by while i meme on this server
valid oriole
aco stands for AMD compiler
v helpful I know
(it’s the amd gpu compiler backend in mesa)
heavy cipher
@valid oriole do you know anything bout this stuff
valid oriole
hmm I think at least as long as you stay 4-byte aligned amd hw shouldn't really do stupid stuffs
at least I don't know of any reason to do stupid things
i'd be quite disappointed if scalar loads of e.g. a vec3 + a float won't turn up as buffer_load_dwordx4
heavy cipher
right, but thats not the entire picture
long robin
@silver shoal might know
heavy cipher
but can he tell
long robin
he can tell if he can tell
heavy cipher
but can he
long robin
alternatively, I can dig and then see if I can tell
but I don't feel like looking at hw docs tomorrow
heavy cipher
does that mean you look today
long robin
well it's 3am, so technically you're correct
which is one of the corrects of all time
snow sun
custom types with `alignas` should be able to match std430 without too much diff...
arrays break necks
long robin
yeah std140 arrays suck and I don't use them
heavy cipher
430 arrays of vec3 too
long robin
why would you ever want more than one of something
snow sun
one of the problems i had with scalar was that anything above 64 didnt properly align but that was a bug and fixed
usually scalar exactly matches c
long robin
but you have to qualify it or martty hits you with a chair
snow sun
as long as you have the same type bit width. eg you must enable int64 if you wanna transport buffer references in steucts to march them
i have some tests foe it
but i went to always use scalar to preserve my hair, the aligning thing was just too sketchy for me in the end
snow sun
430 arrays of vec3 too
but if you have shared makros
you can cheat
just make vec3 a vec4
😎
heavy cipher
its an option to ban vec3
snow sun
yea
long robin
alignment doesn't really cause me issues anymore
it's more annoying having to synchronize structs
snow sun
agreed
heavy cipher
there is benefit to shared, yes
snow sun
@heavy cipher curious what cases you could cause you trouble for unaligned ness and worse coalesing
i accidentally tested unaligned aromic perf a few weeks back, even if you are 3 bytes off they are the same speed on a 1080
i would assume amd can do similar but my renderer crashes on amd atm
but i am in the camp now what when i could be read or write limited i manually make sure vec4 and mats and such are 16byte aligned
no biggie
scalar for life
heavy cipher
don't think the atomic perf is the key
snow sun
ok
heavy cipher
but i am in the camp now what when i could be read or write limited i manually m...
this is also an option
silver shoal
Uhhhhh in terms of coalescing vmem operations it should all happen inside the L0? Just by manner of being a cache
It just takes an address per thread so if they all hit it will be quick
silver shoal
but I don't feel like looking at hw docs tomorrow <:bleakekw:1082598350303539240...
same tbh
snow sun
It just takes an address per thread so if they all hit it will be quick
older gpus can get bottlenecked by queued read/ write addresses
not sure if that is much of a problem anymore
but i got into situations where even okish close loads were just filling the read queue so it couldnt issue more reads
but this is oldold
new gpus likely can just have the unaligned load in the queue instead of having to issue split loads directly
nvidia also makes a big point about how coalesing within warps is very important, but they never really mention alignment
silver shoal
older gpus can get bottlenecked by queued read/ write addresses
Yeah thankfully that changed with navi - there's a whole section in the rdna1 white paper going "damn when we stopped shoving buffer ops down the slow quad per cycle texturing path things went faster"
snow sun
silver shoal
Damn the word quad has been changed to queue
heavy cipher
just uhh send over the hw docs, we can fish it out from there
silver shoal
In that case yes hits will get stuck behind misses to return to shader in order
silver shoal
just uhh send over the hw docs, we can fish it out from there <:yaymd:1091308645...
You and I wish it were that simple to just read the docs and know what's going on
heavy cipher
nvidia also makes a big point about how coalesing within warps is very important...
the gcn article above says it, 64 byte alignment or shit gets doingted
but idk bout rdna
heavy cipher
as i suspected, you have to look at cuda
Global memory resides in device memory and device memory is accessed via 32-, 64-, or 128-byte memory transactions. These memory transactions must be naturally aligned: Only the 32-, 64-, or 128-byte segments of device memory that are aligned to their size (i.e., whose first address is a multiple of their size) can be read or written by memory transactions.
When a warp executes an instruction that accesses global memory, it coalesces the memory accesses of the threads within the warp into one or more of these memory transactions depending on the size of the word accessed by each thread and the distribution of the memory addresses across the threads. In general, the more transactions are necessary, the more unused words are transferred in addition to the words accessed by the threads, reducing the instruction throughput accordingly. For example, if a 32-byte memory transaction is generated for each thread’s 4-byte access, throughput is divided by 8.
snow sun
cuda docs are actually pretty insightful many times
heavy cipher
let me correct you: nvidia forgoes publishing anything else basically
snow sun
> Global memory resides in device memory and device memory is accessed via 32-, ...
sad that its so vague on the coalesing
but its clear that aligned makes life easier
snow sun
the limitation of the coalesing
it doesnt really say it will always merge all addresses that follow on each other into larger loads
i guess they say that
what does it mean with "unused words"
does it do a 16 byte load when for example you issue 4byte loads at 0 and 8 leaving half the load unused?
heavy cipher
yes
the loads are always at least 32 byte big
if the invocs don't use all of it, effective throughput goes down
snow sun
snow sun
the loads are always at least 32 byte big
then it makes total sense to me
so its more about having addresses close together
and ofc not overstepping the bounds of an aligned load when possible
so when loading 32 bytes, better make that aligned
heavy cipher
this is global memory
snow sun
yea
interesting that its not simply cache line size, or is a cache line only 32 bytes?
128bytes
hmm
heavy cipher
so on amd it seems like the cacheline is 64 byte
oak garden
unarchiveth thee
sullen carbon
did you get some oil money or sth
long robin
mashallah
golden schooner
wind trout
FwogVk confirmed 💯
dapper gorge
pog
final cove
wow 100 stars
final cove
I have no idea how other people use github tbh
golden schooner
same
daring surge
but nobody provided any feedback neh?
vuk is similar
272 stars, only like 10 people max who i've seen talking about actually having used it
i'd guess the percentages of the remainder are
- people who use it but don't communicate at all (5% max)
- people who don't use it but think they might at some point (~45%)
- people who just think it's cool (~50%)
golden schooner
ja its sad somehow
but same for all my other projects too
at least we have us 🙂
dapper gorge
mfw I am one of the people who don't give feedback
golden schooner
you do
final cove
aren't the last 2 types pretty much the same
95% "oh this is neat I gotta use it/copy it at some point" forgets
daring surge
95% "oh this is neat I gotta use it/copy it at some point" _forgets_
no
#3 isn't even really necessarily a graphics programmer to me
like the couple people in college that i talked to about my game at the time that starred it despite the fact that they could never build it
golden schooner
i also forget about things i have starred in the past : )
final cove
I basically don't star anything, if it's useful I just clone it into my "other people's repos" dump folder
especially since keyword searching in github sucked for a long time (maybe still sucks?)
greping local files is convenient
golden schooner
i know what you mean
finding/searching information really sucks
or catalogueing and then finding 🙂
long robin
the talk about tracy in #bikeshed-😇 has me thinking if I should add some integration in fwog
long robin
hmm how should I handle the case where the user already has tracy installed
heavy cipher
are those just callbacks
Yuh
heavy cipher
dunno
heavy cipher
and i shall prepare for the wurst
long robin
hmm
can tracy even use runtime identifiers for scopes
I remember someone here having an issue with it
heavy cipher
transient zones or summin
long robin
3.1
Handling text strings
When dealing with Tracy macros, you will encounter two ways of providing string data to the profiler. In
both cases, you should pass const char* pointers, but there are differences in the expected lifetime of the
pointed data.
- When a macro only accepts a pointer (for example: TracyMessageL(text)), the provided string data
must be accessible at any time in program execution (this also includes the time after exiting the main
function). The string also cannot be changed. This basically means that the only option is to use a string
literal (e.g.: TracyMessageL("Hello")).- If there’s a string pointer with a size parameter (for example TracyMessage(text, size)), the profiler
will allocate a temporary internal buffer to store the data. The size count should not include the
terminating null character, using strlen(text) is fine. The pointed-to data is not used afterward.
Remember that allocating and copying memory involved in this operation has a small time cost.
we good
now I'm trying to remember why I didn't use a string_view here
void (*verboseMessageCallback)(const char* message) = nullptr;
heavy cipher
robert downstream junior
long robin
be me
want type-erased callable wrapper to dodge a fat include that leaks impl details in a header
realize std::function is exactly what I want
realize that#include <functional>is probably 10x more expensive than the other header
wind trout
How difficult do you think FwogVk would be? Do you think it would be possible to keep 100% of the current Fwog api but have a version that was Vulkan behind the scenes?
golden schooner
fwog is more or less inspired by vookan
long robin
How difficult do you think FwogVk would be? Do you think it would be possible to...
The tricky stuff would be the implicit sync
I think if I made a vk version of this I'd just expose raw sync primitives
I could also make a render graph but I know that's a bit of a worm innit
daring surge
vuk backend for fwog
wind trout
I think if I made a vk version of this I'd just expose raw sync primitives
Interesting ok
I wonder how close fwog is to being a layer on top of a low level backend that people could add as needed
Especially since you did all the hard work to come up with the interface already
final cove
make a validator that throws errors at the user for not calling your barrier funcs appropriately, even in GL
that way when you make FwogVk no code will change
long robin
I wonder how close fwog is to being a layer on top of a low level backend that p...
Currently there are no concepts of descriptor sets, memory barriers (except for the OpenGL ones), image layouts, memory allocation command buffers, etc. And Fwog lets you do some glisms like updating buffers and images with implicit sync
heavy cipher
the problem is that the amount of info (
) you give to the gl driver is not the optimal amount
long robin
Yeah that's why I'm not keen on making fwogvk have the exact same interface
long robin
but you have figured out the optimal amount of info to ask for and determined what things can be automated with that
golden schooner
did you fix the srgb-imgui-ism yet?
heavy cipher
PRs welcome deccy
long robin
Have you considered getting over it
Inshallah deccer will write an epic Vulkan renderer
golden schooner
vkEnumerateInstanceExtensionProperties is the only function call in there vk related : >
heavy cipher
just use vook
golden schooner
: )
i would like to be comfy enough making a gpu driven thing first, using opengl 🙂
heavy cipher
but you have figured out the optimal amount of info to ask for and determined wh...
mayhamps
long robin
more optimal than gl at least 🙂
||sorry, that must be borderline insulting as it's not hard to be better than GL ||
heavy cipher
more optimal than gl at least 🙂
what i mean is that there plenty of interesting things left
long robin
yeah like [redacted]
heavy cipher
no, nothing of the sort
golden schooner
ah
would be interesting to see people go from api1 to api2 and compare, see if api2 is the holy grail and that it was absolute worth the effort
or whether performance is now worse 🙂
heavy cipher
yeah like [redacted]
mmm, currently i have ideas for: new FE, new BE, improving allocators, new pipeline paradigm, support lib stuff like reactors, batcher, SPIRV templating and third party integrations of le FSR and SPD and other algos
time machine when 😔
golden schooner
when do you start?
dapper gorge
time machine when 😔
time machine as in: generate time
or time machine as in go back
golden schooner
perchance lvstri can help
dapper gorge
I'd rather the first one tbh
golden schooner
vukfood thread when
heavy cipher
go back, shoot my kneecaps out of mercy
golden schooner
fukvood*
dapper gorge
perchance lvstri can help
I literally have no clue about anything he wrote in that message
except maybe FSR and SPD
golden schooner
haha
FE = frontend
BE = backend
martty is a webdev, trying to improve build pipelines and CSS generators 😛
long robin
BE = bellend
heavy cipher
martty is a webdev, trying to improve build pipelines and CSS generators 😛
almost 🙂
golden schooner
hehe
golden schooner
is that going into the (series of) article(s)
heavy cipher
ah yes, thanks, i could also be writing articles
long robin
Btw reflection is a bit annoying to implement because
- Images and samplers use regular uniforms, which are queried with GL_UNIFORM
- variables in uniform blocks are also iterated over with GL_UNIFORM
golden schooner
blocks are ugly af to reflect
long robin
Luckily I just need the binding
But for images and samplers, I have to iterate all uniforms 😦
long robin
So I'll have a massive switch to check the uniform type
heavy cipher
continously reflecting on if torturing oneself with opengl is a good hobby
long robin
continously reflecting on if torturing oneself with opengl is a good hobby
Actually vulkan doesn't have built-in shader reflection. Checkm8 atheists
heavy cipher
is fwog spirv only or not btw
heavy cipher
dank
long robin
As in uncomfortably damp and moldy
heavy cipher
e
fallen fog
does this wrapper add some debugging features? as people generally complain about openGL being a bad degbugging experience
long robin
Ye not as good as Vulkan/dx in it's debug layer, but better than raw gl
golden schooner
belmu just linked this... https://placeholderart.wordpress.com/2014/12/15/implementing-a-physically-based-camera-automatic-exposure/
long robin
belmu just linked this... https://placeholderart.wordpress.com/2014/12/15/implem...
right now I don't do the camera response thing at all lol
this
golden schooner
right now I don't do the camera response thing at all lol
you mean not yet. thats ok
long robin
I'm gonna have to add a feature to fwog to enable rendering to imageless framebuffers
long robin
um I'll show you
golden schooner
let me strap in
golden schooner
oooh (its gl4.3+ stuff, explains why i thought it would otherwise be nimcoimplete)
long robin
actually, shouldn't glViewport suffice already
golden schooner
dependson what you want to do? 🙂
long robin
e.g., I want to render to a 16k x 16k area
but have no texture attached
I want to use gl_FragCoord.xy and write to an image instead
golden schooner
i would imagine, fbs need to be complete with a color or depth target
and if you dont you get an error 🙂 no?
then the param you showed will make sure you can have an empty fb
long robin
param specifies the assumed width for a framebuffer object with no attachments. If a framebuffer has attachments then the width of those attachments is used, otherwise the value of GL_FRAMEBUFFER_DEFAULT_WIDTH is used for the framebuffer
maybe this stuff is just for glGet
golden schooner
should do the trick then
hmm
render to an image... is also still beyond my imagination
i am thinking you draw to using a compoot shader?
golden schooner
aaah : this feels like a hack, crammed in there after the fact
long robin
render to an image... is also still beyond my imagination
the reason is that we want to render to a virtual texture where all pages may not be physically resident
we don't want a literal 16k texture, we just want to see where the samples land and write them to resident pages
golden schooner
at least a warning
long robin
However, the rasterization of primitives is always based on the area and characteristics of the bound framebuffer
yeah so I guess I need glViewport in addition to this
golden schooner
indeed it also says "otherwise business as usual"
you only pretty much just disabled fragment stage
now re fwog
would it be reasonable to have a dedicated BeginRenderism function for that sort of ism
long robin
I can add a shrimple check in fwog to see if there are any attachments, then call glFramebufferParameter if there are none
golden schooner
hmm
i think thats dangerous, what if you accidentally forgor to specify any targets, and dont want to render into empty fbo
long robin
because the Render function already takes a viewport that we can derive a size from
idk when the viewport size would need to differ from the framebuffer size in this case
long robin
i think thats dangerous, what if you accidentally forgor to specify any targets,...
then your screen is black and you open up renderdoc
golden schooner
can we spdlog::warn loggerHackCallback("are you sure you are doing the right thing? ill assume x for now. just so you know. dont come back and complain if the screen is black my mf");
golden schooner
ikr
long robin
it would allow expressing the other glFramebufferParameter stuff like layers too
and shrimple count
golden schooner
exactly
long robin
curious
Conceptually, virtual shadow maps are just very high-resolution shadow maps. In their current implementation, they have a virtual resolution of 16k x 16k pixels
max viewport for most things is also 16k
golden schooner
16k should be enough
long robin
ye
golden schooner
would be cool if all that technicality could be visualized later down the road too
for debugging purposes... somehow
long robin
visualize what exaccly
long robin
I could make a residency visualization like js has in #1090536732769927178
golden schooner
HOWEVER
long robin
#1090536732769927178 message
golden schooner
usually my dumb comments trigger a little corner of your brains a few days later somehow, and you always come around with some idea/solution/implementation of sorts
long robin
usually my dumb comments trigger a little corner of your brains a few days later...
Me when deccer makes a random offhand comment
had to scroll really far to find that one
golden schooner
proof once again i am right 😛 (jk) (jk = jaker kidding)
long robin
max viewport for most things is also 16k
so log2(16k) is 14 (bits), and 99% of implementations have 8 subpixel bits in the viewport
that only adds up to 22 bits
long robin
maybe there are 2 bits for the guard band for 24 bits total
then the other 8 bits are ???
golden schooner
__reserved
long robin
or maybe it's just 10 guard band bits
that gives the gpu a yuuge area in which it doesn't have to do clipping
golden schooner
which is a good thing
long robin
I should pay closer attention to those internal docs
golden schooner
the ones from internal.amd.com/gl/4.7/preview/?
long robin
there's no deccer at work to dogjiff.gifjif me when I forgor something
golden schooner
put it on your fone, quick access button thing
long robin
-100000 productivity
maybe I should just tape a pic of the dogjif to my monitor to remind me
golden schooner
or find one of those photo frame thingies which can play a clip
wind trout
I want to use gl_FragCoord.xy and write to an image instead
Hey cool this will be super useful. Ive seen some voxelization methods that also need this
signal widget
Feature request : https://mastodon.gamedev.place/@[email protected]/110862555675970086
long robin
Feature request : https://mastodon.gamedev.place/@[email protected]/110862555675970...
you're not gonna believe this, but I already have one
signal widget
Neat 📸
long robin
it is not the funny number. you may not laugh
valid oriole
now push two commits at once
brazen glacier
you're not gonna believe this, but I already have one
is that volumetric frog
unreal engine in shambles
golden schooner
fwog does a weird thing with stbi
i wonder why you decided to include it that way
hand including vendor/stb_image.cpp to all projects etc, rather than just compiling into a liblibstbi 😛
i cant trivially include <stb_image.h> in Application.cpp
heavy cipher
jaker, fix your 🇸🇹 🇧🇮🇸🇲s immediately though
- signed, deccer
golden schooner
Just the exshrimples
yep, tahts why i have fixed it, exshrimples fetch stb and link with it
and i did a thing
long robin
hand including vendor/stb_image.cpp to all projects etc, rather than just compil...
I do it to make the headers visible or something
golden schooner
heavy cipher
make the icon be
but the eyes follow the cursor
golden schooner
i use that icon for my shit already 😄
error C2664: 'char *stb_include_string(char *,char *,char *,char *,char [])': cannot convert argument 3 from 'const char [19]' to 'char *'
wth
char* accumulateDensity =
stb_include_string(Application::LoadFile("shaders/volumetric/CellLightingAndDensity.comp.glsl").data(),
nullptr,
"shaders/volumetric",
"CellLightingAndDensity",
error);
const cast time
golden schooner
seems to be a msvc via cmake-tools-in-vscode thing now
didnt even touch those lines
alright, vs doesnt give a shit... and the frog works
long robin
Lol
long robin
```
error C2664: 'char *stb_include_string(char *,char *,char *,char *,char [])'...
You need to use my stb fork to get a version of stb_include that is const correct
long robin
Nope. I just fixed const correctness
long robin

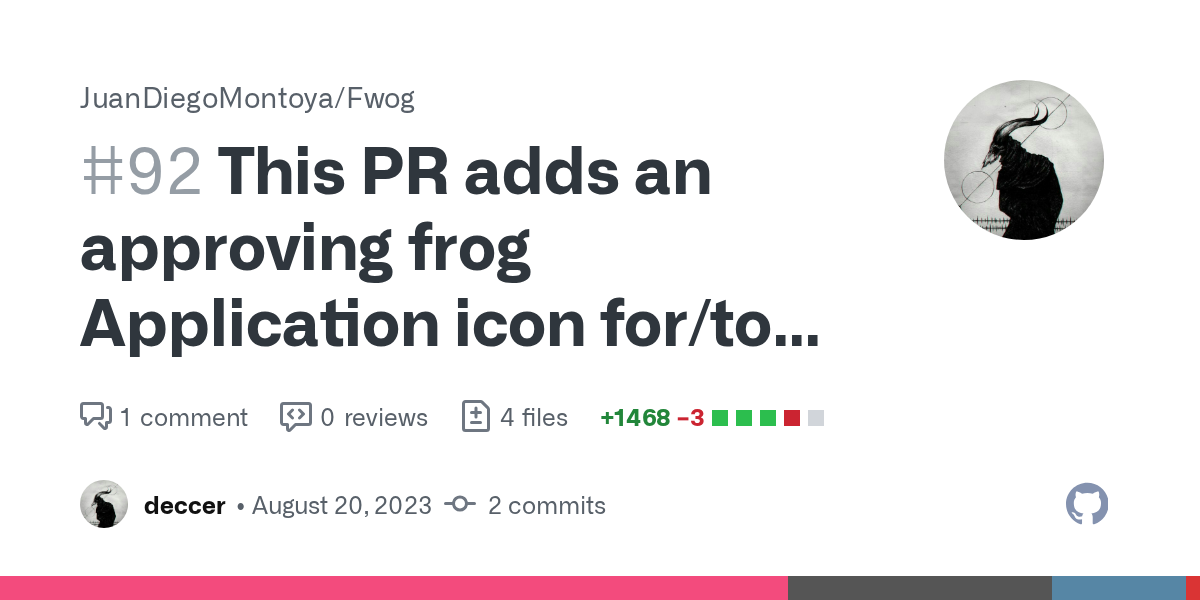

@golden schooner what is this (I am finally at my computer)
https://github.com/JuanDiegoMontoya/Fwog/pull/92/commits/e3570086f09aa55e2c378a836d79cd3f6fccfba3
that is why you needed const_cast
explains the entire previous convo
long robin
is there a/another reason for the fork?
the version that's vendored in fwog also uses the safe c string functions, which isn't in my fork
golden schooner
hmm
i kind of remember now
but im also not a fan of keeping copies which go stale on day 1
i could perchance fetchcontent your fork instead of pulling it from upstream, unless stb accepts your PR
heavy cipher
fat chance of that i think
long robin
Why do you have to fetchcontent anything
This all feels pretty orthogonal to what the PR is supposed to do
final cove
but im also not a fan of keeping copies which go stale on day 1
but isn't this normal practice? you lock your dependencies to a version to begin with and you fast forward them if there's a reason
imagine rerunning cmake and every time there's a chance that some web pull will maybe break your engine
using a never-upstream'd fork is not that different to keeping a submodule locked on a particular commit
golden schooner
it would just be fantastic if stb wrote warning free code, but thats what you get from using a 30 year old compiler?
golden schooner
This all feels pretty orthogonal to what the PR is supposed to do
yup, ill redo
final cove
30 year old coding practices more like
golden schooner
its also partially my inability to c++, vscode, vs and clion also behave different
long robin
Some (most) people are stuck doing what they are comfortable with
final cove
personally I'm starting to warm up a ton to keeping frankenstein'd forks of libs I use
that's the beauty of open source after all
golden schooner
why fetchcontent? because everything else is also fetchedcontented tbhed, and having lose dependencies flying around in your folders is "weird" (tm)
final cove
third_party directory
golden schooner
its still a mix
i like order 🙂
and i want to smear it all over the place when i can, obviously hehe
final cove
so many people use the third_party directory thing that it doesn't feel out of order to me
silently making web requests whenever I rerun cmake is out of order
golden schooner
if cmake worked/is used properly it shouldnt, but i understand what you mean
long robin
why fetchcontent? because everything else is also fetchedcontented tbhed, and ha...
Ye that's something that could be changed at some point, but not in this PR. I'd have to put my other changes in my fork first
long robin
Hm
golden schooner
ci can it seems
but when i change #include <stb_image.h> #include "stb_image.h" in vendor/stb_image.cpp then it work
< > means there needs to be a -I set properly
but there is none
oki, fetchcontent is gone, only thing i did to stbi is the "stb_image.h" thing
long robin
I don't get the difference between <> and ""
I thought they just changed which directories were searched first in most compilers
golden schooner
from my little c++ understanding is "foo" is just raw directory structure, while <foo> relies on include dirs
<stb_image.h> would work if i did -Ivendor
long robin
I think in msvc it works a little differently but you can change that if you need
golden schooner
i did change it 😉
it should also be same in vs, but vs do be doing something differently for some obvious raisins
let me boot into windows to just double check that it also works there still
golden schooner
is there some sort of "sane" default flags one should set?
for either cmake or individual compilers somehow
long robin
I'm compiling with permissive- on msvc
long robin
I have the compile flags a bit looser for gcc/clang since I don't regularly build with them
heavy cipher
what are all the flags?
long robin
golden schooner
that syntax is a nightmare 😄
long robin
Ye luckily I copied it from another project so I know it works
heavy cipher
inshallah the structure was padded
golden schooner
asan also seems to be available as a definition already ASAN
or possible leaked from other dependencies which doesnt properly name it
anywho... booting into michaelsoft binbows
heavy cipher
why are you enabling asan for debug builds 🤔
golden schooner
pointing at hajji
heavy cipher
asan is a significant overhead i thought
final cove
I think there are indeed asan-related builtins in cmake
heavy cipher
All the exshrimples run fine here, even in debug
uh ye, but how much
long robin
at least 240 fps (vsync limited)
Tbh I'm not even sure if asan is being enabled correctly
I'll have to check later
heavy cipher
is DEBUG a cmake thing
golden schooner
good question
heavy cipher
i haven't seen it, nor does it seem to be mentioned in your cmakelists
golden schooner
CMAKE_BUILD_TYPE is and default values seem to be Debug, Release, RelWithDebInfo and MinSizeRel
heavy cipher
this asan is gonna be fast bc its not enabled i bet
golden schooner
: )
long robin
mao le
final cove
and [empty string], the secret build type
long robin
where can I file this bug
https://github.com/GraphicsProgramming/RVPT/blob/master/CMakeLists.txt#L58
golden schooner
at thomas the train
long robin
these docs are outdated for enabling asan with cmake 💀
https://learn.microsoft.com/en-us/cpp/sanitizers/asan?view=msvc-170
you have to look at the schema and use this other thingy
https://learn.microsoft.com/en-us/cpp/build/cmakesettings-reference?view=msvc-170
nvm it still doesn't crash with this 💀
int i[5];
int main()
{
i[100] = 2;
}
oh but it crashes when I make the array have 100 elements like in their example maybe it only works if you go barely oob
asan found one error on cleanup already
long robin
seems like a false positive since it is erroring in a non-null optional with "container overflow"
(it wasn't a false positive in the end)
golden schooner
nvm it still doesn't crash with this 💀
```cc
int i[5];
int main()
{
i[100] =...
how is that not a compiletime error by default
long robin
a static analyzer can detect it
golden schooner
code analyzers dont prohibit the compiler from saying no
unless its confiktured to emit one and not just a hint/warning???!
golden schooner
its ridiculous
dapper gorge
the C++ stanadard™️ says that OOB is "ill-formed no diagnostics required"
golden schooner
smh
dapper gorge
many things are "no diagnostics required"
golden schooner
im sure its useful for some stupid embedded bs
dapper gorge
probably
golden schooner
but then it should be an opt in
dapper gorge
you can get the header of a malloc allocation by going out of bounds, if you so wish
golden schooner
anyway i shouldnt complain about anything c++ related, i barely know her
golden schooner
golden schooner

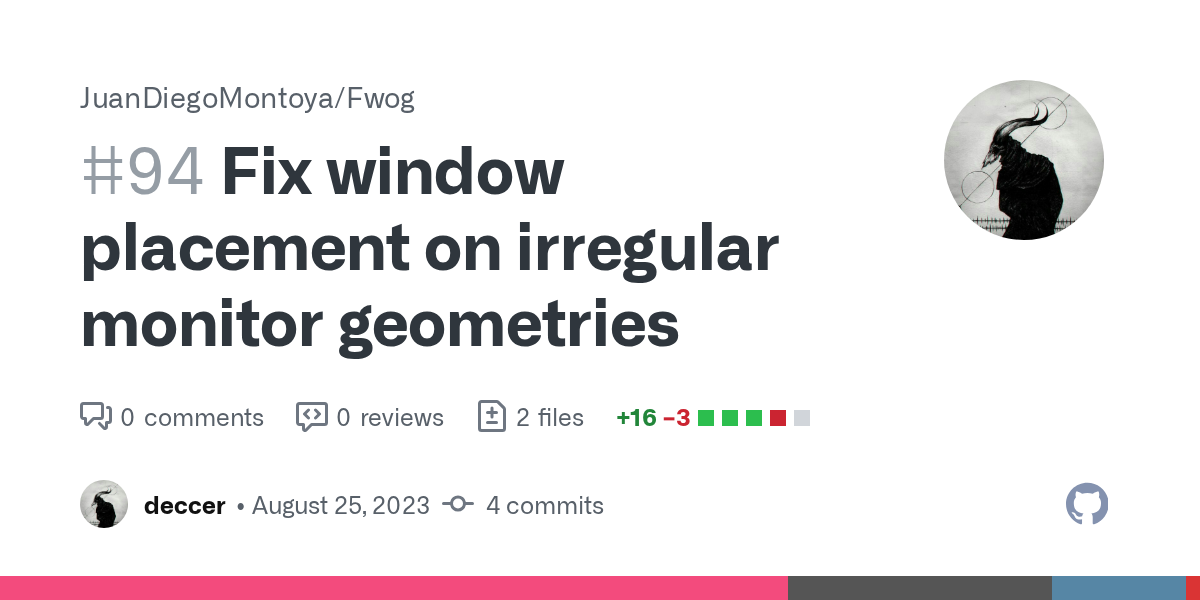

my main monitor is at -something, +something not at 0,0
you get that when you arrange your desktops in various control panels... right monitor is vertical and i do be rembering that i fiddled with moving the main one around to not get stuck all the time when moving le cursor
long robin
interesting
golden schooner
and was wondering why my setwindowpos always made the window appear towards the top of the screen and is no longer centered 😛
since you and i use the same centering code, i took it upon me to fix it in fwoggi too
i should check erhe too probably
and send PRs to ALL!! other repos using glfw xD
long robin
I can fix it myself in frogfood lol
golden schooner
i should have made it into 3 PRs tbh ;P
long robin
heh idc
golden schooner
its good practice 🙂
golden schooner
i need to look into tbb, its quite annoying 🙂
robust bough
Is it legal to not provide any input desc if I'm doing a bufferless FST?
golden schooner
no, but you need a default vao for it
robust bough
no, but you need a default vao for it
wdym
golden schooner
: (
you say FST, i understand FST vs, where the vertices are defined there, the layout implicitly too => no vao setup needed, besides having a default vao bound
where FST = Full Screen Triangle
@robust bough or what do you mean?
robust bough
<@597923739249934347> or what do you mean?
I probably should have waited till I had the code running to ask but
im basically wondering if I can do this
void renderer::composite(const glm::ivec2 &target_size) {
Fwog::RenderToSwapchain(
Fwog::SwapchainRenderInfo{
.name = "Render Triangle",
.viewport = Fwog::Viewport{.drawRect{.offset = {0, 0}, .extent = {static_cast<uint32_t>(target_size.x), static_cast<uint32_t>(target_size.y)}}},
.colorLoadOp = Fwog::AttachmentLoadOp::CLEAR,
.clearColorValue = {.2f, .0f, .2f, 1.0f},
},
[&]
{
Fwog::Cmd::BindGraphicsPipeline(pipelines.composite);
Fwog::Cmd::Draw(3, 1, 0, 0);
});
}```when the pipeline is just a bufferless fst
golden schooner
if your vs is a FST that should work
then your composite pipeline wouldnt require vertexinputdescriptions
robust bough
yeah, i really should have just seen if it worked before asking
(im having unrelated issues now)
golden schooner
hehe, does it?
robust bough
heh
yes opengl, main is already defined for sure
#version 460 core
layout(location = 0) out vec3 v_color;
layout(location = 1) out vec2 uv;
void main()
{
vec2 position = vec2(gl_VertexID % 2, gl_VertexID / 2) * 4.0 - 1;
gl_Position = vec4(position, 0.0, 1.0);
uv = (position + 1) * 0.5;
}
perhaps you assigned vertexshader twice
not sure if fwog asserts proper vs/fs types
robust bough
Fwog::GraphicsPipeline renderer::create_composite_pipeline() {
auto vertex = create_vertex_shader("assets/shaders/composite/vert.glsl");
auto fragment = create_fragment_shader("assets/shaders/composite/frag.glsl");
return Fwog::GraphicsPipeline{{
.name = "Composite Pipeline",
.vertexShader = &vertex,
.fragmentShader = &fragment,
.inputAssemblyState = {.topology = Fwog::PrimitiveTopology::TRIANGLE_LIST},
}};
}```this is the code for creating it
oh for fucks sake
golden schooner
😄
robust bough
i dont want to talk about it
dont copy paste code kids!
Fwog::Shader renderer::create_fragment_shader(const std::filesystem::path &path) {
return Fwog::Shader(Fwog::PipelineStage::VERTEX_SHADER, read_shader_source(path));
}
Fwog::Shader renderer::create_vertex_shader(const std::filesystem::path &path) {
return Fwog::Shader(Fwog::PipelineStage::VERTEX_SHADER, read_shader_source(path));
}
Fwog::Shader renderer::create_compute_shader(const std::filesystem::path &path) {
return Fwog::Shader(Fwog::PipelineStage::VERTEX_SHADER, read_shader_source(path));
}```
robust bough
i swear i never had these errors back when I did graphics a lot more ;-;
"0(8) : error C5052: gl_VertexID is not accessible in this profile\n0(8) : error C5052: gl_VertexID is not accessible in this profile\n0(10) : error C5052: gl_Position is not accessible in this profile\n"``` glfwInit();
glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 4);
glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 6);
glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_COMPAT_PROFILE);
glfwWindowHint(GLFW_DOUBLEBUFFER, GLFW_TRUE);
handle = glfwCreateWindow(width, height, title.data(), nullptr, nullptr);
glfwMakeContextCurrent(handle);
gladLoadGL(glfwGetProcAddress);
Fwog::Initialize({});```did I?
golden schooner
you need core
robust bough
i tried core before
"0(8) : error C5052: gl_VertexID is not accessible in this profile\n0(8) : error C5052: gl_VertexID is not accessible in this profile\n0(10) : error C5052: gl_Position is not accessible in this profile\n"```thats why im so confused ._.
golden schooner
can you confirm its not the fragment shader?
gl_Position/gl_VertexID are not allowed in fs
golden schooner
Fwog::Shader renderer::create_compute_shader(const std::filesystem::path &path) {
return Fwog::Shader(Fwog::PipelineStage::VERTEX_SHADER, read_shader_source(path));
}
stage is wrong here too
robust bough
stage is wrong here too
I've fixed it there
oh my god
i fixed it there, but rereading it made me realize what i did wrong
i quit
im never doing graphics again
Fwog::Shader renderer::create_fragment_shader(const std::filesystem::path &path) {
return Fwog::Shader(Fwog::PipelineStage::VERTEX_SHADER, read_shader_source(path));
}
Fwog::Shader renderer::create_vertex_shader(const std::filesystem::path &path) {
return Fwog::Shader(Fwog::PipelineStage::FRAGMENT_SHADER, read_shader_source(path));
}
golden schooner
😛
robust bough
im sorry i've failed you
robust bough
lel yeah
now to see if i can get a compute shader working
(something tells me im about to fail horribily)
long robin
@heavy cipher what was the issue you had with std::source_location in msvc?
I was thinking about upgrading my exceptions
daring surge
@long robin how is this meant to be avoided
long robin
are you using my enet fork
daring surge
ye
long robin
I see
daring surge
tbh i didn't even remember until i went to source and saw your name lmao
long robin
yeah I put my name in there so I'd remember where I made changes lol
daring surge
i can just ifndef it but perhaps that is not "correct"
long robin
yeah it's kinda tricky
I think the most robust way would be to ifndef it in enet.h, then later undef it only if enet.h def'd it
#ifndef NOMINMAX
#define NOMINMAX
#define UNDEF_NOMINMAX
#endif
#include <Winsock.h> // or whatever windows header
#ifdef UNDEF_NOMINMAX
#undef UNDEF_NOMINMAX
#undef NOMINMAX
#endif
nice and symmetrical
daring surge
mmm i might just undef it when including enet
long robin
I can update my fork too
daring surge
i don't really care to not have it defined anywhere
long robin
if you come up with a solution, let me know
otherwise drop an issue in the enet fork so I don't forgor
golden schooner
re Fwog::Cmd::DispatchInvocations can i nitpick to distract you a little?
whats the difference to ::Dispatch?
heavy cipher
it takes number of invocations
if this has been inspired by vuk
normal dispatch takes # of workgroups
golden schooner
ah its an actual thing
DispatchInvocations sounds like DispatchIndirect
ah its not
dapper gorge
It's just sugar for glDispatchCompute((x + w - 1) / w, ...)
golden schooner
ye i saw the code
long robin
something came to me in a dream
I was thinking about the fact that descriptors in metal are called arguments, and I realized that we should be able to call our shaders like regular (albeit async) functions
so basically cuda lol
possibly unhinged idea: custom build step that reflects shaders and generates a header with declarations that allow you to call the shader like a function
if we restrict it to compute shaders, a shader like this one:
// FooShader
layout(binding = 0) buffer FooBuffer {
float data[];
};
void main() {}
would generate the following declaration:
void FooShader(Extent3D numWorkGroups, Buffer& FooBuffer);
the shit part is that, since it's not single-source, definitions and struct declarations would still not be shared automagically
I guess if you're willing to go as far as to make a custom build step, you might as well just make a C++ dialect
daring surge
this sounds like something martty would say
long robin
you pick things up when you live in people's walls
final cove
all roads lead to writing custom C++ -> shaders
hexed bay
https://ebitengine.org/en/documents/shader.html
Ebitengine has custom shaders written in Go-like language. It's kinda impressive
It's written from scratch, btw
(but this is a bit of a different problem, yeah :D)
But still, imagine coding shaders in C++ and calling them directly
golden schooner
cute logo
long robin
(but this is a bit of a different problem, yeah :D)
But still, imagine coding sh...
it is similar though, thanks for sharing
hexed bay
Ebitengine's dev and some guy also made it so you can call C functions in Go without cgo (which is too magical) and it's really impressive 😄
https://github.com/ebitengine/purego
This. So much hackery
dapper gorge
something came to me in a dream
why are my dreams building sized frogs shooting lasers and me eating a melon
hexed bay
why are my dreams building sized frogs shooting lasers and me eating a melon
I wish I had dreams like this
hexed bay
Gonna post it here too
heavy cipher
I was thinking about the fact that descriptors in metal are called arguments, an...
geryu is right, have you seen my spirv templates
long robin
Yes and they're somewhat disturbing
But very cool nonetheless
iirc there are some inherent restrictions with the method
heavy cipher
Yes and they're somewhat disturbing
thank you, thats high praise
long robin
Like all good template metaprogramming of course
heavy cipher
after more than a year, my typo correction pr was merged on the refpages
oak garden
hexed bay
Does fwog have abstractions for array textures and cubemaps?
Want to see how this can be done
Found it: https://github.com/JuanDiegoMontoya/Fwog/blob/3aaf7ea8afbee789b44bd871237cd076bc3f3afa/src/Texture.cpp#L99
Noice
I see so many things I can’t abstract away as neatly without going full modern OpenGL
golden schooner
yes
you just fill in TextureCreate/TextureUpload accordingly
ah lol
i was too late
long robin
Does fwog have abstractions for array textures and cubemaps?
Want to see how th...
Yes
It's part of the texture class
golden schooner
weird how github never picks the default branch when copying source code links by default
long robin
Isn't it good, so your links don't decay when the branch is updated
long robin
It does make the links ugly though
hexed bay
It’s good that it does it, because without it, 99% old code links are broken, which is -retty infuriating when you read old issues
long robin
I see so many things I can’t abstract away as neatly without going full modern O...
Tbh you could make a similar abstraction with just 3.3 features
At least for the texture and buffer classes
No texture views though, which would hurt
hexed bay
Yeah, it’s just the binding part that requires a bit more work, since no glBindTextureUnit
But that’s pretty easy to do
long robin
it's just two function calls instead of one if you don't have that
hexed bay
I just have this "texture" class which is only abstracts "textures" (mostly diffuse) and I do array/cubemaps by hand
Also I don’t want to write stuff like "shader.bindCubeMap("skybox", tex, slot)" anymore
long robin
A thing I see in texture abstractions that mildly triggers me are constructors that take a path
golden schooner
no you are right
long robin
Even worse, the only non-move constructor taking a path
golden schooner
textures should be created from buffers 🙂
long robin
Vulkan moment
golden schooner
Fwulkan moment
long robin
I'm going to call my Vulkan library Fuk
golden schooner
that was my plan already xD
hexed bay
Well, I have
void loadFromFile(const std::filesystem::path& path);
But I think it’s better to make a free/static function which returns a texture and loads it from file
golden schooner
a method factory for Texture is also ok, which consumes a path
static Texture Texture::LoadFromFile(...)
hexed bay
I also recently abstracted away default FBO and made it look like a normal frame buffer… made me feel good 😂
No more "bind fbo 0" now.
golden schooner
we do it via BeginRenderToFramebuffer(someStruct)/EndRender
golden schooner
and BeginRenderToSwapchain/EndRender, which renders to fb0
hexed bay
You're also free to add fwog as a submodule to your thingy
No, I need to suffer through it all to fully understand it
golden schooner
fair 🙂
hexed bay
Btw, about abstractions… what does fwog do on render passes? Does it reset all state on each pass?
E.g. clear scissor (if not specified), disable blend, disable depth testing, disable cull, etc.
That’s the thing I don’t really like about my code now - constantly have to keep in mind if the rasterizer state is correct
And it’s easy to remember to enable depth/blend where you need it (and I do it explicitly), but for more "rare" stuff (like scissor), I turn it on and then off
golden schooner
yes
you describe your state into the struct you pass into BeginRenderXXX
thats what it will be set to for the time being within BeginRender/EndRender
there is not really a "turn off again after it was turned on" thing
each pass will just set what it was set up for in said descriptor
and explicitly turned on/off at certain corner cases (framebuffer srgb ism for instance)
hexed bay
Yeah, I need to make some more explicit "render pass" descriptions and objects which control it
Because right now my code is too stateful at times
(But the main renderer is immediate, you add draw commands and lights to it on each frame, and then call "draw" - makes it so much easier to manage)
long robin
Btw, about abstractions… what does fwog do on render passes? Does it reset all s...
fwog internally tracks state so a minimal number of state calls have to be made when a render pass begins or a pipeline is bound
the way I track state right now is kinda stupid and will lead to terrible bugs with certain usage patterns that I don't currently do, but I really need to fix it
https://github.com/JuanDiegoMontoya/Fwog/issues/90
what I plan to implement is a generic state-tracking wrapper below fwog, then fwog will call that to set state
hmm I might implement it as a separate library
hexed bay
Yeah, I guess you can have a "global" context which keeps track of current state and changes it to a new render state if necessary
long robin
anyways, it will allow me to efficiently do this without having state tracking clutter the impl
void BindPipeline(Pipeline pipeline)
{
state.glEnable(pipeline.someState1);
state.glEnable(pipeline.someState2);
state.glEnable(pipeline.someState3);
state.glEnable(pipeline.someState4);
}
ye it's pretty typical in engines that use GL afaik
hexed bay
Btw, have you seen any engines which have similar abstractions around GL? Most games I’ve seen seemed to do a lot of stuff manually
long robin
I might slim things down by removing my vao and framebuffer caches too
long robin
Btw, have you seen any engines which have similar abstractions around GL? Most g...
no, most of this is just speculation
and most (all?) engines that use GL I've looked at do not use it in a very good way lol
or let's say, "modern"
hexed bay
I guess I’m already far ahead if I start using fwog as an inspiration
At least I stopped unbinding vaos/textures
long robin
you can have just one vao and set the attrib format and whatnot whenever a pipeline is bound
likewise, you can have just one fbo and bind render targets when a pass begins
golden schooner
i also believe our engines do a better job at abstracting opengl than anything else ive seen, other engines just wrap buffer/texture/shader and thats it
hexed bay
likewise, you can have just one fbo and bind render targets when a pass begins
Huh, I thought attaching textures to different fbos ahead of time and not changing it was needed for performance, but I’m probably wrong?
hexed bay
Also I have a "mesh" abstraction, which has vao+vbo/ebo for each mesh, which is also a pretty GL-beginner territory, probably
long robin
it's not bad for 3.3
golden schooner
yeah its fine
long robin
the only thing I'd change for moderner gl is to not put a vao in every mesh
long robin
that's approaching
territory, but yeah that's what I'd currently do
golden schooner
and use an indirection to handle multiple meshies
hexed bay
likewise, you can have just one fbo and bind render targets when a pass begins
This makes me think… FBO is probably just a "current state" thing, right? Kinda like a shader program, where you constantly set uniforms (if not using UBOs), but with attachments as outputs
hexed bay
and put geometry together in one big buffers (vbo/ibo)
Some day, some day… I implemented frustum culling at least 💪
long robin
yeah who knows if drivers just cache each unique fbo combination or if each fbo corresponds to some low-level object in the driver
I doubt it's the latter
fwog kinda attempts to make performance more predictable by restricting the user in certain ways (you can only set state with Render and BindPipeline calls), but if you want a guarantee you would just use vulkan or d3d12
hexed bay
I guess you can really have only two fbos for your entire program (one for reading, one for writing) and swapping between them when needed
That’s a problem for a future bikeshedding, though 😂
long robin
true, I forgot about read and write fbos, but that's only needed for blitting, no?
you could just make two temp fbos in your blit function
hexed bay
Yeah. 99% of the time I only write, not read
hexed bay
Why even two? One would probably do, and the other one will be the "main" one
long robin
just to keep things shrimple I guess, but yeah that'd work
hexed bay
I also learned about fb blitting only this week
long robin
it's a dumb name for what is essentially a copy
though it behaves more like a fullscreen tri draw that samples the read framebuffer
hexed bay
Yeah, I only previously seen blit as a "draw to screen, swap backbuffers" thing
And I copied contents of FBOs via shaders
Speaking of abstractions… I see so much student code (sometimes pretty impressive stuff) with 0 abstractions, haha
"Download zip of my project" ones especially
Just raw gl calls, nothing else
long robin
I did one renderer with raw (modern) gl and it wasn't too horrible
golden schooner
same
a little space esque (ofc) scene, with a ring of "cubes" and some jank 6dof thing driven by physx
long robin
it sucks having to constantly remember the state when you add some new functionality lol
https://github.com/JuanDiegoMontoya/GLest-Rendererer/blob/main/glRenderer/Renderer.cpp
the fact that fwog lets me use local reasoning when adding a new pass is probably the biggest productivity boon
hexed bay
You have a shader abstraction there at least
(But I think most people at least do it to keep their sanity)
long robin
I also have a really bad texture abstraction in there
final cove
I think that's like the bare minimum you need
my text renderer thingy just has a Pipeline and Image, and that's about as far as I'll touch GL
hexed bay
I wish there were books that went beyond explaining the basics of OpenGL and teached you how to build a renderer. I guess "3D Game Engine Architecture" is pretty close, but it feels very outdated, especially how it relies on scene graphs
long robin
at that point you're beyond API-specific guides
something like this
https://blog.mecheye.net/2023/09/how-to-write-a-renderer-for-modern-apis/
hexed bay
something like this
<https://blog.mecheye.net/2023/09/how-to-write-a-renderer-fo...
I was wondering why this article was so good, but then I noticed it’s Jasper
Also was wondering why I never found it before. sends this article to myself from 5 years ago
hexed bay
at that point you're beyond API-specific guides
Well, I don’t even need API specific guides anymore… the problem is that no one writes stuff like this even without being API specific. It’s all "sort your draw calls! merge geometry together!", but no one shows how to do it efficiently and not-stupidly
final cove
do people tell you to sort your draw calls in 2023
hexed bay
https://realtimecollisiondetection.net/blog/?p=86
Damn, this article is 15 years old now
final cove
yep I knew you were thinking of that one
I have it bookmarked somewhere but I think it was irrelevant even before I started graphics stuff
hexed bay
Yeah, but you get my point. Deferred shading is the closest to the "structure" that was given to me, and I’m grateful that at least it helped me get on the right track
long robin
yeah it's kinda a too-optimized way to sort draws
like bro your draws can be more than 64 bits of data
std::sort will get you 90% of the way there
final cove
and really the only thing you need to sort is your alpha stuff at the end of the day, assuming you're not doing OIT
long robin
do people tell you to sort your draw calls in 2023
sorting draws is still useful if you have an engine that doesn't do hardcore batching
and it's super easy to implement
final cove
I'd argue other constructs should naturally cause things to be grouped
with pretty much everything except alpha passes you have stuff you might want to be "together" but not necessarily "in order"
hexed bay
Are there any good resources on batching, btw?
I get the idea, but the implementation seems really tricky
final cove
how hard do you wanna go with batching? like full MDI?
the vkguide compute culling section is probably good for that
long robin
there are different levels of batching
the easiest one is just instancing the same mesh
golden schooner
the 2ndiest is merging geometry
and using an indirectbuffer to point at the elements + gl(Multi)DrawIndirect
hexed bay
the easiest one is just instancing the same mesh
That’s assuming you have tons of repeating meshes. Which I probably won’t, tbh
golden schooner
the current complexity of your game world is probably still alright for good old plain glDrawElements
final cove
yeah if anything that sounds more like a job for fairly naive culling
especially since you have a fixed camera angle right
hexed bay
Yeah… it’s not like I’ll be drawing huge cities any time soon 😂
golden schooner
but when you add shadows, you might want to have the gpu tell the gpu what to draw, so you merge all geometry, feed it to a compute shader, have the cs cull all the things, and what is not culled is written into the indirect buffer
final cove
you could probably just chunk your map on the CPU
and that would be more than good enough
hexed bay
Okay, I think I’ll just do render passes and stop bikeshedding for now
final cove
or you could convert it all to meshlets and implement compute culling
I definitely know which one is more fun
golden schooner
doesnt have to be meshlets yet, as in visbuffer meshlets, but that would probably the next level
hexed bay
but when you add shadows, you might want to have the gpu tell the gpu what to dr...
No cs on 3.3
golden schooner
i think you can do something like that in a fragment shader as well
but yeah 🙂
gl46 my beloved
indirect draw is also a nono on gl33 iirc
final cove
yeah, your world is definitely in a very good state for simple CPU-side hints to go a long way though
golden schooner
ah no, its an extension in 3.1
long robin
I should do a multi-part writeup of ff's renderer at some point
in collaboration with lvstri of course
hexed bay
I should do a multi-part writeup of ff's renderer at some point
Final Fantasy’s?
long robin
ye
hexed bay
Which one?
signal widget
FF:F
hexed bay
long robin
I had an idea while ponderin me orb
related to a rant I had a day or two ago
but wouldn't it be neat if you could invoke a pipeline with one function call, then you just provide all the bindings as literal function arguments
to make it more like normal programming and reduce boilerplate
hexed bay
Need some code examples
long robin
uh right
let's do hello tringle
right now, hello tringle in fwog is something like
Fwog::RenderToSwapchain({
.name = "Render Triangle",
.viewport = Fwog::Viewport{.drawRect{.offset = {0, 0}, .extent = {windowWidth, windowHeight}}},
.colorLoadOp = Fwog::AttachmentLoadOp::CLEAR,
.clearColorValue = {.2f, .0f, .2f, 1.0f},
},
[&]
{
Fwog::Cmd::BindGraphicsPipeline(pipeline);
Fwog::Cmd::BindVertexBuffer(0, vertexPosBuffer, 0, 2 * sizeof(float));
Fwog::Cmd::BindVertexBuffer(1, vertexColorBuffer, 0, 3 * sizeof(uint8_t));
Fwog::Cmd::Draw(3, 1, 0, 0);
});
let's also pretend that manual vertex pulling is the only thing that exists
so you have to provide vertices via ssbo
Ideally, I'd want to write something more like
sceneTexture.Clear(.2f, .0f, .2f, 1.0f);
pipeline.Draw(3, 1, 0, 0, viewport, vertexPosBuffer, vertexColorBuffer);
I mean the API looks kinda unhinged for draw calls, but I think for compute it would be more streamlined since the required state is much smaller
computePipeline.Dispatch(dispatchDims, someBuffer1, someBuffer2, someImage);
which is more CUDA-like
hexed bay
Maybe can even make this overload:
pipeline.Draw(viewport, vertexPosBuffer, vertexColorBuffer); // 1 instance, use all vertices
while this looks not-ideal for perf (since it seems like redundantly setting state), I'm at the point where I make few enough API calls that idgaf about API call overhead, plus the abstraction can deduplicate stuff automagically
long robin
Maybe can even make this overload:
```cpp
pipeline.Draw(viewport, vertexPosBuffe...
I don't think there's an easy way to determine how many vertices there are unless you expose fixed-function vertex fetching which I'd rather not do
mostly because it complicates things lol
hexed bay
Can't you store it in buffer structs?
long robin
to the API it would just be an untyped buffer
it wouldn't know how big a vertex is or even if the buffer held vertices
hexed bay
Hmm, well, maybe it can be like this at least:
pipeline.Draw(3, viewport, vertexPosBuffer, vertexColorBuffer);
since there's no point of using instances everywhere and having to write "1, 0, 0" everywhere might be a bit annoying
In my game, I store number of vertices next to EBO/VBO so I don't have to manually pass the count to glDrawElements
long robin
fair
yeah in fwog I only expose the best draw calls
which means glDrawElementsInstancedBaseVertexBaseInstance, glMultiDrawElementsIndirect, glMultiDrawElementsIndirectCount, and the non-indexed variants
hexed bay
glDrawElementsInstancedBaseVertexBaseInstance what Vulkan-speak is this...
long robin
it's vkCmdDrawIndexed
it lets you specify:
- indexCount is the number of vertices to draw.
- instanceCount is the number of instances to draw.
- firstIndex is the base index within the index buffer.
- vertexOffset is the value added to the vertex index before indexing into the vertex buffer.
- firstInstance is the instance ID of the first instance to draw.
opengl just makes it look scary because it's opengl
hexed bay
Yeah, I was joking because the function name is so long, but Vulkan's is surprisingly shorter
heavy cipher
the difficult bit with creating a high level interface is getting it right
when you depart from the wrap to greenfield the decisions are not obvious:/
long robin
yeah the neat thing about cuda is that a kernel really is just a main function that you invoke and pass some arguments to
with graphics pipelines it's way more complicated
heavy cipher
you could do compoot first
long robin
I suppose I could make such an abstraction for compute pipelines as a start, but there are still some things I'd have to 'shed since it's not truly single-source
like deciding how function arguments are mapped to glsl resource declarations
heavy cipher
join me brother for my spirv template quest
for gl it just needs to be spirv crossed back
long robin
gl can eat spirv directly
but aren't there some fundamental limitations to the template approach or am I trippin
heavy cipher
gl can eat spirv directly
yeah and i can eat glass shards too
long robin
but wdym
well, is there a shader complexity limit with this approach
I mean, it's probably turing complete, so I guess what I'm asking is if it's sane to write complex shaders with it
heavy cipher
the key is to throw sanity in the bin at the first opportunity
but i'd say the tricky bit is control flow
long robin
yeah I have no idea how you would express that in a way that feels like normal programming to use
gimme uhh
branch(condition, trueExec, falseExec)
long robin
doesn't shady allow unstructured control flow? you could just make the programmer write it as a linear stream of instructions and have them use goto
shrimple solutions for clamplex problems
heavy cipher
uhh, can't parse that
long robin
yea
gob certainly didn't make it easy to find his thing on google
but iirc the IR for it has unstructured control flow
anyways I'm just memeing so it doesn't matter
heavy cipher
bueno
anyways, i too was meming
i am not sure how feasible is to do full spirv
the effort skyrockets
whereas "gpu lambdas" is reasonable
long robin
yeah that was basically my concern
I do have a few places where that would be handy, but ideally I'd like my hot new shading lang system to support everything (that I deem to be useful)
maybe I could cope by telling myself that I'm actually using a cool functional language when I write spirv templates
devout jolt
What does fwog provide?
long robin
in general? or with respect to the ongoing convo?
long robin
gotcha
I'd refer to the docs or the github
https://fwog.readthedocs.io/en/latest/
https://github.com/JuanDiegoMontoya/Fwog
tl;dr: it wraps OpenGL 4.6 in a modern C++ API that is less painful to use than plain GL
there are examples in the repo
gilded widget
GL_DONT_CARE
