Tables

[grand haven]

Is tablex still going to be a thing?

[wary knot]

yes

there are things we wont be able to provide natively

for example https://discord.com/channels/1054443721975922748/1185849295908376616

[wary knot]

right, 2 isn't fully accurate

and actually seems like I may have missed that on tablex lol

but also inset is 0 on grid i think

so theres that

[grand haven]

Reminds me of https://ctan.org/pkg/nicematrix?lang=en

Yes, its a table / matrix typesetting library built on top of pgf/tikz

[wary knot]

lol

someone mentioned that package recently in tablex issues

thought it was only for matrices

[grand haven]

Ludicrously slow, so I've never really used it. But it does produce nice output

[grand haven]

I think that is the primary use, but it also does regular tables.

I can't see any reason to use it over tabularray for actual tables though....

[wary knot]

lol

guess I'll just #[allow] it for now

can probably refactor during reviews if needed

[frozen oyster]

Is this rust tablex? 😄

[wary knot]

baby steps 🙂

[frozen oyster]

[wary knot]

right now im here

[frozen oyster]

gotta start to walk before running

[wary knot]

this should be particularly quick actually

maybe first PR in a few days? lol

[frozen oyster]

[wary knot]

the difference between table and grid code is really small

i'm just copying stuff around mostly

well, and refactoring

[wary knot]

actually today

https://github.com/typst/typst/pull/3009

[upbeat pine]

https://github.com/PgBiel/typst/commit/66e8fd358096138a06c3050bb84112a880c32e3a#diff-9add9752ca0ad7e5bbbd8ff5b38b995c97e0f147a22be833d48225fb56d8fe34R171:

pub enum Celled<T> {

Ah, yes — "Celled". XD
The things we do to have no naming conflicts...

[upbeat pine]

(Then the package's name check out.)

[wary knot]

kek

i tried to be very conservative with this PR so I barely changed the stuff I moved

table.cell PR will be a bit less conservative

[upbeat pine]

I cannot believe that someone actually did this reaction, haha! :thinkythonk:

[upbeat pine]

Well that was... Blazingly fast! ||ThePrimeagen reference||

[wary knot]

indeed.

though reviews and stuff exist still so yea

:p

[wary knot]

one question that arrived: for per-cell customization, should we apply align and inset before or after the cell show rule?

rn im working with before

so you can fully customize, even override the align and inset with show rules

however in principle fill would be post-show rule

hmmm

although that could be annoying so im not sure

well

you will have access to the cell's align and inset values

but maybe that's too much of a burden, to have to manually #align(cell.align, box(inset: inset)[content])

on the upside that would give more flexibility

and even allow for a 3rd-party diagbox to work for example

[upbeat pine]

It's always a burden to recreate the default behavior if you want to fundamentally change a show rule for some element. Right now you can only look at Rust code and try recreating from it in Typst.

[upbeat pine]

Maybe leave how it is with table in v0.10? It's really hard for me to choose, at least now, while I'm busy.

[wary knot]

v0.10.0 tables dont have cell show rules

so we are deciding that for the first time :p

[upbeat pine]

No, I mean table show rule. If the align is applied before, then in per-cell it should be the same, I think.

[wary knot]

huh?

you mean #show table: it => align(center, it)?

[upbeat pine]

When you do #set table(align: center) does it align before or after table show rule?

[wary knot]

neither because theres no show rule here

youre just setting the align parameter for tables

for tables which dont pick it at least

[upbeat pine]

It's suddenly become too hard, I lost ability to think.

[wary knot]

and the align and inset parameters, internally, cause the table to wrap cells in align(chosen-alignment, pad(..inset, cell))

which is of course expected

otherwise the parameters would be useless

:p

[upbeat pine]

I'll go back to this discussion later (today, for me).

[wary knot]

yeah sure

[wary knot]

gonna ping @robust viper just in case

well ive done enough for today 😂

ive begun work on per-cell customization but it's very early still

[wary knot]

ok

this discussion is now item 2.1.5 in the document

[wary knot]

Also my point there regarding diagbox is kinda moot cuz you can customize the inset outside of the show rule so that can be “ignored”

Pc is off now otherwise I’d update it again

[upbeat pine]

Did we discuss rotated cells? Because I'm currently dying trying to make a table look fine, let alone perfect.

[wary knot]

Rotating contents inside cells and having them have the appropriate size?

[upbeat pine]

Well, yes? Just a small text cell that need to be rotated -90°.

[wary knot]

That’ll be possible in the next update with rotate(reflow: true)

since it affects layout

For now you can use a workaround to manually resize the contents

See tablex’s “known issues” in the readme for info (applies to native tables too)

[upbeat pine]

I'm using this abomination:

#let rotate-cell(body, before: 3.7em, after: 3.7em, width: 9em) = {
  box(v(before) + rotate(-90deg, box(width: width, body)) + v(after))
}

[wary knot]

https://github.com/typst/typst/issues/528#issuecomment-1494318510

More accurate and general workaround

[upbeat pine]

THANK YOU!!!

This went hell to heaven real fckn quick.

[wary knot]

np 👍

[random mica]

I think you could also table.cell(align: cell.align, inset cell.inset, cell.body) in that case, right?

[robust viper]

could you elaborate on this problem in this context? I'm just trying to find out if the non-text show rule recursion is actually a problem or if most of its potential uses are actually mis-uses.

[wary knot]

The problem is mostly that it’d be interesting to be able to modify the cell’s properties there in the show rule and change how it is shown based on other properties

But I mean, we could theoretically solve that with the data => … thing for each property, I just hadn’t thought of that yet

But also seems like a possibly relatively common pattern

However in this case I’m not sure if it’s a misuse or something, cuz the set rule being inside the show rule stops us from evaluating the data before the show rule, and internally this can have consequences

Either way recursion wouldn’t be useful here

[wary knot]

Yes so

Thanks for pointing this out

I think that is the largest headache

Cuz doing that will cause infinite recursion

However the problem with the properties only being available in the show rule remains

So I’m not sure how good that is

[robust viper]

If I'd write a cell show rule, I think I would expect the get the raw cell content and not an aligned or inset version.

[wary knot]

get [the raw cell content]
Do you mean get through it.body? If so, that actually makes sense

I think it could be technically possible to do that without changing the cell’s body though, but you got me thinking now 😂

[robust viper]

I just mean that the alignment and inset needs to be wrapped around the whole cell rather than its body

Which necessarily means that the show rule styles are more inwards and the align/inset styles more outwards

(First and second aren't really well-defined here, hence why I'm saying inwards and outwards.)

[wary knot]

Yeah fair enough

While it’s a bit sad to lose on the flexibility in that regard , it’s probably for the best

[robust viper]

Why is flexibility lost?

[wary knot]

Otherwise you’d always get some AlignElem with a PadElem or something

[wary knot]

cuz you could just completely override alignment and inset through show rules if you wanted, but that’s not necessarily good

Objectively speaking it is flexible, but not necessarily desirable

Noting here that show rules could be something external to each individual table

Maybe it’s some particular kind of cell which should have that changed

[robust viper]

couldn't you still do that? inset: 0pt is more or less a no-op. and for alignment the inner one wins.

[wary knot]

Hmmm

yeah you’d have to set inset to 0pt and fill to none, but otherwise it probably works

Not sure about the alignment but I think it should work too? I’ll test it

With that said I think your proposal is probably for the best, so I’ll probably implement it first

If someone else has another idea we can discuss later but I think the it.body argument was pretty hard to refute 😂

[wary knot]

Also huzzah everybody

First PR merged, that was so fast 😂

The benefits of doing all this planning are showing

[wary knot]

btw @robust viper have you seen the tablex PR in typst/packages?

[robust viper]

I hadn't checked the package repository in a while. It's merged now.

[wary knot]

Thanks ❤️

[upbeat pine]

If it's not in the tablex manual, it better be there! It's too useful. Although I haven't tried changing alignment for these and other cells.

[wary knot]

it is, someone PR'ed it to the "Known issues" section of the README

[upbeat pine]

Yes, I see:

Alternatively, you may attempt to use the solution proposed at https://github.com/typst/typst/issues/528#issuecomment-1494318510 to define a rotatex function which produces a rotated element with the appropriate sizes, such that tablex may recognize its size accordingly and avoid visual glitches.
But I was thinking of including the workaround itself, because it's a documentation about tablex, I think it should directly document everything. You can link to the OP, but still include the snippet directly in the doc. This will be more safe, because you always have the doc file with you (at least you should, like books, but digital). On the Internet, it can become inaccessible because:

• the OP changed the snippet;
• the OP removed the snippet;
• the GitHub is down at the moment;
• you can't access the Internet for some reason.

[wary knot]

fair enough, but it wont need a workaround in the next Typst version anyway

so not sure if it's worth the trouble now

[upbeat pine]

If you don't release a new tablex version until it will be possible directly in the released Typst 0.11.0, then I don't see the point either.

[upbeat pine]

@silent If this is still relevant. Doesn't the show rule right now already have everything applied? As @robust viper have explained: it is the element with default styling, but it.body is unstyled raw content of the element. I think I'm probably missing something here. Maybe give an example of "apply before cell show rule" and "apply after cell show rule". Choosing based on visual context is much easier than on just a plain text.

(oopsie, misspelled the word silent)

[wary knot]

so, right now it works the following way:

before the cells are even passed to the GridLayouter, which does all the table layout magic, their contents are directly converted to align(alignment(x, y), pad(..inset, body))

here cells arent even an element

theyre just the body

this means that the body is being directly transformed

if we keep that behavior when creating cell elements, this means that it.body will have align(..., pad(...))

cuz the body will be transformed before the show rule

but as Laurenz said this is likely not desirable

[upbeat pine]

I'll go ahead and agree with @robust viper, because I still not 100% understand all the underlining stuff of Rust Typst (small brain).

[wary knot]

@robust viper do you think cells should automatically resolve per-cell alignment, inset and fill on show rules?
In other words, if you write

#show table.cell: it => panic(it.align, it.fill, it.inset)
#table([a])

Should it panic with auto, auto, auto or auto, none, 5pt?

(Right now I'm tending towards the latter, at least I think it'd be more useful)

[robust viper]

the latter seems more useful

does that also sidestep the issue with ordering?

i.e., does the default show rule apply alignment and inset or does the table do it?

[wary knot]

i believe it's a bit of an orthogonal problem

this will just affect the cell's fields pretty much

[robust viper]

if it's the former, the default show rule couldn't do it

since it wouldn't the know the values

it being the latter would make it possible

[wary knot]

oh right
I was thinking of not having the default show rule apply those things

I'm thinking a lot here on how to implement this in the best way possible lol so I'm trying to think of as many edge cases as possible

[robust viper]

that's good!

[wary knot]

rn I'm working with the idea of a GridCell trait (might have to rename due to grid's cell, but idk), for anything that can be used as a cell in the grid
Content implements it and is the most trivial case (it would just mock all the methods), but grid's and table's Cell elements would also implement it with non-mocked methods

regarding the field resolution thing, i was thinking of having some method like
resolve(x, y, default_fill, default_align, default_inset) , which would provide the cell with all relevant state so it can update its fields

[robust viper]

would the children fields remain of type Vec<Content> or would they become GridCell and TableCell with an automatic cast from content?

[wary knot]

they would become Vec<T>, T: GridCellTraitThing

T defaults to Content

but GridCell, TableCell have an auto cast from Content yes

[robust viper]

I mean on the GridElem and TableElem

[wary knot]

yeah

[robust viper]

(which can't be generic)

[wary knot]

it'd just specify auto for all fields then

aka inherit from table

[robust viper]

my question is what type is here?

[wary knot]

I believe it'd work similarly to ListItem here

[robust viper]

okay

[wary knot]

we'd use some GridCellElem kind of thing which has auto cast from Content

[robust viper]

I'd drop the Elem

[wary knot]

sure

[robust viper]

It's not typically used in the codebase for scoped elements right now

[wary knot]

i think GridCell might not be the ideal name for the trait then cuz the conflict is obvious

[robust viper]

Why would the trait need to be implemented for Content then?

If it's only ever a GridCell or a TableCell

[wary knot]

perhaps Cell?

[wary knot]

cuz list, enum use GridLayouter too

[robust viper]

Yeah Cell is a good name for the trait

[robust viper]

Ah

[wary knot]

so for Content it just mocks everything that isnt needed

[robust viper]

fair

[wary knot]

i mean

at first I had a newtype like SimpleGridCell

but then I realized I could just implement it directly on Content

lol

much simpler

[robust viper]

Are you making the layouter generic or &dyn?

[wary knot]

for now generic

[robust viper]

I'm a bit afraid of code and compile time bloat with generics

The dynamic dispatch overhead would probably be completely irrelevant

[wary knot]

hmmm

well we'd have 3 possible Ts, not sure if it's that bad?

well, there's also the fact that resolve() would require &mut self

so, initially , i thought of having GridLayouter take ownership of the cells (although the cells can contain references to Content if so desired)

[robust viper]

it could also be an enum

but anyway, it doesn't matter too much at this point

[wary knot]

i think it shouldnt be too hard to refactor later maybe

for comparison though, in tablex this field resolution is only done when the cell is effectively laid out

so it'd be auto, auto, auto, and cells wouldnt be mutable

but i think we can probably do better

:p

[wary knot]

alright

I think I had an idea

We could have some CellGrid type - or just some function to generate (cols, rows, cells) - which would be created before the GridLayouter itself

this type or function would basically be responsible for assigning positions to each cells, so it would be an ideal candidate for the position where we'd call resolve

tablex has a similar thing, it's its own file even in the 0.1.0 branch

(it will be required to allow arbitrary cell positioning)

I'll experiment with the idea

[robust viper]

so that the grid layouter has all the state it needs?

[wary knot]

yes

i mean theoretically this is more or less what we're doing on new, but this would be more borrow check-friendly :p
(since right now we dont have to mutate anything)

[robust viper]

sounds good, I also felt like something like that would be needed while I briefly started to implement this a while back

[wary knot]

yeah it's just a bit nicer overall in the code organization as well

let's see how this goes 🙂

[random mica]

Another interesting problem I thought of is that if you write show table.cell: some-other-element(..) the table must then wrap your content in another table.cell, no? At that point the show rule might immediately apply again

[wary knot]

No, don’t worry

The show rule would only be invoked when the cell is about to be laid out

[random mica]

I'm not sure what you mean by that

[wary knot]

Fixed

:p

Basically the cell will just lay out its body by default

But the show rule would override that

[wary knot]

gotta be the scariest thing to get an error in bibliography.rs after modifying Grid 😂

[robust viper]

as long as it's just a compile time error

wait until you get "failed to format citation (this is a bug)" at runtime

[wary knot]

im not gonna be waiting for it 😂

[wary knot]

okay so

it turns out designing the internal code structure while aiming for different goals (support grid/table and list/enum, but also support GridCell and TableCell, and other stuff) is a bit more difficult than I thought

lol

the resolve_cells thing is the only place which adds mutability and screws everything over

cuz the original &Vec<GridCell> or &Vec<Content>etc. isnt mutable

the easiest way around this is to just clone everything

though another way I considered could be to use the style chain: table's fill: ..., align: ... etc. would just be a set table.cell before applying the show rule

this seems smart, though there'd definitely be some questions regarding how to make that work nicely

in particular, we'd have to define (well, I guess we already have to define)

• which should be prioritized, a user's set table.cell outside of the table or a table's fill: ... override? (The latter seems to make more sense in principle?)
• this wouldnt work if the user manually specified table.cell(fill: auto) for example, since it'd always override the set rule, so we'd have to remove auto as a possible value. Not sure if that's good or bad. (probably not that bad since the user should just not specify the parameter then.)

for the curious, my latest attempt is here https://github.com/PgBiel/typst/commit/241a6712b4648199883b7defe0e6db023ffb2bf8

eventually i faced so many borrow checking and mutability problems that I thought "okay, I need to think this differently" lol

[wary knot]

Regarding the above: I believe we could use the Synthesize trait for this

so maybe the resolve thing isn't needed after all

[robust viper]

please don't use it for anything

I'm currently trying to get rid of it

[wary knot]

understood

[wary knot]

it was probably for the best tbh 😂

i was trying to figure out how to use it in a non-cursed way

but i didnt have much success

:^)

after all, Synthesize still requires mut somewhere

im still a bit unsure regarding cloning all cells ever though

i considered using something like Cow or Arc

but idk

wouldnt be nice to expose that to the Typst side

[robust viper]

I wouldn't worry too much about it

Cloning content is relatively cheap

[wary knot]

fair enough

though I guess we'd also clone fill, align, inset for every cell

but I dont think theres any way to go around that other than the auto, auto, auto way

¯_(ツ)_/¯

lovely

[robust viper]

perhaps it would be possible with the style chain, as you brought up before

[wary knot]

yeah idk exactly how though 🤔

[robust viper]

you would need to construct one Styles object per unique fill-align-inset combination and chain that to the grid's style chain

[wary knot]

ah

hmm

and chain that to the grid's style chain
so, this is the problem

where exactly would I add this style?

change the styles object somewhere on Layout?

[robust viper]

whenever a grid cell is layouted, it gets passed the grid's styles

[wary knot]

right

hmm

perhaps each cell could assess Grid::fill_in(styles)?

the grid would have to chain its own parameters to the style chain for that to work though

or maybe i can just pass those parameters down regardless of styles

but then it'd become a more "ad hoc" thing

[robust viper]

so, if I understand correctly, the problem is that show grid.cell: it => it.align should output the alignment resolved via #set grid(align: ..), right?

[wary knot]

or on the grid itself (which I believe to be the more common case), yea

[robust viper]

what do you mean with "on the grid itself"?

[wary knot]

as in

without using a set rule

[robust viper]

ah yes

same thing

[wary knot]

ok

[robust viper]

so, first of all, to have it.align work right now, it needs to be inherent. so even if we pass it via style chain, we would need a naive Synthesize impl to make them available. that's what I'm currently changing, so this kind of Synthesize impl would be ok since there are others just like it.

[wary knot]

yeah thats the thing

right now im doing some ad-hoc thing here which im not even sure works

ill test that now

at least for the first time I got something that compiles 😂

[robust viper]

what's also important is that inherently specified fields on grid.cell have precedence over the grid's config. a style chain based solution would get that for free.

however, a style chain solution also means that the properties are inherited if there is a nested grid

I think just manually setting the fields if they're unset is simplest for now

[wary knot]

okay, well, we have something going

kek

baby steps

ok so

show rules dont seem to be doing anything at all

probably I need to use Show for that to work, I assume?

[robust viper]

you need to implement Show and add it the cell's capability list in the elem macro

looking at it, I'm wondering whether grid.cell(align: right)[C] is idiomatic as opposed to align(right)[C]

[wary knot]

hmm

I mean, I guess normally you wouldnt write it like that

[robust viper]

But I guess it makes sense to have it for consistency

[wary knot]

yeah i think

not 100% sure on that either though

but it does make the field available in a show rule for example

so theres that

regarding Show, I guess I should probably convert the old Layout implementation to some layout_cell in Cell kind of thing? So as to apply align and inset after show rules

or maybe I should just add align() and inset() to Cell and have GridLayouter do it

we can assume they were already resolved anyway

[robust viper]

I thought that the alignment and inset would be applied in grid.cell's Show rule.

[wary knot]

Well

That’s definitely possible

It would just make it so the user would have to manually align(it.align, box(inset: it.inset, …))

I think

Which may or may not be desirable

[robust viper]

only if they write a cell show rule that throws away it

which you just shouldn't do typically

[wary knot]

Hmmm

Good point

[robust viper]

just like if you write show raw: it => it.text

no highlighting

[wary knot]

Fair enough

I think the styling rework will help here too

So the user could idk it.x = y maybe

[robust viper]

*not box, but rather pad

[wary knot]

But it’s not like that’s needed atm

[wary knot]

Yeah , though box / block is easier 😂

I’m not sure if pad(..it.inset) works , does it?

[robust viper]

ideally, the mutation (if we even allow it) should be last resort and show: set should cover setting fields in an immutable way

[robust viper]

it should, I think

[wary knot]

hmm. Interesting

Was thinking about the rest: things

But if it supports that then that’s good

[wary knot]

Yeah fair

I think I’ll just place it in the Show rule then

[robust viper]

maybe it breaks in some cases, maybe rest is positional there

but in Rust code it's definitely the right element

[wary knot]

@robust viper what's the best way to layout the post-show rule Cell from the GridLayouter?

right now im requiring an implementation of Layout (supertrait), but that doesnt seem to be helpful for GridCell/TableCell

[robust viper]

Content implements Layout, but the cell needs to be packed for that impl to be invokable.

You shouldn't apply the show rule yourself, that's the job of content's Layout impl.

[wary knot]

right

I tried to run .clone().pack().layout(...) but it seems two grid tests broke

🤔

i'll take a look

hmmm interesting

it seems that inserting an align(...) as a grid element isnt working properly 🤔

[wary knot]

okay

it works if i remove the .padded

very odd lol

only happens when using Show instead of Layout as well

[wary knot]

ok, it's specifically vertical alignment apparently

though it works with grid.cell(align: horizon)

hmmm

[random mica]

is it unnecessarily confusing that for tables you must use a table.cell to override a cell while for grids you must use a grid.cell?

like
I get it
but I almost want to think of show table.cell as css table > cell

I don't think discussing this could lead to any improvements in this regard but I was wondering if anyone feels similarly

[wary knot]

there isnt really a way to do that in Typst , so there isnt much of an option

using nested show rules would affect nested tables / grids too

so it would work a bit weirdly

[random mica]

well > in CSS specifically means direct descendant

[wary knot]

yea

thats what I meant, it doesnt exist in typst

[random mica]

indeed

[wary knot]

but the non-> version does

[random mica]

perhaps it one day might

[wary knot]

maybe

[random mica]

do we have a forge for a selectors overhaul?

[wary knot]

though i can imagine it'd be a bit weird to define like what is a direct descendant

well I mean

there is #1175894504146993304

[random mica]

not really the same

[wary knot]

it's linked though

well anyway

there's an issue requesting something similar though i think

[random mica]

That's fair, you might want to not count some intermediaries but do count others

[wary knot]

yea and show rules make stuff kinda blurry

[random mica]

Yeah I remember that discussion on github

I reckon it deserves its own forge

had something to do with pattern-matching / destructuring, can't find it from my phone though

[robust viper]

I think we can have discussion about it in #1175894504146993304 for now.

[wary knot]

ok so

i did some experimenting , and I think the problem I'm having is a bug

or at least some weird stuff

heres what I did to debug:

made this

exposed it

did that

result

🤔

though I cant reproduce this outside of Show #bot-corner message

[robust viper]

?r ```
#set page(height: 50pt)
#pad[#align(horizon)[Hello]]

[robust viper]

The align should be around the pad, not inside of it.

[wary knot]

hmm

but how did it work before?

[robust viper]

?r ```
#table(
align: top,
rows: 50pt,
align(bottom)[Hello]
)

[robust viper]

the outer alignment wins

but if align is not specified, it doesn't happen

?r ```
#table(
rows: 50pt,
align(bottom)[Hello]
)

[wary knot]

hmmm

i believe it's still behaving a bit differently in any case

that SimpleTest element did not have any sort of custom alignment

[robust viper]

but it was in a pad

and a pad is like a block, it doesn't auto-expand to the full height

[wary knot]

right. but the same code to generate the pad in the Show is the code being used today to generate the pad in table content

thats whats confusing me

[robust viper]

but what's weird is that here the inner alignment wins

?r ```
#block(height: 50pt, fill: red)[
#align(top)[
#align(bottom)[ok]
]
]

[robust viper]

that's somehow inconsistent or I'm missing something

[wary knot]

basically like

my goal is to keep that behavior of not affecting align if a global grid align isnt specified

and it works nicely when we preprocess the cells when they're just Content, into more Content

but not when we're applying the pad inside Show

[robust viper]

?r ```
#table(
align: left,
fill: red,
stroke: blue,
inset: 5pt,
columns: 2,
[AAAAA], [BBBBB],
[A], [B],
align(right)[C], [D],
align(right)[E], [F],
align(horizon)[G], [A\ A\ A],
)

[robust viper]

same problem on main

[wary knot]

bruhv

;-;

i dont wanna break all grids ever 😂

maybe the blast radius is smaller if i dont pad when it's all 0, 0, 0, 0?

well i mean the blast radius would be null

[robust viper]

That should definitely be done

[wary knot]

cuz inset doesnt exist atm

[robust viper]

as an optimization in any case

[wary knot]

yeah fair enough

though should we retroactively apply this to tables?

[robust viper]

you also don't have to use padelem

you can do your own insetting

but we should probably rather fix pad somehow

[wary knot]

mayhaps

i think it doesnt hurt to do it on tables like

the current behavior just ignores align so

users probably noticed that

lol

[robust viper]

if you remove the align: left it works in the normal table

?r ```
#table(
fill: red,
stroke: blue,
inset: 5pt,
columns: 2,
[AAAAA], [BBBBB],
[A], [B],
align(right)[C], [D],
align(right)[E], [F],
align(horizon)[G], [A\ A\ A],
)

[wary knot]

ah

[wary knot]

that's sneaky

[robust viper]

I think it just sort of wins

[wary knot]

then... still odd ;-;

idk

well

i'll just not pad if possible

lol

[robust viper]

but the padding doesn't seem to be the problem then

[wary knot]

im pretty sure its not doing any alignment as i added a debug print there

either way just not padding works for me

[robust viper]

but this one does have pad, but shouldn't have align

and it works

[wary knot]

yeah. thats the weirdest thing

on main it's just mapping Content to pad(align(...))

in my current impl it's the default Show

so maybe theres some sort of "layout UB" at play here

lol

🚀

yeah ill just not pad when possible for now

i might open an issue later regarding this stuff, doesnt seem like it would be easy to solve though

also show rules work too

"mini synthesize" seems to be working too

yay

🚀

[wary knot]

nuuuu

tbh i considered moving fill to Show as well. but im not sure if that'd be desired

[wary knot]

but also this is a bit of a dumb limitation, cuz we cant tell Rust that we're borrowing different fields here, so Rust just assumes we're borrowing all of them

bad crabby crab

i think moving self.cell to a top-level function (to which we provide the required fields) can probably work

[vernal herald]

time to employ references-by-indices trick.

[wary knot]

well

self.cell basically calculates the index

so it's pretty simple

actually the major reason it exists in the first place, as I see it, is that gutter is weird

that will change in due time

and also cuz assert!(x is valid and y is valid)

an easy way out of this is to just replace the relevant fields (cols, rows, cells, ...) by a single struct (in this case CellGrid), which would have the required info for a self.grid.cell(x, y)

I'll consider it

but for now I shall rest 🫡

most of the hard work for per-cell customization is already done though

just missing fill here and we'll have an initial PR (without x, y fields for now)

[wary knot]

yeah that worked

nice

PR almost ready

[wary knot]

@robust viper is it fine for GridCell, TableCell to implement both Show and Layout (which just calls .clone().pack().layout(...))? (Only Show goes in the #[elem(...)] macro, but GridLayouter uses cell.layout(...) and cell.measure(...) a lot, so I thought it'd be redundant to add measure and layout to trait Cell instead of just using a supertrait, however that could still be desirable)

[robust viper]

Should be okay

[wary knot]

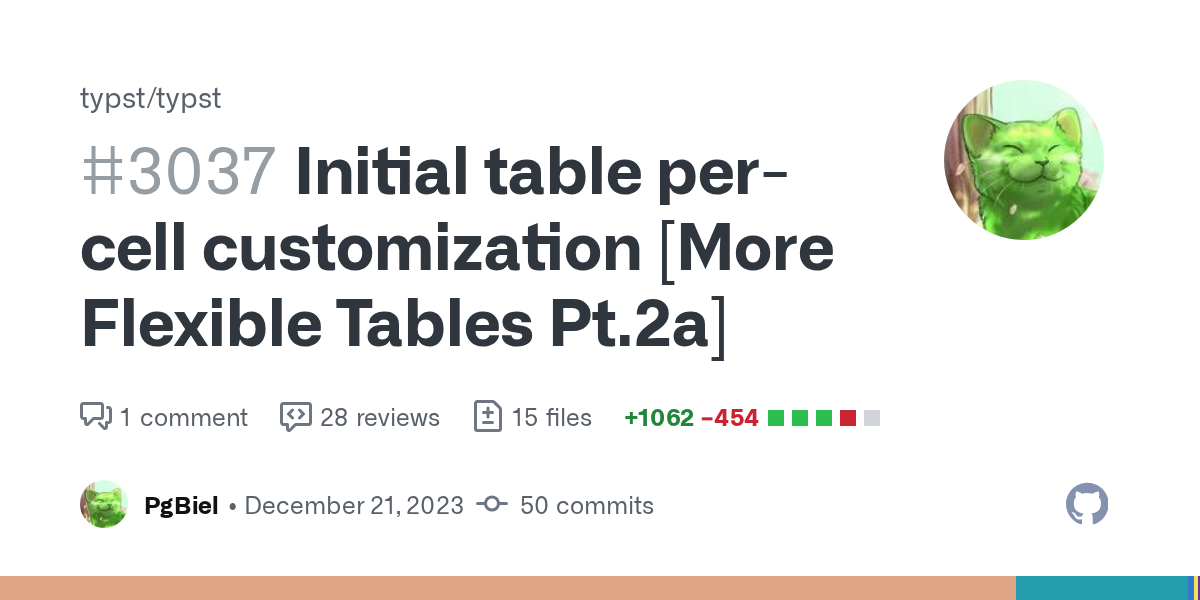

PR is out 🚀 https://github.com/typst/typst/pull/3037

this was fun lol

note that:

I didn't implement x, y fields yet, those require some separate changes so I thought a separate PR is ideal

[vernal herald]

You're also implementing it in typst? That's nice.

[wary knot]

it what?

the new table features?

if so: yeah 🙂
it's pretty much what we're all here for haha

tablex has had those features for a while now, but within native tables they'll be supercharged by Rust 🚀

[wary knot]

also I'm beginning to think that Line customization might have to come before Merging cells 🤔

cuz merging cells will require line splitting and stuff

unless i find a simple way to do it

maybe i will

i might experiment with this later

ehh.. yeah tbh the order doesnt matter actually

i'll just do Merging cells first

[wary knot]

So

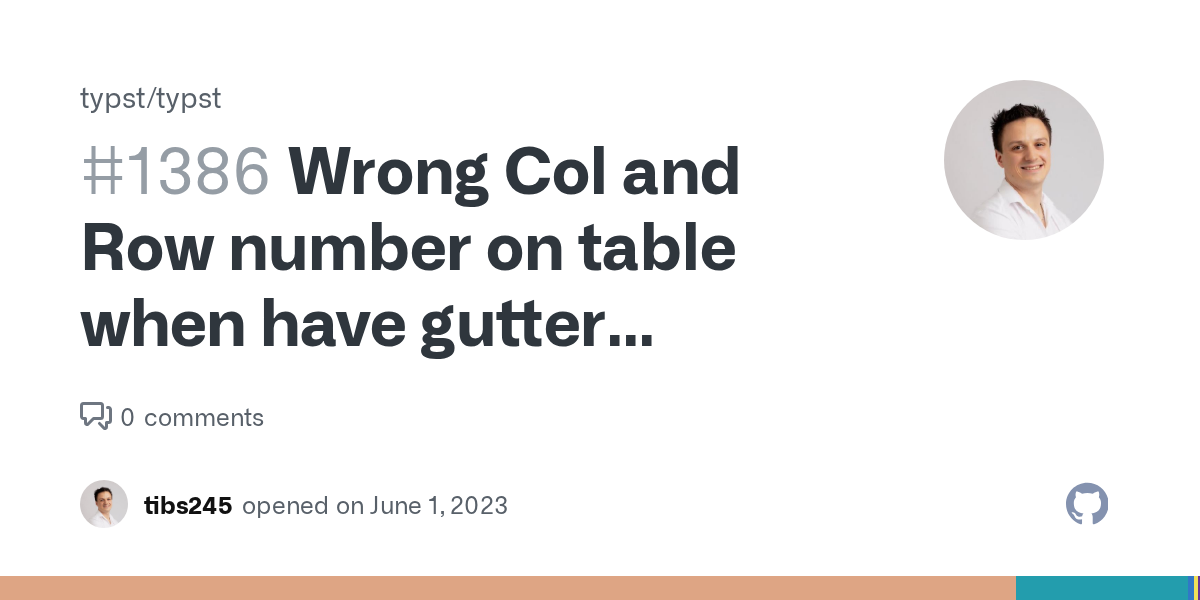

it seems I found a relatively simple way to fix https://github.com/typst/typst/issues/1386 ? But I'm not sure if this is how a fix should go

basically I noticed that coordinates were off with my current PR when using gutters
Cuz self.cols changes after creating the gutter columns

So I applied a fix (the additions at the top) which just accounts for the gutters

But that magically fixes the issue mentioned above regarding cell coordinates when gutter is enabled, so I applied the additions at the bottom to "keep" it

I wonder if it's desirable to just not apply the bottom half of the patch instead, and fix the issue?

I mean, this will only affect .resolve_cell anyway (and thus per-cell alignment, inset, fill), GridLayouter doesnt care :p

Just to note: An "ideal fix" for me would be to keep gutter columns and rows separate from normal columns and rows, so we dont have to keep adding those coordinate adjustments everywhere, but maybe just fixing the coordinates reported to each cell (like I do above, in the top half of the patch) works in the meantime...

[wary knot]

Ooooh I see, this issue only applies for fill

Cuz fill was being calculated after the table was laid out and stuff (and thus using columns with gutters), but now I'm doing it before

So yeah I think I'm just gonna fix it straight up lol

(that thing to "keep" the issue would actually make it worse, cuz it would also apply to alignment now!)

[wary knot]

Ok there we go, free bug fix with this PR 😂

[wary knot]

ok so

@frozen oyster bad news

😂

my PR makes table a wee bit slower :^)

ive been conducting some totally unscientific tests , and it seems to (on release mode) make a document with just a ton of tables and grids about 5-10% slower

kinda sadge

the cool thing about this is

i produced a 1 GB PDF

🚀

i guess 10k tables with 5k cells each is quite a lot

who could tell

[vernal herald]

That's a good chunk of performance taken.
🤔

But this was maybe bound to happen.

[wary knot]

well... Im not sure if theres much we can do

theres an extra for loop across all cells

i guess that may be relevant

i wonder if i can just slap an EcoVec and magically improve performance

lol

[wary knot]

well also all cells hold state now so

they arent just Content

[grand haven]

I mean, it's doing more things. I'm sure it's way faster than tablex

[vernal herald]

🤷‍♂️ I'm also of the opinion that one should not overload a PR unnecessarily.. But it is still surprising. Unless you're benchmarking against main, and main have been trimmed to the brim, so maybe the absolute numbers are negligible.. 😅

[wary knot]

oh yeah without a doubt

in fact i think i have that stat

on April 21 (so much before the latest perf improvements by Dherse) I did 200 tables with 200 cells (so a much tamer example probably) and tablex took like idk several minutes

here im doing 5000 tables and 5000 grids , each with 5000 cells

and it's taking like 38 seconds

i kinda wanna compare now lol

for science......

though for the comparison to be 100% fair we'd need repeatable headers too

oh...

EcoVec is immutable 😔

well.. unless I just .map() ...

nah , cant take ownership of its items

dream ruined 😂

i mean you can but you have to clone it so yeah

wait...

uhhhhhhhh

dumby dumb moment rn? lol

idk how i let this slide 😂

[vernal herald]

Is it that you're collecting without needing to do so?

[wary knot]

yes

into a Vec even

[vernal herald]

Sometimes you guys are smarter than the rest of us. You should try and help us out a little... 😅

[wary knot]

sorry, just meant to share the realization moment lol

[vernal herald]

But yes that would trim performance nicely. But I wouldn't do more than light trimming. Leave something for code review.

[wary knot]

i gave EcoVec a shot

i dont think it will clone cuz theres only a single reference

but let's see

aw

37.9s on the 5000 tables and 5000 grids with 5000 cells

so not much

(still within a reasonable error margin so probs didnt change at all)

[vernal herald]

That's.. That's so many tables.......

[wary knot]

indeed 😂

gotta test this thing to the max

im relatively sure that'd have taken like over 30 minutes with tablex though

i'll test it on lunch

[vernal herald]

See.. That stat could be interesting to know.
But I like the benchmarking of actual real world cases... Although tables are a bit meh.

I didn't know your thing was also about grids. 😅

Alright i'mma let you be! Awesome progress.

[wary knot]

regarding grids: https://github.com/typst/typst/pull/3009

they are one and the same now

👍

[vernal herald]

Meh in that.. There aren't really that prominent world case for tables that would be the ideal benchmark.

[wary knot]

yeah ig

best i can do is have fun with 5000 tables and 5000 grids 😂

it generates a 1 GB PDF

isnt that cool

ok so

ignoring the EcoVec thing, just removing the collect seems to have improved perf by a small bit

nice

by like 1% idk

lol

(let's be real: doesnt matter)

lol

yeah 1% is too generous. more like 0.2% at most

anyway but still a logical thing to do so i'll push it

lol

yeah

too bad i dont have more than 64 GB RAM

😂

[vernal herald]

Alright... So all of these performance questions should be stopped for now.

[grand haven]

pagefile and some patience /s

[wary knot]

Great idea! I’ll let my computer run for 5 years to test

[wary knot]

Yeah… it’s just not comparable at all 😂

If anything this is more of a performance improvement

When we compare to tablex usage

[frozen oyster]

Make sure to strongly type them in your table that might help, also I can always do a quick one over when you’re done for « low hanging fruits » so to speak

I wouldn’t worry about perfs too much for now, focus on having the features you want and we can work on that later, gradients could also do with some performance bumps

[wary knot]

Yeah fair enough lol

I made too much of a case

It’s really not that bad

Im testing very unrealistic cases too 😂

Oh noes it will now take 4 more seconds to compile their 5000 tables and 5000 grids with 5000 cells each

…and +inf less seconds compared to tablex

[wary knot]

lol, a mysterious file has appeared

[mild pagoda]

Mysterious, yes

[wary knot]

next PR is already cooking 🧑‍🍳 btw

😄

at least, I got the insight I needed

next PR will be about table.cell(x: 5, y: 999)

cant wait to crash typst with y: 999999999999999

anyway, nice, it didnt explode the current examples so that's a good sign

[vernal herald]

My boy is tough @wary knot !

[wary knot]

indeed

it shall not be taken down by a simple table

yayy

just missing a few edge cases now but we're almost there 🚀

[bold bluff]

So is the idea to integrate better base table stuff into typst.exe or to just make a included library for table stuff. Or something completely different?

[wary knot]

everything will become available straight away

in typst.exe itself

[bold bluff]

So like tablex but stronger faster better.

[wary knot]

yes

I'm basically bringing tablex stuff (which I made in pure Typst) to native tables (in Rust)

[vernal herald]

it does take more effort to write the rust tablex as @wary knot is doing right now...

[wary knot]

yeah, that also explains why tablex is so slow
allocations, allocations everywhere

in Rust im being very cautious to not make things excessively slow

[bold bluff]

So exciting. So it can detect table breaks and such

[wary knot]

yeah but that will be mostly useful for repeatable headers and such

you wont be able to control that manually otherwise

[bold bluff]

So I can repeat headers on like large tables! Thank you!

[wary knot]

Soon™️ 😉

[vernal herald]

@wary knot

[src/main.rs:3] std::mem::size_of_val::<[Result<(), ()>; 2]>(&[Ok(()), Ok(())]) = 2
[src/main.rs:3] std::mem::size_of_val(&vec![Ok :: < (), () > (()), Ok(())]) = 24
[src/main.rs:3] std::mem::size_of_val(&vec![Ok :: < (), () > (()), Ok(()), Ok(()), Ok(())]) = 24
[src/main.rs:3] std::mem::size_of_val(&vec![(), ()]) = 24
[src/main.rs:3] std::mem::size_of_val(&[(), ()]) = 0

[wary knot]

makes sense

[vernal herald]

that's why it didn't do anything, I think. you were collecting () which is a ZST, and there were probably some optimisations there..

[wary knot]

yea fair enough, maybe it detected that it was unnecessary

but the vec part wouldnt change anyways

cuz vecs are just (ptr, len, capacity) so it's always 24 for 64-bit archs

anyway, for my next PR that code has been vastly changed so yeah lol

[vernal herald]

it's just a funny instance of.. it wasn't that bad.

[wary knot]

yep

whatever it was, ive made it worse now 😂

cuz for arbitrary positioning you have to build the vector from scratch

of course, Vec::with_capacity(cells.len()) helps avoid a crap ton of allocations for the general case (no arbitrary positioning)

theres also the fact that technically it's a two-pass algorithm, cuz after you expand the grid, there might be empty, unoccupied cells

so I have to go back and occupy them with empty content

but that's only necessary when the grid was expanded, if it wasnt then there should be no way there will be an unoccupied position (you cant place two cells at the same spot!)

so we're safe for the general case 👍

[vernal herald]

🦆

[wary knot]

We did it bois

The Arbitrary cell positioning is real

[vernal herald]

I'm a duck/goose.

[wary knot]

sorry, im a bit too used to that expression 😂

[vernal herald]

Dherse calls me a goose, and you seem to use me as a rubber-debugging-duck, so duck/goose.

[wary knot]

eh

more like I use this entire thread as a "rubber-debugging-duck"

😂

[vernal herald]

Sorry, it is past midnight here.. I can barely focus. Congratulations!

I gotta subscribe to the tracking issue at this point...

[wary knot]

thanks 🚀

this is the byproduct of the latest work ™️

code:

---
#grid(
  columns: 3,
  rows: 1.5em,
  inset: 5pt,
  fill: (x, y) => if (x, y) == (0, 0) { blue } else if (x, y) == (2, 3) { red } else { green },
  [A],
  grid.cell(x: 2, y: 3)[B]
)

#table(
  columns: (3em, 1em, 3em),
  rows: 1.5em,
  inset: (top: 0pt, bottom: 0pt, rest: 5pt),
  fill: (x, y) => if (x, y) == (0, 0) { blue } else if (x, y) == (2, 3) { red } else { green },
  align: (x, y) => (left, center, right).at(x),
  [A],
  table.cell(x: 2, y: 3)[B]
)

---
#grid(
  columns: 3,
  rows: 1.5em,
  inset: 5pt,
  fill: (x, y) => if (x, y) == (0, 0) { blue } else if (x, y) == (2, 3) { red } else { green },
  [A], grid.cell(y: 1)[B], [C], grid.cell(y: 1)[D], [E],
  grid.cell(y: 2)[F], grid.cell(x: 0)[G], grid.cell(x: 0)[H],
  grid.cell(x: 1)[I]
)

[vernal herald]

Right.. so the images here are design not the implemented stuff... you just managed to implement it https://github.com/typst/typst/pull/3037?

[wary knot]

i just implemented this

it's not in that PR

it will be in another PR

[vernal herald]

❤️

[wary knot]

i mean i could make them the same PR but the first PR is big enough as it is

and the first PR is more foundational anyway, the second just builds on top of it

i think ill just create a draft PR now

theres one design decision I still need to make

and for that I will have to ask people here

😄

cuz who doesnt love discussing things

[vernal herald]

with tables, it is very obvious that a lot of voices are not.. hmm.. what's a nice way to say it?
It is a lot of chatter, not enough chowder.

[wary knot]

basically right now this will yield an error

#table(
  columns: 3,
  [A], [B], [C],
  table.cell(x: 2, y: 0)[oh no! conflict!]
)

which is fair enough

but this will also error:

#table(
  columns: 3,
  table.cell(x: 2, y: 0)[oh no! conflict?]
  [A], [B], [C],
)

so Q: should cells coming after arbitrarily positioned cells just skip already occupied cells?

note that table.cell(x: 2)[This avoids conflict!] would already be placed in the first free row (if specified at the bottom)

so could be consistent

in tablex this works entirely differently btw, so that doesnt become much of a concern rlly (though it's a bit messy so I think I prefer this way)

[vernal herald]

err noob question, how does rows know how many rows there needs to be?

[wary knot]

basically just divide # cells by # columns and take the ceil

[vernal herald]

jesus christ there is a spec! brb, gotta read 14 pages..

[wary knot]

:p

the ideas section is particularly long

the rest is pretty short

[wary knot]

weeee https://github.com/typst/typst/pull/3050

theres one little bug still but thats enough for today 😂

[wary knot]

whoops

fixing now 👍

[wary knot]

Okay guys

Fellow rustaceans, bear with me

I've been considering refactoring the first PR (for per-cell customization)

right now, the way I implemented this is:

• instead of using a vector of simple Content for cells, you have a vector of T, where T: Cell and Cell has some useful methods (for now just fill() to return per-cell fill, and also the cell must implement Layout aka must be possible to lay it out in the document, a very basic need)

  • This makes all the table layout code generic. Laurenz was concerned that this could cause some bloat, which is why I am reconsidering this.

• since cells must be aware of their final properties in the grid, I've also created the CellGrid type, which prepares the vector of cells before the actual layout code even runs.

  • In this sense, GridCell and TableCell, the two elements representing grid cells and table cells respectively, implement ResolvableCell: the CellGrid calls, for each cell, .resolve_cell(x, y, final properties) and the cell adjusts its fields (e.g. it.fill = final fill, it.align = final align etc.) so you can use those properties in show rules

• in the end, the layout code uses CellGrid instead of a vector of T: Cell, but it's still generic cuz CellGrid itself is generic

Now, this works, but it's a lot of generic which I think we can avoid

I was considering "abusing" (actually properly using :p) the fact that elements can be .pack()ed into a type-erased Content, and instead of a Cell trait we'd have a Cell type which holds { body: Content, fill: type of fill goes here }

And then no more generics (well, maybe before resolving the cell but that's it), and also (implementation detail alert) it turns out we were already calling .pack() when the cell was actually laid out to trigger show rules so... we only have to call it once now!!

Perhaps this is a saner approach then 🤔

If anyone has any opinions on this, feel free to share, though I think this might work

[grand haven]

Guys, it's Christmas eve. Chill 😂

[wary knot]

Sorry 😅

I'll be 100% honest

I had this insight while taking a shower and I just had to share it 😂

Tables are consuming my brain 😔

[random mica]

Can you elaborate on what being generic means here? Does it mean that two copies of the code are generated once for tables and once for grids?

[wary knot]

yep

and also (implementation detail alert) for lists and enums

(they are secretly stealing grid's code)

[random mica]

That explains https://github.com/typst/typst/issues/1050

[wary knot]

very likely so, yeah

[mild pagoda]

Smh, thieves

[wary knot]

ikr

[random mica]

true

[wary knot]

ayyy

seems like my idea works

[wary knot]

seems like it is slightly faster too as a bonus

pretty cool

big day for table users

😂

[random mica]

sped

[wary knot]

yeah that's always nice

I think it's because, with the old design, each cell was being cloned each time it was measured or laid out

that does not spark joy

meanwhile, tablex probably clones like on every single function call so 😂

[keen crescent]

I haven't looked at the planning doc for a hot minute now, I'm kinda scared to see what all has happened

[wary knot]

Not that much honestly, compared to when we were discussing

You could take a look at the commits in the repo instead if that’s more helpful

Most importantly, we began the implementation phase for the first few topics so that’s what most of the discussion here is related to now

After item 3 (merging cells) we’ll probably go back to discussing stuff

I’m still studying how to implement merging cells though, it’ll definitely be a challenge haha

Mostly because on tablex i sidestepped the problem of cells spanning multiple pages by having no cells span multiple pages

[wary knot]

ok guys

I found this cool new toy

so it must now be used

out of pure boredom this interesting and informational diagram was made.

which basically sums up the two PRs which are currently live right now

actually I'll add the PR #s too hold on

there we go

.... a bit small but anyway

[vernal herald]

Neat!

[frozen oyster]

https://tenor.com/view/yawnface-gif-20578163

Definitely should be a blog post like "converting your tablex tables to the new table API" @robust viper

[wary knot]

Not that bad of an idea tbh 😂

There's much more to come though 👍

[upbeat pine]

It will probably take a lot of time, but also can make you think clearly since you will have to explain everything (some stuff).

[wary knot]

for the curious, this was done using D2 , which I mentioned in #off-topic earlier

too bad they arent wasm yet, would be cool to use this in typst lol

but ill document the source here if that ends up being useful for someone

direction: right
percell: {
  label: "Per-cell customization"
  Tablex: {
    Cellx
    map-cells
    properties: {label: "properties (fill, align, inset)"}
    position: {label: "cell positioning (x, y fields)"}
  }

  Typst: {
    grid-table-cell: {label: "grid.cell, table.cell"}
    Show rules
    properties: {label: "properties (fill, align, inset)"}
    position: {label: "cell positioning (x, y fields)"}
  }

  Tablex.Cellx -> Typst.grid-table-cell: PR \#3037
  Tablex.map-cells -> Typst.Show rules: PR \#3037
  Tablex.properties -> Typst.properties: PR \#3037
  Tablex.position -> Typst.position: PR \#3050
}

(it's pretty simple lol)

[keen crescent]

Is this D2? Am a stupid

[vernal herald]

Don't be hard on yourself. Dherse, pgsuper, and a couple others have infinite ability to context flip seamlessly.
It is impressive, dizzing and yeah.

[wary knot]

So, I believe tabularray has a solution for the auto / fr column problem

added this to the planning document

basically, when a merged cell spans both an auto column and a fractional-length column in tablex, it leads to some weird visual glitches where the auto column will expand the most it can to fit the merged cell, and thus the fractional column will have a size of 0pt, even if there are other things in it

so a possible solution to that is to allow table users to define whether or not a merged cell (or even all merged cells) can cause auto columns to expand

that way, if it looks ugly, you can just disable that

this is what tabularray does

so yea I think we could adopt something similar

otherwise we'd need to do some funky stuff to try to determine what would look best and stuff, when we can just push the decision to the end user

[wary knot]

In regard to merged cells, I'm still planning out the implementation

I found out that, apparently, rows with fixed size cannot be broken apart across pages, if I understood correctly

Well, worth noting, first of all, that colspans are very simple to deal with, just rowspans are harder

So, assuming the simplest case of a rowspan spanning multiple fixed-size rows, simply naively using the existing code would force the entire rowspan to be in a single page

(Which is how tablex does it anyway)

That's not 100% desirable - it could be possible to allow such rows to be distributed over multiple pages - so the underlying implementation could need some possibly major changes to accommodate for that case

[mild pagoda]

That sounds like the block breaking thing that has been rejected

[wary knot]

You mean the "SplitElem" idea?

[mild pagoda]

I think so

[wary knot]

well

in the internal code we dont need it since we can control when to issue a pagebreak

so we definitely have more tools at hand than tablex here

that's probably one of the major reasons why tablex probably won't be able to properly implement breakable cells

---

OTOH (for native tables) cells in auto rows can be broken across multiple pages so theres that

worth noting that this causes the whole row to be expanded across pages, not just a single cell
(which makes sense of course)

but for merged cells spanning one or moreauto rows, we'd probably just want the last auto row to expand (to make our own lives easier)

although that's a bit harder to do when the auto row isn't the last row, e.g. it spans

1em, 2em, auto, 3em <--- we have to somehow make sure that we expand by "excess space - 3em"

(mostly just brainstorming here btw. not proposing anything yet)

so i think what we are seeing here is that merged cells would probably be implemented like, separately from rows in general

they'd have their own "pagebreaking logic"

ill probably play around with blocks and see how they behave to get a better grasp of how things should work

well this already gives me a bit of insight on the 100% fixed rows thing

we can basically use the same logic as a block here

so if it pagebreaks somewhere in the middle, content inside the rowspan will reflow automatically

(tablex uses a box but same thing here)

though it's kinda weird cuz internally we wouldn't know yet whether or not a pagebreak will occur, since we are the ones creating pagebreaks
so theres that...

maybe we can cheat and just literally place a block 😂

anyway lol, dont mind me, just thinking out loud

[wary knot]

ok so

I've thought of two potential designs for merged cells (w.r.t. rowspans)

one of them isnt very clear and is likely more difficult to execute

the first potential design is inspired by tablex, but its behavior might not be fully desirable, although it's easier to implement

the idea is: if a cell spans multiple rows, the rows must stay in the same page, except (perhaps) the last auto row it spans

the last auto row can expand so we can allow the cell to cross multiple pages that way. But , in principle, if it doesnt span any auto rows, then it is restricted to a single page

(scary 👻 implementation details alert) internally, this could probably be implemented using the "row group" approach by tablex: all rows in a rowspan are grouped together and laid out together.
Internally, there is a buffer of rows that are ready to be laid out in the current page; when the current page is done (.finish_region is called), the buffer is emptied, and each pending row is "drawn" in the page.
The idea here is that we'd keep a separate buffer. Before sending rows to the "draw in this page" buffer, we send them to a "draw with this row group" buffer first. That buffer is only sent to the "draw in this page" buffer when all rows in the row group are ready to be drawn*. Thus, they will all be drawn in the same page.

*that changes when auto rows are involved, so right now im not considering them.

That would at least remain consistent with the current behavior for fixed height rows (they forbid cells from breaking across pages).
But it would need some adaptations to make auto rows work, cuz they can force a page break...
maybe we could force non-last auto rows in a rowspan to not produce any page breaks, but I dont really like that idea

either way, assuming all rows are fixed height except for the expandable auto row for that rowspan, we'd basically delay laying out the rowspan cell until the last auto row which allows it to expand, and then it'd be laid out together with that row, thus allowing it to be broken across pages

but there are several potential points of failure in this logic so this is just a draft

[wary knot]

the second potential design is to lay out all non-merged cells, and then at the end lay out the merged cells on top

this would probably be more "natural" since it wouldnt require rows in a rowspan to stay together in the same page

but im still not sure where i'd go with that

in particular rows wouldnt react to rowspans at all that way so... expanding the last auto row wouldnt work

well, maybe it could work somewhat using measure beforehand

¯_(ツ)_/¯

i will have to give it some thought

but anyway

just wanted to dump here the results from my latest brainstorm

😂

[wary knot]

Part 2a merged 🎉

Let's keep going 😎

Part 2b should be ready for review by next week 🚀

(it's pretty much ready but I want to polish the code and add docs)

[vernal herald]

Those are dherse numbers... 2024 is the year of typst I guess. 😅

[wary knot]

Hehe, I worked on Parts 2a and 2b pretty much in parallel, which let me do this 🙂

I admit I'm kinda stuck on Part 3 right now though...

(You can see what I mean by scrolling up a bit 😂 )

[vernal herald]

(sorry my brain is a cookie right now, so i'mma just compliment the progress and stuff...) 🚀🚀

[wary knot]

Yeah dw about it

Let us handle the big fish 😂

[wary knot]

fellow Rustaceans, what do you think is better? 🤔

first one seems simpler overall, but adding 1 with each get does look kinda bad 😂

[mild pagoda]

The hints make it really hard to read

[wary knot]

oof sorry

// Let's find the first available position starting from the
// automatic position counter, searching in row-major order.
let mut resolved_index = *auto_index;
while let Some(Some(_)) = resolved_cells.get(resolved_index) {
    // Skip any non-absent cell positions (`Some(None)`) to
    // determine where this cell will be placed. An out of bounds
    // position (thus `None`) is also a valid new position (only
    // requires expanding the vector).
    resolved_index += 1;
}

// or
let resolved_index = resolved_cells.iter()
    .enumerate()
    .skip(*auto_index)
    .find(|(_, cell)| cell.is_none())
    .map(|(i, _)| i)
    .unwrap_or_else(|| resolved_cells.len());

erm. just noticed the second comment is kinda wrong there (non-absent would be Some(Some(...))), but anyway... :p

tbh the second one does say exactly what it's doing though so it's probably overall clearer

[mild pagoda]

I think there's a method that returns an for find or something like that

[sly sparrow]

position

[mild pagoda]

Means you skip the map find and enumerate

[wary knot]

hmm.. interesting

[sly sparrow]

https://doc.rust-lang.org/std/iter/trait.Iterator.html#method.position

[wary knot]

i'd still have to sum *auto_index at the end though

since then it'd be the position after the skip

[mild pagoda]

Hmm

[wary knot]

but that's probs not that bad

just a map

lol. i should probably test later what happens if you specify like a really big number

cant wait to crash Typst with huge tables

ok, I think I'll settle on this now (tests are passing tm):

// Let's find the first available position starting from the
// automatic position counter, searching in row-major order.
// We have to sum 'next_auto_index' at the end since we'd have
// the position after the initial skip, not from the start of the
// vector.
let next_auto_index = *auto_index;
let resolved_index = resolved_cells
    .iter()
    .skip(next_auto_index)
    .position(Option::is_none)
    .map(|i| i + next_auto_index)
    .unwrap_or_else(|| resolved_cells.len());

thanks to both 🤝

[random mica]

https://doc.rust-lang.org/std/iter/trait.Iterator.html#method.position

oop nevermind I was too late

[wary knot]

Hey everyone

So basically Part 2b (x and y fields for cells) is mostly ready (the implementation works and stuff, needs reviewing of course but otherwise it's fully functional)

Though I'm missing a bit on documentation still
Would anyone be interested in giving me a hand? 👀

basically just need to come up with some examples of placing cells arbitrarily (at least one cell with x: something, y: something; one cell with just x: something, which places it in the first row with that column available; and one cell with just y: something, which places it in the first available column in that row)

e.g. #table(table.cell(x: something, y: something)[a]), #grid(grid.cell(x: something, y: something)[a])

(I can probably do it myself, just wanted to see if anyone could help speed that up :p)

[grand haven]

Chessboard maybe?

[wary knot]

oooh thats a good one

not sure about the ones with "partial" positioning

but maybe it could be integrated with that example

either way make sure to send more ideas

[grand haven]

Hm, yeah that's trickier

How does that even work? It would depend on the order you specify them in right?

[wary knot]

yeah

well, thats already how it works technically

:p

it would just allow you to pick one but not the other coordinate

and then it'd place on the first available position

if you try to place on a row which is already full, it errors

but for a column it always succeeds cuz u can just create more rows

[grand haven]

I can't immediately think of a good real-world example. Some sort of scheduling maybe?

[wary knot]

hmmm

actually not bad at all lol

maybe you want to do something every saturday

so you just fill the saturday column

well

funnily enough this is more general, it allows you to specify columns without array.zip

i didnt think about that

anyway. a calendar could work

and maybe theres this specific week during which you will be traveling so you fill it with the "travel" event

lol

(row filling)

[grand haven]

I haven't actually tried. Is it possible to make a cell span both multiple rows and columns at the same time @wary knot ?

[wary knot]

in tablex?

yeah

[grand haven]

Yes

I now see that it's explicitly mentioned

Though something like spanx(2,2)[Hello] might be more user friendly?

Over rowspanx(2,colspanx(2)[Hello])

[wary knot]

well, you can write cellx(colspan: 2, rowspan: 2)[Hello]

I guess it could be reduced to columns: and rows: or something

on native tables

but that'd mostly be bikeshedding

:p

which can definitely be done (just wont be my focus atm)

[grand haven]

Sure, my main question was whether it was possible in the first place.

[wary knot]

yea fair enough

to be clear though rn Part 3 (merged cells) is currently kinda blocked cuz im still not sure how im gonna implement rowspans

colspans are dead easy to implement though

but rowspans involve pagebreaking and everything gets harder :p

[wary knot]

okay. i think i got an initial idea, ill just dump it here for future reference but others shouldnt worry about it

I was thinking that rowspans could have their layouting delayed until we absolutely need to lay it out

if it spans an auto row, that moment will be when we lay out its last auto row.
but if it doesn't, then that moment could be just when we lay out its very last row.

the idea is that, by the moment we reach the last auto row, we already know the sizes of all other rows it spans, so we can just have
last auto row height = max(other cells in the auto row, rowspan content - known row sizes)
known row sizes would exclude fractional rows in later pages since we cant know their actual values until we get to those pages

so we would just layout the rowspan using rowspan content - known row sizes as a height, or sum of all row sizes if it doesnt span an auto row

and then we'd backtrack and update each "already finished" page to include the rowspan's contents

not sure if that will work but at least I have some idea that I can experiment with now

[keen crescent]

This has the advantage of an inherently funny name

[keen crescent]

You could do a seating chart for a classroom/event; Assign a student to a specific seat, reserve a whole row or column, etc.

Another idea for some part of it could be a diagram of an n-way cache assignment or the solution to a word-search

Maybe a wordle solution?

[wary knot]

thanks for the suggestions 👍

I made the first example right now

how's this looking? 👀

[keen crescent]

Pretty good, I definitely think it gets the point across. There's a lot going on visually though, which is a little overwhelming

I can mock something up when I get off this bus if you want me to, but I think it might be a little clearer if the calendar grid used just thin/dotted lines on a white background, then the weekday bar was grey

Maybe if you wanted to draw more attention to the specific cells you've modified, you could color them to stand out

[upbeat pine]

If you are asking for a general review. It looks good, but the first thing that I dislike is the unbordered top row, I think there should be some separation between cells. What are you looking for? I don't know what to say. It's not bad, it's just normal.
Nevermind, I don't think this is a general question.

[wary knot]

well, just wanted an opinion on the example

from what Mirlo is saying I can see that the cell fills are a bit too dark

they stand out more than they should

at least

also i cant really add a border specific to the top row yet cuz no line customization yet

:p

but we will get there

@keen crescent is this what you were thinking of?

[keen crescent]

Yeah, it's definitely easier to read

[wary knot]

yeah I agree

thanks for the feedback!

[keen crescent]

One more thing might be to make the numbers black and the write-ins red, just to make them stand out more

[wary knot]

hmm idk

i think i prefer the other way

so

this is the code , for the curious:

#set page(width: auto)
#show grid.cell: it => {
  if it.y == 0 {
    // The first row is the header of the calendar.
    // We make it bold.
    strong(it)
  } else {
    // For the second row and beyond, we will write the day number for each
    // cell.

    // In general, a cell's index is given by cell.x + columns * cell.y.
    // Days start in the second grid row, so we subtract 1 row.
    // But the first day is day 1, not day 0, so we add 1.
    let day = it.x + 7 * (it.y - 1) + 1
    if day <= 31 {
      // Place the day's number at the top left of the cell.
      // Only if the day is valid for this month (not 32 or higher).
      place(top + left, dx: 2pt, dy: 2pt, text(8pt, red.darken(40%))[#day])
    }
    it
  }
}

#grid(
  // First row (the calendar header) has a gray background.
  fill: (x, y) => if y == 0 { gray.lighten(50%) },
  // Make each day (second row onwards) a square
  // (row height: 30pt, column width: 30pt).
  columns: (30pt,) * 7,
  rows: (auto, 30pt),
  // Events will be written at the bottom of each day square.
  align: bottom,
  // Add some internal padding in each cell.
  inset: 5pt,
  stroke: (thickness: 0.5pt, dash: "densely-dotted"),

  // Header row with each weekday.
  [Sun], [Mon], [Tue], [Wed], [Thu], [Fri], [Sat],

  // This event will occur on the first Friday (sixth column).
  grid.cell(x: 5)[Call],

  // This event will occur every Monday (second column).
  // We have to repeat it 5 times so it occurs every week.
  ..(grid.cell(x: 1)[Meet],) * 5,

  // This event will occur at day 19.
  grid.cell(x: 4, y: 3)[Talk],

  // These events will occur at the second week, where available.
  grid.cell(y: 2)[Chat],
  grid.cell(y: 2)[Walk],
)

a bit large mostly because of the comments

:p

but yeah

eh i think ill remove most comments

after all the output will be right there

so should be easier to associate one thing to another

[keen crescent]

I made the mock up anyways just because; I don't think this can actually be done at the present time

[wary knot]

oooh

yeah it can

i mean

well except for lines

I think this might be good enough perhaps

[keen crescent]

Yeah I think that works

[wary knot]

huzzah 👍

thanks , looks much better now i think

a truly professional example now

people will be making calendar apps in Typst

😂

i wanna give the chessboard idea a shot as well

though im not 100% sure

maybe a small chess puzzle works

[wary knot]

well, i made this but it's a bit silly lol

apparently the black pawn character doubles as an emoji, leading to that

so lol

[upbeat pine]

Sounds like the next "Christmas Game" spin-off. ;)

[wary knot]

lol

i dont think that looks very nice as an official example though

idk

the calendar one was just too good

😂

im failing to think of anything remotely as good

[grand haven]

I think using svgs would be easiest

[wary knot]

probs

i dont think I can do that for compiler examples though :p

so I'll probably have to think of something else

[grand haven]

Get someone to publish a package that has chess pieces, then use those 🧠

[wary knot]

oh i know

theres that game , Go

i know nothing about it but maybe we can use it

lol

[grand haven]

Can you not use a different font by the way? Or do you always run into the emoji issue

[wary knot]

i think it's about PNG export, in PDF it'd probably look normal

also

theres like

a modifier you can add to emoji to force them to display as text

but when i add it in Typst it just disappears lol

[grand haven]

that sounds like something that should be fixed

[wary knot]

it's probably somehow lacking font support, idk

doesnt sound trivial to fix

oh

actually theres an issue already

https://github.com/typst/typst/issues/2448

lol

whatevs

ill probably add some random example for #table and link to grids cuz they will have the cool calendar example

or maybe I can just copy-paste the calendar example but s/grid/table

lol

[wary knot]

for posterity, here's the code for this chess board thing

#set page(width: auto)
#show table.cell: set text(15pt)

#table(
  fill: (x, y) => if calc.odd(x + y) { aqua.darken(60%) } else { aqua.darken(10%) },
  columns: (auto,) * 8,
  rows: 15pt,
  align: center + horizon,
  inset: 0pt,
  stroke: none,

  [♜], [♞], [♝], [♛], [♚], [♝], [♞], [♜],
  [♟], [♟], [♟], [♟], [], [♟], [♟], [♟],
  table.cell(x: 4, y: 3)[♟],

  ..(table.cell(y: 6)[♙],) * 8,
  ..([♖], [♘], [♗], [♕], [♔], [♗], [♘], [♖]).map(table.cell.with(y: 7)),
)

[grand haven]

I just did this in the web app, and it looks alright even when exported to png @wary knot

?r #set page("a7") #array.range(9812,9824).map(it => eval("\\u{"+str(it,base: 16)+"}",mode:"markup"))
